SERVICE MANUAL
DVD PLAYER
DVL700G
POWER SKIP SKIPPLAY STOP OPEN/CLOSE
Page 2
IMPORTANT SAFETY NOTICE
Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.
It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.
TABLE OF CONTENTS
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1-1
Laser Beam Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2-1
Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-1
Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4-1
Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5-1
How to Initialize the DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6-1
Firmware Renewal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7-1
Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8-1
Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9-1
Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10-1
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11-1
System Control Timing Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-12-1
IC Pin Function Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13-1
Lead Identifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14-1
Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15-1
Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16-1
Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17-1
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Page 3
SPECIFICATIONS
Item Conditions Unit Nominal Limit
1. Video Output 75 Ω load Vpp 1.0 ± 0.1
2. Coaxial Digital Out 75 Ω load mVpp 500 ± 50
3. Audio (PCM)
3-1. Output Level 1 kHz, 0 dB Vrms 1.9
3-2. S/N dB 120
3-3. Freq. Response
DVD fs = 48 kHz, 20 Hz ~ 22 kHz dB ± 1.0
CD fs = 44.1 kHz, 20 Hz ~ 20 kHz dB ± 1.0
3-4. THD+N
DVD 1 kHz, 0 dB % 0.005
CD 1 kHz, 0 dB % 0.005
Notes:
1. All Items are measured without pre-emphasis unless otherwise specified.
2. Power supply: AC 120 V, 60 Hz
3. Load Impedance: 100 kΩ load (Audio Output)
4. Room Ambient: +25 °C
1-1-1 E6A60SP
Page 4
LASER BEAM SAFETY PRECAUTIONS
This DVD player uses a pickup that emits a laser beam.
Do not look directly at the laser beam coming
from the pickup or allow it to strike against your
skin.
The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep
your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser
beam.
CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in
hazardous radiation exposure.
Drive Mechanism
Assembly
Laser Beam Radiation
Laser Pickup
Turntable
WHEN OPEN. DO NOT
CAUTION
LASER RADIATION
STARE INTO BEAM.
Location: Top of DVD mechanism.
1-2-1 E7NLSP
Page 5
IMPORTANT SAFETY PRECAUTIONS
Product Safety Notice
Some electrical and mechanical parts have special
safety-related characteristics which are often not
evident from visual inspection, nor can the protection
they give necessarily be obtained by replacing them
with components rated for higher voltage, wattage,
etc. Parts that have special safety characteristics are
identified by a # on schematics and in parts lists. Use
of a substitute replacement that does not have the
same safety characteristics as the recommended
replacement part might create shock, fire, and/or other
hazards. The Product’s Safety is under review
continuously and new instructions are issued
whenever appropriate. Prior to shipment from the
factory, our products are carefully inspected to confirm
with the recognized product safety and electrical
codes of the countries in which they are to be sold.
However, in order to maintain such compliance, it is
equally important to implement the following
precautions when a set is being serviced.
Precautions during Servicing
A. Parts identified by the # symbol are critical for
safety. Replace only with part number specified.
B. In addition to safety, other parts and assemblies
are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.
C. Use specified internal wiring. Note especially:
1) Wires covered with PVC tubing
2) Double insulated wires
3) High voltage leads
D. Use specified insulating materials for hazardous
live parts. Note especially:
1) Insulation tape
2) PVC tubing
3) Spacers
4) Insulators for transistors
E. When replacing AC primary side components
(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.
F. Observe that the wires do not contact heat
producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.).
G. Check that replaced wires do not contact sharp
edges or pointed parts.
H. When a power cord has been replaced, check that
5 - 6 kg of force in any direction will not loosen it.
I. Also check areas surrounding repaired locations.
J. Be careful that foreign objects (screws, solder
droplets, etc.) do not remain inside the set.
K. Crimp type wire connector
The power transformer uses crimp type
connectors which connect the power cord and the
primary side of the transformer. When replacing
the transformer, follow these steps carefully and
precisely to prevent shock hazards.
Replacement procedure
1) Remove the old connector by cutting the wires
at a point close to the connector.
Important: Do not re-use a connector.
(Discard it.)
2) Strip about 15 mm of the insulation from the
ends of the wires. If the wires are stranded,
twist the strands to avoid frayed conductors.
3) Align the lengths of the wires to be connected.
Insert the wires fully into the connector.
4) Use a crimping tool to crimp the metal sleeve at
its center. Be sure to crimp fully to the complete
closure of the tool.
L. When connecting or disconnecting the internal
connectors, first, disconnect the AC plug from the
AC outlet.
1-3-1 DVDN_ISP
Page 6
Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Chassis or Secondary Conductor
Primary Circuit
AC Line Voltage Clearance Distance (d), (d’)
120 V ≥ 3.2 mm (0.126 inches)
Note: This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
d' d
Fig. 1
Exposed Accessible Part
Z
AC Voltmeter
(High Impedance)
Earth Ground
B
Power Cord Plug Prongs
Table 2: Leakage current ratings for selected areas
AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to:
120 V
Note: This table is unofficial and for reference only. Be sure to confirm the precise values.
0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel
i ≤ 0.5 mA Peak Exposed accessible parts
1-3-2 DVDN_ISP
Fig. 2
Page 7
STANDARD NOTES FOR SERVICING
Circuit Board Indications
1. The output pin of the 3 pin Regulator ICs is
indicated as shown.
Top View
Out
2. For other ICs, pin 1 and every fifth pin are
indicated as shown.
Pin 1
3. The 1st pin of every male connector is indicated as
shown.
Pin 1
Input
In
Bottom View
5
10
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
Fig. S-1-1
Instructions for Connectors
1. When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2. FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
2. Remove the flat pack-IC with tweezers while
applying the hot air.
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
1-4-1 DVDN_SN
Page 8
3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
CBA
Masking
Tape
Tweezers
Hot-air
Flat Pack-IC
Desoldering
Machine
Flat Pack-IC
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
Sharp
Pin
Fine Tip
Soldering Iron
3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Fig. S-1-4
1-4-2 DVDN_SN
Page 9
With Iron Wire:
1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
Hot Air Blower
2. Installation
1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
To Solid
Mounting Point
CBA
Tweezers
Iron Wire
Soldering Iron
Fig. S-1-5
Fine Tip
Soldering Iron
Flat Pack-IC
or
Presolder
Flat Pack-IC
CBA
Fig. S-1-8
Fig. S-1-6
1-4-3 DVDN_SN
Page 10
Instructions for Handling Semiconductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
<Incorrect>
<Correct>
1MΩ
CBA
Grounding Band
1MΩ
CBA
Conductive Sheet or
Copper Plate
1-4-4 DVDN_SN
Page 11
CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
[1] Top Case
[2] Front Assembly
[3] Reinforce Plate
[4] DVD Main CBA Unit
[5] DVD Mechanism [6] AV CBA
[7] Function CBA
2. Disassembly Method
ID/
Loc.
No.
[1] Top Case D1 3(S-1) -
[2]
[3]
[4]
[5]
[6] AV CBA D6 (S-5), 4(S-6), *2(L-6) -
[7]
↓
(1)
Part
Front
Assembly
Reinforce
Plate
DVD Main
CBA Unit
DVD
MechanismD4D5
Function
CBA
↓
(2)
Fig.
No.
D2
D3 2(S-2) -
D4
D6 *CN2001 -
↓
(3)
*2(L-1), Tray Panel,
*4(L-2), *2(L-3),
*3(L-4), *3(L-5)
(S-3),
*CN201, *CN301,
*CN401, *CN601
4(S-4)
Removal
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
↓
(4)
Note
1
2
2
3
↓
(5)
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
About tightening screws
When tightening screws, tighten them with the
following torque.
Screws Torque
(S-1), (S-2), (S-3), (S-4),
(S-5), (S-6)
0.45 ± 0.05 N·m
Reference Notes
1. CAUTION 1: Locking Tabs (L-1), (L-2), (L-3), (L-4)
and (L-5) are fragile. Be careful not to break them.
1) Connect the wall plug to an AC outlet and press
the [A OPEN/CLOSE] button to open the tray.
2) Remove the Tray Panel by releasing two
locking tabs (L-1).
3) Press the [A OPEN/CLOSE] button again to
close the tray.
4) Press the [POWER] button to turn the power
off.
5) Unplug an AC cord.
6) Release four Locking Tabs (L-2), then release
two Locking Tabs (L-3) and three Locking Tabs
(L-4).
7) Release three Locking Tabs (L-5), and remove
the Front Assembly.
2. CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc, during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
1) Short the three short lands of FPC cable with
solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroyed. (Fig. D4)
1-5-1 E6A20DC
Page 12
2) Disconnect Connectors (CN301), (CN401) and
(CN601). Remove Screw (S-3) and lift the DVD
Main CBA Unit. (Fig. D4)
3. CAUTION 3: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D4).
.
(S-2)
(S-2)
[3] Reinforce Plate
[1] Top Case
(L-1)
(L-2)
(L-3)
(L-5)
(L-1)
Tray Panel
(S-1)
Fig. D1
CN201
CN301
CN401
Fig. D3
(S-3)
CN601
[4] DVD Main
CBA Unit
A
(L-2)
(L-4)
[2] Front Assembly
(L-3)
Fig. D2
Short the three short lands by soldering.
(Either of two places.)
FPC Cable
View for A
Fig. D4
1-5-2 E6A20DC
Page 13
(S-4)
[5] DVD Mechanism
(S-4)
(S-4)
[7] Function CBA
(S-5)
CN2001
[6] AV CBA
(S-6)
(L-6)
Fig. D5
3. How to Eject Manually
1. Turn the unit over.
2. Insert the shaft less than a diameter of 3 mm (e.g. screwdriver) straightly into the opening as shown.
3. Turn the shaft along with the opening clockwise.
4. Repeat steps 2 and 3 until the tray will open.
5. Pull the tray slowly manually.
View for B
Rear
Turn the shaft along with
the opening clockwise.
Shaft
(e.g. screwdriver)
Opening
Fig. D6
B
Front
1-5-3 E6A20DC
Page 14
HOW TO INITIALIZE THE DVD PLAYER
To put the program back at the factory-default,
initialize the DVD player as the following procedure.
1. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
"
" differs depending on the models.
*******
MODEL : *******
Version
Region
: *.**
: *
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. a
"
" differs depending on the models.
*******
2. Press [CLEAR] button on the remote control unit.
Fig. b appears on the screen.
MODEL : *******
Version
Region
: *.**
: *
EXIT: POWEREEPROM CLEAR : CLEAR
EEPROM CLEAR : OK
Fig. b
When “OK” appears on the screen, the factory
default will be set.
3. To exit this mode, press [POWER] button.
1-6-1 E6A20INT
Page 15
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.

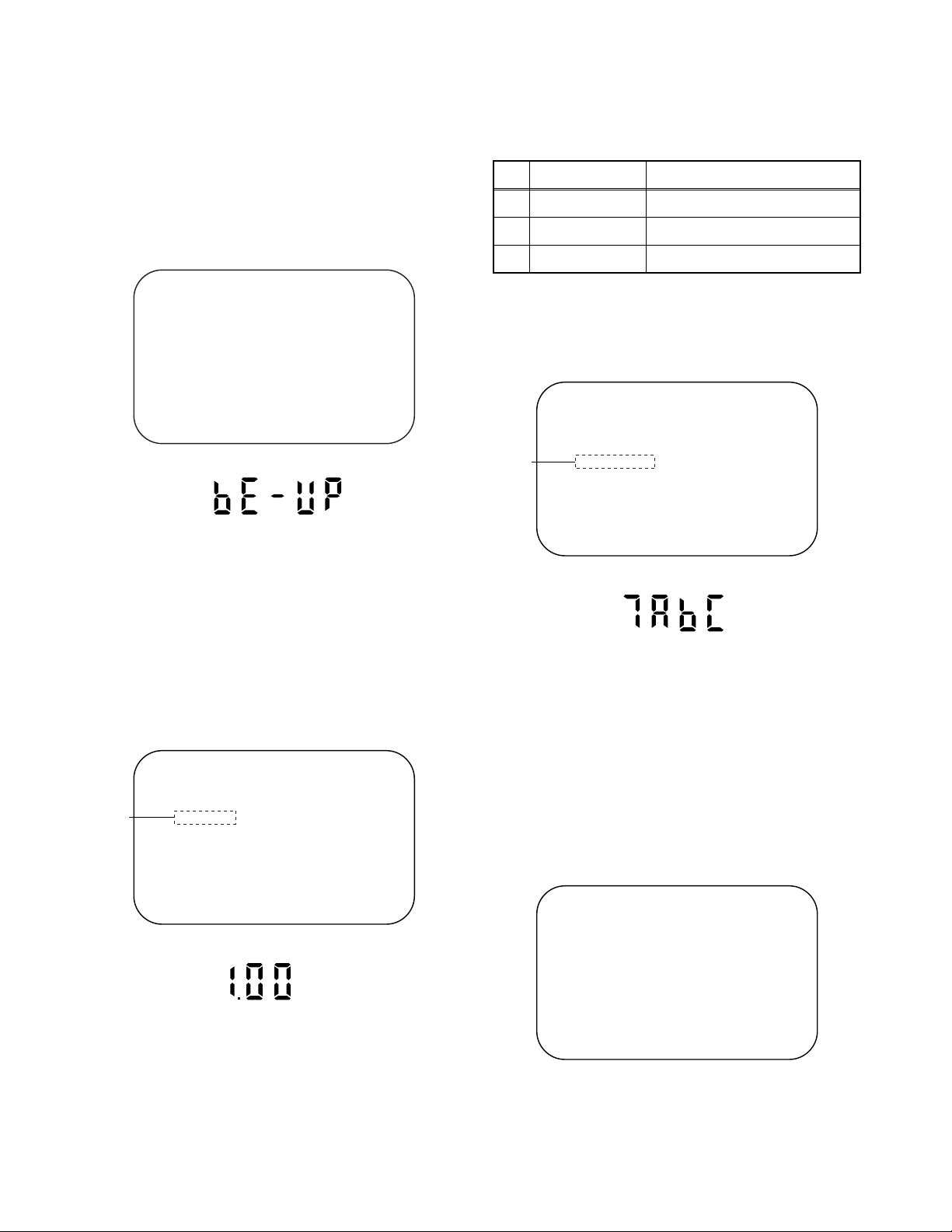

Fig. a appears on the screen and Fig. b appears
on the VFD.
"
" differs depending on the models.
*******
F/W Version Up Mode Model No : *******
Please insert a DISC
for F/W Version Up.
VERSION : *.**
EXIT: POWER
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
"
" differs depending on the models.
*******
(*1)
F/W Version Up Mode Model No : *******
VERSION : ************.ab7
Reading...
VERSION : *.**
The appearance shown in (*1) of Fig. c is
described as follows:
No. Appearance State
1 Reading... Sending files into the memory
2 Erasing... Erasing previous version data
3 Programming... Writing new version data
5. After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum in (*2) of Fig. e appears on the VFD
(Fig. f).
"
" differs depending on the models.
*******
(*2)
F/W Version Up Mode
VERSION : ************.ab7
Completed
SUM : 7ABC
Model No : *******
VERSION : *.**
Fig. e Completed Program Mode Screen
Fig. f VFD upon Finishing the Programming Mode (Example)
At this time, no button is available.
6. Remove the disc on the tray.
7. Unplug the AC cord from the AC outlet. Then plug
it again.
8. Turn the power on by pressing the [POWER]
button and the tray will close.
9. Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.
"
" differs depending on the models.
*******
Fig. c Programming Mode Screen
Fig. d VFD in Programming Mode (Example)
MODEL : *******
Version
Region
: *.**
: *
EXIT: POWEREEPROM CLEAR : CLEAR
Fig. g
1-7-1 E6A20FW
Page 16
10. Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.
"
" differs depending on the models.
*******
MODEL : *******
Version
Region
: *.**
: *
EXIT: POWEREEPROM CLEAR : CLEAR
EEPROM CLEAR : OK
Fig. h
When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.
11. To exit this mode, press [POWER] button.
1-7-2 E6A20FW
Page 17

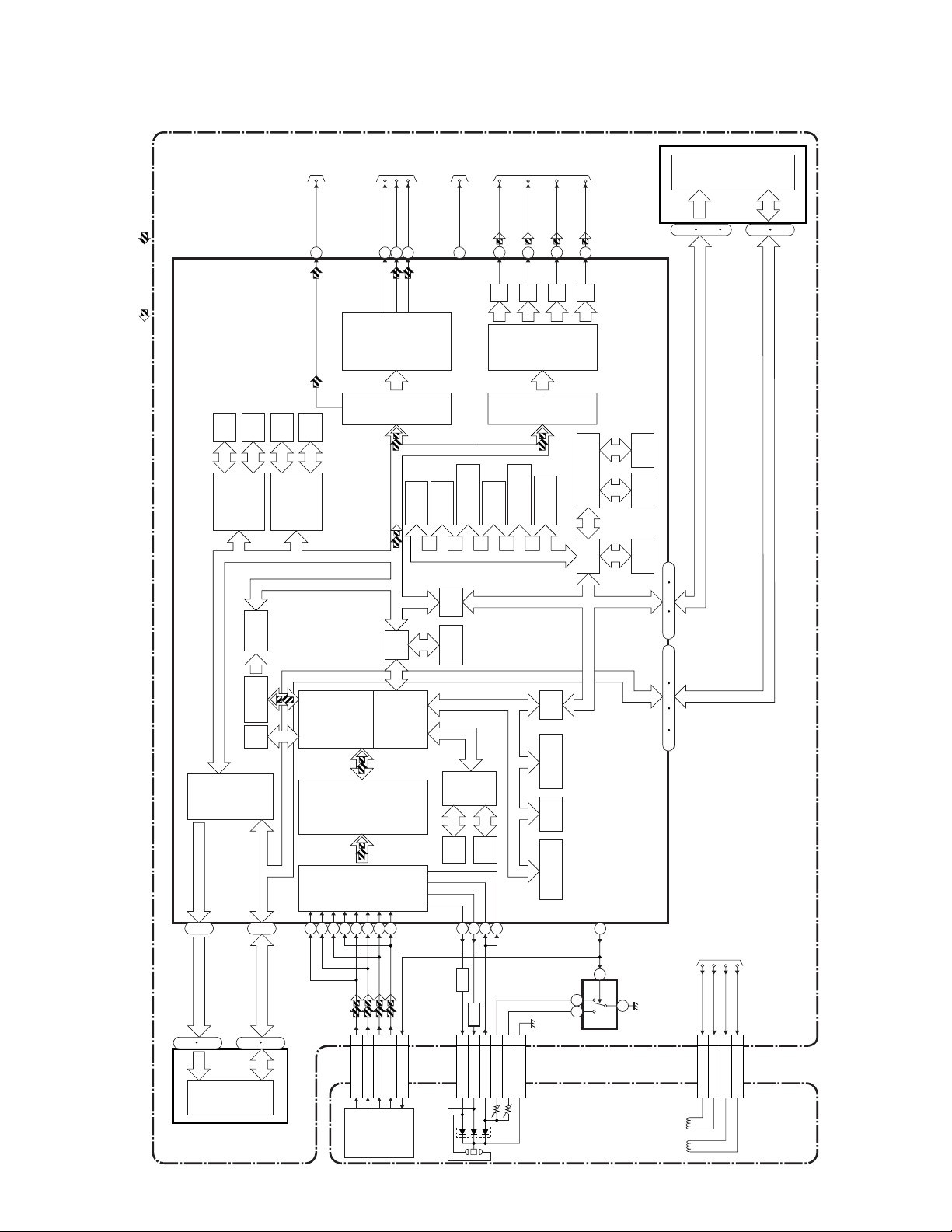

BLOCK DIAGRAMS

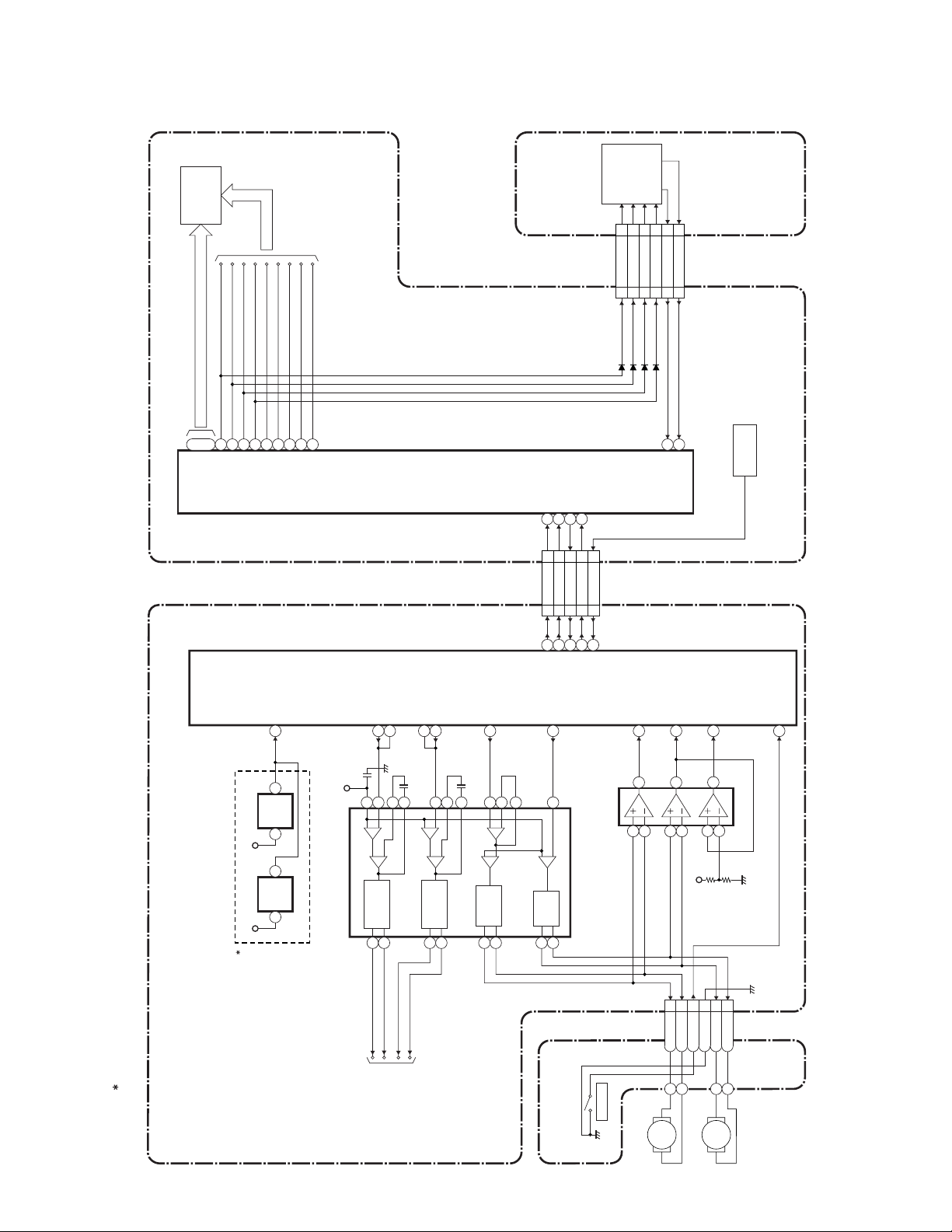

System Control / Servo Block Diagram
FIP
FL2001
SEGMENT
GRID
KEY
KEY-1 5
5
CN2001 CN2101
KEY-2 3
3
MATRIX
FUNCTION CBA
KEY-3 4
K2 1
KEY-4 6
K1 2
4
1
6
2
(FRONT PANEL CONTROL)
IC2001
IC101
~
23
1G
(MICRO CONTROLLER)
789
17
~
7G
a/KEY-1
12
10
11
131416
i
f
g
h
e
c/KEY-3
b/KEY-2
d/KEY-4
2 FP-STB
1 FP-CLK
27 FP-DOUT
28 FP-DIN
CN1001
FP-STB 24
FP-DOUT 21
FP-CLK 23
FP-DIN 22
REMOTE 25
24
21
23
22
25
CN401
54FP-DIN
56FP-STB
53FP-DOUT
55FP-CLK
49REMOTE
DRIVE
312
SPDL
66
-
+
-
+
SPINDLE
MOTOR
DRIVE
12
11
SLD
67
645
23
IC202
(OP AMP)
3
-
+
SLED
MOTOR
DRIVE
17
18
1
IC462
+3.3V
IC461
+3.3V
RESET70
RESET
1 3
RESET
2 1
VREF
(SERVO DRIVE)
IC301
FOCUS DRIVE
FD-OFST
127
124
26
25
27
-
+
-
+
FOCUS
ACTUATOR
DRIVE
15
16
24
TRACKING
TD-OFST
126
123
-
+
-
+
TRACKING
ACTUATOR
DRIVE
14
13
SP-ROT
121
1
3
4
K1
K2
SL-ADS
122
7
6
2
5
+3.3V
63 SL-AMP
8
10
RM2001
9
REMOTE
AV CBA
SENSOR
TRAY-IN
65
DVD MAIN CBA UNIT
1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
FS(+)
FS(-)
TO DIGITAL SIGNAL
TS(+)
TS(-)
PROCESS BLOCK
DIAGRAM
1-8-1
1SP(+)
2SP(-)
6TRAY-IN
3GND
4SL(-)
SLED
MOTOR
5SL(+)
M
CN301
TRAY-IN
DRIVE CBA
SPINDLE
MOTOR
M
E6A20BLS
Page 18
Digital Signal Process Block Diagram
TO
VIDEO
/AUDIO
BLOCK
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
DIAGRAM
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
FLASH
ROM
AUDIO SIGNAL
VIDEO SIGNAL
DATA
RAM
DSP
INST.
ROM
DECODER
STREAM
I/F
DATA
RAM
I/O
PROCESSOR
SPDIF
INST.
SERIAL
I/P-SW
47
I/P-SW
GENERAL
I/O
CPU
I/F
READ
MEMORY
INTERRUPT
CONTROLLER
AUDIO(L)
AUDIO(R)
152
ROM
AUDIO(L)-MUTE
151
146
144
AUDIO D/A
CONVERTER
AUDIO
I/F
UMAC
VIDEO-C
VIDEO-Y(I/P)
131
139
C
Y(I/P)
D/A
D/A
TIMER
WATCH DOG
TIMER
VIDEO-Cr/Pr
129
Cr/Pr
D/A
NTSC/PAL
ENCODER
VIDEO
I/F
REMOTE
CONTROL
VIDEO-Cb/Pb
130
Cb/Pb
D/A
32BIT CPU
BCU
DATA
INST
DEBUG
CACHE
CACHE
IC103 (FLASH ROM)
1
34~42 212
21~30
~
9
~
162548
FADR (0-19)
~
293638
FDQ (0-15)
~
45
SDRAM ADDRESS(0-10)
IC101 (MICRO CONTROLLER)
~
194
209
SDRAM ADDRESS(0-10)
~~
222629
IC503 (SDRAM)
EXTERNAL
MEMORY
I/F
2
34
SDRAM
DECODER
I/F
ECC
SDRAM DATA(0-15)
~
159
178
SDRAM DATA(0-15)
~
134253
IC201
4
(SW)
17~18 215~216
7~14
1~4
FS
TS
FS(+)
CN201
FS(+) 2
TO SYSTEM
CONTROL/SERVO
FS(-)
TS(+)
FS(-) 3
TS(+) 1
BLOCK DIAGRAM
TS(-)
TS(-) 4
DVD MAIN CBA UNIT
PICK-UP
UNIT
CPU
5
9
GND(LD)
GND(CD-PD)
I/F
WATCH DOG
TIMER
TIMER
INTERRUPT
CONTROLLER
CD/DVD
62
6
1 3
CD DVD
DMA
RF
999897
100
~
CN201
DVD/CD
FORMATTER
SIGNAL
PROCESS
115
116
C16
D18
CIRCUIT
113
114
A17
B15
DETECTOR
BCU
CD/DVD 19
32BIT
CPU
INST.
ROM
106
AMP
Q253,Q254
CN201
CD-LD 10
DATA
RAM
104
105
103
Q251,Q252
AMP
6
DVD-LD 8
PD-MONI 7
GND(DVD-PD)
1-8-2
E6A20BLD
Page 19

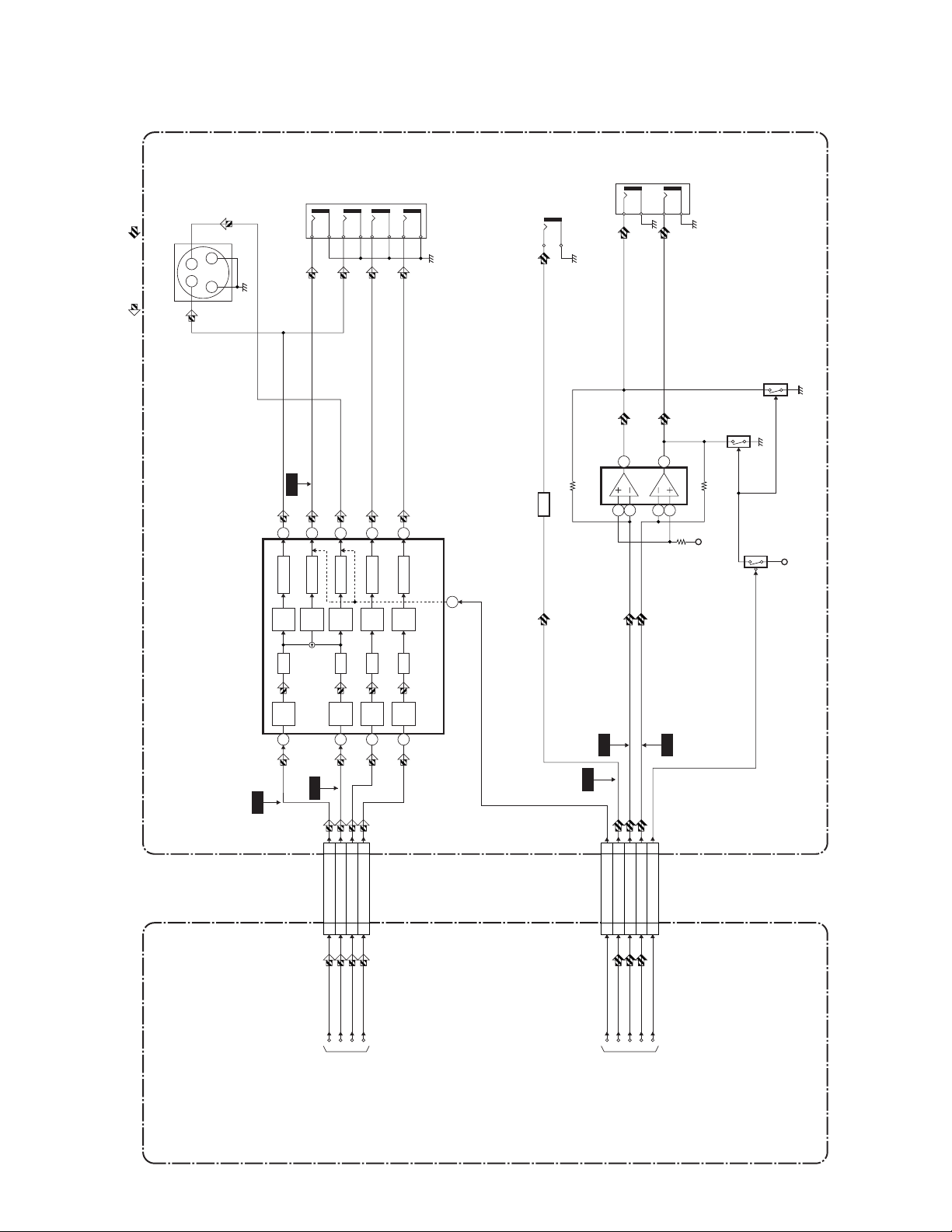

Video / Audio Block Diagram
VIDEO-Cb/Pb
VIDEO-Y
OUT
VIDEO OUT
(COMPOSITE)
JK1401
AUDIO SIGNAL
VIDEO SIGNAL
S-VIDEO OUT
JK1404
43
2
1
YC
WF3
13
14
11
15
OUT
VIDEO-Cr/Pr
OUT
10
DIGITAL
JK1202
AMP
Q1351
AUDIO OUT
(COAXIAL)
(AMP)
IC1201
JK1404
1
3
AUDIO(L)-
OUT
2
AUDIO(R)-
675
OUT
+5V
Q1202
Q1204
Q1201
+3.3V
2dB
AMP
2dB
LPF DRIVER
4dB
AMP
IC1402 (VIDEO DRIVER)
3
WF1
DRIVER
AMP
2dB
4dB
WF2
CN1601
88VIDEO-Y(I/P)
CN601
VIDEO-Y(I/P)
VIDEO-C
AMP
2dB
LPF DRIVER
4dB
AMP
1
66VIDEO-Cb/Pb
44VIDEO-Cr/Pr
10 10VIDEO-C
VIDEO-Cb/Pb
VIDEO-Cr/Pr
AMP
LPF DRIVER
AMP
6
2dB
AMP
LPF DRIVER
4dB
AMP
8
5
WF6
CN601 CN1601
WF4
2
I/P-SW
2
SPDIF
I/P-SW
16
SPDIF
16
12 12AUDIO(L)
AUDIO(R)
AUDIO(L)
14
AUDIO(R)
14
WF5
13 13AUDIO(L)-MUTE
AUDIO(L)-MUTE
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
1-8-3
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
DVD MAIN CBA UNIT AV CBA
E6A20BLV
Page 20

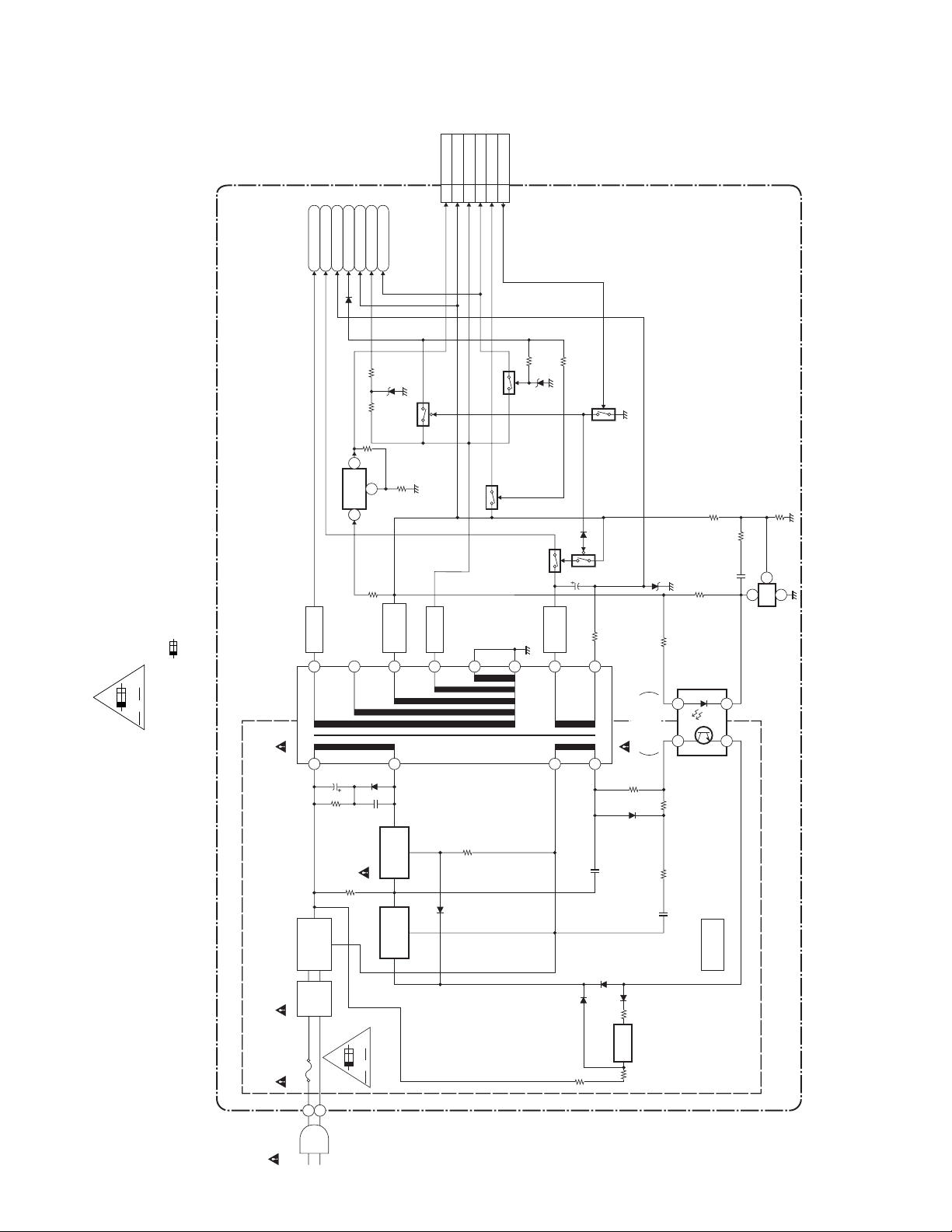

Power Supply Block Diagram
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
EV+1.2V
TO CN401
4,5
CN1001
EV+3.3V
6,7,8
EV+10V10P-ON+5V9P-ON+3.3V20PWRCON
11,12
"Ce symbole reprèsente un fusible à fusion rapide."
"This symbol means fast operating fuse."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
F
A V
T1001
D1003
-FL
F1
F2
IC1002
RECTIFIER
11
2
P-ON+9V
EV+3.3V
2
REG.
+1.2V
3
3
12
EV+5V
P-ON+5V
1
D1008
Q1002
SCHOTTKY
BARRIER
13
4
D1030
RECTIFIER
14
15
Q1011
Q1004
Q1016
Q1015
Q1005
312
REG
2
3
IC1006
(SHUNT REGULATOR)
D1016
RECTIFIER
16
17
18
1
4
IC1001
ERROR
6
7
VOLTAGE DET
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
BRIDGE
RECTIFIER
D1001, D1002
D1004, D1005
LINE
FILTER
L1001
1A 250V
HOT CIRCUIT. BE CAREFUL.
F1001
AC1001
AC CORD
F
SWITCHING
Q1031
SWITCHING
Q1003
A V
CONTROL
1-8-4
Q1008
AV CBA
HOT
LATCH
E6A20BLP
Page 21
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2. All resistance values are indicated in ohms
(K = 10
3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4. All capacitance values are indicated in µF
(P = 10
5. All voltages are DC voltages unless otherwise
specified.
3
, M = 106).
-6
µF).
1-9-1 E7N_SC
Page 22

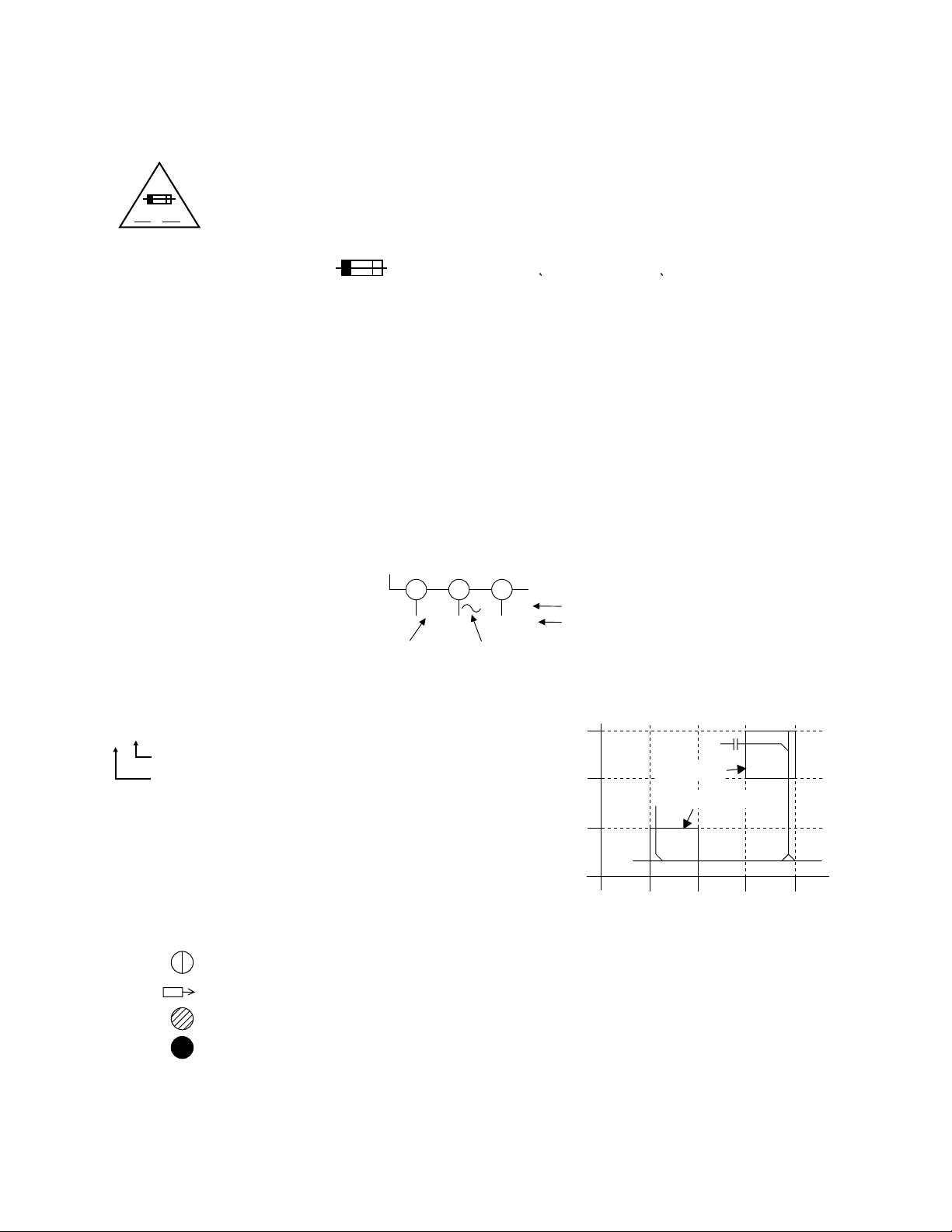

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
F
A V
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.
3. Note:
1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:
2
1
(Unit: Volt)
The same voltage for
both PLAY & STOP modes
5.0
3
5.0
(2.5)
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
5. How to read converged lines
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".
2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".
3
AREA D3
2
1
ABCD
AREA B1
1-D3
1-B1
6. Test Point Information
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
1-9-2 E7N_SC
Page 23

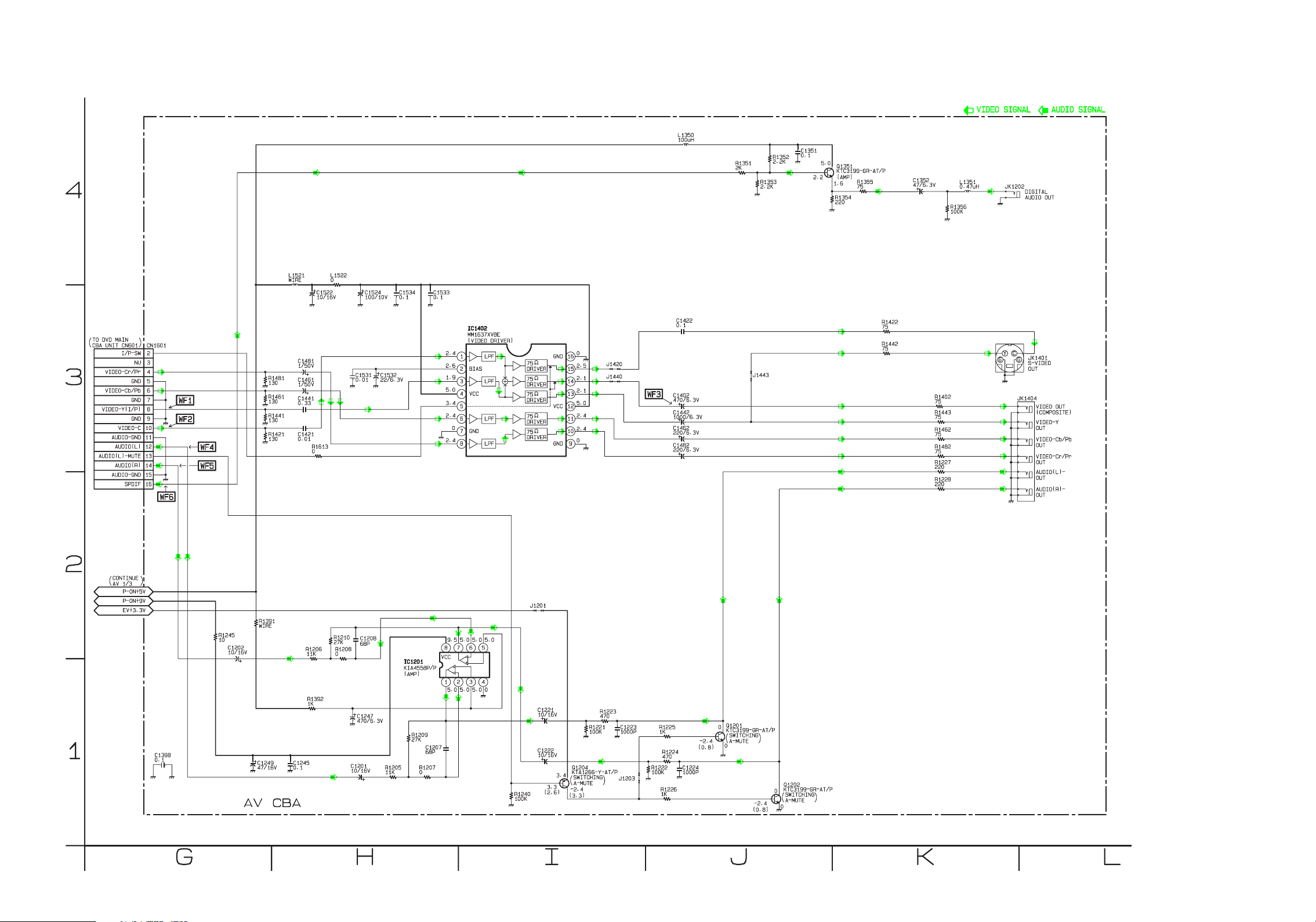

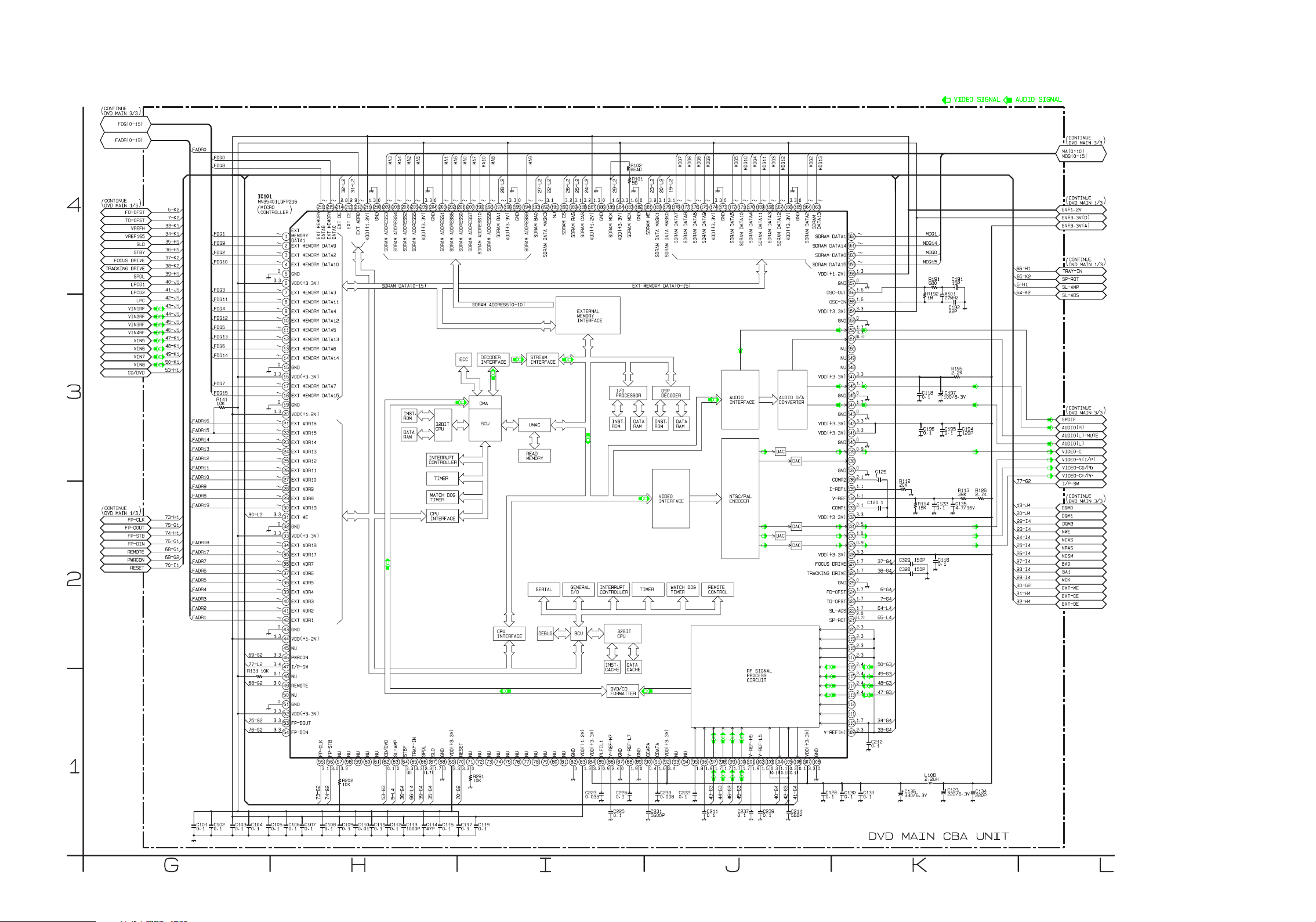

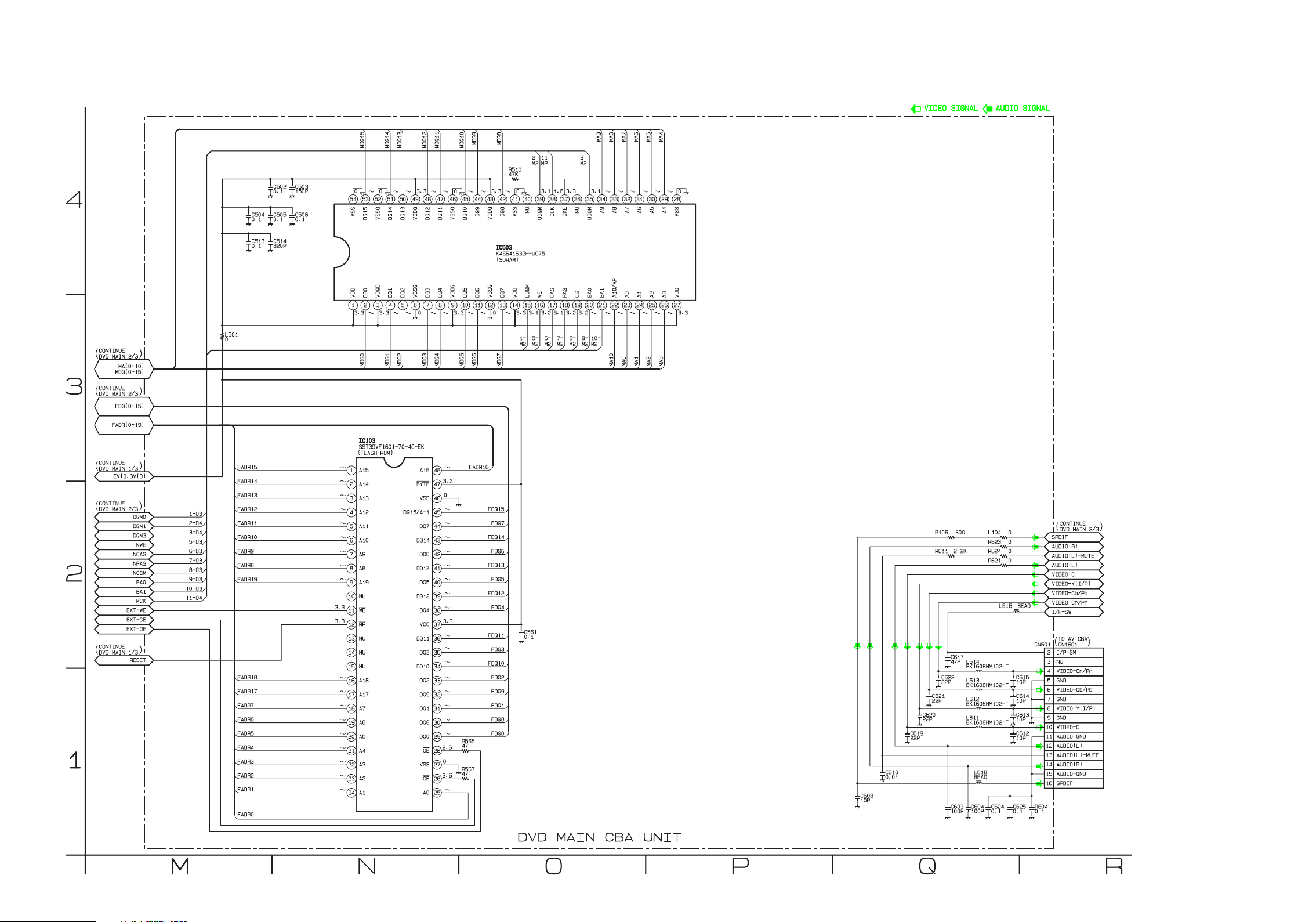

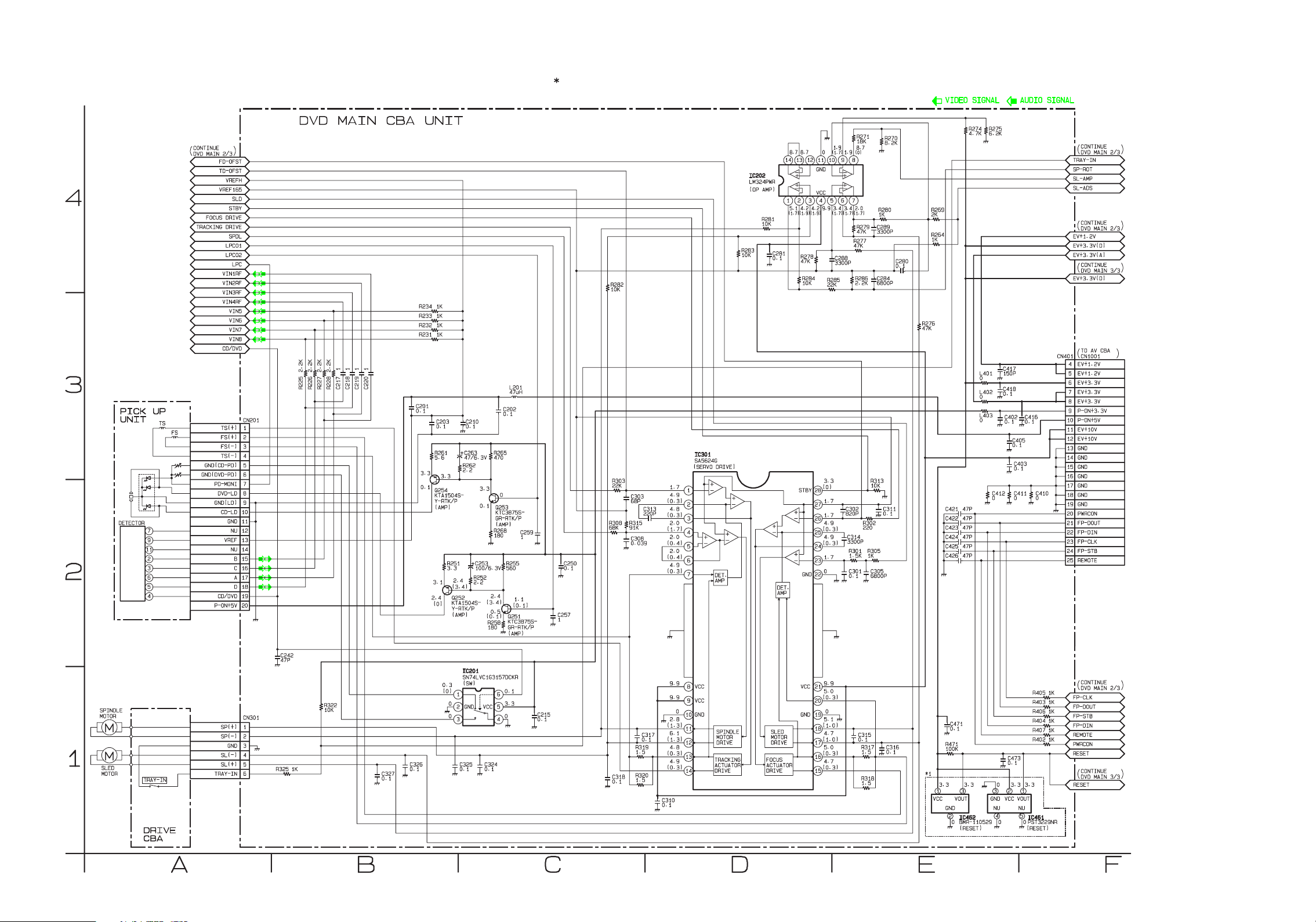

DVD Main 1/3 Schematic Diagram
1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
1-9-3
E6A20SCD1
Page 24
DVD Main 2/3 Schematic Diagram
1-9-4
E6A20SCD2
Page 25
DVD Main 3/3 Schematic Diagram
1-9-5
E6A20SCD3
Page 26

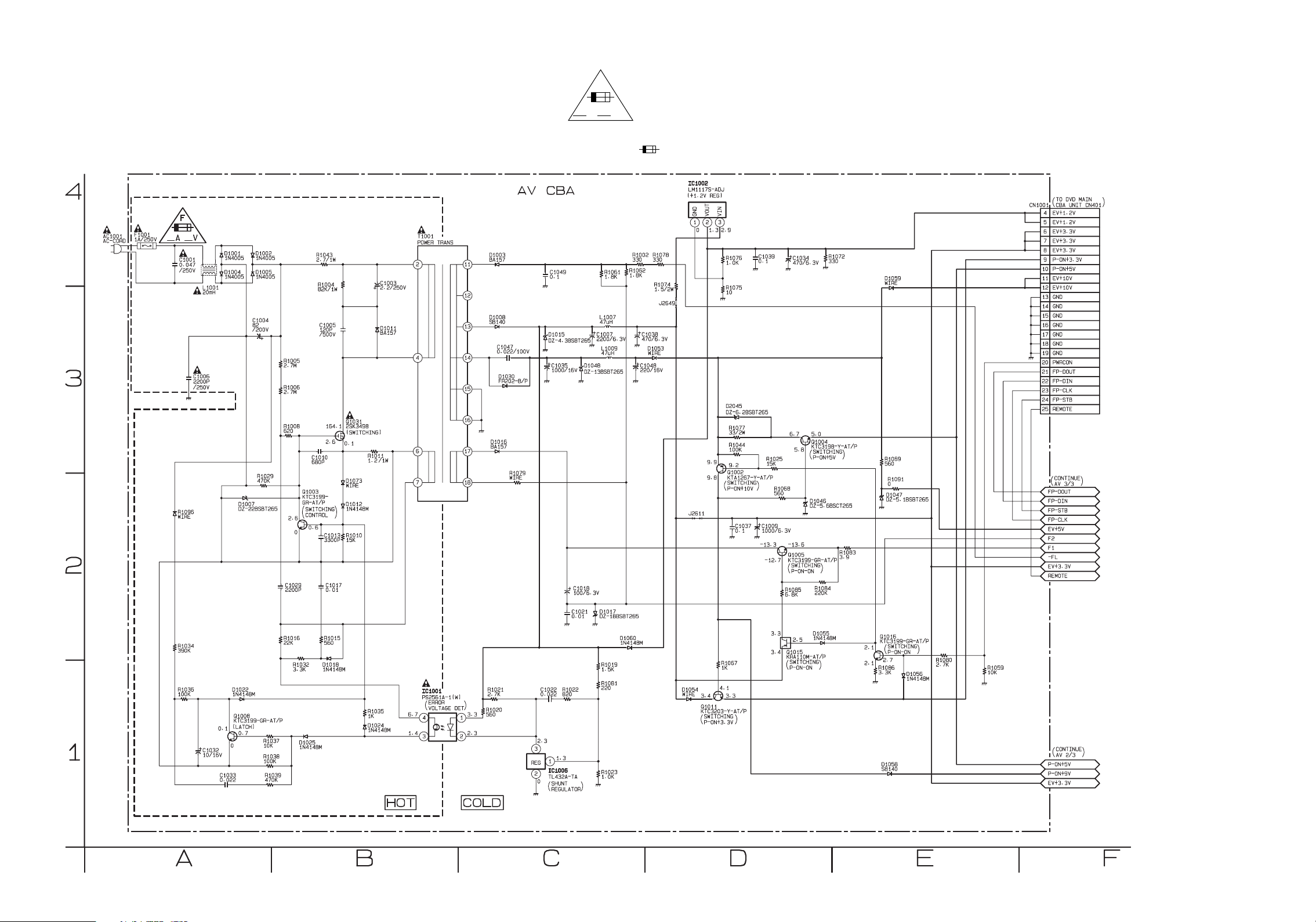

AV 1/3 Schematic Diagram
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
1-9-6
E6A20SCAV1
Page 27
AV 2/3 Schematic Diagram
1-9-7
E6A20SCAV2
Page 28

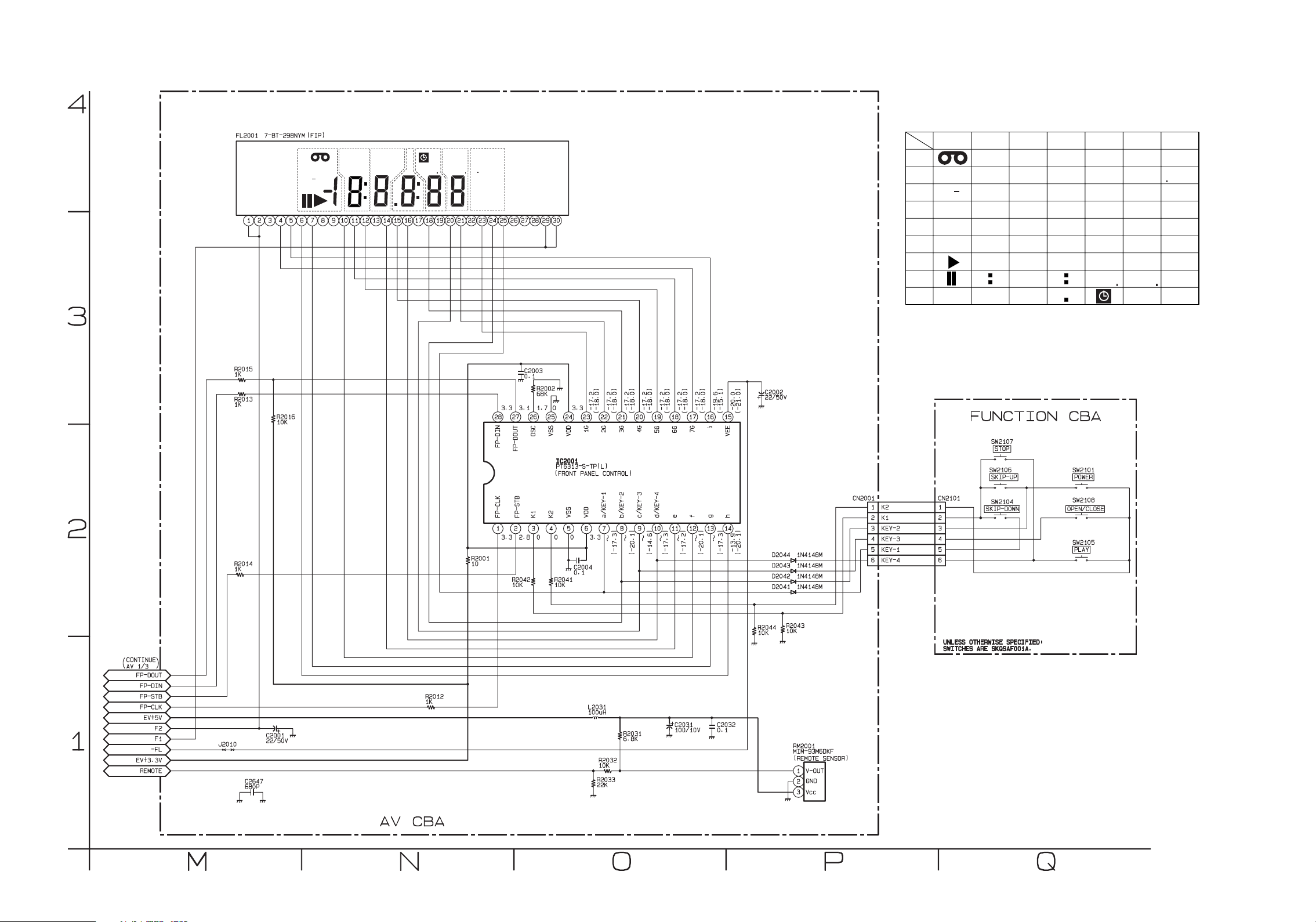

AV 3/3 & Function Schematic Diagram
7G 6G 5G 4G 3G 2G 1G
a
b
c
d
e
f
g
c
d
e
ff
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
h
ii
a
b
a
b
a
b
a
b
a
b
FL2001 MATRIX CHART
REPEAT
TITLE
GROUP
VCR
CHP
REC
SACD
TRK
ALL
B
PSCAN
DVD
P
M
HD
V
CD
A
A
7G
REPEAT
B
A
ALL
f
i
6G
TITLE
i
5G 4G 3G 2G 1G
CHP
REC
TRK
c
VCR
GROUP
a
b
d
ef
g
SACD
PSCAN
DVD
A
PM
HDVCD
1-9-8
E6A20SCAV3
Page 29

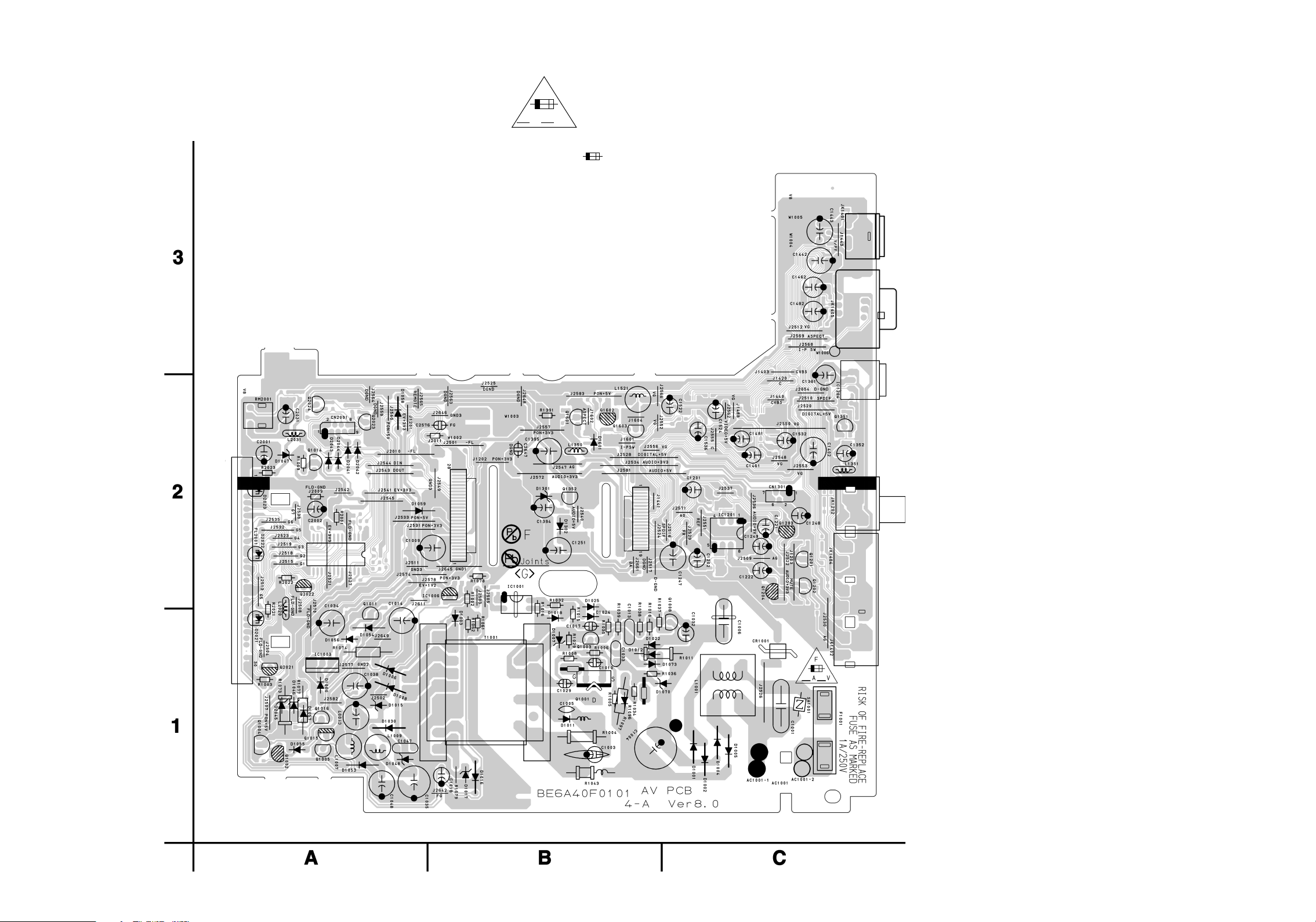

AV CBA Top View
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
F
A V
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
"Ce symbole reprèsente un fusible à fusion rapide."
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
1-9-9
BE6A40F01014-A
Page 30
AV CBA Bottom View
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
WF3
C1402
PLUS LEAD
WF1
PIN 8 OF
CN1601
WF2
PIN 10 OF
CN1601
WF4
PIN 12 OF
CN1601
WF5
PIN 14 OF
CN1601
WF6
PIN 16 OF
CN1601
1-9-10
BE6A40F01014-A
Page 31

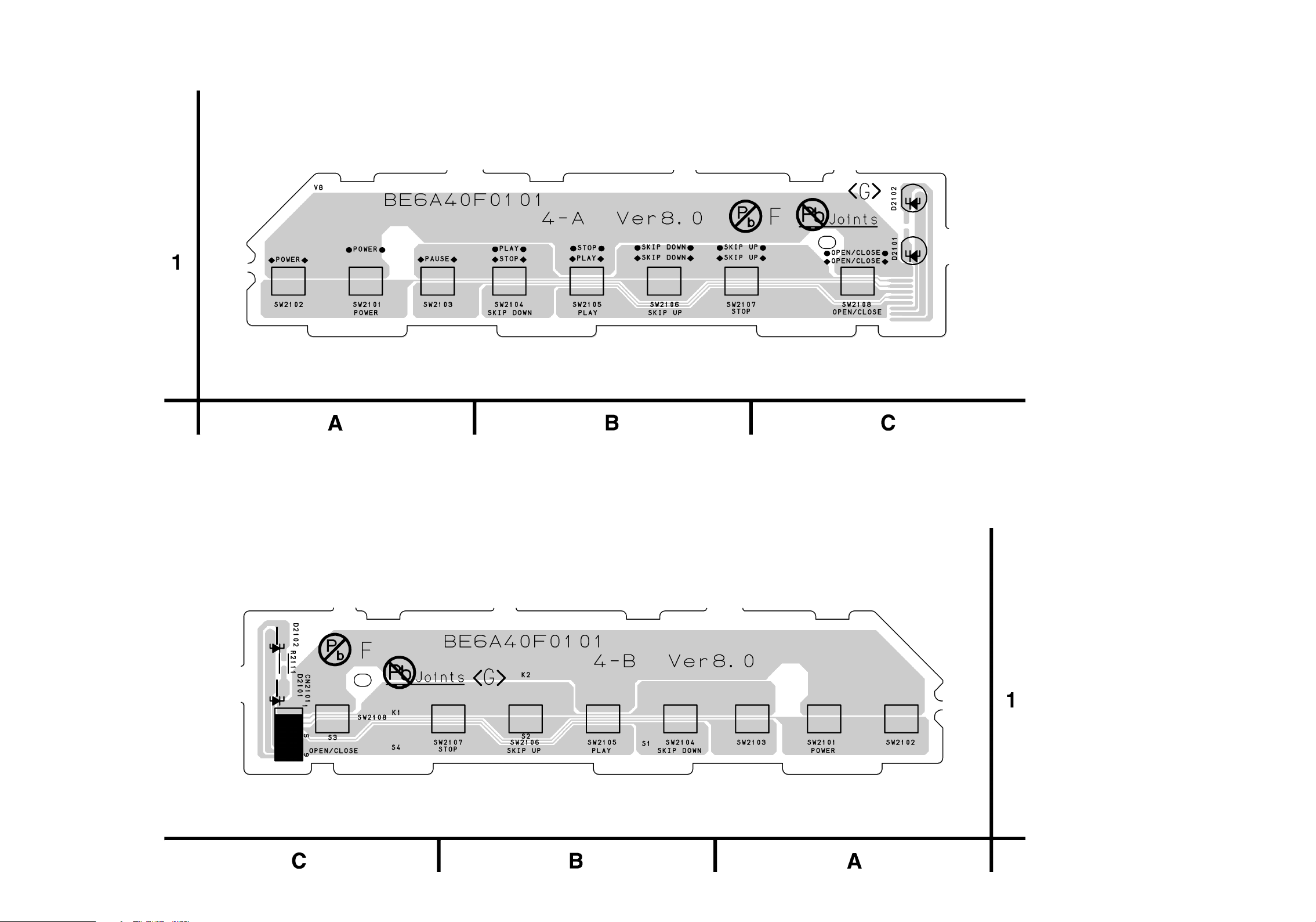

Function CBA Top View
Function CBA Bottom View
1-9-11
BE6A40F01014-B
Page 32

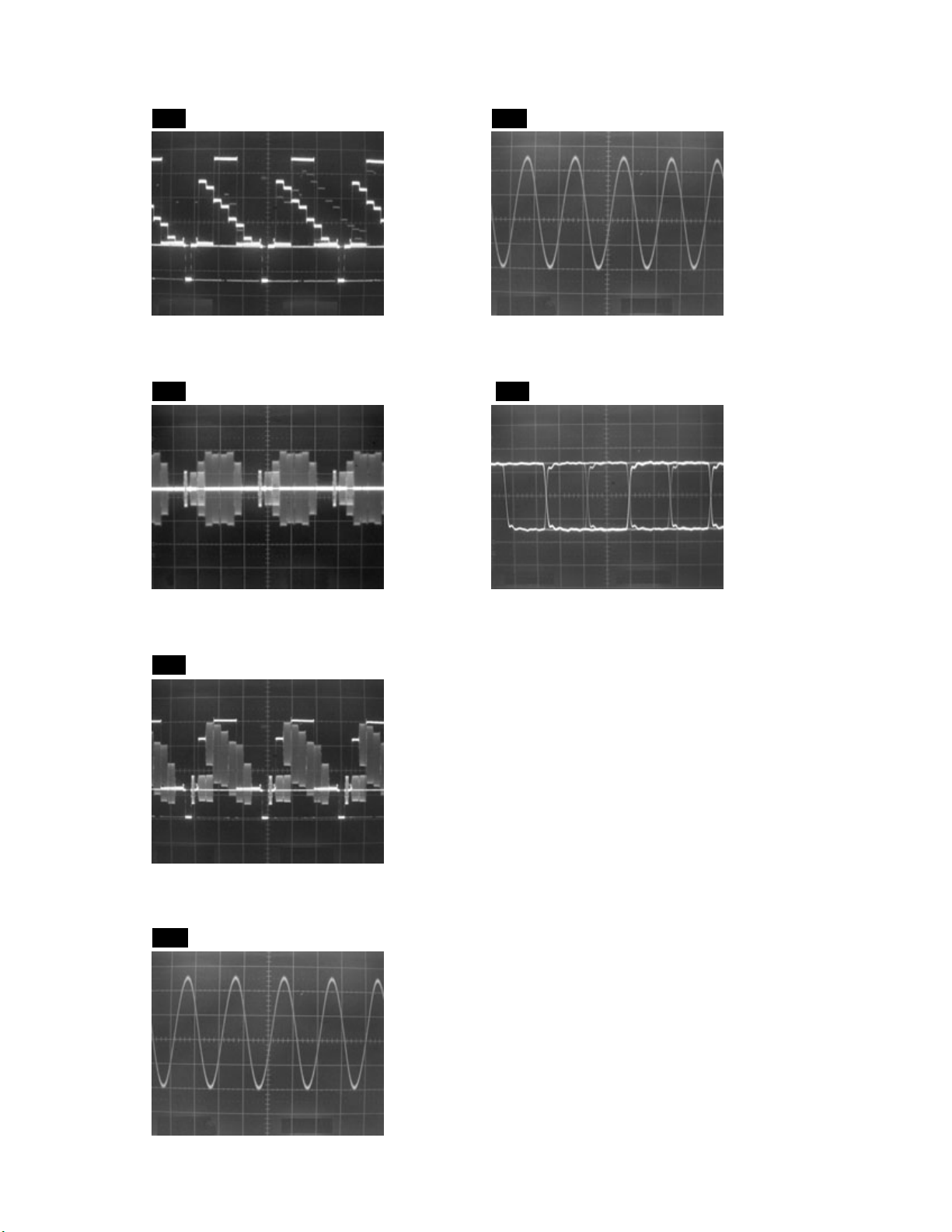

WAVEFORMS
0.5ms
WF1
Pin 8 of CN1601
WF2
Pin 10 of CN1601
WF5
Pin 14 of CN1601
20µs0.2VVIDEO-Y
AUDIO(R) 0.5V 0.5ms
WF6
Pin 16 of CN1601
VIDEO-C 0.2V 20
WF3
C1402 PLUS LEAD
VIDEO-CVBS 0.5V 20
WF4
Pin 12 of CN1601
µ
s
SPDIF 1V 0.1
µ
s
NOTE:
Input
DVD: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL)
µ
s
(WF1~WF6)
AUDIO(L) 0.5V 0.5ms
1-10-1
E6A20WF
Page 33
FUNCTION CBA
CN2101 is soldered
directly to the PCB.

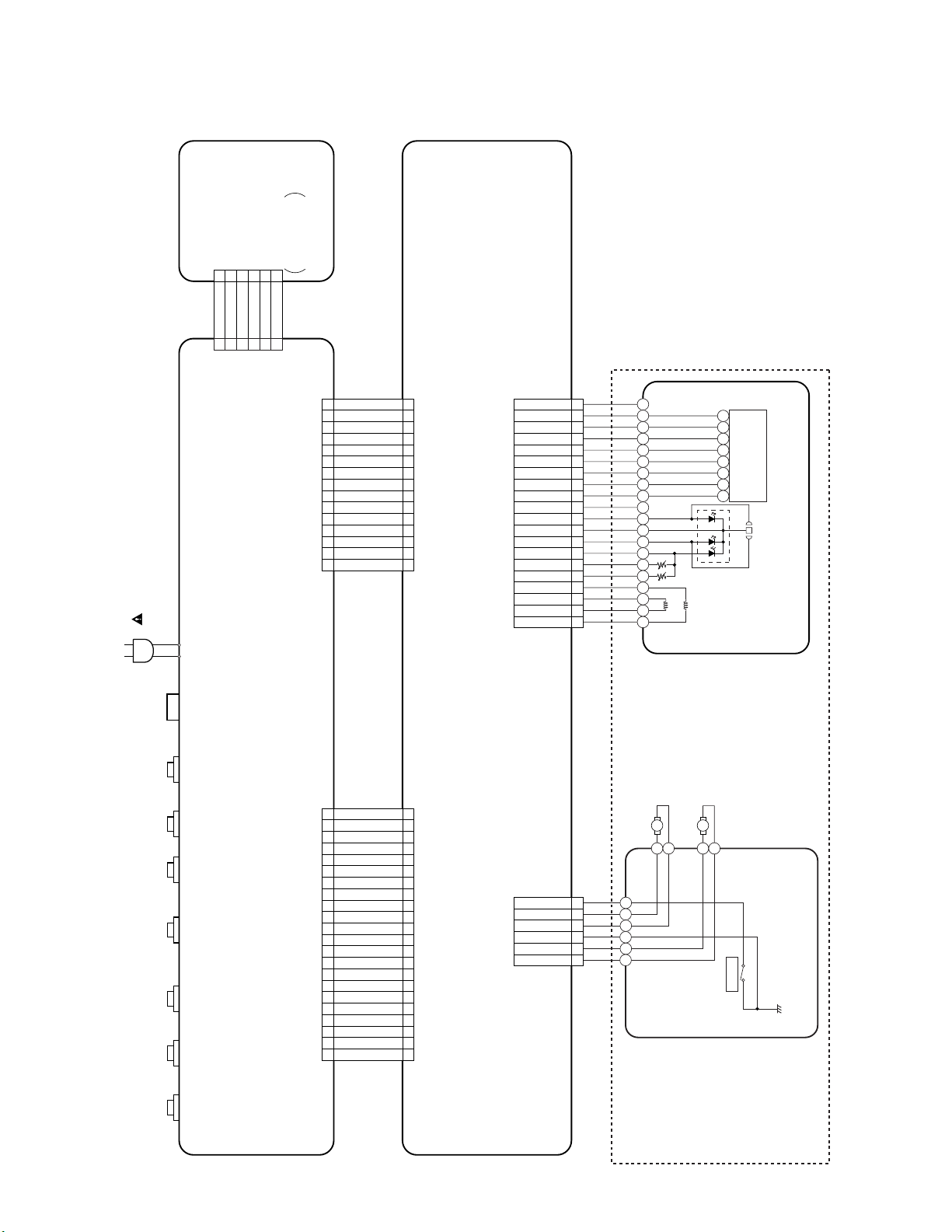

WIRING DIAGRAM
AC CORD
S-VIDEO
OUT
DIGITAL
AUDIO OUT
(COAXIAL)
K2 11K1 22KEY-2 33KEY-3 44KEY-1 55KEY-4 6
CN2001 CN2101
AV CBA
6
I/P-SW 22
NU 33
VIDEO-Cr/Pr 44
GND 55
VIDEO-Cb/Pb 66
GND 77
VIDEO-Y(I/P) 88
GND 99
VIDEO-C 1010
CN1601
AUDIO-GND 1111
AUDIO(L) 1212
AUDIO(L)-MUTE
AUDIO(R) 1414
AUDIO-GND 1515
(CN1601 is soldered directly to the PCB.)
SPDIF 1616
P-ON+5V
20
CD/DVD
19
D
18
A
17
C
16
B
15
NU
14
VREF
CN601
1313
CN201CN301
GND(DVD-PD)
GND(CD-PD)
GND
CD-LD
GND(LD)
DVD-LD
PD-MONI
TS(-)
FS(-)
FS(+)
TS(+)
13
NU
12
11
10
9
8
7
6
5
4
3
2
1
FS
DVD MAIN CBA UNIT
4
DETECTOR
7 9 11 2 3 6 5
PICK UP UNIT
TS
DVD MECHANISM
AUDIO(R)-
OUT
AUDIO(L)-
OUT
VIDEO OUT
(COMPOSITE)
VIDEO-Cr/Pr
OUT
VIDEO-Cb/Pb
OUT
VIDEO-Y
OUT
EV+1.2V 44
EV+1.2V 55
EV+3.3V 66
EV+3.3V 77
EV+3.3V 88
P-ON+3.3V 99
P-ON+5V 1010
EV+10V 1111
EV+10V 1212
GND 1313
GND 1414
GND 1515
CN1001
GND 1616
GND 1717
GND 1818
GND 1919
PWRCON 2020
(CN1001 is soldered directly to the PCB.)
FP-DOUT 2121
FP-DIN 2222
FP-CLK 2323
FP-STB 2424
REMOTE
CN401
2525
1-11-1
TRAY-IN
SL(+)
SL(-)
GND
SP(-)
SP(+)
M
SLED
MOTORMSPINDLE
6
5
4
3
2
1
MOTOR
DRIVE CBA
TRAY-IN
E6A20WI
Page 34

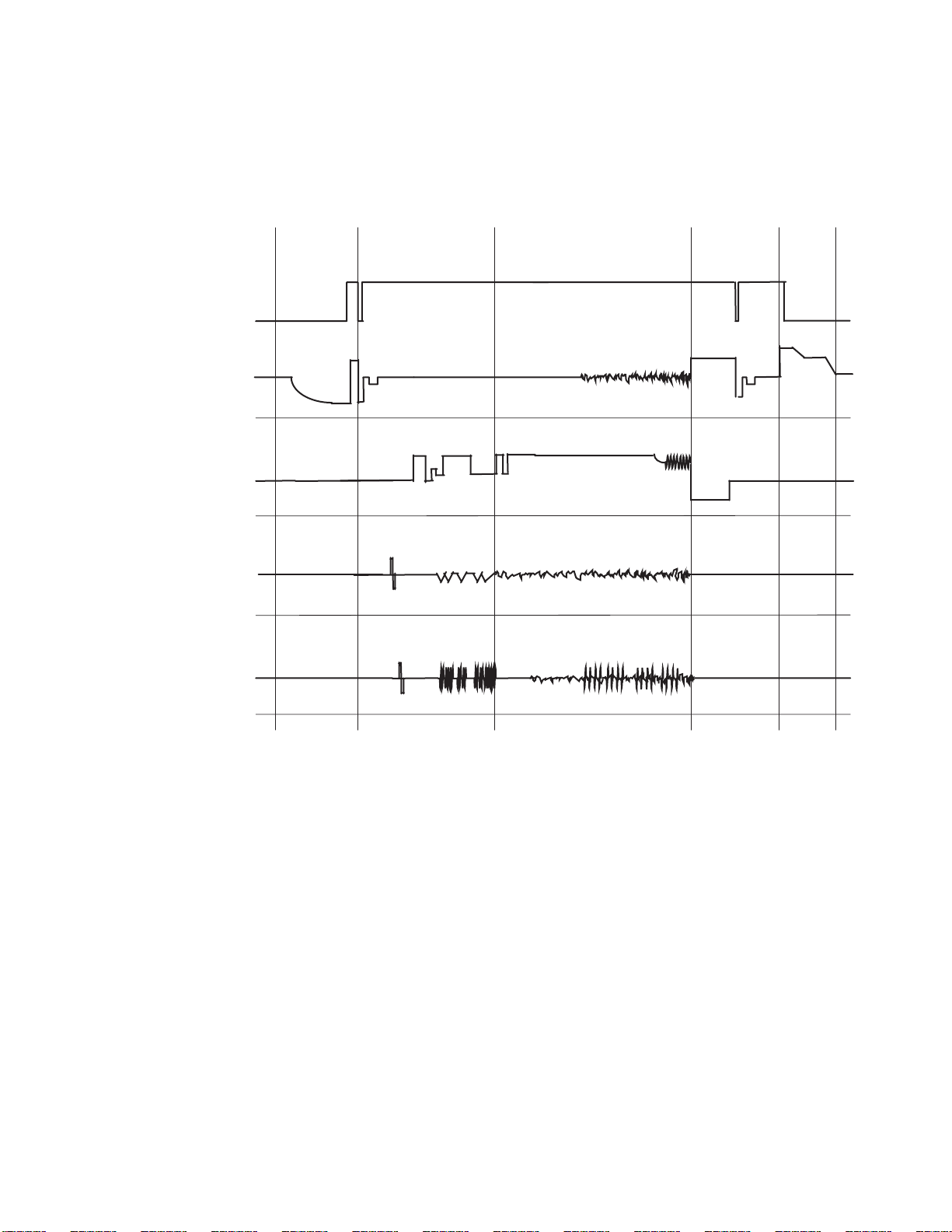

SYSTEM CONTROL TIMING CHARTS
Tray Close ~ Play / Play ~ Tray Open
Tray IN
(TL221)
Sled Drive
(TP303)
Disc Drive
(TP301)
Focus Drive
(TP304)
Tracking Drive
(TP302)
3.3V
0V
1.65V
0V
1.65V
0V
1.65V
0V
1.65V
Tr ay
Close
Disc
Rotation
Play
Disc
Stop
Tr ay
Open
0V
1-12-1 E7NTI
Page 35
IC PIN FUNCTION DESCRIPTIONS
IC2001 (FRONT PANEL CONTROL)
Pin
IN/
No.
OUT
1 IN FP-CLK Clock Input
2 IN FP-STB Serial Interface Strobe
3 IN K1 Key Data 1 Input
4 IN K2 Key Data 2 Input
5-VSS GND
6 - VDD Power Supply
7OUTa / KEY-1
8OUTb / KEY-2
9 OUT c / KEY-3
10 OUT d / KEY-4
11
12 f
OUT
13 g
14 h
15 - VEE Pull Down Level
16 OUT i Segment Output
17
18 6G
19 5G
OUT
20 4G
21 3G
22 2G
23 1G
24 - VDD Power Supply
25 - VSS GND
26 IN OSC Oscillator Input
27 OUT FP-DOUT Serial Data Output
28 IN FP-DIN Serial Data Input
Signal
Name
e
7G
Function
Segment Output / Key
Source-1
Segment Output / Key
Source-2
Segment Output / Key
Source-3
Segment Output / Key
Source-4
Segment Output
Grid Output
1-13-1 E6A20PIN
Page 36

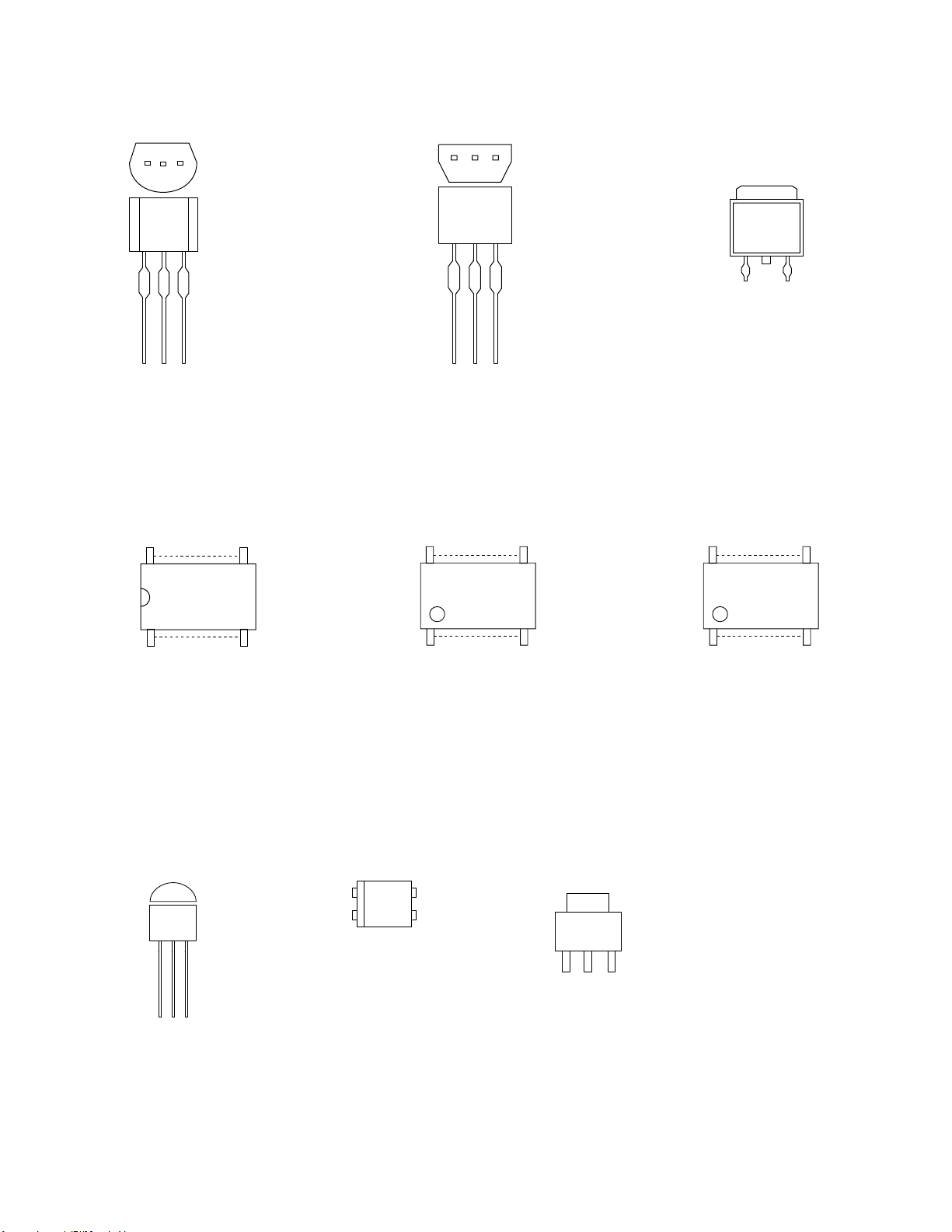

LEAD IDENTIFICATIONS
E
CB
KIA4558P/P
8
KTA1266-Y-AT/P
KTC3203-Y-AT/P
KTC3198-Y-AT/P
5
E
CB
MM1637XVBE
16
KTA1267-Y-AT/P
KTC3199-GR-AT/P
KRA110M-AT/P
9
2SK3498
GDS
PT6313-S-TP(L)
28
15
1
TL432A-TA
123
1: R
2: A
3: K
4
PS2561A-1(W)
1
2
1: A
2: K
3: E
4: C
1
4
3
8
LM1117S-ADJ
123
1: GND
2: Vout
3: Vin
1
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source
14
1-14-1 E6A20LE
Page 37

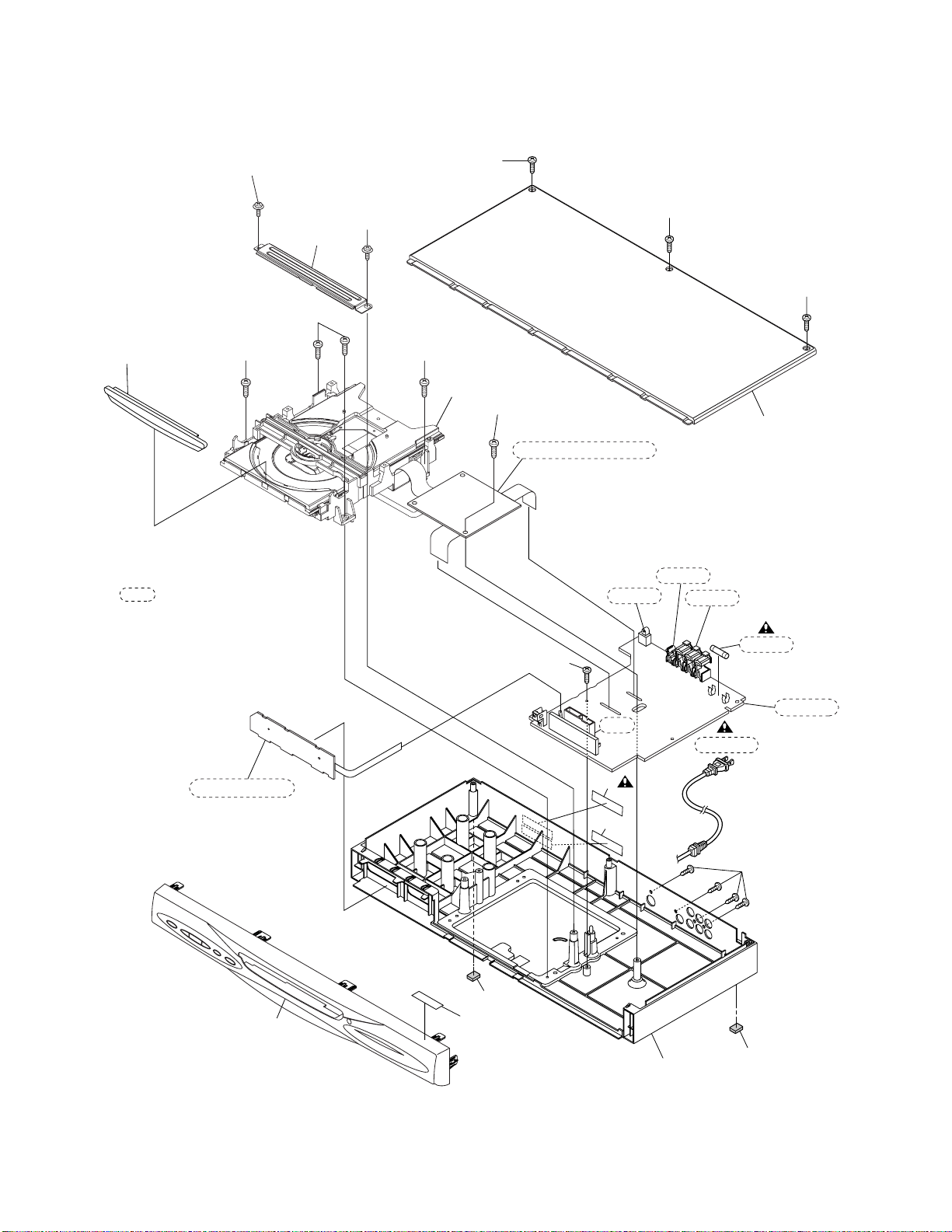

Cabinet
EXPLODED VIEWS
A2
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
2L081
2L021
2B5
2L021
2L081
2L021
1B1
2L011
2L105
DVD Main CBA Unit
JK1401
2L031
2L011
2L011
A16
JK1202
JK1404
F1001
Function CBA
A1X
A23
A13
A21
A22
2B1
A15
AV CBA
AC1001
2L041
A13
1-15-1 E6A20CEX
Page 38

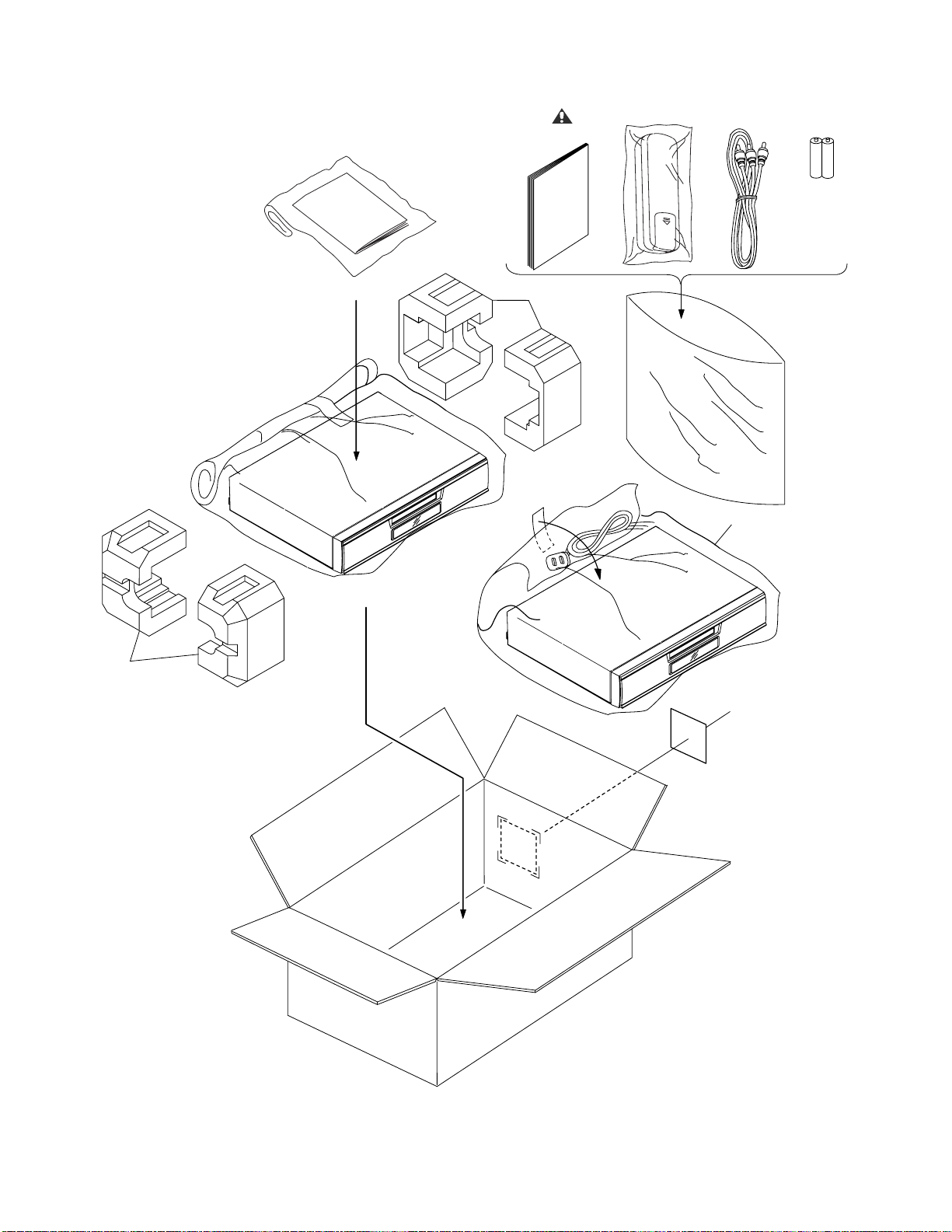

Packing
X10
S2
X1
S4
X5
X2
X4
S2
Unit
A22
S1
1-15-2 E6A20PEX
Page 39
MECHANICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTE: Parts that are not assigned part numbers
(---------) are not available.
Ref. No. Description Part No.
A1X FRONT ASSEMBLY E6A20UD 1VM221943
A2 PANEL TRAY E5920UD 0VM204430
A13 FOOT(REAR) E5710UD 0VM415007
A15 CHASSIS(USA V2) E6A20UD 1VM221783
A16 TOP CASE(V2) E6170UD 1VM320680
A21# MODEL NO LABEL E6A20UD ----------
A22 LABEL BAR CODE E5900UD ----------
A23 LABEL TELEPHONE NUMBER
1B1 DVD MECHA E7 N79F0KVM N79F0KVM
2B5 REINFORCE PLATE E6A60UD 1VM321919
2L011 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
2L021 SCREW TAP TIGHT M3X11 BIND+ P-TIGHT GBJP3110
2L031 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080
2L041 SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080
2L081 SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080
2L105 SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080
S1 CARTON GIFT BOX E6A20UD 1VM322232
S2 SIDE PAD E5900UD 0VM101344
S4 UNIT BAG E5500UD 0VM411683
X1 REMOTE CONTROL UNIT NB064UD NB080UD
X2 DRY BATTERY R6P/2S XB0M451T0001
X4 ACCESSORY BAG E5700UD 0VM415576
X5 AV CORD WPZ0102TM015 WPZ0102TM015
X10# OWNERS MANUAL E6A20UD 1VMN22072
H5730UD(SYLVANIA)
PACKING
ACCESSORIES
----------
20060224 1-16-1 E6A20CA
Page 40
ELECTRICAL PARTS LIST
PRODUCT SAFETY NOTE: Products marked with a
# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.
NOTES:
1. Parts that are not assigned part numbers (---------)
are not available.
2. Tolerance of Capacitors and Resistors are noted
with the following symbols.
C.....±0.25% D.....±0.5% F.....±1%
G.....±2% J......±5% K.....±10%
M.....±20% N.....±30% Z.....+80/-20%
DVD MAIN CBA UNIT
Ref. No. Description Part No.
DVD MAIN CBA UNIT N79F1KUP
AV ASSEMBLY
Ref. No. Description Part No.
AV ASSEMBLY
Consists of the following:
AV C BA
FUNCTION CBA
AV CBA
Ref. No. Description Part No.
AV C BA
Consists of the following:
CAPACITORS
C1001# METALIZED FILM CAP. 0.047µF/250V M CT2E473MS037
C1003 ELECTROLYTIC CAPACITOR
C1004 ELECTROLYTIC CAPACITOR
C1005 CERAMIC CAP. B K 120pF/500V CCD2JKP0B121
C1006# SAFETY CAP. 2200pF/250V CCD2EMA0E222
C1007 ELECTROLYTIC CAP. 2200µF/6.3V CE0KMASDL222
C1009 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1010 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008
C1013 FILM CAP.(P) 0.0033µF/50V J CMA1JJS00332
C1017 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103
C1018 ELECTROLYTIC CAP. 100µF/6.3V M CE0KMASDL101
C1021 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1022 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223
C1029 CERAMIC CAP.(AX) X K 2200pF/16V CCA1CKT0X222
C1032 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1033 FILM CAP.(P) 0.022µF/50V J CMA1JJS00223
C1034 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1035 ELECTROLYTIC CAP. 1000µF/16V M CE1CMASDL102
C1037 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1038 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1039 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1047 FILM CAP.(P) 0.022µF/100V J CMA2AJS00223
ZT250TA2R2M6BB
ZR200TA820M12BB
1VSA13546
----------
----------
----------
CA2E2R2DYG02
CA2D820DYG01
Ref. No. Description Part No.
C1048 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C1049 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1201 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1202 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1207 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C1208 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C1221 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100
C1222 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1223 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1224 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1245 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1247 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1249 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470
C1351 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1352 ELECTROLYTIC CAP. 47µF/6.3V M CE0KMASTM470
C1398 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1402 ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471
C1421 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1422 CHIP CERAMIC CAP.(1608) B K 0.1µF/25V CHD1EK30B104
C1441 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334
C1442 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C1461 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1462 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C1481 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL010
C1482 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221
C1522 ELECTROLYTIC CAP. 10µF/16V M CE1CMASDL100
C1524 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C1531 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1532 ALUMINUM ELECTROLYTIC CAP 22µF/6.3V H7CE0KMASSM220
C1533 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C1534 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2001 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C2002 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C2003 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2004 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2031 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C2032 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C2647 CERAMIC CAP.(AX) CH J 680pF/50V CA1J681TU008
CONNECTORS
CN1001 22P FFC AV PCB TO MAIN WX1E5900-001
CN1601 WIRE ASSEMBLY FFC 15P 15PIN 110MM WX1E6A10-001
CN2001 FMN CONNECTOR TOP 6P 06FMN-BTRK-
A(LF)(SN)
JCFNG06JG020
DIODES
D1001 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1002 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1003 RECTIFIER DIODE BA157 NDQZ000BA157
D1004 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1005 RECTIFIER DIODE 1N4005 NDQZ001N4005
D1007 ZENER DIODE DZ-22BSBT265 NDTB00DZ22BS
D1008 SCHOTTKY BARRIER DIODE SB240-B/P NDQZ000SB240
D1011 RECTIFIER DIODE BA157 NDQZ000BA157
D1012 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1015 ZENER DIODE DZ-4.3BSBT265 NDTB0DZ4R3BS
D1016 RECTIFIER DIODE BA157 NDQZ000BA157
D1017 ZENER DIODE DZ-18BSBT265 NDTB00DZ18BS
D1018 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1022 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1024 SWITCHING DIODE 1N4148M NDTZ01N4148M
20060224 1-17-1 E6A20EL
Page 41
Ref. No. Description Part No.
D1025 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1030 RECTIFIER DIODE FR202-B/P NDQZ000FR202
D1046 ZENER DIODE DZ-5.6BSCT265 NDTC0DZ5R6BS
D1047 ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS
D1048 ZENER DIODE DZ-13BSBT265 NDTB00DZ13BS
D1053 PCB JUMPER D0.6-P10.0 JW10.0T
D1054 PCB JUMPER D0.6-P10.0 JW10.0T
D1055 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1056 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1058 SCHOTTKY BARRIER DIODE SB140 NDQZ000SB140
D1059 PCB JUMPER D0.6-P10.0 JW10.0T
D1060 SWITCHING DIODE 1N4148M NDTZ01N4148M
D1073 PCB JUMPER D0.6-P5.0 JW5.0T
D2041 SWITCHING DIODE 1N4148M NDTZ01N4148M
D2042 SWITCHING DIODE 1N4148M NDTZ01N4148M
D2043 SWITCHING DIODE 1N4148M NDTZ01N4148M
D2044 SWITCHING DIODE 1N4148M NDTZ01N4148M
D2045 ZENER DIODE DZ-6.2BSBT265 NDTB0DZ6R2BS
ICS
IC1001# PHOTOCOUPLER PS2561A-1(W) QPEWPS2561A1
IC1002 VOLTAGE REGULATOR LM1117S-ADJ NSZBA0T2T001
IC1006 SHUNT REGULATOR TL432A-TA NSZBA0T2T002
IC1201 IC OP AMP KIA4558P/P NSZBA0SJY035
IC1402 DRIVER FOR DVD MM1637XVBE QSZBA0TMM102
IC2001 VFD DRIVER/CONTROLLER IC PT6313-S-
TP(L)
NSZBA0TG2007
COILS
L1001# LINE FILTER 20MH 3905 LLBG00ZKT008
L1007 CHOKE COIL 47µH LLBD00PKV022
L1009 CHOKE COIL 47µH LLBD00PKV022
L1350 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
L1351 INDUCTOR(0.47µH K) LAP02TAR47K LLAXKATTUR47
L1521 PCB JUMPER D0.6-P5.0 JW5.0T
L1522 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
L2031 INDUCTOR(100µH K) LAP02TA101K LLAXKATTU101
TRANSISTORS
Q1002 TRANSISTOR KTA1267-Y-AT/P NQSYKTA1267P
Q1003 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1004 TRANSISTOR KTC3198-Y-AT/P NQSYKTC3198P
Q1005 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1008 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1011 TRANSISTOR KTC3203-Y-AT/P NQSYKTC3203P
Q1015 TRANSISTOR KRA110M-AT/P NQSZKRA110MP
Q1016 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1031# FET 2SK3498(T6L1FUNANQ) QF1Z02SK3498
Q1201 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1202 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1204 TRANSISTOR KTA1266-Y-AT/P NQSYKTA1266P
Q1351 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
RESISTORS
R1002 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R1004 METAL OXIDE FILM RES. 1W J 82k Ω RN01823ZU001
R1005 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1006 CARBON RES. 1/4W J 2.7M Ω RCX4JATZ0275
R1008 CARBON RES. 1/4W J 620 Ω RCX4JATZ0621
R1010 CARBON RES. 1/6W J 15k Ω RCX6JATZ0153
R1011 METAL OXIDE FILM RES. 1W J 1.2 Ω RN011R2ZU001
R1015 CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R1016 CARBON RES. 1/6W J 22k Ω RCX6JATZ0223
R1019 CHIP RES. 1/10W F 1.5k Ω RRXAFR5H1501
R1020 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561
R1021 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272
R1022 CHIP RES. 1/10W J 820 Ω RRXAJR5Z0821
Ref. No. Description Part No.
R1023 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001
R1025 CHIP RES. 1/10W J 15k Ω RRXAJR5Z0153
R1029 CARBON RES. 1/6W J 470k Ω RCX6JATZ0474
R1032 CARBON RES. 1/6W J 3.3k Ω RCX6JATZ0332
R1034 CARBON RES. 1/6W J 390k Ω RCX6JATZ0394
R1035 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1036 CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R1037 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R1038 CARBON RES. 1/6W J 100k Ω RCX6JATZ0104
R1039 CARBON RES. 1/6W J 470k Ω RCX6JATZ0474
R1043 METAL OXIDE FILM RES. 1W J 2.7 Ω RN012R7ZU001
R1044 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1059 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1061 CARBON RES. 1/6W J 1.8k Ω RCX6JATZ0182
R1062 CARBON RES. 1/6W J 1.8k Ω RCX6JATZ0182
R1067 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1068 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561
R1069 CARBON RES. 1/6W J 560 Ω RCX6JATZ0561
R1072 CHIP RES. 1/10W J 330 Ω RRXAJR5Z0331
R1074 METAL OXIDE FILM RES. 2W J 1.5 Ω RN021R5ZU001
R1075 CHIP RES.(1608) 1/10W F 10 Ω RRXAFR5H0100
R1076 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001
R1077 METAL OXIDE FILM RES. 2W J 33 Ω RN02330ZU001
R1078 CARBON RES. 1/4W J 330 Ω RCX4JATZ0331
R1079 PCB JUMPER D0.6-P5.0 JW5.0T
R1080 CHIP RES. 1/10W J 2.7k Ω RRXAJR5Z0272
R1081 CHIP RES. 1/10W F 220 Ω RRXAFR5H2200
R1083 CARBON RES. 1/4W J 3.9 Ω RCX4JATZ03R9
R1084 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224
R1085 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R1086 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1091 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1096 PCB JUMPER D0.6-P5.0 JW5.0T
R1205 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102
R1206 CHIP RES. 1/10W F 11k Ω RRXAFR5H1102
R1207 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1208 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R1209 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702
R1210 CHIP RES. 1/10W F 27k Ω RRXAFR5H2702
R1221 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1222 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1223 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1224 CHIP RES. 1/10W J 470 Ω RRXAJR5Z0471
R1225 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1226 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1227 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1228 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1240 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1245 CHIP RES. 1/10W J 10 Ω RRXAJR5Z0100
R1351 CHIP RES. 1/10W J 2k Ω RRXAJR5Z0202
R1352 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1353 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1354 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R1355 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1356 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1391 PCB JUMPER D0.6-P5.0 JW5.0T
R1392 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1402 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1421 CHIP RES. 1/10W F 130 Ω RRXAFR5H1300
R1422 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1441 CHIP RES. 1/10W F 130 Ω RRXAFR5H1300
R1442 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1443 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
20060224 1-17-2 E6A20EL
Page 42
Ref. No. Description Part No.
R1461 CHIP RES. 1/10W F 130 Ω RRXAFR5H1300
R1462 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1481 CHIP RES. 1/10W F 130 Ω RRXAFR5H1300
R1482 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R1613 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2001 CARBON RES. 1/6W J 10 Ω RCX6JATZ0100
R2002 CHIP RES. 1/10W J 68k Ω RRXAJR5Z0683
R2012 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2013 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2014 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2015 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R2016 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2031 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R2032 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2033 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R2041 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2042 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2043 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R2044 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
MISCELLANEOUS
2B1 HOLDER F.I.P. E5900UD 0VM416070
AC1001# AC CORD PB8B2F9110A-055 WAC0162LW004
F1001# FUSE CURRENT PEG20C0NG001 PEG20C0NG001
FL2001 V.F.D. 7-BT-298NYM TVFD150FT014
FH1001 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
FH1002 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
JK1202 RCA JACK(BLACK) MSP-251V-01 NI FE LF JXRL010LY125
JK1401 S TYPE JACK MDC-050V-2.4 LF(B110 JXEL040LY003
JK1404 RCA JACK MSD-246V-65 NI FE LF JXRL060LY131
RM2001 REMOTE RECEIVER MIM-93M6DKF USESJRSUNT01
T1001# PULSE TRANS CGS-SW0078A LTT00CPSA175
FUNCTION CBA
Ref. No. Description Part No.
FUNCTION CBA
Consists of the following:
CONNECTOR
CN2101 6P FFC AV PCB TO SW PCB WX1E5900-005
SWITCHES
SW2101 TACT SWITCH SKQSAF001A SST0101AL041
SW2104 TACT SWITCH SKQSAF001A SST0101AL041
SW2105 TACT SWITCH SKQSAF001A SST0101AL041
SW2106 TACT SWITCH SKQSAF001A SST0101AL041
SW2107 TACT SWITCH SKQSAF001A SST0101AL041
SW2108 TACT SWITCH SKQSAF001A SST0101AL041
----------
20060224 1-17-3 E6A20EL
Page 43
© 2006 Funai Electric Co., Ltd.
All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.
Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.
with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.
DVL700G
E6A20UD
2006-03-17
Loading...
