Partner, our company has
determined that this product meets
the E
NERGY STAR guidelines for
energy efficiency. E
NERGY STAR is
a U.S. registered mark.
®
®
®

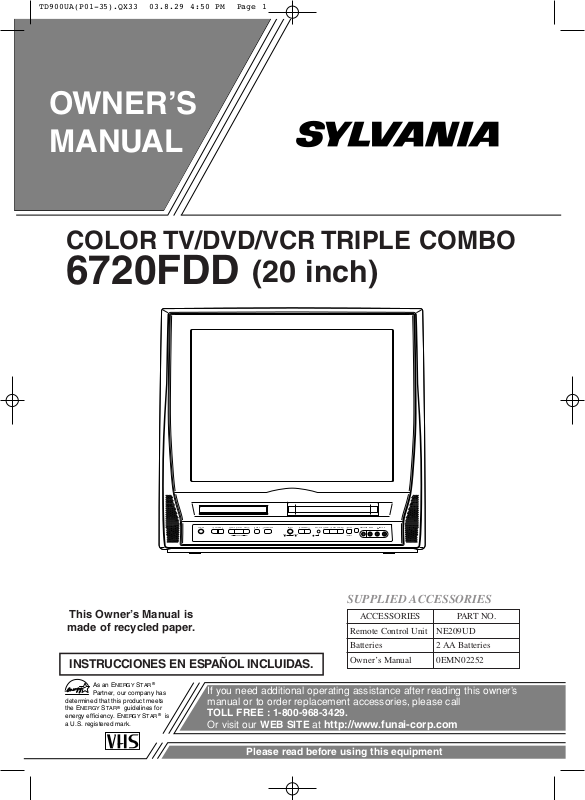

MANUAL
COLOR TV/DVD/VCR TRIPLE COMBO
6720FDD
VOLUMESKIPPLAYSKIP
SEARCH
(20 inch)
STOP OPEN/CLOSE
SELECT CHANNEL REC/OTR
TV/VCRDVD
STOP
F.FWDPLAYREWPOWER
VIDEO
HEADPHONE
EJECT
RL
AUDIO
This Owner’s Manual is
made of recycled paper.
INSTRUCCIONES EN ESPAÑOL INCLUIDAS.
If you need additional operating assistance after reading this owner’s
manual or to order replacement accessories, please call
TOLL FREE : 1-800-968-3429.
Or visit our WEB SITE at http://www.funai-corp.com
Please read before using this equipment
SUPPLIED ACCESSORIES
ACCESSORIES
Remote Control Unit
Batteries
Owner’s Manual0EMN02252
PA RT NO.
NE209UD
2 AA Batteries
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE
PORTABLE CART WARNING
S3126A
SYMBOLE D'AVERTISSEMENT POUR
LES COMPOSANTES
APPAREIL ET MEUBLE A ROULETTES
S3126A
TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The caution marking is located on the rear of the cabinet.
IMPORTANT SAFEGUARDS
1.Read instructions-All the safety and operating instructions
should be read before the appliance is operated.
2.Retain Instructions-The safety and operating instructions
should be retained for future reference.
3.Heed Warnings-All warnings on the appliance and in the
operating instructions should be adhered to.
4.Follow Instructions-All operating and use instructions
should be followed.
5.Cleaning-Unplug TV/DVD/VCR from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use
a damp cloth for cleaning.
EXCEPTION: A product that is meant for uninterrupted
service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to
unplugging the appliance in the cleaning description otherwise required in item 5.
6.Attachments-Do not use attachments not recommended by
the TV/DVD/VCR manufacturer as they may cause hazards.
7.Water and Moisture-Do not use this TV/DVD/VCR near
water-for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub, in a wet basement, or near a swimming pool,
and the like.
8.Accessories-Do not place this TV/DVD/VCR on an unstable
cart, stand, tripod, bracket, or table. The TV/DVD/VCR may
fall, causing serious injury to someone, and serious damage
to the appliance. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or sold with the
TV/DVD/VCR. Any mounting of
the appliance should follow the
manufacturer’s instructions and
should use a mounting accessory
recommended by the manufacturer.
An appliance and cart combination
should be moved with care.Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A
RISK OF ELECTRIC SHOCK IS PRESENT
WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE
ARE IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE
APPLIANCE.
AMEUBLES- Cet appareil ne doit
être placé que sur un meuble (avec
ou sans roulettes) recommandé par
le fabricant. Si vous l’installez sur
un meuble à roulettes, déplacez les
deux ensembles avec précaution.
Un arrêt brusque, l’utilisation
d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.
9. Ventilation-Slots and openings in the cabinet and the back
or bottom are provided for ventilation and to ensure reliable
operation of the TV/DVD/VCR and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the
TV/DVD/VCR on a bed, sofa, rug, or other similar surface.
This TV/DVD/VCR should never be placed near or over a
radiator or heat register. This TV/DVD/VCR should not be
placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer’s
instructions have been adhered to.
10.Power Sources-This TV/DVD/VCR should be operated
only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to
your home, consult your appliance dealer or local power
company. For TV/DVD/VCRs intended to operate from
battery power, or other sources, refer to the operating
instructions.
11.Grounding or Polarization-This TV/DVD/VCR is
equipped with a polarized alternating-current line plug(a
plug having one blade wider than the other). This plug will
fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do
not defeat the safety purpose of the polarized plug.
12.Power-Cord Protection-Power-supply cords should be
routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the appliance.
- 2 -EN
1B15
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
S2898A
FIGURE A
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRICAL CODE
GROUND
CLAMP
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNI T
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDI NG
ELECTRODE SYSTEM
(NEC ART 250, PART H)
13.Outdoor Antenna grounding-If an outside antenna or
cable system is connected to the TV/DVD/VCR, be sure
the antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up static
charges. Article 810 of the National Electrical Code,
ANSI/NFPA No. 70, provides information with respect to
proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit,
size of grounding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and requirements
for the grounding electrode. (Fig. A)
14.Lightning-For added protection for this TV/DVD/VCR
receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the TV/DVD/VCR due to
lightning and power-line surges.
15.Power Lines-An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them
might be fatal.
16.Overloading-Do not overload wall outlets and extension
cords as this can result in a risk of fire or electric shock.
17.Object and Liquid Entry-Never push objects of any kind
into this TV/DVD/VCR through openings as they may
touch dangerous voltage points or short out parts that could
result in a fire or electric shock. Never spill liquid of any
kind on the TV/DVD/VCR.
18.Servicing-Do not attempt to service this TV/DVD/VCR
yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19.Damage Requiring Service-Unplug this TV/DVD/VCR
from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged or frayed.
b. If liquid has been spilled, or objects have fallen into the
TV/DVD/VCR.
c. If the TV/DVD/VCR has been exposed to rain or water.
d. If the TV/DVD/VCR does not operate normally by follow-
ing the operating instructions. Adjust only those controls
that are covered by the operating instructions, as improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the TV/DVD/VCR to its normal operation.
e. If the TV/DVD/VCR has been dropped or damaged in any
way.
f. When the TV/DVD/VCR exhibits a distinct change in per-
formance-this indicates a need for service.
20.Replacement Parts-When replacement parts are required,
be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock, injury to persons or other hazards.
21.Safety Check-Upon completion of any service or repairs to
this TV/DVD/VCR, ask the service technician to perform
routine safety checks to determine that the TV/DVD/VCR
is in proper operating condition.
22.Heat-This TV/DVD/VCR product should be situated away
from heat sources such as radiators, heat registers, stoves,
or other products (including amplifiers) that produce heat.
CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE
LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
- 3 -EN
1B15
PRECAUTIONS
IMPORTANT COPYRIGHT INFORMATION
Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.
This product incorporates copyright protection technology that is protected by method claims of certain
U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
FCC WARNING- This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause
harmful interference unless the modifications
are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change
or modification is made.
RADIO-TV INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
1) Reorient or relocate the receiving antenna.
2) Increase the separation between the equipment
and receiver.
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4) Consult the dealer or an experienced radio/TV
technician for help.
LASER SAFETY
This unit employs a laser. Only a qualified service
person should remove the cover or attempt to service this device, due to possible eye injury.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION: VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN AND INTERLOCK
DEFEATED. DO NOT STARE INTO BEAM.
LOCATION: INSIDE, NEAR THE DECK
MECHANISM.
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
ATTENTION: POUR ÉVITER LES CHOC
ÉLECTRIQUES, INTRODUIRE LA LAME LA
PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE
ET POUSSER JUSQU’AU FOND.
- 4 -EN
1B15
LOCATION
For safe operation and satisfactory performance of
your TV/DVD/VCR, keep the following in mind
when selecting a place for its installation:
Shield it from direct sunlight and keep it away from
•
sources of intense heat.
Avoid dusty or humid places.
•
Avoid places with insufficient ventilation for proper
•
heat dissipation. Do not block the ventilation holes at
the top and bottom of the unit. Do not place the unit
on a carpet because this will block the ventilation
holes.
Install unit in a horizontal position.
•
Avoid locations subject to strong vibration.
•
Do not place the TV/DVD/VCR near strong magnetic
•
fields.
Avoid moving TV/DVD/VCR to locations where
•
temperature differences are extreme.
AV OID THE HAZARDS OF
ELECTRICAL SHOCK AND FIRE
Do not handle the power cord with wet hands.
•
Do not pull on the power cord when disconnecting
•
it from an AC wall outlet. Grasp it by the plug.
If, by accident, water is spilled on your unit, unplug
•
the power cord immediately and take the unit to our
Authorized Service Center for servicing.
Do not put your fingers or objects into the
•
TV/DVD/VCR disc loading tray.
Do not place anything directly on top of the unit.
•
WARNING
Moisture condensation may occur inside the unit
when it is moved from a cold place to a warm place,
or after heating a cold room or under conditions of
high humidity. If a DVD is played in a TV/DVD/
VCR which has moisture, it may damage the DVD
and TV/DVD/VCR. Therefore when the condensation
occurs inside the unit, turn the POWER on and allow
at least 2 hours for the unit to dry out.
SYMBOLS USED IN THIS MANUAL
The following symbols below appear in some headings and notes in this manual, with the following
meanings
TV/VCR
: Description refers to TV/VCR operation (in the
TV/VCR mode).
DVD-V
: Description refers to playback of DVD video discs
(in the DVD mode).
CD
: Description refers to playback of audio CDs
(in the DVD mode).
MP3
: Description refers to playback of MP3 discs
(in the DVD mode).
QUICK
: Description refers to the items to be set by the
QUICK mode (in the DVD mode).
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in
accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.
The serial number of this product may be found on the back of the unit. No other TV/DVD/VCR has the same
serial number as yours. You should record the number and other vital information here and retain this book as
a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.
Date of Purchase
Dealer Purchase from
Dealer Address
Dealer Phone No.
Model No.
Serial No.
offers you excellent sound quality with a dynamic
range of 80dB, frequency response from 20Hz to
20kHz, and 0.005% wow and flutter.
Rotary 4-head Record/Playback System–Four heads
•
ensure excellent picture quality and special effects playback.
Index Search–
•
Slow Motion–View recorded program at slower
•
than normal speed.
Infrared remote control
•
Trilingual on screen tv/vcr setup display selec-
•
table in English or Spanish or French
Real time counter–This shows the elapsed recording
•
or playback time in hours, minutes, and seconds.
“–” indication will appear when the tape is rewound
further than the tape counter position “0:00:00”.
181 channel capability PLL frequency synthesiz-
•
er tuner with direct station call–
be necessary to view scrambled cable channels.)
Auto Clock Setting–Allows you to set the clock
•
function from a PBS broadcast station.
Closed caption system–You may view specially
•
labeled (cc) TV programs, movies, news, prerecorded tapes, etc. with either a dialogue caption or
text display added to the program.
Auto power on and off system–Automatically
•
turns on the TV/DVD/VCR when you insert the
cassette, turns off after auto-rewind, and ejects
when the beginning of the tape is reached.
Auto rewind when the end of a tape is
•
reached–
timer recording.
Smooth mode change–TV/VCR mode, DVD
•
mode automatically changes without control.
–The Hi-Fi stereo recording system
Fast-forwards to start of next recording.
(A converter may
This function doesn’t occur when using
The
2 Step picture search operation–You can view a
•
video program at a high speed or super high speed
in either a forward or reverse direction in LP and
SLP mode. For SP mode only high speed.
Three different playback tape speeds : SP/LP/SLP
•
Two different recording tape speeds : SP/SLP
•
Auto Head Cleaner–Automatically cleans video
•
heads as you insert or remove a cassette.
Zero Return–The tape returns to counter of
•
0:00:00 by rewinding or fast forwarding.
Still–“Freeze” the picture at any time, for close
•
viewing of a particular scene.
Digital Auto Tracking (DTR)–Automatically
•
adjusts the tracking for each tape you play.
Rental play mode–Improves playback picture
•
quality from worn tapes, such as rental tapes.
Auto repeat–Allows you to repeat the playing of a
•
tape indefinitely without pressing the PLAY button.
Time search–Let you set the TV/DVD/VCR to
•
advance the tape by entering the desired playback
time you want to skip.
OTR (One Touch Recording)–Instant timed
•
recording from 30 to 480 minutes is possible at the
push of the REC/OTR button.
1 Year, 8 events (including Daily and Weekly
•
Timer Recording)–
record up to 8 programs at different times on different channels up to 1 year in advance. The Daily
timer allows recordings to be made of daily broadcasts, and the Weekly timer allows recording to be
made once a week up to the end of the tape.
Auto return–After timer recording is finished, the
•
TV/DVD/VCR can return to the beginning of the
recording.
Sleep timer–Allows you to have the
•
automatically turn on or off at a desired time.
Timer Program Extension–Allow you to shift the
time schedule for automatic timer recording.
V-CHIP–Enables parents to prevent their children
•
from watching inappropriate material on TV.
The built-in timer allows you to
TV/DVD/VCR
A NOTE ABOUT RECYCLING
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in
accordance with your local recycling regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.
- 7 -EN
1C29
DVD Mode
¡Dolby Digital sound
This player can handle Dolby Digital surround
sound having 5.1 channels when connected to a
Dolby Digital decoder.
¡Still/fast/slow/step playback
Various playback modes are available including still
pictures, fast forward/reverse, slow motion and step
frames.
¡Random playback for audio CD and MP3
This player can shuffle the order of tracks to play
them in random order.
¡Program playback for audio CD and MP3
You can program the order of tracks to play them in
any desired order.
¡DVD menus in a desired language
You can display DVD menus in a desired language,
if available on a DVD.
¡Screen saver/Auto power-off functions
The screen saver program starts when there is no
input from the player for five minutes in the stop
mode. When the screen saver program is activated
for 15 minutes, the power automatically turns off.
¡Subtitles in a desired language
You can select a desired language for the display
subtitles, if that language is available on a disc.
¡Selecting a camera angle
You can select the desired camera angle, if a disc
contains sequences recorded from different angles.
¡Choices for audio language and sound mode
You can select the desired audio language and sound
mode, if different languages and modes are available
on a disc.
¡Parental lock
You can set the control level to limit playback of
discs which may not be suitable for children.
¡Automatic detection of discs
This player automatically detects if the loaded disc is
DVD, audio CD or MP3 on disc.
¡Playback MP3 disc
¡On-screen display
Information about the current operation can be displayed on a TV screen, allowing you to confirm the
currently active functions (such as program playback), on the TV screen using the remote control.
¡Search
Chapter search / Title search / Track search / Time
search
¡Repeat
Chapter / Title / Track / Group / All / A-B
¡Zoom
Magnified screen can be displayed.
¡Marker
The part designated by user can be called back.
¡Resume Play
User can resume to playback from the part at which
the play was stopped.
¡Virtual Surround
¡Bit rate indication
¡DRC (Dynamic range control)
You can control the range of sound volume.
NOTE:
We do not recommend the use of universal remote controls. Not all of the functions may be controlled with
•
a universal remote control.
If you decide to use a universal remote control with this TV/VCR/DVD, please be aware that the code num-
ber given may not operate this TV/VCR/DVD. In this case, please call the manufacturer of the universal
remote control.
- 8 -EN
1C29
OPERATING CONTROLS AND FUNCTIONS
VIDEO
HEADPHONE
RL
AUDIO
SELECTCHANNELREC/OTR
TV/VCRDVD
EJECT
F.FWDPLAYREWPOWER
STOP
STOP OPEN/CLOSE
VOLUMESKIPPLAYSKIP
SEARCH
12 45610715149833411 12 13212019181716
DVD buttonsTV/VCR buttons
34
35
23
24
26
25
(
DVD
) 3
(
TV/VCR
) 14
13
27
28
30
31
33
32
29
4
36
37
38
41
3
(
DVD
)
15 (
TV/VCR
)
43
2
11
45
44
42
5
39
40
1
22
(
TV/VCR
/DVD/CD
)
- TV/DVD/VCR FRONT PANEL - [Fig.1]
- REMOTE CONTROL -
[Fig. 2]
1.POWER Button [TV/VCR P.15 / DVD P.37]
Press to turn the power on and off.
2.VOLUME X/Y Buttons
Press to control the volume level for the DVD and
TV.
3.SKIP Buttons (for DVD)[P.38]
Press once to skip chapters or tracks to a desired
point.
Press and hold to change forward or reverse playback speed.
4.PLAY Button [TV/VCR P.26 / DVD P.37]
Starts playback of the disc or tape contents.
5.STOP Button
Front panel
[P.37]
Press to stop the disc motion.
Remote Control
● DVD mode
[P.37]
Press to stop the disc motion.
● TV/VCR mode
[P.26]
Press to stop the tape motion.
6.OPEN/CLOSE Button [DVD P.37]
Press to insert discs into or remove them from the
tray.
7.Disc loading tray
8.DVD Indicator
Lights on during DVD mode.
9.SELECT Button
Press to change to TV/VCR mode, external input
mode or DVD mode.
10.TV/VCR Indicator
Lights on during TV/VCR mode.
11. CHANNEL K/L Buttons
Press to select memorized channel.
12. Recording Indicator
Flashes during recording. Lights up in the Standby mode for Timer Recording.
13. REC/OTR (RECORD)Button [TV/VCR P.30, 31]
Press for manual recording. Activates One Touch
Recording. (OTR is only during TV/VCR mode.)
14. REW Button (for TV/VCR) [TV/VCR P.26]
Press to rewind the tape, or to view the picture
rapidly in reverse during playback mode. (Rewind
Search)
15. FWD Button (for TV/VCR) [TV/VCR P.26]
Press to rapidly advance the tape, or to view the
picture rapidly in forward during playback mode.
(Forward Search)
16. STOP/EJECT Button [TV/VCR P.28]
Press to stop the tape motion. Press in the Stop
17. Remote sensor window
mode to remove tape from the TV/VCR/DVD.
- 9 -EN
1C29
474648 49
- TV/DVD/VCR REAR PANEL - [Fig.3]
18. HEADPHONE Jack
To connect headphone (not supplied) for personal
listening.
19. VIDEO input Jack
Connect to the video output jack of a video
camera or VCR.
20. AUDIO L/R input Jacks
Connect to the audio output jacks of a video
camera or VCR.
21. Cassette compartment
22. PICTURE Button
Press to adjust the picture.
23. Number Buttons
TV Mode:
[P.15]
Press two digits to directly access the desired
channel.
Remember to press a "0" before a single digit
channel.
+100 Button–
Press to select cable channels which are equal or
greater than number 100.
DVD Mode:
Press to enter the desired number.
+10 Button–
Press to enter the desired numbers which are
equal or greater than number 10.
24. PAUSE Button [TV/VCR P.26 / DVD P.38]
Pauses the current disc or tape operation.
25. SPEED Button [TV/VCR P.30]
Press to choose the desired recording speed:
SP/SLP.
26. C.RESET Button [TV/VCR P.28]
Press to reset counter to 0:00:00.
Press to cancel a setting of timer program. (See
page 33.)
27. DISPLAY Button
TV/VCR Mode:
Display the counter or the current channel number
and current time on the TV screen.
DVD Mode:[P.43]
Displays the current status on the TV screen for
checking purposes.
28. SETUP Button [TV/VCR P.15] [DVD P.44-46]
Press to enter or exit the TV menu or DVD setup
mode.
29. TITLE Button [DVD P.37]
Displays the title menu.
30. CLEAR Button
Resets a setting.
31. MODE Button [DVD P.41]
Activates program playback or random playback
mode.
32. SEARCH MODE Button [DVD P.39]
Press to locate a desired point.
33. AUDIO Button [DVD P.42]
Press to select a desired audio language or sound
mode.
34. SUBTITLE Button [DVD P.42]
Press to select a desired subtitle language.
35. REPEAT Button [DVD P.40]
Repeats playback of the current disc, title, chapter
or track.
36. ANGLE Button (DVD mode) [DVD P.42]
Press to change the camera angle to see the
sequence being played back from a different
angle.
37. A-B REPEAT Button [DVD P.40]
Repeats playback of a selected section.
38. RETURN Button
Returns to the previous operation in the DVD
setup mode.
39. ENTER Button
Press to accept a setting.
40. Arrow Buttons
TV/VCR Mode:
Press to select a setting mode from the menu on
the TV screen.
Press to select or adjust from a particular menu.
DVD Mode:
Use when making settings while watching the
display on a TV screen.
41. DISC MENU Button [DVD P.37]
Displays the menus in the DVD.
42. ZOOM Button [DVD P.38]
Enlarges part of a DVD-reproduced image.
- 10 -EN
1C29
ANT.
IN
OUT
43. MUTE Button
Mutes the sound. Press it again to resume sound.
44. SLEEP Button [TV/VCR P.34]
Sets the Sleep Timer.
45. SELECT Button
Press to switch TV/VCR and DVD mode. You
can see the mode (TV/VCR or DVD) on the front
panel indicator.
46. ANT. in Jack
Connect to an antenna, cable system, or satellite
system.
PREPARATION FOR USE
ANTENNA/CABLE CONNECTION
47. Power cord
Connect to a standard AC outlet (120V/60Hz).
NOTE: Remove the power cord from the hook to
avoid breaking a wire before you connect
to a standard AC outlet.
48. COAXIAL digital audio out Jack
Connect to the digital input of an external
amplifier or decoder for DVD audio only.
49. AUDIO L/R output Jack
Connect to the analog audio input of an external
amplifier or decoder.
Satellite Box or
Cable Box (Not supplied)
From Cable System or
Satellite Dish
75-ohm
Coaxial
Cable
From Cable
System
VHF/UHF SEPARATE ANTENNAS
(Not supplied)
75-ohm Coaxial
Cable (Not
supplied)
or
In some areas it will be necessary to use an outdoor
antenna.
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/DVD/VCR without a converter
box.
By using this connection you can:
1) Use the TV/DVD/VCR remote to select channels.
2) Program one or more unscrambled channels for
Automatic Timer Recording.
NOTE: This TV/VCR/DVD will ONLY record and
view the same channel.
VHF/UHF Antenna
(Not supplied)
VHF Antenna (Not supplied)
UHF Antenna
(Not supplied)
or
VHF/UHF
Combiner
(Not supplied)
[Fig. 4]
or
Flat twin-lead cable
CABLE WITH CONVERTER/
DESCRAMBLER BOX OR SATELLITE
BOX
If your cable service supplies you with a converter
box or if you use a satellite system, you can use the
basic connection shown in the illustration.
By using this connection you can also record scrambled channels. However, channel selection must be
made with the converter box or satellite box. This
means that channels cannot be changed using the
TV/DVD/VCR Remote Control. Unattended timer
recording is limited to one channel at a time.
Antenna/Cable Connections
Continued on the Next Page.
- 11 -EN
1C29
TO RECORD A SCRAMBLED/UNSCRAM-
VIDEO
HEADPHONE
RL
AUDIO
BLED CHANNEL
1. Set the TV/DVD/VCR channel selector to the out-
put channel of the Cable Converter Box or Satellite
Box. (Ex. CH3)
2.Select the channel to record from your Cable
Converter Box or Satellite Box.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building as close to the point of cable
entry as practical.
INSTALLING THE BATTERIES
1)Open the battery compartment cover by pressing
the cover on the remote unit in the direction of the
arrow.
2)Insert 2 “AA” penlight batteries into the battery
compartment in the direction indicated by the
polarity (+/-) markings.
3)Replace the cover.
EXTERNAL INPUT MODE
CONNECTING TO EXTERNAL
INPUT JACKS
When you watch a program recorded on an another
source (VCR or video camera), use the audio/video
input jacks on the front of the TV/DVD/VCR.
Connect the audio/video output jacks of another
source to the AUDIO L/R and VIDEO jacks of this
TV/DVD/VCR.
Then press the CHANNEL buttons K/L until "AUX"
appears on the screen.
NOTE:
When you connect a monaural VCR (another
•
source) to this TV/DVD/VCR, connect the Audio
output jack of the monaural VCR (another source)
to the AUDIO L jack of this TV/DVD/VCR. The
audio will output in both L and R channel equally.
To the audio
output jacks
[Another source]
Audio/Video
coaxial cable
(not supplied)
etc.
To the video
output jack
[Front of the
TV/DVD/VCR]
[Fig. 5]
When using an external input signal (another VCR or
video camera), connect the player’s audio/video output cables to the AUDIO L/R IN/
VIDEO IN jacks of your
AUX
TV/DVD/VCR. Then press the
CHANNEL button K or L until
“AUX” appears on the screen.
- 12 -EN
1C29
CONNECTING TO A STEREO SYSTEM
To Right (red) and Left (white)
AUDIO OUT jacks
Stereo system
To ANALOG AUDIO INPUT jacks
Amplifier equipped with digital
input jacks, MD deck,
DAT deck, etc.
To COAXIAL DIGITAL
AUDIO INPUT jack
To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
(only DVD AUDIO OUT)
[Fig. 6]
NOTES:
Be sure to turn off the power to all components in the system before connecting another component.
•
Refer to the Owner's Manuals for your stereo system and any other components to be connected to the
•
TV/DVD/VCR.
CONNECTING TO A STEREO AMPLIFIER EQUIPPED WITH DIGI-
TAL INPUT JACKS SUCH AS MD DECK OR DAT DECK (for DVD)
Use an audio coaxial digital cable available at retail for the audio connections.
Connecting to an amplifier equipped with digital input jacks such as MD Deck or DAT Deck.
[Fig. 7]
NOTES:
The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital
•
sound by an MD or DAT deck.
Be sure to turn off the power to all components in the system before connecting another component.
•
Refer to the Owner's Manuals for the components to be connected to the TV/DVD/VCR.
•
Set Dolby Digital to OFF for audio output in the setup mode. Playing a TV/DVD/VCR using incorrect set-
•
tings may generate noise distortion, and may also damage the speakers.
- 13 -EN
1C29
Front speaker
(left)
Center
speaker
Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
To DIGITAL AUDIO OUT
(PCM/BITSTREAM)
COAXIAL jack
To COAXIAL DIGITAL
AUDIO INPUT jack
Dolby Digital
decoder
CONNECTING TO A DOLBY DIGITAL DECODER (for DVD)
If using this TV/DVD/VCR to play a DVD disc in a 5.1 channel Dolby Digital surround format, the
TV/DVD/VCR outputs a DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the player up to a Dolby Digital decoder, you can enjoy a more convincing, realistic ambience with powerful and high-quality surround sound as enjoyed in movie theaters.
Use audio coaxial digital cables available at retail for the audio connections.
[Fig. 8]
NOTES:
Be sure to turn off the power to all components in the system before connecting another component.
•
Refer to the Owner's Manuals for the components to be connected to the TV/DVD/VCR.
•
If connected to a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the setup mode.
•
(See page 45 to set DOLBY DIGITAL to ON.)
Unless connected to a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio output in the setup
•
mode. Playing a TV/DVD/VCR using incorrect settings may generate noise distortion, and may also damage the speakers.
Manufactured under license from Dolby Laboratories.“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
- 14 -EN
1C29
TV/VCR SECTION
SET UP FOR USE
You can program the tuner to scan all the channels you receive in your area.
NOTE: Channel memory programming is NOT needed when connected to a cable box or satellite box. Just
select the TV/DVD/VCR channel selector to the output channel of the cable box or satellite box (Ex CH3).
Then select the channel to be viewed on the Cable Box or Satellite Box.
CHANNEL SET UP FOR THE
FIRST TIME
TV/VCR
1 Plug in the TV/DVD/VCR power
cord
Plug the TV/DVD/VCR power cord
into a standard AC outlet.
NOTE:
If some digits appear in the corner of
•
the screen, press the POWER button without
unplugging the power cord.
2 Turn on the TV/DVD/VCR
Press the POWER button to turn on the TV/DVD/VCR.
3 Select “ENGLISH” or “ESPAÑOL” or
“FRANÇAIS”
Select “ENGLISH” or
“ESPAÑOL”=Spanish or
“FRANÇAIS” =French using the
ENTER button. “[ ]” indicate the
selected language.
4 Begin auto preset
Press the Arrow button K or L to
point to “AUTO PRESET”.
Then press the ENTER button.
The tuner scans and memorizes all
active channels in your area.
NOTES:
The TV/DVD/VCR distinguishes between standard
•
TV channels and cable channels.
If you want to play or record a video tape
•
BEFORE
presetting the tuner, you must press the
SETUP button on the remote control. To preset the
tuner again, see “CHANNEL SET UPAGAIN” on
page 16.
The TV/DVD/VCR may memorize TV channels as
•
CATV channels if reception conditions is poor. If
this happens, try AUTO MEMO action again when
reception conditions are better.
5 After scanning
The tuner stops on the lowest memorized channel.
If you want to recall the selected channels, you can
select the desired channel directly with the remote control number buttons or the CHANNEL button K or L.
– SET UP –
B LANGUAGE
[ENGLISH] ESP FRA
AUTO PRESET
– SET UP –
LANGUAGE
[ENGLISH] ESP FRA
B AUTO PRESET
DELETING (OR ADDING)
CHANNEL
TV/VCR
The channels you no longer receive or seldom watch
can be deleted from the memory. (Of course, you can
add the deleted channel into the memory again.)
1 Select “CHANNEL SET UP”
Press the SETUP button on the
remote control.
Press the Arrow button K or L to
point to “CHANNEL SET UP”.
Then, press the ENTER button.
2 Select “ADD/DELETE CH”
Press the Arrow button K or L to
point to “ADD/DELETE CH”.
Press the ENTER button.
3 Enter the desired channel number
Press the Arrow button K or L until
your desired channel number appears.
(You can also use the number buttons
or the CHANNEL buttons K/L to
enter it) (Example: CH8)
4 Delete (or add) it from (into) memory
Press the ENTER button. The channel number changes
to light red. The channel is deleted from memory.
To delete another channel, repeat steps [3] and [4].
•
If you press the ENTER button again, the channel
•
is memorized again.
Press the RETURN button to return to TV/VCR
•
SETUP MENU.
5 Exit the channel setup mode
Press the SETUP button on the remote control to
returns to TV mode.
NOTE: To confirm that channel(s) has been deleted
or added, press the CHANNEL button
- 15 -EN
- TV/VCR SETUP -
TIMER PROGRAMMING
SETTING CLOCK
B CHANNEL SET UP
USER’S SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ZERO RETURN
TIME SEARCH
INDEX SEARCH
– CHANNEL SET UP –
B ADD / DELETE CH (TV)
AUTO PRESET
ADD / DELETE
K or L.
08
1C29
CHANNEL SET UP AGAIN
Make sure ...
Press the POWER button to turn on the
•
TV/DVD/VCR.
TV/VCR
NOTE: If Spanish or French is selected accidentally,
1)Press the SETUP button on the remote control.
2)Press the Arrow button K or L to point to “IDIOMA
[ESPAÑOL]” or “LANGAGE” [FRANÇAIS].
3)Press the ENTER button to select your desired language.
4)Press the SETUP button to exit.
1 Select “CHANNEL SET UP”
Press the SETUP button on the
remote control.
Press the Arrow button K or L to
point to “CHANNEL SET UP”.
- TV/VCR SETUP -
TIMER PROGRAMMING
SETTING CLOCK
B CHANNEL SET UP
USER’S SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ZERO RETURN
TIME SEARCH
INDEX SEARCH
Then, press the ENTER button.
2 Begin auto preset
Press the Arrow button K or L to
point to “AUTO PRESET”.
– CHANNEL SET UP –
ADD / DELETE CH (TV)
B AUTO PRESET
Then, press the ENTER button.
The tuner scans and memorizes all
the active channels in your area.
3 After scanning
The tuner stops on the lowest memorized channel.
SELECTING THE LANGUAGE
TV/VCR
Make sure ...
Press the POWER button to turn on the
•
TV/DVD/VCR.
NOTE: This function effects only the language on
the screen menu and not the audio source.
1 Select “LANGUAGE”
Press the SETUP button on the
remote control.
Press the Arrow button K or L to
point to “LANGUAGE”.
2 Select “ENGLISH” or “ESPAÑOL” or
“FRANÇAIS”
Select “ENGLISH” or “ESPAÑOL”= Spanish or
“FRANÇAIS”= French using the ENTER button.
3 Exit the Language mode
Press the SETUP button on the remote control to
return to TV mode.
- TV/VCR SETUP -
TIMER PROGRAMMING
SETTING CLOCK
CHANNEL SET UP
USER’S SET UP
V-CHIP SET UP
B LANGUAGE [ENGLISH]
CAPTION [OFF]
ZERO RETURN
TIME SEARCH
INDEX SEARCH
DAYLIGHT-SAVING TIME
TV/VCR
Select this feature and the TV/DVD/VCR’s clock
automatically will advance one hour in April, then
reverse one hour in October.
When Daylight-Saving Time is ON, the clock will
change automatically as follows:
First Sunday of April : At 2 AM the clock imme-
•
diately changes to 3 AM. Any timer programming
you have set to occur between 2 AM and 3 AM
will not record.
Last Sunday of October : At 2 AM the clock
•
immediately changes to 1 AM.
Make sure ...
Press the POWER button to turn on the
•
TV/DVD/VCR.
1 Select “SETTING CLOCK”
Press the SETUP button on the
remote control.
Press the Arrow button K or L to
point to “SETTING CLOCK.”
Then, press the ENTER button.
2 Set “D.S.T.” (Daylight-Saving
Time) to [ON]
Press the Arrow button K or L to
point to “D.S.T.”
Then, press the ENTER button until
[ON] appears.
3 Exit the Daylight-Saving Time mode
Press the SETUP button on the remote control to
return to TV mode.
TO CANCEL THE DAYLIGHT-SAVING
TIME
Repeat steps [1] to [2], select [OFF] using the
ENTER button.
- TV/VCR SETUP -
TIMER PROGRAMMING
B SETTING CLOCK
CHANNEL SET UP
USER’S SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ZERO RETURN
TIME SEARCH
INDEX SEARCH
– SETTING CLOCK –
AUTO CLOCK[ON]
AUTO CLOCK CH SEARCH
AUTO CLOCK CH [02]
MANUAL CLOCK SET
B D.S.T.[ON]
- 16 -EN
1C29
CLOCK SET UP
(AUTO / MANUAL)
TV/VCR
The TV/DVD/VCR clock must be set correctly before
VCR timer recording is possible. It is suggested that the
clock be set manually when first setting up the
TV/DVD/VCR. Then, setup auto clock correction which
will periodically correct the setting if necessary.
NOTE: If you cannot receive a station with time signals, auto clock setting cannot be performed. Use
manual setting only.
6 Select the hour
Press the Arrow button K or L until
your desired hour appears.
(Example: 5, PM)
Then, press the Arrow button B.
7 Select the minute
Press the Arrow button K or L until
the desired minute appears.
(Example: 40)
– MANUAL CLOCK SET –
MONTH DAYYEAR
0 5 / 0 6 TUE 2 0 0 3
HOUR MINUTE
0 5 : – – PM
– MANUAL CLOCK SET –
MONTH DAYYEAR
0 5 / 0 6 TUE 2 0 0 3
HOUR MINUTE
0 5 : 4 0 PM
MANUAL CLOCK SETTING
Make sure ...
TV/DVD/VCR power is turned on.
•
In the example below, the clock is to be set to:
DATEMay 6th, 2003
SETTING TIME5:40PM
1 Select “SETTING CLOCK”
Press the SETUP button on the
remote control.
Press the Arrow button K or L to
point to “SETTING CLOCK”.
Then, press the ENTER button.
2 Select “MANUAL CLOCK
SET”
Press the Arrow button K or L to
point to “MANUAL CLOCK SET”.
Then, press the ENTER button.
3 Select the month
Press the Arrow button K or L until
your desired month appears.
(Example: May
Then, press the Arrow button
→ 05)
B.
4 Select the day
Press the Arrow button K or L until
your desired day appears.
(Example: 6th → 06)
Then, press the Arrow button B.
- TV/VCR SETUP -
TIMER PROGRAMMING
B SETTING CLOCK
CHANNEL SET UP
USER’S SET UP
V-CHIP SET UP
LANGUAGE [ENGLISH]
CAPTION [OFF]
ZERO RETURN
TIME SEARCH
INDEX SEARCH
– SETTING CLOCK –
AUTO CLOCK[ON]
AUTO CLOCK CH SEARCH
AUTO CLOCK CH [02]
B MANUAL CLOCK SET
D.S.T.[OFF]
– MANUAL CLOCK SET –
MONTH DAYYEAR
0 5 / – – – – – – – – –
HOUR MINUTE
– – : – – – –
– MANUAL CLOCK SET –
MONTH DAYYEAR
0 5 / 0 6 – – – – – – –
HOUR MINUTE
– – : – – – –
8 Start the clock
Press the SETUP button on the
5:40 PM
remote control.
Although seconds are not displayed,
they begin counting from 00 when
you press the SETUP button on the
remote control. Use this feature to synchronize the
clock with the correct time.
NOTE:
When unplugging the AC cord or if there is a power
failure for more than 3 seconds, you may have to
reset the clock.
TO CHANGE CLOCK SETTING
If you want to change the clock,
1)Follow steps [1] and [2].
2)Select where you want to change using the Arrow
button B or s.
3)Enter correct numbers using the Arrow button K orL.
4)Press the SETUP button on the remote control to
start the clock.
PLEASE NOTE:
If there is no local PBS station in your area or on
your cable system, select “AUTO CLOCK” and
press the ENTER button to turn [OFF] this function.
Then you can manually adjust the clock.
5 Select the year
Press the Arrow button K or L until
your desired year appears.
(Example: 2003)
Then, press the Arrow button B.
– MANUAL CLOCK SET –
MONTH DAYYEAR
0 5 / 0 6 TUE 2 0 0 3
HOUR MINUTE
– – : – – – –
- 17 -EN
1C29
Loading...
+ 39 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
