Sylvania 6620LE Schematic

SERVICE MANUAL

20” COLOR LCD TELEVISION

6620LE

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Funai Equipment. The service procedures recommended by Funai and described in this service manual are effective methods of performing service operations. Some of these service special tools should be used when and as recommended.

It is important to note that this service manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service personnel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Funai could not possibly know, evaluate and advice the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Funai has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Funai must first use all precautions thoroughly so that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

TABLE OF CONTENTS

Specifications ........................................................ 1-1

Important Safety Precautions................................ 2-1

Standard Notes for Servicing ................................ 3-1

Cabinet Disassembly Instructions ......................... 4-1

Electrical Adjustment Instructions ......................... 5-1

Block Diagrams ..................................................... 6-1

Schematic Diagrams / CBA’s and Test Points...... 7-1

Schematic Diagrams ............................................. 7-3

The LCD panel is manufactured to provide many years of useful life. Occasionally a few non active pixels may appear as a tiny spec of color. This is not to be considered a defect in the LCD screen.

CBA Views and Test Points................................. 7-23

Waveforms ............................................................ 8-1

Wiring Diagram...................................................... 9-1

Cabinet Exploded View ....................................... 10-1

Packing Exploded View ....................................... 10-3

Mechanical Parts List .......................................... 11-1

Electrical Parts List.............................................. 12-1

SPECIFICATIONS

<TUNER> ANT. Input ------------------- 75ohm Unbal., F type

Reference Level------------20Vp-p (CRT Green Cathode) Test Input Signal -----------400Hz 30% modulation

Description Condition Unit Nominal Limit

1. Intermediate Freq. Picture Sound

2. Color Killer Sens. CH-2 CH-10 CH-55

MHz MHz

dBµV dBµV dBµV

45.75

41.25 15

15 15

-

20 20 20

3. AFT Pull In Range (10mV input)

- MHz ±2.1 ±0.7

Description Condition Unit Nominal Limit

1. Number of Pixels Horizontal

Vert ical

2. Brightness

3. Response Time - msec 16 -

4. Support Color - - 26mil.(6bit) -

5. Viewing Angle Horizontal

Vert ical

pixels pixels

cd/m

° °

640 x 3

480

2

500 -

-80 to 80

-65 to 70

<VIDEO>

Description Condition Unit Nominal Limit

1. Over Scan Horizontal

Vert ical

2. Color Temperature -

x y

% %

°K 9200

7 7

0.286

0.294

-

±0.3 ±0.3

3. Resolution Horizontal

<AUDIO>

Description Condition Unit Nominal Limit

1. Audio Output Power 10% THD: Lch/Rch W 1.0/1.0 0.8/0.8

2. Audio Distortion 500mW: Lch/Rch % 1.0/1.0 4.0/4.0

3. Audio Freq. Response

Note:

Nominal specifications represent the design specifications. All units should be able to approximate these. Some will exceed and some may drop slightly below these specifications. Limit specifications represent the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet limit specifications.

All items are measured across 8Ω load at speaker output terminal with L.P.F.

Vert ical

-

3dB: Lch

-

3dB: Rch

1-1 L0305SP

line line

Hz Hz

400 350

50 to 12K 50 to 12K

-

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Safety Precautions for TV Circuit

1. Before returning an instrument to the custom-

er, always make a safety check of the entire instru-

ment, including, but not limited to, the following items:

a. Be sure that no built-in protective devices are de-

fective and have been defeated during servicing. (1) Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not oper-

ate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through

which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an electrical jumper across the two AC plug prongs. Place the instrument AC switch in the on position. Connect one lead of an ohmmeter to the AC plug prongs tied together and touch the other ohmmeter lead in turn to each tuner antenna input exposed terminal screw and, if applicable, to the coaxial connector. If the measured resistance is less than 1.0 megohm or greater than 5.2 megohm, an abnormality exists that must be corrected before the instrument is returned to the customer. Repeat this test with the instrument AC switch in the off position.

d. Leakage Current Hot Check - With the instru-

ment completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leak-

age current tester or a metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7). With the instrument AC switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5 milli-ampere. Reverse the instrument power cord plug in the outlet and repeat the test.

READING SHOULD NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED

METAL SURFACES

ALSO TEST WITH PLUG REVERSED USING AC ADAPTER PLUG AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

e. X-Radiation and High Voltage Limits - Because

the picture tube is the primary potential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued X-radiation protection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servic-

CURRENT

TESTER

+

EARTH GROUND

_

2-1 L6115IMP

ing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the Xradiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horizontal disable" or "hold down.") Read and apply the high voltage limits and, if the chassis is so equipped, the X-radiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions, including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some "in-line" picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning -

a. Some TV receiver chassis are electrically connect-

ed directly to one conductor of the AC power cord and maybe safety-serviced without an isolation transformer only if the AC power plug is inserted so that the chassis is connected to the ground side of the AC power source. To confirm that the AC power plug is inserted correctly, with an AC voltmeter, measure between the chassis and a known

earth ground. If a voltage reading in excess of 1.0V is obtained, remove and reinsert the AC power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground regardless of the AC plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the AC power source, for both personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis ground. This secondary ground system is not isolated from the AC power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas:a. near sharp edges,b. near thermally hot parts-be sure that leads and components do not touch thermally hot parts,c. the AC supply,d. high voltage, and,e. antenna wiring. Always inspect in all areas for pinched, out of place, or frayed wiring. Check AC power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

8. Product Safety Notice - Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc.. Parts that have special safety characteristics are identified by a ( # ) on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The product's safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are strictly inspected to confirm they comply with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

2-2 L6115IMP

Precautions during Servicing

A. Parts identified by the ( # ) symbol are critical for

safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors. E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set. K. Crimp type wire connector

The power transformer uses crimp type connec-

tors which connect the power cord and the primary

side of the transformer. When replacing the trans-

former, follow these steps carefully and precisely

to prevent shock hazards.

Replacement procedure

1) Remove the old connector by cutting the wires at

a point close to the connector.

Important: Do not re-use a connector (discard it).

2) Strip about 15 mm of the insulation from the ends

of the wires. If the wires are stranded, twist the

strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the AC supply outlet.

2-3 L6115IMP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d') between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

USA or

CANADA

Clearance

Distance (d), (d')

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method : (Power ON)

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across both terminals of load Z. See Fig. 2 and following table.

Z

1.5kΩ

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Exposed Accessible Part

AC Voltmeter

0.15µF

Earth Ground

B

Power Cord Plug Prongs

(High Impedance)

Fig. 1

Fig. 2

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

0.15µF CAP. & 1.5kΩ

110 to 130 V USA

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

RES. connected in

parallel

2-4 L6115IMP

i≤0.5mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a. The output pin of the 3 pin Regulator ICs is indicat-

ed as shown.

Top View

Out

b. For other ICs, pin 1 and every fifth pin are indicat-

ed as shown.

Pin 1

c. The 1st pin of every male connector is indicated as

shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb free solder. (Refer to figure.) For PCBs with Pb free mark, be sure to use Pb free solder. For PCBs without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

(1) Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

(2) Remove the flat pack-IC with tweezers while ap-

plying the hot air.

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Caution:

1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat PackIC.

2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

3-1 L14STA

3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

With Soldering Iron:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

CBA

Masking Tape

Tweezers

Hot-air Flat Pack-IC Desoldering Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2) Lift each lead of the flat pack-IC upward one by

one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine.(Fig. S-1-4)

Sharp Pin

Fine Tip Soldering Iron

(3) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

With Iron Wire:

(1) Using desoldering braid, remove the solder from

all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting

point, as shown in Fig. S-1-5.

(3) While heating the pins using a fine tip soldering

iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

Fig. S-1-4

3-2 L14STA

(4) Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(5) Release the flat pack-IC from the CBA using twee-

zers. (Fig. S-1-6)

Note:

When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

2. Installation

(1) Using desoldering braid, remove the solder from

the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

(2) The "I" mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then pre- solder the four corners of the flat pack-IC. (See Fig. S-1-8.)

(3) Solder all pins of the flat pack-IC. Be sure that

none of the pins have solder bridges.

To Solid Mounting Point

CBA

Tweezers

Hot Air Blower

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip Soldering Iron

Flat Pack-IC

or

Example :

Pin 1 of the Flat Pack-IC is indicated by a " " mark.

Presolder

CBA

Fig. S-1-7

Flat Pack-IC

Fig. S-1-6

Fig. S-1-8

3-3 L14STA

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1MΩ) on the workbench or other surface, where the semiconductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors with your clothing.

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or Copper Plate

3-4 L14STA

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the cabinet parts and the CBA in order to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route and dress the cables as they were.

[7] IR Sensor CBA

[8] Speaker L

[4] Inverter CBA

[6] Function CBA

[1] Rear Cabinet

[2] Jack Holder

[3] Main CBA

[10] Front Cabinet

[9] Speaker R

[5] LCD Main CBA

& Liquid Crystal

Panel Unit

2. Disassembly Method

REMOVAL

ID/

LOC.

PA RT

No.

[1] Rear Cabinet

[2] Jack Holder D2 2(S-3), (S-4) ---

[3] Main CBA

[4] Inverter CBA

LCD Main CBA & Liquid

[5]

Crystal Panel Unit

[6] Function CBA D2 4(S-8) ---

REMOVE/ *UNHOOK/UNLOCK/

Fig.

No.

RELEASE/UNPLUG/ DESOLDER

D1

11(S-1), (S-2) ---

D3

10(S-5), 2(W-1), *CN101B, *CN102B,

D2

*CN103B, *CN51,

D3

*CN53, *CN481, *CN801, *CN802

6(S-6), *CN450,

D2

*CN460, *CN470,

D3

*CN490

13(S-7), *CN310A,

D2 D3

*CN311A, *CN312A

Note

---

IR Sensor

[7]

CBA

D2 2(S-9) ---

[8] Speaker L D2 2(S-10) --[9] Speaker R D2+ 2(S-11) ---

[10] Front Cabinet D2 --------------- ---

↓

(1)

↓

(2)

↓

(3)

↓

(4)

↓

(5)

(1): Order of steps in Procedure. When reassembling,

follow the steps in reverse order.These numbers are also used as the Identification (location) No. of

parts in Figures. (2): Parts to be removed or installed. (3): Fig. No. showing Procedure of Part Location. (4): Identification of part to be removed, unhooked,

unlocked, released, unplugged, unclamped, or

desoldered.

S=Screw, P=Spring, L=Locking Tab, CN=Connec-

tor, *=Unhook, Unlock, Release, Unplug, or Desol-

der

2(S-2) = two screws (S-2) (5): Refer to the following Reference Notes in the

Table.

4-1 L0311DC

(S-1)

(S-2)

[10] Front Cabinet

[1] Rear Cabinet

(S-8)

(S-1)

(S-8)

[6] Function CBA

[5] LCD Main CBA & Liquid Crystal Panel Unit

(S-1)

Fig. D1

(S-9)

[7] IR Sensor CBA

[8] Speaker L

[9] Speaker R

(S-11)

(S-7)

(S-10)

(S-7)

(W-1)

(S-7)

[4] Inverter CBA

(S-7)

[3] Main CBA

(S-5)

(S-6)

(S-5)

(S-6)

[2] Jack Holder

(S-3)

(S-4)

(S-3)

(S-5)

Fig. D2

4-2 L0311DC

TV Cable Wiring Diagram

To Liquid Crystal Panel

CN311ACN310A

To Liquid Crystal Panel

CN490

CN450

CN481

CN470

CN460

Inverter CBA

CN53

CLN481

CN801

CN51

CN312A

CN101B CN102B CN103B

CN101A CN102A

CN103A

Main CBA

LCD Main CBA Unit

CN802

CLN53

IR Sensor CBA

To SpeakerTo Speaker

CLN51B

Function CBA

Fig. D3

4-3 L0311DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: "CBA" is abbreviation for "Circuit Board Assembly."

NOTE:

Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to perform these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White Window, Red Color, Dot Pattern, Gray Scale, Monoscope, Multi-Burst)

3. Remote control unit: Part No. N0105UD or N0127UD

4. Color Analyzer

How to make Service remote control unit:

1.

Prepare normal remote control unit. (Part No. N0105UD or N0127UD) Remove 3 Screws from the back lid. (Fig. 1-1)

SCREWS

REMOTE CONTROL UNIT

2. Add J1 (Jumper Wire) to the remote control CBA. (Fig. 1-2)

J 1

REMOTE CONTROL CBA

Fig. 1-1

Fig. 1-2

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on. (Use main power on the TV unit.)

3. Press "SLEEP" button on the service remote control unit. Version of micro computer will be displayed on the LCD or display. (Ex: 0004GP-0.47)

1. Initial Setting

General

Enter the Service mode.

Set the each initial data as shown on tabel 1 below.

Table 1: Initial Data

BUTTON

ITEM

BRT CNT 197 CLR-R 60 CLR-B 60 TNT 60 V-TNT 64 SHR 35 S-BRT S-CNT 197 S-CLR-R 64 S-CLR-B 64 S-TNT 64 S-SHR 35 C-BRT C-CNT 197 C-CLR-R 64 C-CLR-B 64 C-TNT 64 C-SHR 35 D2-BRT D2-CNT 197 D2-CLR-R 64 D2-CLR-B 64 D2-TNT 64 D2-SHR 35 D3-BRT D3-CNT 197 D3-CLR-R 64 D3-CLR-B 64 D3-TNT 64 D3-SHR 35

(on the service

remote control)

MENU → 1

MENU → 2

MENU → 3

MENU → 5

MENU → 6

DATA

VALUE

167

5-1 L0311EA

BUTTON

ITEM

NORMAL DARK 150 SAIDO C-SAIDO 188 D2-SAIDO 128 D3-SAIDO 208 H-P C-H-P 50 V-P C-V-P 40 COR(C/D1) VOL p → 1512 COG(C/D1) VOL p → 2512 COB(C/D1) VOL p → 3512 DR(C/D1) VOL p → 4138 DG(C/D1) VOL p → 5138 DB(C/D1) VOL p → 6138 COR(C/D2) VOL p → 1512 COG(C/D2) VOL p → 2512 COB(C/D2) VOL p → 3512 DR(C/D2) VOL p → 4138 DG(C/D2) VOL p → 5138 DB(C/D2) VOL p → 6138 7F LANGUAGE SPA/FRA STEREO TYPE MTS ACCESS CODE OFF BACK LIGHT ON HD ON 2DVP ES3 HRD ON NCM ON ASPECT OFF

(on the service

remote control)

0

5

8

9

VOL p

DATA

VALUE

74

128

50

40

FF

2. +B Adjustment

Purpose: To obtain correct operation. Symptom of Misadjustment: The picture is dark and

the unit does not operate correctly.

Test Point Adj. Point

TP401 (+B)

TP300 (GND)

M. EQ. Spec.

DC Voltmeter +21.0±0.5V DC

Note: TP401(+B), TP300(GND), VR649 --- Main CBA

1. Connect DC Volt Meter to TP401 and TP300(GND).

2. Adjust VR649 so that the voltage of TP401 becomes +21.0±0.5V DC.

VR649

3. Software Reset

To reset software, press “5” button on the remote control unit for at least 5 seconds after pressing “CH RETURN” button on the remote control unit.

5-2 L0311EA

4. Flicker Adjustment

Adjustment Point: VR201 (LCD Main CBA Unit)

LCD Main CBA Unit

VR201

Note: Use service remote control unit

1. Enter the Service mode. (See page 5-1)

2. Press “2” button on the remote control unit. The following screen appears.

The following adjustment normally are not attempted in the field. Only when replacing the LCD Panel then adjust as a preparation.

5. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white. Symptom of Misadjustment: White becomes bluish

or reddish.

Test Point Adj. Point Mode Input

White Purity

(APL 80%)

Screen

M. EQ. Spec.

Pattern Generator,

Color analyzer

CH o / p

buttons

Figure

It carries out in a darkroom.

Perpendicularity

VIDEO1 VIDEO2

x (0.256 to 0.316),

y (0.264 to 0.324)

3. If Flicker Adjustment is not fit, the screen become the following.

FLASH (Go and Off)

4. Adjust VR201 so that flash stops.

L = 50 cm

INPUT: WHITE 80%

Note: Use service remote control unit

1. Operate the unit for more than 20 minutes.

2. Input the White Purity (APL 80%).

3. Set the color analyzer to the CHROMA mode and bring the optical receptor to the center on the LCDPanel surface after zero point calibration as shown above. Note: The optical receptor must be set perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press "VOL p" button on the service remote control unit and select "C/D" mode.

5-1. When "x" value and "y" value are not within specifica-

tion, adjust "DB(C/D1)" or "DR(C/D1)". Refer to "1. Initial Setting." Note: "DB(C/D1)" or "DR(C/D1)" must be adjusted within ±10.

5-2. When "x" value and "y" value are not within specifica-

tion, adjust "DB(C/D2)" or "DR(C/D2)". Refer to "1. Initial Setting." Note: "DB(C/D2)" or "DR(C/D2)" must be adjusted within ±10.

Color Analyzer

Fig. 2

5-3 L0311EA

BLOCK DIAGRAMS

System Control Block Diagram

D51

STAND BY

P-ON+3.3V

KEY SWITCH

FUNCTION CBA

REMOTE

RCV51

SENSOR

IR SENSOR CBA

CLN51B

KEY-IN-211

KEY-IN-122

CN51

KEY-IN-118 6

KEY-IN-217 7

RCV-IN23 1

CN102B CN102A

CLN53

RCV-IN33

P-ON-H22

CN53

Q51

TO POWER SUPPLY

P-ON-H

PROTECT-2

BACKLIGHT-SW

P-ON-H16 8

PROTECT-2816

CN102B CN102A

BLOCK DIAGRAM

BACKLIGHT-ADJ

BACKLIGHT-SW

BACKLIGHT-ADJ

19 5

21 3

PROTECT-1

TO IF/VIDEO

BLOCK DIAGRAM

SCL

S-SW

INPUT-0

INPUT-1

PROTECT-1915

INPUT-012 12

INPUT-111 13

S-SW717

TO AUDIO

BLOCK DIAGRAM

SDA

A-MUTE

VOLUME

VOLUME15 9

A-MUTE13 11

SCL618

SDA519

SCL

CN52 IS

USED FOR

BUS-OPEN4

(NO CONNECTION)

SDA2

SCL1

CN52

BUS-OPEN16 8

CN103B CN103A

ADJUSTMENT

AT FACTORY

MAIN CBALCD MAIN CBA UNIT

IC333

(TV MICRO CONTROLLER)

4

KEY-IN-2

3

KEY-IN-1

+3.3V

RESET

IC151

11

RCV-IN

4 5

21

RESET

42

XIN

X161

43

XOUT

27MHz

7

PROTECT-2

22618

P-ON-H

BACKLIGHT-SW

6-1

17

PROTECT-1

BACKLIGHT-ADJ

3140193241

SCL

S-SW

INPUT-0

INPUT-1

SDA

20

35

A-MUTE

VOLUME

23BUS-OPEN

3.3V<-->5V

Q102

+5V

IC171

(MEMORY)

CONVERTER

CN105(NO CONNECTION)

7

6

5

CS

SCL

SDA

SDA 2

SCL 1

BUS-OPEN 4

NO PART

MOUNTED

FOR CN105

L0311BLS

IF/Video Block Diagram

TO

LCD BLOCK

DIAGRAM

CVBS23

S-VIDEO-C19

CN103B

S-VIDEO-Y21

TO

LCD BLOCK

DIAGRAM

VIDEO-Y17

VIDEO-Pb15

CN103B

VIDEO-Pr13

AUDIO SIGNAL

MAIN CBA

VIDEO SIGNAL

SWITCHING

Q31

TO AUDIO BLOCK

DIAGRAM

SIF

4.5MHz

FILTER

CF32

4.5MHz

TRAP

CF31

CN103A

WF7

BUFFER

Q703

4

IC781 (INPUT SELECT)

3

BUFFER

Q709

WF8

WF9

TO AUDIO

Q701

1

BUFFER

15

2

SW

INPUT-0(INV)

11

10

CONTROL

9

Q707

INPUT-0

BUFFER

Q702

14

5

13

12

CN103A

BLOCK DIAGRAM

INPUT-1(INV)

Q708

INPUT-1

6VCO

APC

IC11 (IF SIGNAL PROCESS)

TU1

(TUNER UNIT)

SF11

4

VIDEO

VIF

16

SAW

FILTER

IF

DET

AMP

17

IF

AGC

RF

AGC

14

1115

AGC

DET

4

SCL

2

SDA

LPF

1

7

EQ

AMP

SCL

SDA

S-SW

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

SIF

AMP

8

JK703

VIDEO1INJK701

6-2

CY

S-VIDEO

IN

Q704

BUFFER

JK706

TO SYSTEM CONTROL

BLOCK DIAGRAM

WF10

BUFFER

Q705

VIDEO-YINJK707

VIDEO-PbINJK708

WF11

Q706

BUFFER

WF12

VIDEO-Pr

IN

L0311BLIF

Audio Block Diagram

29

R-CH

AUDIO SIGNAL

30

L-CH

SP802

SPEAKER

L-CH

SP801

SPEAKER

R-CH

OFFSET

CANCEL

75uS

DE-EMPH

MATRIX AGC

OFFSET

CANCEL

WIDE BAND

EXPAND

WIDE BAND

RMS DET

WIDE BAND

FILTER

(L-R)/SAP

SW

SPECTRAL

EXPAND

dBX

DE-EMPH

SPECTRAL

RMS DET

SPECTRAL

FILTER

CLN802

SP-L 1

CN802

IC801 (AUDIO AMP)

Q803

SP-R 1

CN801

CLN801

GND 2

+5V

Q802

TO

POWER

SUPPLY

P-ON-L

BLOCK

TO

VOLUME

SYSTEM

CONTROL

BLOCK

SCL

A-MUTE

SDA

TO

IF/VIDEO

INPUT-0(INV)

BLOCK

DIAGRAM

INPUT-1(INV)

JK801

HEADPHONE

JACK

GND 2

WF6

VOLUME

/STANDBY

CONTROL

14

AMP

(R-CH)

1

5

RF

7

2

11

AMP

MUTE

(L-CH)

6

IC851 (MTS/SAP AUDIO SIGNAL PROCESS)

MAIN CBA

L+R

FILTER

L-R

OFFSET

CANCEL

STEREO

FILTER

VCA

21

SIF

TO

IF/VIDEO BLOCK

DIAGRAM

FILTER

SAP OUT

FILTER

SAP

DEMOD

SAP

FILTER

I2C

DECORDER

27

24

13

TUNER

AUDIO2

AUDIO1

IC852 (INPUT SELECT)

111512

(L-CH)

(R-CH)

JK704

3

TUNER

AUDIO1

4

2

AUDIO1(L)

IN

AUDIO2

1

JK705

AUDIO1(R)

9 10

SW CTL

IN

JK709

AUDIO2(L)

IN

JK710

AUDIO2(R)

IN

6-3

L0311BLA

LCD Block Diagram

LCD MODULE

OR(0)29

OR(2)27

OR(3)26

OG(0)22

OG(1)21

OR(1)28

OG(2)20

OR(4)25

OR(5)24

OG(3)19

OG(4)18

OG(5)17

OB(0)15

OB(1)14

OB(2)13

OB(3)12

OB(4)11

OB(5)10

ER(0)39

ER(1)38

ER(2)37

ER(3)36

ER(4)35

ER(5)34

EG(0)32

EG(1)31

EG(2)30

EG(3)29

EG(4)28

EG(5)27

EB(0)25

EB(1)24

EB(2)23

EB(3)22

EB(4)21

EB(5)20

CN310A

VIDEO SIGNAL

170

LCD MAIN CBA UNIT

169

166

165

R(ODD)

R

A/D

164

163

162

161

157

156

G(ODD)

G

A/D

155

154

153

152

148

B(ODD)

B

A/D

147

146

145

LCD RGB

CN311A

SIGNAL

PROCESS

138

137

136

135

R(EVEN)

Y

A/D

130

129

128

127

126

125

G(EVEN)

Pb/Cb

A/D

118

117

116

115

114

113

Pr/Cr B(EVEN)

A/D

108

107

IC333 (LCD DRIVE / SIGNAL PROCESS)

R

68

CN103B

CVBS 1

TO

IF/VIDEO

49

71

S-VIDEO-Y 3

S-VIDEO-C 5

BLOCK

DIAGRAM

CN103A

G

VIDEO

SIGNAL

PROCESS

B

CN103B

VIDEO-Y 7

TO

IF/VIDEO

74

BLOCK

52

VIDEO-Pb 9

DIAGRAM

60

VIDEO-Pr 11

CN103A

ODDINV

OFFEV

CLKH1

101

144

143

WF1

5

2

CN310A

CLKH

EVENINV

LCD MODULE

EVENINV

STH-1

POL

172

139

173

8

37

38

POL

STH1

ODDINV

LP 174

39 LP

WF5 WF4WF3

WF2

CN312A

CLKV 106

R365

CLKV 16

STV1 105

STV 14

1

VCOM

VCOM 2

PANEL+13.9V

VCOM

CONTROL

IC201, VR201

Q201

CN311A

17

18

OE 15

VCOM

VREF(9) 4

VREF(5) 8

VREF(8) 5

VREF(7) 6

VREF(6) 7

VREF(2) 12

VREF(4) 10

VREF(3) 11

VREF(1) 13

VREF(0) 14

6-4

L0311BLLCD

Power Supply Block Diagram

TO AUDIO

BLOCK

DIAGRAM

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

TO LCD

BACKLIGHT

BLOCK

DIAGRAM

PANEL-6V

PANEL+25V

PANEL+13.9V

PANEL+3.3V

AL+5V

LCD MAIN CBA UNIT

PANEL+25V

PANEL+13.9V

PANEL-6V

PANEL+3.3V

AL+5V

73

55

37

19

91

CN101A CN101B

Q501

Q511

Q502

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

REPLACE ONLY WITH SAME TYPE 4 A, 125V FUSE.

NOTE :

The voltage for parts in hot circuit is measured using

CAUTION:

hot GND as a common terminal.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

4A/125V

Q503

D505

Q504

Q505

IC603

Q510

Q506

+5V

REGULATOR

REG+5V

P-ON+3.3V(D)

+3.3V

REGULATOR

IC502

IC505

RESET

Q509

AL+12V

IC503

P-ON+1.8V(D)

AL+33V

+1.8V

REGULATOR

P-ON+3.3V(A)

P-ON-L

+3.3V

REGULATOR

IC504

Q507

BACKLIGHT-SW

INVERTER CBA

PROTECT-1

P-ON-H

PROTECT-2

Q633

Q508

Q512

Q513

CN481CLN481

BACKLIGHT-SW 88

BACKLIGHT-SW

TO SYSTEM

CONTROL

+21V

BACKLIGHT-ADJ

PROTECT-1

+21V22

+21V11

BACKLIGHT-ADJ 99

BACKLIGHT-ADJ

BLOCK

+21V33

PROTECT-110 10

+21V

TP401

DIAGRAM

MAIN CBA

97

T602

HOT COLD

BRIDGE

RECTIFIER

D605 - D608

LINE

FILTER

L601,L602

4A/125V

F601

4A/125V

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

HOT CIRCUIT. BE CAREFUL.

AC601

AC CORD

16

11

14

5

+21V

VR649

12

SWITCHING

Q603

15

1

4

2

IC601

ERROR

VOLTAGE DET

IC601

ERROR

VOLTAGE DET

CONTROL

D649

2

3

10

13

3

SWITCHING

Q601

6-5

L0311BLP

LCD Backlight Block Diagram

BACK

CN450

LIGHT

1

2

Q451,452

OVER VOLTAGE

PROTECTOR

OVER VOLTAGE

PROTECTOR

Q454,455

BACK

1

CN490

LIGHT

2

OVER VOLTAGE

PROTECTOR

Q491,492

7 6 1 2

3

BACK

LIGHT

BACK

LIGHT

LCD MODULEINVERTER CBA

1

CN470

2

OVER VOLTAGE

PROTECTOR

Q471,472

1

2

CN460

IC403

(AMP)

2 1 6 7 9 8

IC402 (AMP)

5

10 12 14 13

3

5

OVER VOLTAGE

PROTECTOR

Q461,462

PROTECTOR

Q464,465

T450

9

3

10

425

8

1

RL401

OSC

T460

LOGIC

9

3

SW/

Q433,434

Q411

OVER

10

425

SW CTL

+10V

REG.

28

VCC

VOLTAGE

PROTECT

7

6

9

T490

3

SW/

SW CTL

Q421,426

10

425

Q403

8

IC401 (DC-AC INVERTER CONTROL)

1

7

6

262723

OUTPUT

LOGIC1

24

OUTPUT

LOGIC2

457

7

8

1

6

14

PWM2

9

10

T470

3

425

13

12

11

PWM1

7

8

1

6

9

10

SLOW

START

STANDBY

PROTECT

MODE SW

1

15

16

+21V

Q412

BACKLIGHT-ADJ

PROTECT-1

TO

POWER

SUPPLY

BLOCK

DIAGRAM

BACKLIGHT-SW

6-6

L0311BLLB

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

Standard Notes

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " # " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Note:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. All resistance values are indicated in ohms (K=10

3. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

4. All capacitance values are indicated in µF (P=10

5. All voltages are DC voltages unless otherwise specified.

Note of Capacitors:

ML --- Mylar Cap. PP --- Metallized Film Cap. SC --- Semiconductor Cap. L --- Low Leakage type

3

, M=106).

-6

µF).

Temperature Characteristics of Capacitors are noted with the following:

B --- ±10% CH --- 0±60ppm/°C CSL --- +350~-1000ppm/°C

Tolerance of Capacitors are noted with the following:

Z --- +80~-20%

Note of Resistors:

CEM --- Cement Res. MTL --- Metal Res. F --- Fuse Res.

Capacitors and transistors are represented by the following symbols.

CBA Symbols

(Top View) (Bottom View)

+

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Electrolytic Capacitor

(Top View)

PNP Transistor

Schematic Diagram Symbols

Digital Transistor

E C B

(Top View)

E C B

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

7-1 L13SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES:

1. CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F601) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

3. Note:

(1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the

parts list, and may be slightly different or amended since the drawings were prepared.

(2) To maintain original function and reliability of repaired units, use only original replacement parts which are

listed with their part numbers in the parts list section of the service manual.

4. Wire Connectors

(1) Prefix symbol "CN" means "connector" (can disconnect and reconnect). (2) Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

5. Note: Mark "I" is a leadless (chip) component.

6. Voltage indications on the schematics are as shown below: Plug the TV power cord into a standard AC outlet.:

Voltage

7. How to read converged lines

1-D3

Distinction Area Line Number (1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to area "D3".

2. "1-B1" means that line number "1" goes to area "B1".

8. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.

: Used to indicate a test point with a component lead on foil side.

: Used to indicate a test point with no test pin.

5.0

(3.0)

231

5.0 (3.0)

Indicates that the voltage is not consistent here.

Power on mode

Power off mode

Unit: Volts

3

AREA D3

2

1

ABCD

AREA B1

1-D3

1-B1

: Used to indicate a test point with a test pin.

7-2 L13SC

Main 1/4 Schematic Diagram

MAIN 1/4

Ref No. Positi on

IC502 E-3 IC503 D-3 IC504 E-2 IC505 D-3

Q51 A-1 Q501 C-3 Q502 C-3 Q503 C-2 Q504 C-2 Q505 D-2 Q506 C-2 Q507 D-2 Q508 D-1 Q509 C-2 Q510 C-1 Q511 D-3 Q512 D-2 Q513 D-1

CN51 A-2 CN52 A-1 CN53 A-1

CN101A F-4 CN102A A-3

ICS

CONNECTORS

TRANSISTORS

A4

A3

A2

A1

B4

B3

B2

B1

C4

C3

C2

C1

D4

D3

D2

D1

E4

E3

E2

E1

F4

F3

F2

F1

7-3 7-4

L0311SCM1

Main 2/4 Schematic Diagram

MAIN 2/4

Ref No. Positi on

IC11 I-1 IC851 G-3 IC852 J-3

Q31 G-2

Q709 J-2

TP300 L-1

ICS

TEST POINT

TRANSISTORS

VIDEO SIGNAL AUDIO SIGNAL

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

G2

G1

7-5

H2

H1

I2

I1

J2

J1

K2

K1

7-6

L2

L1

L0311SCM2

Main 3/4 Schematic Diagram

MAIN 3/4

Ref No. Positi on

IC781 O-3 IC801 N-2

Q701 N-3 Q702 N-3 Q703 N-3 Q704 P-1 Q705 O-1 Q706 P-1 Q707 P-2 Q708 P-2 Q802 O-1 Q803 N-1

CN103A M-2

CN801 M-3 CN802 M-3

ICS

TRANSISTORS

CONNECTORS

VIDEO SIGNAL AUDIO SIGNAL

M4

M3

N4

N3

O4

O3

P4

P3

Q4

Q3

R4

R3

M2

M1

N2

N1

7-7

O2

O1

P2

P1

Q2

Q1

7-8

R2

R1

L0311SCM3

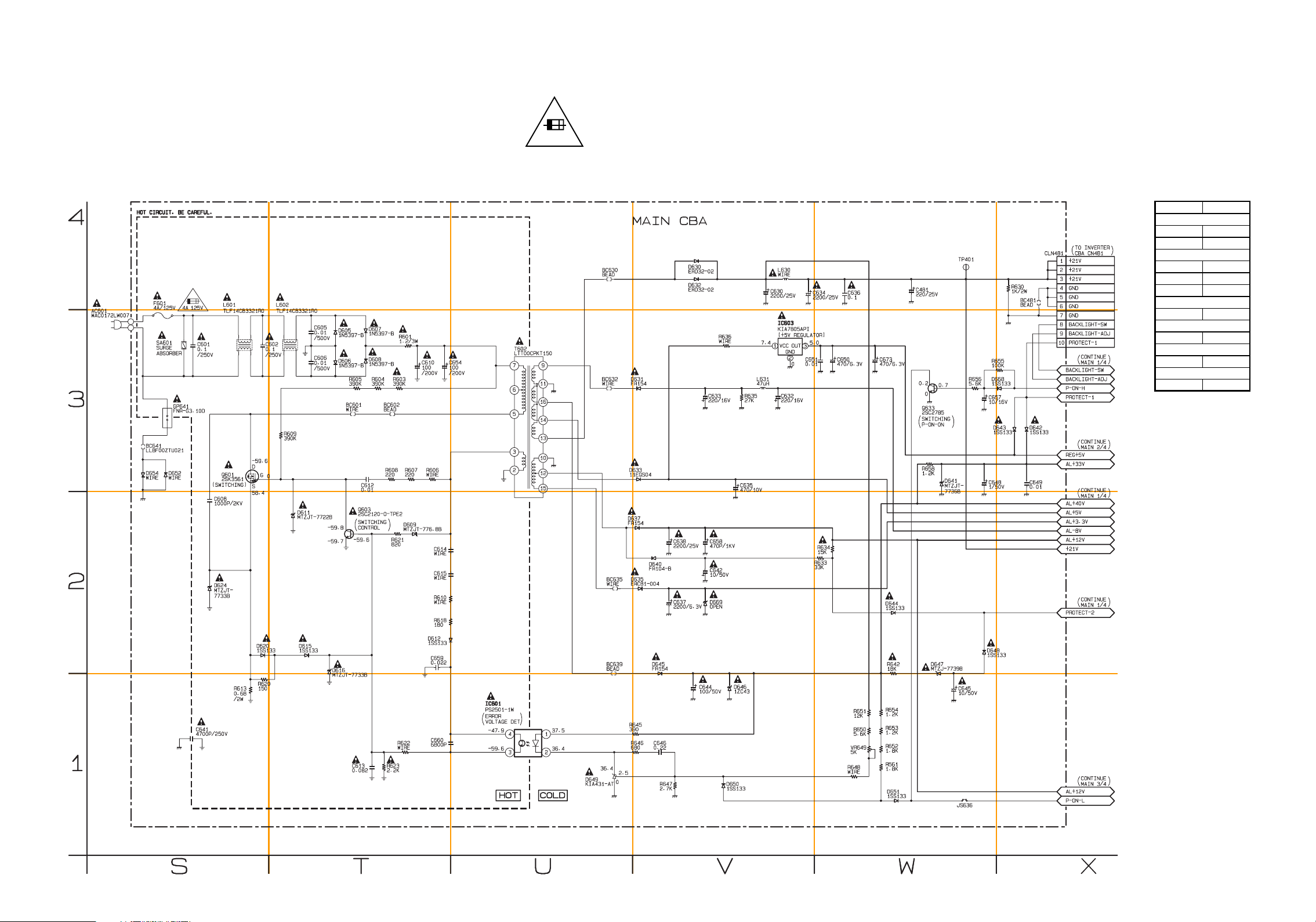

Main 4/4 Schematic Diagram

MAIN 4/4

Ref No. Positi on

IC601 U-1 IC603 V-3

Q601 S-3 Q603 T-2 Q633 W-3

CLN481 X-4

D649 U-1

VR649 W-1

TP401 W-4

ICS

TRANSISTORS

DIODE

TEST POINT

CONNECTOR

VARIABLE RESISTOR

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

S4

S3

T4

T3

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

U4 V4 W4 X4

U3

V3

W3

X3

S2

S1

7-9

T2

T1

U2

U1

V2

V1

W2

W1

7-10

X2

X1

L0311SCM4

Inverter Schematic Diagram

INVERTER

Ref No. Positi on

IC401 A-3 IC402 E-3 IC403 E-1

Q403 B-1 Q411 B-3 Q412 A-3 Q421 B-4 Q426 B-3 Q433 B-2 Q434 B-1 Q451 E-4 Q452 D-4 Q454 D-4 Q455 D-4 Q461 E-2 Q462 D-2 Q464 E-2 Q465 D-2 Q471 D-1 Q472 D-1 Q491 D-3 Q492 D-3

CN450 F-4 CN460 F-3 CN470 F-2 CN490 F-4 CN481 A-1

ICS

TRANSISTORS

CONNECTORS

A4

A3

A2

A1

B4

B3

B2

B1

7-11

C4

C3

C2

C1

D4

D3

D2

D1

E4

E3

E2

E1

7-12

F4

F3

F2

F1

L0311SCI

Function Schematic Diagram

A2

A1

B2

B1

C2

C1

7-13

7-14

L0311SCF

IR Sensor Schematic Diagram

A2

A1

B2

B1

C2

C1

7-15

7-16

L0311SCIR

LCD Main 1/3 Schematic Diagram

LCD 1/3

Ref No. Positi on

IC333 B-3

CN102B A-2 CN310A A-4 CN311A F-4

IC

CONNECTORS

VIDEO SIGNAL

A4

A3

B4

B3

C4

C3

D4

D3

E4

E3

F4

F3

A2

A1

B2

B1

7-17 7-18

C2

C1

D2

D1

E2

E1

F2

F1

L0311SCLCD1

LCD Main 2/3 Schematic Diagram

LCD 2/3

Ref No. Positi on

IC151 H-4 IC171 I-2

Q102 J-4

CN103B G-2

CN104 G-3 CN105 G-3

ICS

TRANSISTOR

CONNECTORS

VIDEO SIGNAL

G4

G3

H4

H3

I4

I3

J4

J3

K4

K3

L4

L3

G2

G1

H2

H1

7-19

I2

I1

J2

J1

K2

K1

7-20

L2

L1

L0311SCLCD2

LCD Main 3/3 Schematic Diagram

LCD 3/3

Ref No. Positi on

IC201 O-2

Q201 P-2

CN101B R-4 CN312A R-3

D203 O-3

VR201 O-3

VARIABLE RESISTOR

DIODE

TRANSISTOR

CONNECTORS

IC

M4

M3

N4

N3

O4

O3

P4

P3

Q4

Q3

R4

R3

M2

M1

N2

N1

7-21 7-22

O2

O1

P2

P1

Q2

Q1

R2

R1

L0311SCLCD3

Main CBA Top View

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

TP300

GND

TP401

+21V

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

WF9

PIN 19 OF CN103A

WF8

PIN 21 OF CN103A

WF7

PIN 23 OF CN103A

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

VR649

+21V

WF6

PIN 14 OF IC801

7-23 7-24

BL0300F01011-1

Main CBA Bottom View

MAIN CBA

Ref No. Position Ref No. Position

IC11 C-1 Q633 A-3 IC502 C-2 Q701 D-3 IC503 B-2 Q702 D-3 IC504 B-3 Q703 D-3 IC505 B-2 Q704 D-3 IC601 A-2 Q705 D-3 IC603 A-3 Q706 D-3 IC781 D-3 Q707 D-3 IC801 C-2 Q708 D-3 IC851 C-2 Q709 C-1 IC852 C-2 Q802 C-2

Q803 C-2 Q31 C-1 Q51 A-3 CN51 A-4

Q501 C-3 CN52 D-3 Q502 C-3 CN53 A-3 Q503 B-3 CN101A B-4 Q504 A-3 CN102A C-4 Q505 B-1 CN103A C-4 Q506 B-1 CLN481 A-4 Q507 C-3 CN801 A-3 Q508 C-3 CN802 D-1 Q509 B-3 Q510 C-1 D649 A-2 Q511 B-3 Q512 C-3 VR649 A-3 Q513 C-3 Q601 A-2 TP300 A-4 Q603 A-1 TP401 A-3

TRANSISTORS

VARIABLE RESISTOR

ICS

TRANSISTORS

DIODE

CONNECTORS

TEST POINTS

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F601) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

WF10

Q704 Emitter

WF12

Q706 Emitter

4A/125V

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 4A, 125V FUSE. ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE 4A, 125V.

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER

SUPPLY CIRCUIT, AN ISOLATION TRANSFORMER MUST BE USED.

ALSO, IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT

SLOWLY, WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY

CIRCUIT, A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF11

Q705 Emitter

7-25

7-26

BL0300F01011-1

Function CBA Top View

IR Sensor CBA Top & Bottom View

Function CBA Bottom View

BL0300F01011-2

BL0300F01011-3

BL0300F01011-2

7-27 7-28

Inverter CBA Top View

INVERTER CBA

Ref No. Posit ion

IC401 D-1 IC402 E-1 IC403 B-1

Q403 C-1 Q411 D-1 Q412 D-1 Q421 D-1 Q426 E-1 Q433 A-1 Q434 B-1 Q451 E-1 Q452 E-1 Q454 C-1 Q455 C-1 Q461 B-1 Q462 B-1 Q464 B-1 Q465 B-1 Q471 B-1 Q472 B-1 Q491 E-1 Q492 E-1

CN450 D-2 CN460 A-2 CN470 B-2 CN490 E-2 CN481 D-1

ICS

TRANSISTORS

CONNECTORS

Inverter CBA Bottom View

7-30 BL0311F010217-29

WAVEFORMS

WF1 ~ WF12 = Waveforms to be observed at

Waveform check points. (Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1 1DIV: 1.0V 10

WF2

1DIV: 1.0V 10 s Pin 5 of CN310A Pin 37 of CN310A

1DIV: 1.0V 20ns R365

WF6

1DIV: 100mV 400 Pin 14 of IC801

sWF5

s

WF9

WF10

1DIV: 200mV 20 s Pin 19 of CN103A

1DIV: 200mV 20 Q704 Emitter

s

WF3 1DIV: 200mV 20

WF4

1DIV: 1.0V 20 Pin 38 of CN310A

1DIV: 1.0V 10 Pin 39 of CN310A

s

WF7

WF8

Pin 23 of CN103A

1DIV: 200mV 20 Pin 21 of CN103A

8-1

s

WF11

WF12

1DIV: 200mV 20 Q705 Emitter

1DIV: 200mV 20 Q706 Emitter

s

L0311WF

WIRING DIAGRAM

PANEL+3.3V

PANEL+13.9V

PANEL-6V

GND

CN101B

9

724

6

8

2

153

4

6

GND

CN101A

PANEL-6V

PANEL+3.3V

PANEL+13.9V

CN102A

BACKLIGHT-ADJ

RCV-IN

GND

BACKLIGHT-SW

22

GND

BACKLIGHT-ADJ

GND

19

BACKLIGHT-SW

KEY-IN-1

18

KEY-IN-1

132547689

232120

RCV-IN

CN102B

CN103B

AL+5V

PANEL+25V

GND

7

8

GND

PANEL+25V

KEY-IN-2

P-ON-H

161113

17

P-ON-H

KEY-IN-2

GND

P-ON+3.3V(D)

P-ON+1.8V(D)

GND

153

9

AL+5V

CN103A

VOLUME

GND

10131211141517161918212022

15

GND

VOLUME

232120

22

153

2

GND

P-ON+3.3V(D)

A-MUTE

INPUT-0

INPUT-1

INPUT-0

INPUT-1

A-MUTE

19

4

GND

P-ON+1.8V(D)

PROTECT-1

AFT-IN

9

101412

AFT-IN

PROTECT-1

GNDNUBUS-OPEN

P-ON-L (NU)

P-ON+3.3V(A)

18

161113

15

17

9

7

6

8

GND

BUS-OPEN

P-ON-L (NU)

P-ON+3.3V(A)

PROTECT-2

SDA

S-SW

SCL

724

6

8

SCL

SDA

S-SW

PROTECT-2

NU

101412

11

NU

GND

DVD-MAIN-POWER(NU)NUNU

GND

DVD-MAIN-POWER(NU)

GND

VIDEO-Pr

13

GND

VIDEO-Pr

23

153

NU

GND

VIDEO-Pb

9

101412

15

GND

VIDEO-Pb

VIDEO-Y

GND

724

8

16

17

GND

VIDEO-Y

GND

S-VIDEO-Y

S-VIDEO-C

GND

6

18

1923212022

GND

S-VIDEO-Y

S-VIDEO-C

MAIN CBA

(BL0300F01011-1)

GND

CVBS

153

GND

CVBS

TU1 TUNER UNIT

KEY-IN-2

CLN51B

132

1

CN51

KEY-IN-2

FUNCTION CBA

(BL0300F01011-2)

P-ON+3.3V(D)

KEY-IN-1

GND

4

3

2

4

GND

CN52

KEY-IN-1

P-ON+3.3V(D)

(NO CONNECTION)

S-VIDEO

OUT IN

132

SCL

SDA

CN52 IS

USED FOR

AUDIO1

IN(R)

VIDEO1

IN

CLN53

4

GND

CN53

BUS-OPEN

ADJUSTMENT

AT FACTORY

AUDIO1

IN(L)

VIDEO

-Y IN

RCV-IN

P-ON+3.3V(D)

P-ON-H

GND

134

2

1

3

4

2

GND

RCV-IN

P-ON-H

P-ON+3.3V(D)

AUDIO2

IN (R)

AUDIO2

VIDEO

-Pb IN

VIDEO

IR SENSOR CBA

(BL0300F01011-3)

GND

5

GND

IN (L)

-Pr IN

LCD MAIN CBA

(BUC000G04001)

CN801

SP-R

1

CLN801

SP801

SPEAKER

CN312A

132547689

NU

VGH

VCOM

CLN312

CLN311

VGL(-6V)

132547689

CN311A

1

CN310A

GND

CLN310

VREF(9)

GND

VGL(-6V)

2

3

GND4GND

EVENINV

VREF(7)

VREF(8)

5

6

GND7GND

CLKH

SP802

SPEAKER

NU

VGL(-6V)

VREF(3)

VREF(2)

CN802

STV

GND

VREF(1)

VREF(0)

SP-R

GND

1

2

CLN802

DE

GND

CLKV

VDDA(+13.9V)

VCOM

16

17

GND

OG (5)18OG (4)19OG (3)20OG (2)21OG (1)22OG (0)

XDON

GND

EB (5)

AC601

EB (4)

AC CORD

EB (3)

GND

2

1013121114151716191820

NU

VGL(-6V)

VDDD(+3.3V)

VREF(4)

GND

VREF(5)

VREF(6)

101312111415171619182120222324272625282930

8

9

10

GND

OB (5)11OB (4)12OB (3)13OB (2)14OB (1)15OB (0)

ODDINV

INVERTER CBA

LCD

MODULE

EB (2)

EB (1)

EB (0)

GND

EG (5)

23

24

GND

OR (5)25OR (4)26OR (3)27OR (2)28OR (1)29OR (0)

CLN481

)

CN481

BL0311F01021

(

CN450

2

1

BACK

LIGHT

EG (4)

EG (3)

EG (2)

EG (1)

EG (0)

323134353736393840

30

31NU32

GND

VDDD(+3.3V)

+21V

GND

153

2

4

153

2

4

GND

+21V

CN490

2

1

BACK

LIGHT

GND

ER (5)

ER (4)

ER (3)

33

34

35

36NU37

VDDD(+3.3V)

GND

ER (2)

STH1

GND

7

6

7

GND

CN460

ER (1)

ER (0)

38

39LP40

POL

BACKLIGHT-SW

8

BACKLIGHT-SW

1

BACK

GND

BACKLIGHT-ADJ

9

BACKLIGHT-ADJ

2

LIGHT

PROTECT-1

10

PROTECT-1

CN470

2

1

BACK

LIGHT

9-1

L0311WI

Cabinet

A1

EXPLODED VIEWS

A7

L10

B3

B18

A4

L2

B6

A2

SP801

A3

B6

CLN801

L1

SP802

B5

L4

B6

CLN802

B14

L1

L4

Function CBA

LCD Main CBA & Liquid Crystal Panel Unit

L3

L1

B11

L1

Main CBA

B12

B4

L3

L2

L7

L2

A6

A8

L2

L17

A10

L2

L6

A5

IR Sensor CBA

L1

B14

A9

B5

L1

B17

B8

L9

L3

L1

B10

L3

B7

L8

Inverter CBA

L3

See Electrical Parts List for parts with this mark.

10-1 10-2 L0311CEX

L3

AC601

Packing

S2

X2

Some Ref. Numbers are not in sequence.

X5

X6

X3

Tape

S4

Packing Tape

Tape

S6

S3

X1

Packing Tape

S5

Packing Tape

FRONT

S1

10-3 L0311PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a #

have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTE: Parts that are not assigned part numbers (---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET L0301UB 1EM020011 A2 BRAND BADGE L0200UASYLVANIA 0EM409019 A3 CONTROL PLATE L0301UB 1EM220019 A4 REAR CABINET L0301UB 1EM020012 A5 SENSOR/LED LENS L0301UB 1EM220004 A6# RATING LABEL L0311UM ---------A7 FUNCTION KNOB L0301UB 1EM220005 A8 REAR COVER L0110UA 0EM201683 A9 TILT STAND ASSEMBLY L0301UB 1EMN20039 A10 CONNECTER CAP L0301UB 1EM420434 B3 STAND HOLDER L0200UA 0EM301999 B4 JACK HOLDER L0200UA 0EM101413 B5 CLOTH(10X30XT0.5) B5900UA 0EM404486 B6 CLOTH(15X190XT:0.5) L0100JA 0EM407894 B11 GROUND PLATE L0110UA 0EM408251A B12 TILT STAND HOLDER L0300UA 1EM320002 B14 SPEAKER HOLDER L0110UA 0EM407855 B17 WASHER PHI9.5 L0305UF 1EM420548 B18 CLOTH(10X190XT0.3) L0200UA 1EM420019 CLN801 SPEAKER WIRE ASSEMBLY 2P WIRE ASSEM-

CLN802 SPEAKER WIRE 2P 2P WX1L0300-007 L1 SCREW, P-TIGHT 3X12 WASHER HEAD+ GCMP3120 L2 SCREW, P-TIGHT 3X12 BIND HEAD+ BLK GBKP3120 L3 SCREW, S-TIGHT M3X8 BIND HEAD+ GBMS3080 L4 SCREW, P-TIGHT M3X10 WASHER HEAD+ GCMP3100 L6 DOUBLE SEMS SCREW M4X9 L0130UA 0EM408146 L7 DOUBLE SEMS SCREW M4X12 + BLAK FPK34120 L9 SCREW, P-TIGHT 3X10 BIND HEAD+ GBKP3100 L10 SCREW, P-TIGHT M3X6 BIND HEAD+ GBMP3060 L17 SCREW, S-TIGHT M3X8 BIND HEAD + BLK GBKS3080 SP801 SPEAKER S0407F10 DSD0807XQ002 SP802 SPEAKER S0407F10 DSD0807XQ002

BLY

PAC KI NG

S1 CARTON L0311UM 1EM420081 S2 STYROFOAM TOP L0301UB 1EM020018 S3 STYROFOAM BOTTOM L0301UB 1EM020019 S4 SET BAG L0301UB 1EM320014 S5 SERIAL NO. LABEL L9750UA ---------S6 STYROFOAM STAND BOTTOM L0301UB 1EM020020

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420 X2# OWNER'S MANUAL L0301UB 1EMN20036 X3 REMOTE CONTROL 192/ERC001/NE300UD NE300UD X5 DRY BATTERY R6P/2S or XB0M451T0001

WX1L0300-002

Ref. No. Description Part No.

DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002

X6 SHEET RETURN STOP L6101UB 0EM407077

20040907 11-1 L0311CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------) are not available.

2. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

Ref. No. Description Part No.

LCD MAIN CBA & LIQUID CRYSTAL PANEL UNIT

1FSA10006

MMA CBA

Ref. No. Description Part No.

MMA CBA Consists of the following:

MAIN CBA -------------FUNCTION CBA -------------IR SENSOR CBA --------------

MAIN CBA

Ref. No. Description Part No.

MAIN CBA

C12 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C13 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7 C14 CHIP CERAMIC CAP. CH J 1000pF/25V CHD1EJ3CH102 C15 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C16 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C17 CHIP CERAMIC CAP. B K 0.018µF/50V CHD1JK30B183 C18 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C19 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C20 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C21 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C34 ELECTROLYTIC CAP. 1µF/50V M H7 or CE1JMASSL010

C35 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C36 CHIP CERAMIC CAP. CH J 1000pF/25V CHD1EJ3CH102 C37 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C38 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C39 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C40 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C41 ELECTROLYTIC CAP. 0.47µF/50V M H7 CE1JMASSLR47

Consists of the following:

CAPACITORS

ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL1R0

1ESA10355

------------

Ref. No. Description Part No.

C42 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C43 CHIP CERAMIC CAP.(1608) CH J 47pF/50V CHD1JJ3CH470 C481 ELECTROLYTIC CAP. 220µF/25V M or CE1EMASTL221

ELECTROLYTIC CAP. 220µF/25V M CE1EMASDL221 C501 ELECTROLYTIC CAP. 22µF/50V M H7 CE1JMASSL220 C502 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C503 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C505 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C506 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C507 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C509 ELECTROLYTIC CAP. 100µF/10V M H7 CE1AMASSL101 C510 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C512 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C513 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221 C514 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C517 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221 C518 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C521 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C522 ELECTROLYTIC CAP. 220µF/6.3V M H7 CE0KMASSL221 C524 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C527 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C528 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C530 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100 C533 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C536 ELECTROLYTIC CAP. 330µF/6.3V M H7 CE0KMASSL331 C538 ELECTROLYTIC CAP. 1µF/50V M H7 or CE1JMASSL010

ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL1R0 C539 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C601# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037

# FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011 # METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06 # LINE ACROSS CAP. 0.1U/250V CT2E104DC015 C602# METALLIZED FILM CAP. 0.1µF/250V or CT2E104MS037 # FILM CAP.(MP) 0.1µF/250V K or CT2E104DC011 # METALLIZED FILM CAP. 0.1µF/275V K or CT2E104HJE06 # LINE ACROSS CAP. 0.1U/250V CT2E104DC015

C605 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103 C606 CERAMIC CAP. F Z 0.01µF/500V or CCD2JZP0F103

CERAMIC CAP. 0.01µF/AC250V or CCD2EZA0F103

CERAMIC CAP. E Z 0.01µF/500V CCD2JZP0E103 C608 CERAMIC CAP. B K 1000pF/2KV or CCD3DKP0B102

CERAMIC CAP. B K 1000pF/2KV or CA3D102MR030

CERAMIC CAP. B K 1000pF/2KV CCD3DKD0B102 C610# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101 C612 FILM CAP.(P) 0.01µF/50V J or CMA1JJS00103

FILM CAP.(P) 0.01µF/50V J CA1J103MS029 C613# FILM CAP.(P) 0.082µF/50V J or CMA1JJS00823 # FILM CAP.(P) 0.082µF/50V J CA1J823MS029 C614 PCB JUMPER D0.6-P5.0 JW5.0T C615 PCB JUMPER D0.6-P5.0 JW5.0T C630 ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNTL222 C632 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C633 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C634 ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

20040907 12-1 L0311EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNTL222

C635 ELECTROLYTIC CAP. 470µF/10V M or CE1AMASTL471

ELECTROLYTIC CAP. 470µF/10V M CE1AMASDL471 C636 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C637 ELECTROLYTIC CAP. 2200µF/6.3V M or CE0KMZPDL222

ELECTROLYTIC CAP. 2200µF/6.3V M CE0KMZNTL222 C638 ELECTROLYTIC CAP. 2200µF/25V M or CE1EMZPDL222

ELECTROLYTIC CAP. 2200µF/25V M CE1EMZNTL222 C641# SAFETY CAP. 4700pF/250V KX CA2E472MR050 C642 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C644 ELECTROLYTIC CAP. 100µF/50V M or CE1JMASTL101

ELECTROLYTIC CAP. 100µF/50V M CE1JMASDL101 C645 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C646 MYLAR CAP. 0.22µF/50V J or CMA1JJS00224

FILM CAP.(P) 0.22µF/50V J CA1J224MS029 C648 ELECTROLYTIC CAP. 1µF/50V M H7 or CE1JMASSL010

ELECTROLYTIC CAP. 1µF/50V M H7 CE1JMASSL1R0 C649 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C650 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASTL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C651 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C652 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C653 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C654# ELECTROLYTIC CAP. 100µF/200V M CE2DMZPDL101 C657 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMASSL100 C658 CERAMIC CAP. B K 470pF/1KV CCD3AKA0B471 C659 FILM CAP.(P) 0.022µF/50V J or CMA1JJS00223

FILM CAP.(P) 0.022µF/50V J CA1J223MS029 C660 FILM CAP.(P) 0.0068µF/50V J or CMA1JJS00682

FILM CAP.(P) 0.0068µF/50V J CA1J682MS029 C673 ELECTROLYTIC CAP. 470µF/6.3V M or CE0KMASTL471

ELECTROLYTIC CAP. 470µF/6.3V M CE0KMASDL471 C701 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C703 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C704 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C705 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C707 CHIP CERAMIC CAP. CH J 1000pF/25V CHD1EJ3CH102 C708 CHIP CERAMIC CAP. CH J 1000pF/25V CHD1EJ3CH102 C709 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C711 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C712 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C714 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C715 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C717 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C718 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C720 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C722 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C724 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C726 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C728 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C730 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C732 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C733 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C735 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C736 CHIP CERAMIC CAP.(1608) B K 5600pF/50V CHD1JK30B562 C738 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C739 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C740 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C741 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C781 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C782 CERAMIC CAP.(AX) B K 0.1µF/50V CA1J104TU011

Ref. No. Description Part No.

C784 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C785 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C786 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMASSL470 C788 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103 C801 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C802 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C803 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029

C804 FILM CAP.(P) 0.1µF/50V J or CMA1JJS00104

FILM CAP.(P) 0.1µF/50V J CA1J104MS029 C806 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C807 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C809 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C810 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C811 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMASSL101 C812 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C813 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C814 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C815 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C816 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C817 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105 C818 ELECTROLYTIC CAP. 220µF/16V M H7 CE1CMASSL221 C819 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C820 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102 C851 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C852 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101 C853 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C854 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C855 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C856 CHIP CERAMIC CAP.(1608) B K 0.33µF/10V CHD1AK30B334 C857 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C858 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C859 ELECTROLYTIC CAP. 4.7µF/50V M H7 CE1JMASSL4R7 C860 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C861 ELECTROLYTIC CAP. 100µF/6.3V M H7 CE0KMASSL101 C862 CERAMIC CAP.(AX) Y M 0.01µF/16V CCA1CMT0Y103 C863 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C864 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C865 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C866 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C867 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225 C868 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C869 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C883 CERAMIC CAP.(AX) F Z 0.01µF/25V CCA1EZTFZ103

CONNECTORS

CN51 PH CONNECTOR, TOP 4P B4B-PH-K-S J3PHC04JG001 CN52 PH CONNECTOR, TOP 4P B4B-PH-K-S J3PHC04JG001 CN53 CONNECTOR BASE, TOP 5P B5B-PH-K-S J3PHC05JG001 CN101A TWG CONNECTOR 09P TWG-P09P-A1 J3TWA09TG001 CN102A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN103A TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001 CN801 STRAIGHT CONNECTOR BASE 00 8283 0212 00

CN802 STRAIGHT CONNECTOR BASE 00 8283 0212 00

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

000 or

STRAIGHT PIN HEADER, 2P 173981-2 1770258

J383C02UG002

DIODES

D42 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D483 PCB JUMPER D0.6-P5.0 JW5.0T

20040907 12-2 L0311EL

Ref. No. Description Part No.

D484 PCB JUMPER D0.6-P5.0 JW5.0T D501 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D502 ZENER DIODE MTZJT-7724B or QDTB00MTZJ24

ZENER DIODE DZ-24BSBT265 NDTB00DZ24BS

D504 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D505 IC:SHUNT REGULATOR KIA431-AT NSZLA0TJY001 D506 ZENER DIODE MTZJT-775.1B or QDTB0MTZJ5R1

ZENER DIODE DZ-5.1BSBT265 NDTB0DZ5R1BS D508 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D509 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D510 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D511 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D512 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D514 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D515 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D517 ZENER DIODE MTZJT-775.6B or QDTB0MTZJ5R6

ZENER DIODE DZ-5.6BSBT265 NDTB0DZ5R6BS D519 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D520 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D521 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D523 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D524 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D525 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D526 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D527 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D534 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D535 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D536 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D537 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D538 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D539 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D540 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206 D541 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D542 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D605 DIODE 1N5397-B or NDLZ001N5397

Ref. No. Description Part No.

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D606 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D607 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D608 DIODE 1N5397-B or NDLZ001N5397

RECTIFIER DIODE ERB12-06 QDQZ0ERB1206

D609 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

D611 ZENER DIODE MTZJT-7722B or QDTB00MTZJ22

ZENER DIODE DZ-22BSBT265 NDTB00DZ22BS

D612 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D615# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D616# ZENER DIODE MTZJT-7733B or QDTB00MTZJ33 # ZENER DIODE DZ-33BSBT265 NDTB00DZ33BS D620# SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133 # SWITCHING DIODE 1N4148 NDTZ001N4148 D624 ZENER DIODE MTZJT-7733B or QDTB00MTZJ33

ZENER DIODE DZ-33BSBT265 NDTB00DZ33BS D630 FAST RECOVERY DIODE ERD32-02 QDWZ0ERD3202 D631 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D632 FAST RECOVERY DIODE ERD32-02 QDWZ0ERD3202 D633 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004 D635 SCHOTTKY BARRIER DIODE ERC81-004 QDPZERC81004 D637# DIODE FR154 NDLZ000FR154 D640 DIODE FR104-B NDLZ000FR104 D641 ZENER DIODE MTZJT-7736B or QDTB00MTZJ36

ZENER DIODE DZ-36BSBT265 NDTB00DZ36BS D642 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D643 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D644 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D645 DIODE FR154 or NDLZ000FR154

FAST RECOVERY DIODE ERB44-02 QDPZ0ERB4402 D646# DIODE 1ZC43 or QDQZ0001ZC43 # ZENER DIODE RD43F QDQZ000RD43F D647 ZENER DIODE MTZJT-7739B or QDTB00MTZJ39

ZENER DIODE DZ-39BSBT265 NDTB00DZ39BS D648 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D649 IC:SHUNT REGULATOR KIA431-AT NSZLA0TJY001 D650 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D651 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D652 PCB JUMPER D0.6-P5.0 JW5.0T D653 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D654 PCB JUMPER D0.6-P5.0 JW5.0T D668 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D701 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS D702 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

20040907 12-3 L0311EL

Ref. No. Description Part No.

D703 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D715 ZENER DIODE MTZJT-778.2B or QDTB0MTZJ8R2

ZENER DIODE DZ-8.2BSBT265 NDTB0DZ8R2BS

D801 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D802 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D803 ZENER DIODE MTZJT-776.8B or QDTB0MTZJ6R8

ZENER DIODE DZ-6.8BSBT265 NDTB0DZ6R8BS

ICS

IC11 IC:VIF/SIF M61113FP QSZBA0SHT019 IC502 VOLTAGE REGULATOR PQ033EF01SZ QSZBA0SSH014 IC503 VOLTAGE REGULATOR PQ070XF01SZ QSZBA0SSH026 IC504 VOLTAGE REGULATOR PQ070XF01SZ QSZBA0SSH026 IC505 IC PST600L QSBLA0TMM018 IC601# PHOTOCOUPLER PS2501-1W or QPEW0PS25011

# PHOTO COUPLER PS2501-1L or QPEL0PS25011 # PHOTOCOUPLER LTV-817C-F NPEC0LTV817F IC603# VOLTAGE REGULATOR KIA7805API or NSBBA0SJY011 # VOLTAGE REGULATOR KA7805A NSZBA0SF3052

IC781 IC TC4053BF(EL.N) or QSZBA0TTS131

IC:ANALOG MULTIPLEXERS CD4053BCSJX or NSZBA0TF3071

IC:ANALOG MULTIPLEXER CD4053BNSR NSZBA0TTY093 IC801 IC AN17812A QSZBA0SMS017 IC851 IC:MTS DECORDER AN5832SA-E1 QSZBA0TMS003 IC852 IC:SWITCHING TC4052BF(EL) or QSZBA0TTS096

IC:SWITCHING CD4052BCSJX or NSZBA0TF3079

IC:SWITCHING CD4052BNSR NSZBA0TTY091

COILS

L11 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220 L13 PCB JUMPER D0.6-P5.0 JW5.0T L15 INDUCTOR 100µH-J-26T or LLAXJATTU101

INDUCTOR 100µH-K-26T LLAXKDTKA101 L31 INDUCTOR 22µH-K-5FT or LLARKBSTU220

INDUCTOR 22µH-K LLARKDQKA220 L32 INDUCTOR 12µH-J-26T or LLAXJATTU120

INDUCTOR 12µH-K-26T LLAXKDTKA120 L33 INDUCTOR 18µH-J-26T or LLAXJATTU180

INDUCTOR 18µH-K-26T LLAXKDTKA180 L34 INDUCTOR 82µH-J-26T or LLAXJATTU820

INDUCTOR 82µH-K-26T LLAXKDTKA820 L501 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K LLBD00DQE001 L601# LINE FILTER TLF14CB3321R0 or LLBG00ZTU012

# LINE FILTER 5.0MH 6Y075 or LLBG00ZKT004 # LINE FILTER LF005 or LLBG00ZLH001 # LINE FILTER UU10.5-A or LLBG00ZY2008 # LINE FILTER SA-91213B or LLBG00ZSA002 # LINE FILTER 6.35MH UU10-002 LLBG00ZKV001 L602# LINE FILTER TLF14CB3321R0 or LLBG00ZTU012 # LINE FILTER 5.0MH 6Y075 or LLBG00ZKT004 # LINE FILTER LF005 or LLBG00ZLH001 # LINE FILTER UU10.5-A or LLBG00ZY2008 # LINE FILTER SA-91213B or LLBG00ZSA002 # LINE FILTER 6.35MH UU10-002 LLBG00ZKV001

L630# PCB JUMPER D0.6-P7.5 JW7.5T L631 CHOKE COIL 47µH-K or LLBD00PKV007

POT COIL 47µH K LLBD00DQE001

Ref. No. Description Part No.

L632 INDUCTOR 22µH-J-26T or LLAXJATTU220

INDUCTOR 22µH-K-26T LLAXKDTKA220 L701 PCB JUMPER D0.6-P5.0 JW5.0T L781 PCB JUMPER D0.6-P5.0 JW5.0T L851 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q31 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q51 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q501 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q502 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q503 TRANSISTOR 2SD1913(R) Q2SD1913R*** Q504 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q505 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q506 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267

TRANSISTOR KTA1266(GR) or NQS40KTA1266

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q507 TRANSISTOR 2SD1913(R) Q2SD1913R*** Q508 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

20040907 12-4 L0311EL

Ref. No. Description Part No.

TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q509 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q510 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q511 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q512 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267 TRANSISTOR KTA1266(GR) or NQS40KTA1266 TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015

Q513 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q601# MOS FET 2SK3561 QFWZ02SK3561 Q603 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q633 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q701 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

Ref. No. Description Part No.

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q702 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q703 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q704 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q705 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q706 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q707 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q708 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q709 TRANSISTOR 2SA1175(F) or QQSF02SA1175

TRANSISTOR KTA1267(GR) or NQS10KTA1267 TRANSISTOR KTA1266(GR) or NQS40KTA1266

20040907 12-5 L0311EL

Ref. No. Description Part No.

TRANSISTOR 2SA1318(T)-AANP or 2SA1318TZ

TRANSISTOR 2SA1318(U)-AANP or 2SA1318UZ

TRANSISTOR 2SA1015-GR(TPE2) QQS102SA1015 Q802 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q803 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R11 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R12 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R16 PCB JUMPER D0.6-P5.0 JW5.0T R17 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R20 CHIP RES.(1608) 1/10W J 220k Ω RRXAJR5Z0224 R21 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R22 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R24 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683 R30 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R33 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181 R34 CHIP RES.(1608) 1/10W J 180 Ω RRXAJR5Z0181 R37 CHIP RES.(1608) 1/10W J 220 Ω RRXAJR5Z0221 R41 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R43 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R45 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R46 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R63 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R65 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R71 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R72 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R73 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R77 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R78 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R501 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R502 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R503 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121 R504 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R505 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R508 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R509 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R510 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R511 CHIP RES.(1608) 1/10W F 10k Ω RRXAFR5H1002 R512 CHIP RES.(100PPM) 1/10W F 3k Ω RRXAFR5H3001 R513 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R514 CHIP RES.(1608) 1/10W J 2k Ω RRXAJR5Z0202 R517 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R518 CARBON RES. 1/4W J 56k Ω RCX4JATZ0563 R519 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R520 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R521 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680

Ref. No. Description Part No.

R522 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R523 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R524 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R528 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R531 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R539 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471 R540 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152 R543 CHIP RES.(1608) 1/10W F 1.8k Ω RRXAFR5H1801 R544 CHIP RES.(1608) 1/10W F 3.9k Ω RRXAFR5H3901 R545 CHIP RES.(1608) 1/10W J 1 Ω RRXAJR5Z01R0 R546 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R547 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473 R548 METAL OXIDE FILM RES. 2W J 390 Ω or RN02391ZU001

METAL OXIDE FILM RES. 2W J 390 Ω RN02391DP004 R550 CHIP RES.(1608) 1/10W J 27k Ω RRXAJR5Z0273 R552 METAL OXIDE FILM RES. 1W J 1 Ω or RN011R0ZU001

METAL OXIDE FILM RES. 1W J 1 Ω RN011R0DP003 R555 CHIP RES.(1608) 1/10W F 9.1k Ω RRXAFR5H9101 R556 CHIP RES.(1608) 1/10W F 5.6k Ω RRXAFR5H5601 R557 CHIP RES.(1608) 1/10W J 3.9k Ω RRXAJR5Z0392 R558 METAL OXIDE FILM RES. 2W J 2.2 Ω or RN022R2ZU001

METAL OXIDE FILM RES. 2W J 2.2 Ω RN022R2DP004 R561 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R570 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R571 METAL OXIDE FILM RES. 2W J 1 Ω or RN021R0ZU001

METAL OXIDE FILM RES. 2W J 1 Ω RN021R0DP004 R572 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R573 CHIP RES.(1608) 1/10W J 120k Ω RRXAJR5Z0124 R574 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R575 METAL OXIDE FILM RES. 2W J 82 Ω or RN02820ZU001

METAL OXIDE FILM RES. 2W J 82 Ω RN02820DP004 R601# CEMENT RES. 3W K 1.2 Ω or RW031R2PG007 # CEMENT RESISTOR 3W K 1.2 Ω RW031R2PAK10 R603# CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R604 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R605 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R606 PCB JUMPER D0.6-P5.0 JW5.0T R607 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R608 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221 R609 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394 R610 PCB JUMPER D0.6-P5.0 JW5.0T R613 METAL OXIDE FILM RES. 2W J 0.68 Ω or RN02R68ZU001

METAL OXIDE FILM RES. 2W J 0.68 Ω RN02R68DP004 R618 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181 R620 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151 R621 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821 R622 PCB JUMPER D0.6-P5.0 JW5.0T R623 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222 R630 METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004 R632 METAL OXIDE FILM RES. 2W J 1k Ω or RN02102ZU001

METAL OXIDE FILM RES. 2W J 1k Ω RN02102DP004 R633 CARBON RES. 1/4W J 33k Ω RCX4JATZ0333 R634 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R635 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273 R636 PCB JUMPER D0.6-P5.0 JW5.0T R642 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R645 CARBON RES. 1/4W J 390 Ω RCX4JATZ0391 R646 CARBON RES. 1/4W J 680 Ω RCX4JATZ0681 R647 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R648 PCB JUMPER D0.6-P5.0 JW5.0T

20040907 12-6 L0311EL

Ref. No. Description Part No.

R650 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562 R651 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123 R652 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182 R653 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R654 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R655 CHIP RES.(1608) 1/10W J 100k Ω RRXAJR5Z0104 R656 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R658 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122 R702 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R703 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R705 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R707 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R708 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R710 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R711 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R713 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R715 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R716 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R718 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R719 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R721 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R723 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R724 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R725 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R726 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R727 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R728 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R729 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R730 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R732 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R733 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R735 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R737 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R738 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R740 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R741 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R743 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R745 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R746 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R748 CHIP RES.(1608) 1/10W J 390 Ω RRXAJR5Z0391 R749 CHIP RES.(1608) 1/10W J 33k Ω RRXAJR5Z0333 R751 CHIP RES.(1608) 1/10W J 39k Ω RRXAJR5Z0393 R753 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R754 CHIP RES.(1608) 1/10W J 75 Ω RRXAJR5Z0750 R755 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R756 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R757 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R758 CHIP RES.(1608) 1/10W J 18k Ω RRXAJR5Z0183 R759 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R760 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R781 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R782 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R784 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R785 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R786 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R788 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R789 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R791 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R798 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R799 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R801 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

Ref. No. Description Part No.

CARBON RES. 1/2W J 100 Ω or RCX2JZPZ0101

CARBON RES. 1/2W J 100 Ω RCX2101KA013 R802 CARBON RES. 1/2W J 100 Ω or RCX2JZQZ0101

CARBON RES. 1/2W J 100 Ω or RCX2JZPZ0101

CARBON RES. 1/2W J 100 Ω RCX2101KA013 R803 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R804 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R805 METAL OXIDE FILM RES. 2W J 5.6 Ω or RN025R6ZU001

METAL OXIDE FILM RES. 2W J 5.6 Ω RN025R6DP004 R806 CHIP RES.(1608) 1/10W J 820 Ω RRXAJR5Z0821 R807 METAL OXIDE FILM RES. 2W J 5.6 Ω or RN025R6ZU001

METAL OXIDE FILM RES. 2W J 5.6 Ω RN025R6DP004 R808 CHIP RES.(1608) 1/10W J 1.8k Ω RRXAJR5Z0182 R809 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R810 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R811 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R813 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R814 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R816 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272 R817 CHIP RES.(1608) 1/10W J 47k Ω RRXAJR5Z0473 R818 CHIP RES.(1608) 1/10W J 5.6k Ω RRXAJR5Z0562 R820 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R821 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R822 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R824 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R825 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R826 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223 R827 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R829 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R830 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R831 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R833 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R834 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R835 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R836 CHIP RES.(1608) 1/10W J 22k Ω RRXAJR5Z0223 R837 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R838 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R839 CHIP RES.(1608) 1/10W J 12k Ω RRXAJR5Z0123 R851 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R852 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R855 CHIP RES.(1608) 1/10W J 3.3k Ω RRXAJR5Z0332 R857 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184 R893 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

MISCELLANEOUS

AC601# AC CORD LA-2413 WAC0172LW007 B7 SHIELD BOX TOP L0200UA 0EM302060 B8 SHIELD BOX BOTTOM L0200UA 0EM302061 B10 HEAT SINK PJP ASSEMBLY L0301L0301UB 1EM320015 BC101 PCB JUMPER D0.6-P5.0 JW5.0T BC481 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC601 PCB JUMPER D0.6-P5.0 JW5.0T BC602 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC630 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC632 PCB JUMPER D0.6-P5.0 JW5.0T BC635 PCB JUMPER D0.6-P5.0 JW5.0T BC639 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 BC641 BEAD INDUCTORS FBR07HA121TB-00 LLBF00ZTU021 CF31 CERAMIC TRAP 4.5MHz or FBE455PMR003

CERAMIC TRAP 4.5MHz FBE455PMS002 CF32 CERAMIC FILTER SFSRA4M50CF00-B0 or FBB455PMR004

20040907 12-7 L0311EL

Ref. No. Description Part No.

CERAMIC FILTER 4.5MHz FBB455PMS001 CLN481 WIRE ASSEMBLY 10P WIRE ASSEMBLY WX1L0300-001 F601# FUSE 4.00A/125V or PAGU20CAG402

# FUSE 51MS040L or PAFC20CHV402 # FUSE STC4A125V U/CT or PAGE20CW3402 # FUSE 4.00A/125V PAGG20CNG402

FH601 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424 FH602 FUSE HOLDER MSF-015 or XH01Z00LY001

FUSE HOLDER FH-V-03078 or XH01Z00DK001

HOLDER, FUSE CNT41-0014 1790424 GP641# GAP. FNR-G3.10D FAZ000LD6005 J104 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 J111 INDUCTOR 100µH-J-26T or LLAXJATTU101

INDUCTOR 100µH-K-26T LLAXKDTKA101 J115 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 J120 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 J164 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 J239 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 JK701 Y/C JACK 1P(SW) MDC-070V1-A JYEL040LY002 JK703 RCA JACK(YELLOW) MTJ-032-06B-20 or JXRL010LY050

RCA JACK 1P AV-8.4-9Y JXRL010RP010 JK704 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052

RCA JACK 1P AV-8.4-9W JXRL010RP011 JK705 RCA JACK(RED) MTJ-032-06A-21 or JYRL010LY014

RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008 JK706 RCA JACK(GREEN) MTJ-032-06B-25 JXRL010LY054 JK707 RCA JACK(BLUE) MTJ-032-06B-28 JXRL010LY057 JK708 RCA JACK(RED) MTJ-032-06B-21 or JXRL010LY051

RCA JACK 1P AV-8.4-9R JXRL010RP006 JK709 RCA JACK(WHITE) MTJ-032-06B-22 or JXRL010LY052

RCA JACK 1P AV-8.4-9W JXRL010RP011 JK710 RCA JACK(RED) MTJ-032-06A-21 or JYRL010LY014

RCA JACK 1P(RED)WITH SW ITCH AV1-09S-2 JYRL010RP008 JK801 HEADPHONE JACK MSJ-035-10A B or JYSL020LY002

HEADPHONE JACK DP3-26-7-001 JYSL020RP001 JS32 PCB JUMPER D0.6-P5.0 JW5.0T JS636 PCB JUMPER D0.6-P7.5 JW7.5T L8 SCREW, B-TIGHT M3X8 BIND HEAD+ GBMB3080 SA601# SURGE ABSORBER 470V+-10PER or NVQZ10D471KB

# SURGE ABSORBER CNR-10D471K or NVQZR10D471K # SURGE ABSORBER JVR-10N471K NVQZR10N471K

SF11 SAW FILTER SAFHM45M7VAAZ00B03 FBB456PMR010 T602# AC TRANS 04742 LTT00CPKT150 TP300 PCB JUMPER D0.6-P7.5 JW7.5T TP401 PCB JUMPER D0.6-P7.5 JW7.5T TU1 TUNER TEQH9-009A UTUNNTUAL038 VR649 CARBON P.O.T. 5k Ω B VRCB502HH014

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA

Consists of the following:

RESISTORS

R51 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R52 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101 R53 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R54 CHIP RES.(1608) 1/10W J 1.5k Ω RRXAJR5Z0152 R55 CHIP RES.(1608) 1/10W J 2.2k Ω RRXAJR5Z0222

------------

Ref. No. Description Part No.

R56 CHIP RES.(1608) 1/10W J 2.7k Ω RRXAJR5Z0272 R57 CHIP RES.(1608) 1/10W J 4.7k Ω RRXAJR5Z0472 R58 CHIP RES.(1608) 1/10W J 6.8k Ω RRXAJR5Z0682 R59 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R60 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101

SWITCHES

SW51 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW52 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW53 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW54 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW55 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW56 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

SW57 TACT SWITCH SKHHARA010 or SST0101AL060

TACT SWITCH KSM0612C PB(F) SST0101HH032

MISCELLANEOUS

CLN51B WIRE ASSEMBLY 4P WIRE ASSEMBLY WX1L0300-003

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA

Consists of the following:

------------

CAPACITOR

C53 ELECTROLYTIC CAP. 47µF/10V M H7 CE1AMASSL470

DIODE

D51 LED L-53HT NP4Z000L53HT

RESISTORS

R74 CHIP RES.(1608) 1/10W J 100 Ω RRXAJR5Z0101 R76 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151

MISCELLANEOUS

CLN53 WIRE ASSEMBLY 5P WIRE ASSEMBLY WX1L0300-004 RCV51 PHOTO LINK MODULE RPM7237-H9 USESJRSRM006

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA

Consists of the following:

CAPACITORS

C401 ELECTROLYTIC CAP. 10µF/50V M H7 CE1JMASSL100 C402 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C403 ELECTROLYTIC CAP. 100µF/16V M H7 CE1CMASSL101 C404 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103 C405 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473 C406 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221 C407 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C408 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472 C409 CHIP CERAMIC CAP.(1608) B K 6800pF/50V CHD1JK30B682 C410 CHIP CERAMIC CAP.(1608) B K 4700pF/50V CHD1JK30B472 C412 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C413 ELECTROLYTIC CAP. 0.22µF/50V M H7 CE1JMASSLR22 C414 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C415 ELECTROLYTIC CAP. 2.2µF/50V M H7 CE1JMASSL2R2 C416 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C420 ELECTROLYTIC CAP. 10µF/35V M or CA1G100SP068

1ESA10361

20040907 12-8 L0311EL

Ref. No. Description Part No.

ELECTROLYTIC CAP. 10µF/35V M CA1G100NC186 C422 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C423 ELECTROLYTIC CAP. 10µF/35V M or CA1G100SP068

ELECTROLYTIC CAP. 10µF/35V M CA1G100NC186 C425 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C426 ELECTROLYTIC CAP. 10µF/35V M or CA1G100SP068

ELECTROLYTIC CAP. 10µF/35V M CA1G100NC186 C428 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C429 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C430 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C431 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C432 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C433 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C434 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C437 ELECTROLYTIC CAP. 10µF/35V M or CA1G100SP068

ELECTROLYTIC CAP. 10µF/35V M CA1G100NC186 C439 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104 C440 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C441 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C442 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C443 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C444 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C445 CHIP CERAMIC CAP. B K 4.7µF/25V CHF1EK30B475 C450 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C451 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C452 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C453 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C454 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C455 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C460 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C461 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C462 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C463 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C464 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C465 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C470 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C472 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C473 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C474 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C475 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C490 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C492 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C493 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C494 CERAMIC CAP. SL D 10pF/3KV CCD3FDASL100 C495 CHIP CERAMIC CAP.(1608) B K 0.022µF/50V CHD1JK30B223 C1401 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1402 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1403 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1404 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1406 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1409 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224 C1410 CHIP CERAMIC CAP.(1608) B K 0.22µF/25V CHD1EK30B224

CONNECTORS

CN450 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN460 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN470 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001 CN481 CONNECTOR BASE, TOP 10P B10B-PH-K-S J3PHC10JG001 CN490 BACK LIGHT CONNECTOR 1717369-1 JB17D02AP001

DIODES

D401 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

Ref. No. Description Part No.

SWITCHING DIODE 1N4148 NDTZ001N4148

D402 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D411 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D420 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D421 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D422 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D425 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D426 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D427 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D430 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D431 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D432 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D433 ZENER DIODE MTZJT-779.1B or QDTB0MTZJ9R1

ZENER DIODE DZ-9.1BSBT265 NDTB0DZ9R1BS

D434 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D435 SCHOTTKY BARRIER DIODE 11EQS04 or QD4Z011EQS04

SCHOTTKY BARRIER DIODE ERA81-004 QDPZERA81004

D450 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D451 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D452 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D453 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D454 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D455 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D456 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D457 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D460 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D461 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D462 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D463 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D464 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D465 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D466 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

D467 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

20040907 12-9 L0311EL

Ref. No. Description Part No.

D470 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D471 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D472 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D473 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D474 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D475 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D476 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D477 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D490 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D491 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D492 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D493 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D494 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D495 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D496 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148 D497 SWITCHING DIODE 1SS133(T-77) or QDTZ001SS133

SWITCHING DIODE 1N4148 NDTZ001N4148

ICS

IC401 IC BD9766FV-E2 QSZBA0TRM062 IC402 IC BA10324AF-E2 QSZBA0TRM032 IC403 IC BA10324AF-E2 QSZBA0TRM032

TRANSISTORS

Q403 TRANSISTOR 2SC2120-O-TPE2 or QQS002SC2120

TRANSISTOR 2SC2120-Y(TPE2) QQSY02SC2120 Q411 TRANSISTOR 2SD1859 TV2 Q QQSQ02SD1859 Q412 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q421 MOS SET HAT3029R-EL-E or QF1ZHAT3029R

MOS FET SP8M3TB QF2Z000SP8M3 Q426 MOS SET HAT3029R-EL-E or QF1ZHAT3029R

MOS FET SP8M3TB QF2Z000SP8M3 Q433 MOS SET HAT3029R-EL-E or QF1ZHAT3029R

MOS FET SP8M3TB QF2Z000SP8M3 Q434 MOS SET HAT3029R-EL-E or QF1ZHAT3029R

MOS FET SP8M3TB QF2Z000SP8M3 Q451 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

Ref. No. Description Part No.

TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q452 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q454 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q455 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q461 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q462 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q464 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q465 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785 TRANSISTOR 2SC2785(J) or QQSJ02SC2785 TRANSISTOR KTC3199(GR) or NQS10KTC3199 TRANSISTOR KTC3198(GR) or NQS40KTC3198 TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

Q471 TRANSISTOR 2SC2785(F) or QQSF02SC2785

20040907 12-10 L0311EL

Ref. No. Description Part No.

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q472 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q491 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815 Q492 TRANSISTOR 2SC2785(F) or QQSF02SC2785

TRANSISTOR 2SC2785(H) or QQSH02SC2785

TRANSISTOR 2SC2785(J) or QQSJ02SC2785

TRANSISTOR KTC3199(GR) or NQS10KTC3199

TRANSISTOR KTC3198(GR) or NQS40KTC3198

TRANSISTOR 2SC3331(T)-AANP or 2SC3331TZ

TRANSISTOR 2SC3331(U)-AANP or 2SC3331UZ

TRANSISTOR 2SC1815-GR(TPE2) QQS102SC1815

RESISTORS

R404 CHIP RES.(1608) 1/10W J 5.1k Ω RRXAJR5Z0512 R405 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R406 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102 R409 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R410 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R411 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R412 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R413 CHIP RES.(1608) 1/10W J 68k Ω RRXAJR5Z0683 R414 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R415 CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001 R416 CHIP RES.(1608) 1/10W F 30k Ω RRXAFR5H3002 R417 CHIP RES.(1608) 1/10W J 180k Ω RRXAJR5Z0184 R419 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R420 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R421 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104 R422 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R423 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R424 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R425 CARBON RES. 1/4W J 200 Ω RCX4JATZ0201 R426 CHIP RES.(1608) 1/10W J 200 Ω RRXAJR5Z0201 R427 CHIP RES.(1608) 1/10W J 15k Ω RRXAJR5Z0153 R430 PCB JUMPER D0.6-P5.0 JW5.0T R432 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R433 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R435 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R437 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R438 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R440 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000

Ref. No. Description Part No.

R442 PCB JUMPER D0.6-P5.0 JW5.0T R443 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R445 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R446 PCB JUMPER D0.6-P5.0 JW5.0T R448 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R450 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R451 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R452 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R453 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R454 CHIP RES.(1608) 1/10W F 1.3k Ω RRXAFR5H1301 R456 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R457 CHIP RES.(1608) 1/10W J 680k Ω RRXAJR5Z0684 R458 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R459 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R460 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R461 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R462 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R463 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R466 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R467 CHIP RES.(1608) 1/10W J 680k Ω RRXAJR5Z0684 R468 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R469 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R470 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R471 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R472 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R473 CHIP RES.(100PPM) 1/10W F 330 Ω RRXAFR5H3300 R474 CHIP RES.(1608) 1/10W F 1.3k Ω RRXAFR5H1301 R475 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R476 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R477 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R478 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R479 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R480 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R481 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R482 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R483 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R484 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R485 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R486 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103 R487 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R488 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R489 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R490 CHIP RES.(100PPM) 1/10W F 620 Ω RRXAFR5H6200 R491 CHIP RES.(1608) 1/10W F 15 Ω RRXAFR5H15R0 R492 CHIP RES.(100PPM) 1/10W F 330 Ω RRXAFR5H3300 R493 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000 R495 CHIP RES.(1608) 1/10W J 1 Ω RRXAJR5Z01R0 R496 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R497 CHIP RES.(1608) 1/10W J 1k Ω RRXAJR5Z0102 R498 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R1403 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R1404 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R1405 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103 R1406 CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001 R1411 CHIP RES.(1608) 1/10W F 2k Ω RRXAFR5H2001 R1412 CHIP RES.(1608) 1/10W J 10k Ω RRXAJR5Z0103

MISCELLANEOUS

BC401 PCB JUMPER D0.6-P5.0 JW5.0T RL401 POWER RELAY SDT-S-112LMR MRNDC12QN014 T450 INVERTER TRANS ETJV25ZB12AC LTZ00CPMS004

20040907 12-11 L0311EL

Ref. No. Description Part No.

T460 INVERTER TRANS ETJV25ZB12AC LTZ00CPMS004 T470 INVERTER TRANS ETJV25ZB12AC LTZ00CPMS004 T490 INVERTER TRANS ETJV25ZB12AC LTZ00CPMS004

20040907 12-12 L0311EL

6620LE

L0311UM

2004-09-29

Sylvania 6620LE Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

IMPORTANT SAFETY PRECAUTIONS

STANDARD NOTES FOR SERVICING

CABINET DISASSEMBLY INSTRUCTIONS

ELECTRICAL ADJUSTMENT INSTRUCTIONS

BLOCK DIAGRAMS

SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS

WAVEFORMS

WIRING DIAGRAM

MECHANICAL PARTS LIST

ELECTRICAL PARTS LIST
