Sylvania 6509DD User Manual

OWNER’S

As an ENERGY STAR

Partner, our company has determined that this product meets the E

NERGY STAR guidelines for

energy efficiency. E

NERGY STAR is

a U.S. registered mark.

MANUAL

9-INCH COLOR TV/DVD

6509DD

This Owner’s Manual is made of

recycled paper.

INSTRUCCIONES EN ESPAÑOL INCLUIDAS.

If you need additional assistance for set-up or operating after

reading owner’s manual, please call TOLL FREE : 1-800-968-3429. Or visit our WEB SITE at http://www.funai-corp.com

Please read before using this equipment

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE

PORTABLE CART WARNING

AVERTISSEMENT POUR UNE

TABLE ROULANTE PORTATIVE

S3126A

TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The caution marking is located on the rear of the cabinet.

IMPORTANT SAFEGUARDS

1.Read instructions-All the safety and operating instructions

should be read before the appliance is operated.

2.Retain Instructions-The safety and operating instructions should be retained for future reference.

3.Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions-All operating and use instructions should be followed.

5.Cleaning-Unplug TV/DVD from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments-Do not use attachments not recommended by the TV/DVD manufacturer as they may cause hazards.

7.Water and Moisture-Do not use this TV/DVD near waterfor example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories-Do not place this TV/DVD on an unstable cart, stand, tripod, bracket, or table. The TV/DVD may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV/DVD. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

Accessoires- Ne placez pas cette TV/DVD sur une table roulante, un support, un trépied, une console ou une table instable. Cette TV/DVD risquerait de tomber, pouvant gravement blesser quelqu'un et l'appareil même pourrait être sérieusement endommagé. N'utilisez qu'une table roulante, un support, un trépied, une console ou une table recommandé par le fabriquant, ou vendu avec la TV/DVD. Pour n'importe quelle installation de l'appareil, on devra suivre les instructions du fabriquant et l'on devra utiliser les accessoires d'installation recommandés par le fabriquant. L'ensemble combiné de l'appareil avec une table roulante devra être déplacé avec précaution. Des arrêts brusques, une force excessive et des surfaces inégales peuvent provoquer le renversement de l'ensemble combiné de l'appareil/table roulante.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV/DVD and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the TV/DVD on a bed, sofa, rug, or other similar surface. This TV/DVD should never be placed near or over a radiator or heat register. This TV/DVD should not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV/DVD should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TV/DVDs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV/DVD is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

–2–

0C28

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

S2898A

FIGURE A

ELECTRIC SERVICE EQUIPMENT

NEC - NATIO NAL ELE CTRI CAL CO DE

GROUND

CLAMP

ANTENNA

LEAD IN WIRE

ANTENNA

DISCHARGE UNI T (NEC SECTIO N 810- 20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CL AMPS

POWER SERVICE GRO UNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

12.Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV/DVD, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV/DVD receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV/DVD due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV/DVD through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV/DVD.

18.Servicing-Do not attempt to service this TV/DVD yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV/DVD from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged or frayed. b. If liquid has been spilled, or objects have fallen into the

TV/DVD.

c. If the TV/DVD has been exposed to rain or water. d. If the TV/DVD does not operate normally by following the

operating instructions. Adjust only those controls that are covered by the operating instructions, as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV/DVD to its normal operation.

e. If the TV/DVD has been dropped or damaged in any way. f. When the TV/DVD exhibits a distinct change in perfor-

mance-this indicates a need for service.

20.Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Upon completion of any service or repairs to this TV/DVD, ask the service technician to perform routine safety checks to determine that the TV/DVD is in proper operating condition.

22.Heat-This TV/DVD product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

–3–

0C28

PRECAUTIONS

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

LASER SAFETY

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CAUTION: TO PREVENT ELECTRIC SHOCK,

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

The serial number of this product may be found on the back of the unit. No other TV/DVD has the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft. Serial numbers are not kept on file.

Date of Purchase Dealer Purchase from Dealer Address Dealer Phone No. Model No. Serial No.

–4–

0C28

LOCATION

SUPPLIED ACCESSORY

For safe operation and satisfactory performance of your TV/DVD, keep the following in mind when selecting a place for its installation:

Shield it from direct sunlight and keep it away from

•

sources of intense heat. Avoid dusty or humid places.

•

Avoid places with insufficient ventilation for proper

•

heat dissipation. Do not block the ventilation holes at the top and bottom of the unit. Do not place the unit on a carpet because this will block the ventilation holes.

Install unit in a horizontal position.

•

Avoid locations subject to strong vibration.

•

Do not place the TV/DVD near strong magnetic fields.

•

Avoid moving TV/DVD to locations where temper-

•

ature differences are extreme.

AVOID THE HAZARDS OF

ELECTRICAL SHOCK AND FIRE

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting

•

it from an AC wall outlet. Grasp it by the plug. If, by accident, water is spilled on your unit, unplug

•

the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the

•

TV/DVD disc loading tray. Do not place anything directly on top of the unit.

•

WARNING

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. If a DVD is played in a TV/DVD which has moisture, it may damage the DVD and TV/DVD. Therefore when the condensation occurs inside the unit, turn POWER on and allow at least 2 hours for the unit to dry out.

Remote Control Unit

• (PART NO.: NE207UD)

2 AA Batteries

•

Indoor Antenna

• (PART NO.: 0EMN00723 or 0EMN01183)

Matching Adapter

• (300ohm-75ohm)

(PART NO.: 1813641 or 1780258 or UCPGANTPK004)

Car Battery Cord

• (PART NO.: WPC0202GA001

or WPC0202HHH001)

SYMBOLS USED IN THIS MANUAL

The following symbols below appear in some headings and notes in this manual, with the following meanings

: Description refers to TV operation (in the TV mode).

DVD-V

: Description refers to playback of DVD video discs

(in the DVD mode).

: Description refers to playback of audio CDs

(in the DVD mode).

MP3

: Description refers to playback of MP3 discs

(in the DVD mode).

QUICK

: Description refers to the items to be set by the

QUICK mode (in the DVD mode).

–5–

0C28

TABLE OF CONTENTS

C IMPORTANT SAFEGUARDS . . . . . . . . . . . . .2

C PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . .4

C FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATING CONTROLS AND FUNCTIONS

INSTALLING THE BATTERIES . . . . . . . . . . .9

C PREPARATION FOR USE . . . . . . . . . . . . . . .10

ANTENNA/CABLE CONNECTIONS . . . . . . .10

INDOOR ANTENNA . . . . . . . . . . . . . . . . . . .10

CONNECTING TO EXTERNAL INPUT JACKS .11

CONNECTING TO A STEREO SYSTEM . . . .12

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL INPUT JACKS, MD DECK OR DAT DECK (for DVD only) . .12

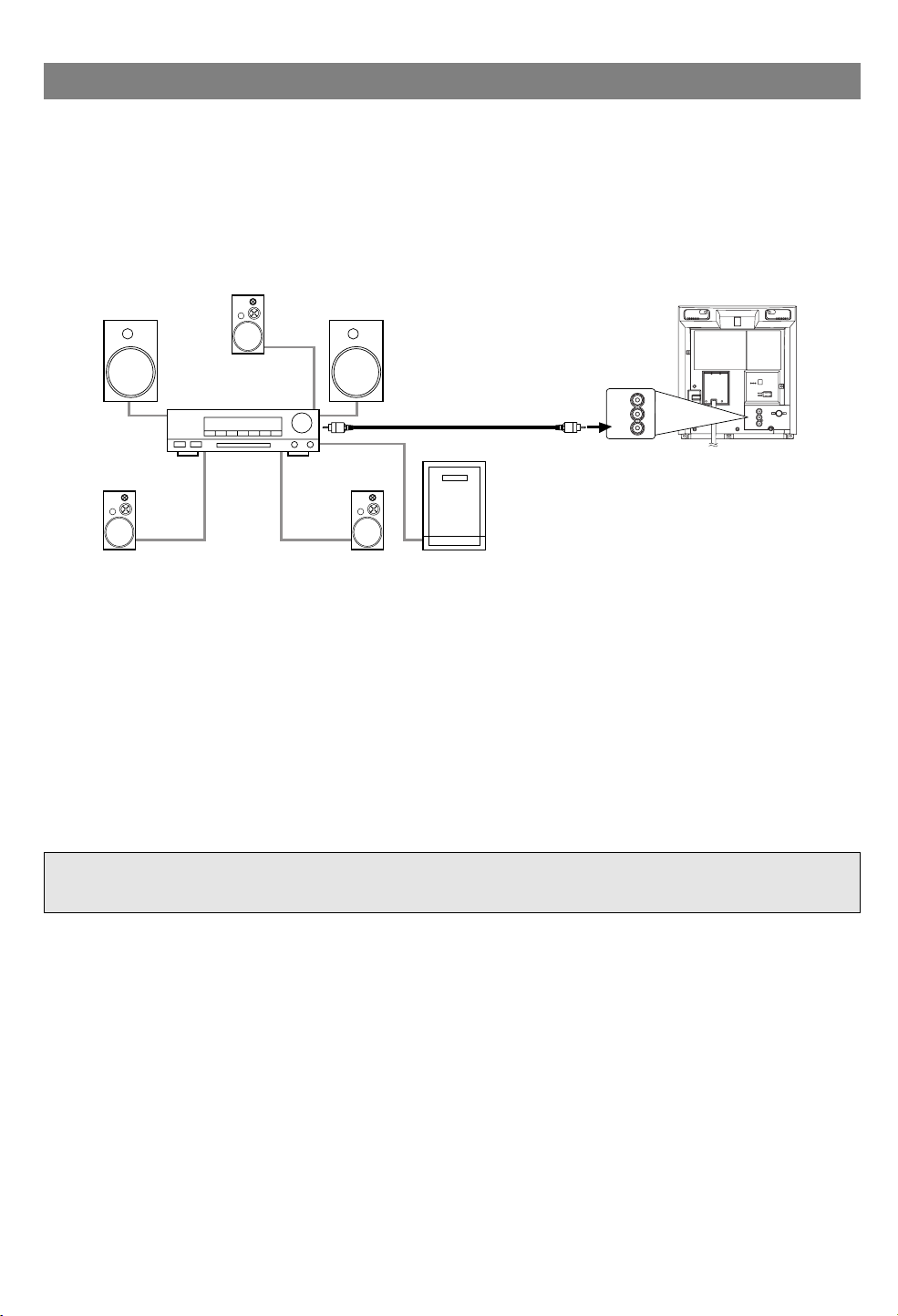

CONNECTING TO A DOLBY DIGITAL

DECODER (for DVD) . . . . . . . . . . . . . . . . . . .13

TV SECTION

C SET UP FOR USE . . . . . . . . . . . . . . . . . . . . .14

CHANNEL SET UP FOR THE FIRST TIME . .14

DELETING (OR ADDING) CHANNEL . . . . .14

CHANNEL SET UPAGAIN . . . . . . . . . . . . . .15

SELECTING THE LANGUAGE . . . . . . . . . . .15

C TV OPERATION . . . . . . . . . . . . . . . . . . . . . . .16

WATCHING A TV PROGRAM . . . . . . . . . . . .16

DEGAUSSING . . . . . . . . . . . . . . . . . . . . . . . .16

PICTURE CONTROL . . . . . . . . . . . . . . . . . . .16

SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . .17

DVD SECTION

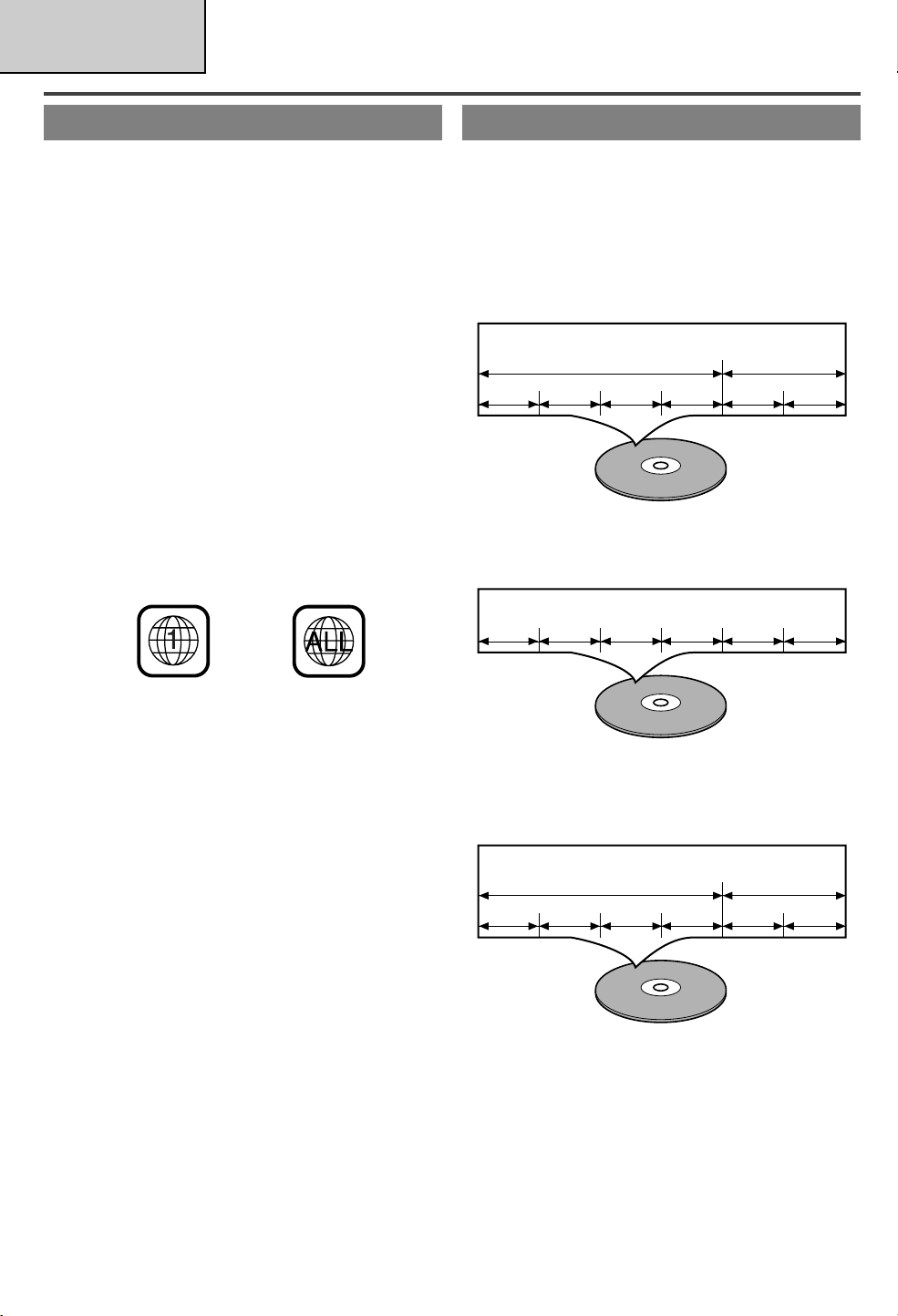

C ABOUT THE DISCS . . . . . . . . . . . . . . . . . . . .18

PLAYABLE DISCS . . . . . . . . . . . . . . . . . . . . .18

DISC TYPES . . . . . . . . . . . . . . . . . . . . . . . . . .18

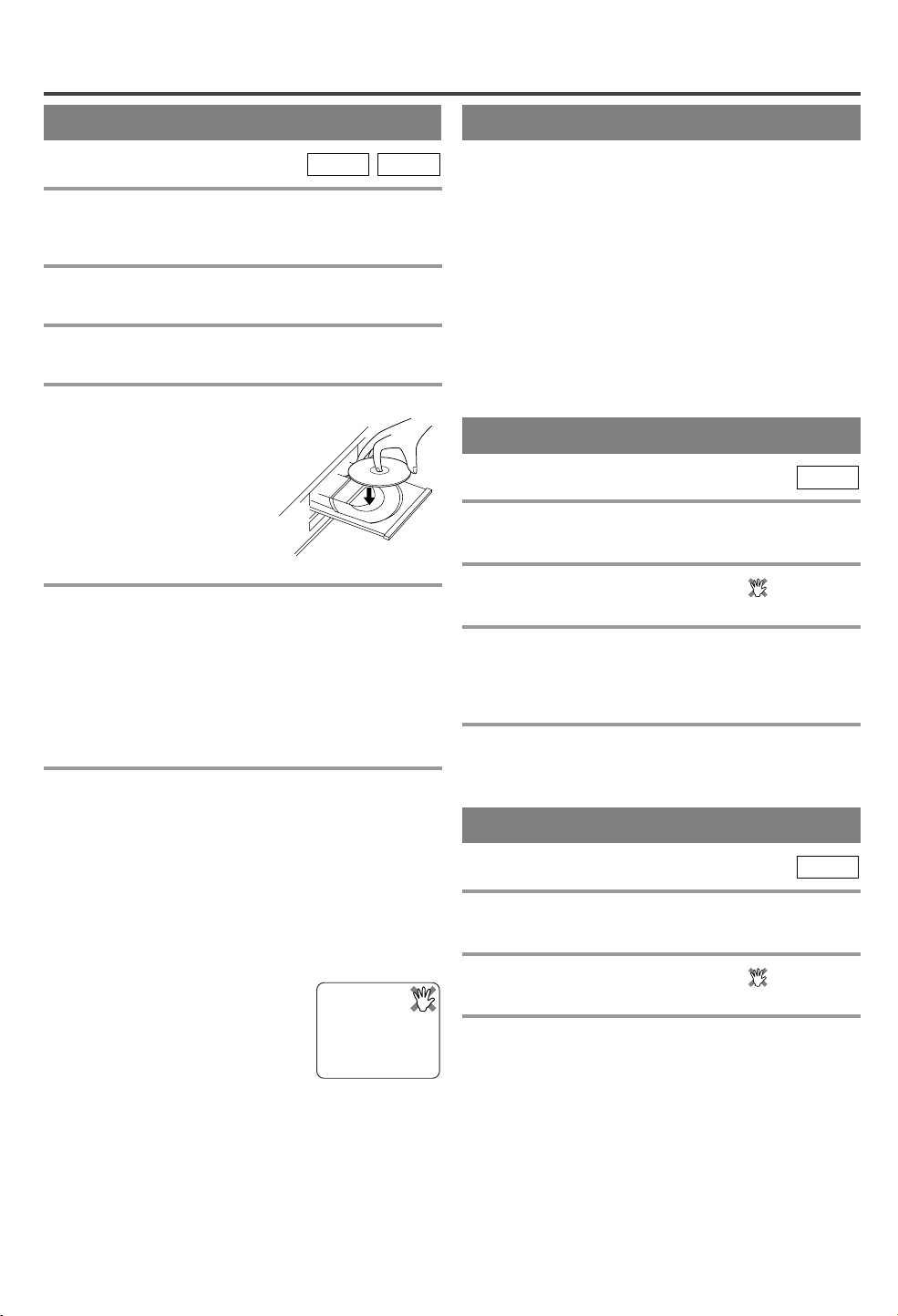

C PLAYING A DISC . . . . . . . . . . . . . . . . . . . . . .19

BASIC PLAYBACK . . . . . . . . . . . . . . . . . . . .19

GENERAL FEATURES . . . . . . . . . . . . . . . . . .19

DISC MENU . . . . . . . . . . . . . . . . . . . . . . . . . .19

TITLE MENU . . . . . . . . . . . . . . . . . . . . . . . . .19

RESUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PAUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

STEP BY STEP PLAYBACK . . . . . . . . . . . . .20

FAST FORWARD/REVERSE SEARCH . . . . .20

SLOW FORWARD / SLOW REVERSE . . . . .20

ZOOM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

. . .8

C SEARCH FUNCTION . . . . . . . . . . . . . . . . . .21

TRACK SEARCH . . . . . . . . . . . . . . . . . . . . . .21

TITLE / CHAPTER SEARCH . . . . . . . . . . . . .21

TIME SEARCH . . . . . . . . . . . . . . . . . . . . . . . .21

MARKER SETUP SCREEN . . . . . . . . . . . . . .21

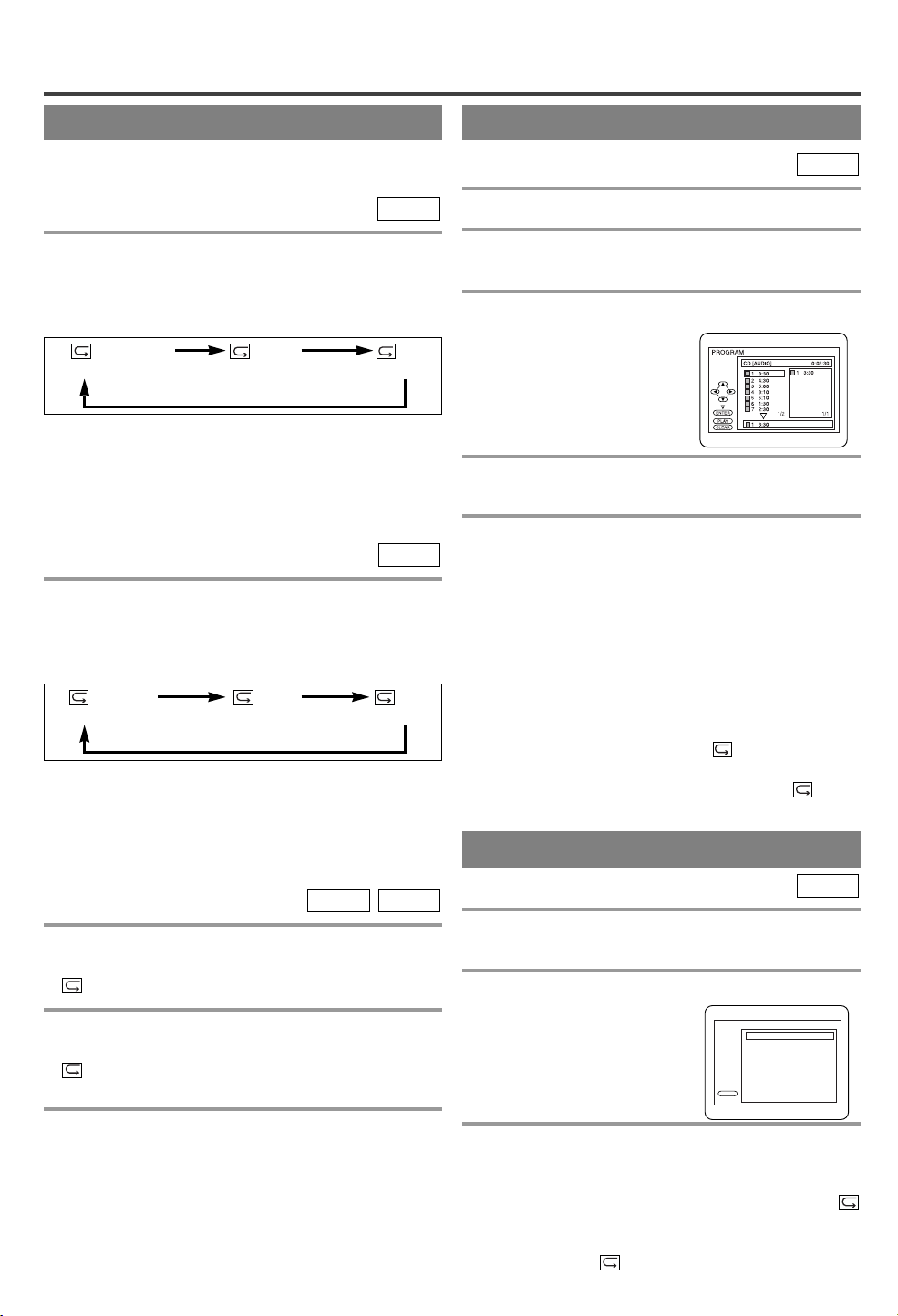

C SPECIAL PLAYBACK FUNCTION . . . . . . . .22

REPEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .22

RANDOM PLAYBACK . . . . . . . . . . . . . . . . .22

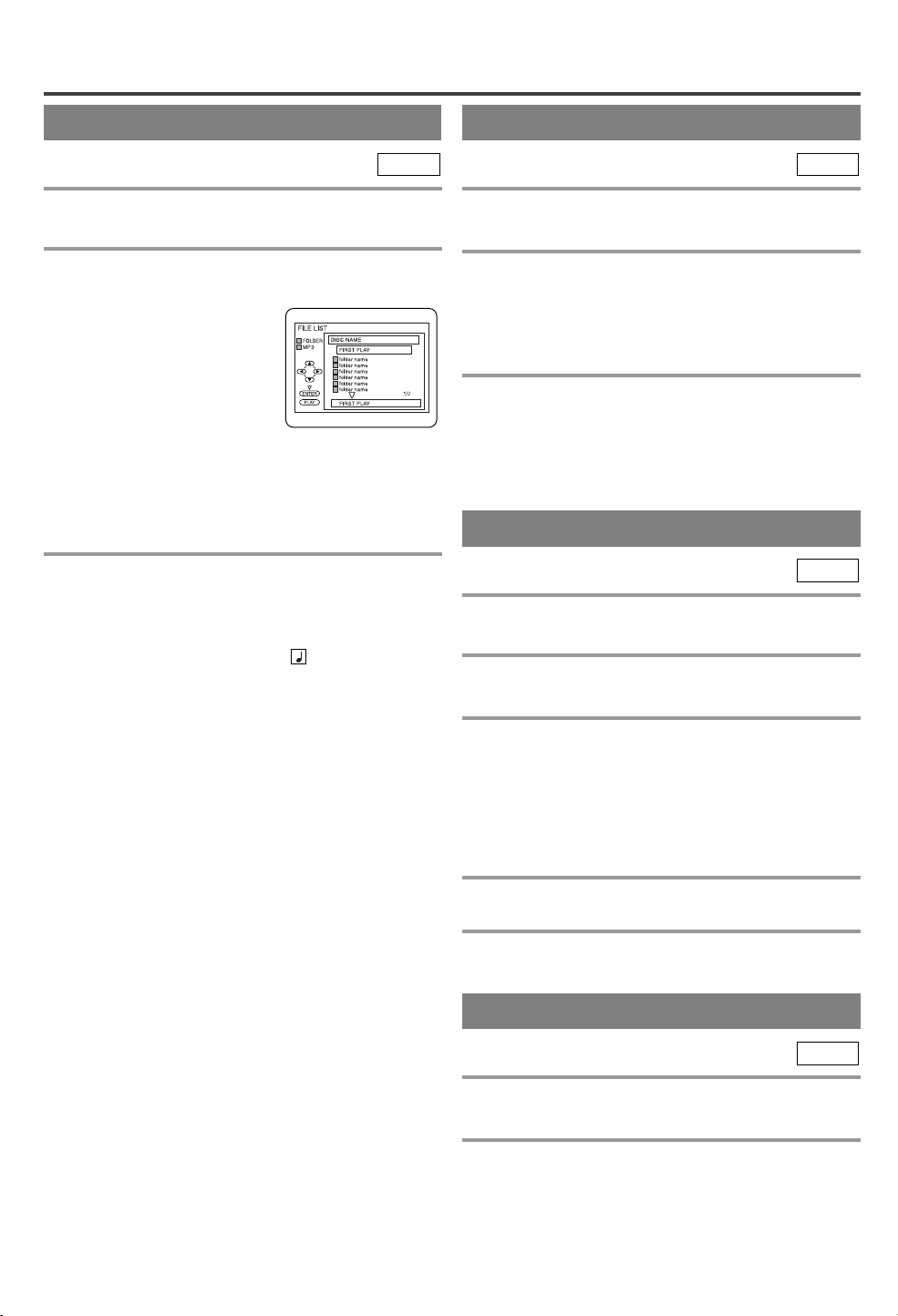

C PLAYING A MP3 DISC . . . . . . . . . . . . . . . . . .23

MP3 PLAYBACK . . . . . . . . . . . . . . . . . . . . . .23

TRACK SELECTION . . . . . . . . . . . . . . . . . . .23

PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .23

RANDOM PLAYBACK . . . . . . . . . . . . . . . . .23

C CHANGING THE SETTINGS . . . . . . . . . . . .24

SUBTITLE LANGUAGE . . . . . . . . . . . . . . . .24

AUDIO LANGUAGE . . . . . . . . . . . . . . . . . . .24

STEREO SOUND MODE . . . . . . . . . . . . . . . .24

CAMERA ANGLE . . . . . . . . . . . . . . . . . . . . . .24

BLACK LEVEL SETTING . . . . . . . . . . . . . . .24

VIRTUAL SURROUND . . . . . . . . . . . . . . . . .24

C THE ON-SCREEN INFORMATION . . . . . . .25

C CHANGING THE DVD SETUP ITEMS . . . .26

LANGUAGE SETTING . . . . . . . . . . . . . . . . .26

DISPLAY SETTING . . . . . . . . . . . . . . . . . . . .27

AUDIO SETTINGS . . . . . . . . . . . . . . . . . . . . .27

PARENTAL CONTROL . . . . . . . . . . . . . . . . .28

C TROUBLESHOOTING GUIDE . . . . . . . . . . .29

C MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .31

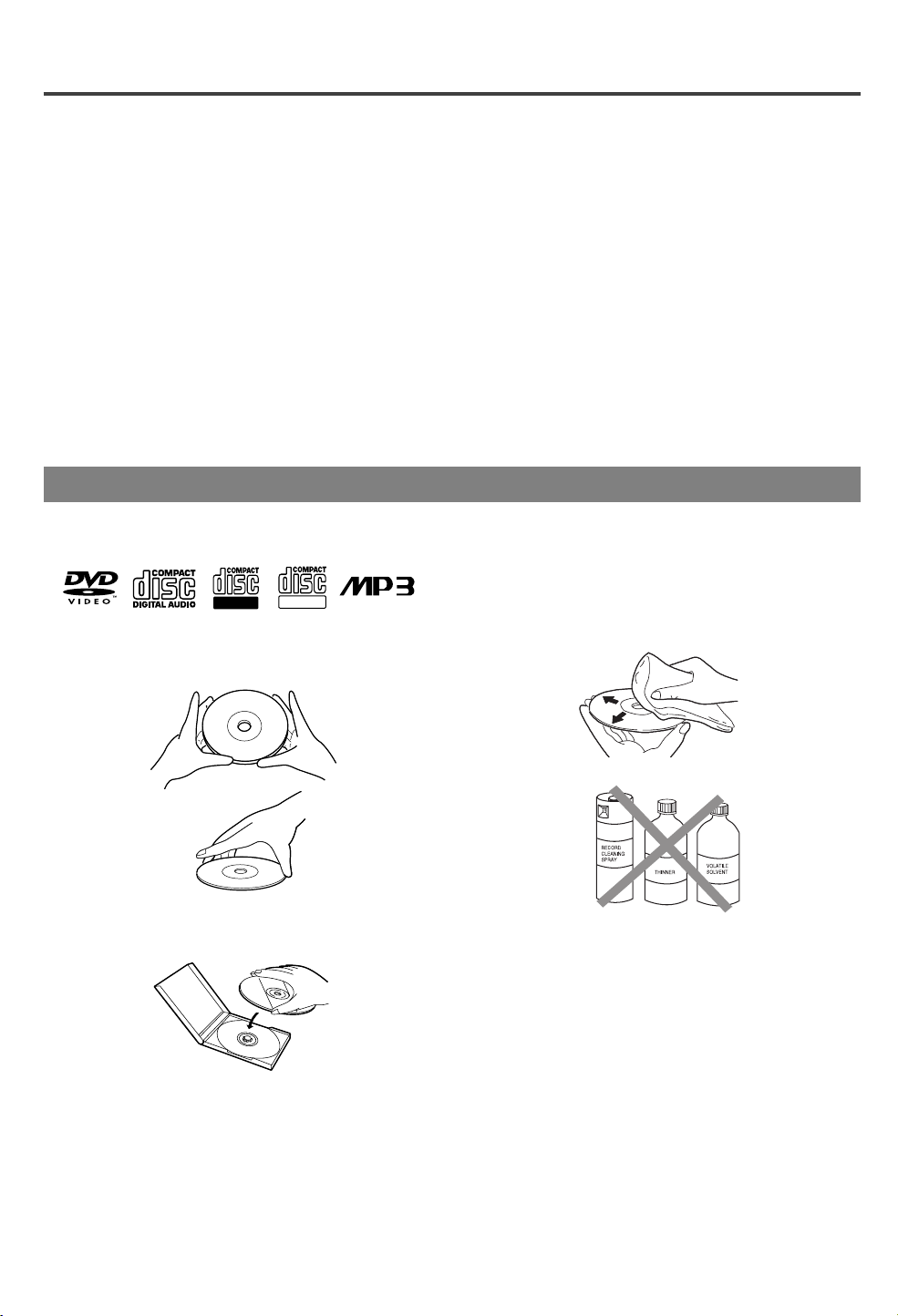

DISC HANDLING . . . . . . . . . . . . . . . . . . . . . .31

C SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . .32

C WARRANTY . . . . . . . . . . . . . . . . . . .Back Cover

–6–

0C28

FEATURES

TV Mode

181 channel capability PLL frequency synthesiz-

•

er tuner with direct station call

(A converter may be necessary to view scrambled cable channels.)

Infrared remote control

•

Trilingual on screen menu display selectable in

•

English, Spanish, or French

¡Sleep Timer

he Sleep Timer function enables you to shut off the power

without pressing POWER after a desired time period.

¡Auto Shut Off Function

If there is no air signal input from the antenna terminal and no operation for 15 minutes, the TV will turn itself off automatically.

DVD Mode

¡Dolby Digital sound

This player can handle Dolby Digital surround sound having 5.1 channels when connected to a Dolby Digital decoder.

¡Still/fast/slow/step playback

Various playback modes are available including still pictures, fast forward/reverse, slow motion and step frames.

¡Random playback for audio CD and MP3

This player can shuffle the order of tracks to play them in random order.

¡Program playback for audio CD and MP3

You can program the order of tracks to play them in any desired order.

¡DVD menus in a desired language

You can display DVD menus in a desired language, if available on a DVD.

¡Screen saver/Auto power-off functions

The screen saver program starts when there is no input from the player for five minutes in the stop mode. When the screen saver program is activated for 15 minutes, the power is automatically turned off.

¡Subtitles in a desired language

You can select a desired language for the display subtitles, if that language is available on a disc.

¡Selecting a camera angle

You can select the desired camera angle, if a disc contains sequences recorded from different angles.

¡Choices for audio language and sound mode

You can select the desired audio language and sound mode, if different languages and modes are available on a disc.

¡Parental lock

You can set the control level to limit playback of discs which may not be suitable for children.

¡Automatic detection of discs

This player automatically detects if the loaded disc is DVD, audio CD or MP3 on disc.

¡On-screen display

Information about the current operation can be displayed on a TV screen, allowing you to confirm the currently active functions (such as program playback), on the TV screen using the remote control.

¡Search

Chapter search / Title search / Track search / Time search

¡Repeat

Chapter / Title / Track / Group / All / A-B

¡Zoom

Magnified screen can be displayed.

¡Marker

The part designated by user can be called back.

¡Resume Play

User can resume to playback from the part at which the play was stopped.

¡Virtual Surround ¡Bit rate indication ¡DRC (Dynamic range control)

You can control the range of sound volume.

–7–

0C28

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

40 4139

HEADPHONE

CHANNEL

VOLUMEPOWER

AUDIO

VIDEO

OPEN/CLOSE

PAUSE

SKIPSKIP

STOP PLAY

742 8

9 10 11

6531

23 20

13 34

19 18

REV

SLOW

PLAY

STOP

FWD

ENTER

PAUSE

DISC

RETURNTITLESETUP

REPEATSEARCH MODE

CLEAR

MODE

ANGLESUBTITLEAUDIO

DISPLAY

SKIP

SELECT

POWER PICTURE

OPEN/ CLOSE

CH.

VOL.

MUTEZOOM

SLEEP

123

456

789

0 +10

+100

OPERATING CONTROLS AND FUNCTIONS

[Fig. 1]

[Fig. 2]

TV/DVD FRONT PANEL

REMOTE CONTROL

1.Disc loading tray

2.VIDEO input Jack [page 11]

Connect to the video output jack of a video camera or VCR.

3.AUDIO L/R input Jacks [page 11]

Connect to the audio output jacks of a video camera or VCR.

4.POWER Button [page 14]

Press to turn the power on and off.

5.VOLUME K/L (VOL. m/n) Buttons

Press to control the volume level for the DVD and TV.

TV/DVD REAR VIEW

[Fig. 3]

6.CHANNEL K/L (CH.K/L) Buttons [page 14]

Press to select memorized channel. Press to change to TV mode when DVD mode.

7.Remote Sensor Window

8.STOP Button [page 19]

Stops operation of the disc.

9.SKIP H Button [page 21]

Plays back from the beginning of the current chapter or track.

SEARCH (REV) E Button (Front Panel) [page 20]

During playback or in the pause mode, press and hold button down

for a few seconds to change

reverse playback speed.

10. PLAY Button [page 19]

Starts playback of the disc contents. Press to change to DVD mode when TV mode.

11. SKIP G Button [page 21]

Plays back from the beginning of the next chapter or track.

SEARCH (FWD) D Button (Front Panel) [page 20]

During playback or in the pause mode, press and hold button down

for a few seconds to change for-

ward playback speed.

12. PAUSE Button [page 20]

Pauses the current disc operation.

13. OPEN/CLOSE Button [page 19]

Press to insert discs into or remove them from the tray.

14. HEADPHONE Jack

To connect headphone (not supplied) for personal listening.

–8–

0C28

15. MODE Button [pages 22-24]

Activates program playback or random playback mode when playing CDs or MP3.

16. Number Button TV Mode: [page 14]

Press two digits to directly access the desired channel. Remember to press a "0" before a single digit channel.

+100 Button–

Press to select cable channels which are equal or greater than number 100.

DVD Mode: [page 21]

Press to enter the desired number.

+10 Button–

Press to enter the desired numbers which are equal or greater than number 10.

17. SLEEP Button [page 17]

Press SLEEP to display the sleep timer and start the function. The shut off time can be determined by the number of times you press this button. (0, 30, 60, 90, or 120 minutes)

18. REV h Button [page 20]

Press to view the DVD picture in fast reverse motion. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the reverse speed of slow motion.

FWD g Button [page 20]

Press to fast forward the Disc. Press PAUSE, then press this button to begin slow motion playback. Press this button repeatedly to change the forward speed of slow motion.

19. ZOOM Button [page 20]

Expands the picture to fill the entire screen.

20. SETUP Button [pages 14, 26-28]

Press to enter or exit the TV menu or DVD setup mode.

21. TITLE Button [page 19]

Displays the title menu.

22. CLEAR Button [pages 21-23]

Resets a setting.

23. DISPLAY Button TV Mode:

Press to display the channel number on the screen. If you press it again, the channel number will disappear.

DVD Mode: [page 25]

Displays the current status on the TV screen for checking purposes.

24. SEARCH MODE Button [page 21]

Press to locate a desired point.

25. AUDIO Button [page 24]

Press to select a desired audio language or sound mode.

26. SUBTITLE Button [page 24]

Press to select a desired subtitle language.

27. REPEAT Button [page 22]

Repeats playback of the current disc, title, chapter or track.

28. ANGLE Button [page 24]

Press to change the camera angle to see the

sequence being played back from a different angle.

29. REPEAT A-B [page 22]

Repeats playback of a selected section.

30. RETURN Button [page 24]

Returns to the previous operation.

31. ENTER Button [pages 14, 19]

Press to accept a setting.

32. Arrow Buttons TV Mode: [page 14]

Press to select a setting mode from the menu on the TV screen. Press to select or adjust from a particular menu.

DVD Mode: [page 19]

Use when making settings while watching the display on a TV screen.

33. DISC MENU Button [page 19]

Displays the menus in the DVD.

34. SELECT Button [pages 11, 19]

Press to change to TV mode, external input mode or DVD mode.

NOTE: When you select the DVD mode by this

button, press PLAY or OPEN/CLOSE first. Otherwise, the DVD features are not operated.

35. MUTE Button

Press MUTE to turn off the sound portion of the TV program. (Volume level display turns LIGHT RED from LIGHT BLUE.) Press MUTE again or press VOL. m or n to restore sound.

36. PICTURE Button [page 16]

Press to enter picture adjustment mode.

37. Power cord

Connect to a standard AC outlet (120V/60Hz). NOTE: Remove the power cord from the hook to

avoid breaking a wire before you connect to a standard AC outlet.

38. AUDIO L/R output Jack

Connect to the analog audio input of an external amplifier or decoder.

39. COAXIAL digital audio out Jack (DVD Audio Only)

Connect to the digital input of an external amplifier or decoder.

40. ANT. in Jack

Connect to an antenna, cable system, or satellite system.

41. DC 13.2V Jack

Connect to the Car Battery Cord.

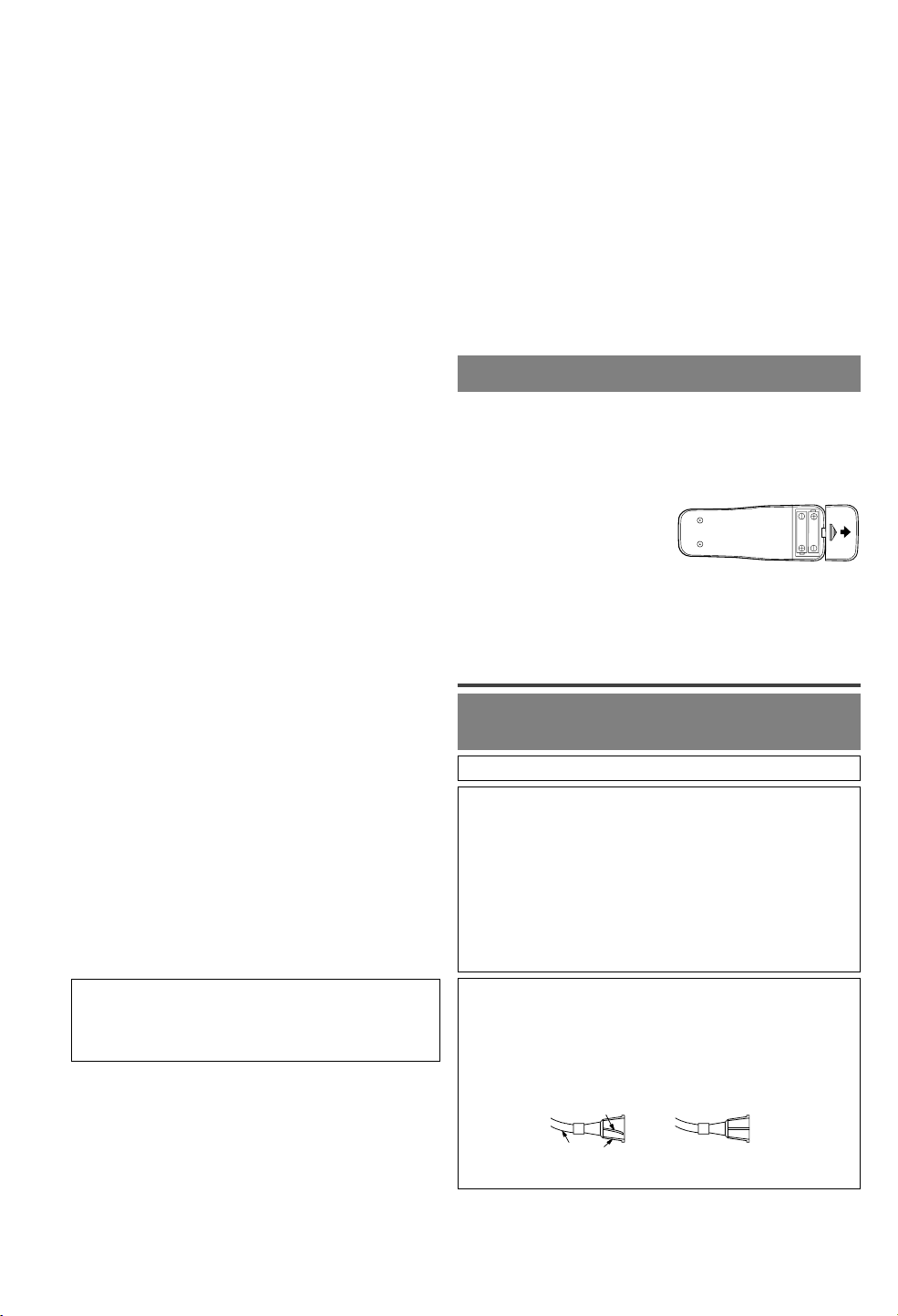

INSTALLING THE BATTERIES

1)Open the battery compartment cover by pressing the cover on the remote unit in the direction of the arrow.

2)Insert 2 “AA” penlight batteries into the battery compartment in the direction indicated by the polarity (+/-) markings.

3)Replace the cover.

NOTES

¡Do not mix alkaline and manganese batteries. ¡Do not mix old and new batteries.

–9–

0C28

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

OUT

Satellite Box or

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

Cable Box (Not supplied)

PREPARATION FOR USE

ANTENNA/CABLE CONNECTIONS

From Cable System or Satellite Dish

VHF/UHF Antenna (Not supplied)

VHF Antenna (Not supplied)

From Cable System

UHF Antenna (Not supplied)

VHF/UHF Combiner

(Not supplied)

75-ohm Coaxial

Cable (Not supplied)

Flat twin-lead cable

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

NOTE:

Bent pin

Before plugging the an antenna into the ANT. IN jack of the TV/DVD, check that the pin is not bent. If it is bent, straighten the pin as illustrated, then plug the pin into the ANT. IN jack of the TV/DVD.

VHF/UHF COMBINED ANTENNA

A VHF UHF 75 ohm combination antenna can be connected to ANT terminal.

VHF/UHF SEPARATE ANTENNAS

In some areas it will be necessary to use an outdoor antenna.

CABLE WITHOUT CONVERTER/ DESCRAMBLER BOX

Use this connection if your cable system connects directly to your TV/DVD without a converter box. Use the TV/ DVD Remote Control to select channels.

CABLE WITH CONVERTER/DESCRAMBLER BOX OR SATELLITE BOX

If your cable service supplies you with a converter box or if you use a satellite system, you can use the basic connection shown here.

Channel selection must be made with the converter box or satellite box. This means that channels cannot be changed using the TV/ DVD Remote Control.

TO VIEW A SCRAMBLED/UNSCRAMBLED CHANNEL

1.Set the TV/DVD channel selector to the output channel of the Cable Converter Box or Satellite Box. (Ex. CH3)

2.Select the channel to view at your Cable Converter

Box or Satellite Box.

Cable

Plug

(Needs to be straightened)

(Straight pin)

[Fig. 4]

INDOOR ANTENNA

The Indoor Antenna (supplied) is detachable. Insert the stem of the antenna into the hole on the upper-back portion of the TV/DVD. Connect the Indoor Antenna to the TV/DVD as shown in the diagram. For the best reception, fully extend the Indoor Antenna and make the necessary adjustments. (Avoid touching the top section when adjusting.)

NOTE:

The connection of an Indoor antenna may not always give acceptable TV reception.

–10–

Indoor Antenna (Supplied)

Flat twin-lead cable

Matching Adapter (Supplied)

[Fig. 5]

0C28

CONNECTING TO EXTERNAL INPUT JACKS

POWER

AUDIO

VIDEO

AUDIO

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

DC13.2V

ANT.

When you watch a program recorded on an another

[Front of the TV/DVD]

source (VCR or video camera), use the audio/video input jacks on the front of the TV/DVD.

Connect the audio/video output jacks of another source to the

AUX

[Another source]

To the audio output jacks

AUDIO L/R and VIDEO jacks of this TV/DVD. Then press SELECT until "AUX" appears on the screen.

NOTE:

When you connect a monaural VCR (another

•

source) to this TV/DVD, connect the Audio output jack of the monaural VCR (another source) to the AUDIO L jack of this TV/DVD. The audio will

To the video output jack

Audio/Video cables (not supplied)

etc.

[Fig. 6]

output in both L and R channel equally.

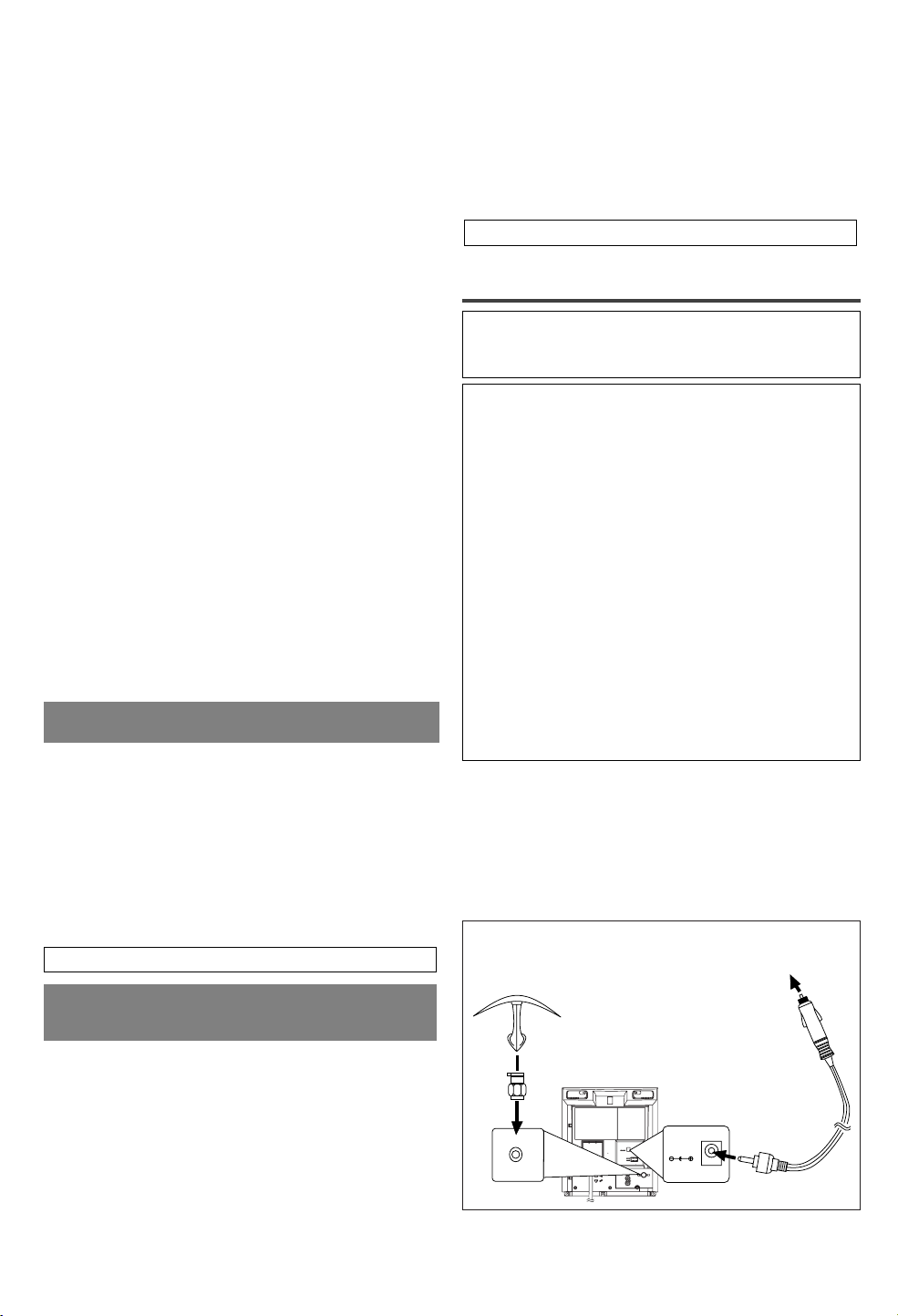

MOBILE CONNECTION

WARNING:The driver should never watch the TV/DVD while operating a motor vehicle.

CAUTION:

When used in moving vehicle, be sure that the unit is secure at all the times to prevent injury.

•

Consult a professional installer.

If you use the TV/DVD with the vehicle’s engine off, recharge the vehicle’s battery after about

•

every 4 hours of use to prevent it from running down. After you finish using the TV/DVD be sure you unplug the car-battery cord from the cigarette-lighter socket.

Do not use this TV/DVD while driving.

•

Do not leave this TV/DVD in a car.

•

This TV/DVD is not designed for use in a car.

•

1) The supplied indoor antenna is adequate when your vehicle is stationary. For best reception on the road, use a high-quality VHF/UHF mobile TV antenna.

2) Attach the car battery cord to the DC13.2V(12V) connector on the back of the TV/DVD. Then, connect the other end to your vehicle’s cigarettelighter socket.

To the vehicle's cigarette-lighter socket

VHF/UHF Combination Mobile Antenna (Not supplied)

Car battery cord (Supplied)

NOTES:

Be sure your vehicle has a 13.2-volt (12-volt), neg-

•

ative-ground electrical system. Be sure you use only the supplied car battery cord.

•

Using another cord could damage the TV/DVD. Be sure the socket is free of ashes and other debris.

•

Be sure to push the car battery cord’s plug com-

•

pletely into the cigarette-lighter socket. Always unplug the car battery from the cigarette-

•

lighter socket before you unplug it from the TV/DVD.

You must disconnect the car battery cord from the

•

TV/DVD before you can use the AC power. Be sure to replace the fuse with only the same type,

•

6A, 250V.

–11–

0C28

CONNECTING TO A STEREO SYSTEM

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

AUDIO OUT

COAXIAL

To Right (red) and Left (white) AUDIO OUT jacks

Stereo system

To ANALOG AUDIO INPUT jacks

AUDIO OUT

DC 13.2V

COAXIAL

ANT.

AUDIO OUT

COAXIAL

Amplifier equipped with digital

input jacks, MD deck,

DAT deck, etc.

To COAXIAL DIGITAL AUDIO INPUT jack

To DIGITAL AUDIO OUT (PCM/BITSTREAM) COAXIAL jack

(only DVD AUDIO OUT)

NOTES:

Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for your, stereo system and any other components to be connected to the

•

TV/DVD. The monaural sound is output from the stereo system when the TV/DVD is in the TV mode.

•

CONNECTING TO AN AMPLIFIER EQUIPPED WITH DIGITAL

INPUT JACKS, MD DECK OR DAT DECK (for DVD only)

[Fig. 7]

Use an audio coaxial digital cable available at retail for the audio connections.

NOTES:

The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital

•

sound by an MD or DAT deck. Be sure to turn off the power to all components in the system before connecting another component.

•

Refer to the Owner's Manuals for the components to be connected to the TV/DVD.

•

Set DOLBY DIGITAL to OFF for audio output in the setup mode. Playing a TV/DVD using incorrect set-

•

tings may generate noise distortion, and may also damage the speakers. (See page 27 to set DOLBY DIGITAL to OFF.)

–12–

[Fig. 8]

0C28

+ 28 hidden pages
