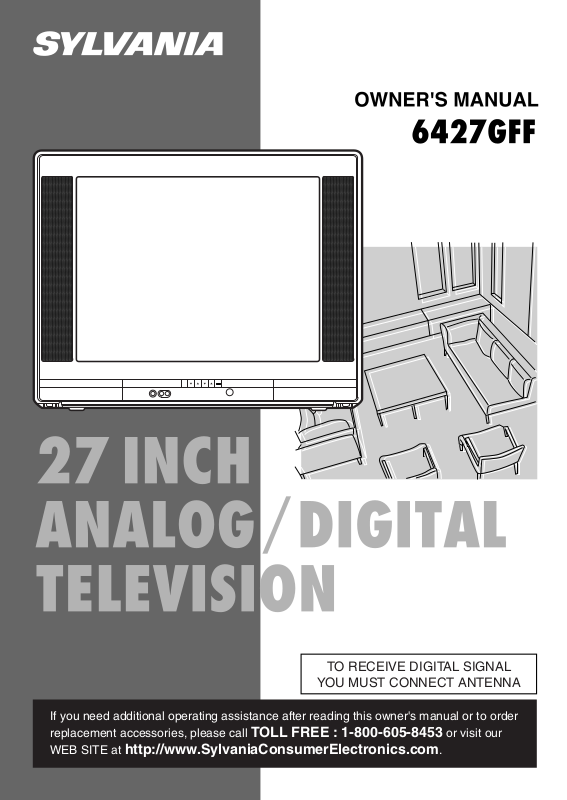

Sylvania 6427GFF User Manual

If you need additional operating assistance after reading this owner's manual or to order replacement accessories, please call

TOLL FREE : 1-800-605-8453 or visit our

WEB SITE at

http://www.SylvaniaConsumerElectronics.com.

TO RECEIVE DIGITAL SIGNAL

YOU MUST CONNECT ANTENNA

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

1. Read instructions-All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions-The safety and operating instructions should be retained for future reference.

3. Heed Warnings-All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions-All operating and use instructions should be followed.

5. Cleaning-Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. Attachments-Do not use attachments not recommended by the TV manufacturer as they may cause hazards.

7. Water and Moisture-Do not use this TV near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. Accessories-Do not place this TV on an unstable cart, stand, tripod, bracket, or table.The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV.

Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

AMEUBLES- Cet appareil ne doit être placé que sur un meuble (avec ou sans roulettes) recommandé par le fabricant. Si vous l’installez sur un meuble à roulettes, déplacez les deux ensembles avec précaution. Un arrêt brusque, l’utilisation d’une force excessive et des surfaces irrégulières risquent de déstabiliser l’ensemble et de le renverser.

9. Ventilation-Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface.This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10.Power Sources-This TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization-This TV is equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power-CORD PROTECTION-Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

IMPORTANT SAFEGUARDS

PORTABLE CART WARNING

S3126A

SYMBOLE D'AVERTISSEMENT POUR

LES COMPOSANTES

APPAREIL ET MEUBLE A ROULETTES

S3126A

13.Outdoor Antenna grounding-If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14.Lightning-For added protection for this TV receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

15.Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading-Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry-Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18.Servicing-Do not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service-Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into the

TV. c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that

are covered by the operating instructions, as improper

adjustment of other controls may result in damage and

will often require extensive work by a qualified techni-

cian to restore the TV to its normal operation. e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in performance,

this indicates a need for service.

20.Replacement Parts-When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, injury to persons or other hazards.

21.Safety Check-Upon completion of any service or repairs to this TV, ask the service technician to perform routine safety checks to determine that the TV is in proper operating condition.

22.Heat-This TV product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

EXAMPLE OF ANTENNA GROUNDING AS PER

IMPORTANT SAFEGUARDS

S2898A

FIGURE A

NATIONAL ELECTRICAL CODE

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

PRECAUTIONS

• Place your TV in a room with adequate ventilation.

• Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

• Do not place your TV on soft surfaces, such as rugs or blankets.

• Leave enough room for air to circulate around the bottom, top and back of the set.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours.You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.

A NOTE ABOUT RECYCLING: Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

CAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION: POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Date of Purchase Dealer Puchase from Dealer Address

Dealer Phone No. Model No. Serial No.

SUPPLIED ACCESSORIES

• Owner’s Manual (1EMN20489)

• Remote control unit (NE601UD)

• Batteries (“AA” x 2)

• If you need to replace these accessories, please refer to the PART NO, under the illustrations and call our help line mentioned on the front page.

• Depending on your antenna system, you may need different types of Combiners (Mixer) or Separator (Splitter). Contact your local electronics store for these items.

FEATURES

• DTV/TV/CATV

This TV lets you easily switch TV(NTSC) and DTV(ATSC) with the remote control. This feature enables you to simply view from conventional analog TV to Standard Definition TV, High Definition TV. You can also connect this TV to CATV if you have a CATV box.

•

Program Information Display (DTV)

You can display the title, contents and other information of the current DTV program on the screen.

•

Auto Preset Channel

This TV can automatically scan and memorize the channels receivable in your residential area. This feature eliminates the need of a difficult setting procedure.

•

V-CHIP

This feature lets you set the viewing limitations to prevent your children from watching inappropriate programs.

•

Closed Caption Decoder

This TV contains the built-in Closed Caption Decoder that displays text across the screen. It allows you to read the dialogue of a TV program or other information in the Closed Caption-supported programs.

•

MTS/SAP Tuner

This feature allows you select with the remote control your desired audio language.

•

Auto Shut Off Function

The power of the main unit is automatically turned off when there has been no signal or key input for more than 15 minutes.

• Resume Function

When the TV is turned off while viewing due to power failure, it will automatically turn on after the power recovers.

•

Sleep Timer

This feature will automatically turn off the power of the main unit at a preset time.

•

On-Screen Function Display (ENGLISH/SPANISH/FRENCH)

This feature lets you select the language displayed in the MENU screen from ENGLISH, SPANISH or FRENCH.

•

Stereo Sound Function

• Full-Function Remote Control

• PLL Frequency Synthesized Tuning

• Flat Screen Picture Tube

• S-VIDEO Input

• Front / Rear AV Input

• Component VIDEO Input

• Rear Digital Audio Output

IMPORTANT SAFEGUARDS

ONTENTS

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SUPPLIED ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PREPARATION FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

ANTENNA/BASIC CABLE CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

CONNECTION TO CABLE/SATELLITE BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

COMPONENT CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

EXTERNAL CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

USING FRONT A/V CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

DIGITAL AUDIO CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

INSTALLING THE BATTERIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOTE CONTROL AND FRONT PANEL FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INITIAL AUTO PRESET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MENU SCREEN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LANGUAGE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

WATCHING TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SWITCHING ANALOG MODE/DIGITAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CHANNEL SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

VOLUME ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SWITCHING AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SCREEN INFORMAITON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

CHANGING THE SCREEN DISPLAY MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

OPTIONAL SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

PICTURE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CLOSED CAPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

V-CHIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

SLEEP TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

OTHER SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

SWICHING EXTERNAL INPUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

AUTO PRESET CH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

CHANNEL ADD/DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

D. S. T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

TIME ZONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

MISCELLANEOUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

The following is the description for the symbols used in this manual.

: Settings only for the analog mode

: Settings only for the digital mode

: Common settings for the analog mode and digital mode

DTV TV

DTV

SYMBOLS USED IN THIS MANUAL

REPARATION FOR USE

CONNECTION

This section describes how to connect this TV to reception and other sources.

[ANTENNA / BASIC CABLE CONNECTION]

When connecting TV to antenna *For digital signal

1) Connect the RF cable or antenna cable on your home outlet to the ANT. IN jack of this TV.

When connecting

TV to basic cable (without box) *For analog reception only

1) Connect the RF cable or incoming cable on your home outlet to the ANT. IN jack of this TV.

*Once connections are completed, turn on the TV and begin initial setup.

Channel scanning is necessary for the TV to memorize all available channels in your area if using antenna or basic cable. (Refer to “INITIAL AUTO PRESET” on page 13.)

NOTES:

• For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. IN jack before moving the unit.

• I

f you use an antenna in order to receive analog TV, the same antenna generally will work for DTV reception.

Outdoor or attic antennas will be more effective than set-top versions.

• Some cable channels cannot be viewed when the TV is connected to an aerial antenna because DTV program does not cover all cable channels. You can watch them by switching to the cable connected to CATV.

• To easily swith between antenna and cable wires, you can purchase “Antenna Selector” commercially available.

Cable TV

signal

Aerial

antenna

* CABLES NOT INCLUDED

* COMMERCIALLY AVAILABLE

(if necessary)

MAKE SURE YOU HAVE AN ANTENNA As DTV is only available over the air, you need an antenna to receive digital signal.

CONTENTS / PREPARATION FOR USE

[CONNECTION TO CABLE/SATELLITE BOX]

1) Connect the antenna cable on your home outlet to the input jack of the CABLE/SATELLITE box.

2) Use the corresponding cable to connect the ANT. IN jack of this TV and the output jack of the CABLE/SATELLITE box.

*Required cables in 2) and connecting methods differ depending on the CABLE/SATELLITE box. For more

information, please contact the store where you purchased the CABLE/SATELLITE box or nearby electric appliance stores.

[COMPONENT CONNECTION]

1) This is the best method to connect this TV to video devices with the component output jack, such as DVD player, etc. It can minimize the deterioration of image quality.

Use the COMPONENT cable (commercially available) for connection.

NOTE:

This TV can only accept a 480i (interlaced) video signal.

CABLES NOT INCLUDED

Cable TV

signalor

Satellite antenna

[EXTERNAL CONNECTION]

When using the Audio/Video cables

1) This is the general method to connect this TV to video devices with the video or audio output jacks, such as VCR etc.

When the audio jack of video devices is monaural, connect this TV to the AUDIO L jack.

When using the S-video cab

1) This is how to connect this TV to the video devices with the S-video output jack.You can expect better picture quality than the normal video cable connection.

Use the S-video cable (commercially available) for connection.

NOTE:

If you connect to the S-VIDEO jack and the VIDEO jack at the same time, S-video connection will have priority.

AUDIO

OUT

VIDEO

OUT

S VIDEO

OUT

CABLES NOT INCLUDED

AUDIO

OUT

VIDEO

OUT

S VIDEO

OUT

CABLES NOT INCLUDED

PREPARATION FOR USE

[USING FRONT A/V CONNECTION]

1) This is how to use the A/V jack in front of this TV and connect to external devices. This is useful when you use game playing devices etc. When the audio jack of external devices is monaural, connect this TV to the AUDIO L jack.

[DIGITAL AUDIO CONNECTION]

1) If you connect this TV to the digital-supported audio devices, you can enjoy much more of the digital broadcasting programs with the feeling of being at a live program.

Use the DIGITAL AUDIO COAXIAL cable (commercially available) for connection.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

INSTALLING THE BATTERIES

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

[BATTERY PRECAUTIONS]

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

Features of digital broadcasting

Digital broadcasting uses the newest broadcasting technology such as compression of audio and video signals and provides much more improved image and sound quality than analog broadcasting. For image quality, digital broadcasting have realized the High Definition Television (HDTV) that can display sharper and finer images than Standard Definition Television (SDTV) with double scanning lines, and can adopt the 16:9 wide screen format that fits more to range of human vision.

For audio quality, digital broadcasting offers the 5.1ch surround broadcast to give you the feeling of being at a stadium or a theater.

In addition, digital broadcasting enables to broadcast 2 or 3 programs of Standard Definition Television (SDTV), which is the analog television format, at the same time by 1 channel.This feature has made the program planning more diversified. In addition, digital broadcasting has overcome problems experienced with analog television such as ghosting or interference with digital technology.

Minor channel of digital broadcasting

In digital broadcasting, the selected channel can have the sub channel. It is called the minor channel. Though the minor channel programs provide a little poorer image quality than the High Definition Television (HDTV) programs, they have such an advantage as it will not move back other programs even when a sport relay is extended.

PREPARATION FOR USE

UNCTIONS

REMOTE CONTROL AND FRONT PANEL FUNCTION

INFO

VOL VOL

POWER

CHANNEL

RETURN

AUDIO

–

/ENT

INPUT

SELECT

321

654

100

DTV/TV

MUTE

SLEEP

POWER button

To turn TV on/off

Channel number buttons (p16)

CH(ANNEL) KK/LLbuttons (p13)

To select channels and move up/down

through menu items

MENU button (p14)

To display on-screen menu

-/ENT button (p16)

To confirm the command of

channel number buttons

AUDIO button (p17)

• Analog mode (TV) To select audio mode

• Digital mode (DTV) To select audio language

INFO button (p18)

• Analog mode (TV) To display channel No.

• Digital mode (DTV) To display channel information

DTV/TV button (p16)

To switch between digital mode (DTV) and analog mode

+100 button (p16)

•CATV To enter the channel number for 100 or higher channels

• Digital mode (DTV) To select the minor channel

CHANNEL RETURN button (p16)

To return to previously viewed channel

INPUT SELECT button (p27)

To select TV or external input mode

(to access camcorders, games, etc.)

MUTE button (p17) VOL(UME) XX/YYbuttons (p13)

To adjust volume, and to change settings / to move to next screen for menu items

VIDEO

MENU VOLUME

L – AUDIO – R

CHANNEL

POWER

VIDEO

MENU VOLUME

L AUDIO R

CHANNEL

POWER

Infrared Sensor Window

To receive the infrared rays transmitted from the remote control

POWER button

To turn TV on/off

CHANNEL XX/YYbuttons (p16)

To select channels

VOLUME XX/YYbuttons (p17)

To adjust volume

MENU button (p14)

To view on-screen menu

AUDIO L/R input jacks (p10)

VIDEO input jack (p10)

SLEEP button (p26)

To turn the power off automatically

at preset time

PERATIONS

INITIAL AUTO PRESET

This section describes the initial settings when you first turn on the power after purchase. The initial setting items are shown below.

• D.S.T. (Daylight Saving Time)

You can set the air time display for digital broadcasting. When you set this function to ON, the date information adjusted for the area set by TIME ZONE will be adjusted to the one added by another 1 hour. In addition, the time difference will be adjusted as follows: 2 a.m. on first Sunday in April to 3 a.m., 1 hour ahead, and 2 a.m. on last Sunday in October to 1 a.m., 1 hour behind.

• TIME ZONE

The EPG information in digital broadcasting is adjusted based on the area set in TIME ZONE.

• AUTO PRESET CH (DTV/TV)

(When using antenna) The channels broadcasted in DTV and TV are

automatically scanned and memorized. Only the receivable channels in the area where this TV is used will be memorized.

• AUTO PRESET CH (CATV)

(When using basic cable) The channels broadcasted in CATV are automati-

cally scanned and memorized.

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

CH K/

VOL X/

NOTE:

Be sure that antenna or cable is connected properly before plugging the power cord.

1 Set the D.S.T. (Daylight Saving Time)

When you first turn on the power, the following screen is displayed.

• Using

[VOL X/Y] on the remote control, set

"D.S.T. (Daylight Saving)" to [ON] or [OFF].

Using [CH K/L] on the remote control, select "TIME ZONE".

• Every time you press

[VOL X/Y] on the remote

control, the area will be switched as below.

• Set your area.

NOTE:

You must set “D.S.T” and “TIME ZONE” before presetting channels.

1. PLEASE CONNECT ANTENNA TO THE UNIT.

2. SET UP THE ITEMS WITH , AND BUTTONS.

D.S.T. (Daylight Saving) [ON] TIME ZONE [- - -] AUTO PRESET CH(DTV/TV) AUTO PRESET CH(CATV)

1. PLEASE CONNECT ANTENNA TO THE UNIT.

2. SET UP THE ITEMS WITH , AND BUTTONS.

D.S.T. (Daylight Saving) [ON] TIME ZONE [- - -] AUTO PRESET CH(DTV/TV) AUTO PRESET CH(CATV)

1. PLEASE CONNECT ANTENNA TO THE UNIT.

2. SET UP THE ITEMS WITH

, AND BUTTONS.

D.S.T. (Daylight Saving) [- - -] TIME ZONE [- - -] AUTO PRESET CH(DTV/TV) AUTO PRESET CH(CATV)

FUNCTIONS / OPERATIONS

3 Set the AUTO PRESET CH.

• Here describes the case for searching and memorizing channels for DTV/TV.

• Using

[CH K/L] on the remote control, select

"AUTO PRESET CH(DTV/TV)".

• When you press

[VOL X] on the remote control,

scanning the channels in both analog and digital modes will automatically start.

• When scanning is completed, the memorized smallest channel will be displayed.

NOTES:

• The initial AUTO PRESET CH function can be executed for either DTV/TV or CATV only once. If you want to scan both DTV/TV and CATV, you need to select "CHANNEL SET" in the MENU screen to scan and memorize another channels after initial presetting is completed. (Refer to page 28)

• You can exit the initial AUTO PRESET menu by

[MENU] on

the remote control.

• When you press

[MENU] while scanning, the scanning is interrupted and the memorized smallest channel is displayed.

• If you press

[POWER], the power will be turned off.When the scanning is not completed, initial AUTO PRESET screen is displayed every time you turn on the power.

• When no channel can be received by AUTO PRESET CH, "NO TV SIGNALS" is displayed on the screen.

NO TV SIGNALS

AUTO PRESET CH:DTV/TV

1. PLEASE CONNECT ANTENNA TO THE UNIT.

2. SET UP THE ITEMS WITH , AND BUTTONS.

D.S.T. (Daylight Saving) [ON] TIME ZONE

[ALASKA] AUTO PRESET CH(DTV/TV) AUTO PRESET CH(CATV)

NOTES:

• If "D.S.T. (Daylight Saving)" and "TIME ZONE" is not set, you cannot select "AUTO PRESET CH".

• Make sure if the TV is connected to antenna or cable. When antenna is connected, select “AUTO PRESET CH (TV/DTV)” at the procedure below. When connected to CATV, select “AUTO PRESET CH (CATV)”.

MENU SCREEN

This section describes the overview of the MENU screen displayed when you press

[MENU] on the

remote control. For more details, see the reference page for each item.

The MENU screen consists of the function setting items below.

• PICTURE

You can adjust the picture quality (BRIGHT, CON-

TRAST, COLOR, TINT, SHARPNESS). (Refer to "PICTURE ADJUSTMENT" on page 20).

• CHANNEL SET

You can automatically scan the receivable chan-

nels and add or delete the channel as necessary. (Refer to "AUTO PRESET CH" on page 28).

• ENG/ESP/FRA

You can change the language (ENGLISH, SPAN-

ISH, FRENCH) displayed in the MENU screen. (Refer to "LANGUAGE SELECTION" on page 15).

• V-CHIP SET UP

You can set the viewing limitations.

(Refer to "V-CHIP" on page 24).

• CAPTION

You can change the display format for CLOSED

CAPTION, which displays the dialogue of a TV program or other information across the screen.

(Refer to "CLOSED CAPTION" on page 21).

• DTV SET UP

You can set the screen display or CAPTION in the

DTV mode. (Refer to "CHANGING THE SCREEN DISPLAY

MODE" on page 19).

NOTES:

• "DTV SET UP" can be displayed only in the DTV mode.

• To move to the normal screen, press

[MENU].

DTV

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

LANGUAGE SELECTION

You can change the language used on the MENU screen. ENGLISH, SPANISH or FRENCH can be selected.

How to change the language in the MENU screen is shown below.

Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

2 Select "ENG/ESP/FRA".

• Using

[CH K/L] on the remote control, select

"[ENG]/ESP/FRA".

• Every time you press

[VOL X/Y] on the remote

control, the language will be switched as below. Select the language.

To return to the screen before setting, press [MENU] on the remote control.

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

CH K/

VOL X/

OPERATIONS

ATCHING TV

SWITCHING ANALOG MODE / DIGITAL MODE

You can easily switch the TV (NTSC) and DTV (ATSC) with the remote control and enjoy viewing the High Definition TV programs as well as the Standard Definition TV programs with simple operation.

Press [DTV/TV].

• The analog mode and digital mode switch alter-

nately.

• When you press

[DTV/TV] on the remote con-

trol in external input, the analog mode and digital mode will be switched.

NOTE:

When you switch the analog mode to the digital mode, it may take a while until the digital channel selection is completed. The following screen is displayed while switching the mode.

INFO

VOL VOL

POWER

CHANNEL

RETURN

AUDIO

–

/ENT

321

654

100

DTV/TV

DTV/ TV

CHANNEL SELECTION

You can select the channel by using either [CH K/L] or Channel number buttons. How to select the channel in each way is shown below.

Using [CH K/L]

• Using [CH K/L] on the remote control, change

the channel.

• When you press [CHANNEL RETURN], the

previously selected channel will be selected.

• Same operation is available with [CH K/L] on

the front panel of the main unit.

2 Using Channel number buttons

• When you select a channel from 1 to 99, press the channel number you want to view with Channel number buttons. The selected channel will be displayed.

• When you select a channel larger than 100, press

[+100] first. Then use channel number

buttons to press the lower 2 digits.

• To search the minor channel of the major channel currently viewed in DTV, press [+100]. If you know the minor channel while viewing the major channel with 1-digit channel number, press the major channel number and press

[-/ENT]. Then,

press the minor channel number you want to view. In case the major channel number is 2 digits, press the major channel number and press the minor channel number directly. If you press

[-/ENT] after pressing the 2-digit major

channel number, the smallest minor channel will be selected.

• When you press

[CHANNEL RETURN], the

previously selected channel will be selected.

NOTE:

In the DTV broadcasting, one channel sometimes broadcasts multiple programs depending on the air time. In this case, the main channel is called major channel and the sub channel is called minor channel.

INFO

VOL VOL

CHANNEL

RETURN

AUDIO

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

CHANNEL RETURN

Channel

number buttons

-/ENT

CH K/

+100

NOW SCANNING

VOLUME ADJUSTMENT

This section describes how to adjust the volume when viewing TV. The MUTE function, which is useful when you have a visitor or a phone call, will be also described.

Using [VOL X/Y]

• You can adjust the audio volume with [VOL X/Y]

on the remote control.

• The volume bar is displayed at the bottom of the screen when adjusting the volume.

• Same operation is available with

[VOL X/Y] on

the front panel of the main unit.

Using [MUTE]

• Press [MUTE] on the remote control to mute the sound. The colored volume bar is displayed on the screen while muting.

• To release the MUTE status, press

[MUTE]

again or press [VOL X/Y].

VOLUME

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

MUTE

VOL X/

SWITCHING AUDIO

This section describes how to switch the audio in the analog mode and how to switch the audio language in the digital mode.

Switch the audio.

• Every time you press

[AUDIO], the audio will

be switched as below.

MAIN : Outputs main-audio. SAP : Outputs second audio channel. MONO : Outputs mono-audio.

2 Switch the audio language.

• When you press

[AUDIO] on the remote con-

trol, the currently selected language and the number of received languages will be displayed on the screen.

• Every time you press

[AUDIO] on the remote

control, the language will be switched.

• Languages you can switch differ depending on the receiving broadcast.

NOTE:

Even if you press [AUDIO] in external input, the audio will not be switched.

KABC CA 95-03 Jay Jay the Jet Plane Espanõl 2/3 11:00AM- 1:00PM

KABC CH 95-03 Jay Jay the Jet Plane English 1/3 11:00AM- 1:00PM

Audio language

DTV

INFO

POWER

AUDIO

321

654

DTV/TV

AUDIO

WATCHING TV

SCREEN INFORMATION

You can display the currently selected channel number or other information such as the audio mode on the screen for checking.

In the analog mode, the currently selected channel number and the audio mode are displayed.

1 Display the channel number and the audio

mode.

• Press [INFO] on the remote control.

The currently selected channel number and the audio mode are displayed at the top right of the screen.

• To clear the display, press

[INFO] again.

• The following screens are displayed when connecting to external devices:

1) When using video cable for connection

2) When using component video cable for con-

nection

COMPONENT

VIDEO 2

CH 10

STEREO

INFO

VOL VOL

POWER

CHANNEL

RETURN

AUDIO

–

/ENT

321

654

100

DTV/TV

INFO

In the digital mode, the detailed information for the currently selected channel such as the program guide is displayed.

1 Display the detailed information for the channel.

• Every time you press

[INFO], the display mode

will be switched as below.

• The following information is displayed in the INFO1 mode.

(1) Channel number (2) Channel title (3) Program title (max. 2 lines displayed) (4) Audio language ("OTHER" is displayed

when the audio language cannot be acquired, or the acquired languages are other than ENGLISH, SPANISH or FRENCH.)

(5) Program air time

• The program guide added to the displayed information in the INFO1 mode is displayed in the INFO2 mode.

NOTES:

• When the program guide is displayed in more than 6 lines,

use

[VOL X/ Y] and scroll for reading.

• "No description provided" is displayed when the program

guide is not provided.

• While the information is displayed in the INFO2 mode, the

CLOSED CAPTION function is interrupted.

KABC CH 95-03 AB WORLD English 11:00AM- 1:00PM

We bring you the latest information from around the world as quickly a s possible.

Program guide

KABC CH 95-03 AB WORLD English 11:00AM- 1:00PM

(2)

(1)

(5)

(3) (4)

DTV

CHANGING THE SCREEN DISPLAY MODE

2 types of display mode can be selected in the digital mode.

You can select your favorite display mode and enjoy the program.

1 Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

2 Select "DTV SET UP".

• Using

[CH K/L] on the remote control, select

"DTV SET UP".

• When you press

[VOL X] on the remote control,

the MENU screen will be displayed as below.

DTV DISPLAY [LETTERBOX] DTVCC D.S.T.[Daylight Saving] [ON] TIME ZONE [ALASKA]

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

CH K/

VOL X/

DTV

3 Select the display mode.

• Every time you press

[VOL X/Y] on the remote

control, [LETTERBOX] and [ZOOM] will be switched alternately.

[LETTERBOX]

Display the digital-supported program in fullscreen.

Black borders will spread in the upper and lower screen.

[ZOOM]

Enlarge and display the center area of the digitalsupported program.

The right and left image will be cut off.

4 To exit the menu, press [MENU] on the remote

control.

NOTE:

You may not switch the display mode depending on the program.

D10-0

ZOOMLETTERBOX

D10-0

WATCHING TV

PTIONAL SETTINGS

PICTURE ADJUSTMENT

You can adjust the brightness, contrast, color, tint and sharpness of the picture.

Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

Select "PICTURE".

• Using

[CH K/L] on the remote control, select

"PICTURE" and press

[VOL X] to confirm.

• The adjustment bar for picture quality item is displayed in the screen.

BRIGHT

[-] [+]

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

CH K/

VOL X/

3 Adjust the picture quality.

• Using

[CH K/L] on the remote control, select

the picture quality item you want to adjust.

BRIGHT

:To increase brightness

:To decrease brightness

CONTRAST

:To increase contrast

:To decrease contrast

COLOR

:To brilliant

:To pale

TINT

:To green

:To purple

SHARPNESS

:To clear

:To soft

• Using

[VOL X/Y] on the remote control, adjust

the picture quality.

NOTES:

• The display will disappear automatically after 10 seconds unless you press a button.

• Magnetism from nearby appliances and speakers might affect the color of the TV picture. If this happens, press [POWER] to turn off the TV and turn it on again after about 30 minutes.

CLOSED CAPTION

You can view specially labeled (cc) TV programs, movies, news and prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

You can also change the font size and font style of the caption in the digital broadcasting.

Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

Select "CAPTION".

• Using

[CH K/L] on the remote control, select

"CAPTION".

3 Switch the CAPTION mode.

• When you press

[VOL X/Y] on the remote

control, CAPTION will be switched as below.

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

VOL VOL

CHANNEL

RETURN

–

/ENT

INPUT

SELECT

100

MUTE

SLEEP

CH K/

VOL X/

[CAPTION MODE (C1, C2)]

• CAPTION1 (C1) Displays standard closed captions (what a char-

acter is saying).

• CAPTION2 (C2) Displays foreign language closed captions (for-

eign language words showing what a character is saying).

• There are three display modes according to programs:

Paint-on mode: Displays input characters on the

screen immediately.

Pop-on mode : Once characters are stored in

memory, they are displayed all at once.

Roll-up mode : Displays the characters continu-

ously by scrolling (max. 4 lines).

[TEXT MODE (T1, T2)]

• TEXT1 (T1) and TEXT2 (T2) display halfscreen text by scrolling (such as a channel guide, schedule or announcement).

4 Exit the menu.

• Press

[MENU] on the remote control.

1 Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

DTV

NOTES:

• If the closed caption is not broadcasted, nothing is displayed.

• When your TV receives a special effects playback signal

(i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the TV may not display the correct caption or text.

• Captions and texts may not match the TV voice exactly.

• Interference may cause the closed caption system not to

function properly.

• The caption or text characters will not be displayed while the

menu display or functions display is shown.

• If a black box appears on the screen, this means that the

TV is set to TEXT mode.To clear screen, select CAPTION [C1], [C2] or [OFF].

OPTIONAL SETTINGS

2 Select "DTV SET UP".

• Using

[CH K/L] on the remote control, select

"DTV SET UP".

• Press

[VOL X] on the remote control.

The following screen is displayed.

Select "DTVCC".

• Using

[CH K/L] on the remote control, select

"DTVCC".

• Press

[VOL X] on the remote control.

The following screen is displayed.

4 Select "CAPTION SERVICE".

• When you press

[VOL X/Y] on the remote

control, you can switch CAPTION as below. Select CAPTION SERVICE you want to use.

CAPTION SERVICE [OFF] USER SETTING [OFF] CAPTION SIZE [MIDDLE] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

DTV DISPLAY [LETTERBOX] DTVCC D.S.T.[Daylight Saving] [ON] TIME ZONE [ALASKA]

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

5 Use "USER SETTING".

• The "USER SETTING" function lets you change the caption size and font style.

• Using

[CH K/L] on the remote control, select

"USER SETTING".

• Press

[VOL X] on the remote control and set

"USER SETTING" to [ON].

Set each item.

• When "USER SETTING" is set to ON, you can set the following items.

• Using

[CH K/L] on the remote control, select

the item you want to set.

• You can switch the setting for each item with [VOL X/Y] on the remote control.

• The setting description for each item is shown below.

[CAPTION SIZE]

Te xt size of the displayed caption can be switched as below.

CAPTION SERVICE [SERVICE1/6] USER SETTING [ON] CAPTION SIZE [MIDDLE] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

CAPTION SERVICE [SERVICE1/6] USER SETTING [OFF] CAPTION SIZE [MIDDLE] FONT STYLE [STYLE1/8] CHARACTER EDGE [NONE] FORE OPACITY [SOLID] FORE COLOR [WHITE] BACK OPACITY [SOLID] BACK COLOR [BLACK]

NOTE:

CAPTION SERVICE you can switch differs depending on the broadcast description.

[FONT STYLE]

Font style of the displayed caption can be switched as below.

[CHARACTER EDGE]

Te xt edging of the displayed caption can be switched as below.

[FORE OPACITY]

Te xt opacity of the displayed caption can be switched as below.

[FORE COLOR]

Te xt color of the displayed caption can be switched as below.

[BACK OPACITY]

Background opacity of the displayed caption can be switched as below.

[BACK COLOR]

Background color of the displayed caption can be switched as below.

OPTIONAL SETTINGS

V-CHIP

You can set the viewing limitations to prevent your children from watching inappropriate programs including disagreeable expression and description. The viewing limitations set for the program can be released by entering the access code.

Display the MENU screen.

• Press

[MENU] on the remote control.

The following MENU screen is displayed.

Select "V-CHIP SET UP".

• Using

[CH K/L] on the remote control, select

"V-CHIP SET UP".

• Press

[VOL X] on the remote control.

The access code entry screen is displayed.

3 Enter the access code.

• Use

Channel number buttons and enter the

4-digit number.

• When you have not set up your access code, enter 0000.

• When the access code is correct, the following

ACCESS CODE

_ _ _ _

PICTURE CHANNEL SET [ENG]/ESP/FRA V-CHIP SET UP CAPTION [OFF] DTV SET UP

INFO

VOL VOL

CHANNEL

RETURN

AUDIO

–

/ENT

INPUT

SELECT

321

654

100

MUTE

SLEEP

Channel

number buttons

CH K/

VOL

"V-CHIP SET UP" screen is displayed.

See the following description for setting each item

4 Display the "TV RATING" screen.

• Using

[CH K/L] on the remote control, select

"TV RATING". Press

[VOL X] on the remote control.

Set "TV RATING".

• Using

[CH K/L] on the remote control, select

the rating.

• TV-Y : Appropriate for all children

• TV-Y7 : Appropriate for children seven and older

• TV-G : General Audience

• TV-PG : Parental Guidance suggested

• TV-14 :

Unsuitable for children under 14

• TV-MA : Mature audience only

TV-Y [VIEW] TV-Y7 ( ) [VIEW] TV-G [VIEW] TV-PG ( ) [VIEW] TV-14 ( ) [VIEW] TV-MA ( ) [VIEW]

TV RATING MPAA RATING CHANGE CODE

A B C

TV RATING

+ 54 hidden pages
