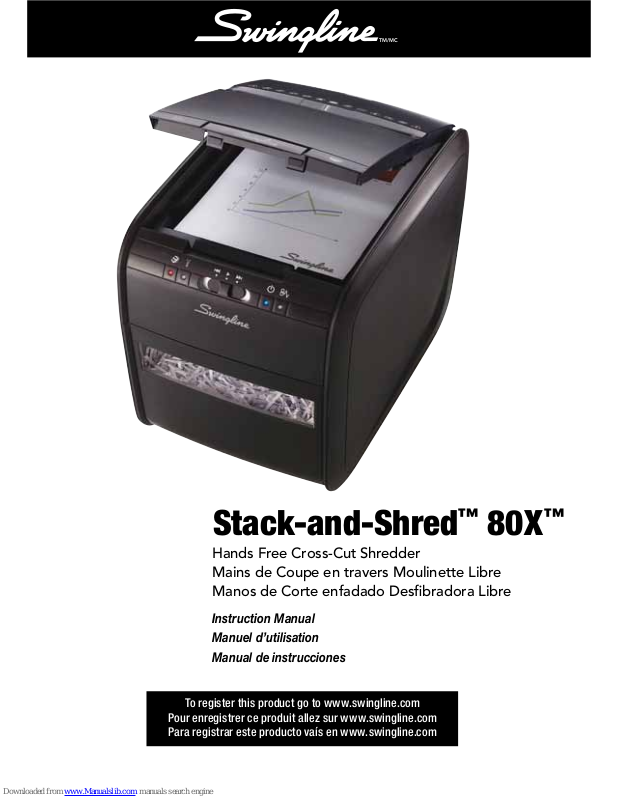

Swingline Stack-and-Shred 80X Instruction Manual

TM/MC

Instruction Manual
Manuel d’utilisation
Manual de instrucciones

To register this product go to www.swingline.com
Pour enregistrer ce produit allez sur www.swingline.com
Para registrar este producto vaís en www.swingline.com

Stack-and-Shred

™

80X

™

Hands Free Cross-Cut Shredder
Mains de Coupe en travers Moulinette Libre
Manos de Corte enfadado Desfibradora Libre

English 3
Français 9
Español 15

80X

U

A

3

1 2 3

4

U

E

U

F

U

L

U

I

U

G

U

C

U

D

U

B

U

H

U

K

U

J

TM/MC

55

6

Auto

Continuous
Jam Boost

4

Introduction

Thank you for choosing this shredder from Swingline.
Please review these instructions to ensure you are operating
the shredder correctly.

Safety First

To guard against injury, the following basic safety precautions
must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power

outlet, and ensure the cable is not likely to trip up a passer by.

• Any attempt to repair this unit by unqualied personnel will

invalidate the warranty. Please return to supplier.

• Unplug your shredder before moving it or when it is not in use

for an extended period of time.

• Do NOT operate with a damaged power supply cord or plug,

after it malfunctions, or after it has been damaged in any
manner.

• Do NOT overload electrical outlets beyond capacity as this can
result in re or electrical shock.

• The socket-outlet should be installed near the equipment and

shall be easily accessible.

• Do NOT alter the attachment plug. The plug is congured for

the appropriate electrical supply.

• Do NOT use near water.

• Do NOT use aerosol dusters or cleaners.

• Do NOT spray anything into the shredder.

• Do NOT load the auto-feed chamber with unopened junk mail,

magazines, bound documents, etc. (See pXX).

Although this shredder has been designed to comply with UL

60950 safety standards including the “probe accessibility tests”,
do not operate the shredder near children or pets.

Specifications

Sheet capacity
Manual feed slot

Sheet capacity
Autofeed chamber

Duty cycle
Run time from cold
Volts / Hz
Amperage
Motor watts

Swingline Stack and Shred 80X

6 sheets (75gsm)

80 sheets (75gsm)

8 min ON / 90 min OFF

9 minutes

120V / 60Hz

1.2 Amps

140 Watts

U

ON/OFF switch (at rear of machine)

U

Important safety symbols

(see shredder control panel below)

U

Manual feed entry slot

U

Credit card slot

U

Reverse, auto, continuous jam boost switch

U

Paper loading door handle

U

Paper loading door

U

Power on indicator

U

Cool down indicator

U

Bin full/loading door open

U

Paper jam indicator

U

Pull out bin with viewing window

Description of product parts

A
B

C
D
E
F
G
H

I
J
K
L

Safety First

This means no aerosols.

This means you should be careful because long hair can
become entangled in the cutting head.

This means don’t reach into the feed opening of the
cutting head.

This means be careful of ties and other loose clothing
which could become entangled in the cutting head.

This means keep children away from shredder.

This means be careful of loose jewelry which could
become entangeld in the cutting head.

This means the shredder can’t shred CDs or DVDs.

This means no oil lubricant (oil sheets only).

Shredder Control Panel

and Indicators

Reverse

Power On indicator – This means the machine is
turned on.

Cool Down indicator – This means the machine is
cooling down.

This means the shredder can accept small staples.

This means the shredder can accept small paperclips.

This means the shredder can accept credit cards.

Bin full/loading door open indicator – This means
the bin is full or open or the loading door is open.

Paper jam indicator – This means there is a paper
jam.

This means the sheet capacity of manual feed entry slot.

5

TM/MC

Lights and Icons Explained

LED Illumination
Bin Full/Bin Open Paper Jam Cool Down Auto

Loading Door Open Indicator Flashing
Colour of symbol Red Red Red Blue

Power on/off switch light
Auto mode light
Continuous Jam Boost Mode light
Reverse mode light light
Paper jam light light
Paper loading door open light light
Bin full light light
Bin open light
Motor cool down required light light
Self cleaning of cutters light light
Sleep mode

Stack and Shred 80X Shredding Capability

Stack and Shred
80X CAN shred the
following:

Stack and Shred 80X
CANNOT shred the
following:

Although the Stack

and Shred 80Xwill
accept fastened sheets,
Swingline recommends
that staples and paper
clips are removed prior
to shredding to extend
the life of the product.

Stapled paper

1 inch/25mm within the corner

Paper clip paper

1 inch/25mm within the corner

11x17 folded in half max.
2 sheets

80 gsm paper

- Letter - 8.5x 11

- Legal - single sheet folded in

half max. 2 sheets

26/6 and 24/6 or smaller staples

Small sized paper loaded
centrally

80 sheets color printed paper

>100gsm paper (through

manual feed slot ONLY)

Capable of shredding small/

medium (max wire thickness =

1/3 inch, 0.9 mm) paper clips

80 sheets plain paper

80 sheets single sided printed
paper

Heavy duty staples with a staple

leg length greater than 6mm.

A document with more than

25 sheets held together by a
staple or clip.

Bound documents Bulldog clips

Large clips. Check the length

of the paperclip is not longer

than 32mm.

Multiple folded sheets*
(e.g. more than two legal sized
sheets folded in half).

Magazines or other documents
bound by multiple staples
or clips.

Unopened mail (e.g. junk mail.)
Open mail and place in auto-feed

or through manual feed slot.*

Plastic sheets, laminated
documents, plastic folders,
glossy paper or a sheet covered
with print on both sides.

Thick paper or cardstock*

* We recommend you feed these types of documents through the manual feed slot.

Crumpled sheets*

Standard

Staples

Standard

Staples

Standard

Paper Clips

Standard

Paper Clips

Single Folded

Sheet

Single Folded

Sheet

Heavy Duty

Staples

Heavy Duty

Staples

> 25 Sheets> 25 Sheets

Large ClipsLarge Clips

Multiple Folded

Sheets

Multiple Folded

Sheets

MagazinesMagazines

Unopened

Mail

Unopened

Mail

Plastic SheetsPlastic Sheets

Adhesive labels

6

Lubrication of the Shredder

Only use oil sheets to lubricate. ACCO Brands accepts no liability

for product performance or safety when other types of lubricants
are used on any part(s) of this machine. Insert the oil sheet

into the manual feed slot and NOT in the auto-feed chamber.
Using an oil sheet in the auto-feed chamber will contaminate

the feed rollers preventing the auto-feed mechanism shredding.

Follow the maintenance instructions if the rollers become
contaminated. Do not directly oil the shredder.

Credit Card Shredding

The Stack and Shred 80X can shred credit cards. Switch the
shredder to auto mode and insert the credit card between the

markings in the manual feed slot (see g. 4). Only shred one

credit card at a time.

Swingline encourages customers to recycle shredded
paper. Please note that shredded paper cannot be
recycled if mixed with credit card shards. If recycling,
please separate shredded paper and credit cards.

Shredder Accessories

We recommend that a paper waste sack for recycling shredded
paper is used on all models.

Accessory Part Number

Recycling Waste Bag 1765028

Reverse Function

1 If you want to reverse paper out while shredding, use the

reverse button (

).

2 Reverse the paper out then turn the machine off using the

switch at the rear of the shredder. Remove the paper from
the manual feed slot (if being used) or open the loading
door, remove the remaining stack of paper, then pull the
jammed paper free of the cutting mechanism.

3 To resume shredding return the slide switch to the auto

position (

) and turn on the machine by using the ON/OFF

switch at the rear of the shredder.

Rare Occasions of Jamming

In the unlikely event of the shredder jamming, the Stack
and Shred 80X will stop shredding. Check that the bin is not
full then try clearing the jam using the reverse (

) and

continuous jam boost (

) buttons then return to Auto

mode (

). If this is unsuccessful follow the reverse function

instructions.

Bin or Loading Door Open Safety
Function

As a safety precaution, if the bin or loading door is opened
during shredding, the shredder will stop and the Bin Full

indicator will illuminate.

Over Heating

If the Stack and Shred 80X is used continuously for over
9 minutes the shredder may overheat and the cool down
indicator will illuminate red (

). Please allow the shredder
to cool down. When the shredder is ready to be used the
thermometer symbol will no longer illuminate. If the shredder
needs to cool down while shredding, no action is needed. The
shredder will automatically restart shredding paper once it has

cooled down after periods of continuous use. All you need to

do is ensure paper is loaded into the chamber and the bin is
empty when the machine is cooling down.

Autofeed Technology

The Stack and Shred 80X has been designed to automatically
shred up to 80 sheets from the auto-feed chamber and up to 6
sheets through the manual feed slot. The auto-feed mechanism
has been designed to handle paper fastened with staples and
paper clips and pulls a few sheets of paper at a time into the
cutting mechanism to minimize the risk of paper jams.

Bin Full

The shredder will not function when the bin is full and the bin
full symbol (

) is illuminated. You should empty the bin.

• Pull open the bin slowly to empty.

• Push the empty bin back into place and the machine will

resume shredding.

Operation

1 Unpack the product.
2 Plug the shredder in to a working outlet.
3 Ensure the ON/OFF switch on the back of the shredder is in the

“ON” position, which will illuminate the LED bulb shown by the

standby symbol (

).

4 To start shredding, move the slide switch to the Auto position

(

), which places the shredder into auto mode. You are now

ready to shred.

5 To load the shredder, simply lift the loading door handle (see

g1) to open the loading door and insert documentsYou can

open the door further to 90 degrees for easier access if

required. Load up to 80 sheets at a time into the feed chamber.
Do not ll above the 80 MAX level, this could damage
the shredder (see g 2).

6 The shredder will start the shredding cycle automatically ONLY

after closing the loading door.

7 If you only have up to 8 sheets to shred, you can use the manual

feed slot, provided the auto feed chamber is empty (see g 3).

8 If the shredder is left in auto mode for more than 2 minutes

without being used, the shredder will automatically turn back to
Sleep mode in order to save power.

9 The shredder will automatically ‘wake up’ from sleep mode

when paper is inserted into the shred mouth or you open the
loading door.

Maintenance

The rollers on the auto-feed mechanism may become dirty over
time, please wipe clean with a dry cloth to maintain maximum
product performance.

The auto-start infra-red sensor, located in the paper feed entry­slot, can occasionally become covered in paper-dust causing the
shredder to run despite no paper being fed into the machine.
Switch the shredder off at the rear of the machine and carefully

clean the sensor using a cotton-swab (see g 6).

7

TM/MC

APPLICABLE MACHINES

QUESTION ANSWER

60X 80X 100X 250X 500X

1

The shredder will not
start.

a

Check power switch on the back of the machine is turned on. (

)

Y Y Y Y Y

b

Check that the Auto button (

) has been pressed or the switch

is in the Auto position and the power switch on the back has been

turned on.

Note: The Auto button light turns off after 2 mins of non-use.

The shredder wakes up automatically if paper is in the autofeed
chamber or fed into the manual feed slot

Y Y Y

c

Is the “bin door/ loading door open” indicator light red
(

)? Make sure both the loading door and the bin door are

closed.

Y Y Y Y

2

There are documents in
the autofeed chamber
but the shredder has
stopped running.

a

Is the cool-down indicator light red (

)? If so, allow the shredder
to cool down. Shredding will resume automatically after the
shredder has cooled down.

Y Y Y Y

b

If the “bin door/ loading door open/bin full” indicator light is red
(

), empty the bin. Also check to see if the loading door and

bin doors are closed. Shredding will resume automatically.

Y Y Y Y

c

Is the jam indicator light red (

)? If so, the shredder was unable

to clear a jam even after the automatic jam clearance cycle. Use the

manual reverse button (

) to back out paper from the cutters.

Open the lid and remove the offending papers.

Y Y Y Y

d

If there are crumpled sheets in the stack, they may not feed
properly. It is recommended that you feed them through the manual
feed slot.

Y Y Y Y Y

e

If there are multiple folded sheets in the stack, unfold the sheets
before placing them back in the stack or feed through the manual
feed slot.

Y Y Y Y Y

f

If there are unopened envelopes in the stack, remove them, open
the envelopes and lay the contents flat into the autofeed chamber,

unfolding any folded sheets. Envelopes can be shredded through

the manual feed slot.

Y Y Y Y Y

g

Examine the rollers, if they are covered with paper dust, clean them

with a dry cloth.

Y Y Y Y Y

FOR ADDITIONAL INFORMATION ON WHAT TO SHRED THROUGH AUTO FEED AND WHAT TO SHRED
VIA MANUAL FEED SLOT, PLEASE SEE SECTION IN THE MANUAL ON ‘SHREDDING CAPABILITY’

Troubleshooting Guide for Stack-and-ShredTM 80X

TM

Tel. [phone]
www.acco.com/service
www.swingline.com/shredders
