Swiftech APOGEE XT MUTLI HDP 771 User Manual

Remove the stock hold down-plate

Using the provided Hex key loosen all 6 body screws, and set aside the
plate with its mounting screw springs.

Install the Multi-mount hold-down plate

Using the provided Hex key fasten the plate to the block with all 6 body
screws

Prepare the CPU

Clean the CPU with a degreaser (preferably formulated for electronics)
then apply the supplied grease to the center of the CPU.

Installation
For this installation, you will be keeping the existing motherboard
spring back-plate. Insert the 6-32x1” Philips screws into the hold-down
plate holes that line up with the motherboard mounting holes, then slip
the nylon spacers into the screws, and finally thread in the nylon
retaining washers that conveniently hold the screw/spacer assembly
altogether; you now have an assembly with four “posts”. Place the
waterblock on the CPU, and simply fasten the screws gradually and in
a cross pattern until the screws bottom out.

1 2 4

3

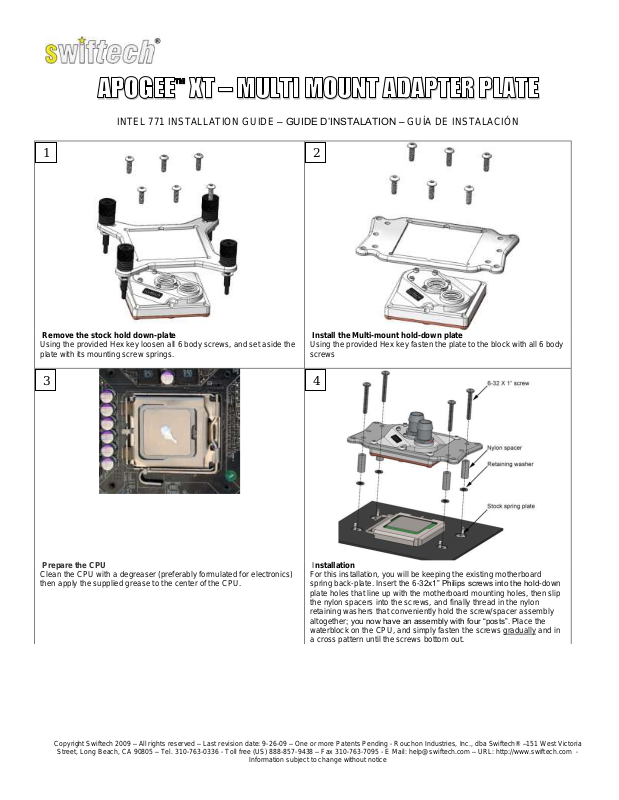

APOGEE™ XT – MULTI MOUNT ADAPTER PLATE

INTEL 771 INSTALLATION GUIDE – GUIDE D’INSTALATION – GUÍA DE INSTALACIÓN

Copyright Swiftech 2009 – All rights reserved – Last revision date: 9-26-09 – One or more Patents Pending - Rouchon Industries, Inc., dba Swiftech® –151 West Victoria

Street, Long Beach, CA 90805 – Tel. [phone] - Toll free (US) 888-857-9438 – Fax [phone] - E Mail: [e-mail] – URL: http://www.swiftech.com -

Information subject to change without notice

Install the tubing
The coolant inlet is identified by a detachable plate. It is factory
installed in its optimum position but can also be rotated 180° to allow
the installation of large compression fittings (G ¼ standard thread).
Some thermal and hydraulic performance degradation is inevitable
when the plate is rotated.

Finally, fasten the tubing to the inlet and outlet fittings with the provided
hose-clamps. The installation is now complete!

DISCLAIMER: While all efforts have been made to provide the most comprehensive tutorial possible, Swiftech® assumes no liability expressed or implied for any damage(s)
occurring to your components as a result of using Swiftech® cooling products, either due to mistake or omission on our part in the above instructions, or due to failure or defect in the Swiftech®
cooling products. In addition, Swiftech™ assumes no liability, expressed or implied, for the use of this product, and more specifically for any, and all damages caused by the use of this product to
any other device in a personal computer, whether due to product failure, leak, and electrical short, and or electro-magnetic emissions. WARRANTY: Our products are guaranteed for 12 months
from the date of delivery to the final user against defects in materials or workmanship. During this period, they will be repaired or have parts replaced provided that: (I) the product is returned to the
agent from which it was purchased; (II) the product has been purchased by the end user and not used for hire purposes; (III) the product has not been misused, handled carelessly, or other than in
accordance with any instructions provided with respect to its use. This guarantee does not confer rights other than those expressly set out above and does not cover any claims for consequential
loss or damage. This guarantee is offered as an extra benefit and does not affect your statutory rights as a consumer.
