SWF C Spool Stand User Manual

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

C-001 12001AD-UK02 Spool Plate (L=950) (UK1202) 1 C-019 05200105UH00 Angle "A" L=2420 (UH1506C) 1

12001AD-UK12 Spool Plate (L =1080) (UK1502) 05200104UH08 Angle "A" L=3220 (UH1208)

11000102UK00 Spool Plate(L=2080) (UK604) 05200105UH80 Angle "A" L=3220 (UH1508)

11001AD-UK01 Spool Plate(L=2080) (UK1204) C-020 12020AD-U K02 Angle "B" L=890 (UK1202) 1

11001AD-UK14 Spool Plate(L=2080) (UK1504) 12020AD-UK12 Angle "B" L=1020 (UK1502)

05100102UK00 Spool Plate (L=3020) (UK606) 05200404UK24 Angle "B" L=2020 (UK604)

05100103UK00 Spool Plate (L=2950) (UK906) 11023AD-UK01 Angle "B" L=2020 (UK1204)

12001AD-UK06 Spool Plate (L=2950) (UK1206) 11023AD-UK 14 Angle "B" L=2020 (UK1504)

12001AD-UK16 Spool Plate (L =2950) (UK1506) 05200202UK00 Angle (B) L=3020 (UK606)

05100104UH00 Spool Plate L=2480 (UH1206C) 05200203UK00 Angle (B) L=3020 (UK906)

05100105UH00 Spool Plate L=2480 (UH1506C) 12020AD -UK06 Angle (B) L=3020 (UK1206)

05100104UH08 SPOOL PLATE L=3280 (UH1208) 12020AD-U K16 Angle (B) L=3020 (UK1506)

05100105UH80 SPOOL PLATE L=3280 (UH1508) 05200204UH00 Angle "B" L=2420 (UH1206C)

C-002 02002SC-7119 Pluss Screw (M4*L8) 8 05200205UH00 Angle "B" L=2420 (UH1506C)

C-003 11005CW-UK01 Spool Plate Fixing Bol t M6*L21 8 05200204UH08 Angle "B" L=3220 (U H1208)

C-004 03016SC-4113 Hex. Socket Bolt (M5*L15) 8 05200205UH80 Angle "B" L=3220 (UH1508)

C-005 18048SW-3115 Spring Washer (@5) 8 C-021 05200104UK20 Angle "C" L=890 (UK1202) 1

C-006 18049SW-3111 Washer (@5) 8 05200105UK20 Angle "C" L=1020 (UK1502)

C-007 11006PR-UK01 Spool Plate Base 4 05200104UK24 Angle "C" L=2020 (UK604)

C-008 12012PM-A001 Spool Holder 48 05200104UK40 Angle "C " L=2020 (UK1204)

C-009 12052SF-A001 Spool Sponge 48 05200105UK40 Angle "C " L=2020 (UK1504)

C-010 12009SC-A001 Spool Post 48 05200104UK60 Angle "C " (L=3020) (UK606)

C-011 18049SW-3111 Washer (@5) 48 05200303UK00 Angle "C " (L=3020) ( UK906)

C-012 18048SW-3115 Spring Washer (@5) 48 05200105UK60 Angle "C " (L=3020) (UK1206)

C-013 12010SN-1211 Hex.Nut (M5) 48 05200312UK00 Angle "C " (L=3020) (UK1506)

C-014 12033RB-UK01 Cushion Rubber 1 05200314UH00 Angle "C" (L=2420) (UH1206C)

C-015 12014SC-A001 Spool Stand B olt 5 05200315UH00 Angl e "C" L=2420 (UH1506C)

C-016 04014SC-4517 Hex.Socket Set Screw(M5*L5) 10 05200304UH08 Angle "C " L=3220 (UH1208)

C-017 10600100H000 Thread Angle Frame 5 05200305UH80 Angle "C" L=3220 (UH 1508)

C-018 03016SC-4113 Hex. Socket Bolt (M5*L15) 5 C-022 05200214UK20 Angle "D" L=890 (UK1202) 1

C-019 12019AD-UK02 Angle "A" L=890 (UK1202) 1 05200215UK20 Angle "D" L=1020 (UK1502)

12019AD-UK12 Angle "A" L=1020 (UK1502) 05200214UK24 Angle "D" L=2020 (UK604)

05200304UK24 Angle "A " L=2020 (UK604) 05200214UK40 A ngle "D" L=2020 (UK1204)

11022AD-UK01 Angle "A" L=2020 (UK1204) 05200215UK40 Angle "D" L=2020 (UK1504)

11022AD-UK14 Angle "A" L=2020 (UK1504) 05200214UK60 Angle "D" (L=3020) (UK606)

05200102UK00 Angle (A) L=3020 (UK606) 05200403UK00 Angle "D" (L=3020) (UK906)

05200103UK00 Angle (A) L=3020 (UK906) 05200215UK60 Angle "D" (L=3020) (UK1206)

12019AD-UK06 Angle (A) L =3020 (UK1206) 05200412UK00 Angle "D" (L=3020) (UK1506)

12019AD-UK16 Angle (A) L =3020 (UK1506) 05200414UH00 Angle "D" (L=2420) (UH1208)

05200104UH00 Angle "A " L=2420 (UH1206C) 05200415UH00 Angle "D" (L=2420) (UH1508)

27

Ref.No Part No.

C-023 12042PM-A001 E yelet 96

C-024 02015SC-7113 Hex.Socket Bolt(M4*L10) 15

C-025 02028SW-9115 Spring Washer (@4) 15

C-026 06003SW-2111 Washer (@4) 15

C-027 10600110B000 SUB TENSION ADJUSTING SET 44

C-028 08300600A000 SUB TENSION ADJU STING NUT (A) 44

C-029 11088PM-A001 TENSION SPRING STOPPER 48

C-030 08301100A000 TENSION SPRING 48

C-031 11153PR-B001 Tension Disc @22 96

C-032 08301000A000 TENSION ADJUSTING STUD 48

C-033 11162PR-A001 TENSION PLATE 48

C-034 18048SW-3115 Spring Washer (@5) 48

C-035 03031SN-A001 Pin. Nut (11/64,N=40) 48

C-036 10600210B000 SUB TENSION ADJUSTING SET (black) 4

C-037 10600610A000 SUB TENSION ADJU STING NUT (B) (black) 4

C-038 12015SF-A001 Spool Stand (L=330) (6,12C ) 5

01001500T000 Spool Stand (L=380) (15C)

C-039 01001504U000 Spool Stand L=345

01001505U000 Spool Stand L =395

01001504U000 Spool Stand L =345

01001505U000 Spool Stand L =395 (UH1506C)

C-040 10000100A000 Thread Guide L=200 8

PartNames

(UK604)(UK1204)

(UK1204)(UK1504)

(UH1206C)(UH1506C)

Q'ty Ref.No Part No.

4

PartNames

Q'ty

29

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

D-001 SFAM-600-003 Direct Motor 1 D-042 13118CS-UK01 Idler Support Bracket 1

D-002 08062SC-7113 HE X. SOCKET BOLT (M5*L20) 4 D-043 14027SC-4113 Hex.Socket Bolt (M8*L30) 2

D-003 18048SW-3115 Spring Washer (5@) 4 D-044 15095SW-3115 Spring Washer (@8) 2

D-004 18049SW-3111 Washer (@5) 4 D-045 08041SW-1111 Washer (@8-S) 2

D-005 02106500U040 Sh-65-2 1 D-046 14060AF-4517 HEX.SOCKET SCREW(M6*L6) 2

D-006 02106400U040 Cable (Sh-64-2) 1 D-047 03000300U000 Idler 1

D-007 03010800UH80 MAIN MOTOR PULLEY 1 13026BR-T121 Needle Bearing (6002Z) 2

D-008 04014SC-4517 Hex.Socket Set Screw(M5*L5) 2 D -048 13120CW-UK01 IDLER SHAFT 1

D-009 GP-012897-00 Motor Fixing 1 D-049 13106PR-UK01 Idler Spacer 1

D-010 08091SC-7113 HE X. SOCKET BOLT (M6*L20) 4 D-050 16059SC-7113 Hex.Socket Bolt (M6*L12) 2

D-011 16014SW-4115 Spring Washer (@6) 4 D-051 08057SW-1111 Washer (@6)8

D-012 08057SW-1111 Washer (@6) 4 D-052 03101300UH80 UPP ER SHAFT SUPPORT BRACKET 1

D-013 03000900U000 Tension Adjusting Block 1 D-053 08087SC-7113 H EX. SOCKE T BOLT (M8*L25) 2

D-014 14063SC-A001 Tension Control Bol t (M6*L40) 1 D-054 15095SW-3115 SPRING WASHER (@8) 2

D-015 08057SW-1111 Washer (@6) 1 D-055 08041SW-1111 WASHER (@8-S) 2

D-016 08058SN-1311 Hex. Nut (M6-No3) 1 D-056 14046SC-7113 HEX.SOCKET BOLT (M6*L30) 2

D-017 08062SC-7113 Hex. Socket Bolt (M5*L20) 2 D-057 03026SW-9115 Spring Washer (@6) 2

D-018 18048SW-3115 Spring Washer (5@) 2 D-058 08057SW-1111 WASHER (@6)2

D-019 18049SW-3111 Washer (@5) 2 D-059 03010SR-4013 C-Ring (@47) 2

D-020 03100700H000 MAIN DRIVING BELT 290J*10R 1 D-060 01001100H000 Ball Bearing (6005Zz) 2

D-021 03000200U000 Timing Belt (25-S5M*L1025) 1 D-061 03005210H000 C ollar "A" 2

D-022 03012100U000 Low Shaft Support Bracket 1 D-062 03101400U000 Upper Shaft Support Cover 2

D-023 08091SC-7113 Hex. Socket Bolt (M6*L20) 2 D-063 22006SC-7113 HEX. SOCKET BOLT (M3*L8) 6

D-024 16014SW-4115 Spring Washer (@6) 4 D-064 03000120U000 Pulley (Tubular) 1

D-025 08057SW-1111 Washer (@6) 4 D-065 03010800UH00 TOP SHAFT PULLEY 1

D-026 06025MC-7113 HEX.SOCKET BOLT(M6*L25) 2 D-066 03000100UK20 Top Shaft (L1298) (UK1202) 1

D-027 03000130U000 Pulley (Tubular) 1 03000100UK40 Top Shaft (L2298) (UK1204)

D-028 14061AF-4517 Hex.Socket Screw(M8*L8) 8 03000100UK60 Top Shaft "A" (@20, L1505.5) (UK1206)

D-029 01029BR-A001 Ball Bearing (6004Zz) 2 01000210UH60 Top Shaft L2698 (UH1506C)

D-030 13107CW-UK01 Collar 1 01000210UH80 Top Shaft A L=2076 (UH1508)

D-031 14060AF-4517 Hex.Socket Screw(M6*L6) 12 D-067 03006720HDK0 Coupling @20

D-032 13053PR-UK01 Angle Plate Base 1 D-068 08091SC-7113 Hex. Socket Bolt (M6*L20)

D-034 13054ET-UK01 Angle Disk 1 D-069 03000200UK60 Top Shaft "B" (@20, L1800) (UK1206) 1

D-035 14006SC-7113 Hex.Socket Set Screw(M8*L15) 1 01000220UH80 TOP SHAFT B L=1479 (UH1508)

D-036 15095SW-3115 Spring Washer (@8) 1 D-070 13032GA-UK06 Index Shaft Gear Uk06 2

D-037 04029SW-A001 STUD BOLT WASHER(S) (@8) 1 D-071 04012AF-A001 Hook Shaft Bush Screw 11

D-038 14058CW-A001 Collar "A" 1 D-072 01102000B000 Bearing Bushing 1

D-039 13123CW-E121 Idelr Plate 1 D-073 04026BR-A001 Ball Bearing 6003Z1

D-040 14063SC-A001 Tension Control Bolt (M6*L40) 2 D-074 04039PR-A001 Bearing Cover 1

D-041 13042SN-1111 Hex.Nut (M6*T5-R) 2 D -075 21002SC-8119 PLUS SCREW (M3*L8) 3

(UK1206)(UH1508)

(UK1206)(UH1508)

1

4

31

Ref.No Part No. Part Names Ref.No Ref. No Part No. Part Names Q'ty

D-076 03100600UK40 INDEX SHAFT 1

D-077 03000200UK20 Low Shaft (L=804) (UK1202) 1

03000200UK40 Low Shaft (UK1204)

23003SH-UK06 Low Shaft "A" @15 L=1418 (UK1206)

02000110UH60 Low Shaft L2303 (UH1506C)

02000100UH80 Low Shaft A 1650 (UH1508)

D-078 04027BR-A001 Needle B earing (Hmk1515) 2

D-079 08028BR-A001 Thrust Washer (As 1528) 4

D-080 08027BR-A001 Thrust Bearing (Ntb 1528) 2

D-081 03704900A000 Cam Shaft Collar 2

D-082 04016AF-A001 Cam Collar Screw 4

D-083 14079CW-UK06 Lower Shaft Coupling

D-084 14060AF-4517 Hex.Socket Screw(M6*L6)

D-085 03000300UK60 Low Shaft B (@15, L1385) (UK1206) 1

02000200UH80 Low Shaft B 1448 (UH1508)

D-086 13041SH-UK01 Middle Shaft 1

D-087 08053PR-A001 Lever Washer 2

D-088 02023SC-7113 Hex. Socket Bolt (M4*L8) 2

D-089 02028SW-9115 Spring Washer (@4) 2

D-090 05009SW-1111 Washer (@4-L) 2

D-091 13036BR-UK01 Needle Bearing (63800Zz) 2

D-092 12019BR-T121 Fiber Washer R-Tw1020 2

D-093 13038CW-UK01 Collar "C" 2

D-094 03022SC-4517 Hex. Socket Set Screw(M4*L5) 4

D-095 03012210U000 INDICATOR 1

D-096 02015SC-7113 HE X.SOCKET BOLT(M4*L10) 2

D-097 02028SW-9115 SPRING WASHER (@4) 2

D-098 18015SW-3111 Washer (4@) 1

D-099 GP-012973-00 Main Motor Cover 1

D-100 02044SC-3123 Truss Screw (M 5*L8) 4

(UK1206)(UH1508)

(UK1206)(UH1508)

1

4

33

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

E-001 GP-005355-00 B ed "A" 3 E-067 04037SC-A001 P icker Bracket Screw(R) 8

01110000U000 Bed (Set) #1 (UH1508) 8 E-068 01102000B000 Bearing Bushing 4

E-008 04026BR -A001 Ball Bearing 6003Z 4 E-070 02022CW-T121 NEED LE GUIDE PLATE(FLAT) 4

E-010 04016AF-A001 Cam Collar Screw 8 GP-010385-00 NEEDLE G UIDE PLA TE(FLAT-Sequin) 4

E-017 04012AF-A001 Hook Shaft B ush Screw 24 E-073 04028SC-UK01 STUD BOLT (M10*P1.25*L69) 12

E-018 04019GA-UK01 Hook Shaft Gear 4 E -074 04013P R-B001 WASHER (3.2T,@10) 4

E-019 02004BR-T121 Hook Shaft Bearing Was her 12 E-075 04014PR-B001 WASHER (2T,@10) 4

E-024 GP-005357-01 Needle Plate Bracket 4 E-076 01008SW-9115 SPRING WASHER(@10) 4

E-025 02008SC -4122 NEEDLE PLA TE BRACKET SCREW 8 E-077 04032SN-UK01 HEX. NUT (M10*P1.25) 8

E-026 02009PI-T121 Spring Pin 8 E-078 01101700U000 LOW SHAFT GE AR 4

E-027 04026SC-T121 Needle Plat e Pin 4 04017GA-UK01 Low Shaft Gear (UH1508) 8

E-028 GP-005358-01 Rotary Hook Support 4 E-079 04033AF-D002 Rotary Hook Set 4

E-029 02011SC-3125 Rotary Hook Support Screw 8 E-080 G P-012800-00 Needle Plate Guide(L ) 4

E-031 04034AF-A001 Bobbin Case Set 4 E-081 GP-012801-00 Needle Plate Guide(R) 4

E-032 04035AF-A001 Bobbin 4

E-033 GP-005359-02 Bed Cover 3

E-034 02030SC-T121 Bed Cover Scre w(9/64" 40) 12

E-035 02019BM-T121 Needle Plate Set(Cap) 4

E-036 02019PR -T121 Needle Plate(C ap) 4

E-038 04007SC-A001 Cushion C over Screw (M3*L2. 3) 8

E-039 04004AF-A001 Needle Plat e Screw 8

E-043 32043SF-T121 Front Bushing Felt 4

E-044 18039SF-UK01 Felt 4

E-045 32045CW-T121 Oil Hose Pi n 4

E-046 18041SF-UK01 Bed Felt 4

E-047 32040PR -T121 Bed Felt Cover 3

E-048 02015SC-4113 Hex. Socket Bolt (M4*L 8) 8

E-049 02063SW-1111 Washer(@4) 8

E-050 05016SN-1211 Hex.Nut (M4) 8

E-051 18044ET-UK01 Wick 4

E-052 18045ET-UK01 Oil Tube 4

E-053 32046SP-T121 Holder For Oil Hose 4

E-054 32021SP-T121 Needle B ar Hose Holder "B" 4

E-055 28021SC-3123 Truss Screw (M3*L4) 4

E-056 32047RB-T121 Oil Rubber Cap 4

E-057 08113SC-A001 Collar Screw 16

E-060 GP-016953-00 Hook Shaft Rear Bushing 4

E-061 GP-016931-00 Ho ok Shaft Front Bush ing 4

E-062 02100300U000 Hook Shaft 4

E-063 03707300A000 Solenoid Collar 8

35

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

F-002 AS-002025-00 Picker Sol. Set 4 F-053 04030SW-A001 Stud Bolt Washer(L) (@8)

F-003 10009EL-T121 Picker Sol. 4 F-054 116410S-8118 Driver Screw 11/64-40,L10 4

F-004 01-012A-AT10 Picker Sol. Cover 4 F-055 13003000T000 Mes Shaft C ollar 4

F-005 28021SC-3123 Truss Screw (M3*L4) 8 F-056 08014SC-A001 Plus Screw (M3*L8) 4

F-006 10021SC-A001 Sol. Stud Screw 4 F-057 GP-005356-01 Bed

F-007 10011SP-A001 Sol. Spring 4 F-058 03200100UH00 Rai l Guide

F-008 13044S R-4013 E-Ring (@4) 4 F-064 03001200U000 Mes Dri ving Lever Shaft "B"

F-009 10012RB-A001 Cushion Washer 4 F-065 03001100U000 Mes Driving Le ver Shaft "A" 3

F-010 GP-005370-00 Connecting Plate 4 F-066 02100400U000 Mes Driving Lever 4

F-011 01-013A-AT10 Picker Sol. Base 4 F-067 08122CW-A001 MES PIN 4

F-012 06010AF-8118 Plus Screw(M3*L4) 8 F-068 08123CW-T121

F-013 02015S C-7113 Hex.Socket Bolt(M4*L10) 8 F-069 GP-005361-00 Hook Cover Insert 8

F-014 08012CW-T121 Connecting Pla te Stud Screw 4 F-070 GP-006619-01 Rail Guide Bed Cover 1

F-015 AS-001429-00 Picker Base Ass'Y 4 F-071 HG-000001-00 Hook Cover Hinge 4

F-016 GP-005368-00 Picker 4 F-072 GP-005362-00 Hook Cover H older 4

F-017 07018S C-8118 Plus Screw (M3*L8) 8 F-073 G P-005369-01 Picker Stopper 4

F-018 GP-005366-00 Picker Bracket 4 F-074 WS-000085-00 Washer for Pi cker Base 4

F-019 15159SR-4013 E-Ring (3@) 4 F-075 GP-006670-00 Bed Fel t Cover A

F-024 GP-005360-02 Hook Cover 4 F-076 03200200U H00 Rail Guide Cover Stud 2

F-025 08014AF-A001 Plus Screw (M3*L8) 8 F-077 03200300UH00 Rail Guide Cover 1

F-027 02015S C-7113 Hex.Socket Bolt(M4*L10) 4 F-078 18014SW-3115 Spring Washer (@4-No2) 2

F-028 07021MP-T121 Lever Shaft Bush 8 F-079 18015SW-3111 Washe r (4@) 2

F-031 07023CW-T121 Lever Pin "A" 3 F-080 0202 3SC-7113 Hex. Socket Bolt (M4*L8) 4

F-032 08122C W-UK01 Lever Pin "B"

F-033 02029SN-9311 Hex. Nut (M4-No2) 4

F-034 07006LA-UK01 Mes Connecting L ink 4

F-035 GP-006638-00 Moving Mes Shaft 4

F-036 07028PR-T121 Moving Mes 4

F-039 03022S C-4517 Hex. Socket Set Screw(M4*L5) 8

F-040 07032CL-T121 Fixed Mes 4

F-041 07033PR-T121 Under Thread Presser 4

F-042 07018S C-8118 Plus Screw (M3*L8) 8

F-043 03050S C-4517 Hex. Socket Set Screw ( M3*L3) 4

F-046 02023S C-7113 Hex. Socket Bolt (M4*L8)

F-047 GP-008126-00 Rail Support Plate

F-048 16022AF-8119 Plus Screw( M6*L20)

F-049 16021CW-A001 Table Suppor t Stud

F-050 04032SN-A001 Hex. Nut (M8-No2)

F-051 15095SW-3115 Spring Washer (@8)

F-052 04029SW-A001 Stud Bolt Washer(S) (@8)

(UK1202,UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

1

2

2

4

4

4

4

4

MOVING MES CONNECTING LINK PIN

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1204,UH1506C)

(UK1202,UK1204 ,UH1506C)

(UK1204,UH1506C)

4

1

1

1

4

1

37

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

G-001 GP-011445-00 Mes Cam Driving Box 1 G-039 08023CL-UK01 Mes Shaft Cramp 4

G-002 08042MP-U K01 Mes Cam Shaft Bush 1 G-040 02015SC-7113 Hex .Socket Bolt(M 4*L10) 4

G-003 04014SC-4517 Hex. Socket Set Screw(M4*L5) 1 G-041 23004SH-UK02 Mes D riving Shaft @ 6,L520 (UK1202) 1

G-004 07034CM-UK0 1 Mes Cam 1 23004SH-UK01 Mes Driv ing Shaft (UK1204)

G-005 14005SC-4517 HEX.SOC KET SET SCREW (M8*L 8) 2 23006SH-UK06 Mes Driving Shaft "A" L=1255 (UK1206)

G-006 08028BR-A001 Thrust Was her (As 1528) 4 02000300U H60 MES DRIVING SHAFT L2020 (UH1506C)

G-007 08027BR-A001 Thrust Bearing (Ntb 1528) 1 02000300UH80 Mes Driving Shaft "A" L1443 (UH1508)

G-008 04027BR-A001 Needle Bearing (Hmk1515) 1 G-042 08019CW-UK01 Clamp Stud Bolt 3

G-009 07038CW-UK01 Mes Cam Shaft 1 G-043 08023CW-A001 M es Shaft Cram p 1

G-010 03704900A000 Cam Shaft Collar 1 G-044 02015SC-7113 Hex.Socket Bolt(M4*L10) 1

G-011 04016AF-A0 01 Cam Collar Scr ew 2 G-045 23007SH-UK06 Mes Driving Shaft "B" L=1255 (UK1206) 1

G-012 07015PR-UK01 Solenoid Plate 1 02000400UH80 MES DRIVING SHAFT "B" L1377 (UH1508)

G-013 02031SC-7113 Hex. Socket Sc rew(M5*L10) 2 G-046 17051SN-A001 Mes Priving Shaft Joint 1

G-014 18048SW-3115 Spring Washer (5@) 2 G-047 13042SN-1111 H ex.Nut (M6*T 5-R) 1

G-015 18049SW-3111 W asher (@5) 2 G-048 17053SN-1111 Hex. Nut(L) (M6*T5-L) 1

G-016 08068EL-UK01 Thread Trimming Solenoid Ass' 1 G-049 08102EL-A001 Zero Point Sensor Ass 'Y 1

G-018 25026EL-UK02 Cable (25-26) 2Head (UK1202) 1 G-053 08070PR-UK01 Sensor Bracket 1

25027EL-UK01 Sol. Connecting Cab le (4Ht-27)

25023EL-UK06 Cable (25-23) (UK1206) G-055 18048SW-3115 Sp ring Washer (5@) 2

02102600UH80 CABLE (SH-26-4) (UH1508) G-056 18049SW-3111 Washer (@5) 2

G-019 11014SN-1211 Hex.Nut (M3-No2) 2 G-057 25039E L-UK02 Cable ( 25-39) 2Head (UK1202) 1

G-020 07017CL-UK01 Solenoid Crank 1 25043E L-UK01 Sensor To Joint Con.(4Ht-43)

G-021 03071SC-7113 Hex. Socket B olt (M3*L10) 1 25039EL-UK06 Cable (25-39) (UK1206)

G-022 08048AF-T121 Solenoid Crank Roller 1 02104400UH80 CABLE ( SH-44-5) (UH1508)

G-023 18014SW-3115 Spring Washer (@4-No2) 1 G-058 07041GA-UK01 Gear "A" 1

G-024 08050SN-T121 Hex. Nut 1 G-059 07043G A-UK01 Gear "B" 1

G-025 08203000A000 Take-Up Lever Shaft B ush(L) 1 G-060 04012AF-A001 Hook Shaft Bush Screw 4

G-026 02014SC-7113 Hex. Socket B olt (M4*L5) 1 G-061 08025CW-UK01 Box Stud Bolt 3

G-027 07025CW-UK01 Lev er Shaft (@8*L7 0) 1 G-062 04032SN-A001 Hex. Nut (M8-No2) 6

G-028 07024BR-UK01 Fiber Washer(R-Tw0805) 3 G-063 04030SW-A001 St ud Bolt Washer(L) (@8) 3

G-029 07028CL-UK01 Mes Driving Lever 1 G-064 04029SW-A001 Stud Bolt Washer(S) (@8) 3

G-030 07029CL-UK01 Mes Driving Cr ank 1 G-065 15095SW-3115 Spring Washer (@8) 3

G-031 08022RB-T121 O-Ring (@10 ) 1 G-066 08021PM-UK01 Lever Stopper 1

G-032 08071RB-UK01 Thread Driver Box Rub er 1 G-067 02015SC-7113 Hex.Socket Bolt(M4*L10) 2

G-033 07030AF-UK01 Roller 1 G-068 18015SW-3111 Washer (4@ ) 2

G-034 07026CW-UK01 Rol ler Shaft 1

G-035 08034CW-UK01 Lever Connecting Pin 1

G-036 04010MC-7113 Hex.Socket Bolt (M4*L 10) 1

G-037 03000700TH00 Thread L ever Connect Link 1

G-038 08016CW-UK01 Li nk Stud Bolt 1

(UK1204)(UH1506C)

G-054 02031SC-7113 Hex. Socket Screw(M5*L10) 2

(UK1204)(UH15 06C)

39

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

H1001 03300020U000 Arm 4 H1041 03600200I000 Needle Bar R eciprocator 4

H1002 03003SC-4113 Hex. Socket Bolt 12 H1042 03045SP-B001 Jump Spring 4

H1003 15095SW-3 115 Spring Washer (@8) 12 H1043 03046CW-B001 Jump Spring Guide 4

H1004 04029SW-A001 Stud Bolt Was her(S) (@8) 12 H1044 03048SW-A001 R eciprocator Washer 4

H1005 03300200I000 Cam Base 4 H1045 03600400H000 NEEDLE BAR DRIVING SHAFT BUSH 4

H1006 030 07SC-A001 Ca m Base Screw 12 H1046 09 005SC-3123 Truss Screw (M3*L6) 4

H1007 03300210H000 Needle Cage 4 H1047 03033CW-A001 Driver Pin 4

H1008 03303000H000 Connecting Rod 4 H1048 32003ET-T121 W ick 4

H1009 03300300I000 Needle Bar Driving Cam 4 H1049 03020SC-A001 D rive Pin Screw 11/64-N40-L8 4

H1010 03303100H000 Bearing Case A @20 4 H1050 03007900H000 Needle Bar D riving Shaft 4

H1011 01001100H000 Ball Bearing (6005Zz) 4 H1051 32003ET-T121 Wick 4

H1012 02031SC-7113 Hex. Socket Screw(M5*L 10) 4 H1052 03020SC-A001 Drive Pin Screw 11/64-N40-L8 4

H1013 02030SW-B001 Washer (5@) 24 H1053 03008000H000 Ball B earing 68004

H1014 03000110H000 Cam Tightening Collar (@20) 4 H1054 03008100K000 Needle Bar Drive B earing Bush 4

H1015 03016SC-4113 Hex. Socket Bolt (M5*L15) 4 H1056 03302600I000 Arm Bearing Guide Plate 4

H1016 AS-000423-00 Needle Bar Dr ive Lever 4 H1057 05062SC-A001 Bolt (9/64" n=40) 8

H1017 03000200A000 NEEDLE BAR DRIVE LEVE R 4 H1058 03056CL-B001 Head Rail Holder 4

H1018 03307200A000 Needle Driving Lever Bushing 4 H1059 03057SC-A001 Head Rail Holder Screw 4

H1019 03307300A000 Needle Driving Lever Bushing 4 H1060 GP-014102-01 Presser Foot Driving Cam 4

H1020 32003ET-T121 Wick 4 H1061 03301000I000 Csm Spacer 4

H1021 03301800U000 NEEDLE BAR DRIVE PIN 4 H1062 02023SC-7113 Hex. Socket Bol t (M4*L8) 12

H1022 32003ET-T121 Wick 4 H1063 06003SW-2111 Washer (@4) 12

H1023 01301600H000 Hook Oil Supply Nipple 8 H1064 GP -005993-00 P resser Foot Driving Lever (A) Assy' 4

H1024 030 20SC-A001 Dr ive Pin Screw 11/64-N40-L8 4 H1065 A S-002151-00

H1025 01101300A000 Hook Shaft Col lar 8 H1066 15029SN-3211 Nut (@4) 4

H1026 04012AF-A001 Hook Shaft Bush Screw 4 H1067 18015SW-3111 Washer (@4) 4

H1027 030 23SC-A001 Co nnecting Rod Stud 4 H1068 03800300I000 Presser Foot Driving L ever Pin (C) 4

H1028 32003ET-T121 Wick 4 H1069 03031SN-A001 Nut (11/64" n=40) 4

H1029 03025SW-1211 Washer ( @6) 4 H1070 18048SW-3115 Washer 4

H1030 03026SW-9115 Spring Washer (@6) 4 H1071 PN-000165-00 Presser Foot Driving Lever Pin (A) 4

H1031 03027SN-A 001 Stud Nut 4 H1072 14060AF-4517 Hex. So cket Bolt (M6*L6) 4

H1032 03303300H000 Lever Pi n 4 H1073 02004BR-T12 1 Hook Shaft Bearing Washer 4

H1033 32003ET-T121 Wick 4 H1074 03800500I000 Presser Foot Driving Lever Bracket (A) 4

H1034 02015SC-7113 Screw( M4*L10) 4 H1075 09007SC-7113 Hex. Socket Bolt (M3*L12) 12

H1035 03003200A000 Needle Bar Dr ive Rink 4 H1076 11019S W-9115 Washer (@3) 12

H1036 03034SW-A001 Reciprocator Washer 4 H1077 03800600I000

H1037 03600100I000 Needle Bar Driving Shaft Driver 4 H10 78 03034SW-A001 Washer 8

H1038 03047PM-CT01 Stopp er-A'ssy 4 H1079 GP-006079-01 Presser Foot Driving Lever (B) Assy' 4

H1039 26006MC-8 118 Stopper Screw (M2.6*L6) 8 H 1081 15029SN-3211 Nut (@4) 4

H1040 03600000I000 Needle Bar Reciprocator A'ssy 4 H1082 18015SW-3111Washer (@4) 4

Presser Foot Driving Roller Hinge Pin Assy'

Presser Foot Drving Lever Connec ting Link

4

4

41

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

H1083 PN-000166-00 P resser Foot Driving Lever Pin (B) 4

H1084 14060AF-4517 Hex. Socket Bolt (M6*L6) 4

H1085 02004BR-T121 Washer 4

H1086 03801000I000 Presser Foot Driving Lever Br acket (B) 4

H1087 09007SC-7113 Hex. Socket Bolt (M3*L12) 12

H1088 06011SW-2111 Washer ( @3) 12

H1089 03302200I000 Arm Side Cover(A) 4

H1090 03302300I000 Base Pin for Arm Side Cover 8

H1091 03302310H000 Side Cover "B1" @20 4

H1092 02010SC-A001 SC REW (9/64-N40-L8) 28

H1093 03314100A000 Take-Up Drivi ng Lever "A" 4

H1094 07018CA-UK01 Take-U p Driving Lever "B" 4

H1095 07016SC-7113 Hex.Socket Bolt(M4*L1 2) 4

H1096 04019C W-T121 Pin Stud Screw 4

H1097 04020AF-T121 Roller for Take-Up Lever B 4

H1098 04021BR-T121 Needle Bearing (KT367N IKO) 4

H1099 03302100A000 Pin Collar 4

H1100 03022SC-4517 Hex.Socket Set Screw(M4*L 5) 8

H1101 PN-000154-00 Take-Up Lever Drive P in 4

H1102 32003ET-T121 Wick 4

H1103 01301600H000 Ho ok Oil Supply Nipple 4

H1104 03301200A000 Bushing 4

H1105 03300700I000 Take-Up Lever Driving Cam 4

H1106 06003SW-2111 Washer ( @4) 4

H1107 06003SW-2111 Washer ( @4) 8

H1108 02023SC-7113 Hex. Socket Bolt (M4*L8) 8

H1109 03062ET-A001 Cable Fastener 4

H1110 03008700H000 Balunce Cam 4

H1111 03008800H000 Balunce Cam Bracket 4

H1112 18047SC-7113 Hex. Socket Bolt (M5*L15) 8

H1113 03042SF-T121 FELT "A" 8

H1114 PN-000185-00 Presser Foot Stopper Roll er Hinge Pin 4

H1115 GP-011031-00 Presser Foot Stopper Roller 4

H1116 WS-000108-00 Presser Foot Stopper Roller Washer 4

43

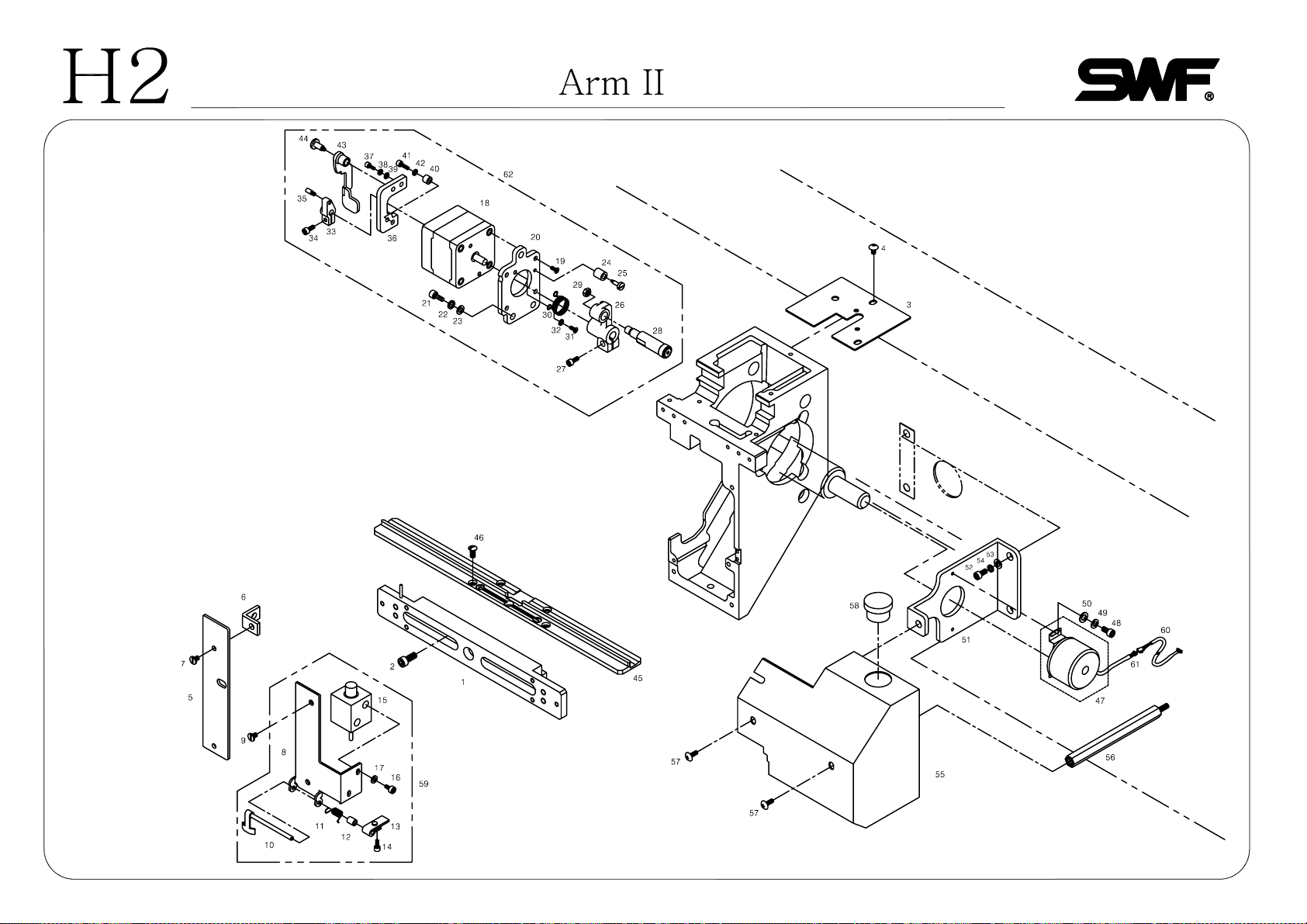

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

H2001 03070LM-BE00 Lm Guide Block Set (6C) 4 H2038 11019SW-9115 Spring Washer (3@) 4

03069LM-B002 Lm Guide Block Set (9C) H2039 06011SW-2111 Washe r (@3) 4

03068LM-BB00 Lm Gui de Block Set (12C) H2040 03304900H000 Jump Clutch Lever Stopper 4

03068LM-H003 Lm Gui de Block Set (15C) H2041 04010MC-7113 Hex.Scoket Bolt (M4*L10) 4

H2002 03071SC-A001 Hex.Scoket Bolt (M3*L15) 4 H2042 06011SW-2111 Washer (@3) 4

H2003 03302500I000 Arm Top Cover 4 H2043 03411200I000 Jump Driving Clutch Lever 4

H2004 18033SC-3123 Truss Screw (M5*L6) 4 H2044 03411300H000 Stud for Jump Clutch L ever 4

H2005 GP-009456-00 Arm Guard Plate(L) 4 H2045 07027AD-AE00 TAKE-UP GUIDE RAIL (6C) 4

H2006 03008300I000 Arm Guard Pl ate(L) Bracket 8 07026A D-A002 Take-Up Guide Rail L=250 (9C) 4

H2007 02009SC-A001 Side Cover Screw 4 03300604U000 Take-Up Guide Rail L=329 (12C) 4

H2008 03303800I000 Arm Guard Pl ate(R) 4 01300105U 000 Take-Up Guide Rail (L) (15C) 1

H2009 03065SC-A001 Guard Plate Screw 4 01300205U000 Take-Up Guide Rail (M) (15C) 2

H2010 03304100I000 Thread Holding Lever Ass'y 4 01400105U000 Take-Up Guide Rail (R) (15C) 1

H2011 03304200I000 Lever Spring 4 H2046 05041SC-A001 Guide Rail Serew 16

H2012 03304300I000 Lever Spring Bush. 4 H2047 03013EL-T 121 Encoder Set1

H2013 03304400I000 Thread Holding Push Plate 4 H2048 07035SC-7113 Bracket Screw (M3*L6) 2

H2014 07035SC-7113 Hex.Scoket Bolt (M3*L6) 4 H2049 08011SW-1111 Spring Washer (@3-S) 2

H2015 10009EL-A002 UPPER THREAD CATCHER SOL. 4 H2050 06011SW-2111 Washer (@3) 2

H2016 05007SC-7113 Hex.Scoket Bolt (M3*L5) 8 H2051 G P-008536-00 Encoder B ase 1

H2017 06011SW-2111 Washer (@3) 8 H2052 08076SC-7113 Hex. Socket Bolt (M5*L12) 4

H2018 03410200H000 Jump Motor 4 H2053 16018SW-1111 Washer (@5) 2

H2019 02002SC-7119 Pluss Screw (M4*L8) 16 H2054 18048SW-3115 Spring Washer (@5) 2

H2020 03410100I000 Jump Motor Base 4 H2055 02003500UK40 Oil Tank Cover (4 Head) (UK1202) 1

H2021 07016SC-7113 Hex.Scoket Bolt (M4*L10) 8 02003500UK40 Oil Tank Cover ( 4 Head) (UK 1204)

H2022 18014SW-3115 Spring Washer (@4) 8 02003500UK60 Oil Tank Cover (6 Head) (UK1206)

H2023 06003SW-2111 Washer (@4) 8 02003500UK60 Oil Tank Cover (6 Head) (UH1506C )

H2024 03410300H000 Jump Crank Stopper 8 02003500UK60 Oil Tank Cover (6 Head) (UH1508)

H2025 03411400H000 Stud for Jump Crank Stopper 4 H2056 18036CW-UK06 Oil Tank Cover Support 1

H2026 03410400I000 Jump Driving Crank 4 H2057 05008MC-9123 T RUSS SCREW(M5*L8) SUS 2

H2027 02023SC-7113 Hex. Socket Bolt (M4*L8) 4 H2058 01303800U000 Cover Rubber Cap 1

H2028 03411810I000 Jump Crank Roller Ass'y 4 H2059 AS-000858-00 UPPER THREAD HOLDING SET 4

H2029 03031SN-A001 Pin. Nut (11/64-N=40) 4 H2060 250 33EL-UK01 ENCODER CABLE(4HT-33)

H2030 03410800I000 Jump Retrun Spring 4 25029EL-UK06 ENCODER CABLE(25-29)

H2031 08006SC-8118 Plus Screw (M3*L 5) 4 H2061 25103ET-B001 Encoder Conector 1

H2032 06011SW-2111 Washer (@3) 4 H2062 AS-000861-00 Jump Set 4

H2033 03410900H000 Jump Driving Cl utch 4

H2034 02023SC-7113 Hex. Socket Bolt (M4*L8) 4

H2035 03411000H000 Jump Clutch Pi n 4

H2036 03411100I000 Jump Clutch Base 4

H2037 22006SC-7113 Hex.Scoket Bolt (M3*L8) 4

(UK1202)(UK1204)(UH1506C)

(UK1206)(UH1508)

1

45

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

H3001 GP-009589-00 Oil Tank Ass'Y 4

H3002 GP-009590-00 Oil Tank Felt 4

H3003 02023SC-7113 Hex. Socket Bolt (M4*L8) 16

H3004 18045ET-U K01 Oil Hose L=160 16

H3005 03000500U000 Oil Tube Pin 12

H3006 18015SW-3111 WASHER ( 4@) 8

H3007 18033PR-UK01 OIL TU BE GUIDE 8

H3008 32046SP-T121 HOL DER FOR OIL HOSE 12

H3023 03008400H000 Top Shaft Bracket "C" 1

H3024 08087SC-7113 Hex. Socket Bolt (M8*L25) 2

H3025 15095SW-3115 Spring Washer (@8) 2

H3026 04029SW-A001 Stud Bolt Washer(S) (@8) 2

H3027 03008500H000 Top Shaft Bearing Case "B" 1

H3028 03016SC-4113 Hex. Socket Bolt (M5*L15) 3

H3029 18048SW-3115 Spring Washer (5@) 3

H3030 18049SW-3111 Washer (@5) 3

H3031 01001100H000 Ball Bearing (6005Zz) 1

H3032 03005210H000 Collar "A" 1

H3033 14060AF-4517 Hex.Socket Screw(M6*L6) 2

47

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

I1001 1300 1CA-UK06 Color Change Base 1 I1036 05000103UK00 Color Change Shaft (UK604) 1

I1002 05008SC-4113 Hex.Socket Bolt (M4*L16) 4 23007SH-UK01 Color Change Shaft (UK1204)

I1003 18014SW-3115 Spring Washe r (@4-No2) 4 23007SH-UK14 Color C hange Shaft (UK1504)

I1004 18015SW-3111 Washer (4@) 4 06000102UK60 Color Change Shaft "A"

I1005 15012MT-T121 Potentiometer (7824 R1K L25) 1 23012SH-UK06 Color Change Shaft "A" (UK1206)

I1006 15014PR-T121 Potentiometer Washer 1 23012SH-UK16 Color Change Shaft "A " (UK1506)

I1007 13015PR-UK06 Potenti ometer Bracket 1 I1037 17053SN-1111 Hex. Nut(L) (M6*T5-L ) (UK1206) 1

I1008 13032AD-UK06 Color Change Film Set 1 I1038 17051SN-A 001 M es Priving Shaft Joint (UK1206) 1

I1009 04014SC-4517 Hex.Socket Set Screw(M5*L5) 2 I1039 13042SN-1111 Hex.Nut (M6*T5-R) (UK1206) 1

I1010 13007CW-UK06 Color Change Shaft 1 I1040 0600 0202UK60 Color Change Shaft "B" (UK606) 1

I1011 08113SC-A001 Collar Screw 1 23013SH-UK06 Color Change Shaft "B"

I1012 08102300B000 Half Turn Sensor (Gp1S51V) 1 23013SH-UK16 Col or Change Shaft "B" (UK1506)

I1013 08006SC-8118 P lus Screw (M3*L 5) 2 I1041 GP-006252-00 Color Change Bushing 2

I1014 13010B R-T121 Washer(@12*@26*1T) 4 I1042 25029EL-UK01 C/C Motor Cable (2Ht-28)

I1015 13041BR-UK01 Washer(12*@26*1T) 2 25025E L-UK06 Cable (25-25)

I1016 13010CW-UK06 Colo r Change Collar 1 I1043 25037EL -UK01 Half Turn Cable (2Ht-36)

I1017 13005CM-UK06 Color Change Cam 1 25033EL-UK06 C able (25-33)

I1018 04012AF-A001 Hook Shaft Bush Screw 5 I1044 25036EL-UK01 Cc Potentiometer Cable(4Ht-36) 1

I1019 13020GA -UK06 Colo r Change Gear (L ) 1 I1045 25035EL-UK01 Cc Poten. Meter To J/B(4Ht-35) 1

I1020 08113SC-A001 Collar Screw 4

I1021 13016MT-UK06 Color Change Motor

13027MT-UK06 Color Change Motor

I1022 05008SC-4113 Hex.Socket Bolt (M 4*L16) 4

I1023 02028SW-9115 Spring Washe r (@4) 4

I1024 05009SW-1111 Washer ( @4-L) 4

I1025 13022AD -UK06 Color Change Passivity Handle 1

I1026 03020SC-A001 Drive Pin Screw 11/64,N40,L8 2

I1027 08103102C010 Color Change Ro ller Base (6C) 1

13026CL-D104 Color Change Roller Base (9C)

13026CL-UK06 Color Change Roller Base (12C)

13026CL-UK16 Color Change Roller Base (15C)

I1028 15029AF-T121 Roller Set 12

I1029 18048SW-3115 Spring Washe r (@5) 12

I1030 12010SN-1211 Hex.Nu t (M5) 12

I1031 18047SC-7113 Hex/ Socket Bolt (M5*L15) 2

I1032 GP-011303-00 Color Change Cover

GP-011777-00 Color Change Cover

I1033 04006MC-9123 TRUSS SCR EW(M4*L6) SUS 4

I1034 13019PR-A001 Half T urm Film Washer (T1.0) 1

I1035 13021GA -UK06 Color Change Gear (R) 1

(UK1202)(UK1204)

(UK1206)(UH1506C)

(UK1202)(UK1204)

(UK1206)(UH1506C)

1

1

(UK606)(UK906)

(UK906)(UK1206)

(UK1202)(UK1204)

(UK1206)(UH1506C)

(UK1202)(UK1204)

(UK1206)(UH1506C)

1

1

49

Ref.No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

I2001 GP -005255-01 COL OR CHAN GE BOX (12C) 1 I2037 13014GA-A001 HALF TURN GEAR 1

GP-005256-01 COLOR CHAN GE BOX (15C) I2038 08101500B000 HAL F TURN B USHING 2

I2002 03003SC-4113 HEX. SOCKET BOLT "B"(M8*L35) 4 I2039 03020SC-A001 DRIVE PIN SCREW 11/64,N40,L8 1

I2003 15095SW-3115 SP RING WA SHER (@8) 4 I2040 08044SR-4013 E-RING (@ 8)1

I2004 04029SW-A001 STUD BOLT WASHER(S) (@8) 4 I2041 13018PR-A001 HALF TU RN FILM WASHER (T2.3) 1

I2005 08110005B000 COL OR CHAN GE CAM ASS'Y (15C) 1 I2042 08101700B000 HALF TURN FLIM 1

I2006 08037AF-4517 H EX. SOCK ET SET SCREW M6*L 10 2 I2043 1301 9PR-A001 HALF TURM FILM WASHER (T1.0) 1

I2007 08101100B000 CAM BUSHING 2 I2044 06011SW-2111 WASHE R (@3) 1

I2008 13012CW-A001 CAM COLL AR 1 I2045 02023SC-7113 HEX. SOCK ET BOLT (M4*L8) 1

I2009 04016AF-A001 C AM COLL AR SCRE W 2 I2046 08102300B000 HAL F TURN SENSOR (G P1S51V) 1

I2010 13009SF-AB00 CAM SHAFT (12C) 1 I2047 15163SC-3123 TRUSS SCREW (M3*L12) 2

08100305B000 CAM SHAFT (15C) I2048 13025PM-A001 SENSOR COVER 1

I2011 13034A D-A001 COLOR CHANGE BLOCK 1 I2049 02015SC-7113 HEX.SOCKET BOLT(M4*L10) 2

I2012 13035BR-A001 GUID E BUSHIN G 2 I2050 18015SW-3111 WASHER (4@) 2

I2013 13031SH-AB 00 GUIDE SHAFT (12C) 2 I2051 09100105B000 MEMBRANE SWITCH COVER (15C) 1

08100405B000 GUIDE SHAFT (15C) I2052 03006MC-9123 TRUSS SCRE W(M3*L6) SUS 5

I2014 03020SC-A001 DRIVE PIN SCR EW 11/64,N40, L8 5 I2053 04-001A-SW60 COLOR CHANGE BOARD (12C) 1

I2015 13040CW-A001 ROLLER SHAFT 1 15-001A-UI15 COLOR CH ANGE BO ARD (15C)

I2016 13043CW-A001 ROLLER 1 I2054 GP-008534-00 STUD BOLT 6

I2017 13044SR-4013 E-RING (@4) 1 I2055 06010SC-8118 PLUS SCRE W (M3*L4)6

I2018 08057SW-1111 WA SHER (@6) 1 I2056 09100205B000 BOARD COVER (15,C )1

I2019 130 42SN-1111 HEX.NUT (M6*T5-R) 1 I2057 13061SC-8119 PLUS SCRE W (M3*L10) 4

I2020 13036PR-A001 MAGNET HOLDER 1 I2058 05057SN-3211 HEX. NUT (M3-NO2) 4

I2021 10-027C-SC 53 MAGNET 1 I20 59 GP-008160-00 MEMBRANCE SWITCH (B-UH1208-45) 1

I2022 22006SC-7113 HEX. SOCKET BOLT (M3*L8) 2 GP-008159-00 ME MBRANCE SWITCH ( B-UH1508-45)

I2023 06011SW-2111 WA SHER (@3) 2 I2060 03062ET-A001 CODE CLIP 1

I2024 17054SH-AB 00 COLOR CHANGE SHAFT "A" (12C ) 1 I2061 22025 SC-9134 SCREW (M4*L10) 1

08000205B000 COLO R CHANG E SHAFT "A " (15C) I2062 09000300B000 MAGNE T STICKER 1

I2025 13042SN-1111 HEX.NUT (M6*T 5-R) 1 I2063 25101E T-B001 COLOR CHANGE C ONNECTOR 1

I2026 03026SW-9115 SP RING WA SHER (@6) 1 I2064 25015EL-A001 COLOR CHANGE -JOINT B/D (25-15) 1

I2027 03025SW-1211 WASHER (@6) 1 I2065 25073EL-A001 HALF TURN SE NSOR CABLE (25-73) 1

I2028 08106200B000 MAGNET HOLD ER SPAC ER 1 I2066 02107100UH80 CA BLE (SH-71) 1

I2029 06000205UH80 C OLOR CH ANGE SHA FT C L=1535.5 1 I2067 08100014B000 COLOR CHANGE BOX SET (12C) 1

I2030 06000105UH80 C OLOR CH ANGE SHA FT B L=1555 1 08100015B000 COLOR CHANGE BOX SET (15C)

I2031 130 42SN-1111 HEX.NUT (M6*T5-R) 3

I2032 170 53SN-1111 HEX. NUT(L) (M6*T5-L) 2

I2033 17051SN-A001 MES P RIVING SHAFT JOINT 2

I2034 13028MT-A001 COLOR CHANGE MOTOR UNIT 1

I2035 13029G A-A001 MOTOR GE AR 1

I2036 13030SC-4517 HEX. SOCK ET SET SCREW (M4*L8) 1

51

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

J-001 08500010U000 Upper Thread Catcher Set 4 J-033 07018SC-8118 P lus Screw (M3*L8) 8

J-002 03500110H000 U pper Thread Catcher Base 4 J-034 06010SC-8118 Plus Screw (M3*L4) 16

J-003 02023SC-7113 Hex.Socket Bolt (M4*L8) 8 J-035 03003100H000 Upper Thread Hook Motor Unit 1

J-004 18014SW-3115 Spring Washer (@4-No2) 8 J-036 03003210H000 MOTOR BASE 1

J-005 18015SW-3111 Washer (4@) 8 J-037 06025MC-7113 Hex.Socket Bolt(M6*L25) 4

J-006 03500900H000 C lutch Block 4 J-038 16014SW-4115 Spring Washer (@6) 4

J-007 03501000H000 C lutch Stud Screw 4 J-039 08057SW-1111 Washer (@6) 4

J-008 03501100H000 C lutch Spring 4 J-040 03003300H000 Cam Shaft Fixing Block 1

J-009 03501200H000 C lutch Dial 4 J-041 05008MC-4517 Hex.Socket Bolt(M5*L8) 2

J-010 11029SC-4113 Hex. Socket Bolt (M 4*L20) 8 J-042 GP-005184-01 SENSOR SENSING ADJUSTING RING 1

J-011 03500500H000 U pper Catcher Driving Lever 4 J-043 04014SC-4517 Hex.Socket Set Screw(M5*L5) 2

J-012 03500600H000 D riving Lever Pin 4 J-044 03003500H000 Motor Drivi ng Cam Shaft 1

J-013 03500700H000 D riving Lever Pin Collar 4 J-045 04014SC-4517 Hex.Socket Set Screw(M5*L5) 1

J-014 04014SC-4517 Hex.Socket Set Screw(M5*L5) 8 J-046 GP-005180-00 UPPER THREAD HOOK SENSOR BASE 1

J-015 03500800H000 D riving Lever Pin Washer 8 J-047 07035SC-7113 B RACKET SCREW (M3*L6) 2

J-016 03500330H000 U pper Thread Hook 4 J-048 15-027A-2070 SENSOR 1

J-017 03500210H000 U pper Thread Hook Base Cover 4 J-049 13061SC-8119 Plus Screw (M 3*L10) 1

J-018 12209100U000 Cap Guide 4 J-050 03004200HH00 MOT OR DRIVING CONNECT PLATE 1

J-019 03005MC-3123 TRUSS SC REW (M3*L5) 24 J-051 03004400H000 Motor Driving Connect Bearing 2

J-020 08600002B000 Upper Thread Base Set (6C) 4 J-052 03008300H00 0 Connecting Plate Stud Screw A 1

08600003B000 Upper Thread B ase Set (9C) J-053 03004500H000 Connecting Plate Pin Washer 1

08600004B000 Upper Thread Base Set (12C) J-054 03004800H000 Connecting Plate Knuckle 1

08600005B000 Upper Thread Base Set (15C) J-055 03004700H000 Connecting Plate Stud Screw 1

J-021 09040PR-A001 Bracket (L) 4 J-056 16014SW-4115 SPRING WASHER (@6)1

J-022 09041PR-A001 Bracket (R) 4 J-057 13042SN-1111 Hex.Nut (M6*T5-R) 1

J-023 02009SC-A 001 Side Cover Screw 16 J-058 04032SN-A001 Hex. Nut (M8-No2) 1

J-024 09044PR-A001 Upper T hread Holder Disk Set 8 J-059 03002610H000 Return Spr ing Stopper 8

J-029 09034PR-AE00 Upper Thread Presser Base (6C) 4 J-060 05008SC-4113 Hex.Socket Bolt (M4*L16) 8

09030PR-A002 Upper Thread P resser Base (9C) J-061 03002700H000 Return Spring 4

09026PR-AB00 Upper Thread Presser Base (12C) J-062 03002800H000 Return Spring Stopper Was her 4

09052PR-T151 Upper Thread Presser Base (15C) J-063 03003000H000 Return Spring Fix Pin 4

J-030 09035E T-AE00 Velcro (6C) 8 J-064 02015SC-7113 Hex.Socket B olt(M4*L10) 4

09031ET-A002 Velcro (9C) J-065 03002900H000 Return Spring Fix Pin Washer 4

09027ET-AB00 Velcro (12C) J-066 03007000UK20 Upper Thread Driving Shaft (UK1202) 1

09027ET-T151 Velcro (15C) 03007000UK40 Upper Thread Driving Shaft (U K1204)

J-031 09038CW-A001 Thread Presser Space 8 03007000UK60 Upper Thread Driving Shaft (UK1206)

J-032 09037PR-AE00 Presser Base Cover (6C) 4 J-066 03007000UH60 Upper Thread Driving Shaft (UH1506C) 1

09033PR-A002 Presser Base Cover (9C) 06000305UH80 Upper Thread Dr iving Shaft (UH1508)

09029PR-AB00 Presser Base Cover (12C) J-067 03003810H000 Stud Bolt For Driving Plate 1

09029PR-T151 Presser Base Cover (15C) J-068 03003910H000 Upper Thread Driving Plate 1

53

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

J-066 03007000UH60 Upper Thread Driving Shaft (UH1506C) 1

06000305UH80 Upper Thread Driving Shaft (UH1508)

J-067 03003810H000 Stud Bolt For Driving Plate 1

J-068 03003910H000 Upper Thread Driving Plate 1

J-069 03004000H000 Stud Bolt Washer 1

J-070 15095SW-3115 Spring Washer (@8) 1

J-071 04032SN-A001 Hex. Nut (M8-No2) 1

J-072 03004100H000 Driving Plate Block 1

J-073 18047SC-7113 Hex/ Socket Bolt (M5*L15) 2

J-074 18048SW-3115 Spring Washer (5@) 2

J-075 18049SW-3111 Washer (@5) 2

J-076 12001900U000 Upper Thread Hook Motor Cover 1

J-077 03008600H000 Motor Cover Fixing Bracket 2

J-078 02023SC-7113 Hex. Socket Bolt (M4*L8) 2

J-079 18014SW-3115 SPRING WASHE R (@4-NO2) 1

J-080 18015SW-3111 WASHER (4@) 1

J-081 02023SC-7113 Hex.Socket Bolt (M4*L8) 2

J-082 18014SW-3115 Spring Washer (@4-No2) 2

J-083 18015SW-3111 Washer (4@) 2

J-084 02106600U020 Sh-66-1 (UK1202) 1

02106600U040 Sh-66-2 (UK1204)

02106600U060 Sh-66-4 (UK1206)

02106600UH60 Sh-66-3 (UH1506C)

02106600UH80 SH-66-5 (UH1508)

J-085 02106700U020 Sh-67-1 (UK1202) 1

02106700U040 Sh-67-2 (UK1204)

02106700U060 Sh-67-4 (UK1206)

02106700UH60 Sh-67-3 (UH1506C)

02106800UH80 SH-68-5 (UH1508)

55

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

K-001 08200103I000 Head 9C 4 K-034 10110000A000 Eye let "B" (6C) 24

K-002 0 5008SC-4113 Hex.Socket Bolt (M4*L 16) 16 05483CM-A001 Eyelet "B" (9C) 36

K-003 06003SW-2111 Washer (@4) 16 10110000A000 Eyelet "B" (12C) 48

K-004 08201303I000 Head Rail 9C 4 05483CM-A001 Eyelet "B" (15C) 60

K-005 04023MC-4113 Hex. Socket Bolt (M4*L23) 16 K-035 05062SC-A001 Thread Guide (M) Screw (9/64 n=40) 4

K-006 05015C W-A001 Head Base Pin(@5*L15) 8 K-036 05070SC-3123 Head Face Plate (U) Screw 16

K-007 0 3022SC-4517 Hex. Socket Set Screw(M 4*L5) 8 K-037 12001703I000 H ead Face Plate(L) 4

K-008 05018C W-A001 Needle Bar 36 K-038 11012PR-B001 Thread Guide 36

K-009 05019SC-A001 Needle Bar Cover Screw (M5*L6) 36 K-039 09005SC-3123 Truss Bolt (M3*L5) 36

K-010 08200700H 000 Needl e Bar Felt 24 K-040 10900003I000 Thread Holding Device A'ssy 4

K-011 05023RB-A001 Needle Bar Cushi on Rubber "A" 24 K-041 05070SC-3123 Truss Bolt 9/64 n=40 8

K-012 05024RB-A001 Needle Bar Cushi on Rubber "B" 36 K-042 07005BM-B002 Take-Up Lever Set 36

K-013 1 1101200T000 Upper Dead Point Stopper 36 K-043 08200503A000 Take-Up Lever Shaft (9C) 4

K-014 0 5026SC-4113 Stopper Screw (9/64-11.5) 36 K-044 08203000A000 Take-Up Lever Shaft Bush(L) 4

K-015 08201400H 000 Needl e Bar Holder 36 K-045 08200800A000 Take-Up Lever Shaft Bush(R) 4

K-016 0 5028SC-4113 Holder Screw (9/64-L8) 36 K-046 07009SC-4517 Hex. Socket B olt(M5*L6) 8

K-017 05021P M-H001 Presser Foot Spring Guide 72 K-047 02015SC-7113 Hex.Socket Bolt(M4* L8) 16

K-018 08201000I000 N eedle Bar Return Spring 36 K-048 08004900A 000 Color Change Bracket "B" 3

K-019 08200500I000 P RESSER FOO T 36 K-049 11047PR-A002 Cable Support "B" 4

GP-006119-00 PRESSER FOOT (L) (Option) K-050 02023SC-7113 Hex.Socket Bolt(M4*L5) 8

K-020 08200900I000 P resser Foot Holder A'ssy 36 K-051 05022SW-A001 Spring Shoe Washer 36

K-021 05026SC-H001 Presser Foot Bolt 36 K-052 05070SC-3123 Head Face Plate (U) Screw 8

K-022 GP-007216-00 Needle Bar Return Spring 36 K-053 01303700H000 TENSION PLATE PIN 8

K-023 08201200H 000 Presser Foot Cushion Rubber A 36 K-054 05027PR-H001 PRESSER FOOT HOLDER WASHER 36

K-024 08201600H 000 NE EDLE FIXED HOLDE R 36 K-055 05031AF-A001 PRESSER FOOT GUIDE BUSH 60

K-025 05363SC-A001 Needle Fixed Screw (A/S) 36 K-056 08004700A000 Color C hange Bracket "A" 1

K-026 05037DB-A001 Needl e (Db-K5- #11) 36 K-057 09000200H000 Top Shaft Cover (L) Bracket 1

K-027 08200203I000 N eedle Bar Guide Rail (9C) 4 K-058 13048SC-A001 Bracket "A" Screw 2

K-028 05041SC-A001 Bolt (9/64 n=40) 20 K-059 01001400UK00 Top Shaft Cover (L) 1

K-029 10200103B000 Head Face Pl ate (U) 9C 4 K -060 02015SC-7113 Hex.Socket Bolt(M4*L10) 1

K-030 10200100H 000 Threa d Guide Bush "A-1" 36 K-061 02023SC-7113 HEX. SOCKET BOLT (M4*L8) 1

K-031 10300002A000 Thread G uide (M) Set (6C) 4 K-062 18014SW-3115 SPRING WASHE R (@4-NO2) 2

10300003A000 Thread Guide (M) Set (9C) K-063 18015SW-3111 WASHER (4@)2

10300004A000 Thread Guide (M) Set (12C) K-064 02023ET-A001 Top Shaft Cover Magnet 6

10300005A000 Thread Guide (M) Set (15C) K-065 09000102UK00 Top Shaft Cover "A" (6C) 1

K-032 10300112A000 Thread G uide (M) (6C) 4 09000103UK00 Top Shaft Cover "A" (9C)

10300113A000 Thread Guide (M) (9C) 09000104U K00 Top Shaft C over "A" (12C)

10300114A000 Thread Guide (M) (12C) 02001PM -UK14 Top Shaft Cover "A" (15C)

10300115A000 Thread Guide (M) (15C) 09000104UH00 Top Shaft Cover "A" (L191) (UH1206C)

K-033 05452CM-A001 Eyelet "A" 36 09000105UH00 Top Shaft Cover "A" (L14 6) (UH1506C)

57

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

K-066 09000202UK00 Top Shaft Cover "B" (6C) 2

09000203UK00 Top Shaft Cover "B " (9C)

09000204UK00 Top Shaft Cover "B " (12C)

02005PM-UK14 Top Shaft Cover "B" ( 15C)

09000204UH00 Top Shaft Cover "B" (L191) (UH1206C)

09000205UH00 Top Shaft Cover "B" (L146) (UH1506C)

09000205UH00 Top Shaft Cover "B" (UH1508)

K-067 09000104UK20 Top Shaft Cover (L=291) (UK1202) 1

K-068 09000302UK00 Top Shaft Cover "C" (UK606) 2

09000303UK00 Top Shaft Cover "C " (UK906)

09000304UK00 Top Shaft Cover "C " (UK1206)

02036PM-UK14 Top Shaft Cover Uk1504-45 (UK1506)

09000304UH00 Top Shaft Cover "C" (L191) (UH1206C)

09000305UH00 Top Shaft Cover "C" (L146) (UH1506C)

09000305UH00 TOP SHAFT COVER "C" (L146) (UH1508) 3

K-069 09000305UHF0 TOP SHAFT COVER "A" (L146) (UH1508) 2

K-070 05000103UK00 Color Change Shaft (6C) 1

23007SH-UK01 Color Change Shaft (12C)

23007SH-UK14 Color Change Shaft (15C)

06000104UH60 Color C hange Shaft (@6*L2237) (UH1206C)

06000105UH60 Color C hange Shaft (@6*L2282) (UH1506C)

59

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

L-001 08300102I000 TENSION UNIT PLATE (6C) 4 L-030 11083CW-B001 THRE AD DETECTING WHEEL STUD (15C) 60

08300103I000 TENSION UNIT PL ATE (9C) L-031 GP-005179-00

08300104I000 TENSION UNIT PL ATE (12C ) L -032 08011SC-8118 Screw (M2*L4) 48

08300105I000 TENSION UNIT PL ATE (15C ) L -033 08300202I000 BOARD BASE (6C) 4

L-002 15089SC-7119 C.S Screw (M4*L10) 8 08300203I000 B OARD BASE (9C)

L-003 02002SC-7119 P luss Screw (M4*L8) 20 08300204I000 BOARD B ASE (12C)

L-004 08320000I000 SUB TE NSION ADJUSTING SET 48 08300205I000 BOARD BASE (15C)

L-005 08300600A000 SUB TENSION AD JUSTING NUT( A) 48 L-034 02023SC-7113 Hex. Socket Bolt (M4*L8) 12

L-006 11088PM-A001 TENSION SPRIN G STOPPER 48 L-035 06003SW-2111 Washer (@4) 12

L-007 08301100I000 TENSION SPRING 48 L-036 18009EL-WH06 WHEEL SENSOR BOARD (6C) 4

L-008 08301200I000 TENSION DISC 96 20009EL -WH09 WHEEL SENSOR BOARD (9C)

L-009 08301000I000 TENSION ADJUSTING STUD 48 20009EL-WH12 WHEEL SENSOR BOARD (12C)

L-010 03031SN-A001 Pin. Nut (11/64,N=40) 48 20009EL-WH15 WHEEL SENSOR BOARD (15C)

L-011 08310000B000 TENSIO N ADJUSTING SET 48 L-037 02010SC-3123 Truss Screw (M4*L8) 12

L-012 08300500A000 TENSION ADJUSTING NUT 48 L-038 05016SN-1211 Hex.Nut (M4) 12

L-013 08300700A000 TENSION SPRING STOPPER 48 L-039 02102200U000 Plate To B/B Cable 4

L-014 08300800A000 TENSION ADJUSTING SPRING 48 L-040 02101800B000 Plate Led S/W B oard Cable 4

L-015 11086PM-A001 Tension Spring Collar 48 L-041 08300302I000 CONNECTION PLATE (6C) 8

L-016 11084AF-A001 Felt 144 08300303I000 CONNECTING PLATE A (9C) 4

L-017 11085AF-A001 Rotary Tension Disc 48 08300403I000 CONNECTING PLATE B (9C) 4

L-018 11083PM-A001 Disc Plate 48 08300304I000 CONNECTION PLATE (12C) 8

L-019 11082AF-A001 THREAD TAKE-UP SPRING 48 08300305I000 CONNECTION PLATE "A" (15C) 4

L-020 11081CW-A001 Thread Tension Adjusting Stud 48 08300405I000 C ONNECTION PLATE "B" (15C) 4

L-021 11009PR-B001 Thread Breakage Detecting Plat 48 L-042 09005SC-3123 Truss Screw (M3*L6) 48

L-022 09005SC-3123 Truss Screw (M3*L6) 48 L-043 02103903H000 Wheel Earth 6,9,12C 4

L-023 11012PR -B001 Thread G uide (New) (12C) 120 25124EL-B001 Tension Plat Earth Cable 15C

L-024 09005SC-3123 Truss Screw (M3*L6) 120 L-044 25126EL-B001 Sensor Board To Wheel Earth 4

L-025 11014SN-1211 Hex.Nut (M3-No2) 120 L-045 11009SC-A001 Stud Screw 48

L-026 05452CM-A001 EYELET "A" 48 L-046 03-0000-EMB1 Head On/Off S/W Board 6C,12C 4

L-027 08300702I000 ROLLER BASE (6C) 4 02-0000-EMB1 Head On/Off S/W Board 9C,15C

08300703I000 ROLLER BASE (9C) L-047 08300400A000 Lamp C over 4

08300704I000 ROLLER BASE (12C) L-048 08202000A000 TE NSION ADJUSTI NG PLATE HOLDER (6C)(9C) 8

08300705I000 ROLLER BASE (15C) 08202000I000 TENSION A DJUSTING PL ATE HOLDE R (12C)

L-028 11075PM-B001 Thread Sensor Roller(B1)Set (6C) 24 11020PM-B001 TENSION ADJUSTING PLATE HOLDER (15C)

11075PM-B001 Thread Sensor Roller(B1)Set (12C) 48 L-049 05009SW-1111 Washer (@4-L) 8

11075PM-B001 Thread Sensor Roller(B1)Set (15C) 28 L-050 11029SC-4113 Hex. Socket Bolt (M4*L20) 8

L-029 11076PM-B001 Thread Sensor Roller(B2)Set (15C) 32 L-051 04010MC-7113 Hex.Socket Bolt (M4*L10) 8

L-030 08308300B000 THRE AD DETECT ING WHEEL STUD (6C) 24 L-052 11032PR-T121 Cable Supporter 12C 1

11083CW-B001 THR EAD DETECTING WHEEL STUD (9C) 36 L-053 02023SC-7113 Hex. Socket Bolt (M4*L8) 6

08308300B000 THR EAD DETECTING WHEEL STUD (12C) 48 L-054 08003202B000 Cover PL ate (R) 6C (6C) 1

THREAD BREAKAGE DETECTING WHEEL

48

61

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

L-054 02006PR-UK01 Cover PLate (R ) (9C ) 1

08003204B000 COV ER PLATE (R) 12C (12C)

02006PR-UK14 COVER PLATE (R) 15C (15C)

L-055 11031PR-AB00 Cover Plate 12C 1

L-056 08003302B000 Cover PLate (L ) (6C) 1

02009PR-UK01 Cover PL ate (L) (12C)

02009PR-UK14 Cover PL ate (L) (15C)

02009PR-UK02 Cover Plate (L) Uk1202-45 (UK1202)

02009PR-UK12 Cover Plate Uk1502-45 (UK1502)

L-057 08000803I000 TENSION PLATE COVER ( 9C) 4

08000804I000 TENSION PLATE COVER (12C)

08000805I000 TENSION PLATE COVER (15C)

L-058 08300002I000 TENSINO UNIT SET (6C) 4

08300003I000 TENSINO UNIT SET (9C)

08300004I000 TENSINO UNIT SET (12C)

08300005I000 TENSINO UNIT SET (15C)

63
