SWF Eight Head Automatic Embroidery Machine User Manual

Download

Page 1

Page 2

Page 3

CONTENT

Machine Body Ass y Work Table Spool Stand Main Drive System Bed Bed Thread Cutting Drive System Arm Arm Arm Color Change Set Wiper Set Head Thread Tension Unit X-Axis Drive System Y-Axis Drive System Tubular Frame Border Frame S/B Switch Unit Sub-Control Unit & Lamp Main Controller Operation Unit Bobbin Winder

9 11 13 17 19 21 23 27 29 31 33 37 41 43 47 51 53 55 57 59 61 63

A B

C D E

F G H

J K L

N O

P Q R

S T U

H1 H2

Page 4

Page 5

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

A-004 02044SC-3123 Truss Screw (M5*L8) 18 A-063 01000105UH81 Beam & Body (Uh1508-45) 1

A-011 02031SC-7113 Hex. Socket Screw(M5*L 10) 21 A-064 09000800UH80 Body Front Cover A 1

A-012 05001300UH80 Table Support Angle A L529 2 A-065 09000900UH80 Body Front Cover B 4

A-014 02044SC-3123 Truss Screw (M5*L8) 9 A-066 09001000UH80 Body Front Cover C 1

A-016 02044SC-3123 Truss Screw (M5*L8) 9 A-067 09001100UH80 Body Front Cover D 1

A-017 02088PR-UK01 Power Switch Cover 1 A-068 09001200UH80 Body Front Cover E 1

A-020 02015SC-7113 Hex.Socket Bolt(M4*L 10) 2 A-069 09001300UH80 Body Front Cover F 1

A-021 05009SW-1111 Washer (@4-L) 2 A-070 01000800UK60 Body Inside Cover (A) 1

A-022 02028SW-9115 Spring Washer (@4) 2 A-071 10000110U060 Body Inside C over (B) 1

A-023 01002LA-UK01 Leveling Base Ass'Y 4 A-072 01001600UK60 Beam Bracket Cover (R) 1

A-024 01004SC-UK01 Hex. Bolt (M20*L60) 4 A-073 01001700UK60 Beam B racket Cover (L) 1

A-025 02036SN-1211 Hex. Nut (M20-No2) 4 A-074 02054P R-A001 Main Mot or Pulley Cover 1

A-026 02058PR-UK06 Body Side C over 2 A-075 02044SC -3123 Truss Screw (M5*L8) 1

A-027 02044SC-3123 Truss Screw (M5*L8) 12 A-076 02001500U000 Jump Smps (Mr k0R4-H) 1

A-028 02043RB-W121 Body Support Rubber Cap 4 A-077 02106300U000 Sh-63 1

A-029 02101ET-UK01 B rand Mark 1 A-078 05001400UH80 Table Support Angle B L399 3

A-031 02097ET -B001 Model Name Plate 1

A-034 02010SC-3123 Truss Screw (M4*L8) 8

A-036 01000100UH80 Hammer C aster Set (Urethane) 4

A-037 14006SC-7113 Hex.Socket Set Screw(M8*L 15) 16

A-038 15095SW-3115 Spring Washer (@8) 16

A-039 04029SW-A001 Stud Bolt Washer(S) (@8) 16

A-040 14003SC-4113 Hex. Socket Bolt (M8*L25) 16

A-041 15095SW-3115 Spring Washer (@8) 16

A-042 08041SW-1111 Washer (@ 8-S) 16

A-043 02000100T000 Magnetic Switch Set 1

A-044 02000400T 000 Cable Grand (Dacl-11) 1

A-046 02000700T000 Push B/T Switch 1

A-047 02000910T 000 Magnetic S/W Fixed Bracket 1

A-048 02001100T000 Switch Plate 1

A-049 02001200T000 Resister 5/20W (C e) 1

A-050 02001300T 000 Bracket Stopper (Ce) 2

A-053 02105800E040 Magnetic - Emt24 T rans 1

A-054 02106100U060 Emt24 Trans Output - Emergen 1

A-056 05000210T000 Transformer (Emt25V ) 1A/25.5V 1

A-057 07000100U000 Main Switch Box 1

A-059 02010SC-3123 Truss Screw (M4*L8) 8

A-060 02000600T 000 Cable Grand (Dapg-36) 1

A-061 02105700U020 I/O Switch Connect Cable 1

A-062 02105600U040 I/O S/W - Magnetic Contactor 1

Page 6

Page 7

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

B-011 05000600UH81 LM Guide Cover (L) L=693 1 B-068 25021EL-UK06 Cable (25-21) 1

B-012 05000700UH81 LM Guide Cover (R) L=693 1 B-070 10000310A000 Washer T=0.3,0.5,0.8,1.2,1.6 54

B-015 08101SC-8329 Tapping Screw (M3*L 16) 44 B-071 05000110UH81 Fixed Table "A" 1

B-018 02030SC-T121 Bed C over Screw(9/64" 40) 14 B-072 05000210UH81 Fixed T able "B" 1

B-019 16016PR-UK01 Gear Cove r 4 B-073 05000310UH81 Fixed T able "C" 1

B-020 16018PR-UK01 Mes Cam Driving Box C over 1 B-074 05000410UH81 Fixed Table "D" 1

B-021 16020PR-UK01 Front Table Support (L) 1 B-075 05000510UH81 Fixed T able E 1

B-022 16025PR-UK01 Front Table Support (R) 1 B-076 08000110UH81 Table "A" 1

B-023 08076SC-7113 Hex. Socket Bolt (M5*L12) 26 B-077 08000210UH81 Table "B" 1

B-024 18048SW-3115 Spring Washer (@5) 34 B-078 08000310UH81 Table "C" 1

B-025 16018SW-1111 Washer (@5) 34 B-079 08000410UH81 Tabl e "D" 1

B-026 16009SC-8330 Tapping Screw (M6*L 20) 83 B-080 05000110UH80 Y-Motor Coupling Cover L 1

B-037 17062AD -UK06 Table Supporter (C) 10 B-081 05000100UH80 Table Cover L766 2

B-038 16009SC-4113 Hex.Socket Bolt(M10*L25) 30 B-085 05008100UK40 Table Fixing Block 7

B-039 16029SW-3115 Spring Washer (10@) 30 B-086 05001700U000 Table Support Plat e 46

B-040 01007SW-1111 Washer (10@) 30 B-087 05001500UK40 Angle Support 4

B-041 16021CW-A001 Table Support Stud 6 B-088 05001300U000 Table S upport L=263 4

B-042 04032SN-A001 Hex. Nut (M8-No2) 12 B-089 05001200UH80 Table Support Angle (E) L337 2

B-043 15095SW-3115 Spring Washer (@8) 6 B-090 05000120UH80 Y-Motor Coupling Cover R 1

B-044 04030SW-A001 Stud Bolt Washer(L) (@8) 6 B-091 05001100UH80 Table Support Angle (B) L452 1

B-045 04029SW-A001 Stud Bolt Washer(S) (@8) 6 B-092 GP-003757-00 TABLE SUPPORT END CAP 20

B-046 16052AD -UK01 Table Support Guide 4 B-093 05001500UH80 TABLE SUPPORT PLATE 4

B-047 02015SC-7113 Hex.Socket Bolt(M4*L10) 8 B-094 04030MC-4113 HEX.SOCKET BOLT (M4*L30) 4

B-048 02028SW-9115 Spring Washer (@4) 8 B-095 05010100U000 T ABLE SUPP ORTER (A1) L=628 1

B-049 05009SW-1111 Washer (@4-L) 8 B-096 05010200U000 TA BLE SUPPO RTER (A2) L=402 1

B-050 17062SC-UK01 Table Support Stopper Screw 2 B-097 05010300U000 TABLE SUPPORTER (B1) L=628 1

B-051 17063SC-UK01 Table Support Stopper Screw 2 B-098 05010400U000 TABLE SUPPORTER (B2) L=402 1

B-053 16061PR-UK01 Table Support Plate (A) 4

B-054 16058AD -UK01 Table Support Plate (B) 4

B-055 15089SC-7119 C.S Screw (M4*L12) 8

B-056 08101SC-8329 Tapping Screw (M3*L 16) 8

B-057 16067ET-UK01 Table Toggle Clamp 10

B-058 19002SC-1330 Tapping Screw (4*L 16-No1) 40

B-059 16065PR-UK01 Clamp Plate 6

B-060 17073PR-UK01 Table Support Angle "F" 3

B-062 08062SC-7113 Hex. Socket Bolt (M5*L20) 8

B-064 05014SC-7113 Hex. Socket Bolt (M4*L25) 10

B-065 16063PM-U K01 Table Holding Block 12

B-066 17085PM-U K01 Positioning Block 4

B-067 17103LA-UK06 Belt Tension A djusting Cover 2

Page 8

Page 9

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

C-001 05100104UH08 SPOO L PLATE L=3280 (12C) 1 C-066 08301000A000 TENSI ON ADJUSTING STUD 120

05100105UH80 SPOOL PLATE L=3280 (15C) C-067 11162PR-A001 TENSION PLATE 120

C-002 02002SC-7119 Pluss Screw ( M4*L8) 8 C-068 10600210B000 SUB TENSION ADJUSTING SET (black) 8

C-003 11005CW-UK01 Spool Plate Fixing Bol t M6*L21 8 C-069 10600610A000 SUB TENSION ADJUSTING NUT (B) (black) 8

C-004 03016SC-4113 Hex. Socket Bolt (M5*L15) 8 C-070 08301100A000 TENSION SPRING 120

C-005 18048SW-3115 Spring Washer (@5) 8

C-006 18049SW-3111 Washer (@5) 8

C-007 12004PR-W121 Spool Plate Support Base 4

C-008 12012PM-A001 Spool Holder 120

C-009 12052SF-A 001 Spool Sponge 120

C-010 13009SC-A001 Color Change Cam Gear Screw 120

C-011 18049SW-3111 Washer (@5) 120

C-012 18048SW-3115 Spring Washer (@5) 120

C-013 12010SN-1211 Hex.N ut (M5) 120

C-014 12033RB-UK01 Cushion Rubber 3

C-015 12014SC-A001 Spool Stand Bolt 8

C-016 04014SC-4517 Hex.Socket Set Screw(M5*L5) 16

C-019 03016SC-4113 Hex. Socket Bolt (M5*L15) 8

C-020 05200104UH08 Angle "A" L=3220 (12C) 1

05200105UH80 Angle "A" L=3220 (15C)

C-021 05200204UH08 Angle "B" L=3220 (12C) 1

05200205UH80 Angle "B" L=3220 (15C)

C-023 12042PM-A001 Eyelet 240

C-024 02015SC-7113 Hex.Socket Bolt(M4*L10) 12

C-025 02028SW-9115 Spring Washer (@4) 12

C-026 06003SW-2111 Washer (@4) 12

C-032 11153PR-B001 Tension Disc @22 240

C-035 18048SW-3115 Spring Washer (@5) 120

C-036 03031SN-A001 Pin. Nut (11/64,N=40) 120

C-055 12015SF-A 001 SPO OL STAND ( L=330) (12C) 10

01001500T000 SPOOL STAND (L=380) (15C) 10

C-056 10000100A000 Thread Gui de L=200 16

C-057 10600100H000 Thread Angle Frame 4

C-058 05200304UH08 Angle "C" L=3220 (12C) 1

05200305UH80 Angle "C" L=3220 (15C)

C-059 05200404UH08 Angle "D" L=3220 (12C) 1

05200405UH80 Angle "D" L=3220 (15C)

C-062 10600110B000 SUB TENSION A DJUSTING SET 112

C-063 08300600A000 SUB TENSION ADJUS TING NUT ( A) 112

C-064 11088PM-A001 TENSION SPRING STO PPER 120

Page 10

Page 11

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

D-003 15095SW-3115 Spri ng Washer (@8) 11 D-103 14013CS-E131 Upper Shaft Support Bracket 1

D-004 08041SW-1111 Washer (@8-S) 11 D-105 13032GA-UK06 Index Shaft Gear Uk06 2

D-008 04012AF-A001 H ook Shaft Bush Screw 8 D-106 13034GA-UK06 Mi ddle Shaft Gear Uk06 1

D-016 14058CW-A001 Collar "A" 3 13036BR-UK01 Needle Bearing (63800Zz)2

D-017 14060AF-4517 Hex.Socket Screw(M6*L6) 4 D-109 13120CW-UK01 I dler Shaft 1

D-020 040 27BR-A001 Needle Bearing (Hmk1515) 2 D-111 13118CS-UK01 Idler Support Bracket 1

D-021 080 28BR-A001 Thrust Washer (As 1528) 4 D-114 13042SN-1111 Hex.Nut (M6*T5-R) 2

D-022 080 27BR-A001 Thrust Bearing (Ntb 1528) 2 D-115 03704900A000 Cam Shaft Collar 2

D-024 04016AF-A001 C am Collar Screw 4 D-116 03000200U000 Ti ming Belt (25-S5M*L1025) 1

D-025 1304 1SH-UK01 Middle Shaf t 1 D-119 03000300U 000 Idler 1

D-028 12019B R-T121 Fiber Washer R-Tw1020 2 13026BR-T121 Needle Bearing (6002Z) 2

D-029 13038CW-UK01 C ollar "C" 2 D-120 021 06500UH80 Sh-65-5 1

D-030 03022SC-4517 Hex. Socket Set Screw(M 4*L5) 4 D-121 14061AF-4517 Hex.Socket Screw(M8*L8) 8

D-031 08053PR-A001 L ever Washer 2 D-122 03000400U000 Main Motor (Xp50B0705 0Dxe92) 1

D-032 02023SC-7113 Hex. Socket Bolt (M4*L 8) 2 D-123 03010800UH80 Main Motor Pulley 1

D-033 02028SW-9115 Spring Washer (@4) 2 D-124 04014SC-4517 Hex.Socket Set Screw(M 5*L5) 2

D-034 05009SW-1111 Washer (@4-L) 2 D-125 15030SC-7113 Hex. Socket Bolt (M5*L30) 4

D-036 04026BR-A001 Ball Bearing 6003Z 1 D-126 18048SW-3115 Spr ing Washer (5@) 4

D-038 04039PR-A001 Bea ring Cover 1 D-127 18049SW-3111 Washer (@5) 4

D-047 13053PR-UK01 Angl e Plate Base 1 D-130 03006400U000 Motor Fixing 1

D-048 14006SC-7113 Hex.Socket Set Screw(M8*L15 ) 1 D-131 14046SC-7113 Hex.Socket Bolt (M6*L30) 4

D-049 13054ET-UK01 Angle Disk 1 D-132 16014SW-4115 Spring Washer (@6) 4

D-052 02023SC-7113 Hex.Socket B olt (M4*L8) 2 D-133 08057SW-1111 Washer (@6) 4

D-062 03100600UH80 Index Shaft (215*L48 2.5) 1 D-134 03000900U 000 Tension Adjusting Block 1

D-064 02000100UH80 L ow Shaft A 1 650 1 D-135 14063SC-A001 Tension Control B olt (M6*L40) 1

D-069 14079CW-UK06 Lower Shaft Coup ling 1 D-136 08057SW-1111 Washer (@6) 1

D-070 14060AF-4517 Hex.Socket Screw(M6*L6) 4 D-137 08058SN -1311 Hex. Nut (M6-No3) 1

D-076 13107CW-UK01 Col lar 1 D-138 08062SC-7113 Hex. Socket Bolt (M5*L20) 2

D-077 14017PR-E13 1 Bearing Cover 2 D-139 18048SW-3115 Spring Washer (5@) 2

D-083 13109CL-UK01 Tensi on Adjusting Block 1 D-140 18049SW-3111 Washer (@5) 2

D-084 13106PR-UK01 Idler Spacer 1 D-142 03012100U000 Low Shaft Support B racket 1

D-085 14063SC-A001 Tension Control Bolt (M6*L 40) 2 D-143 08091SC-7113 Hex. Socket Bolt (M6*L 20) 4

D-086 18015SW-3111 Washer (4@) 2 D-144 16014SW-411 5 Spring Washer (@6)4

D-089 16059SC-7113 Hex.Socket B olt (M6*L12) 2 D-145 08057SW-1111 Washer (@6) 4

D-090 08057SW-1111 Washer (@6) 8 D-146 03000130U 000 Index Timming Pulley 1

D-092 15095SW-3115 Spring Washer (@8) 15 D-148 03000120U 000 Top Shaft Timming Pulley 1

D-093 08041SW-1111 Washer (@8-S) 15 D-149 16009SC-4113 Hex.Socket Bolt(M10 *L25) 2

D-098 14027SC-4113 Hex.Socket Bolt (M8*L30) 3 D-150 01008SW-9115 Spring Washer(@10) 2

D-101 010 29BR-A001 Ball Bearing (6004Zz) 4 D-151 01007SW-1111 Washer (10@) 2

D-102 14019SR-4013 C-Ring @42 2 D-152 08091SC-711 3 Hex. Socket Bolt (M6*L20) 2

Page 12

Page 13

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

D-153 03026SW-9115 Spring Washer (@6) 2

D-154 03010SR-4013 C-Ring ( @47) 2

D-155 010011 00H000 Ball Bearing ( 6005Zz) 2

D-156 03101300UH80 U pper Shaft Support Bracket 1

D-157 03010800UH00 Mai n Motor Pull ey 1

D-158 03005210H000 Collar "A" 2

D-159 03101400U000 Upper Shaft Support C over 2

D-160 05007SC-7113 Hex. Socket Bolt (M3*L 5) 6

D-161 01000210UH80 Top Shaft A L =2076 1

D-162 14061AF-4517 Hex.Socket Screw (M8*L8) 8

D-163 01000220UH80 TOP SHAFT B L=1479 1

D-164 03006720HDK0 Cou pling @20 1

D-165 08091SC-7113 Hex. Socket Bolt (M6*L 20) 4

D-166 02000200UH80 L ow Shaft B 1 448 1

D-167 13123CW-E121 Idelr Plate 1

D-168 01102000B000 Bearing Bushi ng 1

D-169 02106400UH80 C able (Sh-64-5) 1

D-170 03100700UH80 Mai n Driving Bel t 200J 1

D-171 21002SC-8119 PLUS S CREW (M3*L 8) 3

D-172 14060AF-4517 HEX.SOCKET SCREW(M 6*L6) 2

D-173 03012210U000 Indicator 1

D-174 03000900U060 TEN SION ADJU STING BLO CK 1

Page 14

Page 15

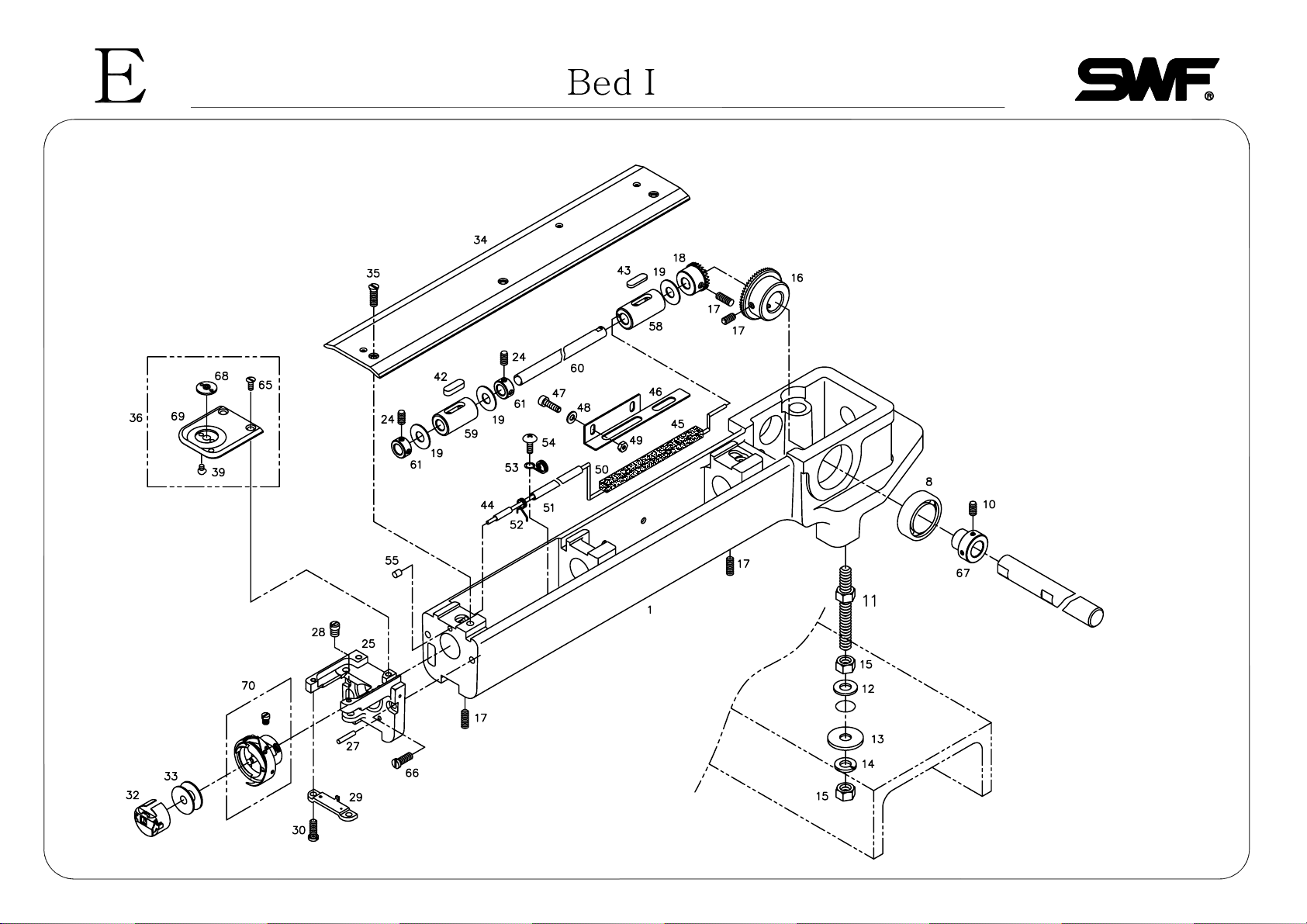

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

E-001 01110000U000 Bed (Set) #1 8 E-059 02000300T000 Hook Shaft Front Bushing 8

E-008 04026BR-A001 Ball Bearing 6003Z 8 E-060 02100300U000 Hook Shaft 8

E-010 04016AF-A001 Cam Collar Screw 16 E-061 03707300A000 Solenoid Collar 16

E-011 04028SC-A001 Stud Bolt (M10*L69) 24 E-065 04004AF-A001 Needle Plate Screw 16

E-012 04029SW-A001 Stud Bolt Washer(S) (@8) 24 E-066 04037SC-A001 Rotary Hook Support Screw 16

E-013 04030SW-A001 Stud Bolt Washer(L) (@8) 24 E-067 01102000B000 B earing Bushing 8

E-014 15095SW-3115 Spring Washer (@8) 24 E-068 02022CW-T121 NE EDLE GUIDE PLATE(FLAT) 8

E-015 04032SN-A001 Hex. Nut (M8-No2) 48 E-069 02019PR-T121 NEE DLE PLATE(CAP) 8

E-016 04017GA-UK01 Low Shaft Gear 8 E-070 04033AF-D002 Rotary Hook Set8

E-017 04012AF-A001 Hook Shaft Bush Screw (15/64) 48

E-018 04019GA-UK01 Hook Shaft Gear 8

E-019 02004BR-T121 Hook Shaft Bearing Washer 24

E-024 08113SC-A001 Collar Screw 32

E-025 02007CL-T121 Needle Plate Bracket 8

E-027 02009PI-T121 Spri ng Pin 16

E-028 04026SC-T121 Needle Plate Pin 8

E-029 02010CL-T121 Rotary Hook Support 8

E-030 02011SC-3125 Rotary Hook Support Screw 16

E-032 04034AF-A001 Bobbin Case Set 8

E-033 04035AF-A001 Bobbi n 8

E-034 04036PR-UK01 Bed C over 8

E-035 02030SC-T121 Bed Cover Screw(9/64" 40) 24

E-036 02019BM-T121 Needle P late Set(Cap) 8

E-037 02019PR-T121 Needle Plate(Cap) 8

E-039 04007SC-A001 Cushion Cover Screw (M3*L2.3) 16

E-042 32043SF-T121 Front Bushing Felt 8

E-043 18039SF-UK01 Felt 8

E-044 32045CW-T121 Oil Hose Pin 8

E-045 18041SF-UK01 Bed Felt 8

E-046 32040PR-T121 Bed Felt Cover 8

E-047 02023SC-7113 Hex. Socket Bolt (M4*L8) 16

E-048 02063SW-1111 Washer( @4) 16

E-049 05016SN-1211 Hex.Nut (M4) 16

E-050 18044ET-UK01 Wick L=400 8

E-051 18045ET-UK01 Oil Hose L=160 8

E-052 32046SP-T121 Holder For Oil Hose 8

E-053 32021SP-T121 Needle Bar Hose Holder "B" 8

E-054 28021SC-3123 Truss Screw (M3*L4) 8

E-055 32047RB-T121 O il Rubber Cap 8

E-058 01102200U000 Hook Shaft R ear Bushing 8

Page 16

Page 17

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

F-001 10009EL-A004 PICKER SOL. SET 8

F-002 10009EL-T121 Picker Sol. 8

F-003 01-012A-AT10 Picker Sol. Cover 8

F-004 28021SC-3123 TRUSS SCREW (M3*L4) 16

F-005 10021SC-A 001 SOL. STUD SCREW 8

F-006 10011SP-A001 SOL . SPRING 8

F-007 13044SR-4013 E-RING (@4) 8

F-008 10012RB-A001 CUSH ION WASHER 8

F-009 01-011A-AT10 Connecting Plate 8

F-010 08018CL-T121 PICKER BASE 8

F-011 06010AF-8118 Plus Screw(M3*L4) 16

F-012 02015SC-7113 Hex.Socket Bolt(M4*L10) 16

F-013 08012CW-T121 Connecting Pl ate Stud Screw 8

F-014 08018CL-T121 Picker Base 8

F-015 08021PR-T121 Picker 8

F-016 07018SC-8118 Plus Screw (M3*L8) 16

F-017 08013CL-T121 Picker Bracket 8

F-018 15159SR-4013 E-Ring (3@) 8

F-019 10015SC-4215 Plus Screw (M3*L10) 8

F-020 08112SN-A001 Hex. Nut (M3) 8

F-021 08016SC-T121 Plus Screw(15/64*N28) 8

F-023 04038PR-T121 Hook Cover 8

F-024 08014AF-A001 Plus Screw (M3*L8) 16

F-026 02015SC-7113 Hex.Socket Bolt(M4*L10) 8

F-027 07021MP-T121 Lever Shaft Bush 16

F-029 07023CW-T121 Lever Pin "A" 8

F-030 02029SN-9311 Hex. Nut (M4-No2) 8

F-031 07006LA-UK01 Mes Connecting Link 8

F-032 07026FU-T121 Moving M es Shaft 8

F-033 07028PR-T121 Moving Mes 8

F-036 03022SC-4517 Hex. Socket Set Screw(M4*L5) 16

F-037 07032CL-T121 Fixed Mes 8

F-038 07033PR-T121 Under Thread Presser 8

F-039 07018SC-8118 Plus Screw (M3*L8) 16

F-040 03050SC-4517 Hex. Socket Set Screw (M3*L3) 8

F-042 116410S-8118 Driver Screw 11/64-40,L10 8

F-043 13003000T000 Mes Shaft Coll ar 8

F-044 08014SC-A001 Plus Screw (M3*L 8) 8

F-045 03001100U000 Mes D riving Lever Shaft "A" 8

F-046 02100400U000 Mes D riving Lever 8

Page 18

Page 19

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

G-001 08023CS-UK01 Mes Cam Driving Box 1 G-048 08102EL-A001 Zero Point Sensor Ass'Y 1

G-002 08042MP-UK01 Mes Cam Shaft Bush 1 G-049 - Mes Retracting Sensor 1

G-003 03022SC-4517 Hex. Socket Set Screw(M4*L5) 1 G-050 - Tooth L ocked Washer 2

G-004 07034CM-UK01 Mes Cam 1 G-051 - Hex. Nut 2

G-005 04016AF-A001 Cam Collar Screw 2 G-052 08070PR-UK01 Sensor B racket 1

G-006 08028BR-A 001 Thrust Washer (As 1528) 4 G-053 02031SC-7113 Hex. Socket Screw (M5*L10) 2

G-007 08027BR-A 001 Thrust Bearing (Ntb 1528) 1 G-054 18014SW-3115 Spring Washer (@4-No2) 2

G-008 04027BR-A 001 NE EDLE BEARING (HMK1515) 1 G-055 18049SW-3111 Washer (@5) 2

G-009 07038CW-UK01 Mes Cam Shaft 1 G-056 07041GA-UK01 Gear "A" 1

G-011 04016AF-A001 Cam Collar Screw 4 G-057 07043GA-UK01 Gear "B" 1

G-012 07015PR-UK01 Solenoid Plate 1 G-058 04012AF-A001 Hook Shaft Bush Screw 4

G-013 02031SC-7113 Hex. Socket Screw(M5*L10) 2 G-059 08025CW-UK01 Box Stud Bolt 3

G-014 18048SW-3115 Spring Washer (5@) 2 G-061 04030SW-A 001 Stud Bolt Washer(L) (@8) 3

G-015 18049SW-3111 Washer (@5) 2 G-062 04029SW-A001 Stud Bolt Washer(S) (@8) 3

G-016 08068EL-UK01 Thread Tri mming Solenoid Ass' 1 G-063 15095SW-3115 Spring Washer (@8) 3

G-017 - Solenoid 1 G-064 08021PM-UK01 Lever Stopper 1

G-019 11014SN-1211 Hex.Nut (M3-No2) 2 G-065 02015SC-7113 Hex.Socket Bolt(M4*L10) 2

G-020 07017CL-UK01 Solenoid Crank 1 G-066 18015SW-3111 Washer (4@) 2

G-021 03071SC-7113 Hex. Socket Bolt (M3*L10) 1 G-067 02000400UH80 MES DRIVING SHAFT "B" L1377 1

G-022 08048AF-T121 Solenoid Crank Roller 1 G-068 17051SN-A001 Mes Priving Shaft J oint 1

G-023 18014SW-3115 Spring Washer (@4-No2) 1 G-069 13042SN-1111 Hex.Nut (M6*T5-R) 1

G-024 08050SN-T121 Hex. Nut 1 G-070 17053SN-1111 Hex. Nut(L) (M6*T 5-L)1

G-026 02014SC-7113 Hex. Socket Bolt (M4*L5) 1 G-071 02104400UH80 C ABLE (SH-44-5) 1

G-027 07025CW-UK01 Lever Shaft ( @8*L70) 1 G-072 02102600UH80 CABLE (SH-26-4) 1

G-028 07024BR-UK01 Fiber Washer(R-Tw0805) 3 G-073 0820300 0A000 Take-Up Lever Shaft Bush(L) 1

G-029 07028CL-UK01 Mes Driving Lever 1 G-074 03704900A000 Cam Shaft Collar 1

G-030 07029CL-UK01 Mes Driving Crank 1 G-076 08071RB-UK01 Thread Dr iver Box Ruber 1

G-031 08022RB-T121 O-Ring (@10) 1 G-077 03000700TH00 Thread L ever Connect Link 1

G-032 - Roller Set 1 G-078 04032SN-A001 Hex. Nut (M8-No2) 6

G-033 07030AF-UK01 Roller 1

G-034 07026CW-UK01 Roller Shaft 1

G-035 08034CW-UK01 Lever Connecting P in 1

G-036 04010MC -7113 Hex. Socket Bolt (M4*L 10) 1

G-038 08016CW-UK01 Link Stud Bolt 1

G-039 08023CL-UK01 Mes Shaft Cramp 8

G-040 02015SC-7113 Hex.Socket Bolt(M4*L10) 8

G-041 02000300UH80 Mes Driving Shaft "A" L1443 1

G-042 08019CW-UK01 Clamp Stud B olt 7

G-046 08023CW-A001 Mes Shaft Cramp 1

G-047 02015SC-7113 Hex.Socket Bolt(M4*L10) 1

Page 20

Page 21

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

H-002 04029SW-A001 Stud Bolt Washer(S) (@ 8) 24 H-171 03303000H000 Connecting Rod 8

H-003 15095SW-3115 Spring Washer (@8) 24 H-172 03300310H000 Needle Bar Driving Cam @20 8

H-009 02031SC-7113 Hex. Socket Screw(M5*L10) 24 H-173 03303100H000 Bearing Case A @20 8

H-017 03007SC-A001 Cam Base Screw 24 H-174 01001100H000 Ball Bearing (6005Zz) 8

H-021 02023SC-7113 Hex. Socket Bolt (M4*L8) 16 H-175 03000110H000 Cam Tightening Collar (@20) 8

H-024 - Wick 8 H-176 03313200H000 Needle Bar Drive L ever 8

H-025 03020SC-A001 Drive P in Screw 11/64,N40,L8 40 H-177 03000200A000 NEEDLE BAR DRIVE LEVER 8

H-027 03022SC-4517 Hex. Socket Set Screw(M4*L5) 32 H-178 03307200A000 Needle Driving Lever Bushing 8

H-028 03023SC-A001 Connecting Rod Stud 8 H-179 03307300A000 Needle Driving Lever Bushing 8

H-029 - Wick 8 H-180 03301800U000 Needle B ar Drive Pin 8

H-030 03025SW-1211 Washer (@6) 8 H-181 03020SC-A001 Drive Pin Screw 11/64,N40,L8 16

H-031 03026SW-9115 Spring Washer (@6) 8 H-182 03303300H000 Lever Pin 8

H-032 03027SN-A001 Stud Nut 8 H-183 02015SC-7113 Hex.Socket Bolt(M4*L10) 8

H-034 - Wick 8 H-184 03600110H000 Needle Driving Shaft Driver 6

H-042 07018CA-UK01 Take-Up D riving Lever "B" 8 H-185 03600300H000 Reciprocator Stopper 6

H-043 04021BR-T121 Neddle Be aring Kt367N (Iko) 8 H-186 03600600H000 Stopper Bracket 6

H-044 04020AF-T121 R oller For Take-Up Gear-B 8 H-187 03046SC-8118 Plus Screw (M3*L5) 12

H-045 04019CW-T121 P in Stud Screw 8 H-188 03600210H000 Needle Bar Reciprocator 6

H-046 02015SC-7113 Hex.Socket Bolt(M4*L10) 8 H-190 03600500H000 Driver Pin 6

H-054 03053SF-A001 Felt "B" 8 H-191 - Wick 8

H-060 03048SW-A001 Reciprocator Washer 8 H-192 03007600H000 Foot Drvi ng Connect Link A 6

H-074 03057SC-A001 Head Rail Holder Screw 24 H-193 03034SW-A001 Reci procator Washer 6

H-098 03034SW-A001 Reciprocator Washer 16 H-194 03302800H000 Presser Foot Hinge Pin Ass'Y 6

H-100 04012AF-A 001 Hook Shaft Bush Screw 16 H-195 08113SC-A001 Collar Screw 6

H-125 - Needle Bar Drive Lever Wick 8 H-196 03007700H000 Foot Drving Connect Link B 6

H-132 03046CW-B001 Jump Spring G uide 8 H-197 03034SW-A001 Reciprocator Washer 4

H-144 05015MC-4113 Hex. Socket Bolt (M5* L15) 8 H-198 03007800H000 Presser Foot Reciprocator Pin 6

H-145 03302100A000 Pin Collar 8 H-199 - Wick 8

H-146 03045SP-B001 Jump Spring 8 H-200 08113SC-A 001 Collar Screw 12

H-147 01101300A000 Hook Shaft Collar 8 H-201 03001510H000 Presser Foot Reciprocator 6

H-151 03301200A000 Bushing 8 H-202 0300161 0H000 Presser Foot Bush @20 6

H-152 03003200A000 Needle Bar Drive Rink 8 H -203 09005SC-3123 Truss Screw (M3*L6) 6

H-161 03300100A000 Cam Washer A 16 H-204 0300171 0H000 Presser Foot Stopper 6

H-162 03300200A000 Cam Washer B 16 H-205 08006SC-8118 Plus Screw (M3*L5) 6

H-165 03006MC-3123 Truss Screw (M3*L6) 8 H-207 - Wick 8

H-166 03300100U000 Arm 8 H-208 03008000H000 Ball Bearing 6800 6

H-167 02033SC-4113 Hex. Socket Bolt 16 H-209 03008100H000 Bearing Bushing For Shaft 6

H-168 03002SC-4113 Hex. Socket Bolt (M8*L32) 8 H-210 03300810H000 Presser Foot Driver C am 6

H-169 03300210H000 Take-Up Lever Cam Base 8 H-211 03303400H000 Presser Foot Drving Cam Base 6

H-170 03302900H000 Needle Case (K t-42469) 8 H-212 02023SC-7113 Hex. Socket Bolt (M4*L8) 18

Page 22

Page 23

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

H-213 06003SW -2111 Washer (@4) 18 H-255 18015SW-3111 Washer (4@) 8

H-214 02023SC-7113 Hex.Socket Bol t (M4*L8) 18 H-256 03007900K000 NEEDLE BAR DRIVING SHAFT 8

H-215 18014SW -3115 Spring Washer (@4-No2) 18 H-257 03304710A000 NEEDLE BAR DRIVING SHAFT BUSH 8

H-216 18015SW -3111 Washer (4@) 18

H-217 03303500H000 Presser Foot Guide Block 6

H-218 03303600H000 Reciprocator Guide 6

H-219 05008SC-4113 Hex.Socket Bol t (M4*L16) 12

H-220 18014SW -3115 Spring Washer (@4-No2) 12

H-221 18015SW -3111 Washer (4@) 12

H-222 03056C L-B001 Head Rail Holder 6

H-224 03301000B000 Take-Up Lever Drive Pin 6

H-226 03314100A 000 Take-Up Lever A 6

H-227 03300720H000 Take-Up Lever Driver Cam (Hb) 6

H-228 02030SW-B001 Braring Case Washer 36

H-229 03303900H000 Solenoid Bracket 8

H-230 04010MC -7113 Hex.Socket Bolt (M4*L10) 16

H-231 18014SW -3115 Spring Washer (@4-No2) 40

H-232 18015SW -3111 Washer (4@) 40

H-233 03304000H000 Upper Thread Holder Sol enoid 8

H-234 05007SC-7113 Hex. Socket B olt (M3*L5) 16

H-235 03304100H000 Upper Thread Holder Stu d Screw 8

H-236 03304200H000 Holder Connecting Link 8

H-237 03304300H000 Upper Thread Holder P ush Bar 8

H-238 03304400H000 Holder Stud Screw "A" 8

H-239 03304500H000 Upper Holder Return Sp ring 8

H-240 18033SC-3123 Truss Screw (M5*L6) 8

H-241 03304600H000 Holder Stud Screw "B" 8

H-242 03304800H000 Push Bar Base 8

H-243 03304700H000 Push Bar Base 8

H-244 04010MC -7113 Hex.Socket Bolt (M4*L10) 8

H-245 11029SC-4113 Hex. Socket B olt (M4*L20) 8

H-246 03305000H000 Push Bar Base 8

H-247 04010MC -7113 Hex.Socket Bolt (M4*L10) 8

H-248 03304910H000 Upper Thread Holder Sto pper 8

H-249 11029SC-4113 Hex. Socket B olt (M4*L20) 8

H-250 11029SC-4113 Hex. Socket B olt (M4*L20) 8

H-251 18015SW -3111 Washer (@3) 8

H-252 03900010H000 Upper Thread Holder B ase Set 8

H-253 15105SC-7113 Hex.Socket Screw (M4*L15) 8

H-254 18014SW -3115 Spring Washer (@4-No2) 8

Page 24

Page 25

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

H1001 03302610H000 Arm Bearing Guide Plate @20 8 H1049 03411200H000 Jump Driving Clutch Lever 8

H1002 05062SC-A001 Thread Guide (L) Screw 16 H1050 03411300H000 Jump Clutch Lever Stud B olt 8

H1003 03302210H000 Side Cover "A" @20 8 H1052 03013EL -T121 E ncoder Set1

H1004 03302310H000 Side Cover "B1" @20 8 H1053 06011SW-2111 Washer (@3) 2

H1006 02009SC-A001 Side Cover Screw 36 H1054 08011SW-1111 Spring Washer ( @3-S) 2

H1007 03008200H000 Arm Guard Plate "L" @20 8 H1055 07035SC-7113 Bracket Screw (M3*L6) 2

H1008 03303800H000 Arm Guard Plate "R" @20 8 H1056 05000100H000 Encoder Base 1

H1009 03065SC-A001 Guard Plate Screw 24 H1057 08076SC-7113 Hex. Socket Bolt (M5*L12) 4

H1010 03068LM-BB00 LM Guide Block Set (12c) 8 H1058 16018SW-1111 Washer (@5) 2

03068LM-H003 LM Guide Block Set (15c) H1059 18048SW-3115 Spring Washer (@5) 2

H1011 03071SC-A001 Hex.Scoket Bolt (M3*L15) 36 H1060 02003500UK60 Oil Tank Cover (6 Head) 1

H1013 02009SC-A001 Side Cover Screw 8 H1061 18036CW-UK01 Oil Tank Cover Support 1

H1015 12000510H000 Cover Bracket 1 H1062 05008MC-9123 TRUSS SCREW(M5*L8) SUS 2

H1016 02023SC-7113 Hex. Socket B olt (M4*L8) 2 H1063 03304900H000 Upper Thread Holder Stopper 8

H1017 12000100FS00 Top Shaft Cover "B" 1 H1064 03411900H000 Jump C lutch Plate Spring 8

H1018 02009SC-A001 Side Cover Screw 2 H1065 03411810H000 Jump Cra nk Roller Set 8

H1019 18033SC-3123 Truss Screw (M 5*L6) 2 H1066 03410000H000 Jump Set 8

H1022 05041SC-A001 Guide Rail Serew 24 H1067 01303800U000 Cover Rubber Cap 1

H1023 03410200H000 Jump Motor (103H548-0496) 8 H1068 25029EL-UK06 Cable (25-29) 1

H1024 08014SC-A001 Plus Screw (M3*L8) 24 H1069 GP-007318-00 ARM TOP COVER 8

H1025 03410100H000 Jump Motor Base 8 H1070 03300604U000 Take-Up Guide Rai l (12c) 8

H1026 04010MC-7113 Hex.Socket Bolt (M4*L10) 18 01300105U000 Take-Up Guide Rail (15c) 1

H1027 18014SW-3115 Spring Washer (@4-No2) 18 01300205U000 Take-Up Guide Rail (15c) 6

H1028 06003SW-2111 Washer (@4) 18 01400105U 000 Take-Up Guide Rail (15c) 1

H1029 03410300H000 Jump Crank Stopper 8

H1030 03411400H000 Jump Crank Stopper Stud Screw 8

H1031 03410400H000 Jump Driving Crank 8

H1032 02023SC-7113 Hex.Socket Bol t (M4*L8) 8

H1034 03031SN -A001 Pin. Nut (11/64,N=40) 8

H1037 03410800H000 Jump Return Spring 8

H1038 08006SC-8118 Plus Screw (M3*L5) 12

H1039 03410900H000 Jump Driving Clutch 8

H1040 02023SC-7113 Hex.Socket Bol t (M4*L8) 8

H1041 03411000H000 Jump Driving Clutch Pin 8

H1042 03411100H000 Jump Clutch Base 8

H1043 22006SC-7113 Hex. Socket Set Screw(M3*L8) 8

H1044 11019SW-9115 Spring Washer (3@) 12

H1045 06011SW-2111 Washer (@3) 12

H1047 15105SC-7113 Hex.Socket Screw (M4*L15) 8

H1048 03411600H000 Jump Clutch Stopper Screw 8

Page 26

Page 27

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

H2001 32000100U K40 Oil Tank Ass'Y 6

H2002 32000500U K40 Oil Tank Felt 4

H2003 02023SC-7113 Hex. Socket Bolt (M4*L8) 24

H2004 18045ET-UK01 Oil Hose L=160 24

H2005 32046SP-T121 Holder For Oil Hose 12

H2006 03000500U000 Oil Tube Pin 18

Page 28

Page 29

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

I-001 13001CA-AB00 COLO R CHANGE BOX (12C) 1 I-051 09100105B000 MEMBRANE SWITCH COVER (15C) 1

08100105B000 COLOR CHANGE BOX (15C) I-052 03006MC-9123 PLUS SCREW (M3*L6) SUS 5

I-002 03003SC-4113 HEX. SOCKET BO LT "B"(M8*L 35) 4 I-053 04-001A-SW60 COLOR CHANGE BOARD (12C) 1

I-003 15095SW-3115 SPRING WASHER (@8) 4 15-001A-UI15 COLOR CHANGE BOARD (15C)

I-004 04029SW-A001 ST UD BOLT WASHER(S) ( @8) 4 I-054 13057SC-A001 STU D BOLT 6

I-005 08110005B000 COLOR C HANGE CA M ASS'Y (15C ) 1 I-056 09100205B000 BOARD COVER (15,C) 1

I-006 08037AF-4517 HEX. SOCK ET SET SCREW M6*L10 2 I-057 13061SC -8119 PLUS SCREW (M3*L10) 4

I-008 13012CW-A 001 CAM COL LAR 1 I-058 05057SN-3211 HEX. NUT (M3-NO2) 4

I-009 04016A F-A001 CAM COLLAR SCR EW 2 I-059 05057SN-3211 HEX. NUT (M3-NO2) 1

I-011 13034AD-A001 COLOR CHANGE B LOCK 1 I-061 25101ET-B001 C OLOR CHA NGE CONNECTOR 1

I-012 13035BR-A001 G UIDE BUSH ING 2 I-062 25015EL-A001 COLOR CHANGE-JOINT B/D (25-15) 1

I-014 03020SC-A001 DRIVE PIN SCRE W 11/64,N40,L8 5 I-063 25073E L-A001 HALF TURN SENSOR CABLE (25-73) 1

I-015 13040CW-A 001 ROLLER SHAFT 1 I-064 18015SW-3111 WASHER (4@) 2

I-016 13043CW-A 001 ROLLER 1 I-065 02107100UH80 C ABLE (SH-71) 1

I-017 13044SR-4013 E-RING (@4) 1 I -066 08100014B000 COLOR CH ANGE BOX SET (12C) 1

I-019 13042SN-1111 HEX.NUT (M6*T5 -R) 1 08100015B000 COLOR C HANGE BO X SET (15C)

I-020 13036PR-A001 MAGNET HOLDER 1 I-067 08106200B000 MA GNET HOL DER SPACER 1

I-021 10-027C-SC53 MAGNE T 1 I-068 13009SF-AB00 CAM SHAFT (12C) 1

I-022 22006SC-7113 HEX. SOCKET BO LT (M3*L8) 2 08100305B000 C AM SHAFT (15C )

I-023 06011SW-2111 WASHER (@3) 2 I-069 09000300B000 MAG NET STICKER 1

I-024 17054SH-A B00 COLO R CHANGE SHAFT "A" (12C) 1 I-070 08101100B000 CAM BUSHING 2

08000205B000 COLOR CHANGE SHAFT "A" (15C) I-071 08101500B000 HALF TU RN BUSHING 2

I-025 13042SN-1111 HEX.NUT (M6*T5-R) 1 I-072 12000104UH81 MEMBRANCE SWITC H (B-UH1208-45) 1

I-026 03026SW-9115 SPRING WASHER (@6) 1 12000105UH81 MEMBRANCE SWITCH (B-UH1508-45)

I-027 03025SW-1211 WASHER (@6) 1 I-073 13031SH-AB 00 GUIDE SHAFT (12C ) 2

I-030 06000105U H80 COLOR CHANGE SHAFT B L=1555 1 08100405B000 GUIDE SH AFT (15C)

I-031 13042SN-1111 HEX.NUT (M6*T5-R) 3 I-074 15163SC-3123 TRUSS SCREW (M3*L12) 2

I-032 17053SN-1111 HEX. NUT(L) (M6*T5-L) 2 I-075 06010SC-8118 PLUS SCREW (M3*L4) 6

I-033 17051SN-A 001 M ES PRIVIN G SHAFT JO INT 2 I-076 08102300B000 HAL F TURN SENSOR (GP1S51V) 1

I-034 13028MT-A001 CO LOR CHA NGE MOTOR UNIT 1 I-077 02023SC-7113 HEX. SOCKET BOLT (M4*L8) 1

I-035 13029GA-A001 MOTOR GEAR 1 I-078 03062ET-A001 CODE CLI P 1

I-036 13030SC-4517 HEX. SOCKET SET SCREW (M4*L 8) 1 I-079 08057SW-1111WASHER (@6) 1

I-037 13014GA-A001 HALF TU RN GEAR 1 I-080 22025SC-9134 SCREW (M4*L10) 1

I-039 03020SC-A001 DRIVE PIN SCRE W 11/64,N40,L8 1 I-081 08101700B000 HALF TURN FLIM 1

I-040 08044SR-4013 E-RING (@8) 1 I -082 06000205U H80 COLOR CHANGE SHAFT C L=1535. 5 1

I-041 13018PR-A001 HALF T URN FILM WASHER (T2.3) 1

I-043 13019PR-A001 HALF T URM FILM WASHER (T1.0) 1

I-044 06011SW-2111 WASHER (@3) 1

I-048 13025 PM-A001 SE NSOR COVE R 1

I-049 02015SC-7113 HEX.SO CKET BOL T(M4*L10) 2

Page 30

Page 31

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

J-023 09040PR-A001 B racket (L) 8 J-068 08057SW-1111 Washer (@6) 4

J-024 09041PR-A001 B racket (R) 8 J-069 03003300H000 Cam Shaft Fixing Block 1

J-025 02009SC-A001 Side Cover Screw 32 J-070 05008MC-4517 Hex.Socket Bolt(M5*L 8) 2

J-026 09044PR-A001 U pper Thread Hol der Disk Set 16 J-071 GP-005184-00 SENSOR SENSING ADJUSTING RIN G 1

J-027 U pper Thread Holder Disk "A" 16 J-072 04014SC-4517 Hex.Socket Set Screw(M5*L5) 2

J-028 Spring 16 J-073 03003500H000 Motor Driving Cam Shaft 1

J-029 U pper Thread Holder Disk "B" 16 J-074 04014SC-4517 Hex.Socket Set Screw(M5*L5) 1

J-030 U pper Thread Holder Stud 16 J-075 GP-005180-00 UPPER THREAD HOOK SENSOR BASE 1

J-031 09026P R-AB00 UPPER THREAD PRESSER BASE (12C) 8 J-076 07035SC-7113 Bracket Screw (M3*L6) 2

09052PR-T151 UPPER THR EAD PRESSER BASE (15C) J-077 15-027A-2070 SENSOR 1

J-032 09027ET-A B00 Velcro (12C) 16 J-078 13061SC-8119 Plus Screw (M3*L10) 1

09027ET-T151 Velcro (15C) J-082 03003910H000 Upper T hread Driving Plate 1

J-033 09038CW-A001 Thread Presser Space 16 J-083 03004000H000 Stud Bo lt Washer 1

J-034 09029P R-AB00 Presser Base Cover (12C ) 8 J-086 03004200H000 Motor Driving Connect Plate 1

09029PR-T151 Presser Base C over (15C) J-087 03004400H000 Motor Driving Connect Bearing 2

J-035 07018SC-8118 Plus Screw (M3*L8) 16 J-088 03008300H000 Conn ecting Plate Stud Screw A 1

J-040 06010SC-8118 Plus Screw (M3*L4) 32 J-089 03004500H000 Conn ecting Plate Pin Washer 1

J-041 03500110H000 Upper Thread Catcher Base 8 J-090 03004700H000 Connecting Plate Stud Screw 1

J-042 0350021 0H000 Upper Thre ad Hook Base Cover 8 J-091 13042SN-1111 Hex.Nut (M6*T5-R) 1

J-047 0350050 0H000 Upper Catcher Driving Lever 8 J-092 03004800H000 C onnecting Plate Knuckle 1

J-048 0350060 0H000 Driving Lever Pin 8 J-093 04032SN-A 001 Hex. Nut (M8-No2) 1

J-049 0350070 0H000 Driving Lever Pin C ollar 8 J-094 02023SC-7113 Hex.Socket Bolt (M4*L8) 16

J-050 0 4014SC-4517 Hex.Socket Set Screw(M5*L5) 16 J-095 18015SW-3111 Washer (4@) 16

J-051 0350080 0H000 Driving Lever Pin Washer 16 J-096 18014SW-3115 Spring Washer (@4-No2) 16

J-052 0350090 0H000 Clutch B lock 8 J-097 02023SC-7113 Hex. Socket Bolt (M4*L8) 2

J-053 0350100 0H000 Clutch Stud Screw 8 J-098 06000305UH80 Upper Thre ad Driving Shaft 1

J-054 0350110 0H000 Clutch Spring 8 J-099 12001900U060 Upper Thread Hook Motor Cover 1

J-055 0350120 0H000 Clutch D ial 8 J-100 03008600H000 Motor Cover Fixing Bracket 2

J-056 1 1029SC-4113 Hex. Socket Bolt (M4*L20) 16 J-101 02023SC -7113 Hex.Socket Bolt (M4*L8) 2

J-057 0300261 0H000 Return Spring Stopper 16 J-102 18014SW-3115 Spring Washer (@4-No2) 2

J-058 0 5008SC-4113 Hex. Socket Bolt (M4*L16) 16 J-103 18015SW-3111 Washer (4@) 2

J-059 0300270 0H000 Return Spring 8 J-105 03007300H 000 Upper Thread Shaft Coupling 1

J-060 0300280 0H000 Return Spring Stopper Washer 8 J -106 06000405UH80 Upper Thread Driving Shaft 1

J-061 0300290 0H000 Return Spring Fix Pin Washer 8 J-107 08113SC-A001 Collar Screw 4

J-062 0300300 0H000 Return Spring Fix Pin 8 J-108 03003810H000 Stud Bolt For Driving Plate 1

J-063 0 2015SC-7113 Hex. Socket Bolt(M4*L10) 8 J-109 08500010U000 Upper Thread Catcher Set 8

J-064 0300310 0H000 Upper Thre ad Hook Motor Unit 1 J-110 12209100U 000 Cap Guide 8

J-065 0300320 0H000 Motor Base 1 J-111 08600004B000 Upper Thread Base Set (12C) 8

J-066 06025MC-7113 Hex.Soc ket Bolt(M6*L 25) 4 08600005B000 Upper Thread Base Set (15C)

J-067 16014SW-4115 Spring Washer (@6) 4 J-112 02106600UH80 SH-66-5 1

Page 32

Page 33

Ref.No Part No. PartNames Q'ty Ref. No Part No. Part Names Q'ty

J-113 02106800UH80 SH-68-5 1

J-114 03004110H000 Driving P late Block B 1

J-115 1 8047SC-7113 Hex/ Socket Bolt (M5*L15) 2

J-116 18048SW-3115 Spring Washer (5@) 2

J-117 18049SW-3111 W asher (@5) 2

J-118 04032SN-A001 Hex. Nut (M8-No2) 1

J-119 15095SW-3115 Spring Washer (@8) 1

J-120 03500330H000 Upper Thread Hook 8

J-121 03005MC-3123 TRU SS SCREW (M3*L5) 48

Page 34

Page 35

Ref.No Part No.

K-004 05014SC -7113 Hex. Socket Bolt ( M4*L25) 16 K-109 08201304H000 Head Rail (12C) 8

K-005 0501 5CW-A001 Head Base Pin(@5*L15) 16 08201305H000 Head Rail ( 15C)

K-006 05019SC-A001 Needle Bar C over Screw (M5 *L6) 120 K-110 08200700H000 Needle Bar Felt 80

K-007 0820 1800A000 Needle Bar 120 K-111 08201400H000 Needl e Bar Holder120

K-011 05023RB-A001 Needl e Bar Cushio n Rubber "A" 80 K-112 08200800H000 Needle Bar Retur n Spring 120

K-012 05024RB-A001 Needl e Bar Cushion Rubber "B" 120 K-113 08200900H000 Pr esser Foot Holder Set 120

K-025 0503 6CW-A001 Needle Fixed Holder 120 K-114 08200510H000 Presser Foot (Hight Speed) 120

K-026 05037DB-A001 Needle (Db-K5, #11) 120 K-115 08201000H000 Presser Foot Return Spring 120

K-027 05363SC-A001 Needle Fixed Screw (A/S) 120 K-116 08201100H000 Presser Foot Spacer 120

K-028 05038P M-AB00 Need le Bar Guide Rail (12C) 8 K-117 08201200H000 Presser Foot Cushion Rubber A 120

05038PM-H003 Needle Bar Guide Rail (15C) K-122 08004700A000 Color Change Bracket "A" 1

K-029 05041SC-A001 Guide Rail Serew 64 K-123 09000200H000 Top Shaft C over Bracket (L) 1

K-040 11046PR-AB0 0 Cable Support Plate (12C) 8 K-124 13048SC-A001 Bracket "A" Screw 2

11046PR-H003 Cable Support Pl ate (15C) K-125 01001400UK00 Top Shaft Cover (L) 1

K-041 02023SC -7113 Hex. Socket Bolt ( M4*L8) 24 K-126 02014SC-7113 Hex. Socket Bolt (M4*L5) 1

K-044 06003SW-2111 Washer (@4) 32 K-127 02015SC-7113 Hex.Socket Bolt( M4*L10) 1

K-047 05452CM-A001 EYEL ET "A" 144 K-128 10200104B000 Head Face Pl ate (U) (12C) 8

K-065 02031SC -7113 Hex. Socket Screw(M5*L 10) 32 10200105B000 Head Face Plate (U) (15C)

K-066 02015SC -7113 Hex.Socket Bolt(M4*L 10) 16 K-129 10200014H000 Thread Guide ( U) Set (12C) 8

K-069 02023ET-A001 Top Shaft Cover Magnet 14 10200015H000 Thread Guide (U) Set (15C)

K-070 0202 2PR-UK01 Upper Shaft C over "B" Bracket 2 K-130 10200100H000Eyelet "A-1" 120

K-071 02014SC -7113 Hex. Socket Bolt ( M4*L5) 2 K-131 05014SC-7113 Hex. Socket Bolt (M4*L25) 32

K-073 03022SC -4517 Hex. Socket Set Screw (M4*L5) 16 K-132 10900200H000 UPPER THREAD HOLDER BLOCK 120

K-084 05008SC -4113 Hex.Socket Bolt (M4 *L16) 32 K-13 3 03010MC-41 35 HOLDER BLOCK SCREW 120

K-085 05070SC-3123 Head Face Plate (U) Screw 32 K-134 11019SW-9115 SPRING WASHER (3@) 120

K-087 01303700H000 Tension Pl ate Pin 16 K-135 06011SW-2111 W ASHER (@3 )120

K-088 0820 0404A000 Take-Up Lever Shaft (12C) 8 K-136 10900300H000 UP PER THREAD HOLDER SPRING 120

07004SF-T151 Take-Up L ever Shaft (1 5C) K-137 10900400H000 UPPER T HREAD HOLDER PIN 120

K-089 0820 3000A000 Take-Up Lever Shaft Bush(L) 8 K-138 10900500H000 UPPER THREAD HOLDER CLAMP 120

K-090 0820 0800A000 Take-Up Lever Shaft Bush(R) 8 K-139 03006MC-4535 THREAD HOLDER CLAMP SCREW 120

K-091 11101200T 000 Upper De ad Point Stopper 120 K-140 05070SC-3123 HEAD FACE PLATE (U) SCREW 16

K-094 09000205UH00 Top Shaft Cover "B" 2 K-141 10900104H000 U PPER THREAD HOLDER APRON (12C) 8

K-097 05026SC-4113 Stopper Screw (9/64-11.5) 120 10900105H000 UPPER THREAD HOLDER APRON (15C)

K-098 05028SC -4113 Holder Screw (9/64-L8) 120 K-142 05452CM-A001 EYELET "A" 360

K-100 08004900A000 C olor Change Bracket "B" 15 K-143 10900014H000 UPPER THREAD HOLDER APRON (12C) 8

K-102 05062SC-A001 Thread Guide (L) Screw 16 10900015H000 UPP ER THREAD HOLDER APRON (15C)

K-103 05021PM-H001 Presser Foot Spring Guide 240 K-144 10800504H000 THREAD GUIDE SPRING (12C) 8

K-106 05028SC-4113 Presser Foot Holder Screw 120 10800505H000 THR EAD GUIDE SPRING (15C)

K-107 07009SC -4517 Hex.Socket Set Screw (M5*L6) 16 K-145 10400304B000 SPRING HOLDER 8

K-108 08200104U000 Head (12C) 8 K-146 05060SC-81 18 SCREW (M3*L3) 8

08200105U000 Head (15C) K-149 08201500H000 PRESSER FOOT CUSHION RUBBER B 120

PartNames

Q'ty Ref. No Part No.

Part Names

Q'ty

Page 36

Page 37

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

K-150 03004MC -7113 H EX. SOCKET BOLT (M3*L4) 16

K-157 05070SC-3123 HEAD FACE PLATE (U) SCREW

K-158 05000114U 000 Head Face Plate (12C) 8

05000115U000 Head Face P late (15C)

K-159 09000305UHF0 T OP SHAFT C OVER "A" (L146) (15C) 2

K-160 09000305U H00 TOP SHA FT COVER "C" (L146) (15C) 3

K-161 07005BM-B002 TAKE-UP LE VER SET 120

K-162 10300004A 000 Thread Guide (M) Set (12C ) 8

10300005A000 Thread Guide (M) Set (15C)

K-163 10300114A 000 Thread Guide (M ) (12C) 8

10300115A000 Thread Guid e (M) (15C)

K-164 10110000A 000 Eyelet "B" (12C) 96

10110000A000 Eyelet "B " (1 5C) 120

(9/64",N=40,L10)

Page 38

Page 39

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

L-010 11086PM-A001 TENSION SPRING COLLAR 120 L-099 08300400A 000 LAMP COVER 1

L-011 11084AF-A001 FEL T 360 L-100 11081CW-A001 THRE AD TENSION ADJUSTING STUD 120

L-012 11085AF-A001 RO TARY TENSI ON DISC 120 L-102 02103903H000 TENSION PLAT EARTH CABLE (12C) 8

L-013 11083PM-A001 DISC PL ATE 120 25124EL-B001 TEN SION PLAT EARTH CABL E (15C)

L-016 11009SC-A001 STUD SCREW 120 L-104 06003SW-2111 WASHER (@4) 24

L-018 09005SC-3123 TRUSS SCREW (M3*L6) 360 L-106 08310000B000 TENSION ADJUSTING SET 120

L-019 11014SN-1211 HEX.NUT (M3-NO2) 360 L-107 08300500A000 TENSION ADJUSTING NUT 120

L-026 03031SN-A001 PIN. N UT (11/64,N=40) 120 L-108 08300700A000 TENSION SPRING STOPPER 120

L-027 11009PR-B001 THREAD BREA KAGE DETE CTING PLAT 120 L-109 0830060 0A000 SUB TENSION ADJUSTING NUT(A) 120

L-028 09005SC-3123 TRUSS SCREW (M3*L6) 120 L-115 08308300B000 THREAD DETECTING WHEEL STUD (12C) 96

L-030 09005SC-3123 TRUSS SCREW (M3*L6) 120 11083CW-B001 T HREAD DETECTING WHEEL STUD (15C) 120

L-035 11036EL-A001 HEAD ON/OFF SWITCH 8 L-116 08300800B000 THREAD DETECTING WHEEL 120

L-036 25061EL-B 001 LED LAMP S/W CABL E (NEW) 8 L-118 11088PM-A001 TENSION SPRING STOPPER 120

L-038 05009SW-1111 WASHE R (@4-L) 16 L-120 11082AF-A001 THR EAD TAKE-U P SPRING 120

L-039 11029SC-4113 HEX. SOC KET BOLT (M4*L20) 16 L-121 08202000I000 TENSION ADJUSTING PLATE HOLDER (12C) 16

L-040 02006PR-UK14 COVER PLATE (R) 1 11020P M-B001 TENSION ADJUSTI NG PLATE HOLDER (15C)

L-042 02009PR-UK14 COV ER PLATE (L) 1 L-122 08301200I000 TENSION DISC 240

L-043 02023SC-7113 HEX. SOC KET BOLT (M4*L8) 6 L-123 08300104I000 TE NSION UNIT PLATE (12C) 8

L-044 11032PR-T151 CABLE SUPPORTE R 1 08300105I000 TENSIO N UNIT PL ATE (15C)

L-045 02023SC-7113 HEX. SOC KET BOLT (M4*L8) 2 L-124 08300704I000 ROLLER BASE (12C) 8

L-063 11012PR-B001 THREAD GUIDE 360 08300705I000 RO LLER BASE (15C)

L-065 02023SC-7113 HEX.SOCKE T BOLT (M4*L 8) 24 L-125 20009EL-WH12 WHEEL SENSOR BOARD (12C) 8

L-066 05016SN-1211 HEX .NUT (M4) 24 20009EL-WH15 WHEEL SENSOR BOARD (15C)

L-067 11075PM-B001 THREAD SENSOR ROLLER(B1)SET (12C) 96 L-126 08300304I000 CONNECTION PLATE (12C) 16

11075PM-B001 T HREAD SENSOR ROLLER(B1)SET (15C) 56 08300305I000 CONNECTION PLATE "A" (15C) 8

L-068 11076PM-B001 THREAD SENSOR ROLLER(B2)SET (15C) 64 08300405I000 CONNECTION PLATE "B" (15C) 8

L-072 08011SC-8118 SCREW (M2*L 4) 120 L-127 08301100I000 TENSION SPRING120

L-074 15089SC-7119 C.S SCREW (M4*L10) 16 L-128 08300204I000 BOARD BASE(12C)8

L-075 02002SC-7119 PLUSS SCR EW (M4*L8) 40 08300205I000 BOARD BA SE (15C)

L-080 11087SP -B001 TE NSION ADJUSTI NG SPRING 120 L-129 08301000I000 TENSION ADJUSTING STUD 120

L-082 02010SC-3123 TRUSS SCREW (M4*L8) 24 L-130 08320000I000 SUB TENSION ADJUSTING SET 120

L-087 25126EL-B 001 SENSOR BOARD TO WHEEL EARTH 8 L-131 08300004I000 TENSINO UNIT SET (12C) 8

L-090 02101800B000 P LATE LED S/W BOARD CABLE 8 08300005I000 TENSI NO UNIT SET (15C)

L-091 11005PM-T151 TENSION PL ATE COVE R "A" 1 L-132 05452CM-A001 EYEL ET "A" 120

L-092 06004PM-UK14 TENSION PLATE COVER 7

L-094 02-0000-EMB 1 HEAD O N/OFF S/W BOA RD 8

L-095 06027PM-T121 TENSION ADJUSTING PLATE HOLDER (15C) 16

L-096 04010MC-7113 HEX.SOC KET BOLT (M4*L10) 16

L-097 02002PR-H003 COVER PL ATE A 3

L-098 25126EL-B 001 SENSOR BOARD TO WHEEL EARTH 1

Page 40

Page 41

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

M-001 03200400UH80 X-Lm Guide Frame L3861 1 M-042 15055SC-4119 Plus Screw (M5*L35) 2

M-002 03200500UH80 X-Axis L/M Guide "A" 2 M-043 03201600UH80 Motor Block 2

M-003 03200500UK60 X-Axis L/M Guide 760L 1 M-044 08076SC-7113 Hex. Socket Bolt (M5*L12) 20

M-004 22006SC-7113 Hex. Socket Bolt (M3*L8) 46 M-045 18048SW-3115 Spring Washer (@5) 20

M-005 15062SF-T121 Felt 8 M-046 14071BR-UK01 Bearing Bc616Zz 2

M-006 03200700UH80 Tubular Frame Rail Plate 1 M-048 15061PR-UK01 Motor Space (@5*@11*2T) 8

M-007 15007PR-UK02 Connecting Plate(L) 1 M-049 16018SW-1111 Washer (@5) 8

M-008 02015SC-7113 Hex.Socket Bolt(M4*L10) 8 M-050 14074PR-UK01 Motor Base (L) 1

M-009 02028SW-9115 Spring Washer (@4) 8 M-051 14075PR-UK01 Motor B ase (R) 1

M-010 02063SW-1111 Washer(@4) 8 M-052 03201200UH00 X -Moving Sensor Plate 1

M-011 15011PR-UK02 Connecting Plate(R) 1 M-053 02023SC-7113 Hex. Socket Bolt (M4*L8) 6

M-012 15015PR-UK02 Connecting Plate 4 M-054 02028SW-9115 Spring Washer (@4) 6

M-013 03200800UH80 L/M Block Connecting Plate (L ) 1 M-055 05009SW-1111 Washer (@4-L) 6

M-014 02023SC-7113 Hex. Socket Bolt (M4*L8) 16 M-056 15067PR-UK01 Sensor Plate 2

M-015 02028SW-9115 Spring Washer (@4) 16 M-057 15043EL -UK01 X-Positioning Sensor 2

M-016 02028SW-9115 Spring Washer (@4) 16 M-058 06010AF-8118 Plus Screw(M3*L4) 4

M-016 05009SW-1111 Washer (@4-L) 16 M-061 03201300UH80 X-Cover (L=3845.6) 1

M-017 03200900UH80 L/M Block Connecting Plate (R ) 1 M-062 15042SC-3123 Truss Screw (M4*L6) 12

M-018 03201000UH80 L/M Block Connecting Plate 2 M-063 18153SC-3123 Plus Screw (M4*L10) 2

M-019 14020PR-UK01 Space 2 M-064 03201400UH80 X-Frame Side Cover Holder (L) 1

M-020 14045AD-UK01 Belt Bracket (B) 2 M-065 03201500UH80 X-Frame Side Cover Holder (R) 1

M-021 15034SC-4113 Hex. Socket Boit (M4*L45) 2 M-066 02023SC-7113 Hex. Socket Bolt (M4*L8) 8

M-022 05009SW-1111 Washer (@4-L) 2 M-067 02028SW-9115 Spring Washer (@4) 8

M-023 14049AD-UK01 Belt Bracket (C) 1 M-068 05009SW-1111 Washer (@4-L)8

M-024 14048AD-UK01 Belt Bracket (A) 1 M-070 15042SC-3123 Truss Screw (M4*L6) 4

M-025 03201100UH80 X-Timming Belt (L=1420) 2 M-088 15044EL-T121 Bid (S) 2

M-026 14051PR-UK01 Fixing P late 4 M-089 02101500UH80 Cable (Sh-15-5) 1

M-027 14052PR-UK01 Fixing P late Holder 4 M-090 25009EL-UK06 Cable (25-09) 1

M-028 03071SC-A001 Hex.Scoket Bolt (M3*L15) 16 M-091 25038EL-UK06 Cable (25-38) 1

M-029 11019SW-9115 Spring W asher (3@) 16 M-092 25041EL -UK01 X Original In (4Ht-41) 1

M-030 08011SW-1111 Spring Washer (@3-S) 16 M-093 02104800UH60 Last-Sensor (Black) 4Ht-48 1

M-031 12017PU-T121 Timing Pulley16At5-015-Af-Ae 2 M-094 02104900UH60 L ast-Sensor (White) 4Ht-49 1

M-032 12018BR-T121 Timing Pulley Bari ng 6901 4 M-095 15045EL-UK01 Bid (L) 1

M-033 12019BR-T121 Fiber Washer R-Tw1020 4 M-096 03101500UH00 Bracket For X-Y Sub Connector 2

M-035 15048SC-4119 Plus Screw (M5*L12) 2 M-097 02023SC-7113 Hex.Socket Bolt (M4*L8) 8

M-036 08044SR-4013 E-Ring (@8) 2 M-098 18015SW-3111 Washer (4@) 8

M-038 04014SC-4517 Hex.Socket Set Screw(M5*L5) 4 M-099 18014SW-3115 Spring Washer (@4-No2) 8

M-039 14065AD-UK01 Motor Fixing Shaft (A) 4 M-100 02015SC-7113 Hex.Socket Bolt(M4*L10) 2

M-040 15053SC-4119 Plus Screw (M5*L30) 4 M-101 18015SW-3111 Washer (4@) 2

M-041 14067AD-UK01 Motor Fixing Shaft (B) 2 M-102 18014SW-3115 Spring Washer (@4-No2) 2

Page 42

Page 43

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

M-105 03000200UH80 X-Axis Frame Side Cover 2

M-108 03106000U000 Timing Pulley D riving Pin 2

M-109 03201800UH80 Timing Pulley "B" 2

M-110 03202100UH80 X MOT OR (103H8223-5043) 2

M-111 14014PR-UK01 BUSHING PLATE 1

M-112 02023SC-7113 HEX.SOCKET BOLT (M4*L8) 4

M-113 15082PR-W121 FIXING PL ATE FOR BUSHING 1

Page 44

Page 45

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

N-001 03100100UH01 Cam Roller Guide Rail (L590) 8 N-044 18014SW-3115 Spring Washer (@4-No2) 8

N-003 03100200UH81 Y-Lm Gui de Frame A L1070 2 N-045 18015SW-3111 Washer (4@) 8

N-004 03100300UH81 Y-Lm Gui de Frame A L658 2 N-046 15030SC-7113 Hex. Socket Bolt (M5*L 30) 4

N-005 02033SC-4113 Hex. Socket Bolt 16 N-047 18048SW-3115 Spring Washer (@5) 4

N-006 03003SC-4113 Hex. Socket Bolt "B"(M8*L35) 12 N-048 16018SW-1111Washer (@5) 4

N-007 15095SW-3115 Spring Washer (@8) 28 N-049 13026BR-T121 Needle Bearing (6002Z) 4

N-008 04029SW-A001 Stud Bolt Washer(S) (@8) 28 N-050 03002700T000 Bearing Collar 8

N-009 GP-005021-00 X-Y CONNECT BRACKET 2 N-051 03037AF-A001 D river Screw 16

N-010 03100300UH80 Y-Driving Braket 2 N-053 04014SC-4517 Hex.Socket Set Scr ew(M5*L5) 16

N-011 07016SC-7113 Hex.Socket Bolt (M4*L12) 32 N-054 03100900UH00 Y-Bearing Bracket (L) 4

N-012 18014SW-3115 Spring Washer (@4-No2) 32 N-055 08091SC-7113 Hex. Socket Bolt (M6*L20) 16

N-013 05009SW-1111 Washer (@4-L) 32 N-056 03101000UH00 Y -Bearing Bracket (R) 4

N-014 16104CL-H001 Belt Catcher Plate (Y ) 8 N-057 03101100UH00 Y-Bearing Bracket Cover 4

N-015 03100400UH81 Y-Driving Timing Belt A L2160 2 N-058 07035SC-7113 Bracket Screw (M3*L6) 16

N-016 03100500UH81 Y-Driving Timing Belt B L1340 2 N-059 11019SW-9115 Spring Washer (3@) 16

N-017 03100400UH80 X-Driving Connecting Plate 2 N-060 08011SW-1111 Spring Washer (@3-S) 16

N-018 02015SC-7113 Hex.Socket Bolt(M4*L10) 6 N-061 03005100U000 Coupling "A" 8

N-020 02002SC-7119 Pluss Screw (M4*L8) 8 N-062 03016SC -4113 Hex. Socket Bolt (M5*L 15) 16

N-021 02015SC-7113 Hex.Socket Bolt(M4*L10) 8 N-063 03100500UH80 Y -Driving Motor Bracket 1

N-022 18014SW-3115 Spring Washer (@4-No2) 8 N-064 14027SC-4113 Hex.Socket Bol t (M8*L30) 4

N-023 18015SW-3111 Washer (4@) 8 N-065 15095SW-3115 Spring Washer (@8)4

N-024 03100500UH00 Y-Tension A djusting Bracket 4 N-066 04029SW-A001 Stud Bolt Washer(S) (@8) 4

N-025 08062SC-7113 Hex. Socket Bolt (M5*L 20) 8 N-067 15047MT-UI12 Y Motor (103H89223-5214) 1

N-026 18048SW-3115 Spring Washer (@5) 8 N-068 14046SC-7113 Hex.Socket B olt (M6*L30) 4

N-027 16018SW-1111 Washer (@5) 8 N-069 16014SW-4115 Spring Washer (@6)4

N-028 03016SC-4113 Hex. Socket Bolt (M5*L 15) 4 N-070 08057SW-1111 Washer (@6) 4

N-029 18014SW-3115 Spring Washer (@4-No2) 4 N-071 03101300UH00 Sensor Bracket 1

N-030 18015SW-3111 Washer (4@) 4 N-072 02015SC-7113 Hex.Socket Bolt(M4*L10) 2

N-032 12018BR-T121 Neddle Bearing Hk1010(Ina) 8 N-073 02028SW-9115 Spring Washer (@4) 2

N-033 12019BR-T121 Fiber Washer R-Tw1020 8 N-074 05009SW-1111 Washer (@4-L) 2

N-034 16100CW-UK06 Timing Pulley Shaft (Y) 4 N-075 02107300UH80 Cable ( Sh-73) 1

N-035 08007SC-4517 Hex. Socket Set Screw (M3*L 5) 8 N-076 06010SC-8118 Plus Screw (M3*L4) 2

N-036 03100600UH00 Tension Adjusting Plate 4 N-077 03101400UH00 Plate For Y-Sensing 1

N-037 03100900UH80 Fixed Block B 4 N-078 22006SC-7113 Hex. Socket Bol t (M3*L8) 2

N-038 07016SC-7113 Hex.Socket Bolt (M4*L12) 16 N-079 11019SW-9115 Spring Washer (3@) 2

N-039 18014SW-3115 Spring Washer (@4-No2) 16 N-080 08011SW-1111 Spring Washer (@3-S) 2

N-040 18015SW-3111 Washer (4@) 16 N-081 16074PR-UK06 Y-Lm Support Fixing Plate 2

N-041 03100700UH00 Fixed Block 4 N-082 14002SC-7113 Hex.Socket B olt (M6*L15) 4

N-042 03100800UH80 Fixed Block A 4 N-083 16014SW-4115 Spring Washer (@6) 4

N-043 11029SC-4113 Hex. Socket Bolt (M4*L 20) 8 N-084 08057SW-1111 Washer (@6) 4

Page 46

Page 47

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

N-085 03016SC -4113 Hex. Socket Bolt (M5*L15) 4

N-086 18048SW-3115 Spring Washer (@5) 4

N-087 16018SW-1111 Washer (@ 5) 4

N-088 15002CW-B001 Cam Roller Stud (A) 16

N-089 15029SN-3211 Hex. Nut (M4-No2) 16

N-090 02028SW-9115 Spring Washer (@4) 16

N-091 15003CW-B001 Cam Roller Stud (B) 16

N-092 12010SN-1211 Hex.Nut (M5) 16

N-093 15001BR-B001 Cam Roller Baearing 32

N-094 03100800UH60 Y-Driving Shaft "A" 2

N-095 03101200UH80 Y-Driving Shaft "B" (L=191) 2

N-097 03103200UH80 Y-Driving Shaft "D" (L=217) 2

N-098 03003800B000 C oupling 2

N-099 08091SC -7113 Hex. Socket Bolt (M6*L20) 8

N-100 15045EL-UK01 Bid (L) 1

N-101 03101600UH80 X-Frame Holder 2

N-102 04016MC-4113 CAM ROLL ER GUIDE FIXED SCRE W 56

N-103 04500100U000 TIMING PULLEY(16-S5M-32F) 4

N-104 04001000U000 TIMING PULLEY(16-S5M-32F) 4

Page 48

Page 49

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

O-001 08100100UH80 Tubular Frame L3204 1

O-002 22002CW-UK01 Screw Bush "A" 10

O-003 22003CW-UK01 Location Block 2

O-004 11029SC-4113 Hex. Socket Bolt (M4*L 20) 2

O-005 05009SW-1111 Washer (@4-L) 2

O-006 10500110B000 SCREW BUSH C (M8*P0.75) 46

O-007 22007BR -UK01 Bearing Pin 9

O-008 22009BR -UK01 Needle Bearing (Taf51010) 9

O-009 03022SC-4517 Hex. Socket Set Screw(M4*L5) 8

O-012 22005PR-T 121 Clip 16

O-013 22004PM-T121 Clip B racket (R) 8

O-017 18014SW-3115 Spring Washer (@4-No2) 32

O-018 18015SW-3111 Washer (4@) 32

O-020 22003PM-T121 Clip B racket (L) 8

O-022 22038BM-UK01 Tubular Set 16

O-023 22038PM-UK01 Tubular (Inner) 45*44 16

O-024 17014P R-UK01 Tubular Holder "A" 16

O-025 10011SC-8119 Plus Screw (M3*L6) 96

O-026 17015P R-UK01 Tubular Holder "B" 16

O-027 22043PM-UK01 Tubular (Outer) 45*44 16

O-028 22044CW-UK01 Adjusting Bolt 16

O-029 22045CW-UK01 Adjusting Bolt Guide 16

O-030 22046CW-UK01 Adjusting Nut 16

O-031 15159SR-4013 E-Ring (3@) 16

O-034 02015SC-7113 Hex.Socket Bolt(M4*L10) 32

O-036 02002SC-7119 Pluss Screw (M4*L8) 2

O-037 09100200U 000 Fixed Clip Bracket Screw 32

O-038 09000100U 000 Tubular Frame Fixing Screw 10

O-040 09100100U 000 Attachment (R) 1

O-041 09200100U 000 Attachment (L) 1

O-042 09100000U 000 Attachment (R) 1

O-043 09200000U 000 Attachment (L) 1

O-045 09100410U 000 Attachment (Set-L) 7

O-046 09100510U 000 Attachment (Set-R) 7

Page 50

Page 51

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

P-001 08300100UH80 Square Frame "A" L=3344 1

P-002 08300200UH80 Square Frame "B" L=3344 1

P-003 24007A D-UK06 Square Frame (D) L=583 1

P-004 24006A D-UK06 Square Frame (C) L=583 1

P-005 24008PR-UK06 Connecting Plate (F) 2

P-006 24005PR-UK06 Frame Space 2

P-009 24011PR-T121 Connecting Plate "C" 4

P-010 10010SC-8119 Plus Screw (M3*L 5) 8

P-011 24016SF-T121 Felt 23

P-012 24009A D-UK01 Fixing Plate (A) 3

P-013 24010A D-UK01 Fixing Plate (B) 2

P-014 24017A D-UK06 Fixing Plate For Frame 1

P-015 18025PM-U K01 Location Block 3

P-016 18153SC-3123 Plus Screw (M4*L10) 3

P-018 18084PR-A001 Embroi dery Frame Clip L ,300 16

18085PR-A001 Embroidery Frame Clip 6

18085PR-T121 Embroidery Frame Clip L,220 2

P-019 02044SC-3123 Truss Screw (M 5*L8) 24

P-020 15042SC-3123 Truss Screw (M 4*L6) 6

P-021 24026RB-UK06 Rubber Cap (L ) 1

P-022 24027RB-UK06 Rubber Cap (R ) 1

P-023 18086PR-B001 Frame Clip Support 48

P-024 02010SC-3123 Truss Screw (M 4*L8) 12

P-025 09000100U000 Tubular Frame Fixing Screw 9

P-026 24004PR-UK02 Connecting Plate "E" 2

Page 52

Page 53

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

Q-009 02031SC-7113 Hex. Socket Screw(M5*L10) 4

Q-010 18048SW-3115 Spring Washer (@5) 4

Q-011 16018SW-1111 Washer (@5) 4

Q-013 15042SC-3123 Truss Screw (M4*L6) 9

Q-015 04000105UH00 S/B Switch B ase 3

Q-016 14002SC-7113 Hex.Socket Bolt (M6*L15) 10

Q-017 16014SW-4115 Spring Washer (@6) 10

Q-018 08057SW-1111 Washer (@6) 10

Q-019 04000205UH00 Emergency Switch B ase 2

Q-022 02023SC-7113 Hex. Socket Bolt (M4*L8) 10

Q-023 15089SC-7119 C.S Screw (M4*L10) 5

Q-024 02027EL-UK01 S/B Switch Set 3

Q-025 02026EL-UK01 Start Switch Set 3

Q-027 02103ET-UK01 Emergency Switch Sticker 2

Q-031 02031PR-UK02 Pulley Cover Bracket 1

Q-032 02025PR-UK02 Top Shaft Cover (C) Bracket L 3

Q-033 25028EL-UK06 Cable (25-28) 3

Q-035 02103000UH80 Cable (Sh-30-4) 1

Q-036 02017PM-A001 Cable Ring 6

Q-037 02062PR-UI 12 C able Holder 5

Q-041 04000104UK00 Switch Base Holder (12C) 10

02058PR-UI12 Switch Base H older (15C)

Q-042 02000800T000 Emergency Switch Set 2

Q-043 02106400U 000 Emeguncy S/W Cabl e 2

Q-045 01001000UH80 TOP SHAFT PULLEY COVER 1

Q-046 01001100UK00 Top Shaft Pull ey Cover B 1

Q-047 09005SC-3123 Truss Screw (M3*L6) 4

Q-049 09000505UH80 TOP SHAFT COVER D L=499.5 1

Page 54

Page 55

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

R-001 09000700UH80 Cable C over 2 R-055 08076SC-7113 Hex. Socket Bolt 2

R-002 02031SC-7113 Hex. Socket Screw(M5*L10) 8 R-056 20009EL-B001 LAMP (32W) 2

R-003 18049SW-3111 Washer (@ 5) 8 R-057 12000200B 000 CABLE C OVER PLA TE2

R-005 02065SC-3328 Tapping Screw (M3*L10) 8 R-058 02000400B000 CABLE COVER HOLDER 4

R-007 08076SC-7113 Hex. Socket Bolt (M5*L12) 8

R-008 18048SW-3115 Spring Wa sher (@5) 8

R-009 16018SW-1111 Washer (@ 5) 8

R-011 11049SC-A001 B oard Stud Bolt 24

R-012 18048SW-3115 Spring Wa sher (@5) 28

R-013 18154SC-9134 PLUS SCREW (M3*L8) 32

R-014 02054RB-UK01 Clamp Rubber 1

R-015 02053PR-UK01 Cable Clamp 1

R-016 18013AF-7113 Hex. Socket Bolt (M4*L10) 2

R-017 18049SW-3111 Washer (@ 5) 2

R-018 02017PM-A001 Cable Ring 7

R-019 20000BM-A001 L amp Ass'Y (Set) 2

R-020 03016SC-4113 Hex. Socket Bolt (M5*L15) 8

R-021 02031SC-7113 Hex. Socket Screw(M5*L10) 4

R-022 18048SW-3115 Spring Wa sher (@5) 12

R-023 16018SW-1111 Washer (@ 5) 12

R-024 20001PR-A001 Lamp Ass'Y Connecter 4

R-025 20009PR-A001 Reflecti ng 2

R-026 02010AF-3123 Truss Screw (M4*L8) 6

R-028 09005SC-3123 Truss Screw (M3*L6) 4

R-029 09000600UH80 Cable C over 1

R-031 20016EL-A001 B allast 2

R-032 20014ET -A001 L amp Socket 4

R-033 20012PR-A001 Lamp Socket Fixed Plate 4

R-035 25022EL-UK01 T o Adjusting Plat e (4Ht-22) 6

R-039 25053EL-UK06 C able (25-53) 1

R-043 20032SC-T121 Plus Screw (M3*L10) 4

R-044 02105000E040 Cable 1

R-047 02105700UH80 Cable (Sh-57-5) 1

R-048 02105600UH80 Cable (Sh-56-5) 1

R-049 02106000UH80 Cable (Sh-60-5) 1

R-050 03-0000-HB11 Thread Control Joint Board 1

R-051 02105900U000 Sh-59 1

R-052 11093EL-C001 Sub. Control Board 8

R-053 01-0000-AU08 Joint Board 1

R-054 03202000UH80 X-Moter Cable Holder 1

Page 56

Page 57

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

S-001 01-001A-AU 12 Control Bo x 1 S-047 25007EL-UK06 Cable (25-07) 1

S-002 08091SC-7113 Hex. Socket Bolt ( M6*L20) 4 S-048 25008EL-UK01 Smps To Fan Con. C able 4Ht-8 1

S-003 16014SW-4115 Spring Wa sher (@6) 4 S-049 SWF-BU-1206 Control Box(Uk06) 1

S-004 08057SW-1111 Washer (@ 6) 4 S-050 05000300T000 Main Power S/W (Abs52Bf-10A) 1

S-005 01-004A-AU 12 Transfomer ( 4Head) 1 S-051 02100100E040 Main C able (Ce4Hf-1) 1

S-006 16059SC-7113 Hex.Socket Bolt (M6*L12) 4 S-052 02100300E 040 Switch To Filtter (Ce4Ht-3) 1

S-007 16014SW-4115 Spring Wa sher (@6) 4 S-053 02105500E040 Noise Filter - Mc1St Connet 1

S-008 08057SW-1111 Washer (@ 6) 4 S-054 10-0000-MD00 MAIN B /D (SD-MMD16) 1

S-009 01-005A-AU 12 Smps 1 S-055 04-0000-SD00 X-Y BOARD 2

S-010 22025SC-9134 Screw (M4*L10) 2 S-056 04-007A-SD10 PCB BRA CKET 2

S-011 01-006B-A U12 Smps B racket 1

S-012 01-002A-AU12 Control Box Front Cover 4

S-013 01-007B-A U12 Rack C ard Guide 6

S-014 01-101A-SW67 Heat Sink (T) 1

S-015 05008A F-4113 Hex.Socket Bolt(M4*L16) 4

S-016 02028SW-9115 Spring Wa sher (@4) 4

S-017 02063SW-1111 Washer(@4) 4

S-019 09005SC-3123 Truss Screw (M3*L6) 5

S-020 01-001M-AU12 Stud 5

S-021 01-003B-A U12 Main Board Bracket 1

S-022 01-007A-AU 12 Heat Sink 1

S-023 09005SC-3123 Truss Screw (M3*L6) 4

S-024 02015SC-7113 Hex.Socket Bolt(M4*L 10) 6

S-027 05008A F-4113 Hex.Socket Bolt(M4*L16) 6

S-028 01-007S-AU12 Top Cover 1

S-029 09005SC-3123 Truss Screw (M3*L6) 4

S-030 01-002A-AT01 Cooling Fan 1

S-031 01-002B-A U12 Fan Cover 1

S-032 01-002M-AU12 Plus Screw (M4*L35) 4

S-033 01-003A-AU12 Control Box Rear Cover 1

S-034 09005SC-3123 Truss Screw (M3*L6) 7

S-035 01-008B-A U12 Connector Cover 1

S-036 09005SC-3123 Truss Screw (M3*L6) 4

S-037 01-002A-AT12 Front Cover 1

S-038 09005SC-3123 Truss Screw (M3*L6) 8

S-039 02-001B-SW67 Switch Cover 2

S-040 09005SC-3123 Truss Screw (M3*L6) 4

S-042 20041EL-T121 Noise Filter (Sn-E5H-Cm ) 1

S-043 03-005B-SW62 Fuse Holder 1

S-044 22025SC-9134 Screw (M4*L10) 1

Page 58

Page 59

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

T-002 10-003A-AT10 Membrane Switch 1

T-003 01-003A-AT01 VFD 1

T-004 01-004A-AT01 Lcd 1

T-008 10-004A-AT10 Fdd 1

T-009 19033PR-T121 Operat ion Box Hinge Bracket 1

T-010 08087SC-7113 Hex. Socket Bolt (M8*L25) 2

T-011 15095SW-3115 Spring Washer (@8) 2

T-012 08041SW-1111 Washer (@8-S) 2

T-013 19035CA-T121 Hinged Block 1

T-014 08087SC-7113 Hex. Socket Bolt (M8*L25) 1

T-015 15095SW-3115 Spring Washer (@8) 1

T-016 08041SW-1111 Washer (@8-S) 1

T-017 19039C W-T121 Adjusting Bolt 1

T-018 19040CA-UK01 Holder 1

T-019 15030SC-7113 Hex. Socket Bolt (M5*L30) 4

T-020 18048SW-3115 Spring Washer (@5) 4

T-021 16018SW-1111 Washer (@5) 4

T-022 22033SC-7134 Plus Screw (M5*L12) 4

T-023 09005SC-3123 Truss Screw (M3*L6) 5

T-025 02010AF-3123 Truss Screw (M4*L8) 4

T-026 15120SC-A001 Position A djusting Screw 3

T-028 25046EL-UK01 Joint-Io B /D 34P 1

T-030 09000300B 000 Magnet Sticker 1

T-031 02100500E040 Smps Box To Joint & Pc Power 1

T-032 02106100U000 Joint Board To Io Boar d 30P 1

T-033 09001000U H80 Body Front Cover C 1

T-034 08091SC-7113 Hex. Socket Bolt (M6*L20) 3

T-035 16014SW-4115 Spring Washer (@6) 3

T-036 08057SW-1111 Washer (@6) 3

T-037 02-1000-LD00 L ED BOARD 1

T-038 02-100A-AT01 CPU CARD (ROCKY-386) ASS'Y 1

T-039 03-0000-IO00 SH-I/D B/D ASS'Y 1

T-040 10-112A-AT10 OP BOX COVER (NCT) 1

T-041 19013B M-T121 OPERATION BOX 1

Page 60

Page 61

Ref. No Part No. Part Names Q'ty Ref. No Part No. Part Names Q'ty

U-022 23001EL-B001 O n/Off Switch 1

U-023 23002EL-B001 T imer 1

U-024 23003EL-B001 Start Switch 1

U-025 23004EL-B001 St op Switch 1

U-026 23005BM-B001 Spool Post 1

U-029 23008BM-B001 Tension Adjusting Set 1

U-030 23009CW-B001 Bobbin Shaf t 1

U-031 02026SC-A001 Bobbin Stand 1

U-033 23002BM-B001 B obbin Winder 1
