Page 1

User’s Guide

SS-40K16 SS-42K16 SS-50K16 SS-58K16 SS-65K16 SS-75K16

Page 2

SWEDX Wave

ﺔﯾﻟزﻧﻣ ﺎﻣﻧﯾﺳ

Digital Signage Screens

SWEDX Kiosk

SWEDX Lamina

SWEDX V

SWEDX Soundbar

SWEDX Matrix Video Walls

SWEDX offers a wide

range of LED-TVs and

digital signage products

and its accessories. For

more information please

visit

www.swedx.com

SWEDX Direct

Page 3

Design and specifications are subject to change without notice.

INDEX Page

Introduction 4

Safety precaution 4

Basic operation 5

Contents 6

Inputs 6

Remote Control 7

Remote control buttons 8

First Time Installation 9

Main Operations 10

Volume Control 10

OSD Menu Operations 10

OSD Menu Structure: 10

Setup Menu 11

Channel Menu (Satellite) 12

Channel Menu (DTV) 16

Picture Menu 18

Sound Menu 19

Time Menu 20

Lock Menu 21

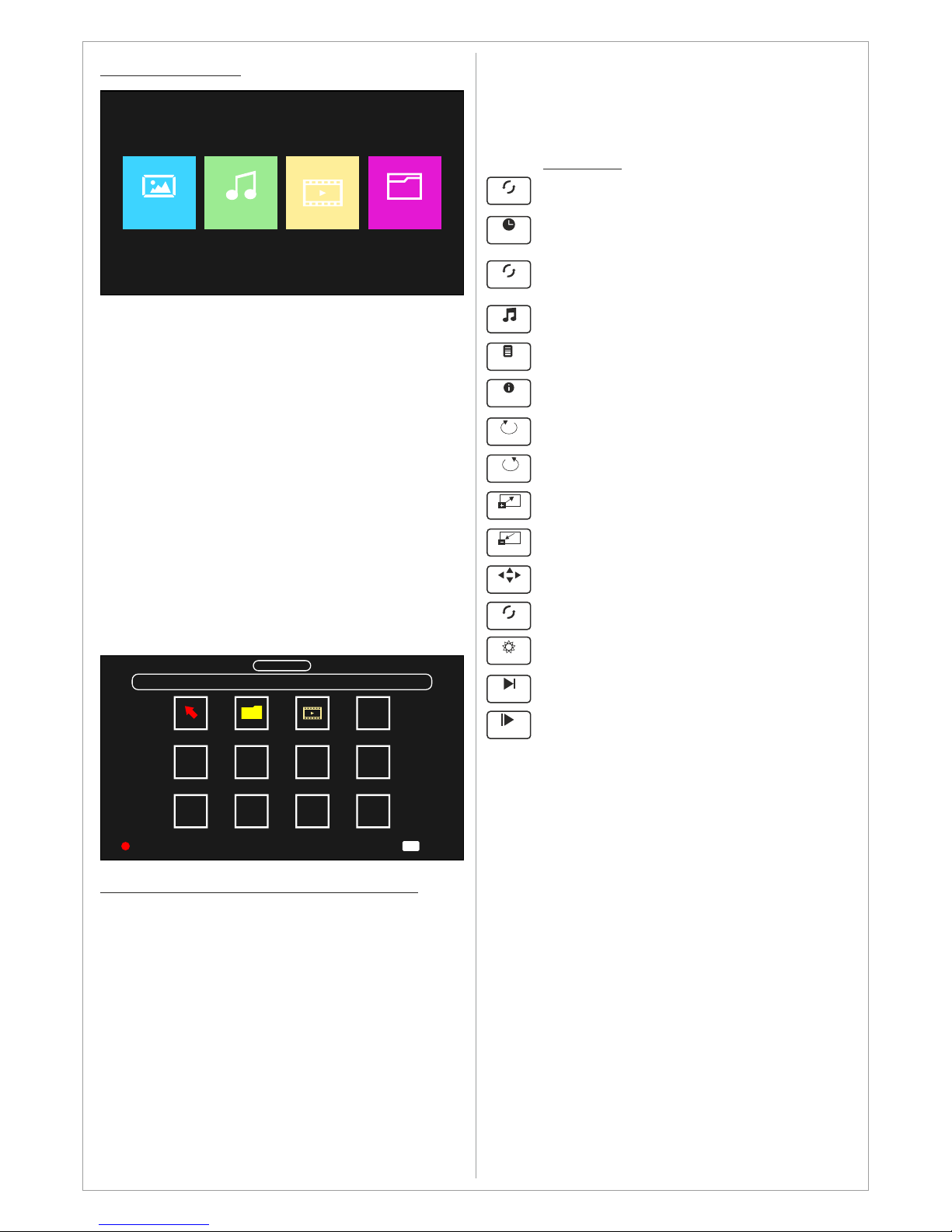

USB Media Player 22

Supported file formats and codecs 23

Text-TV / Teletext 24

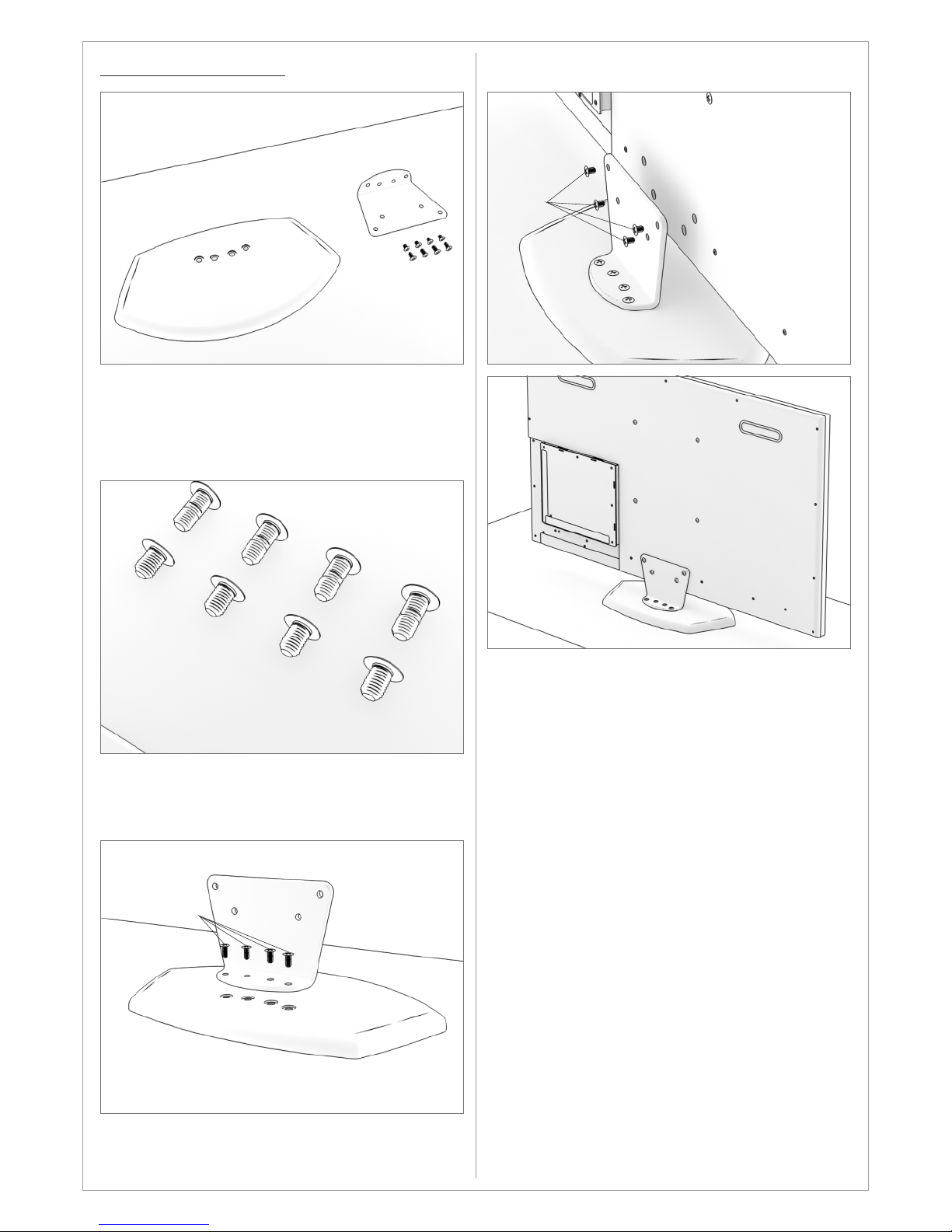

Product base assembly 25

Wall mount assembly 26

Troubleshooting 27

Warranty and Service 28

How to get service 29

Limitation of liability 29

Page 4

Introduction

Thank you for choosing SWEDX LED/LED-TV. Please read this manual thoroughly before operating the product. Make sure the display was not damaged in transit. Should the product be damaged, please contact your dealer and do not install it. Check that you have all the accessories according to the model.

Safety precaution

• Do not place the product on unstable places, from which it may fell off

• Do not expose the product to extreme temperature and humid environment

• Avoid subjecting the product to direct sunlit or other heat sources

• Do not put the product into any liquid

• Do not put anything inside the product, or place water container on top of the it

• In thunder rainy days (especially with lightening), please unplug the power and antenna cables

• Do not step on the power cable, or tangle them together

• Avoid overload of the exterior electric outlet to prevent fire hazard of electric shock

• Clean the product with dry and soft fabric

• lf your product is broken, do not repair it by yourself, but contact the maintenance personnel

• lf the remote control is left unused for a longtime, please take the batteries out and store them in dry places

• Avoid dropping the remote control

• lf the product is installed for exhibition purpose, please do not place the overheated part on the ground or carpet to prevent accident

• The apparatus shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on the apparatus

• Where the MAINS plug or an appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like

• Excessive sound pressure from earphones and headphone can cause hearing loss

Please install the product at proper position, such as wall or ceiling. Please install it under the guidance of professional staff.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired operation

Please disconnect the power cord if this equipment will not be used for a long time.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the screen

• Do not display a still image on the screen for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image

• Watching the screen in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images

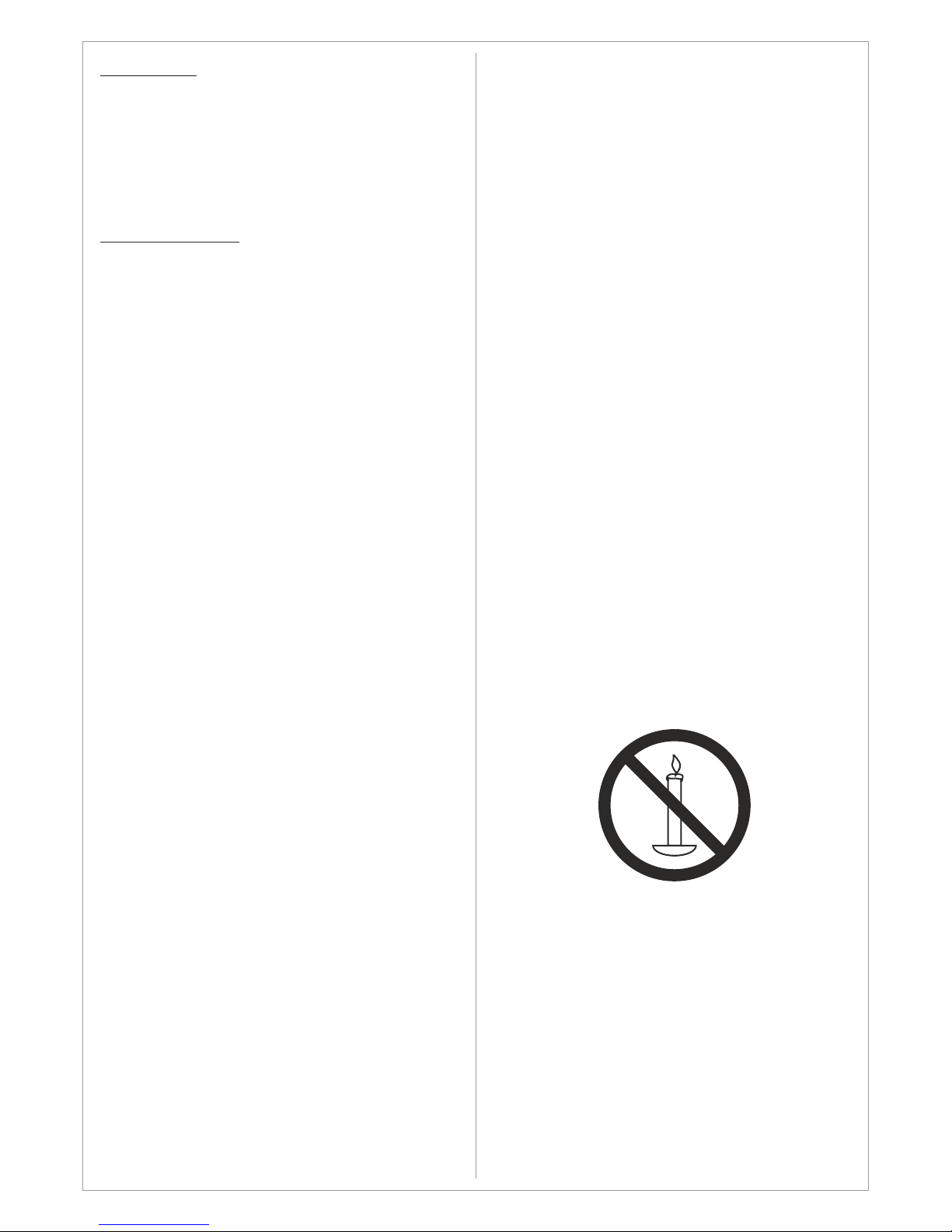

WARNING

To prevent the spread of fire, keep candles or

other open flames away from this product at

all times

Page 5

Basic operation

• Use AC 100-240V 50~60 Hz power outlet for the product power supply.

• lf the screen of the product is not on, please press the power button on the remote control or on the product.

• lf you want to shut off the product temporary, please press the power button on the remote control or on the product.

• lf you want to shut off the product completely, please disconnect the power cable.

• In all modes except PC mode, the product will enter idle state if there is no signal input after 10 minutes.

• ln PC state, the product will enter idle state if there is no signal input after 30 seconds.

• The setting and tuning of picture and sound will be saved when the product is shut off, which will be working in the pre-shut off state when the product is turned on again.

• lf PC signal source is used, please first set the resolution of the PC display card as the following modes: For HDMI 1 and 2 (3840x2160 @ 60Hz)

For HDMI 3 (3840x2160 @ 30 Hz) For PC (1920 x 1080 @ 60Hz)

• lf there is progressive output of the signal used by the user, signal source with progressive output is recommended.

Preparation

• Put the product on a stable surface.

• Do not fix the product with others fixations than those provided or suggested by the manufacturer.

• If you have a wall mount, check that it is steady.

• Do not place any material on the product.

• Do not block or cover the ventilation openings on the product.

• The product must be plugged with a tension source of 110-240 volts and 50~60 Hz.

• Power cord and cables must be properly routed and protected to prevent from stepping on them.

• Keep the power cord away from any heat source. Possible fire hazard.

Heating sources and humidity

• Keep the product dry and away from humidity.

• Keep the product away from heat sources.

Cleaning and maintenance

• Unplug the product before cleaning it. Do not use solvents or liquids to clean the product.

• Only clean the product with a soft and dry fabric.

• In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or others incidents. Please contact a

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER(OR BACK). REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

technical authorized by SWEDX brand.

Departure in holidays

• Unplug the product during lightning storms or when unused for long periods of time.

Page 6

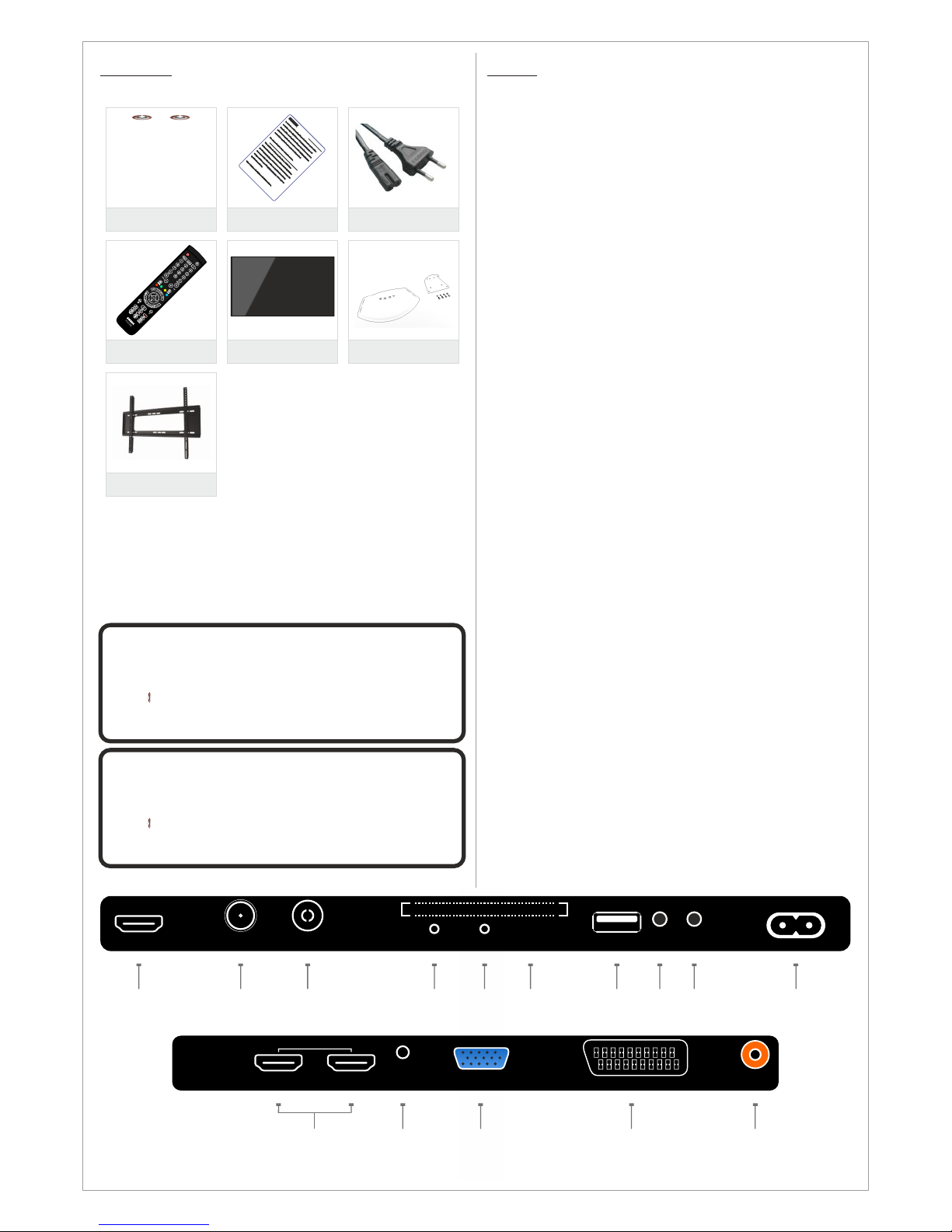

Contents

Included items:

2 x AAA Battery

Notice! / Information

Notice

AC Cable

LED/LED-TV

1 2 3 4

1513 14

Base + Screws

CAUTION

Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

AAA Battery

CAUTION

The batteries shall not be exposed to

excessive heat such as sunshine, fire or the like.

AAA Battery

AAA

Remote Control

Wall-mount

1. The TV-base is included for the sizes 40, 42, 50 and 58 inch only

2. The Wall-mount is included for the sizes 65 and 75 inch only

AAA

COAXIAL

K16-UHD-1

1 / ARC 2

HDMI 2.0

AUDIO

PC SCART

CI MODULE

POWER INPUT

AC 100-240 V ~ 50/60 Hz

ON/OFF

2.4GHz

REMOTE

PAIRING

X DTV/ATVSAT AVCOMPONENT USB

CI MODULE

K16-UHD-2

3 / MHL DTV/ATVSAT AVCOMPONENT USB

POWER INPUT

AC 100-240 V ~ 50/60 Hz

ON/OFF

2.4GHz

REMOTE

PAIRING

HDMI 1.4

7 8 10

Inputs

1. HDMI3 / MHL

Input for HDMI3 (Ver. 1.4). Supports maximum resolution 3840x2160 @ 30 Hz. Supports MHL (Mobile High-definition Link)

2. SAT

Input for Satellite receiver (DVB-S/S2) Supports Full-HD channels

3. DTV/ATV

Input for digital/analog TV channels. Supports analog and DVB-T/T2/C

4. COMPONENT

Input for Component (YPBPR) sources. Supports maximum resolution 1080p @ 60 Hz

*Component/YPBPR and AV shares the same audio input

5. AV

Input for AV (Audio/Video) sources

6. CI Module (Common Interface)

Input for CAM (Conditional Access Module) for decrypting of digital TV channels. Supports DVB-T/T2/C/S/S2

7. USB

Input for USB Media Player/Firmware upgrade

8. On/OFF

Key to power the TV On/Off

9. Remote Pairing

Key to pair the remote control with the TV

10. POWER INPUT

Input for 100-240 V power 50~60Hz

11. HDMI1 (ARC) / HDMI2

Input for HDMI1 and 2 (Ver. 2.0). Support maximum resolution 3840x2160 @ 60 Hz HDMI1 Supports ARC (Audio Return Channel)

12. PC AUDIO

Input for PC audio when PC (Personal Computer) is connected

13. PC

Input for PC (VGA) sources

14. SCART

Input for SCART sources

15. COAXIAL

Output for digital audio signal (Coaxial)

Page 7

Design and speciﬁcations are subject to change without notice.

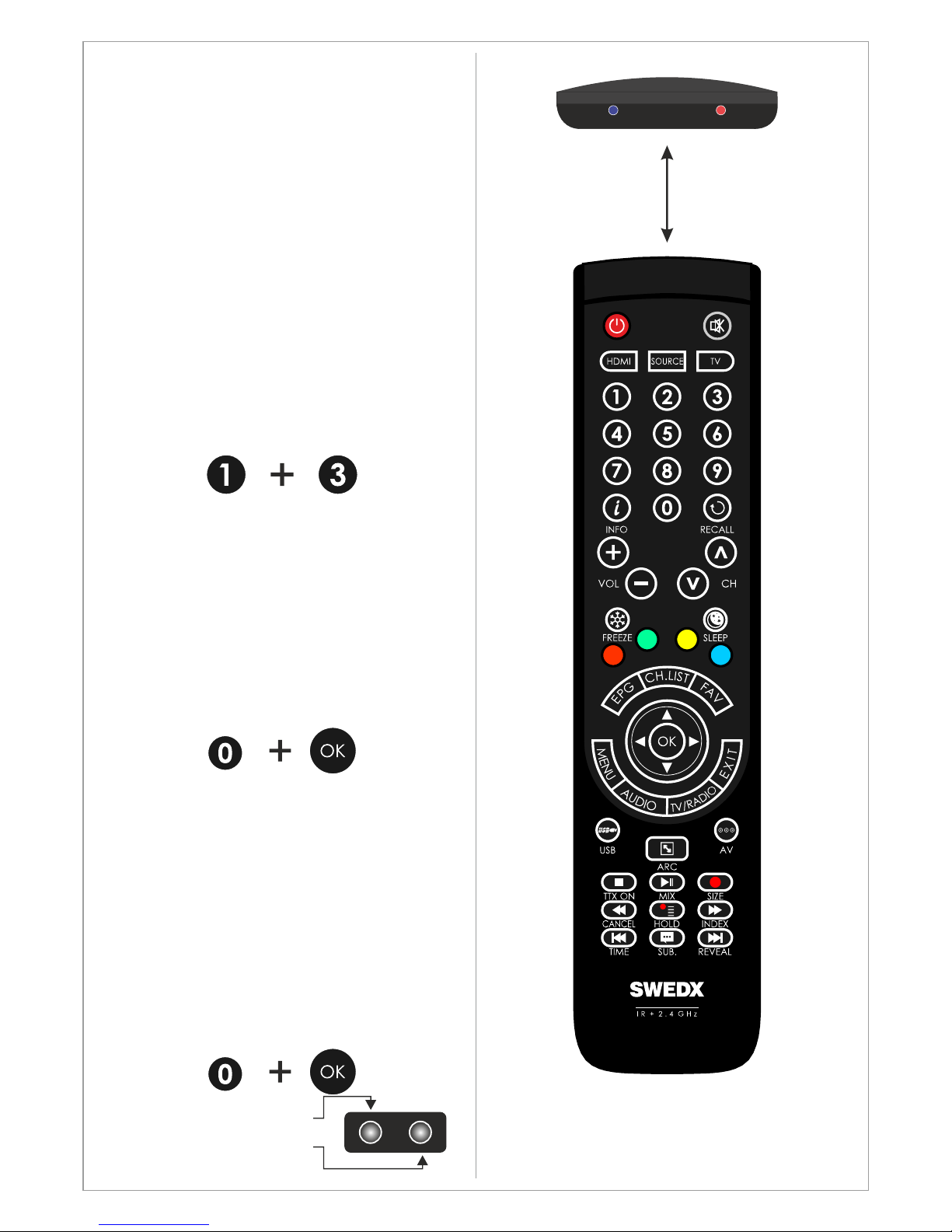

Remote Control

The remote control is based on both 2.4 GHz and Infrared.

The remote control is equipped with LED indicators. The RED indicator states that the remote is in Infrared mode and the BLUE indicator is for 2.4 GHz mode. Recent products from SWEDX uses 2.4 GHz receivers.

The 2.4 GHz technology allows the remote to control the TV without targeting it because the receiver is built inside the TV. Each SWEDX TV has a pre-configured remote control meaning that if you have several SWEDX TVs then the remote control for one of the TVs will function only with that particular TV and not with the other TVs.

To switch between Infrared and 2.4 GHz mode press and hold the

buttons for 5 seconds. The Red LED will flash 3 times and switch from the current mode to the other one.

To pair the remote with the TV follow the steps below

1. Connect the product (e.g screen) to power outlet

2. Make sure that the remote is in 2.4 GHz mode

3. Press and hold the

buttons on the remote control simultaneously for about 5 seconds. The BLUE LED will flash 5 times indicating that the remote is now paired with the TV.

Recent 2.4 GHz based products from SWEDX are equipped with a pairing key in order to avoid pairing more than one product when more than one SWEDX products is close by. A On/Off key is also available in recent SWEDX products.

If your product is equipped with paring key please press and hold the paring key for 2 second when the Blue LED light is flashing after pressing

On/Off Key

Pairing Key

Page 8

33 34 35 36

23 24

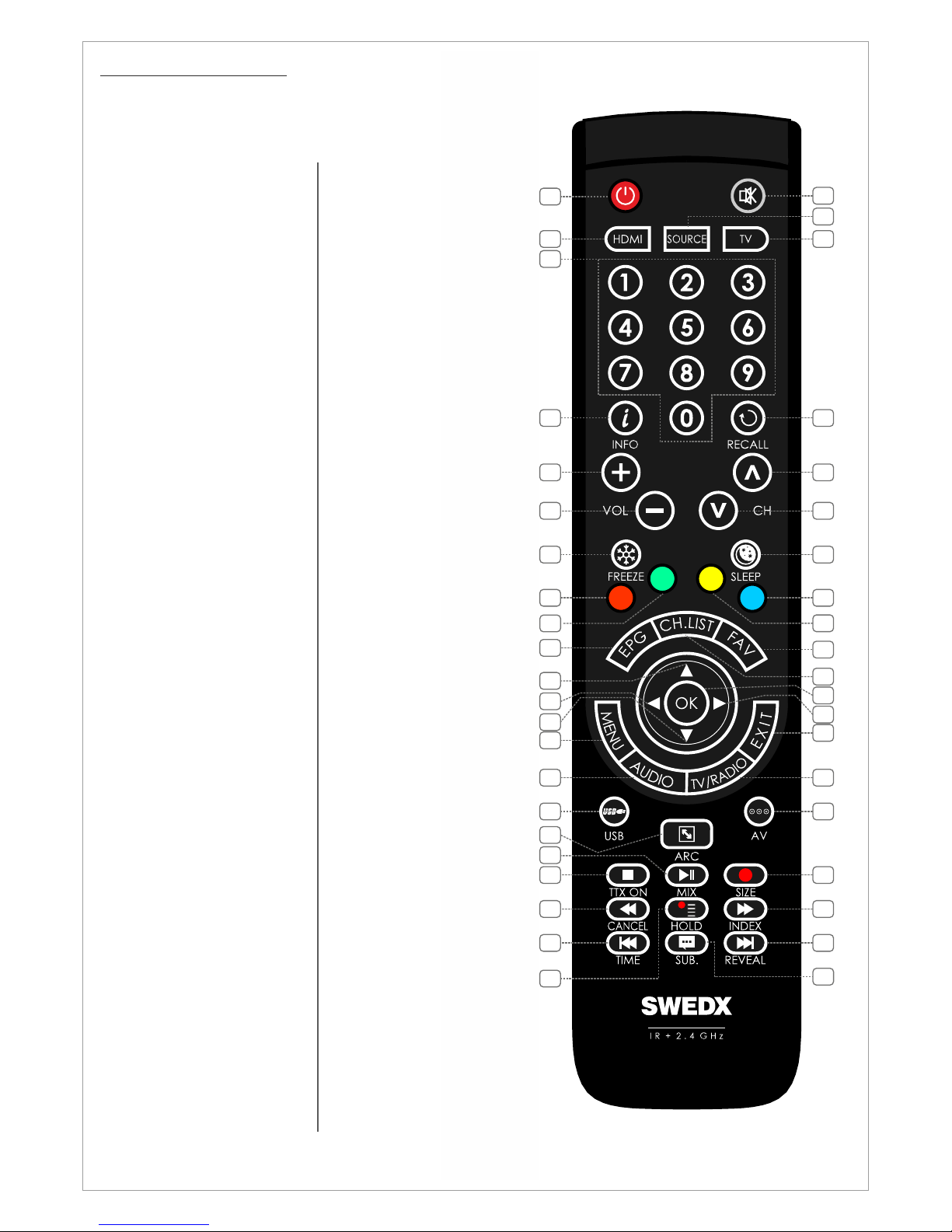

Remote control buttons

1. On/Off button

2. Shortcut to HDMI1,2,3

3. Number buttons for

direct channel access

4. Display additional

information

5. Volume increase

6. Volume decrease

7. Picture freeze

8. Fast-text topic selection

in Teletext RED

9. Fast-text topic selection

in Teletext GREEN

10. EPG (Electronic

Program Guide)

11. Navigation button UP

12. Navigation/adjust button

LEFT

13. Navigation button

DOWN

14. Menu display. In OSD

sub-menu press to access previous menu

15. Choose Audio/ language

in DTV/USB media player

16. Shortcut to USB

17. Aspect Ratio selection

18. Start/Pause play,

Start/Paus time shift/alter Teletext mix

19. Stop play/activate

Teletext

20. Fast backward/ Teletext

cancel

21. Previous Title/Display

time in Teletext

22. Display Recorded

List/Hold Teletext

23. Mute the built-in

speakers

24. Available sources

selection

25. Shortcut to DTV/TV

26. Previous TV channel in

DTV/TV

27. Next channel. When the

channel list is displayed, it scrolls down to next page in the list

28. Previous channel. When

the channel list is displayed, it scrolls up to previous page in the list

29. Enter sleep mode in certain chosen time

30. Fast-text topic selection in Teletext

Blue

31. Fast-text topic selection in Teletext

Yellow

32. Display favorite channels list

33. List TV-channels

34. Navigation/adjust button RIGHT

35. Previous Title/Display time in Teletext

36. Exit the OSD

37. Alter TV/Radio Channels mode

38. Shortcut to AV

39. Instant Recording/ Teletext size selection

40. Fast forward/Teletext index

41. Next Title and Reveal Teletext

42. Activate subtitles in DTV/USB media player

2 3

11 12 13

17 18 19

Page 9

First Time Installation

The first time the TV is turned on an installation guide will be presented. Chose the desired language and country.

In the energy mode you can choose between Home and Dynamic mode. The home mode will reduce the back light intensity in order to save energy while the Dynamic mode will increase the back light intensity to the maximum.

Language

First Time Installation

Country

English

Sweden

Home Mode

Auto Tuning

Energy Mode

Page 10

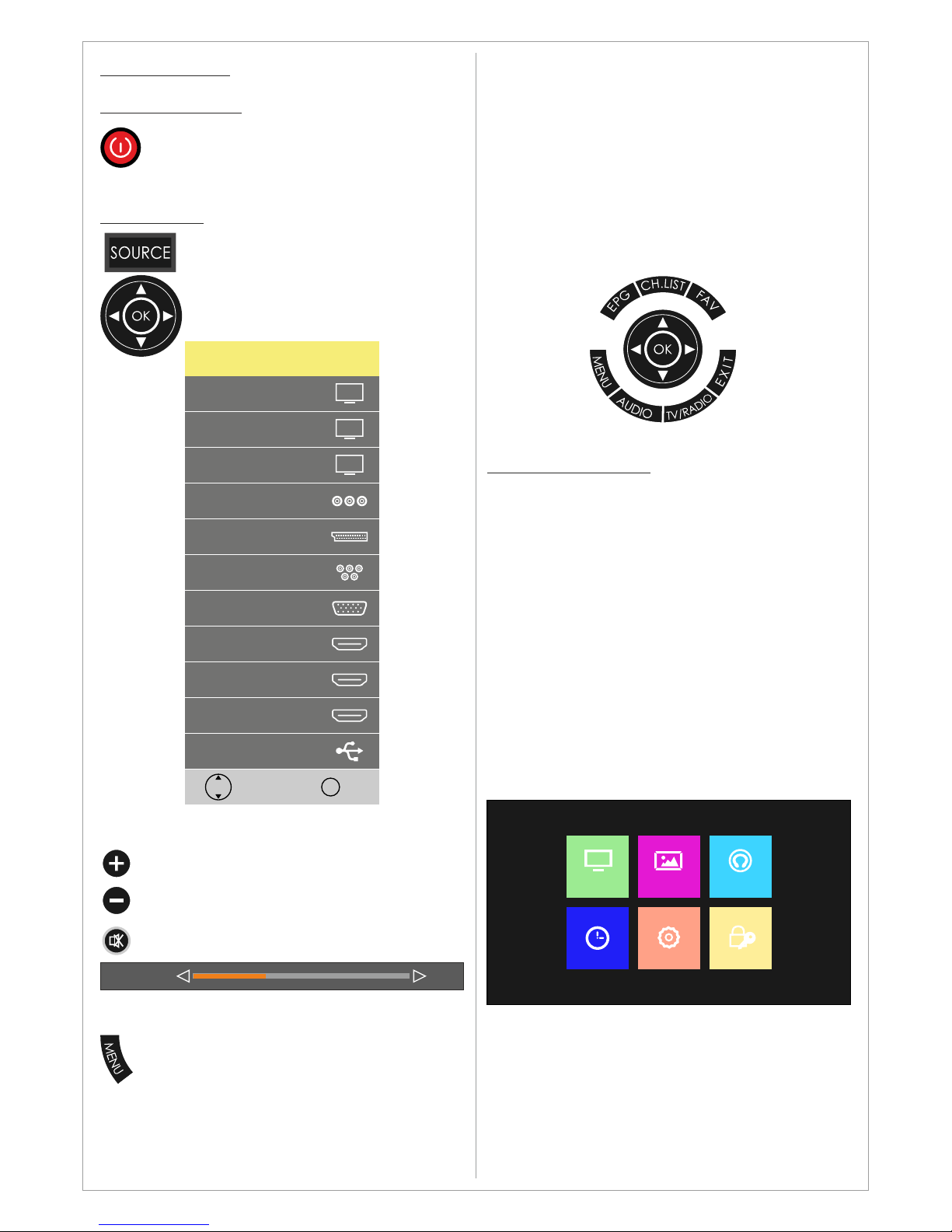

Main Operations

Turning On And Off

Press POWER on the remote control or

the On/Off button on the control buttons. The product will turn on and will be ready

to be used.

Select Source

Press SOURCE on the remote control. The source list menu will appear. Navigate the list with

Up/Down on the remote control to

select the source and confirm by pressing OK.

Volume Control

Press VOL+ / VOL- on the remote control to adjust the volume level.

Press the MUTE on the remote control to

mute the sound.

sub-menu.

• Use UP & DOWN buttons to navigate in the

OSD Menu.

• Press EXIT button to exit the OSD Menu.

OSD Menu Structure

• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with his/her preferences.

• Press the MENU button on the remote control to see the main OSD menu.

OSD Menu Operation:

• Main Menu: Press MENU on the remote control to enter the main OSD menu. First, choose Main menu item you need with the buttons ◄ & ►. To select a Main menu items, just press OK.

• Sub Menu: Each menu item has its own sub menu items to set.

• Sub Menu items:

A: If there is no value to adjust it means there

is a sub menu which you can access by pressing OK and modify the menu values. B: If there is no ► part, the item has adjustable values. Use ◄ & ► to adjust the values.

C: If the sub-menu item is grey colored, it

means this item is not available in the particular mode.

OSD Menu Operation

• Press MENU on the remote control to

access the OSD Menu. Pressing the

same button again will move you backward in the OSD structure.

• Press OK button to

confirm/select.

• Use LEFT & RIGHT buttons to navigate or

change the parameters of the current

Volume

SOUNDPICTURECHANNEL

TIME SETUP LOCK

Satellite

Input Source

DTV

ATV

SCART

YPbPr

HDMI1

HDMI2

HDMI3

USB

Move OK

Page 11

SETUP

In this Menu you can choose the setup settings for the TV.

Language

Choose the OSD language

TT Language

Choose the language for TeleTEXT

Audio Languages

Choose the default first and second audio languages for DTV channels when more than one language is available in the broadcasted channel. The default language is English if the broadcast does not included the preferred chosen language

Subtitle Language

Choose the default first and second subtitle languages for DTV channels when more than one subtitle language is available in the broadcasted channel. The default language is English if the broadcast does not included the preferred chosen language

Hearing Impaired

The hearing impaired function will display additional subtitles customized subtitle for hearing impaired persons when it is activated.

Aspect Ratio

Set the various picture options such as picture size and aspect ratio.

Depending on the input source, the picture size options may vary. Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 when using cable boxes and PointToPoint / Just Scan mode when using the TV as a monitor.

Auto

Automatically adjusts the picture size to the broadcasted signal

Zoom1&2

Magnifies the picture size.

4:3

Sets the picture to basic (4:3) mode.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

PointToPoint / Just Scan

Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p / 2160p) signals. The PointToPoint mode will display a smoother picture while Just Scan mode will display crispier picture.

PVR File System (Personal Video Recording)

Use the PVR File System Menu to prepare the TV to record DVB-T/T2/C/S/S2 programs and use the Time Shift function. In order to record or time shift programs you need to connect a USBmemory or an Externa Hard Drive to the TV.

The first time you connect a USB-memory or external hard drive you will need to format it in the PVR File System. All data on the USBmemory or external hard drive will be erased, therefore please backup any data before formatting in the PVR File System.

Language

Setup

TT Language

Audio Language

Subtitle Language

Hearing Impaired

Aspect Ratio

First Time Installation

Reset

Software Update (USB)

HDMI CEC

Move

Back

Adjust

Exit

EXIT

> > >

> >

> > > >

English

West

Off

16:9

Off

PVR File System

Blue Screen

Select Disk

PVR File System

Check PVR File System

USB

Format

Timeshift Size

Start

Speed

Free Record Limit

6 Hr.

Back

Move

Page 12

Select Disk: Choose the disk you want to use

Check PVR File System: Choose to check the disk status and compatibility

USB Disk: It provides information if the disk is status

Format: Choose to format the disk. Two formatting standards are available, FAT32 and Hi Speed FS. You can also choose the PVR File System Size you want to format. After formatting the LED will report the estimated recording time for the formatted disk both for Standard Definition and High Definition recording and let you choose the Time Shift Size (see Time Shift Function for more information)

Blue Screen Options: Off/On

When is activated (ON) a blue screen will be displayed when no signal is received.

First Time Installation

The function will activate the First Time Installation menu. See the description of this function in the previous pages.

Reset

This function will reset the TV to the default settings.

Software Update (USB)

This function will update the TVs firmware by using the USB input. Contact SWEDX to check if an update for the TV firmware is available.

PVR File System Type

File System Size

PVR File System Size

SD 202 Mins

HD 57 Mins

FAT32

Free Record Limit

6 Hr.

All

Back

Move

Format

Adjust

HDMI CEC

Activate CEC over HDMI and set the HDMI ARC (audio retrun channel) feature. The Auto Power option allows the TV to turn on when a CEC compatible device is connected and powered on.

HDMI CEC

HDMI ARC

Auto Power

Move

Back

Adjust

Exit

EXIT

Page 13

Auto Tuning

Choose the following settings:

Country Satellite Scan Mode

The default mode will scan the predefined transponders. The Blind Scan mode will download the actual transponders for the chosen satellite. The network mode will scan a certain network.

Channel Type

Choose to scan all channel types or FTA Channel only (Free To Air).

Service Type

Choose to scan all service types or DTV or Radio only.

Channel (Satellite)

In this menu you can search for satellite channels manually or automatically, manage the TV channels such as deleting, adding to favorites, skipping and locking. You can also use the PVR function which allows to record or time shift TVprograms.

The TV model of this product is equipped with the following tuners:

Analog TV Tuner, supports Pal and Secam DVB-T/T2, supports [email protected] DVB-C, supports 16,32,64,128 and 256-QAM Supports H.264MP/[email protected] SD and HD decoding DVB-S/S2

It is strongly recommended that you set the Dish Setup settings before performing the channel search.

In this menu you can search for TV channels and manage them.

Auto Tuning

CHANNEL

Programme Edit

Schedule List

Recorded List

Signal Information

CI Information

Dish Setup

Satellite

Move

Back

Adjust

Exit

EXIT

> > > > > > >

Country

Tuning Setup

Satellite

Scan Mode

Channel Type

Service Type

> > > >

> > > > >

Sweden

2E Ku_Astra 19

Default

All Channels

All

Start

Back

Page 14

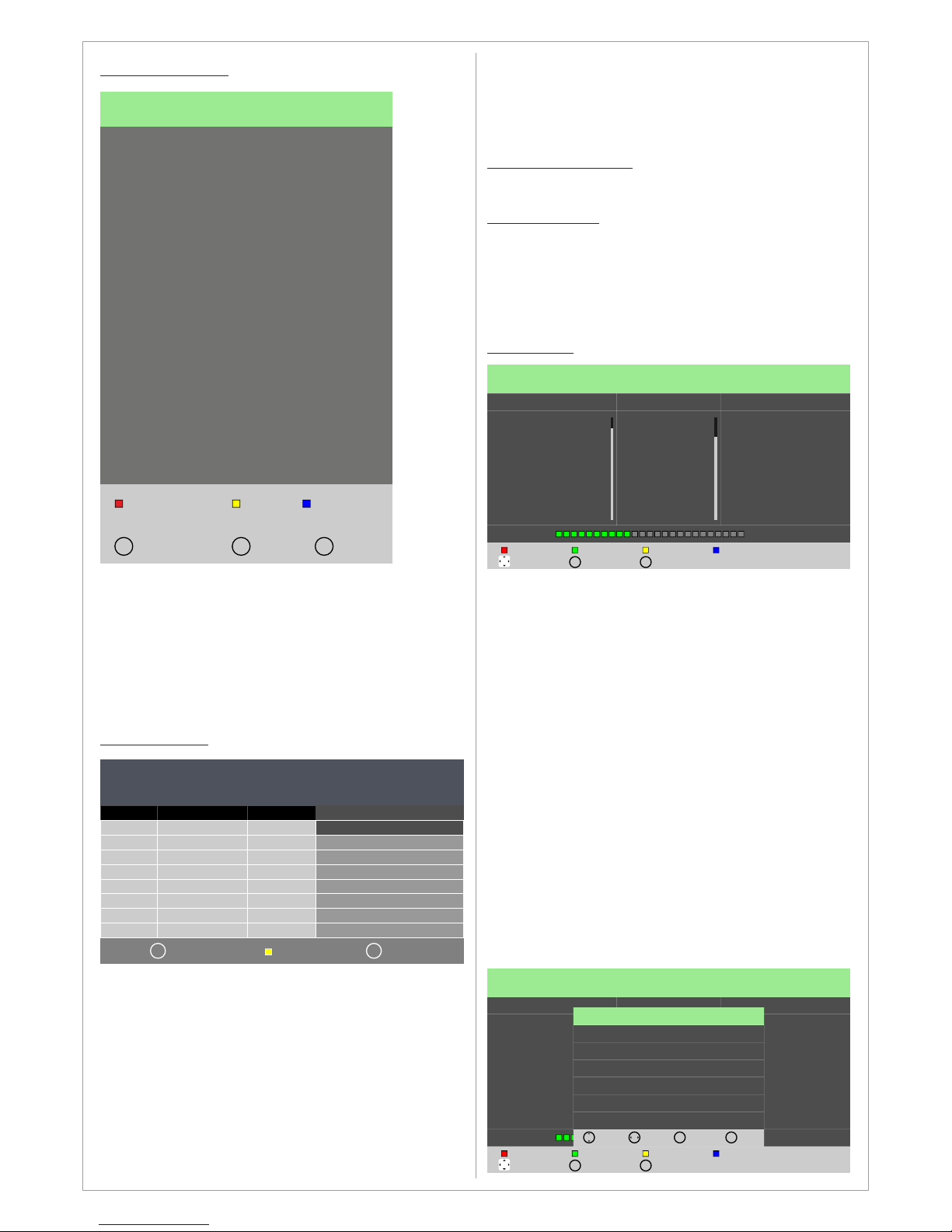

Programme Edit

This function allows to edit the scanned channels. Delete a channel (use Red button) Move a channel (press Yellow button, choose

new position, press OK)

Skip a channel (use Blue button) Add a channel to favourites list (use FAV button)

Schedule List

In Schedule List you can review the scheduled recordings and reminders A recording can be scheduled in the EPG Menu To add a recording highlight the desired program and press YELLOW on the remote control. Press the RED button to delete a recording or a reminder.

If a recording is scheduled the TV will switch the associated channel if you are watching another

201

Programme Edit

202

203

204

Channel 1

Channel 2

Channel 3

Channel 4

Channel 5

Channel 6

Channel 7

Channel 8

Channel 9

Channel 10

Delete Move Skip

Back

Fav

1/15

Schedule List

10:00 02 Jan

Add

Back

1/15 Programme Title Date

channel. If the TV is turned Off it will execute the recording as scheduled and the LED power indicator will flash RED/BLUE while the recording is in progress.

Signal Information

Display information about the signal

CI Information

Display information about the CI (Common Interface) when a CAM (Conditional Access Module) is inserted along with the required subscription card for decrypting encrypted TV channels.

Dish Setup

In the Dish Setup you can setup the built-in satellite receiver. You can scan the listed satellites/frequencies, edit them and add new satellite. You can also setup additional equipments such as DiSEq and motor.

To Add a new satellite press YELLOW button To Edit the highlighted satellite press GREEN Button. To Delete a satellite press RED button.

To Scan one or several satellite, highlight the satellite and press OK (the ► icon will appear ahead of the chosen satellites). Continue until you have marked all desired satellites. Press BLUE button to start scanning the chosen satellites

When editing or adding a satellite it is possible to edit the satellite parameters such as name, longitude direction / angle and band

Dish Setup

10:00 02 Jan

Satellite TransPonder Ku_ASTRA 19.2E

01 Ku_ASTRA 19.2

02 Ku_HOTBIRD 6,7A,8

03 Ku_NILESAT 101,10

04 Ku_EUTELSAT W3A

05 Ku_EUTELSAT W1

06 Ku_BADR-2,3,4/EURO

07 Ku_EUTELSAT SESAT

08 Ku_EUTELSAT W2

001 10744 H 22000

002 10773 H 22000

003 10803 H 22000

004 10832 H 22000

005 10891 H 22000

006 10921 H 22000

007 10964 H 22000

008 10994 H 22000

LNB Type

LNB Power

22KHz

Toneburst

DiSEqC1.0

DiSEqC1.1

Motor

09750/10600

13/18V

Auto

None

Delete Edit

Add

Scan

Exit

EXIT

Select

Move

Quality

Dish Setup

10:00 02 Jan

Satellite TransPonder Ku_ASTRA 19.2E

01 Ku_ASTRA 19.2

02 Ku_HOTBIRD 6,7A,8

03 Ku_NILESAT 101,10

04 Ku_EUTELSAT W3A

05 Ku_EUTELSAT W1

06 Ku_BADR-2,3,4/EURO

07 Ku_EUTELSAT SESAT

08 Ku_EUTELSAT W2

001 10744 H 22000

002 10773 H 22000

003 10803 H 22000

004 10832 H 22000

005 10891 H 22000

006 10921 H 22000

007 10964 H 22000

008 10994 H 22000

LNB Type

LNB Power

22KHz

Toneburst

DiSEqC1.0

DiSEqC1.1

Motor

09750/10600

13/18V

Auto

None

Delete Edit

Add

Scan

Exit

EXIT

Select

Move

Quality

No. 001

Satellite Name

Astra 19.2E

Longitude Direction

East

Longitude Angle 019.2

Band Ku

Edit

Exit

EXIT

Confirm

AdjustMove

Page 15

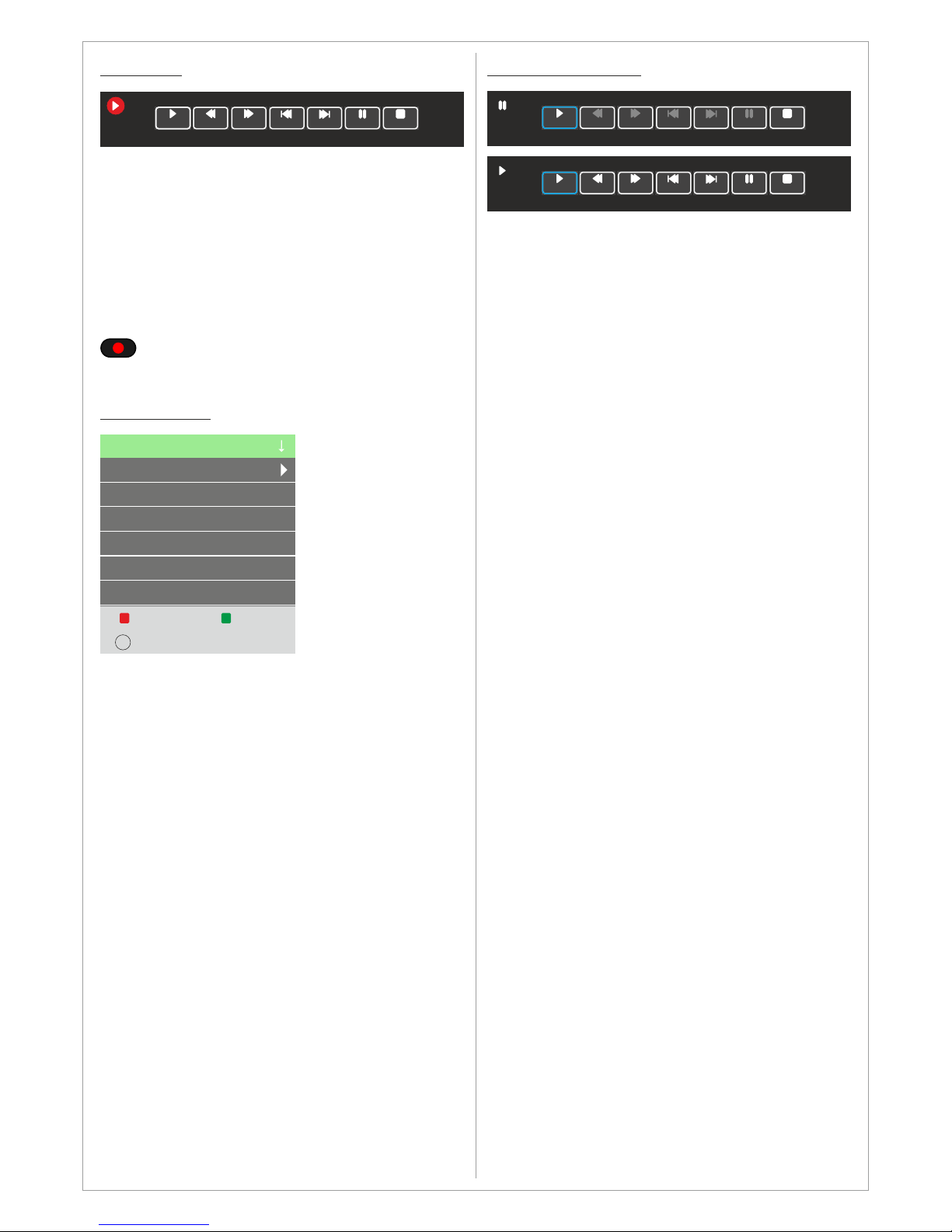

Time Shift Function

With the Time Shift Function you can pause a program while it is broadcasted and continue to watch it again at your convenience. The maximum time shift depends on the USBmemory or hard drive size.

To start the Time Shift while watching a program press the PLAY/PAUSE button to start the time shift, the LED will start recording the program and a menu indicating that is displayed. To continue watching the program press PLAY/PAUSE again and the LED will continue to play the program from where it was paused and a menu will be displayed where you can control different functions such as pause, fast forward and stop etc.

Recording

Use the Record Start Menu to start recording a program. When you start the recording a menu will be displayed where you can control the recording and get information about the current recording time, max recording time and channel number and name. When you stop the recording the LED will save the recording to the disk. The file format for saving is .TS

You can start the recording instantly by pressing the recording button on the remote control

Recorded List

Use the Recorded Start List Menu to display a list of the recorded programs. Pressing the RED button will delete the recorded program. Pressing OK button will play the recorded program. Pressing Info button will display information about the recorded program such as date, time, duration, program title, channel name and program description. Pressing the Recorded List button will change the sorting. 3 types of sorting alternatives are available, by channel name, time and program title.

Prev. Next Stop

FBPlay FF

Pause

Max Recording Time: [0001:51:40]Recording Time: [0000:25:10]

005 Channel Name

Idol

60 Minutes

Recorded List

Select

Index

Name

Info

Delete

Prev. Next Stop

FBPlay FF

Pause

Shift Time/Max Shift Time: [01:51:40/00:01:50]

Prev. Next Stop

FBPlay FF

Pause

Shift Time/Max Shift Time: [01:51:40/00:01:50]

Page 16

Channel (DTV)

In this Menu you can search for TV channels manually or automatically, manage the TV channels such as deleting, adding to favorites, skipping and locking. You can also use the PVR function which allows to record or time shift TVprograms.

Antenna

Check with your Cable-TV service provider what system type is connected where the TV will be used. For DVB-T/T2 choose Air. For DVB-C choose Cable

Auto Tuning

Use the Auto tuning to search for TV-channels. You can choose to search for ATV and or DTV. If you care searching DVB-C channels and it is necessary to input the search parameters please input it in the relevant section.

Regardless which kind of searching you do, the found channels will be saved in the correspondent channel lists (DTV and ATV).

Antenna

CHANNEL

Auto Tuning

ATV Manual Tuning

DTV Manual Tuning

Programme Edit

Schedule List

Recorded List

DTV

Move

Back

Adjust

Exit

EXIT

> > > > > > >

Country

Tuning Setup

Tune Type

Scan Type

Network ID

Frequency

> >

Sweden

DTV + ATV

Full

Auto

Start

Back

Network ID

Auto

DTV + ATV

Auto Tuning Status

DTV

Radio

Date

: : : :

22 Programme

5 Programme

10994 MHz ASTRA 19.2E

Please press MENU key to exit

Page 17

ATV Manual Tuning

You can perform a manual channel search for analog channels (ATV). You can choose the channel you want to save to and also use Fine Tune to adjust the tuning for the channel to get better picture. You can also change the Sound

system (BG, DK, I, L, L’) for the channel.

DTV Manual Tuning

You can perform a manual channel search for digital channels (DTV). You will need to provide the information about Channel, Frequency and Bandwidth (in AIR mode) or Frequency, SymbolRate and Modulation (QAM) (In CABLE) mode.

For Schedule List and Recorded List see previous pages.

ATV Manual Tuning

Colour System

Sound System

Fine-Tune

AFC

Current CH

PAL

Unregistered

Back

AdjustMove

DTV Manual Tuning

UHF CH 21

Back

Adjust

Bad GoodFreq. 474.00 MHz

No Signal

Page 18

Auto Adjust

SCREEN

H-Offset

V-Offset

Size

Phase

Move

Back

Adjust

Exit

EXIT

> >

Screen (only in PC mode)

When the TV is in PC-Mode additional settings are available for PC-Setup.

H-Offset: Adjust the PC’s screen positioning horizontally V-Offest: Adjust the PC’s screen positioning vertically Size: Adjust the screen size Phase: Adjust the signal phase

Dynamic CR (Contrast)

Activate dynamic contrast for extend contrast.

Face Color

Adjust to change the face/skin color in the picture

Motion Comp.

Enhancement to compensate the difference between the screens refresh rate and program frame rate. Active for smoother motion and deactivate for shorter input lag.


Use the Picture menu to adjust the picture settings to meet your requirements:

Picture mode Standard: Suitable for a normal room Mild: Suitable for a dark room Personal: In Personal mode you can adjust the

Contrast, Brightness, Color, Sharpness and Tint to meet your own requirements

Dynamic: Suitable for a bright room

Color Temperature

Choose between predefined settings (Normal, Warm Cold).

Noise Reduction

Choose to activate noise reduction. Available options are Off, Low, Medium and High.

If the broadcast signal received by your TV is weak, you can activate the Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Picture Mode


Contrast

Brightness

Colour

Tint

Sharpness

Color Temp

Noise Reduction

SCRENN

Dynamic CR

Face Color

Motion.Comp.

Move

Back

Adjust

Exit

EXIT

Standard

Normal

Medium

Off

Page 19

Sound

Use the Sound menu to adjust the sound settings to meet your requirements:

Sound Mode

Choose between predefined settings:

Standard: Suitable for normal programs Movie: Suitable for movies Sports: Suitable for sport programs Music: Suitable for music program Personal: In Personal mode you can adjust the

Treble and Bass to meet your own requirements.

Balance

Adjust the sound output balance between left and right speaker.

Auto Volume

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

Surround Sound

In TrueSurround or SRS TrueSurrond mode the TV delivers a compelling, virtual surround sound experience through the internal television speakers. It is fully compatible with all multichannel formats.

SPDIF Mode

Choose the output mode for the SPDIF signal. Choose between Auto or PCM.

AD Switcher

This function allows to set the audio volume when AD (advertisements) are broadcasted.

AD Volume

Set the volume level for the AD (advertisements).

Sound Mode

Sound

Treble

Bass

Balance

Auto Volume

Surround Sound

SPDIF Mode

AD Switch

AD Volume

Move

Back

Adjust

Exit

EXIT

Standard

Off

Auto

Off

Page 20

Off Time

Set a certain time to turn off the TV automatically. The available time intervals are Once, Everyday, Mon-Fri, Mon-Sat, Mon-Sun and Sunday.

On Time

Set a certain time to turn On the TV automatically. The available time intervals are Once, Everyday, Mon-Fri, Mon-Sat, Mon-Sun and Sunday.

When the Time On function is activated you can choose the following parameters: Source: Which source to be activated when the TV turns on. Volume: Audio volume level when the TV turns on.

Time

Use the Time menu to set the TV time and adjust some other settings related to time settings.

Clock

Set or adjust the time.

Time Zone

Adjust the Time Zone according to GMT Standard.

Clock

Time

Time Zone

Off Time

On Time

Sleep Timer

Auto Standby

OSD Timer

Move

Back

Adjust

Exit

EXIT

> >

– -- -- --

London GMT

Off

4 H

35S

Date

Clock

Month

Year

Hour

Minute

Move

Back

Adjust

Exit

EXIT

- -

Off Time

Hour

Minute

Move

Back

Adjust

Exit

EXIT

Off

OnTime

Off Time

Hour

Minute

Move

Back

Adjust

Exit

EXIT

DTV

Off

Source

Channel

Volume

Page 21

Sleep Timer

Set the TV to turn off after a certain time. The time intervals are 240, 180, 120, 90, 60, 30, 20

and 10 min.

Auto Standby Options: Off / 3 / 4 / 5 hrs

Define the time duration when the LED-TV will turn on after the last interaction.

System Lock

Lock

Password

Channel Lock

Parental Guidance

Key Lock

Hotel Mode

Move

Back

Adjust

Exit

EXIT

> >

Off

Lock:

To enter Lock settings you need to provide a password. The default password is 0 0 0 0

Use Lock settings to activate the lock functions.

You can also use the Lock settings to Lock certain broadcasting (programme) to prevent them from being viewed. You can choose under Parental Guidance the age level you want to lock up to (4-18 years). For this function it is required that the information about Parental Guidance is embedded in the broadcasted programme.

You can also change the default password to a personal one (PIN). The password must be 4 digits (0-9).

Hotel Mode:

In Hotel Mode it is possible to define features suitable for using the TV in hotel environment.

When the Hotel Mode is activated you can choose to: Lock certain sources Set a default source to be activated when the TV is turned on Set a default channel to be activated when the TV is turned on (when the default source is DTV or Satellite) Set the default volume level when the TV is turned on Set the maximum volume level Import and Export the channel database Clear all locks

Hotel Mode

Source Lock

Default Source

Default Program

Default Volume

Max Volume

Import Database

Export Database

Clear Lock

Move

Back

Adjust

Exit

EXIT

> > >

Off

DTV

100

Page 22

Functions

Repeat the file

Go to defined time position in the file

Repeat the file. Choose between ALWAYS, ONCE or NO REPEAT

Play audio files while displaying images

Display the Playlist

Display current file’s information

Press to rotate 90 degrees CW

Press to Zoom IN

Press to Zoom OUT

Press to MOVE in ZOOM mode

Define a part of a video to be repeated

Change aspect ratio

Play step forward in a video

Play slowly forward in a video

USB Media Player

This product is equipped with a USB Media Player. It is capable of playing music, movies (up to 1080p and with subtitle support), and display photos or text documents.

To Enter USB mode

Press Source Choose USB Press OK

In USB mode you can choose between: Photos: Enables you to display several formats of photos and images Music: Enables you to play several formats of music and audio files Movie: Enables you to play several formats of movies and video files

Text: Enables you to display TXT files

Remote Control Keys used in USB Mode

The INFO button will display available controllers where it is possible to i.e. rotate an image. The controllers may vary depending on the USB mode.

Navigation Key to navigate in the different position of the menu and press enter to activate the function.

The AUDIO button will alter audio track (if several audio tracks are available in the played file).

The SUB-T button will alter the subtitles or turn it off (if several subtitles languages are available in

Repeat A..

Playlist

Info.

Move view

Zoom in

Zoom out

Rotate

Music

Set A

Step Fo..

Slow Fo..

Aspect Re..

Goto TL.

PHOTO MUSIC

MOVIE

TEXT

Movie

C:\ 1/1

Return

Folder Movie01

Delete Exit

EXIT

the played file).

The subtitle file should be saved in UNICODE In order to display the correct characters.

Page 23

Supported ﬁle formats and codecs

The built-in media player (USB mode) supports the following ﬁle formats:

All trademarks and registered trademarks are the property of their respective owners.

The K16 series USB Media Player supports the following formats/codecs:

Video

Format

Video Codec

Audio Codec

Resolution

Frame Rate

Mbit/s

AVI

MJPEG

Mp3, WMA,

AAC, MP2, PCM

1280x720

23,976~30≤

16Mbps

≤ 20Mbps

Xvid/MPEG4/H.264/WVM9/VC-1

1920x1080

MP4

MPEG-2/MPEG-4/H.264/Xvid/MJPEG

MPEG4

MPEG-1/MPEG-2/H.264.VC-1

TRP

MPG

MPEG-1/MPEG-2

MPEG

NOV

MPEG4/H.264/MJPEG

MKV

MPEG-2/4/H.264/Xvid/RV30/40/VC-1

VOB

MPEG2

AAC/COOK

DAT

MPEG1

Mp1

RV30/40

MP1/2/3/PCM

RV30-800x600

RMVB

RV40-1280x720

Images

Format

Max resolution

BMP

1920x1080

JPG

PNG

Music

MP3

Mp3. 32K~48KHz. Bit Rate> 32K~320Kbps. Channel> Mono/Stereo

WAV

PCM. 32K~48KHz. Bit Rate> 32K~320Kbps. Channel> Mono/Stereo

M4A

AAC. 8K~48KHz. Bit Rate> 24K~384Kbps. Channel> Mono/Stereo

AAC

Mp4

Information: The USB Media Player input supports:

HD , NTSF, FAT32. Max size: 1TB

Max 30 sub-folders

Max 5000 ﬁles in one folder

Page 24

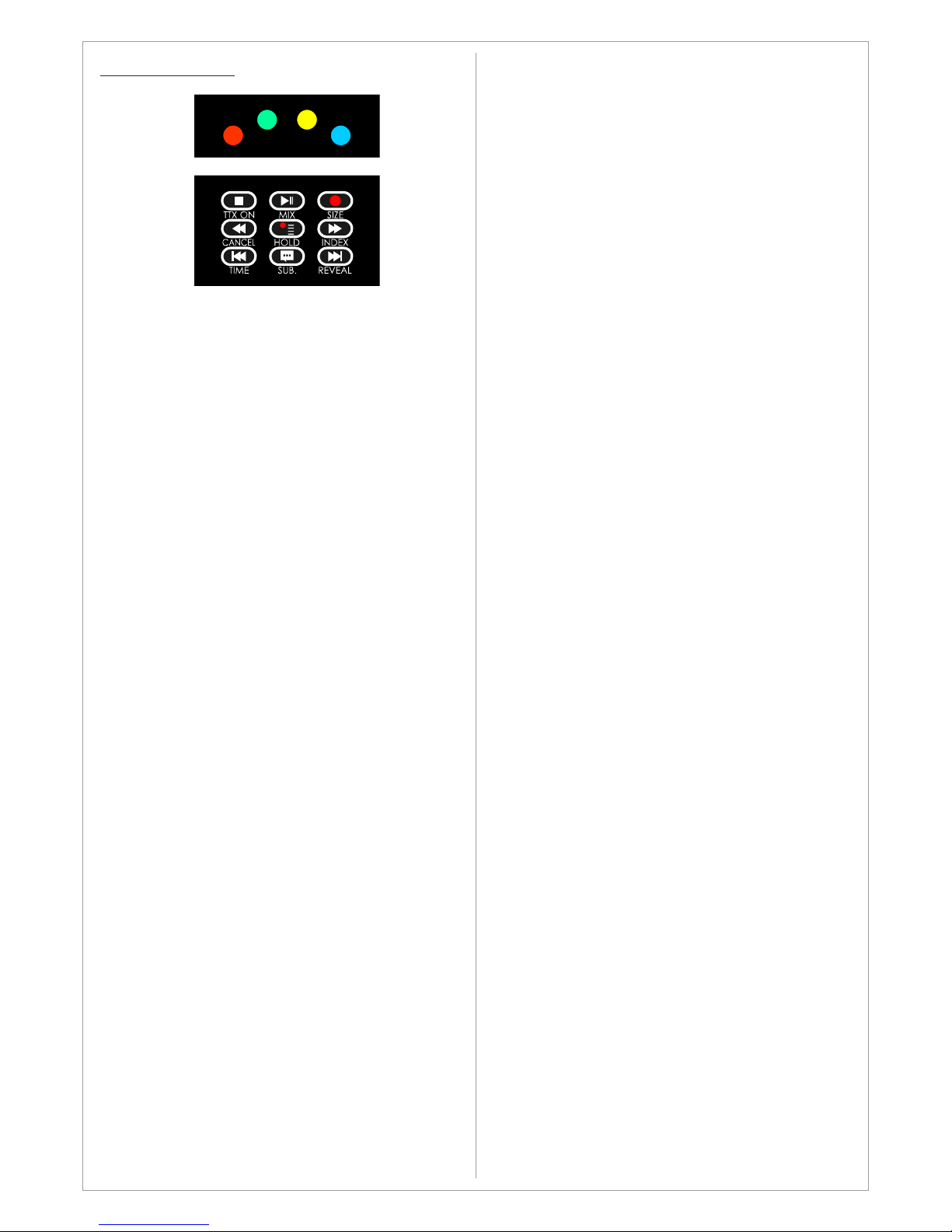

Text-TV / Teletext

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

TTX ON

Press TTX ON to enter Text-TV Press TTX ON to exit Text-TV

INDEX

Used to display the index (contents) page at any time while you are viewing teletext.

SIZE

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display. normal screen, press it once again.

REVEAL

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

MIX

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

HOLD

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

CANCEL

Used to display the broadcast when searching for a page.

Red/Green/Yellow/Blue

If the FASTTEXT system is used by a broadcasting company, the different topics covered on a teletext page are color coded and

can be selected by pressing the colored buttons. Press one of them corresponding to the required. The page is displayed with other colored information that can be selected in the same way. To display the previous or next page, press the corresponding colored button.

Page 25

Product base assembly

The product base contains the following parts A. Wooden base B. Metal part

C. M6 screw, 4 pcs, 10mm (Part No. 064-0178-00) D. M6 screw, 4 pcs , 16mm (Part No. 064-0147-00)

Assemble the base with the LED-TV according to the following illustrations:

Page 26

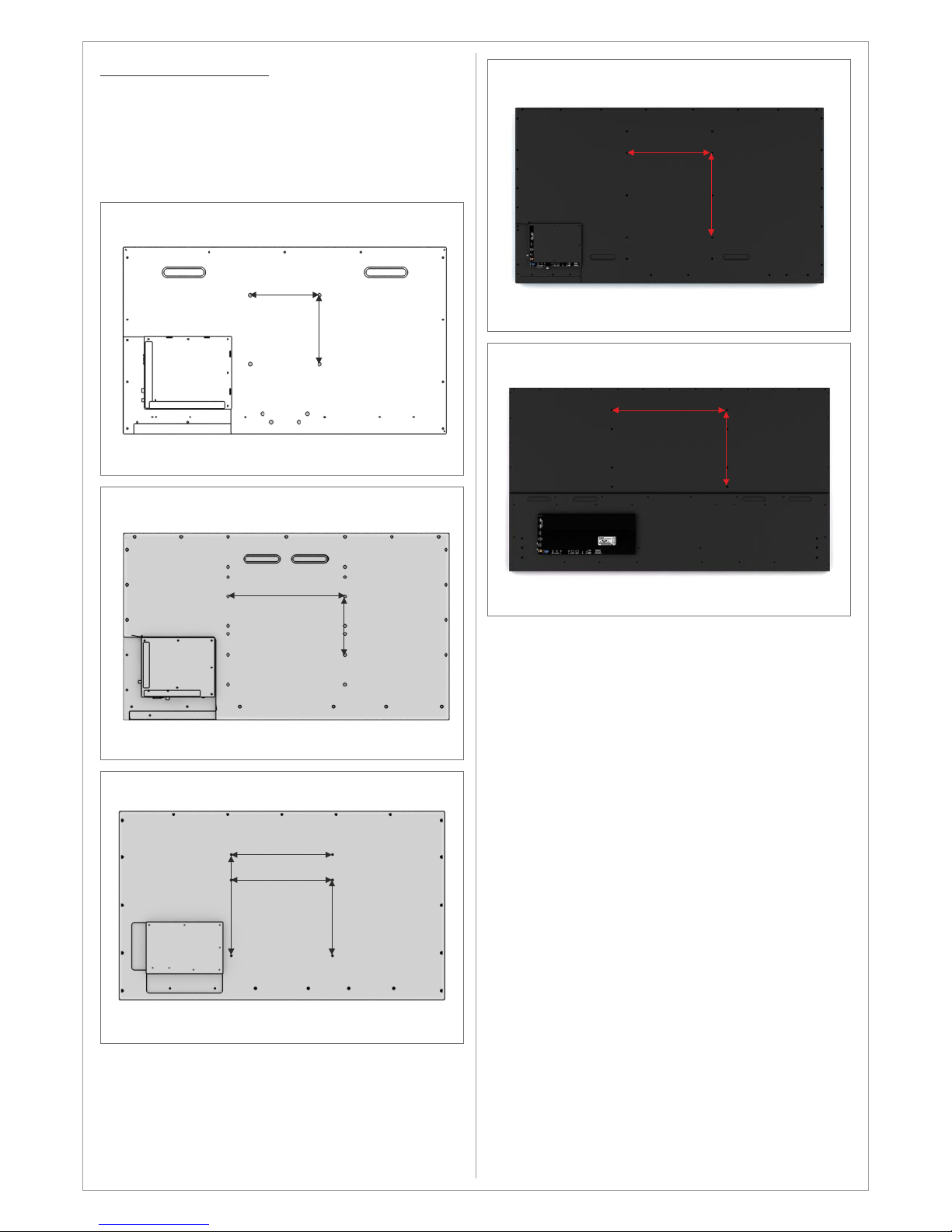

Wall mount assembly

SWEDX offers several wall mount devices which can be purchased from your dealer or www.swedx.com

See the Wall mounting parameters in the illustrations

40/42 inch

50 inch

200 mm

400 mm

65 inch

400 mm

58 inch

300 mm

400 mm

75 inch

400 mm

600 mm

Page 27

Troubleshooting

Before contacting SWEDX service or your dealer, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of your product and contact your local dealer

No sound or picture

l Check that the mains lead has been

connected to a wall socket

l Check that you have pressed the POWER

button on the front of the TV

l Check the picture contrast and brightness

settings

l Check the volume

Normal picture but no sound

l Check the volume l Check whether the MUTE button has been

pressed on the remote control

No picture or black and white picture

l Adjust the color settings l Check that the broadcast system selected

is correct

Sound and picture interference

l Try to identify the electrical appliance that is

affecting the set and move it further away.

l Plug your set into a different mains socket

Blurred or snowy picture, distorted sound

l Check the direction, location and

connections of your aerial

l This interference is often due to the use of

an indoor aerial

Remote control malfunctions

l Ensure that the remote is in correct mode l Replace the remote control batteries l Clean the upper edge of the remote control

(transmission window)

l Check the battery terminals l Turn off the TV and unplug the AC cable

from the wall socket and then plug the AC cable and turn on the TV

“No signal” message is displayed

l Check that the signal cable is firmly

connected to the source input

l Check that the source is turned on

On PC mode, “Not Supported Mode” message is displayed

l Check the maximum resolution and the

frequency of the video adapter. For HD models the recommended resolution is 1366x768 and for Full HD models the

recommended resolution is 1920x1080 (for PC mode). In HDMI mode the recommended resolution is 3840x2160@60Hz

The image is too light or too dark

l Adjust the Brightness and Contrast

Pixel Mapping

l It is recommended to choose aspect ratio

PointToPoint or JUST SCAN to achieve pixel mapping in HDMI modes

Page 28

Warranty and Service

The following terms apply only to new "in the original carton" SWEDX products marketed and distributed by SWEDX, which are purchased and used by the original consumer purchaser.

Depending on the model, your terms and conditions may be different from those shown below, and this information is subject to change without prior notice. Unless specifically stated otherwise, used and reconditioned products that are resold have no warranty from SWEDX and are considered sold "AS-IS", however, the selling dealer may offer additional service options.

Warranty for SWEDX products:

Check with your dealer for the warranty period.

What the warranty covers:

SWEDX warrants your SWEDX display(s) against defects in material and workmanship during the warranty period from SWEDX factory delivery date shown in the shipping documents. If a product proves to be defective in material or workmanship during the warranty period, SWEDX will, at its sole option repair or replace the product with a similar product, provided the purchaser adheres to certain return authorization procedures and guidelines. SWEDX reserves the right to charge customer in case of warranty conditions not are fulfilled.

Who the warranty protects: This warranty is valid only for the first purchaser.

What the warranty does not cover:

1. Any product which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water,

lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

B. Repair or attempted repair by anyone

not authorized by SWEDX.

C. Any damage of the product due to

shipment. D. Removal or installation of the product. E. Causes external to the product, such

as electric power fluctuations or failure. F. Use of supplies or parts not meeting

SWEDX specifications. G. Normal wear and tear. H. Any other cause which does not relate

to a product defect.

3. Cosmetic damage by purchaser, such as markings, discoloration, scratches, dents, anti-theft devices markings, gouges or any

other defacement.

4. Physically damaged products by purchaser, such as broken PCB, Housing, damaged LED Module.

5. No Defect Found (product returned to SWEDX as defective but failure is not duplicated by SWEDX's test method.)

6. The product is not in accordance with the fault in the application

7. Timber is a lifelike natural material which can cause some little changes in the precision of the produced product such as small openings line beside the connecting point and some other small changes which are out of SWEDX control and don't make any effect for the product functionality.

Dead on Arrival (DOA)

If the product fails within the manufacturer's DOA period, a replacement product will be offered.

Before contacting us:

In many cases, your TV may not need repair. Before you contact us, please consult the troubleshooting section in your user's manual or SWEDX's FAQ web pages at http://www.swedx.com to see if you can easily remedy the problem yourself.

Page 29

How to get service:

For information on obtaining warranty service, contact SWEDX dealer (the place where you bought your product) in first choice. If for any reason you can not contact your dealer, please contact SWEDX Customer Service by visiting http://www.swedx.com.

SWEDX technical support services:

During the period of product warranty, we support your basic configuration, setup and troubleshooting questions, and when required, we provide you with all instructions on how to return your product for repair. For support inquiries, please visit http://www.swedx.com.

SWEDX reserves the right to make final decisions regarding problem determination and the appropriate service option. Exchange units assume the remaining warranty of the original product. Please refer to your SWEDX Limited Warranty Statement for complete terms and conditions, as some models have other terms and conditions. Some limitations and restrictions apply and these programs are subject to change without prior notice.

Limitation of liability

If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repairing or replacement of any hardware components that malfunction in conditions of normal use. SWEDX is not liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. SWEDX is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or a claim made, under this limited warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised SWEDX.

Page 30

www.swedx.com
