SWEDX SG-xxT20, SG-xxX20 User Manual

User’s Guide

SG-xxT20

X20SG-xx

www.swedx.com

Design and specifications are subject to change without notice.

SWEDX TV-Table SWEDX TV-Stand

ﺔﻳﻟزﻧﻣ ﺎﻣﻧﻳﺳ

Wall-mount / Tilt

Wall-mount Retractable

Wooden Wall-mount

SWEDX shelves

SWEDX Soundbar

SWEDX Matrix Screens

SWEDX offers a wide

range of accessories

with professional design

and functionality for

LCD/LCD-TVs

Design and specifications are subject to change without notice.

Design and specifications are subject to change without notice.

3

Page

Menu > Sound > Sound 15

Menu > Sound > Sound Mode 15

Menu > Sound > Balance 15

Menu > Sound > Auto Volume 16

Menu > Sound > Surround Sound 16

Menu > Sound > SPDIF Mode 16

Menu > Sound > EQ 16

Menu > Time 16

Menu > Time > Clock 16

Menu > Time > Off Time 16

Menu > Time > On Time 16

Menu > Time > Sleep Timer 16

Menu > Time > Auto Sleep 16

Menu > Time > Time Zone 16

USB Media Player 17

Remote Control Keys used in USB Mode 17

Text-TV / Teletext 18

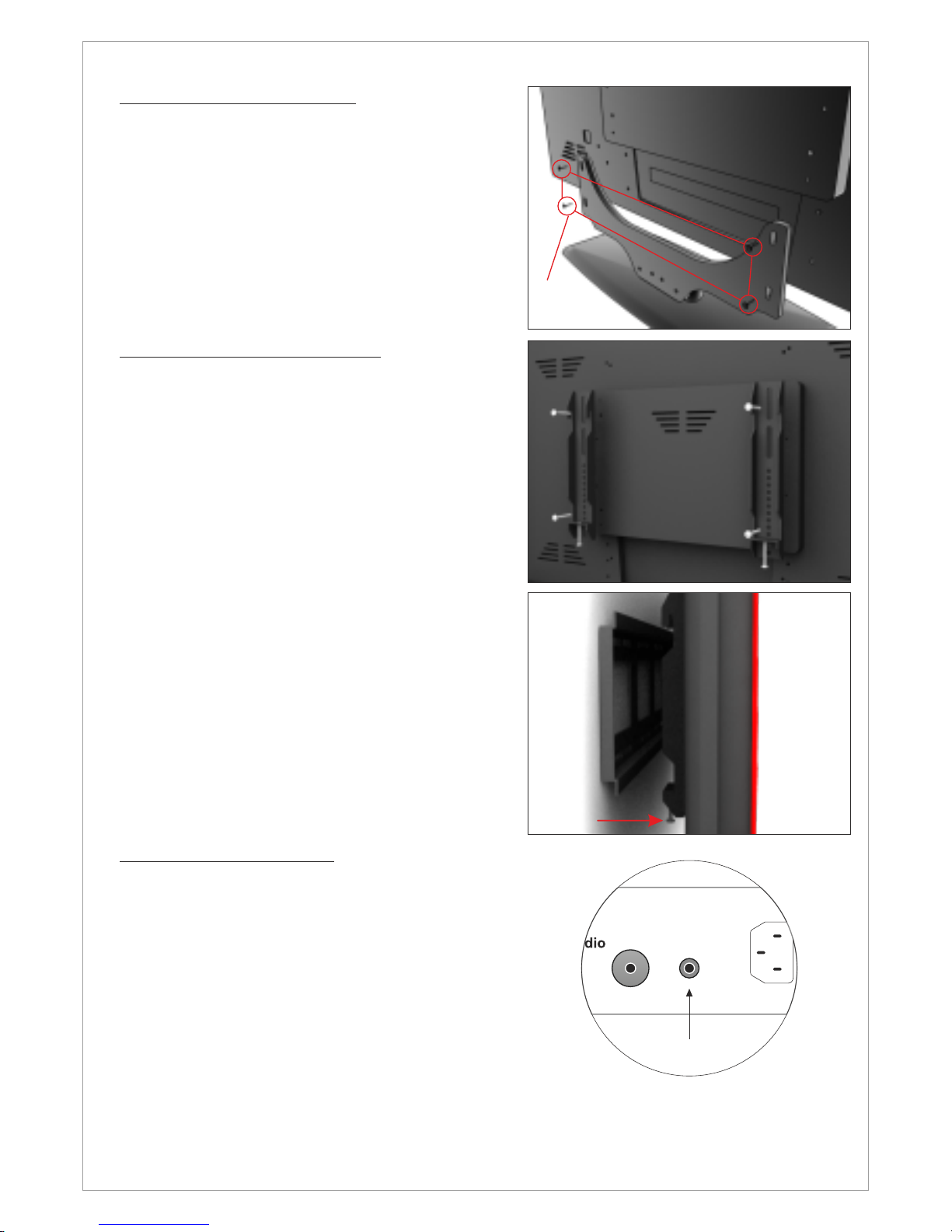

TV base assembly with the TV 19

Wall mount assembly with the TV 19

Connect External Speakers 19

Troubleshooting

Dead on Arrival (DOA)

How to get service

20

Warranty and Service 21

21

22

INDEX Page

Introduction 4

Basic operation 5

Contents 6

7

Menu > OPTION

Menu > Channel

Menu > Channel > Recorded List

Menu > Channel > Recorded Mode

Menu > Channel > Schedule List

EPG Function

Time Shift Function

Menu > Picture

Control buttons 6

Remote control buttons

Mai Operations 8

Volume Control 8

OSD Menu Structure 8

OSD Menu Operation: 8

9

9

Menu > Channel (DVB-T) > Auto Scan 9

Menu > Channel > DTV Manual Tuning 9

Menu > Channel > ATV Manual Tuning 10

Menu > Channel > DVB-C Manual Tuning 10

Menu > Channel > Dish Setup 10

Menu > Channel > Program Edit 12

Menu > Channel > Signal Information 12

Menu > Channel > PVR File System 12

Menu > Channel > Record Start 13

13

13

14

14

14

15

Menu > Picture > Picture Mode 15

Menu > Picture > Color Temperature 15

Menu > Picture > Aspect Ratio 15

Menu > Picture > Noise Reduction 15

Menu > Picture > Screen 15

Connections on the rear 6

Introduction

Thank you for choosing SWEDX LCD/LCD-TV. Please read this manual thoroughly before
operating the TV. Make sure the display was not damaged in transit. Should the TV be damaged,
please contact your dealer and do not install it. Check that you have all the accessories according
to the model.

Safety precaution

• Do not place the TV on unstable places, from which it may fell off.

• Do not expose the TV to extreme temperature and humid environment.

• Avoid subjecting the TV to direct sunlit and other heat sources.

• Do not put the TV into any liquid.

• Do not put anything inside the TV, or place water container on top of the TV.

• In thunder rainy days (especially with lightening), please unplug the power and antenna
cables.

• Do not step on the power cable, or tangle them together

• Avoid overload of the exterior electric outlet to prevent fire hazard of electric shock.

• Clean the TV with dry and soft cloth.

• lf your TV is broken, do not repair it by yourself, but contact the maintenance personnel.

• lf the remote control is left unused for a longtime, please take the batteries out and store them
in dry places.

• Avoid dropping the remote control.

• lf the LCD TV is installed for exhibition purpose, please do not place the overheated part on
the ground or carpet to prevent accident.

Please install the TV at proper position, such as wall or ceiling. Please install it under the
guidance of professional staff. (When used or exhibit, please do not place the TV horizontally or
vertically on the ground.)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) this device may not cause harmful interference.
(2) this device must accept any interference received, including interference that may cause
undesired operation.

This equipment is predeterminated to work constantly (unless adding switch on this equipment)
Please disconnect the power cord if this equipment will not be used for a long time.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen
image retention.
This image retention is also known as "screen burn".
To avoid such image retention, reduce the degree of brightness and contrast of the screen
when displaying a still image.

• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and center of the screen caused by the difference of light emission
on the screen. Playing a DVD or a game console may cause a similar effect
to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may
produce partial after-images.
To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Design and specifications are subject to change without notice.

4

Basic operation

Preparation

• Put the TV on a stable surface.

• Do not fix the TV with others fixations than those provided or suggested by the manufacturer.

• If you have a wall mount, check that it is steady.

• Do not place any material on the TV.

• Do not block or cover the ventilation openings on the TV.

• The TV must be plugged with a tension source of 110-240 volts and 50-60 Hz.

• Power cord and cables must be properly routed and protected to prevent from stepping on
them.

• Keep the power cord away from any heat source. Possible fire hazard.

Heating sources and humidity

• Keep the TV dry and away from humidity.

• Keep the TV away from heat sources.

Cleaning and maintenance

• Unplug the TV before cleaning it. Do not use solvents or liquids to clean the TV.

• Only clean the TV with a soft and dry cloth.

• In case of troubleshooting, do not use spare parts other than those suggested by the
manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or
others incidents. Please contact a technical authorized by SWEDX brand.

Departure in holidays

• Unplug the LCD-TV during lightning storms or when unused for long periods of time.

• Use AC 100-240V 50-60 Hz power outlet for the TV power supply.

• lf the screen of TV is not on, please press the power button on the remote control or on the
TV.

• lf you want to shut off the TV temporary, please press the power button on the remote control
or on the TV.

• lf you want to shut off the TV completely, please switch off the power switch ON/OFF.

• In TV/AV state, the TV will enter idle state if there is no signal input within 3 minutes.

• ln PC state, the TV will enter idle state if there is no signal input within 2 minutes.

• The setting and tuning of picture and sound will be saved when the TV is shut off, which will
be working in the pre-shut off state when the TV is turn on again.

• lf PC signal source is used, please first set the resolution of the PC display card as the
following modes: (1920x1080 60 Hz for Full HD models and 1366x768 for HD models).

• lf there is progressive output of the signal used by the user, signal source with
output is recommended.

progressive

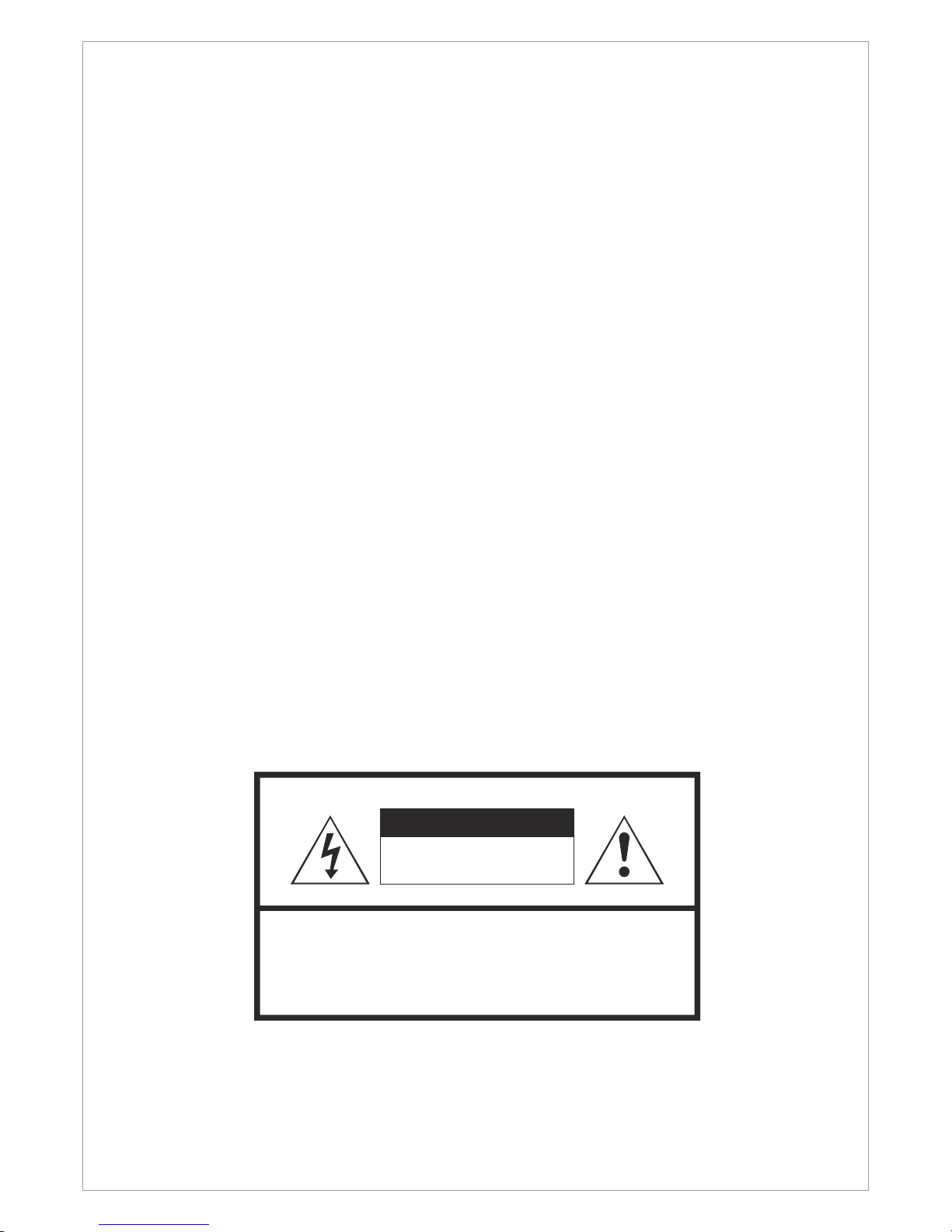

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER(OR BACK). REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL

Design and specifications are subject to change without notice.

5

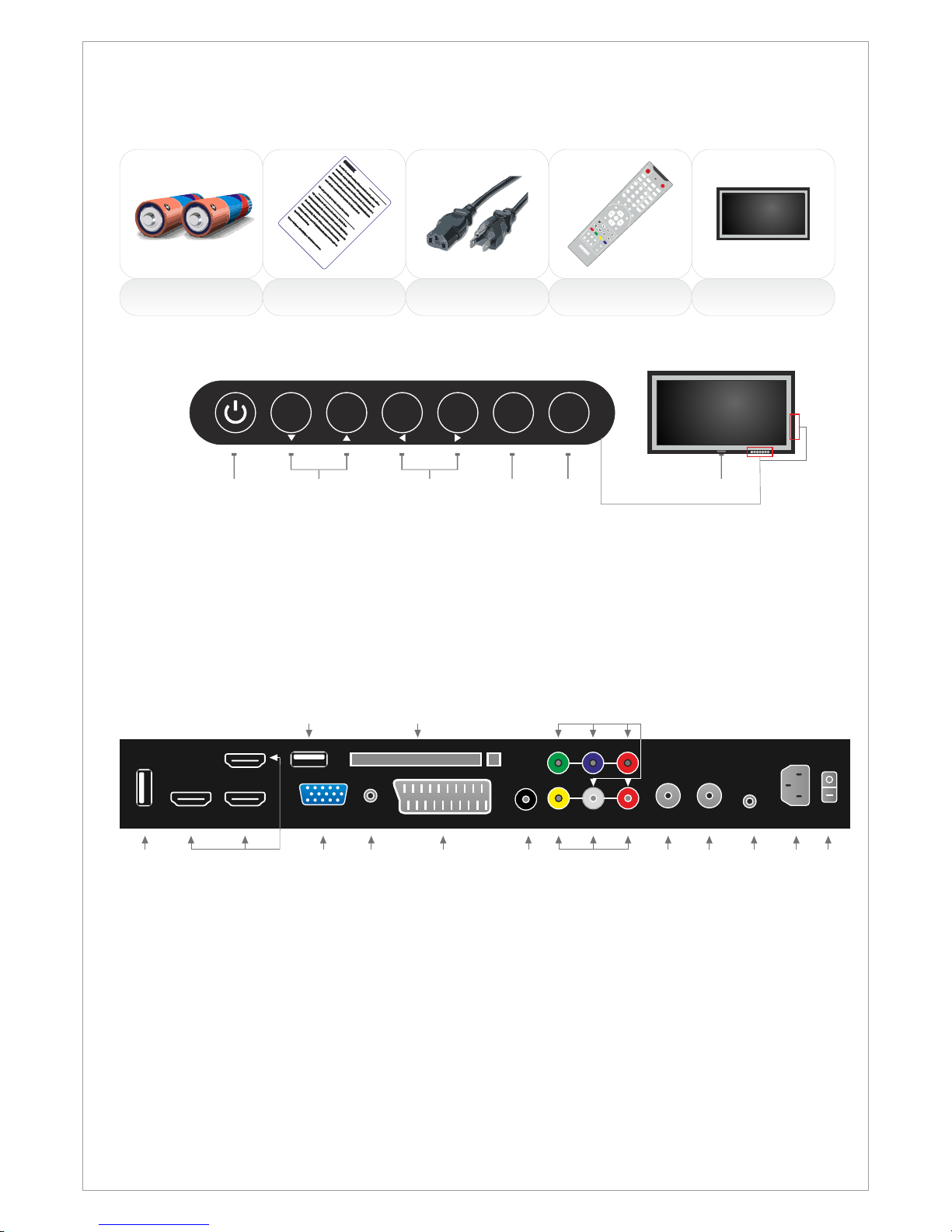

Contents

Included items in SG-series:

2 x AAA Battery

Remote Control

Notice AC Cable

POWER

SOURCE

MUTE SLEEP

STILL INFO.

DUAL I-II

ARC

PSM SSM

PIP

P.INPUT

P.POSITION

P.SIZE

3

21

6

5

4

9

8

7

PRE/CH

PC

HDMI

S.SELECT

TV

MENU EXIT

PR+

VOL+

PR-

VOL-

ENTER

Scart

Component

TTX ON

MIX

SIZE HOLD

CANCEL INDEX TIME

REVEAL

RED GREEN YELLOW

BLUE

PIP PR+

PIP PR-

PG UP

PG DOWN

FAV

GUIDE

TV/RADIO

DTV SETUP

0

-/--

LCD

Notice! / Information

1. USB/FW USB Media Player / Firmware update

2. HDMI 1-2-3 HDMI1, HDMI2 and HDMI3 inputs

3.

4. VGA Audio

Scart Scart

Composite video (AV)

Component Component

VGA PC (VGA) input

Audio-input of PC/VGA

input

6. CI Module CI Module input

7. D.Audio Digital Audio output (Coaxial)

input

input (YPBPR)

10. DVB-T DVB-T Digital channels input

DVB-C DVB-C Digital channels input
ATV Aerial Analog channels input

11. SAT. DVB-S/S2 DVB-S/S2 Satellite channels input

12. Sp. Out Speakers output

13. Power Power Input 110-240 V @ 50-60Hz

14. On/Off Main On/Off Switch

5.

8. AV

9.

1. ON/OFF: Power switch ON/OFF

2. CH+/-: Zap the channels / Navigate the OSD menu

3. Vol+/-: Decrease and increase the audio volume / Navigate the OSD menu / Adjust

values in the OSD

4. Select/Menu: Activate the OSD menu / Select in the OSD menu or Sources

Activate the input source menu / Exit the OSD menu

6. LED: Power indicator

7. IR: Remote control Infra Red receiver

Connections on the rear of the LCD-TV

5. Source/Exit:

ON/OFF SELECT EXIT

MENU

SOURCE

VOL+VOL-CH+CH-

2 3

4

5

1

6,7

Control buttons:

The control buttons’s outlook on your SWEDX LCD-TV is on the bottom or on the side:

ON/OFF SELECT EXIT

MENU

SOURCE

VOL+VOL-CH+CH-

6

2

3 5 10 13 141 4 7

6 9

12

HDMI 1 HDMI 2

VGA

D. Audio

VGA

Audio-in

Input

Power Input

On/Off Switch

AC - 100-240 V @ 50/60 Hz

AV

Component

Sp. Out

CI Module / PCMCIA

Scart 1

DVB-T

SVB-C

ATV

11

Input

SAT

DVB-S/S2

HDMI 3 USB

USB

8

1

Design and specifications are subject to change without notice.

Design and specifications are subject to change without notice.

1. On/Off button

2. Turn Off/On TV

speakers

3. Enter sleep mode in

certain chosen time

4. Select audio mode

5. Aspect Ratio selection

6. Number buttons for

direct channel access

7. One/Two-digit channel

selection

8. Shortcut to HDMI

inputs.

9. Shortcut to PC input

10. Menu display. In OSD

sub-menu press to
access previous menu

11. Navigation button UP

12. Confirm/activate

button

13. Navigation/adjust

button LEFT

14. Navigation button

DOWN

15. Shortcut to

Component

16. Stop recording/playing

and Activate Teletext

17. Start/Pause play,

Start/Paus time shift
and alter Teletext mix

18. Fast forward and

Teletext cancel

19. Fast backward and

Teletext index

20. Fast-text topic

selection in Teletext

RED

21. Fast-text topic

selection in Teletext

GREEN

22. List TV-channels

23. Alter TV/Radio

Channels mode

24. Choose Audio

language in DTV

25. EPG (Electronic

Program Guide)

26. Display favorite

channels list

27. Activate/alter subtitles

in USB movieplayer
and DTV

28. Flash when a button

is pressed

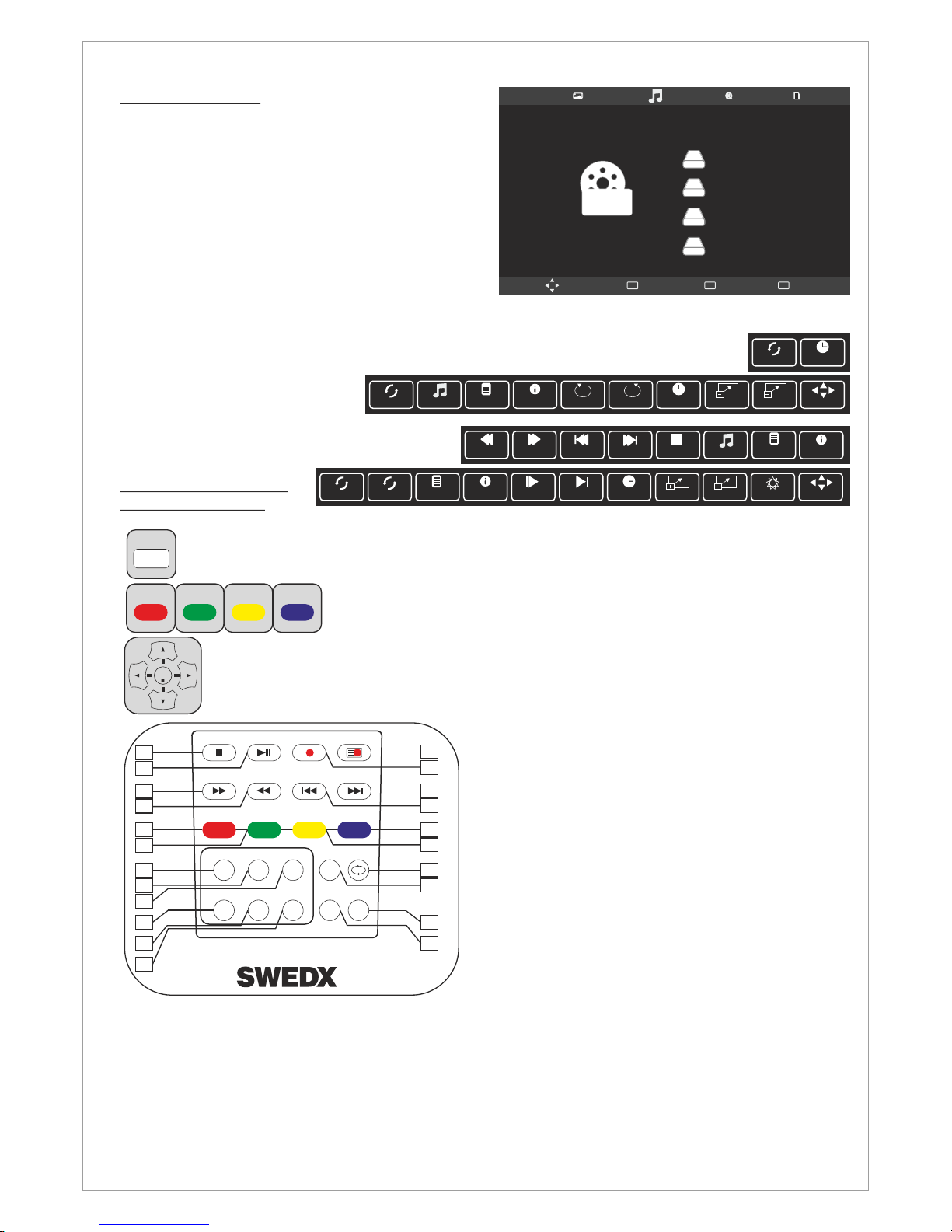

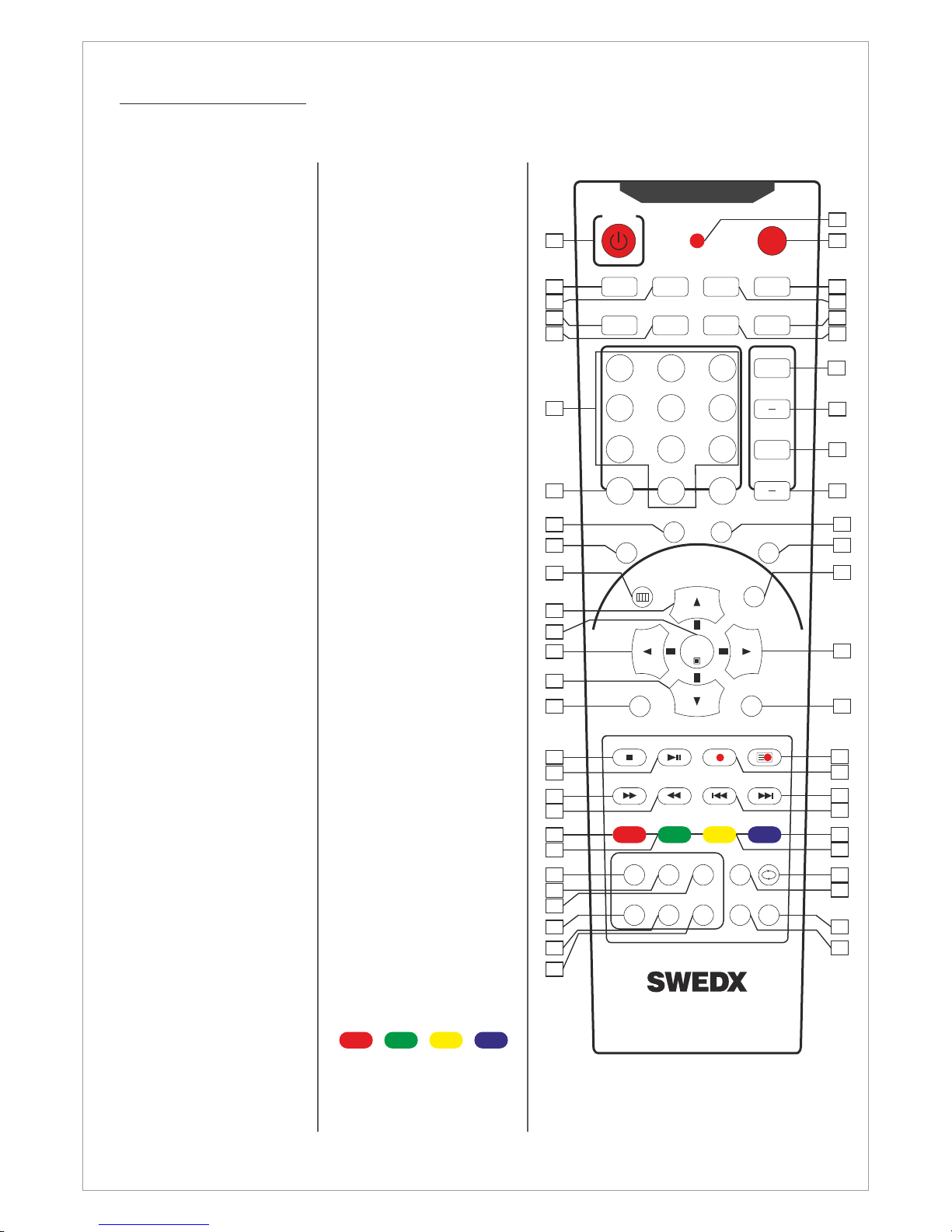

Remote control buttons

29. Available sources
selection

When the channel list
is displayed, it scrolls
up to previous page in
the list.

Navigation/adjust
button RIGHT
Shortcut to Scart

43. Display Recorded List
and Hold Teletext

44. Instant Recording and
Teletext size selection

45. Next Title and Reveal
Teletext

46. Previous Title and
Display time in
Teletext

47. Fast-text topic
selection in Teletext

Blue

48. Fast-text topic
selection in Teletext

Yellow

49. Alter Replay mode in
USB mode

50. N/A for this model

51. N/A for this model

52. N/A for this model

Buttons
16,17,18,19,20,21,43,44,
45,46,47,48,49 are used
with the USB Media
Player.

30. Display additional
information

31. Picture freeze

32. Alter sound mode

33. Alter picture mode

34. Volume increase

35. Volume decrease

36. Next channel. When
the channel list is
displayed, it scrolls
down to next page in
the list.

37. Previous channel.

38. Shortcut to DTV

39. Shortcut to ATV

40. Exit the OSD

41.

42.

7

POWER SOURCE

MUTE SLEEP STILL INFO.

DUAL I-II ARC PSM SSM

+

VOL

CH

321

65

4

987

PRE/CH

PC

HDMI

DTV

ATV

MENU EXIT

ENTER

Scart

Component

TTX ON MIX SIZE HOLD

CANCEL INDEX TIME REVEAL

RED GREEN YELLOW BLUE

S.SELECTPIP

POSITIONSIZE

AUDIO

SUB-T

TV/RD

FAV

LIST

EPG

0-/--

+

1

2
3
4
5

30
31
32
33

29

28

7

8
9

10

11
12
13

14

15

38
39

40

41

42

16

18
19

17

43

45
46

44

20
21

47
48

22
23
24

25
26
27

49
50

51
52

34

35

36

37

6

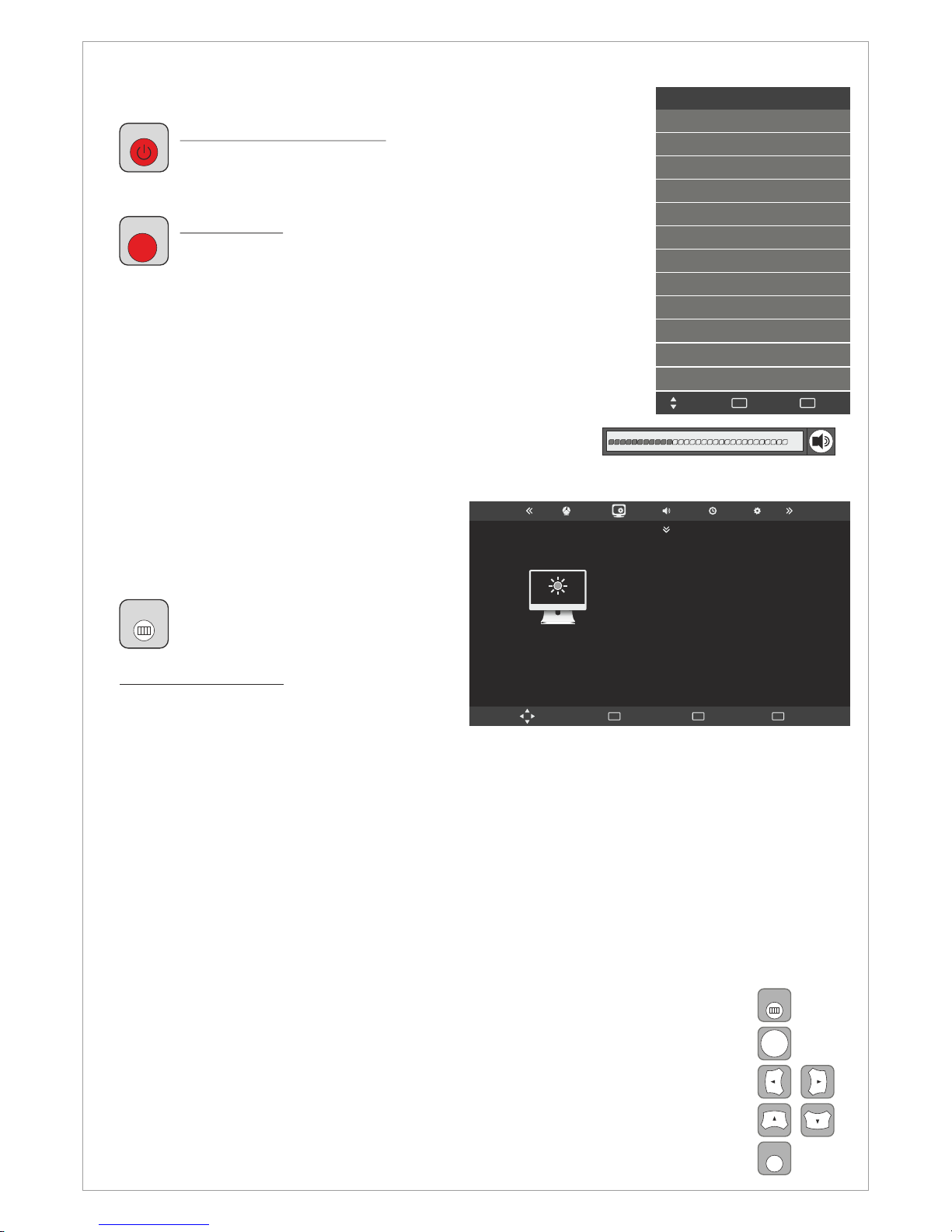

Main Operations

Turning LCD-TV On And Off
Press Power button on the remote control or the On/Off
button on the control buttons. The LCD will turn on and will

be ready to be used.

Select Source
Press Source button on the remote control. Then you can
see the source list menu shown to the right. Press

Navigation Up/down button on the remote control to select

the source and confirm by pressing Enter.

Volume Control

Press VOL+ / VOL- button on the remote control to adjust the volu
me level.
Press MUTE button on the remote control when you need to mute
the sound.

OSD Menu Structure

• OSD (On Screen Display) allows users to
control or adjust various features and
settings in accordance with his/her
preferences.

•Press the MENU button on the
remote control to see the main
OSD menu.

OSD Menu Operation:

• Main Menu: Press the MENU button on
the remote control to enter the main OSD
menu.
First, choose Main menu item you need with the ◄ & ►.
To select a Main menu items, just press Enter or Navigation button ▼ on the Remote Control.

• Sub Menu: Each menu item has its own sub menu items to set.

• Sub Menu items:
A: If there is no value to adjust it means there is a sub menu which you can access by pressing
Enter and modify the menu values.
Select sub-menu item with buttons on the remote control and press button to enter
the submenu or change the value.

buttons

▲ & ▼ Enter

B: If there is no ► part, the item has adjustable values. Use the ◄ & ► buttons to adjust the
values.
C: If the sub-menu item is grey colored, it means this item is not available in the particular
mode.

OSD Menu Operation

• Press MENU button on the remote control to access the OSD Menu. Pressing the

same button again will move you backward in the OSD structure.

• Press ENTER button to confirm/select.

• Use LEFT & RIGHT buttons to navigate or change the parameters of the current
sub-menu.

• Use UP & DOWN buttons to navigate in the OSD Menu.

• Press EXIT button to exit the OSD Menu.

MENU

ENTER

EXIT

8

DVB-T

DVB-C

SAT (DVB-S/S2)

ATV

SCART

YPBPR

PC

HDMI1

HDMI2

Input Source

Menu

MENU

Quit

EXIT

Move


Move Menu

MENU

OK

OK

Exit

EXIT

Picture Mode

Contrast

Brightness

Color

Sharpness

Tint

Standard

50

50

50

50

50

HDMI3

AV

USB

SOURCE

POWER

MENU

Design and specifications are subject to change without notice.

Design and specifications are subject to change without notice.

Menu > Channel (DVB-T)

Menu

anage the TV
channels such as deleting, adding to
favourites, skipping and locking. You can also
use the PVR function which allows to record
or time shift TV-programs.

Menu > Channel (DVB-T) > Auto Scan

Choose Auto Scan to start searching for TV­Channels (analog/Digital). When you choose
Auto Scan TV will start searching for
available channels. When the TV has finished
searching it will store the available channels automatically.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Press Enter to start Auto Scanning

In this you can search for TV-channels
manually or automatically, m

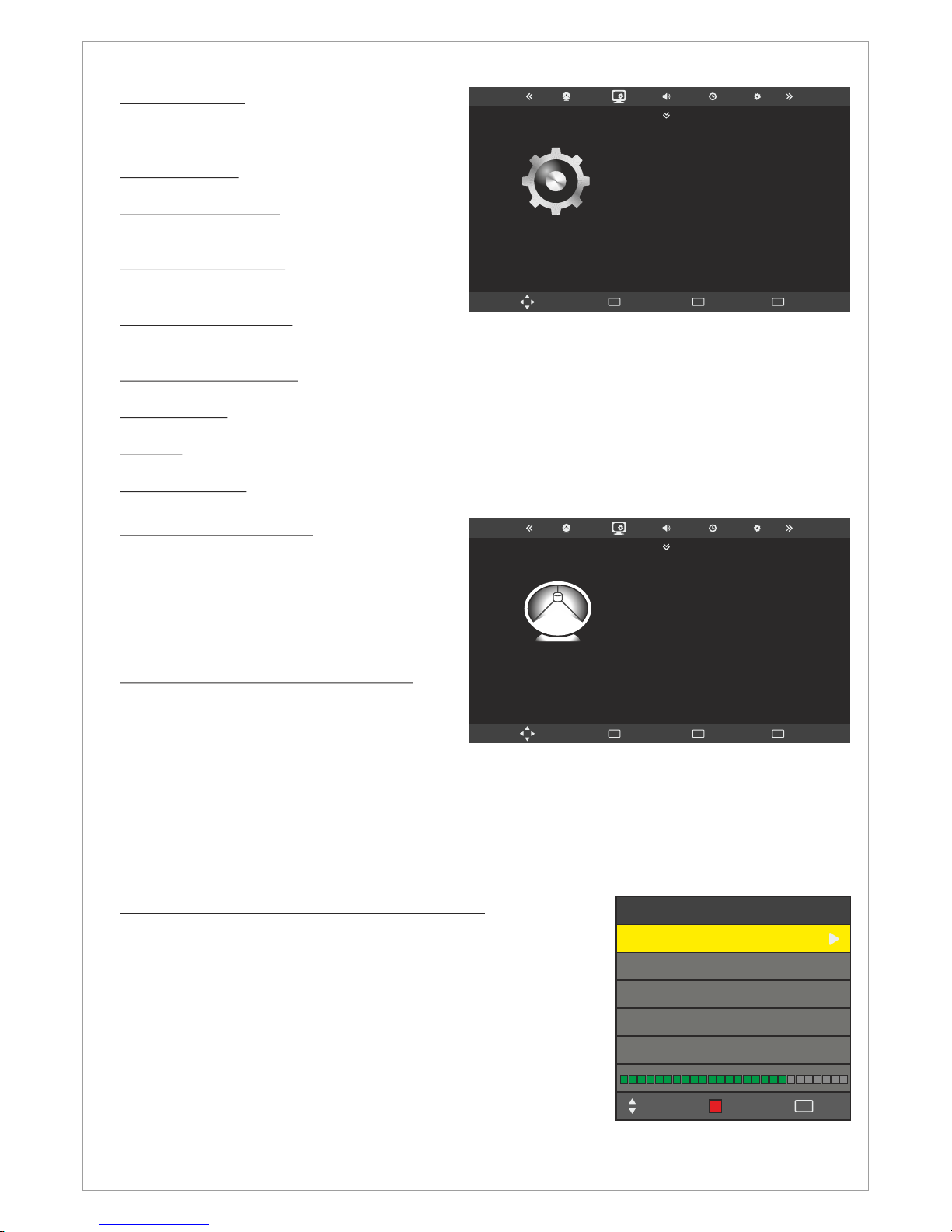

Menu > OPTION

Menu

Audio Languages 2nd: Choose the second
preferred audio language (for digital channels)

Choose the first

preferred subtitle language (for digital channels)

Subtitle Languages 2nd: Choose the second preferred subtitle language (for digital channels)

Choose the OSD Menu duration in time

Country: Choose your country to load predefiened parameters matching your country.

Restore Settings: This function will restore the TV to the original settings

In this you can choose the setup
settings for your TV.

OSD Language: Choose the OSD language

Audio Languages 1st: Choose the first
preferred audio language (for digital channels)

Subtitle Languages 1st:

OSD Duration:

OPTION

Move Menu

MENU

OK

OK

Exit

EXIT

OSD Language

Audio Languages 1st

Audio Languages 2nd

Subtitle Languages 1st

OSD Duration

Country

Restore Factory Default

Subtitle Languages 2nd

English

30s

UK

English

English

English

English

CHANNEL

Move Menu

MENU

OK

OK

Exit

EXIT

Auto Scan

ATV Manual Tuning

Edit my channels

Signal information

CI Information

Record Start

Recorded List

Recorded Mode

Schedule List

PVR File S

Dish Setup

DTV Manual Tuning

ystem

9

Menu > Channel (DVB-T) > DTV Manual Tuning

Choose DTV Manual Tuning to start searching for TV-Channels
(Digital) manually.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose DTV Manual Tuning
Navigate right or left to choose the Frequency
Press Enter to start manual search

To access the stored channels press LIST button on the remote
control.

DTV Manual Tuning

UHF CH 21

DTV 9

Radio 5

Bad

Save

Exit

EXIT

Move

Normal Good

Data 2

Design and specifications are subject to change without notice.

Menu > Channel (DVB-C) > DVB-C Manual Tuning

Choose DVB-C Manual Tuning to start searching for TV-
Channels (Digital) manually.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose DVB-C Manual Tuning
Navigate right or left to choose the Frequency
Press Enter to start manual search

To access the stored channels press LIST button on the remote
control.

Menu > Channel > Dish Setup

In the Dish Setup Menu you can setup the built­in satellite receiver. You can scan the listed
satellites/frequencies, edit them and add new
satellite. You can also setup additional
equipments such as DiSEq and motor.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose Dish Setup and press Enter

To Add a new satellite press RED button
To Edit the highlighted satellite press Green
Button

To Delete a satellite press Yellow button

To Scan one or several satellite, highlight the
satellite and press Enter (the ► icon will appear
ahead of the chosen satellites). Continue until you
have marked all desired satellites. Press BLUE
button to start scanning the chosen satellites

LNB Setup
In the LNB menu please setup up your LNB’s parameters such as type low/high value, power and
22 Khz.

For more information please contact your dealer/service provider for the equipment
connected to your SWEDX LCD.

DVB-C Manual Tuning

Frequency

Symbol(ks/s)

QAM Type

Bad

Select

Exit

EXIT

Move

Normal Good

10

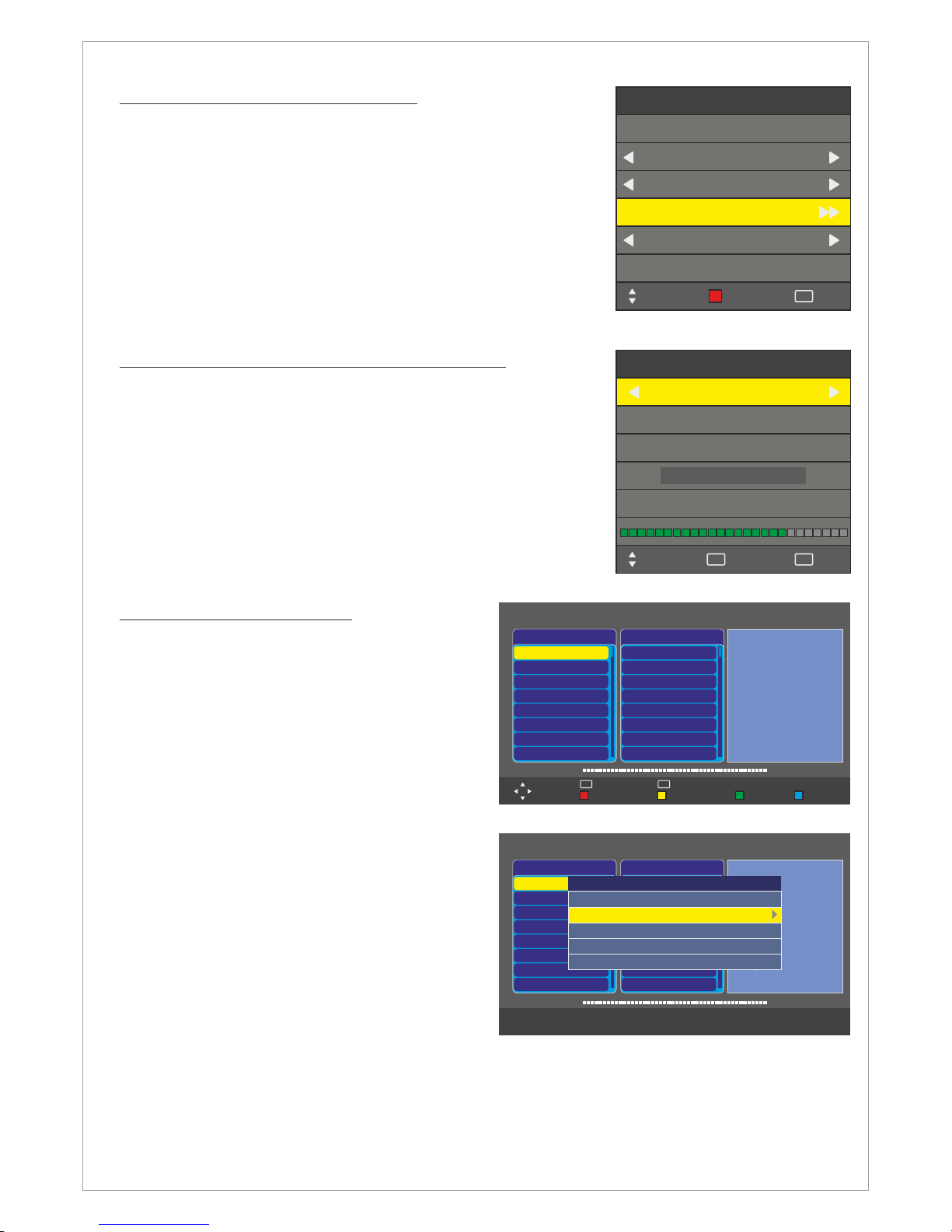

ATV Manual Tuning

System BG

Current CH 4

Search

Fine-Tune

Save

Exit

EXIT

Move

Storage To X

Frequency 100.00

Menu > Channel > ATV Manual Tuning

Choose ATV Manual Tuning to start searching for TV-Channels
(analog) manually.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose ATV Manual Tuning
Choose which channel to save too
Choose Search to start manual search. When a TV channel is
found, do a fine tuning if necessary and thereafter press RED
button to save the TV channel.

To access the stored channels press LIST button on the remote
control.

OK

770000

6900

QAM 16

No Signal

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

None

Add

Move

Select

OK

Exit

EXIT

Delete Edit Scan

Quality

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

None

Add

No.

Satellite Name

Longitude Direction

Longitude Angle

Band

Quality

059

HOTBIRD 6.7A.8

East

013.0

Ku

Design and specifications are subject to change without notice.

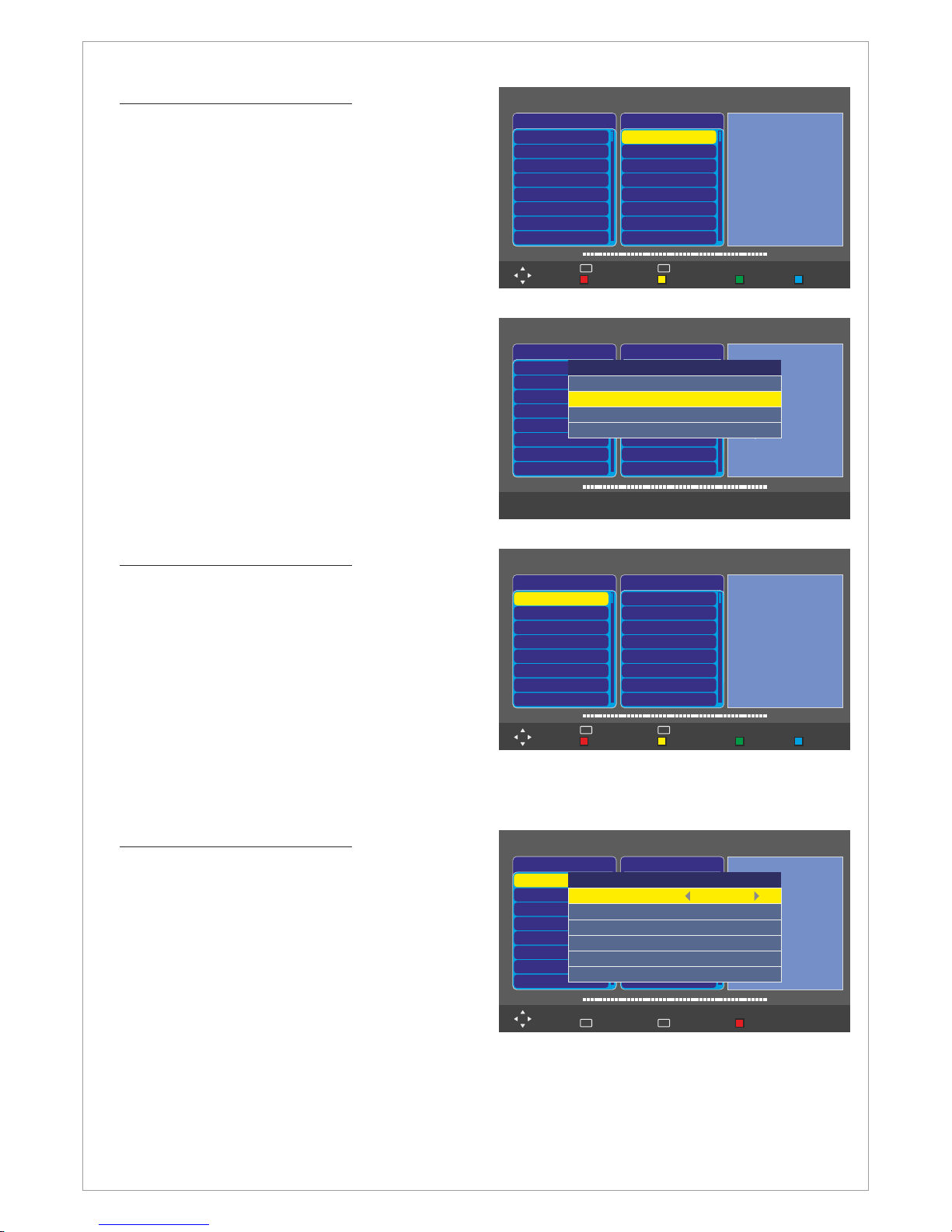

Menu > Channel > Dish Setup

In the Dish Setup Menu you can edit/add
transponders.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose Dish Setup and press Enter
Choose the desired satellite and press Right
button to move to Transponders window.

To Add a new transponder press RED button
To Edit the highlighted transponder press Green
Button

To Delete a transponder press Yellow button

To Scan one or several transponders, highlight
the transponder and press Enter (the ► icon will

appear ahead of the chosen transponder).
Continue until you have marked all desired
transponders. Press BLUE button to start
scanning the chosen transponder.

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

None

Add

Move

Select

OK

Exit

EXIT

Delete Edit Scan

Quality

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

None

Add

TransPonder

Frequency

Symbol(ks/s)

Polarity

Quality

102

10715

27500

H

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

None

Add

Move

Select

OK

Exit

EXIT

Delete Edit Scan

Quality

Menu > Channel > Dish Setup

In the Dish Setup Menu you can setup the
DiSEqC to connect several LNB:s.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose Dish Setup and press Enter
Choose the desired satellite and press Right 2
times to move to the LNB window
Choose corresponding DiSEqC model and
choose the LNB port for the LNB directed to the
highlighted satellite. Repeat the same procedure for all DiSEqC ports and thereafter press Blue
button to scan the satellites

Menu > Channel > Dish Setup

In the Dish Setup Menu you can setup a dish
with a DiSEqC motor.

Press Menu
Choose Channel Menu
Press Enter or Move down with the down arrow
Choose Dish Setup and press Enter
Choose the desired satellite and press Right 2
times to move to the LNB window
Choose corresponding motor model to your motor
and set the parameters for it such as limits,
positions.

Dish Setup

Satellite

HOTBIRD 6,7

ATRA 1H

ASTRA 2A

SIRIUS 5

NILESAT 101

EUTELSAT W3A

EUTELST W1

BADR-2.3.4

TransPonder

001 10723 H 29900

001 10750 H 27500

001 10775 H 27500

001 10830 V 28000

001 10892 H 30000

001 10930 H 15000

001 11747 V 29900

001 12015 V 27500

LNB Type

LNB Power

22 KHz

Toneburst

DISEqC1.0

DISEqC1.1

Motor

HOTBIRD 6, 7A, 8

09750/10600

On

Auto

None

None

None

DiSEqC1.2

Set Limit

Move Continue

Move Step

Set West Limit

Set East Limit

Quality

STOP

STOP

Goto Reference

Disable Limit

Move

Select

OK

Exit

EXIT

Set Limit

11

Design and specifications are subject to change without notice.

Menu > Channel > Program Edit

In Program Edit Menu you can:
Delete a channel (use Red button)
Move a channel (press Yellow button, choose
new position, press Enter)
Skip a channel (use Blue button)
Rename a channel (press Green button, change
the channel name using the arrow buttons)
Add a channel to favorits list (use FAV button)

To access Program Edit Menu do the following

Press Menu. Choose Channel Menu
Press Enter or Move down with the down arrow
Choose Program Edit

CH.NAME

Delete

FAV

FAV

Move

0 C-05

SKIP

FAV TYPE

1 C-06

2 C-07

3 C-08

4 C-09

5 C-10

Move Skip Rename

Back

MENU

Select

OK

ATV

ATV

ATV

ATV

ATV

ATV

Menu > Channel > Signal Information

Choose Signal Information Menu to display detailed information about the signal quality, strength
and other details.

Menu > Channel > CI Information

Choose CI Information Menu to display detailed information about the Common Interface Module
you have inserted in the CI-slot.

To watch paid channels, the “CI or CI+ CARD” must be inserted. If you don’t insert the “CI or CI+
CARD,” some channels will display the message “Scrambled Signal”.

Menu > Channel > PVR File System

Use the PVR File System Menu to prepare your LCD to
record DVB-T programs and use the Time Shift function. In
order to record or time shift programs you need to connect a
USB-memory or an Externa Hard Drive to your LCD.

The first time you connect a USB-memory or external hard
drive you will need to format it in the PVR File System. All data
on the USB-memory or external hard drive will be erased,
therefore please backup any data before formatting in the PVR
File System.

To access PVR File System Menu do the following

Press Menu. Choose Channel Menu
Press Enter or Move down with the down arrow
Choose PVR File System and press Enter

PVR File System

Select Disk

Check PVR File System

USB Disk

Time Shift Size

Exit

EXIT

Move

Format

C:

Start

Speed

Select

OK

12

Design and specifications are subject to change without notice.

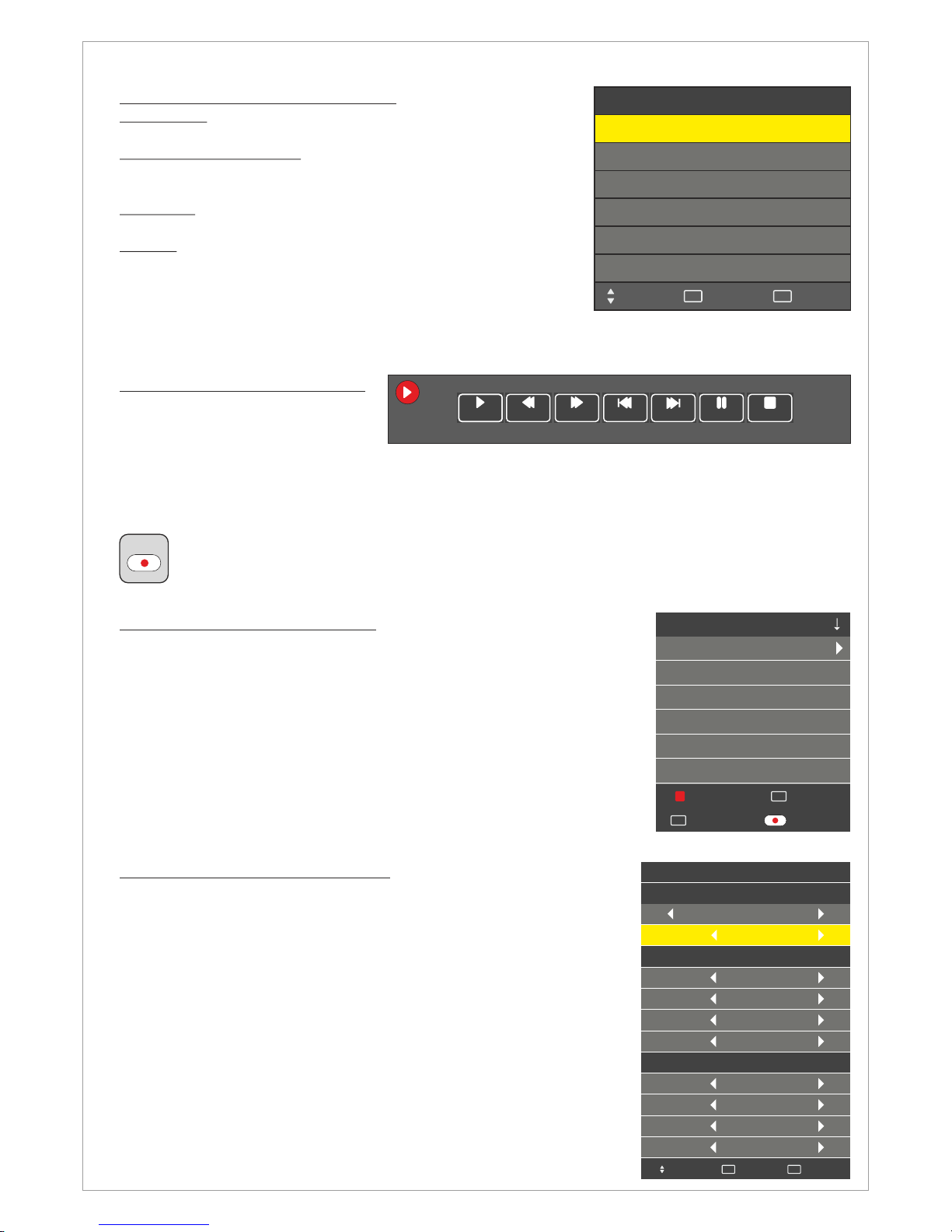

Menu > Channel > Recorded List

Use the Recorded Start List Menu to display a list of the recorded
programs. The Recorded List

Pressing the RED button will delete the recorded program
Pressing Enter button will play the recorded program
Pressing Info button will display information about the recorded
program such as date, time, duration, program title, channel name and
program description
Pressing the Recorded List button will change the sorting. 3 types of
sorting alternatives are available, by channel name, time and program
title.

Menu > Channel > Record Start

Use the Record Start Menu to
start recording a program. When
you start the recording a menu will
be displayed where you can
control the recording and get information about the current recording time, max recording time and
channel number and name. When you stop the recording the LCD will save the recording to the
disk. The file format for saving is .TS (MPEG-2 transport stream)

You can start the recording instantly
by pressing the recording button on the remote control

Menu > Channel > PVR File System

Select Disk: Choose the disk you want to use

Check PVR File System: Choose to check the disk status and
compatibility

USB Disk: It provides information if the disk is status

Format: Choose to format the disk. Two formatting standards
are available, FAT32 and Hi Speed FS. You can also choose
the PVR File System Size you want to format. After formatting
the LCD will report the estimated recording time for the
formatted disk both for Standard Definition and High Definition
recording and let you choose the Time Shift Size (see Time Shift Function for more information)

PVR File System

Select Disk

Check PVR File System

USB Disk

Time Shift Size

Exit

EXIT

Move

Format

C:

Success

Pass

Speed

Pass

1 GB

3432 KB/sHD Support

Select

OK

Prev. Next Stop

FBPlay FF

Pause

Max Recording Time: [0001:51:40]Recording Time: [0000:25:10]

005 Channel Name

SIZE

Idol

60 Minutes

Recorded List

Select

OK

Record List

Name

Info

INFO

Delete

Menu > Channel > Recorded Mode

Use the Recorded Mode Menu to schedule recordings. In the
Recorded Mode Menu you can choose the following
Channel to Record
Recording Mode: Once, daily, weekly, auto
Time to start the recording
Time to end the recording

All scheduled recordings will be listed in the recording list.

Note: You can turn off the LCD after scheduling the recordings.
The LCD will execute the recording schedule while it is off.
While recording the LCD’s LED (power indicator) will flash.

BBC

Once

10 Dec 10:27

Select

OK

Recorded Mode

Mode

Start Time

Minute

Hour

Date

Month

Minute

Hour

Date

Month

End Time

00

21

12

Dec

05

22

12

Dec

Move

Back

MENU

13

Design and specifications are subject to change without notice.

Time Shift Function

With the Time Shift Function you
can pause a program while it is
broadcasted and continue to watch
it again at your convenience. The
maximum time shift depends on
the USB-memory or hard drive
size.

To start the Time Shift
while watching a program press the PLAY/PAUSE button to start the time shift, the LCD will
start recording the program and a menu indicating that is displayed. To continue watching

the program press PLAY/PAUSE again and the LCD will continue to play the program from
where it was paused and a menu will be displayed where you can control differenct functions such
as pause, fast forward and stop etc.

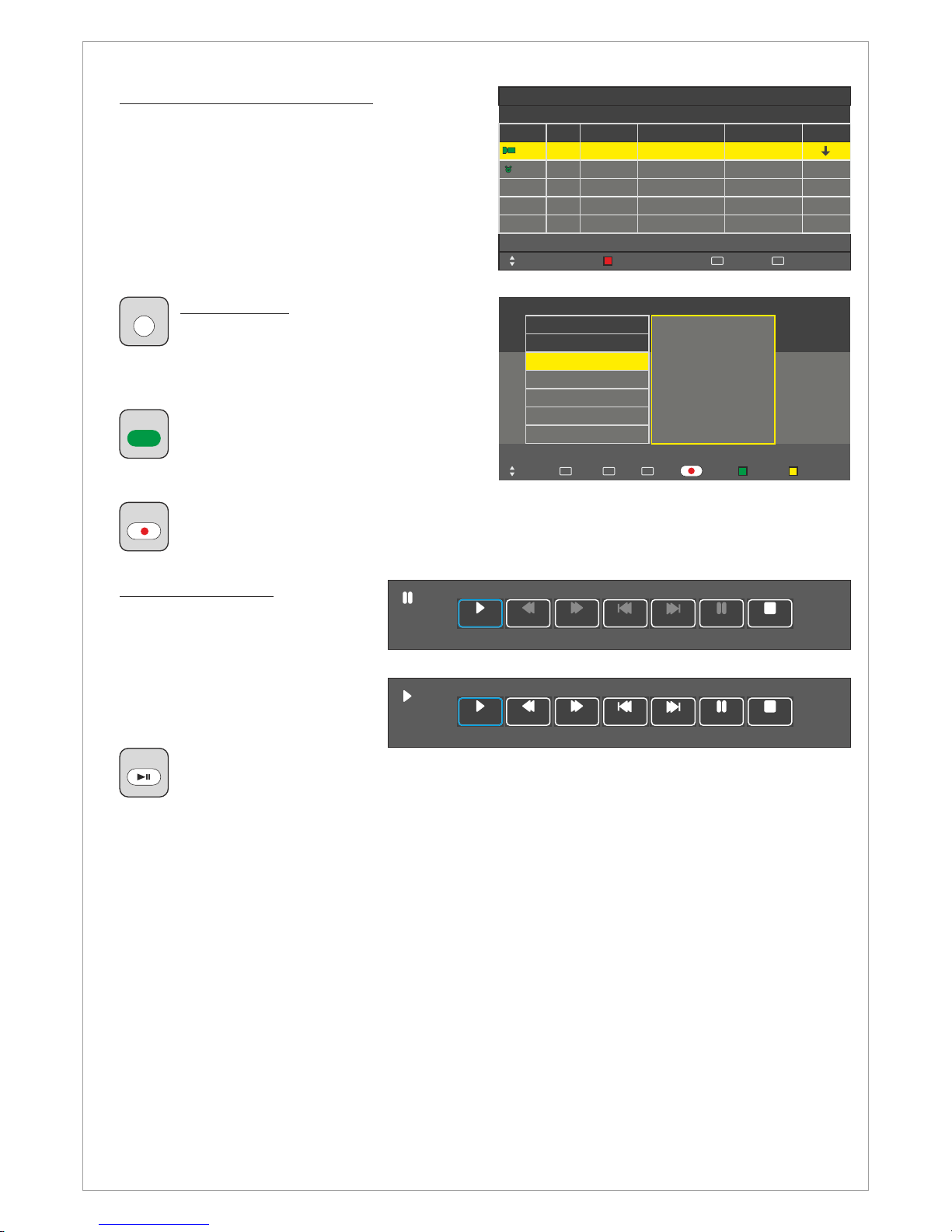

Menu > Channel > Schedule List

In the Schedule List Menu you can review the
scheduled recordings and reminders

A reminder can be scheduled in the EPG Menu

Press the RED button to delete a recording or a
reminder

Mode

Once

Time

18:00

Delete

Move

Date

Mon 12 Dec

Programme Title

Channel Name

BBC

Back

MENU

Exit

EXIT

Schedule List

Result

60 Minutes

15:30 12th Dec

Once

13:00

Mon 13 Dec

Tv5

Idol

EPG Function

The EPG (Electronic Program Guide)
function displays the programs

information. In this menu you can

schedule a recording or a reminder.

Press the GREEN button to schedule a
reminder. The LCD will switch
automatically to the scheduled program

when the reminder is due.

Press the RECORD button to schedule a recording. The LCD will switch automatically to
the scheduled program and record it when the recording is due.

12 Dec 18:00

100 TV1 News

Index

INDEX

Move

ScheduleRemind

Quit

MENU

Select

OK

Programme Guide

Time

101 TV2 Sport

102 TV3 Movie

103 TV4 TV-serie

104 TV5 Entertainment

Information about the
current program

Record

EPG

GREEN

SIZE

Prev. Next Stop

FBPlay FF

Pause

Shift Time/Max Shift Time: [01:51:40/00:01:50]

Prev. Next Stop

FBPlay FF

Pause

Shift Time/Max Shift Time: [01:51:40/00:01:50]

S

MIX

14

Design and specifications are subject to change without notice.

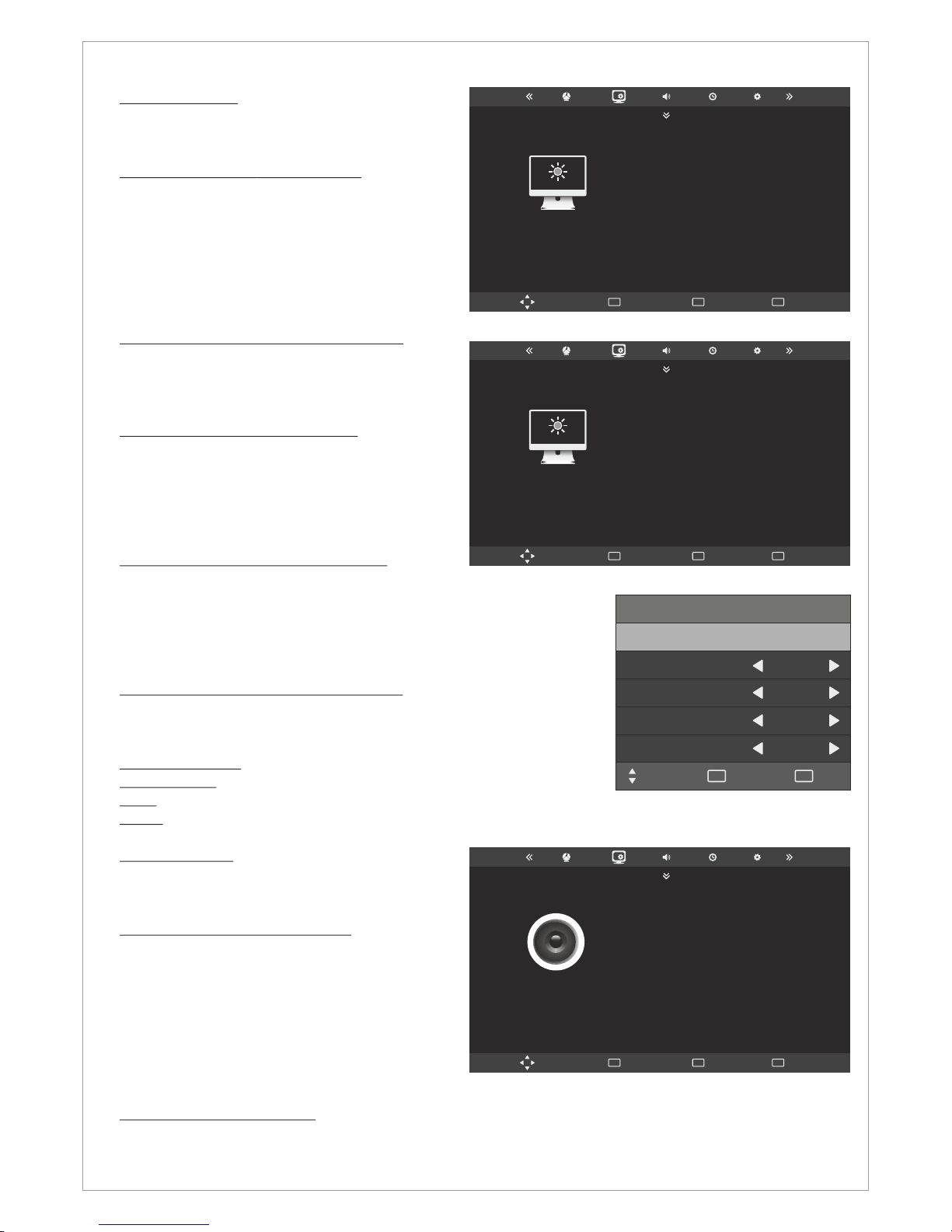

Menu > Picture

Use the Picture menu to adjust the picture
settings to meet your requirements:

Picture mode

Choose between predefined settings:

Standard: Suitable for a normal room
Dynamic: Suitable for a bright room
Mild: Suitable for a dark room
User: In Personal mode you can adjust the

Contrast, Brightness, Color, Sharpness and
Tint to meet your own requirements.

Menu > Picture >

Menu > Picture > Color Temperature

Choose between predefined settings (User,
Cool, Medium, Warm). In User mode you can
adjust the Colors Red, Green and Blue.

Menu > Picture > Aspect Ratio

Choose the desired Aspect Ratio. Available
options are Auto, 4:3, 16:9, Zoom1, Zoom2,
Panorama and Just Scan (1:1).

In PC Mode, only "16:9" and "4:3" mode can
be adjusted.

Menu > Picture > Noise Reduction

Choose to activate noise reduction. Available
options are On, Mild, Medium, High and Off.

If the broadcast signal received by your TV is weak, you can
activate the Noise Reduction feature to help reduce any static and
ghosting that may appear on the screen.

Menu > Picture > Screen (only in PC

When the TV is in PC-Mode additional settings are available for
PC-Setup.

Horizontal Pos.: Adjust the PC’s screen positioning horizontally
Vertical Pos.: Adjust the PC’s screen positioning vertically
Size: Adjust the screen sizeclock
Phae: Adjust the signal phase

Menu > Sound

Use the Sound menu to adjust the sound
settings to meet your requirements:

Menu > Sound > Sound Mode

Choose between predefined settings:

Standard: Suitable for normal programs
Movie: Suitable for movies
Sport: Suitable for sport programs
Music: Suitable for music program
User: In Personal mode you can adjust the

Treble and Bass to meet your own
requirements.

Menu > Sound > Balance

Adjust the sound output balance between left and right speaker.

15


Move Menu

MENU

OK

OK

Exit

EXIT

Picture Mode

Contrast

Brightness

Color

Sharpness

Tint

Standard

50

50

50

50

50

Screen

Horizontal Pos.

Vertical Pos.

Size

Phase

Menu

MENU

Exit

EXIT

Move

50

50

50

50


Move Menu

MENU

OK

OK

Exit

EXIT

Color Temperature

Red

Green

Blue

Aspect Ratio

Noise Reduction

Screen

User

50

50

50

Just Scan

On

SOUND

Move Menu

MENU

OK

OK

Exit

EXIT

Sound Mode

Treble

Bass

Balans

Auto Volume

Surround Sound

SPDF Mode

Standard

50

50

0

Off

SRS TruSurround

Auto/PCM/OFF

Design and specifications are subject to change without notice.

Menu > Sound > Auto Volume

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume
every time the channel is changed. This feature lets you automatically adjust the volume of the
desired channel by lowering the sound output when the modulation signal is high or by raising the
sound output when the modulation signal is
low.

Menu > Sound > Surround Sound

When ON it delivers a compelling, virtual
surround sound experience through any two­speaker playback system, including internal
television speakers. It is fully compatible with
all multichannel formats.

Menu > Sound > SPDIF Mode

Choose the output mode for the SPDIF
signal. Choose between Auto, PCM an Off.

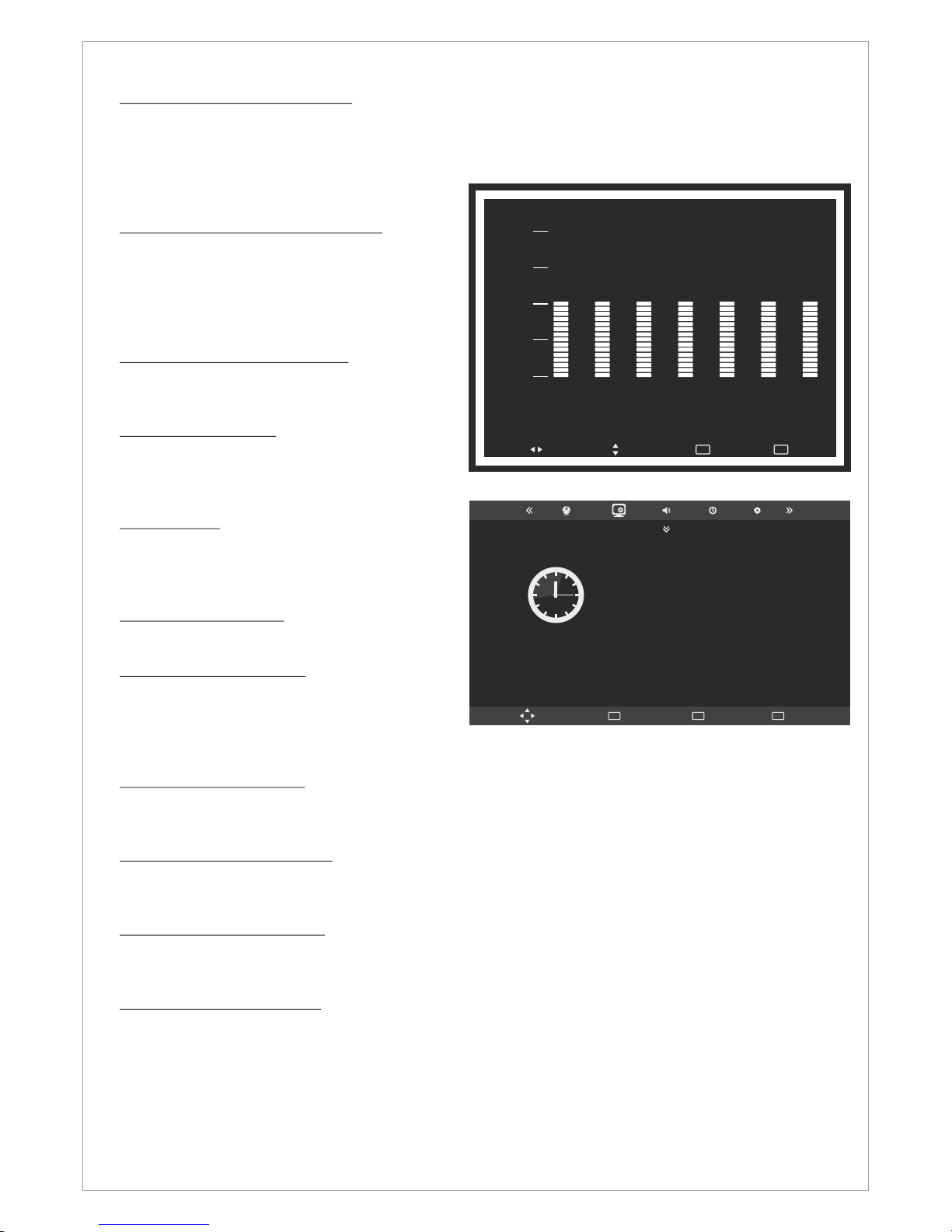

Menu > Sound > EQ

Choose the equalizers to do fine tuning for
the audio output. Not available in T10/X10 or

T20/X20.

Menu > Time

Use the Time menu to set the TV time and
adjust some other settings related to time
settings.

Menu > Time > Clock

Adjust the time.

Menu > Time > Off Time

Set a certain time to turn off the TV
automatically. The available time intervals are

Once, Everyday, Mon-Fri, Mon-Sat, Mon­Sun and Sunday.

Menu > Time > On Time
Set a certain time to turn On the TV automatically. The available time intervals are Once, Everyday,
Mon-Fri, Mon-Sat, Mon-Sun and Sunday.

Menu > Time > Sleep Timer
Set the TV to turn off after a certain time. The time intervals are 240, 180, 120, 90, 60, 30, 20 and
10 min.

Menu > Time > Auto Sleep

When set to ON the TV will turn off automatically if no input signal is detected otherwise the TV will
remain ON even if no input signal is detected.

Menu > Time > Time Zone

Adjust the Time Zone according to GMT Standard.

16

100

75

50

25

0

50 50 50 50 50 50 50

120Hz 200Hz 500Hz 1.2KHz 3KHz 7.5KHz 12KHz

Adjust Menu

MENU

Exit

EXIT

Move

TIME

Move Menu

MENU

OK

OK

Exit

EXIT

Clock

Off Time

On Time

Sleep Timer

Auto Sleep

Time Zone

01/Jan 00:00

Off

Off

Off

On

+1 GMT

Design and specifications are subject to change without notice.

USB Media Player

This product is equipped with high end USB
Media Player. It is capable of playing music,
movies (up to 1080p and with subtitle support),
and display photos or text documents.

To Enter USB mode

Press Source
Choose USB
Press Enter

In USB mode you can choose between:
Photos: Enables you to display several formats
of photos and images

Music: Enables you to play several formats of music and audio files
Movie: Enables you to play

several formats of movies and
video files
Text: Enables you to display
TXT files

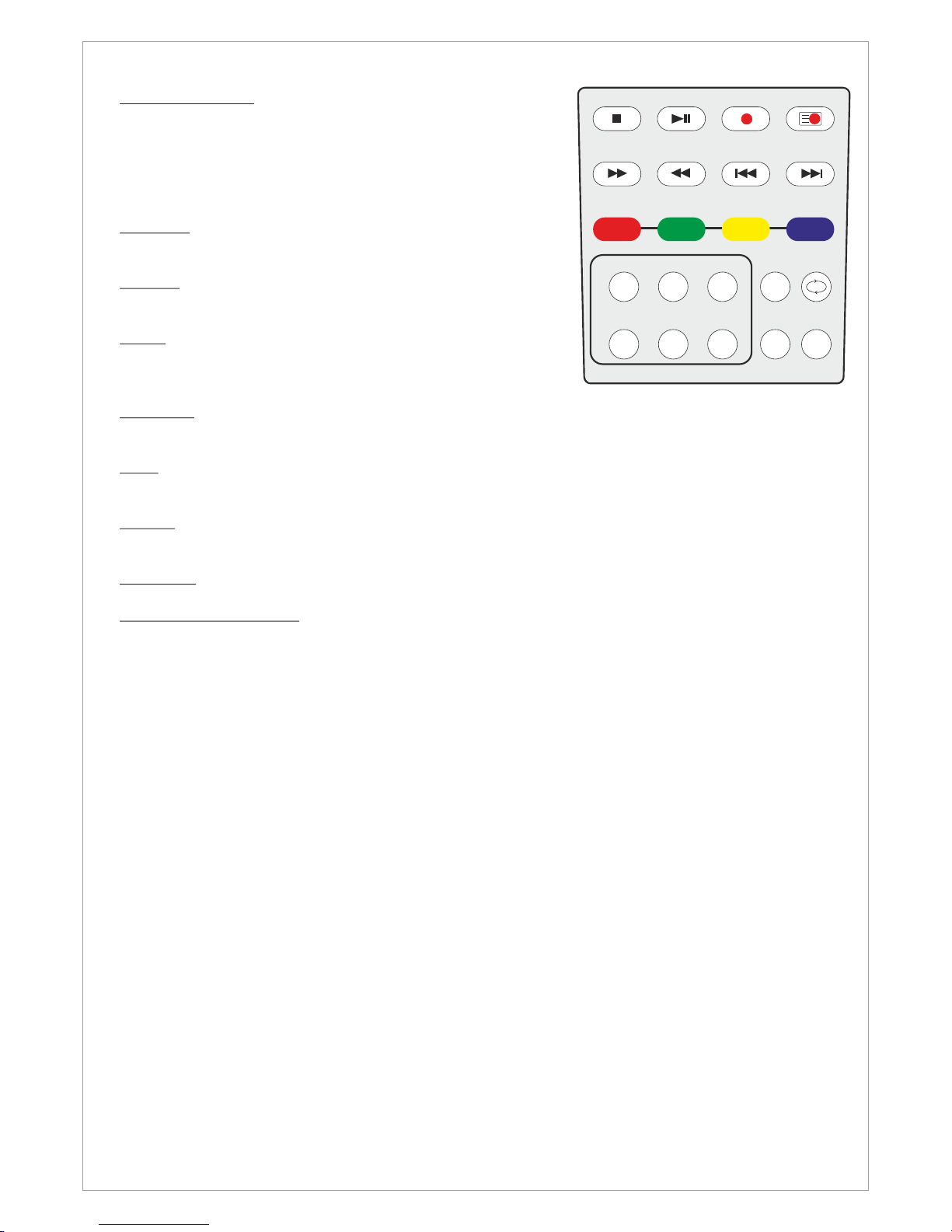

Remote Control Keys
used in USB Mode

The INFO button will display available controllers where it is possible to i.e. rotate an
image. The controllers may vary depending on the USB mode.

Red, Green, Yellow, Blue have diffrent functions acoording to diffrent
menu postions.

Navigation Key to navigate in the diffrent postion of the menu and press enter for
activating the function.

16.Stop

17. Play, Pause

18. Fast forward

19. Fast Backward

43. Record list

44. Record

45. Next

46. Previous

49. Repeat

The AUDIO button will alter audio track (if several audio tracks are available in the played file).

The SUB-T button will alter the subtitles or turn it off (if several subtitles languages are available in
the played file).

BLUEYELLOWGREENRED

13

Disk C:

Move Menu

MENU

Play

OK

Exit

EXIT

MOVIE

INFO.

Repeat A.. Goto TL.

Music info menu

Repeat A.. Music Playlist Info. Rotate Rotate Goto TL.

A

Move view

Zoom in Zoom out

Picture info menu

Slow Fo..

Prev Page

Prev. Next Stop Playlist

Music

Info.

Prev Page

Text info menu

Repeat A.. Set A Playlist Info. Slow Fo.. Step Fo.. Goto TL.

AB

Move view

Zoom in Zoom out

Aspect Re..

Video info menu

ENTER

TTX ON MIX SIZE HOLD

CANCEL INDEX TIME REVEAL

RED GREEN YELLOW BLUE

S.SELECTPIP

POSITIONSIZE

AUDIO

SUB-T

TV/RD

FAV

LIST

EPG

16

18
19

17

43

45
46

44

20
21

47
48

22
23
24

25
26
27

49
50

51
52

17

Design and specifications are subject to change without notice.

Text-TV / Teletext

Most television stations provide written information services
via Teletext. The index page of the teletext service gives you
information on how to use the service. In addition, you can
select various options to suit your requirements by using the
remote control buttons.

TTX ON: Press TTX ON to enter Text-TV
Press TTX ON to exit Text-TV

INDEX: Used to display the index (contents) page at any time
while you are viewing teletext.

SIZE: Press to display the double-size letters in the upper
half of the screen. For lower half of the screen, press it again.
To display. normal screen, press it once again.

REVEAL: Used to display the hidden text (answers to quiz games, for
example). To display normal screen, press it again.

MIX: Press to activate teletext mode after selecting the channel providing the teletext service. Press
it twice to overlap the teletext with the current broadcasting screen.

HOLD: Used to hold the display on a given page if the selected page is linked with several
secondary pages which follow on automatically. To resume, press it again.

CANCEL: Used to display the broadcast when searching for a page.

Red/Green/Yellow/Blue: If the FASTTEXT system is used by a broadcasting company, the different
topics covered on a teletext page are color coded and can be selected by pressing the colored
buttons. Press one of them corresponding to the required. The page is displayed with other colored
information that can be selected in the same way. To display the previous or next page, press the
corresponding colored button.

18

TTX ON MIX SIZE HOLD

CANCEL INDEX TIME REVEAL

RED GREEN YELLOW BLUE

S.SELECTPIP

POSITIONSIZE

AUDIO

SUB-T

TV/RD

FAV

LIST

EPG

Design and specifications are subject to change without notice.

TV base assembly with the TV

The TV base for the camo TV can be purchased from
your dealer or www.swedx.com

To assemble the base with the TV review the
illustration to the right. Use the screws included in the
base box.

Notice: Make sure to avoid any damages to the

LCD panel when you assemble the TV base.

Wall mount assembly with the TV

SWEDX offers several wall mount devices for the
camo TV which can be purchased from your dealer or
www.swedx.com

To assemble the wall mount with the TV review the
illustrations to the right. Use the screws included in
the wall mount box.

Notice: Make sure to avoid any damages to the

LCD panel when you assemble the wall mount.

Lock
screw

19

Screws

Connect External Speakers

Connect the external speakers to the speakers output located
on the backside of the LCD-TV, See page 6.

ATV

Input

Power Input

12

Troubleshooting

Before contacting SWEDX service or your dealer, perform the following simple checks. If you
cannot solve the problem using the instructions below, note the model and serial number of your
set and contact your local dealer.

Check that the mains lead has been connected to a wall socket.
Check that you have pressed the POWER button on the front of the TV.
Check the picture contrast and brightness settings.
Check the volume.

Check the volume.
Check whether the MUTE button has been pressed on the remote
control.

Adjust the color settings.
Check that the broadcast system selected is correct.

Try to identify the electrical appliance that is affecting the set and
move it further away.
Plug your set into a different mains socket.

Check the direction, location and connections of your aerial.
This interference is often due to the use of an indoor aerial.

Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check the battery terminals.
Turn off the TV and unplug the AC cable from the wall socket and
then plug the AC cable and turn on the TV.

Check that the signal cable is firmly connected to the source input.
Check that the source is turned on.

Check the maximum resolution and the frequency of the video
adapter. For HD models the recommended resolution is 1366x768
and for Full HD models the recommended resolution is 1920x1080.

Adjust the Brightness and Contrast.

No sound or picture

Normal picture but no
sound

No picture or black and
white picture

Sound and picture
interference

Blurred or snowy
picture, distorted sound

Remote control
malfunctions

“No signal”
message is displayed.

On PC mode, “Not
Supported Mode”
message is displayed.

The image is too light
or too dark.

Pixel Mapping It is recommended to choose aspect ratio JUST SCAN to achieve

pixel mapping in HDMI modes.

Design and specifications are subject to change without notice.

20

Design and specifications are subject to change without notice.

Warranty and Service

The following terms apply only to new "in the original carton" SWEDX products marketed and
distributed by SWEDX, which are purchased and used by the original consumer purchaser.

Depending on the model, your terms and conditions may be different from those shown below,
and this information is subject to change without prior notice. Unless specifically stated otherwise,
used and reconditioned products that are resold have no warranty from SWEDX and are
considered sold "AS-IS", however, the selling dealer may offer additional service options.

Warranty for SWEDX products:

Check with your dealer for the warranty period.

What the warranty covers:

SWEDX warrants your SWEDX display(s) against defects in material and workmanship during
the warranty period from SWEDX factory delivery date shown in the shipping documents. If a
product proves to be defective in material or workmanship during the warranty period, SWEDX
will, at its sole option repair or replace the product with a similar product, provided the purchaser
adheres to certain return authorization procedures and guidelines. SWEDX reserves the right to
charge customer in case of warranty conditions not are fulfilled.

Who the warranty protects:
This warranty is valid only for the first purchaser.

What the warranty does not cover:

1. Any product which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.
B. Repair or attempted repair by anyone not authorized by SWEDX.
C. Any damage of the product due to shipment.
D. Removal or installation of the product.
E. Causes external to the product, such as electric power fluctuations or failure.
F. Use of supplies or parts not meeting SWEDX specifications.
G. Normal wear and tear.
H. Any other cause which does not relate to a product defect.

3. Cosmetic damage by purchaser, such as markings, discoloration, scratches, dents, anti-theft
devices markings, gouges or any other defacement.

4. Physically damaged products by purchaser, such as broken PCB, Housing, damaged LCD
Module.

5. No Defect Found (product returned to SWEDX as defective but failure is not duplicated by
SWEDX's test method.)

6. The product is not in accordance with the fault in the application

7. Timber is a lifelike natural material which can cause some little changes in the precision of the
produced product such as small openings line beside the connecting point and some other
small changes which are out of SWEDX control and don't make any effect for the product
functionality.

Dead on Arrival (DOA)

If the product fails within the manufacturer's DOA period, a replacement product will be offered.

Before contacting us:

In many cases, your TV may not need repair. Before you contact us, please consult the
troubleshooting section in your user's manual or SWEDX's FAQ web pages at
http://www.swedx.com to see if you can easily remedy the problem yourself.

21

How to get service:

For information on obtaining warranty service, contact SWEDX dealer (the place where you
bought your product) in first choice. If for any reason you can not contact your dealer, please
contact SWEDX Customer Service by visiting http://www.swedx.com.

SWEDX technical support services:

During the period of product warranty, we support your basic configuration, setup and
troubleshooting questions, and when required, we provide you with all instructions on how to
return your product for repair. For support inquiries, please visit http://www.swedx.com.

SWEDX reserves the right to make final decisions regarding problem determination and the
appropriate service option. Exchange units assume the remaining warranty of the original
product. Please refer to your SWEDX Limited Warranty Statement for complete terms and
conditions, as some models have other terms and conditions. Some limitations and restrictions
apply and these programs are subject to change without prior notice.

Limitation of liability

If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall
be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly
limited to the lesser of the price you have paid for the product or the cost of repairing or
replacement of any hardware components that malfunction in conditions of normal use. SWEDX
is not liable for any damages caused by the product or the failure of the product to perform,
including any lost profits or savings or special, incidental, or consequential damages. SWEDX is
not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or a claim made, under this limited
warranty or as a tort claim (including negligence and strict product liability), a contract claim, or
any other claim. This limitation of liability cannot be waived or amended by any person. This
limitation of liability will be effective even if you have advised SWEDX.

Design and specifications are subject to change without notice.

22

Design and specifications are subject to change without notice.

19

www.swedx.com

SV88T8

SWEDX TV-Table
