Page 1

Your Digital Signage Partner

User’s Guide

SDS40K8-01 SDS50K8-01 SDS58K8-01 SDS65K8-01 SDS75K8-01

MX-40K8-01 MX-50K8-01 MX-58K8-01 MX-65K8-01 MX-75K8-01

UMX-470101 UMX-550101

SUMX-550101

SWL-28K8 SWL-40K8 SWL-50K8 SWL-58K8

SWLT-28K8 SWLT-40K8 SWLT-50K8 SWLT-58K8

Page 2

SWEDX Matrix Video Walls

Digital Signage Screens

SWEDX Direct

SWEDX offers a wide

range of LED-TVs and

digital signage products

and its accessories. For

more information please

visit

www.swedx.com

SWEDX Lamina

SWEDX V

Page 3

INDEX Page

Introduction 4

Safety precaution 4

Basic operation 5

Contents 6

Inputs 6

SWL/SWLT specific information 7

Remote Control For SDS/SWL/SWLT 8

Remote control buttons (FR4) 9

Remote control buttons (FR) 10

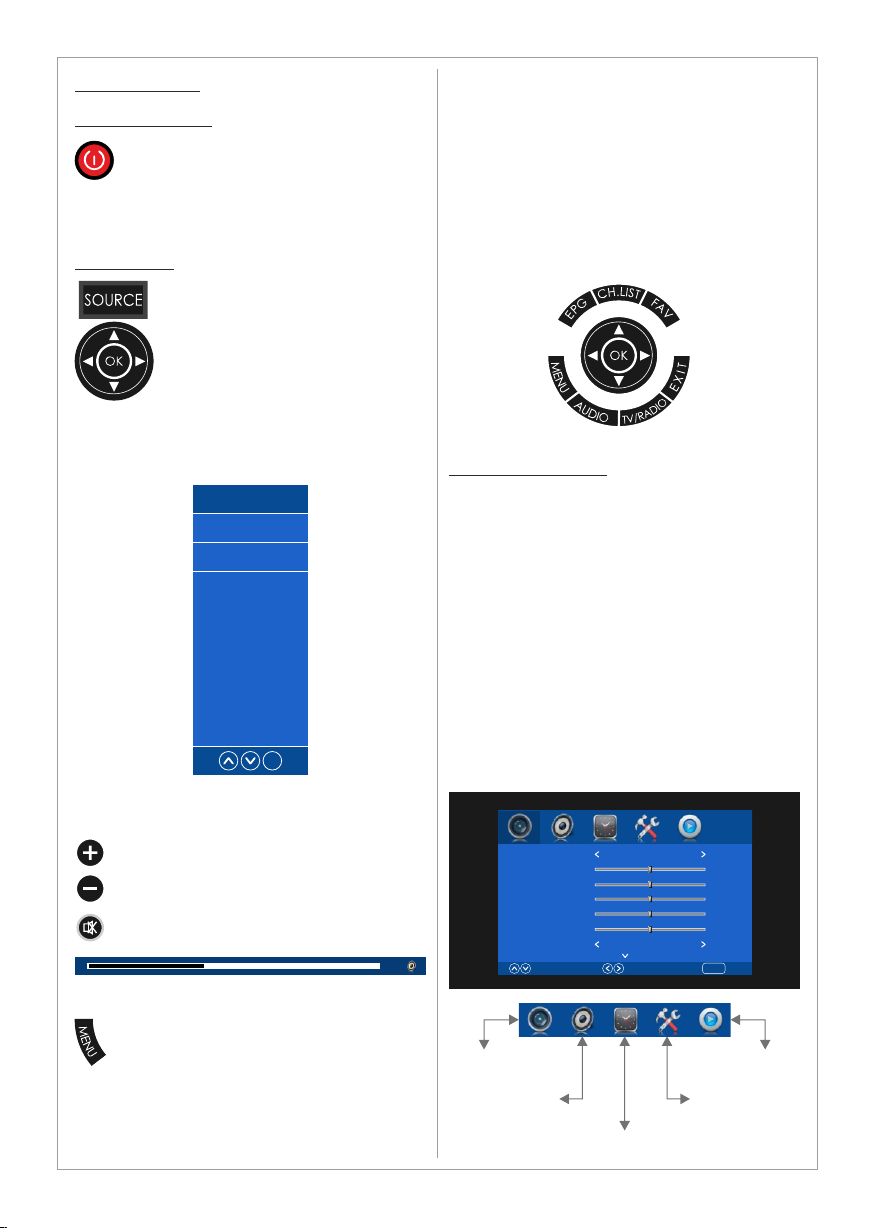

Main Operations 11

Volume Control 11

OSD Menu Operations 11

OSD Menu Structure: 11

Picture Menu 12

Sound Menu 13

Time Menu 14

Settings Menu 15

Media Player 1/2 17

Supported Formats and Codes 18

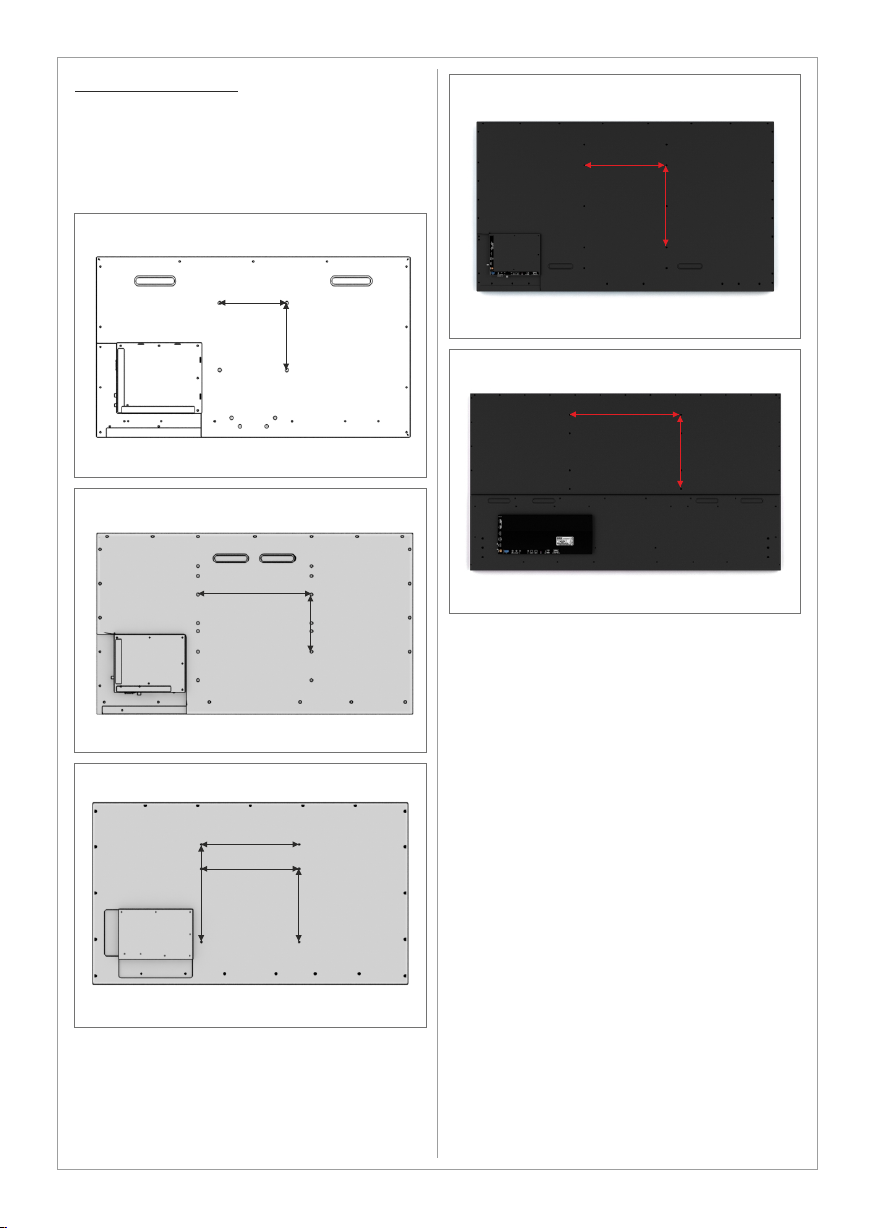

Wall mount assembly 19

Troubleshooting 20

Warranty and Service 21

How to get service 22

Limitation of liability 22

Design and specifications are subject to change without notice.

Page 4

Introduction

Thank you for choosing SWEDX Digital Signage products. Please read this manual thoroughly before operating the product. Make sure the display was not damaged in transit. Should the product be damaged, please contact your dealer and do not install it. Check that you have all the accessories according to the model.

Safety precaution

• Do not place the product on unstable places, from which it may fell off

• Do not expose the product to extreme temperature and humid environment

• Avoid subjecting the product to direct sunlit or other heat sources

• Do not put the product into any liquid

• Do not put anything inside the product, or place water container on top of the it

• In thunder rainy days (especially with lightening), please unplug the power and antenna cables

• Do not step on the power cable, or tangle them together

• Avoid overload of the exterior electric outlet to prevent fire hazard of electric shock

• Clean the product with dry and soft fabric

• lf your product is broken, do not repair it by yourself, but contact the maintenance personnel

• lf the remote control is left unused for a longtime, please take the batteries out and store them in dry places

• Avoid dropping the remote control

• lf the product is installed for exhibition purpose, please do not place the overheated part on the ground or carpet to prevent accident

• The apparatus shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on the apparatus

• Where the MAINS plug or an appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like

• Excessive sound pressure from earphones and headphone can cause hearing loss

2. This device must accept any interference received, including interference that may cause undesired operation

Please disconnect the power cord if this equipment will not be used for a long time.

Precautions When Displaying a Still Image

A still image may cause permanent damage to the screen

• Do not display a still image on the screen for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image

• Watching the screen in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images

WARNING

To prevent the spread of fire, keep candles or

other open flames away from this product at

all times

Please install the product at proper position, such as wall or ceiling. Please install it under the guidance of professional staff.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference

Page 5

Basic operation

• Use AC 100-240V 50~60 Hz power outlet for the product power supply

• lf the screen of the product is not on, please press the power button on the remote control or on the product

• lf you want to shut off the product temporary, please press the power button on the remote control or on the product

• lf you want to shut off the product completely, please disconnect the power cable

• In Component and AV modes the product will shut off if there is no signal input for 30

minutes

• ln PC-RGB and HDMI modes the product will enter idle state if there is no signal input after

30 seconds

• ln Media Player 1/2 modes the product will remain On if there is no signal input

• The setting and tuning of picture and sound will be saved when the product is shut off, which will be working in the pre-shut off state when the product is turned on again

• lf PC signal source is used, please first set the resolution of the PC display card as the following modes: For HDMI 1/2/3 (3840x2160 @ 60Hz)

For PC (1920 x 1080 @ 60Hz)

• lf there is progressive output of the signal used by the user, signal source with progressive output is recommended

Preparation

• Put the product on a stable surface

• Do not fix the product with others fixations than those provided or suggested by the manufacturer

• If you have a wall mount, check that it is steady.

• Do not place any material on the product.

• Do not block or cover the ventilation openings on the product

• The product must be plugged with a tension source of 110-240 volts and 50~60 Hz

• Power cord and cables must be properly routed and protected to prevent from stepping on them

• Keep the power cord away from any heat source. Possible fire hazard

Heating sources and humidity

• Keep the product dry and away from humidity

• Keep the product away from heat sources

Cleaning and maintenance

• Unplug the product before cleaning it. Do not use solvents or liquids to clean the product

• Only clean the product with a soft and dry fabric

• In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire

or others incidents. Please contact a technical authorized by SWEDX

Departure in holidays

• Unplug the product during lightning storms or when unused for long periods of time

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUC E THE RIS K OF ELE CTRIC S HOCK, D O NOT

REMOVE COVER( OR BACK ). REFE R SERVIC ING TO

QUALIF IED SERV ICE PER SONNEL

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE

Page 6

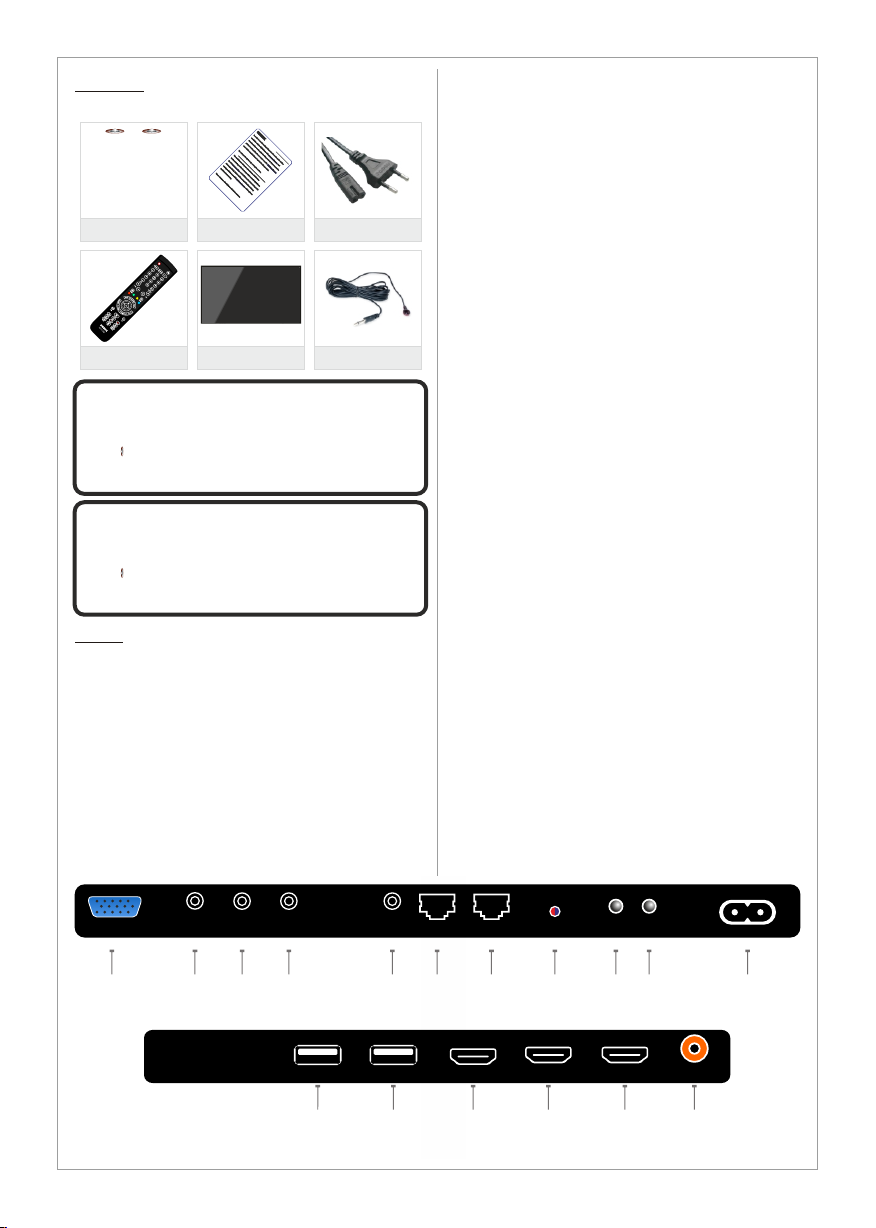

Contents

Included items:

Notice! / Information

AAA

2 x AAA Battery

Remote Control

Notice

LED Screen

AC Cable

IR Cable*

*MX/UMX only

CAUTION

Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

AAA

equivalent type

AAA Battery

CAUTION

The batteries shall not be exposed to

excessive heat such as sunshine, fire or the like

AAA

AAA Battery

Inputs

1. PC

Input for PC (VGA) sources

2. PC AUDIO

Input for PC audio when PC (Personal Computer) is connected

3. COMPONENT

Input for Component (YPBPR) sources. Supports maximum resolution 1080p @ 60 Hz

*Component/YPBPR and AV shares the same audio input

4. AV

Input for AV (Audio/Video) sources

5. IR*

Input for external infrared receiver. See Matrix function

6. RS232 OUT*

Output for RS232 signal. See Matrix function

6. RS232 IN*

Input for RS232 signal. See Matrix function

8. LED

LED indicator for power status

9. On/OFF

Key to power the product On/Off

10. Remote Pairing

Key to pair the remote control with the product

11. POWER INPUT

Input for 100-240 V power 50~60Hz

12. MEDIA PLAYER 1

Input for USB Media Player 1/Firmware upgrade

13. MEDIA PLAYER 2

Input for USB Media Player 2

14. HDMI1

Input for HDMI1 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 60 Hz

15. HDMI2 (ARC)

Input for HDMI2 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 60 Hz HDMI2 supports ARC (Audio Return Channel)

16. HDMI3 / MHL

Input for HDMI3 (Ver. 2.0). Supports maximum resolution 3840x2160 @ 36 Hz. HDMI3 supports MHL (Mobile High-definition Link)

17. COAXIAL

Output for digital audio signal (Coaxial)

* Inputs 5, 6 and 7 are available only in MX/UMX

series

AUDIO

DS-K8-UHD-2

COMPONENT

1 2 3 4

DS-K8-UHD-1

USB MEDIA PLAYER

IR LED

5 6

RS232 INRS232 OUT

7 8 11

2 / ARC 3 / MHL

HDMI

ON/OFF

2.4 GHz

REMOTE

PAIRING

POWER INPUT

AC 100-240 V ~ 50/60 Hz

COAXIAL

1714 15

Page 7

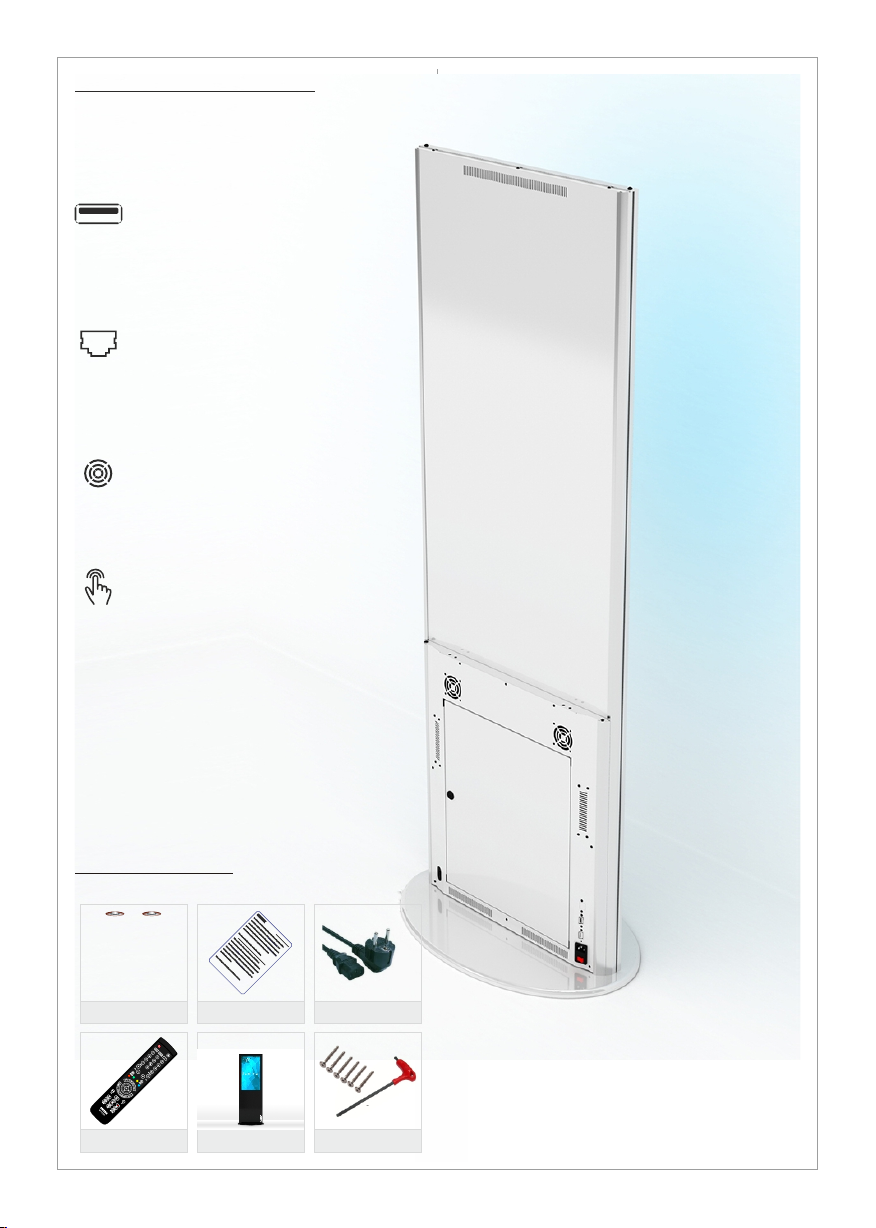

SWL/SWLT specific information

The SWL/SWLT series are equipped with external inputs to provide easy access.

The external inputs are

1. USB external input. It can be connected to Media Player 1 or 2. It can also be connected to a media player such as Mini PC or Android box

2. RJ45 input. It could be connected to a Mini PC or Android box to access the network in case WiFi is not available or LAN connection is preferred.

The SWL/SWLT series are also equipped with cooling fans. The fans can be controller in the OSD menu.

The SWLT (Touch) series are equipped with a Touch overlay. The connection interface is USB 2.0. The Touch USB cable must be connected to a media player such as Mini PC or Android box etc which supports touch function.

SWL/SWLT Contents

Included items for SWL/SWLT series:

Notice! / Information

AAA

2 x AAA Battery

Remote Control Screws+Tool

Notice

Lamina with Base

AC Cable

Page 8

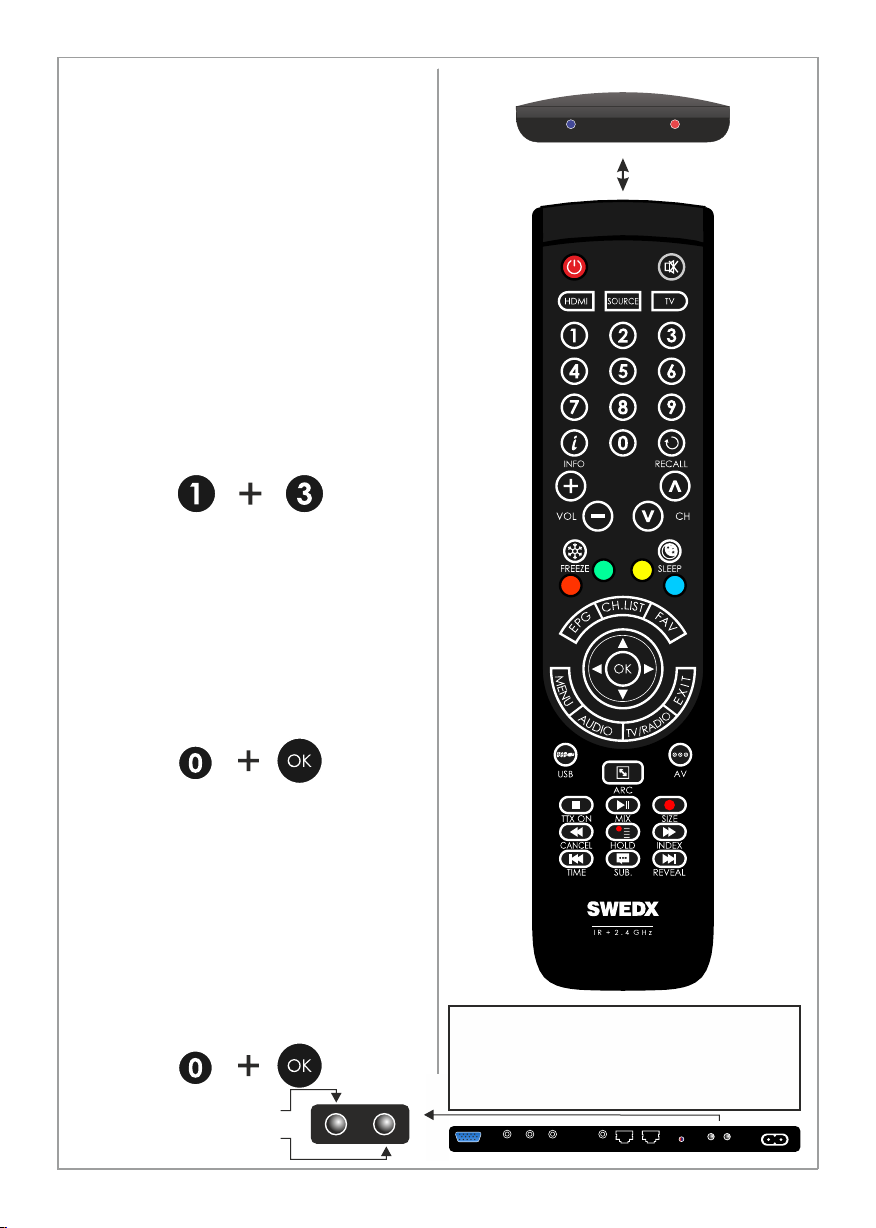

Remote Control for SDS/SWL/SWLT-series (FR4)

The remote control is based on both 2.4 GHz and Infrared.

The remote control is equipped with LED indicators. The RED indicator states that the remote is in Infrared mode and the BLUE indicator is for 2.4 GHz mode. Recent products from SWEDX uses 2.4 GHz receivers.

The 2.4 GHz technology allows the remote to control the TV without targeting it because the receiver is built inside the TV. Each SWEDX TV has a pre-configured remote control meaning that if you have several SWEDX TVs then the remote control for one of the TVs will function only with that particular TV and not with the other TVs.

To switch between Infrared and 2.4 GHz mode press and hold the

buttons for 5 seconds. The Red LED will flash 3 times and switch from the current mode to the other one.

To pair the remote with the TV follow the steps below

1. Connect the product (e.g screen) to power outlet

2. Make sure that the remote is in 2.4 GHz mode

3. Press and hold the

buttons on the remote control simultaneously for about 5 seconds. The BLUE LED will flash 5 times indicating that the remote is now paired with the TV.

Recent 2.4 GHz based products from SWEDX are equipped with a pairing key in order to avoid pairing more than one product when more than one SWEDX products is close by. A On/Off key is also available in recent SWEDX products.

If your product is equipped with paring key please press and hold the paring key for 2 second when the Blue LED light is flashing after pressing

On/Off Key

Pairing Key

The cemote control “FR4” is included in the SDS-series (digital signage screens). For the MX/UMX-series the included remote control is model “FR” (see page 9)

AUDIO

COPMONENT

DS-K8-UHD-2

Design and speciﬁcations are subject to change without notice.

IR LED

RS232 INRS232 OUT

2.4GHz

REMOTE PAIRING

ON/OFF

POWER INPUT

AC 100-240 V ~ 50/60 Hz

Page 9

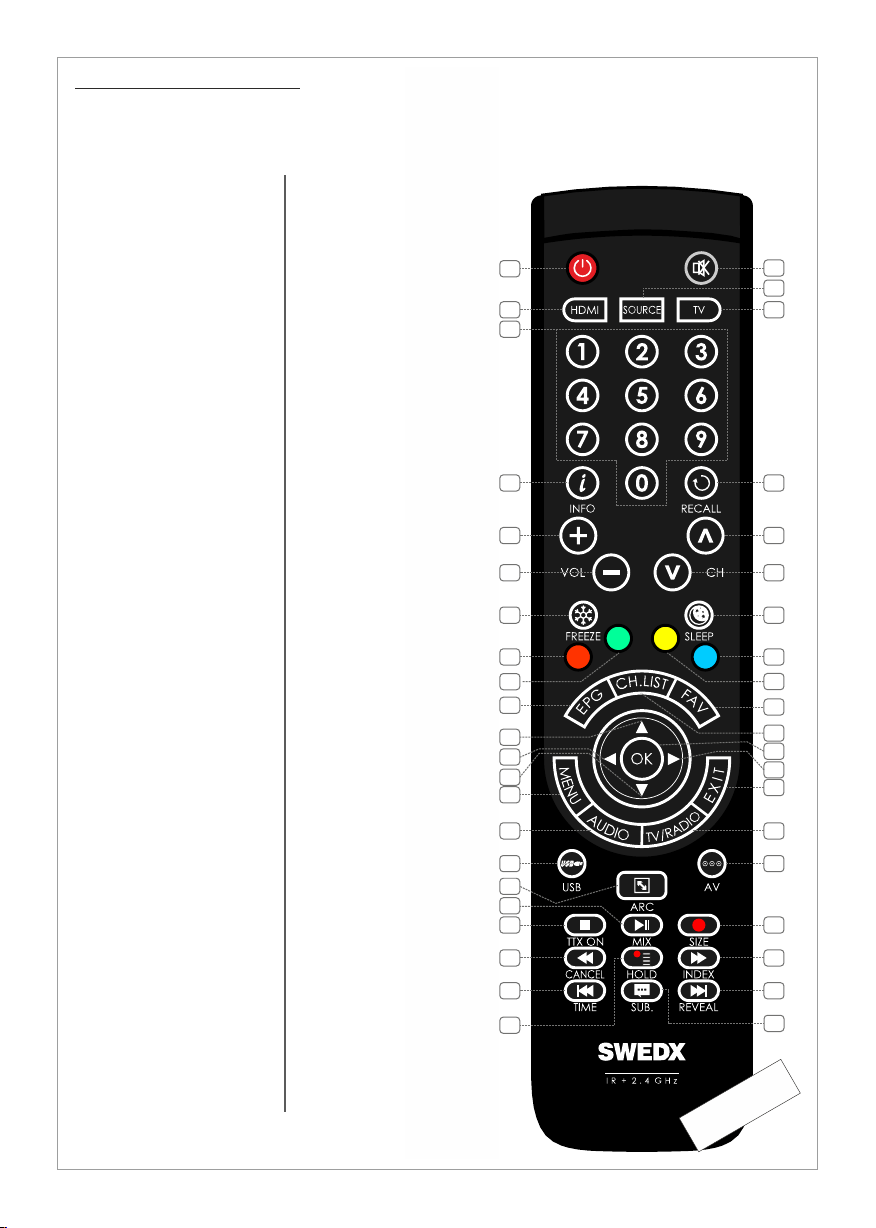

Remote control buttons (FR4)

1. On/Off button

2. Shortcut to HDMI1,2,3

3. Number buttons for

direct channel access

4. Display additional

information

5. Volume increase

6. Volume decrease

7. Picture freeze

8. RED

9. GREEN

10. Not applicable for this

product

11. Navigation button UP

12. Navigation/adjust button

LEFT

13. Navigation button

DOWN

14. Menu display. In OSD

sub-menu press to access previous menu

15. Not applicable for this

product

16. Shortcut to Media Player

1,2

17. Aspect Ratio toggling

18. Start/Pause play

19. Stop play

20. Fast backward

21. Previous Title

22. Not applicable for this

product

23. Mute the built-in

speakers

24. Available sources

selection

25. Not applicable for this

product

26. Not applicable for this

product

27. Not applicable for this

product

28. Not applicable for this

product

29. Enter sleep mode in

certain chosen time

30. Blue

31. Yellow

32. Not applicable for this

product

33. Not applicable for this

product

34. Confirm/activate button

35. Navigation/adjust button

RIGHT

36. Exit the OSD

37. Not applicable for this

product

38. Shortcut to AV

39. Not applicable for this

product

40. Fast forward

41. Next Title

42. Not applicable for this

product

2 3

11 12 13

17 18 19

Model: FR4

23 24

33 34 35 36

RF052B-V2

Page 10

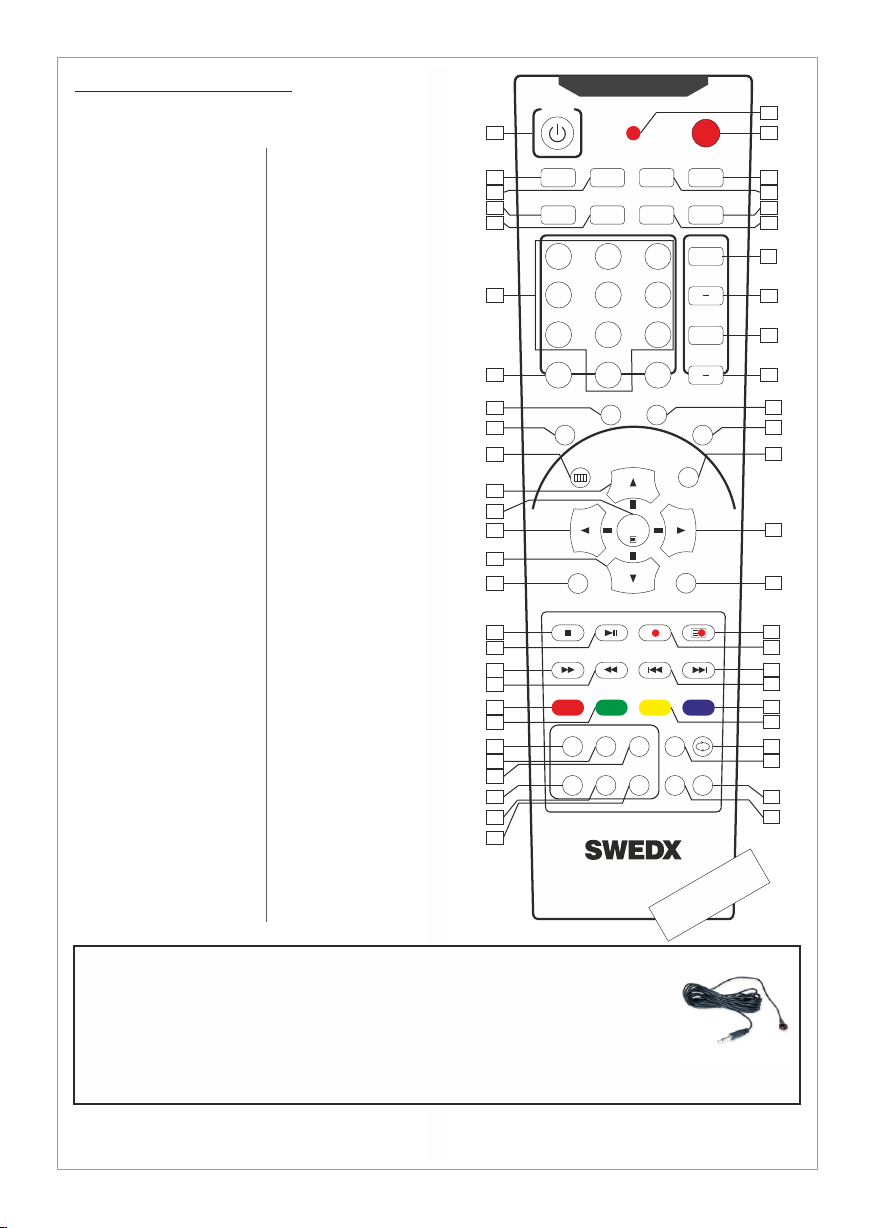

Remote control (FR) buttons

1. On/Off button

2. Mute the built-in

speakers

3. Enter sleep mode in

certain chosen time

4. Not applicable for this

product

5. Aspect Ratio toggling

6. Number buttons for

direct channel access

7. Not applicable for this

product

8. Shortcut to HDMI

1,2,3

9. Shortcut to PC input

10. Menu display. In OSD

sub-menu press to access previous menu

11. Navigation button UP

12. Confirm/activate

button

13. Navigation/adjust

button LEFT

14. Navigation button

DOWN

15. Shortcut to

Component

16. Stop play

17. Start/Pause play

18. Fast forward

19. Fast backward

20. RED

21. GREEN

22. Not applicable for this

product

23. Not applicable for this

product

24. Not applicable for this

product

25. Not applicable for this

product

26. Not applicable for this

product

27. Not applicable for this product

28. LED indicator

29. Available sources selection

30. Display additional information

31. Picture freeze

32. Alter sound mode

33. Alter picture mode

34. Volume increase

35. Volume decrease

36. Not applicable for this

product

37. Not applicable for this product

38. Not applicable for this product

39. Not applicable for this product

40. Exit the OSD

41. Navigation/adjust button RIGHT

42. Not applicable for this

product

43. Not applicable for this product

44. Not applicable for this product

45. Next Title

46. Previous Title

47. Blue

48. Yellow

49. Not applicable for this

product

50. Not applicable for this product

51. Not applicable for this product

52. Not applicable for this product

POWER SOURCE

MUTE SLEEP STILL INFO.

2 3

DUAL I-II ARC PSM SSM

4 5

8 9

12 13

16 17

18 19

20 21

22 23 24

MENU EXIT

Component

TTX ON MIX SIZE HOLD

CANCEL INDEX TIME REVEAL

RED GREEN YELLOW BLUE

LIST

EPG

HDMI

TV/RD

FAV

30 31 32 33

321

VOL

987

PRE/CH

0-/--

DTV

ENTER

Scart

AUDIO

S.SELECTPIP

POSITIONSIZE

SUB-T

ATV

43 44

45 46

47 48

49 50

Model: FR

The remote control “FR” is included in the UMX/MX-series (Matrix video wall screens). For the SDS-series the included remote control is model “FR4” (see page 7)

In order to control the UMX/MX screens with the “FR” remote control an external Infrared receiver must be connected to the screens IR input (see page 6 input No. 5)

Page 11

Main Operations

Turning On And Off

The product turns on automatically when it

is connected to power. When the product is in Stand-by mode press POWER on the

remote control or the On/Off button on the control buttons. The product will turn on and will be ready to be used.

Select Source

Press SOURCE on the remote control. The source list menu will appear. Navigate the list with

Up/Down on the remote control to

select the source and confirm by pressing OK.

Input Source

COMPONENT

PC-RGB

HDMI1

HDMI2

HDMI3

MEDIA PLAYER 1

MEDIA PLAYER 2

sub-menu.

• Use UP & DOWN buttons to navigate in the

OSD Menu.

• Press EXIT button to exit the OSD Menu.

OSD Menu Structure

• OSD (On Screen Display) allows users to control or adjust various features and settings in accordance with desired preferences.

• Press the MENU button on the remote control to see the main OSD menu.

OSD Menu Operation:

• Main Menu: Press MENU on the remote control to enter the main OSD menu. First, choose Main menu item you need with the buttons ◄ & ►. To select a Main menu items, just press OK.

• Sub Menu: Each menu item has its own sub menu items to set.

• Sub Menu items:

A: If there is no value to adjust it means there

is a sub menu which you can access by pressing OK and modify the menu values. B: If there is no ► part, the item has adjustable values. Use ◄ & ► to adjust the values.

C: If the sub-menu item is grey colored, it

means this item is not available in the particular mode.

Volume Control

Press VOL+ / VOL- on the remote control to adjust the volume level.

Press the MUTE on the remote control to

mute the sound.

OSD Menu Operation

• Press MENU on the remote control to

access the OSD Menu. Pressing the same button again will move you backward in the OSD structure.

• Press OK button to

confirm/select.

• Use LEFT & RIGHT buttons to navigate or

change the parameters of the current

Picture Menu

Audio Menu

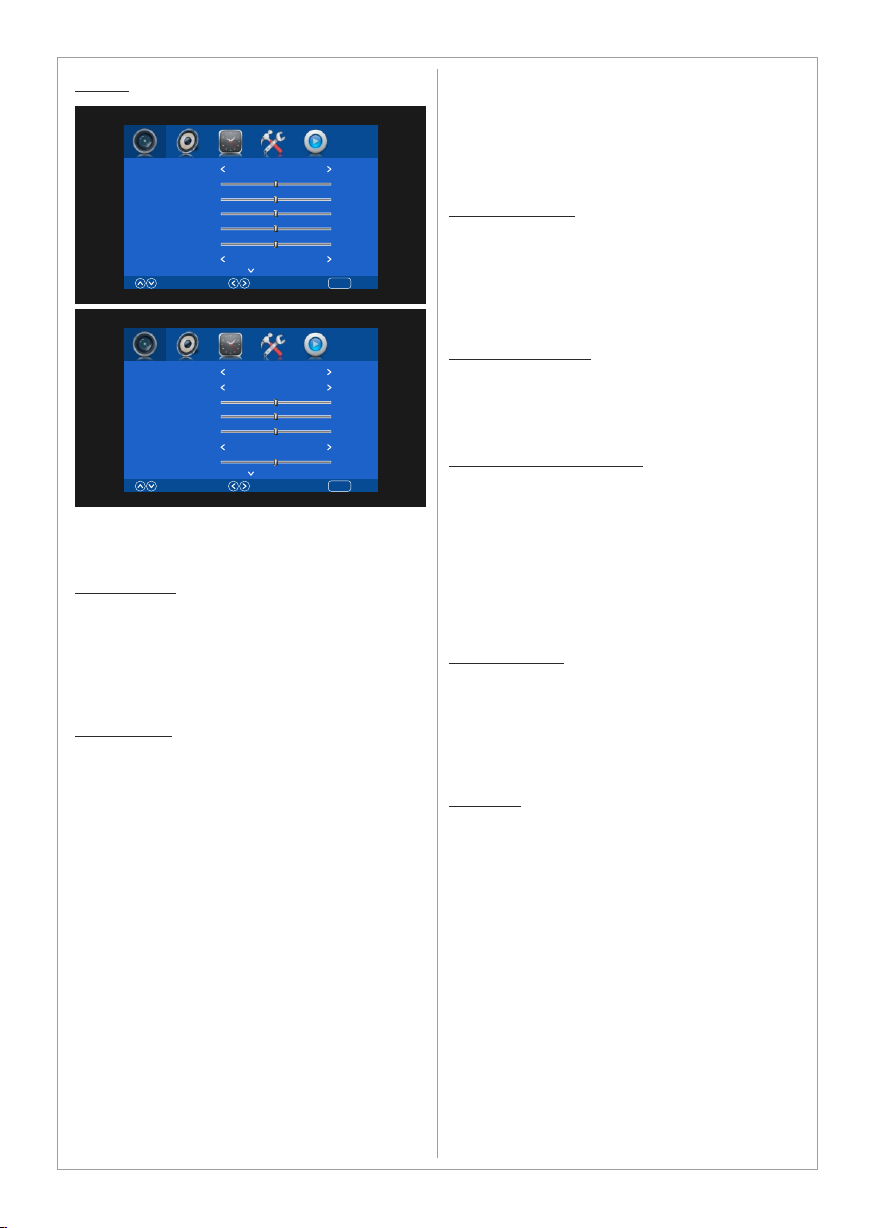

Picture Mode

Contrast

Brightness

Color

Tint

Sharpenss

Aspect Ratio

Select Move Return

Standard

PointToPoint

Media Player Menu

Time Menu

Settings Menu

Page 12


Picture Mode

Contrast

Brightness

Color

Tint

Sharpenss

Aspect Ratio

Select Move Return

Standard

PointToPoint

which means if the signal resolution is lower than 3840x2160 then the picture will be shown according to its original size.

Just Scan

Just Scan mode will display crispier picture with

scaling to fill the entire screen.

Noise Reduction

Choose to activate noise reduction. Available options are Off, Low, Middle and High.

If the signal received by the input controller is

weak, you can activate the Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

Noise Reduction

Color Temperature

Red

Green

Blue

Local Dimming

Backlight

Select Move Return

Middle

Medium

Oﬀ

Use the Picture menu to adjust the picture settings to meet your requirements:

Picture mode Standard: Suitable for a normal room Mild: Suitable for a dark room User: In User mode you can adjust the Contrast,

Brightness, Color, Sharpness to meet your requirements

Dynamic: Suitable for a bright room

Aspect Ratio

Set the various picture options such as picture size and aspect ratio.

Depending on the input source, the picture size options may vary. The connected device to the controller may have its own set of screen sizes as well. However, it is highly recommended to use PointToPoint / Just Scan mode.

Auto

Automatically adjusts the picture size to the signal

Zoom1&2

Magnifies the picture size.

4:3

Sets the picture to basic (4:3) mode.

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and center of the screen may cause image retention (screen burn) which are not covered by the warranty.

PointToPoint

Displays the signal without any cut-off when HDMI (720p / 1080i / 1080p / 2160p) signals. The PointToPoint mode will display without scaling

Color Temperature

Choose between predefined settings User, Warm, Medium and Cold). In User mode you can adjust the Red, Green and Blue color temperature.

Screen (only in PC mode)

When the TV is in PC-Mode additional settings are available for PC-Setup.

H-Offset: Adjust the PC’s screen positioning horizontally V-Offset: Adjust the PC’s screen positioning vertically Size: Adjust the screen size Phase: Adjust the signal phase

Local Dimming

Local dimming is a feature that dims the backlight behind parts of the screen that are displaying black. This makes blacks appear deeper and darker on those parts of the screen, which can be a big bonus when watching video with darker scenes.

Backlight

Adjust the backlight intensity.

Page 13

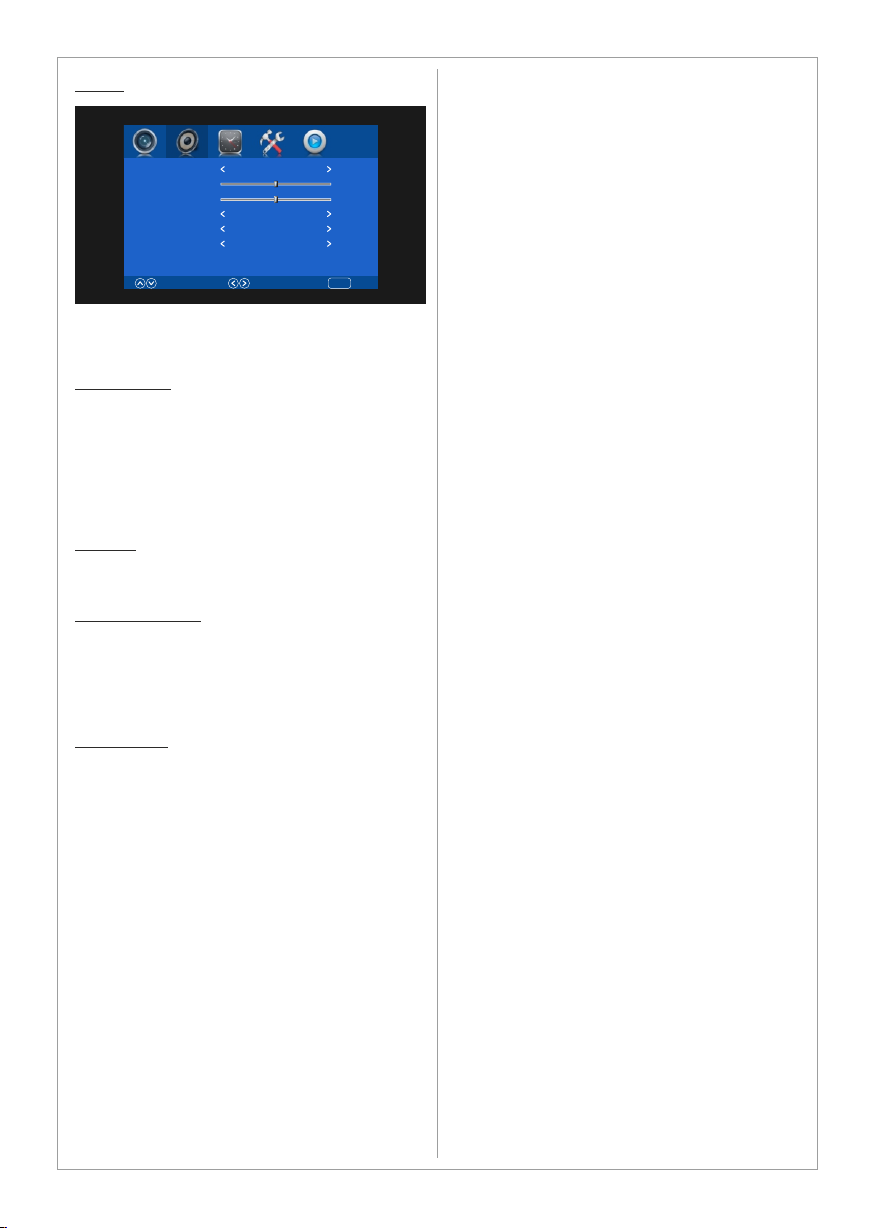

Sound

Sound Mode

Treble

Bass

Balance

Surround Sound

SPDIF Mode

Select Move Return

Standard

Oﬀ

PCM

Use the Sound menu to adjust the sound settings to meet desired requirements:

Sound Mode

Choose between predefined settings:

Standard: Suitable for normal programs Music: Suitable for music program Movie: Suitable for movies Sports: Suitable for sport programs User: In User mode you can adjust the Treble

and Bass to meet desired requirements.

Balance

Adjust the sound output balance between left and right speaker.

Surround Sound

In TrueSurround or SRS TrueSurrond mode the screen delivers a compelling, virtual surround sound experience through the internal television speakers. It is fully compatible with all multichannel formats.

SPDIF Mode

Choose the output mode for the SPDIF signal. Choose between Auto or PCM.

Page 14

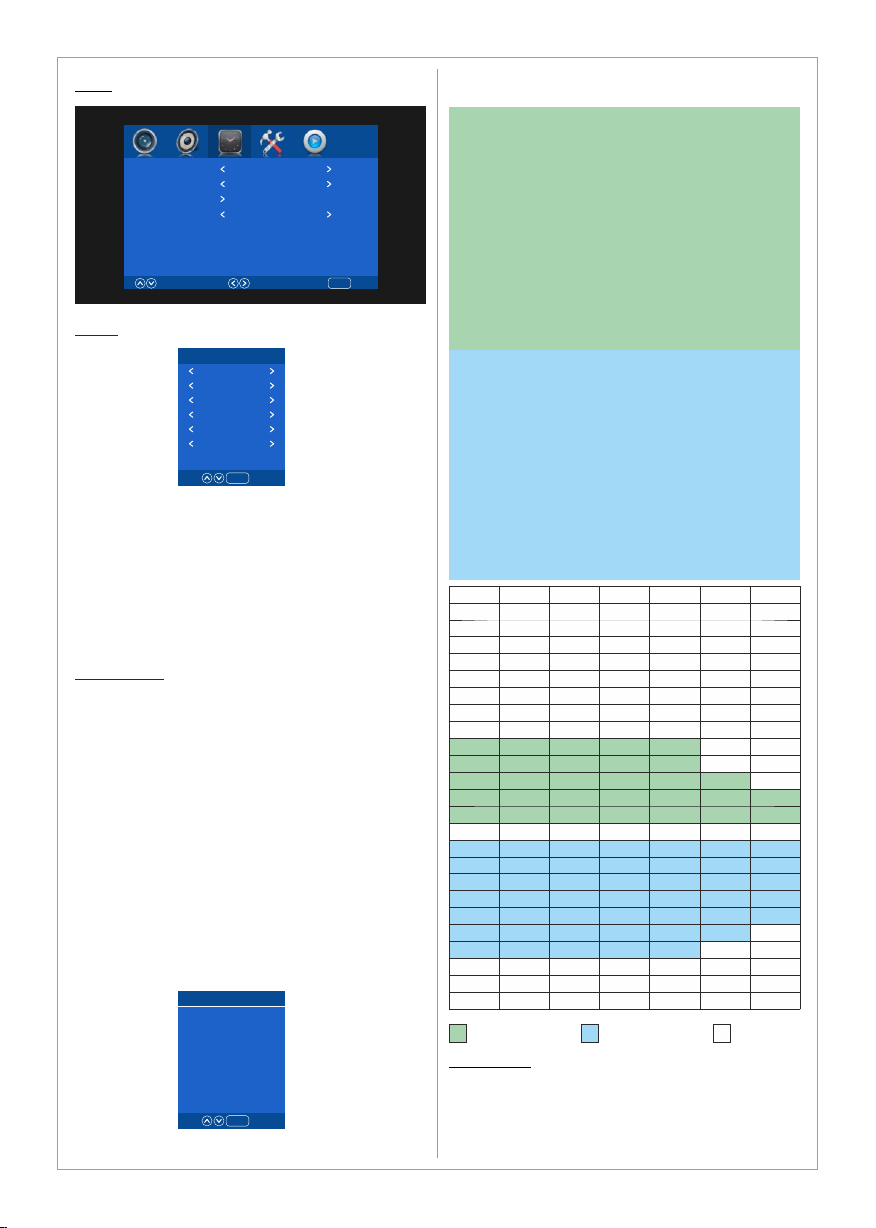

Time

Monday

Tuesday

Wednesday

Thursday

Friday

Saturdady

Sunday

0000000000

0101010101010102020202020202030303030303030404040404040405050505050505060606060606

07070707070707

08080808080808

09090909090909

10101010101010

11111111111111

121212121212121313131313131314141414141414

15151515151515

16161616161616

17171717171717

18181818181818

19191919191919

20202020202020

21212121212121

22222222222222

23232323232323

Clock

Timer Mode

Set Timer

Auto Sleep

Select Move Return

2016/01/Jan 10:05:18

Customize

Never

Clock

Date 01

Month Jan

Year 2016

Hour 10

Minute 20

Second 35

Exit

Use the Time menu to set the date and time for the product. The date and time are important for usage of the timer function. Set the date and time under the Clock option by choosing the clock option and pressing the ► button. Change the values to the correct time by pressing the ◄ & ► buttons. Press Menu to exit and save the new date and time settings.

Timer example:

Timer Mode: Customize Mode: Mon~Fri

Time 1: ON

On Time: 08:00 Off Time: 13:00 Mode: Saturday

Time 1: ON

On Time: 10:00 Off Time: 13:00 Mode: Sunday

Time 1: ON

On Time: 11:00 Off Time: 13:00

Mode: Mon~Fri

Time 2: ON

On Time: 14:00 Off Time: 21:00 Mode: Saturday

Time 2: ON

On Time: 14:00 Off Time: 20:00 Mode: Sunday

Time 2: ON

On Time: 14:00 Off Time: 19:00

Timer Mode

The product is equipped with advanced timer settings. When activated, the timer settings provide 3 modes for the timer function. Only one mode can be activated at time. Each mode has 5 timer sets (Time 1, 2, 3, 4 and 5). It is possible to activate one or more time sets Once: The product will turn on/off once according to the defined On Time and Off Time. Everyday: The product will turn on/off everyday according to the On Time and Off Time. This function is suitable of the product is used everyday. Customize: In customize mode you can define the on/off time for Monday~Friday and/or Saturday and/or Sunday.

Timer

Mode:

Mon ~ Fri

Time 1

00 : 00

Exit

On Time:

On Time On Time Off Time

Auto sleep

This function will put the product into Off mode in given time. Choose between Never, 4, 6 or 8 hours.

Page 15

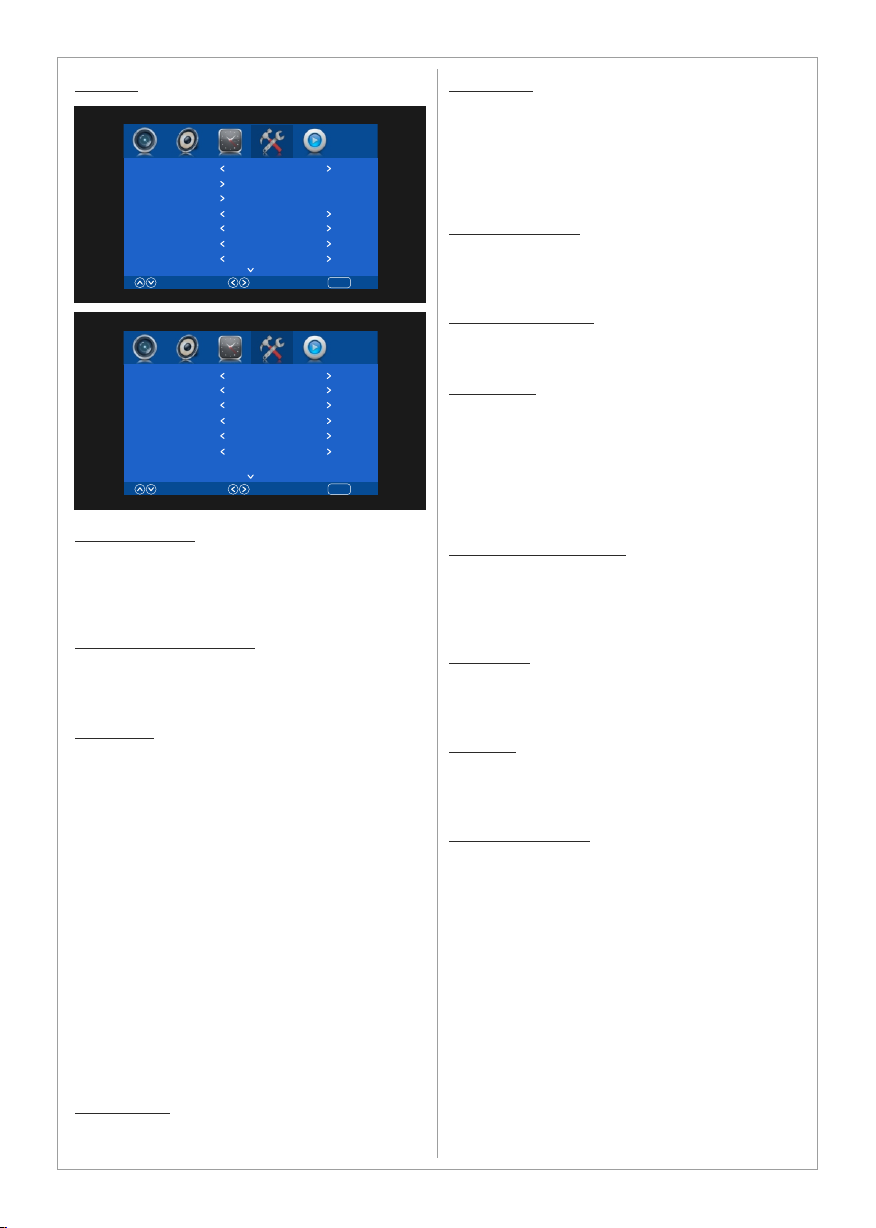

Settings

OSD Language

Restore Factory Default

HDMI CEC

Color Range

EDID Mode

No Signal Screen

Activate Fans at °C

Select Move Return

Fan Setting

Overheating Protection Oﬀ

OSD Mode Landscape

Matrix ID 1

No Signal Standby Oﬀ

MEMC(Requires Restart) On

Select Move Return

Standard

Auto

EDID 2.0

Black

Oﬀ

OSD Language:

Choose the OSD language. Available languages are English, Deutsch, Spanish, French, Italian, German, Japanese, Swedish, Arabic, Simplified Chinese.

Restore Factory Default

This function will restore the product to the factory defaults and will erase any customized settings.

HDMI CEC

Activate the HDMI CEC function.

HDMI ARC

Activate HDMI ARC (Audio Return Channel) function.

Auto Standby

When activated the product will be put into standby mode when a HDMI CEC compatible device is connected and turned off.

Auto On

When activated the product will be put into On mode when a HDMI CEC compatible device is connected and turned on.

Device Control

When activated the HDMI CEC compatible device can be controlled using the product’s remote control.

Device List

Displays connected HDMI CEC compatible devices.

EDID Mode

This is an informative feature to display the HDMI mode of the connected product to the HDMI input. Available options are HDMI 1.4 or HDMI

2.0. Products with support for HDMI 2.0 are

recommended to take full advantage of the 4K feature in Swedx product.

No Signal Screen

Change the background color of the display when no signal is detected. Available options are black or blue.

Activate Fans at °C

Activate the product’s ventilation/cooling fans (if available) at the defined degree.

Fan Setting

Choose the setting for the product’s ventilation/cooling fans (if available). Available options are Off, low, medium, high. Choose low or medium when the product is used in quite environment and choose high when the maximum cooling is desired due to the environment.

Overheating Protection

When activated this function will turn off the product in order to protect it from damages if it reaches too high temperature. Available options are Off, 80 or 85°C.

OSD Mode

Choose the orientation for the OSD menu. Choose landscape for horizontal mode and portrait for vertical mode.

Matrix ID

Set the screen’s ID when the product is used in Matrix video wall configuration. See next page for details.

No Signal Standby

The product is equipped with Smart HDMI function. When the product is in HDMI mode you can activate the Smart HDMI function by setting the No Signal Standby to On mode and the product will go into sleep mode in 30 seconds if no HDMI signal is detected. The product will automatically wake up when the HDMI signal is detected. This function is useful if you want to control the product’s sleep/wake up mode by the source connected to the HDMI inputs.

To deactivate the function set the No Signal Standby to Off mode.

Color Range

Choose the scope of the color range. Available options

Page 16

MEMC (Motion Estimation/Motion Compensation)

Fan Setting

Overheating Protection Oﬀ

OSD Mode Landscape

Matrix ID 1

No Signal Standby Oﬀ

MEMC(Requires Restart) On

Select Move Return

Oﬀ

Enhancement to compensate the difference between the screens refresh rate and signal frame rate. Active for smoother motion and deactivate for shorter input lag.

Page 17

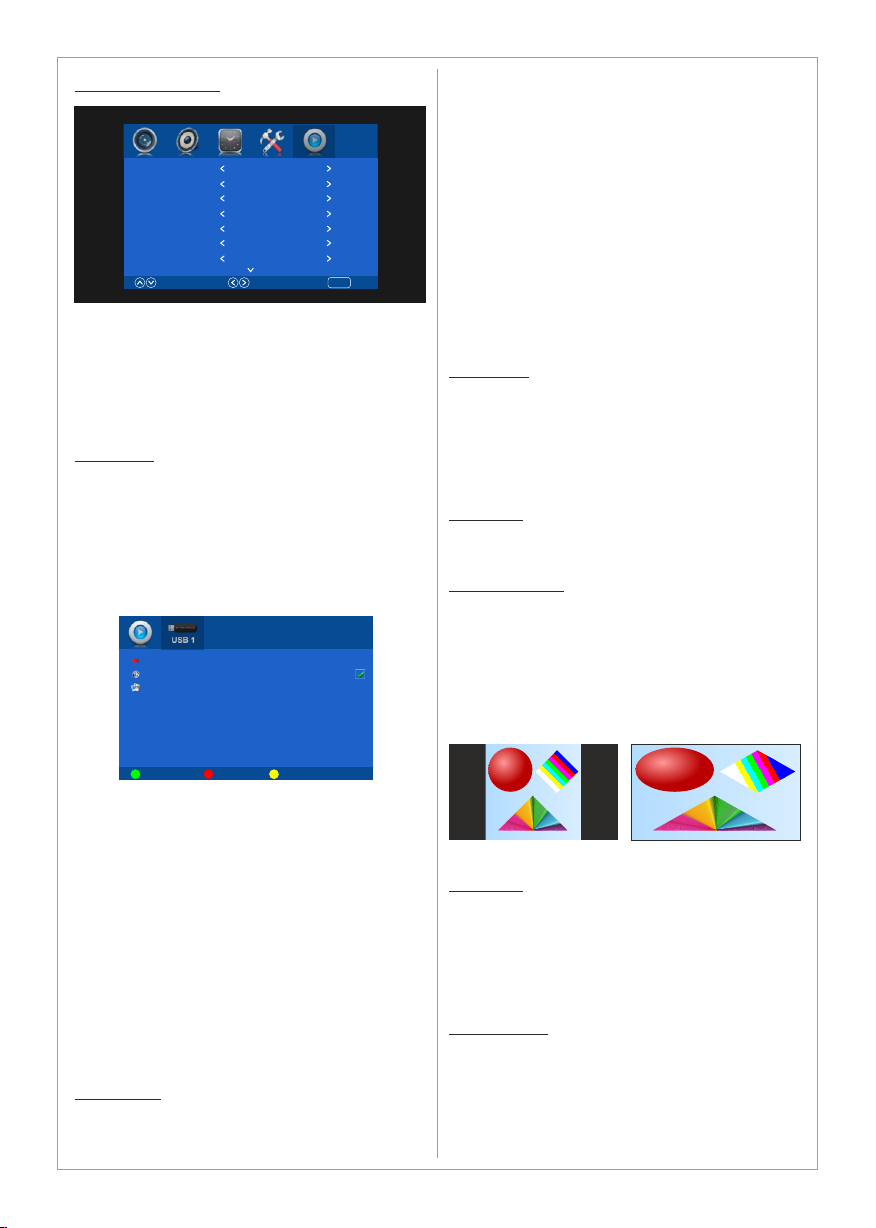

MEDIA PLAYER 1/2

is chosen the product will display automatically all video and picture files stored in the USB flash drive.

Play Mode

Media Type

Slide Tiime

BG Music

Picture Scaling

Auto Play

Repeat Mode

Select Move Return

Automatic

Video

5 Sec

Original

All

This product is equipped with an advanced and user friendly media player. The Media player can display videos and images stored in a USB flash drive connected to the Media Player 1 or 2 inputs. See next page for which formats and codecs are supported.

Play Mode

In Play Mode you can choose between Automatic or Program.

Automatic will display all files stored in the USB flash drive connected automatically.

Program will allow to create a play list of selected files stored in the USB flash drive.

Start

Video01.mp4


When Video is chosen the product will display automatically only all video files stored in the USB flash memory.

When Picture is chosen the product will display automatically only all picture files stored in the USB flash memory.

When the Play Mode is Program you can choose to display in the play list either videos or pictures that are stored in the USB flash drive.

Slide Time

Select the time duration for the picture to be displayed before next picture is displayed. The options are:

Seconds: 5, 10, 15, 20, 25, 30, 45 Minutes: 1, 5, 10, 30 Hours: 1, 3, 12, 24

BG Music

Allows to play background music while displaying pictures. See next page for supported audio files.

Picture Scaling

For picture where the aspect ratio is not 16:9 you can choose how the product will display the picture. In Original mode the picture will be displayed in full screen while keeping the picture’s proportion. In Full Screen mode the picture will be displayed to cover the whole screen ignoring the picture’s proportion. See the illustration below

Select All

Delete Save

To create a play list select all files by pressing GREEN button on the remote or select the files to be displayed by highlighting the file and pressing OK button on the remote. When the file/files is/are selected a check mark will appear beside the file name. To save the play list press the YELLOW button on the remote control.

To run the play list press the play button on the remote or highlight the Start and press OK. To stop running the play list press the STOP or EXIT button on the remote.

To delete a file from the USB flash drive highlight it and press the RED button on the remote.

Media Type

Available options are All, Video and Picture. When the Play Mode is Automatic it allows to choose between All, Video or Picture. When All

Original Full Screen

Auto Play

Available options are On and Off. When the Auto Play mode is On the product will start to display the files automatically when the product is turned on. When the Auto Play mode is Off the product will show the content of the connect USB flash drive when the product is turned on.

Repeat Mode

Allows to choose the repeat mode of the files. Available options All, Once, Cancel.

All will repeat displaying the files continuously Once will repeat displaying the files once Cancel will not repeat displaying the files

Page 18

Supported Formats and Codecs

Format

Video Codec

Audio Codec

Resolution

Frame Rate

Mbit/s

Video

AVI

MJPEG

MP3, WMA,

AAC, MP2,

PCM

640x480

23,976~30≤

16Mbps

≤ 10Mbps

DIVX.311/DIVX4/DIVX5

720x576

≤ 10Mbps

XVID/MPEG-

2/MPEG4/H.264

1920x1080

≤ 20Mbps

MP4

MPEG-2/MPEG-4/H.264

MPEG-2

≤ 40Mbps

TRP

MPG

MPEG-1/MPEG-2

≤ 20Mbps

NOV

MPEG-4/H.264

MKV

DAT

MPEG1

MP2

352X288

≤ 16Mbps

VOB

MPEG2

720x576

Format

Max resolution

Colors


BMP

1000 x 1000 pixels

16, 256, 16 bit, 24 bit och 32 bit.

JPEG

3840x2160 / Recommended resolution is 3840x2160 pixels

PNG

1000x1000 pixels

Audio

MP3

8K-48K. 32K+320K

WAV

32K-48KHz 32K-320Kbps

M4A,

AAC

16K-48K. 32K+192K

Information:

The Media Player inputs supports: USB Flash Drive and Hard disks are supported. Supported formatting formats are, NTSF, FAT32, FAT16. NTSF Compressed is not supported.

The files must be saved in the root folder. Folder structure is not supported.

Max 5000 files.

Page 19

Wall mount assembly

SWEDX offers several wall mount devices which can be purchased from your dealer or www.swedx.com

See the Wall mounting parameters in the illustrations

40/42 inch

200 mm

50 inch

400 mm

200 mm

65 inch

400 mm

75 inch

600 mm

400 mm

58 inch

400 mm

300 mm

Page 20

Troubleshooting

Before contacting SWEDX service or your dealer, perform the following simple checks. If you cannot solve the problem using the instructions below, note the model and serial number of your product and contact your local dealer

No sound or picture

l Check that the mains lead has been

connected to a wall socket

l Check the picture contrast and brightness

settings

l Check the volume

Normal picture but no sound

l Check the volume l Check whether the MUTE button has been

pressed on the remote control

No picture or black and white picture

l Adjust the color settings l Check that the broadcast system selected

is correct

Sound and picture interference

l Try to identify the electrical appliance that is

affecting the set and move it further away.

l Plug your set into a different mains socket

Blurred or snowy picture, distorted sound

l Check the direction, location and

connections of your aerial

l This interference is often due to the use of

an indoor aerial

recommended resolution is 3840x2160@60Hz

The image is too light or too dark

l Adjust the Brightness and Contrast

Pixel Mapping

l It is recommended to choose aspect ratio

PointToPoint or JUST SCAN to achieve pixel mapping in HDMI modes

Remote control malfunctions

l Ensure that the remote is in correct mode l Replace the remote control batteries l Clean the upper edge of the remote control

(transmission window)

l Check the battery terminals l Turn off the product and unplug the AC

cable from the wall socket and then plug the AC cable and turn on the product

“No signal” message is displayed

l Check that the signal cable is firmly

connected to the source input

l Check that the source is turned on

On PC mode, “Not Supported Mode” message is displayed

l Check the maximum resolution and the

frequency of the video adapter. For HD models the recommended resolution is 1366x768 and for Full HD models the recommended resolution is 1920x1080 (for PC mode). In HDMI mode the

Page 21

Warranty and Service

The following terms apply only to new "in the original carton" SWEDX products marketed and distributed by SWEDX, which are purchased and used by the original consumer purchaser.

Depending on the model, your terms and conditions may be different from those shown below, and this information is subject to change without prior notice. Unless specifically stated otherwise, used and reconditioned products that are resold have no warranty from SWEDX and are considered sold "AS-IS", however, the selling dealer may offer additional service options.

Warranty for SWEDX products:

Check with your dealer for the warranty period.

What the warranty covers:

SWEDX warrants your SWEDX display(s) against defects in material and workmanship during the warranty period from SWEDX factory delivery date shown in the shipping documents. If a product proves to be defective in material or workmanship during the warranty period, SWEDX will, at its sole option repair or replace the product with a similar product, provided the purchaser adheres to certain return authorization procedures and guidelines. SWEDX reserves the right to charge customer in case of warranty conditions not are fulfilled.

Who the warranty protects: This warranty is valid only for the first purchaser.

other defacement.

4. Physically damaged products by purchaser,

such as broken PCB, Housing, damaged LCD Module.

5. No Defect Found (product returned to

SWEDX as defective but failure is not duplicated by SWEDX's test method.)

6. The product is not in accordance with the

fault in the application

7. Timber is a lifelike natural material which can

cause some little changes in the precision of the produced product such as small openings line beside the connecting point and some other small changes which are out of SWEDX control and don't make any effect for the product functionality.

Dead on Arrival (DOA)

If the product fails within the manufacturer's DOA period, a replacement product will be offered.

Before contacting us:

In many cases, your product may not need repair. Before you contact us, please consult the troubleshooting section in your user's manual or SWEDX's FAQ web pages at http://www.swedx.com to see if you can easily remedy the problem yourself.

What the warranty does not cover:

1. Any product which the serial number has been defaced, modified or removed.

2. Damage, deterioration or malfunction resulting from:

A. Accident, misuse, neglect, fire, water,

lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

B. Repair or attempted repair by anyone

not authorized by SWEDX.

C. Any damage of the product due to

shipment. D. Removal or installation of the product. E. Causes external to the product, such

as electric power fluctuations or failure. F. Use of supplies or parts not meeting

SWEDX specifications. G. Normal wear and tear. H. Any other cause which does not relate

to a product defect.

3. Cosmetic damage by purchaser, such as markings, discoloration, scratches, dents, anti-theft devices markings, gouges or any

Page 22

How to get service:

For information on obtaining warranty service, contact SWEDX dealer (the place where you bought your product) in first choice. If for any reason you can not contact your dealer, please contact SWEDX Customer Service by visiting http://www.swedx.com.

SWEDX technical support services:

During the period of product warranty, we support your basic configuration, setup and troubleshooting questions, and when required, we provide you with all instructions on how to return your product for repair. For support inquiries, please visit http://www.swedx.com.

SWEDX reserves the right to make final decisions regarding problem determination and the appropriate service option. Exchange units assume the remaining warranty of the original product. Please refer to your SWEDX Limited Warranty Statement for complete terms and conditions, as some models have other terms and conditions. Some limitations and restrictions apply and these programs are subject to change without prior notice.

Limitation of liability

If your SWEDX product fails to work as warranted above, your sole and exclusive remedy shall be repaired or replaced. SWEDX's maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repairing or replacement of any hardware components that malfunction in conditions of normal use. SWEDX is not liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental, or consequential damages. SWEDX is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or a claim made, under this limited warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised SWEDX.

Page 23

Page 24

Your Digital Signage Partner

www.swedx.com
