Cordless Vacuum
POWER PLUSH
TURBO
Model: SC15822N
POWER
TURBO
Model: SC15824N
Help line: 0333 220 6050
SC15822N_24N_IM.indd 1 29/04/2019 16:24
v1.1
IMPORTANT SAFEGUARDS
!
Follow caution information wherever you see this symbol.
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING
• Prevent unintentional starting. Ensure the switch is in the offposition before connecting to battery pack, picking up or carrying
the appliance. Carrying the appliance with your finger on the switch
or energizing appliance that has the switch on invites accidents.
• Do not touch nozzle when the vacuum cleaner is on. Danger.
• Do not put any object into openings. Do not use with any openings
blocked; keep free of dust, lint, hair and anything that may reduce
air flow.
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger if it has been
damaged in any way. If vacuum cleaner is not working as it should,
has been dropped, damaged, left outdoors, or dropped into water,
call the Eureka | Swan Customer Service HELP LINE at 0333 220
6050
• To avoid excessive heat and damage to the unit or battery, the
vacuum cleaner will not operate while charging.
• Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
• Use only as described in this manual. Use only manufacturer’s
recommended attachments.
• Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a
risk of fire when used with another battery pack.
• Do not pull or carry the charger by cord, use cord as a handle, close
a door on cord, or pull cord around sharp edges or corners. Do not
run appliance over cord. Keep cord away from heated surfaces.
2
SC15822N_24N_IM.indd 2 29/04/2019 16:24
IMPORTANT SAFEGUARDS
• This charger is not intended for use by travellers.
• Do not use extension cords or outlets with inadequate current-
carrying capacity for the charger.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the
cord.
• Do not handle charger or vacuum cleaner with wet hands.
• Use appliances only with specifically designated battery packs. Use
of any other battery packs may create a risk of injury and fire.
• DO NOT MUTILATE OR INCINERATE BATTERIES. THEY BECOME
DANGEROUS AT HIGH TEMPERATURES.
• Liquid ejected from the battery may cause irritation or burns. If the
liquid gets on the skin, (1) seek medical attention, (2) wash quickly
with soap and water, and (3) neutralize with a mild acid such as
lemon juice or vinegar. If the liquid gets into the eyes, flush them
immediately with clean water for a minimum of 10 minutes.
• When battery pack is not in use, keep it away from other metal
objects, like paper clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns
or a fire.
• This product has a functioning temperature range within 5°C -
40°C.
• Do not use a battery pack or appliance that is damaged or modified.
Damaged or modified batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive
temperature. Exposure to fire or temperature above 130°C may
cause explosion.
• Follow all charging instructions and do not charge the battery pack
or appliance outside of the temperature range specified in the
instructions. Charging improperly or at temperatures outside of
the specified range may damage the battery and increase the risk
of fire.
3
SC15822N_24N_IM.indd 3 29/04/2019 16:24
IMPORTANT SAFEGUARDS
• Have servicing performed by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the
product is maintained.
• Do not modify or attempt to repair the appliance or the battery
pack except as indicated in the instructions for use and care.
• The terminals on both the vacuum cleaner and battery should be
kept free and clean of objects. Do not insert metal objects inside
the terminals.
• This vacuum cleaner creates suction. Keep hair, loose clothing,
fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids, such as
gasoline/petrol, or use in areas where they may be present.
• Store vacuum cleaner and charger indoors in a cool, dry area. To
avoid electric shock and/or cleaner damage, do not expose to
weather elements.
• Keep your work area well lit. Unplug electrical appliances before
vacuuming them.
• Overcharging, short circuiting, reverse charging, mutilating or
incinerating the cells and the batteries must be avoided.
• If a cell or a battery has leaked or vented, it should be replaced
immediately using protective gloves.
• If and when necessary, these cells or batteries must be replaced
with identical new ones from the same manufacturer. If a cell or a
battery to be replaced is connected with other cells or batteries
in series, it is recommended that the other cells or batteries be
replaced with new ones at the same time.
• Reverse polarity installation of the cell or the battery in the end
product must be avoided.
4
SC15822N_24N_IM.indd 4 29/04/2019 16:24
IMPORTANT SAFEGUARDS
• Do not incinerate this appliance even if it is severely damaged.
Contact local waste facility before discarding in trash.
• This appliance can be used by children aged from 8
years and above if they have been given supervision or
instruction concerning use of the appliance in a safe way
and if they understand the hazards involved. Cleaning and
user maintenance shall not be made by children unless
they are older than 8 and supervised. Keep the appliance
and its cord out of reach of children aged less than 8
years.
SAVE THESE INSTRUCTIONS
UNPACKING
Carefully unpack and inspect your new Eureka | Swan vacuum cleaner for shipping
damage.
Each unit is tested and thoroughly inspected before shipping. For instructions
regarding any shipping damage, call the Eureka | Swan Customer Service HELPLINE
at 0333 220 6050 immediately.
5
SC15822N_24N_IM.indd 5 29/04/2019 16:24
WHAT’S IN THE BOX
Battery Hand vacuum
Charger
Power turbo head
2-in-1
upholstery
tool
Wall mount charging base
3 screws &
wall plugs
SC15822N Power Plush
model only
Power plush oor
head
Crevice tool Wand
6
SC15822N_24N_IM.indd 6 29/04/2019 16:24
Detachable
hand vacuum
Release button
for hand vacuum
Wand
GET TO KNOW YOUR VACUUM
Charging port
Battery indicator lights
Release button for
Nozzle
Filter assembly
(inside dust cup)
For filter maintenance instructions, see below
wand
Dust cup lever
Hand vacuum
Filter cover
Bottom lid
Power
button
Handle
Battery
Post-motor filter
Fiber
filter
Foam
filter
Release button
for floor nozzle
Filter screen
Power turbo
head
Plush Brush roll
SC15822N
only
7
SC15822N_24N_IM.indd 7 29/04/2019 16:24
1. Slide battery onto hand vacuum until
firmly attached (Fig. 1).
2. Slide wand onto hand vacuum until it
clicks (Fig. 2).
3. Push wand into motorized floor nozzle
until it clicks (Fig. 3).
EASY ASSEMBLY
1
How to install wall mount
• Choose location near power outlet.
Locate point high enough on wall to
allow wand and motorized floor nozzle
to hang freely.
• Place mount against wall and use pen-
cil to mark drill holes.
• Drill holes (with 6mm bit) and insert all
plugs. Insert screws through holes on
mount and tighten until firmly attached
(Fig. 4).
How to charge battery and store accessories
• Place assembled vacuum cleaner on
wall mount.
• Plug charger into power outlet and
then into charger port on handle (Fig.
5).
• Loop charger cord into clips on sides of
wall mount.
• Snap tool(s) into tool storage areas
(Fig. 5).
Battery indicator lights show level of
charge (Fig. 5):
A. Fully charged
B. Half charged
C. Low power
2
Click!
3
4
Cord
clip
Tool storage
5
Wall plugs
Tool storage
Cord
clip
C
B
A
• Indicator lights stop blinking when fully
Click!
charged.
• Charge battery fully before using for
the first time. This may take up to four
hours.
8
SC15822N_24N_IM.indd 8 29/04/2019 16:24

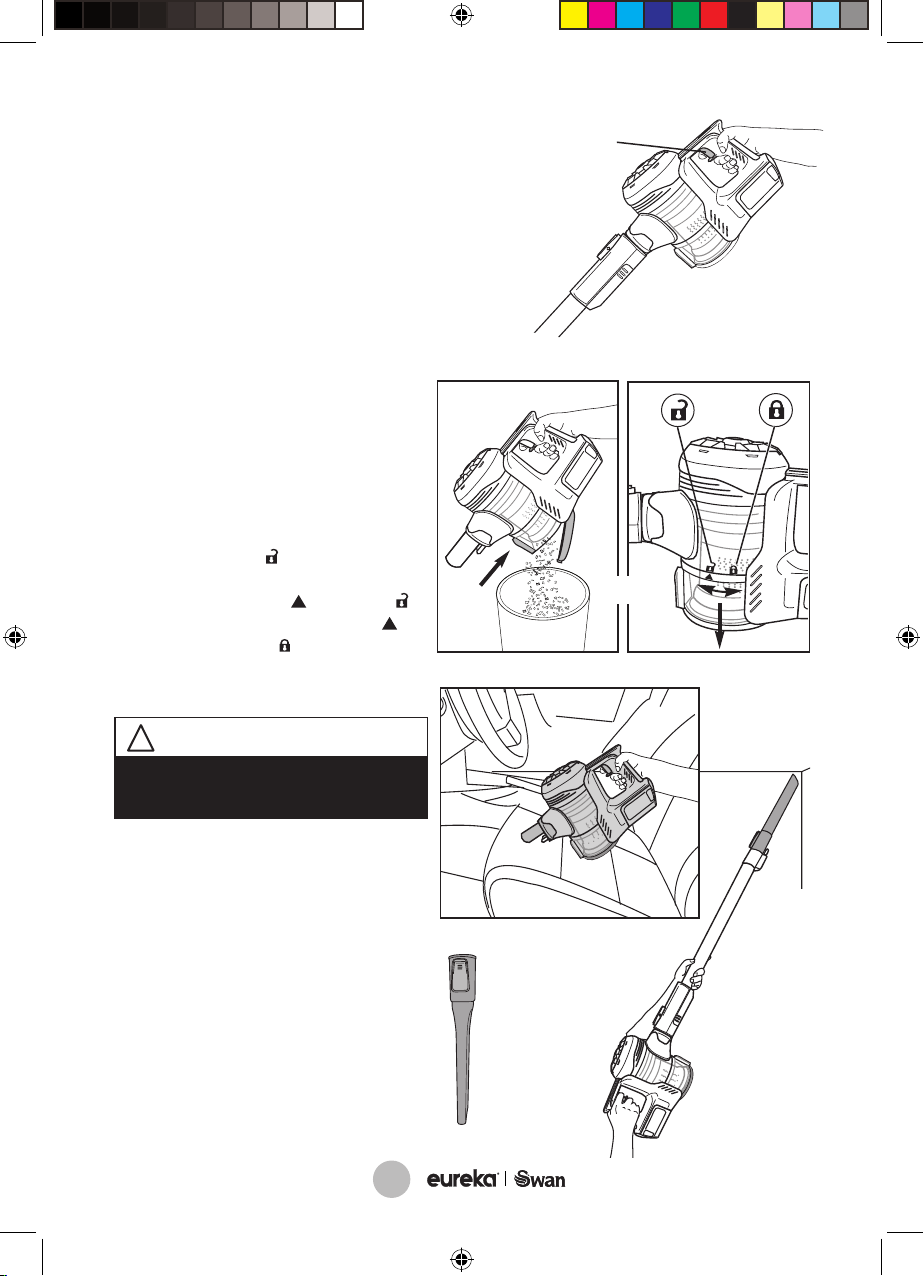

How to use cleaner for cleaning
floors
1. Click power button once to start (Fig 1).
2. Using Power turbo head or plush brush
roll (SC15822N only), glide back and
forth on area to be cleaned. Avoid
oversized or sharp items (such as
screws) with cleaner.
3. Twist wrist to engage swivel function.
4. When done, click power button once to
stop motor.
1 Power button
Empty dust cup after every use
There are two ways to empty the dust
cup:
1. Hold cleaner over waste basket. Press
lever to release bottom lid of dust cup
to empty debris (Fig. 2).
2. Or, remove dust cup from hand vacuum by
twisting to ‘unlock’ position
(Fig. 3). Once emptied, reattach dust
cup by lining up arrow and ‘unlock’
position. Twist dust cup until arrow
lines up with ‘locked’ position.
How to use hand vacuum and
accessories
CAUTION
!
Moving parts! Aways turn off hand vacuum before attaching accessories
The hand vacuum can be used with or
without tools.
• To use without tools, press release
button and remove wand. Collect debris
directly with hand vacuum nozzle (Fig. 4).
• To use tools with wand, press release
button to remove motorized floor nozzle.
Slide tool onto end of wand until it clicks
(Fig. 5).
• To use tools with hand vacuum only,
press release button to remove wand.
Slide tool onto hand vacuum until it
clicks.
2
4
Crevice tool:
Cleans hardto-reach areas
such as corners,
baseboard edges,
dryer vents,
chairs
and sofas.
3
OR
5
9
SC15822N_24N_IM.indd 9 29/04/2019 16:24
How to use hand vacuum and
power turbo head/plush brush roll
Ideal for cleaning stairs.
• Press release button to remove wand
from hand vacuum. Attach power turbo
head/plush brush directly to hand
vacuum until it clicks.
• Click power button once to start.
Additional accessory tools on
selected models
Use with or without wand.
• 2-in-1 upholstery tool: Use brush to
vacuum blinds, vents or upholstered
surfaces. Use felt portion to clean
delicate surfaces. To switch between
felt and brush portions, press thumb
release and slide brush up or down.
• Plush brush roll (SC15822N only):
Use to easily remove pet hair from
stairs, carpet or upholstery. Adjust
angle of motorized pet tool to suit
different surfaces.
HOW TO USE
10
SC15822N_24N_IM.indd 10 29/04/2019 16:24
MAINTENANCE
CAUTION
!
Never operate vacuum
cleaner without all filters,
filter screen and dust cup in
proper position.
WARNING: Moving parts!
Recharge cleaner after
each use.
Hold over wastebasket and
push lever to release bottom lid.
Debris will empty.
Washable dust cup filter – clean monthly
1. Twist dust cup and remove.
2. Twist filter screen and remove.
3. Lift out foam filter and holder.
4. Separate foam filter from fiber
filter by pulling them apart.
5. Rinse and dry THOROUGHLY.
6. Reassemble once completely
dry.
Washable plush brush roll (SC15822N only) – clean frequently
Dust cup – Empty after each use
OR
Or, remove dust cup by twisting to ‘unlock’
position. Empty debris. Reattach dust cup
and twist to ‘lock’ position.
Washable post-motor filter – clean every 6 months
24h
1. Twist filter cover and remove.
2. Lift out post-motor filter.
3. Shake to remove dust.
4. Every 6 months, replace filter or rinse and dry THOROUGHLY.
5. Reposition filter and cover and twist to ‘lock.’
24h
Place motorized floor nozzle upside down. Use fingers
to remove clog or debris. Do not use scissors or knife to
cut strings and threads.
Remove retainer clip and lift out brush roll to clean
and remove debris. Brush roll is washable. Roll in
a towel to absorb water; dry THOROUGHLY before
reassembling.
If debris cannot be removed easily, remove retainer clip
to access brush roll. Using flathead screwdriver or coin,
turn screw to the ‘unlock’ position.
24h
To reassemble:
1. Align one end of brush roll with floor nozzle gear.
2. Press other end into slot.
3. Hook retainer clip under tab and press down.
4. Insert screw and turn to ‘lock’ position.
11
SC15822N_24N_IM.indd 11 29/04/2019 16:24
TROUBLE-SHOOTING
Make sure vacuum cleaner is off, and charging plug is unplugged.
!
N O T I C E : Thermal cut-off
This vacuum cleaner has a special thermostat that protects it in case of motor overheating. If
the vacuum suddenly shuts off, proceed as follows: 1) Check the vacuum for a possible source of
overheating such as a full dust cup, blocked wand or clogged filters. If these conditions are found, fix
them and wait at least 30 minutes before attempting to use the vacuum.
2) After the 30 minute period, press the power button. If the vacuum still does not work, call the Eureka
| Swan Customer Service HELPLINE at 0333 220 6050.
Problem Solution
Motor will not start
Charging indicator lights are
not lit while charging
Not enough
suction power
Not enough running
time
Plush brush roll will not turn
Discarding the vacuum and battery pack
• Make sure cleaner is fully powered.
• Push charger securely into electrical outlet, try another outlet
or check circuit breaker.
• See detailed “thermal cut-off” instructions above.
• Make sure charger is securely inserted into electrical outlet.
• Make sure charging plug is securely inserted into handle.
• Indicator lights stop blinking when fully charged.
• Empty dust cup and clean or change filters. See page 11 for
maintenance instructions.
• Make sure cleaner is fully powered. Charge battery.
• Remove clogs that restrict the airflow.
• Make sure cleaner is fully powered.
• Charge battery for 4 hours before using.
• Check brush roll for debris. See page 11 for maintenance instructions.
!
Before you discard this vacuum, dispose of battery in an environmentally safe manner.
Do not discard battery with your regular household trash.
12
SC15822N_24N_IM.indd 12 29/04/2019 16:24
DISPOSAL
Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You
are required to dispose of old electrical and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information
about the recycling of electrical items. Please visit www.weeeireland.ie for access to information
August 2006, states that all electrical items must be recycled, rather than taken to landfill. Please arrange
to take this appliance to your local Civic Amenity site for recycling, once it has reached the end of its life.
about the recycling of electrical items purchased in Ireland. The WEEE directive, introduced in
TECHNICAL DATA
SC15822N
Performance
• Dust bin capacity: 0.5L
• Battery voltage: 21.6V
• Motor power: 120 Watts
• Sound level: 80dBA
• Charging time: 3.5 Hours
• Running time: up to 20 mins (see note below)
Accessories
• 1 x 2-in-1 upholstery tool
• 1 x Crevice tool
• 1 x Wall mount charging base
• 1 x Power Plush Brush roll head
• 1 x Power turbo head
Weight & Dimensions
• Net weight: 2.4kg
• Product size (LxWxH): 25 x 17 x 110cm
NOTE: Battery usage times can be affected/reduced by the following factors:
• The type of attachment being used. Eg the crevice tool will drain the power much more slowly than
the powered heads, which have their own, additional motor.
• Carpeted floors offer more resistance than hard floors, so require more power from the battery.
• Clogged filters mean the motor has to work harder and reduces usage time.
SC15824N
Performance
• Dust bin capacity: 0.5L
• Battery voltage: 21.6V
• Motor power: 120 Watts
• Sound level: 80dBA
• Charging time: 3.5 Hours
• Running time: up to 20 mins (see note below)
Accessories
• 1 x 2-in-1 upholstery tool
• 1 x Crevice tool
• 1 x Wall mount charging base
• 1 x Power turbo head
Weight & Dimensions
• Net weight: 2.4kg
• Product size (LxWxH): 25 x 17 x 110cm
13
SC15822N_24N_IM.indd 13 29/04/2019 16:24
SPARES
www.swan-brand.co.uk
Battery
Charger
Crevice tool
Foam and fiber filters
Post-motor filter
Wall mount
Power plush floor head
Wand
SC15824N-01
SC15824N-02
SC15824N-03
SC15824N-04
SC15824N-05
SC15824N-06
SC15824N-07
SC15824N-08
Brush roll
SC15822N only
Filter screen
2-in-1 upholstery tool
Power turbo head
14
SC15822N_24N_IM.indd 14 29/04/2019 16:24
SC15824N-09
SC15824N-10
SC15824N-12
SC15824N-13
WARRANTY
This product is guaranteed for 2 years from the date of original purchase. If any defect arises due to faulty
materials of workmanship the faulty products must be returned to the place of purchase. Refunds or
replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• Swan Products Ltd has limited liability for incidental or consequential loss or damage.
• This guarantee is valid in the UK and Eire Only.
15
SC15822N_24N_IM.indd 15 29/04/2019 16:24
www.swan-brand.co.uk
Copyright © Swan Products Ltd.
PO Box 3117, Stoke-on-Trent ST4 9GD
Est.1931
We love
what we do
s
2 year
GUARANTEE
we’re proud
of o ur quality
Scan this QR code
to hear about
our story
Find us on Facebook
*
* on selected products
SC15822N_24N_IM.indd 16 29/04/2019 16:24
Loading...
