Swann DVR8-4200, PRO-642, Pro SWDVK-842004 Specifications
Advanced Security Made Easy
960H
PROSERIES
For more information on this product visit www.swann.com
WEATHERPROOF IP67 CAMERA WITH CABLE
THREADED THROUGH STAND
EASILY BACKUP INCIDENT VIDEO TO
USB OR NETWORK
30 DAYS+ CONTINUOUS RECORDING
TO 1TB HDD
EASY DO-IT-YOURSELF INSTALLATION WITH
CABLES & CONNECTORS INCLUDED
POWERFUL DAY & NIGHT VISION
UP TO 82FT/25M
CONNECT TO HDTV, LCD & PLASMA TVs
INCLUDES 4 X CLEAR RESOLUTION
700TVL CAMERA S
REAL TIME, WIDE SCREEN
HIGH RES RECORDING
WEATHER PROOF
DAY/NIGHT VISION
CRYSTAL CLEAR
700TVL
DVDQUALITYDVDQUALIT
Y
960H
HDTV VIEWING
HDMI
30 DAYS RECORDING+
1TB
EASY INSTALLATION
EASY BACKUP
Cutting-edge protection for your
home or business 24/7
• Swann’s TruBlue™ blue-lit 960H DVR with real time, widescreen high resolution live
video viewing & playback, perfect for 16:9 monitors
• Includes 4 x clear resolution 700TVL cameras with powerful night vision to 82ft/25m
& IP67 weatherproof rating for indoor/outdoor use. Expand with 4 cameras of your
choice for full 8 channel monitoring
• Set & forget by recording continuously from 8 channels for 30 days+ onto a 1TB hard
drive, even longer with motion detection for extra capacity connect external hard drive
to eSATA port
• Save time & have peace of mind by easily locating incident video, then transfer to
external storage via USB or network
• View live or playback in high resolution on your HDTV, LCD or plasma TV using HDMI
connection or on LCD screen via VGA port
• Setting up remote viewing has never been easier with Swann’s ‘My DVR’ customizable
network configuration & DDNS service
• Surveillance in the palm of your hand with live viewing on 3G/4G-enabled Smartphone
& tablets including, iPhone, iPad, Android devices, BlackBerry devices and more* using
the free SwannView app
• A cutting-edge solution for any home or business wanting high resolution
video monitoring

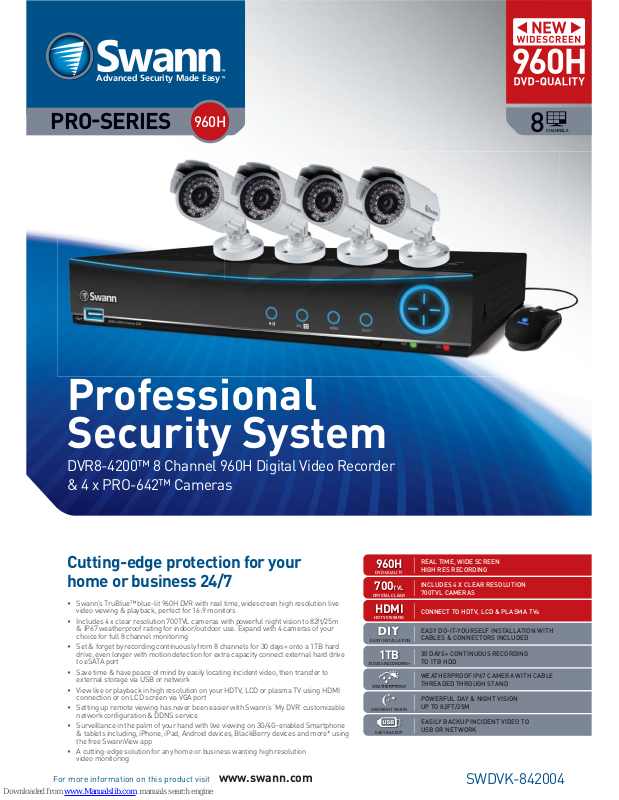

Professional
Security System
DVR8-4200™ 8 Channel 960H Digital Video Recorder
& 4 x PRO-642™ Cameras
SWDVK-842004
8CHANNELS
Swann stands by its promise of
Lifetime Support to make advanced
security easy to use, install and maintain. Everything is in
the pack but if you need it Swann’s help desk is available
24 hours a day, 7 days a week for the life of the product.
d
T
H
E
S
W
A
N
N
P
R
O
M
I
S
E
F
R
E
E
2
4
/
7
Installation is easy
Do-it-Yourself
Installing this Swann product is simple. For instructions, tips and videos
see the operating instructions in this pack or visit
www.swann.com
Professional Installation
Need extra help?
We have an installer in your region!
For more visit
www.swann.com
SwannView App
Free Download
* Monitor and mobile phones not included
* Requires bro adband internet & 3 G/4G Smartphone
COMPATIBLE WITH
Android
®
Devices
EMAIL
ALERTS
Stream Live Video
Footage From
Anywhere In The World
One of the great features of this product is its remote
viewing capabilities. You can view your home or
business from anywhere in the world via broadband
Internet connection on computer (PC or Mac) or on
your Smartphone* via the SwannView app.
Be notified on the move
EMAIL
ALERTS
Be notified on the move
EMAIL
ALERTS
A
For more information on this product visit
www.swann.com
What’s in the box
All installation accessories included
• DVR8-4200™
• 1TB HDD (installed)
• PRO-642™ Cameras x 4
• BNC Cables 60ft/18m x 4
• HDMI Cable
• Ethernet Cable
• Mouse
• Remote Control
• Software CD
• Power Adapter & Splitter
• Mounting Screws & Plugs
• Operating Instructions
• Theft Deterrent Stickers x 4
Specifications
DVR8-4200™ Digital Video Recorder
Video
Video Signal Type NTSC or PAL
Video Inputs 960H 8 Channels BNC
Video Outputs VGA and HDMI Output
Display Resolution Up to 1080p
Display Frame Rate NTSC: 30fps per channel / PAL: 25fps per channel
Audio
Audio Input 4 RCA Inputs
Audio Output 1 RCA Output
Recording
Compression Format H.264
Recording Resolution NTSC: 960H (960 x 480)
PAL: 960H (960 x 576)
Recording Frame Rate Real Time: NTSC: Global 240fps / 30fps per Channel /
PAL: Global 200fps / 25fps per Channel
Recording Modes Manual / Motion / Schedule
HDD Interface / Type 1TB SATA2 HDD (installed)
Hard Drive Support Up to 2TB SATA2 HDD
Network
LAN Connection One RJ45 Port
Network Protocol TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP
Dynamic DNS Yes (swanndvr.net, DYNDNS)
Remote Operation IE, MyDVR, CMS, SwannView
General
Operating Power DC 12V
Dimensions 10.23” x 8.46” x 1.97” / 260mm x 215mm x 50mm
Weight 3.1lbs / 1.4kg
Backup Method External storage via USB or network
Mouse Support Yes
Remote Control Yes (uses 2 x AAA batteries, included)
PRO-642™ Camera
Video
Image Sensor CCD
Video Quality 700 TV Lines
Resolution NTSC: 976 x 494, PAL: 976 x 582
Minimum Illumination 0.1 Lux (IR off), 0 Lux (IR on)
Day/Night Mode Color during day / switches to B&W at night
White Balance Automatic
Signal/Noise Ratio 50dB
Gain Control Automatic
Backlight Compensation Yes
Lens 4.8mm
Viewing Angle 57 degrees
Night Vision
Night Vision Distance 82ft/25m
IR cut Filter No
Number of Infra-Red LEDs 36
Infra-Red Wavelength 850nm
Infra-Red LED Life (average) 10,000 hours
General
Indoor / Outdoor Indoor or outdoor, IP67 rated
Operating Power DC 12V
Operating Temperature -4° F ~ 140° F / -20° C ~ 60° C
Body Construction Aluminum
Dimensions – Camera 3.7”x 2.0” x 3.4” / 96mm x 53mm x 85mm
Weight – Camera 0.67lbs / 305g
Code
Swann Code SWDVK-842004
Professional Security System
DVR8-4200™ 8 Channel 960H Digital Video Recorder
& 4 x PRO-642™ Cameras
Please note that the information contained within this document is subject to change without notification.
All trademarks remain properties of their respective owners.
+ 30 days recording achieved using lower settings, default settings give 6 days recording * Mobile phones not included, check the website for the latest models Not all handset models supported
**Applies to modems that have UPnP function
