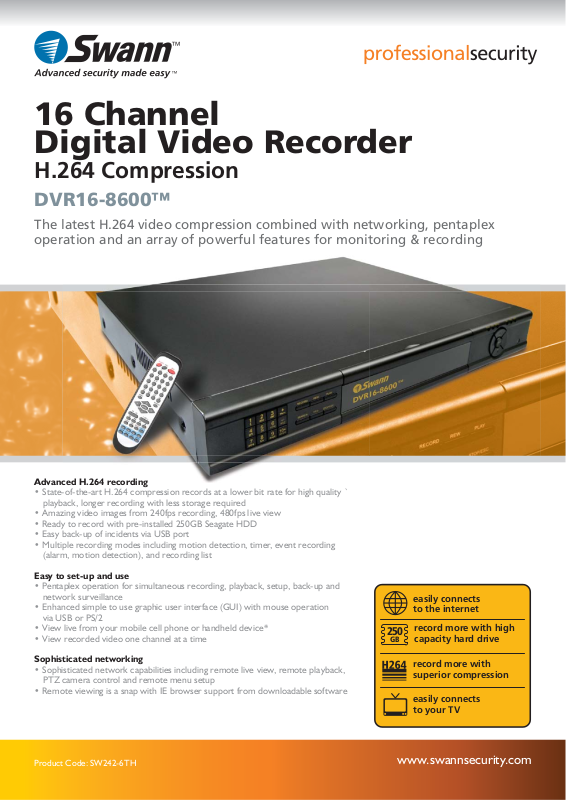

Swann DVR16-8600, SW242-6TH Specification
16 Channel
Digital Video Recorder
H.264 Compression
DVR16-8600™
The latest H.264 video compression combined with networking, pentaplex
operation and an array of powerful features for monitoring & recording
Advanced H.264 recording
• State-of-the-art H.264 compression records at a lower bit rate for high quality `
playback, longer recording with less storage required
• Amazing video images from 240fps recording, 480fps live view
• Ready to record with pre-installed 250GB Seagate HDD
• Easy back-up of incidents via USB port
• Multiple recording modes including motion detection, timer, event recording
(alarm, motion detection), and recording list
Easy to set-up and use
• Pentaplex operation for simultaneous recording, playback, setup, back-up and
network surveillance
• Enhanced simple to use graphic user interface (GUI) with mouse operation
via USB or PS/2
• View live from your mobile cell phone or handheld device*
• View recorded video one channel at a time
Sophisticated networking
• Sophisticated network capabilities including remote live view, remote playback,
PTZ camera control and remote menu setup
• Remote viewing is a snap with IE browser support from downloadable software
easily connects
to the internet
record more with high
250
capacity hard drive
GB
record more with
superior compression
easily connects
to your TV
Product Code: SW242-6TH
www.swannsecurity.com
16 Channel
Digital Video Recorder
H.264 Compression
DVR16-8600™
The latest H.264 video compression combined with networking, pentaplex
operation and an array of powerful features for monitoring & recording
DVR16-8600
Video
Output
™
1-16 Channel
Camera / Video Input
Audio
Output
S Video
PS/2
Input
Audio
Input
USB
Mouse
Network
Input
VGA
Output
Alarm
Input
Alarm
Output
System Specifications
Digital Video Recorder
Compression Format Standard H.264 Baseline
Video Output Composite 1.0V p-p/75 Ohms,
BNC x 2 S-Video x 1, VGA x 1
Video Input Composite 1.0V p-p/75 Ohms, BNC x 16
Display Resolution 720 x 480 (NTSC)
Record Resolution 352 x 240, 704 x 480 (NTSC)
Display Frame rate 480fps (NTSC)
Global Record Frame rate 240fps, 60fps (NTSC)
Audio Input -8dB~22k, RCA x 4
Audio Output -8dB~92dB, RCA x 1
Record Mode Manual / Sensor / Timer /
Motion detection
Operation Pentaplex
Network Interface RJ45 (LAN, Internet)
PTZ Control Yes
Communication Interface RS485, USB2.0 x 2
(front USB for back-up, back
USB for mouse), PS/2 x 1
Hard Disk Pre-installed Seagate 250GB
Remote Control Yes
Power Supply 12 Volts
Cooling Fan
Power Supply
Input
Package Contents
all installation hardware included
• DVR16-8600™ 16 Channel Digital Video Recorder
• 250GB Seagate Hard Drive (5 Year Warranty)
• BNC to RCA Adapters x17
• BNC to RCA Video Cable 3ft (1m)
• Power Adapter
• Remote Control
• Mouse
• User Manual
*Must use Windows Mobile 5, 6, Symbian OS.
MONTHS
12
warranty
Does not support i-Phone & Blackberry.
x4
SECURITY
U
N
O
B
S
STICKERS
www.swannsecurity.com
Please note that the information contained within this document is subject to change without notification.
All trademarks remain properties of their respective owners.
