Page 1
AMI Codes-II CC
Version 6.00 and higher
s Manual
Operator’
A-96.250.581 / 220616
Page 2
Customer Support
SWAN and its representatives maintain a fully trained staff of technical specialists
around the world. For any technical question, contact your nearest
SWAN representative, or the manufacturer:
SWAN ANALYTISCHE INSTRUMENTE AG
Studbachstrasse 13
8340 Hinwil
Switzerland
Internet: www.swan.ch
E-mail: [email protected]
Document Status
Title:
ID:
Monitor AMI Codes-II CC Operator’s Manual
A-96.250.581
Revision Issue
00 April 2010
01 June 2010
02 Aug. 2013 Update to Rev. 5.40, main board V2.4
03 June 2016 Update to Rev. 6.00, main board V2.5
© 2016, SWAN ANALYTISCHE INSTRUMENTE AG, Switzerland, all rights reserved
subject to change without notice
Page 3
AMI Codes-II CC
Table of Contents
1. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1. Warning Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2. General Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.3. Restrictions for use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1. Instrument Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.2. Instrument Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.1. Installation Check List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2. Mounting of Instrument Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.3. Connecting Sample and Waste . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.3.1 FEP Tube at Sample Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.3.2 FEP Tube at Sample Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.4. Installation of Flow Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.5. Install the Option pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.5.1 pH as Option ex works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.5.2 pH Option as Retrofit Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.6. Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.6.1 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.6.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.7. Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.8. Relay Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.8.1 Alarm Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.8.2 Relay 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.9. Signal Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.9.1 Signal Output 1 and 2 (current outputs) . . . . . . . . . . . . . . . . . . 34
3.9.2 Signal Output 3 (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.10. Interface Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.10.1 Profibus/Modbus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.10.2 USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4. Instrument Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.1. Prepare Reagents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.2. Peristaltic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.3. Establish Sample Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
4.4. Fill or Flush Reagent System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.5. Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
4.6. Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
A-96.250.581 / 220616 1
Page 4
AMI Codes-II CC
5. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.1. Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.2. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.3. Software Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.4. Changing Parameters and values. . . . . . . . . . . . . . . . . . . . . . . . . 43
6. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.2. Stop of Operation for Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 45
6.3. Refill or replace Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.3.1 Reagents for measuring Free Chlorine and Total Chlorine . . . . 48
6.4. Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.5. Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.6. Cleaning the protective Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.7. Cleaning the Photometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.8. Cleaning the Flow Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6.8.1 Disassemble the Flow Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.8.2 Assemble the Flow Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.9. Maintenance of pH sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.10. Tube Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6.10.1 Replace the Pump Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6.10.2 Replace the Reagent Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.11. Cleaning the solenoid valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
6.12. Replacing Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
6.13. Longer Stop of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.1. General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.2. Calibration Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.2.1 Process calibration tc or fc . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.2.2 Process pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.2.3 Standard pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
7.3. Error List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8. Program Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8.1. Messages (Main Menu 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
8.2. Diagnostics (Main Menu 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
8.3. Maintenance (Main Menu 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
8.4. Operation (Main Menu 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
8.5. Installation (Main Menu 5). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
9. Program List and Explanations. . . . . . . . . . . . . . . . . . . . . . . . . 80
1 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
2 A-96.250.581 / 220616
Page 5
AMI Codes-II CC
2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
10. Material Safety Data sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
10.1. Reagents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
11. Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
12. Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
13. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
A-96.250.581 / 220616 3
Page 6
AMI Codes-II CC
Safety Instructions
AMI Codes-II CC - Operator’s Manual
This document describes the main steps for instrument setup, operation and maintenance.
1. Safety Instructions
General The instructions included in this section explain the potential risks
Targ et
audience
OM Location The AMI Operator’s Manual shall be kept in proximity of the instru-
Qualification,
Training
associated with instrument operation and provide important safety
practices designed to minimize these risks.
If you carefully follow the information contained in this section, you
can protect yourself from hazards and create a safer work environment.
More safety instructions are given throughout this manual, at the
respective locations where observation is most important.
Strictly follow all safety instructions in this publication.
Operator: Qualified person who uses the equipment
for its intended purpose.
Instrument operation requires thorough knowledge of applications,
instrument functions and software program as well as all applicable
safety rules and regulations.
ment.
To be qualified for instrument installation and operation, you must:
read and understand the instructions in this manual as well as
the Material Safety Data Sheets.
know the relevant safety rules and regulations.
4 A-96.250.581 / 220616
Page 7
AMI Codes-II CC
Safety Instructions
1.1. Warning Notices
The symbols used for safety-related notices have the following significance:
DANGER
Your life or physical wellbeing are in serious danger if such
warnings are ignored.
Follow the prevention instructions carefully.
WARNING
Severe injuries or damage to the equipment can occur if such
warnings are ignored.
Follow the prevention instructions carefully.
CAUTION
Damage to the equipment, minor injury, malfunctions or incorrect process can be the consequence if such warnings are ignored.
Follow the prevention instructions carefully.
Mandatory
Signs
A-96.250.581 / 220616 5
The importance of the mandatory signs in this manual.
Safety goggles
Safety gloves
Page 8
AMI Codes-II CC
Safety Instructions
Warning Signs The importance of the warning signs in this manual.
Electrical shock hazard
Corrosive
Harmful to health
Flammable
Warning general
Attention general
6 A-96.250.581 / 220616
Page 9
AMI Codes-II CC
Safety Instructions
1.2. General Safety Regulations
Legal
Requirements
Spare Parts
and
Disposables
Modifications Modifications and instrument upgrades shall only be carried out by
The user is responsible for proper system operation.
All precautions must be followed to ensure safe operation
of the instrument.
Use only official SWAN spare parts and disposables. If other parts
are used during the normal warranty period, the manufacturer’s
warranty is voided.
an authorized Service Technician. SWAN will not accept responsibility for any claim resulting from unauthorized modification or alteration.
WARNING
Risk of Electrical Shock
If proper operation is no longer possible, the instrument must be
disconnected from all power lines, and measures must be taken
to prevent inadvertent operation.
To prevent from electrical shock, always make sure that the
ground wire is connected.
Service shall be performed by authorized personnel only.
Whenever electronic service is required, disconnect instru-
ment power and power of devices connected to.
– relay 1,
– relay 2,
– alarm relay
WARNING
For safe instrument installation and operation you must read
and understand the instructions in this manual.
WARNING
Only SWAN trained and authorized personnel shall perform the
tasks described in this document.
A-96.250.581 / 220616 7
Page 10
AMI Codes-II CC
Safety Instructions
1.3. Restrictions for use
The sample must not contain any particles, which may block the
flow cell. Sufficient sample flow is coercive for the correct function
of the instrument.
If the sample contains only little disinfectant concentrations, or
there is the danger of biological growth, we recommend to use the
optional Cleaning module from Swan.
WARNING
Health hazard
Some reagents are etching and can cause severe burns or eye
damage.
For safe handling of the reagents you must read and under-
stand the instructions in this manual, as well as the Material
Safety Data Sheets (MSDS)
Download
MSDS
The current Material Safety Data Sheets (MSDS) for the below listed Reagents are available for downloading at www.swan.ch.
OXYCON ON-LINE DPD
OXYCON ON-LINE Buffer
OXYCON ON-LINE KI
Buffer solution pH 4
Buffer solution pH 7
Buffer solution pH 9
8 A-96.250.581 / 220616
Page 11
AMI Codes-II CC
Product Description
2. Product Description
Application
Range
Disinfectant
Measurement
Signal
Outputs
Relay Two potential-free contacts programmable as limit switches for
Alarm Relay One potential free contact.
The AMI Codes-II CC is a complete monitoring system for the automatic, continuous measurement and dosing control of chlorine
based on the DPD colorimetric method APHA 4500 Cl-G and on
EN ISO 7393-2.
It can be used for measuring disinfectants in:
Pools and sanitary water
Cooling water
Waste water effluent
It is also applicable for water containing additives like corrosion inhibitors, cyanuric acid and antiscaleants.
Determines free available chlorine, total chlorine and calculates
monochloramine, dichloramine and combined chlorine.
Necessary reagents:
Oxycon on-line DPD
Oxycon on-line Buffer
Oxycon on-line KI.
Disinfectant Measuring range Accuracy
Free available chlorine,
Total chlorine
Two signal outputs programmable for measured values (freely
scaleable, linear or bilinear) or as continuous control output (control
parameters programmable).
Current loop: 0/4–20 mA
Maximal burden: 510
Third signal output available as an option.
measuring values, controllers or timer for system cleaning with automatic hold function. Both contacts can be used as normally open
or normally closed.
Maximum load: 1 A/250 VAC
0.00– 1.00 ppm
1.00– 3.00 ppm
3.00– 5.00 ppm
± 0.01 ppm
± 0.06 ppm
± 0.20 ppm
A-96.250.581 / 220616 9
Page 12
AMI Codes-II CC
Product Description
Alternatively:
Open during normal operation, closed on error and loss of
power.
Closed during normal operation, open on error and loss of
power.
Summary alarm indication for programmable alarm values and instrument faults.
Input For potential-free contact to freeze the measuring value or to inter-
rupt control in automated installations (hold function or remote-off)
Special
Feature
Safety
Features
Communica-
tion Interface
(optional)
Relay Box The AMI Relay Box is designed for the direct power supply and ac-
Cleaning
Module
Possibility to interrupt the measurement by activating the input. See
Program List and Explanations, 5.3.4, p. 102.
No data loss after power failure. All data is saved in non-volatile
memory. Over voltage protection of in- and outputs.Galvanic separation of measuring inputs and signal outputs.The analyzer is factory tested and ready for installation and operation.
USB Interface for logger download
RS485 with Fieldbus protocol Modbus or Profibus DP
pH Optional pH measurement is possible (pH correction or calibration).
tivation of dosing devices which are controlled with an AMI transmitter, e. g. to connect two solenoid valves or one motor valve for
disinfectant additions.
An optional Cleaning module is available.
10 A-96.250.581 / 220616
Page 13
AMI Codes-II CC
cdc
cmc
ccc
3-5 sec
DPD+Buffer
+KI
@ 2 min
0 sec
tc2
tc1
fac
2 min
Time
[ppm]
Value
Product Description
Glossary Used abbreviations to the chlorine forms measured:
Abbr. Te rm Comment
fac Free available chlorine Immediate reaction with DPD
(includes cyanuric acid fractions)
tc1 T
tc2 T
cmc C
cdc C
ccc C
pH/T pH
B/s B
otal chlorine 1 Immediate reaction of DPD + KJ
(mainly monochloramine)
otal chlorine 2 Reaction with DPD + KJ after 2
min. reaction
alculated monochloramine cmc = tc1 - fac
alculated dichloramine cdc = tc2 - tc1
alculated combined chlorine ccc = tc2 - fac
and Temperature (Optional)
ubbles per second Sample flow
A-96.250.581 / 220616 11
Page 14
AMI Codes-II CC
Level
E
B
C
A
D
G
H
I
L
J
K
O
MN
PQ
R
F
Product Description
Fluidics The sample flows through the sample inlet [R] and the inlet filter [H]
into the constant head [A]. Adjust the flow regulating valve [F] so
that always a small part of the sample flows through the overflow
tube [B] into the constant head drain [Q].
Free available
chlorine
A part of the sample flows through the photometer inlet [C] into the
mixing chamber [E], where the reagents [M] and [N] are added by
the peristaltic pump [D] and mixed with the sample. The mixed
sample flows through the photometer [K] where the free available
chlorine is measured.
A
Constant head
B
Overflow tube
C
Photometer inlet
D
Peristaltic pump
E
Mixing chamber
F
Flow regulating valve
G
Solenoid valve V2
H
Inlet Filter
I
Photometer air inlet
12 A-96.250.581 / 220616
J
Solenoid valve V 1
K
Photometer
L
Air bubble detector
M
Reagent Oxycon on-line DPD
N
Reagent Oxycon on-line Buffer
O
Reagent Oxycon on-line KI
P
Photometer drain
Q
Constant head drain
R
Sample inlet
Page 15
AMI Codes-II CC
Product Description
Total chlorine 1 After the measurement of free available chlorine is finished the so-
lenoid valve [G] is energized for a short time and reagent [O] is
added to determine total chlorine 1.
Total chlorine 2 To ensure the necessary reaction time of 2 min. for the determina-
tion of total chlorine 2, the sample flow is stopped by the solenoid
valve [J]. After the time has elapsed, total chlorine is measured and
solenoid valve [J] opens again.
A
Level
B
C
D
F
E
H
G
J
R
MN
I
K
O
L
PQ
After the measurement the sample flows through the outlet of the
photometer where it will be aerated through air inlet [I] to generate
bubbles. Then the sample flows through the bubble detector [L] into
the photometer drain [P].
A-96.250.581 / 220616 13
Page 16
AMI Codes-II CC
Product Description
General It is distinguished between two different kinds of measurement:
Free available chlorine (fac) measurement
Overall measurement including free available chlorine (fac),
total chlorine 1 (tc1) and total chlorine 2 (tc2).
The Interval fac and the Interval tc2 can be set individually:
Interval fac between 0 and 12 min.
Interval tc2 between 0 and 60 min (overall measurement).
NOTICE: If the fac interval is set to zero, it is nevertheless
measured in the overall measurement.
The default setting for fac measurement interval is 5 min and for
overall measurement interval 20 min.
Time
sequence of an
overall
measurement
The blue bar represents the sample flow through the photometer.
At the beginning the solenoid valve [J] is de-energized and the
sample flows through the photometer. A short time before the measurement starts, a zero point measurement is performed. Then the
peristaltic pump starts and a small portion of the reagents “Oxycon
on-line DPD” and “OXYCON ON-LINE Buffer” is pumped into the
mixing chamber. During this time, the solenoid valve [G] is de-energized and the “Oxycon On-line KI” circulates between the peristaltic
pump and the valve block.
A short time after, if the mixture is in the photometer, the free available chlorine (fac) of the sample is measured.
After about 25 sec the peristaltic pump starts again. Now the solenoid valve [G] is energized and a small portion of the reagents
“Oxycon on-line DPD”, “OXYCON ON-LINE Buffer” and “Oxycon
On-line KI” is pumped into the mixing chamber.
A short time after, the solenoid valve [J] is energized and the sample flow through the potometer is stopped. Immediately after that,
the tc 1 is measured.
The “calculated monochloramine” (cmc) is calculated and displayed.
After about 120 sec the tc 2 is measured and then the “calculated
dichloramine” (cdc) and the “calculated combined chlorine” (ccc)
are calculated and displayed.
After the measurement is finished, the solenoid valve [J] is de-energized and sample flows through the photometer and a flush time of
2 minutes follows.
14 A-96.250.581 / 220616
Page 17
AMI Codes-II CC
123 5678
min
4
tc 2
fac
ABDE
C
tc 1
GG
J
J
fac
F
G
H
fac fac fac
tc2
10020305060
min
40
Product Description
A
Reaction time for measuring tc 2
B
Flush time
C
Overall measurement time
D
Flush time end
E
fac measurement
G
Valve 1 for adding OXYCON ON-LINE KI
J
Valve 2 for closing photometer inlet
fac
Free available chlorine
tc1
Total chlorine 1
tc2
Total chlorine 2
OXYCON ON-LINE DPD
OXYCON ON-LINE Buffer
OXYCON ON-LINE KI
Zero point measurement
Sample measurement
Peristaltic pump active for a short
time
The programmed measuring intervals of tc2 [F] and fac [G] may
overlap each other.
The tc2 measurement has priority and therefore always takes place
in the programed measuring interval [F]. The fac measurement is
filled in the gaps [H] of the overall measurement and may be shifted
(orange arrow) in respect to programmed interval. If 2 fac measurements are programmed during a overall measurement one of them
is cancelled (red arrow).
A-96.250.581 / 220616 15
Page 18
AMI Codes-II CC
Product Description
2.1. Instrument Specification
Power Supply Voltage:
Power consumption:
Electronics Aluminium with a protection degree of IP 66/NEMA 4X
housing Ambient temperature:
Limit range of operation:
Storage and transport:
Humidity:
Display:
Sample
requirements
On-site The analyzer site must permit connections to:
requirements Sample inlet:
Measuring Free chlorine, monochloramine, total residual chlorine
Range 0.00– 1.00 ppm
Flow rate:
Temperature:
Inlet pressure:
Outlet pressure:
NOTICE: No oil, no grease, no sand.
Sample outlet:
Max. Altitude:
1.00–3.00 ppm
3.00–5.00 ppm
pH measurement (optional)
2–12 pH 0.01 pH
100–240 VAC (± 10%)
50/60 Hz (± 5%)
or 24 VDC (± 10%)
max. 30 VA
-10 to +50 °C
-25 to +65 °C
-30 to +85 °C
10–90% rel., non condensing
backlit LCD, 75 x 45 mm
min. 10 l/h
5–50 °C (41–122 °F)
0.15–2 bar (2 – 28 PSI)
pressure free
Tube 6 x 8 mm
1/2” hose nozzle for flexible tube
diam. 20x15 mm
2000 m above sea level
± 0.01 ppm
± 0.06 ppm
± 0.2 ppm
16 A-96.250.581 / 220616
Page 19
AMI Codes-II CC
Product Description
Dimensions Panel:
Mounting hole distance
Screws:
Weight:
400x850x 200 mm
374x824
5 mm or 6 mm diameter
12.0 kg / 26.5 lbs without reagents and
sample water
17.0 kg / 37.5 lbs with reagents and sample water
400 mm / 15¾”
13 mm / ½”
374 mm / 14¾”
AMI Codes II CC
6 x dia. 6.5 mm / ¼”
13 mm / ½”
”
16
/
7
3
412 mm / 16 ½ ”
30 mm / 1 ”
A-96.250.581 / 220616 17
/
16
850 mm / 33½”
824 mm / 32
Page 20
AMI Codes-II CC
A
B
C
D
E
F
G
H
I
J
K
L
O
N
M
P
Q
R
S
Product Description
2.2. Instrument Overview
A
Panel
B
Transmitter
C
Peristaltic pump
D
Reagent level detector
E
Reagent Oxycon on-line DPD
F
Reagent Oxycon on-line Buffer
G
Reagent Oxycon on-line KI
H
Temperature sensor
I
pH sensor
J
Constant head
K
Flow regulating valve
L
Sample inlet
M
Valve 1 (Photometer)
N
Valve 2 (KI dosing)
O
Inlet filter
P
Photometer
Q
Air bubble detector
R
Constant head drain
S
Photometer drain
18 A-96.250.581 / 220616
Page 21
AMI Codes-II CC
Installation
3. Installation
3.1. Installation Check List
Check Instrument’s specification must conform to the National Electrical
Code, all state and local codes, and all plant codes and standards
for electrical equipment.
On site requirements
Installation Mount the instrument in vertical position.
Electrical Wiring Do not switch on the Instrument until all electrical connections are
If ordered:
Option pH
Reagents Prepare reagents. See Refill or replace Reagents, p. 46.
Power-up Perform exactly in this order:
Instrument
Setup
Run-in period Let the instrument run continuously for 1 h.
pH sensor
calibration
100– 240 VAC ( 10%), 50/60 Hz ( 5%) or 24 VDC (±10%),
isolated power outlet with ground connection and 30 VA.
Sample line with min. 10 l / h and 0.15 – 2 bar.
Waste line with pressure free drain.
Display should be at eye-level.
Mount the filter, filter vessel, and constant head cover. Connect the
sample and waste line. See Connecting Sample and Waste, p. 21
made.
Connect all external devices like limit switches, current loops and
pumps.
Connect power cord.
See Electrical Connections, p. 27
See Install the Option pH, p. 23
Insert the suction lances combined with level detector.
Lock pump tubes.
Turn on the sample flow and wait until the flow cell is completely
filled.
Switch on power.
Start <Fill system>. See Fill or Flush Reagent System, p. 38
Program all parameters for external devices (interface, recorders,
etc.). Program all parameters for instrument operation (limits,
alarms, measuring interval).
If ordered: Calibrate pH sensor. See Calibration, p. 51
A-96.250.581 / 220616 19
Page 22
AMI Codes-II CC
Installation
Process
calibration
3.2. Mounting of Instrument Panel
Mounting re-
quirements
Make 3 manual measurements. Use a high quality photometer,
e.g. Chematest from Swan. Calculate average value and compare
this value to the value, indicated by the AMI. If necessary, correct
the value. The zero point is done automatically before each measurement.
The first part of this chapter describes the preparing and placing of
the system for use.
The instrument must only be installed by trained personnel.
Mount the instrument in vertical position.
For ease of operation mount it so that the display is at eye
level.
For the installation a kit containing the following installation
material is available:
– 6 Screws 6x60 mm
– 6 Dowels
– 6 Washers 6.4/12 mm
The instrument is only intended for indoor installation.
For dimensions see Dimensions, p. 17.
20 A-96.250.581 / 220616
Page 23
AMI Codes-II CC
B
C
D
A
A
Installation
3.3. Connecting Sample and Waste
3.3.1 FEP Tube at Sample Inlet
Use plastic tube (FEP, PA, or PE 6 x 8 mm) to connect the sample
line.
Mounting of
SERTO fitting
3.3.2 FEP Tube at Sample Outlet
A
Screw connection
B
Compression ferrule
C
Knurled nut
D
Flexible tube
WARNING
Risk of water pollution
The drain of the photometer outlet contains DPD.
At no means recirculate it into the water system.
A
Tube from photometer
B
C
B
E
F
D
Drain Photometer
C
Tube from constant head
D
Drain constant head
E
Hose nozzles
F
1/2” tubes
Connect the 1/2” tubes [F] to the hose nozzles [E] and place it into
a pressure free drain with sufficient capacity.
A-96.250.581 / 220616 21
Page 24
AMI Codes-II CC
Level
A
B
D
C
E
Installation

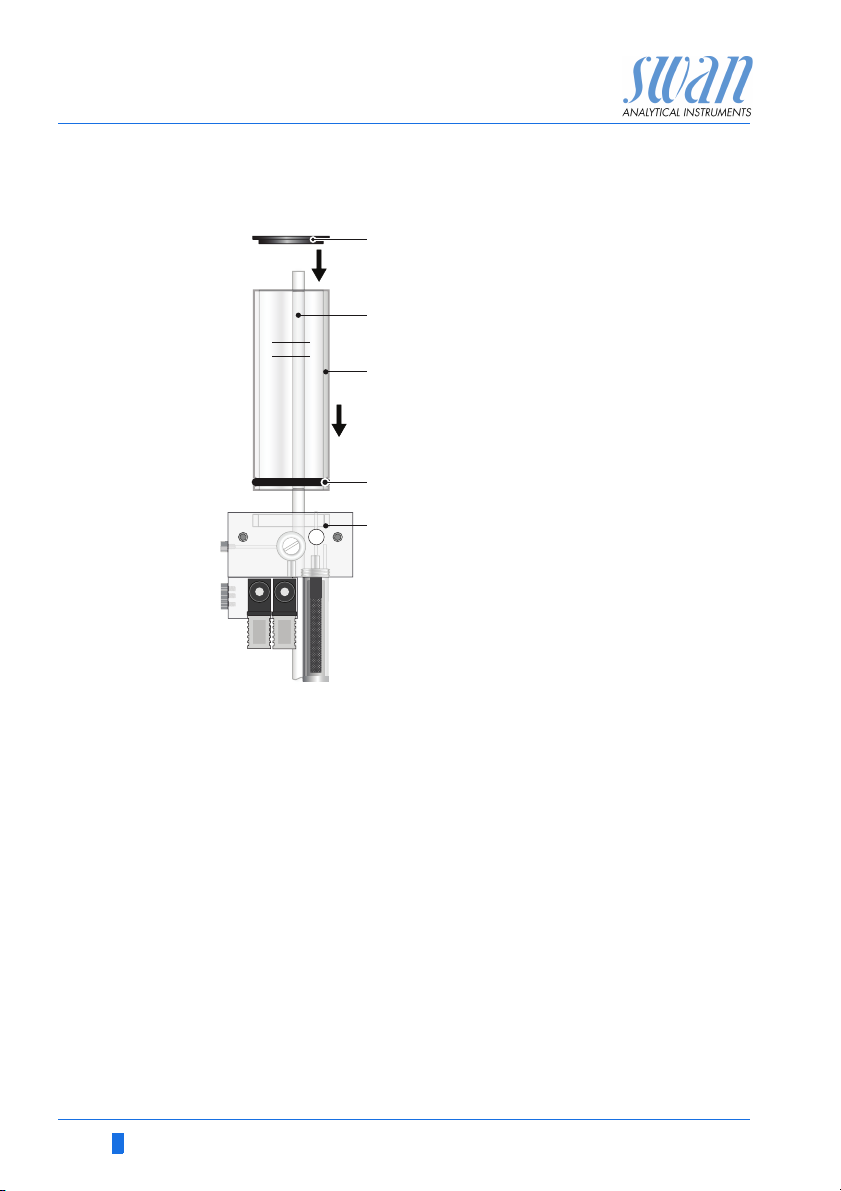

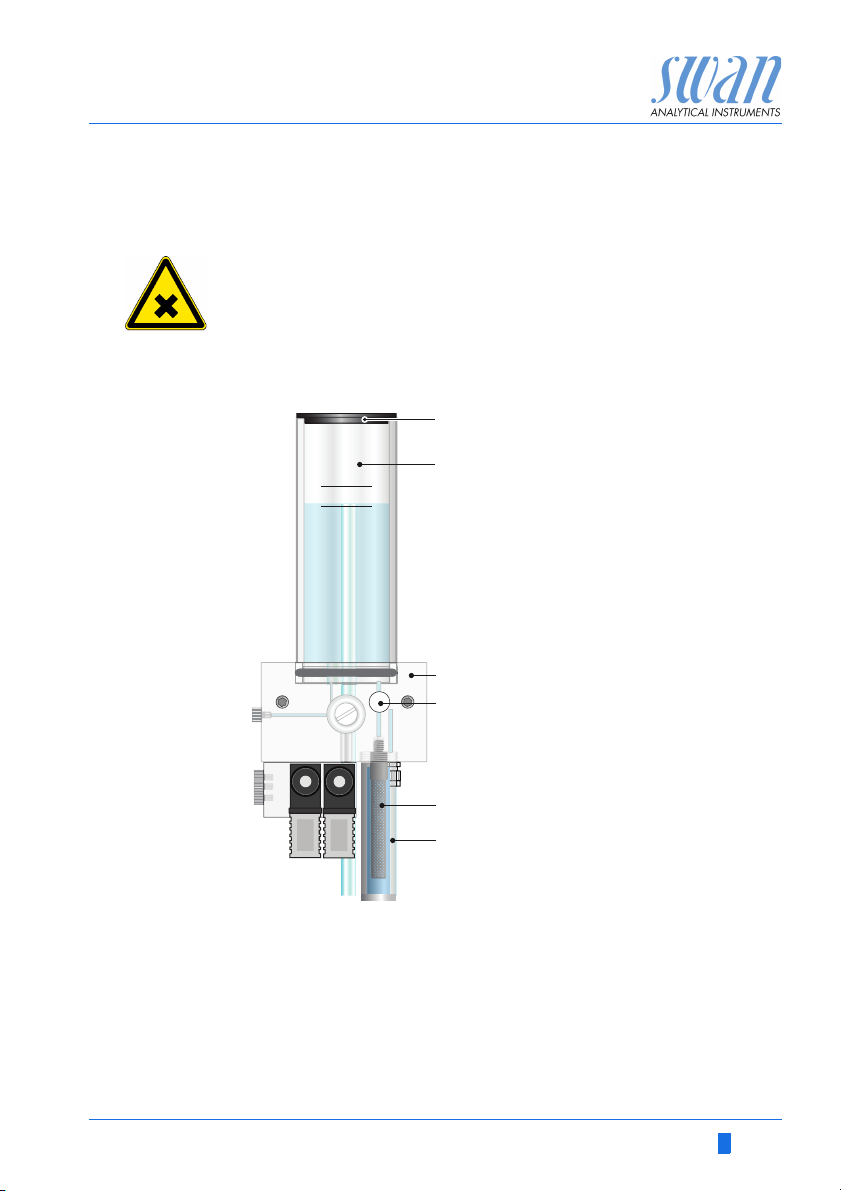

3.4. Installation of Flow Cell
CAUTION
Fragile Part
Handle the constant head tube with care.
To avoid damage during the transport, the constant head tube [C] of
the AMI Codes-II CC is not installed.

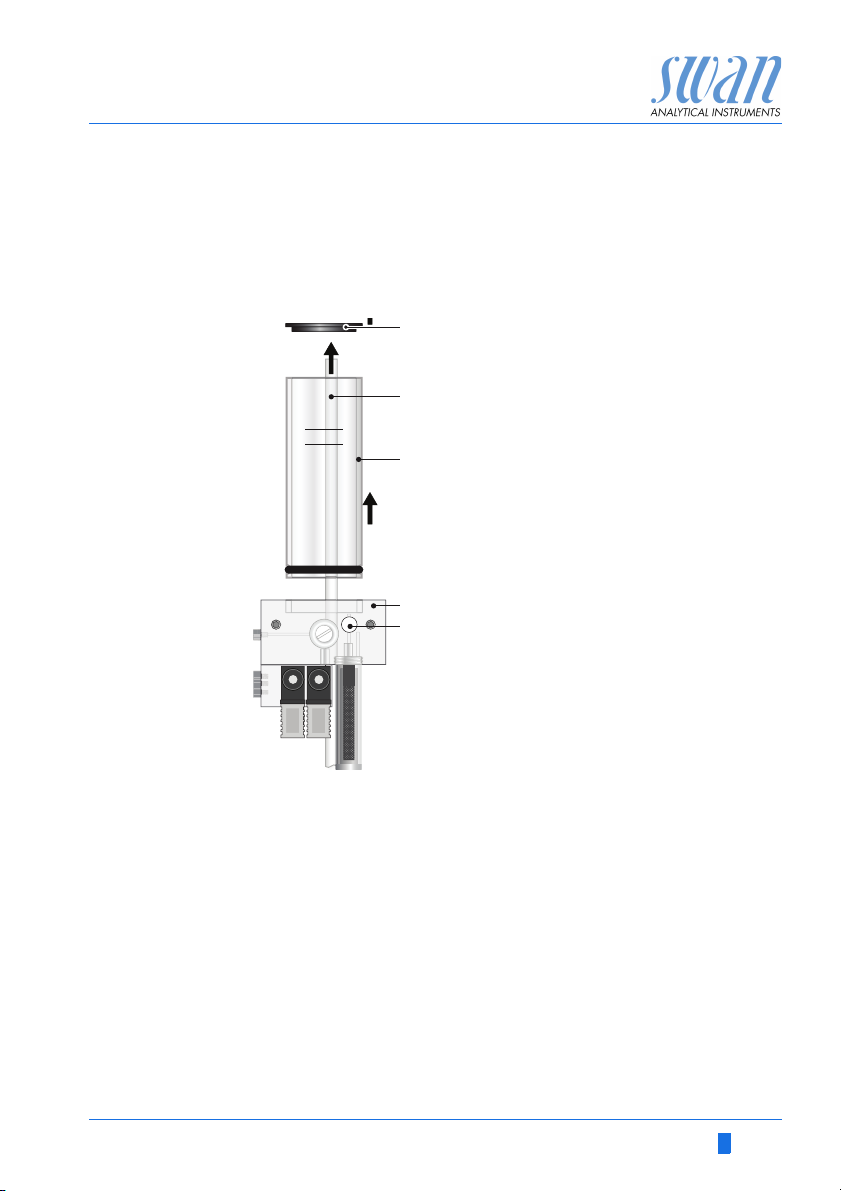

A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Gasket
E
Flow cell block

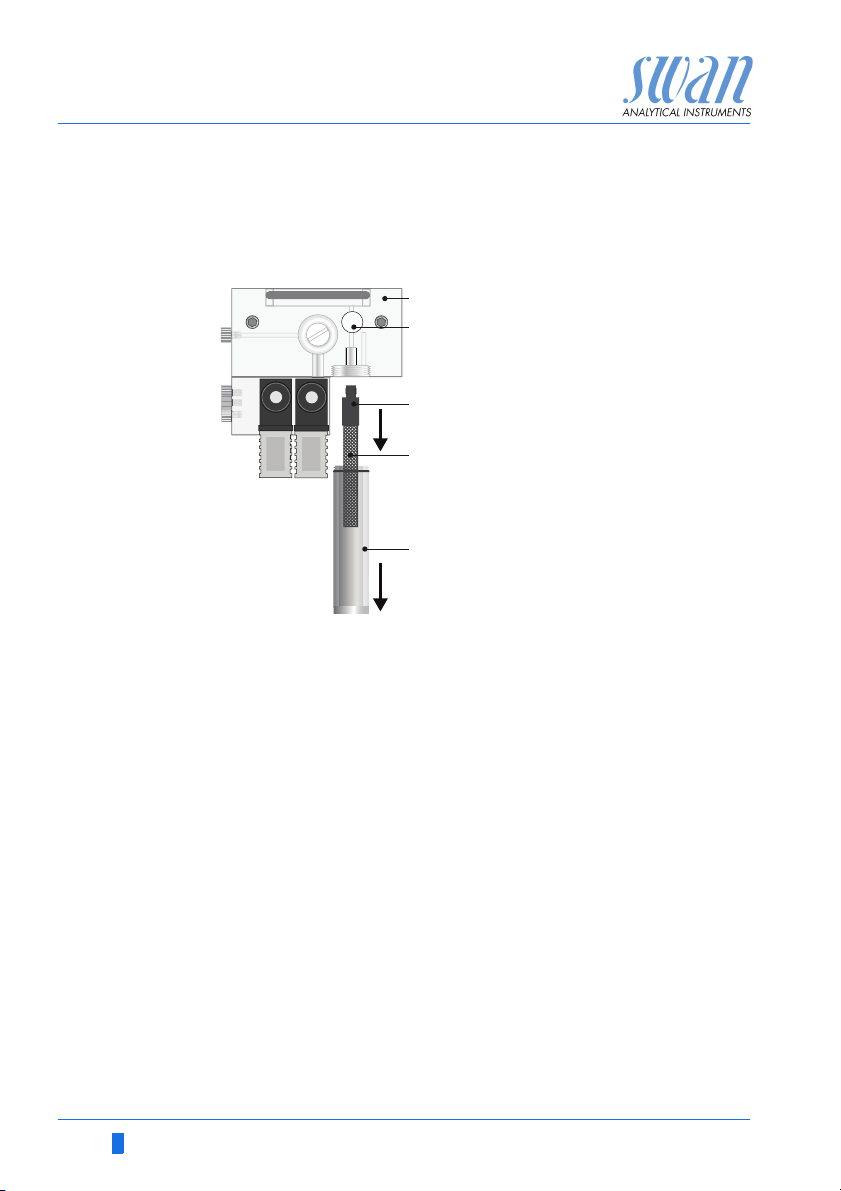

To install the constant head tube proceed as follows:
1 Unpack the constant head tube [C].
2 Push the constant head tube into the flow cell block [E].
3 Put the constant head cover [A] onto the constant head tube.
4 Check if the overflow tube [B] is aligned with the upper Level
mark.
22 A-96.250.581 / 220616
Page 25
AMI Codes-II CC
B
C
D
A
E
G
F
Installation
3.5. Install the Option pH
3.5.1 pH as Option ex works
If the pH option was ordered with the AMI Codes-II CC, the pH sensor cable as well as the temperature sensor are already connected
to the AMI transmitter.
A
Connector cap
B
Connector
C
pH Sensor
D
Temperature sensor
E
Constant head cover
F
Protective cap
G
Constant head

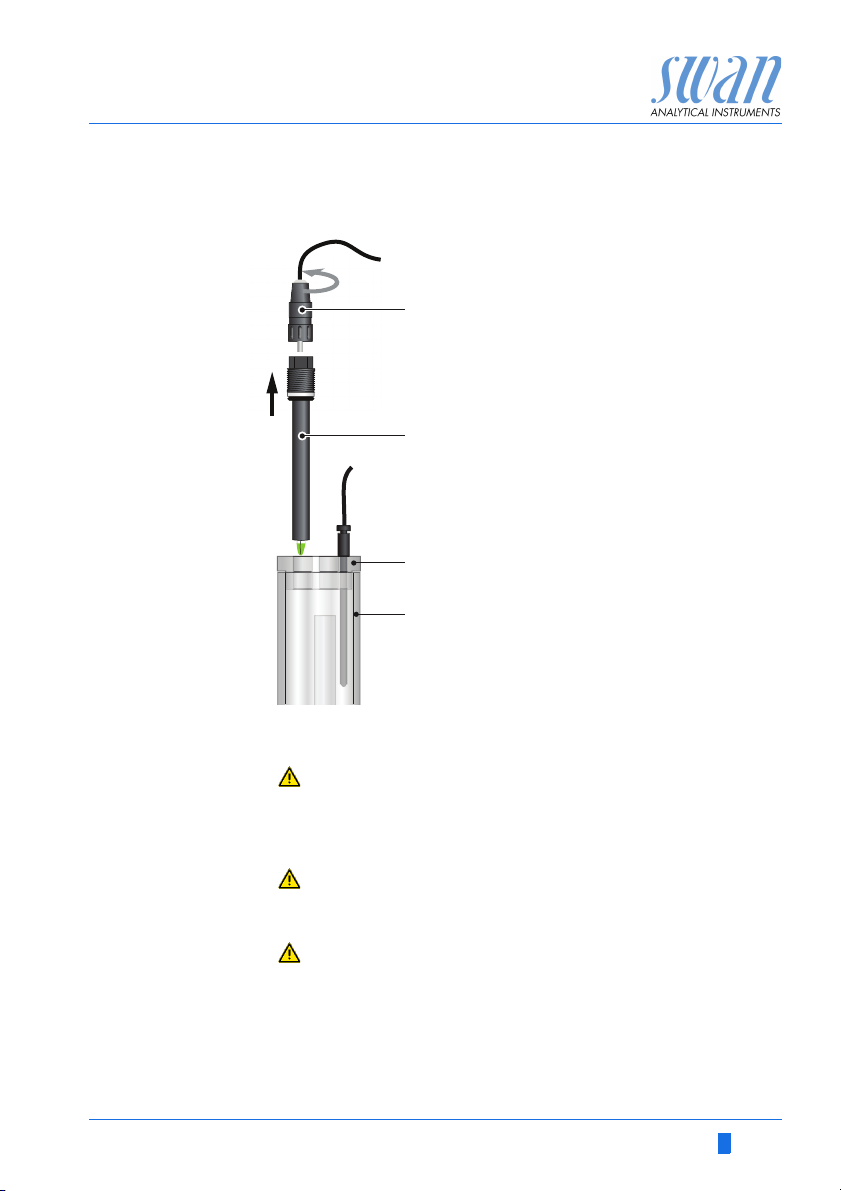

1 Carefully pull off the protective cap [F] from the pH sensor [C]
A-96.250.581 / 220616 23
by turning it clockwise.
2 Store the protective cap in safe place.
3 Rinse the pH sensor tip with clean water.
4 Insert the pH sensor into one of the holes in the constant head
cover [E].
5 Insert temperature sensor [D] into the small hole.
6 Remove the connector cap from the connector of the pH sen-
sor. Store it in safe place.
7 Screw the connector [B] onto the pH sensor.
Page 26
AMI Codes-II CC
ABC
FE D
Installation
3.5.2 pH Option as Retrofit Kit
A
2 Clamps with screws
B
pH sensor
C
Sensor cable
D
Front end PCB
E
Temperature sensor
F
Short overflow tube
24 A-96.250.581 / 220616
Page 27
AMI Codes-II CC
Level
A
B
C
D
Installation
WARNING
Risk of electrical shock.
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
1 Screw the clamps for calibration solution onto the panel. Use
the already drilled holes [A].
AMI Codes-II
2 Stop sample flow. Wait until flow cell is empty.
3 Switch off the AMI transmitter (disconnect power).
A
A
Constant head cover
B
Constant head tube
C
Short overflow tube
D
Flow cell block
4 Remove the constant head cover [A] and the constant head
tube [B] from the flow cell block [D].
5 Insert the short overflow tube [C] into the outlet hole leading to
the photometer.
6 Install the constant head tube and the constant head cover.
A-96.250.581 / 220616 25
Page 28
AMI Codes-II CC
AB C
Installation
7 Open the cover of the AMI transmitter housing.
8 Install the front end PCB.
9 Feed the cable of the pH sensor through one of the cable
glands (see Cable thicknesses, p. 27) into the AMI transmitter
housing.
10 Connect it to the BNC socket.
11 Feed the cable of the Temperature sensor through one of the
cable glands into the AMI transmitter housing.
12 Connect the temperature sensor cable to the plug as follows:
Terminal 19: line
Terminal 20: shield.
13 Close the cover of the AMI transmitter housing.
14 Install the pH sensor, see pH as Option ex works, p. 23.
15 Turn on sample flow and wait until flow cell has been filled com-
pletely.
16 Switch power ON. The instrument automatically detects the
front end PCB during start-up.

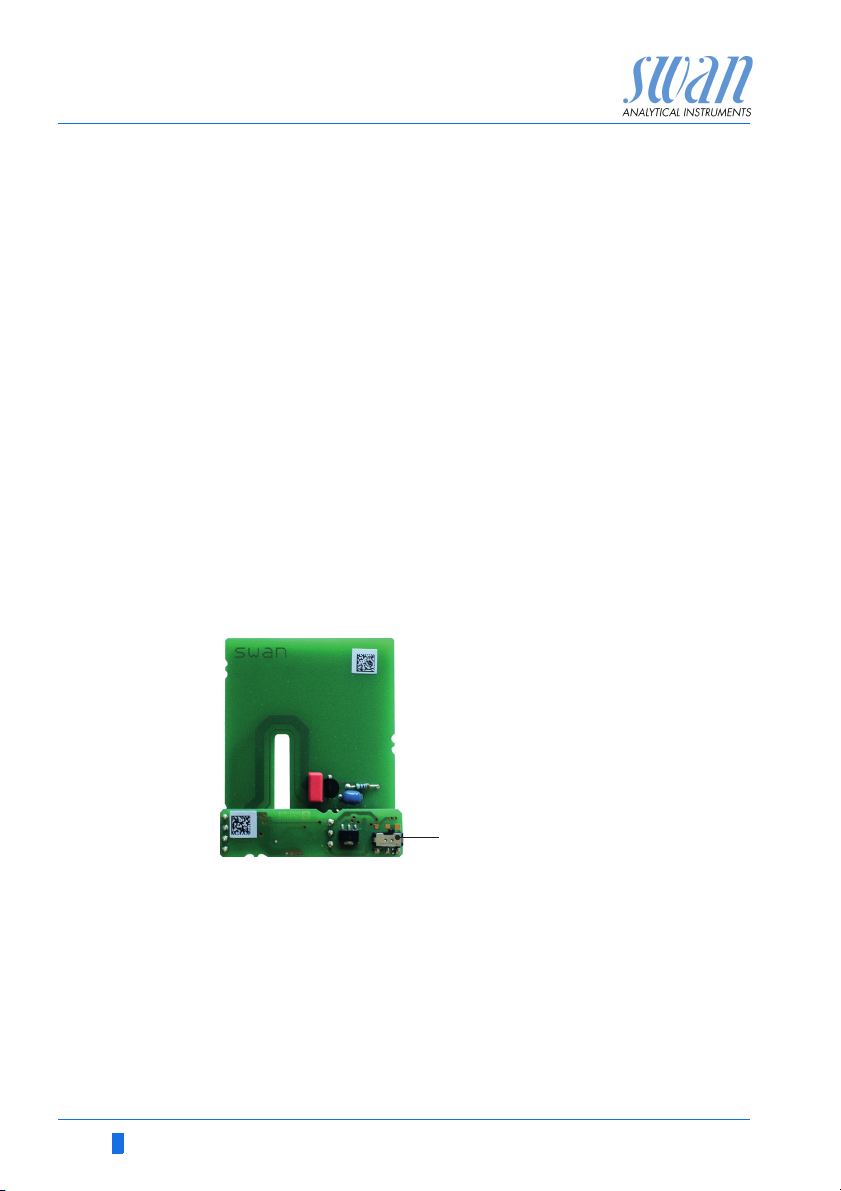

A
Front end PCB
B
pH sensor plug
C
Temperature sensor plug
26 A-96.250.581 / 220616
Page 29
AMI Codes-II CC
Installation
3.6. Electrical Connections
WARNING
Risk of electrical shock.
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
Grounding requirements: Only operate the instrument from
an power outlet which has a ground connection.
Make sure the power specification of the instrument corre-
sponds to the power on site.
Cable
thicknesses
In order to comply with IP66, use the following cable thicknesses
ABC
PG 11 cable gland: cable Ø
A
B
PG 7 cable gland: cable Ø
C
PG 9 cable gland: cable Ø
outer
3–6.5 mm
outer
4–8 mm
outer
5–10 mm
NOTICE: Protect unused cable glands
Wire For Power and Relays: Use max. 1.5 mm
stranded wire with end sleeves.
For Signal Outputs and Input: Use 0.25 mm
2
/ AWG 14
2
/ AWG 23
stranded wire with end sleeves.
A-96.250.581 / 220616 27
Page 30
AMI Codes-II CC
Installation
WARNING
External Voltage.
External supplied devices connected to relay 1 or 2 or to the
alarm relay can cause electrical shocks
Make sure that the devices connected to the following con-
tacts are disconnected from the power before resuming installation.
–relay 1
–relay 2
– alarm relay
WARNING
To prevent from electrical shock, do not connect the instrument
to the power unless the ground wire (PE) is connected.
Do not connect unless specifically instructed to do so.
WARNING
The mains of the AMI Transmitter must be secured by a main
switch and appropriate fuse or circuit breaker.
28 A-96.250.581 / 220616
Page 31
AMI Codes-II CC
Installation

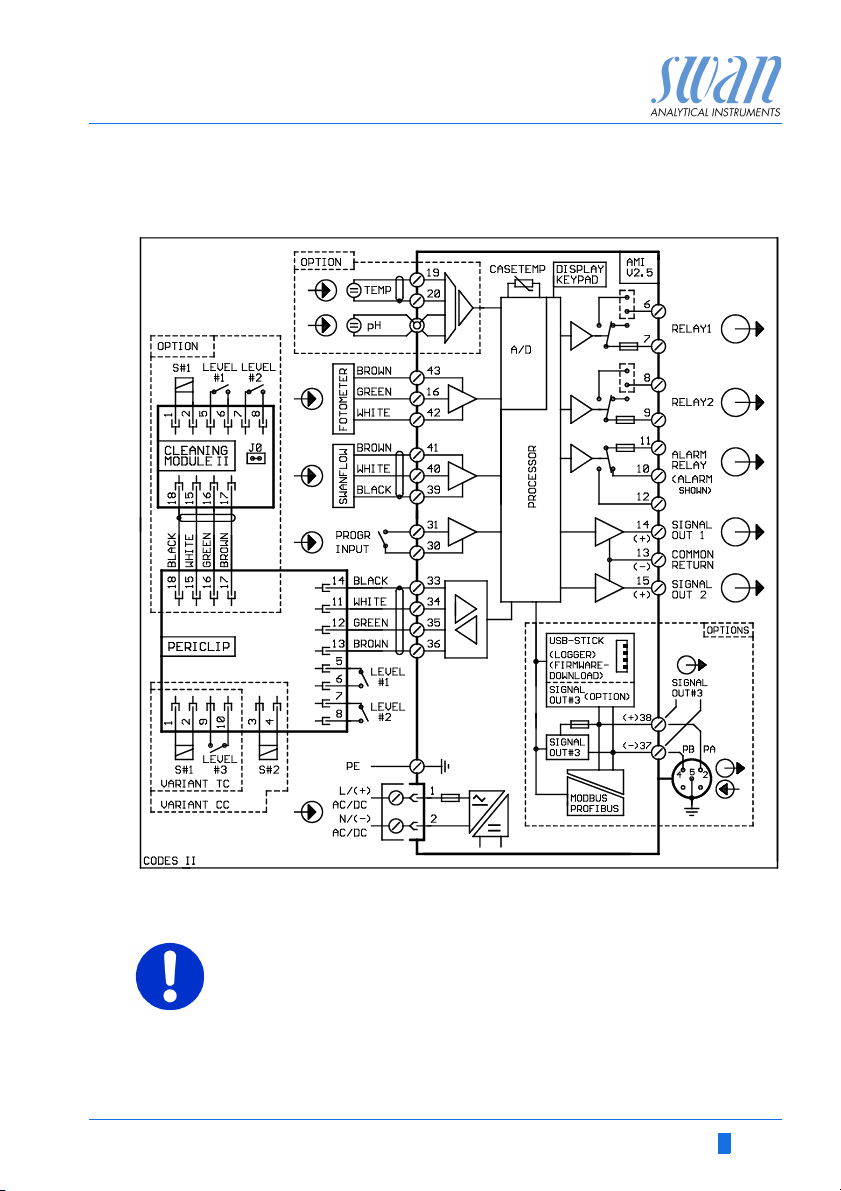

3.6.1 Connection Diagram
CAUTION
Use only the terminals shown in this diagram, and only for the
mentioned purpose. Use of any other terminals will cause short
circuits with possible corresponding consequences to material
and personnel.
A-96.250.581 / 220616 29
Page 32
AMI Codes-II CC
A
B
C
D
Installation
3.6.2 Power Supply
WARNING
Risk of electrical shock
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
Installation and maintenance of electrical parts must be per-
formed by professionals.

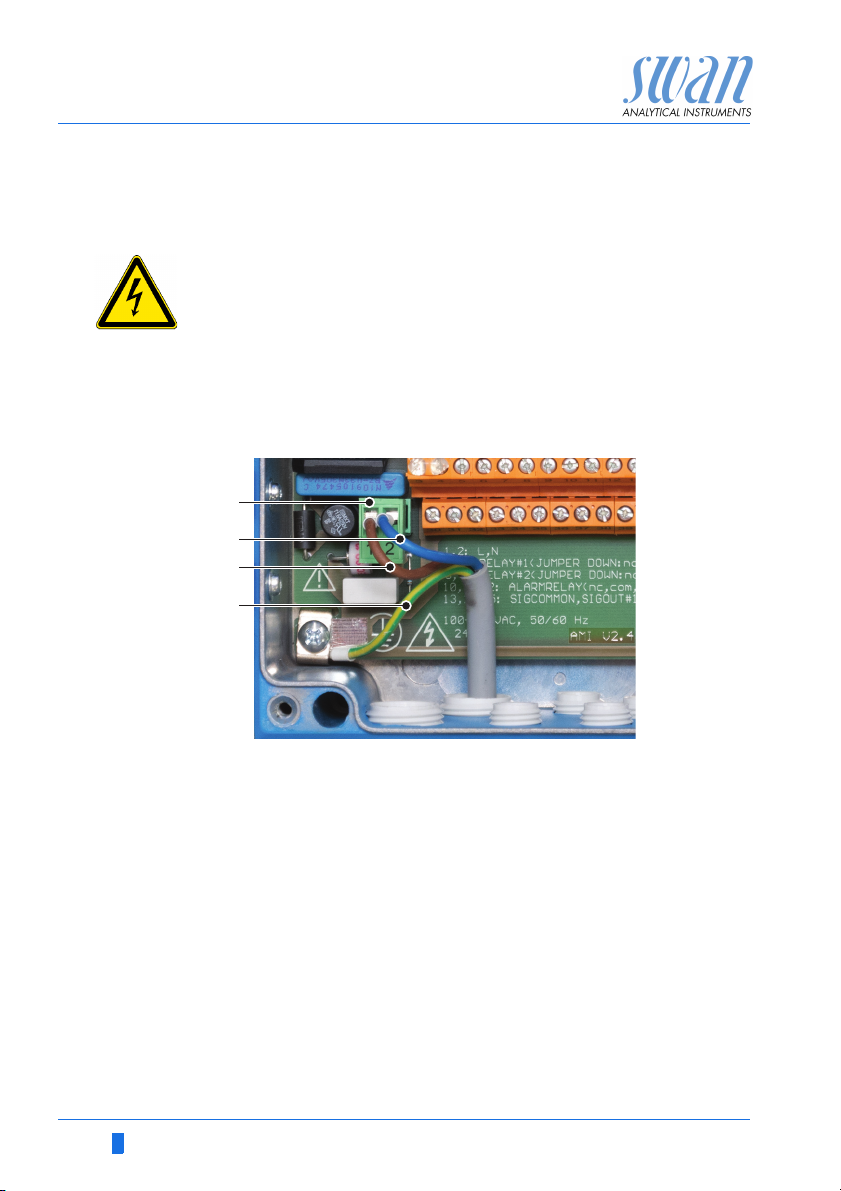

A
Power supply connector
B
Neutral conductor, Terminal 2
C
Phase conductor, Terminal 1
D
Protective earth PE
NOTICE: The protective earth wire (Ground) has to be
connected to the grounding terminal.
Installation
requirements
The installation must meet the following requirements.
Fuse 1.6 AT
Mains cable to comply with standards IEC 60227 or IEC
60245; flammable rating FV1
Mains equipped with an external switch or circuit-breaker
– near the instrument
– easily accessible to the operator
– marked as interrupter for AMI Codes-II CC
30 A-96.250.581 / 220616
Page 33
AMI Codes-II CC
10
12
11
0V
Installation
3.7. Input

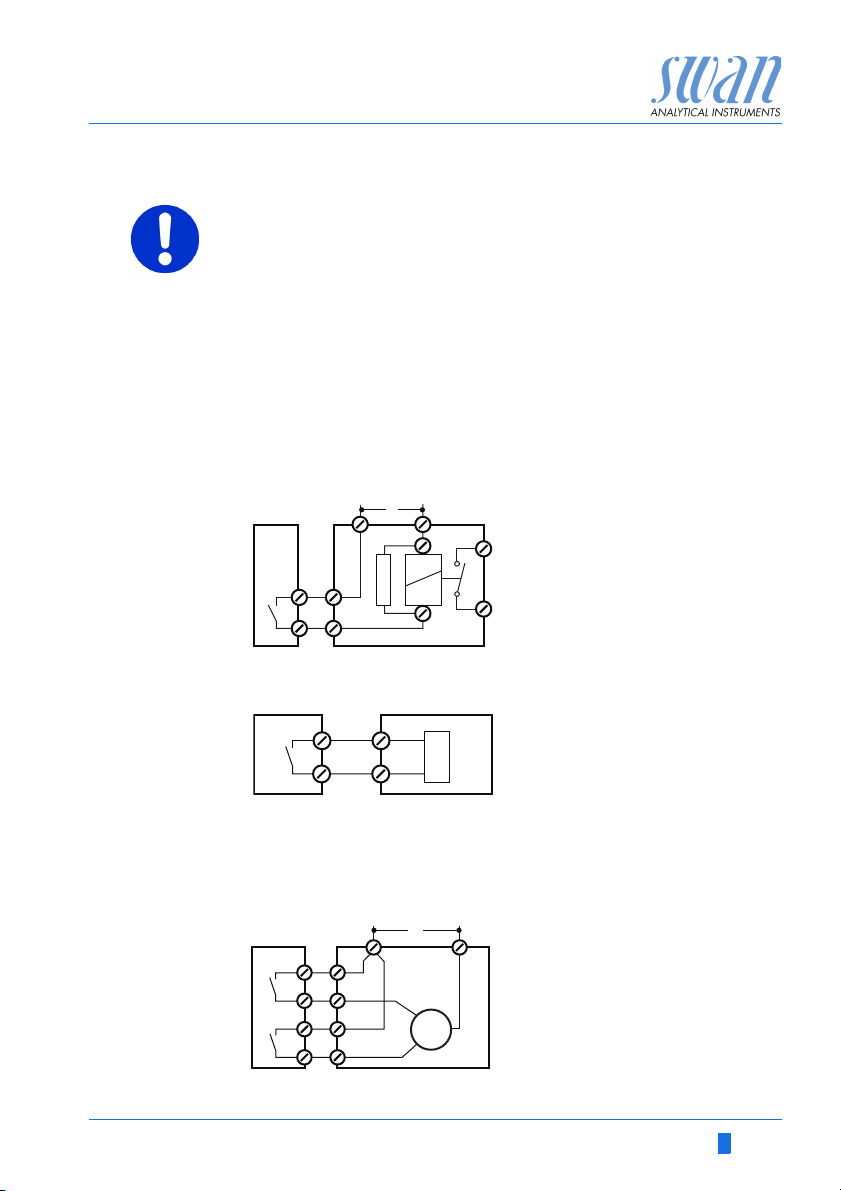

NOTICE: Use only potential-free (dry) contacts.
The total resistance (sum of cable resistance and resistance of
the relay contact) must be less than 50
Terminals 30 and 31
For programming see chap. 9, menu Installation, 5.3.4, p. 102.
3.8. Relay Contacts
3.8.1 Alarm Relay
NOTICE: Max. load1 A / 250 VAC
Alarm output for system errors.
Error codes see Troubleshooting, p. 67.
NOTICE: With certain alarms and certain settings of the AMI
transmitter the alarm relay does not switch. The error, however,
is shown on the display.
Ω.
Terminals Description Relay connection
0V
1)
11
10
12
1)
NC
Normally
Closed
NO
Normally
Open
10/11 Active (opened) during normal
operation.
Inactive (closed) on error and
loss of power.
12/11 Active (closed) during normal
operation.
Inactive (opened) on error and
loss of power.
1) usual use
A-96.250.581 / 220616 31
Page 34
AMI Codes-II CC
6
0V
7
6
0V
7
A
B
Installation

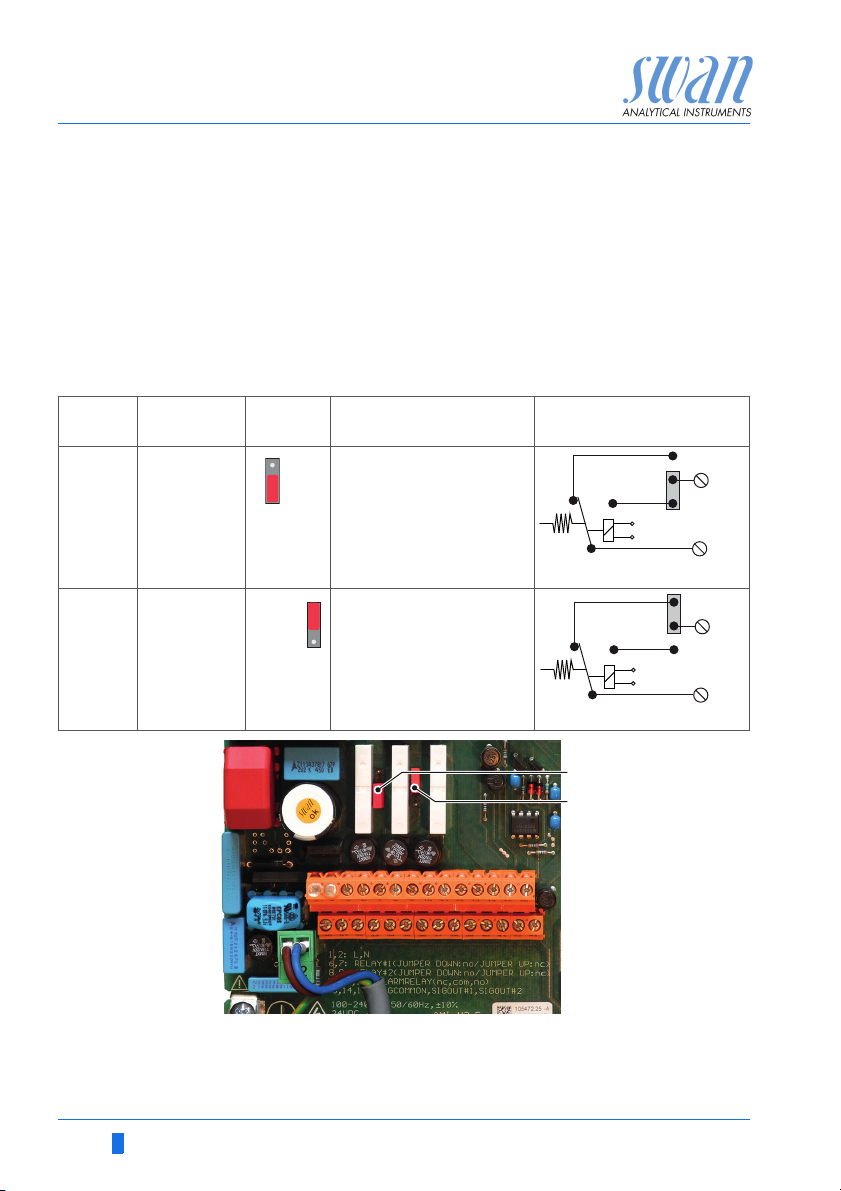

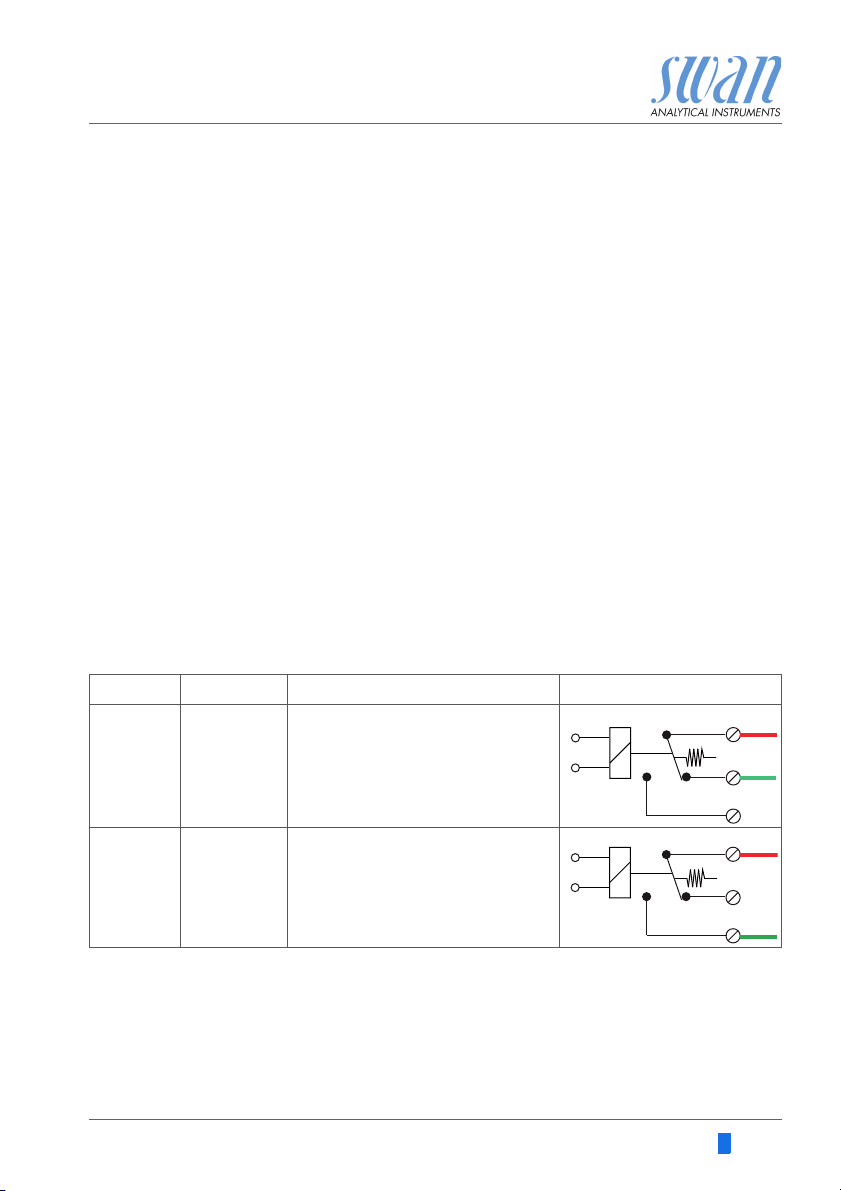

3.8.2 Relay 1 and 2
NOTICE: Max. load 1 A/250 VAC
Relay 1 and 2 can be configured as normally open or as normally
closed. Standard for both relays is normally open. To configure a
Relay as normally closed, set the jumper in the upper position.
NOTICE: Some error codes and the instrument status may
influence the status of the relays described below.
Relay
config. Terminals
Normally
Open
Normally
Closed
6/7: Relay 1
8/9: Relay 2
6/7: Relay 1
8/9: Relay 2

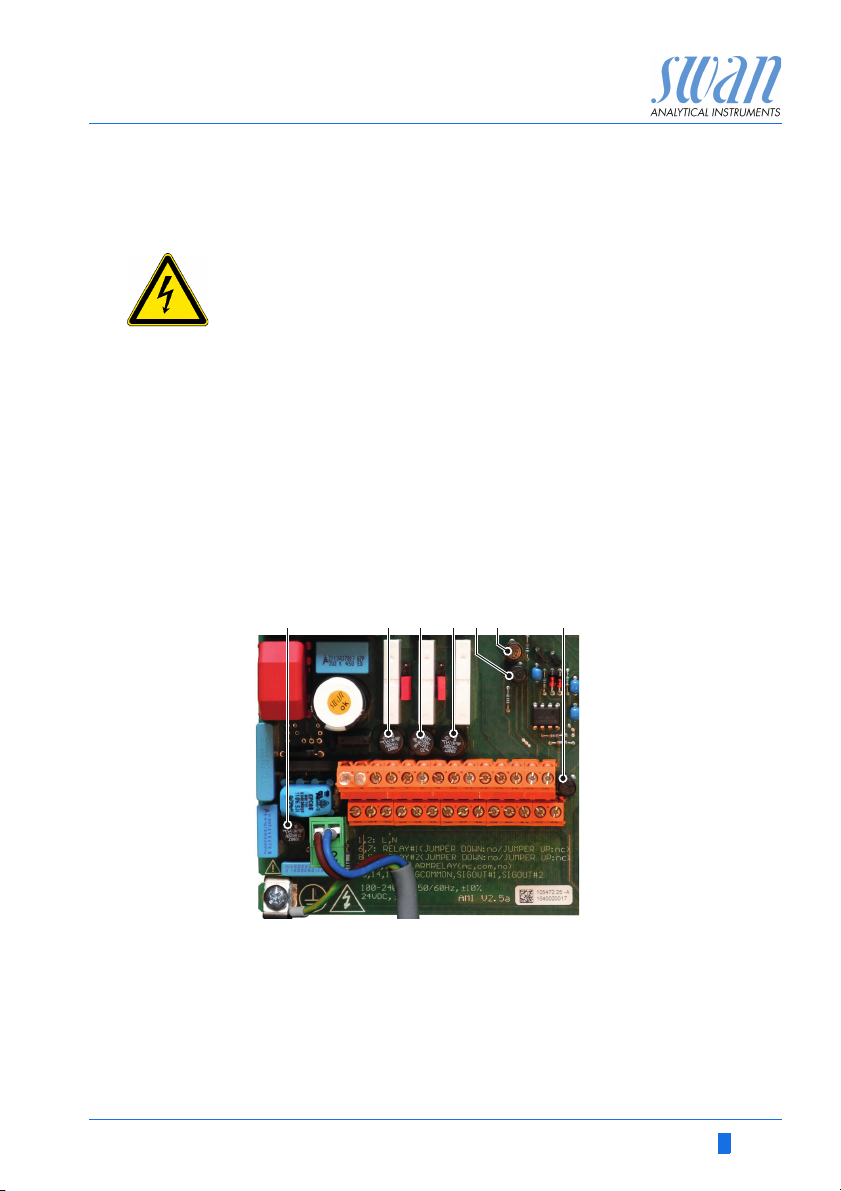

Jumper
pos. Description Relay configuration
Inactive (opened) during
normal operation and
loss of power.
Active (closed) when a
programmed function is
executed.
Inactive (closed) during
normal operation and
loss of power.
Active (opened) when a
programmed function is
executed.
ABJumper set as normally open (standard setting)
Jumper set as normally closed
For programming see menu Installation 5.3.2 and 5.3.3, p. 97.
32 A-96.250.581 / 220616
Page 35
AMI Codes-II CC
A
BC
DE
AB
C
Installation

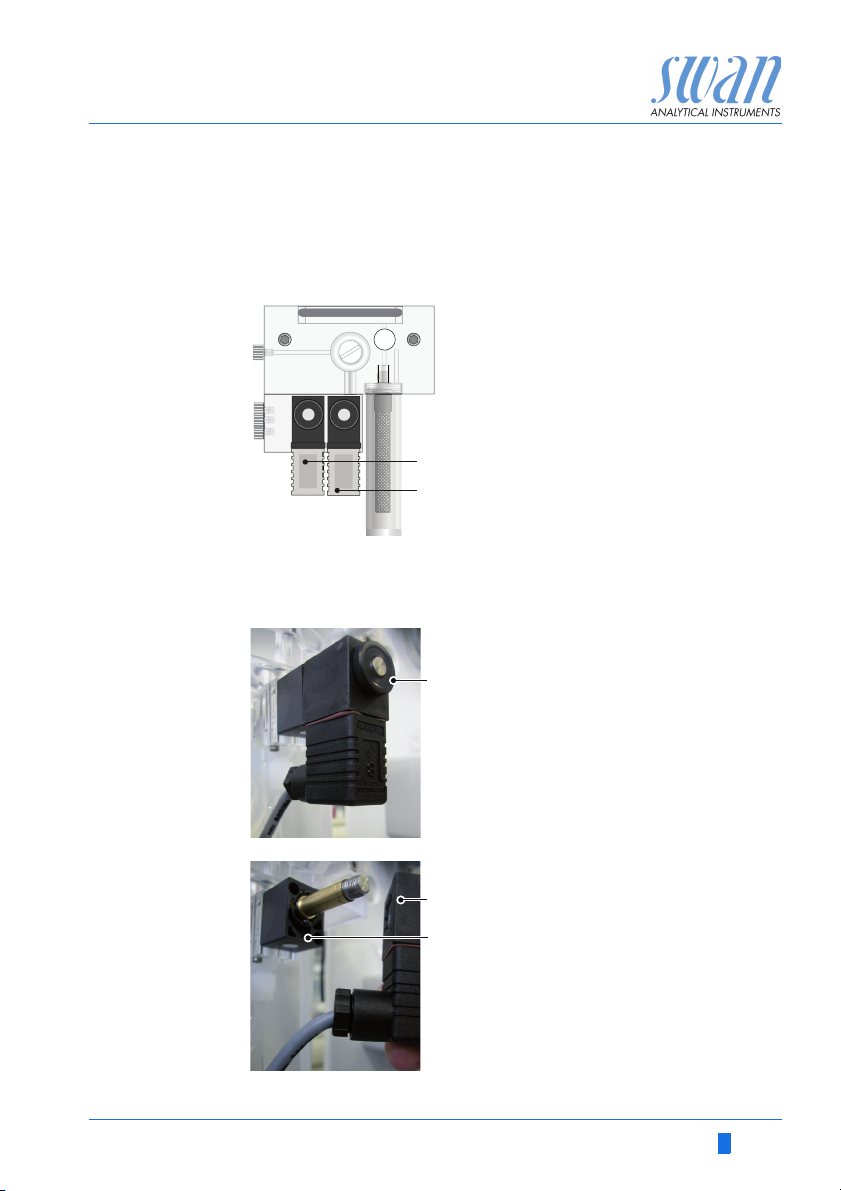

CAUTION
Risk of damage of the relays in the AMI Transmitter due to
heavy inductive load.
Heavy inductive or directly controlled loads (solenoid valves,
dosing pumps) may destroy the relay contacts.
To switch inductive loads > 0.1 A use an AMI relay box avail-
able as an option or suitable external power relays.
Inductive load Small inductive loads (max 0.1A) as for example the coil of a power
Resistive load Resistive loads (max. 1A) and control signals for PLC, impulse
Actuators Actuators, like motor valves, are using both relays: One relay con-
relay can be switched directly. To avoid noise voltage in the
AMI Transmitter it is mandatory to connect a snubber circuit in parallel to the load.
A snubber circuit is not necessary if an AMI relaybox is used.
A
AC or DC power supply
B
AMI Transmitter
C
External power relay
D
Snubber
E
Power relay coil
pumps and so on can be connected without further measures
A
AMI Transmitter
B
PLC or controlled pulse pump
C
Logic
tact is used for opening, the other for closing the valve, i.e. with the
2 relay contacts available, only one motor valve can be controlled.
Motors with loads bigger than 0.1A must be controlled via external
power relays or an AMI relay box.
A
A
BC
AC or DC power supply
B
AMI Transmitter
C
Actuator
A-96.250.581 / 220616 33
M
Page 36
AMI Codes-II CC
A
Installation
3.9. Signal Outputs
3.9.1 Signal Output 1 and 2 (current outputs)
NOTICE: Max. burden 510
If signals are sent to two different receivers, use signal isolator
(loop isolator).
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see Program Overview, p. 51, Menu Installation
3.9.2 Signal Output 3 (optional)
Terminal 38 (+) and 37 (-).
Requires the additional board for the third signal output 0/4 –20 mA
PCB. The third signal output can be operated as current source or
current sink (switchable via switch [A]). For detailed information see
the corresponding installation instruction.
NOTICE: Max. burden 510
.
Third signal output 0/4–20 mA PCB
A Operating mode selector switch
34 A-96.250.581 / 220616
Page 37
AMI Codes-II CC
Installation
3.10. Interface Options
NOTICE: It is not possible to install more than one of the
following interfaces at the same time.
3.10.1 Profibus/Modbus Interface
Terminal 37 PB, Terminal 38 PA
To connect several instruments by means of a network or to config-
ure a PROFIBUS DP or a MODBUS connection, consult the
PROFIBUS/MODBUS manual. Use appropriate network cable.
NOTICE: The switch must be ON, if only one instrument is
installed, or on the last instrument in the bus.
A
OFF
ON

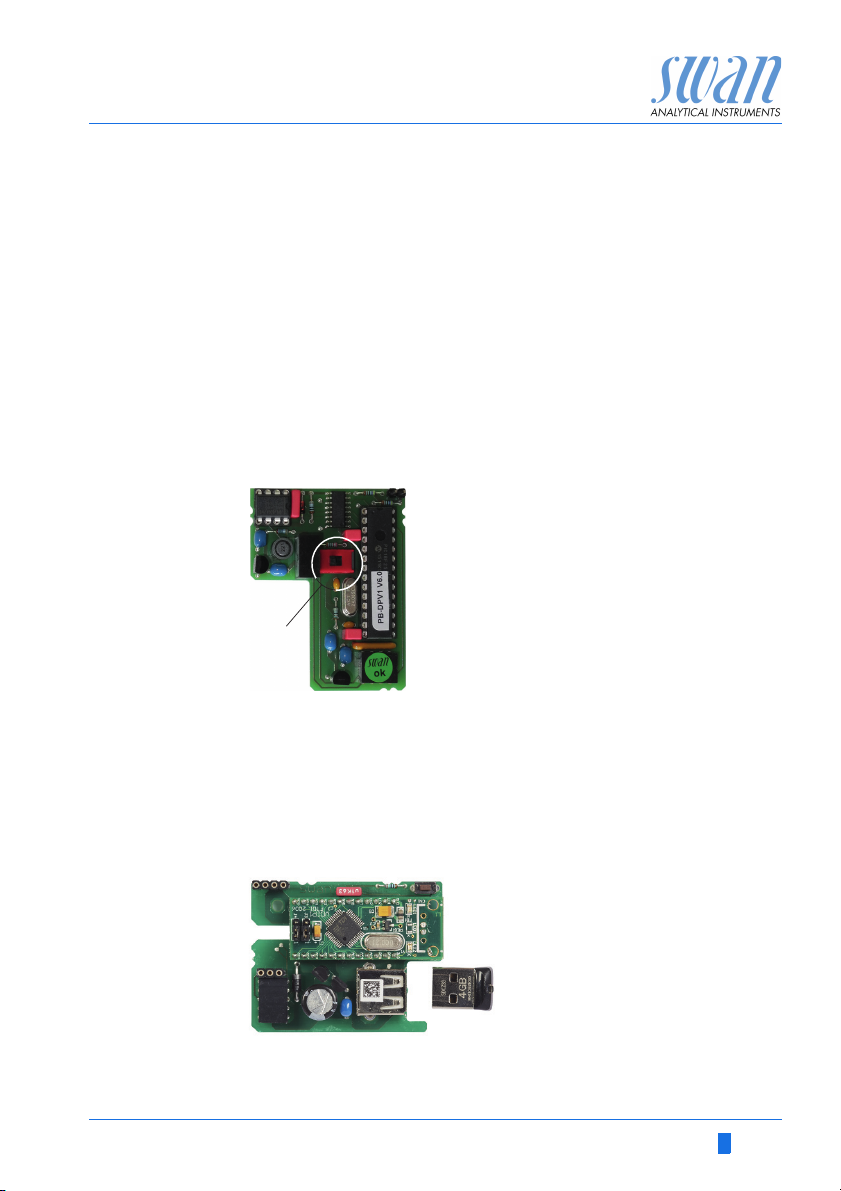

Profibus/Modbus Interface PCB (RJ 485)
A ON - OFF switch
3.10.2 USB Interface
The USB Interface is used to store Logger data and for Firmware
up load. For detailed information see the corresponding installation
instruction.
USB Interface
A-96.250.581 / 220616 35
Page 38
AMI Codes-II CC
Instrument Setup
4. Instrument Setup
After installation according to checklist proceed as following:
4.1. Prepare Reagents
1 Prepare reagents. See Refill or replace Reagents, p. 46.
2 Insert the suction lances combined with level detector into the
containers.
4.2. Peristaltic Pump
The instrument is delivered with opened occlusion frames.

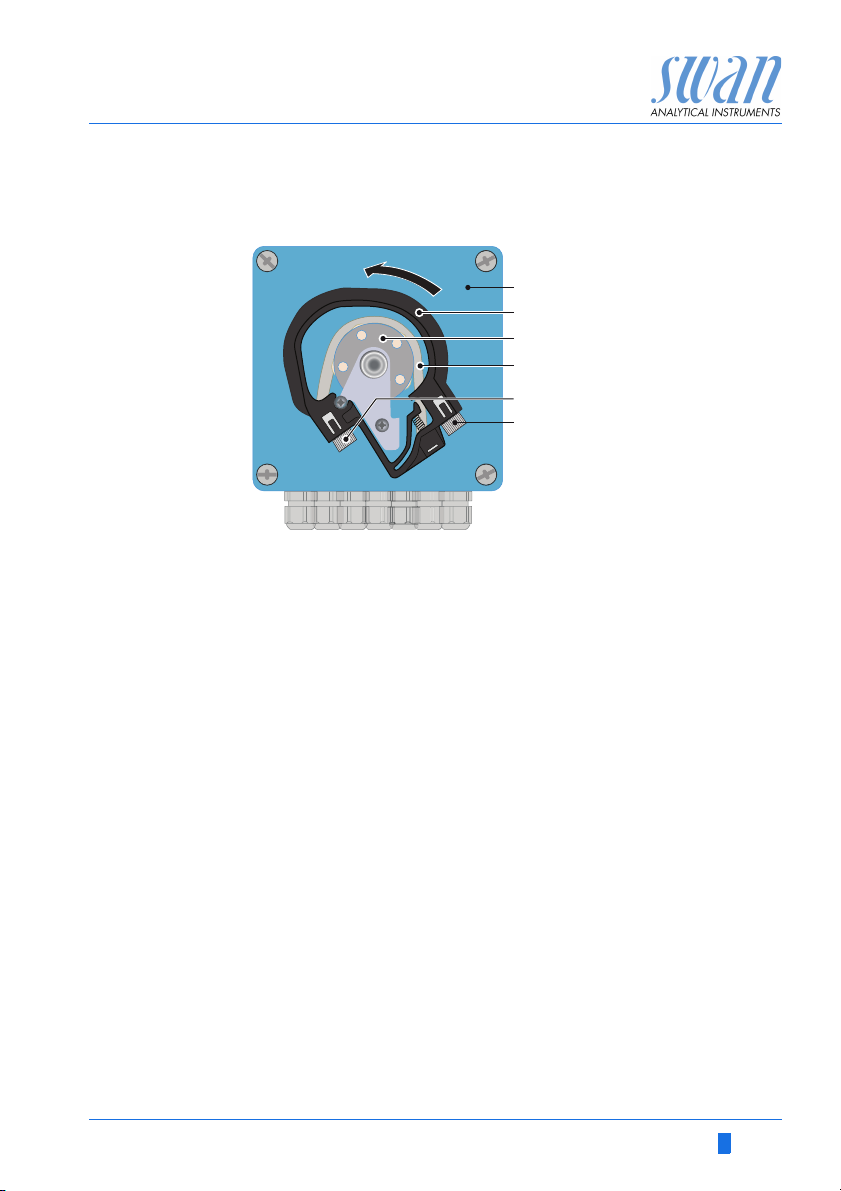

1 Activate the peristaltic pump tubes by closing the occlusion
frame [B].
A

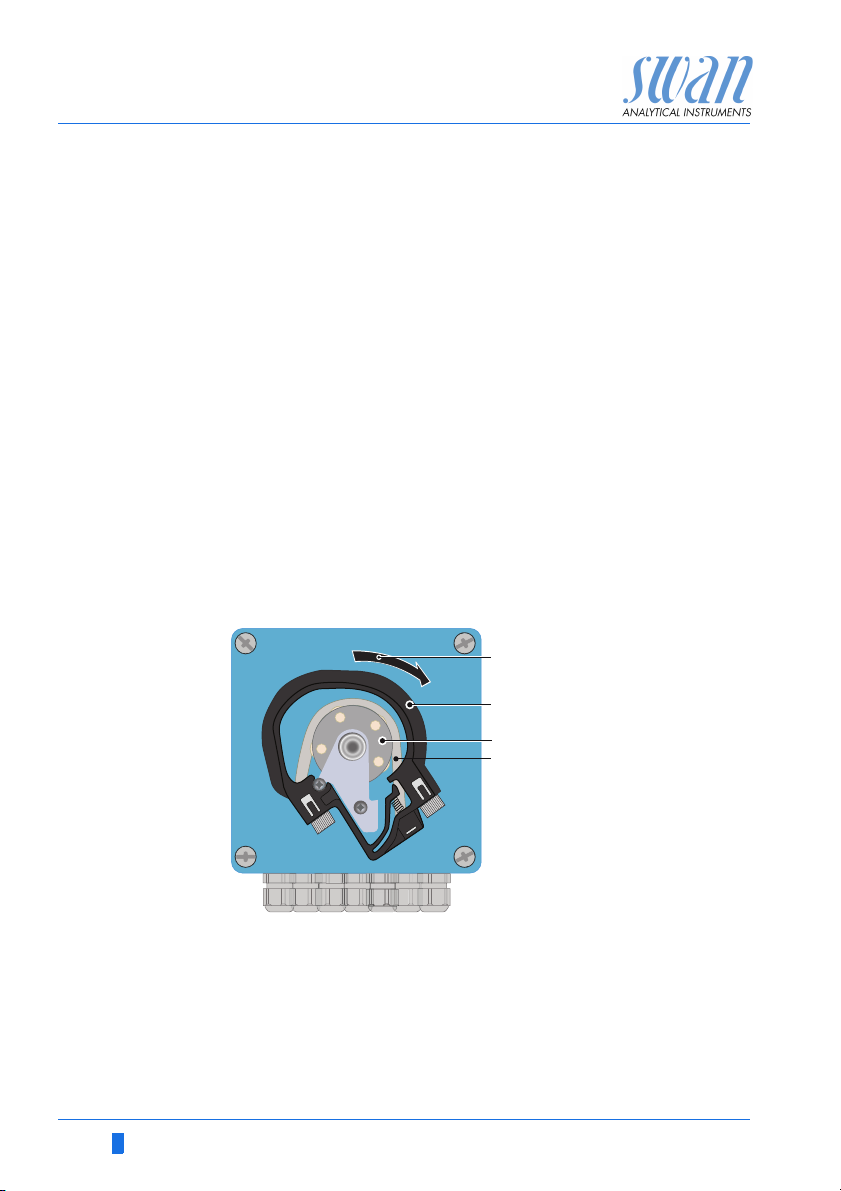

Turn to lock
B
Occlusion frame
A
C
Rotor
D
Pump tube
B
C
D
36 A-96.250.581 / 220616
Page 39
AMI Codes-II CC
Instrument Setup
4.3. Establish Sample Flow
WARNING
Water pollution
The drain of the photometer outlet contains DPD.
At no means recirculate it into the water system.
Level
A
A

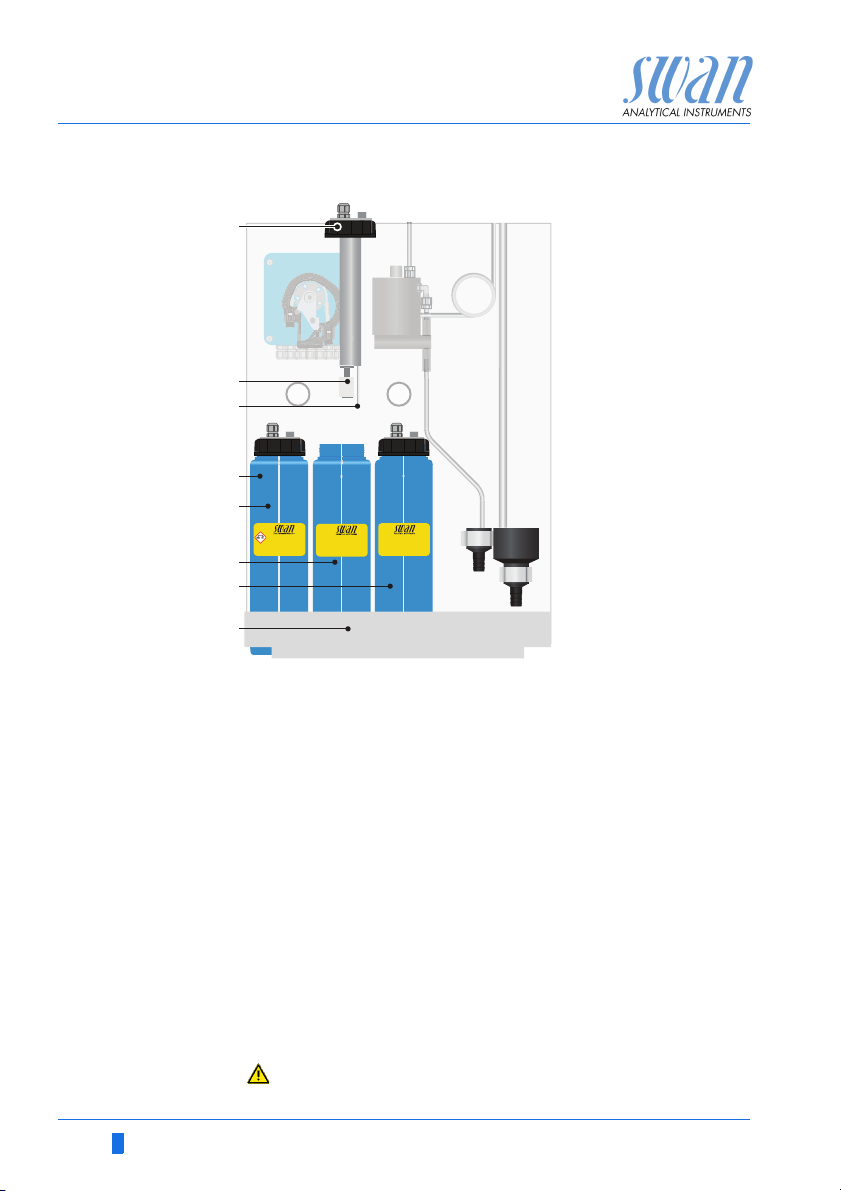

B
Cover
B
Constant head tube
C
Flow cell block
D
Flow regulating valve
E
Filter
F
Filter vessel
C
D
E
F
1 Open the flow regulating valve (D) and wait until the flow cell is
completely filled.
2 Switch on power.
3 Adjust the sample flow so that always a small part of the sample
drains off through the overflow tube.
4 Start <Fill system>, see Fill or Flush Reagent System, p. 38.
A-96.250.581 / 220616 37
Page 40
AMI Codes-II CC
3.2.2
Fill System
Verification
Service
Cleaning
3.2.2.5
Fill System
Progress
<Enter> to stop
3.2.2.5
Fill System
Progress
Done
Instrument Setup
4.4. Fill or Flush Reagent System
Fill or flush the reagent tubing:
upon the initial instrument setup,
after refilling the reagent containers,
before a system shut-down to flush the system with deminer-
alized water until no more reagent is left in the system.
Navigate to menu < Maintenance /
Service/ Fill system>.
Press [Enter].
The peristaltic pump is activated for
1.5 minutes.
Press [Exit] 4 x to go back to the operating mode.
1 Check tubing and flow cell for leaks and repair if necessary.
2 Let the instrument run continuously for 1 hour.
4.5. Programming
Programming Program all parameters for external devices (interface, recorders,
etc.)
Program all parameters for instrument operation (disinfectant, lim-
its, alarms).
Program the DPD value of the Verikit in menu <Installation/
Sensors/Ref. Verification>.
If pH option is installed, program the two buffers you want to use for
calibration in menu <Installation /Sensors/Standards>.
38 A-96.250.581 / 220616
See Program List and Explanations, p. 80.
Page 41
AMI Codes-II CC
Instrument Setup
4.6. Calibration
1 Calibrate pH sensor (if option pH is installed).
See Standard pH, p. 53.
Perform process calibration.
See Process Calibration of tc & fc, p. 51
If ordered:
Calibration of
pH sensor
The instrument should be operating for 1h before performing a pH
calibration.
Program the two buffers you want to use for calibration in menu
<Installation/Sensors/Standards>. Calibrate the pH sensor with
two buffers, e.g. pH 7.00 and pH 9.00. See chapter Calibration, p.
51 for details.
A-96.250.581 / 220616 39
Page 42
AMI Codes-II CC
Exit
Enter
BCDA
25.4°C
RUN
35 B/s
14:10:45
R1
0.22 ppm
0.26 ppm
0.04 ppm
R2
1
Installation
Operation
Diagnostics
Messages
Maintenance
Main Menu
Enter
Exit
fac
tc2
ccc
Operation
5. Operation

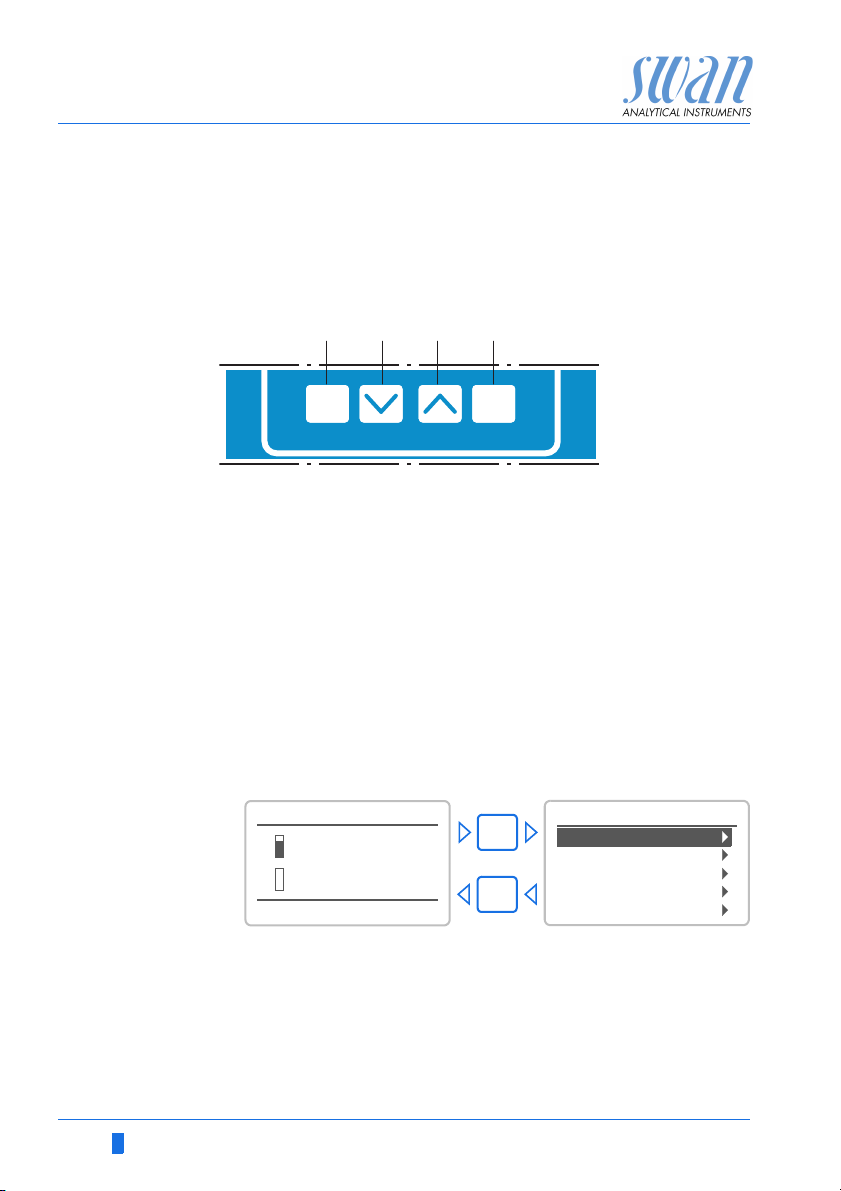

5.1. Keys
A to exit a menu or command (rejecting any changes)
to move back to the previous menu level
B to move DOWN in a menu list and to decrease digits
C to move UP in a menu list and to increase digits
to switch between display 1 and 2
D to open a selected sub-menu
to accept an entry
Program
Access, Exit
40 A-96.250.581 / 220616
Page 43
AMI Codes-II CC
RUN
47 B/s 26.8 °C
12:56:02
12:55:35
12:52:40
12:52:40
R1
R2
ppm
0.22
fac
ppm
0.26
tc2
ppm
0.04
ccc
AB C D
G
E
H
K
L
F
I
Operation

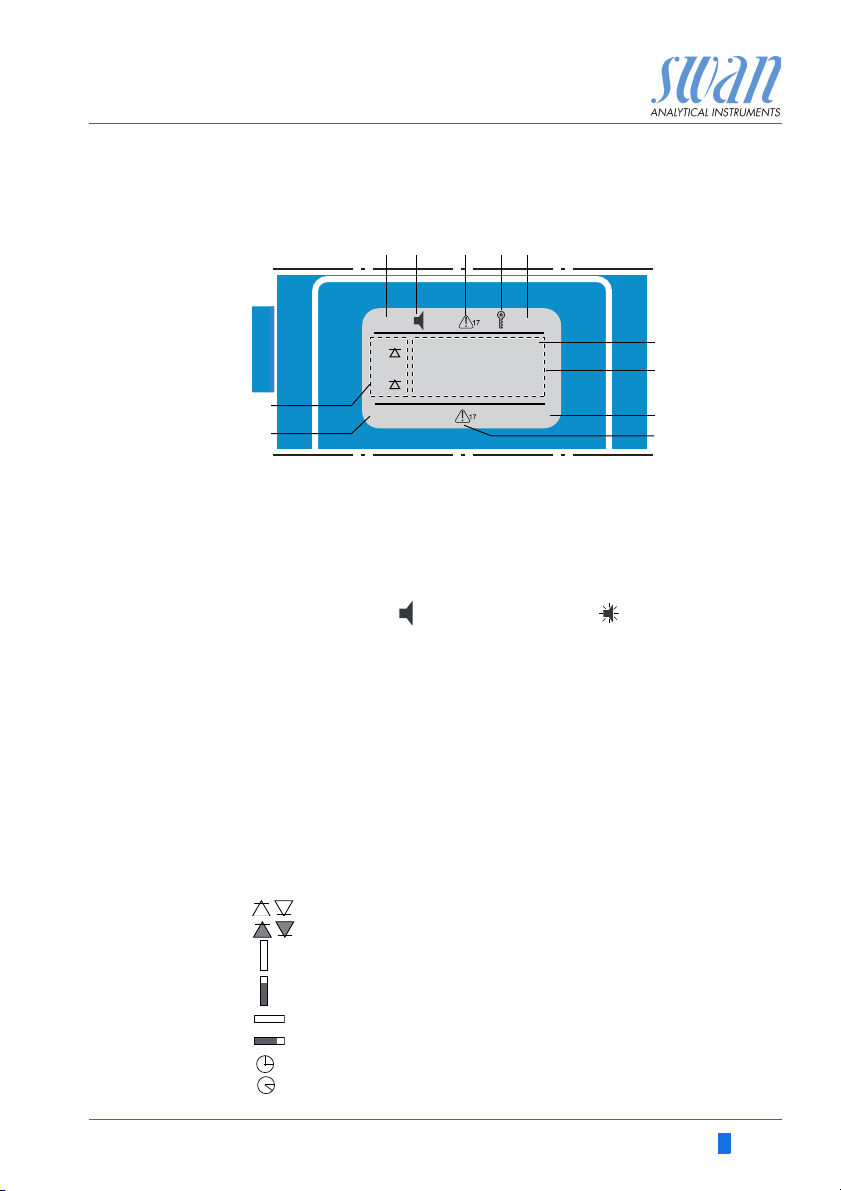

5.2. Display
A RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
OFF input closed: control/limit is interrupted (shows status
B ERROR Error
C Reagent low, indicates remaining reagents in % (17% = 340 ml)
D Keys locked, transmitter control via Profibus
E Time
F Time stamp (time of the last valid measuring value)
G Process values
H Sample temperature (only with option pH)
I Cleaning solution low, indicates remaining cleaning solution in %
K Sample flow
L Relay status
Relay status, symbols
status of signal outputs).
of signal outputs).
Fatal Error
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
A-96.250.581 / 220616 41
Page 44
AMI Codes-II CC
1
Messages
Operation
Maintenance
Diagnostics
Main Menu
Installation
1.1
Pending Errors
Messages
Maintenance List
Message List
Reagent Status
2.1
Interface
I/O State
Sample
Identification
Sensors
Diagnostics
3.1
Calibration
Simulation
Maintenance
Set Time 23.09.06 16:30:00
Service
4.1
Logger
Relay Contacts
Sensors
Operation
5.1
Interface
Miscellaneous
Relay Contacts
Sensors
Signal Outputs
Installation
Operation
5.3. Software Structure
Menu Messages 1
Reveals pending errors as well as an event history
(time and state of events that have occurred at an
earlier point of time).
It contains user relevant data.
Menu Diagnostics 2
Provides user relevant instrument and sample data.
Menu Maintenance 3
For instrument calibration, relay and signal output
simulation, and to set the instrument time.
It is used by the service personnel.
Menu Operation 4
User relevant parameters that might need to be
modified during daily routine. Normally password
protected and used by the process-operator.
Subset of menu 5 - Installation, but process-related.
Menu Installation 5
For initial instrument set up by SWAN authorized
person, to set all instrument parameters. Can be
protected by means of password.
42 A-96.250.581 / 220616
Page 45
AMI Codes-II CC
5.1.2
Sensors
Sensor type FOME
Temperature NT5K
Standards
Disinf. Free chlorine
4.4.1
Logger
Log interval 30 min
Clear logger no
4.1.3
Logger
Clear logger no
Log interval 30min
1 Hour
Interval.
5 min
30 min
10 min
4.1.3
Logger
Log interval 10 min
Clear logger no
4.1.3
Logger
Log interval
Clear logger no
No
Save ?
Yes
5.3.1.1.1
Alarm High 5.00 ppm
Alarm Conductivity
Alarm Low 0.00 ppm
Hysteresis 1.00 ppm
Delay 5 Sec
5.3.1.1.1
Alarm Conductivity
Alarm Low 0.00 ppm
Hysteresis 1.00 ppm
Delay 5 Sec
Alarm High 0.20 ppm
Operation

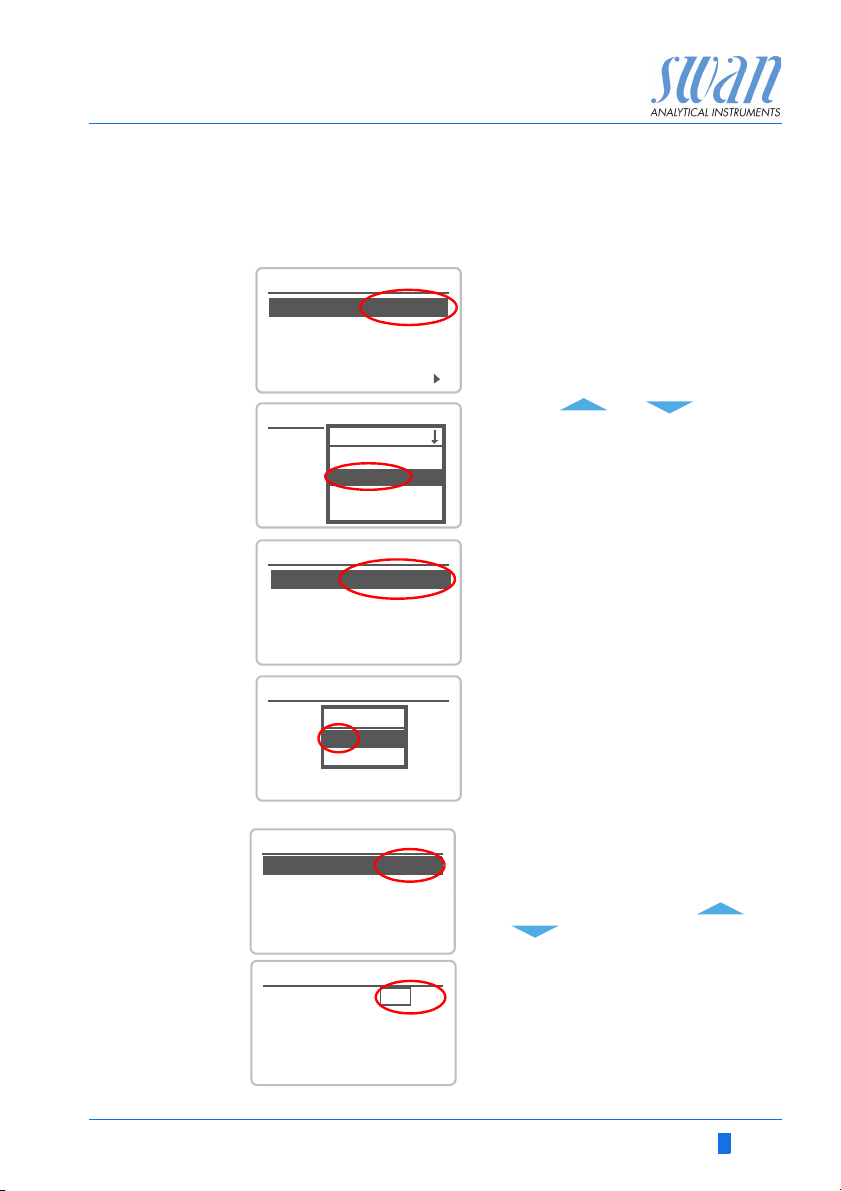

5.4. Changing Parameters and values
Changing
parameters
The following example shows how to change the logger interval:
1 Select the parameter you want to
change.
2 Press [Enter]
3 Press [ ] or [ ] key to
highlight the required parameter.
4 Press [Enter] to confirm the selec-
tion or [Exit] to keep the previous
parameter).
The selected parameter is
highlighted but not saved yet.
5 Press [Exit].
Yes is highlighted.
6 Press [Enter] to save the new pa-
rameter.
The system reboots, the new
parameter is set.
Changing
values
A-96.250.581 / 220616 43
1 Select the value you want to
change.
2 Press [Enter].
3 Set required value with [ ] or
[] key.
4 Press [Enter] to confirm the new
value.
5 Press [Exit].
Yes is highlighted.
6 Press [Enter] to save the new val-
ue.
Page 46
AMI Codes-II CC
Maintenance
6. Maintenance
6.1. Maintenance Schedule
WARNING
Stop operation before maintenance.
Stop sample flow.
Shut off power of the instrument.
Daily (dirty water)
up to every
2 weeks (clean
water)
Every 4–6 weeks Clean reagent containers and prepare new reagents.
Monthly Recommendation: Check photometer with verification kit
Yearly Exchange reagent pump tubes.
By occurrence: E020, FOME dirty: Cleaning the Photometer, p. 55
If option pH is installed
Weekly Perform a process calibration, see Process pH, p. 52.
Every 2 months Perform a standard calibration, see Standard pH, p. 53.
Check sample supply for dirt.
Clean all filters and strainers, if necessary.
Clean AMI Codes protection filter, if necessary.
Check sample flow (see also Troubleshooting, p. 67)
Let instrument run for 1 h. Make 3 manual measurements. Compare average value to displayed value. If necessary, perform process calibration.
Verification, p. 50
E022, Reagent empty: Refill or replace Reagents, p. 46
E065, Reagents low: Refill or replace Reagents, p. 46
44 A-96.250.581 / 220616
Page 47
AMI Codes-II CC
A
B
Maintenance
6.2. Stop of Operation for Maintenance
1 Put the suction lances combined with level detector into a buck-
et with clean water.
2 Start <Fill system>.
The reagent tubes are flushed with water.
3 Remove the suction lances from the water.
4 Start <Fill system> again.
The water will be pumped out of the reagent tubes.
5 Stop sample flow.
6 Wait until the flow cell is empty.
7 Shut off power of the instrument.
If pH option is installed:

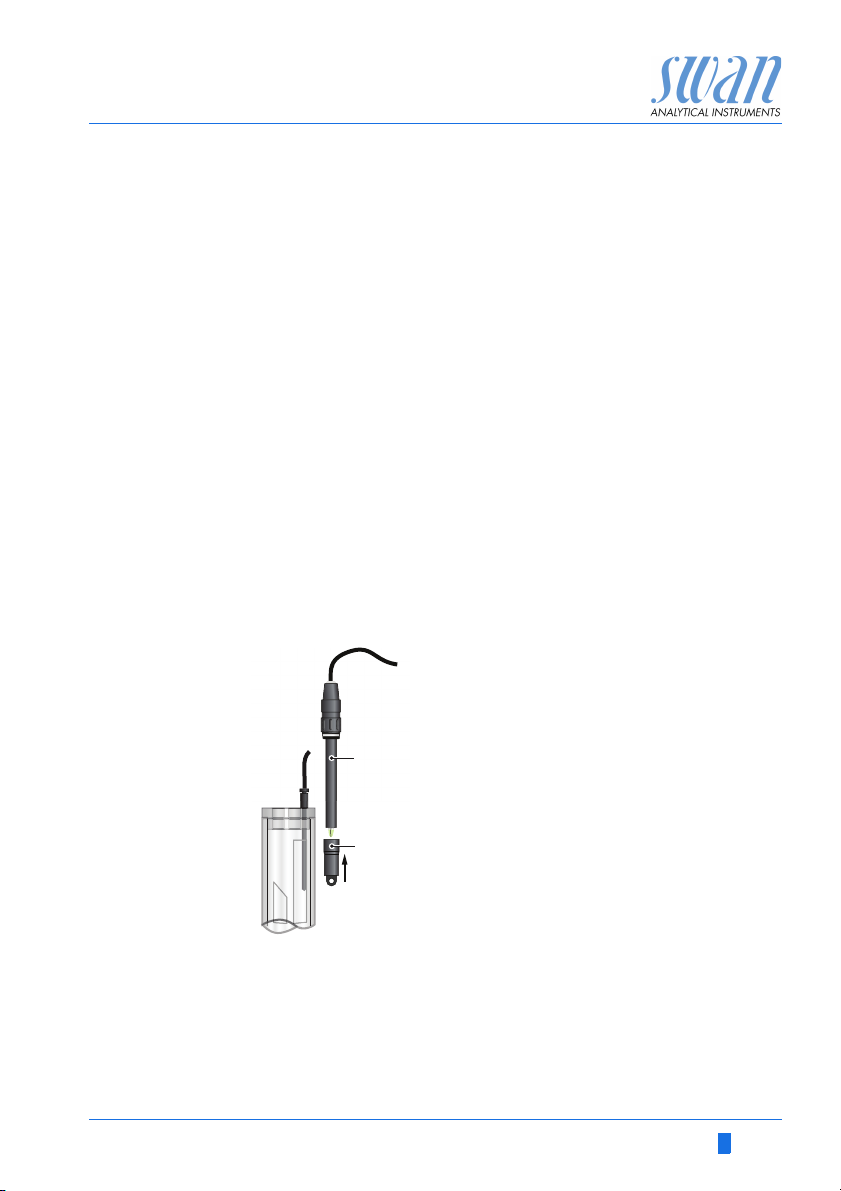

8 Remove the pH sensor [A] from the flow cell.
9 Fill the protective cap [B] with water.
10 Put the protective cap onto the sensor tip.
ABpH sensor
Protective cap
A-96.250.581 / 220616 45
Page 48
AMI Codes-II CC
Maintenance
6.3. Refill or replace Reagents
The liquid level in the containers is monitored.
The following messages are displayed:
Container almost
empty
Container empty Error E022 - Reagent empty
NOTICE: Before refilling the reagents, rinse the container with
demineralized water.
Reagent
consumption
Measuring interval Duration of DPD/ Buffer Duration of KI
The 2 liter reagent container for DPD & Buffer will last for 19 days of
operation (with measurement interval of 4 minutes). The 2 liter reagent container for KI will last for 66 days of operation (with measurement interval of 20 minutes). The provided reagent set (for 8
containers) therefore lasts for 5 respectively 17 months of operation.
As the reagent consumption is not linear find further examples below:
Maintenance E065 - Reagents low and the
remaining reagent volume in %
(starting at 17 % = 340 ml).
fc
2 minutes 10 minutes ~ 14 days 3 months ~ 33 days 8 months
4 minutes 20 minutes ~ 19 days 5 months ~ 66 days 17 months
one canister
tc
filling
WARNING
Health hazard
Some reagents can cause severe burns or eye damage.
For safe handling of the reagents you must read and under-
stand the Material Safety Data Sheets (MSDS), see Material
Safety Data sheets, p. 104
reagent set one canister
filling
reagent set
46 A-96.250.581 / 220616
Page 49
AMI Codes-II CC
Maintenance
Oxycon On-line DPD
WARNING
Severe eye irritation and severe skin irritation.
Concentrated Oxycon On-line DPD contains more than 10%
mineral acids.
Do not swallow.
Avoid any contact with eyes and skin.
Wear protective goggles,
Wear protective gloves.
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do. Continue
rinsing.
Immediately call a POISON CENTER or doctor/ physician.
Oxycon On-line Buffer
Contains citric acid potassium salt, do not swallow.
Oxycon On-line KI
CAUTION
Severe eye irritation and skin irritation.
This product is corrosive and causes severe burns.
Harmful if swallowed.
Avoid any contact with eyes and skin
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do. Continue
rinsing.
A-96.250.581 / 220616 47
Page 50
AMI Codes-II CC
OXYCON ON-LINE
Pufferlösung
Tampon
Buffer Solution
2L
OXYCON ON-LINE
DPD-Reagenz
DPD Réactif
DPD Reagent
2L 2L
OXYCON ON-LINE
KI-Lösung
KI-Solution
A
B
C
E
F
G
D
H
Maintenance
Canister set up
A
Screw cover
B
Level detector
C
Suction lance
D
2 L mark
E
Canister Oxycon
on-line DPD
F
Canister Oxycon
on-line Buffer
G
Canister Oxycon
on-line KI
H
Holder
6.3.1 Reagents for measuring Free Chlorine and Total Chlorine
To prepare 2 L reagents the following chemicals are necessary:
Prepare
Oxycon
On-line DPD
48 A-96.250.581 / 220616
1 x 50 ml of Oxycon On-line DPD
1 x 240 gr of Oxycon On-line Buffer
1 x 60 gr of Reagent Oxycon On-line KI
6 liters demineralized water
NOTICE: To mix the reagents use a screw cover without the
integrated suction lance and level detector.
1 Rinse the canister [E] labelled “OXYCON ON LINE DPD-Re-
agent” with demineralized water.
2 Fill the canister up to the 2 liter mark [D] with demineralized wa-
ter.
3 Slowly pour the content of one bottle of concentrate Oxycon
On-line DPD (50 ml) into the canister.
Avoid splashing!
Page 51
AMI Codes-II CC
Maintenance
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well.
6 Put the canister [E] into the holder [H].
7 Remove the screw cover and insert the suction lance [C] com-
bined with level detector [B] and tighten the screw cover [A].
Prepare
Oxycon
On-line Buffer
Prepare
Oxycon
On-line KI
1 Rinse the canister [F] labelled “OXYCON ON LINE Buffer” solu-
tion with demineralized water.
2 Fill the canister up to the 2 liter mark [D] with demineralized wa-
ter.
3 Slowly pour the content of one bag of buffer Oxycon On-line
Buffer into the canister.
Avoid splashing!
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well.
6 Put canister [F] into holder [H].
7 Remove the screw cover and insert the suction lance [C] com-
bined with level detector [B] and tighten the screw cover [A].
1 Rinse the canister [G] labelled “OXYCON ON LINE KI” solution
with demineralized water.
2 Fill the canister up to the 2 liter mark [D] with demineralized wa-
ter.
3 Slowly pour the content of one bag of Oxycon On-line KI into
the canister.
Avoid splashing!
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well.
6 Put canister [G] into holder [H].
7 Remove the screw cover and insert the suction lance [C] com-
bined with level detector [B] and tighten the screw cover [A].
8 Fill reagent system. See Fill or Flush Reagent System, p. 38
A-96.250.581 / 220616 49
Page 52
AMI Codes-II CC
Maintenance
6.4. Verification

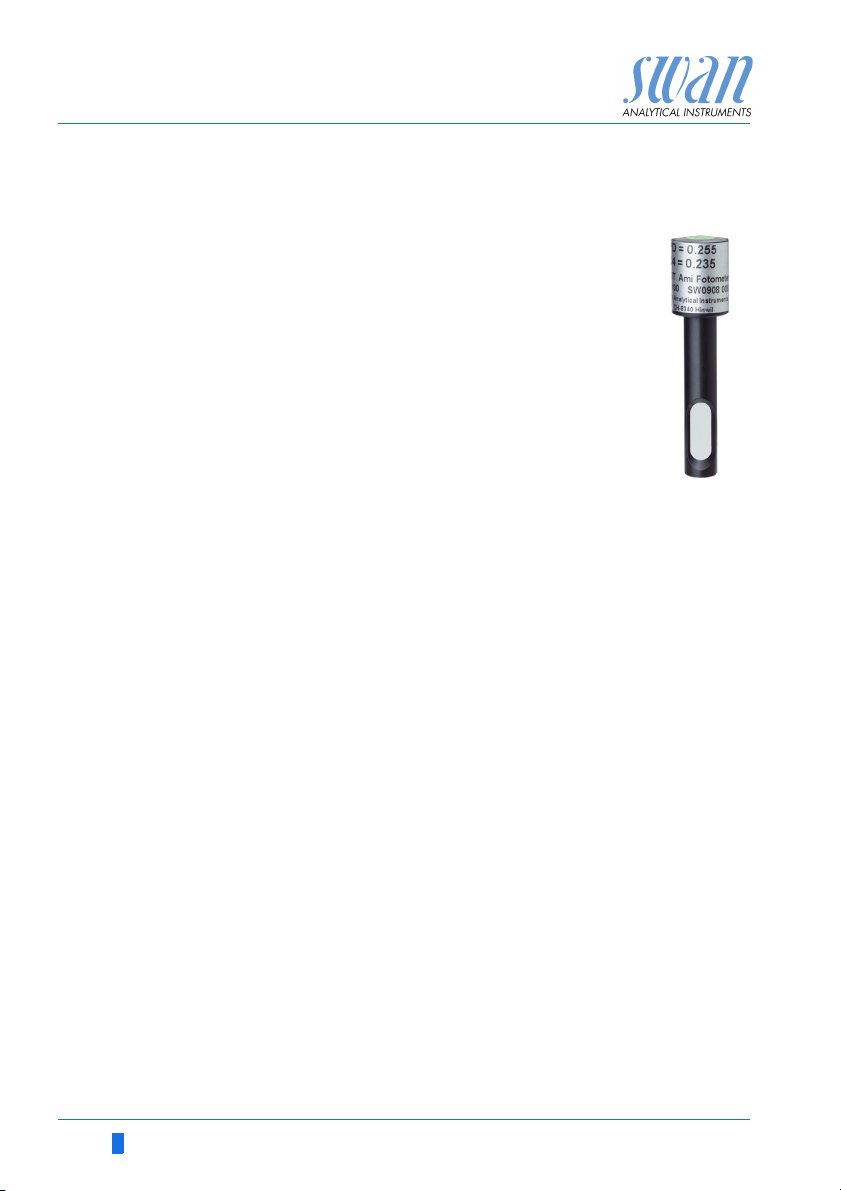

The “Verification kit for AMI Photometer” is available as
an accessory. An optical window with a precisely determined absorbance value is placed into the light beam
of the photometer. The actual measured absorbance
will be compared to the reference value labeled on
each kit.
Set reference
value:
Verification
procedure:
Verification
history:
Prior to performing the verification the DPD reference value, e.g.
0.255, needs to be set in menu 5.1.4
<Installation>\<Sensors>\<Ref. Verification>.
Basically follow the dialog in menu 3.2.1
<Maintenance>\<Service>\<Verification>.
NOTICE: Start any time, if a measuring cycle is in progress wait
for next prompt.
1 Stop sample flow by closing regulating valve. Wait for next
prompt: Constant head will be drained and an automatic zero
will be defined.
2 Open cuvette of the photometer and insert the verification filter.
[Enter] to continue.
3 Align the triangle shape either to the front– or backside and ad-
just for minimal absorbance (see AMI Display).
4 Press [Enter] to save the verification measurement. The verifi-
cation is successful if the difference is within the limits. [Enter] to
continue.
5 Remove filter, close cuvette and open regulating valve. [Enter]
to finish and [Exit] to the main display.
Can be reviewed in menu 2.2.1.5
<Diagnostics>\<Sensors>\<Photometer> \ <Ver. History>
50 A-96.250.581 / 220616
Page 53
AMI Codes-II CC
3.1.1
Total chlorine 2
Free av. chlorine
Calibration
Process pH
Standard pH
3.1.1.4
Free av. chlorine
Current Value x.xx ppm
Slope x.xxx
Save <Enter>
Process Value x.xx ppm
3.1.1.4
Free av. chlorine
Current Value x.xx ppm
Slope x.xxx
Save <Enter>
Process Value x.xx ppm
3.1.1.5
Free av. chlorine
Current Value x.xx ppm
Slope x.xxx
Calibration Successful
Maintenance

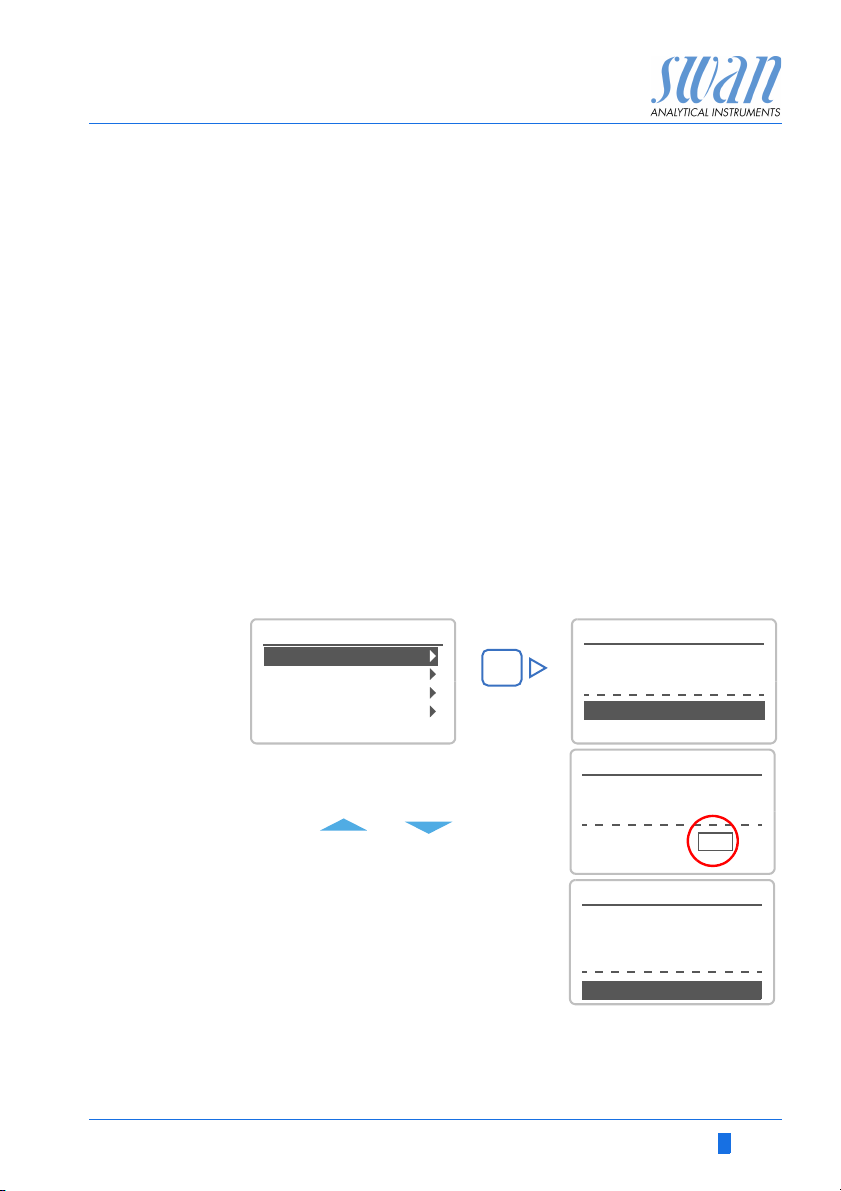

6.5. Calibration
Process
Calibration
of tc & fc
Let the instrument run for 1 h.
NOTICE: Perform process calibration for free chlorine or total
residual chlorine only if:
• the sample concentration is close to the desired process
value (stable value).
• you are sure that the reagents are mixed completely and
correctly.
• if the difference to the manual measurement is significant.
• Keep in mind the accuracy of your manual measurement.
Use CHEMATEST 25 (or equivalent photometer) to determine the
sample disinfectant concentration. Determine the sample disinfectant value by 3 manual DPD measurements. Take the sample direct
form the constant head. Calculate the average value. Compare this
value to the value, indicated by the AMI transmitter. Keep in mind
the accuracy of your manual measurement. Only correct the instrument if the difference is significant.
Enter
Enter the correct value
with the [ ] or [ ]
key.
A-96.250.581 / 220616 51
Press 3 x [Exit]
Possible error messages see Calibration Errors, p. 68.
Page 54
AMI Codes-II CC
3.1
Calibration
Service
Maintenance
Set Time 01.01.05 16:30:00
Calibration
Simulation
Cleaning
3.1.2
Calibration
Free av. chlorine
Process pH
Standard pH
Total chlorine 2
Process pH
Offset x mV
Save <Enter>
Process Value 7.78 pH
3.1.2.4
Current Value 7.78 pH
Process pH
Current Value 7.78 pH
Offset x mV
Save <Enter>
Process Value 7.70 pH
3.1.2.4
3.1.2.5
Process pH
Current Value 7.70 pH
Offset y mV
Slope x.xx mV
Calibration successful
3.1.2.5
Process pH
Current Value 7.70 pH
Offset y mV
Process Value 7.70 pH
Save <Enter>
Maintenance
Zero A zero is automatically done before each measurement.
Process pH Use a Chematest 25 photometer (or equivalent) to determine the
sample pH value. Insert the electrode through a hole in the constant head cover into the constant head.
NOTICE: Make sure your reference instrument is calibrated
correctly!
Enter
Enter the correct value
with the [ ] or [ ]
key.
Enter
Possible error messages see Calibration Errors, p. 68.
52 A-96.250.581 / 220616
Page 55
AMI Codes-II CC
Enter
Enter
3.1
Calibration
Simulation
Maintenance
Set Time 01.06.04 16:30:00
Fill System
Cleaning
3.1.3
Process pH
Standard pH
Calibration
Free av. chlorine
Total chlorine 2
Maintenance

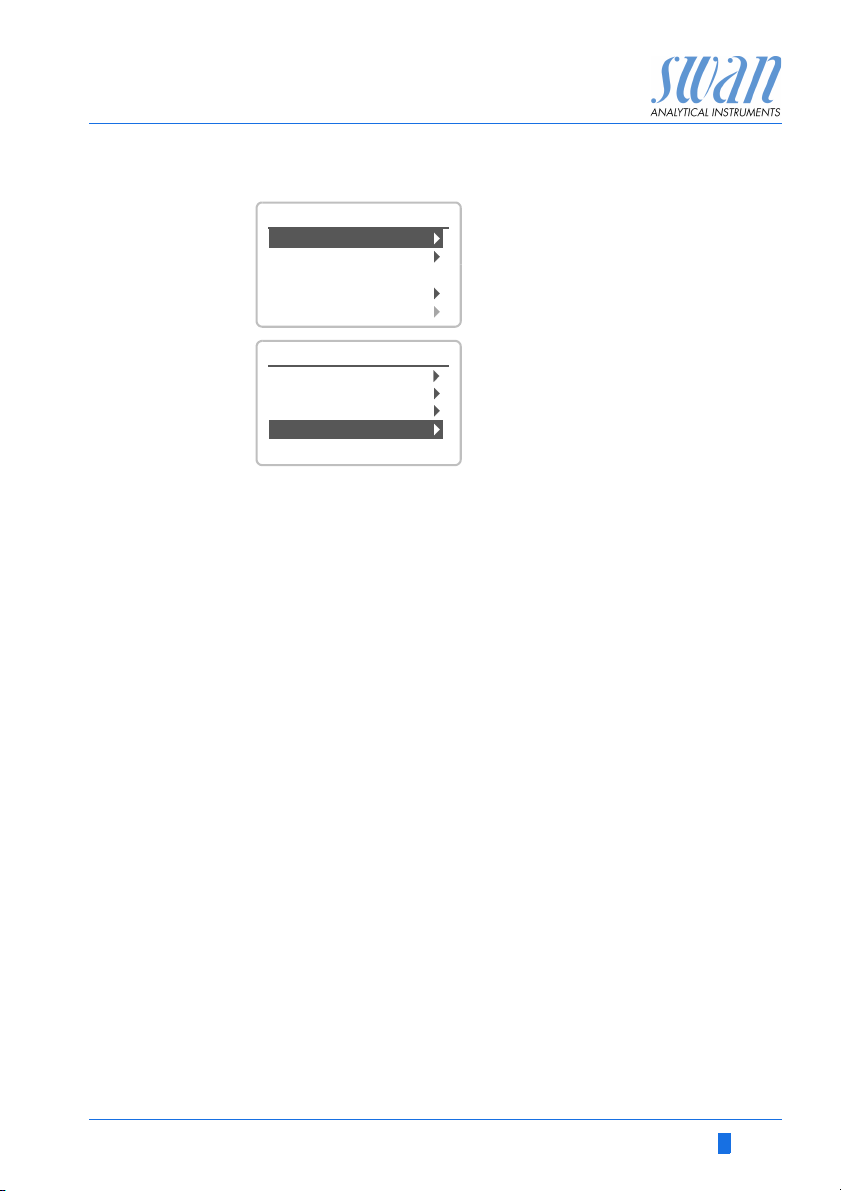

Standard pH
Display
instructions
1 Navigate to menu <Maintenance> /
<Calibration>.
2 Press [Enter].
3 Remove the pH sensor from the
flow cell.
4 Follow the instructions on the dis-
play.
1 Rinse and dry the pH sensor and put it into standard 1
2 Standard 1, current value (Progress is shown).
3 Rinse and dry the pH sensor and put it in standard 2
4 Standard 2, current value (Progress is shown)
5 Rinse and dry the pH sensor and put it into the flow cell
Possible error messages see Calibration Errors, p. 68.
A-96.250.581 / 220616 53
Page 56
AMI Codes-II CC
C
D
E
B
A
Maintenance
6.6. Cleaning the protective Filter
Switch off the instrument according to instructions in Stop of Opera-
tion for Maintenance, p. 45
Normally the filter in your sample supply line will retain most debris.
If the filter shows deposits, proceed as follows:
A
Flow cell block
B
Flow regulating valve
C
Filter shaft
D
Filter
E
Filter vessel
1 Close the main tap of the sample inlet.
2 Close flow regulating valve [B].
3 Unscrew and remove the filter vessel [E] from the
flow cell block [A].
4 Hold the filter [D] on the shaft [C] and unscrew and remove it.
5 Backwash the filter under pressure of tap water.
6 Clean the outside of the filter.
7 Install the filter and the filter vessel again.
8 Establish the sample flow.
9 Adjust sample flow with the regulating valve.
54 A-96.250.581 / 220616
Page 57
AMI Codes-II CC
A
B
C
D
C
Maintenance

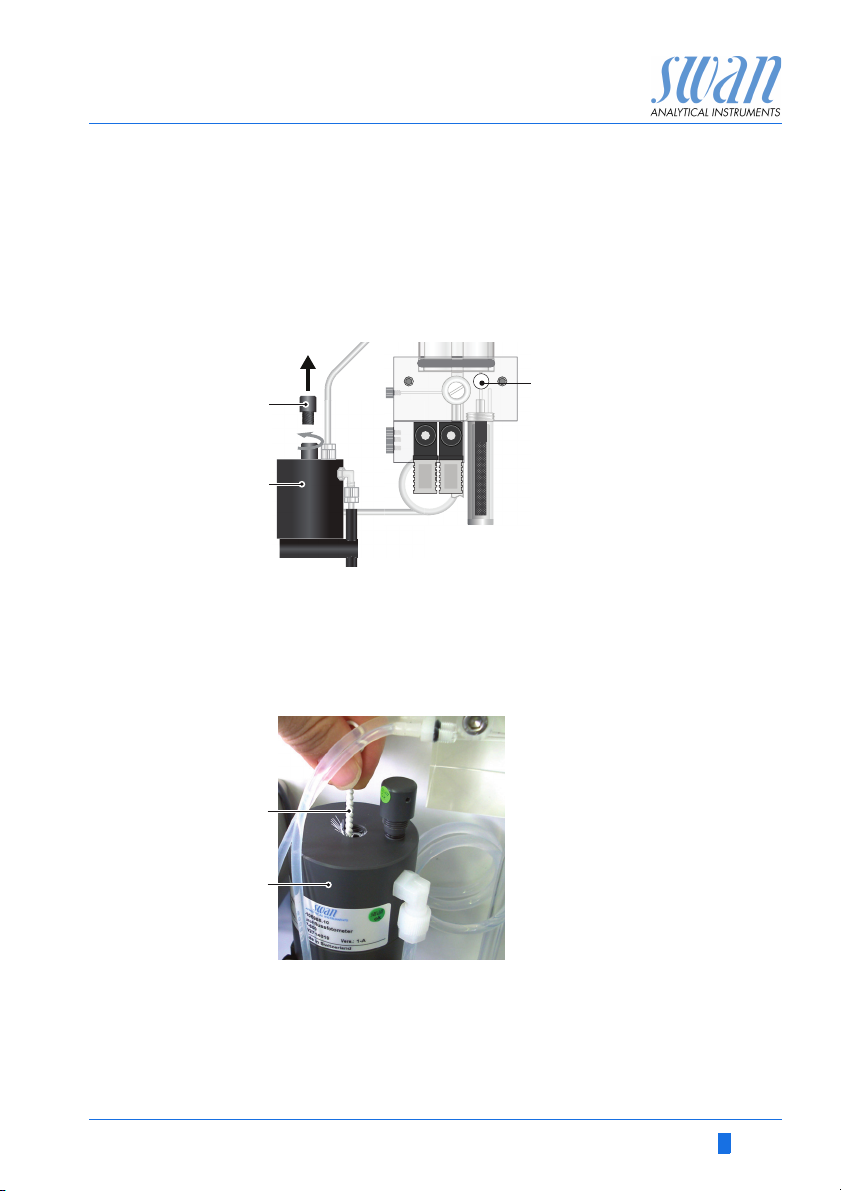

6.7. Cleaning the Photometer
Clean the photometer after indication by alarm (E020, FOME dirty).
Switch off the instrument according to instructions in Stop of Opera-
tion for Maintenance, p. 45.
Material Small brush.
Procedure
1 Close the flow regulating valve [A].
2 Wait until the sample flow through the photometer has stopped.
3 Unscrew the cover [B] from the photometer [C].
A
Flow regulating valve
B
Photometer cover
C
Photometer
D
Brush
4 Clean the Photometer with a small brush [D].
5 Screw the cover to the photometer.
A-96.250.581 / 220616 55
6 Open the flow regulating valve.
Clean the photometer after indication by alarm (E020, FOME dirty)
Page 58
AMI Codes-II CC
Maintenance
6.8. Cleaning the Flow Cell
CAUTION
Acrylic glass parts are fragile and scratch-sensitive.
Possible damage of acrylic glass parts due to scrubbing materials.
Never use organic solvents or scrubbing materials to clean
acrylic glass parts.
Use soft detergent and rinse well. Eliminate lime deposits with
a common household deliming agent in standard concentration.
Do not drop the constant head tube
56 A-96.250.581 / 220616
Page 59
AMI Codes-II CC
Level
A
B
D
E
C
Maintenance
6.8.1 Disassemble the Flow Cell
The flow cell can be disassembled easily. Before disassemble the
flow cell, switch off the instrument according to instructions in Stop
of Operation for Maintenance, p. 45.
A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Flow cell block
E
Flow regulating valve
Cleaning 1 Switch off the instrument according to instructions in Stop of
A-96.250.581 / 220616 57
Operation for Maintenance, p. 45
2 Remove the constant head cover [A].
3 Remove the constant head tube [C] from the flow cell block.
4 Pull the overflow tube [B] out of the flow cell block [D].
5 Clean all acrylic parts with a soft brush (bottle cleaner) and
soapy water.
6 Remove lime deposits with a common household deliming
agent with standard concentrations.
7 Rinse the parts carefully with clean water.
Page 60
AMI Codes-II CC
Level
A
B
D
C
E
Maintenance
6.8.2 Assemble the Flow Cell
A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Gasket
E
Flow cell block
1 Replace the gasket [D] before reassembling the flow cell.
NOTICE: A film of teflon paste (e.g. Fomblin from Solvay
Solexis) on the gaskets improves tightness and life time.
2 Push the overflow tube [B] through the flow cell block as far as it
reaches the drain.
3 Install the constant head tube [C] onto the flow cell block.
4 Put the cover onto the constant head.
5 Align the overflow tube with the upper level mark.
58 A-96.250.581 / 220616
Page 61
AMI Codes-II CC
A
B
C
D
Maintenance
6.9. Maintenance of pH sensor
A
Connector
B
pH sensor shaft
C
Flow cell cover
D
Flow cell
Clean
pH sensor
A-96.250.581 / 220616 59
1 Remove the pH sensor [B] from the flow cell.
2 Unscrew and remove the connector [A] from the pH sensor.
Prevent the connectors from getting wet
3 If necessary wipe the pH sensor shaft and the green tip cau-
tiously with a soft, clean, and damp paper tissue.
4 Remove grease with a tissue moistened with alcohol.
CAUTION: Alcohol is inflammable.
5 If the sensor is very dirty put it into 1% diluted hydrochloric acid
for 1 min.
CAUTION! hydrochloric acid is corrosive!
6 Rinse the pH sensor with clean water.
Page 62
AMI Codes-II CC
Maintenance
6.10. Tube Replacement
6.10.1 Replace the Pump Tubes
The pump tube [D] of the peristaltic pump is exposed to a minimal
wear.
It is therefore recommended to exchange the pump tube annually.
CAUTION
Pollution of reagents possible.
If the occlusion frames are opened during operation, already
mixed reagents will flow back into the reagent canisters and pollute the reagents.
Never open the occlusion frames if the instrument is in opera-
tion.
Proceed according to Stop of Operation for Maintenance, p.
45 before opening the occlusion frames.

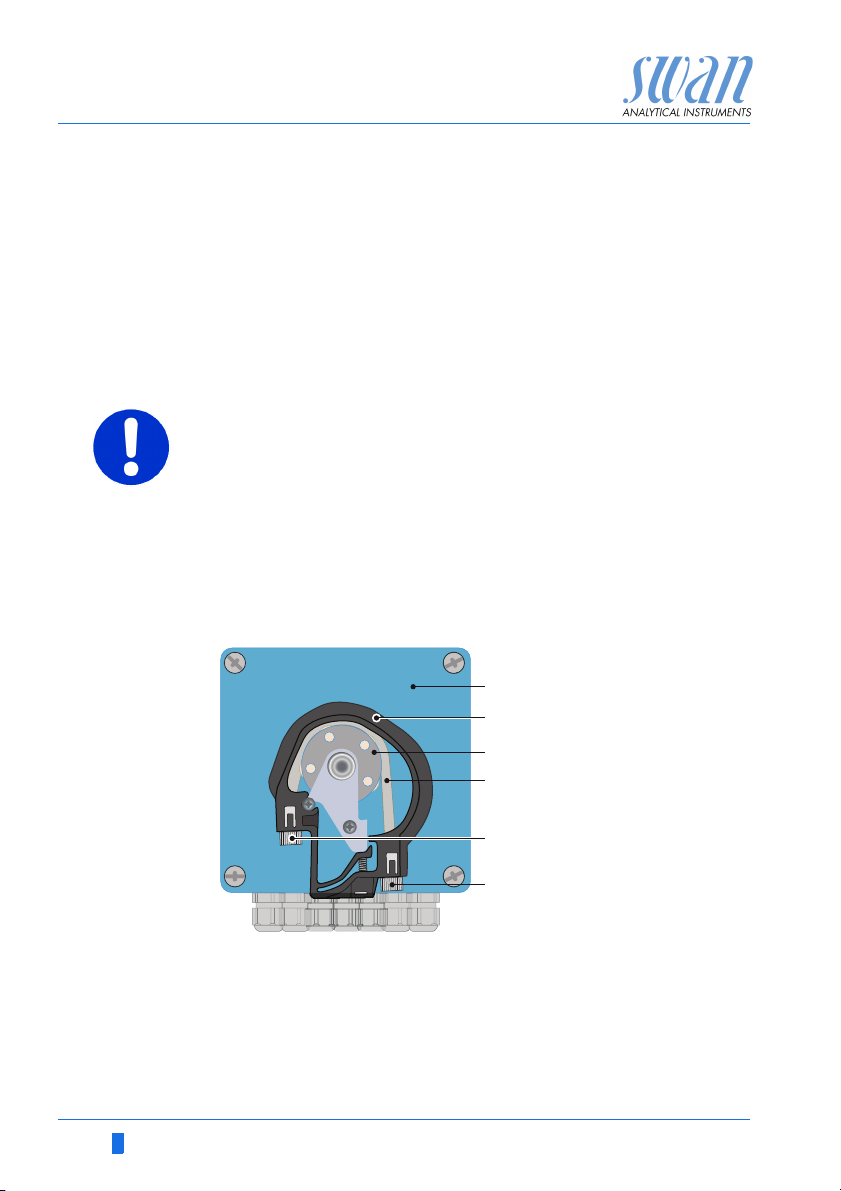

Overview
A
Pump housing
B
A
B
C
D
E
F
Occlusion frame
closed
C
Rotor
D
Pump tube
E
Pump inlet
F
Pump outlet
60 A-96.250.581 / 220616
Page 63
AMI Codes-II CC
A
B
D
C
F
E
Maintenance
Dismount
pump tubes
The pump tube can easily be dismounted and mounted.
Proceed as follows:
A
Pump housing
B
Occlusion frame open
C
Rotor
D
Pump tube
E
Pump inlet
F
Pump outlet
1 Switch off the instrument according to instructions in Stop of
Operation for Maintenance, p. 45
2 Open the occlusion frame (B) by turning it counter-clockwise.
3 Remove the occlusion frame (B) from the rotor (C) by pulling
the complete occlusion frame out of the holder.
4 Dismount all reagent tubes from the occlusion frame.
5 Exchange the occlusion frame.
6 Install all reagent tubes.
7 Lock the occlusion frames.
8 Start fill system.
A-96.250.581 / 220616 61
Page 64
AMI Codes-II CC
Level
1 2
Q
13
3
2
7
7
6
6
5
7
6
5
5
4
4
O
MN
Maintenance

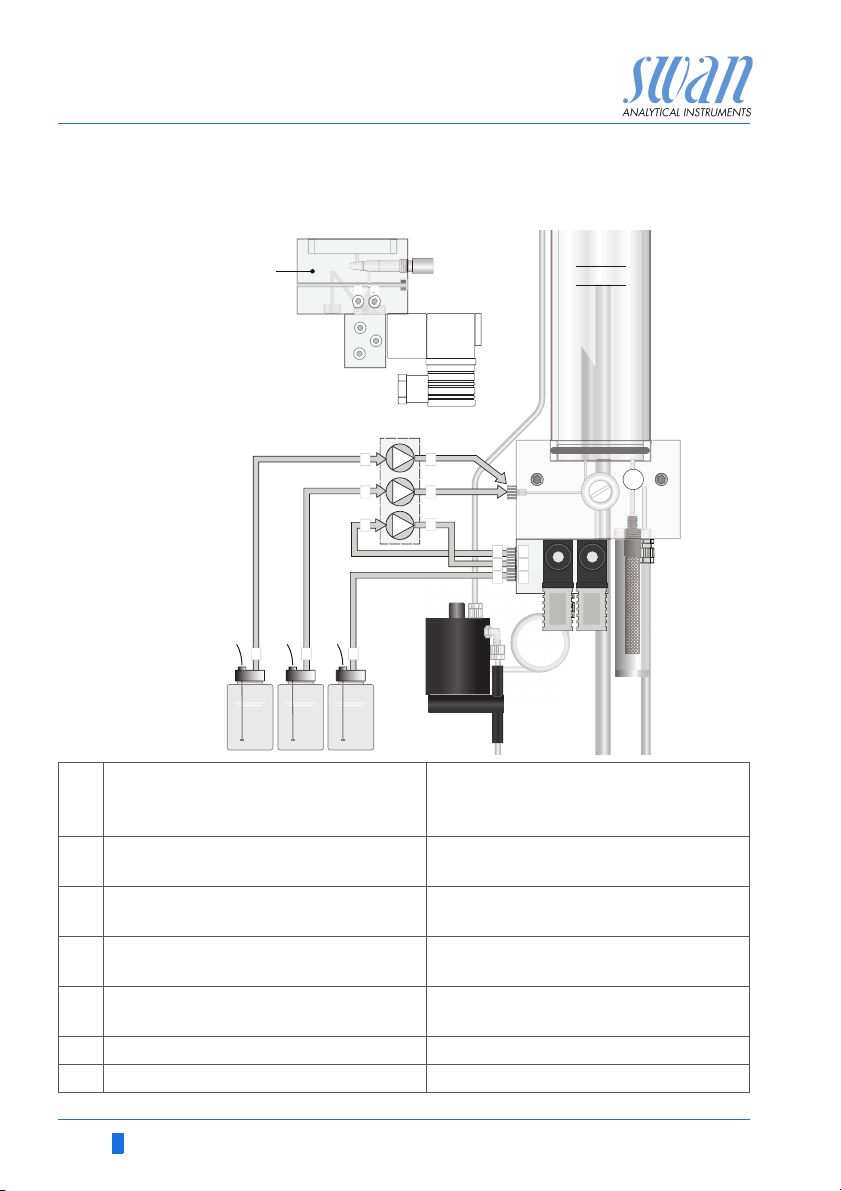

6.10.2 Replace the Reagent Tubes
Tube
numbering
Nr. from to
1 Pump outlet rear frame Flow cell block, connection 1
see Flow cell block side view Q
2 Pump outlet middle frame Flow cell block, connection 2
see Flow cell block side view Q
3 Reagent container (M)
Oxycon on-line DPD
4 Reagent container (N)
Oxycon on-line Buffer
5 Reagent container (O)
Oxycon on-line KI
Pump inlet rear frame
Pump inlet middle frame
Valve block connection 5
6 Valve block connection 6 Pump inlet front frame 6
7 Pump outlet front frame Valve block connection 7
62 A-96.250.581 / 220616
Page 65
AMI Codes-II CC
B
A
Maintenance
6.11. Cleaning the solenoid valve
Disassemble
the solenoid
valve
The solenoid valves are mounted at the bottom of the flow cell
block. The solenoid valve should be disassembled if it does not
switch anymore or if it is clogged.
ABValve 1 switches the sample flow
through the photometer on and off.
Valve 2 is used for adding the
Reagent Oxycon on-line KI.
1 Switch off the instrument according to instructions in Stop of
Operation for Maintenance, p. 45
2 Loosen the nut (A).
A
3 Remove the solenoid coil (B) from
the valve body (C).
B
C
A-96.250.581 / 220616 63
Page 66
AMI Codes-II CC
F
G
H
Maintenance

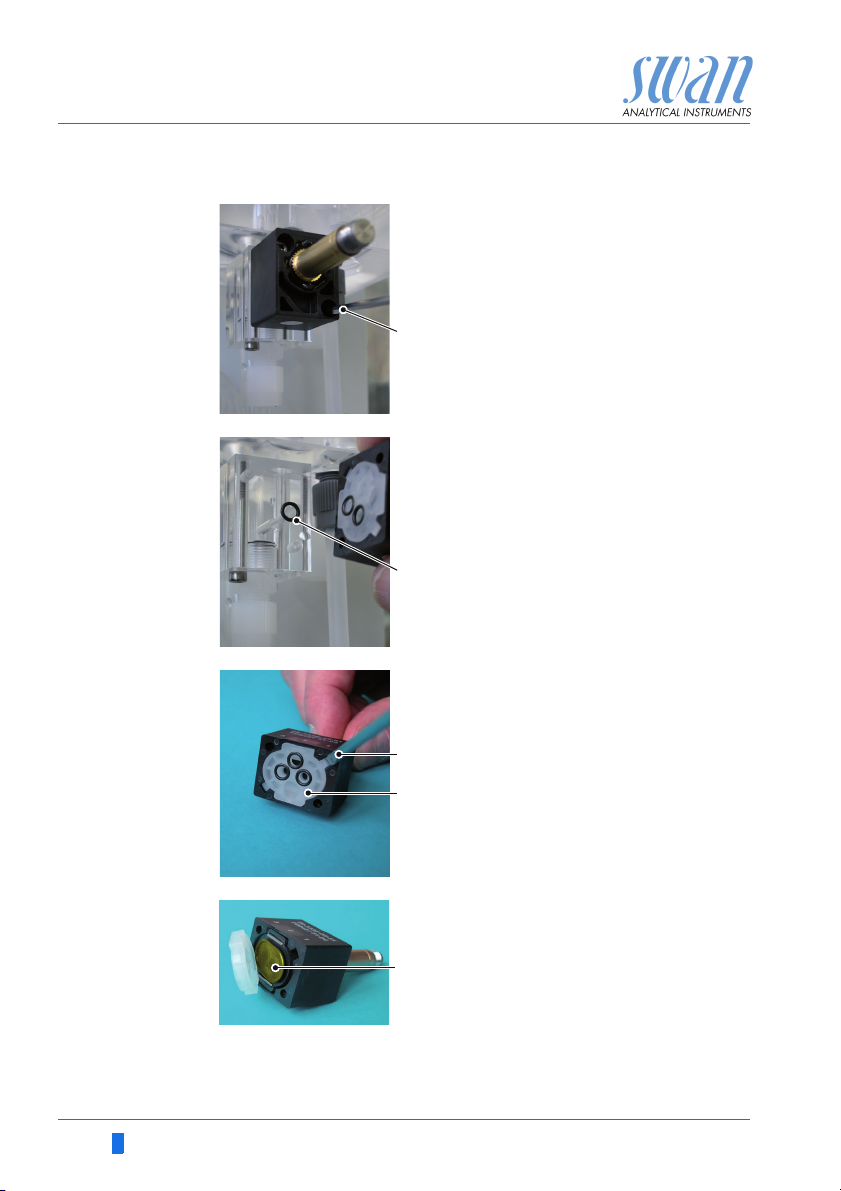

4 Loosen the fixing screws of the
valve body with a 2.5 mm Allen key
(D).
D
NOTICE: The O-rings inside the
valve body may stick on the flow
cell and fall down if the valve body
is removed.
5 Remove the valve body from the
flow cell.
E
6 Remove the base plate (G) with a
screw driver size 0 (F).
The membrane (H) is now
visible.
7 Clean base plate (G) and mem-
brane (H) with clean water.
8 If necessary replace the mem-
brane.
Assemble Assemble the solenoid valve in reverse order.
64 A-96.250.581 / 220616
Page 67
AMI Codes-II CC
A
B
CDEF G
Maintenance
6.12. Replacing Fuses
WARNING
External Voltage.
External supplied devices connected to relay 1 or 2 or to the
alarm relay can cause electrical shocks.
Make sure that the devices connected to the following con-
tacts are disconnected from the power before resuming installation.
– relay 1
– relay 2
– alarm relay
When a fuse has blown, find out the cause and fix it before
replacing it with a new one.
Use tweezers or needle-nosed pliers to remove the defective fuse.
Use original fuses provided by SWAN only.
A-96.250.581 / 220616 65
A
1.6 AT/250V Instrument power supply
B
1.0 AT/250V Relay 1
C
1.0 AT/250V Relay 2
D
1.0 AT/250V Alarm relay
E
1.0 AF/125V Signal output 2
F
1.0 AF/125V Signal output 1
G
1.0 AF/125V Signal output 1
Page 68
AMI Codes-II CC
Maintenance
6.13. Longer Stop of Operation
1 Put the suction lances combined with level detector into bucket
with clean water.
2 Start <Fill system>.
The reagent tubes are flushed with water.
3 Remove the suction lance from the water.
4 Start <Fill system> again.
The water will be pumped out of the reagent tubes.
5 Stop sample flow.
6 Wait until level in flow cell has fallen to the shorter tube inside
the cell.
7 Shut off power of the instrument.
8 Empty the flow cell completely.
9 Open the occlusion frames of the peristaltic pump, see Replace
the Pump Tubes, p. 60.
If option pH is installed
10 Unscrew and remove the connector from the pH sensor.
11 Put the connector cap onto the sensor connector.
12 Fill 3.5 molar KCl (if not available: water) into the rubber cap.
13 Remove the pH sensor from the flow cell and place the rubber
cap on the tip of the sensor
CAUTION
Damage of pH sensor
Wrong storage will damage the pH sensor.
Never store the pH sensor dry.
Store the pH sensor with tip pointing downwards in a frost-
protected room.
66 A-96.250.581 / 220616
Page 69
AMI Codes-II CC
Troubleshooting
7. Troubleshooting
This chapter provides some hints to make troubleshooting easier.
For any detailed information how to handle or clean parts please
see Maintenance, p. 44. For any detailed information how to program the instrument please see Program List and Explanations, p.
80.
7.1. General Instructions
NOTICE: The sample for the manual measurement (with DPD)
must be taken directly from the flow cell.
If you need further help please contact your dealer. Note serial
number of instrument and all diagnostic values before doing so.
Diagnostic
values
Frequently
asked
questions
Zero photometry: 10’000–16’000 Hz (mostly near 16 000 Hz)
Slope photometry: 0.8–1.2
pH offset: New pH sensor: near 0, old pH sensor > 50 mV
pH slope: typically: 55–62 mV/pH unit.
Problem Possible Reasons
Unstable values
Codes display
higher or lower than
manual measurement
Sample flow alarm,
but there is sample
Sample taken too close to feeding line
Sample flow too irregular or too low
Wrong manual measurement or old
chemicals have been used. Repeat the
verification.
Reagents of AMI Codes mixed wrongly or
not completely
Check sample flow at photometer outlet.
It must be at least 100 ml/ min. For that
place the photometer outlet tube into a
measuring cup for 1 minute.
Check sample line for pressure fluctua-
tion.
Check for regular air bubble pattern.
Check flow alarm values in menu 5.3.1.3,
p. 95)
A-96.250.581 / 220616 67
Page 70
AMI Codes-II CC
Troubleshooting
7.2. Calibration Errors
7.2.1 Process calibration tc or fc
Possible error
message
7.2.2 Process pH
Possible error
message
Slope error:
Possible cause Corrective Action
Wrong manual measurement.
Wrong reagent mixture
Reagents not complete-
ly solved in water.
Offset error:
Possible cause Corrective Action
Manual measurement
wrong.
Slope of last calibration
wrong.
pH sensor dirty, old or
defect.
Cable connector corroded. Replace cable and sensor.
Repeat the manual measurement.
Use fresh reagents.
Make a correct mixture.
Mix long and intensively.
Repeat the manual measurement.
Set default calibration values, see
5.4.2, p. 103
Repeat the calibration
Clean or replace pH sensor, see
Maintenance of pH sensor, p. 59.
7.2.3 Standard pH
Possible
error message
Offset error or Slope error:
Possible cause Corrective Action
Old, dirty or wrong buffer
solutions.
Verify programmed buffer
values with the values of
the buffer solution used.
pH sensor dirty, old or
defect.
Cable connector corroded. Replace cable and sensor.
Check buffers expiration date if necessary order new buffer.
Change programmed buffer values
or use correct buffer solution.
Clean or replace pH sensor, see
Maintenance of pH sensor, p. 59.
68 A-96.250.581 / 220616
Page 71
AMI Codes-II CC
25.4°C
HOLD
28 B/s
14:10:45
R1
0.22 ppm
0.26 ppm
0.04 ppm
R2
1
Installation
Operation
Diagnostics
Messages
Maintenance
Main Menu
1.1
Maintenance List
Pending Errors
Messages
Message List
1.1.5
Pending Errors
Error Code E002
Alarm low
<Enter> to Acknowledge
Troubleshooting

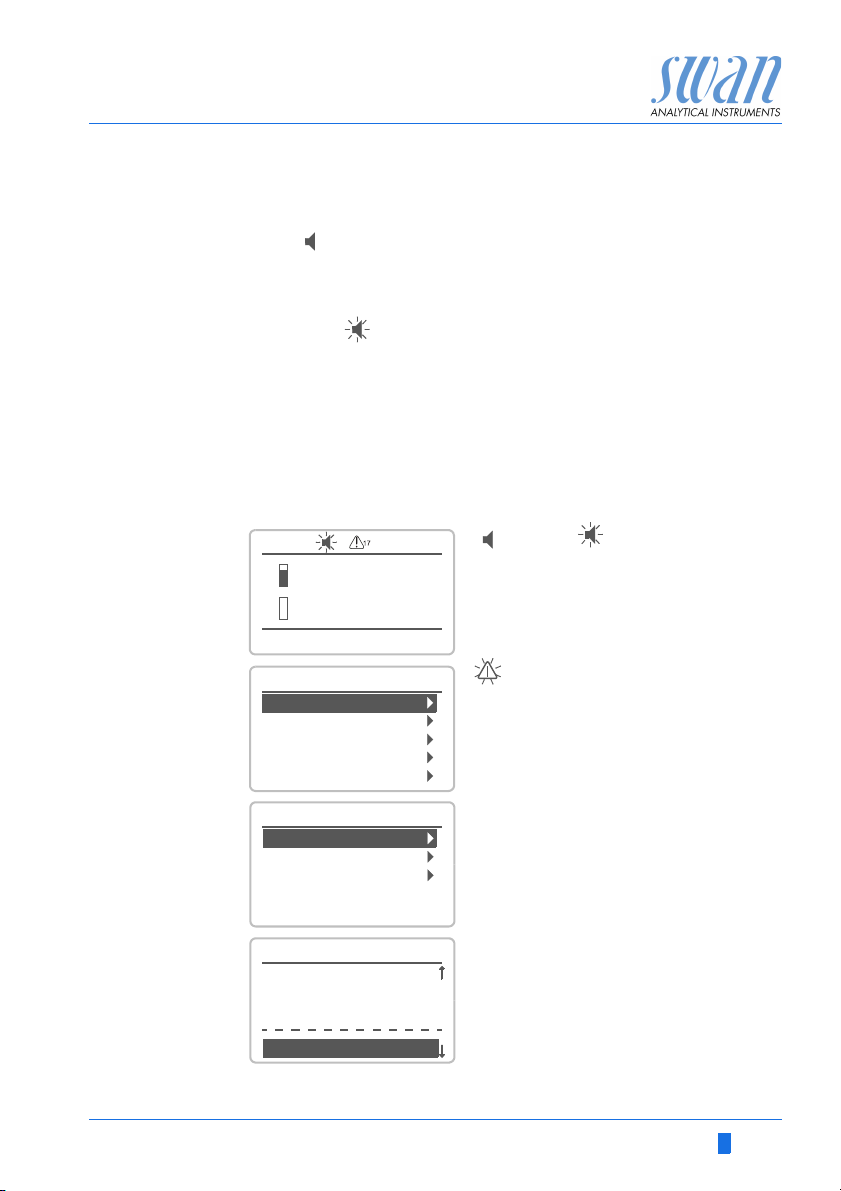

7.3. Error List
Error
Non-fatal Error. Indicates an alarm if a programmed value is exceeded.
Such Errors are marked E0xx (bold and black).
Fatal Error (blinking symbol)
Control of dosing devices is interrupted.
The indicated measured values are possibly incorrect.
Fatal Errors are divided in the following two categories:
Errors which disappear if correct measuring conditions are re-
covered (i.e. Sample Flow low).
Such Errors are marked E0xx (bold and orange)
Errors which indicate a hardware failure of the instrument.
Such Errors are marked E0xx (bold and red)
Error or fatal Error
Error not yet acknowledged.
Check Pending Errors 1.1.5 * and
take corrective action.
Press [ENTER].
A-96.250.581 / 220616 69
Reagent level low
Indicates the remaining reagent in percent
Navigate to menu Messages.
Press [ENTER].
Navigate to menu Pending Errors.
Press [ENTER].
Press [ENTER] to acknowledge the
Pending Errors. The Error is reset and
saved in the Message List.
* Menu numbers see
Program Overview, p. 73
Page 72
AMI Codes-II CC
Troubleshooting
Error Description Corrective action
E001 Alarm high fac
(Free available chlorine)
E002 Alarm low fac
(Free available chlorine)
E003 Alarm high tc1
(Total chlorine 1)
E004 Alarm low tc1
(Total chlorine 1)
E005 Alarm high tc2
(Total chlorine 2)
E006 Alarm low tc2
(Total chlorine 2)
E007 Sample Temp.high
E008 Sample Temp. low
– check process
– check programmed value 5.3.1.1.1.1, p.
93
– check process
– check programmed value 5.3.1.1.1.26,
p. 93
– check process
– check programmed value 5.3.1.1.2, p.
94
– check process
– check programmed value, 5.3.1.1.2, p.
94
– check process
– check programmed value 5.3.1.1.3, p.
94
– check process
– check programmed value 5.3.1.1.3, p.
94
– check sample temperature
– check programmed value 5.3.1.5, p. 95
– check sample temperature
– check programmed value 5.3.1.5, p. 95
E009 Sample Flow high
E010 Sample Flow low
– check Inlet pressure
– readjust sample flow
– check program value 5.3.1.4.2, p. 95
– check Inlet pressure
– readjust sample flow
– clean instrument, see Cleaning the
protective Filter, p. 54
– check program value 5.3.1.4.36, p. 95
70 A-96.250.581 / 220616
Page 73
AMI Codes-II CC
Troubleshooting
Error Description Corrective action
E011 Temp. shorted
E012 Temp. disconnected
E013 Case Temp. high
E014 Case Temp. low
E015 Valve 1 defective
E016 DIS invalid
E017 Control Timeout
E018 Reagent Pump
– check wiring of temperature sensor, see
Connection Diagram, p. 29
– check temperature sensor
– check wiring of temperature sensor, see
Connection Diagram, p. 29
– check temperature sensor
– check case/environment temperature
– check program value 5.3.1.2, p. 95
– check case/environment temperature
– check program value 5.3.1.3, p. 95
– Check Valve 1, see Cleaning the
solenoid valve, p. 63
– This error appears after start-up and will
disappear after the first valid
measurement is finished.
– check control device or programming in
Installation, Relay contact, Relay 1/2
5.3.2 and 5.3.3, p. 97
– shut off power
– check wiring, see Connection Diagram,
p. 29
E019 Photometer not con-
nected
E020 Photometer dirty
E021 Absorbance too high
E022 Reagent empty
A-96.250.581 / 220616 71
– shut off power
– check wiring, see Connection Diagram,
p. 29
– check process
– clean the photometer, see Cleaning the
Photometer, p. 55
– Appears if disinf. value is too high
– Check dosing system or process
– refill reagents,
see Refill or replace Reagents, p. 46
Page 74
AMI Codes-II CC
Troubleshooting
Error Description Corrective action
E023 Cleaning Solution
E024 Input active
E026 IC LM75
E028 Signal output open
E030 EEprom Frontend
E031 Calibration Recout
E032 Wrong Frontend
E039 Alarm high pH
E040 Alarm low pH
E049 Power-on
E050 Power-down
E065 DPD / Buffer
– refill cleaning solution, see 6.3., 46
– See If Fault Yes is programmed in Menu
5.3.4, p. 102
– call service
– check wiring on signal outputs 1 and 2
– call service
– call service
– call service
– check process
– check programmed value 5.3.1.6, p. 96
– check process
– check programmed value 5.3.1.6, p. 96
– none, normal status
– none, normal status
– Operating display, upper status line: The
number next to the triangle, indicates
the remaining reagents in%. Refill
reagents on time. See Refill or replace
Reagents, p. 46
E067 Cleaning Solution
– Operating display, lower status line: The
number next to the triangle, indicates
the remaining cleaning solution in %.
Refill cleaning solution on time.
72 A-96.250.581 / 220616
Page 75
AMI Codes-II CC
Program Overview
8. Program Overview
For explanations about each parameter of the menus see Program
List and Explanations, p. 80.
Menu 1 Messages informs about pending errors and mainte-
nance tasks and shows the error history. Password protection
possible. No settings can be modified.
Menu 2 Diagnostics is always accessible for everybody. No
password protection. No settings can be modified.
Menu 3 Maintenance is for service: Calibration, simulation of
outputs and set time/date. Please protect with password.
Menu 4 Operation is for the user, allowing to set limits, alarm
values, etc. The presetting is done in the menu Installation
(only for the System engineer). Please protect with password.
Menu 5 Installation: Defining assignment of all inputs and
outputs, measuring parameters, interface, passwords, etc.
Menu for the system engineer. Password strongly recommended.
8.1. Messages (Main Menu 1)
Reagent Status DPD/Buffer 1.1.1* * Menu numbers
1.1* Potassium Iodide
Cleaning Solution
Pending Errors Pending Errors 1.2.5*
1.2*
Maintenance List Maintenance List 1.3.5*
1.3*
Message List Number 1.4.1*
1.4* Date, Time
A-96.250.581 / 220616 73
Page 76
AMI Codes-II CC
Program Overview
8.2. Diagnostics (Main Menu 2)
Identification Designation AMI Codes-II CC * Menu numbers
2.1* Version V6.00 - 02/16
Peripherals PeriClip 1 / 1.03 2.1.3.1*
2.1.3* PeriClip 2 only with cleaning module
Factory Test Instrument 2.1.4.1*
2.1.4* Motherboard
Front End
Operating Time Years / Days / Hours / Minutes / Seconds 2.1.5.1*
2.1.5*
Sensors Photometer Absorbance
2.2* 2.2.1* (Raw value) Hz
Cal. History Number 2.2.1.4.1*
2.2.1.4* Date, Time
Factor fc
Factor tc
Ver. History Number 2.2.1.5.1*
2.2.1.5* Date, Time
Absorbance
Reference value
pH Electrode Current Value / (Raw value)
2.2.2* Cal. History Number 2.2.2.5.1*
2.2.2.5* Date, Time
Offset / Slope
Miscellaneous Case Temp. 2.2.3.1*
2.2.3*
Sample Sample ID 2.3.1*
2.3* Sample Flow B/ s
(Raw value) Hz
Temperature / (Nt5k)
I/O State Alarm Relay 2.4.1*
2.4* Relay 1 & 2 2.4.2*
Input
Signal Output 1 & 2
Interface Protocol 2.5.1* (only with RS485
2.5* Baud rate interface)
74 A-96.250.581 / 220616
Page 77
AMI Codes-II CC
Program Overview
8.3. Maintenance (Main Menu 3)
Calibration Free av. chlorine Current Value * Menu numbers
3.1* 3.1.1* Factor
Process Value 3.1.1.4*
Total chlorine 2 Current Value
3.1.2* Factor
Process Value 3.1.2.4*
Process pH Current Value
3.1.3* Offset
Process Value 3.1.3.4*
Standard pH (Progress) 3.1.4.5*
3.1.4*
Service Verification (Progress) 3.2.1.1*
3.2* 3.2.1*
Fill System (Progress) 3.2.2.5*
3.2.2*
Simulation Alarm Relay 3.3.1*
3.3* Relay 1 3.3.2*
Relay 2 3.3.3*
Signal Output 1 3.3.4*
Signal Output 2 3.3.5*
Valve 1 3.3.6*
Valve 2 3.3.7*
Set Time (Date), (Time)
3.4*
Cleaning Parameter Mode 3.5.1.1*
3.5* 3.5.1* Start time / Calendar 3.5.1.xx*
Delay 3.5.1.3*
Signal Outputs 3.5.1.4*
Output/Control 3.5.1.5*
Fill Channel 11 (Progress) 3.5.2.5*
3.5.2*
Fill Channel 12 (Progress) 3.5.3.5*
3.5.3*
A-96.250.581 / 220616 75
Page 78
AMI Codes-II CC
Program Overview
8.4. Operation (Main Menu 4)
Sensors Filter Time Const. 4.1.1*
4.1* Hold after Cal. 4.1.2*
Interval fac 4.1.3*
Interval tc2 4.1.4*
Default pH 4.1.5*
Relay Contacts Alarm Relay Free av. chlorine Alarm High 4.2.1.1.1*
4.2* 4.2.1* 4.2.1.1* Alarm Low 4.2.1.1.25*
Hysteresis 4.2.1.1.35*
Delay 4.2.1.1.45*
Total chlorine 1 Alarm High 4.2.1.2.1*
4.2.1.2* Alarm Low 4.2.1.2.25*
Hysteresis 4.2.1.2.35*
Delay 4.2.1.2.45*
Total chlorine 2 Alarm High 4.2.1.3.1*
4.2.1.3* Alarm Low 4.2.1.3.25*
Hysteresis 4.2.1.3.35*
Delay 4.2.1.3.45*
Calc. Monochl. Alarm High 4.2.1.4.1*
4.2.1.4* Alarm Low 4.2.1.4.25*
Hysteresis 4.2.1.4.35*
Delay 4.2.1.4.45*
Alarm pH Alarm High 4.2.1.5.1*
4.2.1.5* Alarm Low 4.2.1.5.25*
Hysteresis 4.2.1.5.35*
Delay 4.2.1.5.45*
Relay 1 & 2 Parameter
4.2.2* & 4.2.3* Setpoint 4.2.x.200*
Hysteresis 4.2.x.300*
Delay 4.2.x.40*
Input Active 4.2.4.1*
4.2.4* Signal Outputs 4.2.4.2*
Output / Control 4.2.4.3*
Fault 4.2.4.4*
Delay 4.2.4.5*
76 A-96.250.581 / 220616
Page 79
AMI Codes-II CC
Program Overview
Logger Log Interval 4.3.1*
4.3* Clear Logger 4.3.2*
Eject USB Stick 4.3.3* (If USB interface is installed)
Display Screen 1 Row 1 4.4.1.1*
4.4* 4.4.1* Row 2 4.4.1.2*
Row 3 4.4.1.3*
Screen 2 Row 1 4.4.2.1*
4.4.2* Row 2 4.4.2.2*
Row 3 4.4.2.3*
* Menu numbers
A-96.250.581 / 220616 77
Page 80
AMI Codes-II CC
Program Overview
8.5. Installation (Main Menu 5)
Sensors Dimension 5.1.1* * Menu numbers
5.1* Interpolation 5.1.2*
Ref. Verification 5.1.3*
Standards Standard 1 5.1.4.1* only with pH option
5.1.4* Standard 2 5.1.4.2*
Cleaning 5.1.5 only with Cleaning Module
Signal Outputs Signal Output 1 & 2 Parameter 5.2.1.1 & 5.2.2.1*
5.2* 5.2.1* & 5.2.2* Current Loop 5.2.1.2 & 5.2.2.2*
Function 5.2.1.3 & 5.2.2.3*
Scaling Range Low 5.2.x.40.10*
5.2.x.40 Range High 5.2.x.40.20*
Relay Contacts Alarm Relay Disinfection Free av. chlorine Alarm High 5.3.1.1.1.1*
5.3* 5.3.1* 5.3.1.1* 5.3.1.1.1* Alarm Low 5.3.1.1.1.25*
Hysteresis 5.3.1.1.1.35*
Delay 5.3.1.1.1.45*
Total chlorine 1 Alarm High 5.3.1.1.2.1*
5.3.1.1.2* Alarm Low 5.3.1.1.2.25*
Hysteresis 5.3.1.1.2.35*
Delay 5.3.1.1.2.45*
Total chlorine 2 Alarm High 5.3.1.1.3.1*
5.3.1.1.3* Alarm Low 5.3.1.1.3.25*
Hysteresis 5.3.1.1.3.35*
Delay 5.3.1.1.3.45*
Case Temp. high 5.3.1.2*
Case Temp. low 5.3.1.3*
Sample Flow Flow Alarm 5.3.1.4.1*
5.3.1.4* Alarm High 5.3.1.4.2*
Alarm Low 5.3.1.4.35*
Temperature Alarm High 5.3.1.5.1*
5.3.1.5* Alarm Low 5.3.1.5.25*
pH Alarm High 5.3.1.6.1*
5.3.1.6* Alarm Low 5.3.1.6.25*
Hysteresis 5.3.1.6.35*
Delay 5.3.1.6.45*
78 A-96.250.581 / 220616
Page 81
AMI Codes-II CC
Program Overview
Relay 1 & 2 Function 5.3.2.1 & 5.3.3.1*
5.3.2* & 5.3.3* Parameter 5.3.2.x & 5.3.3.x*
Setpoint 5.3.2.x & 5.3.3.x*
Hysteresis 5.3.2.x & 5.3.3.x*
Delay 5.3.2.x & 5.3.3.x*
Input Active 5.3.4.1*
5.3.4* Signal Outputs 5.3.4.2*
Output/Control 5.3.4.3*
Fault 5.3.4.4*
Delay 5.3.4.5*
Miscellaneous Language 5.4.1*
5.4* Set defaults 5.4.2*
Load Firmware 5.4.3*
Password Messages 5.4.4.1*
5.4.4* Maintenance 5.4.4.2*
Operation 5.4.4.3*
Installation 5.4.4.4*
Sample ID 5.4.5*
Line break detection 5.4.6*
Interface Protocol 5.5.1* (only with RS485
5.5* Device Address 5.5.21* interface)
Baud Rate 5.5.31*
Parity 5.5.41* *Menu numbers
A-96.250.581 / 220616 79
Page 82
AMI Codes-II CC
Program List and Explanations
9. Program List and Explanations
1 Messages
1.1 Reagent Status
1.1.1 DPD/Buffer: Shows the fill level of the DPD / Buffer.
1.2 Pending Errors
1.2.5 Provides the list of active errors with their status (active, acknowl-
1.3 Maintenance List
1.3.5 Demands necessary maintenance, e.g. preparing new reagents.
1.4 Message List
1.4.1 Shows the error history: Error code, date / time of issue and status
2 Diagnostics
2.1 Identification
2.1.3 Peripherals: PeriClip 1: Firmware of peristaltic pump (e.g. 1.06)
2.1.4 Factory Test: Test date of the Instrument, Motherboard and Fron-
2.1.5 Operating Time: Years / Days /Hours/Minutes/Seconds
Potassium Iodide: Shows the fill level of the Potassium Iodide.
Cleaning solution: Shows the fill level of the Cleaning solution.
A behind the reagent means that the filling level is ok. If the filling level falls below 17%, it is shown in %.
edged). If an active error is acknowledged, the alarm relay is active
again. Cleared errors are moved to the Message list.
(active, acknowledged, cleared). 65 errors are memorized. Then
the oldest error is cleared to save the newest error (circular buffer).
In diagnostics mode, the values can only be viewed, not modified.
Designation: View the Designation of instrument.
Version: Firmware of instrument (e.g. V6.00-02/16)
tend. QC factory test.
80 A-96.250.581 / 220616
Page 83
AMI Codes-II CC
Program List and Explanations
2.2 Sensors
2.2.1 Photometer:
Absorbance: Process value, depends on sample.
Raw value: Shows the actual photometer signal in Hz.
2.2.1.4 Cal. History: Shows the diagnostic values of the last calibrations.
Number: Counter for the calibrations
Date, Time: Date and time assigned to a number.
Factor fc: Factor fc is the multiplier applied to the slope of the free
chlorine calibration line. The ideal factor is 1.00.
Factor tc: Factor tc is the multiplier applied to the slope of the total
chlorine calibration line. The ideal factor is 1.00
2.2.1.5 Ver. History: Shows the verification values of the last verifications:
Number: Calibration counter.
Date, Time: Date and time of the calibration.
Absorbance: Measured absorbance of the reference kit.
Reference value: True value of the reference kit according to
label.
2.2.2 pH Electrode: Only if option pH is installed.
Current Value: Shows the actual measured pH value.
Raw value: Shows the actual electrode voltage in mV.
2.2.2.5 Cal. History: Shows the calibration values of the last pH sensor
calibrations. Offset in mV and slope in mV/pH.
Typical offset of pH electrode: < 30 mV.
Max. tolerated offset: < 60 mV
Typical slope of pH electrode: 55–65 mV/pH unit.
Max. limits: 40– 65 mV/pH
2.2.3 Miscellaneous:
2.2.3.1 Case Temp: Shows the current temperature in °C inside the trans-
mitter.
2.3 Sample
2.3.1 Sample ID: Shows the identification assigned to a sample. This
identification is defined by the user to identify the location of the
sample.
Sample Flow: Shows the actual sample flow in B/s (bubbles per
second). Sample flow must be above 5 B/s.
Raw value: Shows the raw value of the sample flow in Hz.
Temperature: Only if option pH is installed.
Actual sample temperature in °C and in Ohm (NT5K)
A-96.250.581 / 220616 81
Page 84
AMI Codes-II CC
Program List and Explanations
2.4 I/O State
Shows current status of all in- and outputs.
2.4.1 & 2.4.2
2.5 Interface
3 Maintenance
3.1 Calibration
3.1.1 Free av. chlorine: Possibility to correct the free available chlorine
3.1.2 Total chlorine 2: Possibility to correct the total chlorine value. See
3.1.3 Process pH: Only available, if option pH has been installed. Cor-
3.1.4 Standard pH: Only available, if option pH has been installed. Cali-
3.2 Service
3.2.1 Verification: Performs a verification using the reference kit. Follow
3.2.2 Fill System: Activates the reagent pump. The function Fill System
Alarm Relay: Active or inactive
Relay 1 & 2: Active or inactive
Input: Open or closed
Signal Output 1 & 2: Actual current in mA
Signal Output 3: Actual current in mA (if option is installed)
Only available if optional interface is installed.
Shows the programmed communication settings.
In this menu, you can correct measuring values (disinfectant and
pH) or calibrate offset and slope of pH electrode.
value. See Process Calibration of tc & fc, p. 51, for more details.
Process Calibration of tc & fc, p. 51, for more details.
rection of pH electrode. See Process Calibration of tc & fc, p. 51,
for details.
bration of pH electrode with the two standard solutions programmed in Installation 5.1.3. See Standard pH, p. 53, for details.
dialog. See Verification, p. 50
is used to fill or flush the reagent tubes.
82 A-96.250.581 / 220616
Page 85
AMI Codes-II CC
Program List and Explanations
3.3 Simulation
To simulate a value or a relay state, select the
alarm relay,
relay 1 or 2
signal output 1 or 2
valve 1 or 2
with the [ ] or [ ] key.
Press the [Enter] key.
Change the value or state of the selected item with the [ ] or
[ ] key.
Press the [Enter] key.
The value is simulated by the relay / signal output.
Alarm Relay: Active or inactive
Relay 1 & 2: Active or inactive
Signal Output 1 & 2: Actual current in mA
Signal Output 3: Actual current in mA (if option is installed)
Valve 1 (photometer) Active or inactive
Valve 2 (KI supply) Active or inactive
At the absence of any key activities, the instrument will switch back
to normal mode after 20 min. If you quit the menu, all simulated values will be reset.
3.4 Set Time
Adjust date and time.
3.5 Cleaning
Automatic cleaning process using the Cleaning module-II controlled by transmitter of AMI Codes-II CC.
Measurement is interrupted.
Flow error interrupts cleaning.
Cleaning does not start: E022 Reagent empty, E023 Cleaning
solution, no flow.
3.5.1 Parameter:
3.5.1.1 Mode: Select daily, weekly or off.
3.5.1.xx Start time/Calendar: Time off day respectively weekday(s) for the
automatic start of the cleaning process.
A-96.250.581 / 220616 83
Page 86
AMI Codes-II CC
Program List and Explanations
3.5.1.3 Delay: During cleaning plus the delay time, the status of the signal-
and control outputs is as get below.
Range: 60–6’000 sec
3.5.1.4 Signal Outputs: Select the operation mode of the signal outputs
during cleaning:
Cont.: Signal outputs continue to issue the measured value.
Hold: Signal outputs hold the last valid measured value.
Off: Signal outputs are switched off (set to 0 or 4 mA).
3.5.1.5 Output/Control: Relay or signal output:
Cont.: Controller continues normally.
Hold: Controller continues based on the last valid value.
Off: Controller is switched off.
3.5.2 Fill Channel 11: Activates the cleaning pump and switches the
valve to the cleaning solution 1 (right container)
3.5.3 Fill Channel 12: Activates the cleaning pump and switches the
valve to the cleaning solution 2 (left container)
Measurement is interrupted. Errors, except fatal errors,
are not issued.
Errors, except fatal errors, are not issued.
84 A-96.250.581 / 220616
Page 87
AMI Codes-II CC
Program List and Explanations
4 Operation
4.1 Sensors
4.1.1 Filter Time Constant: Used to damp noisy signals. The higher the
4.1.2 Hold after Cal: Delay permitting the instrument to stabilize again af-
4.1.3 Interval fac: The measuring interval of “Free available chlorine” can
4.1.4 Interval tc2: The measuring interval of “Total chlorine 2” can be set
4.1.5 Default pH: If the pH value of the sample is known it can be entered
4.2 Relay Contacts
4.3 Logger
4.3.1 Log Interval: Select a convenient log interval. Consult the table be-
filter time constant, the slower the system reacts to changes of the
measured value.
Range: 5–300 Sec
ter calibration. During calibration- plus hold-time, the signal outputs
are frozen (held on last valid value), alarm values, limits are not active.
Range: 0–6‘000 Sec
be set according to the process requirements.
Range: 0–12 min
according to the process requirements. If the interval is set to 0 min
only fac is measured.
Range: 0–60 min
in this menu. This menu only appears if the pH option is not installed.
Range: 0–14 pH
See 5.3 Relay Contacts, p. 93
The instrument is equipped with an internal logger. The data can be
copied to a PC with an USB stick if option USB interface is in-
stalled.
The logger can save approx. 1500 data records. Records consists
of: Date, time, alarms, measuring values, temperature, flow.
Range: 1 Second to 1 hour
low to estimate the max logging time. When the login buffer is full,
the oldest data record is erased to make room for the newest one.
(circular buffer)
Interval 1 s 5 s 1 min 5 min 10 min 30 min 1 h Event
Driven
Time 25 min 2 h 25 h 5 d 10 d 31 d 62 d
A-96.250.581 / 220616 85
Page 88
AMI Codes-II CC
Program List and Explanations
4.3.2 Clear Logger: If confirmed with yes, the complete logger data is deleted. A new data series is started.
4.4 Display
Process values are displayed on two screens. Toggle screens with
the [ ] key. Each screen displays max. 3 process values.
4.4.1 Screen 1
4.4.1.1 Row 1
4.4.1.2 Row 2
4.4.1.3 Row 3
Possible settings for all rows are:
None
Free av. chlorine (Free available chlorine)
Total chlorine 1
Total chlorine 2
Calc. monochl. (Calculated monochloramine)
Calc. comb. cl. (Calculated combined chlorine)
Calc. dichloramine (Calculated dichloramine)
pH
4.4.2 Screen 2
Same as screen 1.
86 A-96.250.581 / 220616
Page 89
AMI Codes-II CC
Program List and Explanations
5 Installation
5.1 Sensors
5.1.1 Dimension: The measuring value can be displayed as ppm or mg / l
5.1.2 Interpolation:
Yes: Calculates the average of the 2 last measuring values of free
chlorine measurement. Use this mode to avoid high spikes in the
control loop.
No: The true measuring value is displayed and available at the
outputs.
5.1.3 Ref. Verification: Set absorbance value of verification kit according
5.1.40 Standards: Program the two standard solutions for the calibration
5.1.5 Cleaning: Program if one or two solutions are used on Cleaning
5.2 Signal Outputs
5.2.1&5.2.2 Signal Output 1 and 2: Assign process value, the current loop
5.2.1.1 Parameter: Assign one of the process values to the signal output.
to label.
Range: 0.200–0.600
of the pH electrode. If pH electrode is not connected the programmed standards are not active.
Range: 1.00 pH - 13.00 pH
module. See 3.5 Cleaning, p. 83
Range: 1 Solution, 2 Solutions
range and a function to each signal output.
NOTICE: The navigation in the menu <Signal Output 1> and
<Signal Output 2> is equal. For reason of simplicity only the
menu numbers of Signal Output 1 are used in the following.
Available values:
Free av. chlorine (Free available chlorine)
Total chlorine 1
Total chlorine 2
Calc. monochl. (Calculated monochloramine)
Calc. comb. cl. (Calculated combined chlorine)
Calc. dichloramine (Calculated dichloramine)
Temperature
Sample flow
pH
A-96.250.581 / 220616 87
Page 90
AMI Codes-II CC
Program List and Explanations
5.2.1.2 Current Loop: Select the current range of the signal output.
Make sure the connected device works with the same current
range.
Available ranges: 0–20 mA or 4–20 mA
5.2.1.3 Function: Define if the signal output is used to transmit a process
As process
values
value or to drive a control unit. Available functions are:
Linear, bilinear or logarithmic for process values.
See As process values, p. 88
Control upwards or control downwards for controllers.
See As control output, p. 90

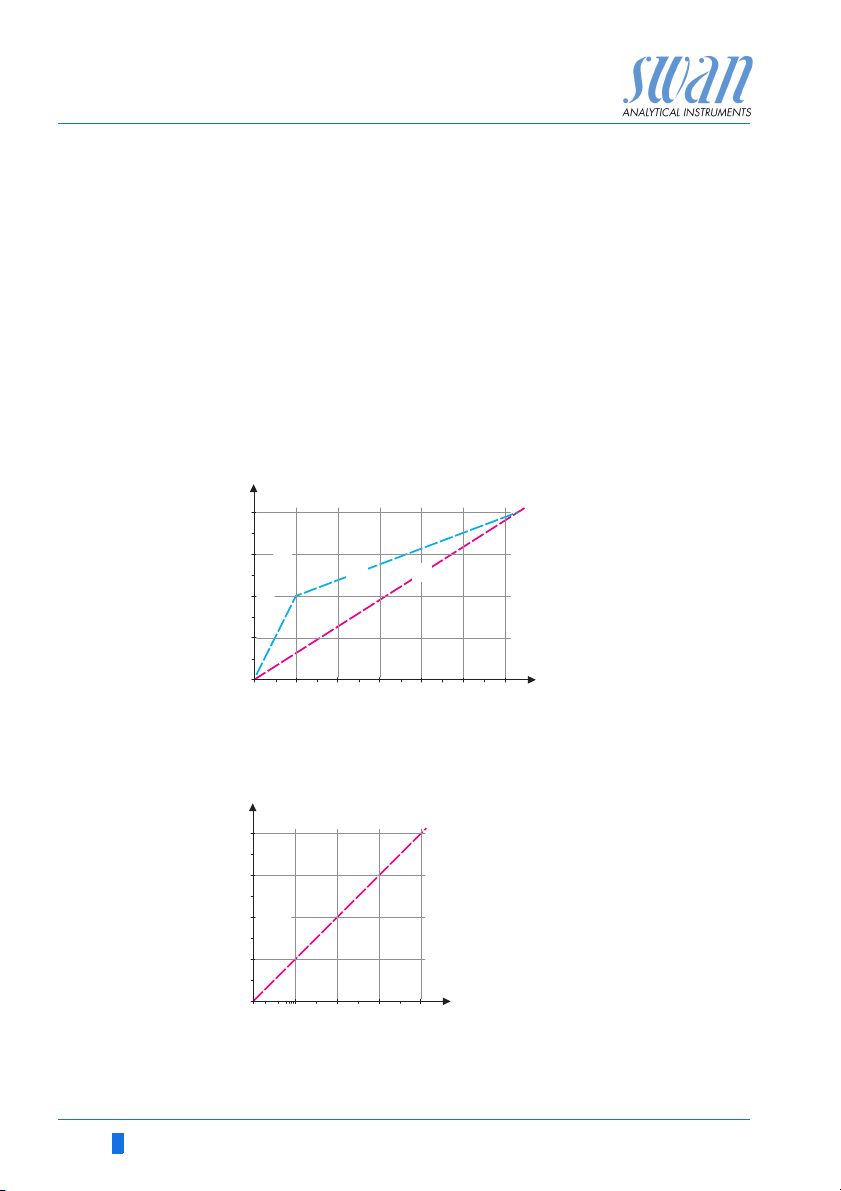

The process value can be represented in 3 ways: linear, bilinear or
logarithmic. See graphs below.
[mA]
20
(0 - 20 [mA])
(4 - 20 [mA])
10 12
0 / 4
0.0 0.1 0.2 0.3 0.4 0.5
ABlinear
AB
X
X Measured value
bilinear
[mA]
20
10 12
(0 - 20 [mA])
(4 - 20 [mA])
0 / 4
426
1
10 100 1’000 10’000
01234
X
X Measured value (logarithmic)
88 A-96.250.581 / 220616
Page 91
AMI Codes-II CC
Program List and Explanations
5.2.1.40 Scaling: Enter beginning and end point (Range low & high) of the
linear or logarithmic scale. In addition, the midpoint for the bilinear
scale.
Parameter Free av. chlorine
5.2.1.40.10 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.20 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Total chlorine 1
5.2.1.40.11 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.21 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Total chlorine 2
5.2.1.40.12 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.22 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Calc. monochl.
5.2.1.40.13 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.23 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Calc. comb. cl.
5.2.1.40.14 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.24 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Calc. dichloramine
5.2.1.40.15 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.25 Range high: 0–10 ppm or 0 – 10 mg /l
Parameter Temperature
5.2.1.40.16 Range low: -30 to +120 °C
5.2.1.40.26 Range high: -30 to +120 °C
Parameter Sample flow
5.2.1.40.17 Range low: 0 –600 B/ s
5.2.1.40.27 Range high: 0 –600 B/s
Parameter pH
5.2.1.40.18 Range low: 0 –14 pH
5.2.1.40.28 Range high: 0 –14 pH
A-96.250.581 / 220616 89
Page 92
AMI Codes-II CC
Program List and Explanations
As control out-
put
Signal outputs can be used for driving control units. We distinguish
different kinds of controls:
P-controller: The controller action is proportional to the devia-
tion from the setpoint. The controller is characterized by the
P-Band. In the steady-state, the setpoint will never be
reached. The deviation is called steady-state error.
Parameters: setpoint, P-Band
PI-controller: The combination of a P-controller with an
I-controller will minimize the steady-state error. If the reset
time is set to zero, the I-controller is switched off.
Parameters: setpoint, P-Band, reset time.
PD-controller: The combination of a P-controller with a
D-controller will minimize the response time to a fast change
of the process value. If the derivative time is set to zero, the
D-controller is switched off.
Parameters: setpoint, P-Band, derivative time.
PID-controller: The combination of a P-, an I - and a D-con-
troller allows a proper control of the process.
Parameters: setpoint, P-Band, reset time, derivative time.

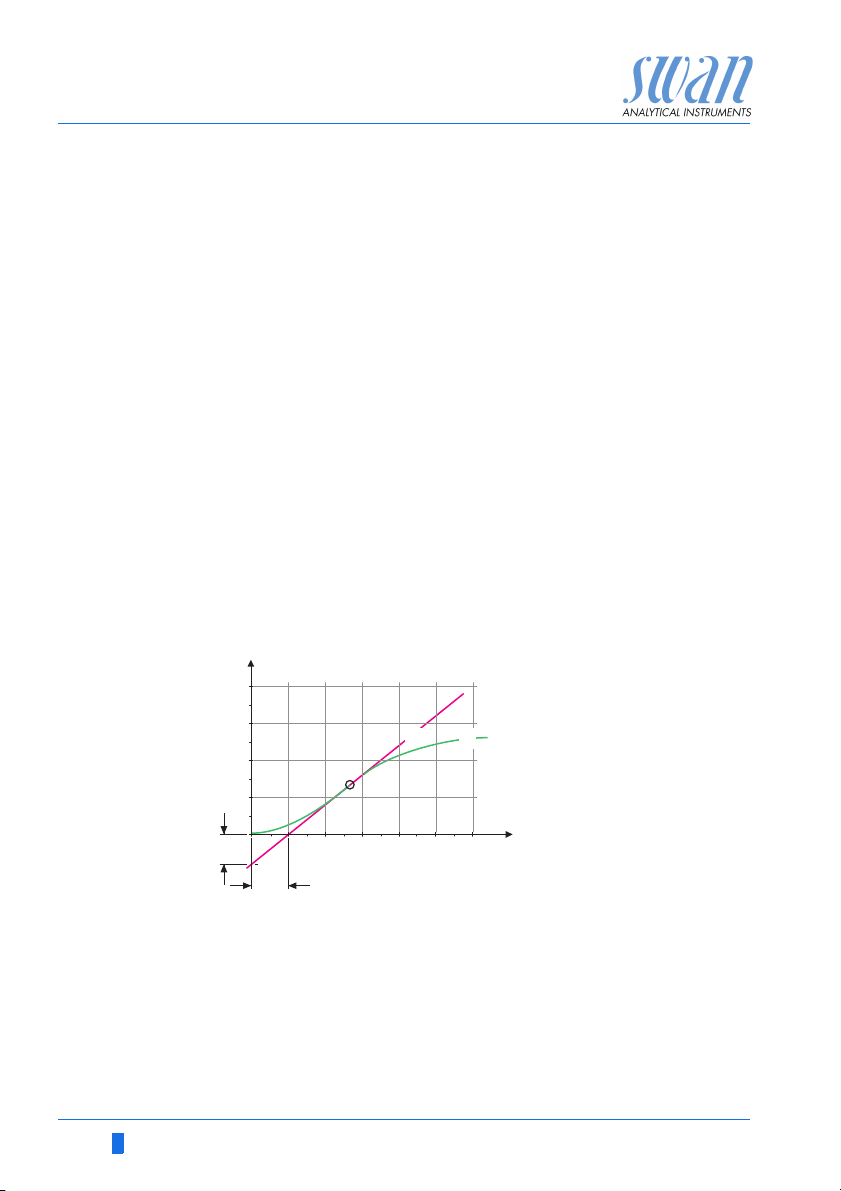

Ziegler-Nichols method for the optimization of a PID controller:
Parameters: Setpoint, P-Band, Reset time, Derivative time
Y
B
A
X
a
L
A
Response to maximum control output
B
Tangent on the inflection point
X
Time
Xp
Tn
Tv
= 1.2/a
= 2L
= L/2
The point of intersection of the tangent with the respective axis will
result in the parameters a and L.
Consult the manual of the control unit for connecting and programming details. Choose control upwards or downwards.
90 A-96.250.581 / 220616
Page 93
AMI Codes-II CC
Program List and Explanations
Control upwards/downwards
Setpoint: User-defined process value (Measured value or flow)
P-Band: Range below (upwards control) or above (downwards
control) the set-point, within the dosing intensity is reduced from
100% to 0% to reach the set-point without overshooting.
5.2.1.43 Control Parameters: if Parameters = Free av. chlorine
5.2.1.43.10 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.20 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Total chlorine 1
5.2.1.43.11 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.21 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Total chlorine 2
5.2.1.43.12 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.22 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Calc. monochl.
5.2.1.43.13 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.23 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Calc. comb. cl.
5.2.1.43.14 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.24 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Calc. dichloramine
5.2.1.43.15 Setpoint: 0–10 ppm or 0–10 mg / l
5.2.1.43.25 P-Band: 0–10 ppm 0– 10 mg / l
5.2.1.43 Control Parameters: if Parameters = Temperature
5.2.1.43.16 Setpoint: -30 to +120 °C
5.2.1.43.26 P-Band: 0–100 °C
5.2.1.43 Control Parameters: if Parameters = Sample Flow
5.2.1.43.17 Setpoint: 0 –600 B/ s
5.2.1.43.27 P-Band: 0 –200 B/ s
5.2.1.43 Control Parameters: if Parameters = pH
5.2.1.43.18 Setpoint: 0 –14 pH
5.2.1.43.28 P-Band: 0 –14 pH
A-96.250.581 / 220616 91
Page 94
AMI Codes-II CC
Program List and Explanations
5.3.2.32.31.3 Reset time: The reset time is the time till the step response of a single I-controller will reach the same value as it will be suddenly
reached by a P-controller.
Range: 0–9’000 Sec
5.3.2.32.31.4 Derivative time: The derivative time is the time till the ramp re-
5.3.2.32.31.5 Control timeout: If a controller action (dosing intensity) is constantly
sponse of a single P-controller will reach the same value as it will
be suddenly reached by a D-controller.
Range: 0–9’000 Sec
over 90% during a defined period of time and the process value
does not come closer to the setpoint, the dosing process will be
stopped for safety reasons.
Range: 0–720 min
92 A-96.250.581 / 220616
Page 95
AMI Codes-II CC
Program List and Explanations
5.3 Relay Contacts
5.3.1 Alarm Relay: The alarm relay is used as cumulative error indicator.
Under normal operating conditions the contact is active.
The contact is inactive at:
Power loss
Detection of system faults like defective sensors or electronic
parts
High case temperature
Lack of reagents
Process values out of programmed ranges.
Program alarm levels, hysteresis values and delay times for the following parameters:
Free chlorine
Total chlorine 1
Total chlorine 2
Case Temperature high and low
Sample flow
Temperature
pH
5.3.1.1 Disinfection
5.3.1.1.1 Free av. chlorine
5.3.1.1.1.1 Alarm High: If the measured value rises above the alarm high value, the alarm relay is activated and E001 is displayed in the message list. Range: 0.00–10.00 ppm
5.3.1.1.1.26 Alarm Low: If the measured value falls below the alarm low value,
the alarm relay is activated and E002 is displayed in the message
list.
Range: 0.00–10.00 ppm
5.3.1.1.1.36 Hysteresis: Within the hyst. range, the relay does not switch. This
prevents damage of relays contacts when the measured value fluctuates around the alarm value.
Range. 0.00–10.00 ppm
5.3.1.1.1.46 Delay: Duration, the activation of the alarm relay is retarded after
A-96.250.581 / 220616 93
the measuring value has risen above/fallen below the programmed
alarm.
Range: 0.00–28‘800 Sec
Page 96
AMI Codes-II CC
Program List and Explanations
5.3.1.1.2 Total chlorine 1
5.3.1.1.2.1 Alarm High: If the measured value rises above the alarm high val-
5.3.1.1.2.26 Alarm Low: If the measured value falls below the alarm low value,
5.3.1.1.2.36 Hysteresis: Within the hyst. range, the relay does not switch. This
5.3.1.1.2.46 Delay: Duration, the activation of the alarm relay is retarded after
5.3.1.1.3 Total chlorine 2
5.3.1.1.3.1 Alarm High: If the measured value rises above the alarm high val-
5.3.1.1.3.26 Alarm Low: If the measured value falls below the alarm low value,
5.3.1.1.3.36 Hysteresis: Within the hyst. range, the relay does not switch. This
5.3.1.1.3.46 Delay: Duration, the activation of the alarm relay is retarded after
ue, the alarm relay is activated and E003 is displayed in the message list. Range: 0.00–10.00 ppm
the alarm relay is activated and E004 is displayed in the message
list.
Range: 0.00–10.00 ppm
prevents damage of relays contacts when the measured value fluctuates around the alarm value.
Range. 0.00–10.00 ppm
the measuring value has risen above/fallen below the programmed
alarm.
Range: 0.00–28‘800 Sec
ue, the alarm relay is activated and E005 is displayed in the message list. Range: 0.00–10.00 ppm
the alarm relay is activated and E006 is displayed in the message
list.
Range: 0.00–10.00 ppm
prevents damage of relays contacts when the measured value fluctuates around the alarm value.
Range. 0.00–10.00 ppm
the measuring value has risen above or fallen below the programmed alarm.
Range: 0.00–28‘800 Sec
94 A-96.250.581 / 220616
Page 97
AMI Codes-II CC
Program List and Explanations
5.3.1.2 Case Temp. high: Set the alarm high value for temperature of elec-
tronics housing. If the value rises above the programmed value
E013 is issued.
Range: 30–75 °C
5.3.1.3 Case Temp. low: Set the alarm low value for temperature of elec-
tronics housing. If the value falls below the programmed value
E014 is issued.
Range: -10 to +20 °C
5.3.1.4 Sample Flow: Define at which sample flow a flow alarm should be
issued.
5.3.1.4.1 Flow Alarm: Program if the alarm relay should be activated if there
is a flow alarm. Choose between yes or no. The flow alarm will always be indicated in the display, pending error list, saved in the
message list and the logger.
Available values: Yes or no
NOTICE: Sufficient flow is essential for a correct measurement.
We recommend to program yes.
5.3.1.4.2 Alarm High: If the measuring values rises above the programmed
value E009 will be issued.
Range: 100–600 B/s
5.3.1.4.36 Alarm Low: If the measuring values falls below the programmed
value E010 will be issued.
Range: 5–80 B/s
5.3.1.5 Temperature: Only available if pH option is installed. Define the
measuring value, which should issue an alarm high respectively
low.
5.3.1.5.1 Alarm High: If the sample temperature rises above the programmed value E007 is issued.
Range: 30–70 °C
5.3.1.5.26 Alarm Low: If the sample temperature falls below the programmed
value E008 is issued.
Range: 0–20 °C
A-96.250.581 / 220616 95
Page 98
AMI Codes-II CC
Program List and Explanations
5.3.1.6 Alarm pH: Only available if pH option is installed. Define the measuring value, which should issue an alarm high respectively low.
5.3.1.6.1 Alarm High: If the measured value rises above the alarm high value, the alarm relay is activated and E039 is displayed in the message list.
Range: 0–14 pH
5.3.1.6.26 Alarm Low: If the measured value falls below the alarm low value,
the alarm relay is activated and E040 is displayed in the message
list
Range: 0–14 pH
5.3.1.6.36 Hysteresis: Within the hyst. range, the relay does not switch. This
5.3.1.6.46 Delay: Duration, the activation of the alarm relay is retarded after
prevents damage of relays contacts when the measured value fluctuates around the alarm value
Range: 0–14 pH
the measuring value has risen above/fallen below the programmed
alarm.
Range: 0–28‘800 Sec
96 A-96.250.581 / 220616
Page 99
AMI Codes-II CC
Program List and Explanations
5.3.2 and 5.3.3 Relay 1 and 2: The contacts can be set as normally open or normally closed with a jumper. See Relay 1 and 2, p. 32.
The function of relay contacts 1 or 2 are defined by the user.
NOTICE: The navigation in the menu <Relay 1> and <Relay 2>
is equal. For reason of simplicity only the menu numbers of
Relay 1 are used in the following.
1 First select the functions as:
- Limit upper/lower,
- Control upwards/downwards,
- Timer
- Fieldbus
- End of Batch (relay 2 only)
2 Then enter the necessary data depending on the selected func-
tion.
5.3.2.1 Function = Limit upper/lower:
When the relays are used as upper or lower limit switches, program
the following:
5.3.2.20 Parameter: select a process value
5.3.2.300 Setpoint: If the measured value rises above respectively falls below
the set-point, the relay is activated.
Parameter Range
Free av. chlorine 0–10 ppm
Total chlorine 1 0– 10 ppm
Total chlorine 2 0– 10 ppm
Calc. monochl. 0 – 10 ppm
Calc. comb. cl. 0–10 ppm
Calc. dichloramine 0–10 ppm
Temperature -30 to +120 °C
Sample flow 0 – 600 B/s
pH 0–14 pH
A-96.250.581 / 220616 97
Page 100
AMI Codes-II CC
Program List and Explanations
5.3.2.400 Hysteresis: within the hysteresis range, the relay does not switch.
This prevents damage of relay contacts when the measured value
fluctuates around the alarm value.
Parameter Range
Free av. chlorine 0–10 ppm
Total chlorine 1 0– 10 ppm
Total chlorine 2 0– 10 ppm
Calc. monochl. 0 – 10 ppm
Calc. comb. cl. 0–10 ppm
Calc. dichloramine 0–10 ppm
Temperature 0 to +100 °C
Sample flow 0 –200 B/s
pH 0–14 pH
5.3.2.50 Delay: Duration, the activation of the alarm relay is retarded after
the measuring value has risen above/fallen below the programmed
alarm.
Range. 0–600 Sec
5.3.2.1 Function = Control upwards/ downwards:
The relays may be used to drive control units such as solenoid
valves, membrane dosing pumps or motor valves. When driving a
motor valve both relays are needed, relay 1 to open and relay 2 to
close the valve.
5.3.2.22 Parameter: Choose on of the following process values.
Free av. chlorine (Free available chlorine)
Total chlorine 1
Total chlorine 2
Calc. monochl. (Calculated monochloramine)
Calc. comb. cl. (Calculated combined chlorine)
Calc. dichloramine (Calculated dichloramine)
Temperature
Sample flow
pH
5.3.2.32 Settings: Choose the respective actuator:
Time proportional
Frequency
Motor valve
98 A-96.250.581 / 220616
Loading...
