Page 1
AMI Codes-II
Version 6.20 and higher
s Manual
Operator’
A-96.250.571 / 050517
Page 2
Customer Support
SWAN and its representatives maintain a fully trained staff of technical specialists
around the world. For any technical question, contact your nearest
SWAN representative, or the manufacturer:
SWAN ANALYTISCHE INSTRUMENTE AG
Studbachstrasse 13
8340 Hinwil
Switzerland
Internet: www.swan.ch
E-mail: [email protected]
Document Status
Title:
ID:
Monitor AMI Codes-II Operator’s Manual
A-96.250.571
Revision Issue
00 April 2010
01 June 2010
02 Aug. 2013 Update to Rev. 5.30, main board V2.4
03 June 2016 Update to Rev. 6.00, main board V2.5
© 2016, SWAN ANALYTISCHE INSTRUMENTE AG, Switzerland, all rights reserved
subject to change without notice
Page 3
AMI Codes-II
Table of Contents
1. Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1. Warning Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2. General Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.3. Restrictions for use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2. Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1. Instrument Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

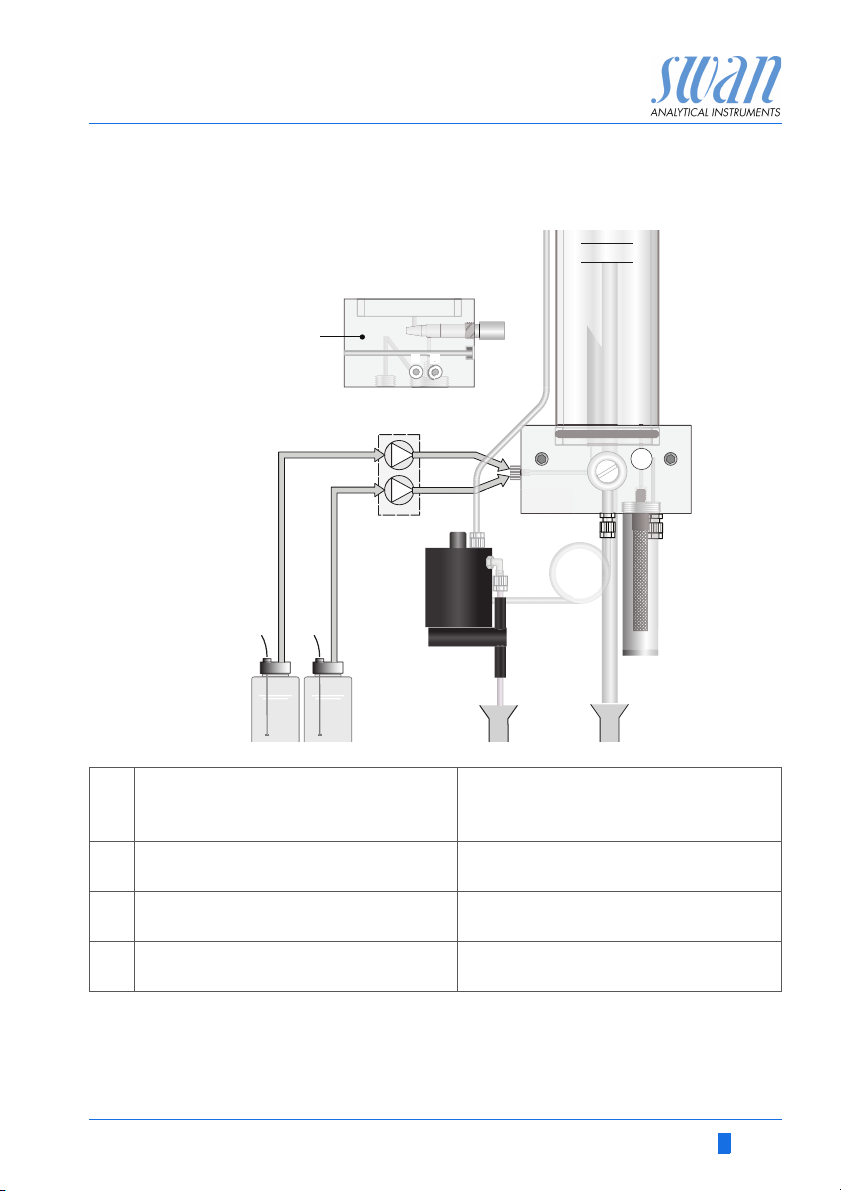

2.2. Instrument Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.1. Installation Check List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.2. Mounting of Instrument Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3. Connecting Sample and Waste . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3.1 FEP Tube at Sample Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.3.2 FEP Tube at Sample Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.4. Installation of Flow Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.5. Install the Option pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.5.1 pH as Option ex works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.5.2 pH Option as Retrofit Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

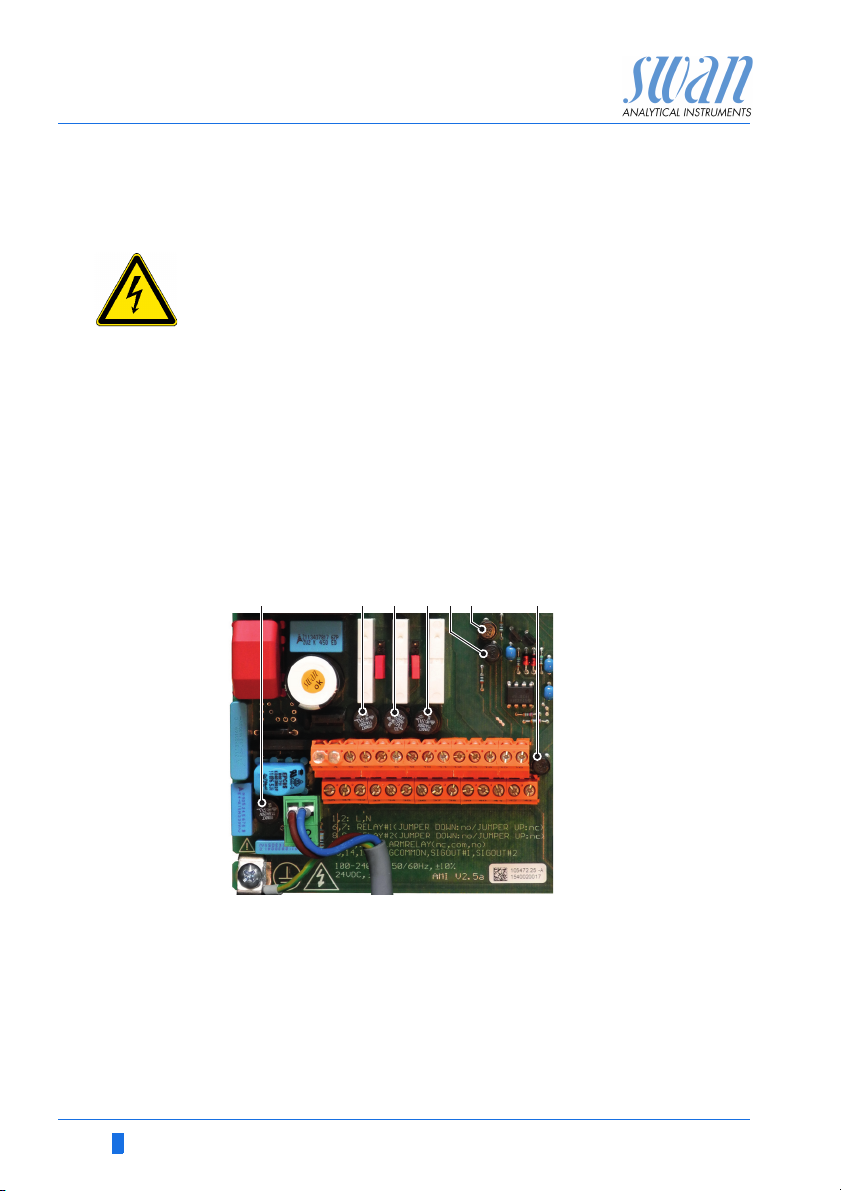

3.6. Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.6.1 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.6.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.7. Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

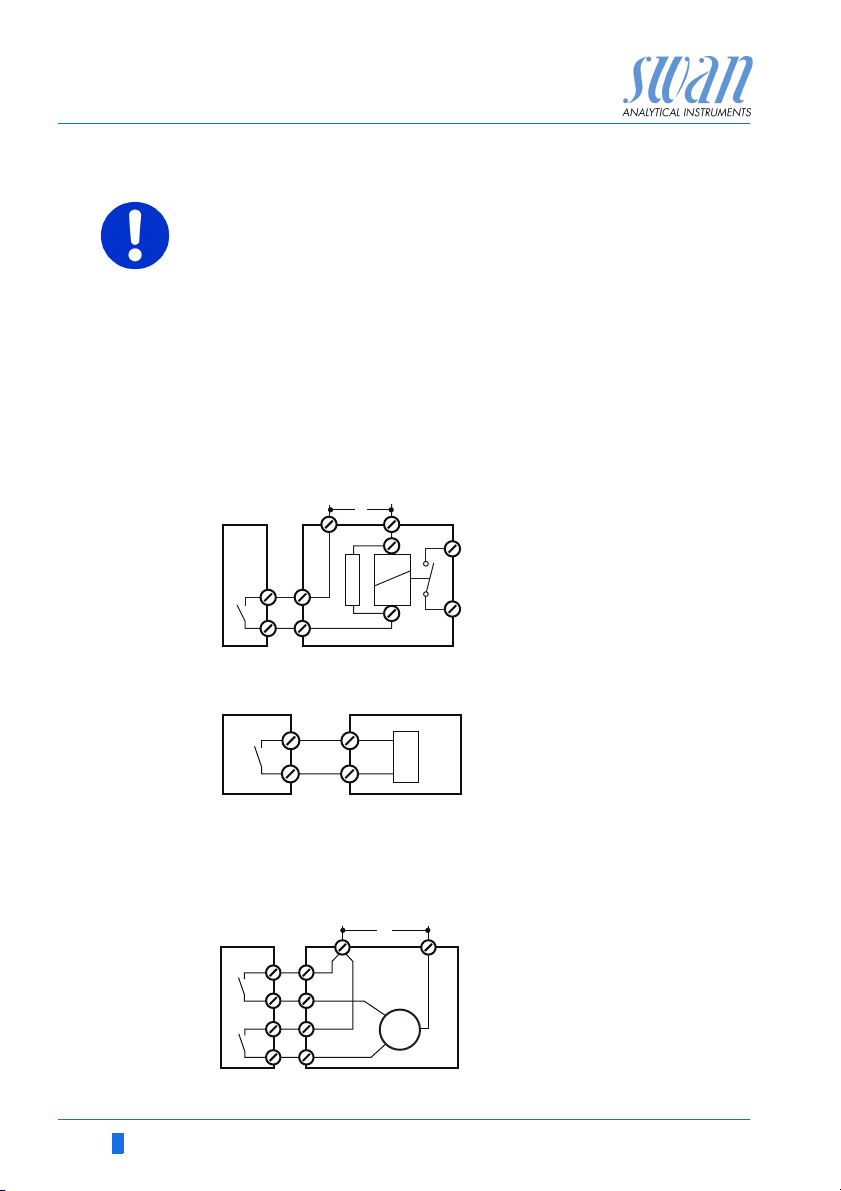

3.8. Relay Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.8.1 Alarm Relay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.8.2 Relay 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.9. Signal Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.9.1 Signal Output 1 and 2 (current outputs) . . . . . . . . . . . . . . . . . . 31
3.10 Interface Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.10.1 Signal Output 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.10.2 Profibus, Modbus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.10.3 HART Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3.10.4 USB Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
A-96.250.571 / 050517 1
Page 4
AMI Codes-II
4. Instrument Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.1. Prepare Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

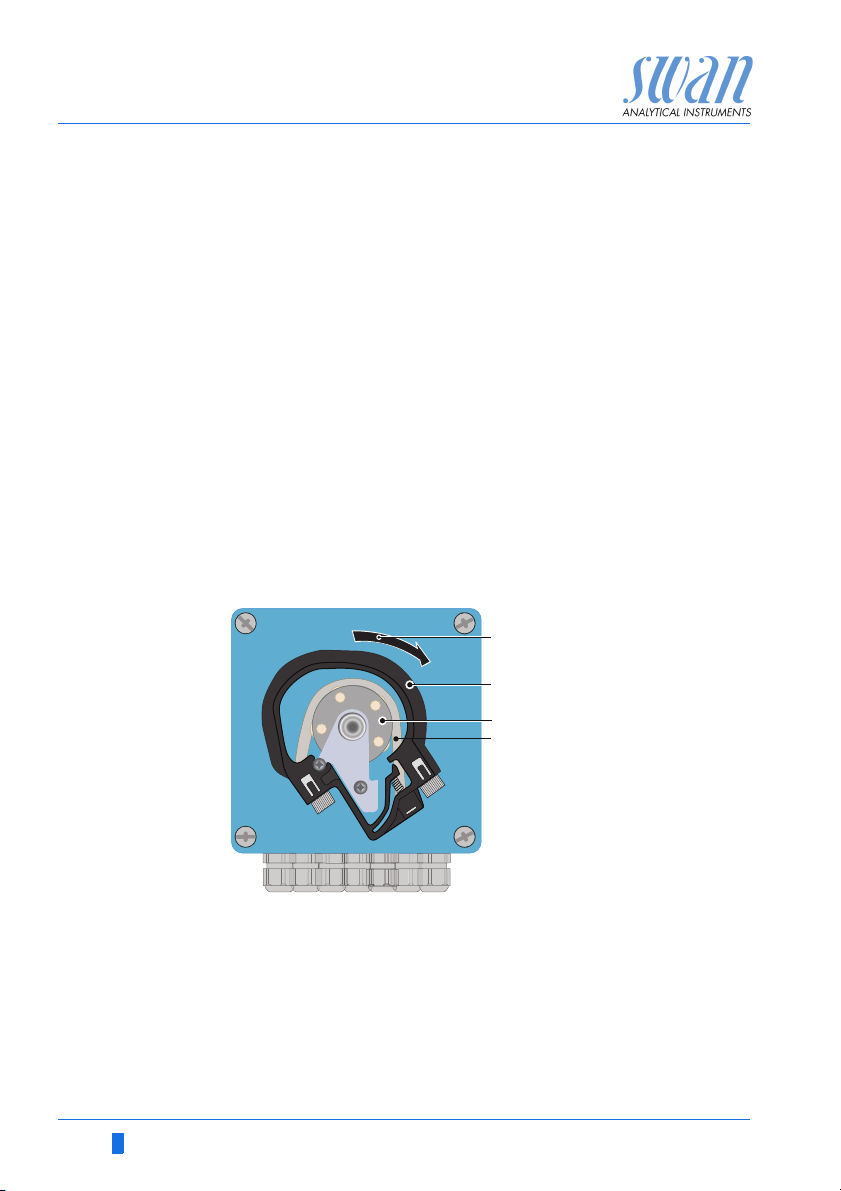

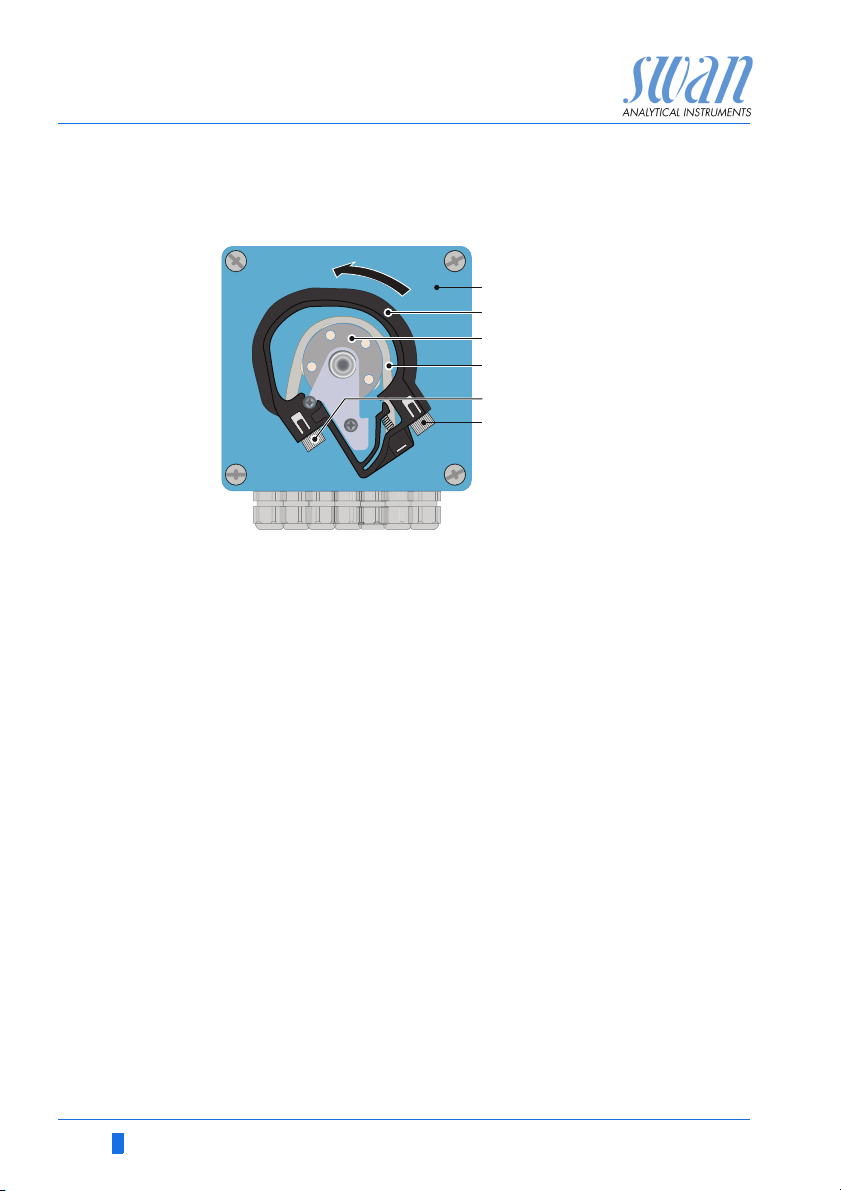

4.2. Peristaltic Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.3. Establish Sample Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.4. Fill or Flush Reagent System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.5. Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4.6. Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.1. Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5.2. Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.3. Software Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.4. Changing Parameters and values. . . . . . . . . . . . . . . . . . . . . . . . . 41
6. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.1. Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6.2. Stop of Operation for Maintenance. . . . . . . . . . . . . . . . . . . . . . . . 43
6.3. Refill or replace Reagents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
6.3.1 Reagents for Free Chlorine, Chlorine Dioxide, Bromine and Iodine 46
6.3.2 Reagents for Measuring Monochloramine and Ozone . . . . . . . 48
6.4. Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
6.5. Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
6.6. Cleaning the protective Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.7. Cleaning the Photometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.8. Cleaning the Flow Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.8.1 Disassemble the Flow Cell . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.8.2 Assemble the Flow Cell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.9. Maintenance of pH sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.10. Tube Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.10.1 Replace the Pump Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.10.2 Replace the Reagent Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
6.11. Replacing Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
6.12. Longer Stop of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.1. General Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
7.2. Calibration Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.2.1 Process calibration DIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.2.2 Process pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.2.3 Standard pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
7.3. Error List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
2 A-96.250.571 / 050517
Page 5
AMI Codes-II
8. Program Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.1. Messages (Main Menu 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.2. Diagnostics (Main Menu 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
8.3. Maintenance (Main Menu 3). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
8.4. Operation (Main Menu 4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
8.5. Installation (Main Menu 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
9. Program List and Explanations. . . . . . . . . . . . . . . . . . . . . . . . . 75
1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
2 Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
10. Material Safety Data sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
10.1. Reagents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
11. Default Values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
12. Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
13. Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
A-96.250.571 / 050517 3
Page 6
AMI Codes-II
Safety Instructions
AMI Codes-II - Operator’s Manual
This document describes the main steps for instrument setup, operation and maintenance.
1. Safety Instructions
General The instructions included in this section explain the potential risks
Targ et
audience
OM Location The AMI Operator’s Manual shall be kept in proximity of the instru-
Qualification,
Training
associated with instrument operation and provide important safety
practices designed to minimize these risks.
If you carefully follow the information contained in this section, you
can protect yourself from hazards and create a safer work environment.
More safety instructions are given throughout this manual, at the
respective locations where observation is most important.
Strictly follow all safety instructions in this publication.
Operator: Qualified person who uses the equipment
for its intended purpose.
Instrument operation requires thorough knowledge of applications,
instrument functions and software program as well as all applicable
safety rules and regulations.
ment.
To be qualified for instrument installation and operation, you must:
read and understand the instructions in this manual as well as
the Material Safety Data Sheets.
know the relevant safety rules and regulations.
4 A-96.250.571 / 050517
Page 7
AMI Codes-II
Safety Instructions
1.1. Warning Notices
The symbols used for safety-related notices have the following significance:
DANGER
Your life or physical wellbeing are in serious danger if such
warnings are ignored.
Follow the prevention instructions carefully.
WARNING
Severe injuries or damage to the equipment can occur if such
warnings are ignored.
Follow the prevention instructions carefully.
CAUTION
Damage to the equipment, minor injury, malfunctions or incorrect process can be the consequence if such warnings are ignored.
Follow the prevention instructions carefully.
Mandatory
Signs
A-96.250.571 / 050517 5

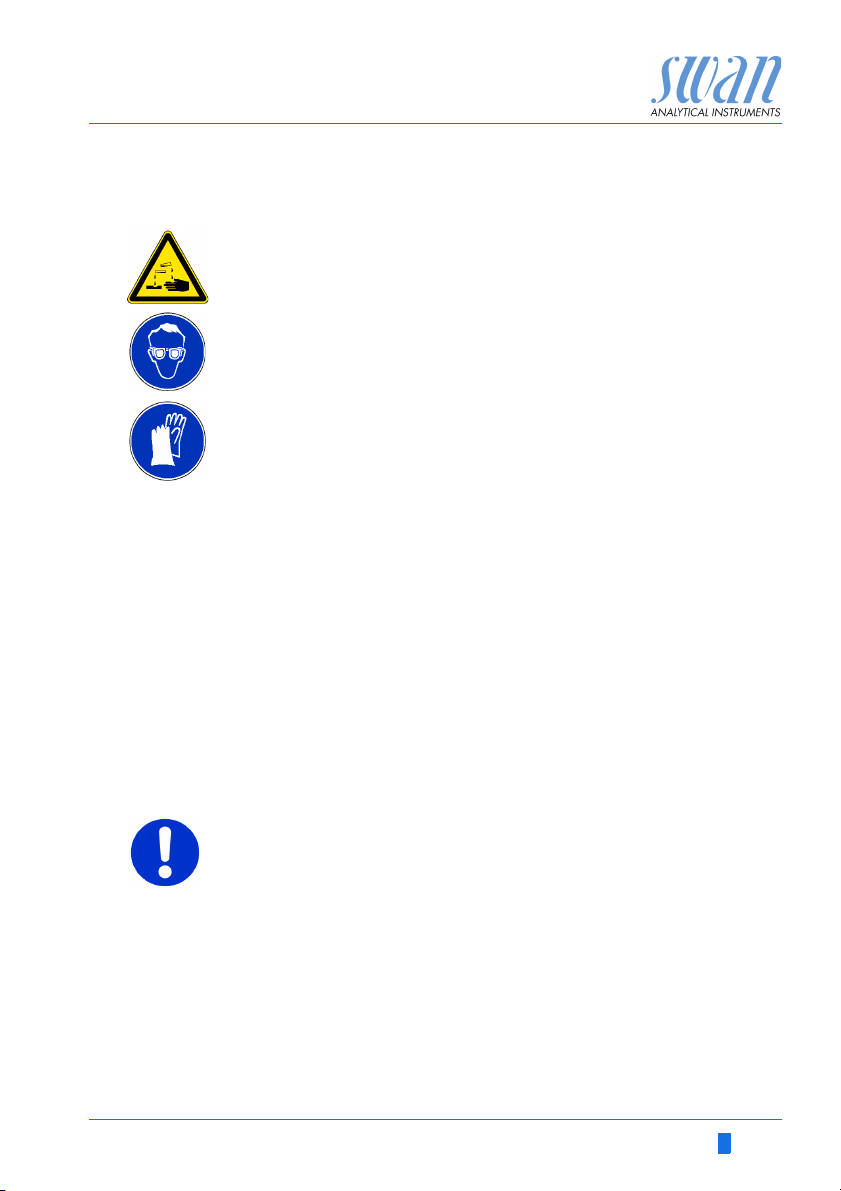

The importance of the mandatory signs in this manual.
Safety goggles
Safety gloves
Page 8
AMI Codes-II
Safety Instructions
Warning Signs The importance of the warning signs in this manual.
Electrical shock hazard
Corrosive
Harmful to health
Flammable
Warning general
Attention general
6 A-96.250.571 / 050517
Page 9
AMI Codes-II
Safety Instructions
1.2. General Safety Regulations
Legal
Requirements
Spare Parts
and
Disposables
Modifications Modifications and instrument upgrades shall only be carried out by
The user is responsible for proper system operation.
All precautions must be followed to ensure safe operation
of the instrument.
Use only official SWAN spare parts and disposables. If other parts
are used during the normal warranty period, the manufacturer’s
warranty is voided.
an authorized Service Technician. SWAN will not accept responsibility for any claim resulting from unauthorized modification or alteration.
WARNING
Risk of Electrical Shock
If proper operation is no longer possible, the instrument must be
disconnected from all power lines, and measures must be taken
to prevent inadvertent operation.
To prevent from electrical shock, always make sure that the
ground wire is connected.
Service shall be performed by authorized personnel only.
Whenever electronic service is required, disconnect instru-
ment power and power of devices connected to.
– relay 1,
– relay 2,
– alarm relay
WARNING
For safe instrument installation and operation you must read
and understand the instructions in this manual.
WARNING
Only SWAN trained and authorized personnel shall perform the
tasks described in this document.
A-96.250.571 / 050517 7
Page 10
AMI Codes-II
Safety Instructions
1.3. Restrictions for use
The sample must not contain any particles, which may block the
flow cell. Sufficient sample flow is coercive for the correct function
of the instrument.
If the sample contains only little disinfectant concentrations, or
there is the danger of biological growth, we recommend to use the
optional Cleaning module from Swan.
WARNING
Health hazard
Some reagents are etching and can cause severe burns or eye
damage.
For safe handling of the reagents you must read and under-
stand the instructions in this manual, as well as the Material
Safety Data Sheets (MSDS)
Download
MSDS
The current Material Safety Data Sheets (MSDS) for the below listed Reagents are available for downloading at www.swan.ch.
OXYCON ON-LINE DPD
OXYCON ON-LINE Buffer
OXYCON ON-LINE KI
Buffer solution pH 4
Buffer solution pH 7
Buffer solution pH 9
8 A-96.250.571 / 050517
Page 11
AMI Codes-II
Product Description
2. Product Description
Application
Range
Disinfectant
Measurement
The AMI Codes-II analyzer is a complete monitoring system for the
automatic, continuous measurement and dosing control of chlorine
and other disinfectants based on the DPD colorimetric method
AWWA 4500 Cl-G and on EN ISO 7393-2.
It can be used for measuring disinfectants in:
Potable water
Swimming pools
Cooling water
Effluent
Seawater
It is also applicable for water containing additives like corrosion inhibitors, cyanuric acids and antiscalants.
For the determination of free chlorine, chlorine dioxide, bromine
and iodine the reagents:
Oxycon on-line DPD
Oxycon on-line Buffer
are needed.
The measurement of monochloramine or ozone requires an addi-
tional reagent:
Oxycon on-line KI; which is added to Oxycon on-line Buffer
Disinfectant Measuring range Accuracy
Ozone 0.000–1.000 ppm ± 0.005 ppm
HOCl / free chlorine /
Monochloramine
Chlorine dioxide /
Iodine / Bromine
0.00–1.00 ppm
1.00–3.00 ppm
3.00–5.00 ppm
0.00–2.00 ppm
2.00–6.00 ppm
± 0.01 ppm
± 0.06 ppm
± 0.20 ppm
± 0.02 ppm
± 0.12 ppm
Signal
Outputs
A-96.250.571 / 050517 9

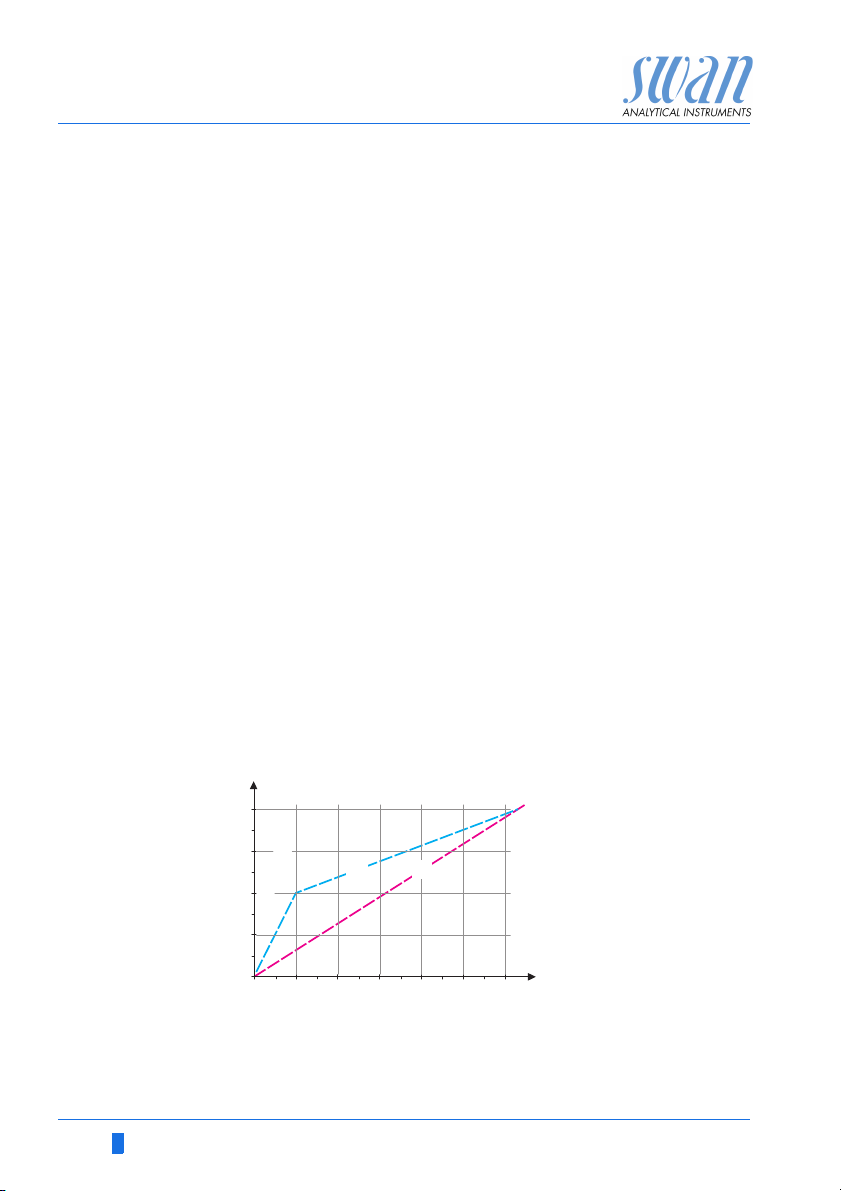

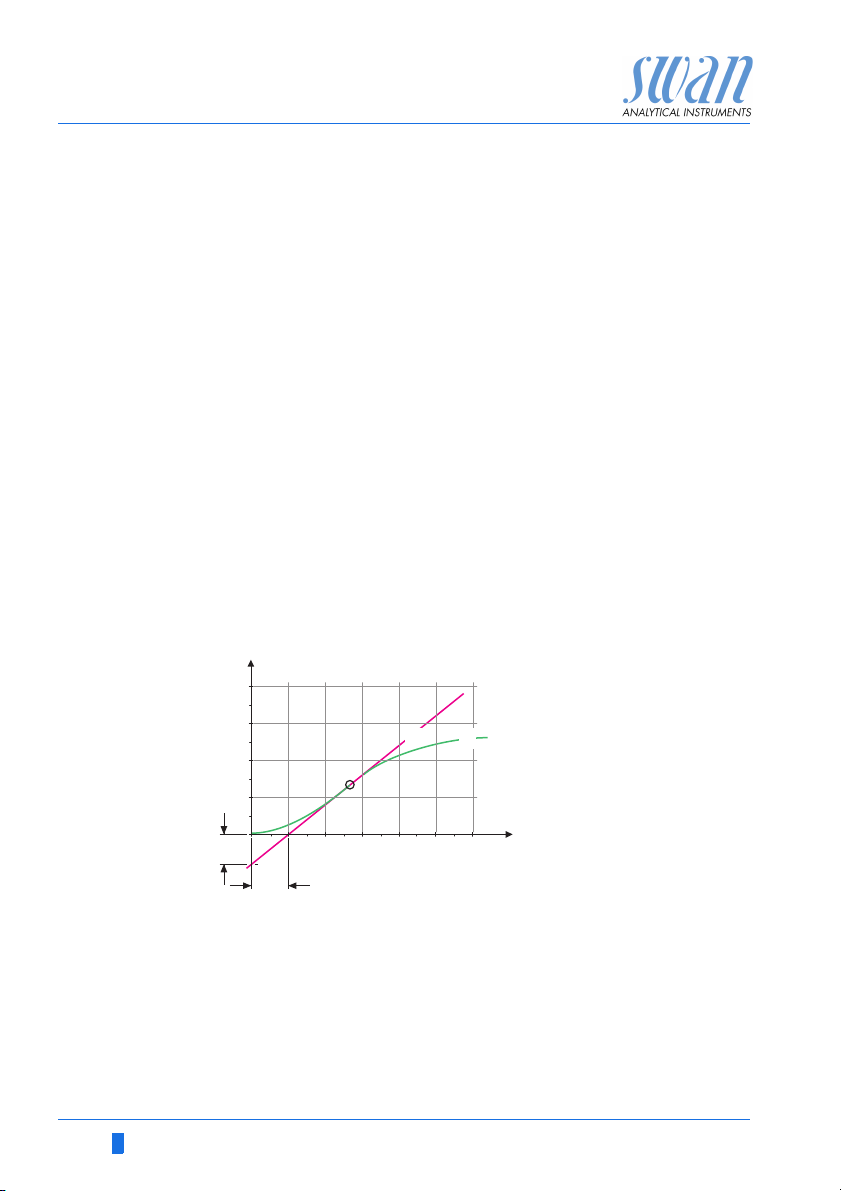

Two signal outputs programmable for measured values (freely
scaleable, linear or bilinear) or as continuous control output (control
parameters programmable).
Current loop: 0/4– 20 mA
Maximal burden: 510
Third signal output available as an option. The third signal output
can be operated as a current source or as a current sink (selectable
via switch).
Page 12
AMI Codes-II
Product Description

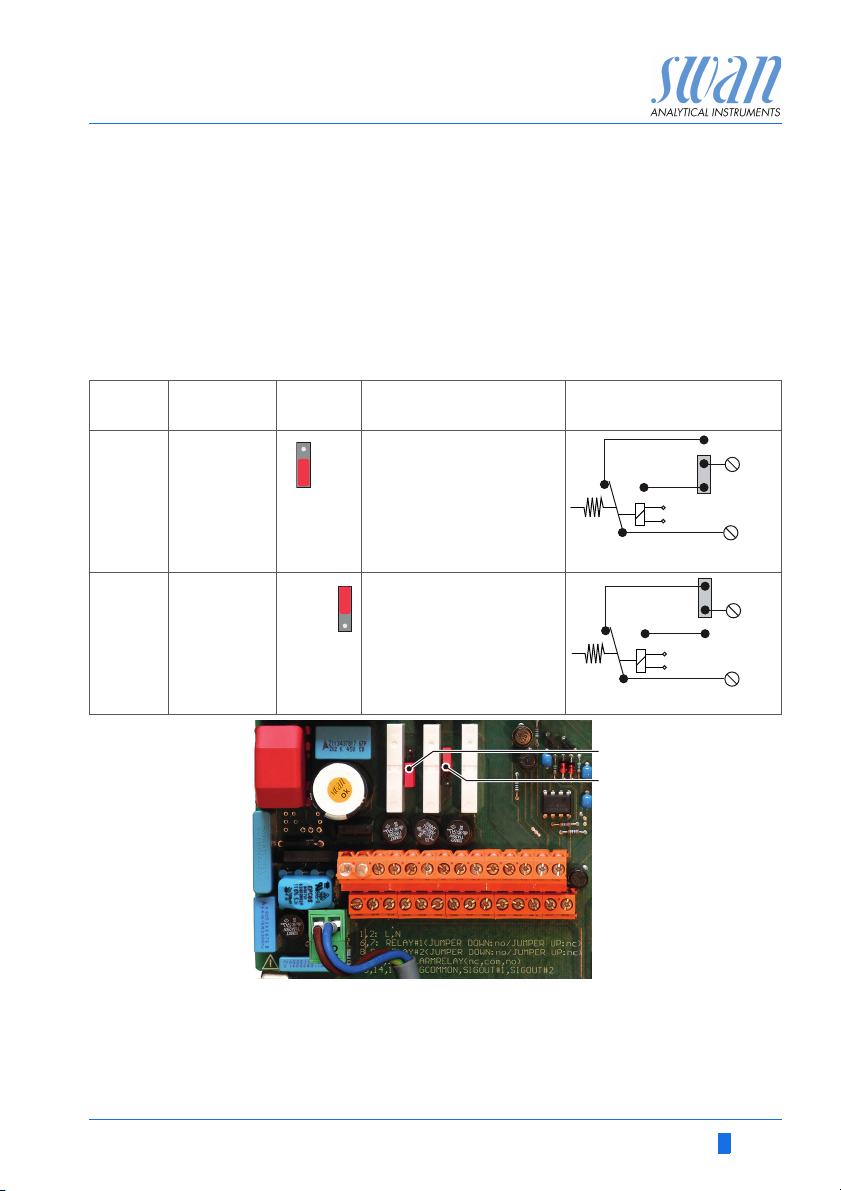

Relay Two potential-free contacts programmable as limit switches for
measuring values, controllers or timer for system cleaning with automatic hold function. Both contacts can be set as normally open or
normally closed with a jumper.
Maximum load: 1 A/250 VAC
Alarm Relay One potential free contact.
Alternatively:
Open during normal operation, closed on error and loss of
power.
Closed during normal operation, open on error and loss of
power.
Summary alarm indication for programmable alarm values and instrument faults.
Input For potential-free contact to freeze the measuring value or to inter-
rupt control in automated installations (hold function or remote-off)
Special
Feature
Safety
Features
Communica-
tion Interface
(optional)

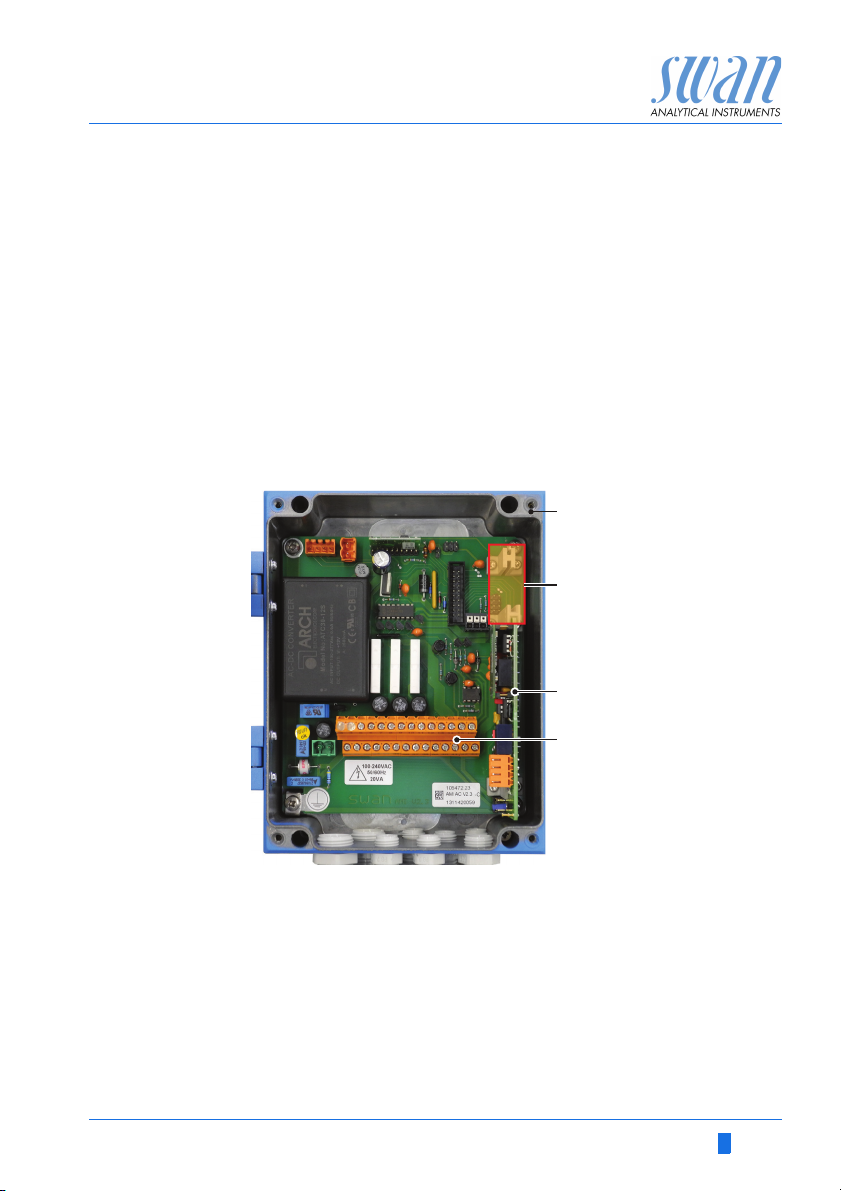

Relay Box The AMI Relay Box is designed for the direct power supply and ac-
Cleaning
Module
Possibility to interrupt the measurement by activating the input. See
Program List and Explanation, 5.3.4, p. 93.
No data loss after power failure. All data is saved in non-volatile
memory. Over voltage protection of in- and outputs.Galvanic separation of measuring inputs and signal outputs.

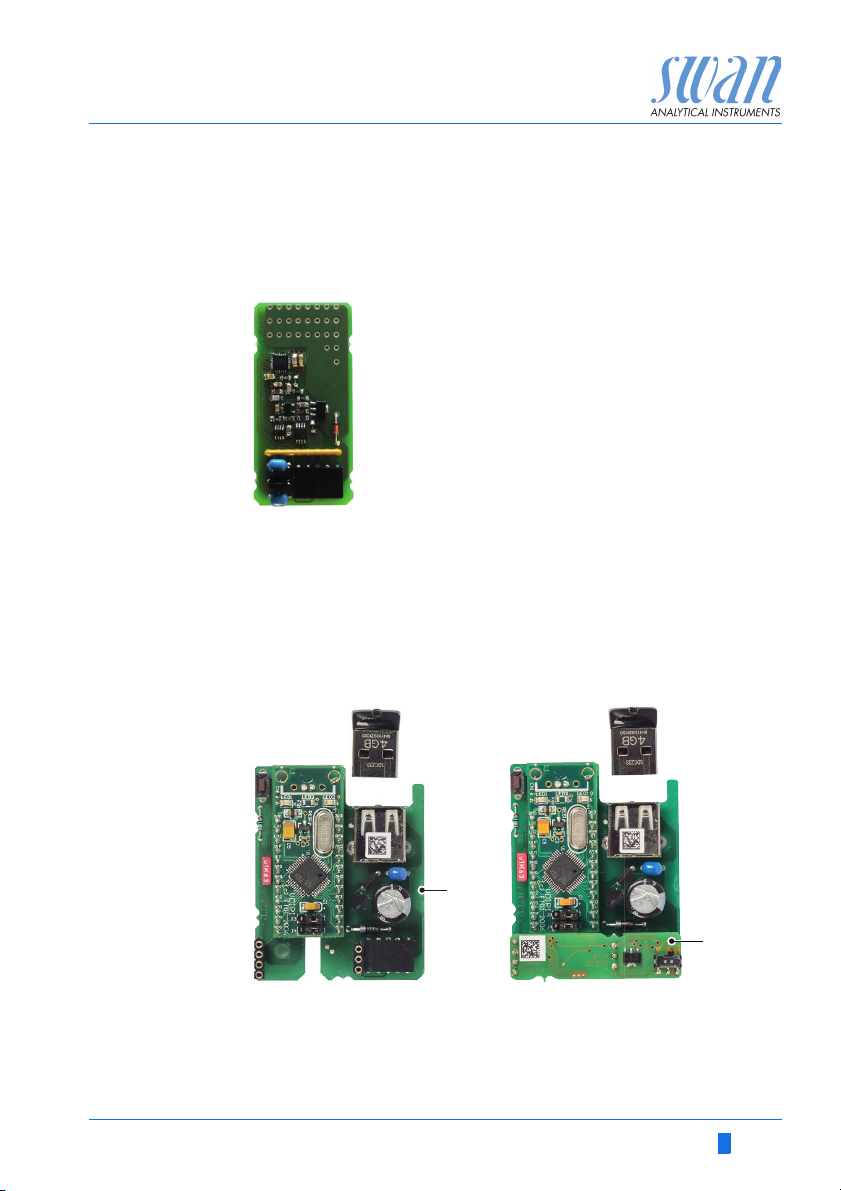

USB Interface for logger download
Third signal output (can be used in parallel to the USB interface)
RS485 with Fieldbus protocol Modbus or Profibus DP
HART interface

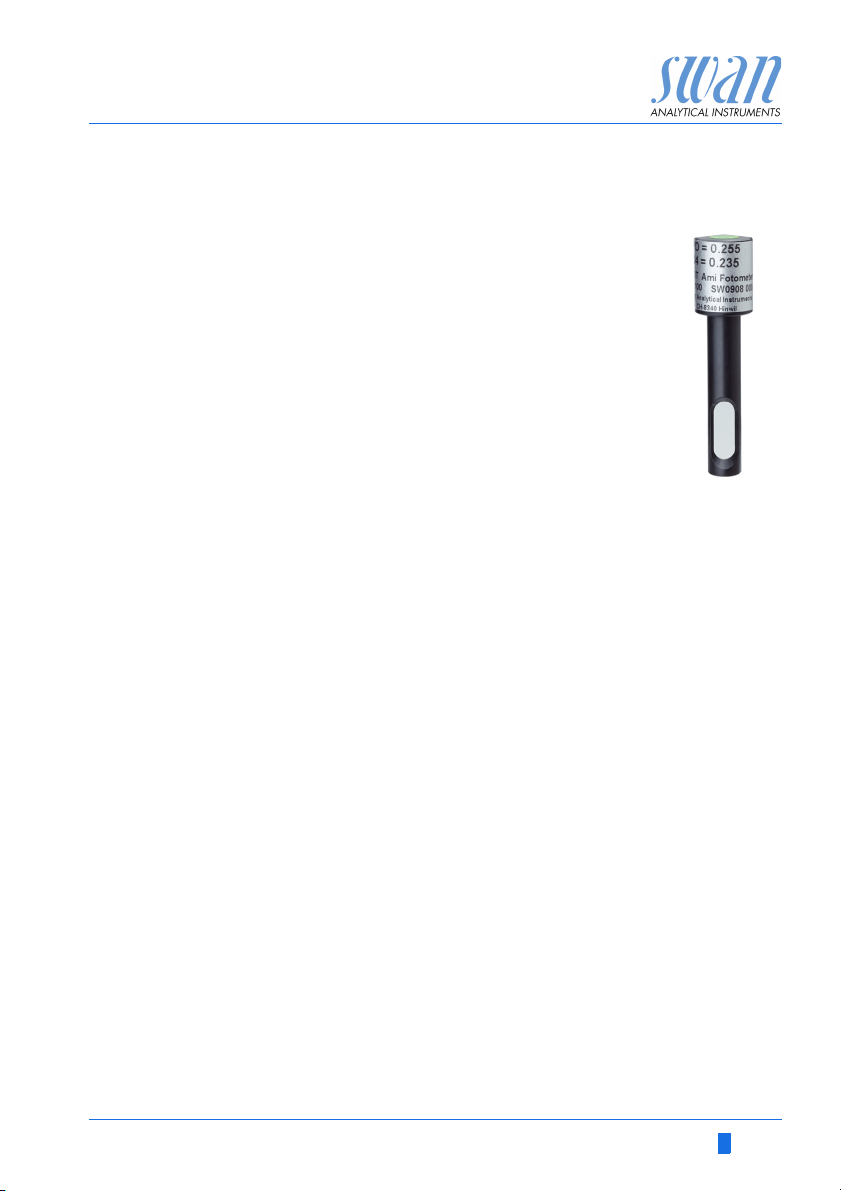

pH Optional pH measurement is possible (pH correction or calibration).
tivation of dosing devices which are controlled with an AMI transmitter, e. g. to connect two solenoid valves or one motor valve for
disinfectant addition.
An optional Cleaning module is available.
10 A-96.250.571 / 050517
Page 13
AMI Codes-II
Level
D
B
A
C
F
G
H
I
J
K
L
M
N
O
P
E
Product Description

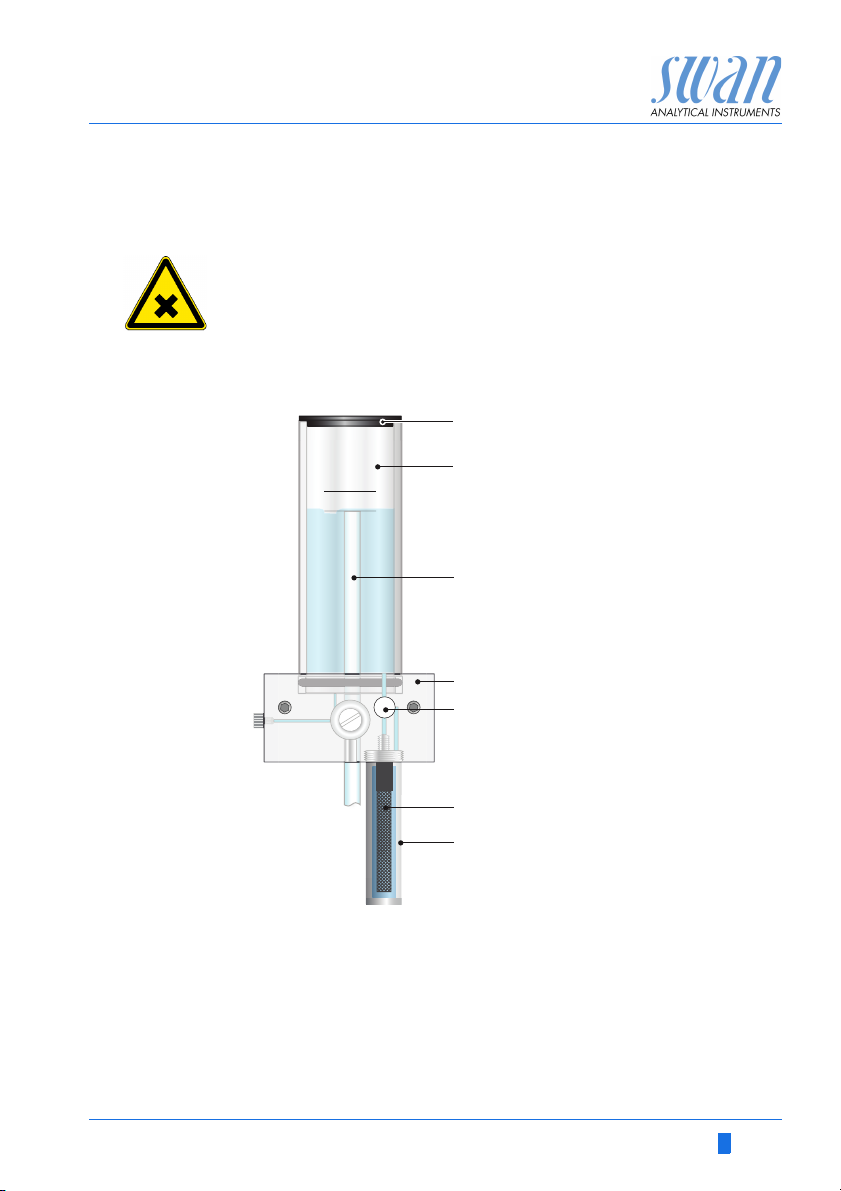

Fluidics The sample flows through the sample inlet [F] and the filter vessel
[G] into the constant head [A]. Adjust the flow regulating valve [D]
so that always a small part of the sample flows through the overflow
tube [B] into the drain [H]. A part of the sample flows through the
photometer inlet [C] into the mixing chamber [E], where the reagents [J] and [K] are added by the peristaltic pump [O] and mixed
with the sample. The mixed sample flows through the photometer
[N] and disinfectant is measured. If KI and Buffer are mixed in the
reagent canister [K] monochloramine is measured.
After the measurement the sample flows through the outlet of the
photometer where it will be aerated through air inlet [P] to generate
bubbles. Then the sample flows through the bubble detector [M]
into the photometer drain [I].
A
A-96.250.571 / 050517 11
Constant head
B
Overflow tube
C
Photometer inlet
D
Flow regulating valve
E
Mixing chamber
F
Sample inlet
G
Inlet Filter
H
Constant head drain
I
Photometer drain
J
Reagent Oxycon on-line DPD
K
Reagent Oxycon on-line Buffer
L
Reagent level detector
M
Air bubble detector
N
Photometer
O
Peristaltic pump
P
Photometer air inlet
Page 14
AMI Codes-II
102345678910111213141516171819 20
m
J
K
Product Description
Time
interval of a
measurement
The measuring interval can be set between 1 and 12 minutes. The
time sequence of a measurement with a measuring interval of
5 min is shown in the diagram below.
The blue bar represents the sample which flows continuously
through the photometer. A short time before the measurement
starts, a zero point measurement is performed. Then the peristaltic
pump starts and a small portion of the reagents [J] and [K] is
pumped into the mixing chamber. Shortly after, if the mixture is in
the photometer, the sample is measured.
JKOXYCON ON-LINE DPD
OXYCON ON-LINE Buffer Solution
Zero point measurement
Sample measurement
12 A-96.250.571 / 050517
Page 15
AMI Codes-II
Product Description
2.1. Instrument Specification
Power Supply Voltage:
Power consumption:
Electronics Aluminium with a protection degree of IP 66 / NEMA 4X
housing Ambient temperature:
Limit range of operation:
Storage and transport:
Humidity:
Display:
Sample
requirements
On-site The analyzer site must permit connections to:
requirements Sample inlet:
Measuring
Range
Flow rate:
Temperature:
Inlet pressure:
Outlet pressure:
NOTICE: No oil, no grease, no sand.
Sample outlet:
Ozone
0.000–1.000 ppm
HOCL, free chlorine, monochloramine
0.00–1.00 ppm
1.00–3.00 ppm
3.00–5.00 ppm
Chlorine dioxide, iodine, bromine
0.00–2.00 ppm
2.00–6.00 ppm
100–240 VAC (± 10%)
50/60 Hz (± 5%)
or 24 VDC (± 10%)
max. 30 VA
-10 to +50 °C
-25 to +65 °C
-30 to +85 °C
10–90% rel., non condensing
backlit LCD, 75 x 45 mm
min. 10 l/h
5–50 °C (41–122 °F)
0.15–2 bar (2–28 PSI)
pressure free
Tube 6 x 8 mm
1/2” hose nozzle for flexible tube
diam. 20x15 mm
Accuracy
± 0.005 ppm
± 0.01 ppm
± 0.06 ppm
± 0.2 ppm
± 0.02 ppm
± 0.12 ppm
A-96.250.571 / 050517 13
Page 16
AMI Codes-II
AMI Codes II
824 mm / 32
7
/
16
”
412 mm / 16 ½ ”
850 mm / 33½”
13 mm / ½”
400 mm / 15¾”
374 mm / 14¾”
13 mm / ½”
6 x dia. 6.5 mm / ¼”
30 mm / 1 ”
3
16
/
Product Description
Dimensions Panel:
Mounting hole distance
Screws:
Weight:
400x850 mm
374x824
5 mm or 6 mm diameter
12.0 kg / 26.5 lbs without reagents and
sample water
17.0 kg / 37.5 lbs with reagents and sample water
14 A-96.250.571 / 050517
Page 17
AMI Codes-II
A
Product Description
2.2. Instrument Overview
F
B
C
G
H
I
J
K
L
M
D
E
A
Panel
B
Transmitter
C
Peristaltic pump
D
Reagent Oxycon on-line DPD
E
Reagent Oxycon on-line Buffer
F
pH sensor
G
Temperature sensor
H
Constant head
A-96.250.571 / 050517 15
N
O
I
Flow regulating valve
J
Sample inlet
K
Inlet filter
L
Photometer
M
Air bubble detector
N
Constant head drain
O
Photometer drain
Page 18
AMI Codes-II
Installation
3. Installation
3.1. Installation Check List
Check Instrument’s specification must conform to the National Electrical
Code, all state and local codes, and all plant codes and standards
for electrical equipment.
On site requirements
Installation Mount the instrument in vertical position.
Electrical Wiring Do not switch on the Instrument until all electrical connections
If ordered:
Option pH

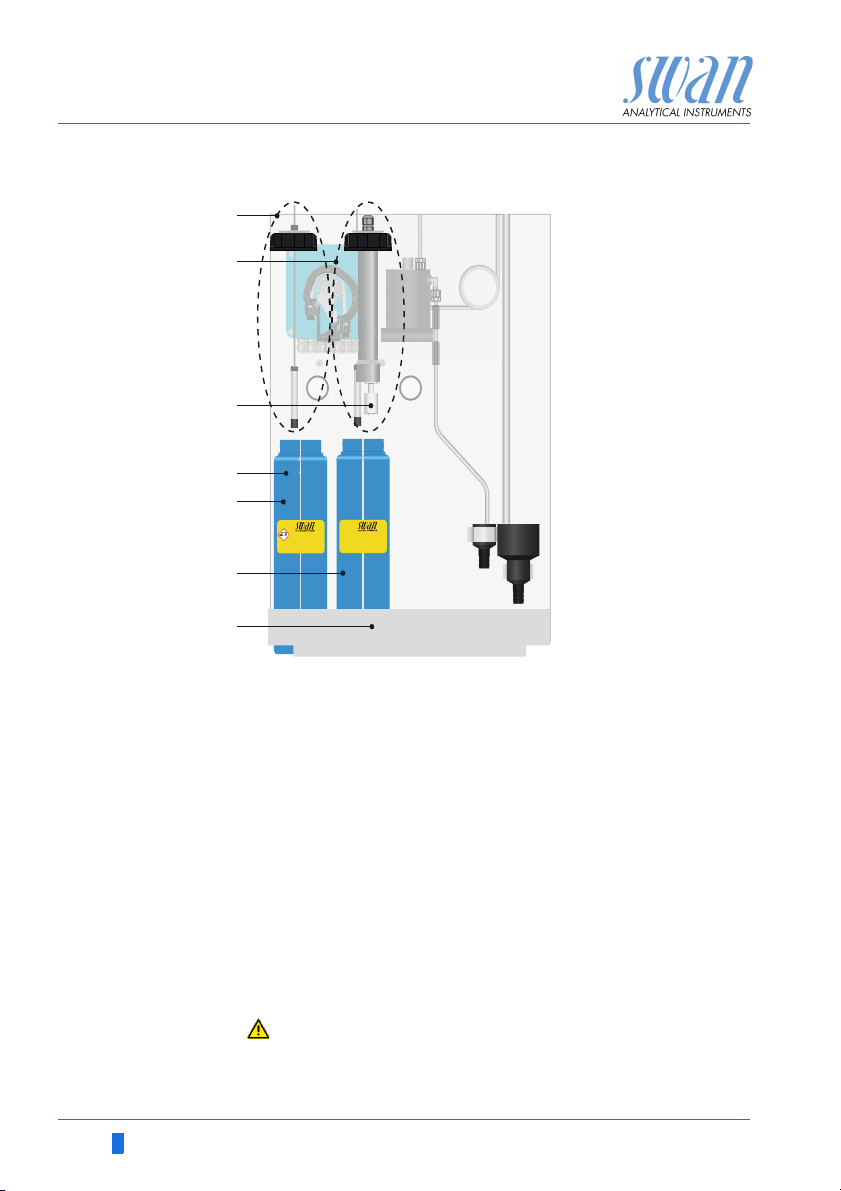

Reagents Prepare reagents. See Refill or replace Reagents, p. 43.
Power-up Perform exactly in this order:
Instrument
Setup
Run-in period Let the instrument run continuously for 1 h.
pH sensor
calibration
100– 240 VAC ( 10%), 50/60 Hz ( 5%) or 24 VDC (±10%),
isolated power outlet with ground connection and 30 VA.
Sample line with min. 10 l/h and 0.15 – 2 bar.
Waste line with pressure free drain.
Display should be at eye-level.
Mount the filter, filter vessel, and constant head cover. Connect the
sample and waste line. See Connecting Sample and Waste, p. 17
have been completed.
Connect all external devices like limit switches, current loops and
pumps.
Connect power cord.
See Electrical Connections, p. 24
See Install the Option pH, p. 20
Insert the suction lances.
Lock pump tubes.
Turn on the sample flow and wait until the flow cell is completely
filled.
Switch on power.
Start <Fill system>. See 4.4., 2 36.
Program all parameters for external devices (interface, recorders,
etc.). Program all parameters for instrument operation (limits,
alarms, measuring interval).
If ordered: Calibrate pH sensor. See Process pH, p. 51.
16 A-96.250.571 / 050517
Page 19
AMI Codes-II
Installation
Process
calibration
3.2. Mounting of Instrument Panel
Mounting re-
quirements
3.3. Connecting Sample and Waste
Make 3 manual measurements. Use a high quality photometer,
e.g. Chematest from Swan. Calculate average value and compare
this value to the value indicated by the AMI. If necessary, correct
the value. The zero point is done automatically before each measurement.
The first part of this chapter describes the preparing and placing of
the system for use.
The instrument must only be installed by trained personnel.
Mount the instrument in vertical position.
For ease of operation mount it so that the display is at eye
level.
For the installation a kit containing the following installation
material is available:
– 6 Screws 6x60 mm
–6 Dowels
– 6 Washers 6.4/12 mm
The instrument is only intended for indoor installation.
For dimensions see Dimensions, p. 14.
3.3.1 FEP Tube at Sample Inlet
Use plastic tube (FEP, PA, or PE 6 x 8 mm) to connect the sample
line.
Mounting of
SERTO fitting
A-96.250.571 / 050517 17
A
A
B
C
D
Screw connection
B
Compression ferrule
C
Knurled nut
D
Flexible tube
Page 20
AMI Codes-II
A
Installation
3.3.2 FEP Tube at Sample Outlet
B
Connect the 1/2” tubes [F] to the hose nozzles [E] and place it into
a pressure free drain with sufficient capacity.
WARNING
Risk of water pollution
The drain of the photometer outlet contains DPD.
At no means recirculate it into the water system.
A
Tube from photometer
B
C
D
E
F
Drain Photometer
C
Tube from constant head
D
Drain constant head
E
Hose nozzles
F
1/2” tubes
18 A-96.250.571 / 050517
Page 21
AMI Codes-II
Level
A
B
E
C
D
Installation

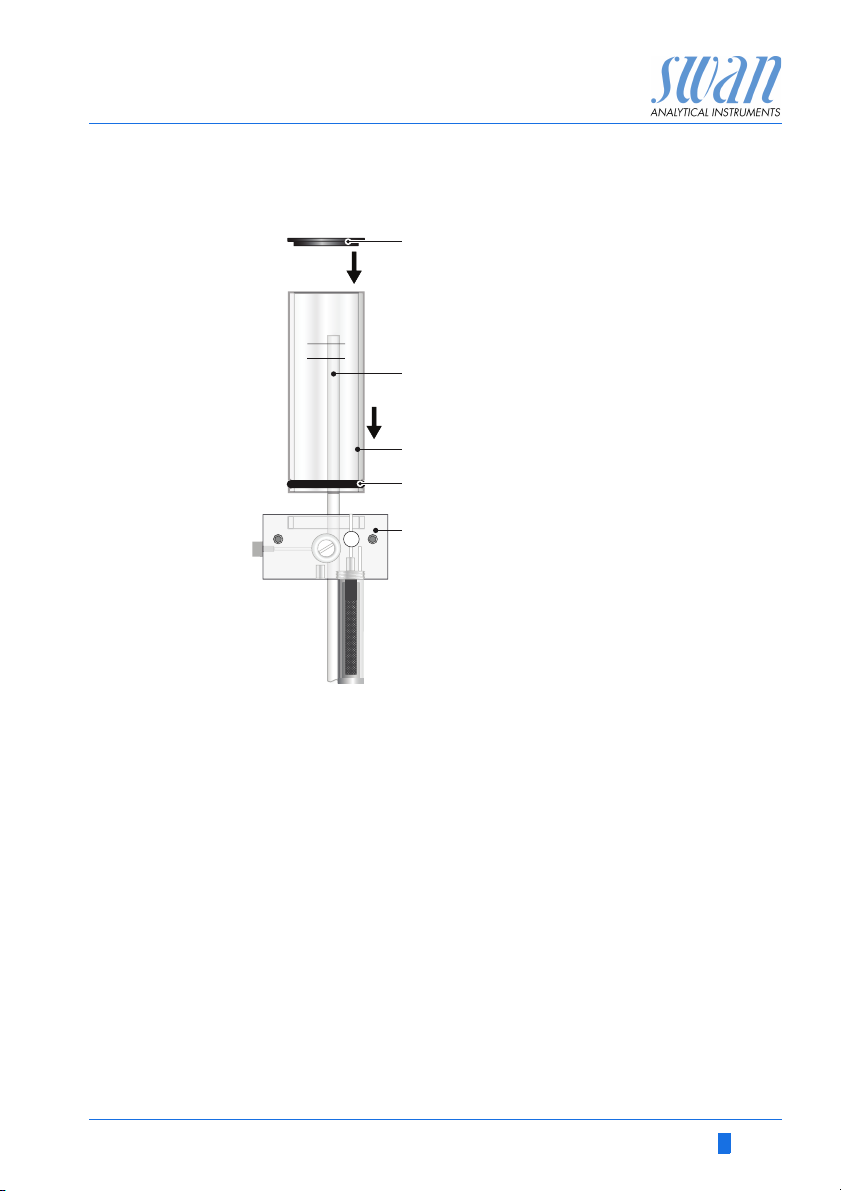

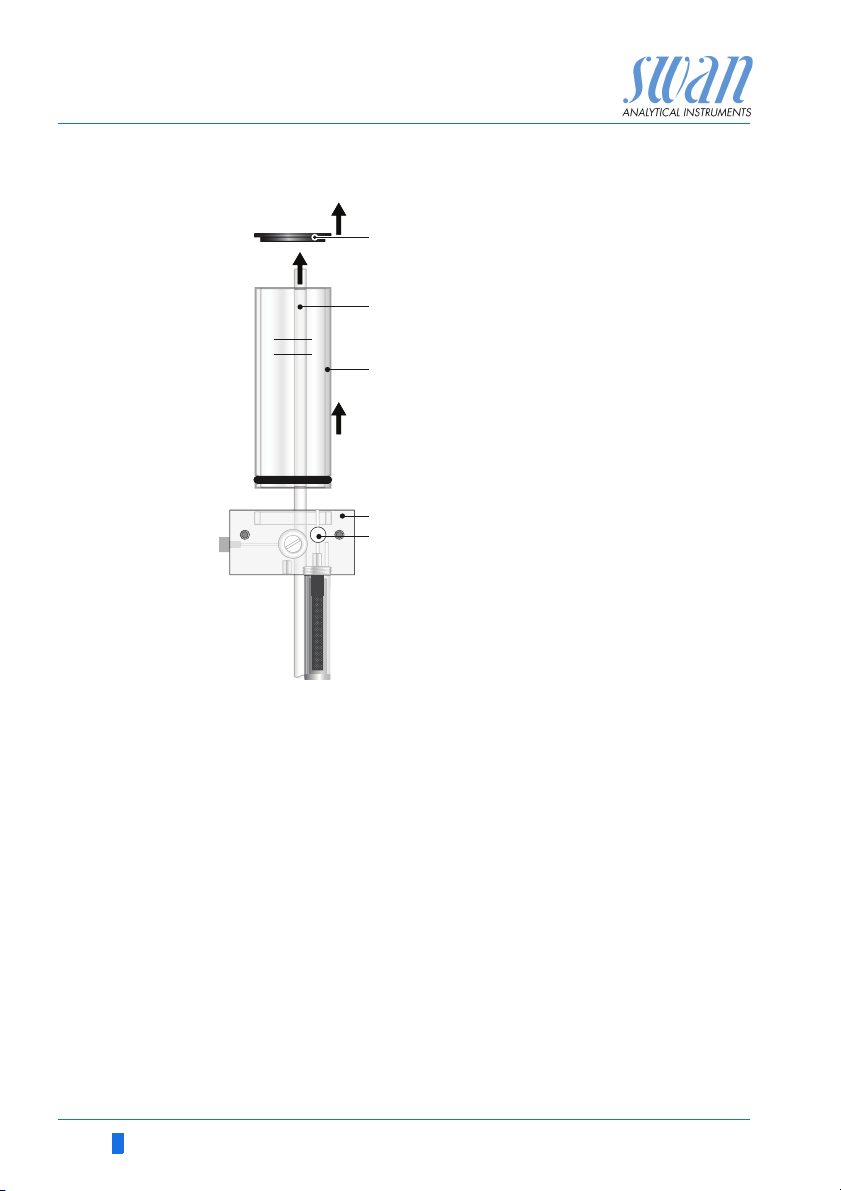

3.4. Installation of Flow Cell
To avoid damage during the transport, the constant head tube [C] of
the AMI Codes-II is not installed.
CAUTION
Fragile Part
Handle the constant head tube with care.
A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Gasket
E
Flow cell block
To install the constant head tube proceed as follows:
A-96.250.571 / 050517 19
1 Unpack the constant head tube [C].
2 Push the constant head tube into the flow cell block [E].
3 Put the constant head cover [A] onto the constant head tube.
4 Check if the overflow tube [B] is aligned with the upper Level
mark.
Page 22
AMI Codes-II
B
C
D
A
E
G
F
Installation
3.5. Install the Option pH
3.5.1 pH as Option ex works
If the pH option was ordered with the AMI Codes-II, the pH sensor
cable as well as the temperature sensor are already connected to
the AMI transmitter.
A
Connector cap
B
Connector
C
pH Sensor
D
Temperature sensor
E
Constant head cover
F
Protective cap
G
Constant head

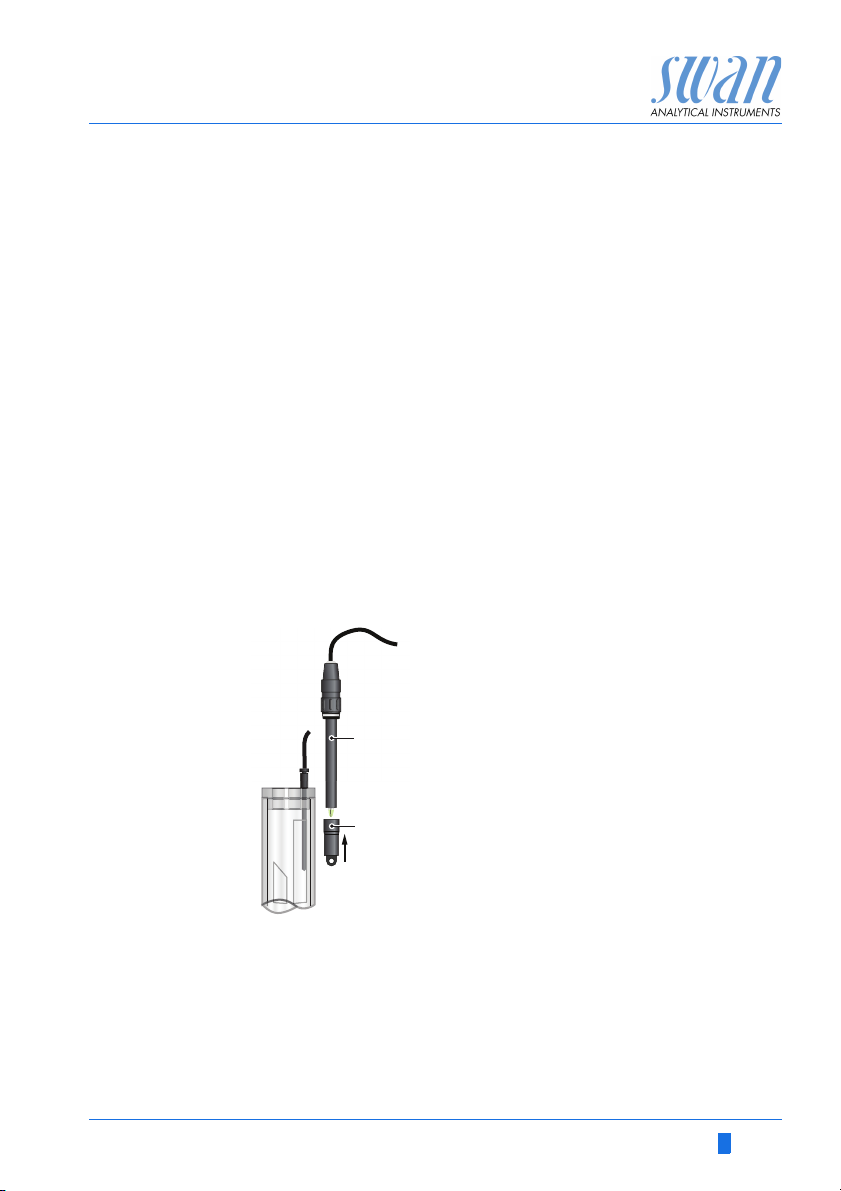

1 Carefully pull off the protective cap [F] from the pH sensor [C]
by turning it clockwise.
2 Store the protective cap in safe place.
3 Rinse the pH sensor tip with clean water.
4 Insert the pH sensor into one of the holes in the constant head
cover [E].
5 Insert temperature sensor [D] into the small hole.
6 Remove the connector cap from the connector of the pH sen-
sor. Store it in safe place.
7 Screw the connector [B] onto the pH sensor.
20 A-96.250.571 / 050517
Page 23
AMI Codes-II
ABC
FE D
Installation
3.5.2 pH Option as Retrofit Kit
A
2 Clamps with screws
B
pH sensor
C
Sensor cable
A-96.250.571 / 050517 21
D
E
F
Front end PCB
Temperature sensor
Short overflow tube
Page 24
AMI Codes-II
AMI Codes-II
A
Level
A
B
C
D
Installation
1 Screw the clamps for calibration solution onto the panel. Use
2 Stop sample flow. Wait until flow cell is empty.
3 Switch off the AMI transmitter (disconnect power).
WARNING
Risk of electrical shock.
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
the already drilled holes [A].
A
Constant head cover
B
Constant head tube
C
Short overflow tube
D
Flow cell block
4 Remove the constant head cover [A] and the constant head
tube [B] from the flow cell block [D].
5 Insert the short overflow tube [C] into the outlet hole leading to
the photometer.
6 Install the constant head tube and the constant head cover.
22 A-96.250.571 / 050517
Page 25
AMI Codes-II
AB C
Installation
7 Open the cover of the AMI transmitter housing.
8 Install the front end PCB.
9 Feed the cable of the pH sensor through one of the cable
10 Connect it to the BNC socket.
11 Feed the cable of the Temperature sensor through one of the
12 Connect the temperature sensor cable to the plug as follows:
13 Close the cover of the AMI transmitter housing.
14 Carefully pull off the protective cap [F] from the pH sensor [C].
15 Insert the pH sensor into one of the holes in the constant head
16 Insert temperature sensor [D] into the small hole.
17 Remove the connector cap from the connector of the pH sen-
18 Screw the connector [B] onto the pH sensor.
19 Turn on sample flow and wait until flow cell has been filled com-
20 Switch power ON. The instrument automatically detects the
A
Temperature sensor plug
B
pH sensor plug
C
Front end PCB
glands (see Cable thicknesses, p. 24) into the AMI transmitter
housing.
cable glands into the AMI transmitter housing.
Terminal 19: line, Terminal 20: shield.
cover [E].
sor. Store cap in safe place.
pletely.
front end PCB during start-up.
A-96.250.571 / 050517 23
Page 26
AMI Codes-II
Installation
3.6. Electrical Connections
Cable
thicknesses
In order to comply with IP66, use the following cable thicknesses
WARNING
Risk of electrical shock.
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
Grounding requirements: Only operate the instrument from
an power outlet which has a ground connection.
Make sure the power specification of the instrument corre-
sponds to the power on site.
ABC
PG 11 cable gland: cable Ø
A
B
PG 7 cable gland: cable Ø
C
PG 9 cable gland: cable Ø
NOTICE: Protect unused cable glands
Wire For Power and Relays: Use max. 1.5 mm
stranded wire with end sleeves.
For Signal Outputs and Input: Use 0.25 mm
stranded wire with end sleeves.
outer
3–6.5 mm
outer
4–8 mm
outer
5–10 mm
2
/ AWG 14
2
/ AWG 23
24 A-96.250.571 / 050517
Page 27
AMI Codes-II
Installation
WARNING
External Voltage.
External supplied devices connected to relay 1 or 2 or to the
alarm relay can cause electrical shocks
Make sure that the devices connected to the following con-
tacts are disconnected from the power before resuming installation.
– relay 1
– relay 2
– alarm relay
WARNING
To prevent from electrical shock, do not connect the instrument
to the power unless the ground wire (PE) is connected.
Do not connect unless specifically instructed to do so.
WARNING
The mains of the AMI Transmitter must be secured by a main
switch and appropriate fuse or circuit breaker.
A-96.250.571 / 050517 25
Page 28
AMI Codes-II
Installation
3.6.1 Connection Diagram
CAUTION
Use only the terminals shown in this diagram, and only for the
mentioned purpose. Use of any other terminals will cause short
circuits with possible corresponding consequences to material
and personnel.
26 A-96.250.571 / 050517
Page 29
AMI Codes-II
A
B
C
D
Installation
3.6.2 Power Supply
WARNING
Risk of electrical shock
Do not perform any work on electrical components if the transmitter is switched on. Failure to follow safety instructions could
result in serious injury or death.
Always turn off AC power before manipulating electric parts.
Installation and maintenance of electrical parts must be per-
formed by professionals.
A
Power supply connector
B
Neutral conductor, Terminal 2
C
Phase conductor, Terminal 1
D
Protective earth PE
NOTICE: The protective earth wire (Ground) has to be
connected to the grounding terminal.
Installation
requirements
A-96.250.571 / 050517 27
The installation must meet the following requirements.
Mains fuse 1.6 AT
Mains cable to comply with standards IEC 60227 or IEC
60245; flammable rating FV1
Mains equipped with an external switch or circuit-breaker
– near the instrument
– easily accessible to the operator
– marked as interrupter for AMI Codes-II
Page 30
AMI Codes-II
10
12
11
0V
1)
10
12
11
0V
Installation
3.7. Input
Terminals 30 and 31
If the signal output is set to hold, the measurement is interrupted if
input is active.
For programming see Menu Installation 5.3.4, p. 93.
3.8. Relay Contacts
3.8.1 Alarm Relay
Alarm output for system errors.
Error codes see Troubleshooting, p. 64.
NOTICE: Use only potential-free (dry) contacts.
The total resistance (sum of cable resistance and resistance of
the relay contact) must be less than 50 Ω.
NOTICE: Max. load 1 A/250 VAC
NOTICE: With certain alarms and certain settings of the AMI
transmitter the alarm relay does not switch. The error, however,
is shown on the display.
Ter min als Description Relay connection
1)
NC
Normally
Closed
NO
Normally
Open
10/11 Active (opened) during normal
operation.
Inactive (closed) on error and
loss of power.
12/11 Active (closed) during normal
operation.
Inactive (opened) on error and
loss of power.
1) usual use
28 A-96.250.571 / 050517
Page 31
AMI Codes-II
6
0V
7
6
0V
7
A
B
Installation
3.8.2 Relay 1 and 2
Relay 1 and 2 can be configured as normally open or as normally
closed. Standard for both relays is normally open. To configure a
Relay as normally closed, set the jumper in the upper position.
NOTICE: Max. load 1 A/250 VAC
NOTICE: Some error codes and the instrument status may
influence the status of the relays described below.
Relay
config. Terminals
Normally
Open
Normally
Closed
6/7: Relay 1
8/9: Relay 2
6/7: Relay 1
8/9: Relay 2
Jumper
pos. Description Relay configuration
Inactive (opened) during
normal operation and
loss of power.
Active (closed) when a
programmed function is
executed.
Inactive (closed) during
normal operation and
loss of power.
Active (opened) when a
programmed function is
executed.
ABJumper set as normally open (standard setting)
Jumper set as normally closed
For programming see Menu Installation 5.3.2 and 5.3.3, p. 88.
A-96.250.571 / 050517 29
Page 32
AMI Codes-II
A
BC
DE
Installation
CAUTION
Risk of damage of the relays in the AMI Transmitter due to
heavy inductive load.
Heavy inductive or directly controlled loads (solenoid valves,
dosing pumps) may destroy the relay contacts.
To switch inductive loads > 0.1 A use an AMI relay box avail-
able as an option or suitable external power relays.
Inductive load Small inductive loads (max 0.1A) as for example the coil of a power
Resistive load Resistive loads (max. 1A) and control signals for PLC, impulse
Actuators Actuators, like motor valves, are using both relays: One relay con-
relay can be switched directly. To avoid noise voltage in the
AMI Transmitter it is mandatory to connect a snubber circuit in parallel to the load.
A snubber circuit is not necessary if an AMI relaybox is used.
A
AC or DC power supply
B
AMI Transmitter
C
External power relay
D
Snubber
E
Power relay coil
pumps and so on can be connected without further measures
A
AB
C
tact is used for opening, the other for closing the valve, i.e. with the
2 relay contacts available, only one motor valve can be controlled.
Motors with loads bigger than 0.1A must be controlled via external
power relays or an AMI relay box.
A
BC
AMI Transmitter
B
PLC or controlled pulse pump
C
Logic
A
AC or DC power supply
B
AMI Transmitter
C
Actuator
M
30 A-96.250.571 / 050517
Page 33
AMI Codes-II
Installation
3.9. Signal Outputs
3.9.1 Signal Output 1 and 2 (current outputs)
Signal output 1: Terminals 14 (+) and 13 (-)
Signal output 2: Terminals 15 (+) and 13 (-)
For programming see Program Overview, p. 70, Menu Installation
3.10 Interface Options
NOTICE: Max. burden 510
If signals are sent to two different receivers, use signal isolator
(loop isolator).
A
AMI Transmitter
A
B
Slot for interfaces
C
Frontend PCB
D
Screw terminals
B
C
D
The slot for interfaces can be used to expand the functionality of
the AMI instrument with either:
Third signal output
a Profibus or Modbus connection
a HART connection
an USB Interface
A-96.250.571 / 050517 31
Page 34
AMI Codes-II
Installation
3.10.1 Signal Output 3
Terminals 38 (+) and 37 (-).

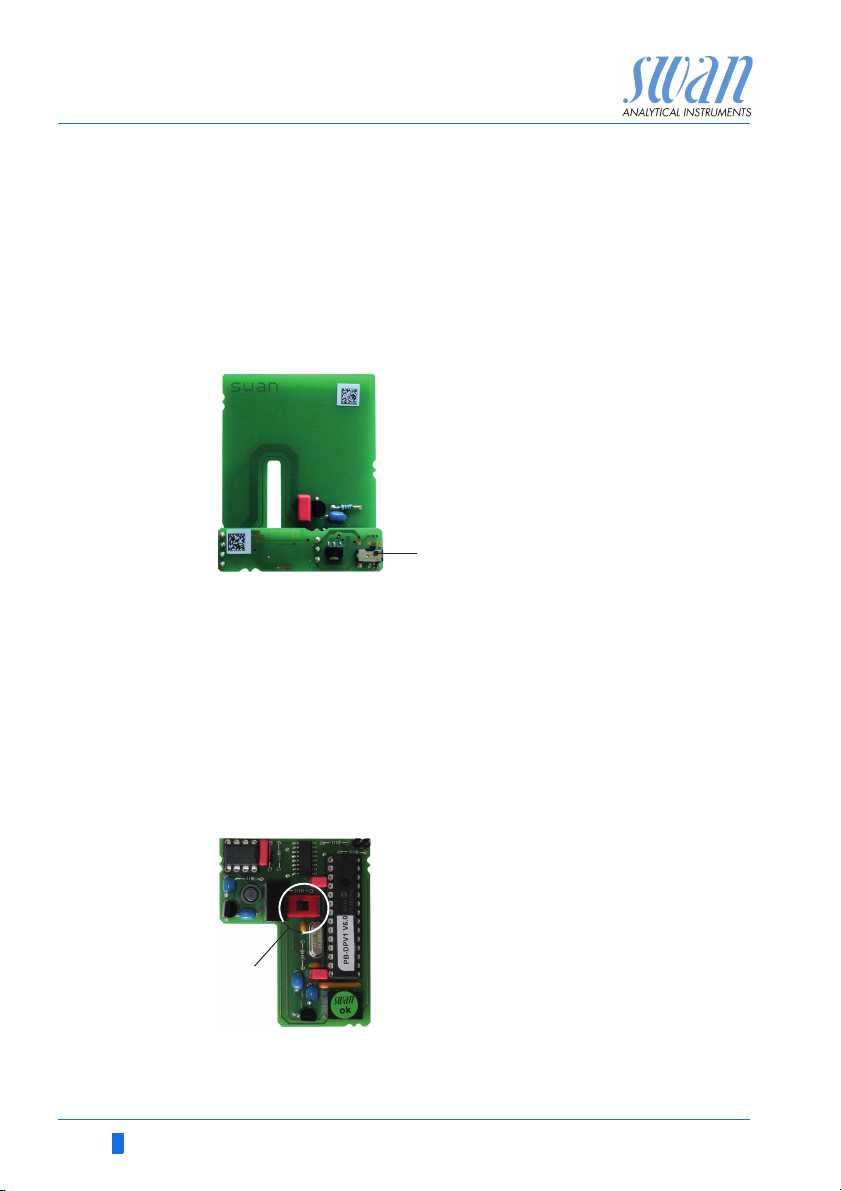

Requires the additional board for the third signal output 0/4 – 20 mA.
The third signal output can be operated as a current source or as a
current sink (switchable via switch [A]). For detailed information see
the corresponding installation instruction.
Third signal output 0/4 - 20 mA PCB
A Operating mode selector switch
3.10.2 Profibus, Modbus Interface
Terminal 37 PB, Terminal 38 PA
To connect several instruments by means of a network or to config-
ure a PROFIBUS DP connection, consult the PROFIBUS manual.
Use appropriate network cable.
NOTICE: Max. burden 510 Ω.
A
NOTICE: The switch must be ON, if only one instrument is
installed, or on the last instrument in the bus.
OFF
ON
A
Profibus, Modbus Interface PCB (RS 485)
A On - OFF switch
32 A-96.250.571 / 050517
Page 35
AMI Codes-II
A
B
Installation
3.10.3 HART Interface
Terminals 38 (+) and 37 (-).
The HART interface PCB allows for communication via the HART
protocol. For detailed information, consult the HART manual.
HART Interface PCB
3.10.4 USB Interface
The USB Interface is used to store Logger data and for Firmware
upload. For detailed information see the corresponding installation
instruction.
The optional third signal output 0/4 – 20 mA PCB [B] can be
plugged onto the USB interface and used in parallel.
USB Interface
A USB interface PCB
B Third signal output 0/4 - 20 mA PCB
A-96.250.571 / 050517 33
Page 36
AMI Codes-II
A
B
D
C
Instrument Setup
4. Instrument Setup
After installation according to checklist proceed as following:
4.1. Prepare Reagents
1 Prepare reagents. See Refill or replace Reagents, p. 43.
2 Insert the suction lances into the canisters.
4.2. Peristaltic Pump
The instrument is delivered with opened occlusion frames.
1 Activate the peristaltic pump tubes by closing the occlusion
frame [B].
A
Turn to lock
B
Occlusion frame
C
Rotor
D
Pump tube
34 A-96.250.571 / 050517
Page 37
AMI Codes-II
Level
A
B
D
E
F
G
C
Instrument Setup
4.3. Establish Sample Flow
WARNING
Water pollution
The drain of the photometer outlet contains DPD.
At no means recirculate it into the water system.
A
Cover
B
Constant head tube
C
Overflow tube
D
Flow cell block
E
Flow regulating valve
F
Filter
G
Filter vessel
1 Open the flow regulating valve (E) and wait until the flow cell is
completely filled.
2 Switch on power.
3 Adjust the sample flow so that always a small part of the sample
drains off through the overflow tube.
4 Start <Fill system>, see Fill or Flush Reagent System, p. 36.
A-96.250.571 / 050517 35
Page 38
AMI Codes-II
3.2.2
Fill System
Verification
Service
Cleaning
3.2.2.5
Fill System
Progress
<Enter> to stop
3.2.2.5
Fill System
Progress
Done
Instrument Setup
4.4. Fill or Flush Reagent System
Fill or flush the reagent tubing:
upon the initial instrument setup,
after refilling the reagent canisters,
before a system shut-down to flush the system with deminer-
alized water until no more reagent is left in the system.
Navigate to menu< Maintenance /
Service/ Fill system>.
Press [Enter].
The peristaltic pump is activated for
1.5 minutes.
Press [Exit] 4 x to go back to the operating mode.
1 Check tubing and flow cell for leaks and repair if necessary.
2 Let the instrument run continuously for 1 hour.
4.5. Programming
Programming Program all parameters for external devices (interface, recorders,
etc.)
Program all parameters for instrument operation (disinfectant, lim-
its, alarms).
Program the DPD value of the Verikit in menu <Installation/
Sensors/Ref. Verification>.
If pH option is installed, program the two buffers you want to use for
calibration in menu <Installation/Sensors/Standards>.
See Program List and Explanations, p. 75.
36 A-96.250.571 / 050517
Page 39
AMI Codes-II
Instrument Setup
4.6. Calibration
1 Calibrate pH sensor (if option pH is installed).
See Standard pH, p. 52.
2 Perform process calibration.
See Process Calibration of DIS, p. 50
If ordered:
Calibration of
pH sensor
Process DIS Let the instrument run for 1 h.
The instrument should be operating for 1h before performing a pH
calibration.
Program the two buffers you want to use for calibration (Installation/
Sensors/Standards). Calibrate the pH sensor with two buffers, e.g.
pH 7.00 and pH 9.00. See chapter Calibration, p. 50 for details.
Use CHEMATEST 25 (or equivalent photometer) to determine the
sample disinfectant concentration. Take the sample directly from
the flow cell. Determine the sample disinfectant value by 3 manual
DPD measurements. Calculate the average value. Compare this
value to the value, indicated by the AMI.
Keep in mind the accuracy of your manual measurement. Only correct the instrument if the difference is significant.
Perform process DIS if necessary. See chapter Calibration, p. 50
for details.
A-96.250.571 / 050517 37
Page 40
AMI Codes-II
25.4°C
RUN
9 l/h
14:10:45
R1
0.15 ppm
R2
1
Installation
Operation
Diagnostics
Messages
Maintenance
Main Menu
Enter
Exit
Operation

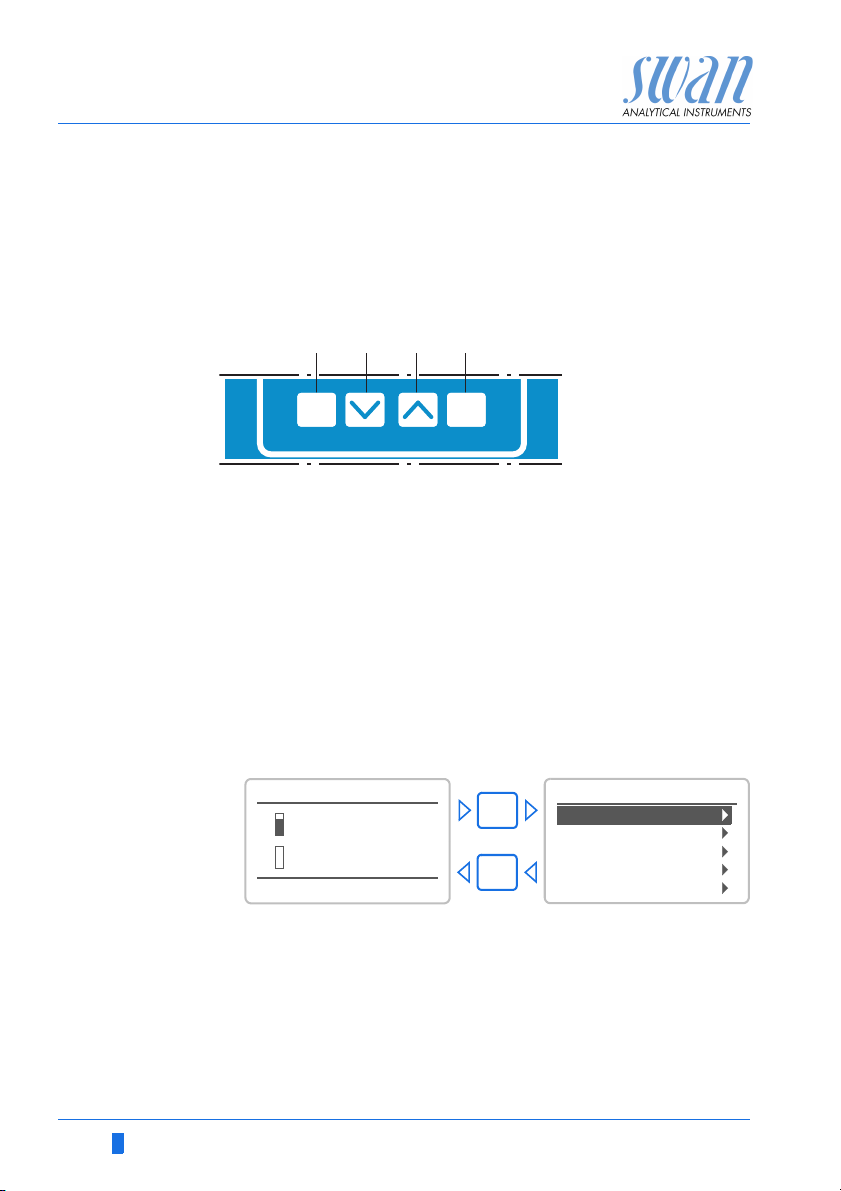

5. Operation
5.1. Keys
A to exit a menu or command (rejecting any changes)
B to move DOWN in a menu list and to decrease digits
C to move UP in a menu list and to increase digits
D to open a selected sub-menu
BCDA
Exit Enter
to move back to the previous menu level
to accept an entry
Program
Access, Exit
38 A-96.250.571 / 050517
Page 41
AMI Codes-II
RUN
23 °C
23 B/s
15:20:18
R1
R2
ppm
0.15
AB C D
F
E
G
H
K
I
Operation

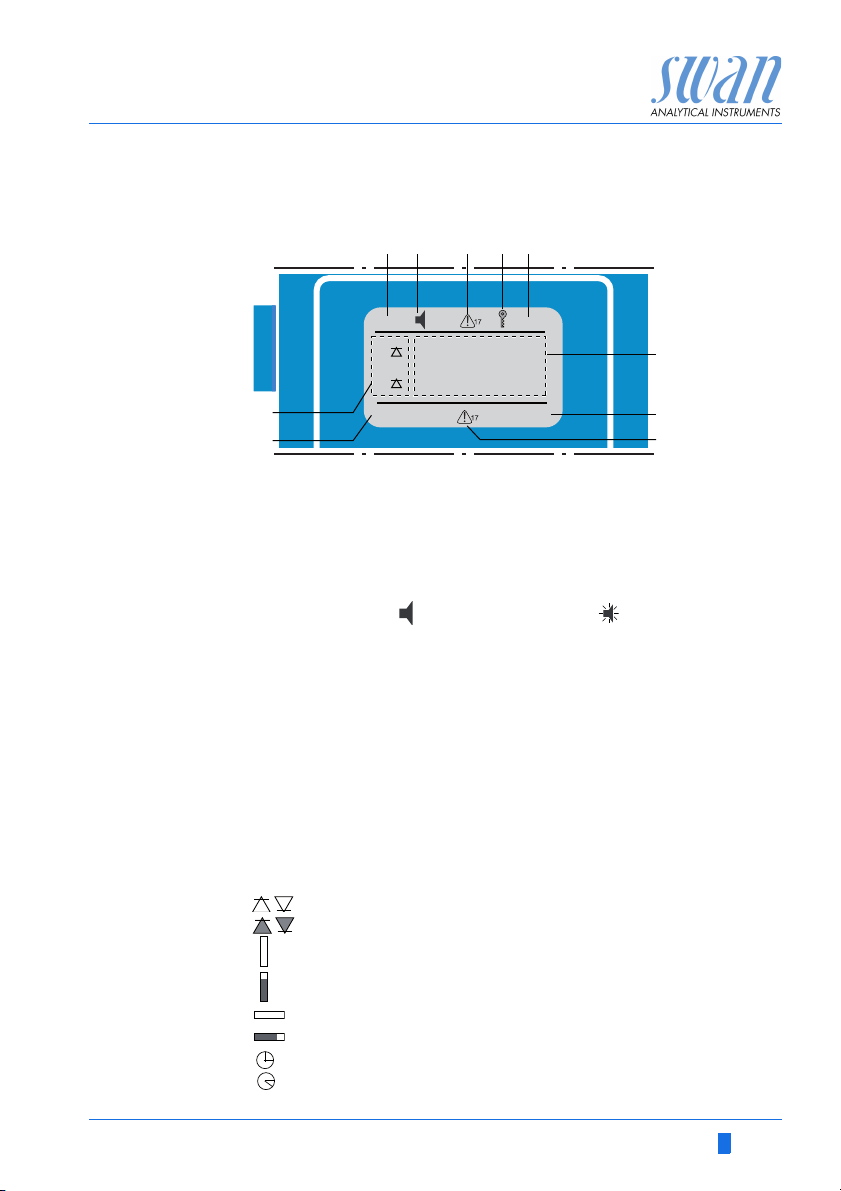

5.2. Display
A RUN normal operation
B ERROR Error Fatal Error
C Reagent low, indicates remaining reagents in% (17 % = 340 ml)
D Keys locked, transmitter control via Profibus
E Time
F Process values
G Sample Temperature
H Cleaning solution low, indicates remaining cleaning solution in%
I Sample flow in B/s
K Relay status
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status
of signal outputs).
Relay status, symbols
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
A-96.250.571 / 050517 39
Page 42
AMI Codes-II
1
Messages
Operation
Maintenance
Diagnostics
Main Menu
Installation
1.1
Pending Errors
Messages
Message List
2.1
Interface
I/O State
Sample
Identification
Sensors
Diagnostics
3.1
Calibration
Simulation
Maintenance
Set Time 23.09.06 16:30:00
Process Cal.
4.1
Logger
Relay Contacts
Sensors
Operation
5.1
Interface
Miscellaneous
Relay Contacts
Sensors
Signal Outputs
Installation
Operation
5.3. Software Structure
Menu Messages 1
Reveals pending errors as well as an event history
(time and state of events that have occurred at an
earlier point of time).
It contains user relevant data.
Menu Diagnostics 2
Provides user relevant instrument and sample data.
Menu Maintenance 3
For instrument calibration, relay and signal output
simulation, and to set the instrument time.
It is used by the service personnel.
Menu Operation 4
User relevant parameters that might need to be
modified during daily routine. Normally password
protected and used by the process-operator.
Subset of menu 5 - Installation, but process-related.
Menu Installation 5
For initial instrument set up by SWAN authorized
person, to set all instrument parameters. Can be
protected by means of password.
40 A-96.250.571 / 050517
Page 43
AMI Codes-II
5.1.2
Sensors
Sensor type FOME
Temperature NT5K
Standards
Disinf. Free chlorine
4.4.1
Logger
Log interval 30 min
Clear logger no
4.1.3
Logger
Clear logger no
Log interval 30min
1 Hour
Interval.
5 min
30 min
10 min
4.1.3
Logger
Log interval 10 min
Clear logger no
4.1.3
Logger
Log interval
Clear logger no
No
Save ?
Yes
5.3.1.1.1
Alarm High 5.00 ppm
Alarm DIS
Alarm Low 0.00 ppm
Hysteresis 1.00 ppm
Delay 5 Sec
5.3.1.1.1
Alarm DIS
Alarm Low 0.00 ppm
Hysteresis 1.00 ppm
Delay 5 Sec
Alarm High 0.20 ppm
Operation

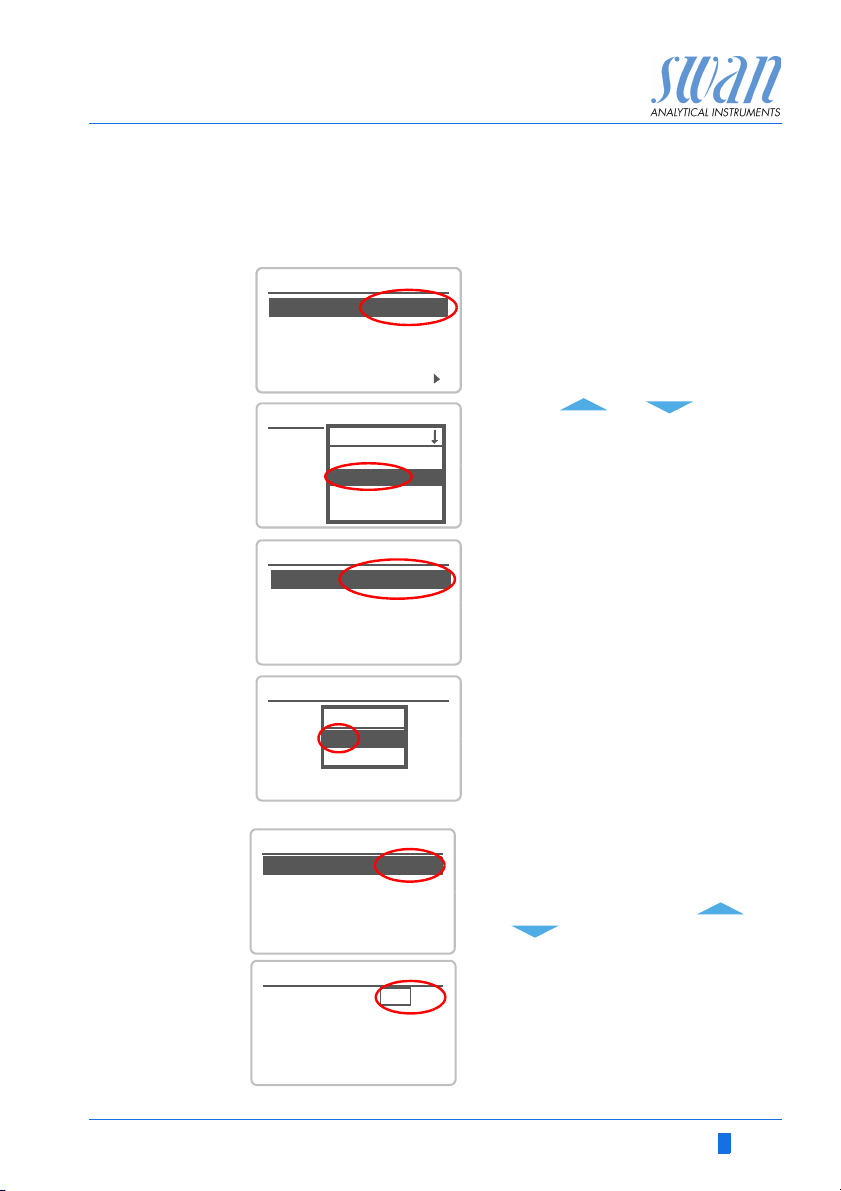

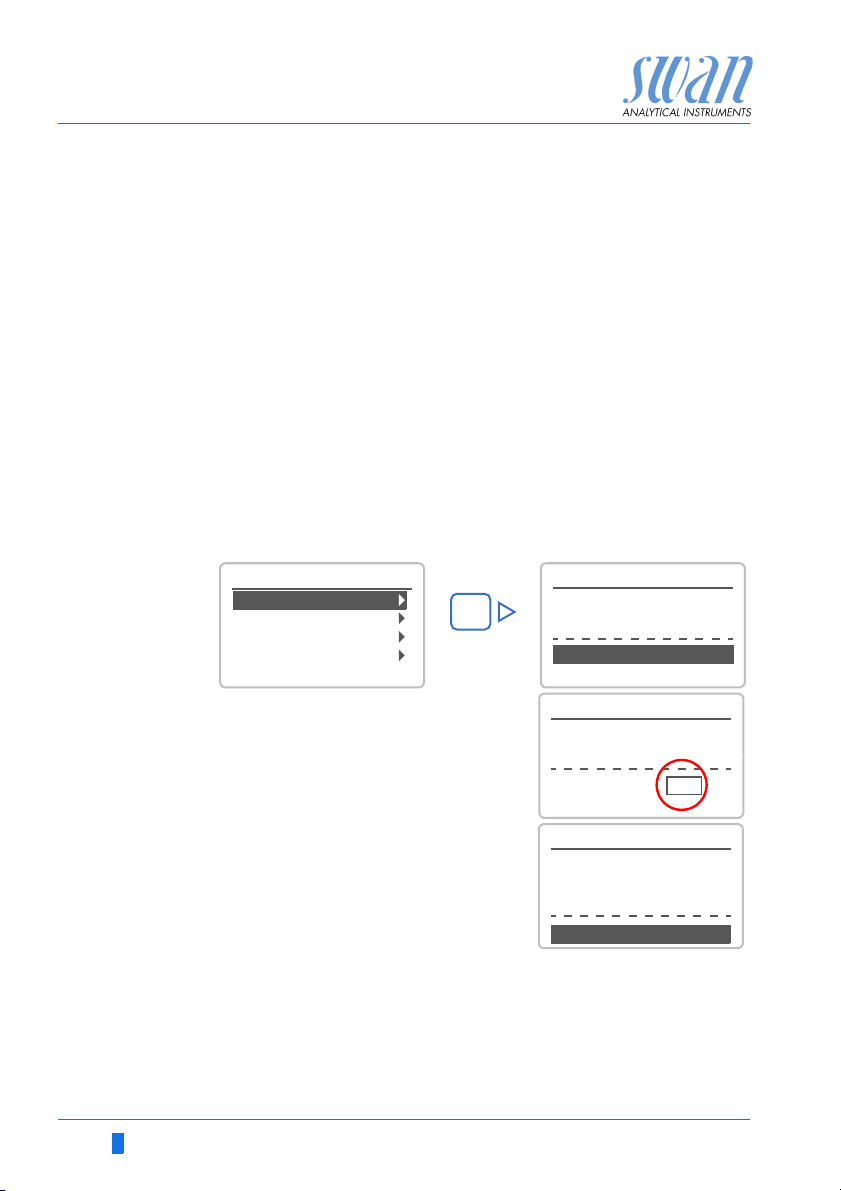

5.4. Changing Parameters and values
Changing
parameters
The following example shows how to change the logger interval:
1 Select the parameter you want to
change.
2 Press [Enter]
3 Press [ ] or [ ] key to
highlight the required parameter.
4 Press [Enter] to confirm the selec-
tion or [Exit] to keep the previous
parameter).
The selected parameter is
highlighted but not saved yet.
5 Press [Exit].
Yes is highlighted.
6 Press [Enter] to save the new pa-
rameter.
The system reboots, the new
parameter is set.
Changing
values
A-96.250.571 / 050517 41
1 Select the value you want to
change.
2 Press [Enter].
3 Set required value with [ ] or
[ ] key.
4 Press [Enter] to confirm the new
value.
5 Press [Exit].
Yes is highlighted.
6 Press [Enter] to save the new val-
ue.
Page 44
AMI Codes-II
Maintenance
6. Maintenance
6.1. Maintenance Schedule
WARNING
Stop operation before maintenance.
Stop sample flow.
Shut off power of the instrument.
Daily (dirty water)
up to every
2 weeks (clean
water)
Every 2–4 weeks Clean reagent canisters and prepare new reagents.
Monthly Recommendation: Check photometer with verification kit
Yearl y Exchange reagent pump tubes, see Tube Replacement,
By occurrence: E020, FOME dirty: Cleaning the Photometer, p. 54
If pH option is installed:
Weekly Perform a process calibration, see Process pH, p. 51.
Every 2 months: Perform a standard calibration, see Standard pH, p. 52.
Check sample supply for dirt.
Clean all filters and strainers, if necessary.
Clean AMI Codes protection filter, if necessary.
Check sample flow (see also Troubleshooting, p. 64)
Let instrument run for 1 h. Make 3 manual measurements. Compare average value to displayed value. If necessary, perform process calibration.
Verification, p. 49
p. 59.
E022, Reagent empty: Refill or replace Reagents, p. 44
E065, Reagents low: Refill or replace Reagents, p. 44
42 A-96.250.571 / 050517
Page 45
AMI Codes-II
Maintenance
6.2. Stop of Operation for Maintenance
1 Put the suction lances into a bucket with clean water.
2 Start <Fill system>.
3 Remove the suction lances from the water.
4 Start <Fill system> again.
5 Stop sample flow.
6 Wait until level in flow cell is empty.
7 Shut off power of the instrument.
If pH option is installed:

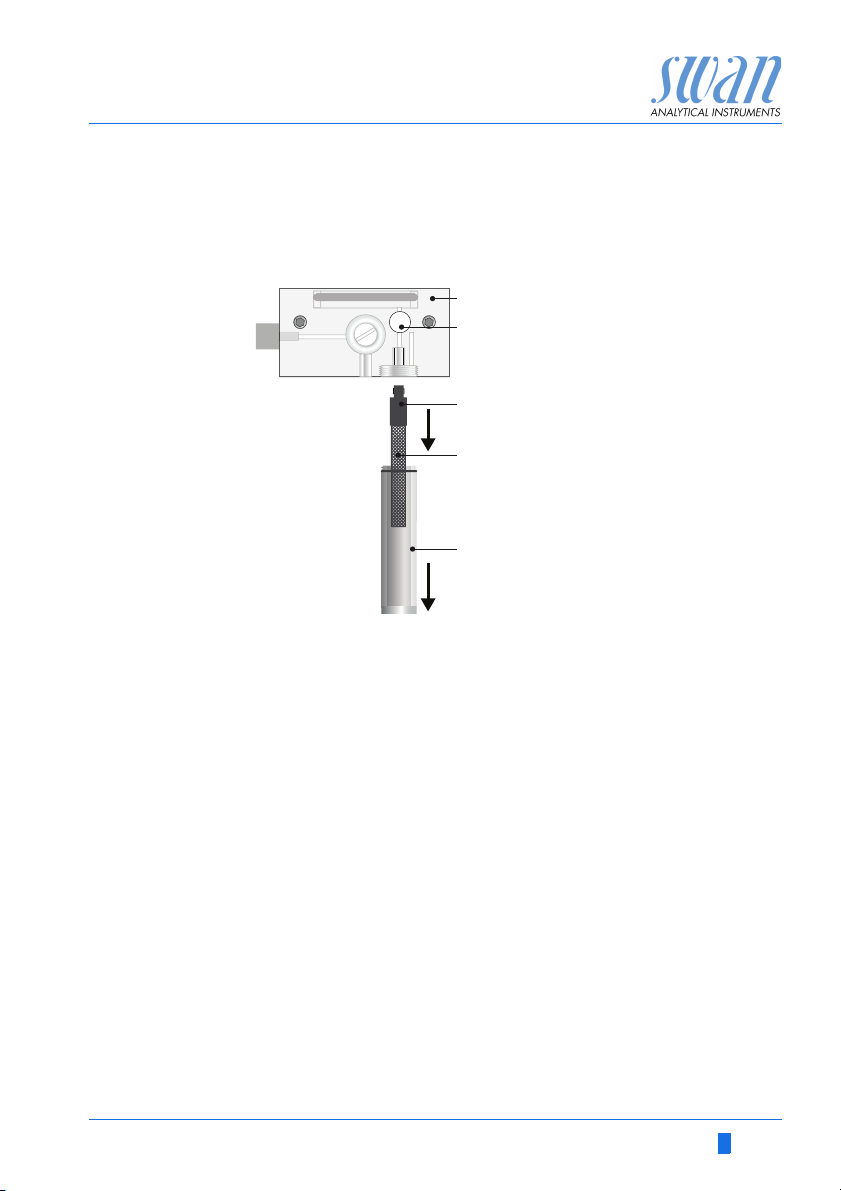

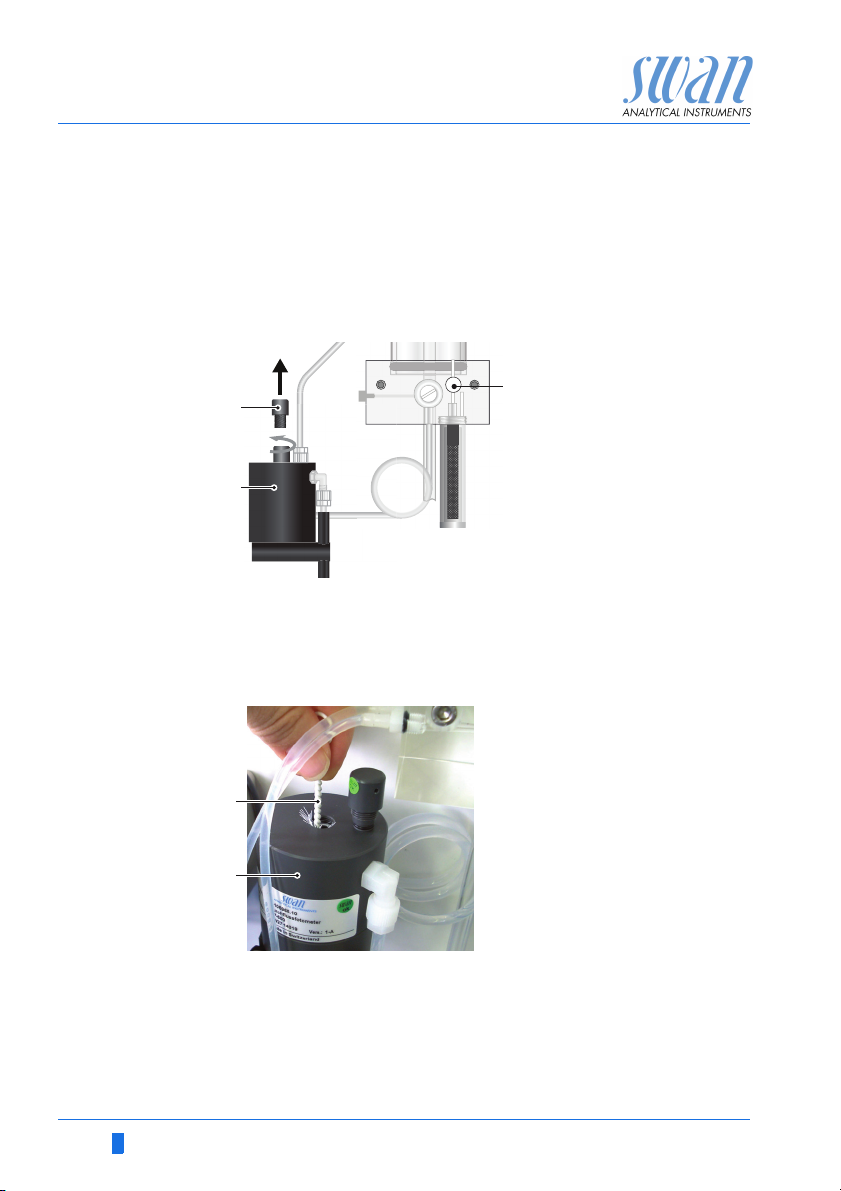

8 Remove the pH sensor [A] from the flow cell.
9 Fill the protective cap [B] with water.
10 Put the protective cap onto the sensor tip.
The reagent tubes are flushed with water.
The water will be pumped out of the reagent tubes.
ABpH sensor
Protective cap
A
B
A-96.250.571 / 050517 43
Page 46
AMI Codes-II
Maintenance
6.3. Refill or replace Reagents
The liquid level in canister 2 is monitored. The following messages
are displayed:
Canister almost
empty
Canister empty Error E022 - Reagent empty
Reagent
consumption
The 2 liter reagent canister will last for 15 days of operation (with
default measurement interval of 2 minutes). The provided reagent
set (for 8 canisters) therefore lasts for 4 months of operation.
As the reagent consumption is not linear find further examples below:
Maintenance E065 - Reagents low and the
remaining reagent volume in %
(starting at 17 % = 340 ml).
NOTICE: Before refilling the reagents, rinse the canisters with
demineralized water.
Duration per
Measuring interval
1 minute ~ 7 days 2 months
2 minutes ~ 15 days 4 months
4 minutes ~ 22 days 5 months
6 minutes ~ 33 days 8 months
WARNING
Health hazard
Some reagents can cause severe burns or eye damage.
For safe handling of the reagents you must read and under-
stand the Material Safety Data Sheets (MSDS), see Material
Safety Data sheets, p. 96.
canister
Duration per
reagent set
44 A-96.250.571 / 050517
Page 47
AMI Codes-II
Maintenance
Oxycon On-line DPD
Oxycon On-line Buffer
Contains citric acid potassium salt, do not swallow.
WARNING
Severe eye irritation and severe skin irritation.
Concentrated Oxycon On-line DPD contains more than 10%
mineral acids.
Do not swallow.
Avoid any contact with eyes and skin.
Wear protective goggles,
Wear protective gloves.
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do. Continue
rinsing.
Immediately call a POISON CENTER or doctor / physician.
Oxycon On-line KI
CAUTION
Severe eye irritation and skin irritation.
This product is corrosive and causes severe burns.
Harmful if swallowed.
Avoid any contact with eyes and skin
IF IN EYES: Rinse cautiously with water for several minutes.
Remove contact lenses, if present and easy to do. Continue
rinsing.
A-96.250.571 / 050517 45
Page 48
AMI Codes-II
A
Maintenance
Canister set up
6.3.1 Reagents for Free Chlorine, Chlorine Dioxide, Bromine
A
Suction lance without
level detector
B
(canister 1)
B
Suction lance with
level detector
(canister 2)
C
Level detector
D
2 L mark
E
Canister 1:
C
Oxycon on-line DPD
F
Canister 2:
Oxycon on-line
G
Buffer
Holder
D
2L
2L
E
OXYCON ON-LINE
DPD-Reagenz
DPD Réactif
DPD Reagent
OXYCON ON-LINE
Pufferlösung
Tamp on
Buffer Solution
F
G
and Iodine
To prepare 2 L of reagents the following chemicals are necessary:
1 x 50 ml of Oxycon On-line DPD
1 x 240 gr of Oxycon On-line Buffer
4 liters of demineralized water
Prepare
Oxycon
On-line DPD
1 Rinse the canister [E] labelled “OXYCON ON LINE DPD-Re-
agent” with demineralized water.
2 Fill the canister up to the 2 liter mark [D] with demineralized wa-
ter.
3 Slowly pour the content of one bottle of concentrate Oxycon
On-line DPD (50 ml) into the canister.
Avoid splashing!
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well.
46 A-96.250.571 / 050517
Page 49
AMI Codes-II
Maintenance
6 Put the canister [E] into the holder [G].
7 Remove the screw cover, insert the suction lance [A] and tight-
en the screw cover.
Prepare
Oxycon
On-line Buffer
1 Rinse the canister [F] labelled “OXYCON ON LINE Buffer” solu-
tion with demineralized water.
2 Fill the canister up to the 2 liter mark [D] with demineralized wa-
ter.
3 Slowly pour the content of one bag of buffer Oxycon On-line
(240 gr) into the canister.
Avoid splashing!
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well.
6 Put canister [F] into holder [G].
7 Remove the screw cover and insert the suction lance [B] and
tighten the screw cover.
8 Fill reagent system. See Fill or Flush Reagent System, p. 36.
A-96.250.571 / 050517 47
Page 50
AMI Codes-II
Maintenance
6.3.2 Reagents for Measuring Monochloramine and Ozone
2 L of reagents last for 15 days with 2 min. interval:
Prepare
Oxycon
On-line DPD
1 Rinse the canister [E] labelled OXYCON ON LINE DPD-Re-
2 Fill the canister up to the 2 liter mark with demineralized water.
3 Slowly pour the content of a bottle of concentrate Oxycon On-
4 Close the canister with the screw cover and tighten it well.
5 Mix the demineralized water and the reagents well..
6 Put the canister [E] into the holder [G].
7 Remove the screw cover and insert the suction lance [A] and
1 x 50 ml of Oxycon On-line DPD
1 x 240 gr of Oxycon On-line Buffer
1 x 60 gr of Reagent Oxycon On-line KI
4 liters of demineralized water
agent with demineralized water.
line DPD into the canister.
Avoid splashing!
tighten the screw cover [B].
Prepare
Oxycon
On-line Buffer
& KI
1 Rinse the canister [F] labelled “OXYCON ON LINE Buffer” solu-
tion with demineralized water.
2 Fill the canister up to the 2 liter mark with demineralized water.
3 Slowly pour the content of one bag of Oxycon On-line Buffer
into the canister.
Avoid splashing!
4 Add the content of one bag Oxycon On-line KI to the same can-
ister.
5 Close the canister with the screw cover and tighten it well.
6 Mix the demineralized water and the reagents well.
7 Put the canister [F] into the holder [G].
8 Remove the screw cover and insert the suction lance [A] and
tighten the screw cover [B].
9 Fill reagent system. See Fill or Flush Reagent System, p. 36.
48 A-96.250.571 / 050517
Page 51
AMI Codes-II
Maintenance
6.4. Verification
The “Verification kit for AMI Photometer” is available as
an accessory. An optical window with a precisely determined absorbance value is placed into the light beam
of the photometer. The actual measured absorbance
will be compared to the reference value labeled on
each kit.
Set reference
value:
Verification
procedure:
Verification
history:
Prior to performing the verification the DPD reference value, e.g.
0.255, needs to be set in menu 5.1.4
<Installation>\<Sensors>\<Ref. Verification>.
Basically follow the dialog in menu 3.2.1
<Maintenance>\<Service>\<Verification>.
NOTICE: Start any time, if a measuring cycle is in progress wait
for next prompt.
1 Stop sample flow by closing regulating valve. Wait for next
prompt: Constant head will be drained and an automatic zero
will be defined.
2 Open cuvette of the photometer and insert the verification filter.
[Enter] to continue.
3 Align the triangle shape either to the front– or backside and ad-
just for minimal absorbance (see AMI Display).
4 Press [Enter] to save the verification measurement. The verifi-
cation is successful if the difference is within the limits. [Enter] to
continue.
5 Remove filter, close cuvette and open regulating valve. [Enter]
to finish and [Exit] to the main display.
Can be reviewed in menu 2.2.1.5
<Diagnostics>\<Sensors>\<Photometer>\<Ver. History>
A-96.250.571 / 050517 49
Page 52
AMI Codes-II
3.1.1
Process pH
Process DIS.
Calibration
Standard pH
3.1.1.4
Process DIS.
Current Value x.xx ppm
Slope x.xxx
Save <Enter>
Process Value x.xx ppm
3.1.1.4
Process DIS.
Current Value x.xx ppm
Slope x.xxx
Save <Enter>
Process Value x.xx ppm
3.1.1.5
Process DIS.
Current Value x.xx ppm
Slope x.xxx
Calibration Successful
Maintenance
6.5. Calibration
Process
Calibration of
DIS
NOTICE: Perform process calibration for free chlorine / total
residual chlorine only if:
• the sample concentration is close to the desired process
value (stable value)
• you are sure that the reagents are mixed completely and
correctly
• if the difference to the manual measurement is significant.
• Keep in mind the accuracy of your manual measurement.
Use CHEMATEST 25 (or equivalent photometer) to determine the
sample disinfectant concentration. Determine the sample disinfectant value by 3 manual DPD measurements. Calculate the average
value. Compare this value to the value, indicated by the AMI.
Enter process value (mg/l = ppm) under menu 3.1.1, p. 78 for Process DIS
Enter
Press 3 x [Exit]
Possible error message see Calibration Errors, p. 65.
Zero A zero is automatically done before each measurement.
50 A-96.250.571 / 050517
Page 53
AMI Codes-II
3.1
Calibration
Service
Maintenance
Set Time 01.01.05 16:30:00
Calibration
Simulation
Cleaning
3.1.2
Calibration
Process DIS.
Process pH
Standard pH
Process pH
Offset x mV
Save <Enter>
Process Value 7.78 pH
3.1.2.4
Current Value 7.78 pH
Process pH
Current Value 7.78 pH
Offset x mV
Save <Enter>
Process Value 7.70 pH
3.1.2.4
3.1.2.5
Process pH
Current Value 7.70 pH
Offset y mV
Slope x.xx mV
Calibration successful
Enter
3.1.2.5
Process pH
Current Value 7.70 pH
Offset y mV
Process Value 7.70 pH
Save <Enter>
Maintenance
Process pH Use a Chematest 25 photometer (or equivalent) to determine the
sample pH value.
NOTICE: Make sure your reference instrument is calibrated
correctly!
Enter
Enter the correct value
with the [ ] or [ ]
key.
A-96.250.571 / 050517 51
Possible error message see Calibration Errors, p. 65.
Page 54
AMI Codes-II
Enter
Enter
3.1
Calibration
Simulation
Maintenance
Set Time 01.06.04 16:30:00
Fill System
Cleaning
3.1.3
Process pH
Standard pH
Process DIS.
Calibration
Maintenance
Standard pH
Display
instructions
1 Navigate to menu <Maintenance>/
<Calibration>.
2 Press [Enter].
3 Remove the pH sensor from the
flow cell.
4 Follow the instructions on the dis-
play.
1 Rinse and dry the pH sensor and put it into standard 1
2 Standard 1, current value (Progress is shown).
3 Rinse and dry the pH sensor and put it in standard 2
4 Standard 2, current value (Progress is shown)
5 Rinse and dry the pH sensor and put it into the flow cell
Possible error message see Calibration Errors, p. 65.
52 A-96.250.571 / 050517
Page 55
AMI Codes-II
Maintenance
6.6. Cleaning the protective Filter
Switch off the instrument according to instructions in Stop of Opera-
tion for Maintenance, p. 43
Normally the filter in your sample supply line will retain most debris.
If the filter shows deposits, proceed as follows:
A
A
B
C
D
E
Flow cell block
B
Flow regulating valve
C
Filter shaft
D
Filter
E
Filter vessel
1 Close the main tap of the sample inlet.
2 Close flow regulating valve [B].
3 Unscrew and remove the filter vessel [E] from the
flow cell block [A].
4 Hold the filter [D] on the shaft [C] and unscrew and remove it.
5 Backwash the filter under pressure of tap water.
6 Clean the outside of the filter.
7 Install the filter and the filter vessel again.
8 Establish the sample flow.
9 Adjust sample flow with the regulating valve.
A-96.250.571 / 050517 53
Page 56
AMI Codes-II
A
B
C
D
C
Maintenance
6.7. Cleaning the Photometer
Clean the photometer after indication by alarm (E020, FOME dirty).
Switch off the instrument according to instructions in Stop of Opera-
tion for Maintenance, p. 43.
Material Small brush.
Procedure
1 Close the flow regulating valve [A].
2 Wait until the sample flow through the photometer has stopped
3 Unscrew the cover [B] from the photometer [C].
A
Flow regulating valve
B
Photometer cover
C
Photometer
D
Brush
4 Clean the Photometer with a small brush [D].
5 Screw the cover to the photometer.
6 Open the flow regulating valve.
Clean the photometer after indication by alarm (E020, FOME dirty).
54 A-96.250.571 / 050517
Page 57
AMI Codes-II
Maintenance
6.8. Cleaning the Flow Cell
6.8.1 Disassemble the Flow Cell
The flow cell can be disassembled easily. Before disassemble the
flow cell, switch off the instrument according to instructions in Stop
of Operation for Maintenance, p. 43.
CAUTION
Acrylic glass parts are fragile and scratch-sensitive.
Possible damage of acrylic glass parts due to scrubbing materials.
Never use organic solvents or scrubbing materials to clean
acrylic glass parts.
Use soft detergent and rinse well. Eliminate lime deposits with
a common household deliming agent in standard concentration.
Do not drop the constant head tube
A-96.250.571 / 050517 55
Page 58
AMI Codes-II
Level
A
B
D
E
C
Maintenance
A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Flow cell block
E
Flow regulating valve
Cleaning 1 Switch off the instrument according to instructions in Stop of
Operation for Maintenance, p. 43
2 If installed remove the pH sensor and the temperature sensor.
3 Remove the constant head cover [A].
4 Remove the constant head tube [C] from the flow cell block.
5 Pull the overflow tube [B] out of the flow cell block [D].
6 Clean all acrylic parts with a soft brush (bottle cleaner) and
soapy water.
7 Remove lime deposits with a common household deliming
agent with standard concentrations.
56 A-96.250.571 / 050517
Page 59
AMI Codes-II
Level
A
B
E
C
D
Maintenance
6.8.2 Assemble the Flow Cell
A
Constant head cover
B
Overflow tube
C
Constant head tube
D
Gasket
E
Flow cell block
A-96.250.571 / 050517 57
1 Replace the gasket [D] before reassembling the flow cell.
NOTICE: A film of teflon paste (e.g. Fomblin from Solvay
Solexis) on the gaskets improves tightness and life time.
2 Push the overflow tube [B] through the flow cell block as far as it
reaches the drain.
3 Install the constant head tube [C] onto the flow cell block.
4 Put the cover onto the constant head tube.
5 Align the overflow tube with the upper level mark.
Page 60
AMI Codes-II
A
B
C
D
Maintenance

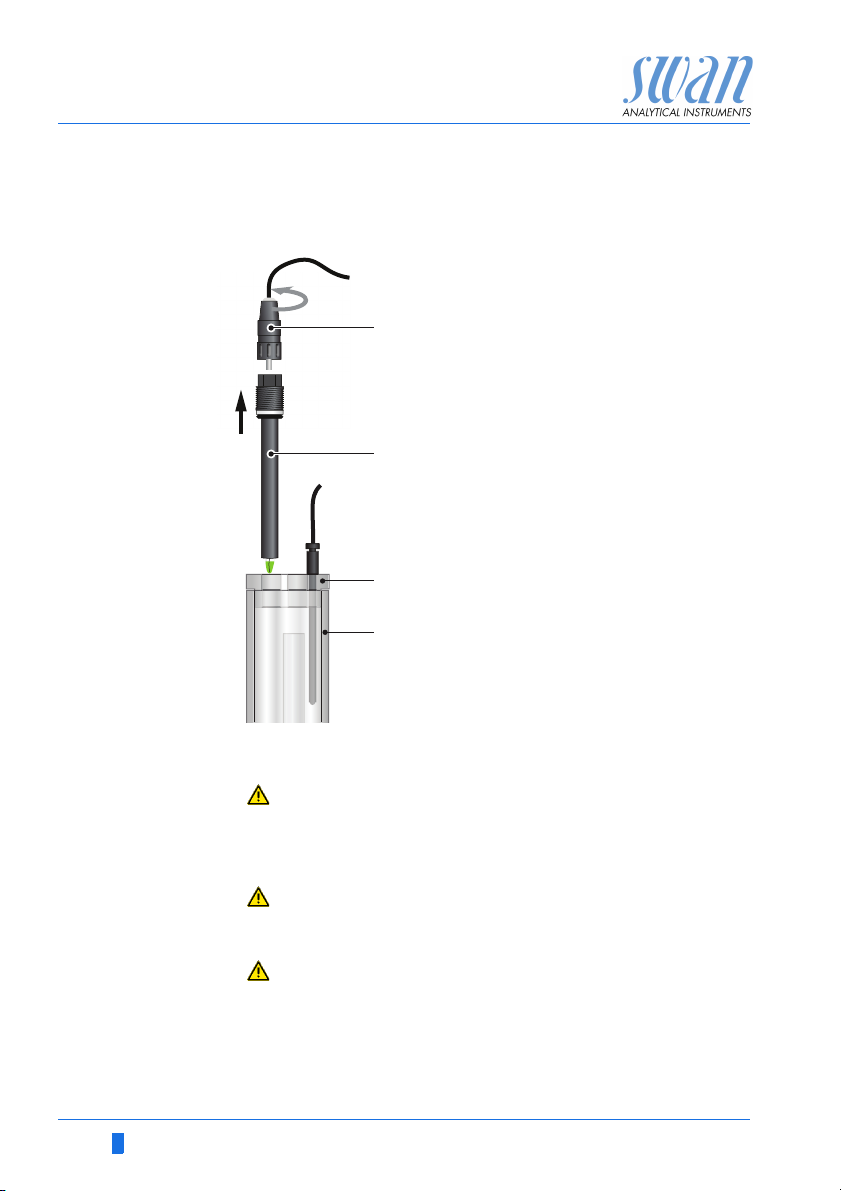

6.9. Maintenance of pH sensor
A
Connector
B
pH sensor shaft
C
Flow cell cover
D
Flow cell
Clean
pH sensor
1 Remove the pH sensor [B] from the flow cell.
2 Unscrew and remove the connector [A] from the pH sensor.
3 If necessary wipe the pH sensor shaft and the green tip cau-
4 Remove grease with a tissue moistened with alcohol.
5 If the sensor is very dirty put it into 1% diluted hydrochloric acid
6 Rinse the pH sensor with clean water.
Prevent the connectors from getting wet
tiously with a soft, clean, and damp paper tissue.
CAUTION: Alcohol is inflammable.
for 1 min.
CAUTION! hydrochloric acid is corrosive!
58 A-96.250.571 / 050517
Page 61
AMI Codes-II
A
B
D
C
E
F
Maintenance
6.10. Tube Replacement
6.10.1 Replace the Pump Tubes
The pump tube [D] of the peristaltic pump is exposed to a minimal
wear.
It is therefore recommended to exchange the pump tube annually.
CAUTION
Pollution of reagents possible.
If the occlusion frames are opened during operation, already
mixed reagents will flow back into the reagent canisters and pollute the reagents.
Never open the occlusion frames if the instrument is in opera-
tion.
Proceed according to Stop of Operation for Maintenance, p.
43 before opening the occlusion frames.
Overview
A-96.250.571 / 050517 59
A
Pump housing
B
Occlusion frame
closed
C
Rotor
D
Pump tube
E
Pump inlet
F
Pump outlet
Page 62
AMI Codes-II
A
B
D
C
F
E
Maintenance
Dismount
pump tubes
The pump tube can easily be dismounted and mounted.
Proceed as follows:
A
Pump housing
B
Occlusion frame open
C
Rotor
D
Pump tube
E
Pump inlet
F
Pump outlet
1 Switch off the instrument according to instructions in Stop of
Operation for Maintenance, p. 43
2 Open the occlusion frames (B) by turning it counter-clockwise.
3 Remove the occlusion frame (B) from the rotor (C) by pulling
the complete occlusion frame out of the holder.
4 Dismount all reagent tubes from the occlusion frame.
5 Exchange the occlusion frame.
6 Install all reagent tubes.
7 Lock the occlusion frames.
8 Start fill system.
60 A-96.250.571 / 050517
Page 63
AMI Codes-II
Level
1 2
1
2
3
JK
Q
4
Maintenance
6.10.2 Replace the Reagent Tubes
Tube
numbering
Nr. from to
1 Pump outlet: rear frame Flow cell block: connection 1
2 Pump outlet: front frame Flow cell block: connection 2
3 Reagent canister (J)
4 Reagent canister (K)
A-96.250.571 / 050517 61
Oxycon on-line DPD
Oxycon on-line Buffer / KI
see Flow cell block side view Q
see Flow cell block side view Q
Pump inlet: rear frame
Pump inlet: front frame
Page 64
AMI Codes-II
A
B
CDEF G
Maintenance
6.11. Replacing Fuses
When a fuse has blown, find out the cause and fix it before
replacing it with a new one.
Use tweezers or needle-nosed pliers to remove the defective fuse.
Use original fuses provided by SWAN only.
WARNING
External Voltage.
External supplied devices connected to relay 1 or 2 or to the
alarm relay can cause electrical shocks.
Make sure that the devices connected to the following con-
tacts are disconnected from the power before resuming installation.
–relay 1
–relay 2
– alarm relay
A
B
C
D
E
F
G
1.6 AT/250V Instrument power supply
1.0 AT/250V Relay 1
1.0 AT/250V Relay 2
1.0 AT/250V Alarm relay
1.0 AF/125V Signal output 2
1.0 AF/125V Signal output 1
1.0 AF/125V Signal output 3
62 A-96.250.571 / 050517
Page 65
AMI Codes-II
Maintenance
6.12. Longer Stop of Operation
1 Put the suction lances into bucket with clean water.
2 Start <Fill system>.
3 Remove the suction lance from the water.
4 Start <Fill system> again.
5 Stop sample flow.
6 Wait until level in flow cell has fallen to the shorter tube inside
7 Shut off power of the instrument.
8 Empty the flow cell completely.
9 Open the occlusion frames of the peristaltic pump, see Replace
If option pH is installed
10 Unscrew and remove the connector from the pH sensor.
11 Put the connector cap onto the sensor connector.
12 Fill 3.5 molar KCl (if not available: water) into the rubber cap.
13 Remove the pH sensor from the flow cell and place the rubber
The reagent tubes are flushed with water.
The water will be pumped out of the reagent tubes.
the cell.
the Pump Tubes, p. 59.
cap on the tip of the sensor
CAUTION
Damage of pH sensor
Wrong storage will damage the pH sensor.
Never store the pH sensor dry.
Store the pH sensor with tip pointing downwards in a frost-
protected room.
A-96.250.571 / 050517 63
Page 66
AMI Codes-II
Troubleshooting
7. Troubleshooting
This chapter provides some hints to make trouble shooting easier.
For any detailed information how to handle or clean parts please
see Maintenance, p. 42. For any detailed information how to program the instrument please see Program List and Explanations, p.
75.
7.1. General Instructions
Diagnostic
values
Frequently
asked
questions
Zero photometry: 10’000–16’000 Hz (mostly near 16 000 Hz)
Slope photometry: 0.8–1.2
pH offset: New pH sensor: near 0, old pH sensor 50 mV
pH slope: typically: 55–62 mV/pH unit.
Problem Possible Reasons
Unstable values
Codes display
higher or lower than
manual measurement
Sample flow alarm,
but there is sample
NOTICE: The sample for the manual measurement (with DPD)
must be taken directly from the flow cell.
If you need further help please contact your dealer. Note serial
number of instrument and all diagnostic values before doing so.
Sample taken too close to feeding line
Sample flow too irregular or too low
Wrong manual measurement or old
chemicals have been used. Repeat the
verification.
Reagents of AMI Codes mixed wrongly or
not completely
Check sample flow at photometer outlet.
It must be at least 100 ml/ min. For that
place the photometer outlet tube into a
measuring cup for 1 minute.
Check sample line for pressure
fluctuation.
Check for regular air bubble pattern.
Check flow alarm values in menu 5.3.1.3,
p. 87)
64 A-96.250.571 / 050517
Page 67
AMI Codes-II
Troubleshooting
7.2. Calibration Errors
7.2.1 Process calibration DIS
Possible error
message
7.2.2 Process pH
Possible error
message
Slope error:
Offset error:
Possible cause Corrective Action
Wrong manual measurement.
Wrong reagent mixture
Reagents not
completely solved in
water.
Possible cause Corrective Action
Manual measurement
wrong.
Slope of last calibration
wrong.
pH sensor dirty, old or
defect.
Cable connector corroded. Replace cable and sensor.
Repeat the manual measurement.
Use fresh reagents.
Make a correct mixture.
Mix long and intensively.
Repeat the manual measurement.
Set default calibration values, see
5.4.2, p. 94.
Repeat the calibration
Clean or replace pH sensor, see
Maintenance of pH sensor, p. 58.
7.2.3 Standard pH
Possible
error message
A-96.250.571 / 050517 65
Offset error or Slope error:
Possible cause Corrective Action
Old, dirty or wrong buffer
solutions.
Verify programmed buffer
values with the values of
the buffer solution used.
pH sensor dirty, old or
defect.
Cable connector corroded. Replace cable and sensor.
Check buffers expiration date if
necessary order new buffer.
Change programmed buffer values
or use correct buffer solution.
Clean or replace pH sensor, see
Maintenance of pH sensor, p. 58.
Page 68

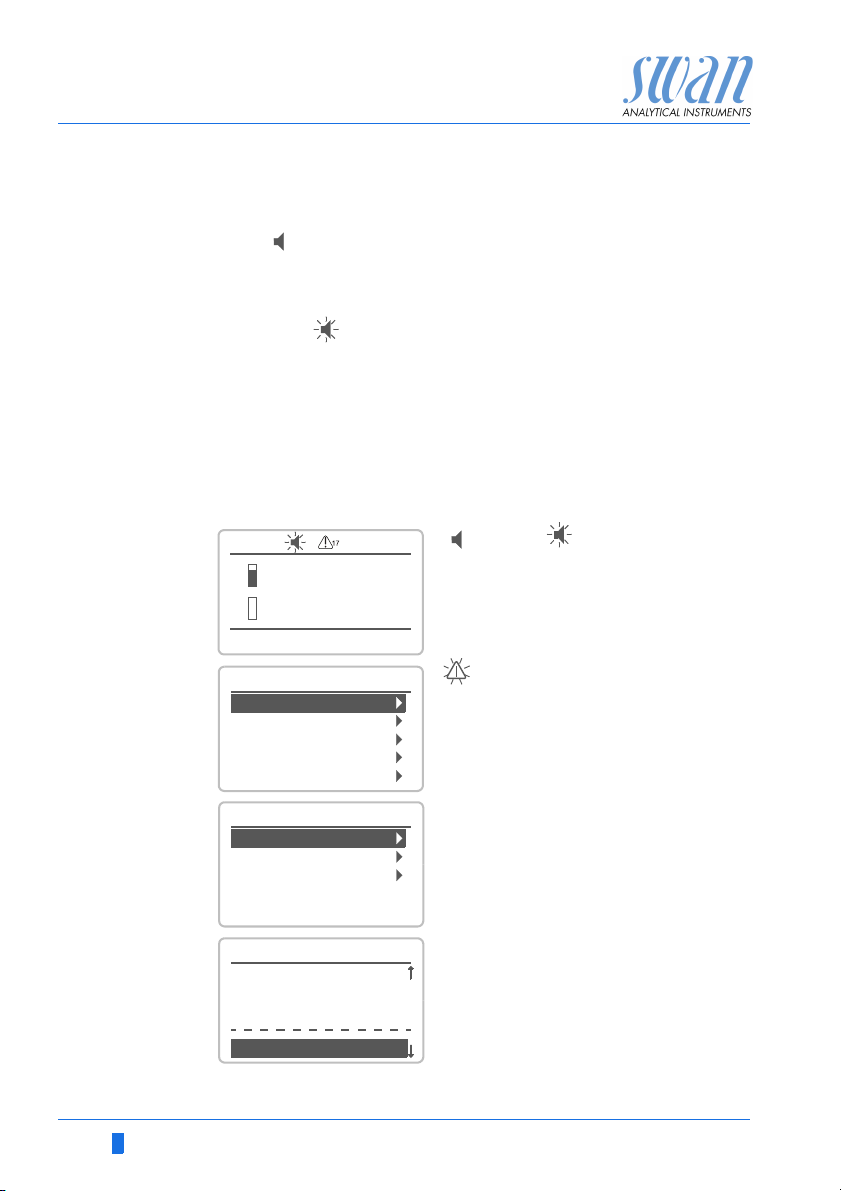

AMI Codes-II
25.4 °C
HOLD
23 B/s
14:10:45
R1
0.15 ppm
R2
1
Installation
Operation
Diagnostics
Messages
Maintenance
Main Menu
1.1
Maintenance List
Pending Errors
Messages
Message List
1.1.5
Pending Errors
Error Code E002
Alarm low
<Enter> to Acknowledge
Troubleshooting
7.3. Error List
Error
Non-fatal Error. Indicates an alarm if a programmed value is exceeded.
Such Errors are marked E0xx (bold and black).
Fatal Error (blinking symbol)
Control of dosing devices is interrupted.
The indicated measured values are possibly incorrect.
Fatal Errors are divided in the following two categories:
Errors which disappear if correct measuring conditions are re-
covered (i.e. Sample Flow low).
Such Errors are marked E0xx (bold and orange)
Errors which indicate a hardware failure of the instrument.
Such Errors are marked E0xx (bold and red)
Error or fatal Error
Error not yet acknowledged.
Check Pending Errors 1.1.5 * and
take corrective action.
Press [ENTER].
Reagent level low
Indicates the remaining reagent in percent.
To see the pending Errors:
Navigate to menu Messages.
Press [ENTER].
Navigate to menu Pending Errors.
Press [ENTER].
Press [ENTER] to acknowledge the
Pending Errors. The Error is reset and
saved in the Message List.
* Menu numbers see
66 A-96.250.571 / 050517
Program Overview, p. 70
Page 69
AMI Codes-II
Troubleshooting
Error Description Corrective action
E001 DIS. Alarm high
E002 DIS. Alarm Low
E003 pH Alarm high
E004 pH Alarm low
E005 DIS. too high
E007 Sample Temp. high
E008 Sample Temp. low
E009 Sample Flow high
E010 Sample Flow low
– check process
– check programmed value in menu
5.3.1.1.1, p. 86
– check process
– check programmed value in menu
5.3.1.1.25, p. 86
– check process
– correct/calibrate pH sensor, see
Calibration, p. 50
– check programmed value in menu, see
5.3.1.2.1, p. 87
– check process
– correct/calibrate pH sensor, see
Calibration, p. 50
– check programmed value in menu, see
5.3.1.2.21, p. 87
– check process
– check sample temperature
– check programmed value in menu
5.3.1.4.1, p. 88
– check sample temperature
– check programmed value in menu
5.3.1.4.2, p. 88
– check sample input pressure
– readjust sample flow
– check programmed value in menu
5.3.1.3.x, p. 87
– check sample input pressure
– readjust sample flow
– clean instrument, see Cleaning the
protective Filter, p. 53
– check programmed value in menu
5.3.1.3.x, p. 87
A-96.250.571 / 050517 67
Page 70
AMI Codes-II
Troubleshooting
Error Description Corrective action
E011 Temp. shorted
E012 Temp. disconnected
E013 Case Temp. high
E014 Case Temp. low
E017 Control Timeout
E018 Reagent Pump
E019 Photometer not con-
nected
E020 Photometer dirty
E021 DIS. invalid
E022 Reagent empty
E023 Cleaning solution
E024 Input active
E026 IC LM75
E028 Signal output open
– check wiring of temperature sensor, see
Connection Diagram, p. 26
– check temperature sensor
– check wiring of temperature sensor, see
Connection Diagram, p. 26
– check temperature sensor
– check case/environment temperature
– check programmed value in menu
5.3.1.5, p. 88
– check case/environment temperature
– check programmed value in menu
5.3.1.6, p. 88
– check control device or programming in
Installation, Relay contact, Relay 1/2
5.3.2 and 5.3.3, p. 88
– shut off power
– check wiring, see Connection Diagram,
p. 26
– shut off power
– check wiring of photometer, see
Connection Diagram, p. 26
– check process,
– clean photometer, see Cleaning the
Photometer, p. 54
– This error appears after start-up and will
disappear after the first valid
measurement is finished.
– refill reagents, see Refill or replace
Reagents, p. 43
– refill cleaning solution
– See If Fault Yes is programmed in Menu
5.3.4, p. 93
– call service
– check wiring on signal outputs 1 and 2
68 A-96.250.571 / 050517
Page 71
AMI Codes-II
Troubleshooting
Error Description Corrective action
E030 EEprom Frontend
E031 Calibration Recout
E032 Wrong Frontend
E033 Power-on
E034 Power-down
E065 DPD / Buffer
E067 Cleaning Solution Operating display, upper status line. The
– call service
– call service
– call service
– none, normal status
– none, normal status
– Operating display, upper status line. The
number next to the triangle, indicates
the remaining reagents in%. Refill
reagents on time. See Refill or replace
Reagents, p. 43
number next to the triangle, indicates the
remaining cleaning solution in%. Refill
cleaning solution on time.
A-96.250.571 / 050517 69
Page 72
AMI Codes-II
Program Overview
8. Program Overview
For explanations about each parameter of the menus see Program
List and Explanations, p. 75.
Menu 1 Messages informs about pending errors and mainte-
nance tasks and shows the error history. Password protection
possible. No settings can be modified.
Menu 2 Diagnostics is always accessible for everybody. No
password protection. No settings can be modified.
Menu 3 Maintenance is for service: Calibration, simulation of
outputs and set time/date. Please protect with password.
Menu 4 Operation is for the user, allowing to set limits, alarm
values, etc. The presetting is done in the menu Installation
(only for the System engineer). Please protect with password.
Menu 5 Installation: Defining assignment of all inputs and
outputs, measuring parameters, interface, passwords, etc.
Menu for the system engineer. Password strongly recommended.
8.1. Messages (Main Menu 1)
Pending Errors Pending Errors 1.1.5* * Menu numbers
1.1*
Maintenance List Maintenance List 1.2.5*
1.2*
Message List Number 1.3.1*
1.3* Date, Time
8.2. Diagnostics (Main Menu 2)
Identification Designation AMI Codes-II * Menu numbers
2.1* Version V6.20 - 08/16
Peripherals PeriClip 1 / 1.03 2.1.3.1*
2.1.3* PeriClip 2 only with cleaning module
Factory Test Instrument 2.1.4.1*
2.1.4* Motherboard
70 A-96.250.571 / 050517
Page 73
AMI Codes-II
Program Overview
Front End
Operating Time Years / Days / Hours / Minutes / Seconds 2.1.5.1*
2.1.5*
Sensors Photometer Current Value
2.2* 2.2.1* (Raw value)
Absorbance
Cal. History Number 2.2.1.4.1*
2.2.1.4* Date, Time
Slope
Ver. History Number 2.2.1.5.1*
2.2.1.5* Date, Time
Absorbance
Reference value
pH Electrode Current Value
2.2.2* (Raw value)
Cal. History Number 2.2.2.5.1*
2.2.2.5* Date, Time
Offset
Slope
Miscellaneous Case Temp. 2.2.3.1*
2.2.3*
Sample Sample ID 2.3.1*
2.3* Sample Flow / (Raw value)
Temperature / (Nt5k)
I/O State Alarm Relay 2.4.1*
2.4* Relay 1/2 2.4.2*
Input
Signal Output 1/2
Interface Protocol 2.5.1* (only with RS485
2.5* Baud rate interface)
8.3. Maintenance (Main Menu 3)
Calibration Process DIS Current Value * Menu numbers
3.1* 3.1.1* Slope
Process Value 3.1.1.4*
Process pH Current Value
A-96.250.571 / 050517 71
Page 74
AMI Codes-II
Program Overview
3.1.2* Offset
Process Value 3.1.2.4*
Standard pH (Progress) 3.1.3.5*
3.1.3*
Service Verification (Progress) 3.2.1.1*
3.2* 3.2.1*
Fill System (Progress) 3.2.2.5*
3.2.2*
Simulation Alarm Relay 3.3.1*
3.3* Relay 1 3.3.2*
Relay 2 3.3.3*
Signal Output 1 3.3.4*
Signal Output 2 3.3.5*
Set Time (Date), (Time)
3.4*
Cleaning Parameter Mode 3.5.1.1*
3.5* 3.5.1* Start time / Calendar 3.5.1.xx*
Delay 3.5.1.3*
Signal Outputs 3.5.1.4*
Output/Control 3.5.1.5*
Fill Channel 11 (Progress) 3.5.2.5*
3.5.2*
Fill Channel 12 (Progress) 3.5.3.5*
3.5.3*
8.4. Operation (Main Menu 4)
Sensors Filter Time Const. 4.1.1*
4.1* Hold after Cal. 4.1.2*
Meas. Interval 4.1.3*
Default pH 4.1.4*
Relay Contacts Alarm Relay Alarm DIS Alarm High 4.2.1.1.1*
4.2* 4.2.1* 4.2.1.1* Alarm Low 4.2.1.1.26*
Hysteresis 4.2.1.1.36*
Delay 4.2.1.1.46*
Alarm pH Alarm High 4.2.1.2.1*
72 A-96.250.571 / 050517
Page 75
AMI Codes-II
Program Overview
4.2.1.2* Alarm Low 4.2.1.2.x*
Hysteresis 4.2.1.2.x*
Delay 4.2.1.2.x*
Relay 1& 2 Setpoint 4.2.x.x*
4.2.2* & 4.2.3* Hysteresis 4.2.x.x*
Delay 4.2.x.x*
Input Active 4.2.4.1*
4.2.4* Signal Outputs 4.2.4.2*
Output / Control 4.2.4.3*
Fault 4.2.4.4*
Delay 4.2.4.5*
Logger Log Interval 4.3.1*
4.3* Clear Logger 4.3.2* * Menu numbers
8.5. Installation (Main Menu 5)
Sensors Disinf. 5.1.1* * Menu numbers
5.1* Dimension 5.1.2*
Interpolation 5.1.3*
Ref. Verification 5.1.4*
Standards Standard 1 5.1.50.1*
5.1.50* Standard 2 5.1.50.2*
Cleaning 5.1.6
Signal Outputs Signal Output 1&2 Parameter 5.2.1.1 & 5.2.2.1*
5.2* 5.2.1* & 5.2.2* Current Loop 5.2.1.2 & 5.2.2.2*
Function 5.2.1.3 & 5.2.2.3*
Scaling Range Low 5.2.x.40.x*
5.2.x.40 Range High 5.2.x.40.x*
Relay Contacts Alarm Relay Alarm DIS Alarm High 5.3.1.1.1*
5.3* 5.3.1* 5.3.1.1* Alarm Low 5.3.1.1.x*
Hysteresis 5.3.1.1.x*
Delay 5.3.1.1.x*
Alarm pH Alarm High 5.3.1.2.1*
5.3.1.2* Alarm Low 5.3.1.2.x*
Hysteresis 5.3.1.2.x*
Delay 5.3.1.2.x*
A-96.250.571 / 050517 73
Page 76
AMI Codes-II
Program Overview
Sample Flow Flow Alarm 5.3.1.3.1*
5.3.1.3* Alarm High 5.3.1.3.x*
Alarm Low 5.3.1.3.x*
Sample Temp. Alarm High 5.3.1.4.1*
5.3.1.4* Alarm Low 5.3.1.4.x*
Case Temp. high 5.3.1.5*
Case Temp. low 5.3.1.6*
Relay 1& 2 Function 5.3.2.1 & 5.3.3.1*
5.3.2* & 5.3.3* Parameter 5.3.2.x & 5.3.3.x*
Setpoint 5.3.2.x & 5.3.3.x*
Hysteresis 5.3.2.x & 5.3.3.x*
Delay 5.3.2.x & 5.3.3.x*
Input Active 5.3.4.1*
5.3.4* Signal Outputs 5.3.4.2*
Output/Control 5.3.4.3*
Fault 5.3.4.4*
Delay 5.3.4.5*
Miscellaneous Language 5.4.1*
5.4* Set defaults 5.4.2*
Load Firmware 5.4.3*
Password Messages 5.4.4.1*
5.4.4* Maintenance 5.4.4.2*
Operation 5.4.4.3*
Installation 5.4.4.4*
Sample ID 5.4.5*
Line Break Detection 5.4.6*
Interface Protocol 5.5.1* (only with RS485
5.5* Device Address 5.5.21* interface)
Baud Rate 5.5.31*
Parity 5.5.41* * Menu numbers
74 A-96.250.571 / 050517
Page 77
AMI Codes-II
Program List and Explanations
9. Program List and Explanations
1 Messages
1.1 Pending Errors
1.1.5 Provides the list of active errors with their status (active,
1.2 Maintenance List
1.2.5 Demands necessary maintenance, e.g. preparing new reagents.
1.3 Message List
1.3.1 Shows the error history: Error code, date and time of issue and
2 Diagnostics
2.1 Identification
2.1.3 Peripherals: PeriClip 1: Firmware of peristaltic pump (e.g. 1.03)
2.1.4 Factory Test: Test date of the Instrument, Motherboard and
2.1.5 Operating Time: Years/Days/Hours/Minutes/Seconds
2.2 Sensors
2.2.1 Photometer:
2.2.1.4 Cal. History: Shows the diagnostic values of the last calibrations.
acknowledged). If an active error is acknowledged, the alarm relay
is active again. Cleared errors are moved to the Message list.
status (active, acknowledged, cleared). 65 errors are memorized.
Then the oldest error is cleared to save the newest error (circular
buffer).
In diagnostics mode, the values can only be viewed, not modified.
Designation: View the Designation of instrument.
Ver sio n: Firmware of instrument (e.g. V6.20-08/16)
Frontend. QC factory test.
Current value: Shows the actual photometer signal [ppm].
Raw value: Shows the actual photometer signal [Hz].
Absorbance: Process value, depends on sample.
Number: Calibration counter.
Date, Time: Date and time of the calibration.
Slope: Slope is a correction factor calculated on the basis of a
process calibration.
Range: 0.8–1.2
A-96.250.571 / 050517 75
Page 78
AMI Codes-II
Program List and Explanations
2.2.1.5 Ver. History: Shows the verification values of the last verifications:
Number: Verification counter.
Date, Time: Date and time of the verification.
Absorbance: Measured absorbance of the reference kit.
Reference value: True value of the reference kit according to label.
2.2.2 pH Electrode: Only available if option pH is installed.
Current Value: Shows the actually measured pH value.
Raw value: Shows the actual electrode voltage in mV.
2.2.2.5 Cal. History: Shows the calibration values of the last pH sensor
calibrations. Offset in mV and slope in mV/pH.
Number: Calibration counter.
Date, Time: Date and time of the calibration.
Offset: Vertical shift above or below the zero point.
Slope: Characteristic of the pH sensor expressed in mV/pH.The
calculated slope is used for the entire measuring range of the
electrode.
Typical offset of pH electrode: < +/- 30 mV.
Max. tolerated offset: < +/- 60 mV
Typical slope of pH electrode: 55– 65 mV/pH unit.
Max. limits: 40–65 mV/pH
2.2.3 Miscellaneous:
2.2.3.1 Case Temp: Shows the current temperature in [°C] inside the
transmitter.
76 A-96.250.571 / 050517
Page 79
AMI Codes-II
Program List and Explanations
2.3 Sample
2.3.1 Sample ID: Shows the identification assigned to a sample. This
identification is defined by the user to identify the location of the
sample.
Sample Flow: Shows the actual sample flow in B/s (bubbles per
second)]. The Sample flow must be above 5 B/s.
Temperature: Actual temperature in °C and in Ohm (NT5K)
2.4 I/O State
Shows current status of all in- and outputs.
2.4.1/2.4.2
2.5 Interface
Alarm Relay: Active or inactive
Relay 1 and 2: Active or inactive
Input: Open or closed
Signal Output 1 and 2: Actual current in mA
Signal Output 3: Actual current in mA (if option is installed)
Only available if optional interface is installed.
Review programmed communication settings.
A-96.250.571 / 050517 77
Page 80
AMI Codes-II
Program List and Explanations
3 Maintenance
3.1 Calibration
In this menu, you can correct measuring values (all disinfectants
and pH) or calibrate offset and slope of pH electrode.
3.1.1 Process DIS: Possibility to correct the disinfectant value. See
Process Calibration of DIS, p. 50, for more details.
3.1.2 Process pH: Only available, if option pH has been installed.
3.1.3 Standard pH: Only available, if option pH has been installed.
3.2 Service
3.2.1 Verification: Performs a verification using the reference kit. Follow
3.2.2 Fill System: Activates the reagent pump.
3.3 Simulation
Correction of pH electrode. See Process Calibration of DIS, p. 50,
for details.
Calibration of pH electrode with the two standard solutions
programmed in Installation 5.1.3. See Standard pH, p. 52, for
details.
dialog. See Verification, p. 49
To simulate a value or a relay state, select the
alarm relay,
relay 1or 2
signal output 1 or 2
with the [ ] or [ ] key.
Press the [Enter] key.
Change the value or state of the selected item with the [ ] or
[] key.
Press the [Enter] key.
The value is simulated by the relay/signal output.
Alarm Relay: Active or inactive
Relay 1 and 2: Active or inactive
Signal Output 1 and 2: Actual current in mA
Signal Output 3: Actual current in mA (if option is installed)
At the absence of any key activities, the instrument will switch back
to normal mode after 20 min. If you quit the menu, all simulated values will be reset.
78 A-96.250.571 / 050517
Page 81
AMI Codes-II
Program List and Explanations
3.4 Set Time
Adjust date and time.
3.5 Cleaning
Automatic cleaning process using the Cleaning module-II
controlled by transmitter of AMI Codes-II.
Measurement is interrupted.
Flow error interrupts cleaning.
Cleaning does not start: E022 Reagent empty, E023 Cleaning
solution, no flow.
3.5.1 Parameter:
3.5.1.1 Mode: Select daily, weekly or off.
3.5.1.xx Start time / Calendar: Time off day respectively weekday(s) for the
automatic start of the cleaning process.
3.5.1.3 Delay: During cleaning plus the delay time, the status of the signaland control outputs is as get below.
Range: 60–6’000 sec
3.5.1.4 Signal Outputs: Select the operation mode of the signal outputs
during cleaning:
Cont.: Signal outputs continue to issue the measured value.
Hold: Signal outputs hold the last valid measured value.
Off: Signal outputs are switched off (set to 0 or 4 mA).
Measurement is interrupted. Errors, except fatal errors,
are not issued.
Errors, except fatal errors, are not issued.
3.5.1.5 Output/Control: Relay or signal output:
Cont.: Controller continues normally.
Hold: Controller continues based on the last valid value.
Off: Controller is switched off.
3.5.2 Fill Channel 11: Activates the cleaning pump and switches the
valve to the cleaning solution 1 (right canister)
3.5.3 Fill Channel 12: Activates the cleaning pump and switches the
valve to the cleaning solution 2 (left canister)
A-96.250.571 / 050517 79
Page 82
AMI Codes-II
Program List and Explanations
4 Operation
4.1 Sensors
4.1.1 Filter Time Constant: Used to damp noisy signals. The higher the
4.1.2 Hold after Cal: Delay permitting the instrument to stabilize again
4.1.3 Meas. Interval: Measurement interval for disinfectants.
4.1.4 Default pH: If the pH value of the sample is known it can be entered
4.2 Relay Contacts
4.3 Logger
4.3.1 Log Interval: Select a convenient log interval. Consult the table
Interval 1 s 5 s 1 min 5 min 10 min 30 min 1 h Event
Time 25 min 2 h 25 h 5 d 10 d 31 d 62 d
4.3.2 Clear Logger: If confirmed with yes, the complete logger data is
filter time constant, the slower the system reacts to changes of the
measured value.
Range: 5–300 sec
after calibration. During calibration- plus hold-time, the signal
outputs are frozen (held on last valid value), alarm values, limits are
not active.
Range: 0–6‘000 sec
Range: 1 to 12 Min.
in this menu.This menu only appears if the pH option is not
installed.
Range: 0–14 pH
See 5.3 Relay Contacts, p. 86
The instrument is equipped with an internal logger. The data can be
copied to a PC with an USB stick if option USB interface is in-
stalled.
The logger can save approx. 1500 data records. The records
consist of: Date, time, alarms, measured value, measured value
uncompensated, temperature, flow.
Range: 1 second to 1 hour
below to estimate the max logging time. The logging buffer is
designed as circular buffer. If the buffer is full, the oldest data
record is erased to make room for the newest one.
If the logger interval is set to event driven, a data record of every
valid measurement is saved. The interval corresponds with the
measuring interval.
Driven
deleted. A new data series is started.
80 A-96.250.571 / 050517
Page 83
AMI Codes-II
Program List and Explanations
5 Installation
5.1 Sensors
5.1.1 Disinf: Select the disinfectant in use. Available disinfectants are:
Free chlorine
Hypochl. acid
Ozone
Chlorine dioxide
Bromine
Iodine
Monochloramine
5.1.2 Dimension: The measuring value can be displayed as ppm or mg/ l
5.1.3 Interpolation:
5.1.4 Ref. Verification: Set absorbance value of verification kit according
5.1.5 Standards: Program the two standard solutions for the calibration
5.1.6 Cleaning: Program if one or two solutions are used on Cleaning
Yes: Display and output of free chlorine value changes linearly
between two measuring points. Select this mode if you encounter
problems with the controller of free chlorine.
no: Step response of display and output between two measuring
points.
to label.
Range: 0.200–0.600
of the pH electrode. If pH electrode is not connected the
programmed standards are not active.
Range: 1.00 pH–13.00 pH
module. See 3.5 Cleaning, p. 79
Range: 1 Solution, 2 Solutions
A-96.250.571 / 050517 81
Page 84
AMI Codes-II
20
0.0 0.1 0.2 0.3 0.4 0.5
10 12
(0 - 20 [mA])
0 / 4
(4 - 20 [mA])
[mA]
X
AB
Program List and Explanations
5.2 Signal Outputs
5.2.1 and 5.2.2 Signal Output 1 and 2: Assign process value, the current loop
range and a function to each signal output.
NOTICE: The navigation in the menu <Signal Output 1> and
<Signal Output 2> is equal. For reason of simplicity only the
menu numbers of Signal Output 1 are used in the following.
5.2.1.1 Parameter: Assign one of the process values to the signal output.
5.2.1.2 Current Loop: Select the current range of the signal output.
5.2.1.3 Function: Define if the signal output is used to transmit a process
As process
values
Available values:
DIS
pH
Temperature
Sample flow
Make sure the connected device works with the same current
range.
Available ranges: 0– 20 mA or 4–20 mA
value or to drive a control unit. Available functions are:
Linear, bilinear or logarithmic for process values.
See As process values, p. 82
Control upwards or control downwards for controllers.
See As control output, p. 84
The process value can be represented in 3 ways: linear, bilinear or
logarithmic. See graphs below.
ABlinear
X Measured value
bilinear
82 A-96.250.571 / 050517
Page 85
AMI Codes-II
20
1
01234
10 100 1’000 10’000
10 12
(0 - 20 [mA])
0 / 4
426
(4 - 20 [mA])
[mA]
X
Program List and Explanations

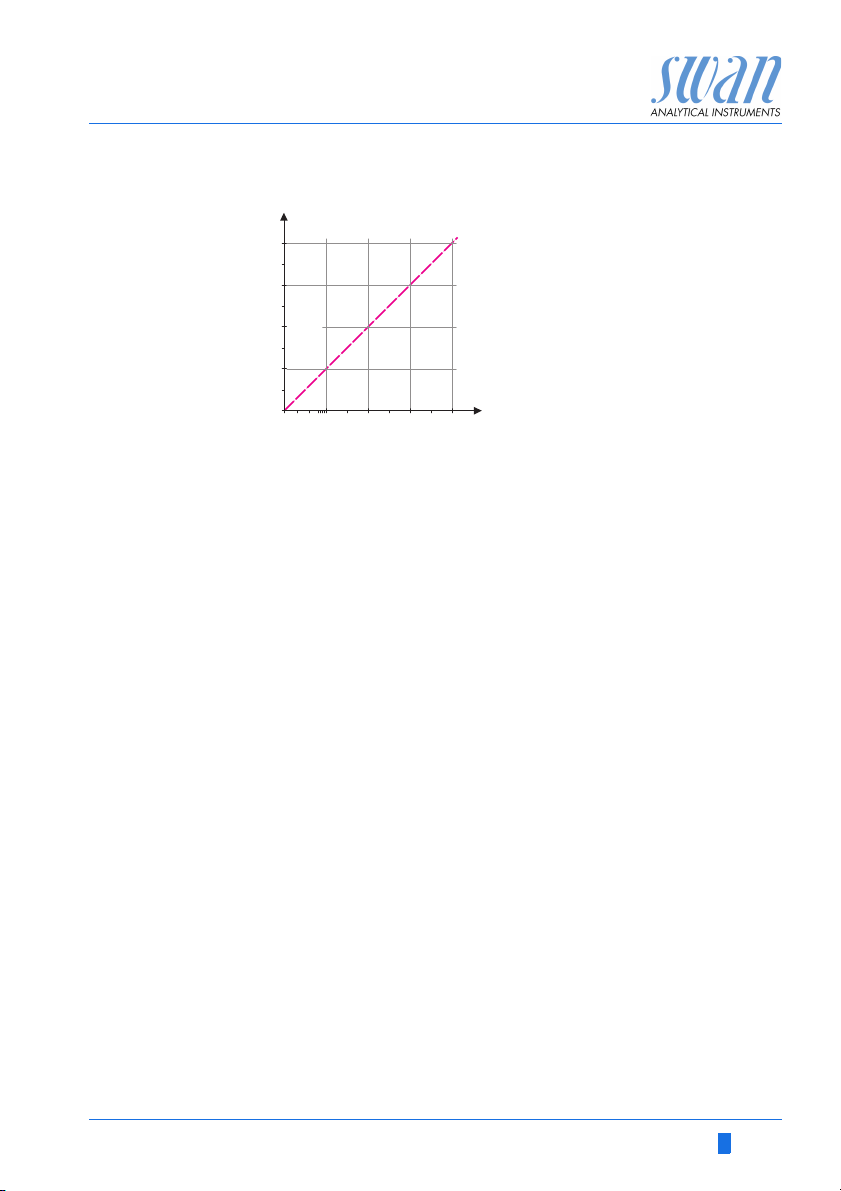

X Measured value (logarithmic)
5.2.1.40 Scaling: Enter beginning and end point (Range low & high) of the
linear or logarithmic scale. In addition, the midpoint for the bilinear
scale.
Parameter DIS:
5.2.1.40.10 Range low: 0–10 ppm or 0–10 mg/l
5.2.1.40.20 Range high: 0–10 ppm or 0–10 mg/ l
5.2.1.40.11 Range low: 0 –14 pH
5.2.1.40.21 Range high: 0 –14 pH
5.2.1.40.12 Range low: -30 to +120 °C
5.2.1.40.22 Range high: -30 to +120 °C
5.2.1.40.13 Range low: 0 –600 B /s
5.2.1.40.23 Range high: 0 –600 B/s
A-96.250.571 / 050517 83
Parameter pH
Parameter Temperature
Parameter Sample flow
Page 86
AMI Codes-II
Program List and Explanations
As control
output
Signal outputs can be used for driving control units. We distinguish
different kinds of controls:
P-controller: The controller action is proportional to the devia-
tion from the setpoint. The controller is characterized by the
P-Band. In the steady-state, the setpoint will never be
reached. The deviation is called steady-state error.
Parameters: setpoint, P-Band
PI-controller: The combination of a P-controller with an
I-controller will minimize the steady-state error. If the reset
time is set to zero, the I-controller is switched off.
Parameters: setpoint, P-Band, reset time.
PD-controller: The combination of a P-controller with a
D-controller will minimize the response time to a fast change
of the process value. If the derivative time is set to zero, the
D-controller is switched off.
Parameters: setpoint, P-Band, derivative time.
PID-controller: The combination of a P-, an I - and a D-con-
troller allows a proper control of the process.
Parameters: setpoint, P-Band, reset time, derivative time.
Ziegler-Nichols method for the optimization of a PID controller:
Parameters: Setpoint, P-Band, Reset time, Derivative time
Y
B
A
X
a
L
A
Response to maximum control output
B
Tangent on the inflection point
X
Time
Xp
Tn
Tv
= 1.2/a
= 2L
= L/2
The point of intersection of the tangent with the respective axis will
result in the parameters a and L.
Consult the manual of the control unit for connecting and
programming details. Choose control upwards or downwards.
84 A-96.250.571 / 050517
Page 87
AMI Codes-II
Program List and Explanations
Control upwards/downwards
Setpoint: User-defined process value (Measured value or flow)
P-Band: Range below (upwards control) or above (downwards
control) the set-point, within the dosing intensity is reduced from
100% to 0% to reach the set-point without overshooting.
5.2.1.43 Control Parameters: if Parameters = DIS
5.2.1.43.10 Setpoint: 0–5 ppm or 0–5 mg/ l
5.2.1.43.20 P-Band: 0–5 ppm 0–5 mg/l
5.2.1.43 Control Parameters: if Parameters = pH
5.2.1.43.11 Setpoint: 0 –14 pH
5.2.1.43.21 P-Band: 0 –14 pH
5.2.1.43 Control Parameters: if Parameters = Temperature
5.2.1.43.12 Setpoint: -30 to +120 °C
5.2.1.43.22 P-Band: 0 to +100 °C
5.2.1.43 Control Parameters: if Parameters = Sample Flow
5.2.1.43.13 Setpoint: 0–600 B/s
5.2.1.43.23 P-Band: 0 –200 B/s
Reset time: The reset time is the time till the step response of a
single I-controller will reach the same value as it will be suddenly
reached by a P-controller.
Range: 0–9’000 sec
Derivative time: The derivative time is the time till the ramp
response of a single P-controller will reach the same value as it will
be suddenly reached by a D-controller.
Range: 0–9’000 sec
Control timeout: If a controller action (dosing intensity) is constantly
over 90% during a defined period of time and the process value
does not come closer to the setpoint, the dosing process will be
stopped for safety reasons.
Range: 0–720 min
A-96.250.571 / 050517 85
Page 88
AMI Codes-II
Program List and Explanations
5.3 Relay Contacts
5.3.1 Alarm Relay: The alarm relay is used as cumulative error indicator.
Under normal operating conditions the contact is active.
The contact is inactive at:
Power loss
Detection of system faults like defective sensors or electronic
parts
High case temperature
Lack of reagents
Process values out of programmed ranges.
Program alarm levels, hysteresis values and delay times for the
following parameters:
DIS
pH
Temperature
Sample flow
The alarm values of Sample Flow and Temperature can be
programmed in menu as well (5.3.1.3, p. 87 or 5.3.1.4, p. 88)
5.3.1.1 Alarm DIS.
5.3.1.1.1 Alarm High: If the measured value rises above the alarm high
value, the alarm relay is activated and E001 is displayed in the
message list. Range: 0.00–10.00 ppm
5.3.1.1.25 Alarm Low: If the measured value falls below the alarm low value,
the alarm relay is activated and E002 is displayed in the message
list.
Range: 0.00–10.00 ppm
5.3.1.1.35 Hysteresis: Within the hyst. range, the relay does not switch. This
prevents damage of relays contacts when the measured value
fluctuates around the alarm value.
Range. 0.00–10.00 ppm
5.3.1.1.45 Delay: Duration, the activation of the alarm relay is retarded after
5.3.1.2 Alarm pH: Only available if pH option is installed. Define the
the measuring value has risen above/fallen below the programmed
alarm.
Range: 0.00–28‘800 sec
measuring value, which should issue an alarm high respectively
low.
86 A-96.250.571 / 050517
Page 89
AMI Codes-II
Program List and Explanations
5.3.1.2.1 Alarm High: If the measured value rises above the alarm high
value, the alarm relay is activated and E003 is displayed in the
message list.
Range: 0–14.00 pH
5.3.1.2.21 Alarm Low: If the measured value falls below the alarm low value,
5.3.1.2.31 Hysteresis: Within the hyst. range, the relay does not switch. This
5.3.1.2.41 Delay: Duration, the activation of the alarm relay is retarded after
5.3.1.3 Sample Flow: Define at which sample flow a flow alarm should be
5.3.1.3.1 Flow Alarm: Program if the alarm relay should be activated if there
5.3.1.3.x Alarm High: If the measuring values rises above the programmed
5.3.1.3.x Alarm Low: If the measuring values falls below the programmed
the alarm relay is activated and E004 is displayed in the message
list
Range: 0–14.00 pH
prevents damage of relays contacts when the measured value
fluctuates around the alarm value
Range: 0–14.00 pH
the measuring value has risen above/fallen below the programmed
alarm.
Range: 0–28‘800 sec
issued.
is a flow alarm. Choose between yes or no. The flow alarm will
always be indicated in the display, pending error list, saved in the
message list and the logger.
Available values: Yes or no
NOTICE: Sufficient flow is essential for a correct measurement.
We recommend to program yes.
value E009 will be issued.
Range: 100–600 B/s
value E010 will be issued.
Range: 5–80 B/s
A-96.250.571 / 050517 87
Page 90
AMI Codes-II
Program List and Explanations
5.3.1.4 Sample Temperature: Only available if pH option is installed.
Define the measuring value, which should issue an alarm high
respectively low.
5.3.1.4.1 Alarm High: If the sample temperature rises above the
programmed value E007 is issued.
Range: 30–70 °C
5.3.1.4.2 Alarm Low: If the sample temperature falls below the programmed
value E008 is issued.
Range: 0–20 °C
5.3.1.5 Case Temp. high: Set the alarm high value for temperature of
electronics housing. If the value rises above the programmed value
E013 is issued.
Range: 30–75 °C
5.3.1.6 Case Temp. low: Set the alarm low value for temperature of
5.3.2 and 5.3.3 Relay 1 and 2: The contacts can be set as normally open or
electronics housing. If the value falls below the programmed value
E014 is issued.
Range: -10 to + 20 °C
normally closed with a jumper. See Relay 1 and 2, p. 29.
The function of the relay contacts 1 and 2 is defined by the user.
NOTICE: The navigation in the menu <Relay 1> and <Relay 2>
is equal. For reason of simplicity only the menu numbers of
Relay 1 are used in the following.
1 First select the functions as:
- Limit upper/lower,
- Control upwards/downwards,
- Timer
- Fieldbus
- End of Batch (relay 2 only)
2 Then enter the necessary data depending on the selected func-
tion.
88 A-96.250.571 / 050517
Page 91
AMI Codes-II
Program List and Explanations
5.3.2.1 Function = Limit upper/lower:
When the relays are used as upper or lower limit switches, program
the following:
5.3.2.20 Parameter: select a process value
5.3.2.300 Setpoint: If the measured value rises above respectively falls below
the set-point, the relay is activated.
Parameter Range
DIS 0–5 ppm
pH 0–14.00 pH
Temperature -30 to +120 °C
Sample flow 0 –600 B/s
5.3.2.400 Hysteresis: within the hysteresis range, the relay does not switch.
This prevents damage of relay contacts when the measured value
fluctuates around the alarm value.
Parameter Range
DIS 0–5 ppm
pH 0–14.00 pH
Temperature 0 to +100 °C
Sample flow 0 –200 B/s
5.3.2.50 Delay: Duration, the activation of the alarm relay is retarded after
the measuring value has risen above/fallen below the programmed
alarm.
Range. 0–600 sec
A-96.250.571 / 050517 89
Page 92
AMI Codes-II
Program List and Explanations
5.3.2.1 Function = Control upwards/ downwards:
The relays may be used to drive control units such as solenoid
valves, membrane dosing pumps or motor valves. When driving a
motor valve both relays are needed, relay 1 to open and relay 2 to
close the valve.
5.3.2.22 Parameter: Choose on of the following process values.
DIS
pH
Temperature
Sample Flow
5.3.2.32 Settings: Choose the respective actuator:
Time proportional
Frequency
Motor valve
5.3.2.32.1
5.3.2.32.20 Cycle time: duration of one control cycle (on/off change).
5.3.2.32.30 Response time: Minimal time the metering device needs to react.
5.3.2.32.4 Control Parameters
Actuator = Time proportional
Examples of metering devices that are driven time proportional are
solenoid valves, peristaltic pumps.
Dosing is controlled by the operating time.
Range: 0–600 sec.
Range: 0–240 sec.
Range for each Parameter same as 5.2.1.43, p. 85
5.3.2.32.1
5.3.2.32.21 Pulse frequency: Max. pulses per minute the device is able to re-
Actuator = Frequency
Examples of metering devices that are pulse frequency driven are
the classic membrane pumps with a potential free triggering input.
Dosing is controlled by the repetition speed of dosing shots.
spond to. Range: 20–300/min.
90 A-96.250.571 / 050517
Page 93
AMI Codes-II
Program List and Explanations
5.3.2.32.31 Control Parameters
Range for each Parameter same as 5.2.1.43, p. 85
5.3.2.32.1
5.3.2.32.22 Run time: Time needed to open a completely closed valve
5.3.2.32.32 Neutral zone: Minimal response time in % of the runtime. If the re-
5.3.2.32.4 Control Parameters
5.3.2.1 Function = Timer:
5.3.2.24 Mode: Operating mode (interval, daily, weekly)
5.3.2.24
5.3.2.340 Interval: The interval can be programmed within a range
5.3.2.44 Run Time: Enter the time the relay stays active.
5.3.2.54 Delay: during run time plus the delay time the signal and control
5.3.2.6 Signal Outputs: Select operating mode of the signal output:
Actuator = Motor valve
Dosing is controlled by the position of a motor driven mixing valve.
Range: 5–300 sec.
quested dosing output is smaller than the response time, no
change will take place.
Range: 1–20 %
Range for each Parameter same as 5.2.1.43, p. 85
The relay will be active repetitively depending on the programmed
time scheme.
Interval
of 1–1’440 min.
Range: 5–32’400 sec.
outputs are held in the operating mode programmed below.
Range: 0–6’000 sec.
Cont.: Signal outputs continue to issue the measured value.
Hold: Signal outputs hold the last valid measured value.
Measurement is interrupted. Errors, except fatal errors,
are not issued.
Off: Signal outputs are switched off (set to 0 or 4 mA).
Errors, except fatal errors, are not issued.
A-96.250.571 / 050517 91
Page 94
AMI Codes-II
Program List and Explanations
5.3.2.7 Output/ Control: Select operating mode of the controller output:
Cont.: Controller continues normally.
Hold: Controller continues based on the last valid value.
Off: Controller is switched off.
5.3.2.24
5.3.2.341 Start time: to set the start time proceed as follows:
5.3.2.44 Run Time: see Interval
5.3.2.54 Delay: see Interval
5.3.2.6 Signal Outputs: see Interval
5.3.2.7 Output/ Control: see Interval
5.3.2.24
5.3.2.342 Calendar:
5.3.2.342.1 Start time: The programmed start time is valid for each of the pro-
5.3.2.342.2 Monday: Possible settings, on or off
5.3.2.342.8 Sunday: Possible settings, on or off
5.3.2.44 Run Time: see Interval
5.3.2.54 Delay: see Interval
5.3.2.6 Signal Outputs: see Interval
5.3.2.7 Output/ Control: see Interval
daily
The relay contact can be activated daily, at any time of a day.
1 Press [Enter], to set the hours.
2 Set the hour with the [ ] or [ ] keys.
3 Press [Enter], to set the minutes.
4 Set the minutes with the [ ] or [ ] keys.
5 Press [Enter], to set the seconds.
6 Set the seconds with the [ ] or [ ] keys.
Range: 00:00:00–23:59:59
weekly
The relay contact can be activated at one or several days, of a
week. The daily starting time is valid for all days.
grammed days. To set the start time see 5.3.2.341, p. 92.
Range: 00:00:00–23:59:59
to
92 A-96.250.571 / 050517
Page 95
AMI Codes-II
Program List and Explanations
5.3.2.1
5.3.3.1 Function = End of Batch
5.3.4 Input: The functions of the relays and signal outputs can be de-
5.3.4.1 Active: Define when the input should be active:
5.3.4.2 Signal Outputs: Select the operation mode of the signal outputs
5.3.4.3 Output/Control: (relay or signal output):
Function = Fieldbus:
The relay will be switched via the Profibus input. No further parameters are needed.
This function is only available on relay 2. It is used to communicate
with canal switching instruments from third-party suppliers. The
relay closes for 1 sec. after each valid measurement. If End of
Batch is selected, no further selection is possible.
fined depending on the position of the input contact, i.e. no function,
closed or open.
No: Input is never active.
When closed Input is active if the input relay is closed
When open: Input is active if the input relay is open
when the relay is active:
Cont.: Signal outputs continue to issue the measured
value.
Hold: Signal outputs issue the last valid measured value.
Measurement is interrupted. Errors, except fatal
errors, are not issued.
Off: Set to 0 or 4 mA respectively. Errors, except fatal
errors, are not issued.
Cont.: Controller continues normally.
Hold: Controller continues on the last valid value.
Off: Controller is switched off.
A-96.250.571 / 050517 93
Page 96
AMI Codes-II
Program List and Explanations
5.3.4.4 Fault:
No: No message is issued in pending error list and the
Yes :
5.3.4.5 Delay: Time which the instrument waits, after the input is deactivated, before returning to normal operation.
Range: 0–6‘000 sec
5.4 Miscellaneous
5.4.1 Language: Set the desired language.
Available settings: German /English/ French/ Spanish
5.4.2 Set defaults: Reset the instrument to factory default values in three
different ways:
Calibration: Sets calibration values back to default. All other
values are kept in memory.
In parts: Communication parameters are kept in memory. All
other values are set back to default values.
Completely: Sets back all values including communication
parameters.
5.4.3 Load Firmware: Firmware updates should be done by instructed
service personnel only.
5.4.4 Password: Select a password different from 0000 to prevent unauthorized access to the menus “Messages”, “Maintenance”, “Operation” and “Installation”.
Each menu may be protected by a different password.
If you forgot the passwords, contact the closest SWAN representa-
tive.
5.4.5 Sample ID: Identify the process value with any meaning full text,
such as KKS number.
5.4.6 Line Break Detection: If activated, error message E028 is shown in
case of line break on signal outputs 1 and 2.
alarm relay does not close when input is active.
Message E024 is stored in the message list.
Message E024 is issued and stored in the message
list. The Alarm relay closes when input is active.
94 A-96.250.571 / 050517
Page 97
AMI Codes-II
Program List and Explanations
5.5 Interface
Select one of the following communication protocols. Depending on
your selection, different parameters must be defined.
5.5.1 Protocol: Profibus
5.5.20 Device address: Range: 0–126
5.5.30 ID-Nr.: Range: Analyzer; Manufacturer; Multivariable
5.5.40 Local operation: Range: Enabled, Disabled
5.5.1 Protocol: Modbus RTU
5.5.21 Device address: Range: 0–126
5.5.31 Baud Rate: Range: 1200–115
5.5.41 Parity: Range: none, even, odd
5.5.1 Protocol: USB-Stick:
Only visible if an USB interface is installed. No further settings are
possible.
5.5.1 Protocol: HART
5.5.24 Device address: Range: 0–63
200 Baud
A-96.250.571 / 050517 95
Page 98
AMI Codes-II
Material Safety Data sheets
10. Material Safety Data sheets
10.1. Reagents
Catalogue No.: A-85.410.120
Product name: OXYCON ON-LINE DPD
Catalogue No.: A-85.410.120
Product name: OXYCON ON-LINE Buffer
Catalogue No: A-85.419.200
Product name: OXYCON ON-LINE KI
Catalogue No.: A-85.112.300
Product name: Calibration Solution pH 4
Catalogue No.: A-85.113.300
Product name: Calibration Solution pH 7
Catalogue No: A-85.114.300
Product name: Calibration Solution pH 9
Download
MSDS
The current Material Safety Data Sheets (MSDS) for the above listed Reagents are available for downloading at www.swan.ch.
96 A-96.250.571 / 050517
Page 99
AMI Codes-II
Default Values
11. Default Values
NOTICE: The parameter Cleaning is only visible if an optional
Cleaning Module is connected to the AMI Codes II.
The parameters pH and Temperature are only visible if the
option pH is installed.
Operation:
Sensors: Filter Time Const.: .................................................................30 Sec
Hold after Cal.:.....................................................................120 Sec
Meas. Interval: ......................................................................... 5 Min
Default pH (If pH option is not installed) .............................. 7.00 pH
Alarm Relay ...................................................................... same as in Installation
Relay 1and 2 ...................................................................... same as in Installation
Input ...................................................................... same as in Installation
Logger: Logger Interval:........................................................... Event Driven
Clear Logger:................................................................................no
Installation:
Sensor: Disinf:........................................................................... Free chlorine
Dimension.................................................................................. ppm
Interpolation:............................................................................... yes
Ref. Verification: ......................................................................0.255
Standard: Standard 1: ......................................................... 7.00 pH
Standard: Standard 2: ......................................................... 9.00 pH
Cleaning ......................................................................... 2 Solutions
Signal Output
1&2
Alarm Relay Alarm DIS.:
Parameter:................................................................................. DIS.
Current loop:...................................................................... 4–20 mA
Function:.................................................................................. linear
Scaling: Range low:........................................................... 0.00 ppm
Scaling: Range high: ......................................................... 5.00 ppm
Scaling: pH: Range low: ..................................................... 0.00 pH
Scaling: pH: Range high:................................................... 14.00 pH
Scaling: Temperature: Range low:......................................... 0.0 °C
Scaling: Temperature: Range high: ......................................50.0 °C
Scaling: Sample Flow: Range low: ...........................................0 B/s
Scaling: Sample Flow: Range high:......................................200 B/s
Alarm high: ........................................................................5.00 ppm
Alarm low:.......................................................................... 0.00 ppm
Hysteresis:......................................................................... 0.10 ppm
Delay: ......................................................................................5 Sec
A-96.250.571 / 050517 97
Page 100
AMI Codes-II
Default Values
pH: Alarm high: .................................................................. 14.00 pH
pH: Alarm low:...................................................................... 0.00 pH
pH: Hysteresis: .................................................................... 0.10 pH
pH: Delay: ................................................................................5 Sec
Sample Flow: Flow Alarm: .......................................................... yes
Sample Flow: Alarm High: ....................................................500 B/s
Sample Flow: Alarm Low: .........................................................5 B/s
Sample Temp.: Alarm High: .....................................................55 °C
Sample Temp.: Alarm Low:........................................................5 °C
Case temp. high:......................................................................65 °C
Case temp. low: .........................................................................0 °C
Relay 1and 2 Function: ......................................................................... Limit upper
Parameter: .................................................................................DIS.
Setpoint:............................................................................. 5.00 ppm
Hysteresis: .........................................................................0.10 ppm
Delay:.....................................................................................30 Sec
If Function = Control upw. or dnw:
Parameter: ..................................................................................DIS
Settings: Actuator: ...........................................................Frequency
Settings: Pulse Frequency: ............................................ 120/ min.
Settings: Control Parameters: Setpoint: .........................5.00 ppm
Settings: Control Parameters: P-band:...........................0.10 ppm
Parameter: ................................................................................... pH
Settings: Actuator: ...........................................................Frequency
Settings: Pulse Frequency: ............................................ 120/ min.
Settings: Control Parameters: Setpoint: ........................... 7.00 pH
Settings: Control Parameters: P-band:............................. 0.10 pH
Parameter: .................................................................. Temperature
Settings: Actuator: ...........................................................Frequency
Settings: Pulse Frequency: ............................................ 120/ min.
Settings: Control Parameters: Setpoint: ...............................30 °C
Settings: Control Parameters: P-band:...................................1 °C
Parameter: .................................................................. Sample Flow
Settings: Actuator: ...........................................................Frequency
Settings: Pulse Frequency: ............................................ 120/ min.
Settings: Control Parameters: Setpoint: ...........................200 B/s
Settings: Control Parameters: P-band:...............................20 B/s
Common settings
Settings: Control Parameters: Reset time: ...........................0 Sec
Settings: Control Parameters: Derivative Time: .................
Settings: Control Parameters: Control Timeout:................... 0 Min
..0 Sec
98 A-96.250.571 / 050517
