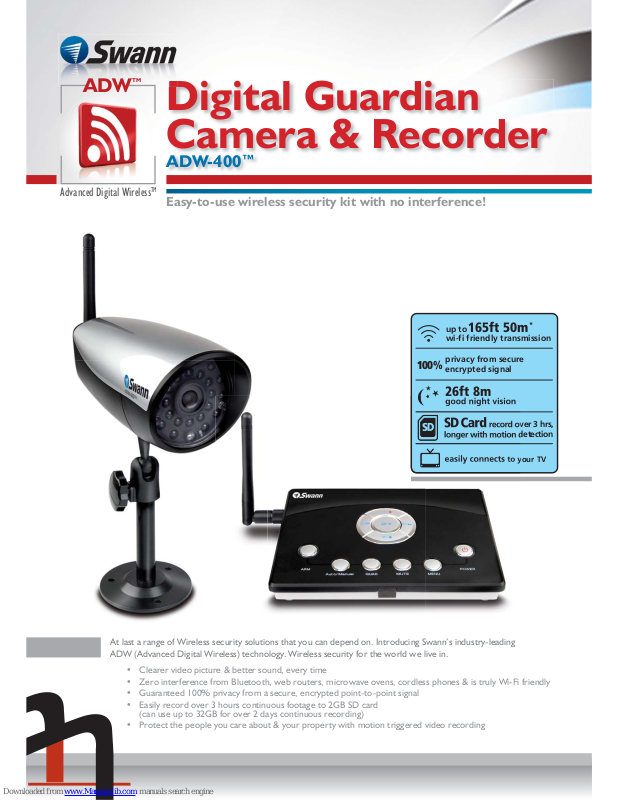

Swann SW344-DWD, ADW-400 Specifications
For more information visit www.swannsecurity.com
Digital Guardian
Camera & Recorder
ADW-400™
Advanced Digital Wireless
TM
ADW
TM
Easy-to-use wireless security kit with no interference!
At last a range of Wireless security solutions that you can depend on. Introducing Swann’s industry-leading
ADW (Advanced Digital Wireless) technology. Wireless security for the world we live in.
Clearer video picture & better sound, every time
Zero interference from Bluetooth, web routers, microwave ovens, cordless phones & is truly Wi-Fi friendly
Guaranteed 100% privacy from a secure, encrypted point-to-point signal
Easily record over 3 hours continuous footage to 2GB SD card
(can use up to 32GB for over 2 days continuous recording)
Protect the people you care about & your property with motion triggered video recording
•
•
•
•
•
26ft 8m
good night vision
privacy from secure
encrypted signal
easily connects to your TV
up to 165ft 50m
*
wi-fi friendly transmission
100%
SD Card record over 3 hrs,
longer with motion detection
For more information visit www.swannsecurity.com
Digital Guardian
Camera & Recorder
Advanced Digital Wireless
TM
ADW
TM
ADW-400™
Pack Contents:
ADW-400™ Wireless Camera
Digital Receiver
SD Card 2GB
RCA Cable 3ft / 1m
Power Adapters x 2
Mounting Screws & Plugs
Operating Instructions
Theft Deterrent Stickers x 4
•
•
•
•
•
•
•
•
System specifications:
Camera
Video
mage Sensor 1/4” CMOS
Video Quality 300 TV Lines
Number of Effective Pixels VGA: 640 x 480 / QVGA: 320 x 240
Minimum Illumination 0 Lux (IR on)
Day/Night Mode Color during day / switches to B&W at night
Backlight Compensation No
Lens 3.6mm
Viewing Angle 53 degrees
Audio
Microphone Yes
Audio Range 9ft / 3m
Night Vision
Night Vision Distance Up to 26ft / 8m
Number of Infra-Red LEDs 24
Infra-Red LED Life 10,000 hours
General
Operating Power DC 5V
Operating Temperature -10°C ~ 50°C / -14°F ~ 122°F
Body Construction ABS Plastic
Dimensions - Camera 5.1” x 2.6” x 2.6” / 130mm x 65mm x 65mm
Dimensions - Stand 4.7” x 2.4” x 2.4” / 120mm x 60mm x 60mm
Weight – Camera & Stand 7.6oz / 215g
Wireless
Digital or Analog Digital
Max. Transmission Range Up to 165ft / 50m
Typical Range 65ft / 20m
Frequency 2.4 GHz FHSS (frequency hopping)
Transmission Channels 4
DVR
Video
Video Format NTSC or PAL
Video Outputs 1 Composite Output
Display Resolution VGA: 640 x 480 / QVGA: 320 x 240
Display Frame Rate VGA: 9fps / QVGA: 25fps
Audio
Audio Input Via Camera
Audio Output 1 RCA Output
Recording
Compression Format Video: MJPEG
Recording Resolution VGA: 640 x 480 / QVGA: 320 x 240
Recording Frame Rate 16fps
Recording Modes Manual / Motion
Multiplex Operation Simplex
Memory Type SD Card
Maximum Memory Supported Up to 32GB SD
General
Operating Power DC 5V
Dimensions 5.3” x 3.9” x 1.0”/ 135mm x 100mm x 25mm
Weight 5.8oz / 165g
Backup Method SD Card
Product Code: SW344-DWD
* depends on local conditions
How It Works
viewing & recording is easy
