Swann 16CH, 8CH (D), 16CH (D), 4CH, 4CH (D) User Manual

User

User’’

s Manual

MPEG4 DVR SERIES_V0.989

Please read instructions thoroughly before operation and retain it for future reference.

150

16CH / 8CH / 4CH

4CH

16CH / 8CH / 4CH Built

16CH / 8CH / 4CH Built--

in DVD

in DVD--

RW Writer or CD

RW Writer or CD--

RW Writer

IMPORTANT SAFEGUARD

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CE Mark

This apparatus is manufactured to comply with the radio interference requirements.

CAUTION:

CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.

Only operate this apparatus from the type of power source indicated on the label.

CAUTION

RISK OF ELECTRIC SHOCK

Note: Any changes of AP, please refer to your distributor.

Note: Any changes of this manual made to the actual product are subjects to no further notification.

Note: Version: 1042-09-H6-04-AA-08 ; 0030

TABLE OF CONTENTS

PARTS AND FEATURES

1.1 FEATURES -------------------------------------------------------------------------------------------------------------------------

1.2 PACKAGE CONTENTS ---------------------------------------------------------------------------------------------------------

1.3 SPECIFICATION ------------------------------------------------------------------------------------------------------------------

1.4 FRONT PANEL --------------------------------------------------------------------------------------------------------------------

1.5 REAR PANEL ----------------------------------------------------------------------------------------------------------------------

GETTING STARTED

2.1 GETTING STARTED -------------------------------------------------------------------------------------------------------------

BASIC OPERATION

3.1 RECORDING -----------------------------------------------------------------------------------------------------------------------

3.2 PLAYBACK -------------------------------------------------------------------------------------------------------------------------

DETAILED MENU CONFIGURATION

4.1 MENU TREE ----------------------------------------------------------------------------------------------------------------------

4.2 MAIN MENU OPTIONS_ RECORD -----------------------------------------------------------------------------------------

4.3 MAIN MENU OPTIONS_ TIMER --------------------------------------------------------------------------------------------

4.4 MAIN MENU OPTIONS_ DATE ---------------------------------------------------------------------------------------------

4.5 MAIN MENU OPTIONS_ ADVANCE ---------------------------------------------------------------------------------------

4.6 ADVANCE MENU_ CAMERA ------------------------------------------------------------------------------------------------

4.7 ADVANCE MENU_ DETECTION -------------------------------------------------------------------------------------------

4.8 ADVANCE MENU_ DISPLAY ------------------------------------------------------------------------------------------------

4.9 ADVANCE MENU_ ALERT -----------------------------------------------------------------------------------------------------

4.10 ADVANCE MENU_ REMOTE ------------------------------------------------------------------------------------------------

4.11 ADVANCE MENU_ SYSTEM -------------------------------------------------------------------------------------------------

4.12 ADVANCE MENU_ NETWORK ---------------------------------------------------------------------------------------------

4.13 ADVANCE MENU_ BACKUP ------------------------------------------------------------------------------------------------

4.14 ADVANCE MENU_ HDD INFO ----------------------------------------------------------------------------------------------

4.15 ADVANCE MENU_ EVENT LOG -------------------------------------------------------------------------------------------

ADDITIONAL OPERATION

5.1 SEARCH -----------------------------------------------------------------------------------------------------------------------------

5.2 2X DIGITAL ZOOM ---------------------------------------------------------------------------------------------------------------

5.3 KEY LOCK --------------------------------------------------------------------------------------------------------------------------

5.4 SWITCH THE N/P SYSTEM ----------------------------------------------------------------------------------------------------

5.5 USB UPGRADE--------------------------------------------------------------------------------------------------------------------

5.6 LICENSED SOFTWARE AP---------------------------------------------------------------------------------------------------AP BASIC OPERATION --------------------------------------------------------------------------------------------------AP ADVANCED SETTING -------------------------------------------------------------------------------------------------

Network -----------------------------------------------------------------------------------------------------------DDNS ---------------------------------------------------------------------------------------------------------------MAIL ----------------------------------------------------------------------------------------------------------------FTP -----------------------------------------------------------------------------------------------------------------DVR-CAMERA SETTING -------------------------------------------------------------------------------------DEVICE ------------------------------------------------------------------------------------------------------------DETECTION ------------------------------------------------------------------------------------------------------NETWORK BACKUP & PLAYBACK ----------------------------------------------------------------------ALARM ------------------------------------------------------------------------------------------------------------ALARM LIST -----------------------------------------------------------------------------------------------------GENERAL --------------------------------------------------------------------------------------------------------ACCOUNT --------------------------------------------------------------------------------------------------------ONLINE USER INFO -------------------------------------------------------------------------------------------FILE PATH ---------------------------------------------------------------------------------------------------------

5.7 CONNECT TO AP VIA IE BROWSER ---------------------------------------------------------------------------------------

5.8 GPRS ---------------------------------------------------------------------------------------------------------------------------------

5.9 OPTIONAL PHERIPHERALS --------------------------------------------------------------------------------------------------

TROUBLE SHOOTING

6.1 FAQ -----------------------------------------------------------------------------------------------------------------------------------

APPENDIX #1

INSTALL THE HDD ---------------------------------------------------------------------- -------------------------------------

APPENDIX #2

PIN CONFIGURATION ------------------------------------------------------------------------------------- ------------------

APPENDIX #

APPENDIX #33

RS232 PROTOCOL ----------------------------------------------------------------- -----------------------------------------

APPENDIX #

APPENDIX #33

RECORDING TIME TABLE ----------------------------------------------- --------------------------------------------------

APPENDIX #

APPENDIX #44

COMPATIBLE USB BRAND --------------------------------------------------------------------------- ---------------------

APPENDIX #

APPENDIX #55

COMPATIBLE HDD BRAND ------------------------------------------------------------------------------------------------

1 1 2 4 8

10

11 12

14 15 16 17 18 18 19 21 22 23 24 25 26 28 28

29 30 30 30 31 31 32 37 37 38 39 39 40 40 41 42 43 43 44 44 45 45 46 47 47

49 51 53 54 55 56

48

PARTS AND FEATURES

1.1 FEATURES

1.2 PACKAGE CONTENTS

1

NOTE: Please check the package contents to make sure that you receive all accessories shown above.

MPEG4 DVR Technology

Compression format provides crystal clear image with real time performance

Multiplex

Allows live display, record, playback, backup, and network all at the same time

Long

Long--

Recording Hours:

500GB can record more than 14 days. (16CH, real-time recording) Connect to Independent Disk Array (optional) to have more storage capacity

Backup Function:

Backup files with USB interface, DVD-RW or CD-RW and network remote recording & backup

Remote Surveillance:

GPRS allows viewing and controlling of the system & also support remote surveillance with licensed software AP and IE browser Web surveillance supports 5 users simultaneously

Intelligent Motion Trigger Recording:

With advanced motion detection function, scheduled motion detection recording (4 different adjustable factors for motion detection sensitivity) and convenient search function, customized security environment is achieved

Alarm trigger recording will send alert with images to designated e-mail and FTP address Supports pre-alarm recording (8MB)

Covert Recording:

A mask replaces the live image with a blank screen & the monitor shows nothing but recording is still on

A/V Support:

Supports 4 audio-in, 2 audio-out to record sounds Supports VGA output to monitor (optional)

General:

Support multi-language OSD System auto recovery after power reconnected IR remote control of the system and PTZ through RS-485 Support daylight saving function Support manual / timer / motion / alarm / remote recording functions Watermark function ensures authentication of recorded images Support TCP/IP, PPPoE, DHCP and DDNS network connection

MODEL 16CH 8CH 4CH 16CH / 8CH / 4CH

DVD-RW / CD-RW

Digital Video Recorder

ˇˇ ˇ ˇ

Adapter

ˇˇ ˇ ˇ

Licensed Software AP

ˇˇ ˇ ˇ

IR Transmitter and IR Receiver

ˇˇ

Optional

ˇ

Power and Data Bus

ˇˇ ˇ ˇ

DSUB PIN Connector

ˇˇ ˇ ˇ

Screws

ˇˇ ˇ ˇ

1.3 SPECIFICATION

MODEL

16CH / 16CH (D) 8CH / 8CH (D) 4CH / 4CH (D)

Video System NTSC / PAL (switch able)

8 Channels 4 Channels

720 × 480 pixels with 60 IPS 〈NTSC〉 720 × 576 pixels with 50 IPS 〈PAL

〉

720 × 480 pixels with 30 IPS〈NTSC〉 720 × 576 pixels with 25 IPS 〈PAL

〉

Maximum Recording Rate (CIF)

352 × 240 pixels with 480 IPS 〈NTSC〉 352 × 288 pixels with 400 IPS 〈PAL〉

352 × 240 pixels with 240 IPS 〈NTSC〉 352 × 288 pixels with 200 IPS 〈PAL〉

352 × 240 pixels with 120 IPS〈NTSC〉 352 × 288 pixels with 100 IPS 〈PAL〉

60, 30, 15, 7 IPS <NTSC> 50, 25, 12, 6 IPS <PAL>

30, 15, 7, 3 IPS <NTSC> 25, 12, 6, 3 IPS <PAL>

Adjustable Recording Speed (CIF) 480, 240, 120, 60 IPS <NTSC>

400, 200, 100, 50 IPS <PAL>

240, 120, 60, 30 IPS <NTSC> 200, 100, 50, 25 IPS <PAL>

120, 60, 30, 15 IPS <NTSC> 100, 50, 25, 12 IPS <PAL>

8CH: support HDD * 2

8CH (D): support HDD *1

4CH: support HDD * 1

4CH (D): support HDD *1

240 IPS for NTSC

200 IPS for PAL

120 IPS for NTSC

100 IPS for PAL

USB Interface front panel * 1, back panel * 1 front panel * 1

Ethernet 10/100 Base-T. Support remote control and live view via Ethernet Mobile Surveillance Support GPRS to access the system via mobile phone (require J2ME, MIDP2.0 protocol)

Remote Alarm Notification E-mail images, and images uploading to FTP site’s specific account Network Pro tocol TCP/IP, PPPoE, DHCP and DDNS IR transmitter Remote control DVR and PTZ via IR transmitter (RS-485) (4CH: Optional) PTZ control Support PELCO-D protocol Dwell Time (Sequential Channel Switch) Programmable with adjustable dwell time (2, 4, 8, 16 sec.)

8 inputs, 1 output 4 inputs, 1 output

Video Loss Detection Yes

Web Interface Support licensed software AP, and IE browser

Web Transmitting Compression Format Motion JPEG

Alarm I/O 16 inputs, 1 output Picture Zoom Support 2X digital zoom function Key Lock Yes

Video Compression Format Video Input

(Composite video signal 1 Vp-p 75Ω BNC)

Video Loop Out

(Composite video signal 1 Vp-p 75Ω BNC)

Video Output

Maximum Recording Rate (Frame)

Adjustable Recording Speed (Frame)

Image Quality Setting Hard Disk Storage

(IDE type, ATA66) (over 400GB) HDD Quick Cleaning Recording Mode Watermark Refresh Rate

Multiplex Operation Audio I/O Motion Detection Area Motion Detect Sensitivity Pre-alarm Recording Backup Device

MPEG 4

16 Channels

Main Monitor Output:

Composite video signal 1 Vp-p 75Ω BNC

Call Monitor Output:

Composite video signal 1 Vp-p 75Ω BNC

720 × 480 pixels with 120 IPS 〈NTSC〉 720 × 576 pixels with 100 IPS 〈PAL〉

120, 60, 30, 15 IPS <NTSC> 100, 50, 25, 12 IPS <PAL>

Best, High, Normal, and Basic

16CH: support HDD * 2

16CH (D): support HDD *1

Manual／Timer／Motion／Alarm

480 IPS for NTSC

400 IPS for PAL

4 audio inputs, 2 audio outputs (Mono)

16 × 12 grids per camera for all channels

4 adjustable variables with precise calculation for motion detection

Yes (8 MB)

USB1.1 / 2.0 backup and network remote backup

Quick clean up the “index system” of the recorded files. 250GB under 2 seconds

Yes

live display, record, playback, backup, and network

2

 Any changes made to the actual product are subjects to no further notification.

MODEL

16CH / 16CH (D) 8CH / 8CH (D) 4CH / 4CH (D)

Specification Continued …

Power Consump tion ＜64 W 4CH: ＜42 W ; 4CH (D): ＜64 W

Dimensions (mm)

432mm (W) × 90mm (H) × 326mm (D)

Independent Disk Array ; VGA

Connector ; IR Remote Control

Camera Title Video Adjustable Date Display Fo rmat Daylight Saving Power Source

Operating Temperature

System Recovery

Optional Peripherals

Support up to 6 letters

Hue／Color／Contrast／ Brightness

YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off

Yes

DC 19V

10℃ ~ 40℃ (50℉~104℉)

System auto recovery after power reconnected

Independent Disk Array ; VGA Connector

3

1.4 FRONT PANEL

4

1) POWER: Press “POWER” button to turn on/ turn off the DVR. (Under recording mode, please stop record before turn off the DVR)

2) MENU: Press “MENU” button to enter main menu.

3) ENTER / RECORD: Press “ENTER” button to confirm. Press “RECORD” to activate the manual recording.

4) “＋ ““－ ”: Press “＋ “or “－ ” button to change the setting in the menu / to select the channel. Press “＋“and “－－” buttons to open / close the DVD / CD WRITER.

5) USB: Support firmware update and files backup.

6) LED LIGHT: POWER: Power on STANDBY: Standby HDD: HDD is reading or recording HDD Full: HDD is full. ALARM: Once the alarm is triggered TIMER: When timer recording is turned on. REC: Under recording status PLAY: Under playing status

7) MODE : Press “MODE ” button to switch channel display mode.

16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D)

5

8) “ ” : Press “ ” button to pause the play back files.

9) “ ” : Press “ ” button to stop the play back files.

10) “ “ : Under playback mode, press “ ” button to fast rewind.

11) “ “ : Under playback mode, press “ ” to fast forward.

12) “ZOOM” : Press “ZOOM” button to enlarge the picture of selected channel (2X digital zoom).

13) “PLAY” : Press “PLAY” button to playback recorded files.

14) “▲▼◄►“: Press “▲▼◄►” to move the cursor up / down / left / right.

15) “SHIFT”+ “SEQ”: Press “SHIFT” + “SEQ”to activate the call monitor function and press “SEQ” to escape the call monitor mode.

16) “SHIFT” + “AUDIO“ : Press “SHIFT” + “AUDIO“ to select live or playback sounds of the 4 audio channels.

17) “SHIFT” + “SLOW“ : Under playback mode, press “SHIFT” + “SLOW“ to show slow playback.

18) “SHIFT” + “CH－ “or “CH＋”: Press “SHIFT” + “CH－ “ or “CH＋” change the setting in the menu / to select the channel.

19) “SHIFT” + “SET” : Press “SHIFT” + “SET” to change channel display position.

Press “▲▼◄►” to select the channel which You would like to change, Press “＋”or “－” select the channel which You would like to show. Press “ENTER” button to confirm.

20) “SHIFT” + “SEARCH” : Press “SHIFT” + “SEARCH” buttons to enter the search mode.

21) “ ” + “ ” : Press “ ” + “ ” buttons at the same time to enter / exit the PTZ control mode.

1.4 FRONT PANEL

Continued

Continued……

6

1) “HDD Cartridge Lock”: Lock / Unlock the cartridge of the HDD.

2) “USB”: Support firmware update and files backup.

3) “LED LIGHT”: HDD: HDD is reading or recording

HDD Full: HDD is full. ALARM: Once the alarm is triggered TIMER: When timer recording is turned on PLAY: Under playing status REC: Under recording status

4) “MENU”: Press “MENU” button to enter main menu.

5) “ENTER”/ “SET”: Press “ENTER” button to confirm.

Press “SET” to change channel display position. Press “▲▼◄►“ to select the channel which you like to change, Press “＋”or “－” select the channel which You would like to show.

Press “ENTER” button to confirm.

6) “SEARCH ”: Press “SEARCH” button to enter the search mode.

7) “SLOW ”: Under playback mode, press “SLOW“ button to show slow playback.

4CH

7

7) “ZOOM ”: Press “ZOOM” button to enlarge the picture of selected channel (2X digital zoom).

8) “ ” / “ － ”: Press “ “ button to show the 4 channel display mode. Press “ － ” button to change the setting in the menu.

9) “SEQ”/ “＋ ”:

Press “SEQ” button to activate the call monitor function and press “SEQ” button again to escape the call monitor mode. Press “＋ ” button to change the setting in the menu.

10) “POWER”: Press this button to turn on / turn off the DVR. (Under recording mode, please stop record before turn off the DVR).

11) “CH1 ”“CH2 ”“CH3 ”“CH4 ”: Press “1 ”“2 ”“3 ”“4 ” buttons to select the channel.

12) “REC”:

Press “REC” button to activate the manual recording.

13) “PLAY”:

Press “PLAY” button to playback the recorded files.

14) “UP / PAUSE , DOWN / STOP, LEFT / FAST REWIND, RIGHT / FAST FORWARD“: Press “▲▼◄►“ to move the cursor up / down / left / right.

Under playback mode, press “ “ button to pause playback. Under playback mode, press “ “ button to stop playback. Under playback mode, press “ “ button to fast rewind. Under playback mode, press “ “ button to fast forward.

15) “ ” : Press these two buttons to select live or playback sounds of the 4 audio channels.

16) “ ” : Press these two buttons at the same time to enter / exit the PTZ control mode.

1.5 REAR PANEL

8

DISK ARRAY

INPUT

LOOP

1 2 10 11 12

LAN

16

ACT.

LINK

13 14 155

EXTERNAL I/O

6 7 8 9

HI-IMPEDANCE

75?

USB

D / V

9

IR

1

HI-IMPEDANCE

RS 485

75? 8

43

CALL

DC19V

24

MONITOR

16

1 3

15

17

13

12

1

2

4

5

6 7

8

10

11

9

14

16

3

16CH / 16CH (D)

DC 19V

INPUT

DISKARRAY

LOOP

RS 485

INPUT

IR

INPUT INPUT

EXTERNA L I/O

USB

INPUT

LOOP

3

LOOP LOOP LO OP

INPUT

D/V

LAN

INPUT

ACT.

LINK

INPUT

CALL

LOOP LOOP LOOP

MONITOR

31

24

15

16

17

14

1

2

3

4

5

6 7

8

10

9

11

12 13

8CH / 8CH (D)

INPUT

2

LOOP

DC 19V

LOOP LOOP

3

INPUT

4

INPUT

ACT.

LAN

2

LINK

CALLMONITOR

IN

1

4

3

OUT

INPUT

D/V

1

HI-IMPEDANCE

4

75?

1

LOOP

EXTERNAL I/O

DISK ARRAY

IR

16

6

2 1

4

7 8

10

179

15

14

11

12 13

4CH / 4CH (D) ~ But size are different

9

1) DISK ARRAY PORT: Connect to disk array for extend HDD capacity.

2) IR: Connect to IR receiver.

3) RS485: Connect to external device (such as PTZ camera) with RS485-A and RS485-B.

4) EXTERNAL I/O PORT: Connect to external device. Control external device or get controlled remotely by external device (alarm input, external alarm, PTZ camera).

5) USB PORT: Support firmware update and files backup.

6) D/V PORT (Digital Video Port): Connect to VGA connector card.

7) LAN: Connect to Internet by LAN cable.

8) LINK / ACT LED light: When the Internet is activated, the LED light will turn on.

9) CALL MONITOR: Connect to CALL monitor. Show the channel switch display. When the alarm is triggered, the call monitor will show the image of the triggered channel for a period of time.

10) POWER: Connect to provided adapter.

11) FAN: For ventilation.

12) VIDEO INPUT (CHANNEL 1 – 16 / CHANNEL 1 – 8 / CHANNEL 1 – 4) : Connect to video source, such as camera.

13) LOOP (CHANNEL 1 – 16 / CHANNEL 1 – 8 / CHANNEL 1 – 4) : Video output.

14) 75Ω / HI: When using Loop function, please switch to HI. When you don’t use Loop function, please switch to 75Ω.

15) MONITOR: Connect to Main monitor.

16) AUDIO IN (1-4): Connect to audio source, such as camera which equipped with audio function. When users start the recording function, the audio input will be recorded .

17) AUDIO OUT : Connect to monitor or speaker. With 2 mono audio outputs from the same source.

2.1 GETTING STARTED

GETTING STARTED

NOTE:

10

Please refer to Appendix #1 for HDD installation instructions.

NOTE:

NOTE: Please refer to “Section 1.5 Rear Panel” for connection.

NOTE:

NOTE: Please refer to Appendix#2 for pin configurations of the external I/O port .

Connecting all the devices to construct a surveillance.

1) Install HDD: The HDD must be installed before the DVR is turned on.

2) Connect cameras.

3) Connect monitors.

4) Connect the external devices.

5) Connect the AC power cord to power adapter and plug into an electrical outlet. The standby LED would be on as red. Press the “POWER” button. The power LED will be on as red. It takes approximately 10 to 15 seconds to boot the system.

Channel Title

Available Capacity of

Internal HDDs

System Time

Under HDD Overwrite

Mode

Take 16CH as an example

BASIC OPERATION

11

3.1 RECORDING

The DVR offers three recording modes, manual record, event recording, and timer record. If power is off accidentally, recorded video files will still be stored in the HDDs.

DVR will return to original recording status after power is on again.

1) MANUAL RECORDING (continuous recording) : Recording is initiated by manually pressing the “REC” button. Indicated by the sign “●”

2) EVENT RECORDING (triggered by motion and external alarm) : When this functions is activated, the recording is triggered by motion or external alarm. Indicated by the sign “ ” and “ ” .

3) TIMER RECORDING (scheduled time) : Recording is scheduled by Timer. Indicated by the sign “TIMER RECORD”.

Under

Recording

NOTE : When the HDDs are full under O/W recording mode, previous recorded files may be overwritten without further warning notices.

Take 16CH as an example

Press “ PLAY ” button, the DVR will display the last recording video.

1) FAST FORWARD (F.F. ) & FAST REWIND (REW):

You can increase speed for fast forward and rewind on the DVR. In the playback mode, ＊ Press ” ” once to get 4X speed forward and press twice to get 8X speed,… and the maximum speed can reach 32X. ＊ Press ” ” once to get 4X speed rewind and press twice to get 8X speed, … and the maximum speed can reach 32X. ＊ The type of recording image size (Frame or CIF )will also shown on the screen.

2) PAUSE / IMAGE JOG:

Press “ ” button to pause the current image displayed on the screen. In the Pause mode,

＊ Press ” ” once to get forward by frame change. ＊ Press ” ” once to get rewind by frame change.

3) STOP:

Press “ ” button under all circumstance, it will return DVR to live monitoring mode.

4) CHANNEL SHIFT:

＊ Display mode:

Press MODE “ ” button to select display mode.

＊ Full Screen Switch:

Press “＋”or “－” button to show the full screen channels.

＊ Channel display switch:

Press “ ” + “ ”button. Press “▲”“▼”“◄”“►” to select the channel which You would like to change. Press “＋”or “－” select the channel which You would like show.

Press “ENTER” button to confirm.

5) SLOW PLAYBACK:

Press “ ” + “ ” button to get 1/4X speed playback and press twice to get 1/8X speed.

6) AUDIO:

Press “ ” + “ “to select live or playback sounds of the 4 audio channels.

＊ AUDIO 1 (L) ; AUDIO 1 (P) ＊ AUDIO 2 (L) ; AUDIO 2 (P) ＊ AUDIO 3 (L) ; AUDIO 3 (P) ＊ AUDIO 4 (L) ; AUDIO 4 (P)

3.2 PLAYBACK

12

Note:

For the playback of the DVD or CD backup file, please refer to “Section 5.14 ADVANCE

MENU_BACKUP” for detailed instruction

16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D)

13

Press “ PLAY ” button, the DVR will display the last recording video.

1) FAST FORWARD (F.F. ) & FAST REWIND (REW):

You can increase speed for fast forward and rewind on the DVR. In the playback mode, ＊ Press “ “ once to get 4X speed forward and press twice to get 8X speed,

… and the maximum speed can reach 32X.

＊ Press “ “ once to get 4X speed rewind and press twice to get 8X speed,

… and the maximum speed can reach 32X.

＊ The type of recording image size (Frame or CIF )will also shown on the screen.

2) PAUSE / IMAGE JOG:

Press “ “ button to pause the current image displayed on the screen. In the Pause mode,

＊ Press “ “ once to get forward by frame change. ＊ Press “ “ once to get rewind by frame change.

3) STOP:

Press “ “ button under all circumstance, it will return DVR to live monitoring mode.

4) CHANNEL SHIFT:

＊ Display mode:

Press MODE “ ” button to 4 channels display.

＊ Full Screen Switch:

Press “＋”or “－” button to show the full screen channels.

＊ Channel display switch:

Press “SET” to change channel display position. Press “▲▼◄►“ to select the channel which you like to change,

Press “＋”or “－” select the channel which You would like show. Press “ENTER” button to confirm.

5) SLOW PLAYBACK:

Press “SLOW” button to get 1/4X speed playback and press twice to get 1/8X.

6) AUDIO:

Press “ ” to select live or playback sounds of the 4 audio channels.

＊ AUDIO 1 (L) ; AUDIO 1 (P) ＊ AUDIO 2 (L) ; AUDIO 2 (P) ＊ AUDIO 3 (L) ; AUDIO 3 (P) ＊ AUDIO 4 (L) ; AUDIO 4 (P)

4CH

DETAILED MENU CONFIGURATION

4.1 MENU TREE

14

DATE:

YEAR MONTH DAY

FORMAT: Y

FORMAT: Y--MM--D D ……

TIME:

HOUR MIN SEC

MENU

RECORD

TIMER

DATE

ADVANCE

TITLE

BRIG

CONT

SATU

HUE

COV

REC

CAMERA

DISPLAY

REMOTE

NETWORK

MANUAL RECORD

ENABLE

EVENT RECORD

ENABLE

TIMER RECORD

ENABLE

OVERWRITE

RECORD IMG SIZE

RECORD QUALITY

MANUAL RECORD

IPS

EVENT RECORD

IPS

TIMER RECORD

IPS

TOTAL IPS SHARE

DATE

START

HH : MM

END

HH : MM

ALERT

BACKUP

EVENT LOG

HDD INFO

TITLE DISPLAY

DATE DISPLAY

HDD INFO

LOSS SCREEN

PLAYBACK

INFO

DWELL

DURATION

(SEC)

DEDE-

-

INTERLACE

EXT. ALERT

INT. BUZZER

KEY BUZZER

VLOSS BUZZER

MOTION BUZZER

ALARM BUZZER

ALARM DURATION

(SEC)

HDD BUZZER

HDD NEARLY FULL

(GB)

SYSTEM

SERIAL TYPE

BAUD RATE

HOST ID

IR

PASSWORD

RESET DEFAULT

CLEAR HDD

UPGRADE

VERSION

VIDEO FORMAT

LANGUAGE

AUTO KEYLOCK

WATERMARK

PRE

PRE--

ALARM

DAYLIGHT SAVING

TITLE

DET

AREA

LS

SS

TS

RE

ALARM

DETECTION

TITLE

DEVICE

ID

PROTOCOL

RATE

MONITOR

OUT

DETECTION

TIMER

4.2 MAIN MENU OPTIONS___RECORD

15

Move the cursor to the “RECORD”, and press ”ENTER”, then the screen will show the following options.

1) MANUAL RECORD ENABLE: Start / Stop the manual recording function.

2) EVENT RECORD ENABLE: Start / Stop the event recording function. When this functions is activated, the recording will triggered by motion or external alarm

3) TIMER RECORD ENABLE

:

Start / Stop the timer recording function.

4) OVERWRITE: Select to overwrite previous recording video in HDD. When the HDD is full under O/W recording mode, previous recorded files will be overwritten without further warning notices.

5) RECORD IMG SIZE: There are two recording options: FRAME & CIF. When change record image size, user need to stop recording first.

6) RECORD QUALITY: There are four quality settings: BEST, HIGH, NORMAL & BASIC

In the following (7) ~ (9) sections is for 16 channels.

For 8 channels, divided the IPS by 2. For 4 channels, divided the IPS by 4.

7) MANUAL RECORD IPS: Recording is activated by pressing the “REC” button. Select the images per second of MANUAL RECORD, The options are as the followings:

NTSC

NTSC: FRAME: 120, 60, 30, 15

PAL

PAL: FRAME: 100, 50, 25, 12

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

(MENU)

►

RECORD

TIMER DATE ADVANCE

Press “MENU” button to enter the main menu list. The default admin password is 0000. Enter the default password and press “ENTER”. (Users could alter the password later, please refer to “Section 5.12 ADVANCE MENU_SYSTEM”

)

Use the following buttons for menu setting: “▲▼◄► “ to move the cursor. “＋ , －” to choose the numbers / selections. “ ENTER “ to go to the submenu / to confirm the selection “ MENU “ to go to the menu OSD

/ to confirm the change / to exit the menu OSD

RECORD

MANUAL RECORD ENABLE EVENT RECORD ENABLE TIMER RECORD ENABLE OVERWRITE RECORD IMG SIZE RECORD QUALITY MANUAL RECORD IPS EVENT RECORD IPS TIMER RECORD IPS TOTAL IPS SHARE

16

8) EVENT RECORD IPS: Recording is activated by event (alarm and motion trigger). Select the images per second for event record, The options are as the followings:

NTSC

NTSC: FRAME: 120, 60, 30, 15

PAL

PAL: FRAME: 100, 50, 25, 12

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

9) TIMER RECORD IPS:

Recording is activated by timer schedule. Select the images per second of TIMER RECORD, The options are as the followings:

NTSC

NTSC: FRAME: 120, 60, 30, 15

PAL

PAL: FRAME: 100, 50, 25, 12

CIF: 480, 240, 120, 60 CIF: 400, 200, 100, 50

10) TOTAL IPS SHARE: There are two IPS settings: (Take 16ch as example)

FIX

FIX: IPS per channel = RECORD IPS ÷ 16 channels

GROUP

GROUP: Every 4 channels will form a group.

IPS per channel = RECORD IPS ÷ 4 ÷ number of channels under recording within the group.

Ex.: If you set the record IPS as 480 IPS, then

Channel 01 will get 30 IPS (120 / 4 / 1 = 30) Channel 05 and 06 each will get 15 IPS (120 / 4 / 2 = 15) “ ● “ means under recording

4.3 MAIN MENU OPTIONS___TIMER

Move the cursor to the “TIMER”, and press ”ENTER”, then the screen will show the following options.

RECORD

DATE START END OFF 00 : 00 - 00 : 00 DAILY 08 : 00 - 18 : 00 SUN 06 : 00 - 23 : 00 MON-FRI 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00

●

01

●

05

●

06

Group 1 :

CH 01 ~ 04

Group 2 :

CH 05 ~ 08

Group 3 :

CH 09 ~ 12

Group 4 :

CH 13 ~ 16

NOTE:

NOTE: When users choose the image size as “CIF”, the total

IPS share will be fixed. That is IPS per channel will equal to record IPS divided by 16 channels.

(MENU)

RECORD

►

TIMER

DATE ADVANCE

17

4.4 MAIN MENU OPTIONS___DATE

(MENU)

RECORD

TIMER

►

DATE

ADVANCE

Move the cursor to the “DATE”, and press ”ENTER”, then the screen will show the following options.

NOTE: The illustrated setting means: During the daylight saving time period (start from the 4thSunday of March, end on the 4

th

Sunday of October), the DVR system time will adjust one hour early.

1) DATE: A scheduled record date (SUN/MON/TUE/ WED/ THU/ FRI/ SAT/ MON–FRI / SATSUN / DAILY/OFF) could be set to activate the timer recording. NOTE 1 : Specific date could be changed by “＋”or “－” button. NOTE 2 : If you plan to set the timer recording across the midnight, there are two ways for setting the timer recording schedule, please following the instructions below. Example 1 :

If you only want to set recording timer schedule from every Sunday 23:30 to Monday 23:30, then you could set recording timer schedule as Sunday from 23:30 to 23:30. Example 2 :

If you plan to set the timer recording from Sunday 08:00 to Monday 15:00, then you could set the recording timer schedule as Sunday from 08 : 00 to 00 : 00, and Monday 00 : 00 to 15 : 00.

2) START: Select the start time for the recording.

3) END: Select the finishing time for the recording.

DATE

DATE 2005-NOV-08 13:55:22 FORMAT Y-M-D DAYLIGHT SAVING ON

1) DATE: Set the correct time of the DVR ( YEAR / MONTH / DAY / HOUR / MIN / SEC)

2) FORMAT: There are three date formats: Y-M-D, M-D-Y, D-M-Y.

3) DAYLIGHT SAVING: Specify whether to use daylight saving time and time period. ( START / END) Daylight saving time can be adjusted manually. Enter the daylight saving menu mode to set start time, end time and adjust hour of the daylight saving.

DAYLIGHT SAVING

START 4TH-SUN-MAR 01: 00: 00 END 4TH-SUN-OCT 01: 00: 00 ADJUST 01 : 00

18

4.5 MAIN MENU OPTIONS___ADVANCE

Move the cursor to the “ADVANCE”, and press ”ENTER”, then the screen will show the following options.

(MENU) RECORD TIMER DATE

►

ADVANCE

CAMERA

DETECTION DISPLAY ALERT REMOTE SYSTEM NETWORK BACKUP HDD INFO

EVENT LOG

4.6 ADVANCE MENU ___CAMERA

Move the cursor to the “CAMERA”, and press ”ENTER”, then the screen will show the following options.

CAMERA

TITLE BRIG CONT SATU HUE COV REC

01 110 128 128 128 NO YES 02 110 128 128 128 NO YES 03 110 128 128 128 NO YES 04 110 128 128 128 NO YES 05 110 128 128 128 NO YES 06 110 128 128 128 NO YES 07 110 128 128 128 NO YES 08 110 128 128 128 NO YES PREV NEXT

1) TITLE: Move the cursor to the title which you want to change, and press “ENTER” to access the setting screen. Assign each channel a title (up to six characters (letters or symbols…)), the default title is the channel number.

2) BRIG / CONT / SATU / HUE: Adjust the Brightness/Contrast/Saturation/Hue of each channel. The level is from 0 to 255. The default value of BRIG is 110, others are128.

3) COV (COVERT): Select “YES” to mask the selected channel which is under recording. When this function is activated, the “COV” words will shown on the screen.

4) REC (RECORD): Select “YES” to enable the record function; Select “NO” to disable the record.

5) PREV / NEXT: Select “PRE” to go to the previous page; Select “NEXT” to go the next page.

Take 16CH as an example

19

4.7 ADVANCE MENU ___DETECTION

Move the cursor to the “DETECTION”, and press ”ENTER”, then the screen will show the following options.

DETECTION

TITLE DET AREA LS SS TS RE ALARM

01 ON SETUP 07 03 02 10 OFF 02 ON SETUP 07 03 02 10 LOW 03 ON SETUP 07 03 02 10 HIGH 04 ON SETUP 07 03 02 10 OFF 05 ON SETUP 07 03 02 10 OFF 06 ON SETUP 07 03 02 10 OFF 07 ON SETUP 07 03 02 10 OFF 08 ON SETUP 07 03 02 10 OFF PREV NEXT

DETECTION

DETECTION SETUP DETECTION TIMER

1) DETECTION SETUP:

a) TITLE:

Show the title of each channel of the camera.

b) DET:

Select “ON” to activate the motion detect function of each channel. Select “OFF” to inactivate the motion detect function of each channel.

c) AREA:

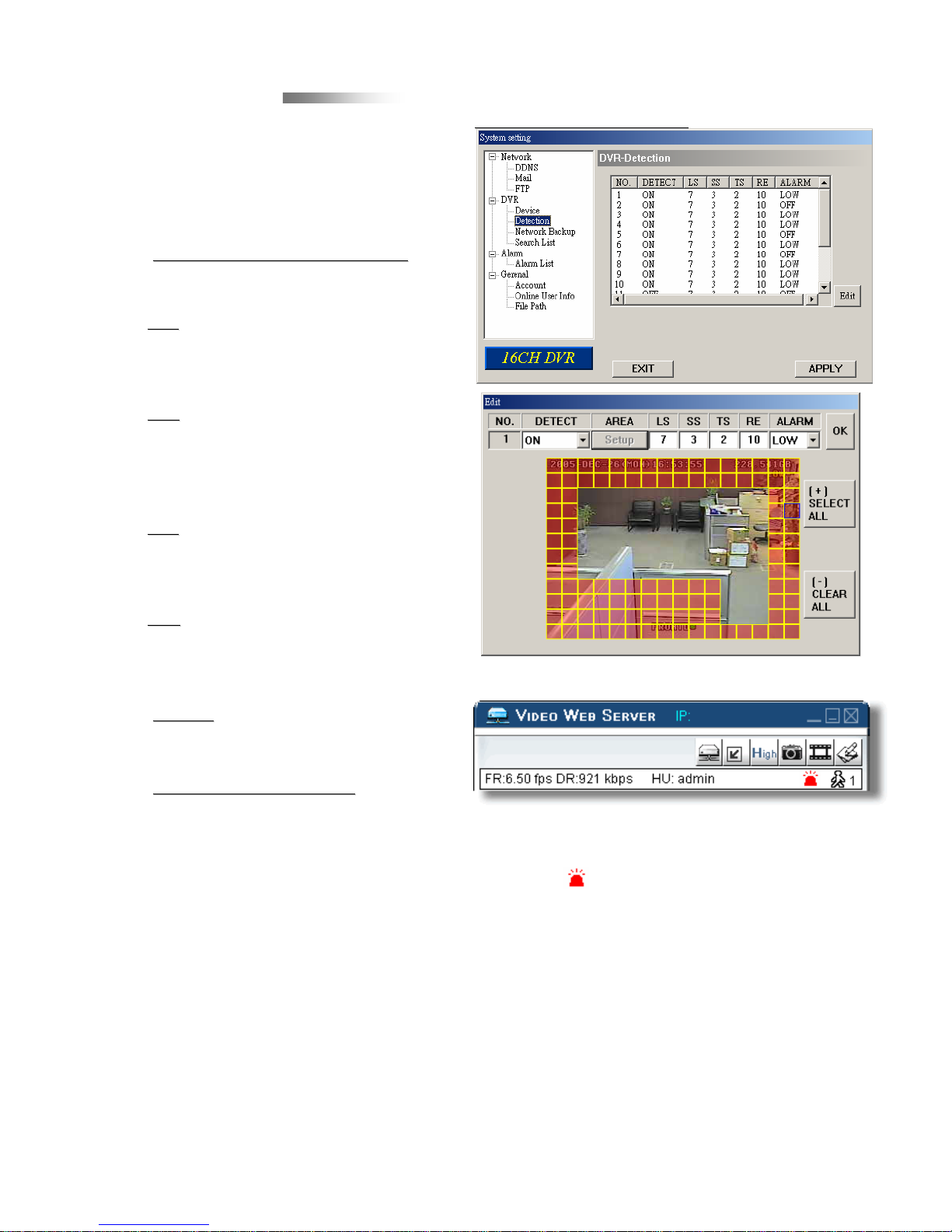

Press the “ENTER” button to set detection area. Pink blocks represent the area that is not being detected. While the transparent blocks is the area that is under detection.

Press “ENTER” to confirm the start area

Press ◄ or ► to choose the width of the area

Press ◄ or ► to choose the height of the area, and press “ENTER” again to confirm.

Multi-detected area

Press “－” to turn all area under detection

Press “＋” to turn all area not to be detected

Take 16CH as an example

20

▲▼◄►: navigates between targets.

d) LS :

The sensitivity of comparing two different images. The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, the lowest sensitivity setting is 15. The default value is 07.

e) SS :

The sensitivity towards the size of the triggered object on the screen.(the number of motion detection grids). The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default setting is 03.

Note: The default setting of Spatial Sensitivity is 03, which means when 3 grids

are detected for motion at one time, the system will get triggered. So the value of Spatial Sensitivity must be less than the number of grids which you set up to motion detection area.

f) TS :

The sensitivity towards how long the object gets triggered. The smaller the value is, the higher sensitivity for motion detection. The highest sensitivity setting is 00, and the lowest sensitivity setting is 15. The default setting is 02.

g) RE :

The value of RE is a reference for detection. The default value is 10, which means DVR will compare 10 continuous images at one time according to the sensitivity of LS, SS, TS simultaneously. Therefore the bigger the value is, the higher sensitivity for motion detection.

h) ALARM:

Select LOW / HIGH for the alarm polarity. The default alarm value is OFF.

i) PRE / NEXT:

Select “PRE” to go to the previous page; Select “NEXT” to go the next page. Targets set in the AREA.

DETECTION TIMER

DATE START END OFF 00 : 00 - 00 : 00 DAILY 08 : 00 - 18 : 00 SUN 06 : 00 - 23 : 00 MON-FRI 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00 OFF 00 : 00 - 00 : 00

2) DETECTION TIMER: Set the date, start time, end time of the detection function.

21

4.8 ADVANCE MENU ___DISPLAY

Move the cursor to the “DISPLAY”, and press ”ENTER”, then the screen will show the following options.

DISPLAY

TITLE DISPLAY ON DATE DISPLAY ON HDD INFO ON LOSS SCREEN BLUE PLAYBACK INFO NORMAL DWELL DURATION (SEC) 2 DE-INTERLACE ON MONITOR OUT MAIN WATERMARK ON

1) TITLE DISPLAY: Turn the channel title display on / off.

2) DATE DISPLAY: Turn the date display on / off.

3) HDD INFO” Turn the display information of internal HDD on / off.

4) LOSS SCREEN” Set the color of video loss screen (Blue or Blac k )

5) PLAYBACK INFO: Set the position where playback information will be indicated (center or normal (on the button of left-hand side of the screen)).

6) DWELL DURATION (SEC): Set the duration time of each channel for CALL MONITOR (2, 4, 8, 16 sec.)

7) DE-INTERLACE: Set the “DE-INTERLACE” function on / off.

8) MONITOR OUT: Select video output device (Main monitor / VGA output (optional device))

9) WATERMARK: In the playback mode of the software AP, users could proof the authenticity of the BACKUP VIDEO. If the BACKUP VIDEO had been altered, the video image will turn to

light red

light red and the playback will be paused.

Please refer to P. 35 for detailed instruction.

22

4.9 ADVANCE MENU ___ALERT

Move the cursor to the “ALERT”, and press ”ENTER”, then the screen will show the following options.

ALERT

EXT. ALERT ON INT. BUZZER ON KEY BUZZER ON VLOSS BUZZER ON MOTION BUZZER ON ALARM BUZZER ON HDD BUZZER ON HDD NEARLY FULL (GB) 05 ALARM DURATION (SEC) 05 PRE-ALARM OFF

1) EXT. ALERT: Set the sound on / off when external alarm is triggered.

2) INT. BUZZER: Set the sound of KEY / VLOSS / MOTION / ALARM / HDD FULL on or off.

3) KEY BUZZER: Set the sound on / off when pressing the button.

4) VLOSS BUZZER: Set the sound on / off when video loss happened.

5) MOTION BUZZER: Set the sound on / off when motion alarm triggered.

6) ALARM BUZZER

:

Set the sound on / off when internal alarm triggered.

7) HDD BUZZER: Set the sound on / off when the HDD is full.

8) HDD NEARLYFULL (GB): If HDD buzzer is on, you could choose to have a buzzer notification when the HDD available capacity is only xxx GB left..

9) ALARM DURATION (SEC)

: Press “ENTER” or “＋”or “－” button to set the duration time of alarm recording (5, 10, 20, 40 sec.).

10) PRE-ALARM: Set the pre-alarm function on (8MB) / off. When pre-alarm and event record functions are activated, the DVR will record 8MB file before alarm / motion triggered.

23

4.10 ADVANCE MENU ___REMOTE

Move the cursor to “REMOTE”, and press ”ENTER”, then the screen will show the following options.

REMOTE

TITLE DEVICE ID PROTOCOL RATE

01 PTZ 001 P - D 0240 0 02 CAMERA 002 NORMAL 02400 03 CAMERA 003 NORMAL 02400 04 CAMERA 004 NORMAL 02400 05 CAMERA 005 NORMAL 02400 06 CAMERA 006 NORMAL 02400 07 CAMERA 007 NORMAL 02400 08 CAMERA 008 NORMAL 02400

PREV NEXT

1) TITLE: Title of each camera.

2) DEVICE: Select to control normal camera or PTZ camera for each channel.

3) ID: Set the ID number (0 ~ 255) as same as the ID of each device.

4) PROTOCOL: Select NORMAL (our protocol) or PELCO-D protocol.

5) RATE: Set the baud rate of each channel (2400, 4800, 9600, 19200, 57600).

PTZ Control:

1)

Device

Device: Our own brand PTZ / Pelco-D protocol PTZ

2)

Connection

Connection: Refer to rear panel / Refer to PIN configuration

3)

Control Mode

Control Mode: Refer to front panel / Refer to IR remote control manual

4)

Detailed Instructions

Detailed Instructions: Refer to PTZ manual

Take 16CH as an example

24

4.11 ADVANCE MENU ___SYSTEM

1) SERIAL TYPE: Press “ENTER” or “＋”or “－” button to set the control serial type (RS-485, RS-232)

of DVR.

2) BAUD RATE: Press “ENTER” or “＋”or “－” button to set the BAUD RATE of DVR

(2400, 9600, 19200, 57600).

3) HOST ID: Press “ENTER” or “＋”or “－” button to set the ID of DVR (0 ~ 255).

4) IR: Press “ENTER” or “＋”or “－” button to set the IR function on / off.

5) PASSWORD: Press “ENTER” to set the password for accessing DVR (admin password or guest password). Users who use guest password to access the DVR will only allow to view the live streaming video, sequence display, shift the channel display, and key lock.

6) RESET DEFAULT: Press “ENTER”, and select “YES” to confirm or “NO” to cancel.

7) CLEAR HDD: Press “ENTER”, and “YES” to confirm clear HDD or “NO” to cancel. In this function, you can press “＋”or “－” to select the HDD MAST ER HDD, SLAVE

HDD or DISK ARRAY which you plan to clear.

8) UPGRADE: Press “ENTER”, and select “YES” to confirm upgrade or “NO” to cancel.

9) AUTO KEYLOCK

:

Set the auto key lock function (Never / 10 sec / 30 sec / 60 sec).

10) LANGUAGE: Press “ENTER”, and select the language of the OSD.

11) VERSION: The firmware version information will be shown on the screen.

12) VIDEO FORMAT: The information of the DVR’s video format will be shown on the screen.

Move the cursor to the “SYSTEM”, and press ”ENTER”, then the screen will show the following options.

SYSTEM

SERIAL TYPE RS - 485 BAUD RATE 02400 HOST ID 003 IR ON PASSWORD SETUP RESET DEFAULT RESET CLEAR HDD MASTER UPGRADE NO AUTO KEYLOCK NEVER LANGUAGE ENGLISH VERSION 1042-09-H6-04-AA-08 VIDEO FORMAT NTSC

25

4.12 ADVANCE MENU ___NETWORK

Move the cursor to the “NETWORK”, and press ”ENTER”, then the screen will show the following options.

1) NETWORK TYPE (STATIC): Select NETWORK TYPE, and press “＋”or “－” button to set the network

type as STATIC, and then press “ENTER” to go to the submenu of the network. In the submenu of network type, use “＋”or “－” button to set all the information needed in the DVR. See the illustration below.

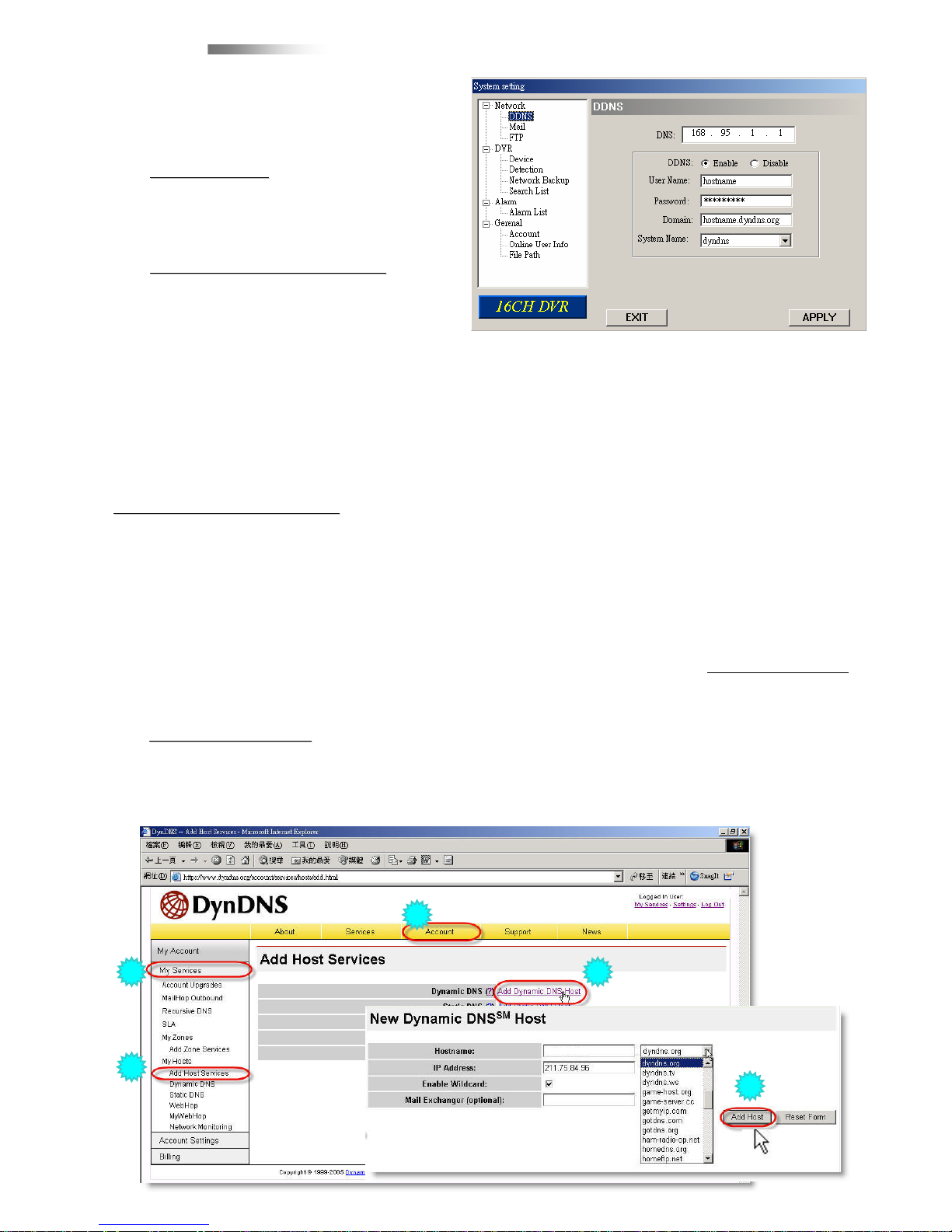

2) NETWORK TYPE (DHCP): This DHCP function need to be supported by router or cable modem network with

DHCP service. For detailed DHCP setting, please refer to P.36 and P.37 (Licensed Software AP).

3) NETWORK TYPE (PPPoE): This PPPoE function need to have “username” and “password” from ISP supplier.

For detailed PPPoE setting, please refer to P.36 and P.37 (Licensed Software AP).

NOTE: DHCP and PPPoE network types need to apply DDNS service to get “Hostname” to

correspond to dynamic IP address. For detailed DDNS setting, please refer to P.37.

NETWORK

NETWORK TYPE STATIC DNS 168. 95. 1. 1 PORT 0 0 8 0

STATIC

IP 60

. 121. 46. 236 GATEWAY 60. 121. 46. 226 NETMASK 255. 255. 255. 254

26

4.13 ADVANCE MENU ___ BACKUP

Move the cursor to the “BACKUP”, and press ”ENTER”, then the screen will show the following options.

USB BACKUP

START TIME 2005-12-27 11 : 25 : 46 END TIME 2005-12-27 11 : 50 : 58 AVAILABLE SIZE 0512 MB CHANNEL 01 HDD NUM MASTER BACKUP TO USB START

1) START TIME: Select the start time of the backup.

2) END TIME: Select the end time of the backup.

3) AVAILABLE SIZE: The information of the USB available capacity.

4) CHANNEL: Choose the channel.

5) HDD NUM: Choose the HDD.

6) BACKUP TO USB: Press “ENTER” to start backup the chosen file to USB.

BACKUP

USB BACKUP

Select “USB BACKUP” and then press “Enter”.

NOTE:

c The USB format must be “FAT 32”. d If the USB is not supported by the DVR, then the “USB ERROR”

message will be shown on the screen.

e It is suggest that clear all the files in the USB before you backup files

in your USB.

f The file type of the backup files could only use the licensed software

to view the playback.

16CH / 8CH / 4CH 16CH (D) / 8CH (D) / 4CH (D)

27

Move the cursor to the “BACKUP”, and press ”ENTER”, then the screen will show the following options.

DISK BACKUP

START TIME 2005-11-30 15 : 30 : 00 END TIME 2005-12-01 16 : 00 : 00 AVAILABLE SIZE 4083 MB CHANNEL 01 HDD NUM MASTER BACKUP TO DISK START

BACKUP

USB BACKUP DISK BACKUP

Select “DISK BACKUP” and then press “Enter”.

1) Press “＋” and “－” buttons to open the DVD / CD WRITER. Put the DISK into DVD / CD WRITER, and press “＋” and “－” buttons again to close.

(NOTE: Use DVD

(NOTE: Use DVD--

R DISK only)

2) Go to “DISK BACKUP” menu and set the start time, end time, channel and HDD number.

3) After setting up the backup information, move the cursor to “START”, and press “ENTER”. While the files are backup to DISK, users will see the backup completed percentage on the screen.

4) After backup files to DISK, “DISK BURN FINISH” will prompt on the screen. Press “＋” and “－” to take out the DISK from DVD / CD WRITER.

5) Put DISK into the DVD / CD -ROM of PC. (O/S system: Windows XP, and Windows2000). And then double click the file Æ Convert the file Æ Play the backup file at PC Side.

DVD_R_01

16CH (D) / 8CH (D) / 4CH (D)

28

4.14 ADVANCE MENU ___HDD INFO

HDD INFO

HDD NUM HDD SIZE HDD NUM HDD SIZE MASTER 400.517 SLAVE NO HDD

EXT001 400.517 EXT 002 400.517 EXT003 400.517 EXT 004 NO HDD EXT005 NO HDD EXT 006 NO HDD EXT007 NO HDD EXT 008 NO HDD EXT009 NO HDD EXT 010 NO HDD EXT011 NO HDD EXT 012 NO HDD

You can get all the capacity information of the connected HDD.

4.15 ADVANCE MENU ___EVENT LOG

You can get all the information (event type, time, and channel) of the event list (including video loss list, net list, other lists (such as power on / off, key unlock, reset to default). Select the event list you want to see and press “ENTER”.

EVENT LOG

VLOSS LIST NET LIST OTHERS CLEAN ALL

1) VLOSS LIST: Show the information of video loss list.

2) NET LIST: Show the information of net login list.

3) OTHERS: Show the information of power on / off, unlock, reset to default list.

4) CLEAN ALL: Clear all the event log lists.

ADDITIONAL OPERATION

5.1 SEARCH

SEARCH

HDD MASTER FULL LIST RECORD LIST SYSTEM LIST ALARM LIST MOTION LIST EVENT SEARCH TIME SEARCH

29

Press “ ” + “ ” buttons on the front panel of the DVR to enter the search mode. Then the screen will show the following options.

1) HDD: Select the the specific HDD.

2) FULL LIST: List all recorded files ( R: RECORD / S: SYSTEM / A: ALARM / MS: MOTION / T: TIMER).

3) RECORD LIST: List of manual recorded files.

4) SYSTEM LIST: List of system recorded files. Under continuous recording mode, the DVR system will save one recording file every one hour.

5) ALARM LIST: List of alarm trigger recorded files.

6) MOTION LIST: List of motion trigger recorded files.

7) EVENT SEARCH: Search by specific time period (YEAR / MONTH / DAY / HOUR / MIN / CHANNEL). Display all the motion triggered recording videos. When you saw the playback of the motion triggered recording videos, it would play with fast speed.

8) TIME SEARCH: Search by specific time period (YEAR / MONTH / DAY / HOUR / MIN).

NOTE:

Move the cursor to the specific recorded file and press “ENTER” to play the video, and press stop “ ” button to return the live display.

16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D)

4CH

Press “SEARCH” buttons on the front panel of the DVR to enter the search mode. Then the screen will show the following options.

30

5.2 2X DIGITAL ZOOM

5.4 SWITCH THE N/P SYSTEM

1) Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “

►“ to switch to PAL system.

(Press till the monitor show the video image of the DVR.)

2) Press “POWER” button on the DVR front panel to shutdown, and then press

“POWER” + “◄“ to switch to NTSC system. (Press till the monitor show the video image of the DVR.)

Press “ZOOM” button on the front panel of the DVR to enlarge the picture of selected channel (2X digital zoom). You will have ¼ view size of the enlarged

picture. Therefore use the “ ▲▼◄► “ to navigate.

2005

2005--

MAY

MAY--

30 [MON] 14:50:37

01

DIGITAL ZOOM

400 GB

2005

2005--

MAY

MAY--

30 [MON] 14:50:37

01

DIGITAL ZOOM

400 GB

1) Press the “ZOOM” button again to exit the zoom picture.

2) Press “ ▲▼◄► “ button to move the zoom position.

3) Users could also press the “Digital Zoom” button on the IR remote control panel.

5.3 KEY LOCK

1)1)Key Lock On

Key Lock On:

2)2)Key Lock Off

Key Lock Off: Press any key (except “SHIFT” and “POWER” buttons) and then key in the password to exit Key Lock mode.

3)3)Password

Password: As to the password setting, please refer to “Section 5.12 ADVANCE MENU_SYSTEM”.

c Press “MENU” + “ENTER” buttons on the DVR front panel to key lock. d Press “F2” button on the IR remote control to key lock. e Auto key lock: refer to “Section 5.12 ADVANCE MENU_SYSTEM

”.

5.5 USB UPGRADE

31

5.6 LICENSED SOFTWARE AP

WARNING

UPGRADE ARE YOU SURE?

YES NO

WARNING

PLEASE WAIT… UPGRADE KERNEL

OK

WARNING

PLEASE WAIT… UPGRADE BOOT

OK

WARNING

PLEASE WAIT… UPGRADE HTML

OK

WARNING

UPGRADE SUCCESS REBOOT

OK

WARNING

SHUTDOWN PLEASE WAIT…

OK

1

2

3

4

5

6

1)

Install the Software

Install the Software:

NOTE: For the latest version of the software AP, please refer to your distributor, or refer to “Section 6.7 CONNECT TO AP VIA IE BROWSER”.

Users can use USB to upgrade. Please format the USB memory device as FAT 32 format first.

1) Get the upgrade files from your distributor.

2) Save the upgrade files in your USB device (Do not change the file name).

3) Go to the “MAIN MENU – SYSTEM - UPGRADE” , and press “ENTER”.

4) Select “YES”, and press “ENTER” again to confirm upgrade.

NOTE:

c The USB format must be “FAT 32”. d If the USB can’t be detected by the DVR, the “USB ERROR” message

will be shown on the screen.

c Place the attached CD into CD-ROM and it will start to install application

program into PC.

d The PC will run the setup file automatically. e After setup, user will see “ “ icon on the desktop.

32

2)

Software Operation

Software Operation:

NOTE: The version of the licensed software will shown on the login page.

c Connect DVR to PC via RJ45 network line.

d

LAN Setting :

LAN Setting : The default DVR IP is “192.168.1.10”, and default “username” and “password” are both “admin”. Users should set PC’s IP address as “IP:192.168.1.

XXX

XXX (1~255, except 10)” (in order to make the PC and DVR

under the same domain).

e Double click to enter login page.

Key in IP (192.168.1.10), username (admin), password (admin), port (80) in the login page. After connect to the DVR with local LAN, users could modify the network settings in DVR or in system config of the licensed software AP.

f

Network Type ~ Static IP :

Network Type ~ Static IP : Set the network information in the DVR menu (Section 5.13) or in System Config of the licensed software AP (P.36).

Network Type ~ Dynamic IP (DHCP and

PPPoE

) :

) : Set the Network information in System Config of the licensed software AP. For detailed DHCP and PPPoE setting, please refer to P.36 and P.37.

g After setup the network information, double click to enter login page.

Key in “Username”, “ Password”, “IP” (Static IP) or “Host name” (Dynamic IP), and “Port”. And then click the green button to connect.

h LOGIN AP Icon Explanation.

Address Book:

Address Book: Press this button to add a new IP into the IP Address Book or choose any preset IP address to access the software AP.

Search:

Search: Search available DVR IP address in local area network and modify the network setting of the DVR.

Player:

Player: Press this button to access and play the recorded files that are saved in your PC.

Upgrade Firmware:

Upgrade Firmware: Press this button, upgrade DVR firmware. The provided firmware files should be saved at PC first.

Copy:

Press this button to copy all the software installation files, so users could keep all the settings of video web server for next software installation on other PC.

i Introduction of Basic Operation : Video Web Server Control Panel.

Digital Device Control Panel ~ Take 16CH DVR as an example

a. Image Transfer Rate Per Second b. Data Transfer Rate c. Connect / Disconnect d. Resolution:

NTSC: 320 × 228 ; 640 × 456

PAL: 320 × 276 ; 640 × 552 e. Image Quality (High, Medium, Low) f. Snapshot : press this button to have a snapshot of the image which will

be saved in the designated destination.

d

60.121.46.236

v.

t.

b

i

a

c

e f g h

p.

o.o.q.

q.

r.

l.

j.

k.

m.

n.

u.

w.

s.

33

g. Record : press this button to start recording, and press this button again to stop

recording. The recorded files will be saved to the designed path on the PC. Each recording file can be up to 18,000 frames. When the recording file is full, the new recorded file will be saved as the second file.

If the HDD space is less than 200MB, the program will stop recording. h. System Config: press this button to enter the setting page of the software AP. i. Number of Online Users j. CH 1 ~ 16 k. 4, 9, 16 Channel Display l. Search m. Record n. Stop / Fast Rewind / Fast Forward / Pause / Slow Playback / Play o. ＋ p. － q. Digital Zoom r. Set : press this button to change channel display position.

Press “▲▼◄►” to select the channel which You would like to change.

Press “＋”or “－” select the channel which You would like to show.

Press “Enter” button to confirm. s. Sequence: press this button to enter the call monitor f unction and press again to

exit from call monitor mode. t. Enter u. PTZ Control On / Off:

When the PTZ control turned on, users could select

the PTZ device, and press “OK” button to enter the PTZ control AP screen.

(Press “ESC” to exit from PTZ control AP screen and back to DVR control AP

screen)

v. Menu / Up / Down / Left / Right w. Turbo ON/ OFF:

To speed up menu selection or the control of the PTZ camera under software AP,

users could activate "Turbo" function by clicking this button. Users are allowed to

change the turbo steps from 1 to 10. .

Ex. If users activate the TURBO function, and set the value of the turbo step as 3,

then when users press one of the button up/down/left/right, one mouse click

will function as clicking 3 times.

60.121.46.236

34

Digital Device Control Panel ~ PTZ

j. Preset 1 ~ 16 k. AUTO l. Zoom Tele Zoom Wide m. Focus Near Focus Far n. Max Zoom In Max Zoom Out o. Enter p. PTZ Control On / Off:

When PTZ control mode is turned on, users could select the PTZ device, and press “OK” button to enter the PTZ control AP screen. (Press “ESC” to exit from PTZ control AP screen and back to

DVR control AP screen) q. Menu / Up / Down / Left / Right r. Turbo:

To speed up menu selection or the control of the PTZ camera under

software AP, users could activate "Turbo" function by clicking this button.

Users are allowed to change the turbo steps from 1 to 10. .

Ex. If users activate the TURBO function, and set the value of the turbo

step as 3, then when users press one of the button up/down/left/right, one

mouse click will function as clicking 3 times.

219.85.22.168

j.

k.

q.

p.

o.

m.

l.

n.

r.

60.121.46.236

35

36

j

Playback Operation

A

B

C

D

E F

A.

Playback Information

Playback Information :

Display information such as “Date”, “Time”, “Resolution”, “ Rewind / Forward Speed”, “Status” and “Functions”, etc..

B.

Time Progress Bar

Time Progress Bar :

Show the playback progress status.

C.

Functions

Functions :

D.

Playback Control Buttons

Playback Control Buttons :

Play / Stop / Pause / Fast Rewind / Fast Forward

E.

Snapshot

Snapshot :

Press this button to take a snapshot of the current image which will be saved in the designated destination.

F.

Close the Player

Close the Player.

One click to activate

•De-interlace

• De-blocking

•OSD

• AVI Convert

• Config. Setting

• Watermark

• Open Previous File

• Open Next File

 De-interlace: Reduce the vibration of the paused picture.  De-blocking: Reduce the video mosaic phenomenon.  OSD: Display the OSD of the AP playback window.  AVI convert: Convert the entire recorded file to AVI format.  Config. Setting: Enter AP config. setting box, and

set the file destination, text color, and text color of progress status.

 Watermark: Proof the authenticity of the backup video.  Open Previous File: Open previous backup video.  Open Next File: Open next backup video.

AP Config. Setting Box :

AP Playback Window :

Note:

• When users pause the playback picture, press “ ” button to go to the previous frame, or press “ ” button to go to the next frame.

• In the playback mode of the software AP, users could press ” “ button to check the authenticity of the BACKUP VIDEO. If the BACKUP VIDEO had been altered, the video image will turn to

light red

light red and the playback will

be paused.

To snap video, right-click of the mouse to make a starting point (red) and click one more time to make a ending point. Then right-click to convert to AVI format.

37

 Press “System Config ” button to enter the system setting page.

Network

c

Static IP:

Enter the “server IP”, “gateway”, “net mask” and “web port”, then press “APPLY” to confirm.

d

PPPoE

PPPoE::

Enter the “username” and “password” provided by your ISP (Internet Sever ) supplier, then press “APPLY” to confirm.

e

DHCP:

This DHCP function need to be supported by router or cable modem network with DHCP service. Choose the DHCP IP type and press “APPLY” to confirm.

***Note***:

PPPoE and DHCP network connection type will require to apply

DDNS service

DDNS service to get a

“

Hostname

Hostname” to correspond to dynamic IP address. Please refer to P.37 for details.

***Note***:

Some router brand may need to restart the DVR to get the IP address.

f

Web Port:

The DVR can be viewed over the network with software AP or a web browser. Typically the TCP port used by HTTP is 80. However in some cases it is better to change this port number for added flexibility or security. Valid number is 80 ~ 19999.

60.121.46.236

The network configuration allows DVR to be available for Ethernet network or dial-up.

3)3)Advanced Setting

Advanced Setting:

38

DDNS

c DDNS is a service for transforming

dynamic IP to corresponding to a specific “Hostname”.

d

DDNS Apply:

Go to a website which provide free DDNS services and apply a “Hostname”. See the example below.

e

Enable the DDNS function

: Enter “DDNS username” into “username” column. Enter the “DDNS password” into “password” column. Enter the “Hostname” into “Domain” column. Choose the “DDNS system name”. After setting, press “APPLY” to confirm.

DDNS APPLY EXAMPLE:

 Go to a website which provide free DDNS services.

For example, “http://www.dyndns.org”.

 Create an account in DynDNS.  After created your account, users will receive an confirmation e-mail within few

minutes. To complete registration, please follow the instructions received. Users must complete these steps within 48 hours to complete the registration. If the confirmation e-mail was not re ceived within an hour, request “password reset”

(http://www.dyndns.org/account/resetpass/).

 Use the DDNS username and password to login the DynDNS.



Create Hostname:

Login → “Account” → “My Service” → “Add Host Services” → “Add Dynamic DNS Host” → Enter and choose the hostname → Click on “Add Host” → DDNS Hostname created.

YourHostName

1

2

3

4

5

39

Mail

c When alarm or motion is triggered,

a video copy file can be captured. DVR can send e-mail notification to the assigned recipients (up to 5 recipients).

***Note***:

To activate the e-mail notification function, please enable the function of e-mail notification in the “Alarm” setting first (page 42).

d Add the recipients’ email accounts

in the “Mail Account” column. The detailed information (SMTP server, username and password) refer to e-mail system supplier.

e Please type in the entire email

address in the “Mail from” column to ensure emails will not be blocked by SMTP.

f In some cases, mail server require

to verify password, please enter the “user name”and “password”.

g After setting, press “APPLY” to

confirm.

FTP

c When alarm or motion is triggered, a

video copy file can be captured. And DVR can upload the captured images to the assigned FTP site.

d Enter the detailed FTP information.

***Note***:

To activate the FTP notification function, please enable the function of FTP notification in the “Alarm” setting first.

e After setting, press “APPLY” to

confirm.

40

DVR

DVR ––

Camera Setting

c Each camera channel can be adjusted

independently.

d Select the desired camera channel.

Press “

Edit

Edit” to enter the setting box.

e

Title:

Enter the camera channel name up to 6 characters.

f

Adjustment:

Adjust the BR (brightness) / CT (contrast) / SU (saturation) / HU (hue) / REC (recording) of the camera.

g After setting, press “OK” and then

press “APPLY” to confirm.

c Select the desired channel of the

installed external device. Press “

Edit

Edit” to enter the setting box.

d

Device Type

: Choose either general camera or PTZ camera.

e

ID No.

: Set the ID number (0 ~ 255) of the installed external PTZ device.

f

Protocol Type

:

Choose “

NORMAL

NORMAL” protocol for our own brand camera. Choose “PP--DD” protocol for PELCO-D protocol camera.

g

Baud Rate

: Set the baud rate of each channel (2400, 4800, 9600, 19200, 38400, 57600, 115200).

h After setting, press “OK” and then

press “APPLY” to confirm.

Device

Take 16CH as an example

41

Detection

c Select the desired channel, and

press “

Edit

Edit” to enter the motion detection sensitivity and area setting box.

d

Motion Detection Sensitivity

Motion Detection Sensitivity:

Set the detection sensitivity in 4 different adjustable factors.

LS:

LS: The sensitivity of comparing two

different images. The smaller the value is, the higher sensitivity for motion detection.

SS:

SS: The sensitivity towards the size

of the triggered object on the screen (the number of motion detection grids). The smaller the value is, the higher sensitivity for motion detec tion.

TS:

TS: The sensitivity towards how long

the object gets triggered. The smaller the value is, the higher sensitivity for motion detection.

RE:

RE: The value of RE is a reference

for detection. The bigger the value is, the higher sensitivity for motion detection.

e

Alarm:

Select LOW / HIGH for the alarm polarity.

f

Motion Detection Area

: Clicking the area by PC mouse, one can choose the motion area to be detected.

The under

The under--

detection

area is in transparent picture while

the undetected area is in pink color.

the undetected area is in pink color. *Click the “Select All” to clean the previously selected detection area. *Click the “Clear All” to activate the detection area as full area.

g After setting, press “OK” and then

press “APPLY” to confirm.

60.121.46.236

Note: Enable the motion detection function.

When the motion is triggered, a “ ” icon will shown on the screen. And software AP will start recording automatically.

Take 16CH as an example

42

Network Backup & Playback

c Backup the recorded files to the PC

from DVR via network.

d Enter the backup information Æ

Press “Start” Æ Success Æ Covert Æ Play File.

1

2

3

4

5 6

1.

Playback Information

2.

Time Progress Bar

3.

Functions

Functions :

(1) De-interlace (2) De-blocking (3) OSD (4) AVI Convert (5) Config. Setting (6) Watermark (7) Open Previous (8) Open Next File

4.

Playback Control Buttons

Playback Control Buttons :

Play / Stop / Pause / Fast Rewind / Fast Forward

5.

Snapshot

6.

Close the Player

Close the Player.

***Note:

***Note:***

While backup the file, users can see the

live playback image at the same time

live playback image at the same time.

43

Alarm

c

Alarm Trigger

Alarm Trigger:

Enable or disable Email and FTP notification function.

d

Alarm Method

Alarm Method:

Two notification methods — Email and / or FTP.

e

Post Number

Post Number:

Set MJPEG pictures (1-10 pictures).

f

Alarm Duration

Alarm Duration:

Set the duration time of motion trigger recording (3 sec., 15 sec., 30 sec., 1 min., or 30 min.).

g

Alarm Refresh

Alarm Refresh:

Clean the alarm message “ ” which is shown on the screen.

Note:

Email Notification:

MJPEG pictures will be made at your designated space set in “File Path”, plus an e-mail contained with the MJPEG pictures (1-10 pictures) to be sent to the address which is set under “Mail”.

FTP Notification:

MJPEG pictures will be made at your designated space set in “File Path”, plus a FTP file contained with the MJPEG pictures (1-10 pictures) to be

sent to the address which is set under “FTP”.

Alarm List

c It’s a database, which precisely

lists all alarm triggered events, with IP address of Video Web Server, alarm triggered time, and number of frames.

d Users could directly play, delete,

or clear all motion trigger recording events easily.

e Click on the “Refresh” button to

update the database list.

f All the motion triggered files will be

listed systematically for easily search.

1 60.121.46.236 2005.12.25 10:00:06 30

44

Account

a

b

c

d

e

f

c Set up the user’s account ( Max 5

accounts) , password, life time, and authority level. (

Max 5 users on line at the same time

Max 5 users on line at the same time).

d User’s level:

SUPERVISOR

SUPERVISOR——

Control all the functions (“a”, “b”, “c”, “d”, “e” and “f” ).

HIGH

HIGH——

Control only “a”, “b”, “c”, “d” and “e” functions, but cannot control “f” function.

NORMAL

NORMAL——

Control only “a”, “d”, and “e” functions, but cannot control “b”, “c” and “f” functions.

GUEST

GUEST——

Watch the image only. Only the “a” function can be used.

e

Life time

Life time :

According to different authority level, different accounts can stay online for different time period (1min, 5min, 10min, 1hour, 1day, infinity).

General

c Get the information of DVR firmware

version in this window.

d

Select

Select ““

Turbo Step

Turbo Step””

(1

(1 --

10)

10).

To speed up menu selecting or the control of the PTZ camera under video web server, users can activate "Turbo" function by clicking this button. Users are allowed to change the turbo steps from 1 to 10. Ex. If the value of turbo step is “5“ means that when user press one of the button up/down/left/right, one click is as clicking 5 times.

e

Max Log List

:

Set the maximum number of log list.

f

Server Log

Server Log:

Press “Server Log” button to enter the server log list window.

45

c Get all the online users’ information

list (Name, IP Address, Authority Level, Resolution and Image Quality).

Online User Info

Andy 60.121.46.236 SUPERVISOR 320*228 MIDDLE

c

Snapshot Path

Snapshot Path:

Assign the route for saving the snapshot picture.

d

Record Path

Record Path:

Assign the route for saving the manual recording file.

e

Alarm Audio Path

Alarm Audio Path:

The default alarm audio sound is “alarm.wav”. Users could have their own alarm sound file by giving the file path.

File Path

5.7 CONNECT TO AP VIA IE BROWSER

46

Step 1

Step 1: Type in IP address into the URL address box and press enter.

Then you’ll see the following page.

Step 2

Step 2: Install JAVA program with attached CD (AP Disk).

Or download JAVA program on the website.

NOTE:

NOTE: Users can update the JAVA program from the website.

Download AP Download JAVA

Note:

If the TCP port number is not 80, see the example below. IP address: 60.121.46.236 ; Port number: 888 Æ Key in “60.121.46.236 :888” into the URL address box and press enter.

The DVR can be viewed over the network with a web browser. Please install licensed software AP first.

*** This function is suitable in both Windows 2000 and Windows X

P ***

Step 3

: After installation, please type the IP address of your DVR into the URL address box

and press “enter”. Then you’ll see the login page. Key in the “username” and “password”. Then you’ll see the following page.

Same as the AP operation.

Please refer to

Please refer to ““

Section 6.6

Licensed Software AP

Licensed Software AP””..

Change Image Quality

Change Resolution

PTZ

To set the display position of the image

(LT: Upper Left; LD: Lower Left; RT: Upper Right; Lower Right)

47

5.8 GPRS

5.9 OPTIONAL PERIPHERALS

1) IDA (independent disk array).

2) VGA connector.

3) For 4CH DVR, IR Remote Control is optional.

For the operation of the following peripherals, please refer to their manual individually.

GPRS function Installation and Viewing (Take

Motorola

768i for example)

1) Your mobile service provider must have GPRS service, and the phone handset needs to support GPRS and Java MIDP 2.0 to run the application.

2) Connect to the website http://211.22.74.18

via the web browser of your cell phone.

(Make sure that your GPRS function is working).

3) Download and install ““

16CH_MPEG

16CH_MPEG--44””/ / ““

8CH_MPEG

8CH_MPEG--44””/ / ““

4CH_MPEG

4CH_MPEG--44””.

4) After installation, the ““

16CH_MPEG

16CH_MPEG--44””/ / ““

8CH_MPEG

8CH_MPEG--44””/ / ““

4CH_MPEG

4CH_MPEG--44”” icon will shown

on the desktop of the phone.

5) Click the icon of the ““

16CH_MPEG

16CH_MPEG--44””/ / ““

8CH_MPEG

8CH_MPEG--44””/ / ““

4CH_MPEG

4CH_MPEG--44”” video server to enter the setting frame. Please type in IP address, port, username, and password of the DVR, which you like to see. And then press “connect” button.

6) After connected to the ““

16CH_MPEG

16CH_MPEG--44””/ / ““

8CH_MPEG

8CH_MPEG--44””/ / ““

4CH_MPEG

4CH_MPEG--44”” video server,

you will see AP interface shown on the screen and will see “Online” on title.

7) Wait 3 minutes for video signal to coming out.

8) After video signal is shown, you could monitor and control your security system handily anytime, anywhere.

NOTE

: It’s not suggested to set the DVR port as 80 port.

Because some telecommunication service provider may regulate 80 port.

TROUBLE SHOOTING

6.1 FAQ

Please refer to the FAQ table below for easy trouble shooting. The table below describes some typical problems and also their solutions. Please check them before calling your DVR dealer.

48

PROBLEM SOLUTION

No power Check power cord connection.

Confirm that there is power at the outlet.

Not working when pressing any button Press any key and then enter the password to exit “Key

Lock” mode. Timer record is not working Check if the “RECORD ENABLE” is set to “YES”. No live video Check camera video cable and connections.

Check monitor video cable and connections.

Confirm the camera is power supplied.

Check the setting of camera lens. No recorded video Check if the HDD is installed and connected properly DVR keeps rebooting Users could align the power connector and HDD closely, or

change another suitable HDD. Detect HDD fail Change another HDD for testing.

Change another HDD cable for testing.

Make sure HDD “Master”, “Slave” mode is correctly set. Can’t detect USB thumb-drive Change another USB thumb-drive to test. Can’t view the DVR over the network with

a web browser

Update the JAVA program

Update the firmware of the software AP

APPENDIX #1

APPENDIX #1 ––

INSTALL THE HDD

49

1) Open the upper cover of the DVR and screw out the bracket.

2) Screw HDD to the HDD bracket.

3) Connect the HDD to power connector and IDE BUS (make sure to align the HDD precisely to the pin connection).

4) Close the upper cover of the DVR.

3

8

~

1

2

~

9

14

~

16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D)

Carefully following the steps to ensure correct installation. *** Note: If you want to install two HDDs, please set one HDD to “Master Mode” or “Single

Mode”, and the other one to “Slave Mode”. ***

50

••Step 1

Step 1

Connect the connector with the HDD (refer to Picture 1).

••Step 2

Step 2

Put HDD into the HDD cartridge. Please notice the bottom side is power side

as chart shows (refer to Picture 2).

••Step 3

Step 3

Screw the HDD to the cartridge. Before you screw the HDD, please be aware that you must to level pin 1 of the HDD at pin 1 mark, because the screw hole is different from different HDD brands. Then screw the HDD correctly (refer to Picture 3 and 4). You must precisely align the hard disk to the pin connection to ensure correct installation.

••Step 4

Step 4

Reverse the HDD and put it into DVR (refer to Picture 5 and 6).

••Step 5

Step 5

Connect the HDD with DVR (refer to Picture 7).

••Step 6

Step 6

Lock the cabinet by turning the key clockwise (refer to Picture 8).

A ( locked )

B ( unlocked )

••Step 7

Step 7

Close the cap (refer to Picture 9).

4CH

Carefully following the steps to ensure correct installation. *** Note: Please set one HDD to “Master Mode” or “Single Mode” ***

Note : If you do not lock the cabinet, the DVR system will not function properly.

APPENDIX #2

APPENDIX #2 ––

PIN CONFIGURATION

51

PIN 1.

GND

GROUND PIN 2. ~ PIN 9.

ALARM INPUT

To connect wire from ALARM INPUT ( PIN 2 -- 9 ) to GND ( PIN 1 ) connector, DMR will start recording and buzzer will be on.

When Menu/ Camera/ Alarm is set up to “Low” : When alarm input signal is “ Low ”, the unit starts to record and buzzer.

When Menu/ Camera/ Alarm is set up to “High” : When alarm input signal is “ High ”, the unit starts to record and buzzer.

PIN 10.

PIN OFF

PIN 11.

TXD232

DVR can be controlled remotely by the keyboard of PC, using RS-232 serial communications signals.

PIN 12.

RS485

RS485--AA

DVR can be controlled remotely by the keyboard of PC, using RS-485 serial communications signals.

PIN 13.

EXTERNAL ALARM NO.

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

PIN 14.

PIN OFF

PIN 15. ~ PIN 22.

ALARM INPUT

To connect wire from ALARM INPUT ( PIN 15 -- 22 ) to GND ( PIN 1 ) connector, DMR will start recording and buzzer will be on.

When Menu/ Camera/ Alarm is set up to “Low” : When alarm input signal is “ Low ”, the unit starts to record and buzzer.

When Menu/ Camera/ Alarm is set up to “High” : When alarm input signal is “ High ”, the unit starts to record and buzzer.

PIN 23.

RXD232

DVR can be controlled remotely by the keyboard of PC, using RS-232 serial communications signals.

PIN 24.

RS485

RS485--BB

DVR can be controlled remotely by the keyboard of PC, using RS-485 serial communications signals.

PIN 25.

EXTERNAL ALARM COM

Under normal operation COM disconnect with NO. But when alarm triggered, COM connect with NO.

16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D)

52

PIN 1.

RS232

--TX

TX

DVR can be controlled remotely by the keyboard of PC, using RS-232 serial communications signals.

PIN 2.

RS232

--RX

RX

DVR can be controlled remotely by the keyboard of PC, using RS-232 serial communications signals.

PIN 3. ~ PIN 5.

ALARM INPUT

To connect wire from ALARM INPUT ( PIN 3 -- 5 ) to GND ( PIN 9 ) connector, DVR will start recording and buzzer will be on.

When Menu/ Camera/ Alarm is set up to “Low” : When alarm input signal is “ Low ”, the unit starts to record and buzzer.

When Menu/ Camera/ Alarm is set up to “High” : When alarm input signal is “ High ”, the unit starts to record and buzzer.

PIN 7.

EXTERNAL ALARM NC

Under normal operation COM connect with NC and disconnect from NO. But when alarm is triggered, COM disconnect with NC, and connect with NO.

PIN 8.

EXTERNAL ALARM NO.

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

PIN 9.

GND

Signal GND. PIN 10.

RS485

--B

B

DVR can be controlled remotely by the keyboard of PC, using RS-485 serial communications signals.

PIN 11.

RS485

--A

A

DVR can be controlled remotely by the keyboard of PC, using RS-485 serial communications signals.

PIN 12, 13.

PIN OFF

PIN 14.

ALARM RESET

To connect wire from ALARM RESET ( PIN 14 ) to GND ( PIN 9 ) connector, it can disable ALARM. An external signal to

ALARM RESET ( PIN 14 ) can be used to reset both ALARM OUTPUT signal and DVR’s internal buzzer. When alarm has been triggered, signal becomes “Low”, and it will stop all alarm activities. Under normal operation, signal remains “High”.

PIN 15.

EXTERNAL ALARM COM

Under normal operation COM disconnect with NO. But when alarm triggered, COM connect with NO. PIN 16, 17.

GND

Earth GND

4CH

APPENDIX #3

APPENDIX #3 ––

RS

RS--

232 Protocol

53

FUNCTION CODE ASCII FUNCTION CODE ASCCI

KEY_MENU 0x4D M KEY_CH1 0x31 1

KEY_ENTER 0x0D ENTER KEY_CH2 0x32 2

KEY_4 CUT 0x61 a KEY_CH3 0x33 3

KEY_ZOOM 0x5A z KEY_CH4 0x34 4

KEY_9 CUT 0x62 b KEY_CH5 0x35 5

KEY_16 CUT 0x63 c KEY_CH6 0x36 6

KEY_SLOW 0x53 S KEY_CH7 0x37 7

KEY_REC 0x72 r KEY_CH8 0x38 8

KEY_LEFT 0x4C L KEY_CH9 0x39 9

KEY_UP 0x55 U KEY_CH10 0x41 A

KEY_PLAY 0x50 P KEY_CH11 0x42 B

KEY_DOWN 0x4E N KEY_CH12 0x43 C

KEY_RIGHT 0x52 R KEY_CH13 0x44 D

KEY_POWER 0x57 W KEY_CH14 0x45 E

KEY_KEY LOCK 0x4B K KEY_CH15 0x46 F

KEY_CH16 0x47 G

1) Use PC keyboard to simulate DVR keypad.

2) Data: REMOTE PROTOCOL use 8 bit data, 1 start bit, 1 stop bit.

54

APPENDIX #4

APPENDIX #3

APPENDIX #3 ––

RECORDING TIME TABLE

Record

mode

Quality IPS

500GB record

time(hour)

Record day

120 109

4.6

60 192

8.0

30 349

14.6

15 565

23.5

120 138

5.8

60 243

10.1

30 442

18.4

15 714

29.8

120 182

7.6

60 319

13.3

30 581

24.2

15 939

39.1

120 293

12.2

60 516

21.5

30 939

39.1

15 1517

63.2

480 130

5.4

240 229

9.5

120 417

17.4

60 673

28.0

480 184

7.6

240 323

13.4

120 587

24.5

60 949

39.5

480 242

10.1

240 424

17.7

120 773

32.2

60 1249

52.0

480 335

13.9

240 588

24.5

120 1071

44.6

60 1730

72.1

Frame Best

High

Normal

Basic

CIF Best

High

Normal

Basic

1) Recording time varies depending on the following factors: * Different camera quality * Different picture composition (such as frequency of the object movement)

Take 16CH as an example

APPENDIX #5

APPENDIX #4

APPENDIX #4 ––

COMPATIBLE USB BRAND

NOTE: Please upgrade the Firmware of the DVR to latest version to ensure the accuracy of following table

Manufacturer

Model

Capacity

Transcend JetFlash 110 256MB Transcend JetFlash 110 512MB Kingston DataTraveler DTI KUSBDTI / 256FE 256MB Kingston DataTraveler DTI KUSBDTI / 256FE 512MB PQI Cool Drive (U339) 256MB PQI Cool Drive (U339) 512MB Apacer HANDY STENO HF202 256MB Apacer HANDY STENO HF202 512MB SanDisk Cruzer Micro 128MB SanDisk Cruzer Micro 256MB SanDisk Cruzer Micro 512MB

55

APPENDIX #6

APPENDIX #5

APPENDIX #5 ––

COMPATIBLE HDD BRAND

NOTE: Please upgrade the Firmware of the DVR to latest version to ensure the accuracy of following table

56

Brand Name

Model

Capacity

Deskstar HDS728080PLAT20 80GB

HITACHI Deskstar 180 GXP 120GB 7200 rpm

HITACHI Deskstar 511DHT0021 500GB 7200rpm

Maxtor DiamondMax 10 6L120PO 120GB 7200rpm

Maxtor MaxLine Plus Ⅱ, Model#7Y250P0 250GB 7200rpm Maxtor DiamondMax 10 6L250R0-3 250GB 7200rpm

Seagate Barracuda 7200.8 ST3300831A/P 300GB 7200 rpm Seagate Barracuda 7200.8 ST3400832A/P 400GB 7200 rpm

Western Digital Caviar SE WD1200JB 120GB 7200rpm Western Digital Caviar SE WD1600JB 160GB 7200rpm

160GB 160GB 160GB 250GB

80GB

120GB

60GB

80GB 120GB 160GB

160GB 200GB 200GB

80GB 120GB 160GB 200GB 250GB

120GB

200GB 250GB

Deskstar 7K250, HDS722516VLAT20

HDS722516VLAT80 HITACHI HDS722516DLAT80 7200rpm HITACHI Deskstar 7K250, HDS722525VLAT80 7200rpm

IBM Deskstar 120GXP (80GB) 7200 rpm

IBM Deskstar 120GXP (120GB) 7200 rpm Maxtor DiamondMax 536DX(60GB) 4W060H4 5400rpm Maxtor DiamondMax Plus 9 7200 rpm Maxtor DiamondMax Plus 9, Model#6Y120L 7200 rpm Maxtor DiamondMax Plus 9, Model#6Y160L0 7200rpm

Maxtor DiamondMax 10 6L160R0 7200rpm Maxtor DiamondMax 10 6L200R0 7200rpm Maxtor DiamondMax 10 6L200PO 7200rpm

Barracuda ATA IV, ST380021A

Barracuda ATA V, ST3120023A

Barracuda 7200.7 Plus, ST3160023A

Barracuda 7200.8 ST3200826A Barracuda 7200.8 ST3250826A

Caviar WD1200BB-00CAA1

Caviar WD2000BB-00DWA0

CaviarSE WD2500JB

Rotation

HITACHI 7200 rpm

HITACHI 7200rpm HITACHI 7200rpm

Seagate 7200rpm Seagate 7200 rpm Seagate 7200 rpm Seagate 7200 rpm Seagate 7200 rpm

Western Digital 7200rpm

Western Digital 7200rpm Western Digital 7200rpm

Swann 16CH, 8CH (D), 16CH (D), 4CH, 4CH (D) User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
