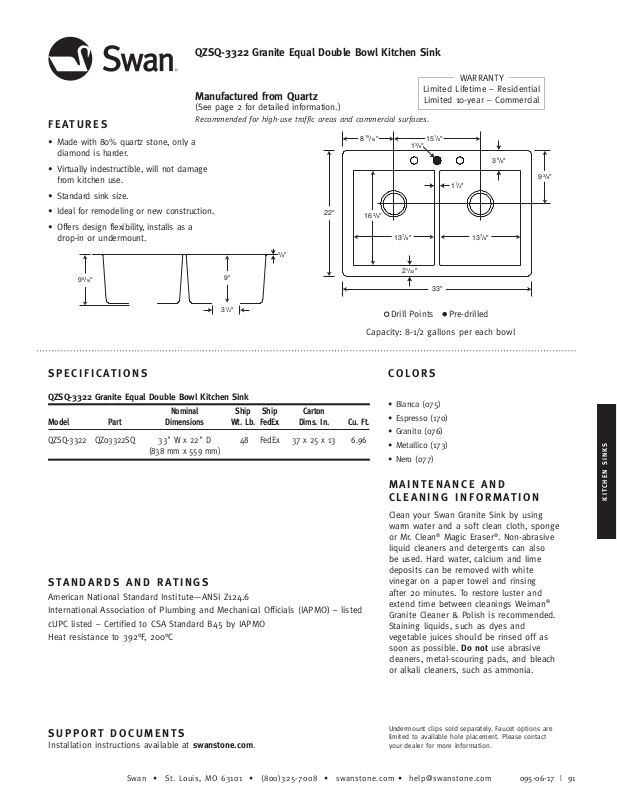

Swan NWAS1212 Specifications

QZSQ-3322 Granite Equal Double Bowl Kitchen Sink

11/4''

1

3

/8''

3

5

/8''

22''

33''

163/8''

21/32''

815/16''

13

7

/8'' 137/8''

15

1

/8''

/8''

93/8''

QZSQ-3322

QZSQ-3322

Manufactured from Quartz

(See page 2 for detailed information.)

FEATURES

• Made with 80% quartz stone, only a
diamond is harder.

• Virtually indestructible, will not damage
from kitchen use.

• Standard sink size.

• Ideal for remodeling or new construction.

• Offers design flexibility, installs as a
drop-in or undermount.

Recommended for high-use traffic areas and commercial surfaces.

WARRANTY
Limited Lifetime – Residential
Limited 10-year – Commercial

1

815/16''

22''

3

163/8''

13

15

/8''

3

1

/8''

11/4''

7

/8'' 137/8''

5

/8''

3

93/8''

99/16''

9''

1

/2''

3

SPECIFICATIONS

QZSQ-3322 Granite Equal Double Bowl Kitchen Sink

Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.

QZSQ-3322 QZ03322SQ 33" W x 22" D 48 FedEx 37 x 25 x 13 6.96
(838 mm x 559 mm)

STANDARDS AND RATINGS

American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO) – listed
cUPC listed – Certified to CSA Standard B45 by IAPMO
Heat resistance to 392°F, 200°C

21/32''

33''

Drill Points Pre-drilled

Capacity: 8-1/2 gallons per each bowl

COLORS

• Bianca (075)

• Espresso (170)

• Granito (076)

• Metallico (173)

• Nero (077)

MAINTENANCE AND
CLEANING INFORMATION

Clean your Swan Granite Sink by using
warm water and a soft clean cloth, sponge
or Mr. Clean® Magic Eraser®. Non-abrasive
liquid cleaners and detergents can also
be used. Hard water, calcium and lime
deposits can be removed with white
vinegar on a paper towel and rinsing
after 20 minutes. To restore luster and
extend time between cleanings Weiman®
Granite Cleaner & Polish is recommended.
Staining liquids, such as dyes and
vegetable juices should be rinsed off as
soon as possible. Do not use abrasive
cleaners, metal-scouring pads, and bleach
or alkali cleaners, such as ammonia.

KITCHEN SINKS

SUPPORT DOCUMENTS

Installation instructions available at swanstone.com.

Swan • St. Louis, MO 63101 • [phone] • swanstone.com • [e-mail]

Undermount clips sold separately. Faucet options are
limited to available hole placement. Please contact
your dealer for more information.

095-06-17
