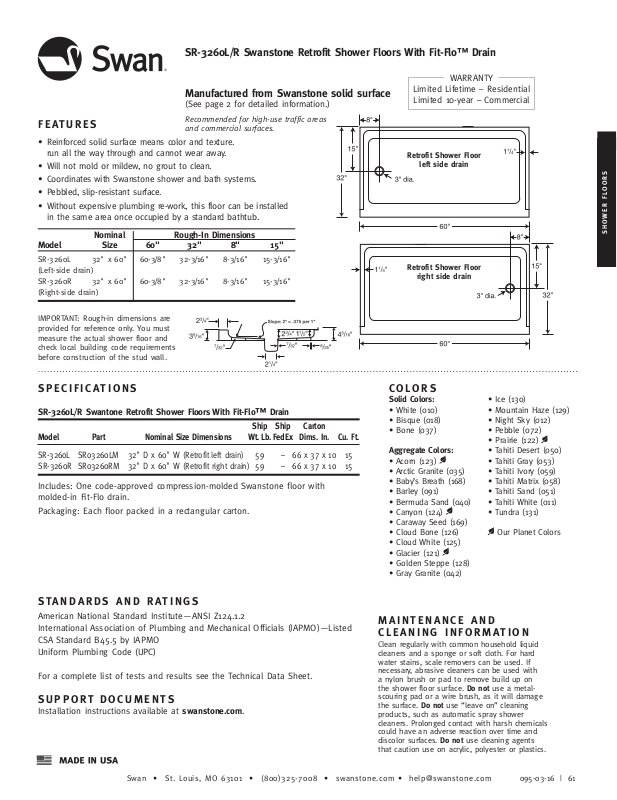

SR-3260L/R Swanstone Retrofit Shower Floors With Fit-Flo™ Drain
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color and texture.
run all the way through and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Coordinates with Swanstone shower and bath systems.
• Pebbled, slip-resistant surface.
• Without expensive plumbing re-work, this floor can be installed
in the same area once occupied by a standard bathtub.
Nominal Rough-In Dimensions
Model Size 60" 32" 8" 15"
SR-3260L 32" x 60" 60-3/8" 32-3/16" 8-3/16" 15-3/16"
(Left-side drain)
SR-3260R 32" x 60" 60-3/8" 32-3/16" 8-3/16" 15-3/16"
(Right-side drain)
IMPORTANT: Rough-in dimensions are
provided for reference only. You must
measure the actual shower floor and
check local building code requirements
before construction of the stud wall.
Recommended for high-use traffic areas
and commercial surfaces.
WARRANTY
Limited Lifetime – Residential
Limited 10-year – Commercial
Retrofit Shower Floor
left side drain
SHOWER FLOORS
Retrofit Shower Floor
right side drain
SPECIFICATIONS
SR-3260L/R Swantone Retrofit Shower Floors With Fit-Flo™ Drain
Ship Ship Carton
Model Part Nominal Size Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
SR-3260L SR03260LM 32" D x 60" W (Retrofit left drain) 59 – 66 x 37 x 10 15
SR-3260R SR03260RM 32" D x 60" W (Retrofit right drain) 59 – 66 x 37 x 10 15
Includes: One code-approved compression-molded Swanstone floor with
molded-in Fit-Flo drain.
Packaging: Each floor packed in a rectangular carton.
STANDARDS AND RATINGS
American National Standard Institute—ANSI Z124.1.2
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
CSA Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household liquid
cleaners and a sponge or soft cloth. For hard
water stains, scale removers can be used. If
necessary, abrasive cleaners can be used with
a nylon brush or pad to remove build up on
the shower floor surface. Do not use a metalscouring pad or a wire brush, as it will damage
the surface. Do not use “leave on” cleaning
products, such as automatic spray shower
cleaners. Prolonged contact with harsh chemicals
could have an adverse reaction over time and
discolor surfaces. Do not use cleaning agents
that caution use on acrylic, polyester or plastics.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • help@swanstone.com
095-03-16
