Page 1

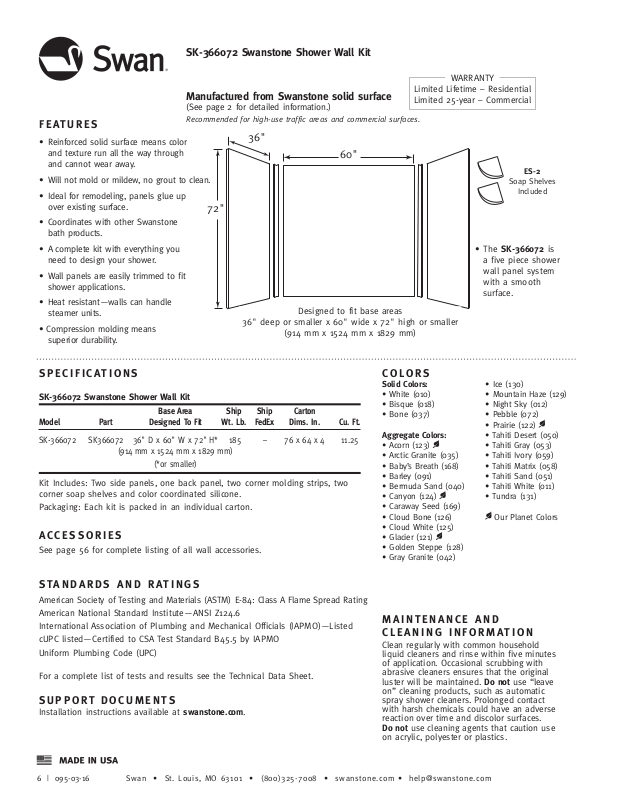

SK-366072 Swanstone Shower Wall Kit
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color
and texture run all the way through
and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Ideal for remodeling, panels glue up
over existing surface.
• Coordinates with other Swanstone
bath products.
• A complete kit with everything you
need to design your shower.
• Wall panels are easily trimmed to fit
shower applications.
• Heat resistant—walls can handle
steamer units.
• Compression molding means
superior durability.
Recommended for high-use traffic areas and commercial surfaces.
WARRANTY
Limited Lifetime – Residential
Limited 25-year – Commercial
36"
60"
ES-2
Soap Shelves
Included
72"
• The SK-366072 is
a five piece shower
wall panel system
with a smooth
surface.
Designed to fit base areas
36" deep or smaller x 60" wide x 72" high or smaller
(914 mm x 1524 mm x 1829 mm)
SPECIFICATIONS
SK-366072 Swanstone Shower Wall Kit
Base Area Ship Ship Carton
Model Part Designed To Fit Wt. Lb. FedEx Dims. In. Cu. Ft.
SK-366072 SK366072 36" D x 60" W x 72" H* 185 – 76 x 64 x 4 11.25
(914 mm x 1524 mm x 1829 mm)
(*or smaller)
Kit Includes: Two side panels, one back panel, two corner molding strips, two
corner soap shelves and color coordinated silicone.
Packaging: Each kit is packed in an individual carton.
ACCESSORIES
See page 56 for complete listing of all wall accessories.
STANDARDS AND RATINGS
American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating
American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household
liquid cleaners and rinse within five minutes
of application. Occasional scrubbing with
abrasive cleaners ensures that the original
luster will be maintained. Do not use “leave
on” cleaning products, such as automatic
spray shower cleaners. Prolonged contact
with harsh chemicals could have an adverse
reaction over time and discolor surfaces.
Do not use cleaning agents that caution use
on acr ylic, polyester or plastics.
095-03-16
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • help@swanstone.com6 |
Page 2
SK-366296 Swanstone Shower Wall Kit (NEW)
Replaces MK96-3662
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color
and texture run all the way through
and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Ideal for remodeling, panels glue up
over existing surface.
• Coordinates with other Swanstone
bath products.
• A complete kit with everything you
need to design your shower.
• Wall panels are easily trimmed to fit
shower applications.
• Heat resistant—walls can handle
steamer units.
• Compression molding means
superior durability.
Recommended for high-use traffic areas and commercial surfaces.
96"
Limited Lifetime – Residential
Limited 25-year – Commercial
36"
62"
Designed to fit base areas
36" deep or smaller x 62" wide x 96" high or smaller
(914 mm x 1575 mm x 2438 mm)
WARRANTY
BATH WALLS
ES-2
Soap Shelves
Included
• The SK-366296 is
a five piece shower
wall panel system
with a smooth
surface.
SPECIFICATIONS
SK-366296 Swanstone Shower Wall Kit
Base Area Ship Ship Carton
Model Part Designed To Fit Wt. Lb. FedEx Dims. In. Cu. Ft.
SK-366296 SK366296 36" D x 60" W x 96" H* xxx – xxxx xxx
(914 mm x 1575 mm x 2438 mm)
(*or smaller)
Kit Includes: Two side panels, one back panel, two corner molding strips, two
corner soap shelves and color coordinated silicone.
Packaging: Each kit is packed in an individual carton.
ACCESSORIES
See page 56 for complete listing of all wall accessories.
STANDARDS AND RATINGS
American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating
American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household
liquid cleaners and rinse within five minutes
of application. Occasional scrubbing with
abrasive cleaners ensures that the original
luster will be maintained. Do not use “leave
on” cleaning products, such as automatic
spray shower cleaners. Prolonged contact
with harsh chemicals could have an adverse
reaction over time and discolor surfaces.
Do not use cleaning agents that caution use
on acr ylic, polyester or plastics.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • help@swanstone.com
095-03-16
