Page 1

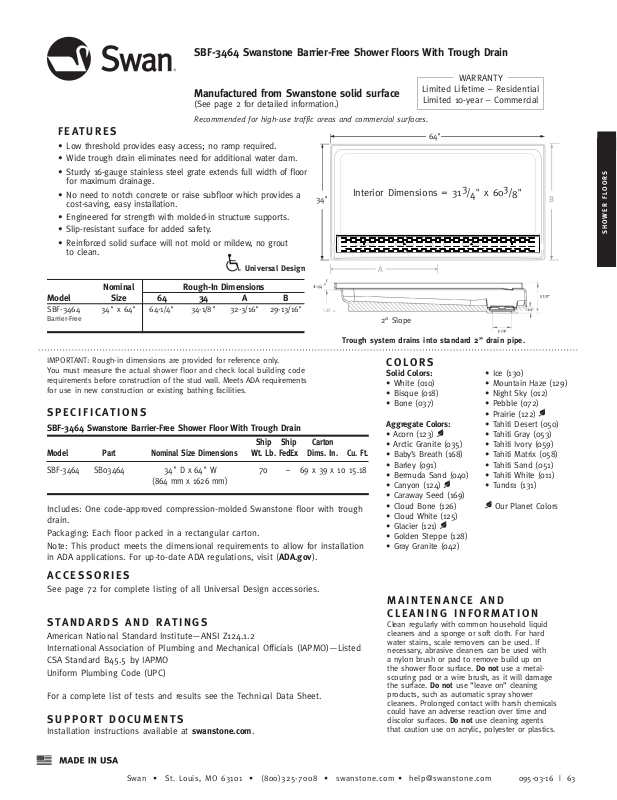

SBF-3464 Swanstone Barrier-Free Shower Floors With Trough Drain
2.58
60.34
.39
X
100°
4
X
.20
THRU ALL
A
1
5.15
.25
.06
.25
SECTION A-A
SCALE 1 : 1
R
.10
.63
.63
1.50
.10
1.32.65
DETAIL 1
SCALE 1 : 1
NOTES:
1) DIMENSIONS LEFT INCOMPLETE INTENTIONALLY -- MODEL DEFINED BY MATH (CAD)
A
B
C
CAD GENERATED DRAWING,
DO NOT MANUALLY UPDATE
SCALE
SIZE
CAD FILE:
DWG. NO.
D
DATE
APPROVALS
DRAWN
CHECKED
RESP ENG
MFG ENG
QUAL ENG
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
FRACTIONS DECIMALS ANGLES
+ .XX+ .XX + 1
.XXX+.XXX
MATERIAL
FINISH
--
--
DO NOT SCALE DRAWING
ITEM
NO.
PART OR
IDENTIFYING NO.
NOMENCLATURE
OR DESCRIPTION
PARTS LIST
1
2
3
4
5
6
7
8
DESIGN INTEGRITY
1155 W. FULTON MARKET, 2ND FLOOR
CHICAGO, IL 60607
312.942.0602
ADA Shower-Drain Rev-C
ADA Shower-Drain Rev-C
1:8
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
Recommended for high-use traffic areas and commercial surfaces.
FEATURES
• Low threshold provides easy access; no ramp required.
• Wide trough drain eliminates need for additional water dam.
• Sturdy 16-gauge stainless steel grate extends full width of floor
for maximum drainage.
• No need to notch concrete or raise subfloor which provides a
cost-saving, easy installation.
• Engineered for strength with molded-in structure supports.
• Slip-resistant surface for added safety.
• Reinforced solid surface will not mold or mildew, no grout
to clean.
Nominal Rough-In Dimensions
Model Size 64 34 A B
SBF-3464 34" x 64" 64-1/4" 34-1/8" 32-3/16" 29-13/16"
Barrier-Free
Universal Design
Limited Lifetime – Residential
Limited 10-year – Commercial
64"
34"
1-1/4"
Interior Dimensions = 313/4" x 603/8"
A
2° Slope
Trough system drains into standard 2” drain pipe.
WARRANTY
B
SHOWER FLOORS
IMPORTANT: Rough-in dimensions are provided for reference only.
You must measure the actual shower floor and check local building code
requirements before construction of the stud wall. Meets ADA requirements
for use in new construction or existing bathing facilities.
SPECIFICATIONS
SBF-3464 Swanstone Barrier-Free Shower Floor With Trough Drain
Ship Ship Carton
Model Part Nominal Size Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
SBF-3464 SB03464 34" D x 64" W 70 – 69 x 39 x 10 15.18
(864 mm x 1626 mm)
Includes: One code-approved compression-molded Swanstone floor with trough
drain.
Packaging: Each floor packed in a rectangular carton.
Note: This product meets the dimensional requirements to allow for installation
in ADA applications. For up-to-date ADA regulations, visit (ADA.gov).
ACCESSORIES
See page 72 for complete listing of all Universal Design accessories.
STANDARDS AND RATINGS
American National Standard Institute—ANSI Z124.1.2
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
CSA Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • help@swanstone.com
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household liquid
cleaners and a sponge or soft cloth. For hard
water stains, scale removers can be used. If
necessary, abrasive cleaners can be used with
a nylon brush or pad to remove build up on
the shower floor surface. Do not use a metalscouring pad or a wire brush, as it will damage
the surface. Do not use “leave on” cleaning
products, such as automatic spray shower
cleaners. Prolonged contact with harsh chemicals
could have an adverse reaction over time and
discolor surfaces. Do not use cleaning agents
that caution use on acrylic, polyester or plastics.
095-03-16
| 63
