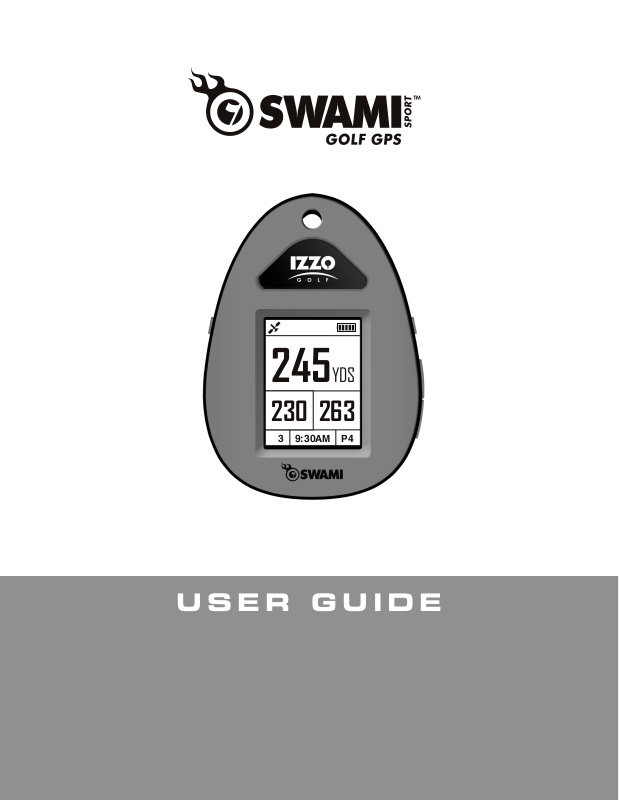

Swami Sport User Guide

Download
245YDS
230 263
3 9:30AM P4
USER GUIDE
TABLE OF CONTENTS
Thank You for Choosing Swami Sport ..........................................................................................................2
Warranty .........................................................................................................................................................2
Registration ...................................................................................................................................................2
2.1 Main Menu .............................................................................................................................4-5
Caution ...........................................................................................................................................................8
About GPS .....................................................................................................................................................8
Using Conditions ..........................................................................................................................................8
FCC Statement ..............................................................................................................................................8
Thank You for Choosing Swami Sport
Its compact design and user friendly interface allow the Swami Sport to be your best electronic caddie, helping you better manage shot distances and choose the right club. In order to ensure the best performance of the product and maximize its service life, please review this guide before using your Swami Sport.
Warranty / Return Policy
SWAMI is warranted to be free from defects for up to 90 days from your purchase date. Software updates are free of charge. Izzo will replace any defective unit within the warranty period. Please call Swami Support at 800-777-7899 to request a Return Authorization. All defective product must be returned to:
Izzo Golf ATTN: Returns Dept. 1635 Commons Parkway Macedon, NY 14502
Please include a note with your Name, Address, Email, Phone and Return Authorization #. Your replacement Swami will be shipped once we process and diagnose the returned unit.
REGISTRATION
Please register your Swami Sport to receive update notications and qualify for an extended 1 year warranty. Go to: www.izzo.com/swamiregistration
Table of Contents
2
1. GENERAL DESCRIPTION OF HARDWARE
1.1 DEVICE LAYOUT
Front View
F
HG
A
A.
B
B.
Power On
Press and hold key until display screen turns on.
Power Off
Press and hold key until display screen turns off.
Select Key
Press to select desired options and features.
Left Side View
E
Play Mode Screen Display
1
2
245
3
YDS
230 263
4
3 9:30AM P4
5
245YDS
230 263
3 9:30AM P4
D
Bottom View
6
7
8
C
1. Satellite Icon
2. Distance to Center of Green
3. Distance to Front of Green
4. Hole Number
5. Time
6. Battery Life
7. Distance to Back of Green
8. Hole Par
Right Side View
C.
G.
H.
Up/Down Keys
Press to navigate between holes, courses or options.
Charging PortD.
Display ScreenE.
Caribiner Attachment HoleF.
Satellite Icon
Represents an active satellite connection.
Battery Icon
Represents remaining battery life.
1.2 ACCESSORIES LIST
Please conrm whether your Swami Sport contains the following items:
1. Charging Cable
2. Caribiner
General Description of Hardware
3
1
2
1.3 CHARGING INSTRUCTIONS
Front View
H
FIG. 1
E
D
J
I J K
K
Take Charging Cable ( I ) included in the package and insert Micro USB Connector (J) into the Charging Port (D), located on the bottom of the device (Fig. 1).
Take the USB Connector (K) end of the cable and insert into your computer’s USB port (Fig. 1).
Note: Your computer must be turned
on in order for device to charge.
When device is charging, the Display Screen (E) will display the Battery Icon (H) with the bars pulsating. (Fig. 1).
Battery life is approx. 8 hours. Fully depleted battery will require 4 hours to charge.
Note: We recommend charging the unit after
each round, if possible.
Bottom View
2. GETTING STARTED
2.1 MAIN MENU
PLAY GOLF
SETTINGS
REVERSE COLOR
FACTORY RESET
9:30AM
FIG. 1 FIG. 2
PLAY GOLF
SETTINGS
245YDS
REVERSE COLOR
FACTORY RESET
PLAY GOLF
SETTINGS
REVERSE COLOR
FACTORY RESET
9:30
AM
REVERSE COLOR:
NO
YES
230 263
9:30AM
3 9:30AM
P4
9:30AM
FIG. 4FIG. 3
To turn on your Swami Sport, press and hold the Power (A) key until the display screen illuminates. After power up the Main Menu will appear.
To toggle between options on the Main Menu, use the Up/Down Keys (C). To select desired option, once highlighted, press the Select (B) key.
To return to the Main Menu at anytime, press and hold the Select (B) key for 3 seconds and release.
Main Menu Options:
Play Golf: Initiate GPS connection and start round. Settings: Edit features of the Swami Sport. Reverse Color: Invert screen color.
To Reverse Color of the Swami Sport display, use the Up/Down (C) keys to highlight the Reverse Color option, then press the Select (B) key. (Fig. 3)
Use the Up/Down (C) keys to toggle between Yes and No options. When desired option is highlighted, press the Select (B) key. (Fig. 4)
The Reverse Color feature allows for contrasting display during Play Mode. (Fig. 5, 6)
Note: Please refer to page 3 for device
Layout and Key Locations/Descriptions.
Note: To power down the Swami Sport at
anytime, press and hold the Power (A) key, until the display turns off.
Note: Acquiring a satellite connection may
take up to 3 minutes, depending on when the unit was used last:
Hot Start (Used Minutes Ago) < 30 Sec. Warm Start (Used Hours Ago) < 1 Min. Cold Start (Used Days Ago) < 3 Min.
445
430 463
1 9:30
General Description of Hardware Getting Started
4
AM
YDS
P
4
245YDS
230 263
3 9:30AM
FIG. 6FIG. 5
P4
2.2 PLAY GOLF!
PLAY GOLF
SETTINGS
REVERSE COLOR
FACTORY RESET
9:30AM
FIG. 1 FIG. 2
ACQUIRING GPS
SATELLITE
AM
9:30
To Start Round, select the Play Golf option on the Main Menu by pressing the Select (B) key (Fig. 1).
The unit will begin acquiring a GPS signal (Fig. 2).
After a GPS signal has been acquired, a list of surrounding courses will appear. Use the Up/Down
Keys (C) to toggle between courses. Press the Select (B) key to choose the desired course. (Fig. 3)
Note: When an active GPS signal is acquired, the
Satellite Icon (G), located in the top left corner will appear. (Fig. 3)
Note: Please refer to page 3 for device
Layout and Key Locations/Descriptions.
Note: Please remember to power down
the unit after nishing play, to conserve
battery life.
After the desired course is selected the unit will
GOLF COURSE:
CROOKED PINES
BLUE HERON GC
SHADOW LAKE CC
GREYSTONE GC
9:30AM
MAIN MENU
SETTINGS
REVERSE COLOR
445
YDS
430 463
AM
YDS
1 9:30
FIG. 4FIG. 3
445
P
display Green Distances, Hole Number, Hole Par and Time. (Fig. 4) If necessary you may need to advance to the desired Hole Number by using the Up/Down (C) keys.
To end round, press the Select (B) key to access the Play Menu (Fig. 5). Use the Up/Down (C) keys
4
to highlight the Main Menu option, then press the Select (B) key.
Note: If Satellite Icon (G) is red and blinking, this
implies a weak GPS signal. For optimal performance, ensure that the Swami Sport has a clear view of the sky at all times. Tall buildings, obstructions and heavy foliage can cause temporary satelitte connection issues. (Fig. 6)
430 463
AM
4
P
FIG. 5
9:30AM
1 9:30
FIG. 6
2.3 USING SWAMI ON THE COURSE
FIG. 1
1
2
6
245YDS
3
230 263
4
3 9:30AM P4
5
7
8
1. Satellite Icon
2. Distance to Center of Green
3. Distance to Front of Green
4. Hole Number
5. Time
6. Battery Life
7. Distance to Back of Green
8. Hole Par
Note: Any green 1000+ yards away will
display “999” yards.
Note: To access the Play Menu during
Play Mode, press the Select (B) key once.
While in Play Mode the Swami Sport will display all the information listed to the left for every hole (Fig. 1). Including Front, Center and Back to the green.
To navigate between holes, use the Up/ Down (C) keys. The Hole Number (4) is located at the bottom left of the display screen. (Fig. 1)
Note: To access the Play Menu during
Play Mode, press the Select (B) key once.
Getting Started
5
3. SWAMI SETTINGS
3.1 SETTINGS MENU
PLAY GOLF
SETTINGS
REVERSE COLOR
FACTORY RESET
9:30
AM
FIG. 1 FIG. 2
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
3.2 SLEEP TIME
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
9:30AM
FIG. 1
FIG. 2
9:30AM
SLEEP TIME:
30 SEC
1 MIN
2 MIN
OFF
9:30AM
To access the Settings Menu, when at the Main Menu, use the Up/Down (C) keys to highlight the Settings option, then press the Select (B) key. (Fig. 1)
To access the Settings Menu features while in Play Mode, press the Select (B) key once, use the Up/ Down (C) keys to highlight the Settings option, then
press the Select (B) key.
Once the Settings Menu appears, you can navigate between options using the Up/Down (C) keys. (Fig. 2)
The Sleep Time option allows you to set the amount of time the backlight of the screen stays lit. This helps conserve battery life during play. Choose between 30 Seconds, 1 Minute, 2 Minutes or Off. The Off option means the display screen will never go dark.
To access the Sleep Time option use the Up/Down
(C) keys to highlight Sleep Time, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between options, when desired option is highlighted, press the Select (B) key. (Fig. 2)
Note: To return to the Setting Menu at any
time, press and hold the Select (B) key for 3 seconds and release. To return to the Main Menu from the Setting Menu, press and hold the Select (B) key for 3 seconds and release.
Note: When accessing the Main Menu
during Play Mode, Swami Sport will return to Play Mode automatcially in 5 seconds if no options are selected. To return manually press and hold the Select (B) key for 3 seconds and release.
3.3 POWER DOWN
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
AM
9:30
FIG. 1 FIG. 2
POWER DOWN:
3.4 BRIGHTNESS
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
9:30
AM
FIG. 1 FIG. 2
30 MIN
1 HOUR
2 HOUR
OFF
AM
9:30
BRIGHTNESS:
2
9:30AM
When Sleep Time is enabled, if the display screen is dark, press the Select (B) or Up/Down (C) keys to illuminate the screen. The backlighting will stay on based on the Sleep Time option selected.
The Power Down option allows you to set an auto shut off based on the amount of time the unit is idle. This option will help conserve battery life. In the event the Swami Sport is left on, the unit will Power
Down automatically at the selected time. Options are 30 minutes, 1 Hour, 2 Hour or Off. The Off option
means the unit will not automatically turn off and will have to be powered down manually.
To access the Power Down option, use the Up/Down
(C) keys to highlight Power Down, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between options, when option desired is highlighted, press the Select (B) key. (Fig. 2)
The Brightness option allows you to control the brightness of the display screen.
To access the Brightness option use the Up/Down
(C) keys to highlight Brightness, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between a brightness range of 1 thru 5, with 5 being the bright­est. When you reach the desired brightness, press the Select (B) key. (Fig. 2)
Swami Settings
6
3.5 DAYLIGHT SAVINGS
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
9:30AM
FIG. 1 FIG. 2
DAYLIGHT SAVING:
ON OFF
9:30AM
3.6 METER / YARD
SLEEP TIME
POWER DOWN
BRIGHTNESS
DAYLIGHT SAVING
METER/YARD
9:30
AM
FIG. 1 FIG. 2
METER/ YARD:
9:30AM
3.7 FACTORY RESET
9:30PM
YARD
METER
The Daylight Saving option allows you to enable or disable daylight savings time on your Swami Sport.
To access the Daylight Saving option, use the Up/ Down (C) keys to highlight Daylight Saving, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between On and Off options. When desired option is highlighted, press the Select (B) key. (Fig. 2)
The Meter/Yard option allows you to set which distance metric units you prefer.
To access the Meter/Yard option, use the Up/Down
(C) keys to highlight Meter/Yard, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between Yard and Meter options. When desired option is highlighted, press the Select (B) key. (Fig. 2)
Note: To return to the Setting Menu at any
time, press and hold the Select (B) key for 3 seconds and release. To return the Main Menu from the Setting Menu, press and hold the Select (B) key for 3 seconds and release.
FACTORY RESET
ABOUT
BACK
9:30AM
FIG. 1 FIG. 2
DATA WILL BE LOST, DO YOU WANT TO CONTINUE?:
3.8 ABOUT
DAYLIGHT SAVING
METER/ YARD
ABOUT
BACK
9:30AM
FIG. 1 FIG. 2
3.9 BACK
YES NO
9:30AM
VERSION:
0.0.1.27
9:30AM
The Factory Reset option allows you to reset all data to original factory settings.
To access the Factory Reset option, use the Up/Down (C) keys to highlight Factory Reset, then press the Select (B) key. (Fig. 1)
Use the Up/Down (C) keys to toggle between Yes and No options. When desired option is highlighted, press the Select (B) key. (Fig. 2)
The About option indicates the rmware version of the unit. This feature is only used for troubleshooting purposes.
To access the About option, use the Up/Down (C) keys to highlight About, then press the Select (B) key. (Fig. 1)
To return to the the Settings Menu, press the Select (B) key.
DAYLIGHT SAVING
METER/ YARD
ABOUT
BACK
AM
9:30
FIG. 1
Swami Settings
7
PLAY GOLF
SETTINGS
REVERSE COLOR
FACTORY RESET
9:30
AM
FIG. 2
The Back option allows you to navigate back to the Main Menu.
To access the Back option of the Swami Sport, use the Up/Down (C) keys to highlight Back, then press the Select (B) key. (Fig. 1)
You will be brought back to the Main Menu. (Fig. 2)
CAUTION
Global Position System (GPS) was developed and is managed by the United States Department of Defense (DOD) and is responsible for its normal operation and position precision control; the U.S. is
entitled to affect function or position precision of the whole system without prior notication or
announcement based on its political considerations or national defense.
In order to use SWAMI Sport correctly and safely, you must be aware of some specic items; please read the following attentions in the manual prior to operating the device:
• SWAMI Sport was only designed for the purpose of leisure and recreation and it isn’t applicable for industrial or special measurement.
• SWAMI Sport is only an auxiliary device, so we will not take any legal liability for accidents due to mistaken operation or wrong judgment by using SWAMI Sport for measurement.
• Please do not try to disassemble SWAMI Sport or repair any part of the device discreetly.
About GPS
Global Position System (GPS) is a satellite system developed by the Department of Defense. GPS consists of 32 satellites that circle the earth and are 11,000 miles away from the ground. These satellites make two circles of the earth per day and emit signals of extremely low power which will be received and
recorded by 5 ground stations. These ground stations will use precise time signals to conrm accurate
position of each satellite. Your GPS receiver can “pick” signals sent out by the satellites. An accurate latitude, longitude and height can be determined through calculation on positions and distances of at least 4 satellites.
WAAS (Wide Area Augmentation System) can enhance the precision of GPS. It is designed by the Federal Aviation Administration and is mainly used to enhance precision of GPS on a plane. WAAS is combined with extra ground station groups that were set up in the precisely located places. These ground stations can work together with a master console so as to improve accuracy of satellite signals and reduce errors to about 3 meters.
Using Conditions
As Swami Sport uses GPS, it is available only in the places that can receive satellite signals, excluding indoor places and under water.
FCC Statement
Modications not expressly approved by Izzo Golf could void authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.Changes or modications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution About GPS Using Conditions FCC Statement
8
If you have any other questions or
concerns, please call 1-800-777-7899
or go to www.IZZO.com.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
