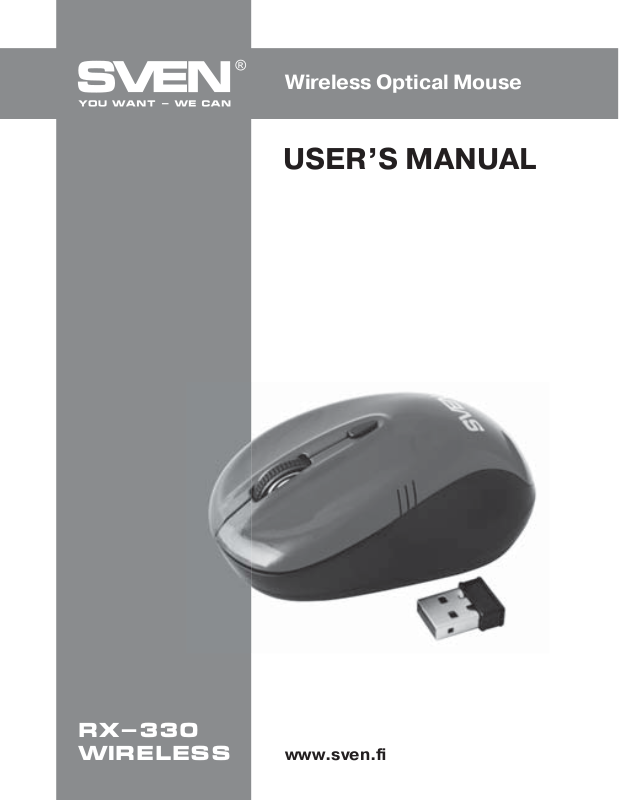

Page 1
Wireless Optical Mouse
USER’S MANUAL
RX-330
Wireless
www.sven.fi
Page 2
ENG
User’s Manual
Congratulations on your purchase of the SVEN PC mouse!
Please read the following instructions carefully before connecting, operating
or adjusting this product. Besides, please keep this Manual in a safe place
for future reference.
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights
reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Manual more exact, some
discrepancies may occur. The information in this Manual is given on «as is»
terms. The author and the publisher do not bear any liability to a person or
an organization for loss or damage which has arisen from the information
contained in this Manual.
CONTENTS
1. SPECIAL FEATURES ..................................................
2. PACKAGE CONTENTS ................................................
3. SYSTEM REQUIREMENTS ..........................................
4. DESCRIPTION .........................................................
5. INSTALLATION .........................................................
6. TROUBLESHOOTING ................................
7. TECHNICAL SPECIFICATIONS ...........................
Technical support is on www.sven.fi
RX-330
Wireless
.................
...........
1
2
2
2
3
3
6
6
Page 3
ENG
Wireless Optical Mouse
1. SPECIAL FEATURES
• 2.4GHz USB nano receiver (range up to 10 m)
• High-precision optical technology
• Power efficient invisible sensor
• Effective on most surfaces
• High speed operation
• DPI resolution switch
• Optics construction prevents ingress of dust
• Resolution 1000/1600 dpi
• USB interface
• Powered by 2 AAА batteries
• Drivers installation is not required for Windows XP/Vista/7/8
• Soft Touch coating
2. PACKAGE CONTENTS
• Optical mouse — 1 рс
• 2.4 GHz USB nano receiver — 1 рс
• AAA battery — 2 рсs
• User’s Мanual — 1 рс
• Warranty card — 1 рс
3. SYSTEM REQUIREMENTS
• Windows XP/Vista/7/8.
• Free USB port.
2
Page 4
User’s Manual
ENG
RX-330
Wireless
4. DESCRIPTION
a Scroll wheel
b Dpi resolution switch
c Battery compartment
d Optical sensor
e Nano receiver
f USB connector
c
d
e
Fig. 2. Bottom view
5. INSTALLATION
• Open the cover of the mouse battery compartment d, insert 2 AAA
batteries into the battery compartment matching the polarity, and close the
cover of the battery compartment (see Fig. 4).
• Сonnect the included nano receiver e to a free PC USB port (Fig. 5).
• To activate the mouse, press any button of the mouse or turn the scroll
wheel. If the mouse has been connected correctly, it will turn on automatically.
a
b
Fig. 1. Top view
f
e
Fig. 3. Nano receiver
3
Page 5
ENG
AAА batteries
Wireless Optical Mouse
Improper installation of the
batteries can result in failure
of the mouse!
4
Battery
compartment
Battery compartment cover
Fig. 4. Battery installation
Fig. 5. Receiver connection
Page 6
ENG
User’s Manual
•
After finishing your work, you can pull out the receiver e from the PC USB
port and insert it into the mouse (Fig. 6).
pull it out from the mouse (Fig. 7) and connect it to the PC USB port again.
• Do not place the receiver into a confined metal space (table drawer, box,
safe), as a metal screen does not transmit radio signals.
• If the batteries run down, the mouse works in jerks. It means that the
batteries should be replaced with new ones, as it is shown in Fig. 4.
When using the receiver e again,
RX-330
Wireless
Fig. 6. Fitting the receiver
into the mouse case
Important
This device meets highest standards of energy conservation.
During long pauses in operation the mouse enters the economical
Sleep mode. To enter the working mode just press any button or
turn the scroll wheel.
Fig. 7. Extraction of the receiver
from the mouse case
5
Page 7
ENG
Wireless Optical Mouse
6. TROUBLESHOOTING
Problem
The mouse does not
work.
The batteries are in good
order, but the mouse still
does not work.
7.
TECHNICAL SPECIFICATIONS
Parameter
OS compatibility
Type of mouse
Resolution, dpi
Q-ty of buttons
Interface
Dimensions, mm
Weight, g
Notes:
• Technical specifications given in this table are supplemental information and cannot give occasion to claims.
• Technical specifications are subject to change without notice due to
the improvement of SVEN production.
Solution
1. Make sure that the nano receiver has been
inserted into the USB port and its distance to
the mouse is less than 10 m.
2. Check whether the batteries have been
installed correctly.
3. Check if the batteries have run down, repla ce
the batteries with new ones if necessary.
Install software to coordinate the mouse and
the receiver. Soft ware can be downloaded
from Support on www.sven.fi
Value
Windows XP/Vista/7/8
wireless 2.4 GHz
1000/1600
3 + 1 (scroll wheel)
USB
60 × 40 × 97
58
6
Page 8
Wireless Optical Mouse
Модель:
RX-330 Wireless
Импортер в России: ООО «СКАНДИТРЕЛ», 111024,
РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.
Уполномоченная организация в России:
ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха
Энгельса, д. 75, стр. 5.
Условия гарантийного обслуживания смотрите
в гарантийном талоне или на сайте www.sven.fi.
Гарантийный срок: 12 мес. Срок службы: 2 года.
Производитель: «СВЕН ПТЕ. Лимитед»,
176 Джу Чиат Роу д, № 02-02, Сингапур, 427447.
Произведено под контролем «Свен Скандинавия
Лимитед», 48310, Финляндия, Котк а,
Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD., 176 Joo Chiat Road,
№ 02-02, Singapore, 427447. Produced under the
control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,
Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN
Scandinavia Ltd. Finland.
