Sven PS-200BL User Manual

www.sven.fi
PS-200BL
Portable Speaker System with Bluetooth and FM-radio
USER’S MANUAL
ENG
Portable Speaker System
with Bluetooth and FM-radio
Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0). This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device for damage; if the product was damaged during transportation, address the firm which carried out the delivery; if the product functions incorrectly, address the dealer at once.
Shipping and transportation equipment is permitted only in the original container.
Does not require special conditions for realization.
Dispose of in accordance with regulations for the disposal of household and computer
equipment.
APPLICATION
SVEN PS-200BL portable multimedia speaker system with Bluetooth and FM-radio is
designed for operation with PC, notebooks and other mobile devices by means of data transfer via Bluetooth protocol
. They can be also used in internet telephony, during video
conferences, in multimedia applications, in interactive games, for speech recognition and foreign language teaching.
FM-tuner and the player with micro SD-cards are included.
PACKAGE CONTENTS
Speaker system 1 pc
3,5 mm mini-jack to 3,5 mm mini-jack signal cable 1 pc
USB to micro USB power cable 1 pc
User’s Manual 1 pc
Warranty card 1 pc
SPECIAL FEATURES
Bluetooth wireless signal transmission
Track switching control possibility
Wired/wireless audio signal transmission
Built-in player for audio files from micro SD card
Built-in FM tuner
Convenient retractable handle for carrying
Battery peration time up to 20 hours
Radius of operation up to 10 m
ENG
User’s Manual
PS-200BL

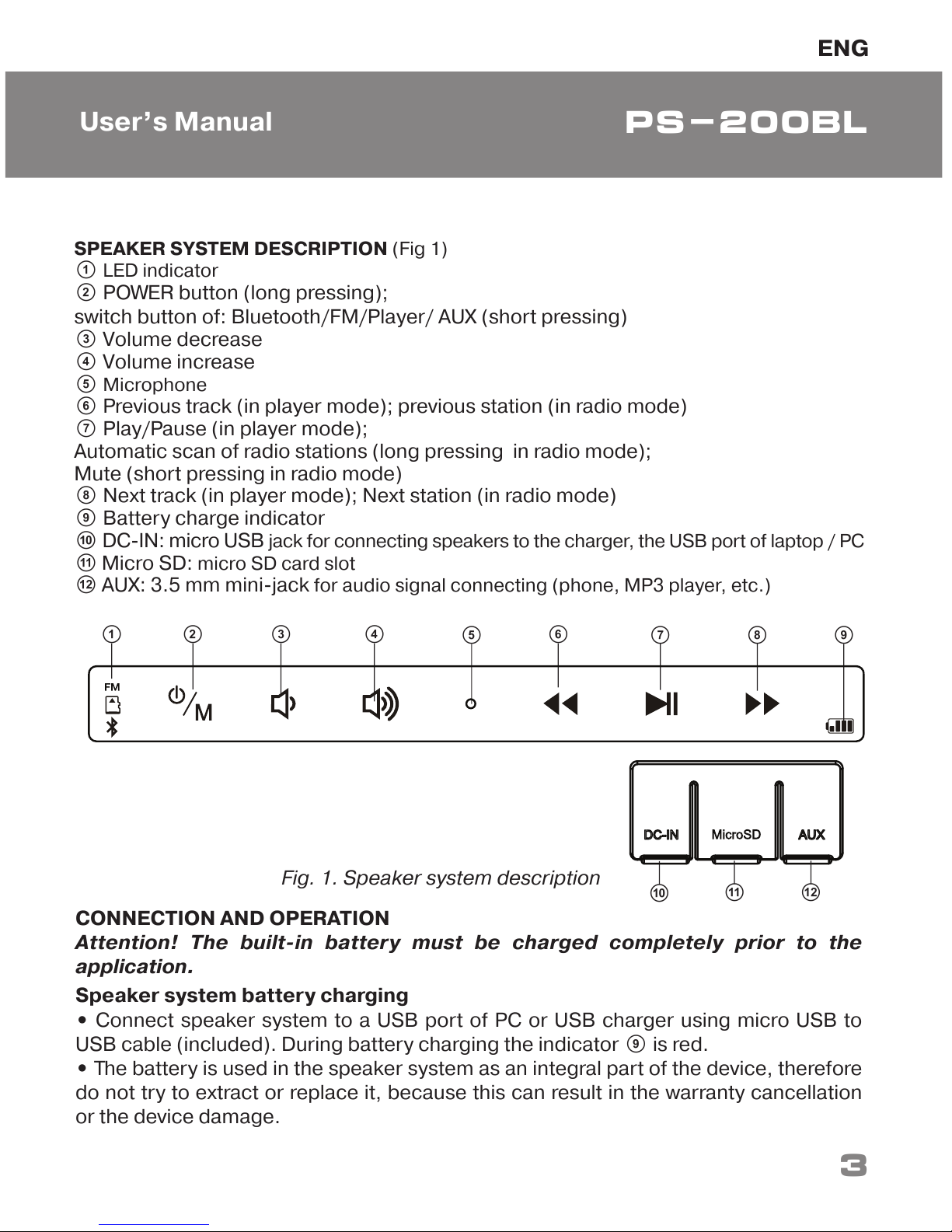

SPEAKER SYSTEM DESCRIPTION (Fig 1)
a LED indicator b POWER button (long pressing);
switch button of: Bluetooth/FM/Player/ AUX (short pressing)
c Volume decrease d Volume increase e
Microphone
f Previous track (in player mode); previous station (in radio mode) g Play/Pause (in player mode);
Automatic scan of radio stations (long pressing in radio mode); Mute (short pressing in radio mode)
h Next track (in player mode); Next station (in radio mode) i Battery charge indicator j DC-IN: micro USB
jack for connecting speakers to the charger, the USB port of laptop / PC
k Micro SD: micro SD card slot l AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.)
j
a b c d f
g h
e i
k
l
Fig. 1. Speaker system description
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the
application.
Speaker system battery charging
Connect speaker system to a USB port of PC or USB charger using micro USB to
USB cable (included). During battery charging the indicator
i is red.
The battery is used in the speaker system as an integral part of the device, therefore do not try to extract or replace it, because this can result in the warranty cancellation or the device damage.
ENG
4
Portable Speaker System
with Bluetooth and FM-radio

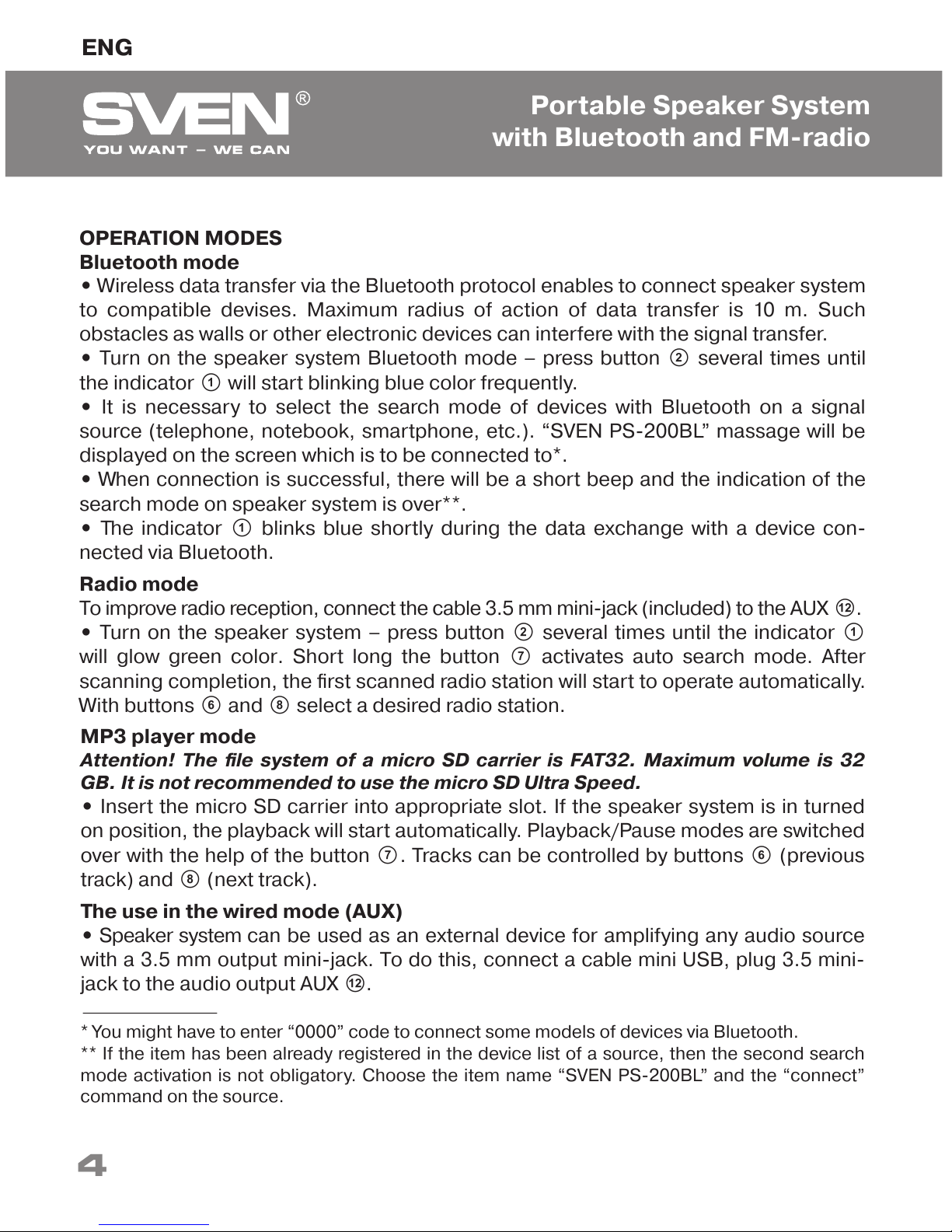

OPERATION MODES Bluetooth mode
Wireless data transfer via the Bluetooth protocol enables to connect speaker system to compatible devises. Maximum radius of action of data transfer is 10 m. Such obstacles as walls or other electronic devices can interfere with the signal transfer.
Turn on the speaker system Bluetooth mode press button b several times until the indicator a will start blinking blue color frequently.
It is necessary to select the search mode of devices with Bluetooth on a signal
source (telephone, notebook, smartphone, etc.). SVEN PS-200BL massage will be displayed on the screen which is to be connected to*.
When connection is successful, there will be a short beep and the indication of the search mode on speaker system is over**.
The indicator a blinks blue shortly during the data exchange with a device con- nected via Bluetooth.
Radio mode
To improve radio reception, connect the cable 3.5 mm mini-jack (included) to the AUX l.
Turn on the speaker system press button b several times until the indicator a
will glow green color. Short long the button g activates auto search mode. After
scanning completion, the first scanned radio station will start to operate automatically. With buttons f and h select a desired radio station.
МР3 player mode
Attention! The file system of a micro SD carrier is FAT32. Maximum volume is 32 GB. It is not recommended to use the micro SD Ultra Speed.
Insert the micro SD carrier into appropriate slot. If the speaker system is in turned on position, the playback will start automatically. Playback/Pause modes are switched over with the help of the button g. Tracks can be controlled by buttons f (previous track) and h (next track).
The use in the wired mode (AUX)
Speaker system can be used as an external device for amplifying any audio source
with a 3.5 mm output mini-jack. To do this, connect a cable mini USB, plug 3.5 mini- jack to the audio output AUX
l.
* You might have to enter “0000” code to connect some models of devices via Bluetooth. ** If the item has been already registered in the device list of a source, then the second search mode activation is not obligatory. Choose the item name “SVEN PS-200BLand the connect command on the source.
USB to micro USB Power cable
Mini-jack to mini-jack
signal cable
Technical support is on www.sven.fi.
Notes. Technical specifications given in this table are supplemental information and cannot give occasion to claims. Technical specifications and package contents are subject to change without notice due to the improvement of SVEN production.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Frequency range, Hz Output power (RMS), W: Membrane, mm Bluetooth supported profiles Radius of operation, m Battery operation time, h Battery capacity, mA / h Power supply, V Cable lenght, m Weight, g
Dimensions, mm
Value
speaker: 100 20 000; microphone: 50 16 000 10 (2 × 5) Ø 50 HSP, HFP, A2DP, AVRCP up to10 up to 20 2000 USB/DC5
0.5 700
220 × 85 × 85
5
PS-200BL
ENG
User’s Manual

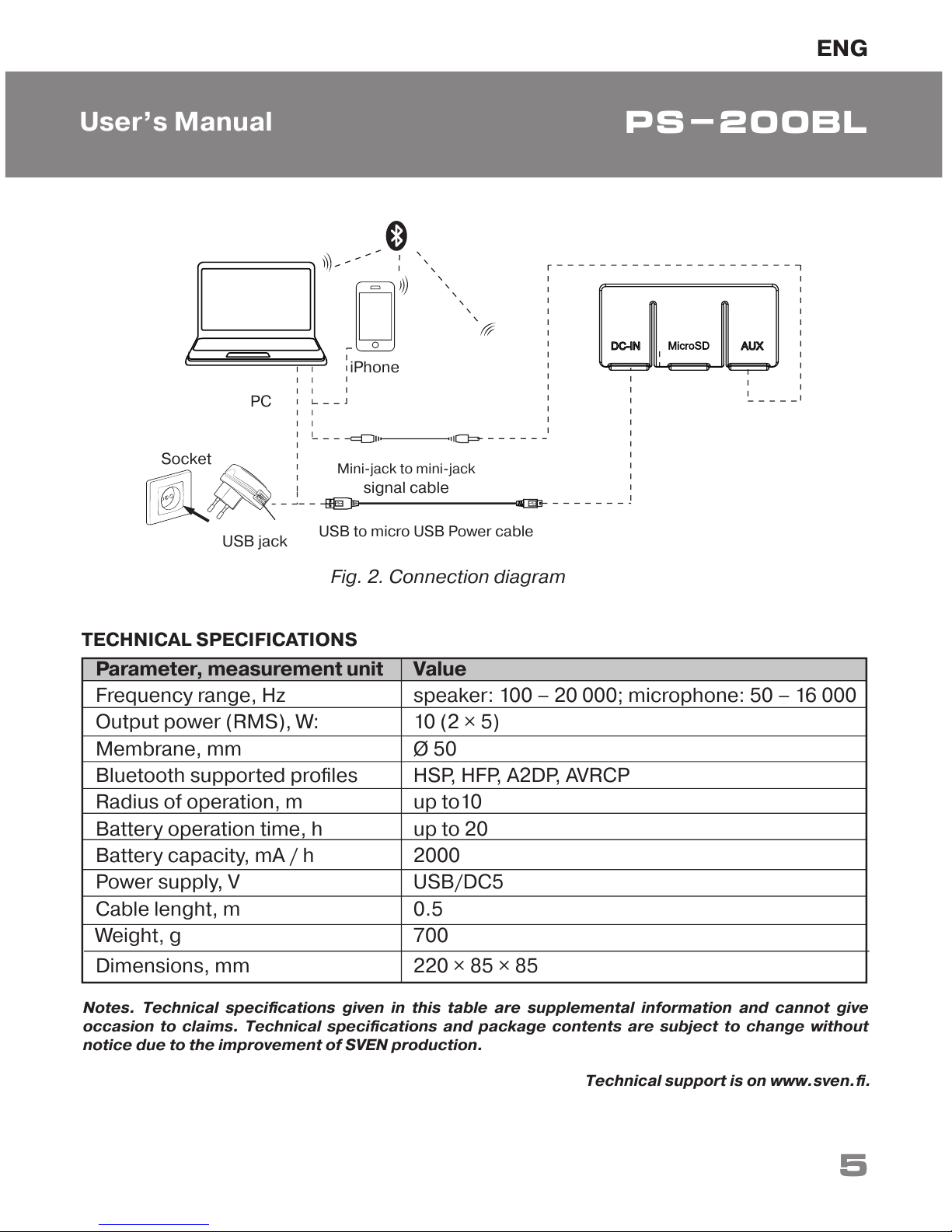

Fig. 2. Connection diagram
USB jack
Socket
PC
iPhone
Моdel: PS-200BL Импортер в России: ООО «РЕГАРД», 109052, РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б. Уполномоченная организация в России: ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5. Условия гарантийного обслуживания смотрите в гарантийном талоне или на сайте www.sven.fi. Гарантийный срок: 12 мес. Срок службы: 2 года. Производитель: «СВЕН ПТЕ. Лимитед», 176 Джу Чиат Роуд, 02-02, Сингапур, 427447. Произведено под контролем «Свен Скандинавия Лимитед», 48310, Финляндия, Котка, Котолахдентие, 15. Сделано в Китае.
Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road, 02-02, Singapore, 427447. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, Kotka, Finland, 48310. Made in China.
® Registered Trademark of Oy SVEN Scandinavia Ltd. Finland.
