PARTS CATALOGUE
VIVA-R
EVOLUTION
FW110SDW L2
2012-3
1
ST EDITION
Page 2
FW110SDW L2
Page 3
PREFACIO
Cuando sea necesario reemplazar piezas en las MOTOCICLETAS de SUZUKI, sIrvase usar
Siempre las PIEZAS GENUINAS DE SUZUKI que han pasado una estricta inspeccion de calidad y
rendimiento.
Este catalogo contiene todas las piezas de recambio para las SUZUKI FW110SDW L2.
INSTRUCCIONES SOBRE EL USO DEL CATALOGO
DIMENSIONES
1.
2. ABREVIATURAS
Las abreviaturas usadas son las siguientes:
AR : Lo necesario NT : Numero de dientes
ASSY : Conjunto OPT : Opcional
E.No. : Numero de motor OS : Sobremedida
F.No. : Numero de bastidor STD : Normalizado
D : Diametro del material T : Espesor
ID : Diametro interno US : Submedida
OD : Diametro externo W : Ancho
L : Longitud
LH : Lado izquierdo
RH : Lado derecho
~100045: Hasta F. No. 100045
100046~: Desde F. No. 100046
12 x 34 x 5.6 ...................... Los numeros en la columna de "Observaciones" muestran las
T
T T
ID OD T (or W, L)
12 3 45 C 56781 H 000
3.
PIEZAS INTERNAS DEL CONJUNTO
dimensiones de las piezas.
Las letras C y H indican que la fabricación de las
piezas es de origen Colombiano.
Las piezas marcadas con un punto (.) antes de la
denominacion, forman parte de un conjunto.
4. NOTICIA DE MODIFICACIÓN
nuevas y viejas.
NOTA
5.
5-1.Hay ciertas diferencias entre las piezas de producción en serie y
las de recambio por razones administrativas y por su uso comun en
otros modelos.
5-2.En cuanto a las mangueras de goma y los tubos de vinilo, sirvase
usarlos cortando segun la longitud mencionada en el catalogo o segun
la realmente requerida por el vehiculo.
5-3. Debe observarse que las ilustraciones son para una rapida
referencia del número de pieza y no para usarse como un manual de
montaje: para ello emplee siempre el "MANUAL DE SERVICIO DE
SUZUKI".
CODIGO DE ESPECIFICACION
6.
Código: P9
NUMERO DE SERIE DE MARCO O CHASIS
7.
Chasis: MH8BE4DUACJ277116~
FW110SDW L2
Page 4
FIG.1 CYLINDER HEAD
FIG.2 CYLINDER
FIG.3 CRANKCASE
FIG.4 CRANKCASE COVER
FW110SDW L2_001
CYLINDER HEAD
FIG.5 CRANKSHAFT
FW110SDW L2_005
CRANKSHAFT
FW110SDW L2 P9.
FW110SDW L2_002
CYLINDER
FIG.6 CRANKSHAFT
FW110SDW L2_006
STARTER CLUTCH
FW110SDW L2_003
CRANKCASE
FIG.7 CAMSHAFT/VALVE
FW110SDW L2_007
CAMSHAFT/VALVE
- 1 -
FW110SD L2_004
CRANKCASE COVER
FIG.8 CAMCHAIN
FW110SDW L2_008
CAMCHAIN
Page 5
FIG.9 CARBURETOR
FIG.10 AIR CLEANER

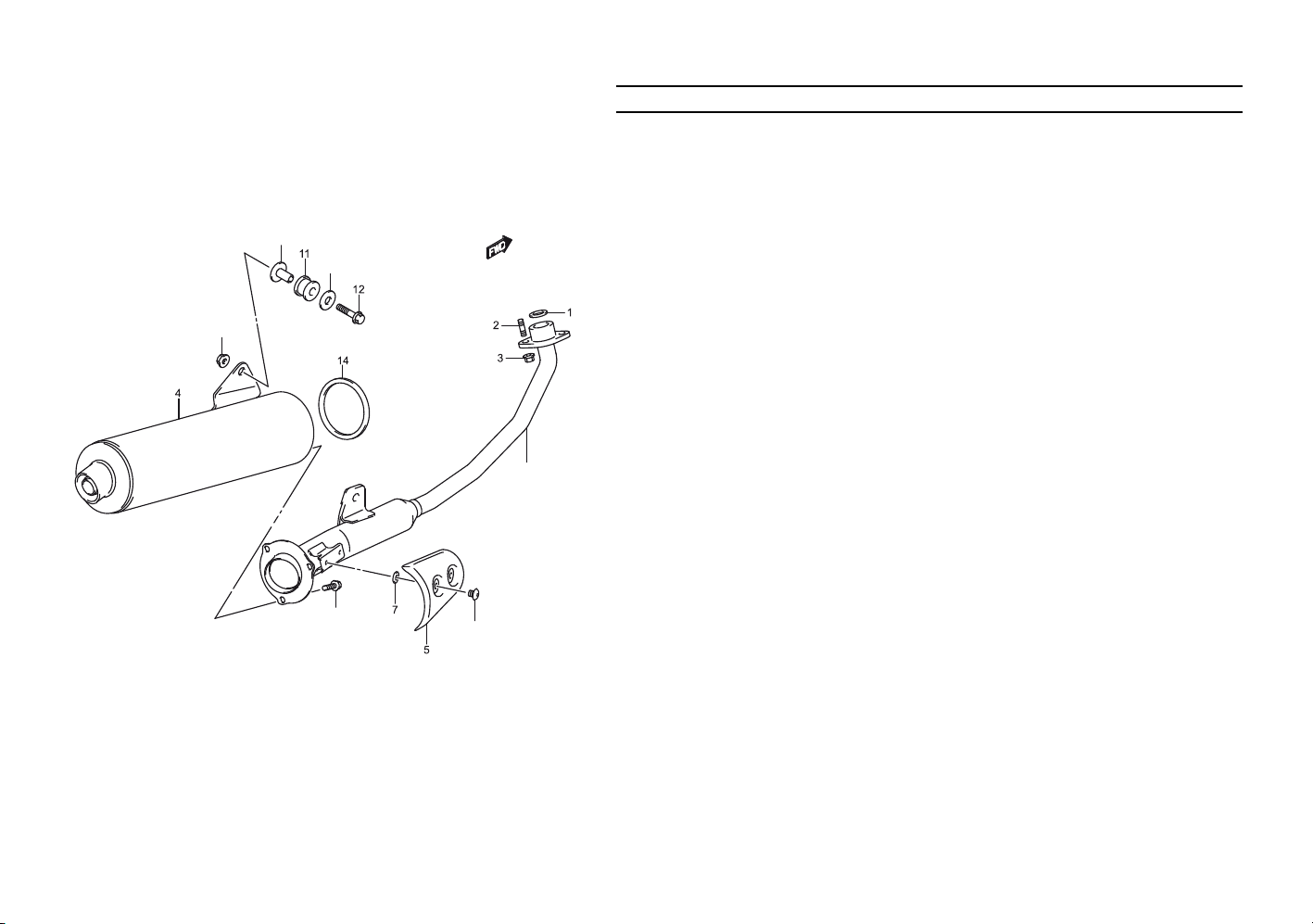

FIG.11 MUFFLER
FIG.12 OIL PUMP
FW110SDW L2_009
CARBURETOR

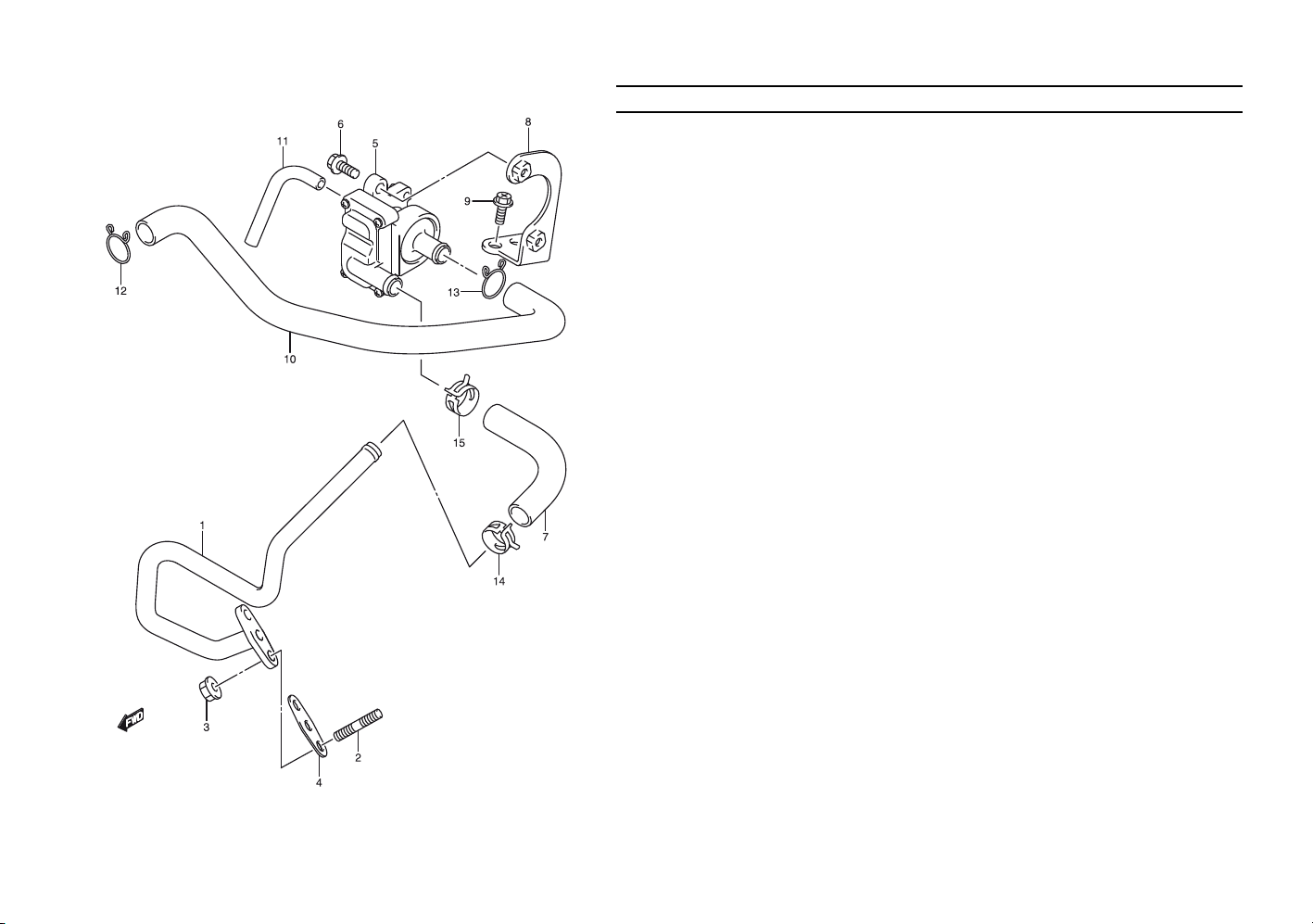

FIG.13 2ND AIR
FW110SDW L2_013
2ND AIR
FW110SDW L2 P9.
FW110SDW L2_010
AIR CLEANER

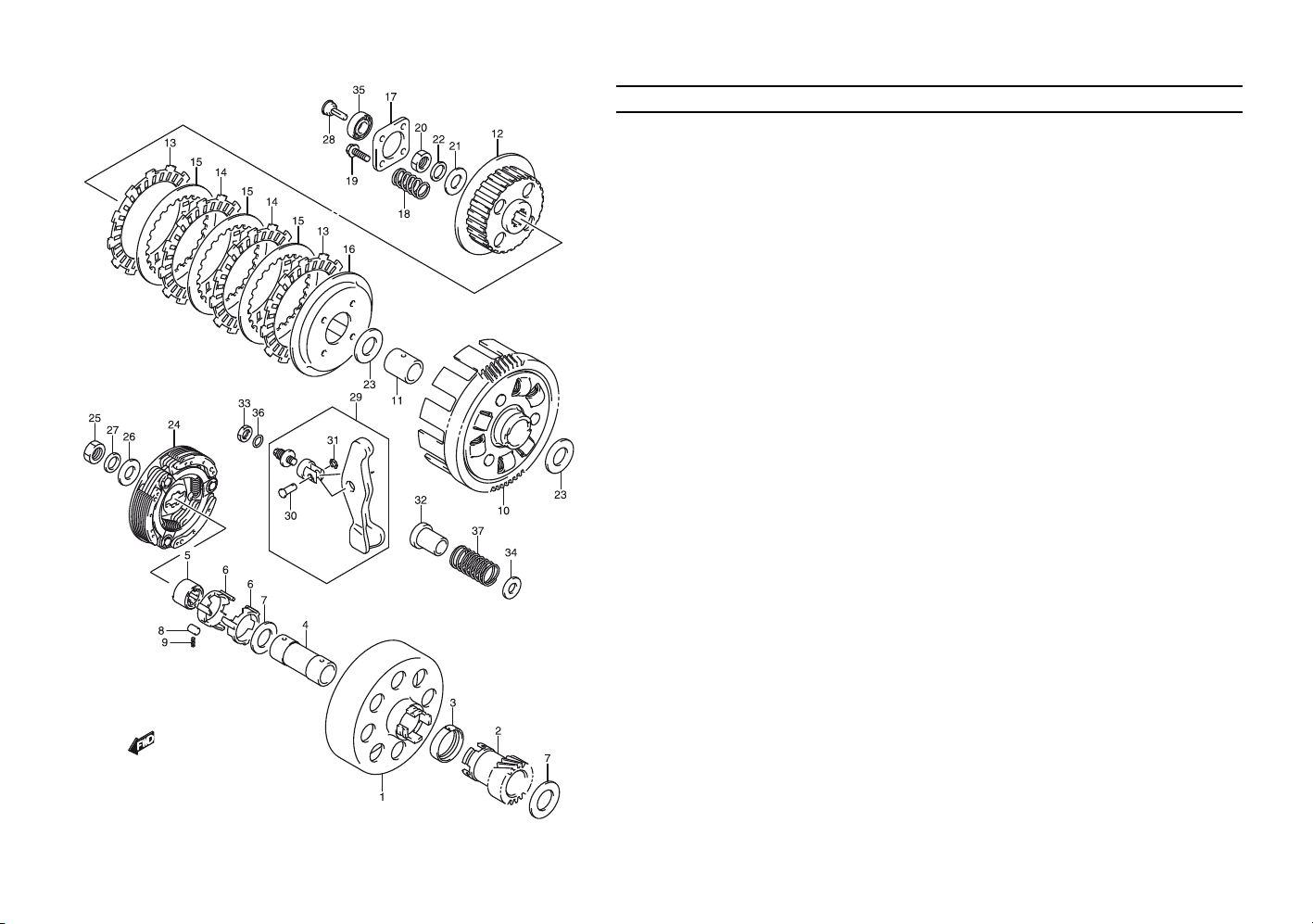

FIG.14 CLUTCH
FW110SDW L2_014
CLUTCH
FW110SDW L2_011
MUFFLER

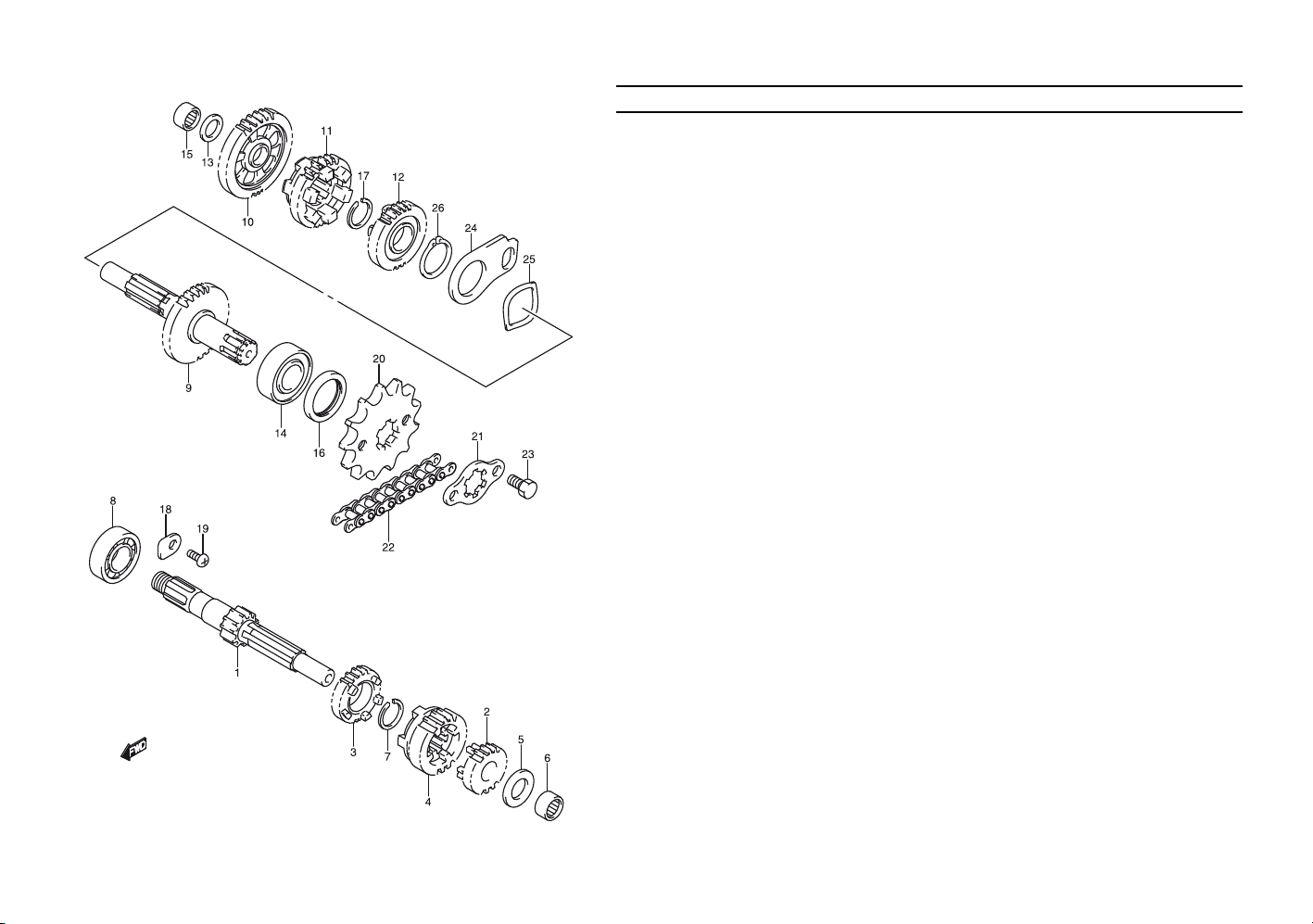

FIG.15 TRANSMISSION
FW110SDW L2_015
TRANSMISSION
- 2 -
FW110SDW L2_012
OIL PUMP

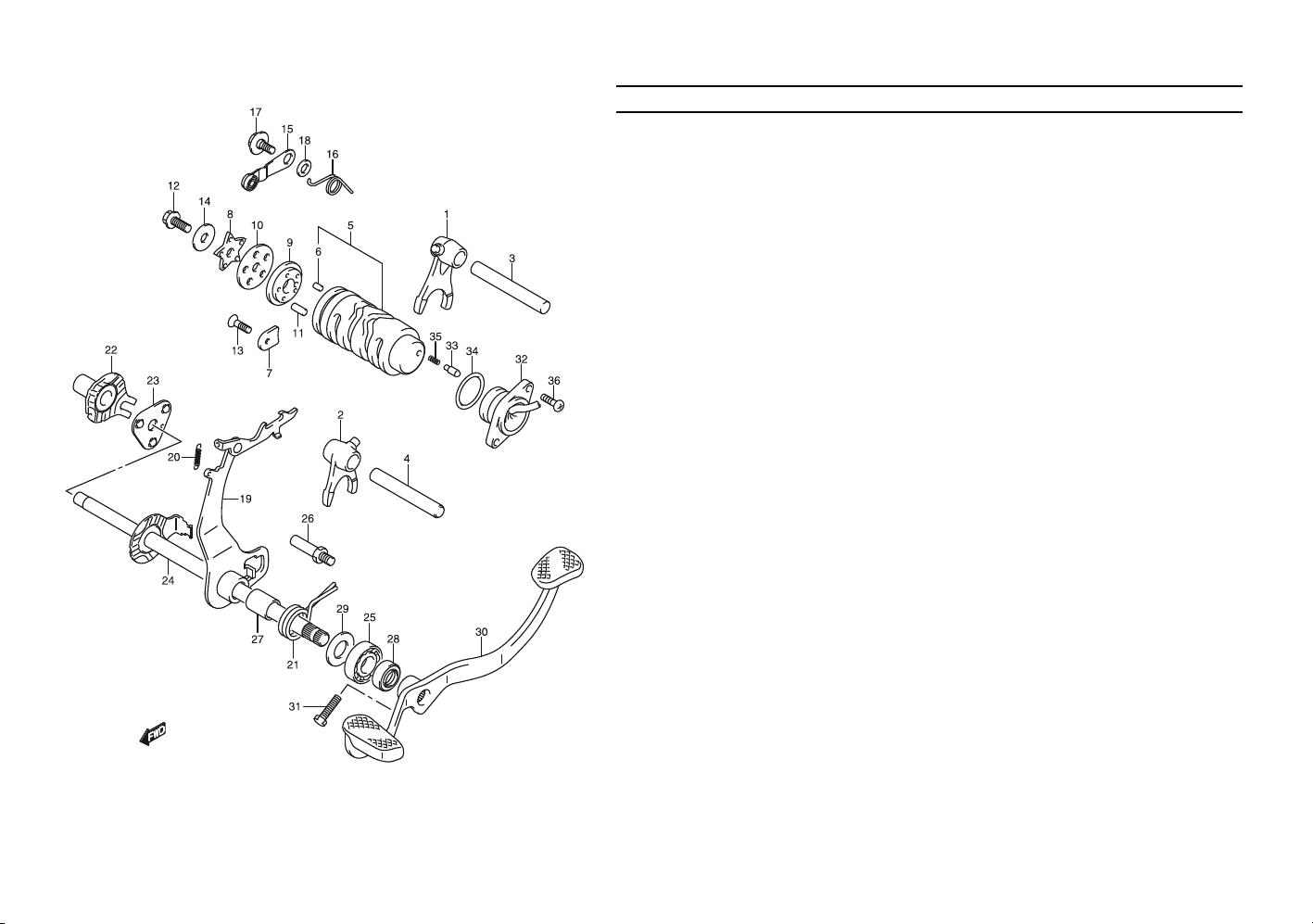

FIG.16 GEAR SHIFTING
FW110SDW L2_016
GEAR SHIFTING
Page 6
FIG.17 KICK STARTER

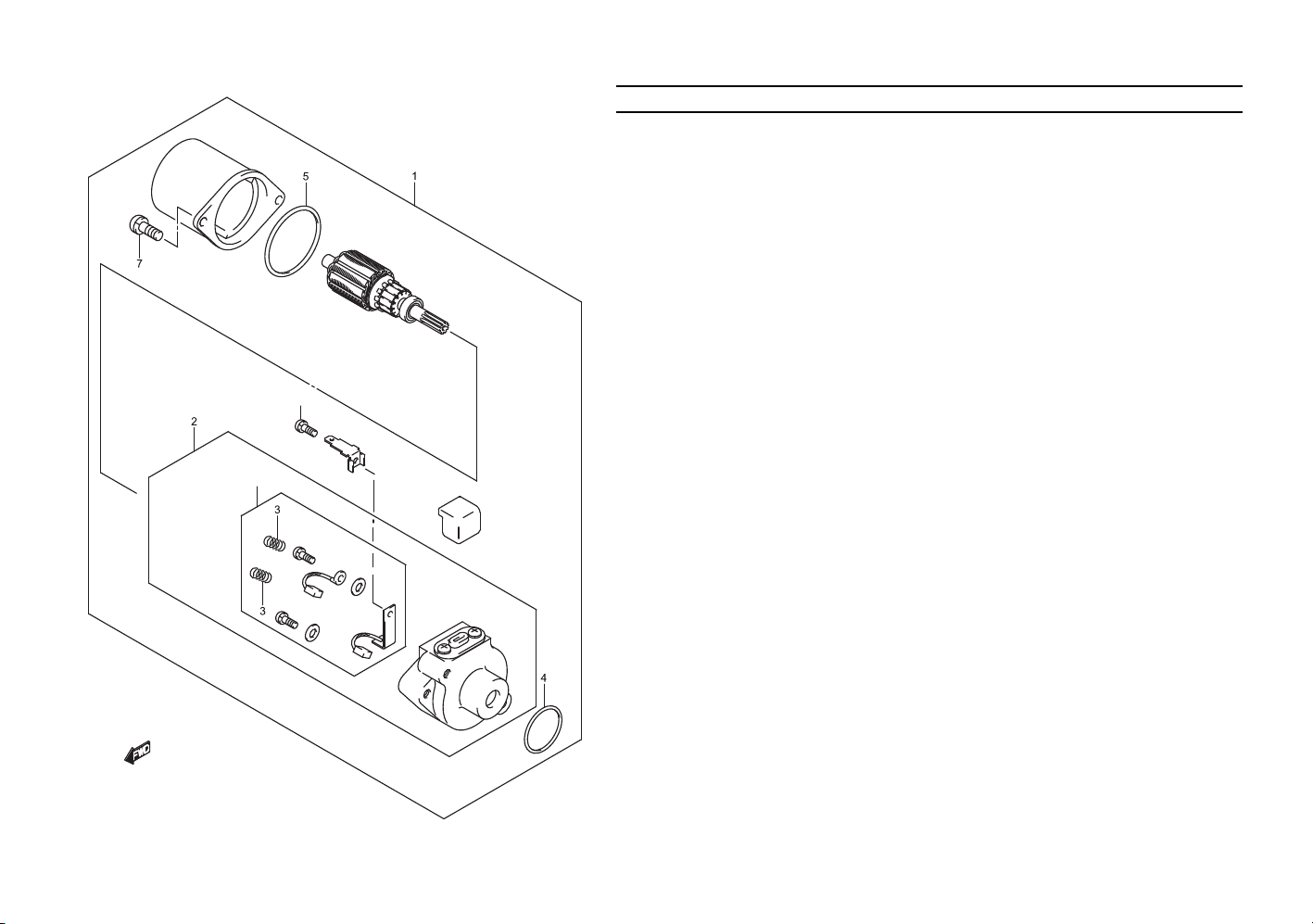

FIG.18 STARTING MOTOR

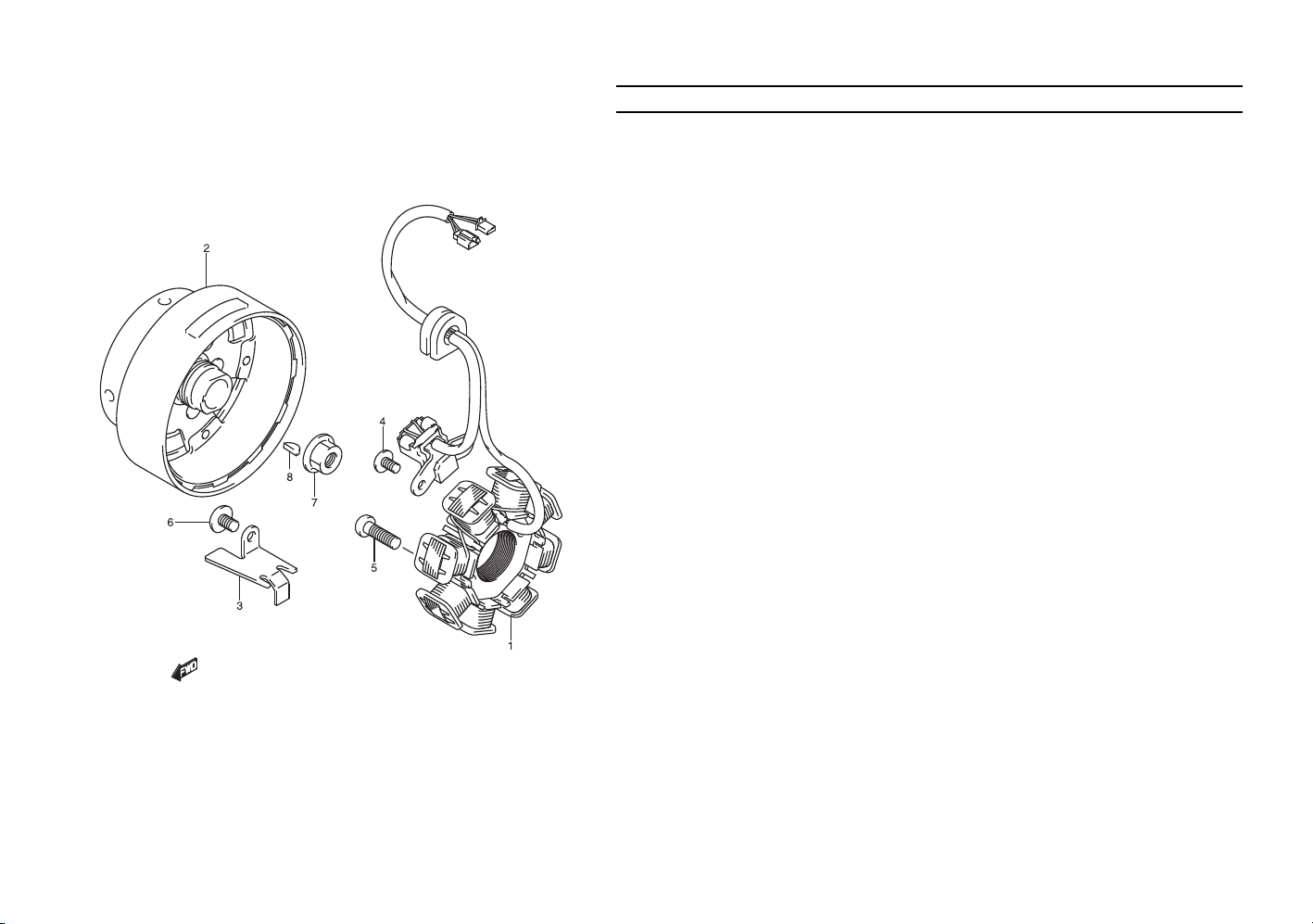

FIG.19 MAGNETO

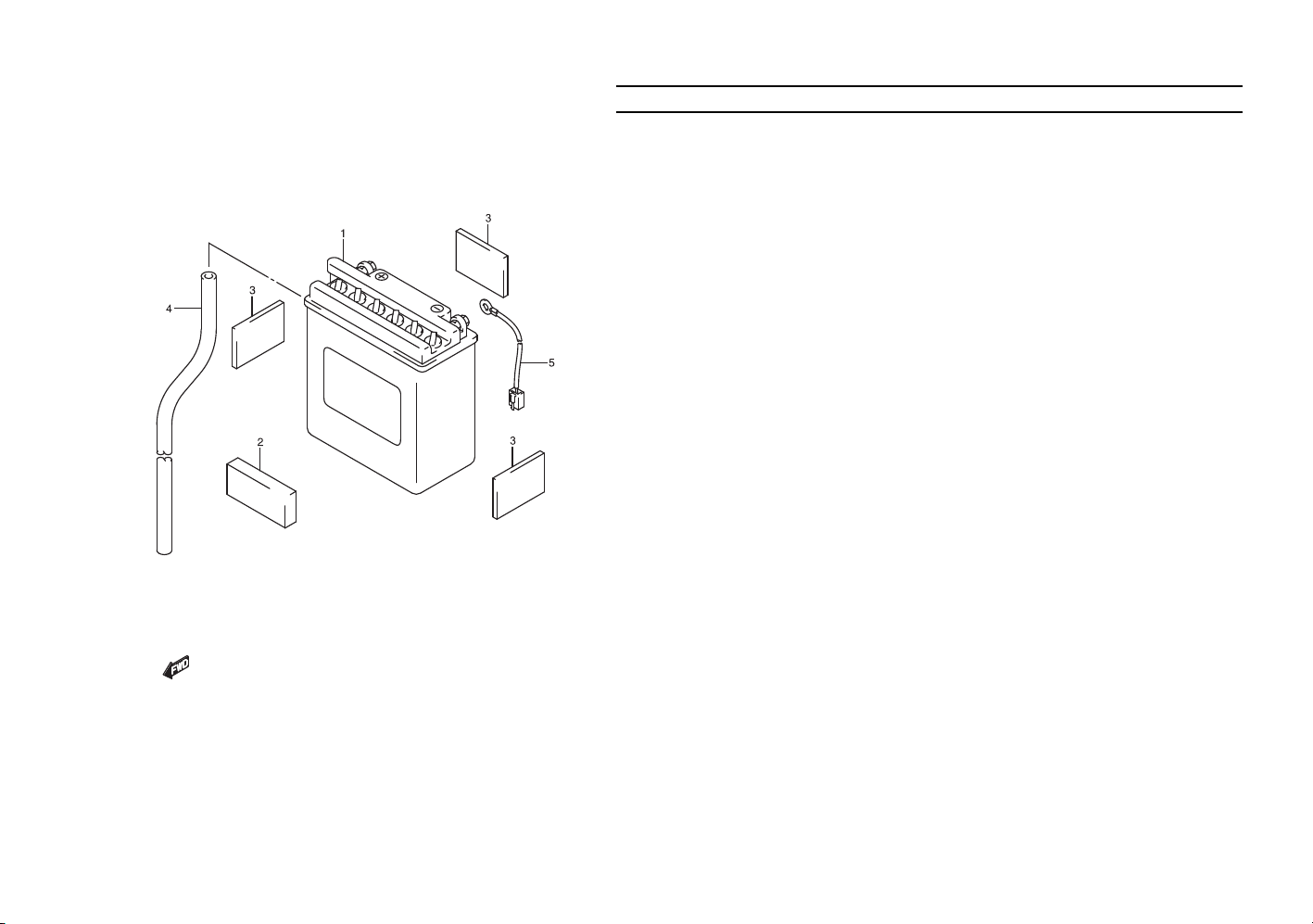

FIG.20 BATTERY
FW110SDW L2_017
KICK STARTER

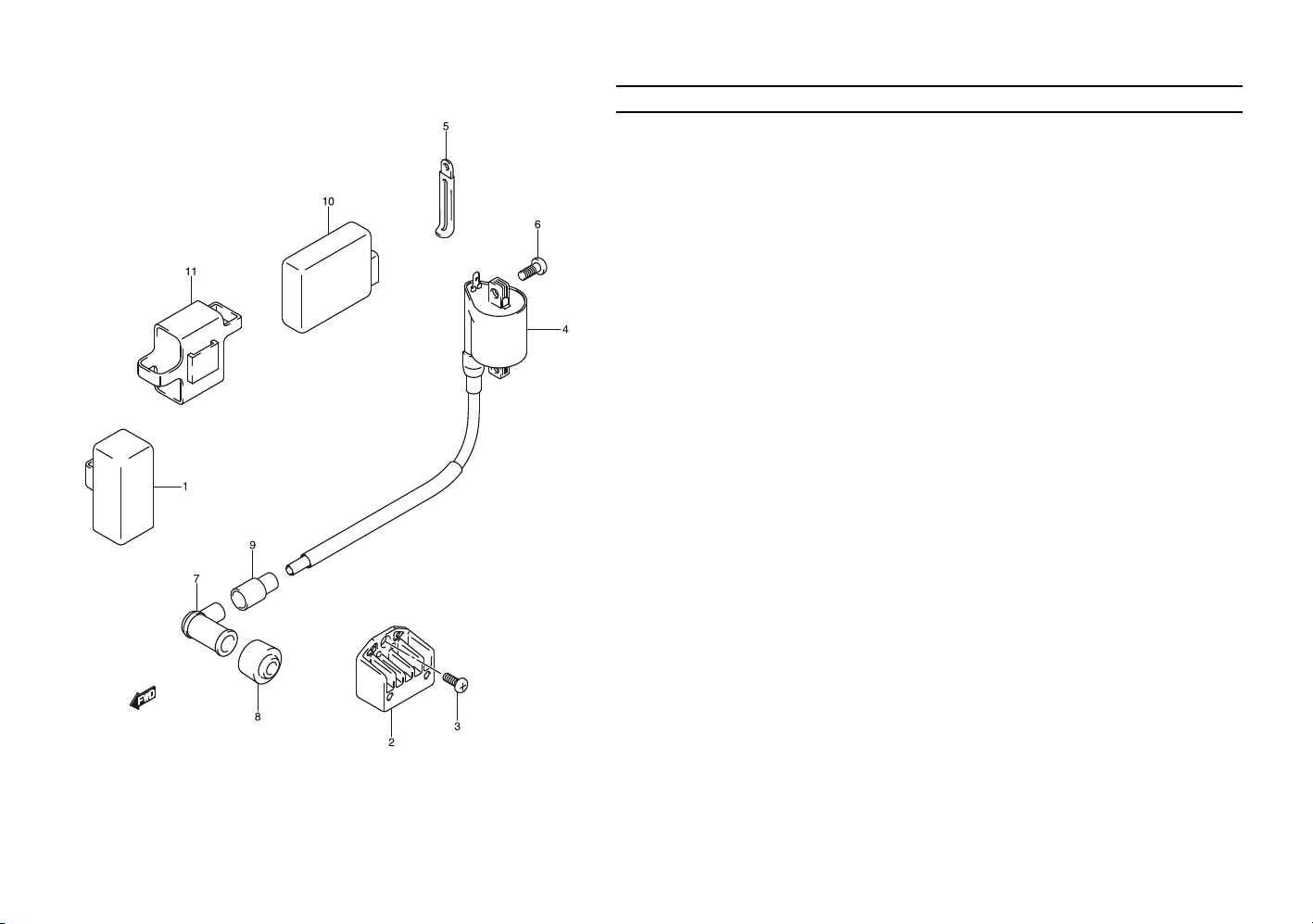

FIG.21 ELECTRICAL
FW110SDW L2_021
ELECTRICAL
FW110SDW L2 P9.
FW110SDW L2_018
STARTING MOTOR
FIG.22 SPEEDOMETER
FW110SDW L2_022
SPEEDOMETER
FW110SDW L2_019
MAGNETO

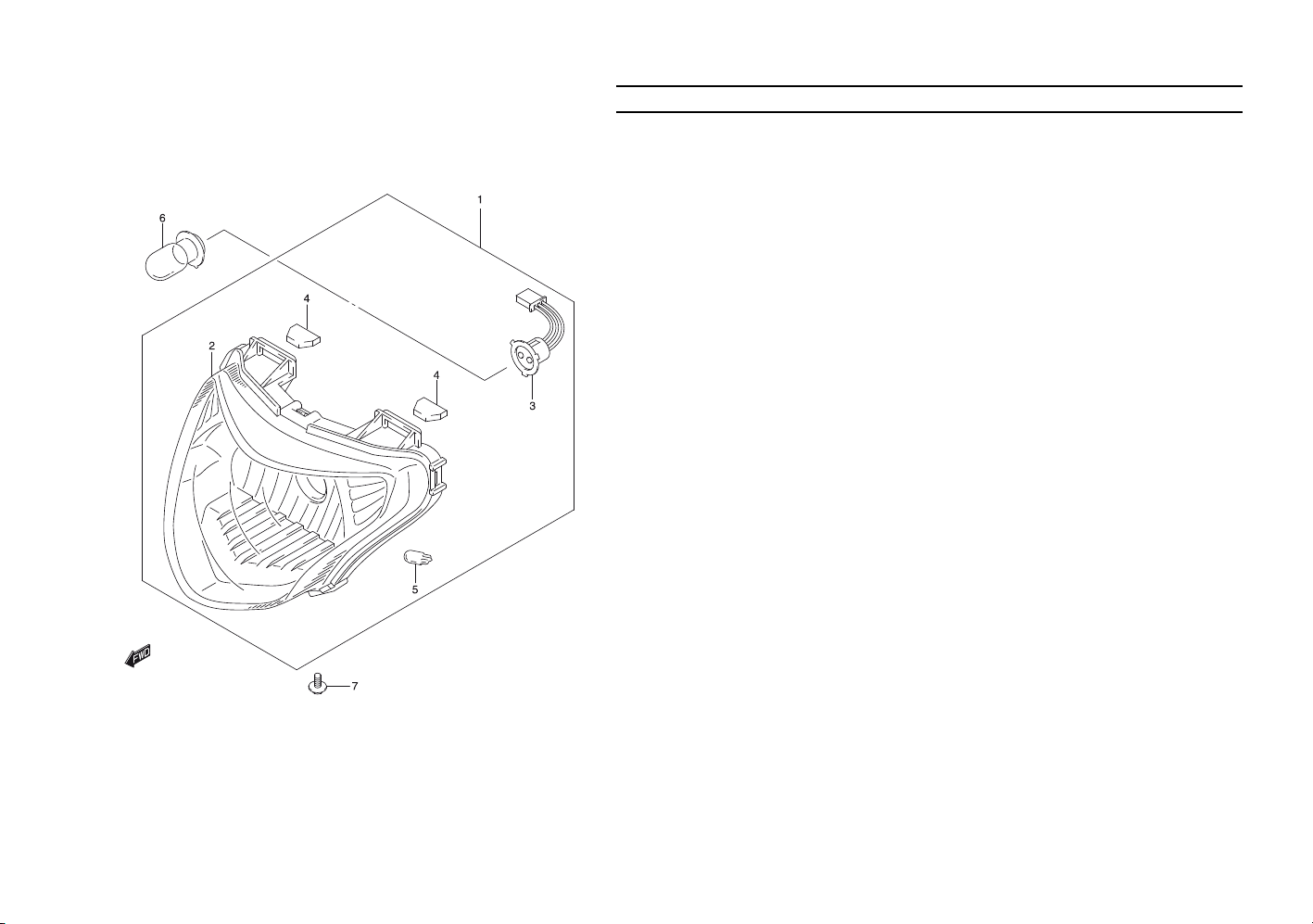

FIG.23 FRONT COMBINATION LAMP
FW110SDW L2_023
FRONT COMBINATION LAMP
- 3 -
FW110SDW L2_020
BATTERY
FIG.24 FRONT TURNSIGNAL LAMP
FW110SDW L2_024
FRONT TURNSIGNAL LAMP
Page 7
FIG.25 REAR COMBINATION LAMP
FIG.26 WIRING HARNESS

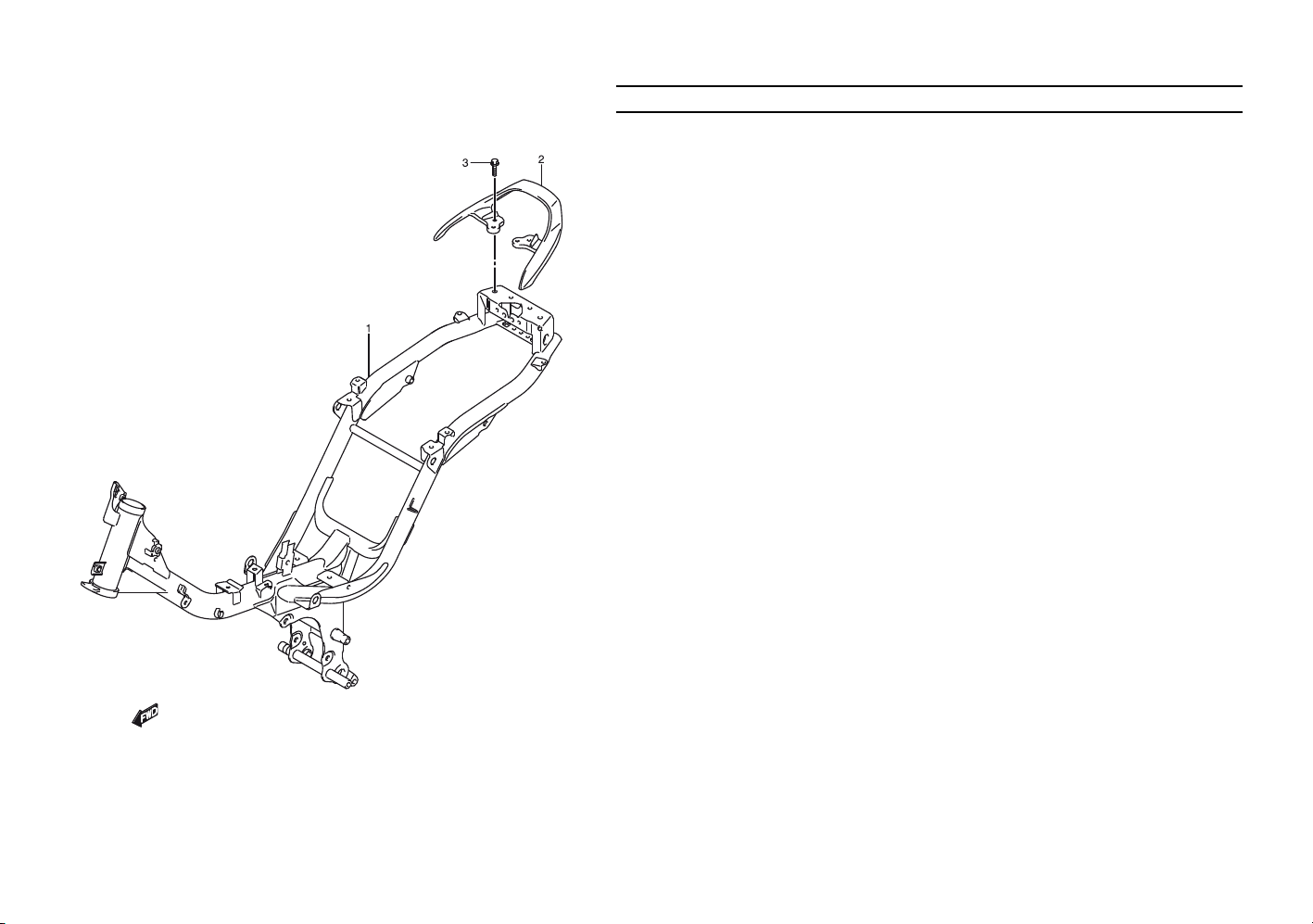

FIG.27 FRAME

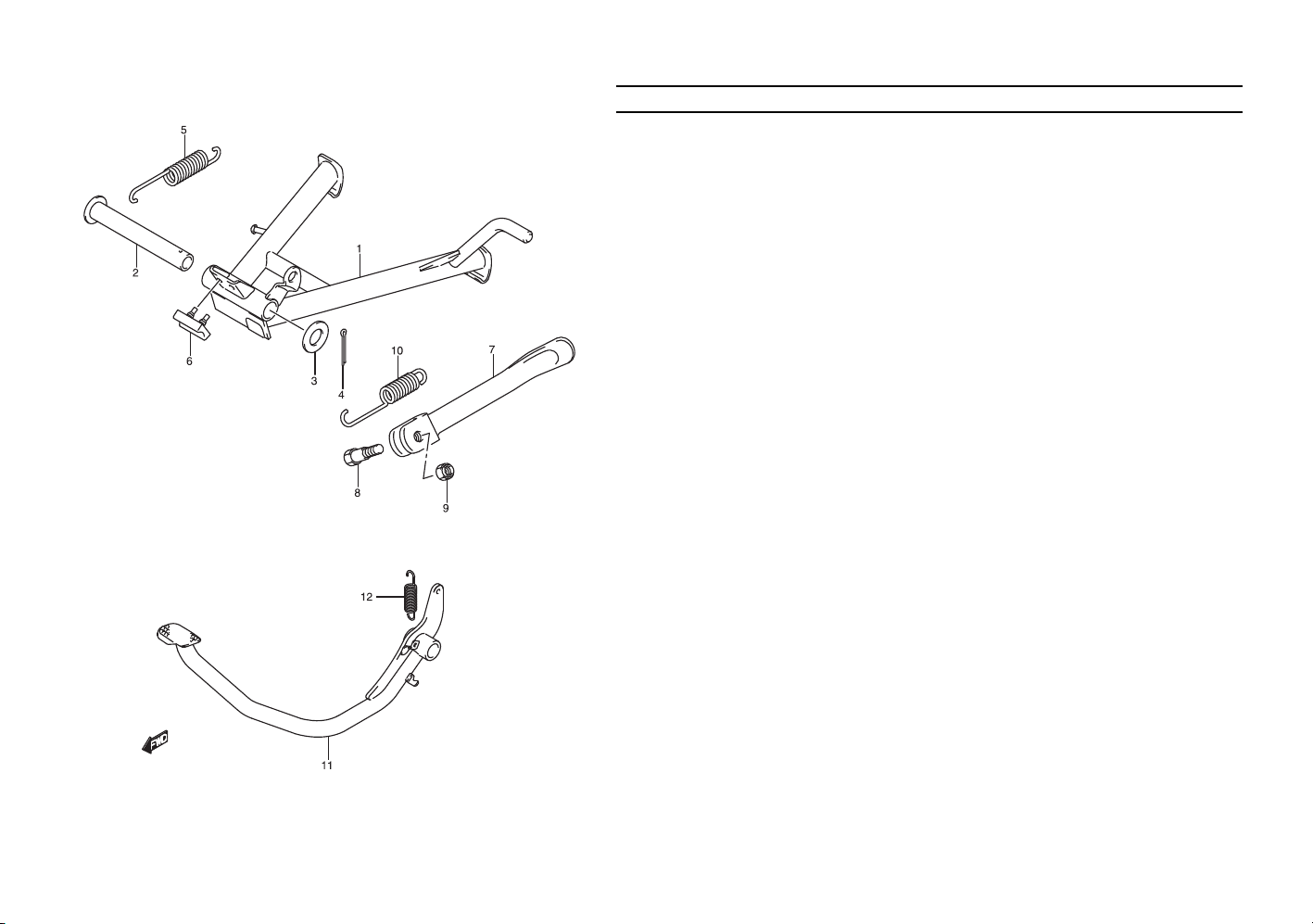

FIG.28 STAND
FW110SDW L2_025
REAR COMBINATION LAMP

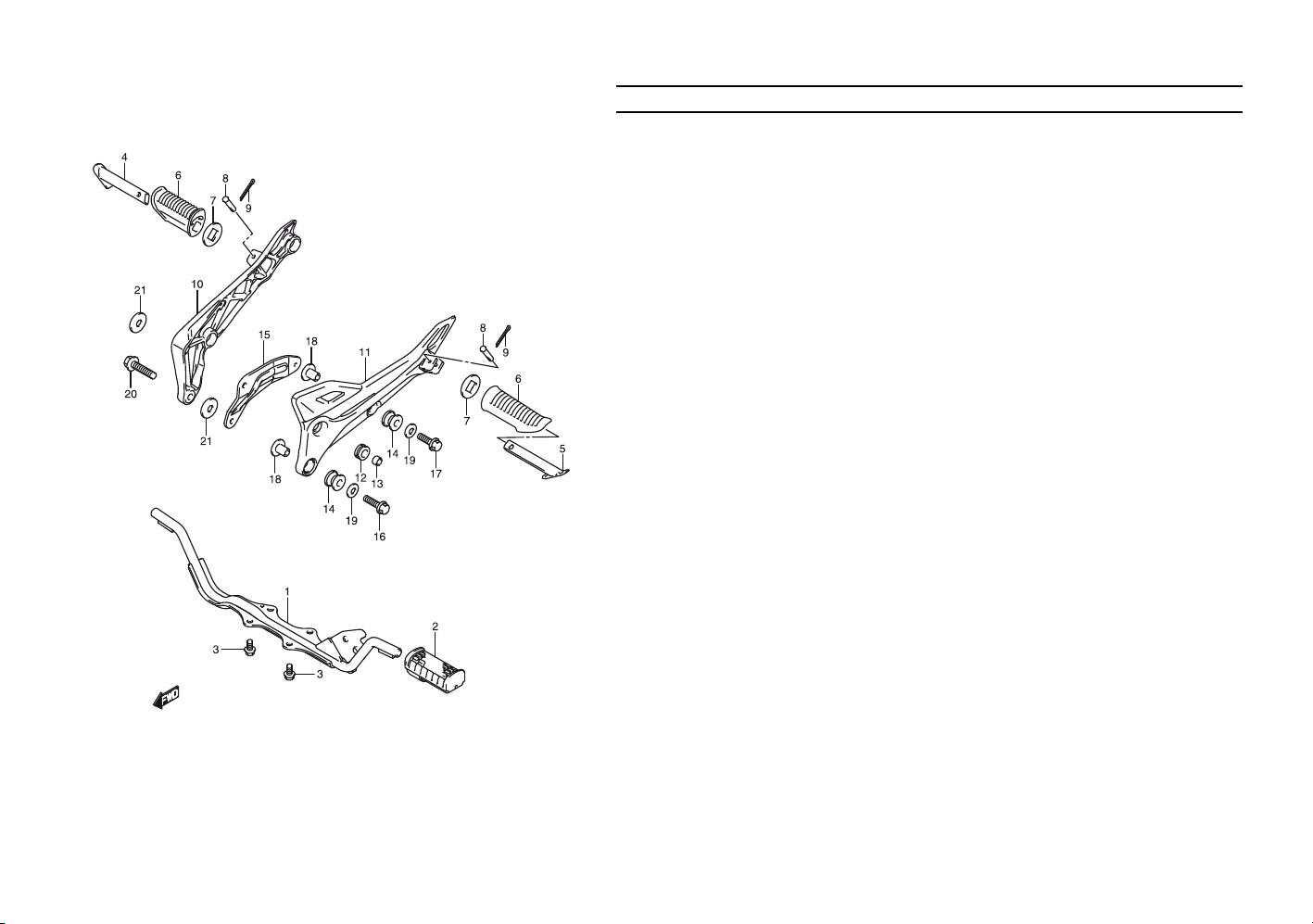

FIG.29 FOOTREST
FW110SDW L2_029
FOOTREST
FW110SDW L2 P9.
FW110SDW L2_026
WIRING HARNESS

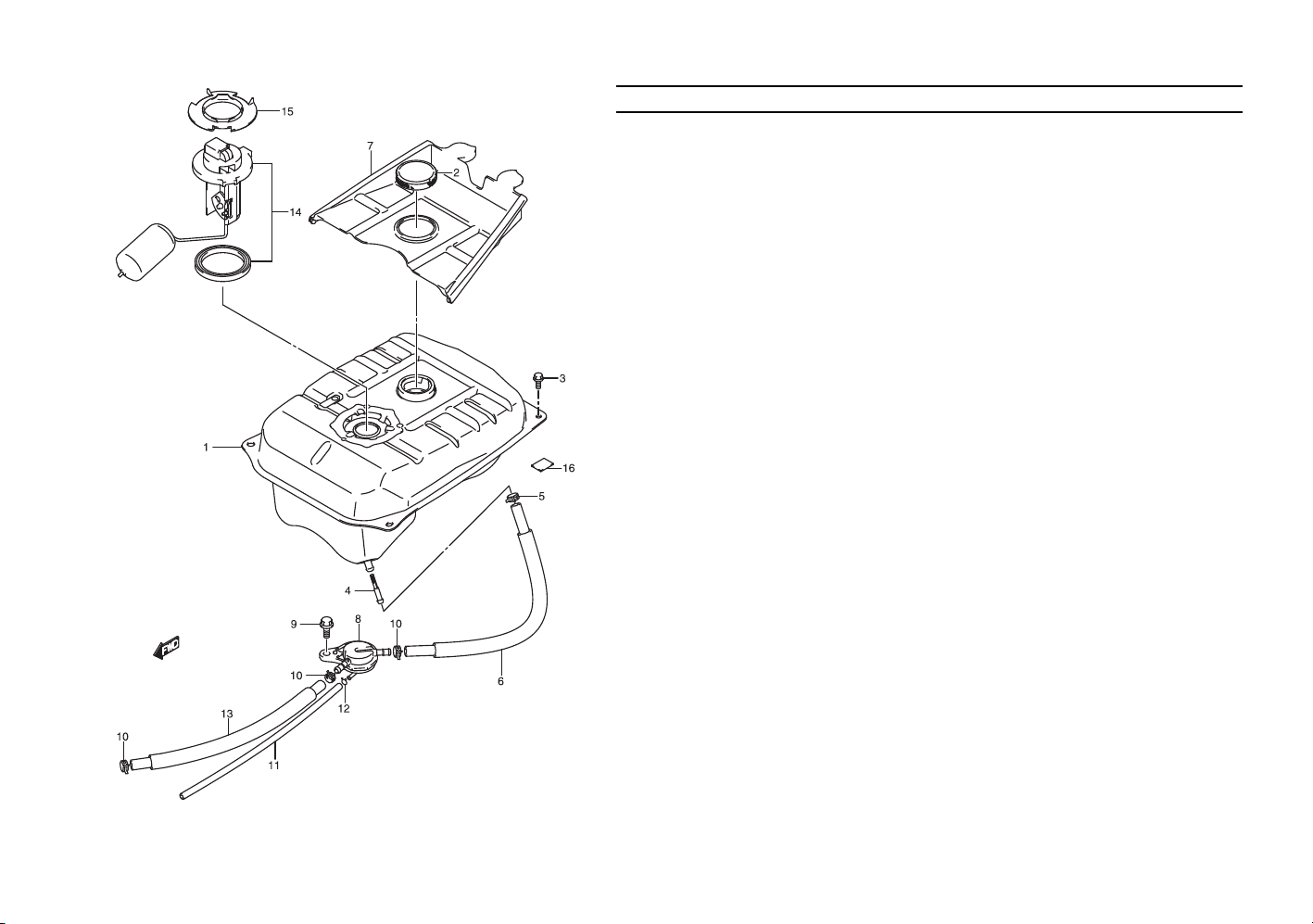

FIG.30 FUEL TANK
FW110SDW L2_030
FUEL TANK
FW110SDW L2_027
FRAME

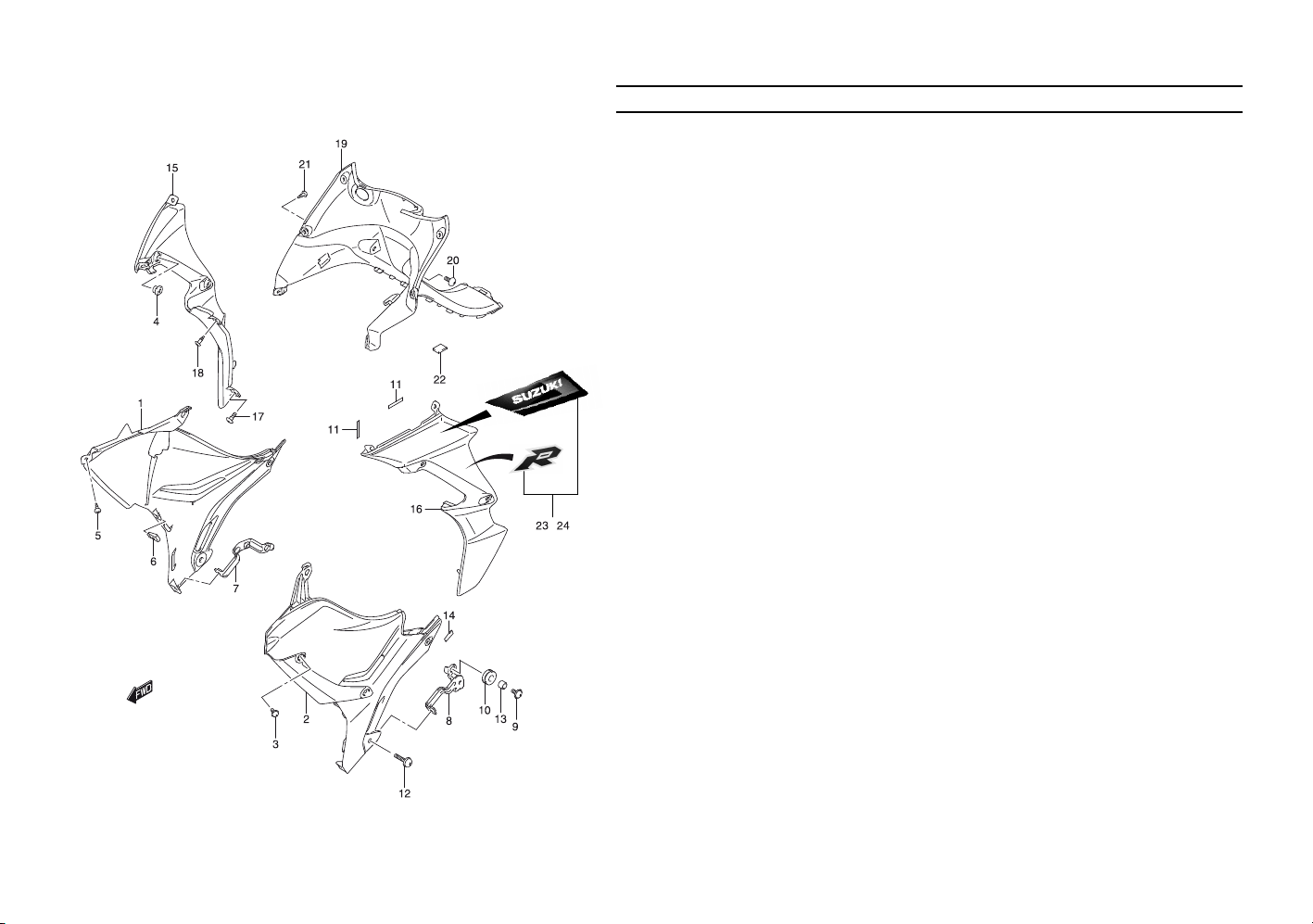

FIG.31 FRAME COVER
FW110SDW L2_031
FRAME COVER
- 4 -
FW110SDW L2_028
STAND
FIG.32 LEG SHIELD
FW110SDW L2_032
LEG SHIELD
Page 8

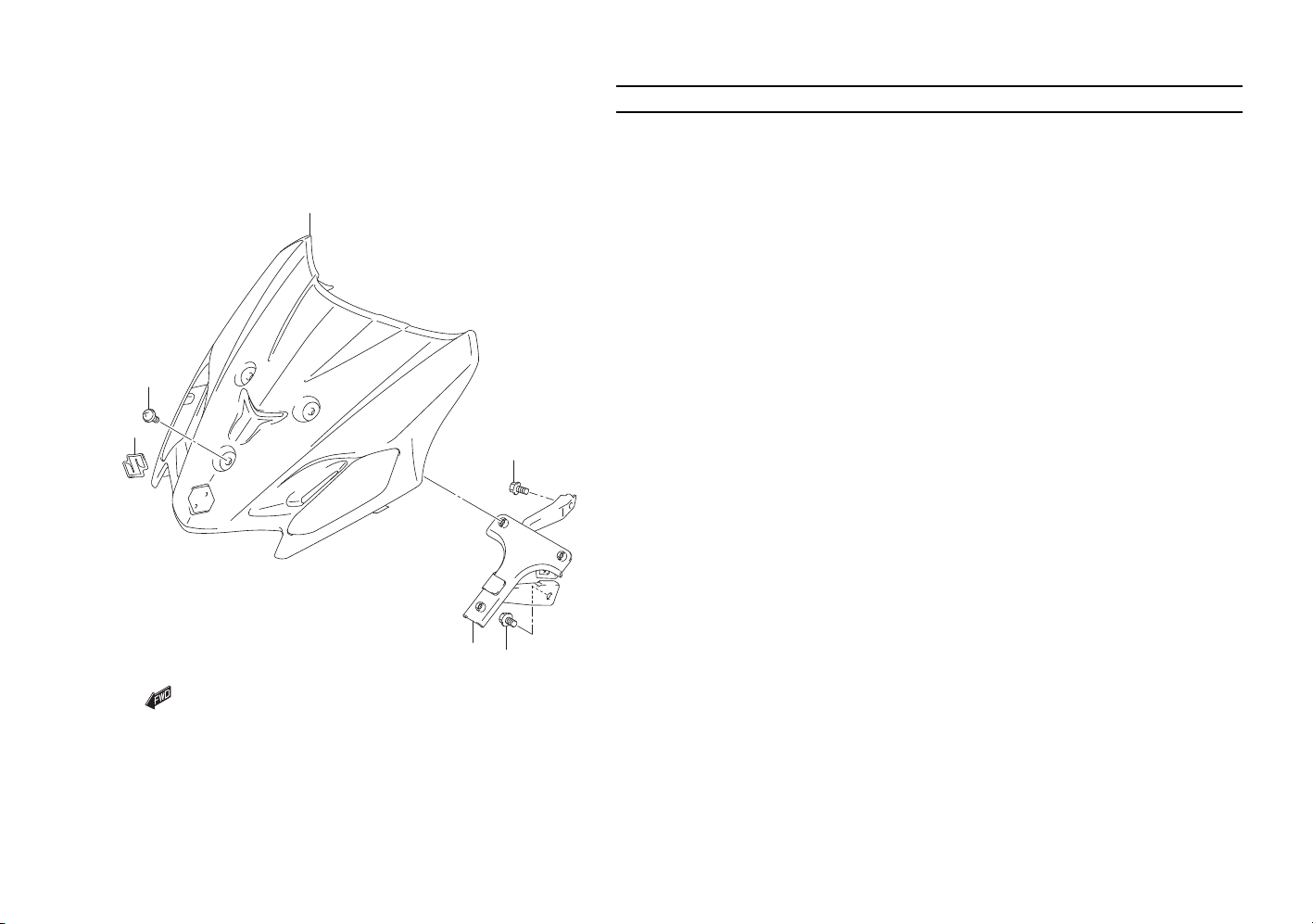

FIG.33 FRAME HEAD COVER
FIG.34 FRONT FENDER

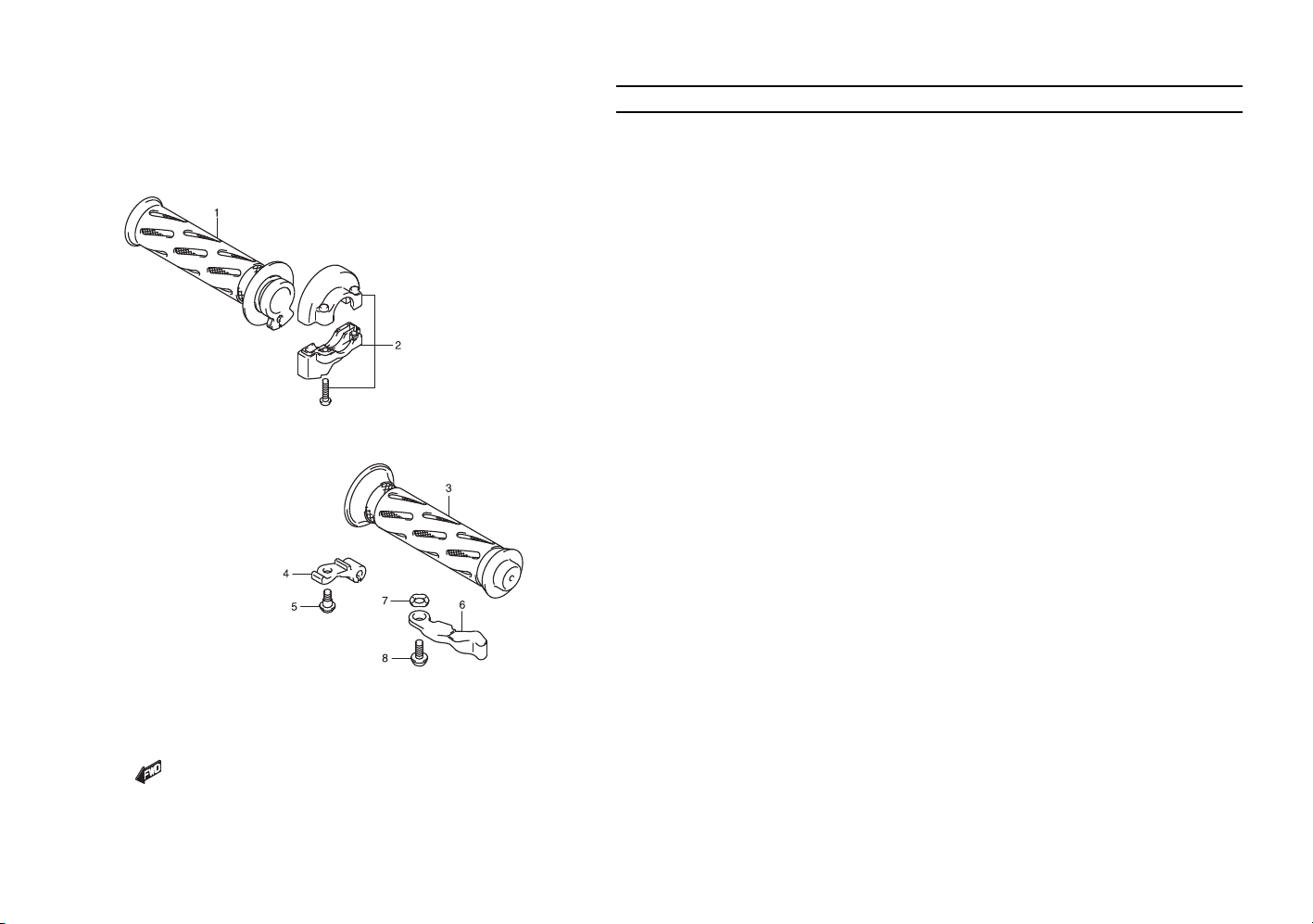

FIG.35 HANDLEBAR

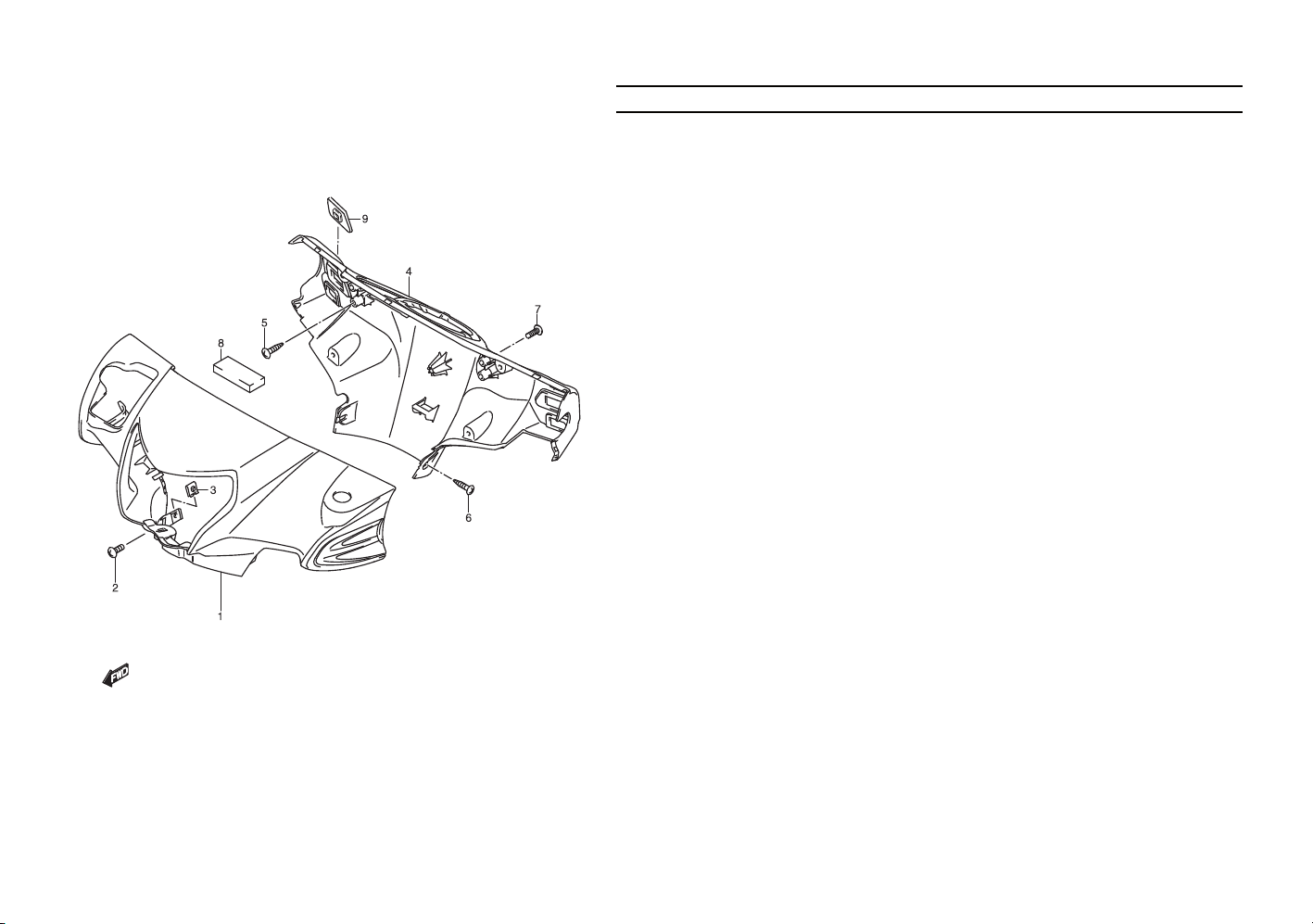

FIG.36 HANDLE COVER
FW110SDW L2_033
FRAME HEAD COVER
FIG.37 HANDLE LEVER
FW110SDW L2_037
HANDLE LEVER
FW110SDW L2 P9.
FW110SDW L2_034
FRONT FENDER

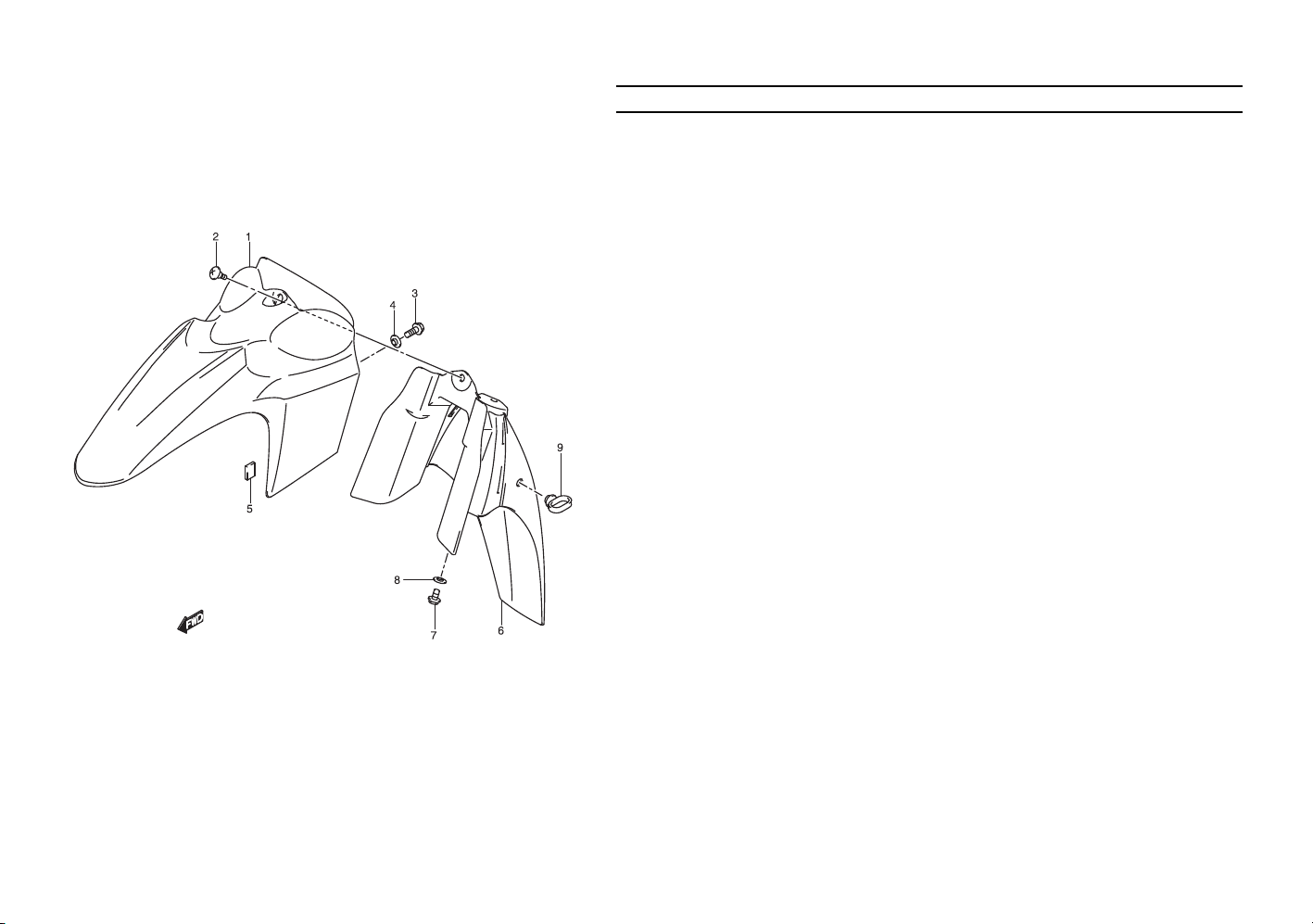

FIG.38 REAR FENDER
FW110SDW L2_038
REAR FENDER
FW110SDW L2_035
HANDLEBAR

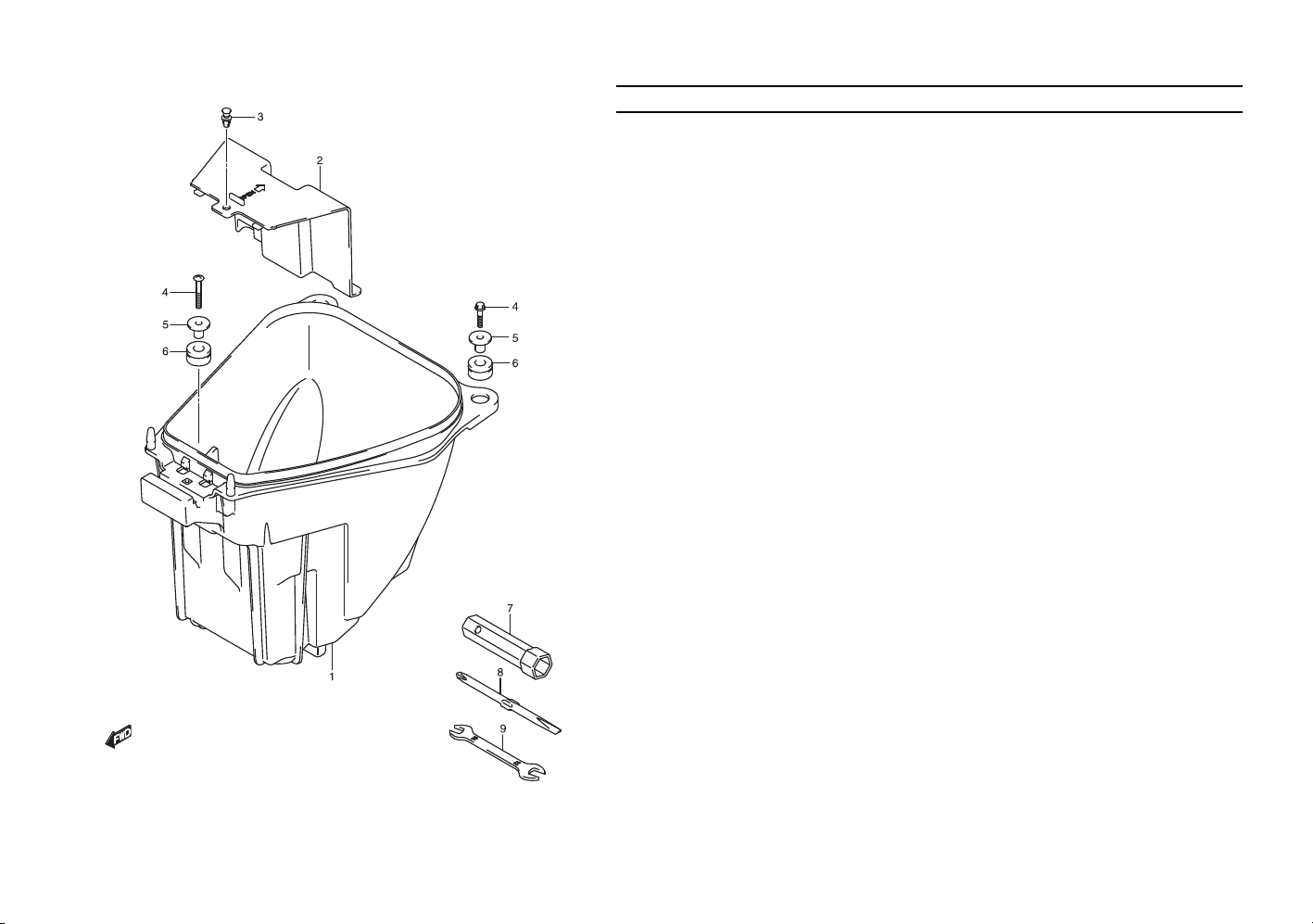

FIG.39 LUGGAGE BOX
FW110SDW L2_039
LUGGAGE BOX
- 5 -
FW110SDW L2_036
HANDLE COVER

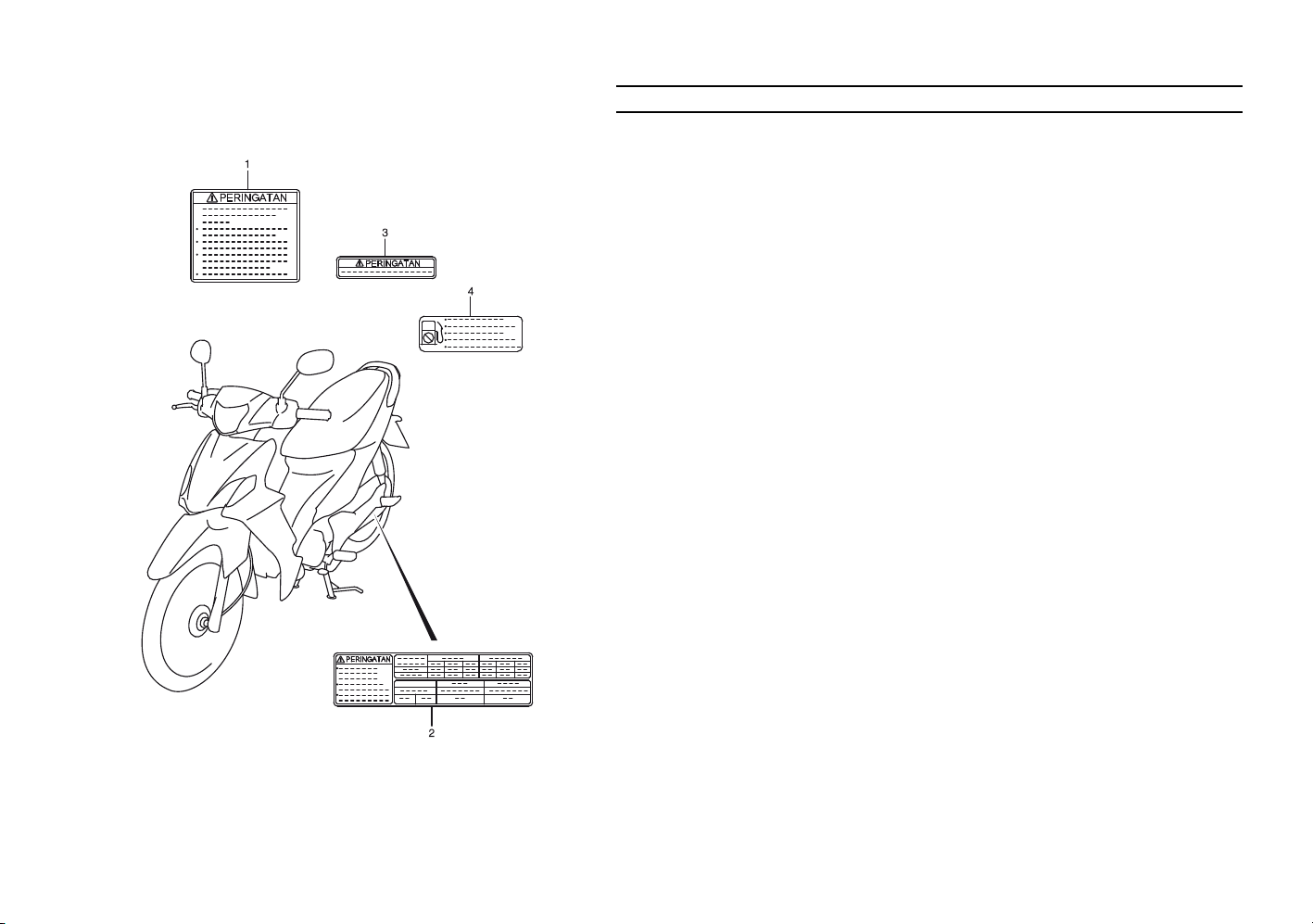

FIG.40 LABEL
FW110SDW L2_040
LABEL
Page 9

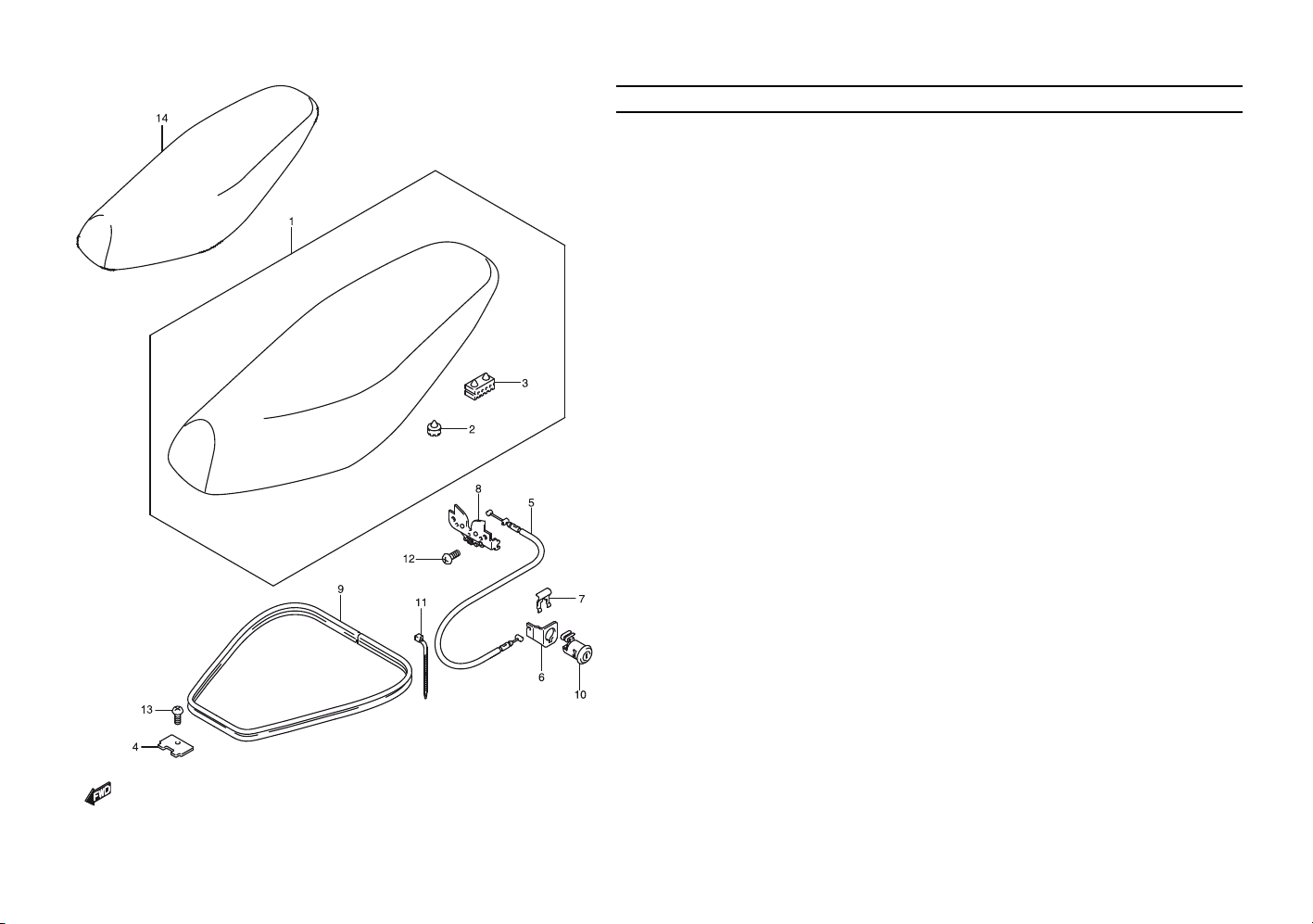

FIG.41 SEAT

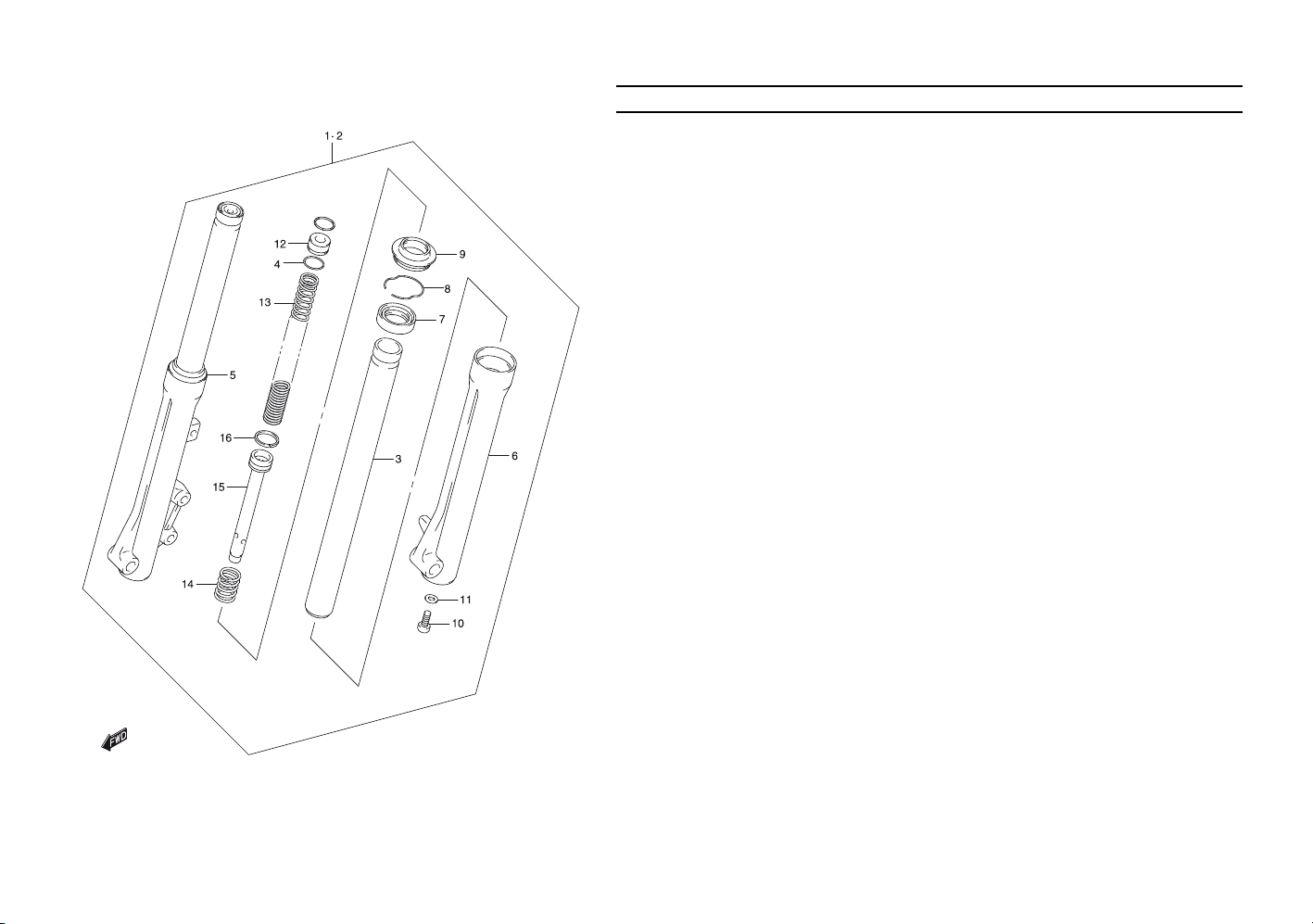

FIG.42 FRONT DAMPER

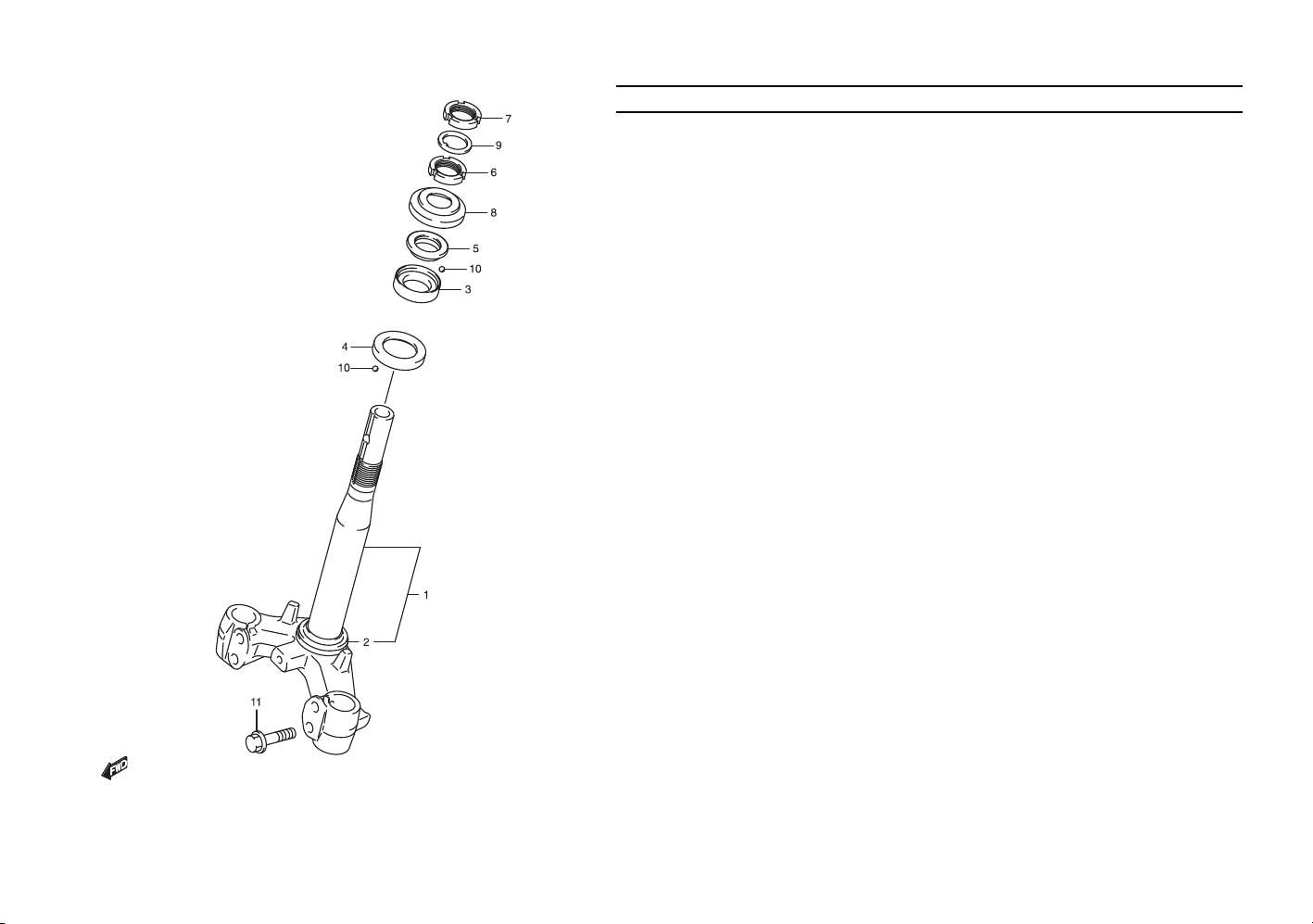

FIG.43 STEERING STEM

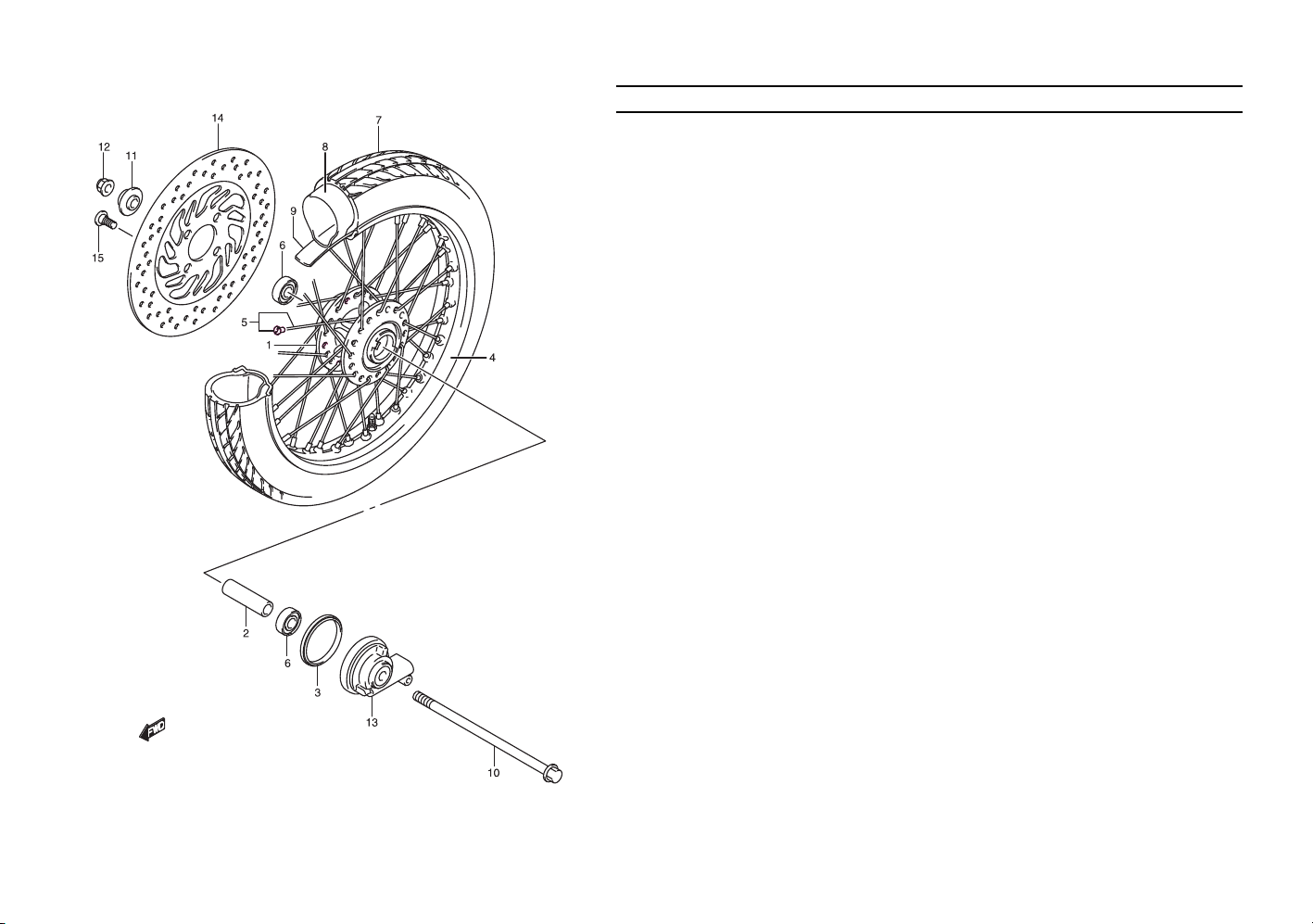

FIG.44 FRONT WHEEL
FW110SDW L2_041
SEAT
FIG.45 FRONT CALIPER
FW110SDW L2_045
FRONT CALIPER
FW110SDW L2 P9.
FW110SDW L2_042
FRONT DAMPER

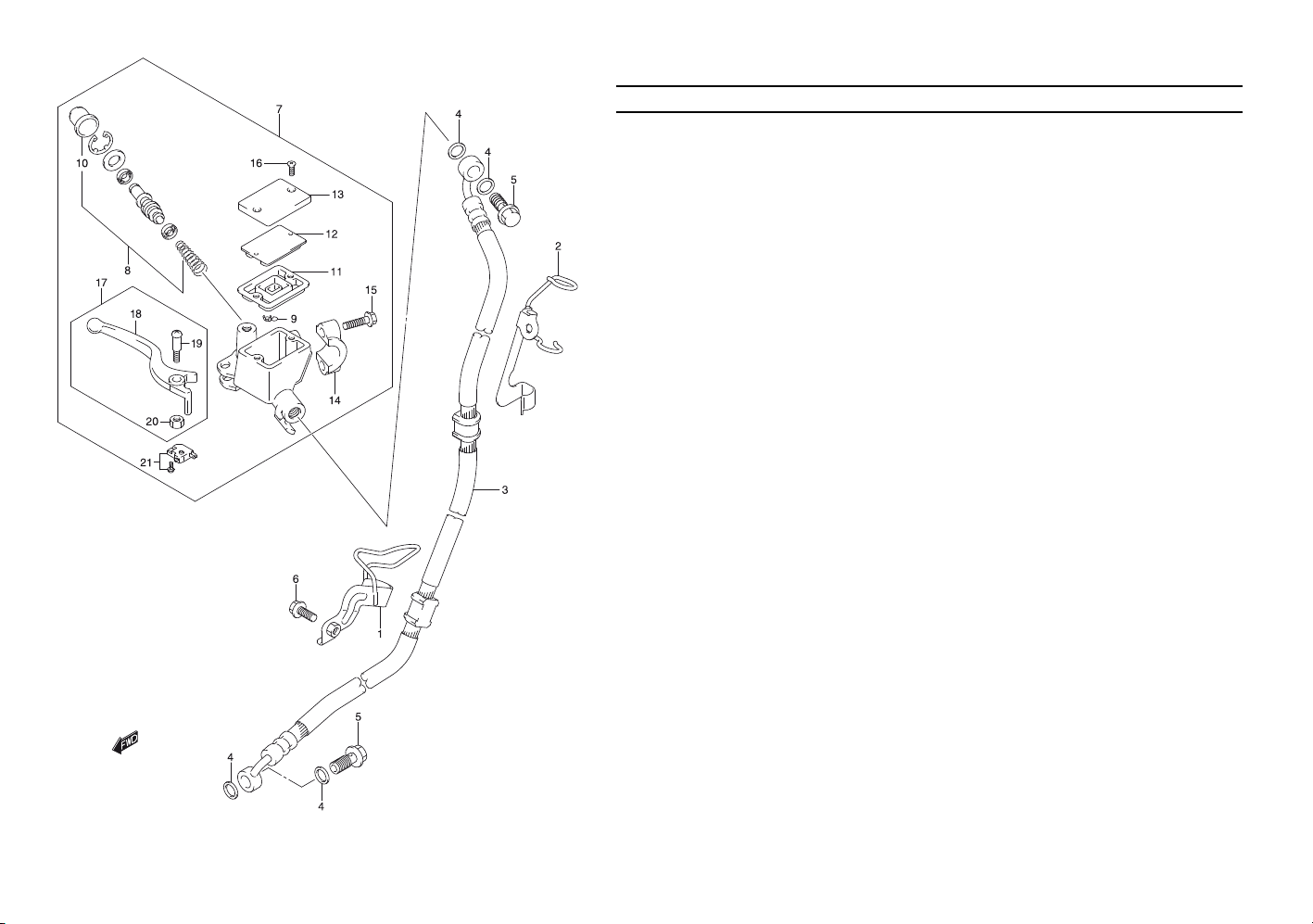

FIG.46 FRONT MASTER CYLINDER
FW110SDW L2_046
FRONT MASTER CYLINDER
FW110SDW L2_043
STEERING STEM

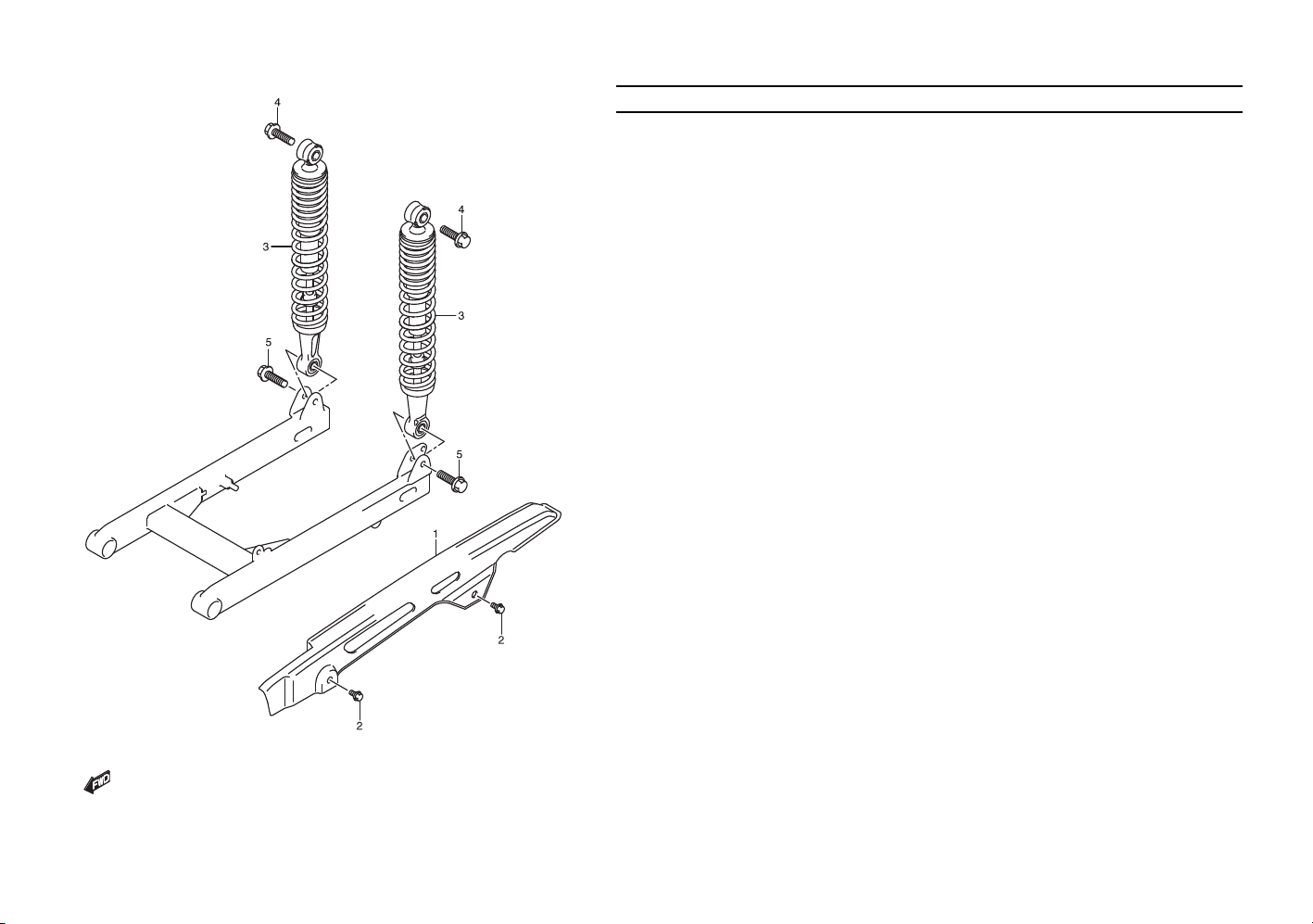

FIG.47 REAR SWINGING ARM
FW110SDW L2_047
REAR SWINGING ARM
- 6 -
FW110SDW L2_044
FRONT WHEEL
FIG.48 CHAINCASE
FW110SDW L2_048
CHAINCASE
Page 10

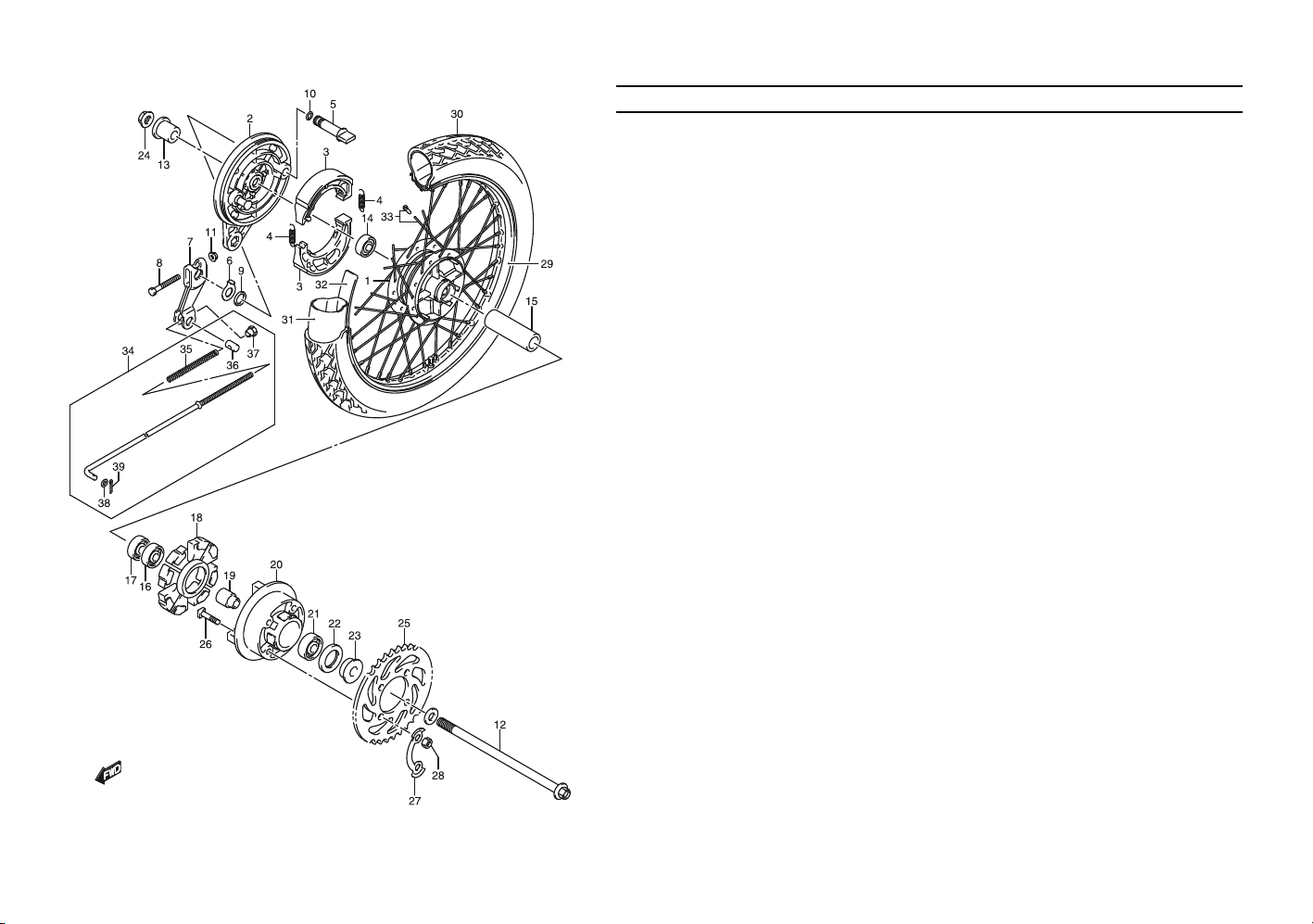

FIG.49 REAR WHEEL
FW110SDW L2_049
REAR WHEEL
FW110SDW L2 P9.
- 7 -
Page 11
FIG.1
FIG.1 CYLINDER HEAD
REF NO. PART NO. DESCRIPTION
1 11110B45H00N000 HEAD, CYLINDER 1
2 09381B10004N000 ･RING 2
3 11115B09G20N000 GUIDE, VALVE (OS: 0.3) 2
4 11141B45H00N000 GASKET, CYLINDER HEAD 1
5 04211B11129N000 PIN 2
6 09159-08137 NUT 4
7 09168B08021N000 GASKET 2
8 09160-08120 GASKET 2
9 09103-06501 BOLT, CYLINDER HEAD (6X100) 2
10 01547B0612AN000 PLUG 2
11 09168B06004N000 GASKET 2
12-1 09482-00710L000 SPARK PLUG (NGK, C6HSA) 1
12-2 09482-00810L000 SPARK PLUG (ND, U20FS-U) 1
13 11175B28G40N000 CAP, INSPECTION 2
14 09280B50007N000 O RING, INSPECTION CAP 2
(D: 2.4, ID: 33.6X84.6)
15 01547B0620BN000 BOLT 4
16 11121B23F01N000 COVER, CYLINDER HEAD LH 1
17 09280B84002N000 O RING (D: 2.4, ID: 84.6) 1
18 01547B0620BN000 BOLT 2
19 13110B45H20N000 PIPE, INTAKE 1
20 13129-20G00-000 INSULATOR, CARBURETOR 1
21 09280B24011N000 O RING 1
22 09280B26011N000 O RING 1
23 01421-0620A BOLT, CYLINDER HEAD STUD 1
24 01547B0625AN000 BOLT, INTAKE HEAD 1
25 01547B0625AN000 BOLT, INTAKE CARBURETOR 2
26 08310-0006A NUT, INTAKE PIPE 1
Q'TY
REMARKS
OPT
FW110SDW L2_001
CYLINDER HEAD
FW110SDW P9
Page 12
FIG.2
FIG.2 CYLINDER
REF NO. PART NO. DESCRIPTION
1 11210B45H00N0F0 CYLINDER 1
2 09108B08L01N000 STUD, BOLT (8X192) 4
3 11241B16H10N000 GASKET, CYLINDER 1
4 04211B11129N000 PIN 2
Q'TY
REMARKS
FW110SDW L2_002
CYLINDER
FW110SDW P9
Page 13
FIG.3
FIG.3 CRANKCASE
REF NO. PART NO. DESCRIPTION
1 11300B45H10N000 CRANKCASE ASSY 1
2 04211-13189 PIN 2
3 01547B0640AN000 BOLT 2
4 01547B0650AN000 BOLT 3
5 01547B0675AN000 BOLT 4
6 16910-23F00 UNION, BREATHER HOSE 1
7 09352-70113-600 HOSE, BREATHER 1
8 09401B10401N000 CLIP 2
9 09103-10110 BOLT (10X110) 2
10 08319B3110AN000 NUT 2
11-1 01547B0612AN000 PLUG, OIL GALLERY 1
11-2 01550B0612AN000 PLUG, OIL GALLERY 1
12 09168B06004N000 GASKET (6.2X11X1.2) 1
13 09247-10008 PLUG, OIL GALLERY 1
14 09168-10002 GASKET 1
15 01500B1020AN000 PLUG, DRAIN 1
16 09168-10002 GASKET 1
Q'TY
REMARKS
L: 600
—›340
FW110SDW L2_003
CRANKCASE
FW110SDW P9
Page 14
FIG.4
FIG.4 CRANKCASE COVER
REF NO. PART NO. DESCRIPTION
1 11341B09G30N000 COVER, CLUTCH 1
2 11482B09G30N000 GASKET, CLUTCH COVER 1
3 04211-13189 PIN 2
4 01547B0630AN000 SCREW 6
5 01547B0640AN000 SCREW 2
6 11971B09403N000 GAUGE, OIL LEVEL 1
7 09280-17003L000 O RING (D: 3.1, ID: 16.8) 1
8 01550B0812AN000 LUG, OIL CHECK 1
9 09168B08015N000 GASKET 1
10 11383B20G00N000 CAP, CLUTCH COVER 1
11 02142-0508A SCREW, CAP 2
12 11351B45H00N000 COVER, MAGNETO 1
13 11483B45H20N000 GASKET, MAGNETO COVER 1
14 04211B09149N000 PIN 2
15 01547B0680AN000 BOLT 2
16 01547B0630AN000 BOLT 2
17 01547B0640AN000 BOLT 1
18 01547B0650AN000 BOLT 3
19 09247-12102 PLUG, TOP (12X12) 1
20 09168B12002N000 GASKET (12.1X16.2X1.2) 1
21 11360B20G00N000 COVER, ENGINE SPROCKET 1
22 01547B0630AN000 SCREW 2
Q'TY
REMARKS
FW110SDW L2_004
CRANKCASE COVER
FW110SDW P9
Page 15
FIG.5
FIG.5 CRANKSHAFT
REF NO. PART NO. DESCRIPTION
1 12200B45H30N000 CRANKSHAFT ASSY 1
2 12161B46G00N000 ･ROD, CONNECTING 1
3 12211B20G00N0A0 ･PIN, CRANK 1
4 09263-28040-0B0 ･BEARING 1
5 09262B35L04N000 BEARING, LH 1
6 09262B25L02N000 BEARING, RH 1
7 16321-23F01-000 GEAR, OIL PUMP DRIVE 1
8 12111B45H00N0F0 PISTON (STD) 1
9 12140B45H10N0F0 RING SET, PISTON 1
12151B20G00N000 PIN, PISTON 1
10
11 09381B14001N000 CIRCLIP 2
12-1 09181-25051 SHIM (T: 0,60) 1
12-2 09181-25052 SHIM (T: 0,65) 1
12-3 09181-25160 SHIM (T: 0,70) 1
12-4 09181-25054 SHIM (T: 0,75) 1
12-5 SHIM (T: 0,80)09181-25162 1
12-6 09181-25056 SHIM (T: 0,85) 1
12-7 09181-25057 SHIM (T: 0,90) 1
12-8 09181-25058 SHIM (T: 0,95) 1
12-9 09181-25059 SHIM (T: 1,00) 1
12-10 09181-25060 SHIM (T: 1,05) 1
12-11 09181-25061 SHIM (T: 1,10) 1
12-12 09181-25062 SHIM (T: 1,15) 1
12-13 09181-25063 SHIM (T: 1,20) 1
12-14 09181-25179 SHIM (T: 1,25) 1
12-15 09181-25181 SHIM (T: 1,30) 1
Q'TY
REMARKS
FW110SDW L2_005
CRANKSHAFT
FW110SDW P9
Page 16
FIG.6
FIG.6 CRANKSHAFT
REF NO. PART NO. DESCRIPTION
1 12611B45H00N000 GEAR, STARTER IDLE 1
2 12612B45H00N000 SHAFT, STARTER IDLE GEAR 1
3 12620B45H00N000 GEAR, STARTER CLUTCH 1
4 12630B45H00N000 CLUTCH, STARTER ONE WAY 1
5 09160-13010-000 WASHER 1
6 02122B0616AN000 SCREW 2
7 07130B0612AN000 BOLT 3
8 08331-3113A CIRCLIP 1
Q'TY
REMARKS
FW110SDW L2_006
STARTER CLUTCH
FW110SDW P9
Page 17
FIG.7
FIG.7 CAMSHAFT/VALVE
REF NO. PART NO. DESCRIPTION
1 12710B45H10N000 CAM SHAFT COMP 1
2 09206B08008N000 PIN 1
3 09261-05005-000 PIN 1
4 12741B16H00N000 SPROCKET, CAM SHAFT 1
5 12954B09G20N000 STOPPER, DECOMP CAM 1
6 09106B05028N000 BOLT 2
7 12955B33G00N000 WASHER, DECOMP CAMSHAFT 1
8 12725B20G00N000 SPRING, DECOMP CAM 1
9 12951B20G01N000 CAM, DECOMPRESSION 1
10 09262B15041N000 BEARING 1
11 12840-28G50-000 ARM, VALVE ROCKER 2
12 12842-49201-000 ･SCREW, ADJUSTING 2
13 12843-27A00 ･NUT, ADJUSTING 2
14 12861B45H00N000 SHAFT, ROCKER ARM INTAKE 1
15 12871B45H00N000 SHAFT, ROCKER ARM EXHAUST 1
16 09164-10012-000 WASHER 2
17 12862B28G00N000 RETAINER 1
18 02122-0612A SCREW 1
19 12911B45H00N000 VALVE, INTAKE 1
20 12912B45H00N000 VALVE, EXHAUST 1
21 12921B28G50N000 SPRING, VALVE 2
22 12931B09G00N000 RETAINER, VALVE SPRING 2
23 12932-09G00-000 COTTER, VALVE 4
24 12933B09G00N000 SEAT, SPRING 2
25 09289B05008N000 OIL SEAL 2
Q'TY
REMARKS
FW110SDW L2_007
CAMSHAFT/VALVE
FW110SDW P9
Page 18
FIG.8
FIG.8 CAMCHAIN
REF NO. PART NO. DESCRIPTION
1 12760-20G01-000 CHAIN, CAM SHAFT DRIVE 1
2 12771B33GB0N000 GUIDE, CAM CHAIN 1
3 12811-28G10-000 TENSIONER, CAM CHAIN 1
4 09103B06247N000 BOLT, CAM CHAIN TENSIONER 1
(6X32)
5 09168B06004N000 GASKET 1
6 12830B09G00N000 ADJUSTER ASSY, TENSIONER 1
7 12837-09G10-000 GASKET, TENSIONER ADJUSTER 1
8 01547B0620AN000 BOLT (6X20) 2
Q'TY
REMARKS
FW110SDW L2_008
CAMCHAIN
FW110SDW P9
Page 19
FIG.9
FIG.9 CARBURETOR
REF NO. PART NO. DESCRIPTION
1 13200B45H20N000 CARBURETOR ASSY 1
2 13260B20G00N000 ･TOP CAP ASSY 1
3 13249B20G00N000 ･･GASKET 1
4 13573B20G00N000 ･SPRING 1
5 13551B20G00N000 ･PISTON VALVE 1
6 13382B23F00N000 ･WASHER 1
7 13481B45H20N000 ･SPRING, COMPRESSION 1
8 13389B20G00N000 ･HOLDER 1
9 13533B98410N000 ･E RING 1
10 13387B23F00N000 ･RING 1
11 13258B30A00N000 ･PACKING 1
12 13254B20010N000 ･PIN 1
13 13370B20G00N000 ･NEEDLE ASSY 1
14 02112B34123N000 ･SCREW 2
15 09492B15011N000 ･JET, PILOT (#15) 1
16 09491B95004N000 ･JET, MAIN (#95) 1
17 13385B09G20N000 ･PIPE 1
18 09494B45H20N000 ･JET, NEEDLE (E-3M) 1
19 13250B30D00N000 ･FLOAT ASSY 1
20 13247B09G10N000 ･SCREW, DRAIN 1
21 13418B43410N000 ･HOLDER, GUIDE 1
22 13417B01010N000 ･SPRING 1
23 13411B01010N000 ･PLUNGER ASSY 1
24 13267B09G20N000 ･ADJUSTER 1
25 13267B20G00N000 ･ADJUSTER 1
Q'TY
REMARKS
FW110SDW L2_009
CARBURETOR
FW110SDW P9
Page 20
FIG.9
FIG.9 CARBURETOR
REF NO. PART NO. DESCRIPTION
26 13268B35010N000 ･SPRING 1
27 13268B09G20N000 ･SPRING 1
28 13291B29900N000 ･WASHER 2
29 13295B29900N000 ･O RING 2
30 13601B04148N000 ･SCREW 4
31 13278B29C50N000 ･O RING 1
32 13480B09G10N000 ･DIAPHRAGM ASSY 1
33 13481B09G10N000 ･SPRING 1
34 13502B09G10N000 ･DIAPHRAGM COVER 1
35 13601B20G00N000 ･SCREW 2
36 13487B20G00N000 ･ROD 1
37 13387B47010N000 ･RING 1
38 13394B40D20N000 ･E RING 1
39 13387B20G00N000 ･RING 1
40 13481B20G00N000 ･SPRING 1
41 13331B20G00N000 ･RING 1
42 13683B34A10N000 ･HOSE 1
43 13684B09400N000 ･HOSE 1
44 13278B47090N000 ･O RING 1
45 13383B16H00N000 ･NEEDLE, JET 1
46 13827B09G00N000 CLAMP 1
Q'TY
REMARKS
FW110SDW L2_009
CARBURETOR
FW110SDW P9
Page 21
FIG.10
FIG.10 AIR CLEANER
REF NO. PART NO. DESCRIPTION
1 13700B20G81N000 CLEANER ASSY, AIR 1
2 13740B20G60N000 ･CAP, AIR CLEANER 1
3 13746B09G00N000 ･･GASKET, AIR CLEANER CAP 1
4 13756B09G00N000 ･GASKET 1
5 13780B09G60N000 ･FILTER, AIR CLEANER 1
6 13871B09G00N000 ･PLUG, DRAIN 1
7 13824B18910N000 ･CLIP 1
8 13826B16H00N000 ･CLAMP 1
9 03541B0520AN000 ･SCREW 4
10 13881B16H10N000 ･TUBE, OUTLET 1
11 09136B06017N000 SCREW, AIR CLEANER (6X16) 2
Q'TY
REMARKS
FW110SDW L2_010
AIR CLEANER
FW110SDW P9
Page 22
FIG.11
FIG.11 MUFFLER
REF NO. PART NO. DESCRIPTION
1 14181B09D00N000 GASKET, EXHAUST PIPE 1
2 09108-08280-000 BOLT, STUD 2
3 08316B1008AN000 NUT 2
4 14310B45H20N000 BODY COMP MUFFLER 1
5 14186B45H20N000 COVER, EXHAUST PIPE 1
6 09139-06091 SCREW 2
9
10
7 09168B06L02N000 GASKET, EXHAUST PIPE COVER 2
8 08316B1008AN000 NUT 1
9 09180B08L01N000 SPACER, MUFFLER SPRT 2
10 09160B08149N000 WASHER 2
11 09320B12L01N000 CUSHION 2
8
12 01550-0840A BOLT 2
13 14150B45H20N000 PIPE COMP, EXHAUST 1
14 14181B25G00N000 GASKET, MUFFLER JOINT 1
15 01550B0620BN000 BOLT, MUFFLER JOINT 3
13
Q'TY
REMARKS
FW110SDW L2_011
MUFFLER
15
6
FW110SDW P9
Page 23
FIG.12

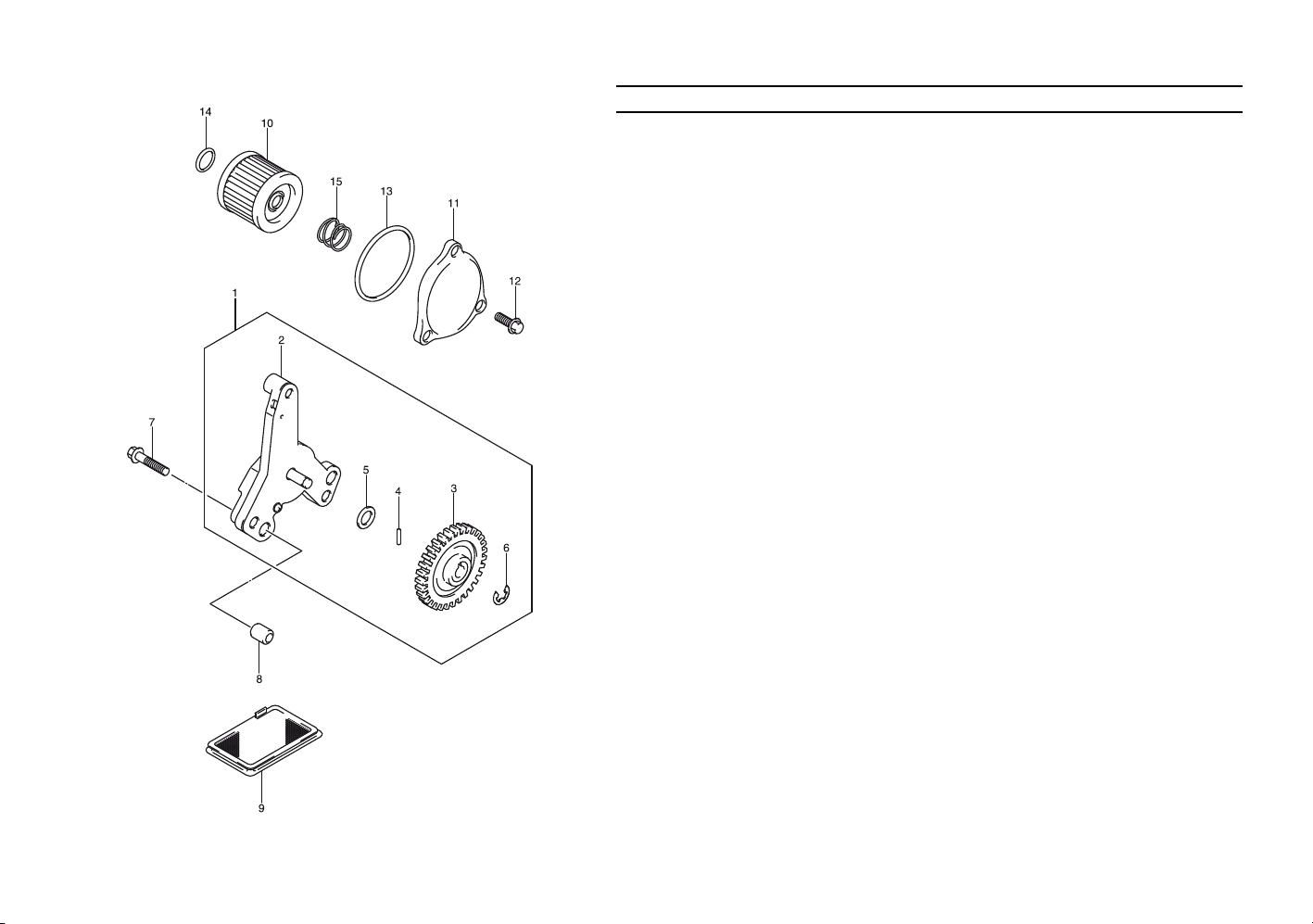

FIG.12 OIL PUMP
REF NO. PART NO. DESCRIPTION
1 16000B09G20N000 PUMP SET, ENGINE OIL 1
2 16400B09G20N000 ･PUMP ASSY, ENGINE OIL 1
3 16331B09G00N000 ･GEAR, OIL PUMP DRIVEN (NT: 31) 1
4 09261B02008N000 ･PIN 1
5 09181B08139N000 ･WASHER (8X14X1) 1
6 08332-1106B ･E RING 1
7 01547B0630AN000 BOLT 3
8 04211-09129 PIN 2
9 16520-30A00 STRAINER, ENGINE OIL 1
10 16510B45H10N000 FILTER, ENGINE OIL 1
11 16512B09G00N000 CAP, OIL FILTER 1
12 01547B0616AN000 BOLT 3
13 09280B54001N000 O RING, OIL FILTER CAP 1
(D: 2.4, ID: 12.6)
14 09280B13010N000 O RING, OIL FILTER 1
(D: 1.9, ID: 12.6)
15 09440B18002N000 SPRING 1
Q'TY
REMARKS
FW110SDW L2_012
OIL PUMP
FW110SDW P9
Page 24
FIG.13
FIG.13 2ND AIR
REF NO. PART NO. DESCRIPTION
1 18410B45H10N000 PIPE, 2ND AIR 1
2 01421B0616AN000 BOLT 2
3 08316B1006AN000 NUT 2
4 18441B16H10N000 GASKET 1
5 18450B45H30N000 VALVE ASSY, 2ND AIR 1
6 01547B0620AN000 BOLT 2
7 18461B45H00N000 HOSE, 2ND AIR VALVE NO.1 1
8 18610B45H00N000 BRACKET 1
9 01550B0612AN000 BOLT 2
10 18711B16H00N000 HOSE, AIR CLEANER 1
11 18762B16H00N000 HOSE, VACUUM 1
12 09401B13409N000 CLIP 1
13 09401B15101N000 CLIP 1
14 09401-17402 CLIP 1
15 09401B18406N000 CLIP 1
Q'TY
REMARKS
FW110SDW L2_013
2ND AIR
FW110SDW P9
Page 25
FIG.14
FIG.14 CLUTCH
REF NO. PART NO. DESCRIPTION
1 21102B23F60N000 HOUSING, CLUTCH 1ST 1
2 21111B20G00N000 GEAR, PRIMARY DRIVE 1
3 21114B23F00N000 RING, PRIMARY DRIVE GEAR 1
4 21119B23F30N000 SPACER, PRIMARY DRIVE 1
5 21631B21D02N000 RACE, ONE WAY CLUTCH INR 1
6 21652B23F00N000 RETAINER, ONE WAY CLUTCH 2
7 09181-18002 WASHER, PRI DRIVE GEAR 2
8 09261B07006N000 ROLLER, ONE WAY CLUTCH 3
9 09440B02002N000 SPRING, ONE WAY CLUTCH 3
10 21200B45H10N000 GEAR ASSY, PRIMARY DRIVEN 1
11 21251B23F20N000 SPACER, PRIMARY DRIVEN GEAR 1
12 21411B09G30N000 HUB, CLUTCH SLEEVE 1
13 21441B16H00N000 PLATE, CLUTCH DRIVE NO.1 2
14 21441B28G00N000 PLATE, CLUTCH DRIVE NO.2 2
15 21451B21D40N000 PLATE, CLUTCH DRIVEN 3
16 21461B09G00N000 DISC, CLUTCH PRESSURE 1
17 21465B45H00N000 PLATE, RELEASE 1
18 09440B18035N000 SPRING, CLUTCH 4
19 21482B09G00N000 BOLT, CLUTCH SPRING 4
20 09140-14022-000 NUT, CLUTCH SLEEVE HUB 1
Q'TY
REMARKS
FW110SDW L2_014
CLUTCH
FW110SDW P9
Page 26
FIG.14
FIG.14 CLUTCH
REF NO. PART NO. DESCRIPTION
21 09160-14046-XC0 WASHER, CLUTCH SLEEVE HUB 1
22 09164-14011 WASHER, CLUTCH SLEEVE WAVE 1
23 09181-17018 WASHER, PRI DRIVEN GEAR THRUST 2
24 21501B23F50N000 CLUTCH ASSY, SHOE 1
25 09140-14022 NUT, SHOE CLUTCH 1
26 09160-14046-XC0 WASHER, SHOE CLUTCH 1
27 09164-14011 WASHER, SHOE CLUTCH WAVE 1
28 23121B09G01N000 PIECE, CLUTCH PUSH 1
29 23220B23F20N000 ARM, CLUTCH RELEASE 1
30 09208B07005N000 ･PIN, CLUTCH RELEASE ARM 1
31 08332-1105A ･E RING, CLUTCH RELEASE 1
32 23234B23F10N000 SPACER, RELEASE ARM 1
33 09140B12051N000 NUT, CLUTCH RELEASE ADJUST 1
34 09160B10154N000 WASHER, RELEASE ARM SPRING 1
35 09262B15032N000 BEARING, PUSH PIECE THRUST 1
36 09280B12004N000 O RING, RELEASE ADJUST 1
(D: 1.9, ID: 11.8)
37 09440B19025N000 SPRING, CLUTCH RELEASE 1
Q'TY
REMARKS
FW110SDW L2_014
CLUTCH
FW110SDW P9
Page 27
FIG.15
FIG.15 TRANSMISSION
REF NO. PART NO. DESCRIPTION
1 24120B23F40N000 SHAFT, COUNTER 1
2 24221B45H00N000 GEAR, 2ND DRIVE 1
3 24231B45H00N000 GEAR, 3RD DRIVE 1
4 24241B45H01N000 GEAR, 4TH DRIVE 1
5 09160B13006N000 WASHER, 2ND DRIVE GEAR 1
6 09263-13003-000 BEARING, COUNTER SHAFT RH 1
(13X19X14)
7 09380B17007N000 CIRCLIP, 3RD DRIVE GEAR 1
8 08110B62030N000 BEARING, COUNTER SHAFT LH 1
9 24130B45H00N000 SHAFT, DRIVE 1
10 24311B45H00N000 GEAR, 1ST DRIVEN 1
11 24331B45H00N000 GEAR, 3RD DRIVEN 1
12 24341B45H01N000 GEAR, 4THDRIVEN 1
13 09160B13006N000 WASHER, 1ST DRIVEN GEAR 1
14 08110B62030N000 BEARING, DRIVE SHAFT LH 1
15 09263-13003-000 BEARING, DRIVE SHAFT RH 1
(13X19X14)
16 09283B17031N000 SEAL, DRIVE SHAFT OIL 1
17 09380B17007N000 CIRCLIP, 4TH DRIVEN GEAR 1
18 24741-20A10 RETAINER, CNTR SHAFT BEARING 1
19 02142B0612AN000 SCREW, RETAINER 1
20 27511B09G00N000 SPROCKET, ENGINE (14T) 1
21 27512B09G00N000 PLATE, ENGINE SPROCKET 1
22 27600B20960N102 CHAIN ASSY, DRIVE (102L) 1
23 01500B0610AN000 BOLT, ENGINE SPROCKET PLATE 2
24 25361B23F10N000 PLATE, ROTARY STOP 1
25 09164B25002N000 WASHER, ROTARY STOP WAVE 1
26 08331-3125A CIRCLIP, ROTARY STOP PLATE 1
Q'TY
REMARKS
FW110SDW L2_015
TRANSMISSION
FW110SDW P9
Page 28
FIG.16
FIG.16 GEAR SHIFTING
REF NO. PART NO. DESCRIPTION
1 25211B23F20N000 FORK, GEAR SHIFT NO.1 1
2 25221B23F20N000 FORK, GEAR SHIFT NO.2 1
3 25411-13A10-000 SHAFT, SHIFT FORK NO.1 1
4 25421-35420-000 SHAFT, SHIFT FORK NO.2 1
5 25310B23F50N000 CAM, GEAR SHIFT 1
6 04221-04089 ･PIN 1
7 25341-09G02-000 RETAINER, SHIFT CAM 1
8 25381-30A50-000 PLATE, SHIFT CAM STOPPER 1
9 25382B30A80N000 PLATE, SHIFT CAM NO.2 1
10 25382-35411-000 GUIDE, GR SHF CAM 1
11 09261-04002-000 PIN, SHIFT CAM (4X13.8) 5
12 01500-0625A BOLT, SHIFT CAM PIN 1
13 25342B09G00N000 SCREW, SHIFT CAM RETAINER 1
14 09160B06012N000 STOPPER, SHIFT CAM PIN 1
15 25350-23F10-000 STOPPER, SHIFT CAM 1
16 25355B36H20N000 SPRING SHIFT CAM 1
17 09111-06041 BOLT, SHIFT CAM (6X14.3) 1
18 08211-06121 WASHER, SHIFT CAM 1
19 25520-09G30-000 ARM, GEAR SHIFT 1
20 09443-05019-000 SPRING, SHIFT PAWL 1
Q'TY
REMARKS
FW110SDW L2_016
GEAR SHIFTING
FW110SDW P9
Page 29
FIG.16
FIG.16 GEAR SHIFTING
REF NO. PART NO. DESCRIPTION
21 09444B26033N000 SPRING, SHIFT ARM RETURN 1
22 23230-20G00-000 GUIDE, RLSE BALL OUTER 1
23 23250B20G00N000 BALL, CLUTCH RELEASE 1
24 25510B20G30N000 SHAFT, GEAR SHIFT 1
25 09262-12001L000 BEARING, GEAR SHIFT 1
(12X28X8)
26 25671-20G00-000 STOPPER, SHIFT ARM 1
27 09180-12152-000 SPACER, SHIFT ARM (12X16X20) 1
28 09285B12006N000 SEAL, SHIFT SHAFT OIL 1
(12X22X9.0)
29 25516-07H00-000 SPACER 1
30 25610B09G20N000 LEVER ASSY, GEAR SHIFT 1
31 01500-0620A BOLT, SHIFT LEVER 1
32 37720B20G00N000 BASE ASSY, GEAR SHIFT 1
33 09209B05011N000 CONTACT, GEAR POSITION 1
34 09280-21008L000 O RING, GEAR SHIFT 1
(D: 2.5, ID: 21.0)
35 09440B04010N000 SPRING, GEAR SHIFT 1
36 09138B05018N000 SCREW, GEAR SHIFT (5X16) 2
Q'TY
REMARKS
FW110SDW L2_016
GEAR SHIFTING
FW110SDW P9
Page 30
FIG.17

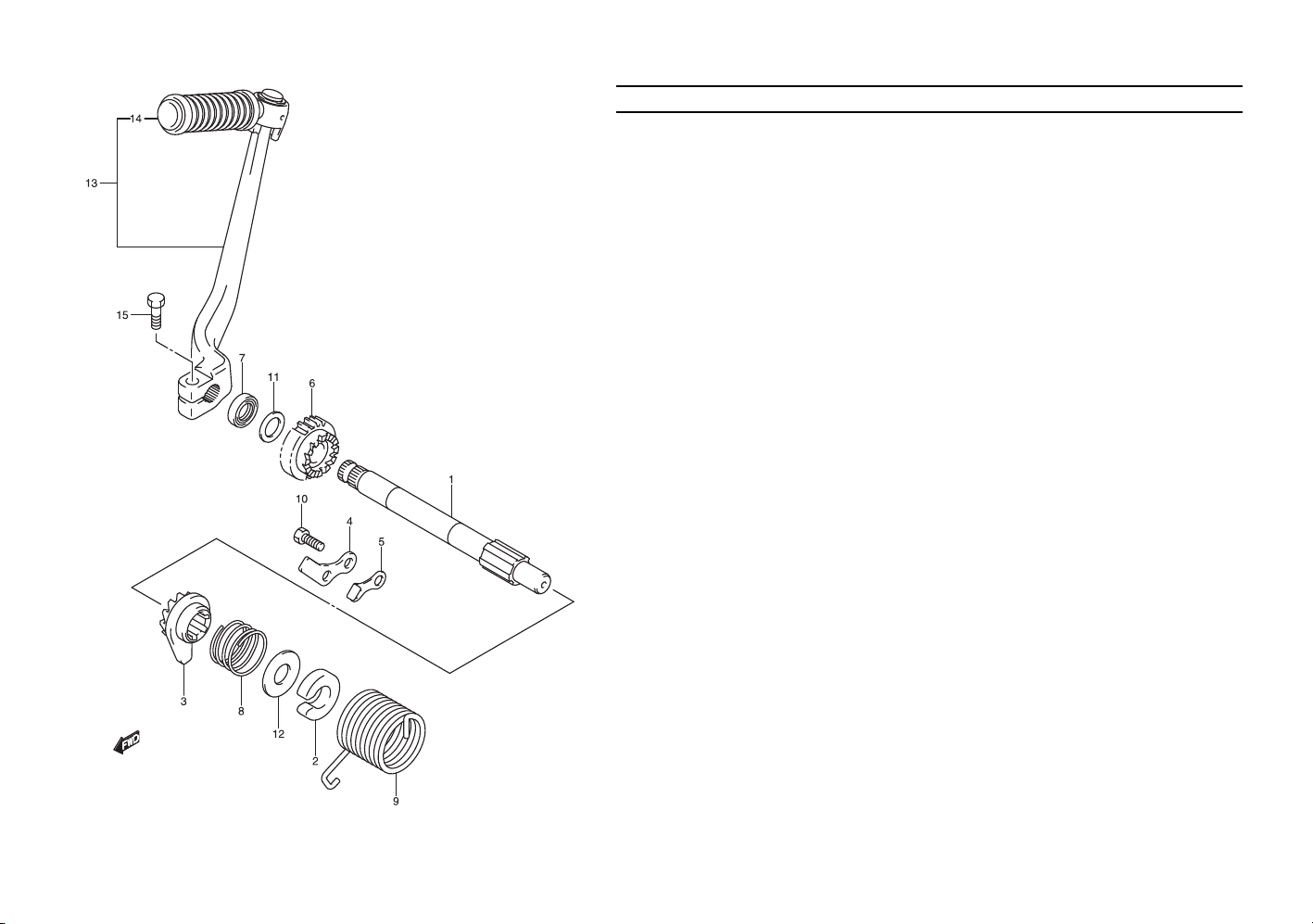

FIG.17 KICK STARTER
REF NO. PART NO. DESCRIPTION
1 26211B45H00N000 SHAFT, KICK STARTER 1
2 26221B45H00N000 GUIDE, KICK STARTER SPR 1
3 26231B09G00N000 STARTER, KICK 1
4 26232B09410N000 GUIDE, KICK STARTER 1
5 26233B09400N000 STOPPER, KICK STARTER 1
6 26241B45H10N000 GEAR, KICK STARTER DRIVE 1
7 09283B14013N000 SEAL, KICK STARTER (14X24X6.0) 1
8 09440B30007N000 SPRING, KICK STARTER 1
9 09448B38004N000 SPRING, KICK SHAFT RETURN 1
10 01500B0616AN000 BOLT, KICK STARTER STOPPER 2
11 09181-15139 WASHER, KICK DRIVE GEAR 1
12 08211-15321 PLATE, KICK STARTER SPRING 1
13 26300B45H10N000 LEVER ASSY, KICK STARTER 1
14 26352B16H10N000 ･RUBBER, KICK PEDAL 1
15 01500B0825AN000 BOLT, LEVER 1
Q'TY
REMARKS
FW110SDW L2_017
KICK STARTER
FW110SDW P9
Page 31
FIG.18
FIG.18 STARTING MOTOR
REF NO. PART NO. DESCRIPTION
1 31100B45H00N000 MOTOR ASSY, STARTING 1
2 31130B30D10N000 ･FRONT BRACKET ASSY 1
3 31135-05B00L000 ･SPRING, BRUSH 2
4 31156B05B00N000 ･O RING 1
5 31157-02540 ･PACKING 1
6 02112-3406A ･SCREW 1
7 02112-3406A ･SCREW 2
8 31131-21D00L000 ･BRUSH SET 1
6
8
Q'TY
REMARKS
FW110SDW L2_018
STARTING MOTOR
FW110SDW P9
Page 32
FIG.19
FIG.19 MAGNETO
REF NO. PART NO. DESCRIPTION
1 32101B07H20N000 STATOR ASSY 1
2 32102B45H00N000 ROTOR ASSY 1
3 32371B30D10N000 CLAMP, MAGNETO LEAD 1
4 02142B0510BN000 SCREW, SENSOR 2
5 02112B0620BN000 SCREW, MAGNETO STATOR 2
6 02142-0610B SCREW, MAGNETO LEAD 1
7 08316B1012BN000 NUT 1
8 08341B31039N000 KEY 1
Q'TY
REMARKS
FW110SDW L2_019
MAGNETO
FW110SDW P9
Page 33
FIG.20
FIG.20 BATTERY
REF NO. PART NO. DESCRIPTION
1 33610-35440-000 BATTERY ASSY (12V5AH) 1
2 33652-35400-000 PROTECTOR, BATTERY 1
3 33652-38000L000 PROTECTOR, BATTERY A 3
4 33680B36200N000 HOSE, BATTERY EXHAUST 1
5 33860B30D10N000 WIRE, BATTERY MINUS LEAD 1
Q'TY
REMARKS
FW110SDW L2_020
BATTERY
FW110SDW P9
Page 34
FIG.21
FIG.21 ELECTRICAL
REF NO. PART NO. DESCRIPTION
1 31800B16H00N000 RELAY ASSY, STARTING MOTOR 1
2 32800B45H00N000 RECTIFIER ASSY 1
3 02112-0612A SCREW, RECTIFIER 1
4 33410B45H10N000 COIL ASSY, IGNITION 1
5 09404B06429N000 CLAMP (L: 45) 1
6 02112-0616A SCREW, IGNITION COIL 2
7 33510B07H00N000 CAP, SPARK PLUG 1
8 33541-07H00-000 SEAL, SPARK PLUG 1
9 33542-07H00-000 SEAL, HIGH TENSION CORD 1
10 32900B45H10N000 CDI UNIT 1
11 32980B45H00N000 CUSHION, CDI UNIT 1
Q'TY
REMARKS
FW110SDW L2_021
ELECTRICAL
FW110SDW P9
Page 35
FIG.22

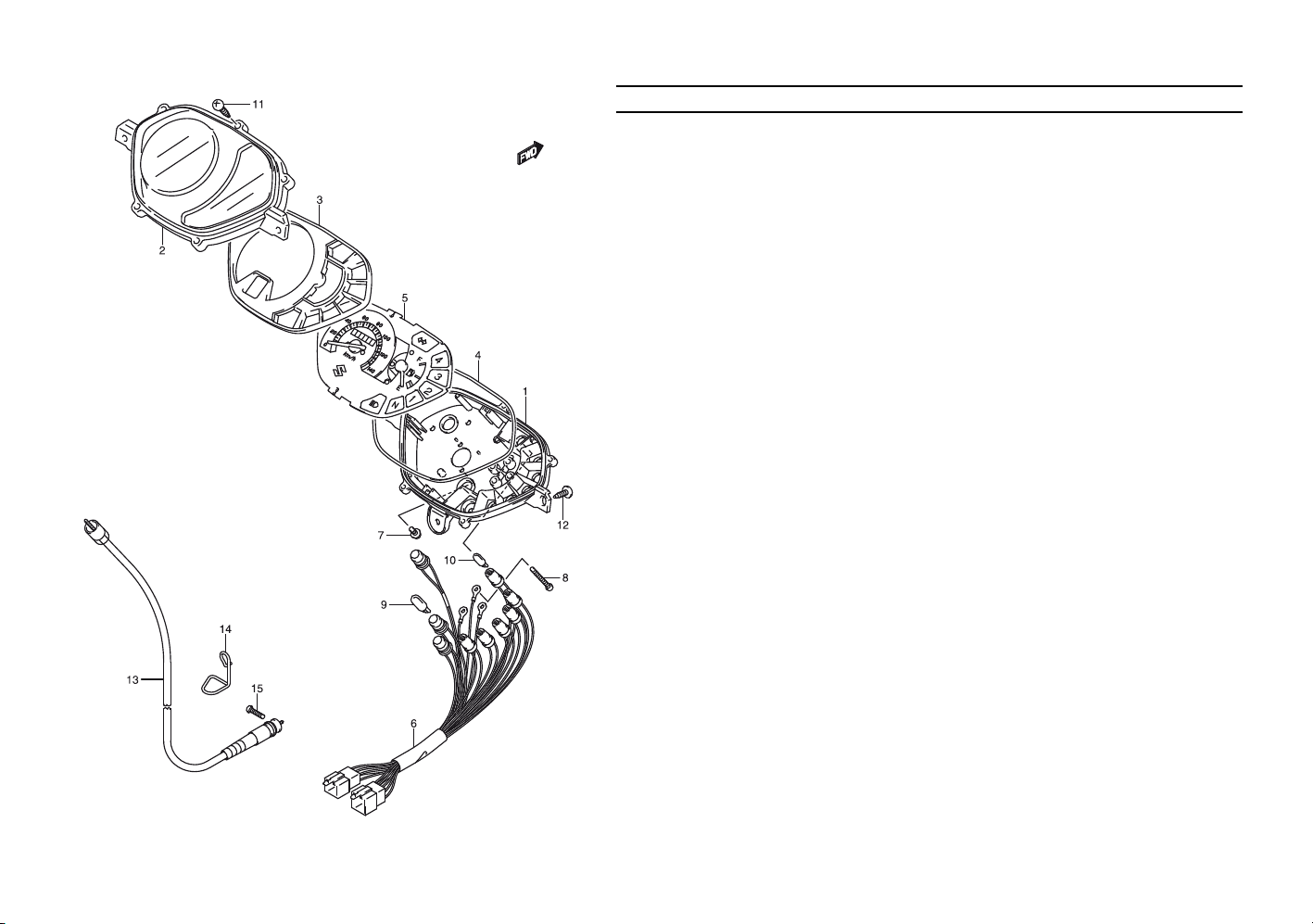

FIG.22 SPEEDOMETER
REF NO. PART NO. DESCRIPTION
1 34111B45H00N000 CASE ASSY, LOWER 1
2 34112B45H00N000 CASE ASSY, UPPER 1
3 34113B45H00N000 PLATE 1
4 34114B45H00N000 CUSHION 1
5 34120B45H10N000 SPEEDOMETER 1
6 34173B45H00N000 SOCKET, BULB 1
7 34186B09G00N000 SCREW (4X8) 2
8 34383B09G00N000 SCREW (3X20) 3
9 09471B12077N000 BULB (12V1.7W, T10) 3
10 09471B12108N000 BULB (12V1.7W, T6.5) 6
11 34149B45H00N000 SCREW, METER 5
12 03541B0516AN000 SCREW, SPEEDOMETER 3
13 34910B45H20N000 CABLE ASSY, SPEEDOMETER 1
14 34931B20G00N000 GUIDE, SPEEDOMETER CABLE 1
15 02112B0516AN000 SCREW, SPEEDOMETER CABLE 1
Q'TY
REMARKS
FW110SD/
FW110SCD
FW110SDW L2_022
SPEEDOMETER
FW110SDW P9
Page 36
FIG.23
FIG.23 FRONT COMBINATION LAMP
REF NO. PART NO. DESCRIPTION
1 35100B45H10N000 HEADLAMP ASSY 1
2 35121B45H10N000 ･HEADLAMP UNIT 1
3 35171B31G20N000 ･CORD ASSY 1
4 51874B45G00N000 ･CUSHION 2
5 09471B12028N000 ･BULB (12V, 3.4W, T10) 1
6 09471B12213N000 BULB (12V, 32/32W) 1
7 09136-05065 SCREW, HEADLAMP (5X10) 1
Q'TY
REMARKS
FW110SDW L2_023
FRONT COMBINATION LAMP
FW110SDW P9
Page 37
FIG.24

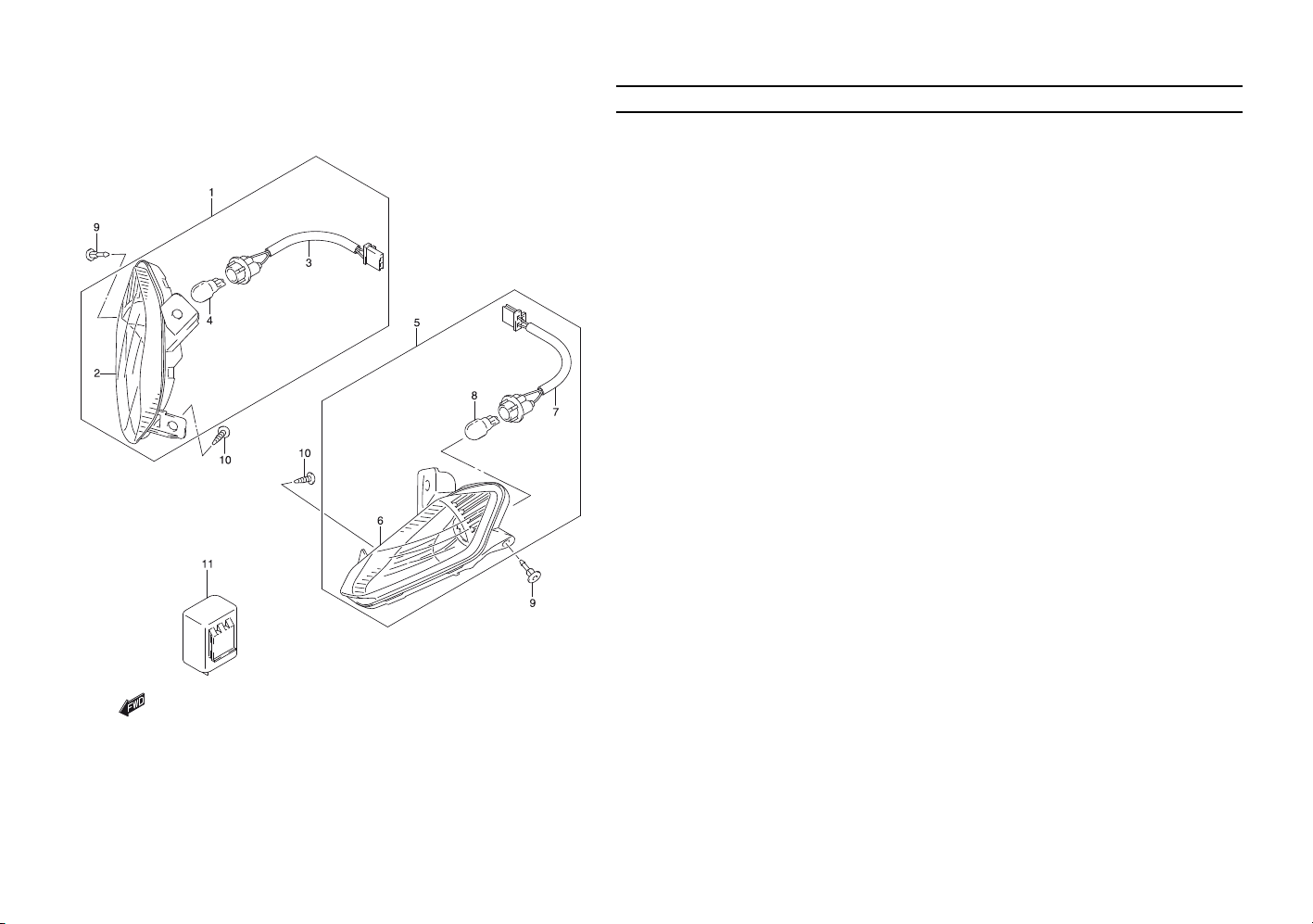

FIG.24 FRONT TURNSIGNAL LAMP
REF NO. PART NO. DESCRIPTION
1 35601B45H20N000 LAMP ASSY, FR TURNSIGNAL RH 1
2 35612B45H20N000 ･LENS FR TURN SIGNAL RH 1
3 35618B41HB0N000 ･CORD ASSY 1
4 09471-12114AS01 ･BULB (12V, 10W) 1
5 35602B45H20N000 LAMP ASSY, FR TURNSIGNAL LH 1
6 35632B45H20N000 ･LENS FR TURN SIGNAL LH 1
7 35638B41HB0N000 ･CORD ASSY 1
8 09471-12114AS01 ･BULB (12V, 10W) 1
9 09409-06314-5PK CLIP (BLACK) 2
10 03541B0512AN000 SCREW, FR TURNSIGNAL 4
11 38610B35491N000 RELAY ASSY, TURNSIGNAL 1
Q'TY
REMARKS
FW110SDW L2_024
FRONT TURNSIGNAL LAMP
FW110SDW P9
Page 38
FIG.25

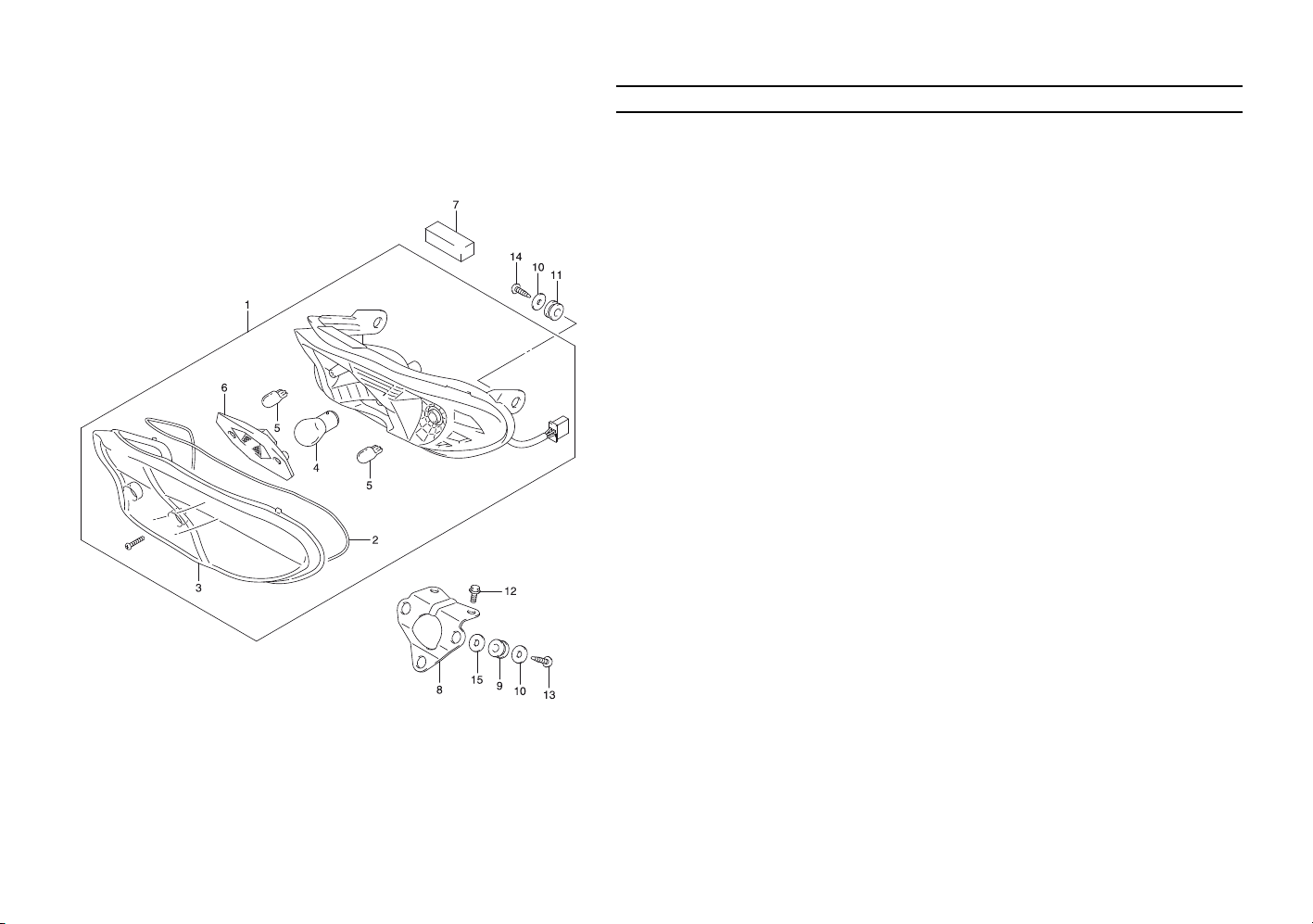

FIG.25 REAR COMBINATION LAMP
REF NO. PART NO. DESCRIPTION
1 35710B45H20N000 LAMP ASSY, REAR COMB 1
2 35711B45H20N000 ･GASKET 1
3 35713B45H20N000 ･LENS 1
4 09471B12119N000 ･BULB (12V, 18/5W) 1
5 09471B12203N000 ･BULB (12V, 10W) 2
6 35912B45H20N000 ･LENS INNER (RED) 1
7 35713B45H00N000 CUSHION, REAR COMB 1
8 35726B45H00N000 BRACKET, REAR COMB LAMP 1
9 35781B45H00N000 CUSHION, REAR COMB LAMP 3
10 09160B05045N000 WASHER, REAR COMB LAMP 5
11 09320-09016L000 CUSHION, REAR COMB LAMP 2
12 01550B0612AN000 BOLT, REAR COMB BRACKET 2
13 03541B0516AN000 SCREW, REAR COMB LAMP 3
14 03541B0516AN000 SCREW, REAR COMP LAMP 2
15 08322-0110A WASHER 3
Q'TY
REMARKS
FW110SDW L2_025
REAR COMBINATION LAMP
FW110SDW P9
Page 39
FIG.26

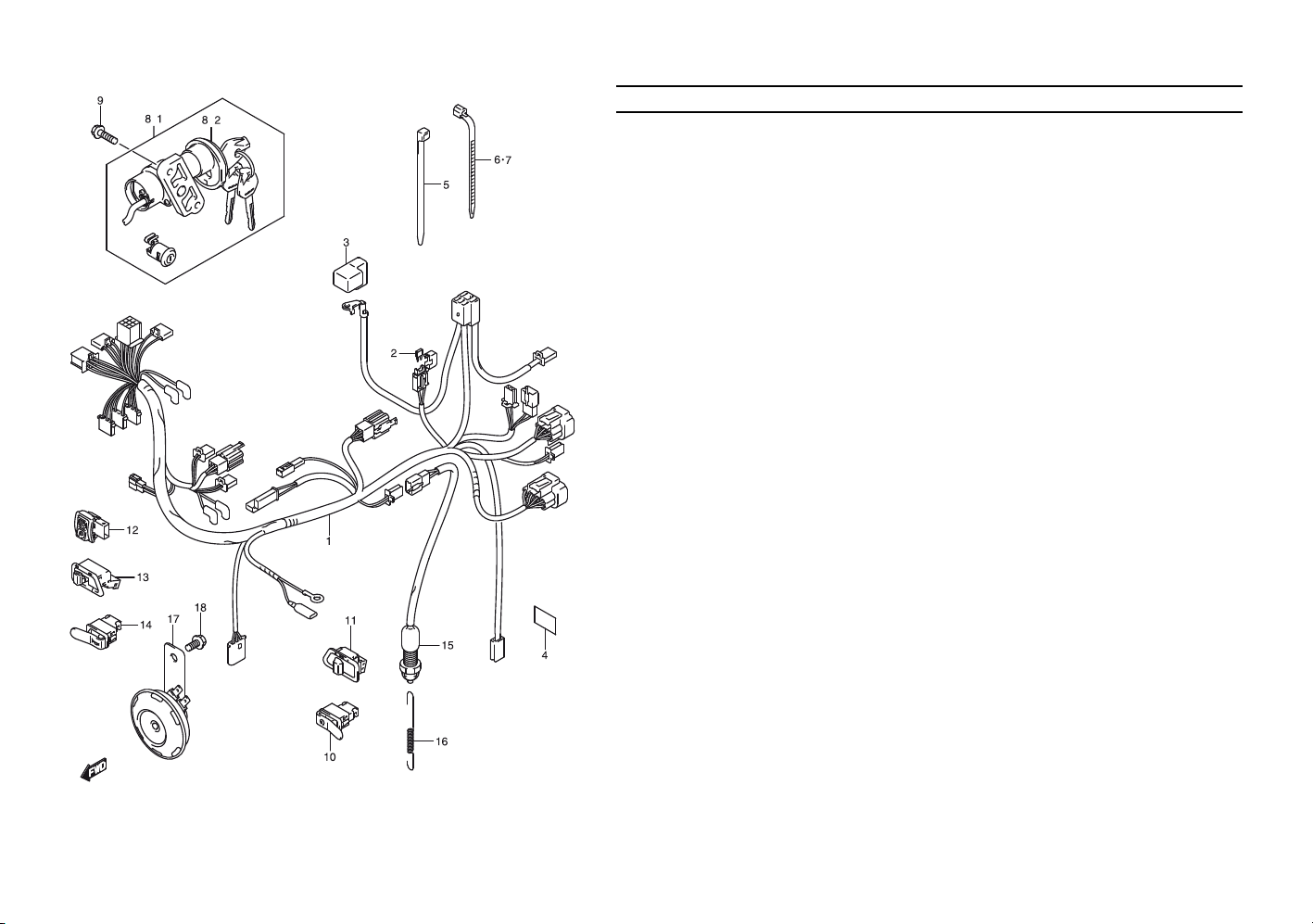

FIG.26 WIRING HARNESS
-
-
REF NO. PART NO. DESCRIPTION
1 36610B45H40N000 HARNESS, WIRING 1
2 09481-10501 ･FUSE (10A) 2
3 33624-31C10 ･CAP, BATTERY PLUS 1
4 36652B07H00N000 CUSHION, HARNESS WIRING 1
5 09407-14407 CLAMP, WIRING HARNESS 1
6 09407-18402 CLAMP, WIRING HARNESS 3
7 09407B25401N000 CLAMP, WIRING HARNESS 4
8-1 37020B46G40N000 LOCK SET, STEERING 1
8-2 37100B46G40N000 LOCK ASSY, STEERING 1
9 01550-0620A BOLT, STEERING LOCK 2
10 37310B45H00N000 SWITCH ASSY, STARTER 1
11 37340B10E30N000 SWITCH ASSY, LIGHTING 1
12-1 37420B09G21N000 SWITCH ASSY, DIMMER 1
12-2 37420B10E10N000 SWITCH ASSY, DIMMER 1
13-1 37510B10E10N000 SWITCH ASSY, TURNSIGNAL 1
13-2 37510B10E20N000 SWITCH ASSY, TURNSIGNAL 1
14 37520B45H00N000 SWITCH ASSY, HORN 1
15 37740B09G10N000 SWITCH ASSY, STOP LAMP 1
16 09443B06083N000 SPRING, STOP LAMP 1
17 38500B45H10N000 HORN ASSY 1
18 01550B0612AN000 BOLT, HORN 1
Q'TY
REMARKS
FW110SDW L2_026
WIRING HARNESS
FW110SDW P9
Page 40
FIG.27
FIG.27 FRAME
REF NO. PART NO. DESCRIPTION
1 41100B45H40N000 FRAME 1
2 46211B45H10N019 HANDLE, PILLION RIDER 1
3 01550B0830AN000 BOLT 2
Q'TY
REMARKS
FW110SDW L2_027
FRAME
FW110SDW P9
Page 41
FIG.28
FIG.28 STAND
REF NO. PART NO. DESCRIPTION
1 42100B45H20N000 STAND, CENTER 1
2 42211B09G00N000 SHAFT 1
3 08322-0116A WASHER 1
4 04111B3025AN000 COTTER PIN 1
5 42241B09G00N000 SPRING 1
6 42272B09G00N000 CUSHION 1
7 42310B09G60N000 STAND, PROP 1
8 42341B09G01N000 BOLT 1
9 08319B3110AN000 NUT 1
10 09443-14022L000 SPRING 1
11 43110B45H40N000 PEDAL, BRAKE 1
12 09443B12033N000 SPRING, RETURN 1
Q'TY
REMARKS
FW110SDW L2_028
STAND
FW110SDW P9
Page 42
FIG.29
FIG.29 FOOTREST
REF NO. PART NO. DESCRIPTION
1 43510B45H20N000 BAR, FRONT FOOTREST 1
2 43551B45H00N000 RUBBER, FRONT FOOTREST 2
3 01550-0816A BOLT 4
4 43610B34A00N000 BAR, RH 1
5 43710B34A00N000 BAR, LH 1
6 43612B09G00N000 RUBBER 2
7 43631-09G00-000 WASHER 2
8
09200B06041N000 PIN 2
9
04111-2515A COTTER PIN 2
10 43811B45H20N13L BRACKET, PILLION RH (SILVER) 1
11 43821B45H20N13L BRACKET, PILLION LH (SILVER) 1
12 43817B23F20N000 RUBBER, PIVOT LH 1
13 43816-23F20-000 SPACER, LH 1
43818B07H00N000 CUSHION, LH 2
14
15 43822B45H10N000 PLATE, LH 1
16 01550-0840A BOLT, FRONT LH 1
17 01550B0830AN000 BOLT, REAR LH 1
18 09180B08151N000 SPACER, LH 2
19 09160-08134 WASHER, LH 2
20 01550-1025A BOLT, RH 1
21 09160B10079N000 WASHER, RH 2
Q'TY
REMARKS
FW110SDW L2_029
FOOTREST
FW110SDW P9
Page 43
FIG.30
FIG.30 FUEL TANK
REF NO. PART NO. DESCRIPTION
1 44110B45H10N000 TANK, FUEL 1
2 44210-35X01 CAP ASSY, FUEL 1
3 09103-06285 BOLT (6X12) 4
4 44322B27001N000 FILTER, FUEL 1
5 09401-11413 CLIP 1
6 44421B45H00N000 HOSE, FUEL 1
7 44261B45H00N000 TRAY, INLET 1
8 44300B09G00N000 COCK ASSY, FUEL 1
9 01550-0616A BOLT, COCK 1
10 09401B09403N000 CLIP 3
11 09352-40703-600 HOSE, VACUUM 1
12 09401B06101N000 CLIP, VACUUM 1
13 44422B45H10N000 HOSE, CARB 1
14 34810B45H20N000 GAUGE ASSY, FUEL LEVEL 1
15 34886-03A00 PLATE, GAUGE 1
16 33652-38000L000 CUSHION 1
Q'TY
REMARKS
CUT AS REQUIRED
FW110SDW L2_030
FUEL TANK
FW110SDW P9
Page 44
FIG.31

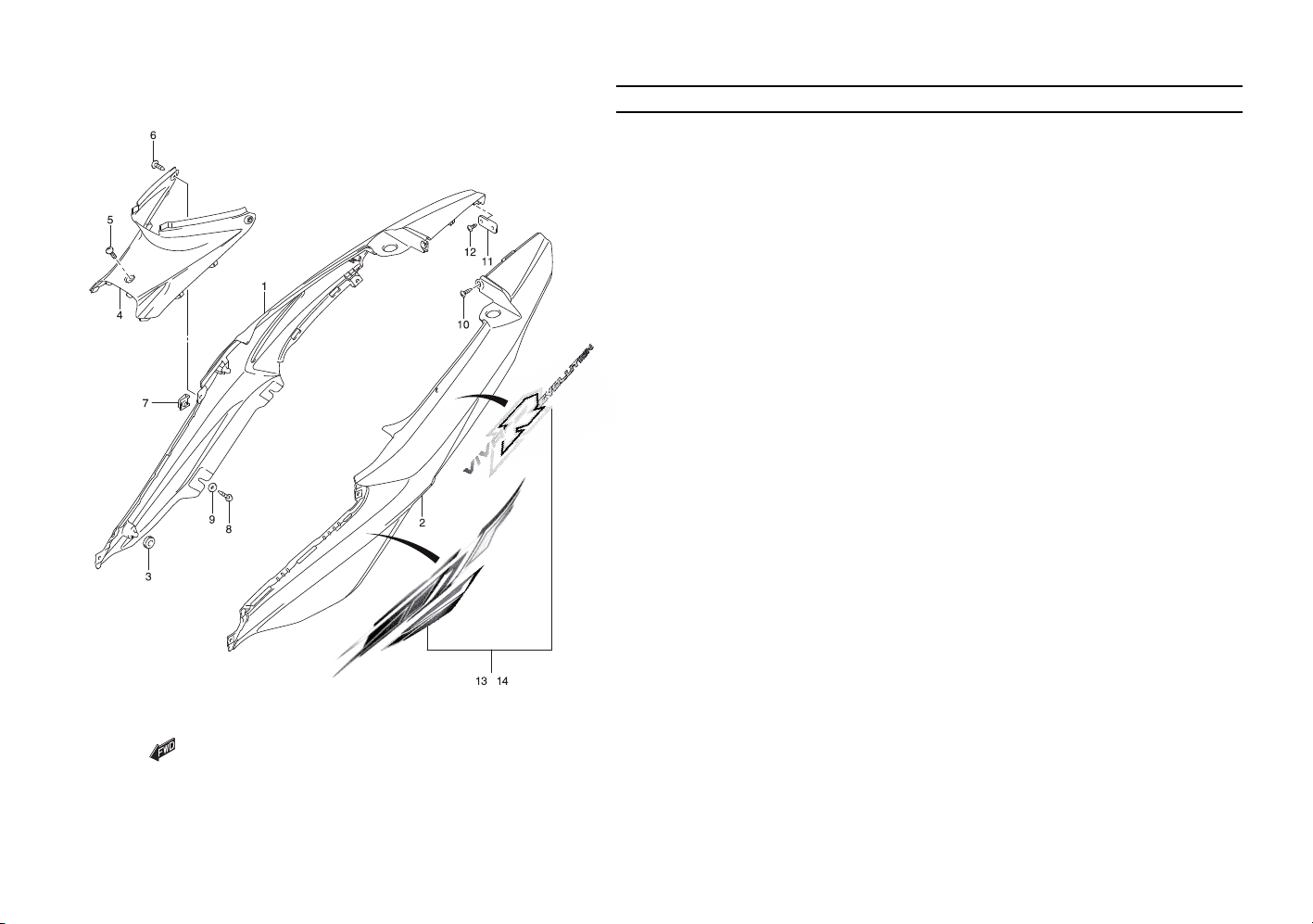

FIG.31 FRAME COVER
REF NO. PART NO. DESCRIPTION
1 47111B45H00NYVU COVER, FRAME RH (BLACK) 1
2 47211B45H00NYVU COVER, FRAME LH (BLACK) 1
3 09320B08018N000 CUSHION 4
4 47511B45H00N000 COVER, FRONT 1
5 47135B45H00N000 SCREW, FRONT 1
6 03541B0512BN000 SCREW, SIDE 2
7 09148-05045 NUT 5
8 03541B0516AN000 SCREW 4
9 47245-07H00 WASHER 4
10 03541B1516AN000 SCREW 1
11 47141B07H00N000 PLATE, REAR 1
12 03541B0512AN000 SCREW 2
13-1 68131B45H50NYVU TAPE SET, FRAME COVER RH (BLACK) 1
13-2 68131B45H50NGHW TAPE SET,
13-3 68131B45H50NHEK TAPE SET,
14-1 68132B45H50NYVU TAPE SET,
FRAME COVER RH (BLUE) 1
FRAME COVER RH (RED) 1
FRAME COVER LH (BLACK) 1
14-2 68132B45H50NGHW TAPE SET, FRAME COVER LH (BLUE) 1
14-3 68132B45H50NHEK TAPE SET,
FRAME COVER LH (RED) 1
Q'TY
REMARKS
FOR BLACK
FOR BLUE
FOR RED
FOR BLACK
FOR BLUE
FOR RED
FW110SDW L2_031
FRAME COVER
･
FW110SDW P9
Page 45
FIG.32
FIG.32 LEG SHIELD
REF NO. PART NO. DESCRIPTION
1 48111B45H10NYVU SHIELD, LEG RH NO.1 (BLACK) 1
2 48121B45H10NYVU SHIELD, LEG LH NO.1 (BLACK) 1
3 48116B45H10N000 SCREW, UPPER 4
4 48197B45H00N000 NUT 4
5 03541B1516BN000 SCREW, SIDE UPPER 4
6 09148-05045-000 NUT 10
7 48140B45H10N000 BRACE, RH 1
8 48150B45H10N000 BRACE, LH 1
9 09136B06017N000 SCREW, BRACE (6X16) 2
10 48278B16H10N000 CUSHION, LEG SHIELD BRACE 2
11 48115B31CB0N000 TAPE, LEG SHIELD 2
12 09136-06002 SCREW, LEG LOWER 2
13 48212B16H00N000 SPACER 2
14 48136B20G00N000 CUSHION 2
15-1 48112B45H00NYVU SHIELD, LEG RH NO.2 (BLACK) 1
15-2 48112B45H00NYVE SHIELD, LEG RH NO.2 (BLUE) 1
15-3 48112B45H00NYTB SHIELD, LEG RH NO.2 (RED) 1
16-1 48122B45H00NYVU SHIELD, LEG LH NO.2 (BLACK) 1
16-2 48122B45H00NYVE SHIELD, LEG LH NO.2 (BLUE) 1
16-3 48122B45H00NYTB SHIELD, LEG LH NO.2 (RED) 1
17 03541B1516AN000 SCREW, REAR 2
･
18 03541B1516AN000 SCREW 4
19 48131B45H10N000 SHIELD, LEG CENTER 1
20 48135B07H00N000 SCREW, CENTER 2
21 03541B1516BN000 SCREW, UPPER 4
22 48135B09G00N000 CUSHION 4
23-1 68141B45H50NYVU TAPE SET, LEG SHIELD RH (BLACK) 1
23-2 68141B45H50NGHW TAPE SET, LEG SHIELD RH (BLUE) 1
23-3 68141B45H50NHEK TAPE SET,
24-1 68142B45H50NYVU TAPE SET,
24-2 68142B45H50NGHW TAPE SET,
24-3 68142B45H50NHEK TAPE SET,
LEG SHIELD RH (RED) 1
LEG SHIELD LH (BLACK) 1
LEG SHIELD LH (BLUE) 1
LEG SHIELD LH (RED) 1
Q'TY
REMARKS
FOR BLACK
FOR BLUE
FOR RED
FOR BLACK
FOR BLUE
FOR RED
FW110SDW L2_032
LEG SHIELD
FW110SDW P9
Page 46
FIG.33
FIG.33 FRAME HEAD COVER
REF NO. PART NO. DESCRIPTION
1-1 51871B45H10NYVU COVER, FRAME HEAD (BLACK) 1
1-2 51871B45H10NYVE COVER, FRAME HEAD (BLUE) 1
1-3 51871B45H10NYTB COVER, FRAME HEAD (RED) 1
2 51860B45H10N000 BRACE, COVER 1
1
3 01550B0612AN000 BOLT, RH 1
4 01550B0812AN000 BOLT, LH 1
5 51875B45H00N000 SCREW 3
6 68211B16H00N000 EMBLEM, ¨S¨ 1
5
6
3
Q'TY
REMARKS
FW110SDW L2_033
FRAME HEAD COVER
2
4
FW110SDW P9
Page 47
FIG.34
FIG.34 FRONT FENDER
REF NO. PART NO. DESCRIPTION
1-1 53111B45H00NYVU FENDER, FRONT (BLACK) 1
1-2 53111B45H00NYVE FENDER, FRONT (BLUE) 1
1-3 53111B45H00NYTB FENDER, FRONT (RED) 1
2 53274B09G00N000 SCREW, FRONT 1
3 01550-0616A BOLT 2
4 09169-06071 WASHER 2
5 47165B09G00N000 CUSHION 2
6 53211B45H00N000 FENDER, FRONT NO.2 1
7 01550B0612AN000 BOLT 1
8 09169-06071 WASHER 1
9 58621B47E00N000 GUIDE, CABLE 1
Q'TY
REMARKS
FW110SDW L2_034
FRONT FENDER
FW110SDW P9
Page 48
FIG.35

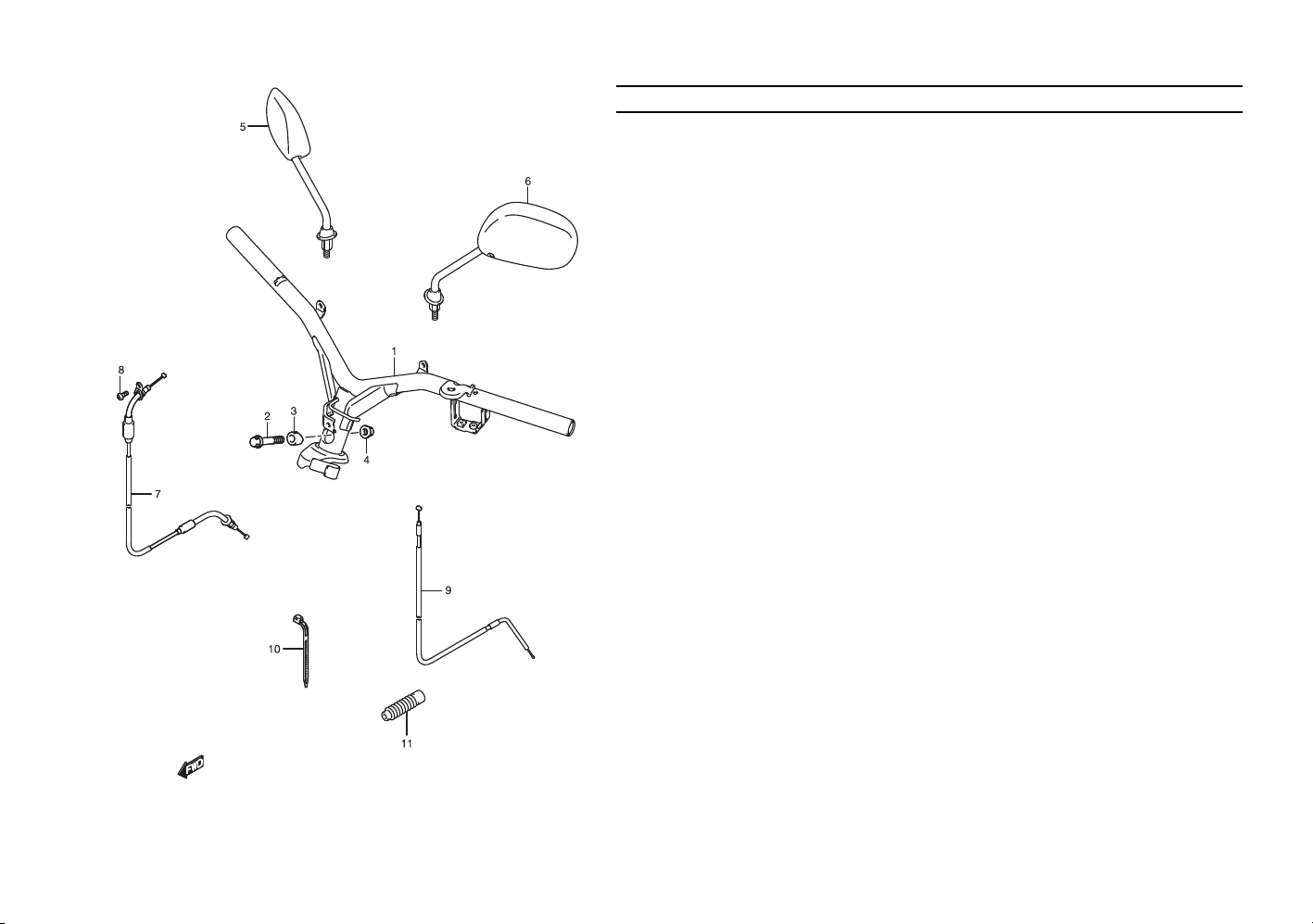

FIG.35 HANDLEBAR
REF NO. PART NO. DESCRIPTION
1 56110B45H10N000 HANDLEBAR 1
2 09103B10126N000 BOLT (10X48) 1
3 51358B09G00N000 STOPPER 1
4 08319B3110AN000 NUT 1
5 56500B45HA0N000 MIRROR, REAR VIEW RH 1
6 56600B45HA0N000 MIRROR, REAR VIEW LH 1
7 58300B45H10N000 CABLE ASSY, THROTTLE 1
8 02112B0512AN000 SCREW, CASE 1
9 58410B45H10N000 CABLE, STARTER 1
10 09407B25401N000 CLAMP 1
11 58333-35401-000 SEAL, DUST 1
Q'TY
REMARKS
FW110SDW L2_035
HANDLEBAR
FW110SDW P9
Page 49
FIG.36
FIG.36 HANDLE COVER
REF NO. PART NO. DESCRIPTION
1-1 56311B45H10NYVU COVER, HANDLE FRONT (BLACK) 1
1-2 56311B45H10NYVE COVER, HANDLE FRONT (BLUE) 1
1-3 56311B45H10NYTB COVER, HANDLE FRONT (RED) 1
2 02142B0512AN000 SCREW 1
3 09148-04034 NUT 4
4 56321B45H00N000 COVER, HANDLE REAR 1
5 03541B0516AN000 SCREW, FRONT 2
6 03541B0416BN000 SCREW 4
7 56316B45H00N000 SCREW, REAR 2
8 33652-35400-000 CUSHION, HANDLE COVER 1
9 37251B16H00N000 CAP, LIGHTING SWITCH 1
Q'TY
REMARKS
FW110SDW L2_036
HANDLE COVER
FW110SDW P9
Page 50
FIG.37
FIG.37 HANDLE LEVER
REF NO. PART NO. DESCRIPTION
1 57110B09G10N000 GRIP, THROTTLE 1
2 57100B09G11N000 CASE ASSY, THROTTLE 1
3 57211B09G00N000 GRIP, LH 1
4 58711B09G00N000 HOLDER, STARTER CABLE 1
5 09139B05057N000 SCREW (5X12.8) 1
6 58721B23F00N000 LEVER, STARTER 1
7 09164-07001-000 WASHER 1
8 02112B7516AN000 SCREW 1
Q'TY
REMARKS
FW110SDW L2_037
HANDLE LEVER
FW110SDW P9
Page 51
FIG.38

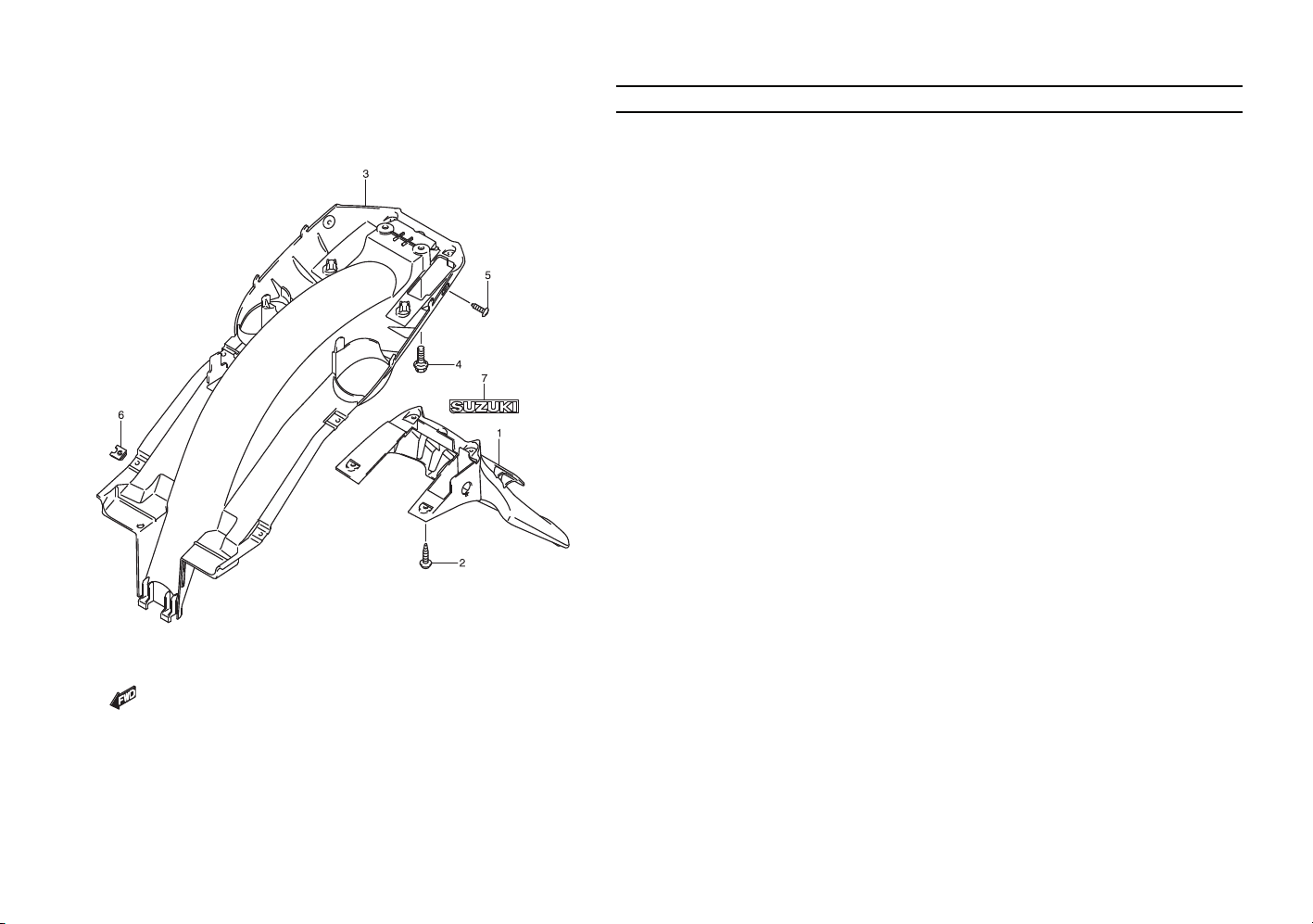

FIG.38 REAR FENDER
REF NO. PART NO. DESCRIPTION
1 63111B45H10N000 FENDER, REAR REAR 1
2 03541B0516AN000 SCREW 5
3 63112B45H00N000 FENDER, REAR FRONT 1
4 61361-09G20 BOLT 2
5 03541B0516BN000 SCREW 2
6 09148-05045-000 NUT 6
7 68171B41H10N000 EMBLEM, ¨SUZUKI¨ 1
Q'TY
REMARKS
FW110SDW L2_038
REAR FENDER
FW110SDW P9
Page 52
FIG.39
FIG.39 LUGGAGE BOX
REF NO. PART NO. DESCRIPTION
1 92211B45H10N000 BOX, LUGGAGE 1
2 92212B45H00N000 LID 1
3 92217B45H00N000 CLIP 1
4 02142B0630AN000 SCREW, FRONT 2
5 92215B20G00N000 SPACER 4
6 92216B45H00N000 CUSHION 4
7 96512B09G00N000 SPANNER, BOX (16) 1
8 09814B00030N000 DRIVER 1
9 09813B00135N000 SPANNER, OPEN (10X12) 1
Q'TY
REMARKS
FW110SDW L2_039
LUGGAGE BOX
FW110SDW P9
Page 53
FIG.40
FIG.40 LABEL
REF NO. PART NO. DESCRIPTION
1 68319B14JH0N000 LABEL, GENERAL WARNING 1
2 68332B45H40N000 LABEL, TIRE 1
3 68911B45H00N000 LABEL, CAPACITY 1
4 11959B65J01N000 LABEL, FUEL LIMITATION 1
Q'TY
REMARKS
FW110SDW L2_040
LABEL
FW110SDW P9
Page 54
FIG.41
FIG.41 SEAT
REF NO. PART NO. DESCRIPTION
1 45100B45H10N000 SEAT ASSY 1
2 45148B20G40N000 ･CUSHION, SEAT MOUNT 4
3 45149B09G20N000 ･CUSHION, SEAT MOUNT CTR 2
4 45271B41H00N000 PLATE, SEAT HINGE 1
5 45280B45H10N000 CABLE, SEAT LOCK 1
6 45288B20G00N000 GUIDE, SEAT LOCK CABLE 1
7 45289B11F00N000 PLATE, SEAT LOCK ASSY 1
8 45700-47G00-000 BRACKET, STRIKER SUPPORT 1
9 45211B45H00N000 MOLDING, SEAT 1
10 95700B14F50N000 LOCK ASSY, SEAT 1
11 09407-18402 CLAMP, SEAT LOCK CABLE 2
12 02112B0610AN000 SCREW, STRIKER SUPPORT 2
13 03541B0516AN000 SCREW, SEAT HINGE PLATE 1
14 45160B45H10N000 COVER COMP SEAT 1
Q'TY
REMARKS
FW110SDW L2_041
SEAT
FW110SDW P9
Page 55
FIG.42
FIG.42 FRONT DAMPER
REF NO. PART NO. DESCRIPTION
1 51103B45H70N13L DAMPER ASSY, FRONT FORK RH 1
2 51104B45H70N13L DAMPER ASSY, FRONT FORK LH 1
3 51110B45H00N000 ･TUBE, INNER 2
4 51181B37B00N000 ･O RING 2
5 51130B45H40N13L ･TUBE, OUTER RH 1
6 51140B45H10N13L ･TUBE, OUTER LH 1
7 51153B23F00N000 ･･SEAL OIL 2
8 51156B45H00N000 ･･RING, SNAP 2
9 51173B23F00N000 ･･SEAL, DUST 2
10 51147B45H00N000 ･BOLT 2
11 51148B41310N000 ･GASKET 2
12 51351B45H00N000 ･CAP 2
13 51171B45H00N000 ･SPRING, FRONT 2
14 51177B35400N000 ･SPRING, REBOUND 2
15 51146B45H00N000 ･CYLINDER 2
16 51196B39140N000 ･RING, PISTON 2
Q'TY
REMARKS
FW110SDW L2_042
FRONT DAMPER
FW110SDW P9
Page 56
FIG.43
FIG.43 STEERING STEM
REF NO. PART NO. DESCRIPTION
1 51410B45H20N000 BRACKET, UNDER 1
2 51622B41H00N000 ･RACE, OUTER LOWER 1
3 51611B41H00N000 RACE, STEERING INNER UPPER 1
4 51612B41H00N000 RACE, STEERING INNER LOWER 1
5 51621B41H00N000 RACE, STEERING OUTER UPPER 1
6 51631B05000N000 NUT, STEERING STEM 1
7 51631B05000N000 NUT, STEERING STEM LOCK 1
8 51643B06010N000 SEAL, STEERING DUST UPPER 1
9 09166B24001N000 WASHER STEERING STEM 1
10 06111B06003N000 BALL, STEERING STEEL 51
11 01550B1045AN000 BOLT 4
Q'TY
REMARKS
FW110SDW L2_043
STEERING STEM
FW110SDW P9
Page 57
FIG.44
FIG.44 FRONT WHEEL
REF NO. PART NO. DESCRIPTION
1 54111B41H00N000 HUB, FRONT 1
2 54731B41H00N000 SPACER, FR HUB BEARING 1
3 54742B41H00N000 SEAL, FRONT HUB 1
4 55311B07030N000 RIM, FR WHEEL (17X1.40) 1
5 55320-46100L000 SPOKE SET, FRONT WHEEL 1
6 08123B63007N000 BEARING, FRONT HUB 2
7 55110B45H10N000 TIRE, FRONT (70/90-17M/C 38P) 1
8 55200B45H10N000 TUBE ASSY, WHEEL INNER 1
9 55261B45H10N000 PROTECTOR, WHEEL INNER 1
10 54711B04701N000 AXLE, FRONT 1
11 54750B46100N000 SPACER, FRONT AXLE RH 1
12 08319B3110AN000 NUT, FRONT AXLE 1
13 54600B45H10N000 BOX ASSY, SPEEDOMETER GEAR 1
14 59211B45H00N000 DISC, FRONT BRAKE 1
15 59218B09G00N000 BOLT, FRONT BRAKE DISC 4
Q'TY
REMARKS
FW110SDW L2_044
FRONT WHEEL
FW110SDW P9
Page 58
FIG.45
FIG.45 FRONT CALIPER
REF NO. PART NO. DESCRIPTION
1 59100B45H00N000 CALIPER ASSY, FRONT 1
2 59300-13820L000 ･SEAL SET, PISTON 1
3 59121B01A00N000 ･BLEEDER 1
4 59122B01A00N000 ･CAP, BLEEDER 1
5 59100B41HA0N000 ･PAD SET 1
6 59314B13A00N000 ･WASHER, WAVE 1
7 59146B21E10N000 ･PLUG, PIN 1
8 59303B14500N000 ･BOOT 1
9 59382-13A00-000 ･PIN 1
10 59386B13A00N000 ･BOOT 1
11 59387B41HA0N000 ･PIN 1
12 59388B41HA0N000 ･NUT 1
13 59351B41HA0N000 ･BRACKET 1
14 69100B41HA0N000 ･PISTON SET 1
15 59115B41HA0N000 ･SPRING, PAD 1
16 59345B41HA0N000 ･PIN, HANGER 1
17 59133B41HA0N000 ･RETAINER BRACKET 1
18 59199B07H00N000 BOLT 2
Q'TY
REMARKS
FW110SDW L2_045
FRONT CALIPER
FW110SDW P9
Page 59
FIG.46
FIG.46 FRONT MASTER CYLINDER
REF NO. PART NO. DESCRIPTION
1 59240B45H00N000 GUIDE, FR BRAKE HOSE 1
2 59260B45H00N000 CLAMP, FR BRAKE HOSE LOWER 1
3 59480B45H20N000 HOSE, FRONT BRAKE 1
4 09168B10033N000 WASHER, BRAKE FLUID 4
5 09360B10062N000 BOLT, BRAKE FLUID 2
6 01550-0616A BOLT, BRAKE HOSE CLAMP 1
7 59600B45H00N000 CYLINDER ASSY, FRONT MASTER 1
8 59611B36500N000 ･PISTON/CUP SET 1
9 59664B32F00N000 ･PROTECTOR 1
10 59666B44300N000 ･BOOT 1
11 59667B44B00N000 ･DIAPHRAGM 1
12 59668B21D20N000 ･PLATE, DIAPHRAGM 1
13 59669B21D20N000 ･CAP 1
14 59671B27C00N000 ･HOLDER 1
15 59675B02FA0N000 ･BOLT 2
16 69689B49300N000 ･SCREW 2
17 57300B46G40N000 ･LEVER, BRAKE 1
18 57421B46G00N000 ･･LEVER 1
19 57431B29C20N000 ･･BOLT 1
20 08319B2106AN000 ･･NUT 1
21 57460B41H00N000 ･SWITCH, STOP 1
Q'TY
REMARKS
FW110SDW L2_046
FRONT MASTER CYLINDER
FW110SDW P9
Page 60
FIG.47

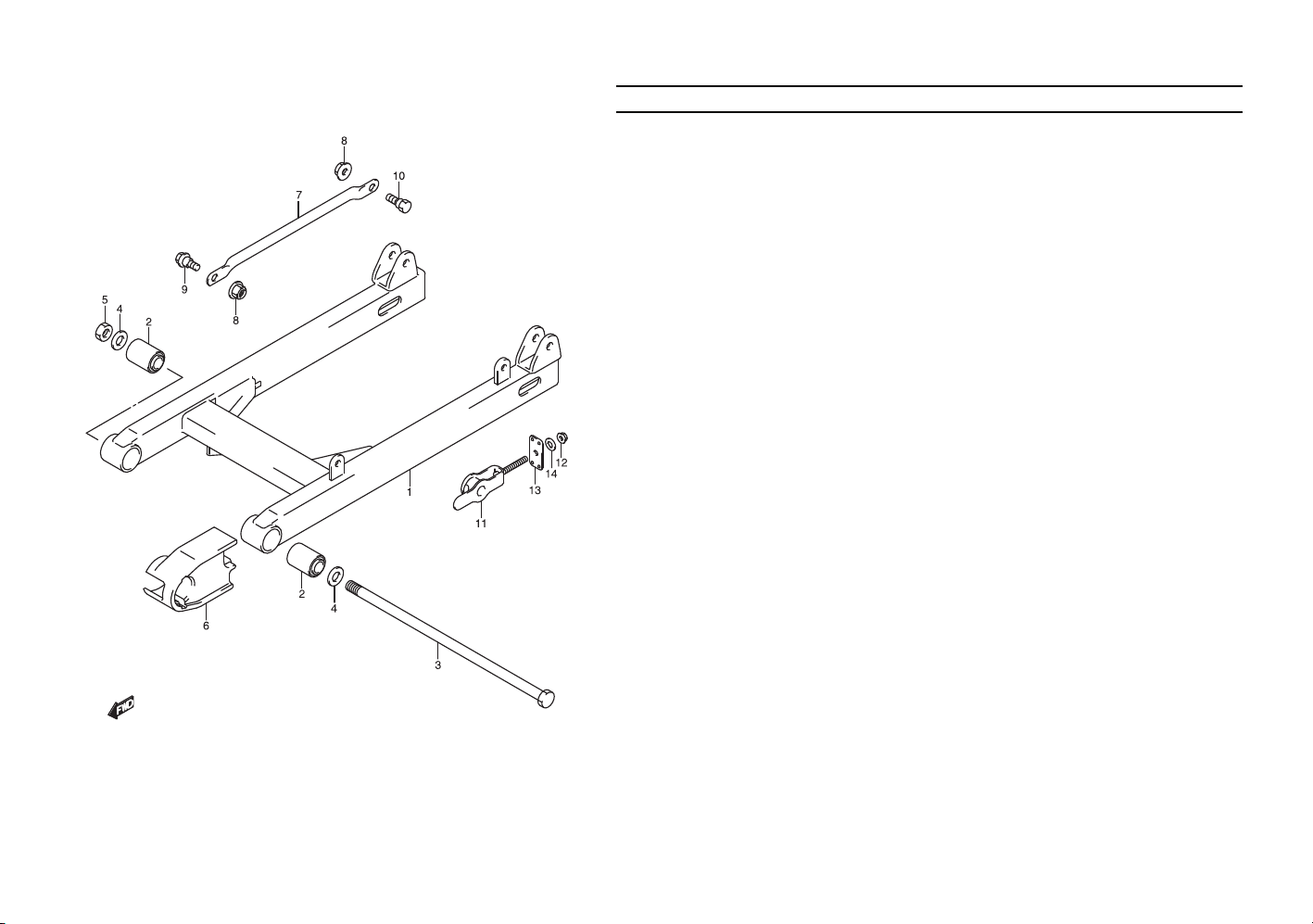

FIG.47 REAR SWINGING ARM
REF NO. PART NO. DESCRIPTION
1 61100B45H10N291 SWINGING ARM, REAR 1
2 09319-10009L000 BUSHING (10X23X35) 4
3 61211B07H00N000 SHAFT, REAR SWINGING ARM 1
4 09160B10079N000 WASHER 2
5 08319B3110AN000 NUT 1
6 61273B20G10N000 BUFFER, CHAIN TOUCH DEFENSE 1
7 64310B45H00N000 TORQUE LINK, REAR 1
8 08319B3108AN000 NUT 2
9 64321B45H00N000 BOLT, FRONT 1
10 64331B45H00N000 BOLT 1
11 61410B20G00N000 ADJUSTER, CHAIN 2
12 08319-3106A NUT 2
13 61421B20G00N000 GUIDE, CHAIN ADJUSTER 2
14 09160B12085N000 WASHER, CHAIN ADJUSTER GUIDE 2
Q'TY
REMARKS
FW110SDW L2_047
REAR SWINGING ARM
FW110SDW P9
Page 61
FIG.48
FIG.48 CHAINCASE
REF NO. PART NO. DESCRIPTION
1 61310B23F00N000 CASE, CHAIN UPPER 1
2 09111-06065 BOLT, FRONT (6X16) 2
3 62100B45H50N019 ABSORBER ASSY, REAR SHOCK 2
4 01550-1035A BOLT, UPPER 2
5 09103-10229 BOLT, LOWER 2
Q'TY
REMARKS
FW110SDW L2_048
CHAINCASE
FW110SDW P9
Page 62
FIG.49
FIG.49 REAR WHEEL
REF NO. PART NO. DESCRIPTION
1 64110B35355N000 HUB, REAR WHEEL 1
2 64210-46013 PANEL, REAR BRAKE ANCHOR 1
3 54400B23820N000 SHOE, BRAKE 2
4 09443B07025N000 SPRING 2
5 64441-21D00 SHAFT, BRAKE CAM 1
6 54492B35400N000 PLATE, BRAKE LINING 1
7 64451B20G00N000 LEVER, BRAKE CAM 1
8 09103B06045N000 BOLT (6X33) 1
9 09160B14054N000 WASHER 1
10 09280-14011 O RING (D: 2.5, ID: 13.8) 1
11 08316B1006BN000 NUT 1
12 64711-31C20L000 AXLE, REAR 1
13 64741B07H00N000 SPACER, REAR AXLE RH 1
14 08140B63017N000 BEARING, RH 1
15 09180-12143L000 SPACER, BEARING (12.5X19X48) 1
16 08140B62017N000 BEARING, LH 1
17 08110B62017N001 BEARING, LH INNER 1
18 64651B30D00N000 ABSORBER, REAR HUB SHOCK 1
19 64733B43000N000 RETAINER, REAR SPROCKET DRUM 1
20 64611-36G00 DRUM, SPROCKET MOUNTING 1
21 08113-62037L000 BEARING 1
22 09285-25003L000 SEAL, OIL (25X40X6) 1
23 64721B20G00N000 SPACER, RR SPROCKET DRUM 1
24 08319B3112AN000 NUT 1
25 64511B28F10N000 SPROCKET, REAR (NT: 36) 1
Q'TY
REMARKS
FW110SDW L2_049
REAR WHEEL
FW110SDW P9
Page 63
FIG.49
FIG.49 REAR WHEEL
REF NO. PART NO. DESCRIPTION
26 09105-08011L000 BOLT, REAR SPROCKET (8X36) 4
27 09169B08011N000 LOCK WASHER 2
28 08310B0008BN000 NUT 4
29 65311-46730L000 WHEEL RIM (1.60X17) 1
30 65110B45H10N000 TIRE, REAR (80/90-17M/C 44P) 1
31 65200B45H10N000 TUBE ASSY, INNER 1
32 65261B45H10N000 PROTECTOR, INNER TUBE 1
33 65320-03021L000 SPOKE SET, REAR WHEEL 1
34 43300B45H00N000 ROD ASSY, REAR BRAKE 1
35 09440-09004L000 ･SPRING 1
36 09209B11002N000 ･PIN 1
37 09150B06010N000 ･NUT 1
38 08322B0105AN000 ･WASHER 1
39 04111-2020A ･PIN, COTTER 1
Q'TY
REMARKS
FW110SDW L2_049
REAR WHEEL
FW110SDW P9
Page 64
SGR
PARTS NUMBER INDEX
Page 65
PART NO.
FIG.NO. - REF.NO.
10000
11110B45H00N000 1-1
11115B09G20N000 1-3
11121B23F01N000 1-16
11141B45H00N000 1-4
11175B28G40N000 1-13
11210B45H00N0F0 2-1
11241B16H10N000 2-3
11300B45H10N000 3-1
11341B09G30N000 4-1
11351B45H00N000 4-12
11360B20G00N000 4-21
11383B20G00N000 4-10
11482B09G30N000 4-2
11483B45H20N000 4-13
11959B65J01N000 40-4
11971B09403N000 4-6
12111B45H00N0F0 5-8
12140B45H10N0F0 5-9
12151B20G00N000 5-10
12161B46G00N000 5-2
12200B45H30N000 5-1
12211B20G00N0A0 5-3
12611B45H00N000 6-1
12612B45H00N000 6-2
12620B45H00N000 6-3
12630B45H00N000 6-4
12710B45H10N000 7-1
12725B20G00N000 7-8
12741B16H00N000 7-4
12760-20G01-000 8-1
12771B33GB0N000 8-2
12811-28G10-000 8-3
12830B09G00N000 8-6
12837-09G10-000 8-7
12840-28G50-000 7-11
12842-49201-000 7-12
12843-27A00 7-13
12861B45H00N000
12862B28G00N000 7-17
12871B45H00N000 7-15
12911B45H00N000 7-19
12912B45H00N000
12921B28G50N000 7-21
12931B09G00N000 7-22
12932-09G00-000 7-23
7-14
7-20
PART NO.
12933B09G00N000 7-24
12951B20G01N000 7-9
12954B09G20N000 7-5
12955B33G00N000 7-7
13110B45H20N000 1-19
13129-20G00-000 1-20
13200B45H20N000 9-1
13247B09G10N000 9-20
13249B20G00N000 9-3
13250B30D00N000 9-19
13254B20010N000 9-12
13258B30A00N000 9-11
13260B20G00N000 9-2
13267B09G20N000 9-24
13267B20G00N000 9-25
13268B09G20N000 9-27
13268B35010N000 9-26
13278B29C50N000 9-31
13278B47090N000 9-44
13291B29900N000 9-28
13295B29900N000 9-29
13331B20G00N000 9-41
13370B20G00N000 9-13
13382B23F00N000 9-6
13383B16H00N000 9-45
13385B09G20N000 9-17
13387B20G00N000 9-39
13387B23F00N000 9-10
13387B47010N000 9-37
13389B20G00N000 9-8
13394B40D20N000 9-38
13411B01010N000 9-23
13417B01010N000 9-22
13418B43410N000 9-21
13480B09G10N000 9-32
13481B09G10N000 9-33
13481B20G00N000 9-40
13481B45H20N000 9-7
13487B20G00N000 9-36
13502B09G10N000 9-34
13533B98410N000 9-9
13551B20G00N000 9-5
13573B20G00N000 9-4
13601B04148N000 9-30
13601B20G00N000 9-35
13683B34A10N000 9-42
13684B09400N000 9-43
13700B20G81N000 10-1
13740B20G60N000 10-2
13746B09G00N000 10-3
FIG.NO. - REF.NO.
PART NO.
13756B09G00N000 10-4
13780B09G60N000 10-5
13824B18910N000 10-7
13826B16H00N000 10-8
13827B09G00N000 9-46
13871B09G00N000 10-6
13881B16H10N000 10-10
14150B45H20N000 11-13
14181B09D00N000 11-1
14181B25G00N000 11-14
14186B45H20N000 11-5
14310B45H20N000 11-4
16000B09G20N000 12-1
16321-23F01-000 5-7
16331B09G00N000 12-3
16400B09G20N000 12-2
16510B45H10N000 12-10
16512B09G00N000 12-11
16520-30A00 12-9
16910-23F00 3-6
18410B45H10N000 13-1
18441B16H10N000 13-4
18450B45H30N000 13-5
18461B45H00N000 13-7
18610B45H00N000 13-8
18711B16H00N000 13-10
18762B16H00N000 13-11
FIG.NO. - REF.NO.
20000
21102B23F60N000 14-1
21111B20G00N000 14-2
21114B23F00N000 14-3
21119B23F30N000 14-4
21200B45H10N000 14-10
21251B23F20N000 14-11
21411B09G30N000 14-12
21441B16H00N000 14-13
21441B28G00N000 14-14
21451B21D40N000 14-15
21461B09G00N000 14-16
21465B45H00N000 14-17
21482B09G00N000 14-19
21501B23F50N000 14-24
21631B21D02N000 14-5
PART NO.
21652B23F00N000 14-6
23121B09G01N000 14-28
23220B23F20N000 14-29
23230-20G00-000 16-22
23234B23F10N000 14-32
23250B20G00N000 16-23
24120B23F40N000 15-1
24130B45H00N000 15-9
24221B45H00N000 15-2
24231B45H00N000 15-3
24241B45H01N000 15-4
24311B45H00N000 15-10
24331B45H00N000 15-11
24341B45H01N000 15-12
24741-20A10-000 15-18
25211B23F20N000 16-1
25221B23F20N000 16-2
25310B23F50N000 16-5
25341-09G02-000 16-7
25342B09G00N000 16-13
25350-23F10-000 16-15
25355B36H20N000 16-16
25361B23F10N000 15-24
25381-30A50-000 16-8
25382-35411-000 16-10
25382B30A80N000 16-9
25411-13A10-000 16-3
25421-35420-000 16-4
25510B20G30N000 16-24
25516-07H00-000 16-29
25520-09G30-000 16-19
25610B09G20N000 16-30
25671-20G00-000 16-26
26211B45H00N000 17-1
26221B45H00N000 17-2
26231B09G00N000 17-3
26232B09410N000 17-4
26233B09400N000 17-5
26241B45H10N000 17-6
26300B45H10N000 17-13
26352B16H10N000 17-14
27511B09G00N000 15-20
27512B09G00N000 15-21
27600B20960N102 15-22
FIG.NO. - REF.NO.
30000
PART NO.
31100B45H00N000 18-1
31130B30D10N000 18-2
31131-21D00L000 18-8
31135-05B00L000 18-3
31156B05B00N000 18-4
31157-02540 18-5
31800B16H00N000 21-1
32101B07H20N000 19-1
32102B45H00N000 19-2
32371B30D10N000 19-3
32800B45H00N000 21-2
32900B45H10N000 21-10
32980B45H00N000 21-11
33410B45H10N000 21-4
33510B07H00N000 21-7
33541-07H00-000 21-8
33542-07H00-000 21-9
33610-35400L000 20-1
33624-31C10 26-3
33652-35400-000 20-2
33652-35400-000 36-8
33652-38000L000 20-3
33652-38000L000 30-16
33680B36200N000 20-4
33860B30D10N000 20-5
34111B45H00N000 22-1
34112B45H00N000 22-2
34113B45H00N000 22-3
34114B45H00N000 22-4
34120B45H10N000 22-5
34149B45H00N000 22-11
34173B45H00N000 22-6
34186B09G00N000 22-7
34383B09G00N000 22-8
34810B45H20N000 30-14
34886-03A00 30-15
34910B45H20N000 22-13
34931B20G00N000 22-14
35100B45H10N000 23-1
35121B45H10N000 23-2
35171B31G20N000 23-3
35601B45H20N000 24-1
35602B45H20N000 24-5
35612B45H20N000 24-2
35618B41HB0N000 24-3
35632B45H20N000 24-6
35638B41HB0N000 24-7
35710B45H20N000 25-1
35711B45H20N000 25-2
35713B45H00N000 25-7
FIG.NO. - REF.NO.
PART NO.
35713B45H20N000 25-3
35726B45H00N000 25-8
35781B45H00N000 25-9
35912B45H20N000 25-6
36610B45H40N000 26-1
36652B07H00N000 26-4
37020B46G40N000 26-8-1
37100B46G40N000 26-8-2
37251B16H00N000 36-9
37310B45H00N000 26-10
37340B10E30N000 26-11
37420B09G21N000 26-12-1
37420B10E10N000 26-12-2
37510B10E10N000 26-13-1
37510B10E20N000 26-13-2
37520B45H00N000 26-14
37720B20G00N000 16-32
37740B09G10N000 26-15
38500B45H10N000 26-17
38610B35491N000 24-11
FIG.NO. - REF.NO.
40000
41100B45H40N000 27-1
42100B45H20N000 28-1
42211B09G00N000 28-2
42241B09G00N000 28-5
42272B09G00N000 28-6
42310B09G60N000 28-7
42341B09G01N000 28-8
43110B45H40N000 28-11
43300B45H00N000 49-34
43510B45H20N000 29-1
43551B45H00N000 29-2
43610B34A00N000 29-4
43612B09G00N000 29-6
43631-09G00-000 29-7
43710B34A00N000 29-5
43811B45H20N13L 29-10
43816-23F20-000 29-13
43817B23F20N000 29-12
43818B07H00N000 29-14
43821B45H20N13L 29-11
43822B45H10N000 29-15
44110B45H10N000 30-1
44210-35X01 30-2
44261B45H00N000 30-7
44300B09G00N000 30-8
FW110SDW L2 P9.
- 1 -
Page 66
PART NO.
44322B27001N000 30-4
44421B45H00N000 30-6
44422B45H10N000 30-13
45100B45H10N000 41-1
45148B20G40N000 41-2
45149B09G20N000 41-3
45160B45H10N000 41-14
45211B45H00N000 41-9
45271B41H00N000 41-4
45280B45H10N000
45288B20G00N000 41-6
45289B11F00N000 41-7
45700-47G00-000 41-8
46211B45H10N019 27-2
47111B45H00NYVU
47135B45H00N000 31-5
47141B07H00N000 31-11
47165B09G00N000 34-5
47211B45H00NYVU 31-2
47245-07H00
47511B45H00N000 31-4
48111B45H10NYVU 32-1
48112B45H00NYTB 32-15-3
48112B45H00NYVE 32-15-2
48112B45H00NYVU 32-15-1
48115B31CB0N000 32-11
48116B45H10N000 32-3
48121B45H10NYVU 32-2
48122B45H00NYTB 32-16-3
48122B45H00NYVE 32-16-2
48122B45H00NYVU 32-16-1
48131B45H10N000 32-19
48135B07H00N000 32-20
48135B09G00N000 32-22
48136B20G00N000 32-14
48140B45H10N000 32-7
48150B45H10N000 32-8
48197B45H00N000 32-4
48212B16H00N000 32-13
48278B16H10N000 32-10
FIG.NO. - REF.NO.
41-5
31-1
31-9
50000
51103B45H70N13L 42-1
51104B45H70N13L 42-2
51110B45H00N000 42-3
51130B45H40N13L 42-5
51140B45H10N13L 42-6
PART NO.
51146B45H00N000 42-15
51147B45H00N000 42-10
51148B41310N000 42-11
51153B23F00N000 42-7
51156B45H00N000 42-8
51171B45H00N000 42-13
51173B23F00N000 42-9
51177B35400N000 42-14
51181B37B00N000 42-4
51196B39140N000 42-16
51351B45H00N000 42-12
51358B09G00N000 35-3
51410B45H20N000 43-1
51611B41H00N000 43-3
51612B41H00N000 43-4
51621B41H00N000 43-5
51622B41H00N000 43-2
51631B05000N000 43-6
51631B05000N000 43-7
51643B06010N000 43-8
51860B45H10N000 33-2
51871B45H10NYTB 33-1-3
51871B45H10NYVE 33-1-2
51871B45H10NYVU 33-1-1
51874B45G00N000 23-4
51875B45H00N000 33-5
53111B45H00NYTB 34-1-3
53111B45H00NYVE 34-1-2
53111B45H00NYVU 34-1-1
53211B45H00N000 34-6
53274B09G00N000 34-2
54111B41H00N000 44-1
54400B23820N000 49-3
54492B35400N000 49-6
54600B45H10N000 44-13
54711B04701N000 44-10
54731B41H00N000 44-2
54742B41H00N000 44-3
54750B46100N000 44-11
55110B45H10N000 44-7
55200B45H10N000 44-8
55261B45H10N000 44-9
55311B07030N000 44-4
55320-46100L000 44-5
56110B45H10N000 35-1
56311B45H10NYTB 36-1-3
56311B45H10NYVE 36-1-2
56311B45H10NYVU 36-1-1
56316B45H00N000 36-7
56321B45H00N000 36-4
56500B45HA0N000 35-5
FIG.NO. - REF.NO.
PART NO.
56600B45HA0N000 35-6
57100B09G11N000 37-2
57110B09G10N000 37-1
57211B09G00N000 37-8
57300B46G40N000 46-17
57421B46G00N000 46-18
57431B29C20N000 46-19
57460B41H00N000 46-21
58300B45H10N000 35-7
58333-35401-000 35-11
58410B45H10N000 35-9
58621B47E00N000 34-9
58711B09G00N000 37-9
58721B23F00N000 37-11
59100B41HA0N000 45-5
59100B45H00N000 45-1
59115B41HA0N000 45-15
59121B01A00N000 45-3
59122B01A00N000 45-4
59133B41HA0N000 45-17
59146B21E10N000 45-7
59199B07H00N000 45-18
59211B45H00N000 44-14
59218B09G00N000 44-15
59240B45H00N000 46-1
59260B45H00N000 46-2
59300-13820L000 45-2
59303B14500N000 45-8
59314B13A00N000 45-6
59345B41HA0N000 45-16
59351B41HA0N000 45-13
59382-13A00-000 45-9
59386B13A00N000 45-10
59387B41HA0N000 45-11
59388B41HA0N000 45-12
59480B45H20N000 46-3
59600B45H00N000 46-7
59611B36500N000 46-8
59664B32F00N000 46-9
59666B44300N000 46-10
59667B44B00N000 46-11
59668B21D20N000 46-12
59669B21D20N000 46-13
59671B27C00N000 46-14
59675B02FA0N000 46-15
FIG.NO. - REF.NO.
60000
PART NO.
61100B45H10N291 47-1
61211B07H00N000 47-3
61273B20G10N000 47-6
61310B23F00N000 48-1
61361-09G20 38-4
61410B20G00N000 47-11
61421B20G00N000 47-13
62100B45H50N019 48-3
63111B45H10N000 38-1
63112B45H00N000 38-3
64110B35355N000 49-1
64210-46013 49-2
64310B45H00N000 47-7
64321B45H00N000 47-9
64331B45H00N000 47-10
64441-21D00 49-5
64451B20G00N000 49-7
64511B28F10N000 49-25
64611-36G00 49-20
64651B30D00N000 49-18
64711-31C20L000 49-12
64721B20G00N000 49-23
64733B43000N000 49-19
64741B07H00N000 49-13
65110B45H10N000 49-30
65200B45H10N000 49-31
65261B45H10N000 49-32
65311-46730L000 49-29
65320-03021L000 49-33
68131B45H50NGHW 31-13-2
68131B45H50NHEK 31-13-3
68131B45H50NYVU 31-13-1
68132B45H50NGHW 31-14-2
68132B45H50NHEK 31-14-3
68132B45H50NYVU 31-14-1
68141B45H50NGHW 32-23-2
68141B45H50NHEK 32-23-3
68141B45H50NYVU 32-23-1
68142B45H50NGHW 32-24-2
68142B45H50NHEK 32-24-3
68142B45H50NYVU 32-24-1
68171B41H10N000 38-7
68211B16H00N000 33-6
68319B14JH0N000 40-1
68332B45H40N000 40-2
68911B45H00N000 40-3
69100B41HA0N000 45-14
69689B49300N000 46-16
FIG.NO. - REF.NO.
PART NO.
FIG.NO. - REF.NO.
90000
92211B45H10N000 39-1
92212B45H00N000 39-2
92215B20G00N000 39-5
92216B45H00N000 39-6
92217B45H00N000 39-3
95700B14F50N000 41-10
96512B09G00N000 39-7
00000
01421-0620A 1-23
01421B0616AN000 13-2
01500-0620A 16-31
01500-0625A 16-12
01500B0610AN000 15-23
01500B0616AN000 17-10
01500B0825AN000 17-15
01500B1020AN000 3-15
01547B0612AN000 1-10
01547B0612AN000 3-11-1
01547B0616AN000 12-12
01547B0620AN000 8-8
01547B0620AN000 13-6
01547B0620BN000 1-15
01547B0620BN000 1-18
01547B0625AN000 1-24
01547B0625AN000 1-25
01547B0630AN000 4-4
01547B0630AN000 4-16
01547B0630AN000 4-22
01547B0630AN000 12-7
01547B0640AN000 3-3
01547B0640AN000 4-5
01547B0640AN000 4-17
01547B0650AN000 3-4
01547B0650AN000 4-18
01547B0675AN000 3-5
01547B0680AN000 4-15
01550-0616A 30-9
01550-0616A 34-3
PART NO.
01550-0616A 46-6
01550-0620A 26-9
01550-0816A 29-3
01550-0840A 11-12
01550-0840A 29-16
01550-1025A 29-20
01550-1035A 48-4
01550B0612AN000 3-11-2
01550B0612AN000 13-9
01550B0612AN000 25-12
01550B0612AN000 26-18
01550B0612AN000 33-3
01550B0612AN000 34-7
01550B0620BN000 11-15
01550B0812AN000 4-8
01550B0812AN000 33-4
01550B0830AN000 27-3
01550B0830AN000 29-17
01550B1045AN000 43-11
02112-0612A 21-3
02112-0616A 21-6
02112-3406A 18-6
02112-3406A 18-7
02112B0512AN000 35-8
02112B0516AN000 22-15
02112B0610AN000 41-12
02112B0620BN000 19-5
02112B34123N000 9-14
02112B7516AN000 37-13
02122-0612A 7-18
02122B0616AN000 6-6
02142-0508A 4-11
02142-0610B 19-6
02142B0510BN000 19-4
02142B0512AN000 36-2
02142B0612AN000 15-19
02142B0630AN000 39-4
03541B0416BN000 36-6
03541B0512AN000 24-10
03541B0512AN000 31-12
03541B0512BN000 31-6
03541B0516AN000 22-12
03541B0516AN000 25-13
03541B0516AN000 25-14
03541B0516AN000 31-8
03541B0516AN000 36-5
03541B0516AN000 38-2
03541B0516AN000 41-13
03541B0516BN000 38-5
03541B0520AN000 10-9
FIG.NO. - REF.NO.
FW110SDW L2 P9.
- 2 -
Page 67
PART NO.
03541B1516AN000 31-10
03541B1516AN000 32-17
03541B1516AN000 32-18
03541B1516BN000 32-5
03541B1516BN000 32-21
04111-2020A 49-39
04111-2515A 29-9
04111B3025AN000 28-4
04211-09129 12-8
04211-13189 3-2
04211-13189 4-3
04211B09149N000 4-14
04211B11129N000 1-5
04211B11129N000 2-4
04221-04089 16-6
06111B06003N000 43-10
07130B0612AN000 6-7
08110B62017N001 49-17
08110B62030N000 15-8
08110B62030N000 15-14
08113-62037L000 49-21
08123B63007N000 44-6
08140B62017N000 49-16
08140B63017N000 49-14
08211-06121 16-18
08211-15321 17-12
08310-0006A 1-26
08310B0008BN000 49-28
08316B1006AN000 13-3
08316B1006BN000 49-11
08316B1008AN000 11-3
08316B1008AN000 11-8
08316B1012BN000 19-7
08319-3106A 47-12
08319B2106AN000 46-20
08319B3108AN000 47-8
08319B3110AN000 3-10
08319B3110AN000 28-9
08319B3110AN000 35-4
08319B3110AN000 44-12
08319B3110AN000 47-5
08319B3112AN000 49-24
08322-0110A 25-15
08322-0116A 28-3
08322B0105AN000 49-38
08331-3113A 6-8
08331-3125A 15-26
08332-1105A 14-31
08332-1106B 12-6
08341B31039N000 19-8
FIG.NO. - REF.NO.
PART NO.
09103-06285 30-3
09103-06501 1-9
09103-10110 3-9
09103-10229 48-5
09103B06045N000 49-8
09103B06247N000 8-4
09103B10126N000 35-2
09105-08011L000 49-26
09106B05028N000 7-6
09108-08280-000 11-2
09108B08L01N000 2-2
09111-06041 16-17
09111-06065 48-2
09136-05065 23-7
09136-06002 32-12
09136B06017N000 10-11
09136B06017N000 32-9
09138B05018N000 16-36
09139-06091 11-6
09139B05057N000 37-10
09140-14022 14-25
09140-14022-000 14-20
09140B12051N000 14-33
09148-04034 36-3
09148-05045 31-7
09148-05045-000 32-6
09148-05045-000 38-6
09150B06010N000 49-37
09159-08137 1-6
09160-08120 1-8
09160-08134 29-19
09160-13010-000 6-5
09160-14046-XC0 14-21
09160-14046-XC0 14-26
09160B05045N000 25-10
09160B06012N000 16-14
09160B08149N000 11-10
09160B10079N000 29-21
09160B10079N000 47-4
09160B10154N000 14-34
09160B12085N000 47-14
09160B13006N000 15-5
09160B13006N000 15-13
09160B14054N000 49-9
09164-07001-000 37-12
09164-10012-000 7-16
09164-14011 14-22
09164-14011 14-27
09164B25002N000 15-25
09166B24001N000 43-9
FIG.NO. - REF.NO.
PART NO.
09168-10002 3-14
09168-10002 3-16
09168B06004N000 1-11
09168B06004N000 3-12
09168B06004N000 8-5
09168B06L02N000 11-7
09168B08015N000 4-9
09168B08021N000 1-7
09168B10033N000 46-4
09168B12002N000 4-20
09169-06071 34-4
09169-06071 34-8
09169B08011N000 49-27
09180-12143L000 49-15
09180-12152-000 16-27
09180B08151N000 29-18
09180B08L01N000 11-9
09181-15139 17-11
09181-17018 14-23
09181-18002 14-7
09181-25051 5-12-1
09181-25052 5-12-2
09181-25054 5-12-4
09181-25056 5-12-6
09181-25057 5-12-7
09181-25058 5-12-8
09181-25059 5-12-9
09181-25060 5-12-10
09181-25061 5-12-11
09181-25062 5-12-12
09181-25063 5-12-13
09181-25160 5-12-3
09181-25162 5-12-5
09181-25179 5-12-14
09181-25181 5-12-15
09181B08139N000 12-5
09200B06041N000 29-8
09206B08008N000 7-2
09208B07005N000 14-30
09209B05011N000 16-33
09209B11002N000 49-36
09247-10008 3-13
09247-12102 4-19
09261-04002-000 16-11
09161-05005-000 7-3
09261B02008N000 12-4
09261B07006N000 14-8
09262-12001L000 16-25
09262B15032N000 14-35
09262B15041N000 7-10
FIG.NO. - REF.NO.
PART NO.
09262B25L02N000 5-6
09262B35L04N000
09263-13003-000 15-6
09263-13003-000 15-15
09263-28040-0B0 5-4
09280-14011 49-10
09280-17003L000 4-7
09280-21008L000 16-34
09280B12004N000 14-36
09280B13010N000 12-14
09280B24011N000 1-21
09280B26011N000 1-22
09280B50007N000 1-14
09280B54001N000 12-13
09280B84002N000 1-17
09283B14013N000 17-7
09283B17031N000 15-16
09285-25003L000 49-22
09285B12006N000 16-28
09289B05008N000 7-25
09319-10009L000 47-2
09320-09016L000 25-11
09320B08018N000 31-3
09320B12L01N000 11-11
09352-40703-600 30-11
09352-70113-600 3-7
09360B10062N000 46-5
09380B17007N000 15-7
09380B17007N000 15-17
09381B10004N000 1-2
09381B14001N000 5-11
09401-11413 30-5
09401-17402 13-14
09401B06101N000 30-12
09401B09403N000 30-10
09401B10401N000 3-8
09401B13409N000 13-12
09401B15101N000 13-13
09401B18406N000 13-15
09404B06429N000 21-5
09407-14407 26-5
09407-18402 26-6
09407-18402 41-11
09407B25401N000 26-7
09407B25401N000 35-10
09409-06314-5PK 24-9
09440-09004L000 49-35
09440B02002N000 14-9
09440B04010N000 16-35
09440B18002N000 12-15
FIG.NO. - REF.NO.
5-5
PART NO.
09440B18035N000 14-18
09440B19025N000 14-37
09440B30007N000 17-8
09443-05019-000 16-20
09443-14022L000 28-10
09443B06083N000 26-16
09443B07025N000 49-4
09443B12033N000 28-12
09444B26033N000 16-21
09448B38004N000 17-9
09471-12114AS01 24-4
09471-12114AS01 24-8
09471B12028N000 23-5
09471B12077N000 22-9
09471B12108N000 22-10
09471B12119N000 25-4
09471B12203N000 25-5
09471B12213N000 23-6
09481-10501 26-2
09482-00710L000 1-12-1
09482-00810L000 1-12-2
09491B95004N000 9-16
09492B15011N000 9-15
09494B45H20N000 9-18
09813B00135N000 39-9
09814B00030N000 39-8
FIG.NO. - REF.NO.
PART NO.
FIG.NO. - REF.NO.
FW110SDW L2 P9.
- 3 -
Page 68
SUZUKI
FW110SDW L2
PARTS CATALOGUE
1 ST Edition
Publicado en Marzo de 2012
C
2012 Suzuki Motor de Colombia S.A
Este CATALOGO DE PARTES no puede ser reproducido en forma parcial o total sin autorización
de SUZUKI MOTOR DE COLOMBIA S.A
SUZUKI MOTOR DE COLOMBIA S.A
Departamento de Repuestos
Diseño y Desarrollo de Catalogos de Partes
Km 15 via Pereira-Cartago (Pereira-Risaralda-Colombia) 3139626-3139627
Prohibida su reproducción
Page 69
SUZUKI MOTOR DE COLOMBIA S.A
EDITADO EN COLOMBIA
S
Loading...
