Sure Heat X2000 User Manual

X2000 Gas Grill - LP

X2000

USE AND CARE MANUAL

FOR OUTDOOR USE ONLY

ALWAYS KEEP YOUR GRILL COVERED WHEN NOT IN USE

BEFORE YOU BEGIN – We’ve included easy-to-follow, step-by-step instructions which have been carefully written to ensure quick assembly of your grill. Reading the instructions will be a time saver in the end.

YOU WILL NEED – A Phillips screwdriver, adjustable wrench, 1/2” wrench or socket and a 1/4” nut driver or socket will be needed to assemble this grill. All other necessary hardware has been included.

Questions, Missing or Damaged part? DO NOT RETURN PRODUCT TO STORE

Were here to help. Just call 1-800-229-5647 or visit us at www.sureheat.com. For faster service, have model number and serial number on hand when calling.

IMPORTANT SAFETY INFORMATION

- Read this manual carefully before using your grill to reduce the risk of fire, burn

hazard or other injury.

- Extreme care should be used because of the high temperatures produced by this appliance. CHILDREN SHOULD NOT BE LEFT UNATTENDED IN AN AREA WHERE THE GRILL IS BEING OPERATED.

- This appliance must be kept clear from combustible materials, gasoline or other flammable vapors and liquids. Do not allow flammable materials to come in contact with grate, burner or hot surfaces.

- Use only outdoors and provide good ventilation to avoid carbon monoxide build-up which could result in injury or death.

- Do not repair or replace any part of this appliance unless it is specifically recommended in this manual. A qualified service technician should conduct all other service.

- Follow the installation and servicing instructions provided with this product. Have your grill installed by a qualified service technician.

- Locate the main gas supply valve so that you know how to shut the gas off to your grill.

- If you smell gas, make sure all gas connections are tight before operation. If you continue to smell gas call a qualified technician.

- When lighting a burner, always pay close attention to what you are doing and be certain you are pushing the igniter that lights the burner you intend on using.

- Always keep your face and body as far away as from the grill as possible when lighting to reduce the risk of burn.

- Extinguish all flames and do not smoke while engaging gas and igniting the grill.

- A minimum distance of at least 15" must be maintained from any combustible material on both sides and the back of the grill. Do not place the grill under any overhead unprotected combustible construction.

RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

NOTE indicates an important piece of information that needs to be observed to ensure the proper operation of your grill.

DANGER

If you smell gas:

1. Shut off gas to the appliance

2. Extinguish any open flame

3. Open lid

4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.

Table of Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

General Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Grill Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-17

Gas Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

Pre-Operation Leak Testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Lighting The Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Using The Grill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Using The Rotisserie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Accessory Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

WARNING

1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

INSTALLER: Please retain these instructions with the owner so that they may maintain them for

future reference.

AssemblyWelcome & Congratulations

Congratulations on your purchase of a new grill! We are very proud of our product and we are completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.

Please read this Use & Care Manual very carefully. It contains valuable information on how to properly maintain your new grill.

We know you’ ll enjoy your new grill and thank you for choosing our product. We hope you consider us for future purchases.

PLEASE READ AND SAVE THESE INSTRUCTIONS

This Use & Care Manual provides specific operating instructions for your model. Use your grill only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

Please record your model and serial numbers below for future reference. This information is found on the serial plate located on the inside of the grill door.

Questions?

1-800-229-5647

for written inquiries:

Sure Heat Manufacturing

3130 Moon Station Rd

Kennesaw, GA 30144

The PRODUCT REGISTRATION CARD

should be filled in completely, signed

and returned to Sure Heat Manufacturing.

NOTE: Use only soap and water to clean serial plate.

Model Number: ______________________________

Serial Number: ______________________________

Purchase Date: ______________________________

Gas Type: __________________________________

Please complete and mail in the Product Registration Card included with your grill.

Please retain this manual for future reference

Please attach sales receipt here for

future reference.

General Safety Instructions

Do not use the rotisserie in the rain.

Electrical Grounding Instructions

This appliance (rotisserie motor) is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do

not cut or remove the grounding prong from this plug.

Keep any electrical supply cords and the fuel supply

hose away from any heated surfaces.

The Spare L.P. Gas Tank Barrier must be installed to prevent storage of spare L.P. Gas Tanks. Failure to comply with these instructions could result in a fire or explosion that could cause serious bodily injury, death,

or property damage.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flames.

3. Open grill hood.

4. If odor continues, immediately call your gas supplier and local Fire Dept.

NOTE: Do Not operate the main burners and infrared back burner at the same time. This can cause warping of

the roll top grill hood.

Do not use the grill in garages, breezeways, sheds or any enclosed area. Never operate the grill in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the grill on a level surface.

Avoid moving the grill while it is operation.

Always have a qualified service technician perform difficult

conversions or modifications.

Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive

heat or fire.

TESTED IN ACCORDANCE WITH ANSI Z21.58a-2006/CSA 1.6a STANDARD FOR OUTDOOR COOKING GAS APPLIANCES. THIS GRILL IS FOR OUTDOOR USE ONLY.

Installation must conform with local codes, this unit should be installed in accordance with the National Fuel Gas Code No. Z223.1/NFPA 54, National Gas and Propane Installation Code, CSA B149.1 or Propane Storage and Handling Code,

B149.2

CALIFORNIA PROPOSITION 65 - WARNING: The Burning of gas cooking fuels generates some by products which are on the list of substances which are known by the State of California to cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize exposure to these substances, always operate this unit according to the use and care manual, provide

good ventilation when cooking with gas.

This appliance is not intended to be installed in or

on recreational vehicles or boats.

FOR YOUR SAFETY

DO NOT store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

An LP cylinder not connected for use shall not be stored in

the vicinity of this or any other appliance.

DO NOT try lighting this appliance without reading the

“ LIGHTING INSTRUCTIONS” section of this manual.

FOR OUTDOOR USE ONLY

Grill Features

1. Roll Top Grill Hood

2. Rotisserie Kit

3. Grilling/Cooking Surface

4. Side Shelf

5. Control Knob: Rear Infrared Burner

6. Control Knobs: Main Burners

7. Drawer

8. Hood Handle

9. Warming Shelf

10. Rear Infrared Burner

11. Side Burner

12. Control Knob: Side Burner

13. Electronic Igniter: Main Burners, Side Burner and Rear Infrared Burner

14. Cart with Doors

Getting Started

Assembly

STEP ONE

a. Use (2) Screws secure the Rubber Door Stop on the Cart Base.

b. Set the Cart base on the floor and then lay the Caster Assembly Left on the left side and the Caster Assembly Right on the right side of the Cart Base. The angled side of the Cart Base will be towards the front of the base.

c. Pick up the left side of the Cart Base and set the Caster Assembly Left in place by inserting the attached bolts through the three (3) holes in the Cart Base.

d. Pick up the right side of the Cart Base and set the Caster Assembly right in place by inserting the attached bolts through the three (3) holes in the Cart Base.

Assembly

STEP TWO

a. Place the Cart Side Left onto the two (2) outer fixed caster assembly bolts, make sure the large flange is toward the front of the Cart Base.

b. Secure the Cart Side Leftt in place by hand tightening nuts onto the caster assembly bolts.

c. Place the Cart Back onto the two (2) rear caster assembly bolts.

d. Secure the Cart Back in place by hand tightening the Caster Assembly Nuts onto the caster assembly bolts.

e. Place the Cart Side Right onto the two (2) outer swivel caster assembly bolts, make sure the large flange is toward the front of the Cart Base.

f. Secure the cart side right in place by hand tightening nuts onto the caster assembly bolts.

Note: The Cart Back is covered by the card sides.

Assembly

STEP THREE

a. Press the cart sides back together making sure that the cart side flanges cover the cart back flange.

b. Attach three (3) self tapping screws through the pre-drilled holes on the Cart Side Left into the cart back. Repeat for Cart Side Right.

c. Tighten all six (6) caster assembly nuts with a wrench.

d. Slide the Tank Tray out of the bracket, and place the it on the Cart Base, the handle of the tray toward front of the Cart Base. Attach three (3) self tapping screws through the pre-drilled holes on the Left Bracket into the Cart Base. Repeat on the Bracket Right. Then Slide the tray into the Bracket.

e. Attach the Spare L.P. Gas Tank Barrier by inserting the tabs into the slots in the Cart Back and then attach the flat end of the barrier to the pre-drilled hole in the Cart Back with a self-tapping screw.

f. Attach the Tank Secure Ring onto the Cart Back.

The Spare L.P. Gas Tank

Barrier must be installed to prevent storage of spare L.P. Gas Tanks. Failure to comply with these instructions could result in a fire or explosion that could cause serious bodily injury, death, or property damage.

Assembly

STEP FOUR

a. Attaching (2) Self Tapping Screws through the pre-drilled holes on the Left Bracket for the Cart Door Pin into the Cart Side Left. Repeat on the Bracket Right.

b. Attaching (4) Self Tapping Screws through the pre-drilled holes on the two Bracket for the Cart Door Magnet into the Cart Cross Brace.

c. Install Cart Cross Brace onto the Cart Sides by secure (2) self tapping screws though the pre drilled holes on each end of the Cart Cross Brace into the top of the cart side flanges.

Assembly

STEP FIVE

a. Use (2) self tapping screws to install the left drip pan guide in position.

Note: The end with flange facing inside of the grill.

b. Repeat step 5a to install the right drip pan guide.

c. Use (6) screws to install the drawer guides in position.

Noto: The end connected with the cross bar facing inside of the grill.

Assembly

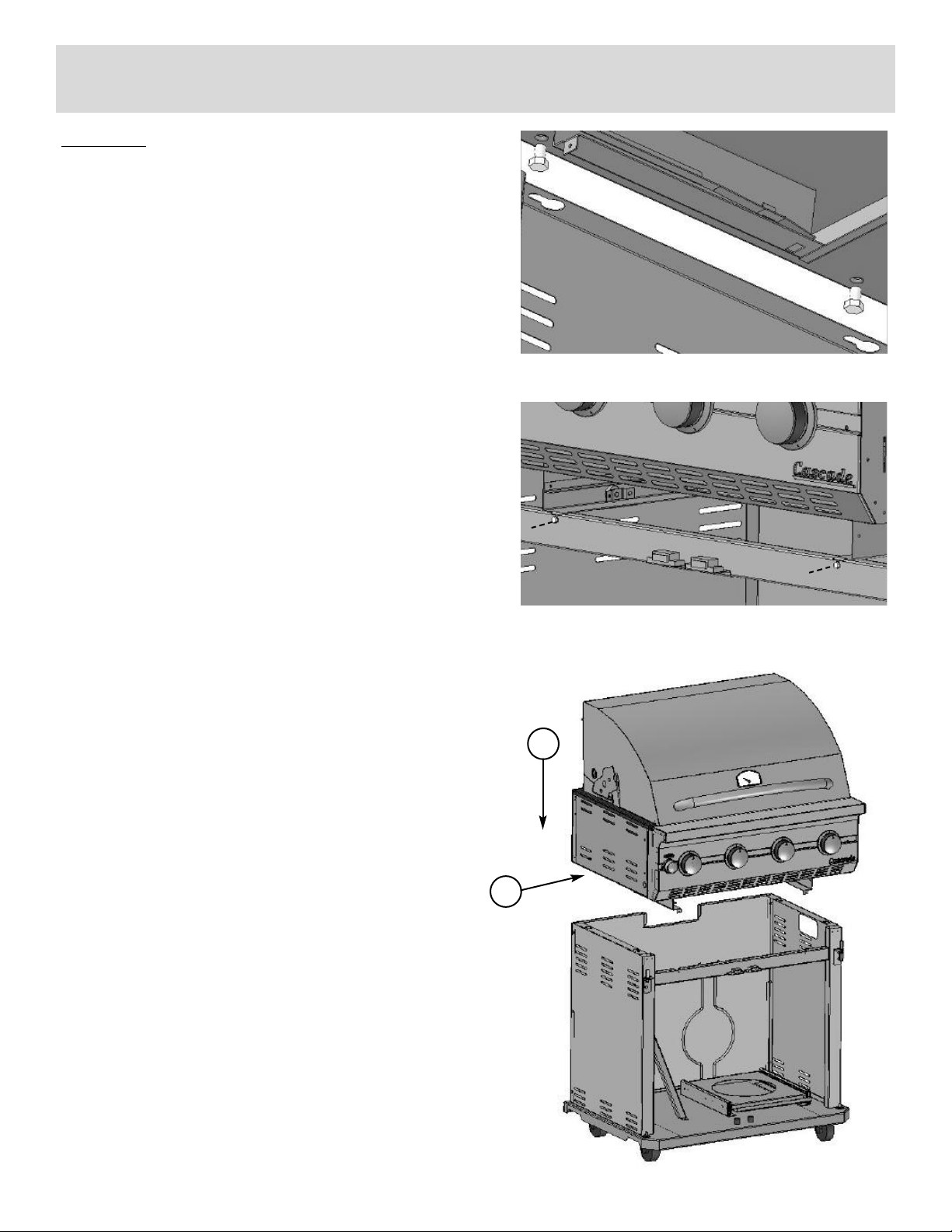

STEP SIX

a. Loosen the four (4) grill mounting bolts so that there is approximately 1/4” between the bolt head and grill bottom.

b. Have someone help you pick up the grill and set it squarely on top of the cart.

c. Make sure the four (4) bolts fall through the large opening on the “ key hole” slots in the cart sides.

d. Slide the grill forward in the “ key hole” slots until the front grill flange rests against the cart side flanges. Check on the inside of the cart to make sure that both sides of the grill are flush with the cart.

e. Install two (2) self tapping screws into the Cart Cross Brace to secure the Drawer Guides in position..

f. Tighten the four (4) grill head mounting bolts underneath the grill to secure the grill to the cart.

6c-6d

Assembly

STEP SEVEN

a. Remove the screws from three handles.

b. Use (2) screws removed in step 7a to attach the handle onto the cart door.

c. Repeat step 7b to install the handle to the other door.

d. Use (2) screws removed in step 7a to attach the handle onto the front face of the drawer.

e. Use (5) self tapping screws to attach the drawer tray to the drawer front face.

step 7b - 7c

Assembly

STEP EIGHT

a. Place a piece of Styrofoam from the packaging inside the roll top grill hood to leave the hood propped open slightly.

b. Attach the left shelf by inserting the two shelf hooks into the slots on the left side of the grill front face.

c. After inserting the two shelf hooks, press the shelf against the grill and press downward until the shelf locks in place. Make sure the top trim strip is hanging all the way inside of the grill before pressing downward.

d. Install (2) screws through the hole on the back support bracket of the left shelf into the cart side left. This will permanently lock the shelf in place.

close-up of step 8d

Assembly

STEP NINE

a. Place a piece of Styrofoam from the packaging inside the roll top grill hood to leave the hood propped open slightly.

b. Attach the Right Shelf by inserting the two shelf hooks into the slots on the right side of the grill front face.

d. Install (2) screws through the hole on the back support bracket of the right shelf into the cart side left. This will permanently lock the shelf in place.

close-up of step 9d

Assembly

STEP TEN

a. Remove two screws from the burner valve assembly.

b. Carefully insert the valve assembly into the cast burner. You will need to angle the tube into the burner assembly. Make certain that the hose is pointing down when the valve is put in place. Then push the valve stem out through the opening in the front of the side burner shelf assembly, lining up the holes on the valve assembly with the openings on the burner shelf.

c. Place bezel into place, with the "off" position pointing up, making sure to line up holes.

d. Attach bezel to assembly face with screws removed in step 10a.

e. Press knob onto valve assembly stem.

close-up of step 10b

10b

10e

10c

Assembly

STEP ELEVEN

a. Place the electronic igniter button into the igniter hole on the front left of the side burner shelf.

b. Secure the igniter in place using the plastic lock nut. Make sure to tighten securely.

c. Install AA battery, negative side first.

d. Install spring and cap assembly and tighten securely.

e. Attach the two igniter wires to the igniter button and igniter module.

Note: Make sure you follow the left picture to attach them.

f. Attach loose wire to bottom of cast burner, and then to any of the open tabs in the igniter. Insert the three igniter wires fed through the grommeted hole on side of grill cart in Step 9 into the remaining three holes.

Note: The igniter module is designed in such a way that it does not matter which terminal tab is used when connecting igniter wires.

close-up of igniter wires attaching to igniter module

close-up of igniter wire attaching to burner

11a

11c

11d

11b

Assembly

STEP TWELVE

a. Center the brass burner cap on top of the side burner head.

b. Place the side burner grate on to the side burner tray.

12a

12b

Assembly

STEP THIRTEEN

a. Place right hand door on an angle over the right side door pivot.

b. Tilt the top of the door toward the grill, while depressing the door pivot pin on the bracket.

c. Move the door slightly until the pin locks into place in the hole on the top of the Cart Door Right.

d. Repeat steps 13a - 13c for left door installation.

close-up of steps 13b - 13c

13d

13b

13a

Assembly

STEP FOURTEEN

a. Slide the drawer assembled in step 7d - 7e into the drawer guides under the front face. Make sure the little wheels on the side of the drawer move on the drawer guides.

b. Slide drip pan in place through the hole on the cart back.

step 14b

step 14a

Assembly

STEP FIFTEEN

a. Insert the flavor grids into the cutouts with triangle ridges facing up.

b. Install main cooking grates on the ledges provided on the grill to create your cooking surface.

c. Attach rear igniter shield using two (2) self tapping screws.

d. Rest bread warming grate on four (4) slots above cooking grid.

The finished grill should look like the photo on the cover of this Use and Care Manual. Clean the outside of the grill using only a soft cloth and non-abrasive soap and water or approved stainless steel cleaner.

Never use stainless steel cleaner or similiar chemical

cleaners to clean the painted surfaces of the gill as

this may cause damage to the paint.

15d

15b

15a

15c

Gas Requirements

L.P. GAS INSTALLATION

Cascade™Gas Grills that are set to operate with L.P. gas come with a high capacity hose and regulator assembly.

(Note: Only use the pressure regulator and hose assembly supplied with the grill or a replacement pressure regulator and hose assemblies specified by Cascade™). This assembly is designed to connect directly to a standard

20 lb. L.P. cylinder. L.P. Cylinders are not included with the grill. L.P. Cylinders can be purchased separately at an independent dealer.

Regulator Inlet

Connector

Upright Tank

Orientiation

Tank

connection

LP hose/ regulator

supplied

(Type 1

connector)

L.P. TANK INFORMATION

Never use a dented or rusted L.P. tank or cylinder with a damaged valve.

L.P. cylinders are equipped with an O.P.D (Overfilling Prevention Device). The device shuts off the flow of gas to a cylinder after 80% capacity is reached. This limits the potential for release of gas when the cylinder is heated, averting a fire or possible injury.

The L.P. cylinder must have a shut-off valve terminating in an L.P. gas supply cylinder outlet

specified, as applicable, for connection No. 510 in the standard for compressed gas cylinder valve outlet and inlet connection ANSI/CGA-V-1. Cylinders must not be stored in a building, garage, or any other enclosed area. (The L.P. cylinder must have an overfill protection device, OPD, and a collar to protect the cylinder valve.)

The L.P. gas supply cylinder must be constructed and marked in accordance with the specifications for L.P. gas cylinders of the U.S. Department of Transportation (DOT) or the National Standard of Canada, CAN/CAS-B339, “ Cylinders,

Spheres and Tubes for the Transportation of Dangerous Goods and Commission.

”

L.P. TANK USE

• When turning the L.P. tank on, make sure to open the valve SLOWLY two (2) complete turns to insure proper gas flow.

Most gas tanks now come equipped with a leak detector mechanism internal to the tank, when gas is allowed to escape rapidly it shuts off the gas supply. Opening the valve rapidly may simulate a gas leak, causing the safety device to activate, restricting gas flow causing low flames. Opening the valve slowly will insure this safety feature is not falsely

triggered.

• When not in use, gas supply cylinder valve is to be in the “ OFF” position.

• The tank supply system must be stored upright to allow for vapor withdrawal.

• The regulator and hose assembly must be inspected before each use of the grill. If there is excessive abrasion or wear or if the hose is cut, it must be replaced prior to the grill being used again.

• Cylinders must be stored outdoors out of the reach of children and must not be stored in a building, garage or any other enclosed area.

• Only a qualified gas supplier should refill the L.P. tank.

• Place dust cap on cylinder valve outlet whenever the cylinder

is not in use. Only install the type of dust cap on the sylinder

valve outlet theat is provided with the cylinder valve. Other

types of caps or plugs may result in leakage of propane.

Do not store a spare L.P. gas cylinder under or near

the grill. Never fill the cylinder beyond 80% full.

If this information is not followed exactly,

a fire causing death or seious injury

may occur.

Pre Operation Leak Testing

GENERAL INFORMATION

Although all internal gas connections on the grill are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.

BEFORE TESTING

Do not smoke while leak testing. Extinguish all open flames. Never leak test with an open flame.

Mix a solution of equal parts mild detergent or liquid soap and water.

TESTING

1. Turn off the burner control knobs.

2. Turn the top knob of the fuel supply cylinder counterclockwise (right to left) two (2) rotations to open.

3. Apply the soap solution to connections of the fuel supply assembly. If no soap bubbles appear, there is no gas leak. If bubbles form at the connections, a leak is detected. If a leak is detected, immediately turn off the gas supply, tighten any leaking fittings, turn gas on, and repeat steps 1-3.

4. Turn off the knob on the fuel supply cylinder.

5. Turn on the burner control knobs for a moment to release the pressure in the hose, then turn the control knobs back off.

6. Wash off soapy solution with cold water and towel dry.

Check all gas supply fittings before each use and each time the gas supply cylinder is connected to the regulator. Have a qualified service technician leak test the grill any time a part of the gas system is replaced.

Also it is recommended to perform a leak test at least once a year whether or not the L.P. gas supply cylinder has been disconnected.

When leak testing this appliance, make sure to test and tighten all loose connections, including the side burner. A slight leak in the system can result in a low flame, or hazardous condition. Most L.P. gas tanks now come equipped with a leak detector mechanism internal to the tank, when gas is allowed to escape rapidly it shuts off the gas supply. A leak may significantly reduce the gas flow making the grill difficult to light or causing low flames.

If you cannot stop a gas leak turn off the gas supply and call your local gas company or the dealer you purchased the appliance from. If necessary, replace the faulty part with the manufacturer’ s recommended replacement part. A slight leak could cause a fire.

Lighting the Grill

BEFORE LIGHTING

Important! Before Lighting:

• Check the gas supply line for cuts, wear or abrasion.

• Always keep your face and body as far away from the grill as possible when lighting.

GRILL BURNER LIGHTING

Lighting the Grill with electronic igniter

1. Make sure all control knobs are in the “ OFF” position.

2. Open the gas supply valve located on top of your L.P. tank.

ATTENTION: When turning the L.P. tank on,

make sure to open the valve very SLOWLY two (2) complete turns to insure proper gas flow.

burner between the flavor grids. Position the match near the burner ports and push and turn the control knob counter clockwise to the “ HIGH” position. (See Fig. 2 - 3)

Note: If the grill will not light after several attempts see the trouble-shooting section of this manual. Turn the control knobs to the OFF position when not in use.

Do not attempt to “ Light” the grill if

the odor of gas is present!!

Fig. 1

3. Always open the hood before attempting to light.

4. Push and turn one of the control knobs counter clockwise to the “ HIGH” position and immediately press the electronic igniter button. You will hear a snapping sound. It may be necessary to hold the electronic starter button for about 4 seconds. (See Fig. 1)

NOTE: If the burner does not light in 4 seconds, turn the knob to the “ OFF” position and wait 5 minutes before trying again.

5. Repeat above steps to light remaining burners.

MATCH LIGHTING

If by chance the electronic igniter does not light

the burner, the burner may be lit with a match. Keep your face as far away from the grill surface as possible and place a lit, long stem match through the spaces in the grill grates to the ports of the back crossover

Fig. 2

Fig. 3

Crossover Burner

Using the Grill

GRILL LOCATION

Avoid moving the grill while it is operation.

NOTE: The grill will operate best if it is not facing directly into the wind.

Clearance to combustible construction - A minimum of 15” from the sides and back must be maintained from the gas

grill above and below the cooking surface to adjacent vertical combustible construction.

Clearance to non-combustible construction - A minimum of 6” clearance from the back of the grill to non-combustible

construction is required for the lid to fully open.

Storage of an outdoor gas cooking appliance indoor is permissible only if the cylinder is disconnected and removed from

the appliance.

Heat and smoke exhaust out of the back of the grill hood opening. Make sure not to have the grill back facing your home or anything that could be damaged by heat or smoke.

GENERAL RULES

Do not leave the grill unattended while cooking!

1. Make sure the grill has been leak tested and is properly located.

2. Light the grill burners using the instructions provided in this manual.

3. Turn the control knobs to desired temperature “ High, Medium, or Low” and preheat the grill for 10 minutes before cooking.

4. Adjust heat settings to meet your cooking needs for desired results.

5. Allow grill to cool down, wipe off any splatters or grease and clean the drip tray as needed.

6. Do not put a cover on the grill while it is still hot as it could start a fire.

Keep any electrical supply cords and the fuel supply hose away from any heated surfaces.

Using the Rotisserie

The grill rotisserie system is designed to cook items from the back using infrared heat. The rotisserie burner is an infrared type which provides intense searing radiant heat. Preferred by chefs over other cooking methods, this intense heat sears in the natural juices and nutrients found in quality cuts of meats.

Remove the warming rack from the grill when using the rotisserie to prevent

warping from the intense heat of the infrared unit.

NOTE: The rotisserie spit rod is centered between the grill hood and the burners. It may be necessary to remove the grates and flavor grids when cooking larger portions of meat on the rotisserie. This is by design, since this configuration gives you the most possible room above and below the rod for larger pieces of meat.

Once lit, the rotisserie burner will reach cooking temperature in 1 minute. The orange/red glow will even out in about 5 minutes. The rotisserie motor is equipped with metal gears and is capable of turning up to 12 lbs. of food. The motor is mounted on a bracket on the left side of the grill by sliding the motor over the bracket with the cord facing the back of the grill. Make sure the rotisserie motor is completely seated on the bracket prior to operating. Make sure the rotisserie cord is away from any hot surfaces.

Electrical Grounding Instructions

ATTACHING THE ROTISSERIE

The motor is mounted on a bracket on the left side of the grill by sliding the motor over the bracket with the cord facing the back of the grill. (See Fig. 4)

With the rotisserie motor in place and plugged into an electrical outlet, it is now ready to operate. Slide one of the meat forks onto the rod (prongs facing away from the rounded end). Push the rod through the center of the food, then slide the second meat fork onto the rod (prongs toward the food). Center the food to be cooked on the rod, then push the meat forks firmly together. Tighten the thumb screws. It may also be necessary to wrap food with butcher’sstring, (never use nylon or plastic string) to secure loose portions. (See Fig. 5)

Once the food is secure, insert the pointed end of the rotisserie rod into the motor assembly and rest the other end on the support on the right-hand side of the grill. (If needed, remove the cooking grates for more room). Turn the power switch to the “On” position to start the rotisserie motor.

NOTE: Remove the rotisserie when not in use. Store the unit indoors when not in use. Remove warming shelf when using rotisserie.

Fig. 4

Fig. 5

Do not use the rotisserie in the rain.

Accessory Lighting

ROTISSERIE LIGHTING

Open the lid. Push and turn the control knob for the rotisserie counter clockwise to the “ HIGH” position. Wait 5 seconds. Then press and hold the electronic igniter button. You’ ll hear a snapping sound. If the burner does not light in 4 seconds, turn the control knob to OFF and wait 5 minutes before trying again. Once lit, turn the control knob to the desired setting. (See Fig. 6)

If the igniter does not function, the burner can be lit by holding a lit match to the burner while the control knob is turned counter clockwise to “ HIGH” . (See Fig. 7)

NOTE: After the first use the stainless steel around the burner will darken. This is a normal reaction of premium stainless steel to heat and is not a defect. The infrared panel will also darken after initial use. This is also a normal occurrence.

NOTE: Do Not operate the main burners and infrared back burner at the same time. This can cause warping of the roll top grill hood.

Fig. 6

Fig. 7

SIDE BURNER LIGHTING

Push and turn the side burner control knob to the

“ HIGH” position and immediately press and hold the electronic igniter button. You’ ll hear a snapping sound. It may be necessary to hold the electronic starter button for about 4 seconds. If the burner does not light in 4 seconds, turn the knob to the “OFF” position and wait 5 minutes before trying again. Repeat above steps to light remaining burners. (See Fig. 8)

MATCH LIGHTING OF THE BURNER

If by chance the electronic igniter does not light the

burner, the burner may be lit with a match. Keep your face as far away from the burner as possible and place a lit, long stem match through the spaces in the grate to the ports of the burner. Position the match near the burner ports and push and turn the control knob to the “HIGH” position.

(See Fig. 9)

Fig. 8

Fig. 9

Care and Maitenance

GENERAL MAINTENANCE

- Keep outdoorcooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

- Do not obstruct the flow of combustion and ventilation air.

- Keep the ventialtion openings of the cylinder enclosure free and cleat from debris.

- Visually check the burners.

Normal: soft blue flame

ut of Adjustment: Hard

O blue flames- too much air

Poor Combustion: Wavy,

yellow flames-too little air.

DRIP TRAY

The drip tray located below the grill, inside the cart, should be cleaned periodically to prevent heavy buildup of debris.

Note: Allow the drip tray to cool before attempting to clean.

Important: Do not leave the grill outside during inclement weather unless it is covered (cover sold separately). Rain water can collect inside of the grill, the grill cart or the drip tray if left uncovered. If the drip tray is not cleaned after use and the grill is left uncovered, the drip tray will fill with water causing grease and water to

spill into the grill cart. We recommend cleaning and storing the drip tray after every use.

COOKING GRATES

The cooking grates can be cleaned immediately after cooking is completed and after turning off the grill. Wear a

barbecue mitt and scrub the cooking grates with a damp cloth. If the grill is allowed to cool down, cleaning the grates

will be easier if removed from the grill and cleaned with a mild detergent.

STAINLESS STEEL

After initial usage, areas of the grill may discolor from the intense heat given off by the burners, this is normal.

Purchase a mild stainless steel cleaner and rub in the direction of the grain of the metal. Specks of grease can gather on the surface of the stainless steel and bake on to the surface and give a worn appearance. For removal, use an nonabrasive oven cleaner in conjunction with a stainless cleaner.

Note: Always scrub in the direction of the grain.

Note: Always keep your grill covered when not in use.

IGNITER ACCESS

To remove igniter, unscrew igniter push button and locking nut from front panel of the side burner and

igniter will fall out through the bottom

PORCELAIN PARTS

Certain parts of your Grill have a porcelain coating. Porcelain is a glass-based product, and is highly durable to standard wear and tear. However, porcelain is sensitive to concussive blows, which can create interlaced micro-fractures, or “spider-webs.” Please take care not to strike any porcelain covered parts with solid objects, drop them, or create any other concussive blows. These interlaced micro-fractures are common and may lead to minor chipping. Neither the chipping nor the interlaced micro-fractures will adversely affect the performance or your grill, and are not covered under the warranty for porcelain parts.

Troubleshooting Your Grill

GENERAL TROUBLE SHOOTING

You should inspect the burners at least once a year or immediately if any of the following conditions occur:

• The smell of gas.

• Flames appearing mostly yellow. (some yellow at the tips is OK)

• The grill will not get hot enough.

• Burners make a snapping noise.

• The grill heats unevenly.

SPIDER AND INSECT WARNING

Spider and insects can nest in the burners of this or any other grill and cause the gas to flow from the front of the burner. This is very dangerous condition which can cause a fire to occur behind the valve panel, thereby damaging the grill and making it unsafe to operate. We recommend you check the grill and remove any spiders, insects and webs at least once a year to reduce this risk.

BEFORE CALLING CUSTOMER SERVICE

If the grill does not function properly, use the following checklist.

PROBLEM

Grill will not light when the igniter button is pushed.

SOLUTION

Is your gas supply turned on ?

If this is an L.P. grill, is there gas in your tank ? Check your gas level.

Is one of your burners turned on? Allow up to four seconds of gas flow to ignite.

Is your igniter working?

- You should hear a snapping sound when you press the igniter?

- If you hear a snapping sound can you see a spark at the electrodes?

Note - You will need to remove your cooking grates and flavor grids to see the electrodes.

Check to see if your igniter battery is installed correctly with the negative side in.

Check your igniter battery and replace if needed.

Check for loose wire connections to the igniter or electrodes.

Check to see if debris is blocking the electrodes.

If the igniter is not working can you light the grill with a match?

Troubleshooting Your Grill

PROBLEM

Grill will not light with a match or low heat with dial set to "High" position.

Flame is erratic

SOLUTION

• Is your gas supply fully turned on?

• If this is an L.P. grill is there gas in your tank ? Check your gas level.

• If this is an L.P. grill, shut off gas supply, disconnect gas line at tank, reconnect the line to the tank.

• Make sure all the knobs are in the off position, then open the gas supply valve on the L.P. tank very slowly 1/4 turn, then open fully (at least two full turns). Check flame height again.

• Check to insure the gas supply line or hose is not kinked.

• If only one burner appears low, check and clean the burner ports if clogged or dirty.

• Check for leaks.

Note - Pre-Heating time can take from 5 to 10 minutes.

• Check gas connection

- look for kinked hose.

- make sure gas supply valve is fully open.

Flare-ups

Burner flame is mostly yellow or orange, possibly in conjunction with smell of gas.

Cart door does not align properly with cart

• Gas level may be low.

• Grill may be in need of cleaning.

• Check flavor grids and cooking grates for excess food or grease build-up.

• Ensure grill is not placed directly in the path of wind.

• Be sure drip tray is clean, (do not use aluminum foil on

drip tray.)

Note: Some flare-ups may be inevitable if cooking greasy foods.

• Check the burner inlet for obstructions. Particularly at air

inlets for each burner.

• Grill may be in an area that is too windy.

• Loosen the four 1/2” bolts under the grill hood that hold grill to cart. Slide grill head left or right as needed until door is aligned properly. Retighten bolts.

WARNING: Move grill head gently to the left or right on the cart! After the four bolts have been loosened, the grill is not attached to the cart and could fall, causing damage or physical injury.

Warranty

Sure Heat X2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
