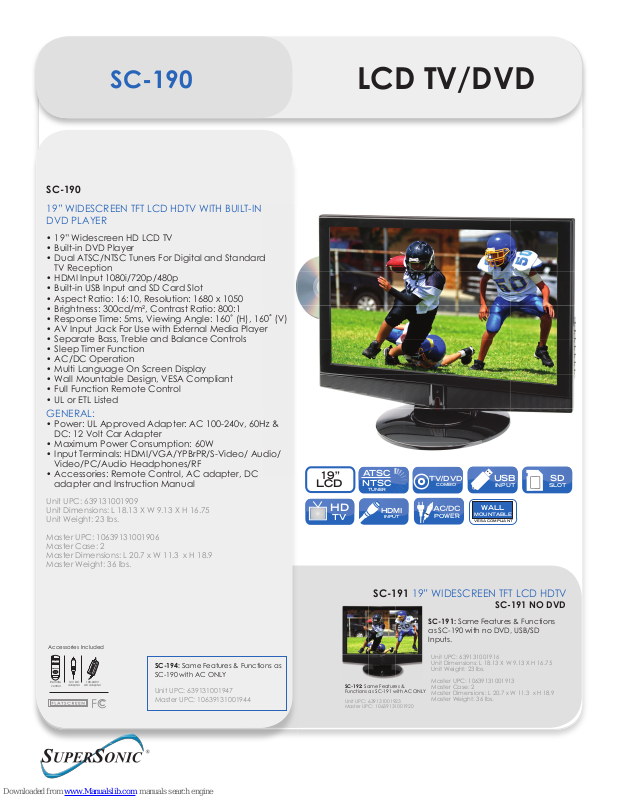

Supersonic SC-190 Specifications

SC-190

AC/DC

SC-190

19” WIDESCREEN TFT LCD HDTV WITH BUILT-IN
DVD PLAYER

• 19” Widescreen HD LCD TV

• Built-in DVD Player

• Dual ATSC/NTSC Tuners For Digital and Standard
TV Reception

• HDMI Input 1080i/720p/480p

• Built-in USB Input and SD Card Slot

• Aspect Ratio: 16:10, Resolution: 1680 x 1050

• Brightness: 300cd/m², Contrast Ratio: 800:1

• Response Time: 5ms, Viewing Angle: 160˚ (H), 160˚ (V)

• AV Input Jack For Use with External Media Player

• Separate Bass, Treble and Balance Controls

• Sleep Timer Function

• AC/DC Operation

• Multi Language On Screen Display

• Wall Mountable Design, VESA Compliant

• Full Function Remote Control

• UL or ETL Listed

GENERAL:

• Power: UL Approved Adapter: AC 100-240v, 60Hz &
DC: 12 Volt Car Adapter

• Maximum Power Consumption: 60W

• Input Terminals: HDMI/VGA/YPBrPR/S-Video/ Audio/
Video/PC/Audio Headphones/RF

• Accessories: Remote Control, AC adapter, DC
adapter and Instruction Manual

Unit UPC: 639131001909
Unit Dimensions: L 18.13 X W 9.13 X H 16.75
Unit Weight: 23 lbs.

19”

LCD

HD

TV

LCD TV/DVD

ATSC
NTSC

TUNER

HDMI

INPUT

TV/DVD

COMBO

AC/DC

POWER

USB

INPUT

WALL

MOUNTABLE

VESA COMPLIANT

SD

SLOT

Master UPC: 10639131001906
Master Case: 2
Master Dimensions: L 20.7 x W 11.3 x H 18.9
Master Weight: 36 lbs.

Accessories Included

SC-194: Same Features & Functions as

12V DC
adapter

100-240V

AC adapter

FC

C

Remote
control

SC-190 with AC ONLY

Unit UPC: 639131001947
Master UPC: 10639131001944

SC-191 19” WIDESCREEN TFT LCD HDTV

SC-191 NO DVD

SC-191: Same Features & Functions

as SC-190 with no DVD, USB/SD
Inputs.

Unit UPC: 639131001916
Unit Dimensions: L 18.13 X W 9.13 X H 16.75
Unit Weight: 23 lbs.

SC-192: Same Features &
Functions as SC-191 with AC ONLY

Unit UPC: 639131001923
Master UPC: 10639131001920

Master UPC: 10639131001913
Master Case: 2
Master Dimensions: L 20.7 x W 11.3 x H 18.9
Master Weight: 36 lbs.
