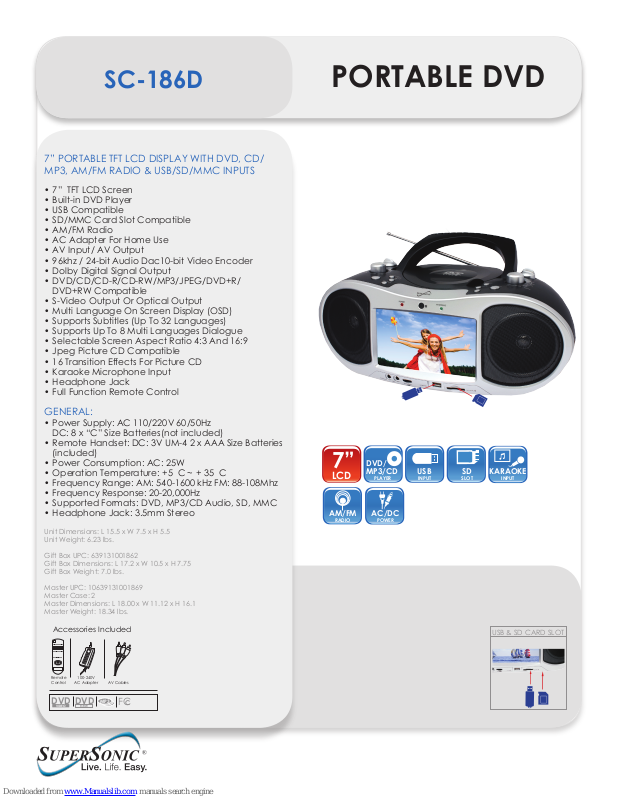

Supersonic SC-186D Specifications

SC-186D

7” PORTABLE TFT LCD DISPLAY WITH DVD, CD/
MP3, AM/FM RADIO & USB/SD/MMC INPUTS

• 7” TFT LCD Screen

• Built-in DVD Player

• USB Compatible

• SD/MMC Card Slot Compatible

• AM/FM Radio

• AC Adapter For Home Use

• AV Input/ AV Output

• 96khz / 24-bit Audio Dac10-bit Video Encoder

• Dolby Digital Signal Output

• DVD/CD/CD-R/CD-RW/MP3/JPEG/DVD+R/
DVD+RW Compatible

• S-Video Output Or Optical Output

• Multi Language On Screen Display (OSD)

• Supports Subtitles (Up To 32 Languages)

• Supports Up To 8 Multi Languages Dialogue

• Selectable Screen Aspect Ratio 4:3 And 16:9

• Jpeg Picture CD Compatible

• 16 Transition Effects For Picture CD

• Karaoke Microphone Input

• Headphone Jack

• Full Function Remote Control

PORTABLE DVD

GENERAL:

• Power Supply: AC 110/220V 60/50Hz
DC: 8 x “C” Size Batteries(not included)

• Remote Handset: DC: 3V UM-4 2 x AAA Size Batteries
(included)

• Power Consumption: AC: 25W

• Operation Temperature: +5 C ~ + 35 C

• Frequency Range: AM: 540-1600 kHz FM: 88-108Mhz

• Frequency Response: 20-20,000Hz

• Supported Formats: DVD, MP3/CD Audio, SD, MMC

• Headphone Jack: 3.5mm Stereo

Unit Dimensions: L 15.5 x W 7.5 x H 5.5
Unit Weight: 6.23 lbs.

Gift Box UPC: 639131001862
Gift Box Dimensions: L 17.2 x W 10.5 x H 7.75
Gift Box Weight: 7.0 lbs.

Master UPC: 10639131001869
Master Case: 2
Master Dimensions: L 18.00 x W 11.12 x H 16.1
Master Weight: 18.34 lbs.

Accessories Included

Remote

100-240V

Control

DVD

VIDEO

AC Adapter

DVD

AV Cables

MP3

C

R/RW

FC

7”

LCD

AM/FM

RADIO

DVD/
MP3/CD

PLAYER

AC/DC

POWER

USB

INPUT

SD

SLOT

KARAOKE

INPUT

USB & SD CARD SLOT
