SUPER MICRO Computer X9SVL-IIF, X9SCM-IIF User Manual

X9SCM-IIF

X9SCL-IIF

USER’S MANUAL

Revision 1.0a

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/television technician for help.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0a

Release Date: January 21, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

X9SCM-IIF/X9SCL-IIF motherboard series.

About This Motherboard

The X9SCM-IIF/X9SCL-IIF motherboard supports a single Intel® E3-1200

v2 family series, 2nd generation Intel Core® i3, Pentium®, Celeron® processor

in an LGA 1155 socket. With the Intel® C202/C204 Express chipset built in, the

X9SCM-IIF/X9SCL-IIF motherboard offers substantial enhancement in system

performance and storage capability for entry-level to mid-range servers in a sleek

package. Please refer to our website (http://www.supermicro.com/products/) for

processor and memory support updates. This product is intended to be installed

and serviced by professional technicians.

Manual Organization

Chapter 1describesthefeatures,specicationsandperformanceofthemother-

board, and provides detailed information about the Intel Cougar Point chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory and system setup stored in the CMOS.

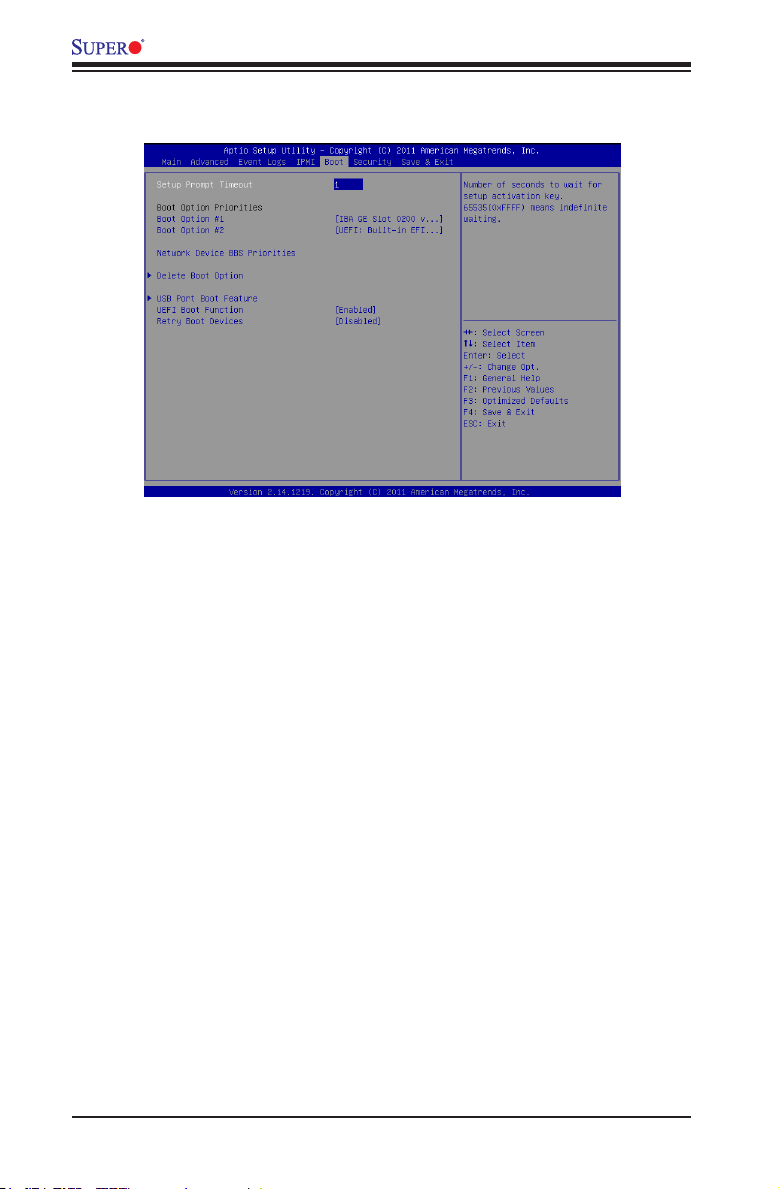

Chapter 4 includes an introduction to the BIOS, and provides detailed information

on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C contains BIOS Recovery instructions.

Preface

iii

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Conventions Used in This Manual

Pay special attention to the following symbols for proper motherboard installation

and to prevent damage to the system or injury to yourself:

Danger/Caution: Instructions to be strictly followed to prevent catastrophic

system failure or to avoid bodily injury,

Warning: Important information given to ensure proper system installation

or to prevent damage to the components,

Note: Additional information given to differentiate between various models

or to provide information for correct system setup.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Contacting Supermicro

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan, R.O.C.

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Web Site: www.supermicro.com.tw

Technical Support:

Email: support@supermicro.com.tw

Tel: +886-(2)-8226-3990

Web Site: www.supermicro.com.tw

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Table of Contents

Preface

About This Motherboard ................................................................................................ iii

Manual Organization .....................................................................................................iii

Conventions Used in This Manual ................................................................................iv

Contacting Supermicro ...................................................................................................v

Chapter 1

Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .......................................................................................................... 1-1

Motherboard Features ..................................................................................... 1-7

1-2 Chipset Overview ......................................................................................... 1-10

Intel C202/C204 Express Chipset Features ................................................. 1-10

1-3 Special Features ............................................................................................1-11

Recovery from AC Power Loss ......................................................................1-11

1-4 PC Health Monitoring .....................................................................................1-11

Fan Status Monitor with Firmware Control ...................................................1-11

Environmental Temperature Control ..............................................................1-11

System Resource Alert ..................................................................................1-11

1-5 ACPI Features ............................................................................................... 1-12

Slow Blinking LED for Suspend-State Indicator ........................................... 1-12

1-6 Power Supply ................................................................................................ 1-12

1-7 Super I/O ....................................................................................................... 1-13

1-8 Advanced Power Management (for -F Models Only) ................................... 1-13

Intel® Intelligent Power Node Manager (NM) ................................................ 1-13

Manageability Engine (ME) ........................................................................... 1-13

1-9 Overview of the Nuvoton WPCM450 Controller ........................................... 1-14

Chapter 2

Installation

2-1 Standardized Warning Statements ................................................................. 2-1

Battery Handling .............................................................................................. 2-1

Product Disposal ............................................................................................. 2-3

2-2 Static-Sensitive Devices .................................................................................. 2-4

Precautions ..................................................................................................... 2-4

Unpacking ....................................................................................................... 2-4

2-3 Processor and Heatsink Installation................................................................ 2-5

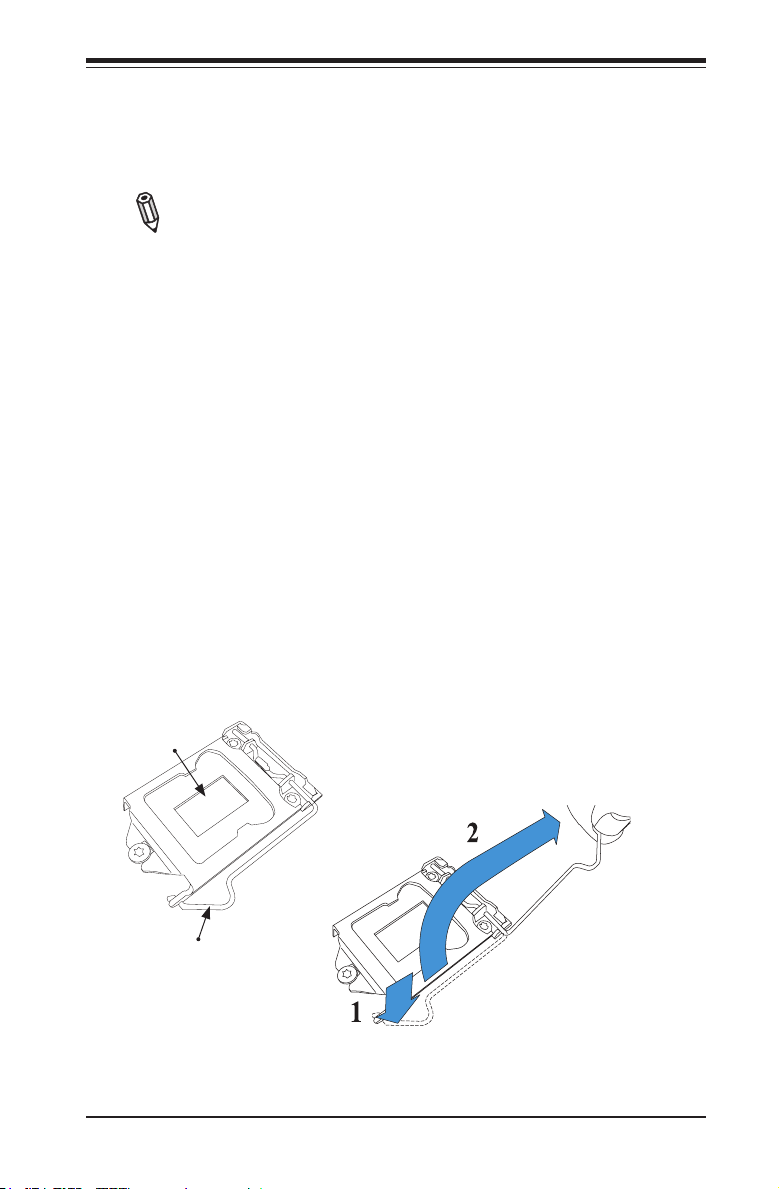

Installing the LGA1155 Processor .................................................................2-5

Installing a Passive CPU Heatsink ................................................................. 2-8

Removing the Heatsink ................................................................................... 2-9

Installing an Active Fan CPU Heatsink ......................................................... 2-10

Removing the Heatsink ................................................................................. 2-12

2-4 Installing DDR3 Memory ............................................................................... 2-13

DIMM Installation .......................................................................................... 2-13

Removing Memory Modules ......................................................................... 2-13

Memory Support ............................................................................................ 2-14

Memory Population Guidelines ..................................................................... 2-14

2-5 Motherboard Installation ................................................................................ 2-16

Tools Needed ................................................................................................ 2-16

Location of Mounting Holes .......................................................................... 2-16

Installing the Motherboard ............................................................................ 2-17

2-6 Connectors/IO Ports ...................................................................................... 2-18

Back I/O Panel .............................................................................................. 2-18

ATX PS/2 Keyboard/Mouse Ports ............................................................ 2-19

Universal Serial Bus (USB) ...................................................................... 2-20

Ethernet Ports .......................................................................................... 2-21

Serial Ports ............................................................................................... 2-22

Video Connector ....................................................................................... 2-23

Front Control Panel ....................................................................................... 2-24

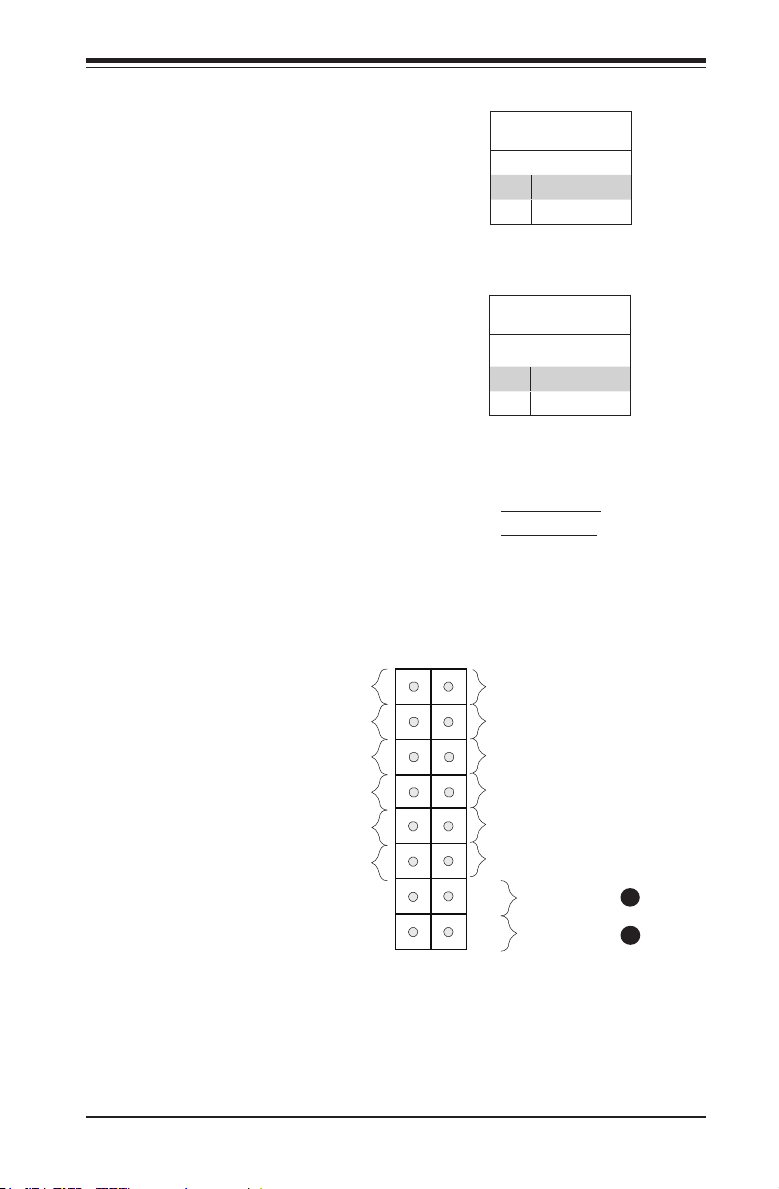

FrontControlPanelPinDenitions............................................................... 2-25

Power LED .............................................................................................. 2-25

HDD LED .................................................................................................. 2-25

NIC1/NIC2 (LAN1/LAN2) .......................................................................... 2-26

Overheat (OH)/Fan Fail/Front .................................................................. 2-26

Reset Button ........................................................................................... 2-27

Power Button ........................................................................................... 2-27

2-7 Connecting Cables ........................................................................................ 2-28

ATX Main PWR & CPU PWR Connectors .............................................. 2-28

Fan Headers ............................................................................................. 2-29

Chassis Intrusion ..................................................................................... 2-29

Internal Buzzer ......................................................................................... 2-30

Speaker .................................................................................................... 2-30

Onboard Power LED ................................................................................ 2-31

Power Supply I2C Connector ................................................................... 2-31

T-SGPIO 1/2 Headers .............................................................................. 2-32

Table of Contents

vii

X9SCM-IIF/X9SCL-IIF Series User’s Manual

TPM Header ............................................................................................. 2-32

DOM PWR Connector .............................................................................. 2-33

Stand-by Power ........................................................................................ 2-33

2-8 Jumper Settings ............................................................................................ 2-34

Explanation of Jumpers ................................................................................ 2-34

LAN Port Enable/Disable ......................................................................... 2-34

Clear CMOS ............................................................................................. 2-35

PCI Slot SMB Enable ............................................................................... 2-35

VGA Enable .............................................................................................. 2-36

Watch Dog Enable ................................................................................... 2-36

USB Wake-Up ......................................................................................... 2-37

BMC Enable ............................................................................................. 2-37

ME Recovery ............................................................................................ 2-38

BIOS Recovery ......................................................................................... 2-38

2-9 Onboard Indicators ........................................................................................ 2-39

LAN 1/LAN 2 LEDs .................................................................................. 2-39

IPMI Dedicated LAN LEDs ..................................................................... 2-39

Onboard Power LED ............................................................................................................ 2-40

Unsupported Memory LED ....................................................................... 2-40

Power Standby LED ................................................................................. 2-40

IPMI Heartbeat LED ................................................................................. 2-40

2-10 SATA Connections ......................................................................................... 2-41

SATA Connections .................................................................................... 2-41

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ............................................................................................ 3-1

No Power ........................................................................................................ 3-1

No Video ......................................................................................................... 3-2

Memory Errors ............................................................................................... 3-2

LosingtheSystem’sSetupConguration ....................................................... 3-2

3-2 Technical Support Procedures ........................................................................ 3-3

3-3 Frequently Asked Questions ........................................................................... 3-4

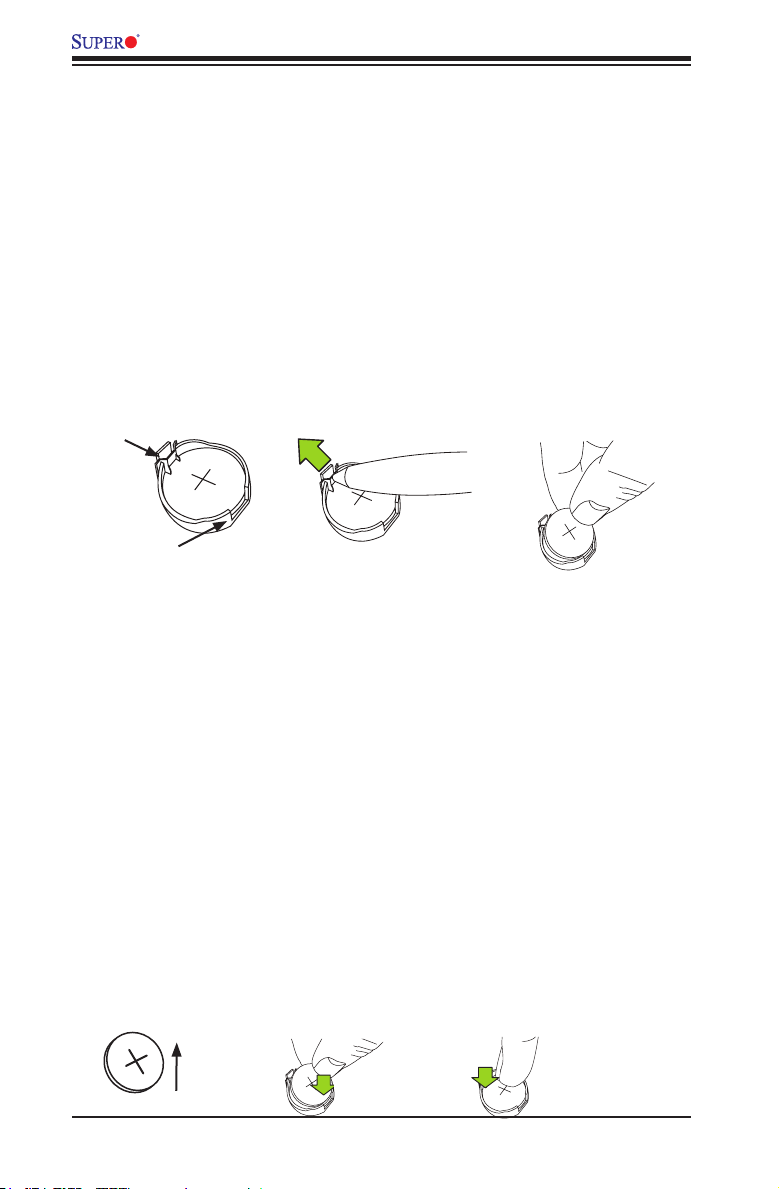

3-4 Battery Removal and Installation .................................................................... 3-6

Battery Removal .............................................................................................. 3-6

viii

Proper Battery Disposal .................................................................................. 3-6

Battery Installation ........................................................................................... 3-6

3-5 Returning Merchandise for Service................................................................. 3-7

Chapter 4

BIOS

4-1 Introduction ...................................................................................................... 4-1

Starting BIOS Setup Utility .............................................................................. 4-1

HowToChangetheCongurationData ......................................................... 4-1

How to Start the Setup Utility ......................................................................... 4-2

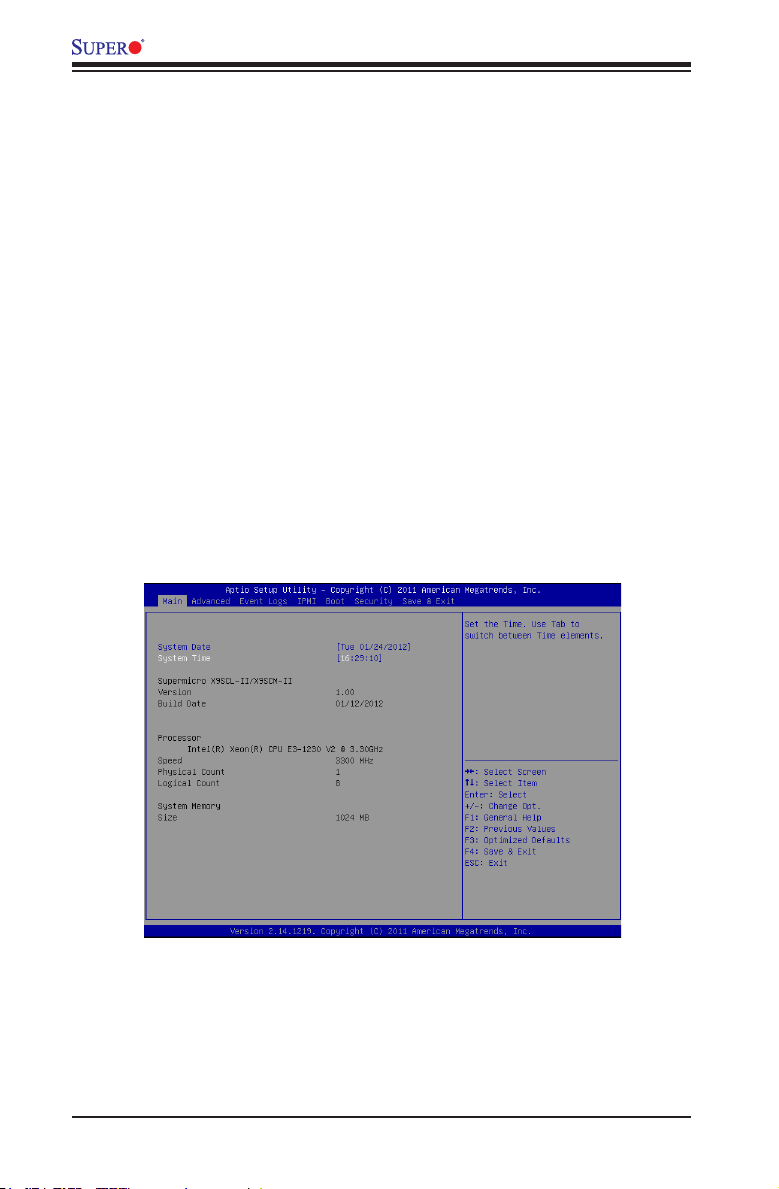

4-2 Main Setup ...................................................................................................... 4-2

System Overview: The following BIOS information will be displayed: ....... 4-3

System Time/System Date ........................................................................ 4-3

Processor ................................................................................................... 4-3

System Memory ........................................................................................ 4-3

4-3 AdvancedSetupCongurations...................................................................... 4-4



BOOT Feature .............................................................................................. 4-4

Quiet Boot .................................................................................................. 4-4

AddOn ROM Display Mode ........................................................................ 4-4

Bootup Num-Lock ....................................................................................... 4-4

Wait For 'F1' If Error ................................................................................... 4-4

INT19 Trap Response ................................................................................ 4-4

Watch Dog Function ................................................................................... 4-5

Power Button Function ............................................................................... 4-5

Restore on AC Power Loss ........................................................................ 4-5

DeepSx Power Policies .............................................................................. 4-5



Processor & Clock Options .......................................................................... 4-5

Intel ® Hyper Threading Technology ..........................................................4-5

Active Processor Cores .............................................................................. 4-5

Execute-Disable Bit Capability (Available when supported by the OS and

the CPU) ..................................................................................................... 4-6

Intel® Virtualization Technology (Available when supported by the CPU) 4-6

Hardware Prefetcher (Available when supported by the CPU) ................. 4-6

Adjacent Cache Line Prefetch (Available when supported by the CPU) ... 4-6

Intel® AES-NI ............................................................................................. 4-6

Power Technology ...................................................................................... 4-6

EIST ............................................................................................................ 4-6

CPU C3 Report, CPU C6 Report, CPU 7 Report ...................................... 4-7

Table of Contents

X9SCM-IIF/X9SCL-IIF Series User’s Manual

C1E Support ............................................................................................... 4-7

Turbo Mode ................................................................................................ 4-7



ChipsetConguration ................................................................................... 4-7



IDE/SATAConguration ............................................................................... 4-9

SATA Mode ................................................................................................. 4-9

IDE.............................................................................................................. 4-9

SATA Port0~Port5 ...................................................................................... 4-9

AHCI ........................................................................................................... 4-9

Aggressive Link Power Management ......................................................... 4-9

SATA Port0~Port5 ...................................................................................... 4-9

Hot Plug .................................................................................................... 4-10

Staggered Spin-Up ................................................................................... 4-10

RAID ......................................................................................................... 4-10

SATA Port0~Port5 .................................................................................... 4-10

Hot Plug .................................................................................................... 4-10



PCIe/PCI/PnPConguration ..................................................................... 4-10

PCI Latency Timer .................................................................................... 4-10

Above 4G Decoding ................................................................................. 4-10

Onboard LAN Option ROM Select ........................................................... 4-10

Load Onboard LAN1 Option ROM/Load Onboard LAN2 Option ROM ... 4-10



SuperIODeviceConguration ..................................................................4-11

Serial Port 1 / Serial Port 2 .......................................................................4-11

Serial Port1 Settings/ Serial Port2 Settings ..............................................4-11



SerialPortConsoleRedirectionConguration ......................................... 4-12

COM0/COM1/SOL Console Redirection .................................................. 4-12

Serial Port for Out-of-Band Management / Windows Emergency

Management Services (EMS) Console Redirection ................................. 4-12



ACPI Settings ............................................................................................. 4-13

High Precision Event Timer ...................................................................... 4-13

ACPI Sleep State ..................................................................................... 4-13

WHEA Support ......................................................................................... 4-13

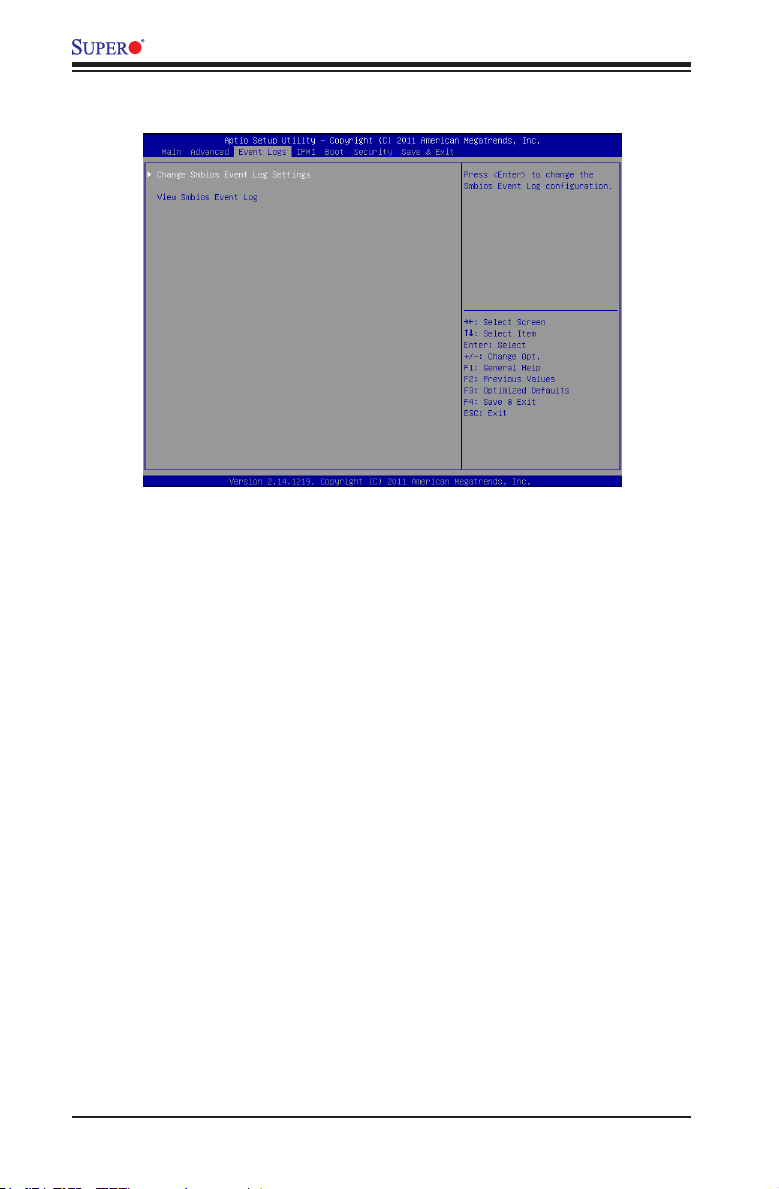

4-4 Event Logs .................................................................................................... 4-14



Change Smbios Event Log Settings .......................................................... 4-14

Smbios Event Log .................................................................................... 4-14

Erase Event Log ....................................................................................... 4-14

When Log is Full ...................................................................................... 4-14

Log System Boot Event ........................................................................... 4-14

MECI ......................................................................................................... 4-14

METW ....................................................................................................... 4-15

4-5 IPMIConguration ........................................................................................ 4-16



System Event Log ...................................................................................... 4-16

Enabling/Disabling Options ...................................................................... 4-16

SEL Components ..................................................................................... 4-16

Erasing Settings ....................................................................................... 4-16

Erase SEL ................................................................................................ 4-16

When SEL is Full ...................................................................................... 4-16



BMCNetworkConguration ....................................................................... 4-17

LANChannel1:Thisfeatureallowstheusertocongurethesettings for

LAN Channel 1. ........................................................................................ 4-17

UpdateIPMILANConguration ............................................................... 4-17

CongurationAddressSource ................................................................. 4-17

Current IP Address ................................................................................... 4-17

Current Subnet Mask ............................................................................... 4-17

Current MAC Address .............................................................................. 4-17

Current Gateway IP Address ....................................................................4-17

4-6 Boot Settings ................................................................................................ 4-18

Setup Prompt Timeout ............................................................................. 4-18

Retry Boot Devices .................................................................................. 4-18

Boot Option Filter ..................................................................................... 4-18

Boot Option Priorities ............................................................................... 4-18

Network Device BBS Priorities, Hard Drive BBS Priorities ...................... 4-18



Delete Boot Option ..................................................................................... 4-19

4-7 Security Settings ........................................................................................... 4-20

Administrator Password .......................................................................... 4-20

User Password: ........................................................................................ 4-20

4-8 Save & Exit Options ...................................................................................... 4-21

Save Changes and Exit ........................................................................... 4-21

Discard Changes and Exit ...................................................................... 4-21

Discard Changes ...................................................................................... 4-21

Restore Defaults ....................................................................................... 4-21

Save As User Defaults ............................................................................. 4-22

Restore User Defaults .............................................................................. 4-22

Boot Override ........................................................................................... 4-22

Table of Contents

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Appendix A

BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B

Software Installation Instructions

B-1 Installing Drivers ..............................................................................................B-1

B-2 ConguringSuperDoctor® III ..........................................................................B-2

Appendix C

UEFI BIOS Recovery Instructions

An Overview to the UEFI BIOS ..................................................................................... 1

How to Recover the UEFI BIOS Image (-the Main BIOS Block) .................................. 1

To Recover the Main BIOS Block Using a USB-Attached Device ................................ 1

xii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box.

•One (1) Supermicro Mainboard

•Six (6) SATA cables

•One (1) I/O shield

•One (1) Supermicro CD containing drivers and utilities

•One (1) User's Manual

1-1

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Motherboard Image (X9SCM-IIF)

Note: All graphics shown in this manual were based upon the latest PCB

Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics

shown in this manual.

1-2

Chapter 1: Introduction

Motherboard Image (X9SCL-IIF)

Note: All graphics shown in this manual were based upon the latest PCB

Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics

shown in this manual.

1-3

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Motherboard Layout

LE7

JPBJPL1

JPL2

FAN4

JLAN1

JLAN2

LAN2

LAN1

JPUSB1:B/P USB WAKE UP

VGA

U82

COM1

JTPM

USB/0/1

IPMI _LAN

J12

2-3:DISABLE

1-2:ENABLE

KB/MOUSE

JPUSB1

JPW2

COM2

JPG1

USB 12/13

USB4/5

USB2/3

JWOL

SLOT4 PCI-E 2.0 X4 ON X8

JI2C1/JI2C2 ON:Enable OFF:Disable

JPG1: VGA 1-2:Enable 2-3:Disable

JI2C2

JI2C1

SLOT5 PCI-E 2.0 X4 ON X8

SLOT6 PCI-E 2.0 X8

SLOT7 PCI-E 2.0 X8

JPB:BMC 1-2:ENABLE 2-3:DISABLE JPL1:LAN1 1-2:ENABLE 2-3:DISABLE JPL2:LAN2 1-2:ENABLE 2-3:DISABLE

CPU

DDR3 1066/1333 UDIMM required

J24

JBT1

JBT1:CMOS CLEAR

USB11

I-SATA5

JS6

I-SATA4

JS5

JS2

JS3JS4

LE4

LE3

LE2

GND

JWF1

JWF1:DOM PWR

JS1

I-SATA3 I-SATA2

FANA

T-SGPIO1

JL1:CHASSIS INTRUSION

I-SATA1 I-SATA0

T-SGPIO2

JL1

JPME1

JPME2

J31

J29

FAN3

DIMM1

DIMM1A

SPKR1

FAN2

JSPK:Buzzer/Speaker

DIMM3

JWD

DIMM1B

1-2:RST 2-3:NMI

DIMM4

DIMM2B

JWD

DIMM2

DIMM2A

JSPK

Important Notes to the User

•See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front

panel connections.

JLED1:3 pin Power LED

JLED

FAN1

JPW1

JPI2C

JF1

PWR LED

JF1

HDD LED

NIC1

NIC2

OH/ FF

RST

PWR ON

•" " indicates the location of "Pin 1".

•Jumpers not indicated are for testing only.

•SATA-III ports (6Gb/s) are available on the X9SCM-IIF only.

•For X9SCM-IIF: Two SATA-III ports (I-SATA#0~1) and four SATA-II ports (3 Gb/s,

I-SATA#2~5) are located on the board. For X9SCL-IIF: Six SATA-II ports (I-SATA

#0~5) are included on the motherboard.

•PCI-E Slot5 (PCI-E 2.0 x4 on x8 slot) is available on the X9SCM-IIF only.

1-4

X9SCM-IIF/X9SCL-IIF Quick Reference

Chapter 1: Introduction

COM2

JSTBY1

JPG1

USB 12/13

USB 4/5

USB 2/3

JBT1

USB11

LE4 LE3 LE2

JSD1

JI2C2

COM2

SLOT4 PCI-E 2.0 X4 ON X8

JWOL

JPG1

USB 12/13

USB4/5

USB2/3

I-SATA5 I-SATA4 I-SATA3 I-SATA2

J24

JBT1

JBT1:CMOS CLEAR

USB11

I-SATA5

JS6

I-SATA4

JS5

JS3JS4

LE4

LE3

I-SATA3 I-SATA2

LE2

GND

JWF1

FANA

JWF1:DOM PWR

FANA

T-SGPIO1

JL1:CHASSIS INTRUSION

LE7

JI2C1/JI2C2 ON:Enable OFF:Disable

JPG1: VGA 1-2:Enable 2-3:Disable

JS2

JS1

T-SGPIO2

LE7

JI2C1

JI2C2

JI2C1

I-SATA1 I-SATA0

JL1

SLOT5 PCI-E 2.0 X4 ON X8

J29

SLOT6 PCI-E 2.0 X8

JPB:BMC 1-2:ENABLE 2-3:DISABLE JPL1:LAN1 1-2:ENABLE 2-3:DISABLE JPL2:LAN2 1-2:ENABLE 2-3:DISABLE

I-SATA1 I-SATA0

JPME1

J31

JL1

T-SGPIO2

JPME2

FAN3

JPB JPL1

JPL2

JPBJPL1

JPL2

SLOT7 PCI-E 2.0 X8

JPME2

LAN2

JLAN2

JLAN1

FAN4

JLAN1

LAN1

KB/MOUSE

COM1

VGA

FAN4

U82

IPMI

JPUSB1:B/P USB WAKE UP

J12

2-3:DISABLE

COM1

JTPM

USB/0/1

IPMI _LAN

USB 0/1

1-2:ENABLE

KB/MOUSE

JPUSB1

JPW2

JTPM

JPW1

CPU

JPI2C

FAN2

DDR3 1066/1333 UDIMM required

DIMM1

DIMM1A

SPKR1

JSPK

JSPK:Buzzer/Speaker

JSPK

SPKR1

DIMM2

DIMM2A

DIMM3

DIMM1B

JWD

JWD 1-2:RST 2-3:NMI

JWD

DIMM4

DIMM2B

FAN1

JLED1:3 pin Power LED

FAN1

JLED

JF1

PWR LED

JF1

HDD LED

NIC1

NIC2

OH/

JF1

RST

PWR ON

X9SCM-IIF/X9SCL-IIF Jumpers

Jumper Label Description Default

JPB BMC Enable Pins 1-2 (Enabled)

JPL1/JPL2 LAN1/LAN2 Enable Pins 1-2 (Enabled)

JWD Watch Dog Timer Enable Pins 1-2 (Reset)

JPME1 ME Recovery Open (Normal)

JPME2 BIOS Recovery Open (Normal)

JPG1 On board VGA Enable Pins 1-2 (Enabled)

JBT1 Clear CMOS See Chapter 2

JI2C1/JI2C2 PCI Slot SMB Enable Pins 1-2 (Enabled)

JPUSB1 USB Wake Up (for USB0/1) Pins 2-3 (Enabled)

1-5

X9SCM-IIF/X9SCL-IIF Series User’s Manual

X9SCM-IIF/X9SCL-IIF Headers/Connectors

Connector Label Description

JLAN1/JLAN2 Gigabit (RJ45) Ports (LAN1/2)

IPMI IPMI LAN Port

FAN1~4, FANA System Fan Headers

VGA On board Video Port

COM1, COM2 Back panel COM1 port, COM2 header

KB/MOUSE Back panel Keyboard and Mouse port

JTPM Trusted Platform Module (TPM) Header

USB 0/1 Back panel USB 2.0 ports 0/1

JUSB2~5, 12/13 Intermal USB 2.0 headers

JUSB11 Internal USB 2.0 Type "A" connector

JPW2 +12V 8-pin CPU power Connector (Required)

JPW1 24-pin ATX Main Power Connector (Required)

JPI2C PWR supply (I2C) System Management Bus

JLED 3-pin Power LED header

JF1 Front Panel Control Header

JSPK Speaker header (Pins 3/4: Internal, 1~4:External)

SPKR1 Internal speaker/buzzer

T-SGPIO-1/2 Serial Link General Purpose IO 1/2 Headers (5V Gen1/Gen 2)

JL1 Chassis Intrusion Header

JSD1 SATA DOM (Disk On Module) Power Connector

I-SATA 0/1 SATA 3.0 ports 0/1 (6Gb/s)

I-SATA 2~5 SATA 2.0 ports 2~5 (3Gb/s)

JSTBY1 Stand-by Power header

X9SCM-IIF/X9SCL-IIF LED Indicators

LED Label Description Color/State Status

LE7 IPMI Heartbeat LED Green: Blinking IPMI Active

LE2 Standby Power LED Green: On, Steady Power is connected

LE4 Power LED Green: On, Steady System is on/running

LE3 Memory Support Green: Blinking Unsupported memory is installed

1-6

Chapter 1: Introduction

Motherboard Features

CPU Single Intel® E3-1200 v2 family series, 2nd generation

Intel Core® i3, Pentium®, Celeron® processor in an LGA

1155 socket

Memory Four (4) SDRAM DIMM slots support up to 32 GB of DDR3

Unbuffered, ECC 1333/1066/1600 memory

Supports dual-channel memory bus

DIMM sizes

UDIMM 1 GB, 2 GB, 4GB and 8GB

Chipset Intel® C204 Express (X9SCM-II Series)

Intel® C202 Express (X9SCL-II Series)

Expansion Slots X9SCM-IIF: Four (4) PCI-E 2.0 x4 (in x8) slots

X9SCL-IIF: Three (3) PCI-E 2.0 x4 (in x8) slots

Integrated Graphics Matrox® G200eW

Network Connections Two (2) Intel 82574L Gigabit Ethernet controllers, one

I/O Devices SATA Connections

each for LAN 1 and LAN 2.

Two (2) RJ-45 Rear IO Panel Connectors with Link and Activity LEDs

Single Realtek RTL8201FN to support IPMI 2.0 LAN

SATA-III Ports (6Gb/s) •Two (2) (I-SATA 0/1)

•RAID 0, 1

SATA-II Ports (3Gb/s) •Four (4) (I-SATA 2~5)

•RST 11.0, RAID 0, 1, 5 & 10

Onboard IPMI

IPMI 2.0 supported by the WPCM450 Server BMC

USB 2.0 Devices

Two (2) USB ports on the rear IO panel (USB 0/1)

Six (6) USB header connectors for front access (USB 2/3, USB 4/5, USB 12/13)

One (1) Type A USB internal connector (USB 11)

Keyboard/Mouse

PS/2 Keyboard/Mouse ports on the I/O backpanel

Serial (COM) Ports

Two (2) Fast UART 16550 connections: one 9-pin RS-232 port (Backpanel COM1 port) and one header (FP COM2)

Super I/O

Winbond Super I/O NCT6776F

1-7

X9SCM-IIF/X9SCL-IIF Series User’s Manual

BIOS 64 Mb SPI AMI BIOS® SM Flash BIOS

Play and Plug (PnP0, DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0, USB Keyboard and SMBIOS 2.5

Power Management ACPI/ACPM Power Management

Complies with EuP Eco Design Directive

Main Switch Override Mechanism

Keyboard Wake-up from Soft-Off

Internal/External Modem Ring-On

Intel® Intelligent Power Node Manager

Manageability Engine

Power-on mode for AC power recovery

PC Health Monitoring CPU Monitoring

Onboard voltage monitors for CPU core, +3.3V, +5V, +/12V, +3.3V Stdby, VBAT, Memory

CPU 4-phase switching voltage regulator

CPU/System overheat LED and control

CPU Thermal Trip support

Thermal Monitor 2 (TM2) support

Fan Control

Fan status monitoring with rmware 4-pin (Pulse Width

Modulation) fan speed control

Low noise fan speed control

System Management PECI (Platform Environment Conguration Interface) 3.0

CD Utilities BIOS ash upgrade utility

Other ROHS 6/6 (Full Compliance, Lead Free)

Dimensions Micro ATX form factor (9.6" x 9.6") (243.84mm x

support

System resource alert via Supero Doctor III

SuperoDoctor III, Watch Dog, NMI

Chassis Intrusion header and detection

Drivers and software for Intel® Cougar Point chipset utilities

Disk On Module (DOM) Power Connector, TPM Header

243.84mm)

Note: For IPMI Conguration Instructions, please refer to the Embedded

IPMI Conguration User's Guide available @ http://www.supermicro.com/

support/manuals/.

1-8

X9SCM-IIF/X9SCL-IIF Block Diagram

Chapter 1: Introduction

P19

PCIe x8 SLOT

P19

PCIe x8 SLOT

P18

(X9SCM seires only)

P29-30

P26-28

P20

PCIe x8 SLOT

P12

6/4 SATA PORTS

(X9SCL/X9SCM)

P12

0/2 SATA PORTS

P22

9 USB PORTS

P15

TPM1.2 Header

FLASH

P15

SPI 64Mb

VRM 12 MISC VRs

SVID

BLOCK DIAGRAM

P5-8

PCIe3.0/2.0_x8

8.0Gb

PCIe3.0/2.0_x8

8.0Gb

PCIe2.0_x4

5.0Gb

PCIe_x4

5.0Gbps

SATA-II

300MB/s

SATA-III

600MB/s

USB2.0

480Mbps

LPC

SPI

P23

COM1,2

P22

P/S2

HEALTH INFO

Ivy Bridge & Sandy Bridge (H2)

P11-14

Cougar Point C202 / C204

x4 DMI II

PCH

5.0Gb

P21

NCT6776F LPC I/O

LPC

RoHS 6/6

DDR3 (CHA)

1333/1066MHz

DDR3 (CHB)

1333/1066MHz

PCIe_x1

2.5Gbps PCIe_x1

2.5Gbps

PCI32

LPC

P9-10

P11-12

GLAN1 82574L

GLAN2 82574L

P31-35

HERMON WPCM450 WINBOND

RMII

P34

RTL8201FN PHY

P34

RJ45

DIMM1 DIMM2(Far)

RJ45

P35

VGA PORT

4 UDIMM

P16

P18

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the Motherboard Features

pages for the actual specications of each motherboard.

1-9

X9SCM-IIF/X9SCL-IIF Series User’s Manual

1-2 Chipset Overview

The X9SCM-IIF/X9SCL-IIF supports a Single Intel® Ivy Bridge Xeon E3-1200 v2

family series, 2nd generation Intel Core® i3, Pentium®, Celeron® processor in an

LGA 1155 socket. Built upon the functionality and the capability of the Intel C202/

C204 chipset, the motherboard provides substantial enhancement to system

performance and storage capability for entry-level to mid-range servers in a sleek

package.

The high-speed Direct Media Interface (DMI) featured in the Intel C202/C204

chipset supports high-speed Direct Media Interface (DMI) for chip-to-chip true iso-

chronous communication, providing up to 10 Gb/s of sof tware-transparent data

transfer rate on each read/write direction. In addition, the X9SCM-IIF/X9SCL-IIF

also features a TCO timer which allows the system to recover from a software/

hardware lock and perform tasks, including ECC Error Repor ting, Function Dis-

able and Intruder Detect.

Intel C202/C204 Express Chipset Features

•Direct Media Interface (up 20 Gb/s transfer each direction, Full Duplex)

•Intel® Intel Rapid Storage Technology

•Intel I/O Virtualization (VT-d) Support

•Intel Trusted Execution Technology Support

•PCI Express 2.0 Interface (up to 5.0 GT/s)

•SATA Controller

•6Gb/s on up to two ports

•3Gb/s on all ports

•Advanced Host Controller Interface (AHCI)

1-10

Chapter 1: Introduction

1-3 Special Features

Recovery from AC Power Loss

Basic I/O System (BIOS) provides a setting for you to determine how the system

will respond when AC power is lost and then restored to the system. You can

choose for the system to remain powered off (in which case you must press the

power switch to turn it back on), or for it to automatically return to a power-on state.

See the Advanced BIOS Setup section to change this setting. The default setting

is Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the board. All have

an onboard System Hardware Monitoring chip that supports PC health monitoring.

An onboard voltage monitor will scan these onboard voltages continuously: CPU

Vcore, +3.3V, +5V, +/-12V, +3.3V Stdby, VBAT. Memory. Once a voltage becomes

unstable, a warning is given, or an error message is sent to the screen. The user

can adjust the voltage thresholds to dene the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

PC health monitoring in the BIOS can check the RPM status of the cooling fans. The

onboard CPU and chassis fans are controlled by Thermal Management via BIOS

(under the Hardware Monitoring section in the Advanced Setting).

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn

on the thermal control fan whenever the CPU temperature exceeds a user-dened

threshold. The overheat circuitry runs independently from the CPU. Once the ther-

mal sensor detects that the CPU temperature is too high, it will automatically turn

on the thermal fans to prevent the CPU from overheating. The onboard chassis

thermal circuitry can monitor the overall system temperature and alert the user when

the chassis temperature is too high.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

System Resource Alert

This feature is available when the system is used with Supero Doctor III in

the Windows OS environment or used with Supero Doctor II in Linux. Supero

1-11

X9SCM-IIF/X9SCL-IIF Series User’s Manual

Doctor is used to notify the user of certain system events. For example, you can

also congure Supero Doctor to provide you with warnings when the system

temperature, CPU temperatures, voltages and fan speeds go beyond predened

thresholds.

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also

provides a generic system event mechanism for Plug and Play, and an operating

system-independent interface for conguration control. ACPI leverages the Plug and

Play BIOS data structures, while providing a processor architecture-independent

implementation that is compatible with Windows XP, Windows Vista and Windows

2008 Operating Systems.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start to blink

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will "wake up", and the LED will automatically stop blinking and remain on.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

This motherboard accommodates 24-pin ATX power supplies. Although most

power supplies generally meet the specications required by the CPU, some are

inadequate. In addition, the 12V 8-pin power connector located at JPW2 is also

required to ensure adequate power supply to the system. Also your power supply

must supply 1.5A for the Ethernet ports.

Warning! 1. To prevent damage to the power supply or motherboard,

please use a power supply that contains a 24-pin and a 8-pin power con-

nectors. Be sure to connect these connectors to the 24-pin (JPW1) and the

8-pin (JPW2) power connectors on the motherboard. Failure in doing so will

void the manufacturer warranty on your power supply and motherboard.

1-12

Chapter 1: Introduction

2. To provide adequate power to SATA devices, please connect the SATA

DOM PWR connector (JSD1) to the power supply.

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specication 2.02 or above. It must also be SSI compliant. (For more

information, please refer to the web site at http://www.ssiforum.org/). Additionally, in

areas where noisy power transmission is present, you may choose to install a line

lter to shield the computer from noise. It is recommended that you also install a

power surge protector to help avoid problems caused by power surges.

1-7 Super I/O

The Super I/O supports two high-speed, 16550 compatible serial communication

ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable

baud rate generator, complete modem control capability and a processor interrupt

system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps

as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which

support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conguration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through an SMI or SCI function pin. It also features auto power management

to reduce power consumption.

1-8 Advanced Power Management (for -F Models Only)

Intel® Intelligent Power Node Manager (NM)

The Intel® Intelligent Power Node Manager (IPNM) provides your system with

real-time thermal control and power management for maximum energy efciency.

Although IPNM Specication Version 1.5 is supported by the BMC (Baseboard

Management Controller), your system must also have IPNM-compatible Manage-

ability Engine (ME) rmware installed to use this feature.

Manageability Engine (ME)

The Manageability Engine, which is an ARC controller embedded in the PCH,

provides Server Platform Services (SPS) to your system. The services provided by

SPS are different from those provided by the ME on client platforms.

1-13

X9SCM-IIF/X9SCL-IIF Series User’s Manual

1-9 Overview of the Nuvoton WPCM450 Controller

The Nuvoton WPCM450R Controller is a Baseboard Management Controller (BMC)

that supports 2D/VGA-compatible Graphics cores, Virtual Media, and Keyboard/

Video/Mouse Redirection (KVMR) modules. With blade-oriented Super I/O capability

built in, the WPCM450R Controller is ideal for legacy-reduced server platforms.

The WPCM450R interfaces with a host system via PCI interface to communicate

with the Graphics core. It supports USB 2.0 and 1.1 for remote keyboard/mouse/

virtual media emulation. It also provides LPC interface to control Super IO func-

tions. The WPCM450R is connected to the network via an external Ethernet PHY

module.

The WPCM450R communicates with onboard components via six SMBus inter-

faces, fan control, and Platform Environment Control Interface (PECI) buses.

Note: For more information on IPMI conguration, please refer to the

Embedded IPMI User's Guide posted on our Website @ http://www.su-

permicro.com/support/manuals/.

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメーカーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従

って処分して下さい。

警告电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理废旧电池。

警告電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理廢棄舊電池。

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

2-1

X9SCM-IIF/X9SCL-IIF Series User's Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일 하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사 의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

2-2

Chapter 2: Installation

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が

あります。

警告本产品的废弃处理应根据所有国家的法律和规章进行。

警告本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

 

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

2-3

X9SCM-IIF/X9SCL-IIF Series User's Manual

2-2 Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid dam-

aging your system board, it is important to handle it very carefully. The following

measures are generally sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

2-4

Chapter 2: Installation

2-3 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct

pressure on the label area of the fan.

Notes:

Always connect the power cord last, and always remove it before adding,

removing or changing any hardware components. Make sure that you in-

stall the processor into the CPU socket before you install the CPU heatsink.

If you buy a CPU separately, make sure that you use an Intel-certied

multi-directional heatsink only.

Make sure to install the system board into the chassis before you install

the CPU heatsink.

When receiving a server board without a processor pre-installed, make

sure that the plastic CPU socket cap is in place and none of the socket

pins are bent; otherwise, contact your retailer immediately.

Refer to the Supermicro website for updates on CPU support.

Installing the LGA1155 Processor

1. Remove the protective plastic cap. Press the load lever to release the load

plate, which covers the CPU socket, from its locking position.

Load Plate

Load Lever

2-5

X9SCM-IIF/X9SCL-IIF Series User's Manual

2. Gently lift the load lever to open the load plate.

3. Use your thumb and your index nger to hold the CPU at the North center

edge and the South center edge of the CPU.

North Center Edge

South Center Edge

4. Align the CPU key that is the semi-circle cutouts against the socket keys.

Once it is aligned, carefully lower the CPU straight down into the socket. (Do

not drop the CPU on the socket. Do not move the CPU horizontally or verti-

cally.

2-6

Chapter 2: Installation

5. Do not rub the CPU against the surface or against any pins of the socket to

avoid damaging the CPU or the socket.)

6. With the CPU inside the socket, inspect the four corners of the CPU to make

sure that the CPU is properly installed.

7. Use your thumb to gently push the load lever down to the lever lock.

CPU properly installed

Load lever locked

Warning: You can only install the CPU inside the socket only in one direction.

Make sure that it is properly inserted into the CPU socket before closing the

load plate. If it doesn't close properly, do not force it as it may damage your

CPU. Instead, open the load plate again and double-check that the CPU is

aligned properly.

into place

2-7

X9SCM-IIF/X9SCL-IIF Series User's Manual

Installing a Passive CPU Heatsink

1. Do not apply any thermal grease to the heatsink or the CPU die -- the re-

quired amount has already been applied.

2. Place the heatsink on top of the CPU so that the four mounting holes are

aligned with those on the Motherboard's and the Heatsink Bracket under-

neath.

3. Screw in two diagonal screws (i.e., the #1 and the #2 screws) until just snug

(-do not over-tighten the screws to avoid possible damage to the CPU.)

4. Finish the installation by fully tightening all four screws.

Screw#1

Screw#2

Motherboard

Mounting Holes

Recommended Supermicro

heatsink:

SNK-P0046P heatsink with BKT-

0028L bottom bracket

Heatsink Bracket

2-8

Chapter 2: Installation

Removing the Heatsink

Warning: We do not recommend that the CPU or the heatsink be removed.

However, if you do need to uninstall the heatsink, please follow the instruc-

tions below to uninstall the heatsink to prevent damage done to the CPU

or the CPU socket.

1. Unscrew the heatsink screws from the motherboard in the sequence as shown

in the illustration below.

2. Gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive

force when wriggling the heatsink!!)

3. Once the CPU is loosened, remove the CPU from the CPU socket.

4. Clean the surface of the CPU and the heatsink, removing the used thermal

grease. Reapply the proper amount of thermal grease on the surface before

re-installing the CPU and the heatsink.

Loosen screws in sequence as shown.

Screw#4

Screw#1

Motherboard

Screw#2

Screw#3

Remove the Heatsink

Bracket from underneath

the motherboard.

2-9

X9SCM-IIF/X9SCL-IIF Series User's Manual

Installing an Active Fan CPU Heatsink

1. Locate a fan power connector on

the motherboard. (Refer to the

layout for the fan locations.)

2. Position the heatsink so that the

heatsink fan wires are closest to the

fan power connector and are not

interfered with other components.

3. Inspect the CPU Fan wires to make

sure that the wires are routed

through the bottom of the heatsink.

4. Remove the thin layer of the protec-

tive lm from the copper core of the

heatsink.

Warning: CPU may overheat

if the protective lm is not re-

moved from the heatsink.

Thermal Grease

Heatsink Fins

5. Apply the proper amount of thermal

grease on the CPU.

Note: if your heatsink came with

a thermal pad, please ignore

this step.

6. If necessary, rearrange the wires

to make sure that the wires are not

pinched between the heatsink and

the CPU. Also make sure to keep

clearance between the fan wires

and the ns of the heatsink.

7. Align the four heatsink fasteners

with the mounting holes on the

motherboard. Gently push the pairs

2-10

Recommended Supermicro

heatsink:

SNK-P0046A4 active heatsink

of diagonal fasteners (#1 &

#2, and #3 & #4) into the

mounting holes until you hear

a click. Also, make sure to

orient each fastener so that

the narrow end of the groove

is pointing outward.

8. Repeat Step 7 to insert all

four heatsink fasteners into

the mounting holes.

9. Once all four fasteners are

securely inserted into the

mounting holes, and the heat-

sink is properly installed on

the motherboard, connect the

heatsink fan wires to a Fan

connector.

Chapter 2: Installation

2-11

X9SCM-IIF/X9SCL-IIF Series User's Manual

Removing the Heatsink

Warning: We do not recommend that

the CPU or the heatsink be removed.

However, if you do need to remove the

heatsink, please follow the instructions

below to remove the heatsink and to

prevent damage done to the CPU or

other components.

Active Heatsink Removal

1. Unplug the power cord from the

power supply.

2. Disconnect the heatsink fan wires

from the fan header.

3. Use your nger tips to gently press

on the fastener cap and turn it

counterclockwise to make a 1/4 (900)

turn, and pull the fastener upward to

loosen it.

Unplug the

PWR cord

4. Repeat Step 3 to loosen all fasteners

from the mounting holes.

5. With all fasteners loosened, remove

the heatsink from the CPU.

2-12

Pull Up

Chapter 2: Installation

2-4 Installing DDR3 Memory

Note: Check the Supermicro website for recommended memory modules.

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

DIMM Installation

1. Insert the desired number of DIMMs into the memory slots, starting with

DIMM2A. (For best performance, please use the memory modules of the

same type and speed in the same bank.)

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

3. Align the key of the DIMM module with the receptive point on the memory

slot.

4. Align the notches on both ends of the module against the receptive points on

the ends of the slot.

Notches

X9SCM/X9SCL(-F) Rev.1.0

Release Tabs

5. Use two thumbs together to press the notches on both ends of the module

straight down into the slot until the module snaps into place.

Press both notches

straight down into

the memory slot.

6. Press the release tabs to the lock positions to secure the DIMM module into

the slot.

Removing Memory Modules

Reverse the steps above to remove the DIMM modules from the motherboard.

2-13

X9SCM-IIF/X9SCL-IIF Series User's Manual

Memory Support

The X9SCM-II/X9SCL-II series supports up to 32GB of Unbuffered (UDIMM) DDR3

ECC 1600/1333/1066 MHz DIMMs in 4 memory slots.

DIMM2B (Blue Slot) DIMM1B

DIMM2A (Blue Slot) DIMM1A

Memory Population Guidelines

When installing memory modules, the DIMM slots should be populated in the following

order: DIMM2A, DIMM2B, DIMM1A and DIMM1B.

• Always use DDR3 DIMM modules of the same size, type and speed.

• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed

of the slowest DIMM.

• The motherboard will support one DIMM module or three DIMM modules installed,

but it is recommended that a balanced DIMM population (installed in pairs) are

followed for best performance.

Recommended Population (Balanced)

DIMM2A Slot DIMM2B Slot DIMM1A Slot DIMM1B Slot Total System Memory

2GB DIMM 2GB DIMM 4GB

2GB DIMM 2GB DIMM 2GB DIMM 2GB DIMM 8GB

4GB DIMM 4GB DIMM 8GB

4GB DIMM 4GB DIMM 4GB DIMM 4GB DIMM 16GB

8GB DIMM 8GB DIMM 16GB

8GB DIMM 8GB DIMM 8GB DIMM 8GB DIMM 32GB

2-14

Chapter 2: Installation

The table explains the different types of memory supported that can be accomodated

in each memory slot.

DDR3 Unbuffered ECC (UDIMM) Memory

DIMM Slots per

Channel

2 1 Unbuffered

2 2 Unbuffered

DIMMs Populat-

ed per Channel

DIMM Type POR Speeds Ranks per DIMM (any

DDR3

1066, 1333 Single Rank, Dual Rank

1066, 1333, 1600 Single Rank, Dual Rank

combination)

Note: Due to memory allocation to system devices, the amount of memory that

remains available for operational use will be reduced when 4 GB of R AM is used.

The reduction in memory availability is disproportional.

For Microsoft Windows users: Microsoft implemented a design change in the Win-

dows XP with Service Pack 2 (SP2) and Windows Vista. This change is specic

to the behavior of Physical Address Extension (PAE) mode which improves driver

compatibility. For more information, please read the following article at Microsoft’s

Knowledge Base website at: http://support.microsoft.com/kb/888137.

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Firmware Hub ash memory (System BIOS) 1 MB 3.99

Local APIC 4 KB 3.99

Area Reserved for the chipset 2 MB 3.99

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB

boundary-

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS and other applications 2.84

512 MB 3.01

Remaining (-Available)

(4 GB Total System

Memory)

2-15

X9SCM-IIF/X9SCL-IIF Series User's Manual

2-5 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis.

Make sure that the locations of all the mounting holes for both motherboard and

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

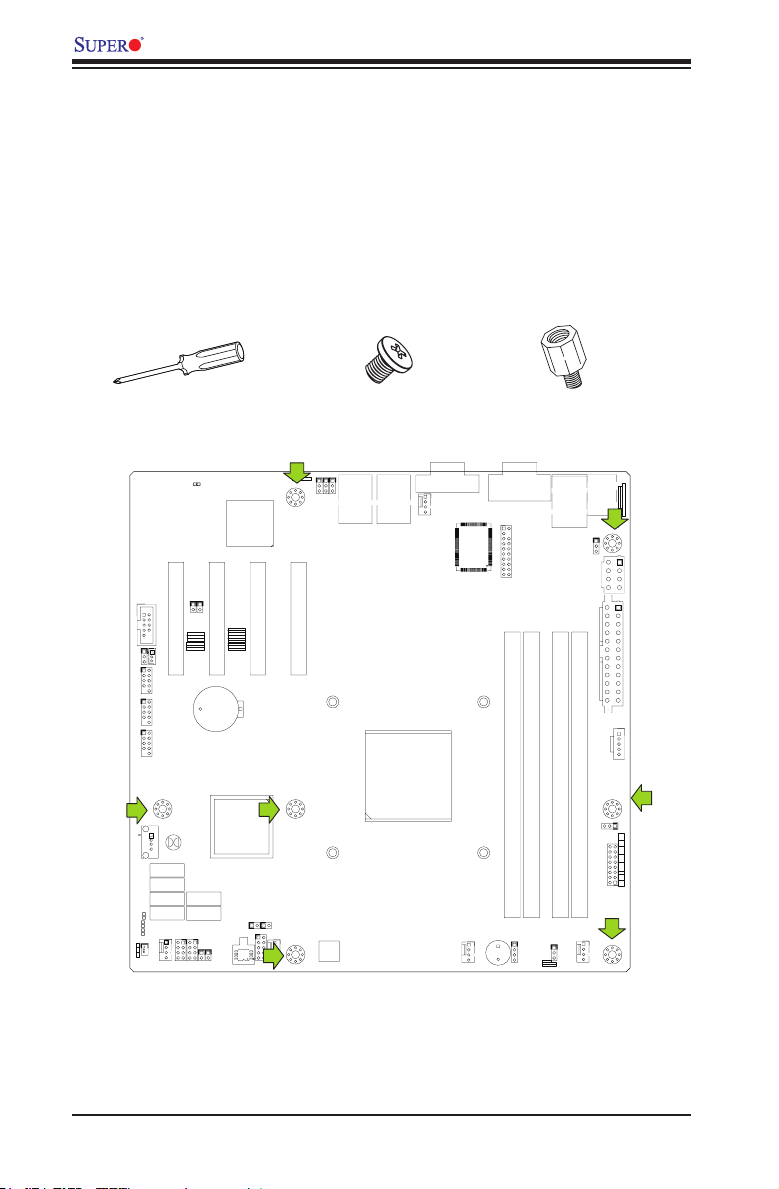

Tools Needed

Philips Screwdriver

Location of Mounting Holes

COM2

USB 12/13

JBT1:CMOS CLEAR

LE7

JI2C2

JI2C1

SLOT4 PCI-E 2.0 X4 ON X8

SLOT5 PCI-E 2.0 X4 ON X8

JPB:BMC 1-2:ENABLE 2-3:DISABLE

JI2C1/JI2C2 ON:Enable

JPL1:LAN1 1-2:ENABLE

OFF:Disable

2-3:DISABLE

JPG1: VGA

JPL2:LAN2

1-2:Enable

JBT1

T-SGPIO1

JL1:CHASSIS INTRUSION

1-2:ENABLE

2-3:Disable

2-3:DISABLE

JS2

JS1

I-SATA1 I-SATA0

T-SGPIO2

JL1

J29

JWOL

JPG1

USB4/5

USB2/3

J24

USB11

I-SATA5

JS6

I-SATA4

JS5

JS3JS4

LE4

LE3

I-SATA3 I-SATA2

LE2

GND

JWF1

FANA

JWF1:DOM PWR

SLOT6 PCI-E 2.0 X8

JPME1

J31

JPL2

JPBJPL1

SLOT7 PCI-E 2.0 X8

JPME2

FAN3

Standoffs

JPUSB1:B/P USB WAKE UP

DIMM2B

J12

2-3:DISABLE

1-2:ENABLE

KB/MOUSE

JPUSB1

JPW2

JPW1

JPI2C

JLED1:3 pin Power LED

JLED

JF1

PWR LED

JF1

HDD LED

NIC1

NIC2

OH/ FF

RST

PWR ON

DIMM4

FAN1

VGA

FAN4

JLAN1

JLAN2

LAN2

LAN1

U82

COM1

JTPM

USB/0/1

IPMI _LAN

CPU

DDR3 1066/1333 UDIMM required

DIMM3

DIMM1

DIMM2

DIMM1B

DIMM2A

DIMM1A

SPKR1

FAN2

JSPK:Buzzer/Speaker

JWD

JSPK

JWD 1-2:RST 2-3:NMI

Caution: 1) To prevent damage to the motherboard and its components, please do

not use a force greater than 8 lb/inch on each mounting screw during motherboard

installation. 2) Some components are very close to the mounting holes. Please take

precautionary measures to avoid damaging these components when installing the

motherboard to the chassis.

2-16

Chapter 2: Installation

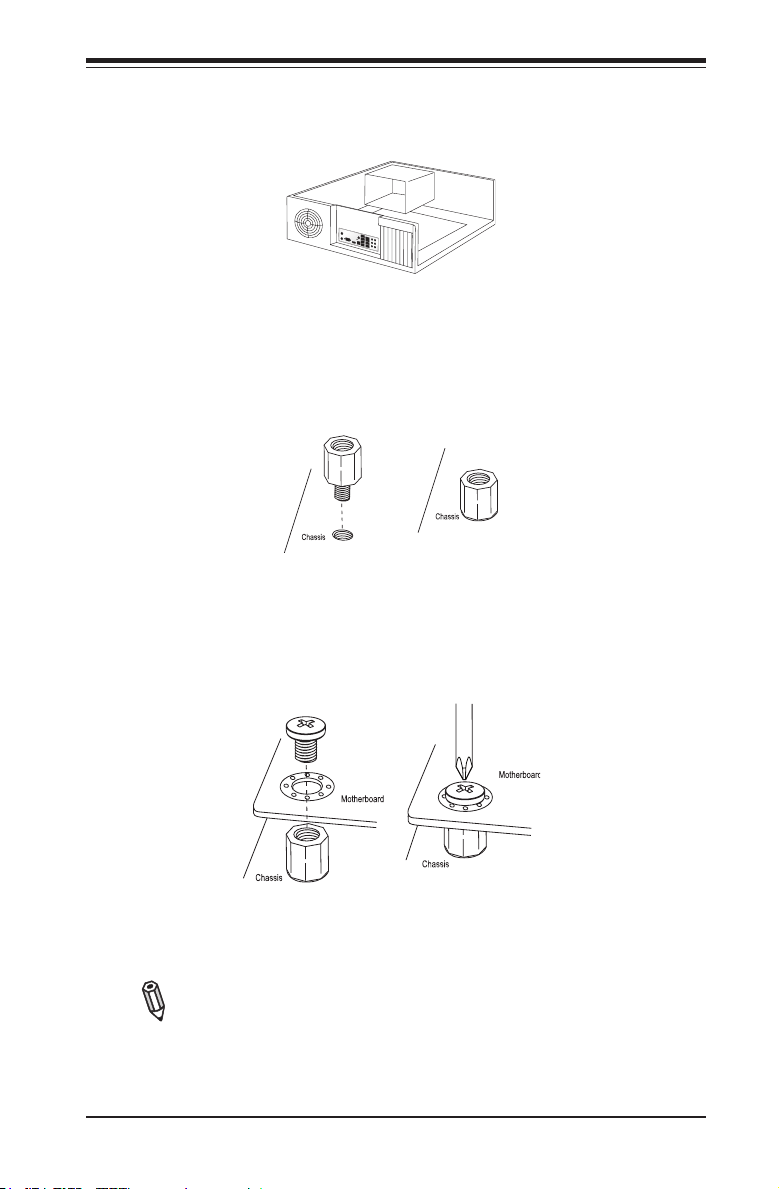

Installing the Motherboard

1. Install the I/O shield into the chassis.

2. Locate the mounting holes on the motherboard.

3. Locate the matching mounting holes on the chassis. Align the mounting holes

on the motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging mother-

board components.

6. Using the Philips screwdriver, insert a Pan head #6 screw into a mounting

hole on the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are is for illustration only. Your chassis or compo-

nents might look different from those shown in this manual.

2-17

X9SCM-IIF/X9SCL-IIF Series User's Manual

2-6 Connectors/IO Ports

The I/O ports are color coded in conformance with the PC 99 specication. See the

gure below for the colors and locations of the various I/O ports.

Back I/O Panel

JPL2

JPBJPL1

LE7

JPUSB1:B/P USB WAKE UP

J12

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

OFF:Disable

ON:Enable

JI2C1/JI2C2

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

DIMM4

DIMM3

DIMM2

DIMM1

JS2

JS6

JS5

JS3JS4

I-SATA5

I-SATA4

LE4

FAN1

DIMM2B

JWD

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

JSPK

JSPK:Buzzer/Speaker

DIMM1A

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

I-SATA3

I-SATA2

JWF1:DOM PWR

JWF1

LE3

LE2

GND

Back I/O Panel

1. Keyboard (Purple) 6. COM 1

2. PS/2 Mouse (Green) 7. VGA

3. USB Port 0 8. LAN1

4. USB Port 1 9. LAN2

5. IPMI LAN

2-18

Chapter 2: Installation

ATX PS/2 Keyboard/Mouse

Ports

The ATX PS/2 keyboard and

PS/2 mouse are located next to

the Back Panel USB Ports 0/1 on

the motherboard. See the table at

right for pin denitions.

PS/2 Keyboard/Mouse Pin

Denitions

PS2 Keyboard PS2 Mouse

Pin# Denition Pin# Denition

1 KB Data 1 Mouse Data

2 No Connection 2 No Connection

3 Ground 3 Ground

4 Mouse/KB VCC

(+5V)

5 KB Clock 5 Mouse Clock

6 No Connection 6 No Connection

VCC: with 1.5A PTC (current limit)

4 Mouse/KB VCC

(+5V)

1. Keyboard (Purple)

2. Mouse (Green)

2-19

X9SCM-IIF/X9SCL-IIF Series User's Manual

Universal Serial Bus (USB)

Two Universal Serial Bus ports (USB

0/1) are located on the I/O back panel.

In addition, six USB connections (USB

2/3, USB 4/5, USB 12/13) are used to

provide front chassis access. USB 11

is a Type A Connector. (USB Cables

are not included). See the tables on

the right for pin denitions.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

Back Panel USB 0/1

Pin# Denition Pin# Denition

1 +5V 5 +5V

2 USB_PN0 6 USB_PN1

3 USB_PP0 7 USB_PP1

4 Ground 8 Ground

Front Panel USB 2/3, 4/5, 12/13

Pin # Denition Pin # Denition

1 +5V 6 +5V

2 USB_PN2 7 USB_PN3

3 USB_PP2 8 USB_PP3

4 Ground 9 Ground

5 No Con-

nection

LED

RST

PWR

LED

HDD

PWR

OH/

NIC1

NIC2

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

JS6

I-SATA5

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

Pin Denitions

10 Key

1. Backpanel USB 0

2. Backpanel USB 1

3. Front Panel USB 2/3

4. Front Panel USB 4/5

5. Front Panel USB 12/13

6. Internal 'Type A' USB 11

2-20

Chapter 2: Installation

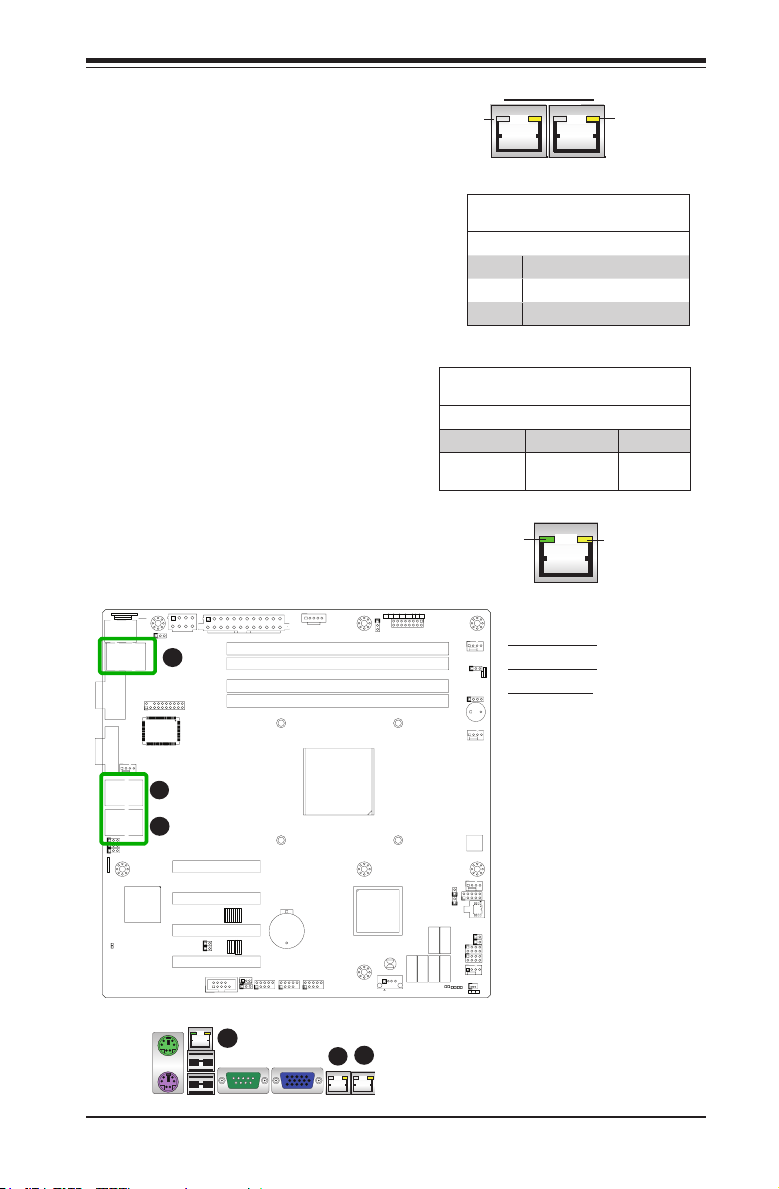

Ethernet Ports

Two Ethernet ports (LAN1/LAN2) are

located next to the VGA port on the

I/O Backpanel. In addition, an IPMI

Dedicated LAN is also located above

USB 0/1 ports on the X9SCM-IIF/

X9SCL-IIF to provide a dedicated net-

work connection for IPMI 2.0. These

ports accept RJ45 type cables.

Notes

Please refer to the LED In-

dicator Section for LAN LED

information.

LAN Ports

Pin Denition

Pin# Denition

1 TD0- 10 SGND

2 TD0+ 11 P3V3SB

3 TD1- 12 Act LED

4 TD1+ 13 Link 100 LED

5 TD2- 14 Link 1000 LED

6 TD2+ 15 Ground

7 TD3- 16 Ground

8 TD3+ 17 Ground

9 P2V5SB 88 Ground

(NC: No Connection)

1. LAN1

2. LAN2

3.IPMI Dedicated LAN

(Green, +3V3SB)

(Yellow, +3V3SB)

2-21

X9SCM-IIF/X9SCL-IIF Series User's Manual

Serial Ports

A COM Port (COM1) is located on

the I/O bac kpan el, and anoth er Ser ial

Connection (COM2) is located below

PCI-E Slot4 to provide front access.

See the table on the right for pin

denitions.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

Serial Port Pin Denitions

(COM1/COM2)

Pin # Denition Pin # Denition

1 DCD 6 DSR

2 RXD 7 RT S

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 NC

1. COM1

2. COM2

JPW2

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-22

Chapter 2: Installation

Video Connector

A Video (VGA) connector is located

next to the COM Port on the I/O

backpanel. This connector is used

to provide video and CRT display.

Refer to the board layout below for

the location.

VGA/CRT Pin

Denitions

Pin# Denition Pin# Denition

1 Red 10 Ground

2 Green 11 NC

3 Blue 12 MS1: SDA (DDC Data)

4 NC 13 HSYNC

5 Ground 14 VSYSNC

6 Ground 15 MS3: SCL (DDC CLK)

7 Ground 16 Case

8 Ground 17 Case

9 5V

NC= No Connection

1. VGA

2-23

X9SCM-IIF/X9SCL-IIF Series User's Manual

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally lo-

cated on a control panel at the front of the chassis. These connectors are designed

specically for use with Supermicro server chassis. See the gure below for the

descriptions of the various control panel buttons and LED indicators. Refer to the

following section for descriptions and pin denitions.

Reset

LED_Anode+

PWR

Reset Button

Power Button

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Ground

JF1 Header Pins

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

Pin 2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

Pin 15Pin 16

Pin 1

2-24

Front Control Panel Pin Denitions

Chapter 2: Installation

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin denitions.

HDD LED

The HDD LED connection is located

on pins 13 and 14 of JF1. Attach a

cable here to indicate the status or

HDD-related activity. See the table on

the right for pin denitions.

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Power LED

Pin Denitions (JF1)

Pin# Denition

15 3.3V/vcc

16 Ground

HDD LED

Pin Denitions (JF1)

Pin# Denition

13 3.3V/vcc

14 HD Active

A. PWR LED

B. HDD LED

LED_Anode+

Ground

2-25

Reset

Reset Button

Power Button

PWR

X9SCM-IIF/X9SCL-IIF Series User's Manual

NIC1/NIC2 (LAN1/LAN2)

The NIC (Network Interface Controller)

LED connection for LAN port 1 is located

on pins 11 and 12 of JF1, and the LED

connection for LAN Port 2 is on Pins 9 and

10. NIC1 LED and NIC2 LED are 2-pin

NIC LED headers. Attach NIC LED cables

to the NIC1 and NIC2 LED indicators to

display network activity. Refer to the table

on the right for pin denitions.

Overheat (OH)/Fan Fail/Front

Connect an LED cable to the OH/Fan

Fail connections on pins 7 and 8 of JF1

to display advanced warnings for chassis

overheat/fan failure. Refer to the table on

the right for pin de nitions.

LAN1/LAN2 LED

Pin Denitions (JF1)

Pin# Denition

9/11 Vcc

10/12 LAN Active

OH/Fan Fail LED

Pin Denitions (JF1)

Pin# Denition

7 Vcc/Blue UID LED

8 OH/Fan Fail LED

OH/Fan Fail Indicator

Status

State Denition

Off Normal

On Overheat

Flash-

Fan Fail

ing

A. NIC1 LED

B. NIC2 LED

C. OH/Fan Fail

OH/Fan Fail LED

Power LED

HDD LED

NIC1 LED

NIC2 LED

Ground

LED_Anode+

Reset

Reset Button

Power Button

PWR

2-26

Reset Button

The Reset Button connection is located

on pins 3 and 4 of JF1. Attach it to a

hardware reset switch on the computer

case. This switch is used to hard reset/

reboot the system. Refer to the table on

the right for pin denitions.

Chapter 2: Installation

Reset Button

Pin Denitions (JF1)

Pin# Denition

3 Reset

4 Ground

Power Button

The Power Button connection is located

on pins1 and 2 of JF1. Momentarily con-

tacting both pins will power on/off the sys-

tem. This button can also be congured

to function as a suspend button (with a

setting in the BIOS - see Chapter 4). To

turn off the power in the suspend mode,

press the button for at least 4 seconds.

Refer to the table on the right for pin

denitions.

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Power Button

Pin Denitions (JF1)

Pin# Denition

1 Signal

2 Ground

A. Reset Button

B. PWR Button

LED_Anode+

Ground

2-27

Reset

Reset Button

Power Button

PWR

X9SCM-IIF/X9SCL-IIF Series User's Manual

2-7 Connecting Cables

This section provides brief descriptions and pin-out denitions for onboard headers

and connectors. Be sure to use the correct cable for each header or connector. For

information on Backpanel USB and Front Panel USB ports, refer to Page 2-17. For

COM Port 1 and COM Port 2, please see Page 2-19.

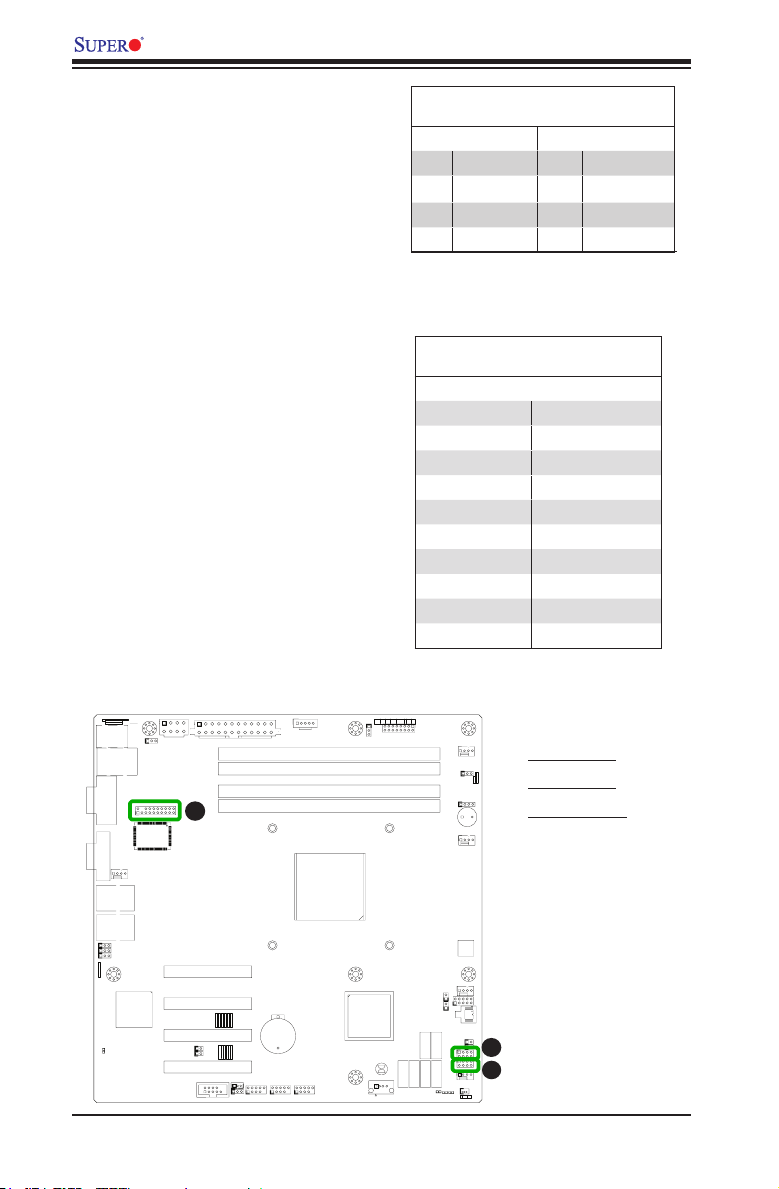

ATX Main PWR & CPU PWR Connectors

The 24-pin main power connector

(JPW1) is used to provide power to

the motherboard. The 8-pin CPU PWR

connector (JPW2) is also required for

the processor. These power connectors

me et th e SSI EPS 12V spec ica tio n. Se e

the table on the right for pin denitions.

24-Pin Main PWR

JPUSB1:B/P USB WAKE UP

J12

JPL2

JPBJPL1

LE7

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

JI2C1

JI2C2

SLOT4 PCI-E 2.0 X4 ON X8

COM2

8-Pin Processor PWR

JPW1

CPU

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB4/5

USB 12/13

JPI2C

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

USB2/3

J24

ATX Power 24-pin Connector

Pin Denitions (JPW1)

Pin# Denition Pin # Denition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

12V 8-pin Power Connec-

tor Pin Denitions

Pins Denition

1 through 4 Ground

LED

RST

PWR

LED

HDD

PWR

OH/

NIC1

NIC2

JF1

DIMM4

DIMM2B

DIMM3

DIMM1B

DIMM2A

DIMM2

DIMM1A

DIMM1

JS2

JBT1

USB11

JBT1:CMOS CLEAR

JS1

JS6

JS5

JS3JS4

I-SATA5

I-SATA4

LE3

LE4

5 through 8 +12V

FAN1

JWD

1-2:RST

2-3:NMI

JWD

A. 24-Pin ATX Main PWR

JSPK

JSPK:Buzzer/Speaker

SPKR1

B. 8-Pin Processor PWR

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE2

GND

(Required)

2-28

Chapter 2: Installation

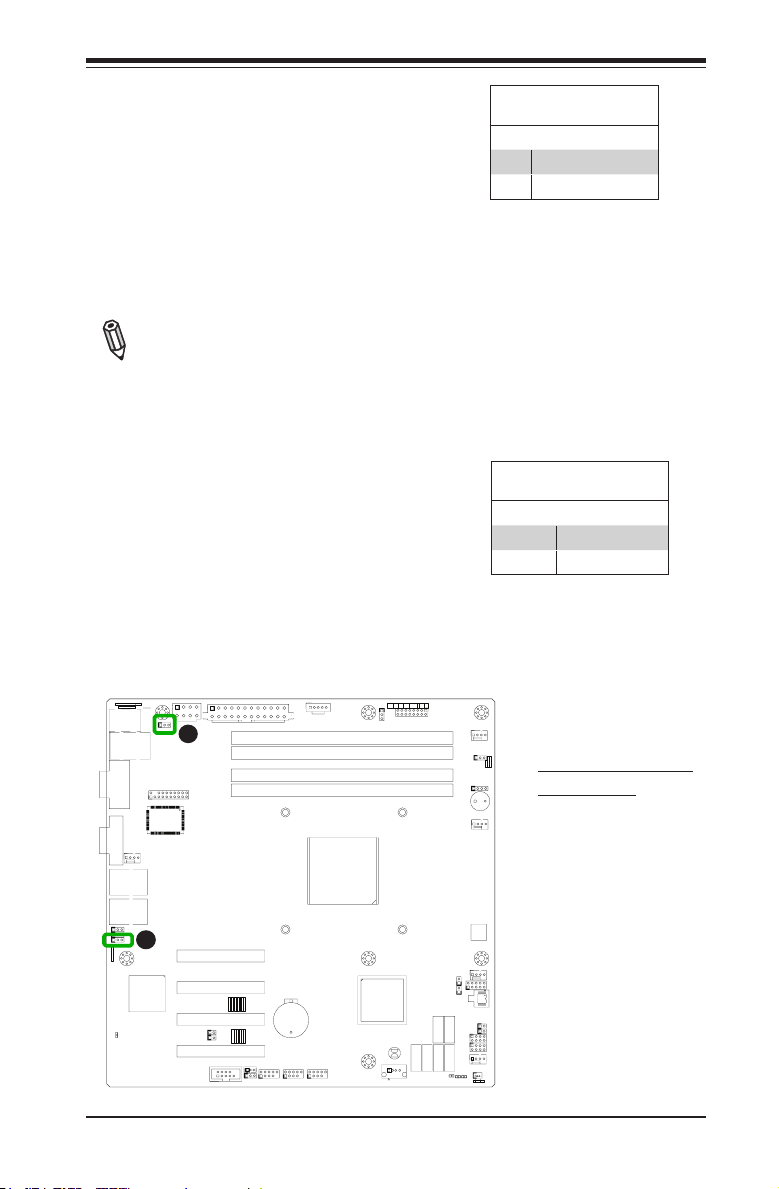

Fan Headers

The X9SCM-IIF/X9SCL-IIF has ve fan headers

(Fan 1~Fan 4 and Fan A). These fans are 4-pin

fan headers. However, Pins 1-3 of the fan head-

ers are backward compatible with the traditional

3-pin fans. A fan speed control setting in the

BIOS Hardware Monitoring section allows the

BIOS to automatically set fan speeds based on

the system temperature. Refer to the table on

the right for pin denitions.

Note: Please use all 3-pin fans or all

4-pin fans on a motherboard. Please

do not use 3-pin fans and 4-pin fans

on the same board.

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on

the motherboard. Attach the appropriate cable

from the chassis to inform you of a chassis intru-

sion when the chassis is opened.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

JS6

I-SATA5

I-SATA4

Fan Header

Pin Denitions

Pin# Denition

1 Ground (Black)

2 2.5A/+12V

(Red)

3 Tachometer

4 PWM_Control

Chassis Intrusion

Pin Denitions (JL1)

Pin# Denition

1 Intrusion Input

2 Ground

FAN1

DIMM4

DIMM3

DIMM2

DIMM1

DIMM2B

JWD

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

JSPK

DIMM1A

SPKR1

A. Fan 1

B. Fan 2

JSPK:Buzzer/Speaker

C. Fan 3

FAN2

D. Fan 4

E. Fan A

F. Chassis Intrusion

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

JS5

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-29

X9SCM-IIF/X9SCL-IIF Series User's Manual

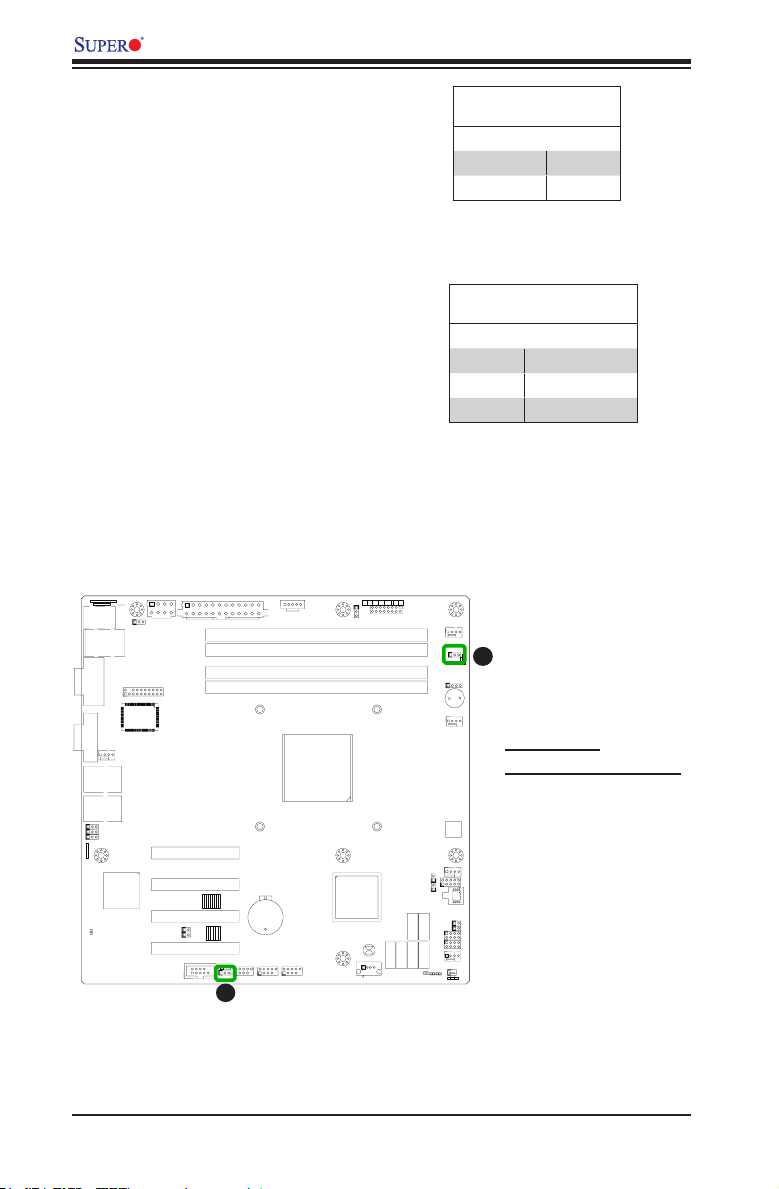

Internal Buzzer

The Internal Buzzer (SPKR1) can be

used to provide audible indications for

various beep codes. See the table on

the right for pin denitions.

Speaker

On the JSPK header, Pins 3~4 are

used for internal speaker. Close Pins

3~4 with a jumper to use the onboard

speaker. If you wish to use an external

speaker, attach the speaker cable to

Pins 1~4. See the table on the right

for pin denitions.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

Internal Buzzer

Pin Denition

Pin# Denitions

Pin 1 Pos. (+) Beep In

Pin 2 Neg. (-) Alarm

Speaker Connector

Speaker

Pin Denitions

Pin Setting Denition

Pins 3~4 Internal Speaker

Pins1~4 External Speaker

A. Internal Buzzer

B. Speaker Header

LED

RST

PWR

LED

HDD

PWR

OH/

NIC1

NIC2

JF1

JPI2C

CPU

USB2/3

USB4/5

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-30

Chapter 2: Installation

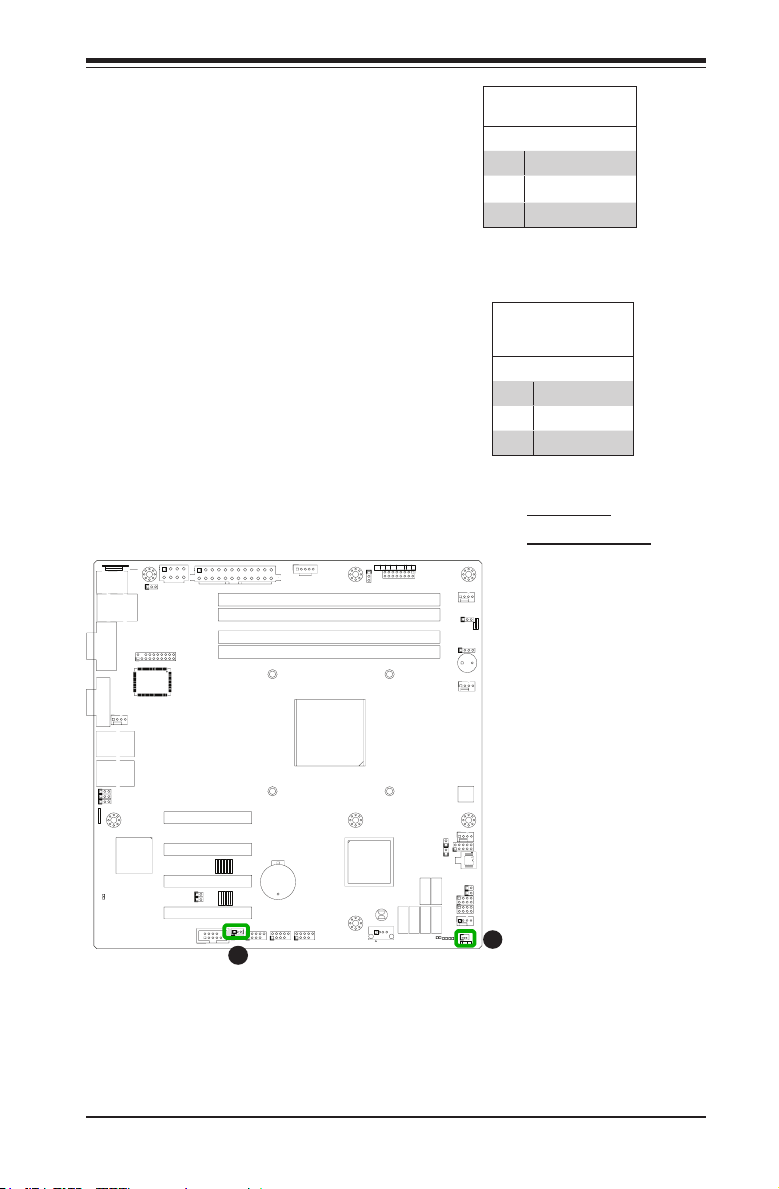

Onboard Power LED

An onboard Power LED header is

located at JLED. This Power LED

header is connected to Front Control

Panel located at JF1 to indicate the

status of system power. See the table

on the right for pin denitions.

Power Supply I2C Connector

Power Supply I2C Connector, located

at JPI2C, monitors the status of the

power supply, fan and system tem-

perature. See the table on the right

for pin denitions.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

JPI2C

CPU

USB2/3

USB4/5

USB 12/13

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

Onboard PWR LED

Pin Denitions

Pin# Denition

1 VCC

2 No Connection

3 Connection to PWR

LED in JF1

PWR Supply I2C

Pin Denitions

Pin# Denition

1 Clock

2 Data

3 PWR Fail

4 Ground

5 3.3V

A. PWR LED

B. PWR SMB

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-31

X9SCM-IIF/X9SCL-IIF Series User's Manual

T-SGPIO 1/2 Headers

Two T-SGPIO (Serial-Link General

Purpose Input/Output) headers are

located near the SATA connectors

on the motherboard. These headers

are used to communicate with the

enclosure management chip in the

system. See the table on the right

for pin denitions. Refer to the board

layout below for the locations of the

headers.

TPM Header

This header is used to connect a

Trusted Platform Module (TPM), which

is available from a third-party vendor.

A TPM is a security device that sup-

ports encryption and authentication

in hard drives. It enables the moth-

erboard to deny access if the TPM

associated with the hard drive is not

installed in the system. See the table

on the right for pin denitions.

Serial_Link-SGPIO

Pin Denitions

Pin# Denition Pin Denition

1 NC 2 NC

3 Ground 4 DATA Out

5 Load 6 Ground

7 Clock 8 NC

NC: No Connections

Trusted Platform Module Header

Pin Denitions

Pin # Denition Pin # Denition

1 LCLK 2 GND

3 LFRAME 4 No Pin

5 LRESET 6 VCC5

7 LAD3 8 LAD2

9 VCC3 10 LAD1

11 LAD0 12 GND

13 RSV0 14 RSV1

15 SB3V 16 SERIRQ

17 GND 18 CLKRUN

19 LPCPD 20 RSV2

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

DIMM2A

DIMM2

DIMM1A

DIMM1

SPKR1

JPME2

J31

JPME1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JS6

JS5

JS3JS4

I-SATA2

I-SATA3

I-SATA5

I-SATA4

JWF1

LE3

LE2

LE4

GND

1-2:RST

2-3:NMI

JWD

JSPK

JSPK:Buzzer/Speaker

FAN2

FAN3

J29

JL1

JL1:CHASSIS INTRUSION

FANA

JWF1:DOM PWR

A. T-SGPIO 1

B. T-SGPIO 2

C. TPM Header

2-32

Chapter 2: Installation

DOM PWR Connector

The Disk-On-Module (DOM) power

connector, located at JSD1, provides

5V (Gen1/Gen) power to a solid state

DOM storage device connected to one

of the SATA ports. See the table on the

right for pin denitions.

Stand-by Power

The Stand-by Power header for pe-

ripheral devices is located at JSTBY1

on the motherboard. See the table

on the right for pin denitions. (You

must also have a peripheral card with

a compatible connector and cable to

use this feature.)

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

DOM PWR

Pin Denitions

Pin# Denition

1 5V

2 Ground

3 Ground

Stand-by Power

Pin Denitions

(JWOL)

Pin# Denition

1 +5V Standby

2 Ground

3 Wake-up

A.DOM PWR

B. Stand-by Power

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-33

X9SCM-IIF/X9SCL-IIF Series User's Manual

2-8 Jumper Settings

Explanation of Jumpers

To modify the operation of the mother-

board, jumpers can be used to choose

between optional settings. Jumpers create

shorts between two pins to change the

function of the connector. Pin 1 is identied

with a square solder pad on the printed

circuit board.

Note: On two pin jumpers,

"Closed" means the jumper is on,

and "Open" means the jumper is

off the pins.

LAN Port Enable/Disable

Jumpers JPL1/JPL2 enable or disable

LAN Port 1/LAN Port 2 on the moth-

erboard. See the table on the right for

jumper settings. The default setting is

enabled.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

GLAN Enable

Jumper Settings

Pin# Denition

1-2 Enabled (default)

2-3 Disabled

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

DIMM2A

DIMM2

DIMM1A

DIMM1

SPKR1

JPME2

J31

JPME1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JS6

JS5

JS3JS4

I-SATA2

I-SATA3

I-SATA5

I-SATA4

LE3

LE2

LE4

GND

A. LAN Port 1 Enable

B. LAN Port 2 Enable

1-2:RST

2-3:NMI

JWD

JSPK

JSPK:Buzzer/Speaker

FAN2

FAN3

J29

JL1

JL1:CHASSIS INTRUSION

FANA

JWF1:DOM PWR

JWF1

2-34

Chapter 2: Installation

Clear CMOS

JBT1 is used to clear the CMOS memory. Instead of pins, this

"jumper" consists of contact pads to prevent accidental clearing

of CMOS. To clear CMOS, use a metal object such as a small

screwdriver to touch both pads at the same time to short the

connection. Always remove the AC power cord from the system

before clearing CMOS.

Note: For an ATX power supply, you must completely shut down the

system, remove the AC power cord and then short JBT1 to clear CMOS.

PCI Slot SMB Enable

Use Jumpers I2C1/I2C2 to enable PCI

SMB (System Management Bus) support

to improve system management for the

PCI slots. See the table on the right for

PCI Slot SMB Enable

Jumper Settings

Jumper Setting Denition

Short Enabled

Open (Default) Disabled

jumper settings.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JPW1

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

SLOT5 PCI-E 2.0 X4 ON X8

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JI2C1

JI2C2

SLOT4 PCI-E 2.0 X4 ON X8

COM2

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

JS6

JS5

I-SATA5

I-SATA4

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

Contact Pads

A. Clear CMOS

B. JI2C1

C. JI2C2

2-35

X9SCM-IIF/X9SCL-IIF Series User's Manual

VGA Enable

JPG1 allows you to enable or disable

the onboard VGA connector. The default

position is on pins 1 and 2 to enable

VGA. See the table on the right for

jumper settings.

Watch Dog Enable

Watch Dog (JWD) is a system moni-

tor that can reboot the system when a

software application hangs. Close Pins

1-2 to reset the system if an applica-

tion hangs. Close Pins 2-3 to generate

a non-maskable interrupt signal for the

application that hangs. See the table on

the right for jumper settings. Watch Dog

must also be enabled in the BIOS.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

CPU

USB2/3

USB4/5

VGA Enable/Disable

Jumper Settings (JPG1)

Both Jumpers Denition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog

Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset (default)

Pins 2-3 NMI

Open Disabled

LED

RST

PWR

LED

HDD

PWR

OH/

NIC1

NIC2

JF1

JLED

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

A. VGA Enable

B. Watch Dog Timer Enable

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JBT1

JS6

JS5

I-SATA5

I-SATA4

J24

USB11

JBT1:CMOS CLEAR

JL1:CHASSIS INTRUSION

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-36

Chapter 2: Installation

USB Wake-Up

Use the jumper JPUSB1 to "wake-up" your

system by pressing a key on a USB keyboard

or clicking the USB mouse connected to the

Backplane USB Ports 0/1. JPUSB1 is used

together with a USB Wake-Up feature in the

BIOS. Enable this jumper and the USB sup-

port in the BIOS to wake up your system via

USB devices.

Note: When the USB is set to Enabled in

the BIOS, and JPUSB1 is set to Disabled,

remove the USB devices from Backplane

USB Ports 0/1 before the system goes

into the standby mode.

BMC Enable

JPB is used to enable or disable the BMC

(Baseboard Management Control) chip and

the onboard IPMI connection. This jumper is

used together with the IPMI settings in the

BIOS. See the table on the right for jumper

settings.

JPUSB1 (Backplane USB

0/1 Wake-up Enable)

Pin# Denition

1-2 Enabled (Default)

2-3 Disabled

BMC IPMI Enable/Disable

Jumper Settings

Settings Denition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

JPL2

JPBJPL1

LE7

JPUSB1:B/P USB WAKE UP

J12

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPW1

JPI2C

CPU

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

RST

PWR

OH/

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

DIMM1A

DIMM1

SPKR1

A. BP USB 0/1 Wake-up

JSPK

B. BMC Enable

JSPK:Buzzer/Speaker

FAN2

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB2/3

USB4/5

USB 12/13

JBT1

JS6

JS5

I-SATA5

I-SATA4

J24

USB11

JBT1:CMOS CLEAR

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-37

X9SCM-IIF/X9SCL-IIF Series User's Manual

ME Recovery

When enabled, Intel ME Recovery (JPME1)

is used to update the ME (Management En-

gine) rmware. When disabled, the rmware

is protected.

BIOS Recovery

When enabled, Intel ME Recovery (JPME2)

is used to update the BIOS rmware. When

disabled, the rmware is protected.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

Pin# Denition

1-2 Enabled

Open Normal (Default)

Pin# Denition

1-2 Enabled

Open Normal (Default)

LED

RST

PWR

LED

HDD

PWR

OH/

NIC1

NIC2

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JS2

JBT1

JS6

JS5

I-SATA5

I-SATA4

J24

USB11

JBT1:CMOS CLEAR

ME Recovery

(JPME1)

BIOS Recovery

(JPME2)

A. JPME1

B. JPME2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-38

Chapter 2: Installation

LAN 1/LAN 2

2-9 Onboard Indicators

LAN 1/LAN 2 LEDs

Two LAN ports (LAN 1/LAN 2) are located

on the I/O backpanel of the motherboard.

Each Ethernet LAN port has two LEDs. The

yellow LED indicates activit y, while the Link

LED may be green, amber, or off to indicate

the speed of the connections. See the

tables at right for more information.

IPMI Dedicated LAN LEDs

In addition to LAN 1/LAN 2, an IPMI Dedi-

cated LAN is also located on the X9SCM-IIF/

X9SCL-IIF. The yellow LED on the right in-

dicates activity, while the green LED on the

left indicates the speed of the connection.

See the tables at right for more information.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB 12/13

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

NIC1

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

LAN1 LAN2

Link LED

LAN 1/LAN 2

Link LEDs (Green/Amber/Off)

LED Color Denition

Off No Connection or 10 Mbps

Green 100 Mbps

Amber 1 Gbps

IPMI LAN Link LED (Left) &

Activity LED (Right)

Status Color Denition

Link (Left) Green: Solid 100 Mbps

Activity (Right)

Yellow: Blinking

IPMI LAN

Link LED

RST

PWR

OH/

NIC2

FAN1

DIMM2B

DIMM1B

DIMM2A

DIMM1A

SPKR1

JPME2

J31

JPME1

I-SATA1

I-SATA0

JS1

T-SGPIO2

T-SGPIO1

I-SATA2

I-SATA3

LE3

LE2

JWD

1-2:RST

2-3:NMI

JWD

JSPK

JSPK:Buzzer/Speaker

FAN2

FAN3

J29

JL1

JL1:CHASSIS INTRUSION

FANA

JWF1:DOM PWR

JWF1

GND

A. LAN Port 1

B. LAN Port 2

C. IPMI LAN

DIMM4

DIMM3

DIMM2

DIMM1

JS2

JS6

JS5

JS3JS4

I-SATA5

I-SATA4

LE4

Activity LED

Active

Activity LED

2-39

X9SCM-IIF/X9SCL-IIF Series User's Manual

Onboard Power LED

An Onboard Power LED is located at LE2

on the motherboard. A lit LE2 indicates

that the motherboard is either booting, or

it is up and running. See the layout below

for the LED location.

Unsupported Memory LED

The Unsupported Memory LED is located

at location LE3. When this LED blinks/

ashes, it indicates that there is an un-

supported DIMM module installed.

Power Standby LED

The Power Standby LED is located at

LE4. When the power supply is plugged

into an AC outlet, and the power sup-

ply hard switch is switched on, LE4 will

turn on indicating Power Standby mode.

Please make sure LE4 is off before

performing service on the motherboard.

IPMI Heartbeat LED

An IPMI Heartbeat LED is located at

LE7. Whe n LE 7 blinks, the IPM I fu nc tions

properly. Refer to the table on the right

for details. Also see the layout below for

the LED location.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JPW1

_LAN

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

SLOT5 PCI-E 2.0 X4 ON X8

JI2C1

JI2C2

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

SLOT4 PCI-E 2.0 X4 ON X8

JWOL

JPG1

USB 12/13

COM2

JPI2C

CPU

USB2/3

USB4/5

LED

HDD

PWR

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

RST

PWR

OH/

NIC1

NIC2

JS2

JS6

JS5

I-SATA5

I-SATA4

Onboard PWR LED

Status Denition

Off System Off

On System On (running)

Unsupported Memory LED (LE3)

Green: Blinking Unsupported Memory

is Installed

Green: Steady Normal/No Error

Power Standby LED Indicator (LE4)

LED Settings

Green: Solid On Standby Power is On

Green: Off Standby Power is Off

IPMI Heartbeat LED Indicator (LE7)

(either the power supply hard switch is off or system is unplugged, or BOTH.)

LED Settings

Green: Blinking IPMI is Active

A. Onboard PWR LED

B. Unsupported Memory LED

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

FAN3

JPME2

J31

JPME1

J29

JL1

I-SATA1

I-SATA0

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

JS3JS4

I-SATA3

I-SATA2

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

C. Power Standby LED

D. IPMI Heartbeat LED

2-40

Chapter 2: Installation

2-10 SATA Connections

Note the following conditions when connecting the Serial ATA disk drive cables:

• Be sure to use the correct cable for each connector. Refer to Page 1-1 for cables

that came with your shipment.

• A red mark on a wire indicates the location of pin 1.

SATA Connections

Six Serial ATA (SATA) connectors (I-SATA

0~5) are located on the motherboard. I-

SATA Ports 0/1 support SATA-III (6Gb/s),

and I-SATA Ports 2~5 support SATA-II

(3Gb/s). These Serial Link connections

support standard SATA drives. Please

refer to the BIOS section (Chapter 4) for

setup information See the table on the

right for pin denitions.

JPUSB1:B/P USB WAKE UP

1-2:ENABLE

KB/MOUSE

2-3:DISABLE

J12

JPW2

JPUSB1

IPMI

_LAN

USB/0/1

COM1

JTPM

VGA

U82

FAN4

LAN1

JLAN1

JLAN2

LAN2

JPL2

JPBJPL1

LE7

JI2C1

JI2C2

COM2

SLOT7 PCI-E 2.0 X8

SLOT6 PCI-E 2.0 X8

SLOT5 PCI-E 2.0 X4 ON X8

SLOT4 PCI-E 2.0 X4 ON X8

JPW1

CPU

2-3:DISABLE

1-2:ENABLE

JPL2:LAN2

JPL1:LAN1

1-2:ENABLE

JPB:BMC

1-2:ENABLE

JI2C1/JI2C2

OFF:Disable

ON:Enable

JPG1: VGA

2-3:Disable

1-2:Enable

JWOL

JPG1

USB2/3

USB4/5

USB 12/13

LED

HDD

PWR

JF1

JPI2C

JF1

JLED

JLED1:3 pin Power LED

DDR3 1066/1333 UDIMM required

JBT1

J24

USB11

JBT1:CMOS CLEAR

SATA Connectors

Pin Denitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

LED

RST

PWR

OH/

NIC1

NIC2

FAN1

DIMM4

DIMM2B

JWD

DIMM3

DIMM1B

1-2:RST

2-3:NMI

JWD

DIMM2A

DIMM2

JSPK

JSPK:Buzzer/Speaker

DIMM1A

DIMM1

SPKR1

FAN2

A. I-SATA 0 (6Gb/s)

B. I-SATA 1 (6Gb/s)

C. I-SATA 2

D. I-SATA 3

E. I-SATA 4

F. I-SATA 5

FAN3

JPME2

J31

JPME1

JS6

JS5

I-SATA5

I-SATA4

J29

JL1

I-SATA1

I-SATA0

JS2

JS1

T-SGPIO2

T-SGPIO1

JL1:CHASSIS INTRUSION

FANA

JS3JS4

I-SATA2

I-SATA3

JWF1:DOM PWR

JWF1

LE3

LE2

LE4

GND

2-41

X9SCM-IIF/X9SCL-IIF Series User's Manual

Notes

2-42

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Make sure that the Standby PWR LED (LE2) is not on. (Note: If LE2 is on,

the onboard power is on. Be sure to unplug the power cable before installing

or removing the components.)

2. Make sure that there are no short circuits between the motherboard and

chassis.

3. Disconnect all ribbon/wire cables from the motherboard, including those for

the keyboard and mouse. Also, be sure to remove all add-on cards.

4. Install a CPU and heatsink (-be sure that it is fully seated) and then connect

the chassis speaker and the power LED to the motherboard. Check all jumper

settings as well.

No Power

1. Make sure that there are no short circuits between the motherboard and

chassis.

2. Make sure that all jumpers are set to their default positions.

3. Check if the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to make sure that it still

supplies ~3VDC. If it does not, replace it with a new one.

3-1

X9SCM-IIF/X9SCL-IIF Series User's Manual

No Video

1. If the power is on, but you have no video--in this case, you will need to re-

move all the add-on cards and cables rst.

2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A

for details on beep codes.)

3. Remove all memory modules and turn on the system. (If the alarm is on,

check the specs of memory modules, reset the memory or try a different one.)

Memory Errors

1. Make sure that the DIMM modules are properly installed and fully seated in

the slots.

2. You should be using unbuffered ECC DDR3 (1.5V) 1333/1066 MHz memory

(recommended by the manufacturer). Also, it is recommended that you

use the memory modules of the same type and speed for all DIMMs in the

system. Do not use memory modules of different sizes, different speeds and

different types on the same motherboard.

3. Check for bad DIMM modules or slots by swapping modules between slots to

see if you can locate the faulty ones.

4. Check the switch of 115V/230V power supply.

Losing the System’s Setup Conguration

1. Please be sure to use a high quality power supply. A poor quality power sup-

ply may cause the system to lose CMOS setup information. Refer to Section

1-5 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not x the Setup Conguration problem, contact your

vendor for repairs.

3-2

Chapter 3: Troubleshooting

3-2 Technical Support Procedures

Before contacting Technical Support, please make sure that you have followed all

the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro

does not sell directly to end users, so it is best to rst check with your distributor or

reseller for troubleshooting services. They should know of any possible problem(s)

with the specic system conguration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked

Question' (FAQ) sections in this chapter or see the FAQs on our website

(http://www.supermicro.com/support/faqs/) before contacting Technical Sup-

port.

2. BIOS upgrades can be downloaded from our website at (http://www.supermi-

cro.com/support/bios/).

Note: Not all BIOS can be ashed. Some cannot be ashed; it depends

on the boot block code of the BIOS.

3. If you've followed the instructions above to troubleshoot your system, and still

cannot resolve the problem, then contact Supermicro's technical support and

provide them with the following information:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your

system rst boots up)

•System conguration

•An example of a Technical Support form is on our website at (http://www.su-

permicro.com/support/contact.cfm).

4. Distributors: For immediate assistance, please have your account number

ready when placing a call to our technical support department. We can be

reached by e-mail at support@supermicro.com, by phone at: (408) 503-

8000, option 2, or by fax at (408)503-8019.

3-3

X9SCM-IIF/X9SCL-IIF Series User's Manual

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The X9SCM-IIF/X9SCL-IIF supports up to 32GB of unbuffered ECC DDR3

SDRAM (1.5V, 1333/1066/1600 MHz). See Section 2-3 for details on installing

memory.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not

experiencing any problems with your system. Updated BIOS les are located on

our website at http://www.supermicro.com/support/bios/. Please check our BIOS

warning message and the information on how to update your BIOS on our web site.

Select your motherboard model and download the BIOS ROM le to your computer.

Also, check the current BIOS revision to make sure that it is newer than your BIOS

before downloading. After downloading the BIOS le (.zip archive), please unzip

the le into a bootable USB pen/thumb drive. To ash the BIOS, run the batch le

named "ami.bat" with the new BIOS ROM le from your bootable device or USB

pen/thumb drive. Use the following format:

F:\> ami.bat BIOS-ROM-lename.xxx <Enter>

Note: Always use the le named “ami.bat ” to update the BIOS, and inser t

a space between "ami.bat" and the lename. The BIOS -ROM -lename

will bear the motherboard name (i.e., X9SCM) and build version as the

extension. For example, "X9SCM0.115". When completed, your system

will automatically reboot.

When the BIOS ashing screen is completed, the system will reboot and

will show “Press F1 or F2”. At this point, you will need to load the BIOS

defaults. Press <F1> to go to the BIOS setup screen, and press <F9> to

load the default settings. Next, press <F10> to save and exit. The system

will then reboot.

Warning: Do not shut down or reset the system while updating the BIOS

to prevent possible system boot failure!

Note: The SPI BIOS chip installed on this motherboard is not removable.

To repair or replace a damaged BIOS chip, please send your motherboard

to RMA at Supermicro for service.

Question: I think my BIOS is corrupted. How can I recover my BIOS?

Answer: Please see Appendix C-BIOS Recovery for detailed instructions.

3-4

Chapter 3: Troubleshooting

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs that will

greatly enhance your system. We recommend that you review the CD and install

the software you need. Software on the CD include chipset drivers for Windows,

security programs, and audio drivers.

Question: Why do I get an error message “IASTOR.SYS read error” and "press F6

to install Intel RAID driver" when installing Windows on my motherboard?

Answer: To solve this issue, disable the IPMI jumper. Another solution is to use a

USB oppy drive instead of the onboard oppy drive. For the IPMI jumper location,

please check Chapter 1.

Question: What is the heatsink part number for my X9SCM-IIF/X9SCL-IIF moth-

erboard?

Answer: For the 1U passive heatsink, ask for SNK-P0046P (back plate is included).

For the 2U active heatsink, use SNK-P0046A4.

Question: Why can't I recover the BIOS even when I’ve followed the instructions

in the user’s manual for the motherboard?

Answer: Please disable the IPMI jumper and try it again. For the jumper location,

please check Chapter 1.

3-5

X9SCM-IIF/X9SCL-IIF Series User's Manual

3-4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.

2. Locate the onboard battery as shown below.

3. Using a tool such as a pen or a small screwdriver, push the battery lock out-

wards to unlock it. Once unlocked, the battery will pop out from the holder.

4. Remove the battery.

Battery Lock

Battery

Battery Holder

Proper Battery Disposal

Warning! Please handle used batteries carefully. Do not damage the bat-

tery in any way; a damaged battery may release hazardous materials into

the environment. Do not discard a used battery in the garbage or a public

landll. Please comply with the regulations set up by your local hazardous

waste management agency to dispose of your used battery properly.

Battery Installation

1. To install an onboard battery, follow the steps 1& 2 above and continue

below:

2. Identify the battery's polarity. The positive (+) side should be facing up.

3. Insert the battery into the battery holder and push it down until you hear a

click to ensure that the battery is securely locked.

Warning: When replacing a battery, be sure to only replace it with the

same type.

This side up

3-6

Press down until you hear a click.

Chapter 3: Troubleshooting

3-5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required

before any warranty service will be rendered. You can obtain service by calling

your vendor for a Returned Merchandise Authorization (RMA) number. For faster

service, you may also obtain RMA authorizations online (http://www.supermicro.

com/support/rma/). When you return the motherboard to the manufacturer, the

RMA number should be prominently displayed on the outside of the shipping

carton, and mailed prepaid or hand-carried. Shipping and handling charges will

be applied for all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover damages

incurred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor rst for any product prob-

lems.

3-7

X9SCM-IIF/X9SCL-IIF Series User's Manual

Notes

3-8

Chapter 4: AMI BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMI BIOS Setup Utility for the X9SCM-IIF/X9SCL-IIF.

The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. This

chapter describes the basic navigation of the AMI BIOS Setup Utility setup screens.

Note: For instructions on BIOS recovery, please refer to the instruction

guide posted at http://www.supermicro.com/support/manuals/.

Starting BIOS Setup Utility

To enter the AMI BIOS Setup Utility screens, press the <Delete> key while the

system is booting up.

Note: In most cases, the <Delete> key is used to invoke the AMI BIOS

setup screen. There are a few cases when other keys are used, such as

<F1>, <F2>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup

menu screen has two main frames. The left frame displays all the options that can

be congured. Grayed-out options cannot be congured. Options in blue can be

congured by the user. The right frame displays the key legend. Above the key

legend is an area reserved for a text message. When an option is selected in the

left frame, it is highlighted in white. Often a text message will accompany it. (Note:

the AMI BIOS has default text messages built in. Supermicro retains the option to

include, omit, or change any of these text messages.)

The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

Most of the AMI BIOS setup utility "hot keys" can be used at any time during the

setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, ar-

row keys, etc.

Note: Options printed in Bold are default settings.

How To Change the Conguration Data

The conguration data that determines the system parameters may be changed by

entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing

<Del> at the appropriate time during system boot.

4-1

X9SCM-IIF/X9SCL-IIF Series User's Manual

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.

As the memory is being tested, press the <Delete> key to enter the main menu of

the AMI BIOS Setup Utility. From the main menu, you can access the other setup

screens. An AMI BIOS identication string is displayed at the left bottom corner of

the screen, below the copyright message.

Warning! Do not upgrade the BIOS unless your system has a BIOS-related

issue. Flashing the wrong BIOS can cause irreparable damage to the

system. In no event shall Supermicro be liable for direct, indirect, special,

incidental, or consequential damages arising from a BIOS update. If you

have to update the BIOS, do not shut down or reset the system while the

BIOS is updating. This is to avoid possible boot failure.

4-2 Main Setup

When you rst enter the AMI BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab on the

top of the screen. The Main BIOS Setup screen is shown below.

4-2

Chapter 4: AMI BIOS

System Overview: The following BIOS information will be displayed:

System Time/System Date

Use this option to change the system time and date. Highlight System Time or Sys-

tem Date using the arrow keys. Enter new values through the keyboard. Press the

<Tab> key or the arrow keys to move between elds. The date must be entered in

Day MM/DD/YY format. The time is entered in HH:MM:SS format. (Note: The time

is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.)

Supermicro X9SCL-II/X9SCM-II

Version

Build Date

Processor

The AMI BIOS will automatically display the status of processor as shown below:

Processor

Speed

Physical Count

Logical Count

System Memory

This displays the size of memory available in the system:

Size

4-3

X9SCM-IIF/X9SCL-IIF Series User's Manual

4-3 Advanced Setup Congurations

Use the arrow keys to select Boot Setup and hit <Enter> to access the submenu

items:



BOOT Feature

Quiet Boot

This option allows the bootup screen options to be modied between POST mes-

sages or the OEM logo. Select Disabled to display the POST messages. Select

Enabled to display the OEM logo instead of the normal POST messages. The op-

tions are Enabled and Disabled.

AddOn ROM Display Mode

This sets the display mode for Option ROM. The options are Force BIOS and

Keep Current.

Bootup Num-Lock

This feature selects the Power-on state for Numlock key. The options are Off

and On.

Wait For 'F1' If Error

This forces the system to wait until the 'F1' key is pressed if an error occurs. The

options are Disabled and Enabled.

INT19 Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this

item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt

4-4

Chapter 4: AMI BIOS

19 at boot and allow the drives that are attached to these host adaptors to function

as bootable disks. If this item is set to Disabled, the ROM BIOS of the host adap-

tors will not capture Interrupt 19, and the drives attached to these adaptors will not

function as bootable devices. The options are Enabled and Disabled.

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reboot when it is inactive

for more than 5 minutes. The options are Enabled and Disabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed.

Select 4-Seconds Override to force the user to press and hold the Power Button for

4 seconds before the system turns off. Select Instant Off if you want the system to

instantly power off when the Power Button is pressed. The options are 4 Seconds

Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power-Off for

the system power to remain off after a power loss. Select Power-On for the system

power to be turned on after a power loss. Select Last State to allow the system to

resume its last state before a power loss. The options are Power-On, Power-Off

and Last State.

DeepSx Power Policies

Select Enabled to enable Deep Sleep State power policies. The settings are En-

abled and Disabled.



Processor & Clock Options

Warning: Take Caution when changing the Advanced settings. An incorrect

value, a very high DRAM frequency or incorrect DRAM timing may cause

system to become unstable. When this occurs, revert to the default setting.

Intel ® Hyper Threading Technology

Set to Enabled to use the processor's Hyper Threading Technology feature. The

options are Enabled and Disabled.

Active Processor Cores

Set to Enabled to use a processor's Second Core and beyond. (Please refer to

Intel's web site for more information.) The options are All, 1, 2 and 3.

4-5

X9SCM-IIF/X9SCL-IIF Series User's Manual

Execute-Disable Bit Capability (Available when supported by the OS and

the CPU)

Set to Enabled to enable the Execute Disable Bit which will allow the processor

to designate areas in the system memory where an application code can execute

and where it cannot, thus preventing a worm or a virus from ooding illegal codes

to overwhelm the processor or damage the system during an attack. The default is

Enabled. (Refer to Intel and Microsoft Web Sites for more information.)

Intel® Virtualization Technology (Available when supported by the CPU)

Select Enabled to use the feature of Virtualization Technology to allow one plat-

form to run multiple operating systems and applications in independent partitions,

creating multiple "virtual" systems in one physical computer. The options are

Enabled and Disabled.

Note: If there is any change to this setting, you will need to power off and

restart the system for the change to take effect. Please refer to Intel’s

web site for detailed information.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enabled, the hardware prefetcher will pre fetch streams of data and instruc-

tions from the main memory to the L2 cache in the forward or backward manner to

improve CPU performance. The options are Disabled and Enabled.

Adjacent Cache Line Prefetch (Available when supported by the CPU)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The

CPU fetches both cache lines for 128 bytes as comprised if Enabled.

Intel® AES-NI

Set to Enabled to use the processor's Advanced Encryption Standard (AES) feature.

The options are Enabled and Disabled.

Power Technology

This feature determines what power-saving scheme the motherboard uses. The

options are Disabled, Energy Efcient and Custom. If Custom is selected, the

following options become available:

EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to automati-

cally adjust processor voltage and core frequency in an effort to reduce

power consumption and heat dissipation. Please refer to Intel’s web site

for detailed information. The options are Disabled and Enabled.

4-6

Chapter 4: AMI BIOS

CPU C3 Report, CPU C6 Report, CPU 7 Report

This BIOS feature enables or disables C3 (ACPI C2), C6 (ACPI C3), or C7

(ACPI C3) reporting to the operating system. The options are Disabled and

Enabled.

C1E Support

Select Enabled to use the "Enhanced Halt State" feature. C1E signicantly

reduces the CPU's power consumption by reducing the CPU's clock cycle

and voltage during a "Halt State." The options are Disabled and Enabled.



Turbo Boost Technology (Available if Intel® EIST

technology is Enabled)

Turbo Mode

This feature allows processor cores to run faster than marked frequency in

specic conditions. The options are Disabled and Enabled.

Long duration power limit - this is the processor power consumption limit

(in Watts) during a long duration time window.

Long duration maintained - this is the time in milliseconds where the Long

Duration Power Limit is maintained.

Short duration power limit - During Turbo Mode, the system may exceed

the processor's default power setting and exceed the Short Duration Power

limit. By increasing this value, the processor can provide better performance

for a short duration.



Chipset Conguration

WARNING: Setting the wrong values in the following sections may cause the system

to malfunction.



CPU Bridge Conguration

This item displays the current CPU Revision, Current CPU1 Memory Frequency,

Memory Type and Memory Reference Code Revision.

Memory Frequency

This feature allows the user to select the memory speed. Under normal condi-

tions, please set this to Auto. The options are Auto, Force DDR-800, Force

DDR-1067, Force DDR-1333, and Force DDR-1600.

4-7

X9SCM-IIF/X9SCL-IIF Series User's Manual



Integrated IO Conguration

This item displays the current IIO Revision.

Intel VT-d

Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI

Tables. This feature offers fully-protected I/O resource-sharing across the Intel

platforms, providing the user with greater reliability, security and availability in

networking and data-sharing. The settings are Enabled and Disabled.

Active State Power Management

Set this item to the desired ASPM (Active State Power Management) level. The

options are Disabled, Auto and Force L0s.

PCIe Maximum Read Request

This feature selects the setting for the PCIE maximum Read Request size. The

options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes,

and 4096 Bytes.

PCI Express Port

This feature controls the PCI Express Port. The options are Disabled, Enabled

and Auto.

PCI Express Port - Gen X

This feature controls the PCI Express Ports (Gen1-Gen3) . The options are Auto,

Gen1, Gen2, and Gen3.

Detect Non-Compliant Device

When enabled, this feature will detect if there are any non-compliant PCI-Express

devices installed in the PCIe ports. The options are Disabled, and Enabled.



South Bridge Conguration

This item displays the current South Bridge Revision.

USB Functions

This feature allows the user to decide the number of onboard USB ports to be

enabled. The Options are: Disabled and Enabled.

Legacy USB Support

This feature enables support for legacy USB devices. Select Auto to disable

legacy support if USB devices are not present. Select Disable to have USB

4-8

Chapter 4: AMI BIOS

devices available only for EFI applications. The options are Enabled, Disabled

and Auto.

BIOS EHCI Hand-Off

This item is for Operating Systems that does not support Enhanced Host Con-

troller Interface (EHCI) hand-off. When enabled, EHCI ownership change will be

claimed by the EHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulationi

This feature enables I/O port 60h/64h emulation support. Leave this enabled for

complete USB keyboard legacy support for Operating Systems that are not USB

compatible. The settings are Enabled, and Disabled.



IDE/SATA Conguration

When this submenu is selected, the AMI BIOS automatically detects the presence

of the IDE Devices and displays the following items:

SATA Mode

This item selects the mode for the installed drives. The options are IDE, AHCI

and RAID.

IDE

The following items are displayed when IDE Mode is selected:

SATA Port0~Port5

This item displays the information detected on the installed SATA drives

on the particular SATA port.

AHCI

The following items are displayed when AHCI Mode is selected:

Aggressive Link Power Management

This feature Enables or Disables Aggressive Link Power Management

support for Cougar Point B0 stepping and later. The options are Enabled

and Disabled.

SATA Port0~Port5

This item displays the information detected on the installed SATA drives

on the particular SATA port.

4-9

X9SCM-IIF/X9SCL-IIF Series User's Manual

Hot Plug

Set this item to Enabled to enable hot-plugging. The options are

Enabled and Disabled.

Staggered Spin-Up

Set this item to Enabled to enable Staggered Spin-up support. The

options are Enabled and Disabled.

RAID

The following items are displayed when RAID Mode is selected:

SATA Port0~Port5

This item displays the information detected on the installed SATA drives

on the particular SATA port.

Hot Plug

Set this item to Enabled to enable hot-plugging. The options are

Enabled and Disabled.



PCIe/PCI/PnP Conguration

This feature allows the user to set the PCI/PnP congurations for the following items:

PCI Latency Timer

This feature sets the latency Timer of each PCI device installed on a PCI bus. Select

64 to set the PCI latency to 64 PCI clock cycles. The options are 32, 64, 96, 128,

160, 192, 224 and 248.

Above 4G Decoding

This feature enables or disables 64-bit capable devices to be decoded above the

4GB address space (if the system supports 64-bit PCI decoding). The options are

Enabled and Disabled.

Onboard LAN Option ROM Select

This feature selects whether to load the iSCSI or PXE onboard LAN option ROM.

The options are iSCSI and PXE.

Load Onboard LAN1 Option ROM/Load Onboard LAN2 Option ROM

This feature is to enable or disable the onboard option ROMs. The default for LAN1

is Enabled. The default for LAN2 is Disabled.

4-10

Chapter 4: AMI BIOS

Boot Graphics Adapter Priority

Use the feature to select the graphics controller to be used as the primary boot

device. The options are Offboard and Onboard.



Super IO Device Conguration

Serial Port 1 / Serial Port 2

Select Enabled to enable the onboard serial port. The options are Enabled and

Disabled.

Serial Port1 Settings/ Serial Port2 Settings

This option species the base I/O port address and the Interrupt Request address

of Serial Port 1 and Serial Port 2. Select Disabled to prevent the serial port from

accessing any system resources. When this option is set to Disabled, the serial port

physically becomes unavailable. Select 3F8/IRQ4 to allow the serial port to use 3F8

as its I/O port address and IRQ 4 for the interrupt address.

The options for Serial Port 1 are:

Auto,

IO=3F8h; IRQ=4;

IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

The options for Serial Port 2 are:

Auto,

IO=2F8h; IRQ=3;

IO=3F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=2F8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=3E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

IO=2E8h; IRQ=3, 4, 5, 6, 7, 10, 11, 12;

4-11

X9SCM-IIF/X9SCL-IIF Series User's Manual



Serial Port Console Redirection Conguration

COM0/COM1/SOL Console Redirection

Use this feature to enable console redirection for COM0 and COM1 ports. The

options are Enabled and Disabled. The default for COM0 and COM1 is Disabled.

The default for SOL is Enabled.



Console Redirection Settings

Congure the following options for the Console Redirection Settings. The most

common settings are set as default:

Terminal Type : Select ANSI, VT100, VT100+, or VT-UTF8

Bits per Second (BPS): 9600, 19200, 38400, 57600, or 115200

Data Bits: 8 or 7

Parity: None, Even, Odd, Mark, or Space

Stop Bits: 1 or 2

Flow Control: None or Hardware RTS/CTS

VT-UTF8 Combo Key Support: Enabled or Disabled

Recorder Mode: Disabled or Enabled

Resolution 100x31: Disabled or Enabled

Legacy OS Redirection Resolution: 80x24 or 80x25

Serial Port for Out-of-Band Management / Windows Emergency

Management Services (EMS) Console Redirection

Use this feature to enable console redirection. The options are Enabled and Dis-

abled. The default is Disabled.



Console Redirection Settings

Congure the following options for the Console Redirection Settings. The most

common settings are set as default:

Out-of-Band Mgmt Port: COM0, COM1, SOL

Terminal Type : Select ANSI, VT100, VT100+, or VT-UTF8

Bits per Second (BPS): 9600, 19200, 57600, or 115200

Data Bits: 8 or 7

Parity: None, Even, Odd, Mark, or Space

Stop Bits: 1 or 2

4-12

Chapter 4: AMI BIOS



ACPI Settings

Use this feature to congure Advanced Conguration and Power Interface (ACPI)

power management settings for your system.

High Precision Event Timer

This enables or disables the system's High Precision Event Timer. The options are

Enabled and Disabled.

ACPI Sleep State

Use this feature to select the ACPI Sleep when the system is in sleep mode. Se-

lect S1 (POS) to erase all CPU caches and stop executing instructions. Power to

the CPU(s) and RAM is maintained, but RAM is refreshed. Select Suspend to use

power-reduced mode, whereby power will only be supplied to limited components

(such as RAMs) to maintain the most critical functions of the system. The options

are Suspend Disabled and S1 (POS).

WHEA Support

This feature enables or disables the Windows Hardware Error Architecture support.

The options are Enabled and Disabled.

4-13

X9SCM-IIF/X9SCL-IIF Series User's Manual

4-4 Event Logs



Change Smbios Event Log Settings

Change this item to enable or disable all features of the Smbios Event Logging

during boot. The options are Enabled and Disabled.

Smbios Event Log

Change this item to enable or disable all features of the Smbios Event Logging

during boot. The options are Enabled and Disabled.

Erase Event Log

This option erases all logged events. The options are No, Yes, Next reset and Yes,

Every reset.

When Log is Full

This option automatically clears the Event Log memory of all messages when it is

full. The options are Do Nothing and Erase Immediately.

Log System Boot Event

This option toggles the System Boot Event logging to enabled or disabled. The

options are Disabled and Enabled.

MECI

The Multiple Event Count Increment (MECI) counter counts the number of times

a duplicate event must happen before the MECI counter is incremented. This is a

numeric value ranging from 1~255. The default value is 1.

4-14

Chapter 4: AMI BIOS

METW

The Multiple Event Time Window (METW) denes number of minutes must pass

between duplicate log events before MECI is incremented. This is in minutes, from

0 to 99. The default value is 60.

4-15

X9SCM-IIF/X9SCL-IIF Series User's Manual

4-5 IPMI Conguration

Intelligent Platform Management Interface (IPMI) is a set of common interfaces that

IT administrators can use to monitor system health and to manage the system as a

whole. For more information on the IPMI specications, please visit Intel's website

at www.intel.com.



System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Enabled

and Disabled.

Erasing Settings

Erase SEL

Select 'Yes, On next reset' to erase all system event logs upon next system reboot.

Select 'Yes, On every reset' to erase all system event logs upon each system reboot.

Select No to keep all system event logs after each system reboot. The options are

No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to decide what the BIOS should do when the system

event log is full. Select Erase Immediately to erase all events in the log when the

system event log is full. The options are Do Nothing and Erase Immediately.

4-16

Chapter 4: AMI BIOS



BMC Network Conguration

LAN Channel 1: This feature allows the user to congure the settings for LAN

Channel 1.

Update IPMI LAN Conguration

This feature allows the user to decide if the BIOS should congure the IPMI setting

at next system boot. The options are No and Yes. If the option is set to Yes, the

user is allowed to congure the IPMI settings at next system boot:

Conguration Address Source

This feature allows the user to select the source of the IP address for this computer.

If Static is selected, you will need to know the IP address of this computer and enter

it to the system manually in the eld. If Unspecied is selected, the BIOS will search

the next available IP address for this computer without modifying BMC network

parameters. The options are Do Nothing, Static, and Dynamic.

Current IP Address

This item displays the Station IP address for this computer. This should be in decimal

and in dotted quad form (i.e., 192.168.10.253).

Current Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each

three-digit number separated by dots should not exceed 255.

Current MAC Address

This item displays the Station Mac address for this computer. Mac addresses are

6 two-digit hexadecimal numbers.

Current Gateway IP Address

This item displays the Gateway or Router address for this computer. This should

be in decimal and in dotted quad form (i.e., 192.168.10.253).

4-17

X9SCM-IIF/X9SCL-IIF Series User's Manual

4-6 Boot Settings

Setup Prompt Timeout

Use this feature to specif y the amount of time (in seconds) to wait for the setup

activation key. The default setting is 1.

Retry Boot Devices

This feature forces the BIOS to continually try to boot from the installed legacy

devices. The options are Disabled and Enabled.

Boot Option Filter

This option controls what devices the system can boot from. The options are UEFI

and Legacy, Legacy Only, and UEFI Only.

Boot Option Priorities

This feature allows the user to specify which devices are boot devices and the order

of priority from which the systems boots during startup.

Boot Option #1/ Boot Option #2/etc

Use this feature to specify the sequence of boot device priority.

Network Device BBS Priorities, Hard Drive BBS Priorities

This option sets the order of the legacy network devices and Hard Disks detected

by the motherboard.

4-18

Chapter 4: AMI BIOS



Delete Boot Option

This feature allows the user to delete a previously dened boot device from which

the system boots during startup.

4-19

X9SCM-IIF/X9SCL-IIF Series User's Manual

4-7 Security Settings

• If the Administrator password is dened ONLY - this controls access to the

BIOS setup ONLY.

• If the User's password is dened ONLY - this password will need to be entered

during each system startup or boot, and will also have Administrator rights in

the setup.

• Passwords must be at least 3 and up to 20 characters long.

Administrator Password

Press Enter to create a new, or change an existing Administrator password.

User Password:

Press Enter to create a new, or change an existing User password.

4-20

Chapter 4: AMI BIOS

4-8 Save & Exit Options

Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup

screen.

Save Changes and Exit

When you have completed the system conguration changes, select this option

to leave the BIOS Setup Utility and reboot the computer, so the new system con-

guration parameters can take effect. Select Save Changes and Exit from the Exit

menu and press <Enter>.

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes

to the system conguration, and reboot the computer. Select Discard Changes and

Exit from the Exit menu and press <Enter>.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to the

AMI BIOS Utility Program.

Restore Defaults

To set this feature, select Restore Defaults from the Exit menu and press <Enter>.

These are factory settings designed for maximum system stability, but not for

maximum performance.

4-21

X9SCM-IIF/X9SCL-IIF Series User's Manual

Save As User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press

<Enter>. This enables the user to save any changes to the BIOS setup for future use

Restore User Defaults

To set this feature, select Restore User Defaults from the Exit menu and press <En-

ter>. Use this feature to retrieve user-dened settings that were saved previously.

Boot Override

This feature allows the user to enter a new setting to overwrite the original setting

that was saved for the devices listed.

4-22

Appendix A: POST Error Beep Codes

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time

the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue

with bootup. The error messages normally appear on the screen.

Fatal errors will not allow the system to continue to bootup. If a fatal error oc-

curs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps.

The numbers on the fatal error list correspond to the number of beeps for the

corresponding error.

A-1 BIOS Error Beep Codes

BIOS Error Beep Codes

Beep Code/LED Error Message Description

1 beep Refresh Circuits have been reset.

5 short beeps + 1 long beep

8 beeps Display memory

OH LED On System OH System Overheat

Memory error No memory detected in the

read/write error

(Ready to power up)

system

Video adapter missing or with faulty memory

A-1

X9SCM-IIF/X9SCL-IIF Series User's Manual

Notes
