SUPER MICRO Computer X6DHT-G User Manual

SUPER

X6DHT-G

USER’S MANUAL

Revision 1.1a

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com.

SUPER MICRO COMPUTER, INC. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT,INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See WWW.dtsc.ca.gov/hazardouswaste/ perchlorate".

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

Revision Number: Rev. 1.1a Release Date: Sept. 28, 2007 Unless you request and receive written permission from SUPER MICRO COMPUTER,

INC., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and

companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Preface About This Manual

This manual is written for system integrators, PC technicians and knowledgeable PC users. It provides information for the installation and use of the X6DHT-G motherboard. The X6DHT-G supports single or dual Intel EM64T (NoconaTM) processors at a 800 MHz front side bus. Based upon Intel's NetBurst microarchitecture with EM64T support, the EM64T (Nocona) processor supports the IA-32 software and includes features found in the XeonTM processor such as Hyper Pipelined Technology, allowing the processor to operate at much higher core frequencies. Packaged in a 604-pin Flip Chip Micro Pin Grid Array(FC-mPGA4) platform in a Zero Insertion Force (ZIF) socket (mPGA 604), the EM64T (Nocona) Processor (800 MHz) supports Hyper-Threading Technology and is ideal for high performance workstation and server environments with up to two processors on one system bus. This product is intended to be professionally installed.

Manual Organization

Chapter 1 begins with a checklist of what should be included in your

mainboard box, describes the features, specifications and performance of the motherboard and provides detailed information about the chipset.

Preface

Chapter 2 begins with instructions on handling static-sensitive devices. Read this chapter when you want to install the processor and DIMM memory modules and when mounting the mainboard in the chassis. Also refer to this chapter to connect the floppy and hard disk drives, SCSI drives, the IDE interfaces, the parallel and serial ports, the keyboard and mouse, the power supply and various control panel buttons and indicators.

If you encounter any problems, see Chapter 3, which describes troubleshooting procedures for the video, the memory and the setup configuration stored in the CMOS. For quick reference, a general FAQ [Frequently Asked Questions] section is provided.

Chapter 4 includes an introduction to BIOS and provides detailed information on running the CMOS Setup utility.

Appendix A provides BIOS POST codes. Appendix B provides software installation instructions.

iii

X6DHT-G User's Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .................................................................................................... 1-1

Contacting Supermicro ............................................................................ 1-2

X6DHT-G Image ...................................................................... 1-3

X6DHT-G Layout .................................................................... 1- 4

X6DHT-G Quick Reference ................................................... 1-5

Motherboard Features ............................................................................. 1-6

Intel E7520 (Lindenhurst) Chipset: System Block Diagram .............. 1-8

1-2 Chipset Overview........................................................................................... 1-9

1-3 Special Features ........................................................................................... 1-10

1-4 PC Health Monitoring.................................................................................... 1-10

1-5 ACPI Features ............................................................................................... 1-11

1-6 Power Supply ............................................................................................... 1-13

1-7 Super I/O ......................................................................................................... 1-14

Chapter 2: Installation

2-1 Static-Sensitive Devices ............................................................................... 2-1

Precautions............................................................................................... 2-1

Unpacking.................................................................................................. 2-1

2-2 Xeon EM64T Processor and Heatsink Installation .................................... 2-2

2-3 Installing DIMMs............................................................................................... 2-6

2-4 I/O Ports/Control Panel Connectors ............................................................. 2-7

2-5 Connecting Cables .......................................................................................... 2-9

ATX Power Connector ............................................................................ 2-9

Processor Power Connector ................................................................. 2-9

NMI Button ................................................................................................ 2-10

Power LED ............................................................................................... 2-10

HDD LED .................................................................................................. 2-11

NIC1/NIC2 LED ........................................................................................ 2-11

Overheat/Fan Fail LED .......................................................................... 2-12

Power Fail LED ....................................................................................... 2-12

Reset Button ........................................................................................... 2-13

Power Button ......................................................................................... 2-13

Table of Contents

Chassis Intrusion ................................................................................... 2-14

Serial Ports ............................................................................................. 2- 14

Universal Serial Bus (USB0/1) ............................................................ 2 -15

Extra Universal Serial Bus Headers (USB2/3) ................................. 2- 15

GLAN (Ethernet Ports) ........................................................................... 2-16

ATX PS/2 Keyboard and Mouse Ports ................................................2-16

Fan Headers ........................................................................................... 2-17

Pow er LE D/Spe aker Heade r ................................................................ 2 -17

Wake-On-Ring ......................................................................................... 2-18

Wake-On-LAN ......................................................................................... 2-18

SMB ........................................................................................................... 2-19

SMB Power .............................................................................................. 2-19

SATA SMB Power Connection ............................................................. 2-20

SATA Activity Output LED .................................................................... 2-20

Overheat LED .......................................................................................... 2-21

Power Supply Failure LED .................................................................... 2-21

2-6 Jumper Settings ............................................................................................ 2-2 2

Explanation of Jumpers ........................................................................ 2 -22

GLAN Enable/Disable............................................................................. 2-2 2

CMOS Clear............................................................................................. 2-2 3

Watch Dog Enable/Disable .................................................................... 2-23

VGA Enable/Disable ............................................................................... 2-24

Alarm Reset ............................................................................................. 2-24

3rd PWR Fault Detect ............................................................................ 2-25

SATA Controller Enable/Disable ........................................................... 2-25

2-7 Onboard Indicators ...................................................................................... 2- 26

GLAN LEDs.............................................................................................. 2-26

SATA Presence LEDs ............................................................................ 2-27

SATA Activity LEDs ............................................................................... 2-27

2-8 Parallel Port, Floppy, IPMI 2.0 Socketand Hard Disk Drive Connection 2-28

Parallel Port ............................................................................................. 2-28

Floppy Connector ................................................................................... 2-29

IPMI 2.0 Socket....................................................................................... 2- 29

IDE Connectors ...................................................................................... 2-30

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................ 3-1

Before Power On .................................................................................... 3-1

No Power .................................................................................................. 3-1

X6DHT-G User's Manual

No Video ................................................................................................... 3-1

Memory Errors .......................................................................................... 3-2

Losing the System’s Setup Configuration ........................................... 3-2

3-2 Technical Support Procedures .................................................................... 3-2

3-3 Frequently Asked Questions ........................................................................ 3-3

3-4 Returning Merchandise for Service ............................................................ 3-4

Chapter 4: BIOS

4-1 Introduction....................................................................................................... 4-1

4-2 Running Setup.................................................................................................. 4-2

4-3 Main BIOS Setup.............................................................................................. 4-2

4-4 Advanced Setup.............................................................................................. 4-6

4-5 Security Setup ............................................................................................... 4-18

4-6 Boot Setup ...................................................................................................... 4-20

4-7 Exit ................................................................................................................... 4-21

Appendices:

Appendix A: BIOS POST Messages ..................................................................... A-1

Appendix B: BIOS POST Codes .............................................................................B-1

Appendix C: Installing Software Drivers and the Operating System ..............C-1

1-1 Overview

Chapter 1: Introduction

Chapter 1

Introduction

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Check that the following items have all been included with your motherboard. If anything listed here is damaged or missing, contact your retailer. All are included in the Retail Box.

One (1) Supermicro Mainboard

One (1) ribbon cable for IDE devices (CBL-036)

One (1) floppy ribbon cable (CBL-022)

One (1) COM port cable (CBL-010)

One (1) 4-port USB cable (CBL-083)

Eight (8) SATA cables (CBL-044)

One (1) I/O backpanel shield (CSE-PT7)

One (1) Supermicro CD containing drivers and utilities (CDR-INTC)

One (1) User's/BIOS Manual

Introduction

1-1

X6DHT-G User's Manual

Contacting Supermicro

Introduction

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support) Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands Tel: +31 (0) 73-6400390 Fax: +31 (0) 73-6416525 Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Asia-Pacific

Address: Super Micro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C. Tel: +886-(2) 8226-3990 Fax: +886-(2) 8226-3991 Web Site: www.supermicro.com.tw Technical Support: Email: support@supermicro.com.tw Tel: 886-2-8228-1366, ext.132 or 139

1-2

Chapter 1: Introduction

Figure 1-1. X6DHT-G Image

Introduction

1-3

Introduction

X6DHT-G User's Manual

Figure 1-2. X6DHT-G Motherboard Layout

(not drawn to scale)

KB/ Mouse

USB 0/1

COM1

Parrallel

Port

JLAN1

VGA

LAN1

LAN2

GLAN CTLR

JPL1

JPL2

RAGEXL

Buzzer

JWD

Notes:

DS9 DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

DS13 DS5

SATA4

DS14

DS6

SATA5

JWOR

OH LED

Floppy

DS15 DS7

SATA6

DS16

DS8

SATA7

IDE2

M-SATA

JL1

PSF

Fan1

C I

J3P

JF1

Fan2

Fan3

IDE1

M-SA TA

Fan4

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

JBT1

SMB

BIOS

Fan8

USB2/3

WOL

SMBus PWR

PXH

6300ESB

SATA0

ICH

Intel

Fan7

SATA1

1. Jumpers not indicated are for testing only.

2. See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front panel connections.

3. " " indicates the location of Pin 1.

4. All drawings and pictures shown in this manual were based upon the latest PCB Revision available at the time of publishing of this manual. The motherboard you've received may or may not look exactly the same as the graphics shown in the manual.

JAR

FP Control

Act LED

1-4

Chapter 1: Introduction

Quick Reference (X6DHT-G)

(*Please refer to Chapter 2 for pin definitions and detailed information.)

Jumper Description Default Setting

J3P 3rd PW Supply Detect Off (Disabled) JAR Alarm Reset Enable Off (Normal) JBT1 CMOS Clear See Chapter 2 JPL1/JPL2 GLAN1/GLAN2 Enable Pins 1-2 (Enabled) JPG1 VGA Enable Pins 1-2 (Enabled) JPS1 Marvell SATA Controller Enable Pins 1-2 (Enabled) JWD Watch Dog Enable Pins 1-2 (Reset)

Connector Description

ATX PWR (JPW1) Primary 24-Pin ATX PWR Connector CPU PWR (J1D1) 12V 8-Pin CPU PWR Connector Aux. PWR (J38) +12V 4-pin System PWR Connector COM1/COM2 (J14/J15) COM1/COM2 Serial Port Connector/Header DS1-DS8 Marvell SATA PRE_LED Indicators (SATA0-7) DS9-DS16 Marvell SATA ACT_LED Indicators (SATA0-7) DIMM#1A-DIMM#4B DDR DIMM Memory (RAM) Slots FAN 1-8 CPU/Chassis/Overheat Fan Headers Floppy (J12) Floppy Disk Drive Connector IDE1/IDE2 (J5/J6) IDE#1/IDE#2 Hard Disk Drive Connectors IPMI (JIPMI1) IPMI 2.0 Socket JD1 PWR LED(pins1-3)/SpeakerHeader(pins 4-7) JF1 Front Control Panel Connector JL1 Chassis Intrusion Header JWOR Wake-on-Ring Header LAN 1/2 G-bit Ethernet Ports 1/2 OH LED (JOH) Overheat LED KB/MS (J33) PS2 Keyboard/Mouse Connector M-SATA I2C (JS10) Marvell Serial ATA Power SMB (I2C) M-SATA Act. LED(JS9) Marvell Serial ATA Activity Out LED Indicator SMB (J11) System Management Bus Parallel Parallel (Printer) Port PSF Power Supply Failure LED Header I-SATA 0/1 Intel Serial ATA1/2 Ports M-SATA0-7 Marvell SATA Ports 0-7 USB 0/1 Back Panel USB0/USB1 Headers USB 2/3 Front Panel Universal Serial Bus Ports 2/3 VGA Video Connector WOL Wake-on-Line Header

Introduction

1-5

X6DHT-G User's Manual

Motherboard Features

Introduction

CPU

• Single or dual Intel® XeonTM EM64T processors at 800 MHz front side

Memory

• Eight 184-pin DIMM sockets supporting up to 16 GB (DDR 333) or 32

Chipset

• Intel E7520 Lindenhurst chipset

Expansion Slots

• Two x8 PCI-E slots

• Three 64-bit PCI-X (3.3V) slots (*One PCI-X-133 MHz slot, One PCI-X-

• One 32-bit (5V) 33MHz PCI

BIOS

• 8 Mb Phoenix® Flash ROM

• APM 1.2, DMI 2.1, ACPI 2.0, Plug and Play (PnP), SMBIOS 2.3

PC Health Monitoring

• Onboard voltage monitors for CPU cores, chipset voltage, 3.3V, +5V,

• Fan status monitor with firmware/software on/off control

• CPU/chassis temperature monitors

• Environmental temperature monitor and control

• CPU fan auto-off in sleep mode

• CPU slow-down on temperature overheat

• CPU thermal trip support for processor protection, +5V standby alert

• Power-up mode control for recovery from AC power loss

• Auto-switching voltage regulator for CPU core

• System overheat LED and control

• Chassis intrusion detection

• System resource alert

(system) bus speed.

GB (DDR 266) Registered ECC DDR 333/266 (PC2700/PC2100) SDRAM

100 MHz/ZCR slot, One PCI-X-100 MHz slot)

+12V, −12V and +5V standby

LED

1-6

Chapter 1: Introduction

ACPI Features

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• Main switch override mechanism

Onboard I/O

• One IPMI 2.0 socket

• Two Intel 82541G1 Gigabit Ethernet controllers

• 2 EIDE Ultra DMA/100 bus master interfaces

• 1 floppy port interface

• 1 EPP/ECP Parallel Port

• PS/2 mouse and PS/2 keyboard ports

• Up to 4 USB 2.0 (Universal Serial Bus) (2 ports, 2 Headers)

• Super I/O

• 2 Intel 6300ESB (Hance Rapids) SATA ports support 2 drives (RAID 0, 1, JBOD)

• Marvell AIC 8140 SATA Controller supports 8 ports

• ATI 8 MB Rage XL Graphic Card

• 2 COM ports(1 header, 1 port)

Other

• Internal/external modem ring-on

• Wake-on-LAN (WOL)

• Console redirection

• SMBus for SMC Power Supply

• Fan Speed Control by Thermal Management (via BIOS)

Introduction

CD/Diskette Utilities

• BIOS flash upgrade utility, device drivers and software management

Dimensions

• ATX Ext. 12" x 13.05" (304.8 x 331.5 mm)

1-7

Introduction

MCH

4_DDR_333/266

DIMMs

6300ESB

FWH

LPC I/O

LPC BUS

HUB

BMC CON.

PCI BUS(32-BIT)

DIMMs

USB

0,1,2,3

USB PORT

VGA

KB.

SER.2

SER.1

H/W MONITOR

FDD.

0, 1

SATA

UDMA-100

IDE

PRI/SEC

PXH#1

SATA

HC2_8Ports

PCIX BUS(100 MHZ)

PCIX BUS(133 MHZ)

1.5V

3.3V

DDR266 DDR333

8.1W 133

266MB/s

1_PCIX-100

GRN_Slot

G LAN

K_II

1_PCIX-133

Slot

PCI-E A(X8)

1_PCIX-E (X8)Slot

PCI-E C(X8)

(X8)Slot

1_PCIX-E

PCI-E B(X8)

1_PCIX-100

Slot

GLAN

K_II

PCIX66_BUS

1_PCI32

4_DDR_333/266

CH.A

CH.B

CPU 1

CPU 2

Slot

1_PCIX-100

Slot

SATA

HC2_8Ports

1_PCIX-100

GRN_Slot

1_PCIX-133

Slot

X6DHT-G User's Manual

PCIX BUS(100 MHZ)

PXH#1

PCIX BUS(133 MHZ)

1_PCIX-E (X8)Slot

8.1W 133

PCI-E B(X8)

IDE

PRI/SEC

SATA 0,

USB PORT

0,1,2,3

1.5V

3.3V

PCI-E A(X8)

PCI-E C(X8)

UDMA-100

SATA

USB

CPU 2

DDR266 DDR333

6300ESB

LPC I/O

MCH

CPU 1

HUB

266MB/s

CH.A

CH.B

PCIX66_BUS

PCI BUS(32-BIT)

LPC BUS

FWH

4_DDR_333/266

DIMMs

4_DDR_333/266

DIMMs

G LAN

K_II

1_PCI32

VGA

BMC CON.

GLAN

K_II

Slot

KB.

Figure 1-9. Block Diagram of the E7520 (Lindenhurst) Chipset

Note: This is a general block diagram. Please see the previous Motherboard

Features pages for details on the features of each motherboard.

1-8

FDD.

SER.1 SER.2

H/W MONITOR

Chapter 1: Introduction

1-2 Chipset Overview

Built upon the functionality and the capability of the 7520 Lindenhurst chipset, The X6DHT-G motherboard provides the performance and feature set required for dual processor-based servers, with configuration options optimized for communications, presentation, storage, computation or database applications. The Intel E7520 (Lindenhurst) chipset consists of the following components: the Lindenhurst Memory Controller Hub (MCH), the 6300ESB (Hance Rapids) I/O Controller Hub (Hance Rapids ICH), and the Intel PCI-X Hub (PXH).

The E7520 (Lindenhurst) MCH supports single or dual Xeon EM64T (Nocona) processors with Front Side Bus speeds of 800 MHz. Its memory controller provides direct connection to two channels of registered DDR266, DDR333 with a marched system bus address and data bandwidths of up to 5.4GB/ s. The E7520 (Lindenhurst) also supports the new PCI Express high speed serial I/O interface for superior I/O bandwidth. The MCH provides three configurable x8 PCI Express interfaces which may alternatively be configured as two independent x4 PCI Express interfaces. These interfaces support connection of the MCH to a variety of other bridges that are compliant with the PCI Express Interface Specification, Rev. 1.0a.

6300ESB (Hance Rapids) System Features

Introduction

The I/O Controller Hub provides the I/O subsystem with access to the rest of the system. It supports 2-channel Ultra ATA/100 Bus Master IDE Controller, two Serial ATA (SATA) Host Controllers, SMBus 2.0 Controller, LPC/ Flash BIOS Interface, PCI 2.3 Interface, and Integrated System Management Controller.

6300ESB (Hance Rapids) ICH System Features

The 6300ESB (Hance Rapids) ICH system consists of: The I/O Controller Hub (Hance Rapids ICH) provides the I/O subsystem with

access to the rest of the system. Additionally, it integrates many I/O functions.

The 6300ESB (Hance Rapids) integrates: 2-channel Ultra ATA/100 Bus Master IDE Controller, two Serial ATA (SATA) Host Controllers, SMBus 2.0 Controller, LPC/Flash BIOS Interface, PCI-X (66MHz) 1.0 Interface, PCI 2.2 Interface and System Management Controller.

1-9

X6DHT-G User's Manual

1-3 Special Features

Introduction

Recovery from AC Power Loss

BIOS provides a setting for you to determine how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must hit the power switch to turn it back on) or for it to automatically return to a poweron state. See the Power Lost Control setting in the Advanced BIOS Setup section (Peripheral Device Configuration) to change this setting. The default setting is Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the SUPER X6DHT-G. All have an onboard System Hardware Monitor chip that supports PC health monitoring.

Onboard Voltage Monitors for the CPU Cores, Chipset Voltage, Memory Voltage, +3.3V, +5V, +12V and +5V Standby

An onboard voltage monitor will scan these voltages continuously. Once a voltage becomes unstable, a warning is given or an error message is sent to the screen. Users can adjust the voltage thresholds to define the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware/Software On/Off Control

The PC health monitor can check the RPM status of the cooling fans. The onboard CPU and chassis fans are controlled by Thermal Management in the Advanced BIOS Settings.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn on the thermal control fan whenever the CPU temperature exceeds a user-defined threshold. The overheat circuitry runs independently from the CPU. It can continue to monitor for overheat conditions even when the CPU is in sleep mode. Once it detects that the CPU temperature is too high, it will automatically turn on the thermal control fan to prevent any overheat

1-10

Chapter 1: Introduction

damage to the CPU. The onboard chassis thermal circuitry can monitor the overall system temperature and alert users when the chassis temperature is too high.

CPU Fan Auto-Off in Sleep Mode

The CPU fan activates when the power is turned on. It continues to operate when the system enters Standby mode. When in sleep mode, the CPU will not run at full power, thereby generating less heat.

CPU Overheat LED and Control

This feature is available when the user enables the CPU overheat warning function in the BIOS. This allows the user to define an overheat temperature. When this temperature is exceeded, both the overheat fan and the warning LED are triggered.

System Resource Alert

This feature is available when used with Supero Doctor III in the Windows OS environment or used with Supero Doctor II in Linux. SDIII is used to notify the user of certain system events. For example, if the system is running low on virtual memory and there is insufficient hard drive space for saving the data, you can be alerted of the potential problem.

Auto-Switching Voltage Regulator for the CPU Core

The auto-switching voltage regulator for the CPU core can support up to 20A current and auto-sense voltage IDs ranging from 0.83V to 1.63V. This will allow the regulator to run cooler and thus make the system more stable.

Introduction

1-5 ACPI Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a PC system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as CD-ROMs, network cards, hard disk drives and printers. This also includes consumer devices connected to the PC such as VCRs, TVs, telephones and stereos.

1-11

In addition to enabling operating system-directed power management, ACPI provides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI lever-

Introduction

ages the Plug and Play BIOS data structures while providing a processor architecture-independent implementation that is compatible with the Windows 2000, Windows 2003 and Windows Vista Operating Systems.

When the CPU goes into a suspend state, the chassis power LED will start blinking to indicate that the CPU is in suspend mode. When the user presses any key, the CPU will wake-up and the LED will automatically stop blinking and remain on.

When an ATX power supply is used, the power button can function as a system suspend button to make the system enter a SoftOff state. The monitor will be suspended and the hard drive will spin down. Pressing the power button again will cause the whole system to wake-up. During the SoftOff state, the ATX power supply provides power to keep the required circuitry in the system alive. In case the system malfunctions and you want to turn off the power, just Press and hold the power button for 4 seconds. This option can be set in the Power section of the BIOS Setup routine.

X6DHT-G User's Manual

Slow Blinking LED for Suspend-State Indicator

Main Switch Override Mechanism

External Modem Ring-On

Wake-up events can be triggered by a device such as the external modem ringing when the system is in the SoftOff state. Note that external modem ring-on can only be used with an ATX 2.01 (or above) compliant power supply.

Wake-On-LAN (WOL)

Wake-On-LAN is defined as the ability of a management application to remotely power up a computer that is powered off. Remote PC setup, updates and asset tracking can occur after hours and on weekends so that daily LAN traffic is kept to a minimum and users are not interrupted. The motherboard has a 3-pin header (WOL) to connect to the 3-pin header on a

1-12

Chapter 1: Introduction

Network Interface Card (NIC) that has WOL capability. Wake-On-LAN must be enabled in BIOS. Note that Wake-On-LAN can only be used with an ATX

2.01 (or above) compliant power supply.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates.

The SUPER X6DHT-G accommodates ATX 24-pin power supplies. Although most power supplies generally meet the specifications required by the CPU, some are inadequate. You should use one that will supply at least 400W of power. Your power supply must supply 1.5A for the Ethernet ports. The +12V, 4-pin power connector (J38) is required to ensure adequate power supply to the system. Additionally, you should also use the onboard 12V 8pin power connector (J1D1) to support Intel Xeon CPUs. Failure to provide this extra power will cause the CPU to become unstable after only a few minutes of operation. See Section 2-5 for details on connecting the power supply.

It is strongly recommended that you use a high quality power supply that meets ATX power supply Specification 2.02 or above. It must also be SSI compliant (info at http://www.ssiforum.org/). Additionally, in areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

1-7 Super I/O

Introduction

The disk drive adapter functions of the Super I/O chip include a floppy disk drive controller that is compatible with industry standard 82077/765, a data separator, write pre-compensation circuitry, decode logic, data rate selection, a clock generator, drive interface control logic and interrupt and DMA logic. The wide range of functions integrated onto the Super I/O greatly reduces the number of components required for interfacing with floppy disk drives. The Super I/O supports 360 K, 720 K, 1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s.It also provides two high-speed, 16550 compatible serial communication ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a pro-

1-13

cessor interrupt system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250

K, 500 K, or 1 Mb/s, which support higher speed modems.

Introduction

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer Port (BPP), Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power management through an SMI or SCI function pin. It also features auto power management to reduce power consumption.

X6DHT-G User's Manual

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic bag.

• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in use.

• For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard upside down battery to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the board, make sure the person handling it is static protected.

2-1

X6DHT-G User's Manual

2-2 Xeon EM64T Processor and Heatsink Installation

When handling the processor package, avoid placing direct pressure on the label area of the fan. Also, do not place the motherboard on a conductive surface, which can damage the BIOS

battery and prevent the system from booting up.

IMPORTANT: Always connect the power cord last and always remove it before adding, removing or changing any hardware components. Make sure that you install the processor into the CPU socket before you install the CPU heatsink.

CPU Installation

1. Lift the lever on the CPU socket: lift the lever completely as shown on the picture on the right; otherwise, you will damage the CPU socket when power is applied. (Install CPU1 first.)

Socket lever

2. Insert the CPU in the socket, making sure that pin 1 of the CPU aligns with pin 1 of the socket (both corners are marked with a triangle). When using only one CPU, install it into CPU socket #1 (Socket #2 is automatically disabled if only one CPU is used).

Pin 1

3. Press the lever down until you hear the click, so you can be sure that the CPU is securely installed in the CPU socket.

Socket lever in the locking Position

2-2

CEK Heatsink Installation

1. Do not apply any thermal grease to

the heatsink or the CPU die-the required amount has already been applied.

2. Place the heatsink on top of the CPU

so that the four mounting holes are aligned with those on the retention mechanism.

3. Screw in two diagonal screws (ie

the #1 and the #2 screws) until just snug (-do not fully tighten the screws to avoid possible damage to the CPU.)

Chapter 2: Installation

CEK Passive Heatsink

Screw#1

Screw#2

4. Finish the installation by fully tight-

ening all four screws.

Screw#1

Screw#2

2-3

X6DHT-G User's Manual

To Un-install the Heatsink

Caution! We do not recommend that the

CPU or the heatsink be removed. However, if you do need to un-install the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.

1. Unscrew and remove the heatsink screws from the motherboard in the sequence as show in the picture on the right.

2. Hold the heatsink as show in the picture on the right and gently wriggle the heatsink to loosen it from the CPU. (Do not use excessive force when wriggling the heatsink!!)

3. Once the CPU is loosened, remove the heatsink from the CPU socket.

4. Clean the surface of the CPU and the heatsink to get rid of the old thermal grease. Reapply the proper amount of thermal grease on the surface before you reinstall the CPU and the heatsink.

2-4

Chapter 2: Installation

Figure 2-1. PGA604 Socket: Empty and with Processor Installed

Empty socket

Lever

Warning! Make

sure you lift the levercompletely when installing the CPU. If the lever is only partly raised, damage to the socket or CPU may result.

Triangle

Processor

(installed)

Triangle

Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly and then, use a screwdriver to secure the motherboard onto the motherboard tray. Note: Some components are very close to the mounting holes. Make sure to take all precautionary measures to prevent any damage done to these components when you install the motherboard into the chassis.

2-5

X6DHT-G User's Manual

2-3 Installing DIMMs

Note: Check the Supermicro web site for recommended memory modules:

http://www.supermicro.com.

CAUTION

Exercise extreme care when installing or removing DIMM modules

to prevent any possible damage. Also note that the memory is

interleaved to improve performance (see step 1).

DIMM Installation (See Figure 2-2 on Page 2-6)

1. Insert the desired number of DIMMs into the memory slots, starting with Bank 1. The memory scheme is interleaved so you must install two modules at a time, beginning with Bank 1, then Bank 2, and so on.

2. Insert each DIMM module vertically into its slot. Pay attention to the notch along the bottom of the module to prevent inserting the DIMM module incorrectly.

3. Gently press down on the DIMM module until it snaps into place in the slot. Repeat for all modules (see step 1 above).

Memory Support

The X6DHT-G supports up to 16/32 GB Registered ECC DDR 333/266 (PC2700/PC2100) memory. All motherboards were designed to support 2GB (DDR333)/4GB (DDR 266) modules in each slot, but has only been verified for up to 1 GB modules.

2-6

To Install: Insert module vertically and press down until it snaps intoplace. Pay attention to the alignment notch at the bottom.

Chapter 2: Installation

Figure 2-2. Installing and Removing DIMMs

To Remove:

Use your thumbs to gently push near the edge of both ends of the module. This should release it from the slot.

2-4 I/OPorts/Control Panel Connectors

The I/O ports are color coded in conformance with the PC 99 specification. See Figure 2-3 below for the colors and locations of the various I/O ports.

Figure 2-3. I/O Port Locations and Definitions

Mouse (Green)

Keyboard (Purple)

USB 0/1

COM1

Parallel Port

LAN1 LAN2

Video

2-7

X6DHT-G User's Manual

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro server chassis. See Figure 2-4 for the descriptions of the various control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

Figure 2-4. JF1 Header Pins

1920

Ground

NMI

Power LED

HDD LED

NIC1 LED

NIC2 LED

Overheat LED

Powe r Fail LED

Ground

2-8

Vcc

Reset

Reset Button Power Button

Pwr

Chapter 2: Installation

2-5 Connecting Cables

ATX Power Connector

The main power supply connector (JPW1) on the X6DHT-G meets the SSI (Superset ATX) specification. You can only use a 24-pin power supply cable on the motherboard. Make sure that the orientation of the connector is correct. You must also use the 4-pin (J38) power connector for adequate power supply to the system. See the table on the right for pin definitions.

Processor Power Connector

In addition to the Primary ATX power connector (above), the 12v 8-pin Processor connector at J1D1 must also be connected to your power supply for CPU power consumption to avoid causing instability to the system.

ATX Power Supply 24-pin Connector

Pin Definitions(JPW1)

Pin Number Definition 13 +3.3V 14 -12V 15 COM 16 PS_ON# 17 COM 18 COM 19 COM 20 Res(NC) 21 +5V 22 +5V 23 +5V 24 COM

Pin Number Definition

1 +3.3V 2 +3.3V 3 COM

4 +5V

5 COM

6 +5V

7 COM

8 PWR_OK 9 5VSB 10 +12V 11 +12V 12 +3.3V

+12V 4-pin

Connector

(J38)

Pins #

Definition

1 & 2

Ground

3 & 4

+12 V

8-Pin +12v Power Supp

Connector (J1D1)

Pins

Definition

1 thru 4

Ground

5 thru 8

+12v

4-Pin12V CPU PWR

Fan6

Parrallel

RAGEXL

JPL1

JPL2

Port

JLAN1

GLAN CTLR

JWD

Slot4

Slot3

Slot2

Slot1

JPG1

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

PCI-E X8

JD1

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

KB/

Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

24-Pin ATX PWR 8-Pin 12V PWR

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

SATA0

PXH

6300ESB

ICH

Intel

Fan7

SATA1

SATA0

SATA1

DS9 DS1

DS10 DS2

IPMI

COM2

24-Pin

JPW1

2-9

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

SATA4

DS6

SATA5

DS13 DS5

DS14

JWOR

OH LED

Floppy

DS15 DS7

SATA6

DS16

SATA7

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

IDE2

IDE1

M-SAT A

JL1

M-SATA

Act LED

Fan4

DS8

X6DHT-G User's Manual

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table on the right for pin definitions.

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table on the right for pin definitions.

NMI Button Pin

Definitions (JF1)

Number

PWR_LED Pin Definitions

Number

Definition 19 20

Control Ground

(JF1)

Definition 15 16

Vcc

Control

COM1

Buzzer

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

24-Pin

JPW1

Fan6 KB/ Mouse

USB 0/1

Bank1

Bank2

Parrallel

Port

Bank3

JLAN1

Bank4

VGA

LAN1

LAN2

GLAN CTLR

Slot6

GLAN CTLR

Slot5

JPL1

Slot4

JPL2

Slot3

Slot2

RAGEXL

Slot1

JPG1

JWD

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

SMBus PWR

BIOS

Fan8

6300ESB

USB2/3

JBT1

SATA0

WOL

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

PXH

JPS1

SATA

Controller

ICH

Marvell

DS11

DS9

DS3

DS1

SATA0

SATA2

DS12

DS10

Intel

DS4

DS2

SATA1

SATA3

SATA1

SATA4

SATA5

JAR

J3P

PSF

Fan1

JF1

FP Control

PWR LED

Fan2

Fan3

OH LED

IDE2

IDE1

Floppy

JWOR

M-SATA

JL1

M-SAT A

Act LED

DS15

DS13

DS7

DS5

SATA6

Fan4

DS16

DS14

DS8

DS6

SATA7

Ground

Power LED

HDD LED

NIC1 LED

NIC2 LED

Overheat LED

Power Fa il LED

Ground

1920

Reset

NMI

Vcc

Pwr

NMI

Reset Button Power Button

2-10

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach the hard drive LED cable here to display disk activity (for any hard drives on the system, including SCSI, Serial ATA and IDE). See the table on the right for pin definitions.

NIC1/NIC2 LED Indicators

Chapter 2: Installation

HDD LED Pin

Definitions

(JF1)

Number

Definition

Vcc

HD Active

The NIC (Network Interface Controller) LED connections for the GLAN port1 is located on pins 11 and 12 of JF1, and for the GLAN port2 is located on pins 9 and 10 of JF1. Attach the NIC LED cables to display network activity. Refer to the tables on the right for pin definitions.

PXH

6300ESB

ICH

12V 8-pin PWR

Fan7

IPMI

DS9 DS1

SATA0

DS10

Intel

DS2

SATA1

COM1

Buzzer

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

24-Pin

JPW1

Fan6 KB/ Mouse

USB 0/1

Bank1

Bank2

Parrallel

Port

Bank3

JLAN1

Bank4

VGA

LAN1

LAN2

GLAN CTLR

Slot6

GLAN CTLR

Slot5

JPL1

Slot4

JPL2

Slot3

Slot2

RAGEXL

Slot1

JPG1

JWD

SMBus

ATX PWR

PWR

E7520 Lindenhurst North Bridge

S I/O

BIOS

Fan8

Battery

USB2/3

JBT1

SATA0

SMB

WOL

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

SATA4

SATA5

NIC1 LED Pin

Definitions

(JF1)

Number

Definition

Vcc

GND

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

HDD LED NIC1 LED

Fan3

OH LED

NIC2 LED

IDE2

IDE1

Floppy

JWOR

M-SATA

JL1

M-SAT A

Act LED

DS15

DS13

DS7

DS5

SATA6

Fan4

DS16

DS14

DS8

DS6

SATA7

Ground

Power LED

HDD LED NIC1 LED NIC2 LED

Overheat LED

Power Fail LED

Ground

NIC2 LED Pin

Definitions

(JF1)

Number

1920

Vcc

Reset

Pwr

Definition

Vcc

GND

NMI

Vcc

Reset Button Power Button

2-11

X6DHT-G User's Manual

Overheat/FanFail LED

Connect an LED to the OH/Fan Fail connection on pins 7 and 8 of JF1 to provide advanced warning of chassis overheating or system fan failure. Refer to the table on the right for pin definitions.

Power Fail LED

The Power Fail LED connection is located on pins 5 and 6 of JF1. Refer to the table on the right for pin definitions.

Overheat (OH) LED

Pin Definitions

(JF1)

Number

Definition

Vcc

GND

OH/Fan Fail LED

(JF1)

State

Message

Normal

Off

Overheat

Stay On

Fan Fail

Blink

Power Fail LED Pin

Definitions

(JF1)

Number

Definition

Vcc

GND

COM1

Buzzer

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

24-Pin

JPW1

Fan6 KB/ Mouse

USB 0/1

Bank1

Bank2

Parrallel

Port

Bank3

JLAN1

Bank4

VGA

LAN1

LAN2

GLAN CTLR

Slot6

GLAN CTLR

Slot5

JPL1

Slot4

JPL2

Slot3

Slot2

RAGEXL

Slot1

JPG1

JWD

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

SMBus PWR

BIOS

Fan8

6300ESB

USB2/3

JBT1

SATA0

WOL

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

PXH

JPS1

SATA

Controller

ICH

Marvell

DS11

DS9

DS3

DS1

SATA2

SATA0

DS12

DS10

Intel

DS4

DS2

SATA1

SATA3

SATA1

SATA4

SATA5

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

OH LED

IDE2

IDE1

Floppy

OH LED PWR Fail

JWOR

M-SATA

JL1

LED

M-SAT A

Act LED

DS15

DS13

DS7

DS5

SATA6

Fan4

DS16

DS14

DS8

DS6

SATA7

Ground

Power LED

HDD LED NIC1 LED NIC2 LED

Overheat LED

Power Fa il LED

Ground

1920

NMI

Vcc

Reset

Reset Button Power Button

Pwr

2-12

Chapter 2: Installation

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to the hardware reset switch on the computer case. Refer to the table on the right for pin definitions.

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in BIOS - see Chapter 4). To turn off the power when set to suspend mode, depress the button for at least 4 seconds. Refer to the table on the right for pin definitions.

Reset Pin

Definitions

(JF1)

Number

Definition

Reset

Ground

Power Button

Connector

Pin Defini tions

(JF1)

Number

Definition

PW_ON

Ground

COM1

Buzzer

PXH

6300ESB

ICH

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

JPS1

SATA

Controller

Marvell

DS11

DS9

DS3

DS1

SATA2

SATA0

DS12

DS10

Intel

DS4

DS2

SATA1

SATA3

SATA1

SATA4

SATA5

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

OH LED

IDE2

IDE1

Floppy

JWOR

M-SATA

JL1

M-SAT A

DS15

DS13

DS7

DS5

SATA6

Fan4

DS16

DS14

DS8

DS6

SATA7

Ground

Power LED

HDD LED NIC1 LED NIC2 LED

Overheat LED

Power Fa il LED

Act LED

Ground

1920

NMI

Vcc

Reset

Pwr

Reset Button

Reset Button Power Button

PWR Button

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

24-Pin

JPW1

Fan6 KB/ Mouse

USB 0/1

Bank1

Bank2

Parrallel

Port

Bank3

JLAN1

Bank4

VGA

LAN1

LAN2

GLAN CTLR

Slot6

GLAN CTLR

Slot5

JPL1

Slot4

JPL2

Slot3

Slot2

RAGEXL

Slot1

JPG1

JWD

SMBus

ATX PWR

PWR

E7520 Lindenhurst North Bridge

S I/O

BIOS

Fan8

Battery

USB2/3

JBT1

SATA0

SMB

WOL

2-13

X6DHT-G User's Manual

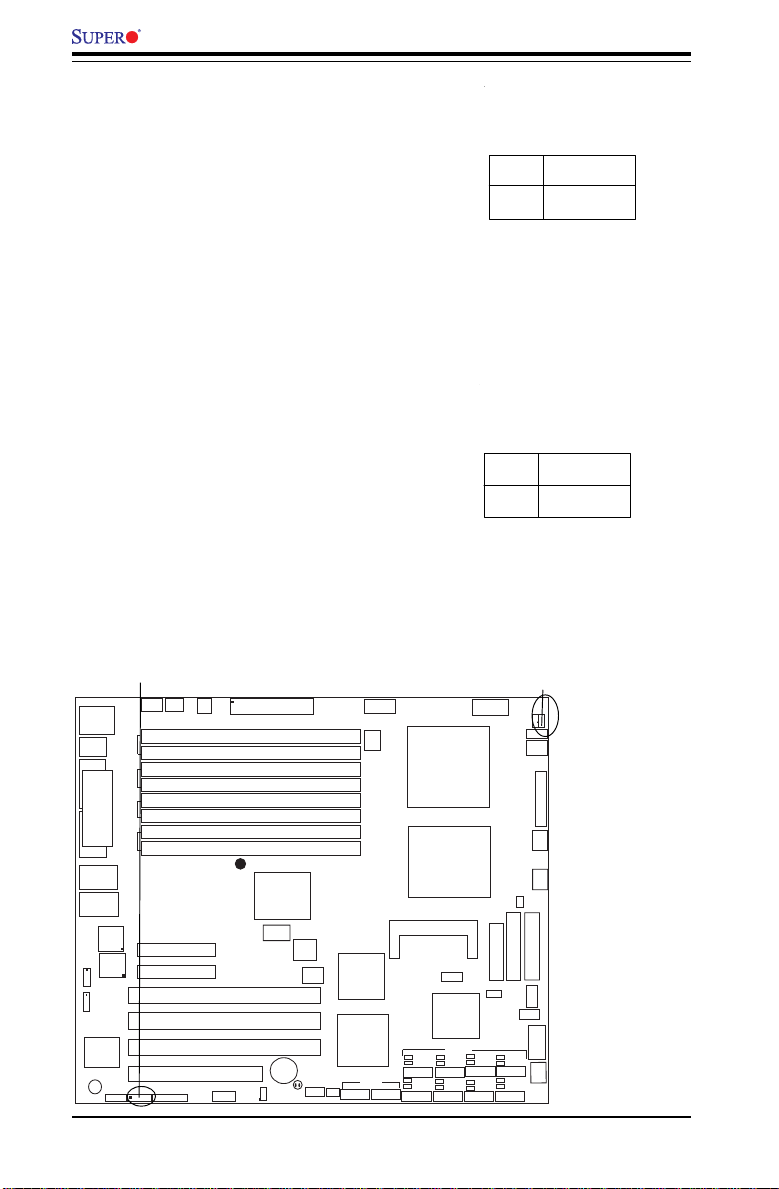

Chassis Intrusion

A Chassis Intrusion header is located at JL1. Attach the appropriate cable to inform you of a chassis intrusion.

Serial Ports

The COM1 serial port is located under the parallel port and COM2 is located below the PCI Slot1 (See the Motherboard layout on Page 1-4). See the table on the right for pin definitions.

COM1

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

RAGE-

Buzzer

Parrallel

Port

JLAN1

GLAN CTLR

JPL1

JPL2

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

24-Pin

ATX PWR

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

COM2

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

COM2

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

Pin Number Definition 1 CD 2 RD 3 TD 4 DTR 5 Ground

Pin Number Definition 1 DCD 2 DSR 3 Serial In 4 RTS 5 Serial Out

Fan7

PXH

ICH

DS9

DS1

SATA0

DS10

Intel

DS2

SATA1

Chassis Intrusion

Pin Definitions (JL1)

Number

1 2

Serial Port Pin Definitions

12V 8-pin PWR

CPU1

CPU2

OH LED

IPMI

Floppy

JPS1

JWOR

SATA

Controller

Marvell

DS15

DS11

DS13

DS7

DS5

DS3

SATA6

SATA4

SATA2

SATA3

DS12 DS4

DS14

DS6

SATA5

DS16 DS8

SATA7

De fin itio n

Intrusion Input

Ground

(COM1)

Pin Number Definition 6 DSR 7 RTS 8 CTS 9 RI

(COM2)

Pin Number Definition 6 CTS 7 DTR 8 RI 9 Ground 10 NC

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

IDE2

IDE1

Chassis In-

M-SATA

JL1

trusion

M-SATA

Act LED

Fan4

2-14

Chapter 2: Installation

Universal Serial Bus

Two USB 2.0 ports are located beside the PS/2 keyboard/mouse ports. USB0 is the bottom connector and USB1 is the top connector. See the table on the right for pin definitions.

Front Panel Universal Serial Bus Headers

Extra USB headers (FPUSB2/FPUSB3) can be used for front side USB access. You will need a USB cable (eg. CBL-

038) to use either connection. Refer to the tables on the right for pin definitions.

USB 0/1

KB/ Mouse

USB 0/1

COM1

Parrallel

Port

JLAN1

VGA

LAN1

LAN2

GLAN CTLR

JPL1

JPL2

RAGEXL

Buzzer

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

BIOS

Fan8

USB2/3

JBT1

WOL

FP USB 2/3

SMBus PWR

6300ESB

SATA0

PXH

ICH

Intel

Fan7

SATA1

Universal Serial Bus Pin Definitions

USB0

Pin Number Definition 1+5V 2P0 3P0+ 4 Ground 5 N /A

Front Panel Universal

Serial Bus Pin Definitions

FPUSB2/FPUSB3

Pin Number Definition 1+5V 2P0 3P0+ 4 Ground 5 N/A

12V 8-pin

DS9 DS1

SATA0

DS10 DS2

SATA1

IPMI

PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

SATA4

SATA5

DS13

DS5 DS14

DS6

JWOR

OH LED

Floppy

DS15

DS7

SATA6

DS16 DS8

SATA7

IDE2

M-SATA

JL1

PSF

Fan1

C I

J3P

JF1

Fan2

Fan3

IDE1

M-SATA

Fan4

USB1

Pin Number Definitio 1+5V 2P0 3P0+ 4 Ground 5Key

JAR

FP Control

Act LED

2-15

X6DHT-G User's Manual

GLAN (Giga-bit Ethernet Ports)

A G-bit Ethernet port (designated JLAN1/JLAN2) is located beside the VGA port on the IO backplane. This port accepts RJ45 type cables.

ATX PS/2 Keyboard and PS/2 Mouse Ports

The ATX PS/2 keyboard and PS/2 mouse are located next to the rear USB ports at the corner of the motherboard. See the table at right for pin definitions. (See Figure 2-3 for the locations of each.)

GLAN1

GLAN2

KB/Mouse

KB/ Mouse

USB 0/1

COM1

Parrallel

Port

JLAN1

VGA

LAN1

LAN2

GLAN CTLR

GLAN

CTLR

JPL1

JPL2

RAGEXL

Buzzer

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

24-Pin

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

COM2

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

JBT1

SMB

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Intel

Fan7

SATA1

PS/2 Keyboard

and Mouse Port

Pin Definitions

Number

1 2 3 4 5 6

12V 8-pin PWR

CPU1

CPU2

IPMI

JPS1

SATA

Controller

Marvell

DS11

DS9

DS3

DS1

SATA2

SATA0

DS12

DS10

DS4

DS2

SATA3

SATA1

(J9)

Defin itio n

Data

Ground

VCC

Clock

JWOR

DS13

DS5

SATA4

DS14 DS6

SATA5

OH LED

Floppy

DS15 DS7

SATA6

DS16 DS8

SATA7

IDE2

M-SATA

JL1

PSF

Fan1

C I

J3P

JF1

IDE1

M-SATA

JAR

FP Control

Fan2

Fan3

Act LED

Fan4

2-16

Fan Headers

Chapter 2: Installation

The X6DHT-G has eight fan headers (Fan1 to Fan8). Note: Fans 5-8 are 4pin fans. However, Pins 1-3 of the fan headers are backward compatible with the traditional 3-pin fans. See the table on the right for pin definitions. *The onboard fan speed is controlled by Thermal Management via Hardware Monitoring in the Advanced BIOS Setting. Note: Default: Disabled, When using Thermal Management setting, please use all 3pin fans or all 4-pin fans on the motherboard. Please do not use 3-pin fans and 4-pin fans on the same board.)

Power LED/Speaker

On the JDI header, pins 1-3 are for a power LED and pins 4-7 are for the speaker. See the table on the right for speaker pin definitions. Note: The speaker connector pins are for use with an external speaker. If you wish to use the onboard speaker,you should close pins 6-7 with a jumper.

4-pin Fan Header Pin Definitions

Pin#

1 2 3

Definition

Ground (black)

+12V (red)

Tachometer

PWM_Control

Caution: These fan headers use DC power.

Speaker Connector Pin

Definitions (J D 1)

Number

Function

Key 6 7

Defin iti o n

Red wire, Speaker data

No connection

Key

Speaker data

Fan 6

Fan6 KB/ Mouse

USB 0/1

Bank1

COM1

Bank2

Parrallel

Port

Bank3

JLAN1

Bank4

VGA

LAN1

LAN2

GLAN CTLR

Slot6

GLAN CTLR

Slot5

JPL1

Slot4

JPL2

Slot3

Slot2

RAGE-

Slot1

Buzzer

JPG1

JWD

PWR LED/SPKR

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

Fan 7Fan 5

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

SMBus PWR

BIOS

PXH

Fan8

6300ESB

USB2/3

JBT1

SATA0

WOL

24-Pin

JPW1

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

JPS1

SATA

ICH

Controller

Marvell

DS11

DS9

DS3

DS1

SATA2

SATA0

DS12

DS10

Intel

SATA1

DS4

DS2

SATA3

SATA4

SATA5

DS13 DS5

DS14 DS6

JWOR

OH LED

Floppy

SATA6

SATA7

DS15 DS7

DS16

JAR

J3P

PSF

Fan1

Fan 1

JF1

FP Control

Fan2

Fan 2

Fan 3

Fan3

IDE2

IDE1

M-SATA

JL1

M-SAT A

Act LED

Fan4

DS8

Fan8

2-17

X6DHT-G User's Manual

Wake-On-Ring

The Wake-On-Ring header is designated JWOR. This function allows your system to be "awakended" by an incoming call to the modem when in suspend state. See the table on the right for pin definitions. You must have a Wake-On-Ring card and cable to use this feature.

Wake-On-LAN

The Wake-On-LAN header is designated WOL. See the table on the right for pin definitions. You must enable the LAN Wake-Up setting in BIOS to use this feature. You must also have a LAN card with a Wake-on-LAN connector and cable.

Wake-on-Ring

Pin Definitions

(JWOR)

Number

Definition

Ground

Wake-up

Wake-On-LAN Pin Definitions (W O L )

1 2 3

Definiti o n

+5V Standby

Number

Ground

Wake-up

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

Parrallel

GLAN CTLR

JPL1

JPL2

RAGEXL

Port

JLAN1

GLAN CTLR

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

PXH

6300ESB

SATA0

WOL

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

JPS1

JWOR

SATA

Controller

ICH

Intel

SATA1

DS9

DS1

SATA0

DS10 DS2

SATA1

Marvell

DS11

SATA2

DS12 DS4

SATA3

DS3

DS13 DS5

SATA4

DS14 DS6

SATA5

OH LED

Floppy

DS15 DS7

SATA6

DS16

DS8

SATA7

IDE2

M-SATA

JL1

C I

PSF

Fan1

J3P

JF1

IDE1

M-SATA

JAR

FP Control

Fan2

Fan3

WOR

Act LED

Fan4

2-18

Chapter 2: Installation

SMB

A System Management Bus header is located at J11. Connect the appropriate cable here to utilize SMB on your system. See the table on the right for pin definitions.

SMB Power (I2 C) Connector

I2 C Connector (J32), located between the 8-pin PWR Connector and the 24-pin PWR Connector, monitors the status of PWR Supply, Fan and system temperature. See the table on the right for pin definitions.

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

Parrallel

Port

JLAN1

GLAN CTLR

JPL1

JPL2

RAGEXL

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

24-Pin

ATX PWR

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

COM2

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMB PWR

SMBus PWR

Fan7

PXH

6300ESB

ICH

Intel

SATA1

SATA0

2-19

DS9 DS1

SATA0

DS10

DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12

DS4

SATA3

Number

SMB Header

Pin Definitions (J11)

1 2 3 4

Pin Definitions (J32)

Pin #

1 2 3 4 5

JWOR

DS13 DS5

SATA4

DS14 DS6

SATA5

SMB PWR

PSF

OH LED

IDE2

Floppy

M-SATA

JL1

DS15 DS7

SATA6

DS16

DS8

SATA7

Definition

No Connection

Definition

JAR

J3P

Fan1

JF1

FP Control

Fan2

Fan3

IDE1

M-SATA

Act LED

Fan4

Data

Ground

Clock

Data

N/A N/A N/A

X6DHT-G User's Manual

t t t t

Marvell SATA I

C Pin

Marvell SATA SMB Power

C) Connector

The Marvell SATA I2 C Connector (JS10), located between IDE1 Slot and Chassis Intrusion Header, monitors the status of PWR Supply, Fan and system temperature for Marvell Serial ATA ports. See the table on the right for pin definitions.

Marvell SATA Activity Output LED Header

Marvell Serial ATA Activity Output LED Header(JS9), located between Fan4 Header and Chassis Intrusion Header, displays the status of Marvell's SATA Activities. See the table on the right for pin definitions.

Definitions (JS10)

Number

M-SATA_ACT_Output Pin Defini tions

Pin # Definition 1 SATA0_Act 2 SATA1_Act 3 SATA2_Act 4 SATA3_Act 5 LED_COM

Definition

TWSI_SDA

Ground

TWSI_SCK

(JS9)

Pin# Definition 6 SATA4_Ac 7 SATA5_Ac 8 SATA6_Ac 9 SATA7_Ac 10 NC

KB/

Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

Parrallel

GLAN CTLR

JPL1

JPL2

RAGEXL

Port

JLAN1

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

JBT1

SMB

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Fan7

Intel

SATA1

2-20

DS9

DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

DS13 DS5

SATA4

DS14 DS6

SATA5

JWOR

OH LED

Floppy

DS15

DS7

SATA6

DS16 DS8

SATA7

IDE2

M-SATA

JL1

C I

PSF

Fan1

J3P

JF1

IDE1

M-SATA

FP Control

Fan2

Fan3

Fan4

JAR

M-SATA I2C

M-SATA ACT

Act LED

OUTPUT

Overheat LED (JOH)

The JOH header is used to connect an LED to provide warning of chassis overheating. It is located near the microphone connector. See the table on the right for pin definitions.

Power Supply Failure LED

Connect a cable from your power supply to the Power Supply Failure LED header (PSF) to provide warning of power supply failure. This warning signal is passed through the PWR_LED pin to indicate of a power failure on the chassis. See the table on the right for pin definitions.

Chapter 2: Installation

Overheat LED

Pin Definitions (JOH)

Number

PWR Supply Fail LED

Pin Definitions (PSF)

Number

1 2 3 4

Note: This feature is only available when using redundant Supermicro power supplies.

Definition 1 2

5vDC

OH Active

Definition PWR 1 Fail Signal PWR 2 Fail Signal PWR 3 Fail Signal

Signal: Alarm Reset

USB 0/1

COM1

VGA

LAN2

Buzzer

KB/ Mouse

Parrallel

LAN1

JPL1

JPL2

RAGEXL

Port

JLAN1

GLAN CTLR

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Fan7

Intel

SATA1

2-21

DS9 DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

DS13

DS5

SATA4

DS14

DS6

SATA5

JWOR

OH LED

Floppy

DS15 DS7

SATA6

DS16

DS8

SATA7

IDE2

M-SATA

JL1

PSF

Fan1

JAR

J3P

JF1

FP Control

Fan2

Fan3

IDE1

M-SATA

Act LED

Fan4

PS Fail LED

OH LED

X6DHT-G User's Manual

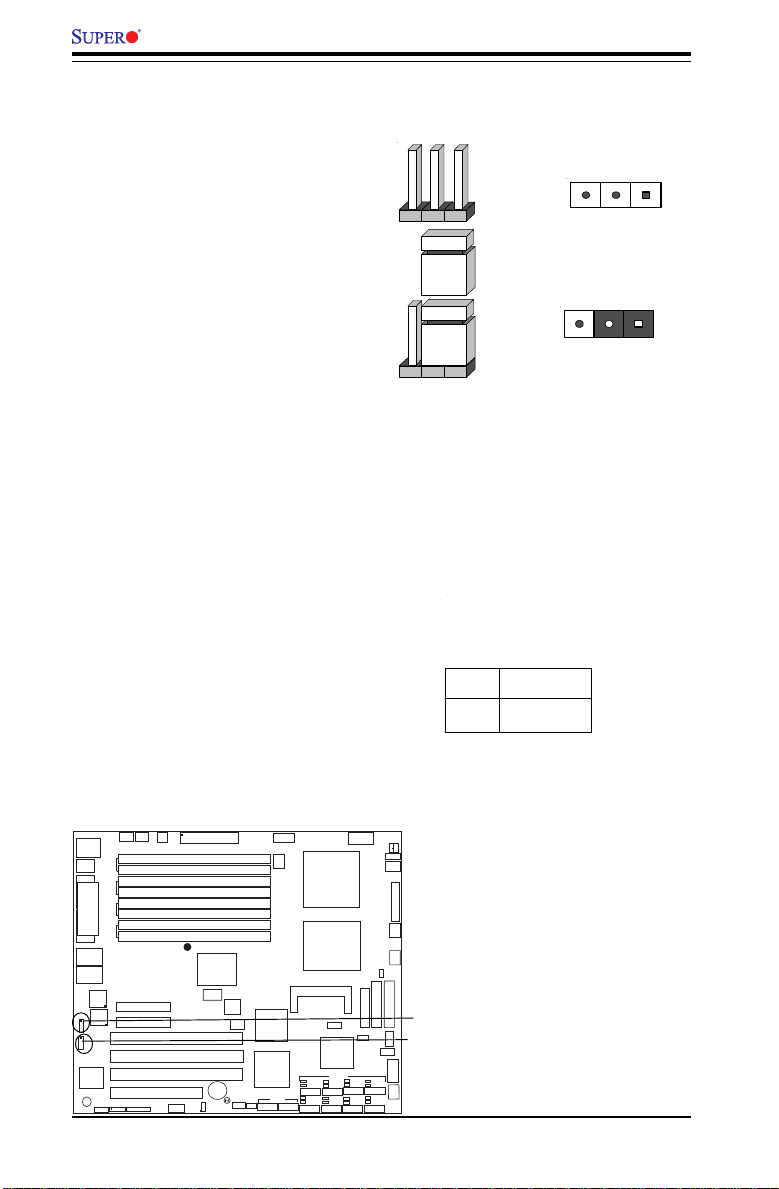

2-6 Jumper Settings

Explanation of Jumpers

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. umpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout pages for jumper locations.

Note: On two pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

GLAN Enable/Disable

JPL1/JPL2 enables or disables the GLAN port(s) on the motherboard. See the table on the right for jumper settings. The default setting is enabled.

Connector

Pins

Jumper

Cap

Setting

GLAN

Enable/Disable

Jumper Settings

(JPL1/JPL2)

Jumper Position Pins 1-2 Pins 2-3

Definition

Enabled Disabled

3 2 1

Pin 1-2 short

USB 0/1 COM1

VGA

Buzzer

LAN2

KB/ Mouse

LAN1

RAGE-

Parrallel

JLAN1

GLAN CTLR

GLAN

CTLR

JPL1

JPL2

PXH

6300ESB

ICH

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

JPS1

SATA

Controller

Marvell

DS11

DS9

DS3

DS1

SATA2

SATA0

DS12

DS10

Intel

DS4

DS2

SATA1

SATA3

SATA1

SATA4

SATA5

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

OH LED

IDE2

IDE1

Floppy

GLAN 1 Enable

GLAN 2 Enable

JWOR

M-SATA

JL1

M-SAT A

Act LED

DS15

DS13

DS7

DS5

SATA6

Fan4

DS16

DS14

DS8

DS6

SATA7

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

SMBus PWR

BIOS

Fan8

USB2/3

JBT1

SATA0

WOL

24-Pin

Fan5

Fan6

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

Bank1

DIMM 2A

DIMM 2B

Bank2

DIMM 3A

Bank3

Bank4

Slot6

PCI-E X8

Slot5

Slot4

Slot3

Slot2

Slot1

JD1

JPG1

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

Port

JWD

2-22

Chapter 2: Installation

CMOS Clear

JBT1 is used to clear CMOS. Instead of pins, this "jumper" consists of contact pads to prevent the accidental clearing of CMOS. To clear CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection. Always remove the AC power cord from the system before clearing CMOS.

Note: For an ATX power supply, you must completely shut down the system, remove the AC power cord and then short JBT1 to clear CMOS.

Do not use the PW_ON connector to clear CMOS.

Watch Dog Enable

JWD controls Watch Dog, a system monitor that takes action when a software application freezes the system. Pins 1-2 will have WD reset the system if a program freezes. Pins 2-3 will generate a non-maskable interrupt for the program that has frozen (requires software implementation). Watch Dog must also be enabled in BIOS.

12V 8-pin PWR

Fan7

CPU1

CPU2

IPMI

JPS1

JWOR

SATA

Controller

Marvell

DS11

DS13

DS9

DS5

DS3

DS1

SATA4

SATA2

SATA0

DS12

DS14

DS10

Intel

SATA1

DS4

DS6

DS2

SATA3

SATA5

USB 0/1

COM1

VGA

Buzzer

KB/ Mouse

LAN1

LAN2

RAGEXL

Parrallel

Port

JLAN1

GLAN CTLR

JPL1

JPL2

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

PXH

6300ESB

ICH

SATA0

24-Pin

JPW1

2-23

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

OH LED

IDE2

IDE1

Floppy

M-SAT A

JL1

M-SATA

Act LED

DS15 DS7

Clear CMOS

SATA6

Fan4

DS16 DS8

Watch Dog Enable

SATA7

Watch D og

Jumper Settings (JWD)

Jumper

Position Pins 1-2 Pins 2-3

Open

Definition

WD to Reset

WD to NMI

Disabled

X6DHT-G User's Manual

VGA Enable/Disable

JPG1 enables or disables the VGA Connector on the motherboard. See the table on the right for jumper settings. The default setting is enabled.

Alarm Reset

The system will notify you in the event of a power supply failure. This feature assumes that Supermicro redundant power supply units are installed in the chassis. If you only have a single power supply installed, you should not connect anything to this jumper to prevent false alarms. See the table on the right for jumper settings.

VGA Enable

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Intel

Fan7

SATA1

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

RAGEXL

Buzzer

Parrallel

Port

JLAN1

GLAN CTLR

JPL1

JPL2

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

DS9

DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

Enable/Disable

Jumper Settings

Jumper Position Pins 1-2 Pins 2-3

Alarm Reset Jumper

Jumper

Position

2 1

Alarm Reset

PSF

Fan1

OH LED

IDE2

Floppy

JWOR

M-SATA

JL1

DS15

DS13

DS7

DS5

SATA6

SATA4

DS16

DS14

DS8

DS6

SATA5

SATA7

VGA

(JPG1)

Settings

(JAR)

Definition

JAR

J3P

JF1

FP Control

Fan2

Fan3

IDE1

M-SATA

Act LED

Fan4

Definition

Enabled

Disabled

+5V

Ground

2-24

Chapter 2: Installation

3rd PWR Supply PWR Fault Detect (J3P)

The system can notify you in the event of a power supply failure. This feature assumes that three power supply units are installed in the chassis, with one acting as a backup. If you only have one or two power supply units installed, you should disable this (the default setting) with J3P to prevent false alarms.

SATA Controller Enable

JPS1 enables or disables the AIC 8140 Marvell SATA Controller on the motherboard. See the table on the right for jumper settings. The default setting is enabled.

BIOS

Fan8

USB2/3

WOL

SMBus PWR

KB/ Mouse

USB 0/1

COM1

Parrallel

VGA

LAN1

LAN2

RAGEXL

Buzzer

Port

JLAN1

GLAN CTLR

JPL1

JPL2

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

COM2

24-Pin

ATX PWR

E7520

Lindenhurst

North Bridge

S I/O

Battery

JBT1

SMB

PXH

6300ESB

ICH

SATA0

SATA Controller Enable

Fan7

SATA0

Intel

SATA1

3rd PWR Supply PWR

Fault Detect

Jumper Settings (J3P)

Jumper Position

Open

Closed

Definition

Disabled Enabled

SATA Controller

Enable/Disable

Jumper Settings

(JPS1)

Jumper Position Pins 1-2 Pins 2-3

Definition

Enabled Disabled

3rd PWR Fault Detect

12V 8-pin PWR

CPU1

CPU2

OH LED

IPMI

Floppy

JPS1

JWOR

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

DS13 DS5

SATA4

DS14

DS6

SATA5

SATA6

SATA7

DS9

DS1

DS10 DS2

DS15 DS7

DS16

DS8

IDE2

M-SATA

JL1

PSF

Fan1

C I

JAR

J3P

JF1

FP Control

Fan2

Fan3

IDE1

M-SA TA

Act LED

Fan4

2-25

X6DHT-G User's Manual

2-7 Onboard Indicators

GLAN LEDs

The Gigabit Ethernet LAN ports (located beside the Video port) has two LEDs. The yellow LED indicates activity while the other LED may be green, orange or off to indicate the speed of the connection. See the table at right for the functions associated with the second LED.

Left

Rear View

G-bit LAN Left LED

Indicator

LED

Color

Off

(*Also:Off

Green

Orange

1 Gb LAN Right LED

Indicator(Activity LED)

LED

Color

Yellow

Definition

10 Mbps

No Connection)

100 Mbps

1 Gbps

Definition

Blinking

10Mbps/

100Mbps/1Gbps

Right

GLAN 1/2

KB/ Mouse

USB 0/1

COM1

Parrallel

Port

JLAN1

VGA

LAN1

LAN2

GLAN CTLR

GLAN

CTLR

JPL1

JPL2

RAGEXL

Buzzer

JWD

Slot4

Slot3

Slot2

Slot1

JPG1

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Fan6

Fan5

PCI-E X8

JD1

24-Pin

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

SATA0

PXH

6300ESB

ICH

Intel

Fan7

SATA1

SATA0

SATA1

DS9 DS1

DS10 DS2

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

2-26

DS5

SATA4

DS14 DS6

SATA5

DS13

JWOR

OH LED

Floppy

DS15 DS7

SATA6

DS16 DS8

SATA7

IDE2

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

IDE1

M-SAT A

JL1

M-SATA

Act LED

Fan4

Marvell SATA Presence LED Indicators

Marvell Serial ATA Presence LED Indicators (DS1-DS8), located above Marvell SATA Ports 0-7, indicate the presence of Marvell SATA ports (0-7). See the table on the right for pin definitions.

Chapter 2: Installation

M-SATA Presence LED Indidators

Pin Definitions (DS1-DS8)

DS # Definition

DS1 SATA0_Present DS2 SATA1_Present DS3 SATA2_Present DS4 SATA3_Present

DS# Definition

DS5 SATA4_Present DS6 SATA5_Present DS7 SATA6_Present DS8 SATA7_Present

Marvell SATA Activity LED Indicators

Marvell Serial ATA Activity LED Indicators (DS9-DS16), located above Marvell SATA Ports 0-7, indicate the activity status of Marvell SATA ports (0-7). See the table on the right for pin definitions.

12V 8-pin

SMBus

24-Pin

Fan6

Fan5

ATX PWR

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

JD1

JPW1

E7520 Lindenhurst North Bridge

S I/O

BIOS

Fan8

Battery

USB2/3

JBT1

SMB

KB/

Mouse USB 0/1

COM1

Parrallel

Port

JLAN1

VGA

LAN1

LAN2

GLAN CTLR

JPL1

JPL2

RAGEXL

Buzzer

JWD

PWR

Fan7

CPU1

CPU2

OH LED

IPMI

IDE2

PXH

6300ESB

ICH

Intel

SATA1

SATA0

WOL

Floppy

JPS1

JWOR

SATA

M-SATA

Controller

Marvell

DS15

DS11

DS13

DS9

DS7

DS1

DS3

DS5

SATA6

SATA4

SATA0

SATA2

DS16

DS12

DS10

DS14

DS8

DS4

DS2

DS6

SATA3

SATA5

SATA1

SATA7

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

IDE1

JL1

M-SATA

Act LED

Fan4

DS9

DS1

SATA0

DS10

DS2

SATA1

2-27

M-SATA Activity LED Indidators

Pin Definitions (DS9-DS16)

DS# Definition DS9 SATA0_Act DS10 SATA1_Act DS11 SATA2_Act DS12 SATA3_Act

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

DS13

DS5

SATA4

DS14

DS6

SATA5

DS# Definition

DS13 SATA4_Act

DS14 SAT A5_Act DS15 SATA6_Act DS16 SATA7_Act

DS15

DS7

SATA6

DS16

DS8

SATA7

X6DHT-G User's Manual

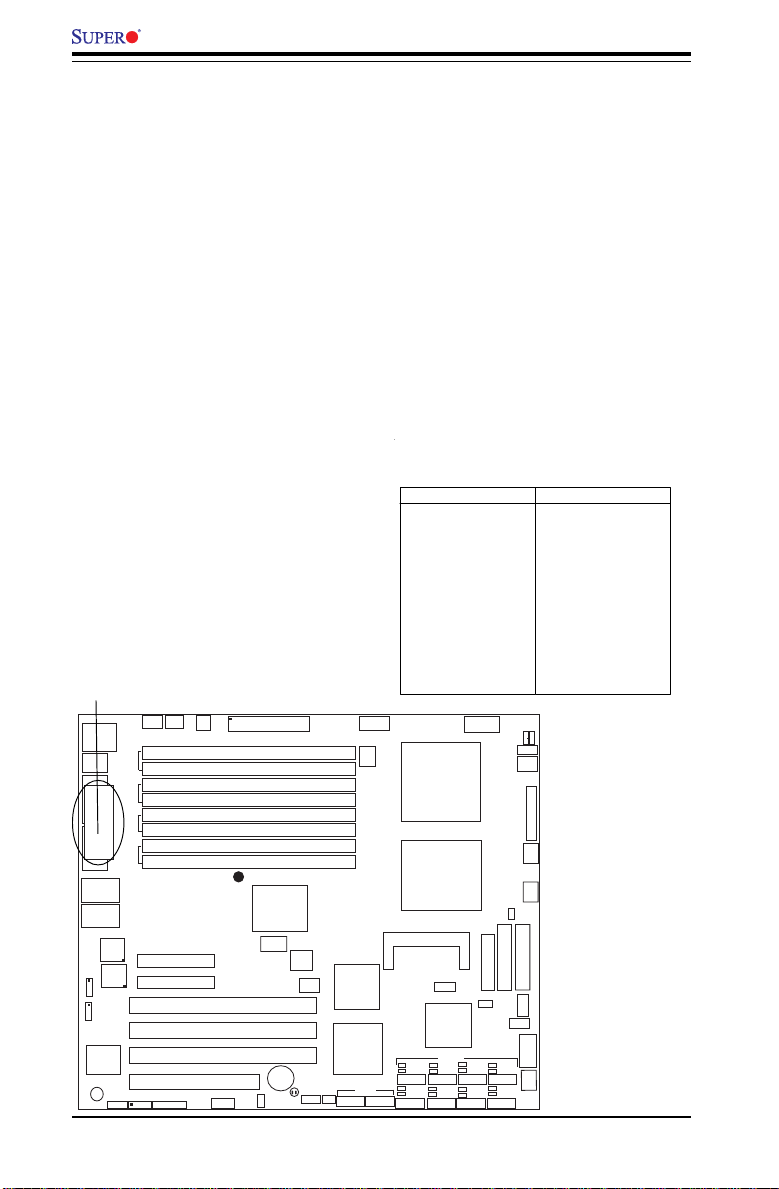

2-8 Parallel Port, Floppy, IPMI and Hard Disk Drive Connections

Note the following when connecting the floppy and hard disk drive cables:

• The floppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single floppy disk drive ribbon cable has 34 wires and two connectors to provide for two floppy disk drives. The connector with twisted wires always connects to drive A, and the connector that does not have twisted wires always connects to drive B.

Parallel (Printer) Port Pin Definitions

Parallel (Printer) Port Connector

The parallel (printer) port is located above the COM1/VGA Connectors. See the table on the right for pin definitions.

Parallel Port

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

RAGEXL

Buzzer

Parrallel

Port

JLAN1

GLAN

CTLR GLAN

CTLR

JPL1

JPL2

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

JD1

24-Pin

ATX PWR

JPW1

12V 4-Pin

PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

E7520 Lindenhurst North Bridge

S I/O

Battery

COM2

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

SATA0

PXH

6300ESB

ICH

Intel

Fan7

SATA1

Pin Number Function 1 Strobe 3 Data Bit 0 5 Data Bit 1 7 Data Bit 2 9 Data Bit 3 11 Data Bit 4 13 Data Bit 5 15 Data Bit 6 17 Data Bit 7 19 ACK 21 BUSY 23 PE 25 SLCT

12V 8-pin PWR

CPU1

CPU2

OH LED

IPMI

IDE2

Floppy

JPS1

JWOR

DS9 DS1

SATA0

DS10

DS2

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

DS13 DS5

SATA4

DS14

DS6

SATA5

DS15

DS7

SATA6

DS16 DS8

SATA7

M-SATA

JL1

Pin Number Function 2 Auto Feed 4 Error 6 Init 8 SLCT IN 10 GND 12 GND 14 GND 16 GND 18 GND 20 GND 22 GND 24 GND 26 NC

JAR

J3P

PSF

Fan1

JF1

FP Control

Fan2

Fan3

IDE1

C I

M-SATA

Act LED

Fan4

2-28

Chapter 2: Installation

Floppy Connector

The floppy connector is located between the IDE connectors and the IPMI socket. See the table below for pin definitions.

Pin Number Functi on 1 GND 3 GND 5 Key 7 GND 9 GND 11 GND 13 GND 15 GND 17 GND 19 GND 21 GND 23 GND 25 GND 27 GND 29 GND 31 GND 33 GND

IPMI 2.0 Socket

The IPMI 2.0 Socket is located next to the Floppy Drive. See the table below for pin definitions.

Floppy Connector Pin Definitions

Pin Number Function 2 FDHDIN 4 Reserved 6 FDEDIN 8 Index 10 Motor Enable 12 Drive Select B 14 Drive Select A 16 Motor Enable 18 DIR 20 STEP 22 Write Data 24 Write Gate 26 Track 00 28 Write Protect 30 Read Data 32 Side 1 Select 34 Diskette

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

Parrallel

JLAN1

GLAN CTLR

JPL1

JPL2

RAGEXL

Port

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 3 133 MHz

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North Bridge

S I/O

Battery

SMB

JBT1

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Fan7

Intel

SATA1

2-29

DS9

DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11 DS3

SATA2

DS12 DS4

SATA3

DS13

DS5

SATA4

DS14 DS6

SATA5

JWOR

OH LED

Floppy

DS15

DS7

SATA6

DS16 DS8

SATA7

IDE2

M-SATA

JL1

C I

J3P

PSF

Fan1

IDE1

JF1

Fan3

M-SATA

Fan4

JAR

FP Control

Fan2

IPMI 2.0

Floppy

Act LED

X6DHT-G User's Manual

IDE Connectors

IDE Connectors are located on the edge of the motherboard. See the table on the right for pin definitions.

IDE Connector Pin Definitions

Pin Number Function 1 Reset IDE 3 Host Data 7 5 Host Data 6 7 Host Data 5 9 Host Data 4 11 Host Data 3 13 Host Data 2 15 Host Data 1 17 Host Data 0 19 GND 21 DRQ3 23 I/O Write 25 I/O Read 27 IOCHRDY 29 DACK3 31 IRQ14 33 Addr 1 35 Addr 0 37 Chip Se lect 0 39 Activity

Pin Number Function 2 GND 4 Host Data 8 6 Host Data 9 8 Host Data 10 10 Host Data 11 12 Host Data 12 14 Host Data 13 16 Host Data 14 18 Host Data 15 20 Key 22 GND 24 GND 26 GND 28 BALE 30 GND 32 IOCS16 34 GND 36 Addr 2 38 Chip Select 1 40 GND

KB/ Mouse

USB 0/1

COM1

VGA

LAN1

LAN2

Buzzer

Parrallel

JLAN1

GLAN CTLR

JPL1

JPL2

RAGEXL

Port

JWD

Fan6

Bank1

Bank2

Bank3

Bank4

Slot6

Slot5

Slot4

Slot3

Slot2

Slot1

JPG1

Fan5

PCI-E X8

PCI-X 3 133 MHz

JD1

JPW1

12V 4-Pin PWR

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B DIMM 4A

DIMM 4B

UPER X6DHT-G

PCI-X 100 MHz/ZCR

PCI-X100 MHz

PCI-33 MHz

COM2

24-Pin

ATX PWR

E7520 Lindenhurst North

Bridge

S I/O

Battery

JBT1

SMB

BIOS

Fan8

USB2/3

WOL

SMBus PWR

6300ESB

SATA0

PXH

ICH

Fan7

Intel

SATA1

2-30

DS9 DS1

SATA0

DS10 DS2

SATA1

IPMI

12V 8-pin PWR

CPU1

CPU2

JPS1

SATA

Controller

Marvell

DS11

DS3

SATA2

DS12 DS4

SATA3

DS13 DS5

SATA4

DS14

DS6

SATA5

JWOR

OH LED

Floppy

DS15 DS7

SATA6

DS16

SATA7

DS8

IDE2

M-SATA

JL1

PSF

Fan1

C I

J3P

JF1

IDE1

M-SATA

JAR

FP Control

Fan2

Fan3

IDE1

IDE2

Act LED

Fan4

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Note: Always disconnect the power cord before adding, changing or installing any hardware components.

Before Power On

1. Make sure that there are no short circuits between the motherboard and chassis.

2. Disconnect all ribbon/wire cables from the motherboard, including those for the keyboard and mouse.

3. Remove all add-on cards.

4. Install one CPU (making sure it is fully seated) and connect the chassis speaker and the power LED to the motherboard. (Check all jumper settings as well.)

5. Use only the correct type of CMOS onboard battery as recommended by the Manufacturer. Do not install the onboard battery upside down to avoid possible explosion.

No Power

1. Make sure that there are no short circuits between the motherboard and the chassis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.

2. Use the speaker to determine if any beep codes exist. Refer to the Appendix for details on beep codes.

3-1

X6DHT-G User's Manual

NOTE

If you are a system integrator, VAR or OEM, a POST diagnos-

tics card is recommended. For I/O port 80h codes, refer to

App. B.

Memory Errors

1. Make sure the DIMM modules are properly and fully installed.

2. Determine if different speeds of DIMMs have been installed and verify that the BIOS setup is configured for the fastest speed of RAM used. It is recommended to use the same RAM speed for all DIMMs in the system.

3. Make sure you are using the correct type of Registered ECC/Non ECC DDR-333/266 (PC2700/PC2100) SDRAM (*Please refer to Page 2-5 for the instruction on DDR 333 DIMM population and installation.)

4. Check for bad DIMM modules or slots by swapping a single module between two slots and noting the results.

5. Make sure all memory modules are fully seated in their slots. As an interleaved memory scheme is used, you must install two modules at a time, beginning with Bank 1, then Bank 2, and so on (see Section 2-3).

6. Check the position of the 115V/230V switch on the power supply.

Losing the System’s Setup Configuration

1. Ensure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 1-6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still supplies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fix the Setup Configuration problem, contact your vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, Super Micro does not sell directly to end-users, so it is best to first check with your distributor or reseller for troubleshooting services.They should know of any possible problem(s) with the specific system configuration that was sold to you.

3-2

Chapter 3: Troubleshooting

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked Question' (FAQ) sections in this chapter or see the FAQs on our web site (http://www.supermicro.com/support/faqs/) before contacting Technical Support.

2. BIOS upgrades can be downloaded from our web site at (http:

www.supermicro.com/support/bios/).

Note: Not all BIOS can be flashed; it depends on the modifications to the boot block code.

3. If you still cannot resolve the problem, include the following information when contacting Super Micro for technical support:

•Motherboard model and PCB revision number

•BIOS release date/version (this can be seen on the initial display when your system first boots up)

•System configuration

An example of a Technical Support form is on our web site at (http://

www.supermicro.com/support/contact.cfm).

4. Distributors: For immediate assistance, please have your account number ready when placing a call to our technical support department. We can be reached by e-mail at support@supermicro.com, by phone at: (408) 5038000, option 2, or by fax at (408)503-8019.

3-3 Frequently Asked Questions

Question: What are the various types of memory that my motherboard can support?

Answer: The X6DHT-G has eight 184-pin DIMM slots that support regis-

tered ECC/Non ECC DDR 333/266 (PC2700/PC2100) SDRAM modules. It is strongly recommended that you do not mix memory modules of different speeds and sizes. (*Please refer to Page 2-5 for the instruction on DDR 333 DIMM population and installation.)

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are

experiencing no problems with your system. Updated BIOS files are located on our web site at http://www.supermicro.com. Please check our BIOS warning message and the info on how to update your BIOS on our web site. Also, check the current BIOS revision and make sure it is newer than your BIOS before downloading. Select your motherboard model and down-

3-3

X6DHT-G User's Manual

load the BIOS file to your computer. Unzip the BIOS update file and you will find the readme.txt (flash instructions), the phlash.exe (BIOS flash utility) files. Copy these files into a bootable floppy and reboot your system. Then, follow Readme.txt to continue flashing the BIOS.

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs

that will greatly enhance your system. We recommend that you review the CD and install the applications you need. Applications on the CD include chipset drivers for Windows and security and audio drivers.

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

3-4

Chapter 4: BIOS

Chapter 4

BIOS

4-1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the X6DHT-G. The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded using a floppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of the Supermicro web site <http://www.supermicro.com> for any changes to the BIOS that may not be reflected in this manual.

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and PS/2® compatible computers. The Phoenix BIOS stores the system parameters, types of disk drives, video displays, etc. in the CMOS. The CMOS memory requires very little electrical power. When the computer is turned off, a backup battery provides power to the BIOS CMOS Logic, enabling it to retain system parameters. Each time the computer is powered on the computer is configured with the values stored in the CMOS Logic by the BIOS, which gains control at boot up.

How To Change the Configuration Data

The CMOS information that determines the system parameters may be changed by entering the BIOS Setup utility.This Setup utility can be accessed by pressing the <Delete> key at the appropriate time during system boot. (See below.)

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the BIOS Setup utility. From the main menu, you can access the other setup screens, such as the Security and Power menus. Beginning with Section 4-3, detailed descriptions are given for each parameter setting in the Setup utility.

Warning: Do not shut down or reset the system while updating BIOS to prevent possible boot failure.

4-1

X6DHT-G User's Manual

4-2 Running Setup

*Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (See the next page).

When you first power on the computer, the Phoenix BIOS™ is immediately activated.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears briefly at the bottom of the screen during the POST (Power On Self-Test), press the <Delete> key to activate the main Setup menu:

Press the <Delete> key to enter Setup

4-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup screen is displayed below.

Use the Up/Down arrow keys to move among the different settings in each menu. Use the Left/Right arrow keys to change the options for each setting.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in detail how to navigate through the menus.

Items that use submenus are indicated with the  icon. With the item highlighted, press the <Enter> key to access the submenu.

4-2

Main BIOS Setup Menu

Main Setup Features

Chapter 4: BIOS

System Time

To set the system date and time, key in the correct information in the appropriate fields. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year fields, and enter the correct data. Press the <Enter> key to save the data.

BIOS Date

This field displays the date when this version of BIOS was built.

Legacy Diskette A

This setting allows the user to set the type of floppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb

3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.

Parallel ATA

This setting allows the user to enable or disable the function of Parallel ATA. The options are Disabled, Channel 0, Channel 1, and Both.

4-3

X6DHT-G User's Manual

Serial ATA

This setting allows the user to enable or disable the function of Serial ATA. The options are Disabled and Enabled.

Serial ATA RAID Enable

Select Enable to enable Serial ATA RAID Functions. (*For the Windows OS environment, use the RAID driver if this feature is set to Enabled. If set to

Disabled, use the Non-RAID driver.)

Native Mode Operation

Select the native mode for ATA. The options are: Parallel ATA, Serial ATA, Both, and Auto.



IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE



Channel 2 Master, IDE Channel 3 Master

These settings allow the user to set the parameters of IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE Channel 2 Master, IDE Channel 3 Master slots. Hit <Enter> to activate the following sub-menu

screen for detailed options of these items. Set the correct configurations accordingly. The items included in the sub-menu are:

4-4

Chapter 4: BIOS

Type

This item allows the user to select the type of IDE hard drive. Select Auto to allow the BIOS to automatically determine the hard drive's capacity, number of heads, etc.). Enter a number from 1-39 to select a predetermined type of hard drive, CDROM and ATAPI Removable. The option "User" will allow the user to enter the parameters of the HDD installed at this connection. Select CDROM if a CDROM drive is installed. Select ATAPI if a removable disk drive is installed.

CHS Format

The following items will be displayed by the BIOS:

TYPE: This item displays the type of IDE or SATA devices. Cylinders: This item indicates the status of Cylinders. Headers: This item indicates the number of headers. Sectors: This item displays the number of sectors. Maximum Capacity: This item displays the maximum storage capacity

of the system.

LBA Format

The following items will be displayed by the BIOS: Total Sectors: This item displays the number of total sectors available

in the LBA Format. Maximum Capacity: This item displays the maximum capacity in the

LBA Format.

Multi-Sector Transfer

This item allows the user to specify the number of sectors per block to be used in multi-sector transfer. The options are Disabled, 4 Sectors, 8 Sectors, and 16 Sectors.

LBA Mode Control

This item determines whether the Phoenix BIOS will access the IDE Channel 0 Master Device via the LBA mode. The options are Enabled and Disabled.

32 Bit I/O

This option allows the user to enable or disable the function of 32-bit data transfer. The options are Enabled and Disabled.

4-5

X6DHT-G User's Manual

Transfer Mode

This option allows the user to set the transfer mode. The options are Standard, Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

Ultra DMA Mode

This option allows the user to select Ultra DMA Mode. The options are

Disabled, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

System Memory

This display informs you how much system memory is recognized as being present in the system.

Extended Memory

This display informs you how much extended memory is recognized as being present in the system.

4-4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.

4-6

Chapter 4: BIOS



Boot Features



Access the submenu to make changes to the following settings.

Quick Boot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine by skipping certain tests after the computer is turned on. The settings are Enabled and Disabled. If Disabled, the POST routine will run at normal speed.

Quiet Boot

This setting allows you to Enable or Disable the logo graphic during boot-up.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Configuration and Power Interface) power management on your system. The options are Yes and No.

Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user hits the power button. If set to 4-sec., the system will power off when the user presses the power button for 4 seconds or longer. The options are instant-off and 4-sec override.

Resume On Modem Ring

Select On to “wake your system up” when an incoming call is received by your modem. The options are On and Off.

Power Loss Control

This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Stay Off, Power On, and Last State.

Watch Dog

If enabled, this option will automatically reset the system if the system is not active for more than 5 minutes. The options are Enabled and

Disabled.

Summary Screen

This setting allows you to Enable or Disable the summary screen which displays the system configuration during bootup.

4-7

X6DHT-G User's Manual



Memory Cache



Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a System BIOS buffer to allow the BIOS to write (cache) its data into this reserved memory area. Select "Write Protect" to enable this function, and this area will be reserved for BIOS ROM access only. Select "Uncached" to disable this function and make this area available for other devices.

Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a Video BIOS buffer to allow the BIOS to write (cache) its data into this reserved memory area. Select "Write Protect" to enable the function and this area will be reserved for the Video BIOS ROM access only. Select "Uncached" to disable this function and make this area available for other devices.

Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area: block 0-512K to be cached (written) into a buffer, a storage area in the Static DRM (SDROM) or to be written into L1, L2 cache inside the CPU to speed up CPU operations. Select "Uncached" to disable this function. Select "Write Through" to allow data to be cached into the buffer and written into the system memory at the same time. Select "Write Protect" to prevent data from being written into the base memory area of Block 0-512K. Select "Write Back" to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and Write Back.

Cache Base 512K-640K

If enabled, this feature will allow the data stored in the memory area: 512K640K to be cached (written) into a buffer, a storage area in the Static DRM (SDROM) or written into L1, L2, L3 cache inside the CPU to speed up CPU operations. Select "Uncached" to disable this function. Select "Write Through" to allow data to be cached into the buffer and written into the system memory at the same time. Select "Write Protect" to prevent data from being written into the base memory area of Block 512K-640K. Select "Write Back" to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and Write Back.

4-8

Chapter 4: BIOS

Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area to be cached (written) into a buffer, a storage area in the Static DRM (SDROM) or written into L1, L2, L3 cache inside the CPU to speed up CPU operations. Select "Uncached" to disable this function. Select "Write Through" to allow data to be cached into the buffer and written into the system memory at the same time. Select "Write Protect" to prevent data from being written into the extended memory area above 1 MB. Select "Write Back" to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect, and

Write Back.

Discrete MTRR Allocation

If enabled, MTRRs (-Memory Type Range Registers) are configured as distinct, separate units and cannot be overlapped. If enabled, the user can achieve better graphic effects when using a Linux graphic driver that requires the write-combining configuration with 4GB or more memory. The options are Enabled and Disabled.



PCI Configuration



Access the submenu to make changes to the following settings for PCI devices.

Onboard GLAN1/Onboard GLAN2 (Gigabit- LAN) OPROM Configure

Enabling this option provides the capability to boot from GLAN. The options are Disabled and Enabled.

Onboard SCSI OPROM Configure

Enabling this option provides the capitally to boot from SCSI HDD. The options are Disabled and Enabled.

Default Primary Video Adapter

This item allows the user to select the Primary Video Adapter between two adapters instead of selecting among three or more adapters. The options are Other and Onboard Video.

PCI Parity Error Forwarding

Enable this item to forward the PCI errors occurring behind P2P bridges to the South Bridge, so NMI can be asserted. The options are Enabled and Disabled.

4-9

X6DHT-G User's Manual

ROM Scan Ordering

This feature allows the user to decide which Option ROM to be activated first. The options are Onboard first and Add-On first.

Reset Configuration Data

If set to Yes, this setting clears the Extended System Configuration Data(ESCD) area. The options are Yes and No.

Frequency for Slot#2-Slot#3/MASS, Frequency for PCI-X Slot#4 (*

Note: MASS=Mass Storage Devices: SATA, SAS and SCSI.)

This option allows the user to change the bus frequency for the devices installed in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66 MHz, and PCI-X 100 MHz.

Frequency for PCI-X#1 On Riser, Frequency for PCI-X#2-#3 On Riser

(*Available when a 2U Active Riser Card is present.)

This option allows the user to change the bus frequency of the devices installed in the slot indicated. The options are Auto, PCI 33 MHz, PCI 66 MHz, PCI-X 66 MHz, PCI-X 100 MHz, and PCI-X 133 MHz.



PCI 33MHz Slot#1, PCI-X 100MHz Slot#2, PCI-X 100MHz ZCR



Slot#3, PCI-X 133MHz Slot#4, PCI-Exp x8 Slot#5, PCI-Exp x8 Slot#5, PCI-Exp x8 Slot#6 (or PCI-Exp x8 Slot#6 and Riser, Active Riser Card is present.)

if a 2U

Access the submenu for each of the settings above to make changes to the following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI bus master. The options are Enabled and Disabled.

Latency Timer

This setting allows you to set the clock rate for Bus Master. A highpriority, high-throughout device may benefit from a greater clock rate. The options are Default, 0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h, and 00E0h. For Unix, Novell and other Operating Systems, please select the

option: other. If a drive fails after the installation of a new software, you might want to change this setting and try again. A different OS requires a different Bus Master clock rate.

4-10

Chapter 4: BIOS

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options are DOS or Other (for Unix, Novelle NetWare and other operating systems).



Advanced Chipset Control



Access the submenu to make changes to the following settings.

Force Compliance Mode

This feature allows you to enable the PCI-Express Compliance Mode. The options are: Disabled or Enabled.

Memory RAS Feature Control

Select this option in order to enable the special feature of DIMM sparing or memory mirroring. The options are Mirroring, Sparing, and Standard.

Clock Spectrum Feature

If Enabled, the BIOS will monitor the level of Electromagnetic Interference caused by the components and will attempt to decrease the interference whenever needed. The options are Enabled and Disabled.

Memory Remap Function Control

PCI memory resources will overlap with the physical memory if 4GB of memory or above is installed on the motherboard. When this occurs, enable this function to reallocate the overlapped physical memory to a location above 4GB to resolve the memory overlapping situation.

Delayed Transaction Discard

Select Disabled to set the ESB P2P Bridge Secondary Discard Timer to 32 micro-seconds for the PCI-32 bus. Select Enabled to set the ESB P2P Bridge Secondary Discard Timer to 4 micro-seconds for the PCI-32 bus.

DRAM Data Integrity Mode

If enabled, this feature allows the data stored in the DRAM memory to be integrated for faster data processing. The options are 72-bit ECC, 144-bit ECC, Auto, and Disabled.

ECC Error Type

This setting lets you select which type of interrupt to be activated as a result of an ECC error. The options are None, NMI (Non-Maskable Interrupt), SMI (System Management Interrupt), and SCI (System Control Interrupt.)

4-11

X6DHT-G User's Manual

SERR Signal Condition

This setting specifies the ECC Error conditions that an SERR# is to be asserted. The options are None, Single Bit, Multiple Bit, and Both.

Enabling Multi-Media Timer

Select Yes to activate a set of timers that are alternative to the traditional 8254 timers for the OS use. The options are Yes and No.

USB Function

Select Enabled to enable the function of USB devices specified. The settings are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled.



Advanced Processor Options



Access the submenu to make changes to the following settings.

CPU Speed

This is a display that indicates the speed of the installed processor.

Hyper-threading (*Available when supported by the CPU.)

Set to Enabled to use the Hyper-Threading Technology, which will result in increased CPU performance. The options are Disabled and Enabled.

Machine Checking (*Available when supported by the CPU.)

Set to Enabled to activate the function of Machine Checking and allow the CPU to detect and report hardware (machine) errors via a set of modelspecific registers (MSRs). The options are Disabled and Enabled.

C1 Enhanced Mode (*Available when supported by the CPU.)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency to prevent overheat. The options are Enabled and Disabled. *Note: please refer to Intel’s web site for detailed information.

4-12

Chapter 4: BIOS

No Execute Mode Memory Protection (*Available when supported

by the CPU and the OS.)

Set to Enabled to enable Execute Disable Bit and allow the processor to classify areas in memory where an application code can execute and where it cannot, and thus preventing a worm or a virus from inserting and creating a flood of codes to overwhelm the processor or damage the system during an attack.

(*Note: this feature is available when your OS and your CPU support the function of Execute Disable Bit.) The options are Disabled and Enabled. (Note: For more information regarding hardware/software support for this function, please refer to Intel's and Microsoft's web sites.)

Thermal Management 2 (*Available when supported by the CPU.)

Set to Enabled to use Thermal Management 2 (TM2) which will lower CPU voltage and frequency when the CPU temperature reaches a predefined overheat threshold. Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking to be regulated via CPU Internal Clock modulation when the CPU temperature reaches the overheat threshold.

Adjacent Cache Line Prefetch (*Available when supported by the

CPU.)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The CPU fetches both cache lines for 128 bytes as comprised if Enabled. The options are Disabled and Enabled.

Processor Power Management

This feature allows the user to determine the processor power management mode. The options are Disabled and C States Only. If set to Disabled, C States and GV1/GV3 are disabled. If set to C States only, the processor power will be controlled through CPU power states in the APCI setting.

4-13

X6DHT-G User's Manual



I/O Device Configuration



Access the submenu to make changes to the following settings.

KBC Clock Input

This setting allows you to select clock frequency for KBC. The options are 6MHz, 8MHz, 12MHz, and 16MHz.

Onboard COM 1

This setting allows you to assign control of serial port A. The options are

Enabled (user defined), Disabled, and Auto (BIOS- or OS- controlled).

Base I/O Address

This setting allows you to select the base I/O address for serial port A. The options are 3F8, 2F8, 3E8, and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port A. The options are IRQ3 and IRQ4.

Onboard COM 2

This setting allows you to assign control of serial port B. The options are Enabled (user defined), Disabled, Auto (BIOS controlled) and OS Controlled.

Mode

This setting allows you to set the type of device that will be connected to serial port B. The options are Normal and IR (for an infrared device).

Base I/O Address

This setting allows you to select the base I/O address for serial port B. The options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port B. The options are IRQ3 and IRQ4.

Parallel Port

This setting allows you to assign control of the parallel port. The options are Enabled (user defined), Disabled and Auto (BIOS-or OS- controlled).

Base I/O Address

Select the base I/O address for the parallel port. The options are 378, 278 and 3BC.

Interrupt

This setting allows you to select the IRQ (interrupt request) for the parallel port. The options are IRQ5 and IRQ7.

4-14

Chapter 4: BIOS

Mode

This feature allows you to specify the parallel port mode. The options are Output only, Bi-Directional, EPP and ECP.

DMA Channel

This item allows you to specify the DMA channel for the parallel port. The options are DMA1 and DMA3.

Floppy Disk Controller

This setting allows you to assign control of the floppy disk controller. The options are Enabled (user defined), Disabled, and Auto (BIOS and OS controlled).

Base I/O Address

This setting allows you to select the base I/O address for the parallel port. The options are Primary and Secondary.



DMI Event Logging



Access the submenu to make changes to the following settings.

Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Event Logging

This setting allows you to Enable or Disable event logging.

ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes and No.

4-15

X6DHT-G User's Manual



Console Redirection



Access the submenu to make changes to the following settings.

COM Port Address

This item allows you to specify which COM port to redirect the console redirection to--Onboard COM A or Onboard COM B. This setting can also be Disabled.

BAUD Rate

This item allows you to select the BAUD rate for console redirection. The options are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K and 115.2K.

Console Type

This item allows you to select the console type for console redirection. The options are VT100, VT100/8bit, PC-ANSI/7bit, PC ANSI, VT100+, VT-

UTF8.

Flow Control

This item allows you to select the flow control for console redirection. The options are: None, XON/XOFF, and CTS/RTS.

Console Connection

This item allows you to decide how the console redirection is to be connected: either Direct or Via Modem.

Continue CR after POST

This item allows you to decide whether to continue with console redirection after the POST routine. The options are On and Off.

4-16

Chapter 4: BIOS



Hardware Monitor Logic



CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature threshold. The options are 70oC, 75oC, 80oC and 85oC. (*See the note below.)

Highlight this and hit <Enter> to see monitor data for the following items:

CPU1 Temperature/CPU2 Temperature/System Temperature

Fan Speed Control Modes

This feature allows the user to decide how the system controls the speeds of the onboard fans. The CPU temperature and the fan speed are correlative. When the CPU on-die temperature increases, the fan speed will also increase, and vice versa. If the option is set to “3-pin fan”, the fan speed is controlled by voltage. If the option is set to “4-pin”, the fan speed will be controlled by Pulse Width Modulation (PWM). Select “3-pin” if your chassis came with 3-pin fan headers. Select “4-pin” if your chassis came with 4-pin fan headers. Select “Workstation” if your system is used as a Workstation. Select “Server” if your system is used as a Server. Select “Disable” to disable the fan speed control function to allow the onboard fans to run at the full speed (12V) at all the time. The Options are: 1. Disable, 2. 3-pin (Server), 3. 3-pin (Workstation), 4. 4-pin (Server) and 5. 4-pin (Workstation).

CHFan 1-CHFAN8: If the feature of Auto Fan Control is enabled, the BIOS will automatically display the status of the fans indicated in this item.

Vcore A/Vcore B: These items display the Voltage status of CPU 1 and CPU 2.

P3V3: This item displays the +3.3V voltage status. P5V: This item displays the +5V voltage status. N12V: This item displays the -12V voltage status. P12V: This item displays the +12V voltage status. VDD: This item displays the VDD status. P5Vsb: This item displays the voltage status of +5V Standby power.

Note: In the Windows OS environment, the Supero Doctor III settings take precedence over the BIOS settings. When first installed, the SD III adopts the temperature threshold settings previously set in the BIOS. Any subsequent changes to these thresholds must be made within Supero Doctor, since the SDIII settings override the BIOS settings. For the Windows OS to adopt the BIOS temperature threshold settings, please change the SDIII settings to be the same as those set in the BIOS.

4-17

X6DHT-G User's Manual

4-5 Security

Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Security setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section.

Supervisor Password Is:

This displays whether a supervisor password has been entered for the system. Clear means such a password has not been used and Set means a supervisor password has been entered for the system.

User Password Is:

This displays whether a user password has been entered for the system. Clear means such a password has not been used and Set means a user password has been entered for the system.

Set Supervisor Password

When the item "Set Supervisor Password" is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to the BIOS.

Set User Password

When the item "Set User Password" is highlighted, hit the <Enter> key. When prompted, type the user's password in the dialogue box to set or to change the user's password, which allows access to the system at bootup.

4-18

Chapter 4: BIOS

Fixed Disk Boot Sector

This setting may offer some protection against viruses when set to Write Protect, which protects the boot sector on the hard drive from having a virus written to it. The other option is Normal.

Password on Boot

This setting allows you to require a password to be entered when the system boots up. The options are Enabled (password required) and Disabled (password not required).

4-19

X6DHT-G User's Manual

4-6 Boot

Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Highlighting a setting with a + or - will expand or collapse that entry. See details on how to change the order and specs of boot devices in the Item Specific Help window. All Boot BIOS settings are described in this section.

+Removable Devices

Highlight and press <Enter> to expand the field. See details on how to change the order and specs of devices in the Item Specific Help window.

CDROM Drive

See details on how to change the order and specs of the CDROM drive in the Item Specific Help window.

+Hard Drive

Highlight and press <Enter> to expand the field. See details on how to change the order and specs of hard drives in the Item Specific Help window.

4-20

Chapter 4: BIOS

4-7 Exit

Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.

Exit Saving Changes

Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility.

Exit Discarding Changes

Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

Load Setup Defaults

Highlight this item and hit <Enter> to load the default settings for all items in the BIOS Setup. These are the safest settings to use.

Discard Changes

Highlight this item and hit <Enter> to discard (cancel) any changes you made. You will remain in the Setup utility.

Save Changes

Highlight this item and hit <Enter> to save any changes you made. You will remain in the Setup utility.

4-21

X6DHT-G User's Manual

NOTES

4-22

Appendix A: BIOS POST Messages

Appendix A

BIOS POST Messages

During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages.

Failure Fixed Disk

Fixed disk is not working or not configured properly. Check to see if fixed disk is attached properly. Run Setup. Find out if the fixed-disk type is correctly identified.

Stuck key

Stuck key on keyboard.

Keyboard error

Keyboard not working.

Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

Keyboard locked - Unlock key switch

Unlock the system to proceed.

Monitor type does not match CMOS - Run SETUP

Monitor type not correctly identified in Setup

Shadow Ram Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error was detected.

System RAM Failed at offset: nnnn

System RAM failed at offset nnnn of in the 64k block at which the error was detected.

Extended RAM Failed at offset: nnnn Extended memory not working or not configured properly at offset nnnn.

System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the battery and run Setup to reconfigure the system.

A-1

X6DHT-G User's Manual

System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an application program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do not want these values, enter Setup and enter your own values. If the error persists, check the system battery or contact your dealer.

System timer error

The timer test failed. Requires repair of system board.

Real time clock error

Real-Time Clock fails BIOS hardware test. May require board repair.

Check date and time settings

BIOS found date or time out of range and reset the Real-Time Clock. May require setting legal date (1991-2099).

Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot. Run Setup and verify that the waitstate configuration is correct. This error is cleared the next time the system is booted.

Memory Size found by POST differed from CMOS

Memory size found by POST differed from CMOS.

Diskette drive A error Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that the drive is defined with the proper diskette type in Setup and that the diskette drive is attached correctly.

Incorrect Drive A type - run SETUP

Type of floppy drive A: not correctly identified in Setup.

Incorrect Drive B type - run SETUP

Type of floppy drive B: not correctly identified in Setup.

A-2

Appendix A: BIOS POST Messages

System cache error - Cache disabled

RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumpers. You may have to replace the cache. See your dealer. A disabled cache slows system performance considerably.

CPU ID:

CPU socket number for Multi-Processor error.

EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory Access) registers.

Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device Address Conflict Address conflict for specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve resource conflict for the specified device.

CD ROM Drive

CD ROM Drive identified.

Entering SETUP ...

Starting Setup program

Failing Bits: nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 (one) in the map indicates a failed bit. See errors 230, 231, or 232 above for offset address of the failure in System, Extended, or Shadow memory.

A-3

X6DHT-G User's Manual

Fixed Disk n Fixed disk n (0-3) identified.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

PS/2 Mouse Boot Summary Screen:

PS/2 Mouse installed.

nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.

nnnn Cache SRAM Passed Where nnnn is the amount of system cache in kilobytes successfully tested.

nnnn kB Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes successfully tested.

nnnn kB System RAM Passed Where nnnn is the amount of system RAM in kilobytes successfully tested.

One or more I2O Block Storage Devices were excluded from the Setup Boot Menu

There was not enough room in the IPL table to display all installed I2O blockstorage devices.

Operating system not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if fixed disk and drive A: are properly identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Parity is a method for checking errors in binary data. A parity error indicates that some data has been corrupted.

A-4

Appendix A: BIOS POST Messages

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F1> to start the boot process or <F2> to enter Setup and change the settings. Press <F3> to display the previous screen (usually an initialization error of an Option ROM, i.e., an add-on card). Write down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST. Can be turned off in Setup.

PS/2 Mouse:

PS/2 mouse identified.

Run the I2O Configuration Utility

One or more unclaimed block storage devices have the Configuration Request bit set in the LCT. Run an I2O Configuration Utility (e.g. the SAC utility).

System BIOS shadowed

System BIOS copied to shadow RAM.

UMB upper limit segment address: nnnn

Displays the address nnnn of the upper limit of Upper Memory Blocks, indicating released segments of the BIOS which can be reclaimed by a virtual memory manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

A-5

X6DHT-G User's Manual

Notes

A-6

Appendix B: BIOS POST Codes

Appendix B

BIOS POST Codes

This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal.

Recoverable POST Errors

When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. BIOS may also issue one of the following beep codes:

1 long and two short beeps - video configuration error 1 continuous long beep - no memory detected

Terminal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before doing so, BIOS will write the error to port 80h, attempt to initialize video and write the error in the top left corner of the screen. The following is a list of codes that may be written to port 80h.

POST Code Description

02h Verify Real Mode 03h Disable Non-Maskable Interrupt (NMI) 04h Get CPU type 06h Initialize system hardware 07h Disable shadow and execute code from the ROM. 08h Initialize chipset with initial POST values 09h Set IN POST flag 0Ah Initialize CPU registers 0Bh Enable CPU cache 0Ch Initialize caches to initial POST values 0E h Initialize I/O component 0Fh Initialize the local bus IDE 10h Initialize Power Management 11h Load alternate registers with initial POST values 12h Restore CPU control word during warm boot 13h Initialize PCI Bus Mastering devices 14h Initialize keyboard controller 16h 1-2-2-3 BIOS ROM checksum 17h Initialize cache before memory Auto size

B-1

X6DHT-G User's Manual

POST Code Description

18h 8254 timer initialization 1Ah 8237 DMA controller initialization 1Ch Reset Programmable Interrupt Controller 20h 1-3-1-1 Test DRAM refresh 22h 1-3-1-3 Test 8742 Keyboard Controller 24h Set ES segment register to 4 GB 28h Auto size DRAM 29h Initialize POST Memory Manager 2Ah Clear 512 kB base RAM 2Ch 1-3-4-1 RAM failure on address line xxxx* 2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of

memory bus 2Fh Enable cache before system BIOS shadow 32h Test CPU bus-clock frequency 33h Initialize Phoenix Dispatch Manager 36h Warm start shut down 38h Shadow system BIOS ROM 3A h Auto size cache 3Ch Advanced configuration of chipset registers 3Dh Load alternate registers with CMOS values 41h Initialize extended memory for RomPilot 42h Initialize interrupt vectors 45h POST device initialization 46h 2-1-2-3 Check ROM copyright notice 47h Initialize I20 support 48h Check video configuration against CMOS 49h Initialize PCI bus and devices 4A h Initialize all video adapters in system 4Bh QuietBoot start (optional) 4Ch Shadow video BIOS ROM 4Eh Display BIOS copyright notice 4Fh Initialize MultiBoot 50h Display CPU type and speed 51h Initialize EISA board 52h Test keyboard 54h Set key click if enabled 55h Enable USB devices 58h 2-2-3-1 Test for unexpected interrupts 59h Initialize POST display service 5Ah Display prompt “Press F2 to enter SETUP” 5Bh Disable CPU cache

B-2

Appendix B: BIOS POST Codes

POST Code Description

5Ch Test RAM between 512 and 640 kB 60h Test extended memory 62h Test extended memory address lines 64h Jump to UserPatch1 66h Configure advanced cache registers 67h Initialize Multi Processor APIC 68h Enable external and CPU caches 69h Setup System Management Mode (SMM) area 6A h Display external L2 cache size 6Bh Load custom defaults (optional) 6Ch Display shadow-area message 6Eh Display possible high address for UMB recovery 70h Display error messages 72h Check for configuration errors 76h Check for keyboard errors 7Ch Set up hardware interrupt vectors 7Dh Initialize Intelligent System Monitoring 7Eh Initialize coprocessor if present 80h Disable onboard Super I/O ports and IRQs 81h Late POST device initialization 82h Detect and install external RS232 ports 83h Configure non-MCD IDE controllers 84h Detect and install external parallel ports 85h Initialize PC-compatible PnP ISA devices 86h Re-initialize onboard I/O ports. 87h Configure Motherboard Configurable Devices

(optional) 88h Initialize BIOS Data Area 89h Enable Non-Maskable Interrupts (NMIs) 8Ah Initialize Extended BIOS Data Area 8Bh Test and initialize PS/2 mouse 8Ch Initialize floppy controller 8Fh Determine number of ATA drives (optional) 90h Initialize hard-disk controllers 91h Initialize local-bus hard-disk controllers 92h Jump to UserPatch2 93h Build MPTABLE for multi-processor boards 95h Install CD ROM for boot 96h Clear huge ES segment register 97h Fix up Multi Processor table 98h 1-2 Search for option ROMs. One long, two short

beeps on checksum failure

B-3

X6DHT-G User's Manual

POST Code Description

99h Check for SMART Drive (optional) 9A h Shadow option ROMs 9Ch Set up Power Management 9Dh Initialize security engine (optional) 9Eh Enable hardware interrupts 9Fh Determine number of ATA and SCSI drives A0 h Set time of day A2 h Check key lock A4h Initialize typematic rate A8h Erase F2 prompt A A h Scan for F2 key stroke ACh Enter SETUP AEh Clear Boot flag B0h Check for errors B1h Inform RomPilot about the end of POST. B2h POST done - prepare to boot operating system B4h 1 One short beep before boot B5h Terminate QuietBoot (optional) B6h Check password (optional) B7h Initialize ACPI BIOS B9h Prepare Boot BAh Initialize SMBIOS BBh Initialize PnP Option ROMs BCh Clear parity checkers BDh Display MultiBoot menu BEh Clear screen (optional) BFh Check virus and backup reminders C0h Try to boot with INT 19 C1h Initialize POST Error Manager (PEM) C2h Initialize error logging C3h Initialize error display function C4h Initialize system error handler C5h PnPnd dual CMOS (optional) C6h Initialize note dock (optional) C7h Initialize note dock late C8h Force check (optional) C9h Extended checksum (optional) CAh Redirect Int 15h to enable remote keyboard CBh Redirect Int 13h to Memory Technologies

Devices such as ROM, RAM, PCMCIA, and serial disk

CCh Redirect Int 10h to enable remote serial video

B-4

Appendix B: BIOS POST Codes

POST Code Description

CD h Re-map I/O and memory for PCMCIA CEh Initialize digitizer and display message D2h Unknown interrupt

The following are for boot block in Flash ROM

POST Code Description

E0h Initialize the chipset E1 h Initialize the bridge E2 h Initialize the CPU E3 h Initialize system timer E4 h Initialize system I/O E5h Check force recovery boot E6 h Checksum BIOS ROM E7 h Go to BIOS E8 h Set Huge Segment E9 h Initialize Multi Processor EAh Initialize OEM special code EB h Initialize PIC and DMA ECh Initialize Memory type EDh Initialize Memory size EEh Shadow Boot Block EFh System memory test F0h Initialize interrupt vectors F1h Initialize Run Time Clock F2h Initialize video F3h Initialize System Management Manager F4h Output one beep F5h Clear Huge Segment F6h Boot to Mini DOS F7h Boot to Full DOS

* If the BIOS detects errors on 2C, 2E, or 30 (base 512K RAM error), it displays an additional word-bitmap (xxxx) indicating the address line or bits that have failed. For example, “2C 0002” means address line 1 (bit one set) has failed. “2E 1020" means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. The BIOS also sends the bitmap to the port-80 LED display. It first displays the checkpoint code, followed by a delay, the high-order byte, another delay, and then the loworder byte of the error. It repeats this sequence continuously.

B-5

X6DHT-G User's Manual

Notes

B-6

Appendix C: Software Installation

Appendix C

Installing Software Drivers and the Windows

Operating System

After all the hardware has been installed, you must first configure the Adaptec Embedded Serial ATA RAID Driver before you install the Windows operating system. The necessary drivers are all included on the Supermicro bootable CDs that came packaged with your motherboard.

Note: The following section provides information on Adaptec's SATA RAID Driver based on the Intel Hance Rapids ICH Controller. For detailed information on Adaptec's SATA HostRAID Utility (for Marvell's AIC X6081 SATA Controller, please refer to the CDs included in the shipping package.

C-1 Introduction to the Adaptec Embedded Serial ATA

RAID Controller Driver

Serial ATA (SATA)

Serial ATA(SATA) is a physical storage interface. It uses a single cable with a minimum of four wires to create a point-to-point connection between devices. It is a serial link which supports SATA Transfer rates from 150MBps. Because the serial cables used in SATA are thinner than the traditional cables used in Parallel ATA(PATA), SATA systems have better airflow and can be installed in smaller chassis than Parallel ATA. In addition, the cables used in PATA can only extend to 40cm long, while Serial ATA cables can extend up to one meter. Overall, Serial ATA provides better functionality than Parallel ATA.

Introduction to the Intel 6300ESB (Hance Rapids) I/O Controller Hub

Located in the South Bridge of the Intel E7525 Lindenhurst Chipset, the 6300ESB (Hance Rapids) I/O Controller Hub provides the I/O subsystem with access to the rest of the system. It supports 2-channel Ultra ATA/100 Bus Master IDE controller (PATA) and two Serial ATA (SATA) Host Controllers, which support up to two Serial ATA ports and up to two RAID drives. The 6300ESB (Hance Rapids) I/O Controller Hub supports the following Parallel ATA (PATA) and Serial (SATA) device configurations:

C-1

X6DHT-G User's Manual

Primary Master(=PM) Yes Yes No No No No

ATA Operate Mode

You can select from the following two modes: Combined Mode and Enhanced Mode.

Combined Mode:

In this mode, system BIOS assigns the traditional IRQ 14 and IRQ 15 for the use of HDD. Up to 4 ATA devices are supported by this mode.

Within the Combined Mode, the following three modes are supported: *Non-Combined Mode: Parallel ATA only:with the maximum of 4 devices sup-

ported; *Non-Combined Mode: Serial ATA only:with the maximum of 2 devices sup-

ported; *Combined Mode: SATA devices and PATA: with the support of 2 devices

each (total: 4 devices maximum). (For IDE/SATA configurations, please refer to the table below.)

Primary Slave(=PS) Yes No Yes No No No Secondary Master(=SM) Yes No No Yes No No Secondary Slave(=SS) Yes No No No Yes No SATA Port0 No SM SM PM PM PM SATA Port1 No SS SS PS PS PS *Note: (No=Not Present, Yes=Present) Also, if Logical Primary is selected, the IDE channels are no longer available.

Enhanced Mode:

In this mode, system BIOS will automatically search for all available IRQs for the use of HDD. For newer Operating Systems that support the Enhanced Mode, such as Windows XP, Windows 2000, and Windows 2003, you can set SATA and PATA to the Enhanced Mode.

*The newer Operating Systems can accommodate both Enhanced Mode and Combined Mode and support up to 6 ATA devices.

*Please refer to the "Advanced Chipset Control" under the "Advanced" Setup in the BIOS for the selection of Combined Mode or Enhanced Mode.

C-2

Appendix C: Software Installation

Configuring BIOS settings for the SATA RAID Functions (Enhanced Mode)

1. Press the <Del> key during system bootup to enter the BIOS Setup Utility. (*Note: If it is the first time to power on the system, we recommend that you

load the Optimized Default Settings. If you have already done so, please skip to Step 3.

2. Use the arrow keys to select the "Exit" Menu. Once in the "Exit" Menu, scroll down the menu to select the item- "Load System Default" and press the <Enter> key. Select "OK" to confirm the selection. Press the <Enter> key to load the default settings to the BIOS.

3. Use the arrow keys to select the "Main" Menu in the BIOS.

4. Scroll down to "SATA RAID Enable" and press the <Enter> Key to select this option.

5. From this submenu, select "Enable" and press <Enter>.

6. Tap the <Esc> key and scroll down to "Exit". Select "Save and Exit" from the "Exit" menu. Press the <Enter> key to save the changes and exit the BIOS.

7. Once you've exited the BIOS Utility, the system will re-boot.

8. During the system startup, press the <Ctrl> and the <A> keys simultaneously to run the Adaptec RAID Configuration Utility when prompted by the following message:

Press <Ctrl><A> for Adaptec RAID Configuration Utility.

C-3

X6DHT-G User's Manual

The Adaptec Embedded Serial ATA with HostRAID Controller Driver

Adaptec's Embedded Serial ATA RAID with HostRAID controller adds RAID functionality to the Serial ATA I/O controller by supporting RAID 0 (Striping) or RAID 1 (Mirroring) to enhance the industry's pioneer PCI-to-e host controller products. RAID striping (RAID 0) can greatly improve hard disk I/O performance because of its capability in striping data across multiple drives. RAID mirroring (RAID 1) allows the data to be simultaneously written to two drives, so critical data is always available even if a single hard disk fails. Due to the built-in functionality, the X6DHT-G is specially designed to keep pace with the increasing performance demands of computer systems by improving disk I/O throughput and providing data accessibility regardless of a single disk failure. By incorporating the Adaptec Embedded Serial ATA into the motherboard design, Supermicro's X6DHT-G offers the user with the benefits of SATARAID without the high costs associated with hardware RAID applications.

(*Note: For Adaptec's RAID Driver Installation Instructions, please refer to the Adaptec RAID Controller User's Guide: "Emb_SA_RAID_UG.pdf" in the CD that came with this motherboard. You can also download a copy of Adaptec's User's Guide from our web site at www.supermicro.com.)

Using the Adaptec RAID Configuration Utility (ARC)

The Adaptec RAID Configuration Utility is an embedded BIOS Utility, including:

*Array Configuration Utility: Use this utility when you want to create, configure and manage arrays.

* Disk Utilities: Use this option to format or verify disks. To run the Adaptec RAID Configuration Utility, you will need to enable the

RAID function in the system BIOS (refer to Chapter 4 for System BIOS Configurations), and then, press the <Ctrl> and <A> keys simultaneously when prompted to do so during the system startup. (Refer to the previous page for detailed instructions.)

(*Note: To select an option, use the arrow keys to highlight the item and then press the <Enter> key to select it. To return to the previous menu, press the <ESC> key.)

A. Using the Array Configuration Utility (ACU)

The Array Configuration Utility (ACU) enables you to create, manage, and delete arrays from the controller’s BIOS, add and delete spare drives, and initialize drives. During the system startup, press <Ctrl> and <A> key simulta-

neously, and the main menu will appear.

C-4

Appendix C: Software Installation

Managing Arrays

Select this option to view array properties, and delete arrays. The following sections describe the operations Of "Managing Arrays".

To select this option, use the arrow keys and the <enter> key to select "Managing Arrays" from the main menu (as shown above).

C-5

X6DHT-G User's Manual

Viewing Array Properties

To view the properties of an existing array:

1. At the BIOS prompt, press Ctrl+A.

2. From the ARC menu, select Array Configuration Utility (ACU).

3. From the ACU menu, select Manage Arrays (as shown on the previous screen.)

4. From the List of Arrays dialog box, select the array you want to view and press Enter.

The Array Properties dialog box appears, showing detailed information on the array. The physical disks associated with the array are displayed here.

5. Press Esc to return to the previous menu.

Deleting Arrays *Warning: Back up the data on an array before you delete it to prevent the

loss of data. Deleted arrays cannot be restored. To delete an existing array:

1. Turn on your computer and press Ctrl+A when prompted to access the ARC utility.

2. From the ARC main menu, select Array Configuration Utility (ACU).

3. From the ACU menu, select Manage Arrays.

4. Select the array you wish to delete and press Delete.

5. In the Array Properties dialog box, select Delete and press Enter. The following prompt is displayed:

*Warning!! Deleting the array will render array unusable. Do you want to delete the array?(Yes/No):

RAID 1 only—the following prompt is also displayed: Deleting the partition will result in data loss! Do you also want to

delete the partition? (Yes/No):

6. Press Yes to delete the array or partition or No to return to the previous menu.

7. Press Esc to return to the previous menu.

C-6

Appendix C: Software Installation

Creating Arrays

Before creating arrays, make sure the disks for the array are connected and installed in your system. Note that disks with no usable space, or disks that are un-initialized are shown in gray and cannot be used. See Initializ-

ing Disk Drives.

To create an array:

1 Turn on your computer and press Ctrl+A when prompted to access the ARC utility.

2 From the ARC menu, select Array Configuration Utility Main Menu (ACU) (as shown on the first screen on page C-5).

3 From the ACU menu, select Create Array. 4 Select the disks for the new array and press Insert (as the screen shown

below). Note: To deselect any disk, highlight the disk and press Delete.

C-7

X6DHT-G User's Manual

5. Press Enter when both disks for the new array are selected. The Array Properties menu displays (as the screen shown below).

Assigning Array Properties

Once you've create a new array, you are ready to assign the properties to the array.

*Caution: Once the array is created and its properties are assigned, you cannot change the array properties using the ACU. You will need to use the Adaptec Storage Manager - Browser Edition. (Refer to Adaptec's User's Guide in the enclosed CD.

To assign properties to the new array:

1. In the Array Properties menu (as shown in the screen below), select an array type and press Enter.

Only the available array types: RAID 0, and RAID1, are displayed on the screen. (*RAID 0 or RAID 1 requires two drives.)

C-8

Appendix C: Software Installation

2. Under the item "Arrays Label", type in an label and press Enter. Note: The label shall not be more than 15 characters.

3. For RAID 0, select the desired stripe size. (*Note: Available stripe sizes are 16, 32, and 64 KB-default. It is recommended that you do not change the default setting.)

4. The item: "Create RAID via" allows you to select between the different creating methods for RAID 0 and RAID 1.

The following table gives examples of when each is appropriate.

Raid Level Crea te Via When Appropriate

RAID 0 No Init Creating a RAID 0 on new drives RAID 0 Migrate

(*Note)

RAID 1 Build1 Any time you wish to create a RAID 1, but especially if

RAID 1 Clear Creating a RAID 1 on new drives, or when you want to

RAID 1 Quick

RAID 1 Init

Creating a RAID 0 from one new drive and one drive with data you wish to preserve

you have data on one drive that you wish to preserve

ensure that the array contains no data after creation. Fastest way to create a RAID 1. Appropriate when using new drives

Note: If you select Migrate for RAID 0, or Build for RAID 1, you will be asked to select the source drive. The contents of the source drive will be

preserved. However, the data on the new drive will be lost.

C-9

X6DHT-G User's Manual

5. When you are finished, press Done (as the screen shown below).

Notes:

1. Before adding a new drive to an array, back up any data contained on the new drive. Otherwise, all data will be lost.

2. If you stop the Build or Clear process on a RAID 1 from ACU, you can restart it by pressing Ctrl+R.

3. A RAID 1 created using the Quick Init option may return some data miscompares if you later run a consistency check. This is normal and is not a cause for concern.

4. The ACU allows you to use drives of different sizes in a RAID. However, during a build operation, only the smaller drive can be selected as the source or first drive.

5. When migrating from single volume to RAID 0, migrating from a larger drive to a smaller drive is allowed. However, the destination drive must be at least half the capacity of the source drive.

6. Adaptec does not recommend that you migrate or build an array on Windows dynamic disks (volumes), as it will result in data loss.

Warning: Do not interrupt the creation of a RAID 0 using the Migrate option. If you do, you will not be able to restart, or to recover the data that was on the source drive.

C-10

Appendix C: Software Installation

Adding a Bootable Array

To make an array bootable:

1. From the Main menu, select Manage Arrays.

2. From the List of Arrays, select the array you want to make bootable, and press Ctrl+B.

3. Enter Y to create a bootable array when the following message is displayed: "This will make all other existing bootable array non-bootable. Do you want to make this array bootable? (Yes/No):" Then, a bootable array will be created. An asterisk will appear next to the bootable array (as shown in the picture below:

Deleting a Bootable Array

To delete a bootable array:

1. From the Main menu, select Manage Arrays.

2. From the List of Arrays, select the bootable array (*) you want to delete, and press Ctrl+B. (* a bootable array is the array marked with an asterisk (as shown in the picture above.)

3. Enter Y to delete a bootable array when the following message is displayed: "The array is already marked bootable. Do you want to make this array as not bootable? (Yes/No):" Then, the bootable array will be deleted and the asterisk will disappear.

*Note: do not use the delete key to delete the bootable array.

C-11

X6DHT-G User's Manual

Initializing Disk Drives

If an installed disk does not appear in the disk selection list for creating a new array, or if it appears grayed out, you may have to initialize it before you can use it as part of an array. Drives attached to the controller must be initialized before they can be used in an array.

Caution: Initializing a disk overwrites the partition table on the disk and makes any data on the disk inaccessible. If the drive is used in an array, you may not be able to use the array again.

Do not initialize a disk that is part of a boot array. To determine which disks are associated with a particular array, please refer to Viewing Array

Properties.

To initialize drives:

1. Turn on your computer and press Ctrl+A when prompted to access the ARC utility.

2. From the ARC menu, select Array Configuration Utility (ACU) (as shown in the screen below).

3. Select Initialize Drives (as shown in the screen below).

C-12

SUPER MICRO Computer X6DHT-G User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
