SUPER MICRO Computer X6DHi-G2, X6DH3-G2 User Manual

®

SUPER

X6DH3-G2
X6DHi-G2

USER’S MANUAL

Revision 1.0b

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

SUPER MICRO COMPUTER reserves the right to make changes to the product described in this
manual at any time and without notice. This product, including software, if any, and documenta­tion may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any
medium or machine without prior written consent.

IN NO EVENT WILL SUPER MICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER SHALL NOT
HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING
OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other

reproductive harm.

Manual Revision 1.0b

Release Date: Aug. 14, 2007

Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2007 by SUPER MICRO COMPUTER INC.
All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, PC technicians and

knowledgeable PC users. It provides information for the installation and use of the

X6DH3-G2/X6DHi-G2 motherboard. The X6DH3-G2/X6DHi-G2 supports single or

®

dual Intel

X6DHi-G2 supports Hyper-Threading Technology and is ideal for high performance

workstation and server environments with up to two processors on one system bus.

The X6DH3-G2/X6DHi-G2 also supports the Enhanced Intel SpeedStep Technology

(EIST). Please refer to the motherboard specifi cations pages on our web site (http://

www.supermicro.com/Products) for updates or visit Intel's web site for processor

support. This product is intended to be professionally installed.

Xeon EM64T processors at a 800 MHz front side bus. The X6DH3-G2/

Manual Organization

Chapter 1 describes the features, specifi cations and performance of the mainboard

and provides detailed information about the chipset.

Preface

Chapter 2 provides hardware installation instructions. Read this chapter when

installing the processor, memory modules and other hardware components into

the system. If you encounter any problems, see Chapter 3, which describes

troubleshooting procedures for the video, the memory and the system setup stored

in CMOS.

Chapter 4 includes an introduction to BIOS and provides detailed information on

running the CMOS Setup utility.

Appendix A provides BIOS POST Messages.

Appendix B lists BIOS POST Codes.

Appendix C lists Software Installation Instructions.

Conventions Used in the Manual:

Special attention should be given to the following symbols for proper installation and
to prevent damage done to the components or injury to yourself:

Danger/Caution: Instructions to be strictly followed to prevent catastrophic

system failure or to avoid bodily injury.

Warning: Important information given to ensure proper system installation

or to prevent damage to the components.

Note: Additional Information given to differentiate various models or to ensure cor

rect system setup.

iii

X6DH3-G2/X6DHi-G2 User's Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Conventions Used in this Manual ............................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist ................................................................................................... 1-1

Contacting Supermicro ............................................................................. 1-2

X6DH3-G2/X6DHi-G2 Image ..................................................... 1-3

X6DH3-G2/X6DHi-G2 Layout .................................................... 1-4

X6DH3-G2/X6DHi-G2 Quick Reference .................................... 1-5

Motherboard Features ................................................................................ 1-6

Intel E7520 Chipset: System Block Diagram ........................................... 1-8

1-2 Chipset Overview ........................................................................................... 1-9

1-3 Special Features ........................................................................................... 1-10

1-4 PC Health Monitoring ................................................................................... 1-10

1-5 ACPI Features .............................................................................................. 1-11

1-6 Power Supply ............................................................................................... 1-12

1-7 Super I/O ........................................................................................................ 1-12

Chapter 2: Installation

2-1 Static-Sensitive Devices ................................................................................. 2-1

Precautions ................................................................................................ 2-1

Unpacking ................................................................................................ 2-1

2-2 Xeon EM64T Processor and Heatsink Installation ......................................... 2-2

2-3 Installing DIMMs ............................................................................................. 2-6

2-4 I/O Ports/Control Panel Connectors ............................................................... 2-7

2-5 Connecting Cables ........................................................................................... 2-9

ATX Power Connector ............................................................................ 2-9

4-pin and 8-pin Power Connectors ......................................................... 2-9

NMI Button ............................................................................................. 2-10

Power LED ............................................................................................. 2-10

HDD LED .............................................................................................. 2-11

NIC1/NIC2 LED Indicators ...................................................................... 2-11

Overheat/Fan Fail LED ......................................................................... 2-12

Power Fail LED ........................................................................................ 2-12

Reset Button ......................................................................................... 2-13

iv

X6DH3-G2/X6DHi-G2 User's Manual

Power Button .......................................................................................... 2-13

Chassis Intrusion .................................................................................... 2-14

Serial Ports ............................................................................................. 2-14

Universal Serial Bus ................................................................................ 2-15

GLAN (Ethernet Ports) ............................................................................. 2-16

ATX PS/2 Keyboard and Mouse Ports ..................................................... 2-16

Fan Headers .......................................................................................... 2-17

Power LED/Speaker Header ................................................................... 2-17

Wake-On-Ring .......................................................................................... 2-18

Wake-On-LAN .......................................................................................... 2-18

SMB .......................................................................................................... 2-19

Power SMB .............................................................................................. 2-19

SAS Activity Output LED .......................................................................... 2-20

SAS SMB Power Connection ................................................................... 2-20

Overheat LED ........................................................................................... 2-21

Power Supply Failure LED ....................................................................... 2-21

2-6 Jumper Settings ............................................................................................ 2-22

Explanation of Jumpers ......................................................................... 2-22

GLAN Enable/Disable ............................................................................ 2-22

CMOS Clear ........................................................................................... 2-23

Watch Dog Enable/Disable ...................................................................... 2-23

VGA Enable/Disable ................................................................................. 2-24

Alarm Reset .............................................................................................. 2-24

3rd PWR Fault Detect .............................................................................. 2-25

SAS Controller Enable/Disable ................................................................ 2-25

Power Force On Enable/Disable .............................................................. 2-26

2-7 Onboard Indicators ....................................................................................... 2-27

GLAN LEDs .............................................................................................. 2-27

SAS Activity LED Indicators ..................................................................... 2-28

2-8 Parallel Port, Floppy, Hard Disk Drive and IPMI Connections ..................... 2-29

Parallel Connector ................................................................................... 2-29

Floppy Connector .................................................................................... 2-30

IPMI Connector ....................................................................................... 2-30

IDE Connectors ....................................................................................... 2-31

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ....................................................................................... 3-1

No Power ................................................................................................... 3-1

No Video .................................................................................................. 3-1

v

Table of Contents

Memory Errors ........................................................................................... 3-2

Losing the System’s Setup Confi guration ................................................ 3-2

3-2 Technical Support Procedures ....................................................................... 3-2

3-3 Frequently Asked Questions .......................................................................... 3-3

3-4 Returning Merchandise for Service ................................................................. 3-4

Chapter 4: BIOS

4-1 Introduction ....................................................................................................... 4-1

4-2 Running Setup ................................................................................................. 4-2

4-3 Main BIOS Setup ............................................................................................. 4-2

4-4 Advanced Setup ............................................................................................... 4-6

4-5 Security Setup ............................................................................................... 4-18

4-6 Boot Setup ...................................................................................................... 4-19

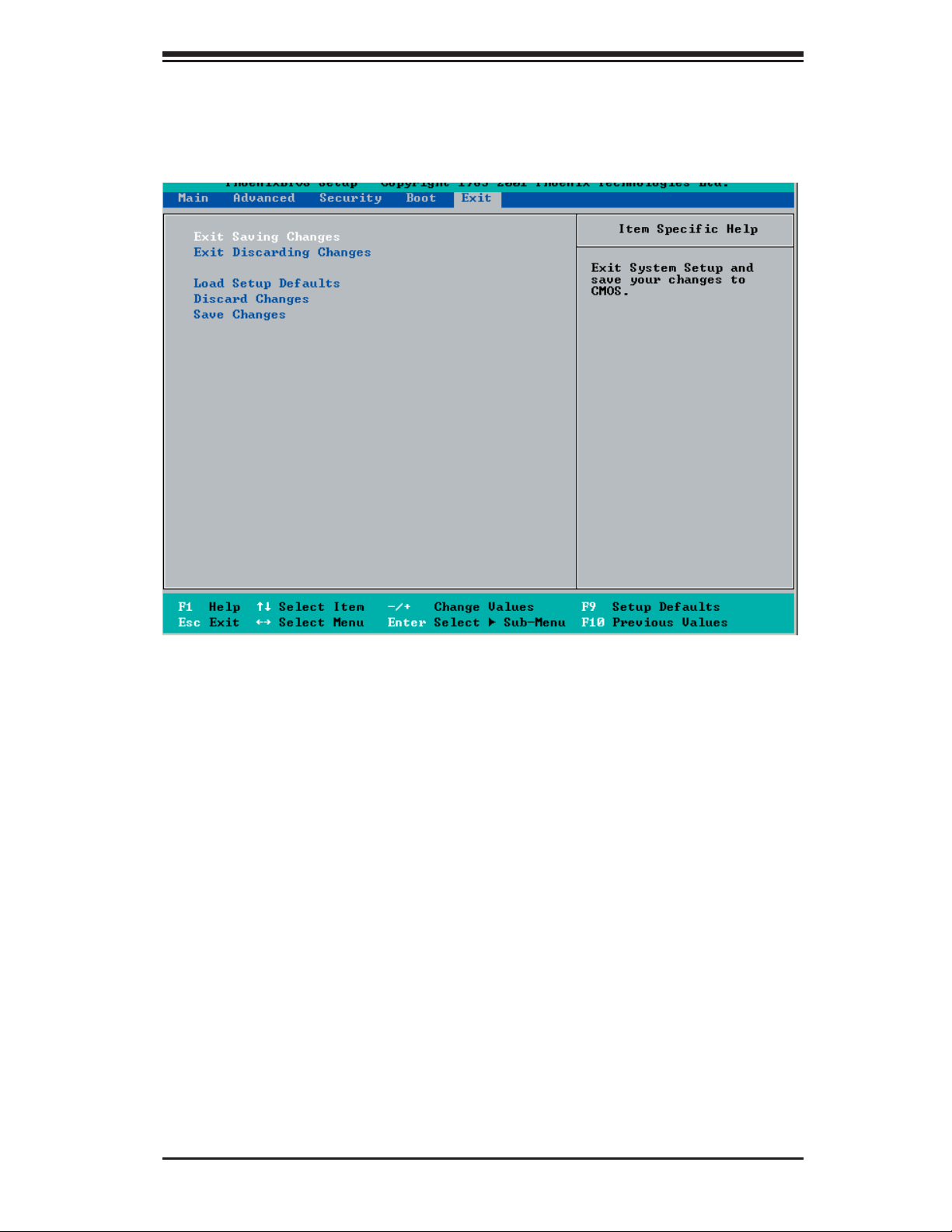

4-7 Exit .................................................................................................................. 4-21

Appendices:

Appendix A: BIOS POST Messages .......................................................................... A-1

Appendix B: BIOS POST Codes ................................................................................B-1

Appendix C: Installing Software Drivers and the Operating System .........................C-1

vi

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention

to detail to provide you with the highest standards in quality and performance.

Check that the following items have all been included with your motherboard. If

anything listed here is damaged or missing, contact your retailer. All are included

in the Retail Box.

One (1) Supermicro Mainboard

One (1) ribbon cable for IDE devices (CBL-036)

One (1) fl oppy ribbon cable (CBL-022)

One (1) COM port cable (CBL-010)

One (1) 2-port USB cable (CBL-083)

Two (2) SAS cables (CBL-097) (*For the X6DH3-G2 only)

One (1) I/O backpanel shield (CSE-PT7)

One (1) Supermicro CD containing drivers and utilities (CDR-X6)

One (1) User's/BIOS Manual

1-1

X6DH3-G2/X6DHi-G2 User's Manual

Contacting Super Micro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacifi c

Address: Super Micro, Taiwan

4F, No. 232-1 Liancheng Road

Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.

Tel: [phone]

Fax: [phone]

Web Site: www.supermicro.com.tw

Technical Support:

Email: [e-mail]

Tel: [phone], ext.132 or 139

1-2

Chapter 1: Introduction

Figure 1-1. X6DH3-G2/X6DHi-G2 Image

1-3

X6DH3-G2/X6DHi-G2 User's Manual

Figure 1-2. X6DH3-G2/X6DHi-G2 Motherboard Layout

(not drawn to scale)

KB/MS

USB

0/1

COM1

J14

Parrallel

VGA

J7

LAN1

JLAN1

LAN2

LAN2

J

JPL1

JPL2

V

GA

CTRL

Buzzer

Notes:

J33

Port

JLAN1

GLAN
CTRL

GLAN
CTRL

JWD

Bank1

Bank2

Bank3

Bank4

Slot6

Slot4

Slot3

Slot2

Slo

J

PG1

Fan6

Slot5

t1

Fan5

12V 4-Pin

PWR

S

PCI-E X8

PCI-E X8

PCI-X 133 MHz

PCI-X 100 MHz ZCR (Green

PCI-X1

PCI-33 MHz

JD1

JPW1

J38

DIMM 1A

DIMM 1B

DIMM 2A

DIMM 2B

DIMM 3A

DIMM 3B

DIMM 4A

DIMM 4B

UPER X6DH3-G2

SEPC

00 MHz

COM2

24-Pin

®

O

S I/

SMB

ATX PWR

E7520

BIOS

Slot)

attery

B

2

J

I

C1

2

J

I

C2

JBT1

F

an8

USB2/3

PXH

6300ESB

ICH

WOL

SMB PS

J32

Fan7

A0

I-SAT

J31

I-SAT

A1

IPMI

12V 8-pin
PWR

CPU1

CPU

SAS

TRL

C

JWOR

JPS1

J1D1

2

Floppy

DS7

DS6

DS5

DS1

DS3

DS2

SAS4-7

SAS0-3

JP1

JS10

PSF

IDE2

DS8

DS4

JSM2

JSM1

J3P

JOH

Fan4

JAR

JP9

Fan1

JF1

n2

a

F

Fan3

IDE1

JS9

JL1

FP Control

1. Jumpers not indicated are for testing only.

2. See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front panel

connections.

3. " " indicates the location of Pin 1.

4. For RAID to function properly, please install the ZCR Card in the Green PCI

slot.

5. When the Onboard Standby PWR LED Indicator is on, it indicates that the Power

and the system is on. Do not remove or install any components without turning off

the system and disconnecting the AC power.

6. The drawings and pictures shown in this manual were based on the latest

PCB Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics shown in

the manual.

7. All components related to SAS: SAS Controller, SAS 0-3, SAS 4-7 Connectors,

SAS LEDs: DS 1-8, JS9, JS10 and JPS1 are for the X6DH3-G2 only.

1-4

Chapter 1: Introduction

Quick Reference (X6DH3-G2/X6DHi-G2)

(See Chapter 2 for more information.)

Jumper Description Default Setting

J3P 3rd PWR Supply Fail Detect Off (Disabled)

JAR Alarm Reset Enable Off (Normal)

JBT1 CMOS Clear See Chapter 2

2

JI

C1/JI2C2 PCI I2C Data(JI2C1)/I2C Clock(JI2C2) Closed (Enabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JP1 Power Supply Force-On Open (Disabled)

JPL1/JPL2 GLAN1/GLAN2 Enable Pins 1-2 (Enabled)

JPS1 SAS Controller Enable Pins 1-2 (Enabled)(*Note)

JWD Watch Dog Enable Pins 1-2 (Reset)

Connector Description

ATX PWR (JPW1) Primary 24-Pin ATX PWR Connector

CPU PWR (J1D1) 12V 8-Pin CPU PWR Connector

Aux. PWR (J38) +12V 4-pin System PWR Connector

COM1/COM2 (J14/J15) COM1/COM2 Serial Port Connector/Header

ACT LED (#0-#7) SAS Activity LED Indicators (DS1-DS8) (*Note)

DIMM#1A-DIMM#4B DDR DIMM Memory (RAM) Slots

Fans 1-8 System Fan Headers (Fans 7/8: CPU Fans 1/2)

Floppy (J12) Floppy Disk Drive Connector

IDE1/IDE2 (J5/J6) IDE#1/IDE#2 Hard Disk Drive Connectors

IPMI (JIPMI1) IPMI 2.0 Socket

JD1 PWR LED (pins1-3)/SpeakerHeader (pins 4-7)

JF1 Front Control Panel Connector

JL1 Chassis Intrusion Header

JOH Overheat LED

JS9 SAS (to IO Panel) Activity LED Header (*Note)

JS10 SAS SMBus (SAS (I

JWOR Wake-on-Ring Header

LAN 1/2 (JLAN1/2) G-bit Ethernet Ports 1/2

KB/MS (J33) PS2 Keyboard/Mouse Connector

Parallel Parallel (Printer) Port

PSF (JP9) Power Supply Failure LED Header

I-SATA 0/1 Intel Serial ATA 1/2 Ports

JSM1/JSM2 (*Note) Adaptec SAS Ports 0-7(JSM1: SAS0-3/JSM2: SAS 4-7)

SMB System Management Bus

SMB PS (I

2

C) (J32) Power Supply SMBus (I2C)

USB 0/1 (J16) Back Panel USB0/USB1 Headers

USB 2/3 (JUSB 2/3) Front Panel Universal Serial Bus Ports 2/3

VGA (J7) Video Connector

WOL Wake-on-LAN Header

(*Note: For the X6DH3-G2 only)

1-5

2

C) (*Note)

X6DH3-G2/X6DHi-G2 User's Manual

Motherboard Features

CPU

• Single or dual Intel

®

Xeon

TM

EM64T processors at 800 MHz front side

(system) bus speed with support of Hyper-Threading (HT), EM64T and

Enhanced Intel SpeedStep (EIST)

Using the EM64T Feature

• Install a 64-bit OS (Windows XP Professional x64 Ed, Server 2003x64 Ed.)

• Install a 64-bit OS (Windows XP Professional x64 Ed, Server 2003x64 Ed.)

• Install the 64-bit drivers for all MB components, devices and add-on cards

Using the Hyper-Threading (HT) Technology

• Install an OS that supports HT, including Windows XP/2003 Server and Linux

2.4x. (Under Linux, use the HT compiler to compile the code. For other operating

systems, be sure to disable the HT feature in the BIOS.)

• Enable the HT feature in the BIOS (under "Advanced" Setting) before install

ing a supported OS. (*Note: visit www.Intel.com for CPU support and driver

updates.)

Memory

• Eight 240-pin DIMM sockets supporting up to 16 GB Registered ECC, dual

channel, DDR II 400 (PC3200) SDRAM

Chipset

• Intel E7520 chipset

Expansion Slots

• Two x8 PCI-E slots (*one with SEPC-Supermicro Enhanced Power Connector)

• Three 64-bit PCI-X (3.3V) slots (*One PCI-X-133 MHz slot, One PCI-X-100

MHz/ZCR slot-the green slot, One PCI-X-100 MHz slot)

• One 32-bit (5V) 33MHz PCI

BIOS

• 8 Mb Phoenix

®

Flash ROM

• APM 1.2, DMI 2.3, PCI 2.2, ACPI 1.0, Plug and Play (PnP)

PC Health Monitoring

• Onboard voltage monitors for CPU cores, chipset voltage, 3.3V, +5V, +12V, −12V

and +5V standby

• Fan status monitor with fi rmware control

• CPU/chassis temperature monitors

• Environmental temperature monitor and control

• CPU fan auto-off in sleep mode

• CPU slow-down on temperature overheat

• CPU thermal trip support for processor protection, +5V standby alert LED

• Power-up mode control for recovery from AC power loss

• Auto-switching voltage regulator for CPU core

1-6

Chapter 1: Introduction

• System overheat/Fan Fail LED Indicator and control

• Chassis intrusion detection

• System resource alert via Supero Doctor III

ACPI Features

• ACPI/ACPM Power Management

• Wake-On Ring (WOR) Header

• Internal/External Modem Ring On

• Wake-On LAN (WOL) Header

• Slow blinking LED for suspend state indicator

• Main switch override mechanism

Onboard I/O

• One IPMI 2.0/1.5 socket

• Two Intel 82541P1 Gigabit Ethernet controllers

• 2 EIDE Ultra DMA/100 bus master interfaces

• 1 fl oppy port interface

• 1 EPP/ECP Parallel Port

• PS/2 mouse and PS/2 keyboard ports

• Up to 4 USB 2.0 (Universal Serial Bus) (2 ports, 2 Headers)

• Intel 6300ESB SATA Controller supports 2 drives (RAID 0, 1 and JBOD)

• Adaptec AIC 9410W Controller with 2 ports, supporting 8 SAS/SATA drives (*SAS

is for the X6DH3-G2 only.)

• ATI 8 MB Rage XL Graphic Card

• 2 COM ports(1 header, 1 port)

• Super I/O: Winbond W83627HF w/Hardware Monitor support: W83792D

Other

• Internal/external modem ring-on

• Wake-on-LAN (WOL)

• Console redirection

• SMBus for SMC Power Supply

• Fan Speed Control by Thermal Management (via BIOS)

CD/Diskette Utilities

• BIOS fl ash upgrade utility, device drivers and software management

Dimensions

• ATX Ext. 12" x 13.05" (304.8 x 331.5 mm)

1-7

X6DH3-G2/X6DHi-G2 User's Manual

4_DDRII_400

DIMMs

FWH

LPC I/O

LPC BUS

HUB

BMC CON.

PCI BUS(32-BIT)

DIMMs

USB

0,1,2,3

USB PORT

VGA

KB/MS.

SER.2

SER.1

H/W

MONITOR

FDD.

0, 1

SATA

SATA

UDMA-100

IDE

PRI/SEC

A

B

SAS

HC2_8Ports

PCIX BUS(100 MHZ)

PCIX BUS(133 MHZ)

1.5V

3.3V

DDR266
DDR333

DDRII 400

8.1W 133

266MB/s

1_PCIX-100
GRN_Slot

G LAN

K_II

1_PCIX-133

Slot

PCI-E A(X8)

1_PCIX-E

(X8)Slot

PCI-E C(X8)

(X8)Slot

1_PCIX-E

PCI-E B(X8)

B

C

A

1_PCIX-100

Slot

GLAN

K_II

PCIX66_BUS

1_PCI32

4_DDRII_400

CH.A

CH.B

Slot

1_PCIX-100

Slot

SAS

HC2_8Ports

1_PCIX-100

GRN_Slot

1_PCIX-133

Slot

PCIX BUS(100 MHZ)

PCIX BUS(133 MHZ)

1_PCIX-E

(X8)Slot

1_PCIX-E
(X8)Slot

PRI/SEC

USB PORT

0,1,2,3

PXH#1

8.1W 133

PCI-E C(X8)

PCI-E B(X8)

IDE

SATA

0,

1.5V

3.3V
PCI-E A(X8)

UDMA-100

SATA

USB

CPU2

E7520

MCH

DDR266
DDR333

DDRII 400

6300 ESB

CPU1

HUB

CH.A

CH.B

266MB/s

PCIX66_BUS

PCI BUS(32-BIT)

LPC BUS

4_DDRII_400

DIMMs

4_DDRII_400

DIMMs

G LAN
K_II

1_PCI32

VGA

GLAN

K_II

Slot

Note: This is a general block diagram. Please see the previous Motherboard Features
pages for details on the features of the motherboard.

FWH

H/W

MONITOR

LPC I/O

KB/MS.

Figure 1-9. Block Diagram of the E7520 Chipset

FDD.

SER.1

SER.2

BMC CON.

1-8

Chapter 1: Introduction

1-2 Chipset Overview

Built upon the functionality and the capability of the 7520 chipset, The X6DH3-

G2/X6DHi-G2 motherboard provides the performance and feature set required for

dual processor-based servers, with confi guration options optimized for communica-

tions, presentation, storage, computation or database applications. The Intel E7520

chipset consists of the following components: the E7520 Memory Controller Hub

(MCH), the 6300ESB I/O Controller Hub (6300ESB ICH), and the Intel PCI-X Hub

(PXH).

The E7520 MCH supports single or dual Xeon EM64T processors with Front Side

Bus speeds of 800 MHz. Its memory controller provides direct connection to two

channels of registered DDR2 with a marched system bus address and data band-

widths of up to 5.4GB/s. The E7520 also supports the new PCI Express high speed

serial I/O interface for superior I/O bandwidth. The MCH provides three confi gurable

x8 PCI Express interfaces. These interfaces support connection of the MCH to a

variety of other bridges that are compliant with the PCI Express Interface Specifi -

cation, Rev. 1.0a.

6300ESB

The I/O Controller Hub provides the I/O subsystem with access to the rest of the

system. It supports 2-channel Ultra ATA/100 Bus Master IDE Controller, two Serial

ATA (SATA) Host Controllers, SMBus 2.0 Controller, LPC/Flash BIOS Interface, PCI

2.3 Interface, and Integrated System Management Controller.

6300ESB

The 6300ESB ICH system consists of:

The I/O Controller Hub provides the I/O subsystem with access to the rest of the

system. Additionally, it integrates many I/O functions.

The 6300ESB integrates: 2-channel Ultra ATA/100 Bus Master IDE Controller,

two Serial ATA (SATA) Host Controllers, SMBus 2.0 Controller, LPC/Flash BIOS

Interface, PCI-X (66MHz) 1.0 Interface, PCI 2.2 Interface and System Manage-

ment Controller.

System Features

ICH System Features

1-9

X6DH3-G2/X6DHi-G2 User's Manual

1-3 Special Features

Recovery from AC Power Loss

BIOS provides a setting for you to determine how the system will respond when AC

power is lost and then restored to the system. You can choose for the system to

remain powered off (in which case you must hit the power switch to turn it back on)

or for it to automatically return to a power- on state. See the Power Lost Control

setting in the Advanced BIOS Setup section (Peripheral Device Confi guration) to

change this setting. The default setting is Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the SUPER X6DH3-

G2/X6DHi-G2.All have an onboard System Hardware Monitor chip that supports

PC health monitoring.

Onboard Voltage Monitors for the CPU Cores, +3.3V, +5V, +12V,
and -12V

An onboard voltage monitor will scan these voltages continuously. Once a voltage

becomes unstable, a warning is given or an error message is sent to the screen.

Users can adjust the voltage thresholds to defi ne the sensitivity of the voltage

monitor.

Fan Status Monitor via BIOS and SDIII

The PC health monitor can check the RPM status of the cooling fans. The onboard

CPU and chassis fans are controlled by Thermal Management via BIOS and Supero

Doctor III.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn

on the thermal control fan whenever the CPU temperature exceeds a user-defi ned

threshold. The overheat circuitry runs independently from the CPU. It can continue

to monitor for overheat conditions even when the CPU is in sleep mode. Once it

detects that the CPU temperature is too high, it will automatically turn on the ther-

mal control fan to prevent any overheat damage to the CPU. The onboard chassis

thermal circuitry can monitor the overall system temperature and alert users when

the chassis temperature is too high.

CPU Fan Auto-Off in Sleep Mode

The CPU fan activates when the power is turned on. It continues to operate when

the system enters Standby mode. When in sleep mode, the CPU will not run at

full power, thereby generating less heat.

1-10

Chapter 1: Introduction

CPU Overheat LED and Fan Fail Control

This feature is available when the user enables the CPU overheat/Fan Fail warn-

ing function in the BIOS. This allows the user to defi ne an overheat temperature.

When this temperature is exceeded, both the overheat fan and the warning LED

are triggered.

System Resource Alert

This feature is available when used with Supero Doctor III in the Windows OS

environment or used with Supero Doctor II in Linux. SDIII is used to notify the

user of certain system events. For example, if the system is running low on virtual

memory and there is insuffi cient hard drive space for saving the data, you can be

alerted of the potential problem.

1-5 ACPI Features

ACPI stands for Advanced Confi guration and Power Interface. The ACPI specifi -

cation defi nes a fl exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including its

hardware, operating system and application software. This enables the system to

automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers. This also includes consumer devices connected to the PC

such as VCRs, TVs, telephones and stereos.

In addition to enabling operating system-directed power management, ACPI

provides a generic system event mechanism for Plug and Play and an operating

system-independent interface for confi guration control. ACPI leverages the Plug

and Play BIOS data structures while providing a processor architecture-indepen-

dent implementation that is compatible with the Windows 2000, Windows XP and

Windows Server 2003 Operating Systems.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start blinking

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will wake-up and the LED will automatically stop blinking and remain on.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a system

suspend button to make the system enter a SoftOff state. The monitor will be

suspended and the hard drive will spin down. Pressing the power button again

will cause the whole system to wake-up. During the SoftOff state, the ATX power

supply provides power to keep the required circuitry in the system alive. In case

the system malfunctions and you want to turn off the power, just press and hold

the power button for 4 seconds. This option can be set in the Power section of

the BIOS Setup routine.

1-11

X6DH3-G2/X6DHi-G2 User's Manual

External Modem Ring-On

Wake-up events can be triggered by a device such as the external modem ringing

when the system is in the SoftOff state. Note that external modem ring-on can only

be used with an ATX 2.01 (or above) compliant power supply.

Wake-On-LAN (WOL)

Wake-On-LAN is defi ned as the ability of a management application to remotely power

up a computer that is powered off. Remote PC setup, up-dates and asset tracking

can occur after hours and on weekends so that daily LAN traffi c is kept to a minimum

and users are not interrupted. The motherboard has a 3-pin header (WOL) to con-

nect to the 3-pin header on a Network Interface Card (NIC) that has WOL capability.

Wake-On-LAN must be enabled in BIOS. Note that Wake-On-LAN can only be used

with an ATX 2.01 (or above) compliant power supply.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

The SUPER X6DH3-G2/X6DHi-G2 accommodates ATX 24-pin power supplies.

Although most power supplies generally meet the specifi cations required by the

CPU, some are inadequate. You should use one that will supply at least 400W

of power. Your power supply must supply 1.5A for the Ethernet ports. The +12V,

4-pin power connector (J38) is required to ensure adequate power supply to the

system. Additionally, you should also use the onboard 12V 8-pin power connector

(J1D1) to support Intel Xeon CPUs. Failure to provide this extra power will result

in instability of the CPU after only a few minutes of operation. See Section 2-5 for

details on connecting the power supply.

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specifi cation 2.02 or above. It must also be SSI compliant (info at

http://www.ssiforum.org/). Additionally, in areas where noisy power transmission is

present, you may choose to install a line fi lter to shield the computer from noise. It

is recommended that you also install a power surge protector to help avoid problems

caused by power surges.

1-7 Super I/O

The disk drive adapter functions of the Super I/O chip include a fl oppy disk drive

controller that is compatible with industry standard 82077/765, a data separator,

write pre-compensation circuitry, decode logic, data rate selection, a clock genera-

tor, drive interface control logic and interrupt and DMA logic. The wide range of

functions integrated onto the Super I/O greatly reduces the number of components

required for interfacing with fl oppy disk drives. The Super I/O supports 360 K, 720K,

1-12

Chapter 1: Introduction

1.2 M, 1.44 M or 2.88 M disk drives and data transfer rates of 250 Kb/s, 500 Kb/s

or 1 Mb/s.It also provides two high-speed, 16550 compatible serial communication

ports (UARTs), one of which supports serial infrared communication. Each UART in-

cludes a 16-byte send/receive FIFO, a programmable baud rate generator, complete

modem control capability and a processor interrupt system. Both UARTs provide

legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed

with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional Printer

Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Confi guration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through an SMI or SCI function pin.

The IRQs, DMAs and I/O space resources of the Super I/O can fl exibly adjust

to meet ISA PnP requirements, which support ACPI and APM (Advanced Power

Management).

1-13

X6DH3-G2/X6DHi-G2 User's Manual

1-14

Chapter 2: Installation

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electric-Static-Discharge (ESD) can damage electronic com ponents. To prevent

damage to your system board, it is important to handle it very carefully. The following

measures are generally suffi cient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

upside down battery to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

2-1

X6DH3-G2/X6DHi-G2 User's Manual

2-2 Xeon Processor and Heatsink Installation

When handling the processor package, avoid placing direct pressure
on the label area of the fan. Also, do not place the motherboard on a

!

IMPORTANT: Always connect the power cord last and always remove it before add-

ing, removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the CPU heatsink.

CPU Installation

conductive surface, which can damage the BIOS battery and prevent the
system from booting up.

1. Lift the lever on the CPU socket:

lift the lever completely as shown on

the picture on the right; otherwise,

you will damage the CPU socket

when power is applied. (Install

CPU1 fi rst.)

2. Insert the CPU in the socket,

making sure that pin 1 of the CPU

aligns with pin 1 of the socket (both

corners are marked with a triangle).

When using only one CPU, install

it into CPU socket #1 (Socket #2 is

automatically disabled if only one

CPU is used).

3. Press the lever down until you

hear the click, so you can be sure

that the CPU is securely installed in

the CPU socket.

Socket lever

Pin 1

2-2

Socket lever in the

locking Position

Chapter 2: Installation

CEK Heatsink Installation

1. Do not apply any thermal grease to

the heatsink or the CPU die-the required

amount has already been applied.

2. Place the heatsink on top of the CPU so

that the four mounting holes are aligned

with those on the retention mechanism.

3. Screw in two diagonal screws (ie the #1

and the #2 screws) until just snug (-do not

fully tighten the screws to avoid possible

damage to the CPU.)

4. Finish the installation by fully tightening

all four screws.

CEK Passive Heatsink

Screw#1 Screw#2

Screw#1

Screw#2

2-3

X6DH3-G2/X6DHi-G2 User's Manual

To Un-install the Heatsink

(Warning: We do not recommend

!

1. Unscrew and remove the heatsink screws

from the motherboard in the sequence as show

in the picture on the right.

that the CPU or the heatsink be

removed. However, if you do need

to uninstall the heatsink, please

follow the instructions below to

uninstall the heatsink to prevent

damage done to the CPU or the

CPU socket.)

2. Hold the heatsink as show in the picture

on the right and gently wriggle the heatsink to

loosen it from the CPU. (Do not use excessive

force when wriggling the heatsink!!)

3. Once the CPU is loosened, remove the

heatsink from the CPU socket.

4. Clean the surface of the CPU and the

heatsink to get rid of the old thermal grease.

Reapply the proper amount of thermal grease

on the surface before you re-install the CPU

and the heatsink.

2-4

Figure 2-1. PGA604 Socket: Empty and with Processor Installed

Empty socket

!

Warning! Make

sure you lift the lever

completely when

installing the CPU.

If the lever is only

partly raised, damage

to the socket or CPU

may result.

Lever

Triangle

Processor

(installed)

Chapter 2: Installation

Triangle

Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fi t different types of chassis.

Make sure that the locations of all the mounting holes for both the motherboard and

the chassis match. Make sure that the metal standoffs click in or are screwed in

tightly and then, use a screwdriver to secure the motherboard onto the motherboard

tray.(Note: some components are very close to the mounting holes. Please take all

necessary precautionary measures to prevent damage done to these components

when installing the motherboard into the chassis.)

2-5

X6DH3-G2/X6DHi-G2 User's Manual

2-3 Installing DIMMs

(

Note: Check the Supermicro web site for recommended memory modules: http:www.

supermicro.com/)

CAUTION

Exercise extreme care when installing or removing DIMM modules

to prevent any possible damage. Also note that the memory is inter-

leaved to improve performance (see step 1).

DIMM Installation (See Figure 2-2 on Page 2-6)

1. Insert the desired number of DIMMs into the memory slots, starting with Bank

1. The memory scheme is interleaved so you must install two modules at a

time, beginning with Bank 1, then Bank 2, and so on.

2. Insert each DIMM module vertically into its slot. Pay attention to the notch along

the bottom of the module to prevent inserting the DIMM module incorrectly.

3. Gently press down on the DIMM module until it snaps into place in the slot.

Repeat for all modules (see step 1 above).

Memory Support

The X6DH3-G2/X6DHi-G2 supports up to 16 GB Registered ECC DDR2

400(PC3200) memory. Please refer to Supermicro's web site at www.supermicro.

com for memory updates.

2-6

Chapter 2: Installation

Figure 2-2. Installing and Removing DDR 2

To Install:

Insert module
vertically and
press down
until it snaps
into place.
Pay attention
to the align­ment notch at
the bottom.

2

DDR 2 Slot

Release Tab

To Remove:

Use your thumbs to gently push near the edge of both ends of the
module. This should release it from the slot.

Release Tab

2-4 I/OPorts/Control Panel Connectors

The I/O ports are color coded in conformance with the PC 99 specifi cation. See

Figure 2-3 below for the colors and locations of the various I/O ports.

Figure 2-3. I/O Port Locations and Defi nitions

Video

2-7

X6DH3-G2/X6DHi-G2 User's Manual

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located

on a control panel at the front of the chassis. These connectors are designed specifi -

cally for use with Supermicro server chassis. See Figure 2-4 for the descriptions of

the various control panel buttons and LED indicators. Refer to the following section

for descriptions and pin defi nitions.

Figure 2-4. JF1 Header Pins

1920

Ground

NMI

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Power Fail LED

Ground

Ground

X

1

2

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Pwr

Reset Button

Power Button

2-8

Chapter 2: Installation

2-5 Connecting Cables

ATX Power Connector

The main power supply connector

(JPW1) on the X6DH3-G2/X6DHi-G2

meets the SSI (Superset ATX) specifi -

cation. You can only use a 24-pin pow-

er supply cable on the motherboard.

Make sure that the orientation of the

connector is correct. See the table on

the right for pin defi nitions.

4-pin and 8-pin Power
Connectors

In addition to the Primary ATX power

connector (above), the 12V 8-pin

connector at J1D1 and the 12V 4-pin

connector at J38 must also be used to

provide adequate power supply to the

system. See the tables on the right for

pin defi nitions.

ATX Power 24-pin Connector

Pin Defi nitions

Pin# Defi nition Pin # Defi nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

12V 4-pin Power Con-

nector

Pin Defi nitions

Pins Defi nition

1 and 2 Ground

3 and 3 +12V

12V 8-pin Power Con-

nector

Pin Defi nitions

Pins Defi nition

1 through 4 Ground

5 through 8 +12V

B

K

US

1

0/

COM1

J14

GA

V

LAN1

LAN2

JPL1

VGA
C

T

Buzze

S

M

/

J33

B

Parrallel

Port

JLAN1

J7

JLAN1

LAN2

J

GLAN
CTRL

LAN

G
CTRL

JPL2

RL

r

WD

J

Slot4

Slot3

Slot2

Slot1

JPG1

Fan6

Bank1

Bank2

Bank3

Bank4

Slo

Slo

t6

t5

PCI-E X8

Fan5

I-E

C

P

PCI-X 100 MH

PCI-X1

P

JD1

JPW1

J38

in

12V 4-P
PWR

DIM

M 1A

DIMM 1B

A

DIMM 2

DIMM 2B

DIMM 3A

B

DIMM 3

M 4A

DIM

DIMM 4B

UPER X6DH3-G2

S

SEPC

X8

PCI-X 133 MH

CR (Green Slot)

Z

z

00 MHz

Hz

3 M

I-3

C

COM2

24-Pin

®

S I/O

z

SMB

24-Pin ATX PWR 8-Pin 12V PWR4-Pin12V CPU PWR

J31

12V 8-pin
PWR

PU1

C

CPU2

I

IPM

DS6

DS5

1
S

JP

DS1

DS2

S

A

S
CTRL

JWOR

A1

JP1

SAS4-7

SAS0-3

JS

AR

J

3P

J

1D1

J

9

JP

PSF

F

an1

1
JF

FP Control

n2

Fa

Fan3

JOH

y

E2

pp

IDE1

ID

Flo

DS7

DS8

9

JS

DS3

DS4

JSM2

JSM1

J

L1

0

1

Fan4

PWR

ATX

7520

E

BIOS

Fan8

ttery

Ba

JBT1

2

J

I

C1

2

J

I

U

C2

6300ESB

S

B2/3

ICH

WOL

PXH

MB PS

S

I-SAT

7

Fan

J32

A0

I-SAT

2-9

X6DH3-G2/X6DHi-G2 User's Manual

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin defi nitions.

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

NMI Button

Pin Defi nitions (JF1)

Pin# Defi nition

19 Control

20 Ground

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 +5V

16 Ground

KB/MS

USB
0

COM1

VGA

LAN1

LAN2

V
C

B

/1

14

J

Parrallel

J

LAN1

J

LAN2

J

JPL1

JPL2

GA
TRL

uzzer

33

J

Port

JLAN1

7

GLAN

CTRL

G
CTRL

PWR LED

6

n

n

Fa

Fa

Bank1

Bank2

Bank3

Bank4

Slot6

I-E

C

P

LAN

Slot5

PCI-

Slot4

Slot3

PCI-

Slot2

PC

t1

Slo

PCI-33 M

JD1

J

P

WD

G1

J

24-Pin

5

JPW1

38

J

12V 4-Pin
PWR

DIMM 1A

DIMM 1B

A

M 2

DIM

M 2B

DIM

DIM

M 3A

B

M 3

DIM

DIMM 4A

DIMM 4B

®

UPER X6DH3-G2

S

PC

SE

8

X

S I/O

8

E X

Hz

X 133 M

PCI-

een

r

(G

CR

Z

00 MHz

1

X

00 MHz

X1

I-

Hz

COM2

Battery

MB
S

ATX PWR

752

E

BIOS

Slot)

2

J

I

C

1

2

JI

C

2

SMB PS

7

0

PXH

F

an8

B

6300ES

ICH

J

B

T1

U

S

B2/3

A

WOL

I-S

12V 8-pin
PWR

32

J

an
F

J31

0

A

T

I-S

U1

P

C

CPU2

IPMI

1
PS

J

SAS

RL

CT

JW

A1

OR

AT

JAR

3P

J

1D1

J

P9

J

PSF

F

an1

Ground

X

1
JF

FP Control

Fan2

an3

F

JOH

y

E1

pp

ID

IDE2

Flo

DS7

DS6

DS8

DS5

JS9

DS1

DS3

DS4

DS2

SAS4-7

JSM2

JSM1

SAS0-3

JP1

J

L1

JS10

Fan4

Power LED

HDD LED

NIC1 LED

NIC2 LED

OH/Fan Fail LED

Power Fail LED

Ground

Ground

NMI

1920

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Reset Button

Power Button

Pwr

1

2

2-10

HDD LED

Chapter 2: Installation

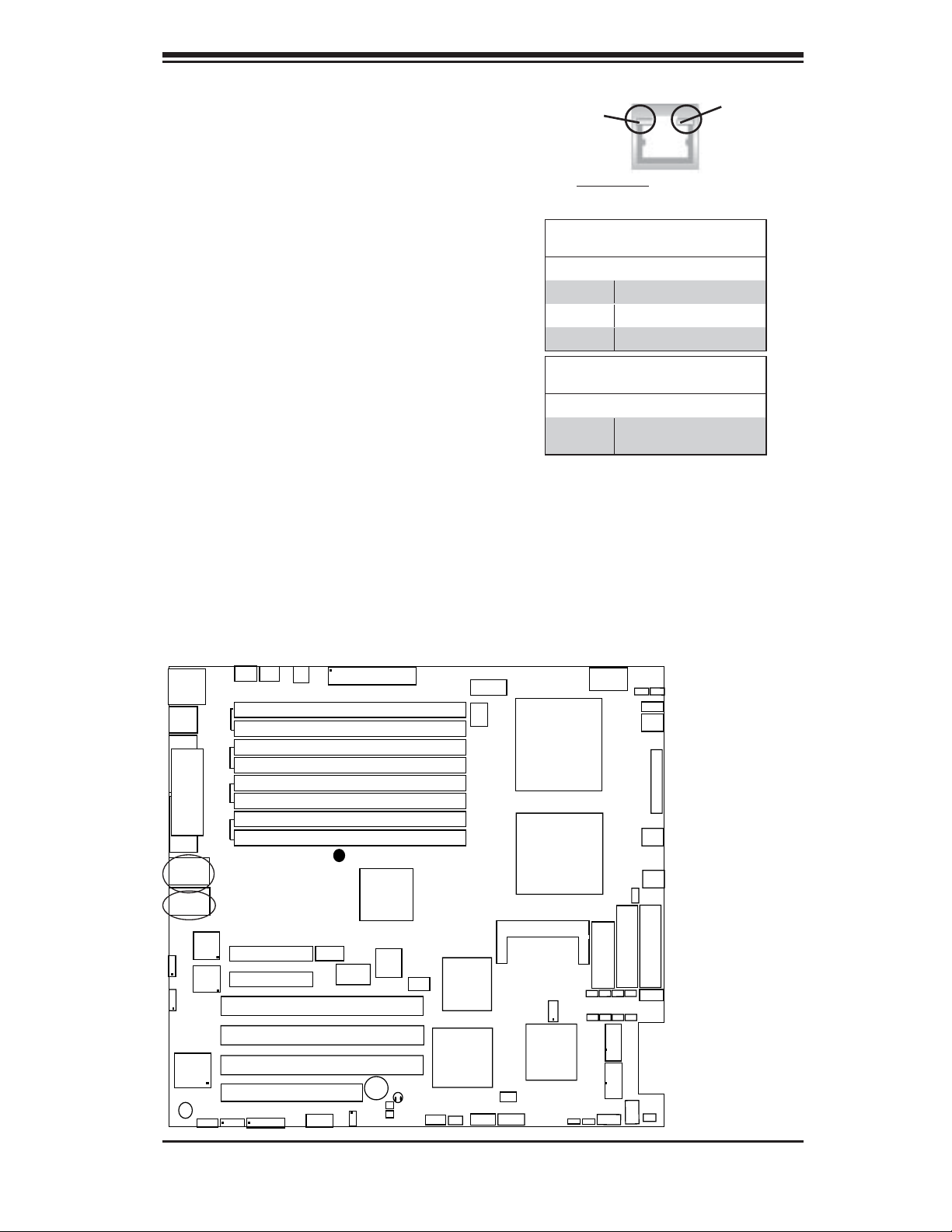

The HDD LED connection is located

on pins 13 and 14 of JF1. Attach the

hard drive LED cable here to display

disk activity (for any hard drives on

the system, including SCSI, Serial ATA

and IDE). See the table on the right

for pin defi nitions.

NIC1/NIC2 LED Indicators

The NIC (Network Interface Control-

ler) LED connections for the GLAN

port1 is located on pins 11 and 12 of

JF1, and for the GLAN port2 is located

on pins 9 and 10 of JF1. Attach the

NIC LED cables to display network

activity. Refer to the tables on the right

for pin defi nitions.

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 +5V

14 HD Active

GLAN1/2 LED

Pin Defi nitions (JF1)

Pin# Defi nition

9/11 Vcc

11/12 Ground

KB/MS

USB

/1

0

COM1

VGA

LAN1

LAN2

V
C

B

uzzer

J

14

J

Parrallel

JLAN1

7

J

LAN1

J

LAN2

J

GLAN
CTRL

G

JPL1

CTRL

JPL2

GA
TRL

HDD LED

NIC1 LED
NIC2 LED

Ground

6

n

n

Fa

Fa

33

Bank1

Bank2

Port

Bank3

Bank4

Slot6

I-E

C

P

LAN

Slot5

PCI-

Slot4

Slot3

PCI-

Slot2

P

t1

Slo

PCI-33 M

JD1

J

P

WD

G1

J

24-Pin

5

JPW1

38

J

12V 4-Pin
PWR

DIMM 1A

DIMM 1B

DIMM 2A

M 2B

DIM

DIM

M 3A

B

DIMM 3

DIMM 4A

DIMM 4B

®

UPER X6DH3-G2

S

PC

SE

8

X

S I/O

X8

E

Hz

X 133 M

PCI-

(Green

CR

Z

00 MHz

1

X

MHz

00

X1

CI-

Hz

COM2

Battery

MB

S

ATX PWR

752

E

BIOS

Slot

2

J

I

C

1

2

JI

C

2

SMB PS

0

PXH

F

an8

)

J

B

T1

U

S

6300ES

B2/3

ICH

WOL

B

A

I-S

12V 8-pin
PWR

32

J

7

an
F

J31

0

A

T

I-S

U1

P

C

CPU2

IPMI

1
PS

J

SAS

RL

CT

JW

A1

OR

AT

JAR

3P

J

1D1

J

P9

J

PSF

F

an1

1
JF

FP Control

Fan2

an3

F

JOH

y

E1

pp

ID

IDE2

Flo

DS7

DS6

DS8

DS5

JS9

DS1

S3

D

DS4

DS2

SAS4-7

JSM2

JSM1

SAS0-3

JP1

J

L1

JS10

Fan4

Power LED

OH/Fan Fail LED

Power Fail LED

X

HDD LED

NIC1 LED

NIC2 LED

Ground

Ground

1920

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Reset Button

Power Button

Pwr

1

2

2-11

X6DH3-G2/X6DHi-G2 User's Manual

Overheat/FanFail LED

Connect an LED to the OH/Fan Fail

connection on pins 7 and 8 of JF1 to

provide advanced warnings of chas-

sis overheating or system fan failure.

Refer to the table on the right for pin

defi nitions.

Power Fail LED

The Power Fail LED is located on Pins

5 and 6 of JF1. Refer to the table on

the right for pin defi nitions.

OH/Fan Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

7 Vcc

8 Ground

OH/Fan Fail Indicator

Status

State Defi nition

Off Normal

On Overheat

Flash-

Fan Fail

ing

PWR Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

5 Vcc

6 Ground

CO

K

USB
0

VGA

LAN1

LAN2

V
C

B

B/MS

/1

uzze

33

J

M1

14

J

Parrallel

Port

JLAN1

7

J

LAN1

J

LAN2

J

GLAN

CT

GLAN

JPL1

CTRL

JPL2

G

A

T

RL

r

OH/Fan Fail LED

PWR Fail LED

12V 8-pin
PWR

32

J

CPU1

CPU2

JAR

3P

J

1D1

J

P9

J

PSF

F

an1

1
JF

FP Control

Fan2

an3

F

JOH

Ground

X

Power LED

HDD LED

NIC1 LED

Bank1

Bank2

Bank3

Bank4

5

6

Fan

Fan

24-Pin

PWR

ATX

JPW1

38

J

in

12V 4-P
PWR

DIMM 1A

B

M 1

DIM

DIMM 2A

B

DIMM 2

DIMM 3A

DIMM 3B

A

M 4

DIM

DIMM 4B

®

UPER X6DH3-G2

S

752

E

SMB PS

7
an

F

0

NIC2 LED

RL

Slot6

P

Slot5

PCI-

Slot4

Slot3

Slot2

Slot1

JD1

J

P

WD

G1

J

8

X

E

I-

C

E X8

PCI-

X 100 MHz

CI-

P

PCI-X100 MHz

PCI-33 M

SE

X 133 MHz

z

H

COM2

PC

S I/O

CR (Green Slot)

Z

Battery

JI

JI

MB
S

OS

BI

2

C

1

2

C

2

JBT1

PX

F

a

n8

6300ES

ICH

U

S

B2/3

WOL

IPMI

H

B

J31

0

A1

A

AT

AT

S

I-S

I-

SA
CTRL

JW

y
pp

IDE2

Flo

DS7

DS6

DS8

DS5

1
PS

J

DS1

DS3

DS4

DS2

S

SAS4-7

JSM2

JSM1

SAS0-3

JP1

JS10

OR

Fan4

E1
ID

9

JS

J

L1

OH/Fan Fail LED

Power Fail LED

Ground

Ground

1920

NMI

X

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Reset Button

Power Button

Pwr

1

2

2-12

Chapter 2: Installation

Reset Button

The Reset Button connection is located

on pins 3 and 4 of JF1. Attach it to the

hardware reset switch on the computer

case. Refer to the table on the right for

pin defi nitions.

Power Button

The Power Button connection is locat-

ed on pins 1 and 2 of JF1. Momentarily

contacting both pins will power on/off

the system. This button can also be

confi gured to function as a suspend

button (with a setting in the BIOS - see

Chapter 4). To turn off the power when

set to suspend mode, press the button

for at least 4 seconds. Refer to the

table on the right for pin defi nitions.

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 Signal

2 +3V Standby
