SUPER MICRO Computer IRV-3702 User Manual
User's Manual
for the
IRV-3702 Single Board Computer with AGP/VGA & Ethernet
MCSI PART NO. 89000 IRV-3702
All-In-One Single Board Computers
For Industrial/Embedded Systems Applications
MICRO COMPUTER SPECIALISTS, INC.
"The Embedded PC Specialists"
1070 Joshua Way
Vista, CA 92083
U.S.A.
Voice (760) 598-2177 - Fax (760) 598-2450
email: mcsi@mcsi1.com WebSite: http://www.mcsi1.com
Revised January 14, 2000
Revision 1.1
Changes are made periodically to the information contained herein; these changes will be incorporated
into new editions of this document.
Requests for copies of this publication or the product(s) which it describes should be made to MCSI.
While every effort has been made to insure that this document and its accompanying product(s)
are free from defects, MCSI, its distributors, representatives, and employees shall not be
responsible for any loss of profit or any other commercial damage including, but not limited to,
special, incidental, consequential, or other damages occasioned by the use of this product(s).
In the event of defect the buyer's sole recourse is to receive a refund or replacement unit at
MCSI's discretion if notified within the time period covered by the product warranty.
1999 MCSI Micro Computer Specialists, Inc. All Rights Reserved.
Celeron is a registered trademark of Intel Corporation
IBM is a registered trademark of International Business Machines Corporation.
PC/XT & PC/AT are registered trademarks of International Business Machines Corporation
MS-DOS is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective holders.
PREFACE
This manual provides information about the MCSI IRV-3702 All-In-One Single Board Computer. This
information is intended for users who must implement IBM PC/AT compatible computer solutions to
a wide variety of applications that cannot be satisfied using conventional desktop computers. This
manual assumes that the reader has a good understanding of MS-DOS and the standard IBM PC/AT
compatible architecture. For more information on the IBM PC compatible hardware and software
architecture, refer to any of the many books available on the subject. A few suggestions are listed
below:
•Advanced MS-DOS Programming, Microsoft Press
•Programmers Guide to the IBM PC, Microsoft Press
•Programming the 80386, Sybex
•Undocumented DOS, Addison Wesley
INVENTORY CHECKLIST
The complete IRV-3702 All-In-One Single Board Computer package consists of the following:
IRV-3702 All-In-One Single Board Computer
PROMDISK-Chip Software Utilities with ROM-DOS ver 6.22 (optional)
VGA and E
This Manual
If any of the above is missing or appears to be damaged, inform MCSI immediately.
2
Key Software Utilities
Table of Contents
Section 1 - Introduction ___________________________________________________________________ 1
Features............................................................................................................................................................1
Section 2 - System Description _____________________________________________________________ 2
Processor..........................................................................................................................................................2
System Memory (SDRAM)............................................................................................................................2
DMA Controller..............................................................................................................................................2
Interrupt Controller........................................................................................................................................3
Timers ..............................................................................................................................................................3
Clock/Calendar and CMOS RAM...............................................................................................................3
Keyboard Port.................................................................................................................................................3
Mouse Port ......................................................................................................................................................4
Speaker Port................................................................ ................................ ................................ ....................4
Reset Switch ....................................................................................................................................................4
Printer Port......................................................................................................................................................4
Serial Ports.......................................................................................................................................................4
Floppy Disk Port.............................................................................................................................................4
EIDE Hard Disk Port......................................................................................................................................5
AGP/VGA Display Port................................ ................................ ................................ ................................5
WatchDog Timer ............................................................................................................................................5
Optional PROMDISK-Chip Disk Emulator ................................................................................................5
High Speed PCI Expansion Bus....................................................................................................................5
Ethernet Port...................................................................................................................................................6
Universal Serial Bus Port................................ ................................ ................................ ...............................6
IrDA Infrared Interface Port .........................................................................................................................6
E2 Key 1K-bit User EEPROM ........................................................................................................................6
Section 3 - Setup _________________________________________________________________________ 7
Section 4 - Using the PROMDISK-Chip Disk Emulator ________________________________________ 8
Using ROM-DOS and Other Disk Operating Systems..............................................................................8
PROMDISK Low Level Format....................................................................................................................8
Section 5 - Installation ____________________________________________________________________ 9
Installing the DIMMs.....................................................................................................................................9
Installing the CPU ..........................................................................................................................................9
Installing the PROMDISK-Chip ...................................................................................................................9
Completing the Installation...........................................................................................................................10
Appendix A - Specifications________________________________ _______________________________ 11

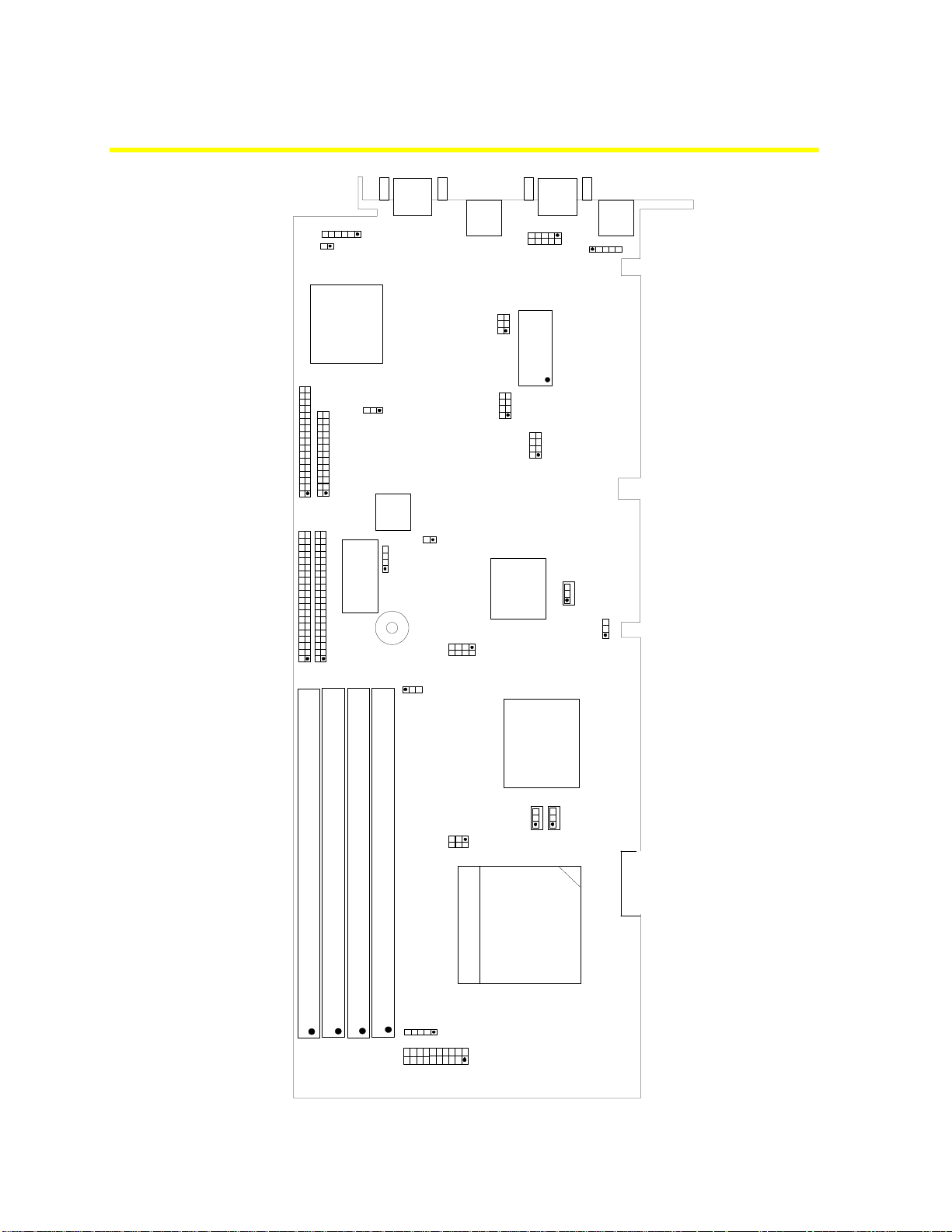

Appendix B - Board Outline_______________________________________________________________ 12
Appendix C - Memory and I/O Maps ______________________________________________________ 13
Appendix D - Connectors _________________________________________________________________ 14
Appendix E - Configuration Jumpers _______________________________________________________ 18
Appendix F - BIOS Error Beep Codes _______________________________________________________ 20
SECTION 1 - INTRODUCTION
The MCSI IRV-3702 Celeron All-In-One Single Board Computer (SBC) contains all the basic elements
found in a high-performance IBM PC/AT compatible desktop computer system plus some unique
features that make it ideally suited for industrial applications. The most outstanding features include:
An optional 32MB PROMDISK-Chip
EIDE drives, a high performance multi-I/O controller, a WatchDog timer, a 1K-bit E
user data, and a 10/100Mbps Ethernet Port. The board uses the Intel 82443BX advanced chipset, and
the S3 Trio 3D/2X Graphics controller. The multi-I/O controller includes: dual 16C550 UARTs, a
floppy port, and a SPP/EPP/ECP multi-mode bi-directional parallel port. The optional PROMDISKChip Disk Emulator comes complete with ROM-DOS version 6.22, making it ideal for embedded
diskless applications. The 1K-bit E
such as: critical system parameters, terminal address, etc. The WatchDog timer is ideal for controlling
critical processes where unattended operation is essential.
The IRV-3702 SBC is fully compatible with the ISA Bus and the PCI Bus (version 2.1) which means
virtually all the software written for the IBM PC/AT will run on the IRV-3702 SBC.
FEATURES
A complete list of features is listed below:
• IBM PC/AT Compatible Plug-in Computer
• Supports the Intel Celeron Processor up to 500MHz
• Includes Zero Insertion CPU Socket 370
• Intel 82443BX ChipSet
• Includes 32 bit PCI 2.1 Compatible Bus
• AMI Plug-n-Play Flash BIOS
• Passive Backplane Architecture
• S3 Trio 3D AGP/VGA Controller and 4MB Video RAM
• 10/100Mbps Auto-Sensing Ethernet Port Supports IEEE 802.3u 100BASE-TX Standard
• 1G-Byte High Performance SDRAM System Memory (4-168 pin DIMMs)
• Dual Floppy Disk Port Supports Two 3.5" or 5.25" Drives up to 2.88M-bytes
• PCI Extended EIDE Hard Disk Port Supports up to Four Drives
• PS2/AT Compatible Keyboard Port
• PROMDISK-Chip Socket Supports up to 32MB PROMDISK-Chip Disk Emulator
• PS2 Compatible Mouse Port
• Two High Speed 16C550 Compatible RS-232 Serial Ports
• Multimode Bi-directional Parallel Printer Port
• Dual Universal Serial Bus Ports for future expansion
• Infrared Data Access Port for future applications
• Clock/Calendar with Battery Back-up
• Low Power CMOS Design
• Full Size AT Plug-in Multilayer Board for Low EMI and High Reliability
• WatchDog Timer and Power Monitor
• On-board Mini Speaker
• Optional External Reset
• Optional Datalight ROM-DOS 6.22 Operating System
Disk Emulator, dual PCI EIDE hard disk ports to support four
2
Key memory is a non-volatile memory useful for storing user data,
2
Key memory for
1
SECTION 2 - SYSTEM DESCRIPTION
The following sections describe the major system features of the IRV-3702 All-In-One Single Board
Computer.
PROCESSOR
The IRV-3702 SBC supports the Intel Celeron processor up to 500MHz. The Celeron microprocessor
includes MMX media enhancement technology, dynamic execution technology, a 32Kbyte
(16Kbyte/16Kbyte) non-blocking, level-one cache that provides fast access to heavily used data, and
128Kbyte L2 cache. The on-board jumper selectable clock generator and ZIF CPU socket makes
upgrading to a higher performance CPU easy. Some of the distinctive features of the Celeron
processor include:
• Enhanced 64-bit data bus
• Integrated 128Kbyte L2 cache
• 16Kbyte code and 16Kbyte data caches
• 1G-byte Directly Addressable Memory Space
• Dynamic execution technology
• MMX multimedia technology
• On-chip Pipelined Floating Point Processor
• 66 MHz multi-transaction system bus
• Integrated Memory Manager
• Branch prediction feature
SYSTEM MEMORY (SDRAM)
The IRV-3702 SBC can support up to 1G-bytes of synchronous dynamic random access memory
(SDRAM) organized as four banks of 32Mx72 including eight parity bits. The memory is configured
using four dual in-line memory module sockets, which will accept 168-pin dual in-line memory
modules (DIMMs) organized as 256MB (maximum) with a maximum access time of 10ns.
DMA CONTROLLER
The IRV-3702 SBC memory refresh and DMA functions are included in the System Controller chip that
includes the equivalence of two 82C37 DMA controllers. The two DMA controllers are cascaded to
provide four DMA channels for transfers to 8-bit peripherals (DMA1) and three channels for transfers
to 16-bit peripherals (DMA2). DMA2 Channel 0 provides the cascade interconnection for the two
DMA devices thereby maintaining IBM PC/AT compatibility. The DMA channel assignments are
listed below:
DMA Channel 0: Not Used (8-bit)
DMA Channel 1: Alternate for Multi-mode Parallel Port (8-bit)
DMA Channel 2: Floppy Disk (8-bit)
DMA Channel 3: Multi-mode Parallel Port (8-bit)
DMA Channel 5: Not Used (16-bit)
DMA Channel 6: Not Used (16-bit)
DMA Channel 7: Not Used (16-bit)
The DMA request (DRQx) and acknowledge (DACKx/) lines are available on the P1 98-pin edge
connector.
2
