SUPER MICRO Computer AS 1020C-3 User Manual

AS 1020C-3

USER’S MANUAL

1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site.

We reserve the right to make changes to the product described in this manual at any time and
without notice. This product, including software, if any, and documentation may not, in whole or in
part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without
prior written consent.

IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,
INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE
OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING
OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Our total liability for all claims will
not exceed the price paid for the hardware product.

Manual Revision 1.0

Release Date: October 13, 2006

Unless you request and receive written permission from the manufacturer, you may not copy any
part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2006
All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the A+ Server 1020C-3. Instal-

lation and maintainance should be performed by experienced technicians only.

The 1020C-3 is a high-end 1U rackmount server based on the SC813T+-500 server

chassis and the H8DCR-3 serverboard, which supports dual AMD Opteron™ 200

series processors and up to 32 GB of registered ECC DDR333/266 or up to 16 GB

of registered ECC DDR400 SDRAM.

Preface

Manual Organization

Chapter 1: Introduction

The fi rst chapter provides a checklist of the main components included with the

server system and describes the main features of the H8DCR-3 serverboard and

the SC813T+-500 chassis, which make up the 1020C-3.

Chapter 2: Server Installation

This chapter describes the steps necessary to install the 1020C-3 into a rack and

check out the server confi guration prior to powering up the system. If your server

was ordered without processor and memory components, this chapter will refer you

to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and

information provided by the control panel on the chassis as well as other LEDs

located throughout the system.

iii

AS 1020C-3 User's Manual

Chapter 4: System Safety

You should thoroughly familiarize yourself with this chapter for a general overview

of safety precautions that should be followed when installing and servicing the

1020C-3.

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the H8DCR-3 serverboard, including the

locations and functions of connectors, headers and jumpers. Refer to this chapter

when adding or removing processors or main memory and when reconfi guring the

serverboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC813T+-500 1U rackmount

server chassis. You should follow the procedures given in this chapter when in-

stalling, removing or reconfi guring SAS or peripheral drives and when replacing the

system power supply unit and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed informa-

tion on running the CMOS Setup Utility.

Appendix A: BIOS Error Beep Codes

Appendix B: BIOS POST Checkpoint Codes

Appendix D: System Specifi cations

iv

Notes

Preface

v

AS 1020C-3 User's Manual

Table of Contents

Preface

About This Manual ...................................................................................................... iii

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Serverboard Features ..................................................................................... 1-2

1-3 Server Chassis Features ................................................................................ 1-4

1-4 Contacting Supermicro ................................................................................... 1-6

Chapter 2: Server Installation

2-1 Overview ......................................................................................................... 2-1

2-2 Unpacking the System ................................................................................... 2-1

2-3 Preparing for Setup ........................................................................................ 2-1

Choosing a Setup Location .................................................................... 2-2

Rack Precautions .................................................................................... 2-2

Server Precautions ................................................................................. 2-2

Rack Mounting Considerations ............................................................... 2-3

2-4 Installing the System into a Rack ................................................................... 2-4

Identifying the Sections of the Rails ....................................................... 2-4

Installing the Rack Rails ............................................................................ 2-4

Installing the Chassis Rails ....................................................................... 2-5

Installing the Server into the Rack ............................................................ 2-6

Installing the Server into a Telco Rack ..................................................... 2-7

2-5 Checking the Serverboard Setup ................................................................... 2-8

2-6 Checking the Drive Bay Setup ....................................................................... 2-9

Chapter 3: System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons .................................................................................... 3-1

Reset ....................................................................................................... 3-1

Power ...................................................................................................... 3-1

3-3 Control Panel LEDs ........................................................................................ 3-2

Overheat/Fan Fail .................................................................................. 3-2

NIC2 .......................................................................................................... 3-2

NIC1 .......................................................................................................... 3-2

HDD ........................................................................................................ 3-3

vi

Table of Contents

Power ...................................................................................................... 3-3

3-4 SAS Drive Carrier LEDs .................................................................................. 3-3

Chapter 4: System Safety

4-1 Electrical Safety Precautions ........................................................................... 4-1

4-2 General Safety Precautions ............................................................................. 4-2

4-3 ESD Precautions ............................................................................................ 4-3

4-4 Operating Precautions ..................................................................................... 4-4

Chapter 5: Advanced Serverboard Setup

5-1 Handling the Serverboard ................................................................................ 5-1

5-2 Mounting the Serverboard into a Chassis ....................................................... 5-2

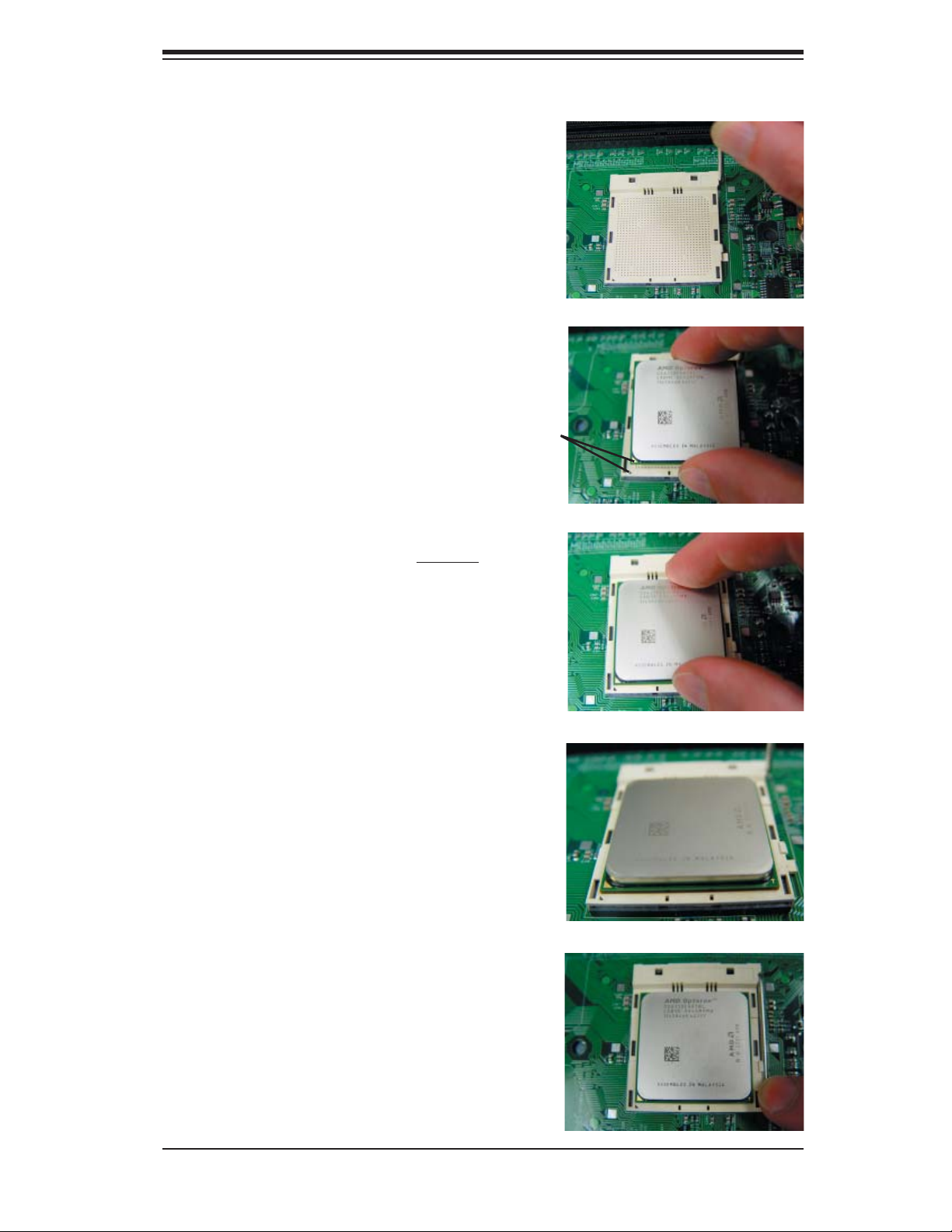

5-3 Processor and Heatsink Installation ................................................................ 5-2

5-4 Connecting Cables .......................................................................................... 5-5

Connecting Data Cables ........................................................................... 5-5

Connecting Power Cables ......................................................................... 5-5

Connecting the Control Panel ................................................................... 5-6

5-5 I/O Ports ........................................................................................................... 5-7

5-6 Installing Memory ............................................................................................. 5-7

5-7 Adding PCI Cards ............................................................................................ 5-9

5-8 Serverboard Details ....................................................................................... 5-10

H8DCR-3 Layout ................................................................................... 5-10

H8DCR-3 Quick Reference .................................................................. 5-11

5-9 Connector Defi nitions .................................................................................... 5-12

ATX Power Supply Connector .............................................................. 5-12

Processor Power Connector ................................................................. 5-12

Auxilliary Power Connector ................................................................... 5-12

NMI Button ............................................................................................ 5-12

Power LED ............................................................................................ 5-13

HDD LED ................................................................................................. 5-13

NIC1 LED .............................................................................................. 5-13

NIC2 LED .............................................................................................. 5-13

Overheat/Fan Fail LED ........................................................................... 5-13

Power Fail LED ....................................................................................... 5-14

Reset Button .......................................................................................... 5-14

Power Button .......................................................................................... 5-14

LAN1/2 Ports .......................................................................................... 5-14

Universal Serial Bus Ports ..................................................................... 5-14

Extra USB Headers ................................................................................ 5-15

Serial Ports ............................................................................................. 5-15

vii

AS 1020C-3 User's Manual

Fan Headers ............................................................................................ 5-15

Chassis Intrusion .................................................................................... 5-15

Power LED/Speaker ................................................................................ 5-16

ATX PS/2 Keyboard & Mouse Ports ...................................................... 5-16

Overheat LED .......................................................................................... 5-16

PS_SMBUS ............................................................................................ 5-16

Wake-On-LAN ......................................................................................... 5-17

Wake-On-Ring ........................................................................................ 5-17

SMBus Header ....................................................................................... 5-17

Alarm Reset Header .............................................................................. 5-17

Power Fail Connector ............................................................................ 5-18

Compact Flash Power Connector .......................................................... 5-18

JSLED1 Header ..................................................................................... 5-18

2

I

C for SAS Connector ........................................................................... 5-18

5-10 Jumper Settings ............................................................................................. 5-19

Explanation of Jumpers ........................................................................... 5-19

CMOS Clear ............................................................................................ 5-19

3rd Power Supply Fail Detect Enable/Disable ........................................ 5-20

2

I

C to PCI Enable/Disable ...................................................................... 5-20

Compact Flash Master/Slave ................................................................. 5-20

VGA Enable/Disable ................................................................................ 5-20

Watch Dog Enable/Disable ..................................................................... 5-21

Onboard Speaker Enable/Disable ......................................................... 5-21

SAS Controller Enable/Disable .............................................................. 5-21

PCI-X Slot Frequency Select ................................................................. 5-22

LAN1/2 Enable/Disable .......................................................................... 5-22

5-11 Onboard Indicators ........................................................................................ 5-22

LAN1/LAN2 LEDs .................................................................................... 5-23

+3.3V Standby LED ............................................................................... 5-23

SAS Activity LEDs .................................................................................. 5-23

5-12 Floppy, IDE and SAS Connections ................................................................ 5-24

Floppy Connector .................................................................................... 5-24

IDE Connectors ....................................................................................... 5-25

SAS Ports ............................................................................................... 5-25

5-13 Enabling SAS RAID ...................................................................................... 5-26

5-14 Installing Drivers ............................................................................................ 5-30

Chapter 6: Advanced Chassis Setup

6-1 Static-Sensitive Devices .................................................................................. 6-1

6-2 Control Panel ................................................................................................... 6-2

viii

Table of Contents

6-3 System Fans .................................................................................................... 6-3

System Fan Failure ................................................................................... 6-3

Replacing System Cooling Fans ............................................................... 6-3

6-4 Drive Bay Installation/Removal ........................................................................ 6-4

Removing the Front Bezel ........................................................................ 6-4

Accessing the Drive Bays ......................................................................... 6-5

Serial Attached SCSI (SAS) Drive Installation .......................................... 6-6

CD-ROM and Floppy Drive Installation ..................................................... 6-8

6-5 Power Supply ................................................................................................... 6-9

Power Supply Failure ................................................................................ 6-9

Removing/Replacing the Power Supply .................................................... 6-9

Chapter 7: BIOS

7-1 Introduction ....................................................................................................... 7-1

7-2 Main Menu ....................................................................................................... 7-2

7-3 Advanced Settings Menu ................................................................................ 7-2

7-4 Boot Menu .................................................................................................... 7-15

7-5 Security Menu ............................................................................................... 7-16

7-6 Exit Menu ...................................................................................................... 7-17

Appendices:

Appendix A: BIOS Error Beep Codes ....................................................................... A-1

Appendix B: BIOS POST Checkpoint Codes ............................................................ B-1

Appendix C: System Specifi cations ......................................................................... C-1

ix

AS 1020C-3 User's Manual

Notes

x

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

The AS1020C-3 is a high-end, dual processor 1U rackmount server system featur-

ing some of the most advanced technology currently available. The 1020C-3 is

comprised of two main subsystems: the SC813TQ+-500 1U rackmount chassis

and the H8DCR-3 dual processor serverboard. Please refer to our web site for

information on operating systems that have been certifi ed for use with the 1020C-3.

In addition to the mainboard and chassis, various hardware components may have

been included with your 1020C-3 server system, as listed below:

 One (1) slim fl oppy drive [FPD-TEAC-S(B)]

 One (1) slim CD-ROM drive [CDM-TEAC-24(B)]

 Two (2) riser cards (CSE-RR1U-X and CSE-RR1U-XLP)

 Two (2) CPU backplates (BKT-0004)

 Two (2) heatsink retention modules with four (4) screws (BKT-0005)

 Four (4) 4-cm high-performance counter-rotating fans (FAN-0078)

 One (1) or two (2) CPU heatsinks (optional, SNK-P0012)

 One (1) air shroud (CSE-PT70)

 Serial Attached SCSI (SAS) Accessories:

One (1) SAS backplane (CSE-SAS-813TQ)

Four (4) SAS data cables (CBL-0172L-02)

Four (4) SAS drive carriers [CSE-PT39(B)]

 Rackmount hardware with screws (CSE-PT51):

Two (2) rack rail assemblies

Six (6) brackets for mounting the rack rails to a rack/telco rack

 One (1) CD containing drivers and utilities

Note: a "B" at the end of a part number indicates the item is available in black.

1-1

AS1020C-3 User's Manual

1-2 Serverboard Features

At the heart of the 1020C-3 lies the H8DCR-3 a dual processor serverboard de-

signed to provide maximum performance. The H8DCR-3 is based on the nVidia

nForce Pro 2200 and AMD-8132 chipset. Below are the main features of the

H8DCR-3. See Figure 1-1 for a system block diagram of the chipset.

Processors

The H8DCR-3 supports dual 940-pin AMD OpteronTM 200 series processors.

Please refer to our web site for a complete listing of supported processors.

Memory

The H8DCR-3 has eight 184-pin DIMM slots that can support up to 32 GB of reg-

istered ECC DDR333/266 or up to 16 GB of registered ECC DDR400 SDRAM.

Note: The maximum memory capacity is halved if only one processor is installed.

Memory is supported in both interleaved and non-interleaved confi gurations. See

Section 5-6 for details.

SAS (Serial Attached SCSI)

An Adaptec 9410 SAS controller is integrated onboard the H8DCR-3 to provide a

four-port SAS subsystem that features SES2 and is RAID 0, 1 and 10 supported.

The SAS drives are hot-swappable units.

Note: The operating system you use must have RAID support to enable the hot-

swap capability and RAID function of the SAS drives.

PCI Expansion Slots

Two riser cards have been included with the server to support add-on PCI expan-

sion cards. These two riser cards will support a full height, half length Universal

133 MHz PCI-X or a PCI-Express x8 add-on card and a low-profi le Universal 100

MHz PCI-X slot or PCI-Express x8 add-on card.

1-2

Chapter 1: Introduction

ATI Graphic s Co nt ro ller

An ATI video controller based on the Rage XL 8 MB graphics chip is integrated

onboard the H8DCR-3. Rage XL fully supports sideband addressing and AGP

texturing. This onboard graphics package can provide a bandwidth of up to 512

MB/sec over a 32-bit graphics memory bus.

Onboard Controllers/Ports

The H8DCR-3 provides one fl oppy drive controller and two onboard IDE control-

lers, which support up to four hard drives or ATAPI devices. Backpanel I/O ports

include one COM port, two USB ports, PS/2 mouse and keyboard ports and a

video (monitor) port. A Broadcom BCM5721 Ethernet controller is also included

to support two Gb LAN ports.

Other Features

Other onboard features are included to promote system health. These include

various voltage monitors, two CPU temperature sensors, fan speed sensors, a

chassis intrusion header, auto-switching voltage regulators, chassis and CPU

overheat sensors, virus protection and BIOS rescue.

1-3

AS1020C-3 User's Manual

1-3 Server Chassis Features

The SC813TQ+-500 is our third-generation 1U chassis and features four hot-

swap SAS drive bays with SES2, a slim CD-ROM drive, a slim fl oppy drive and a

revolutionary cooling design that can keep today's powerful processors running

well below their temperature thresholds. The following is a general outline of the

main features of the SC813TQ+-500 chassis.

System Power

The SC813TQ+-500 chassis includes a single 500W cold-swap power supply.

Serial Attached SCSI (SAS) Subsystem

For the 1020C-3, the SC813TQ+-500 chassis was designed to support four SAS

hard drives that attach to a SES2 (SCSI Enclosure Services) backplane, which

provides drive status and monitoring functions. RAID 0, 1 and 10 levels are sup-

ported.

Note: The system's operating system must have RAID support to enable the hot-

swap capability of the SAS drives.

Control Panel

The control panel provides important system monitoring and control information.

LEDs indicate power on, network activity, hard disk drive activity and system over-

heat conditions. Also present are main power and system reset buttons.

I/O Backplane

The SC813TQ+-500 is a 1U rackmount chassis. Its I/O backplane provides one

full-height, half-length and one low profi le slot for PCI add-on cards, one COM port

(the other is internal), one VGA port, two USB ports, PS/2 mouse and keyboard

ports and two Ethernet (LAN) ports.

1-4

Chapter 1: Introduction

Cooling System

The SC813TQ+-500 chassis' revolutionary cooling design has been optimized to

provide suffi cient cooling for dual processor confi gurations. The chassis includes

four counter-rotating 4-cm fans located in the middle of the chassis. In the event

of a fan failure, the ambient air temperature inside the chassis will rise and activate

an overheat LED (fan speed is controlled by the system temperature).

A fan speed control setting in BIOS allows chassis fan speed to be determined by

system temperature [recommended setting is 3-pin (Server)].

Figure 1-1. nVidia nForce Pro 2200/AMD-8132 Chipset:

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your serverboard. See the previous pages for the

actual specifi cations of your serverboard.

DDR400/333/266

128-bit data + 16-bit ECC

DIMM 1B

DIMM 2B

DIMM 3B

DIMM 4B

PCI-X 133 (Slot 6)

PCI-X 100 (Slot 7): ZCR

AMD Opteron

Processor (CPU2)

CH B

CH A

AIC-9410WSAS Ports (8)

AMD-8132

16 x 16 HT l ink ( 1 GHz)

TM

16 x 16 HT l ink ( 1 GHz)

128-bit data + 16-bit ECC

AMD Opteron

TM

Processor (CPU1)

nVidia

nForce Pro

2200

LPC

DDR400/333/266

DIMM 1A

DIMM 2A

DIMM 3A

DIMM 4A

PCI Express x8 Slot

PCI Express x8 Slot

BCM5721 (LAN1)

BCM5721 (LAN2)

SATA Ports (4)

IDE (ATA133)

USB Ports (4)

ATI Rage XL

Kybd/

Mouse

1-5

S I/OBIOS

Floppy

COM
Ports

AS1020C-3 User's Manual

1-4 Contacting Supermicro

Headquarters

Address: SuperMicro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [e-mail] (General Information)
[e-mail] (Technical Support)
[e-mail] (Customer Support)

Asia-Pacifi c

Address: SuperMicro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [e-mail]
Tel: [phone], ext.132 or 139

1-6

Chapter 2: Server Installation

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your AS1020C-3 system up and

running. Following these steps in the order given should enable you to have the

system operational within a minimum amount of time. This quick setup assumes that

your 1020C-3 system has come to you with the processors and memory preinstalled.

If your system is not already fully integrated with a serverboard, processors, system

memory etc., please turn to the chapter or section noted in each step for details on

installing specifi c components.

2-2 Unpacking the System

You should inspect the box the 1020C-3 was shipped in and note if it was damaged

in any way. If the server itself shows damage you should fi le a damage claim with

the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold the 1020C-3. It should

be situated in a clean, dust-free area that is well ventilated. Avoid areas where

heat, electrical noise and electromagnetic fi elds are generated. You will also need

it placed near a grounded power outlet. Read the Rack and Server Precautions in

the next section.

2-3 Preparing for Setup

The box the 1020C-3 was shipped in should include two sets of rail assemblies, two

rail mounting brackets and the mounting screws you will need to install the system

into the rack. Follow the steps in the order given to complete the installation process

in a minimum amount of time. Please read this section in its entirety before you

begin the installation procedure outlined in the sections that follow.

2-1

AS1020C-3 User's Manual

Choosing a Setup Location

- Leave enough clearance in front of the rack to enable you to open the front door

completely (~25 inches).

- Leave approximately 30 inches of clearance in the back of the rack to allow for

suffi cient airfl ow and ease in servicing.

- This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

!

Warnings and Precautions!

!

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are fully extended to the

fl oor with the full weight of the rack resting on them.

• In single rack installation, stabilizers should be attached to the rack.

• In multiple rack installations, the racks should be coupled together.

• Always make sure the rack is stable before extending a component from the

rack.

• You should extend only one component at a time - extending two or more simul-

taneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Chapter 4.

• Determine the placement of each component in the rack before you install the

rails.

• Install the heaviest server components on the bottom of the rack fi rst, and

then work up.

• Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a

power failure.

• Allow the hot plug SAS drives and power supply units to cool before touching

them.

• Always keep the rack's front door and all panels and components on the servers

closed when not servicing to maintain proper cooling.

2-2

Chapter 2: Server Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating

temperature of the rack environment may be greater than the ambient

temperature of the room. Therefore, consideration should be given to installing

the equipment in an environment compatible with the manufacturer’s maximum

rated ambient temperature (Tmra).

Reduced Airfl ow

Equipment should be mounted into a rack so that the amount of airfl ow required

for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does

not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might

have on overcurrent protection and power supply wiring. Appropriate consid-

eration of equipment nameplate ratings should be used when addressing this

concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply con-

nections other than the direct connections to the branch circuit (i.e. the use of

power strips, etc.).

2-3

AS1020C-3 User's Manual

2-4 Installing the System into a Rack

This section provides information on installing the 1020C-3 into a rack unit with the

rack rails provided. If the 1020C-3 has already been mounted into a rack, you can

skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market,

which may mean the assembly procedure will differ slightly. You should also refer

to the installation instructions that came with the rack unit you are using.

Identifying the Sections of the Rails

You should have received a rack mounting kit with the 1020C-3. The kit includes

two sets of chassis rails (four pieces total, two of which are already installed on

the chassis) and two sets of rack rails (four pieces total). Figure 2-1 displays the

two right-side chassis rails and the two right-side rack rails. Note that two of the

four chassis rails (Chassis Rail 1) are already attached to the chassis.

Installing the Rack Rails

Begin by joining one set of rack rails corresponding to either the left or the right side

of the rack. Do this by aligning the studs of one rail with the holes of the other rail.

Push the studs into the grooved holes and then push the rail to slide the studs to

the end of the groove. Repeat this with the rack rails used for the other side.

Next, determine where you want to place the 1020C-3 in the rack. (See Rack

and Server Precautions in Section 2-3.) Position the assembled rack rails at the

desired location in the rack. Screw the assembly securely to the rack using the

brackets provided. Attach the other assembly to the other side of the rack, making

sure both are at the exact same height and with the rail guides facing inward.

Locking Tabs: Both of the two chassis rails on each side have a locking tab (four

total), which serves two functions. The fi rst is to lock the server into place when

installed and pushed fully into the rack, which is its normal operating position.

Secondly, these tabs also lock the server in place when extended from the rack.

This prevents the server from coming completely out of the rack when you pull it

out for servicing. The two sets of locking tabs mean there are two locked positions

when the chassis is extended from the rack, allowing easy access when servicing

the system. Note that on one side, you push the locking tab up to release it and

on the other side you push it down to release.

2-4

Chapter 2: Server Installation

Installing the Chassis Rails

Two of the chassis rails (Chassis Rail 1) should have already been preattached

- one to each side of the chassis. Attach the second set of chassis rails (Chassis

Rail 2) directly to the chassis with the screws provided. Chassis Rail 2 should

be positioned just behind Chassis Rail 1 (see Figure 2-2). Do this for both sides

of the chassis.

Figure 2-1. Identifying the Sections of the Rails

Figure 2-2. Installing Chassis Rails

2-5

AS1020C-3 User's Manual

Installing the Server into the Rack

You should now have rails attached to both the chassis and the rack unit. The

next step is to install the server into the rack. Do this by lining up the rear of the

chassis rails with the front of the rack rails. Slide the chassis rails into the rack

rails, keeping the pressure even on both sides (you may have to depress the lock-

ing tabs when inserting). See Figure 2-3.

When the server has been pushed completely into the rack, you should hear the

locking tabs "click". Finish by inserting and tightening the thumb screws that hold

the front of the server to the rack.

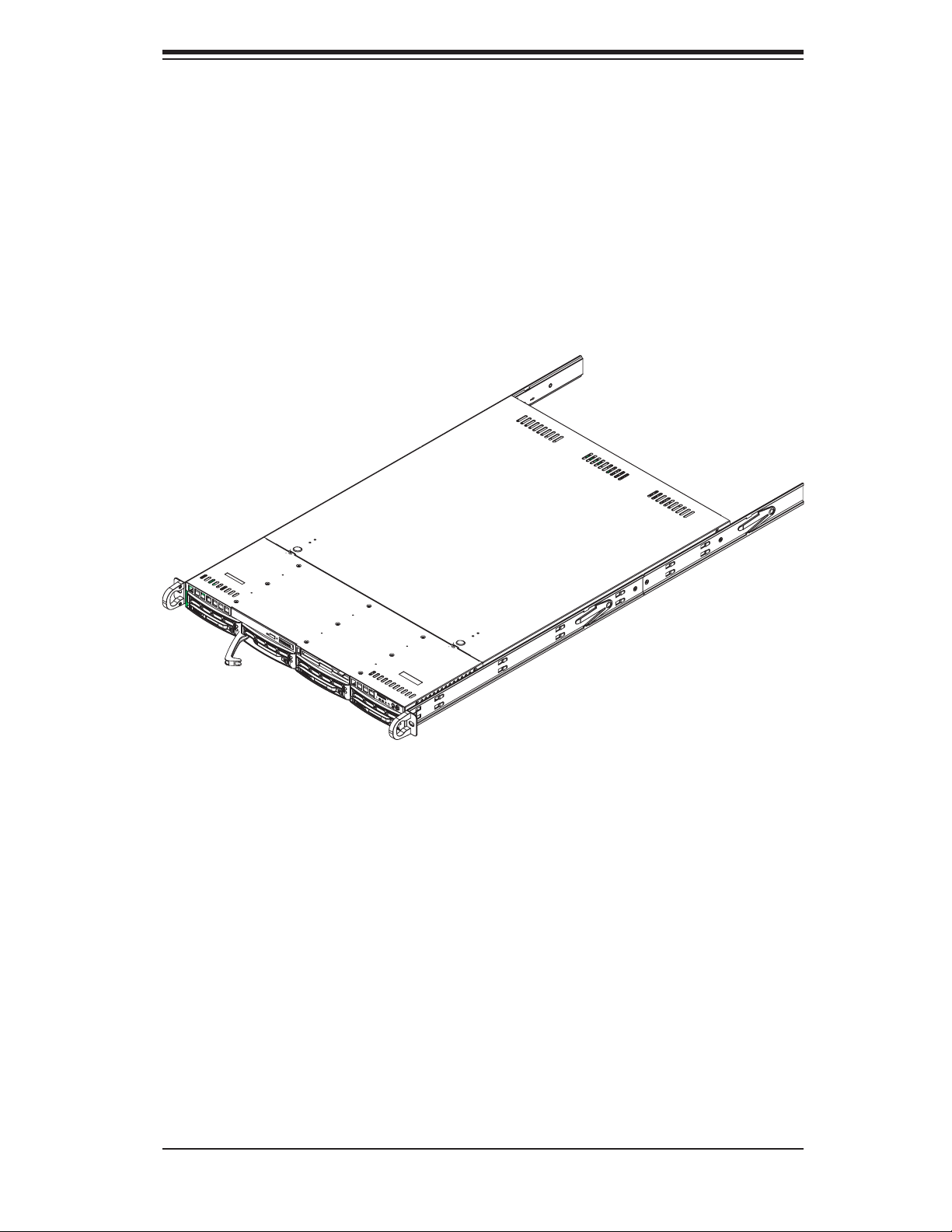

Figure 2-3. Installing the Server into a Rack

2-6

Chapter 2: Server Installation

Installing the Server into a Telco Rack

If you are installing the 1020C-3 into a Telco type rack, follow the directions given

on the previous pages for rack installation. The only difference in the installation

procedure will be the positioning of the rack brackets to the rack. They should be

spaced apart just enough to accommodate the width of the telco rack.

Figure 2-4. Installing the Server into a Telco Rack

2-7

AS1020C-3 User's Manual

2-5 Checking the Serverboard Setup

After you install the 1020C-3 in the rack, you will need to open the unit to make sure

the serverboard is properly installed and all the connections have been made.

1. Accessing the inside of the 1020C-3 (see Figure 2-5)

First, release the retention screws that secure the unit to the rack. Grasp the two

handles on either side and pull the unit straight out until it locks (you will hear

a "click"). Next, depress the two buttons on the top of the chassis to release

the top cover. There is a large rectangular recess in the middle front of the top

cover to help you push the cover away from you until it stops. You can then lift

the top cover from the chassis to gain full access to the inside of the server.

2. Check the CPUs (processors)

You may have one or two processors already installed into the serverboard. Each

processor needs its own heatsink. See Chapter 5 for instructions on processor

and heatsink installation.

3. CPU Speed

The CPU speed should automatically be detected so you will not need to change

any jumpers or settings in the BIOS Setup utility.

4. Check the system memory

Your 1020C-3 server system may have come with system memory already

installed. Make sure all DIMMs are fully seated in their slots. For details on

adding system memory, refer to Chapter 5.

5. Installing add-on cards

If desired, you can install add-on cards to the system. See Chapter 5 for details

on installing PCI add-on cards.

6. Check all cable connections and airfl ow

Make sure all power and data cables are properly connected and not blocking

the chassis airfl ow. See Chapter 5 for details on cable connections.

2-8

Chapter 2: Server Installation

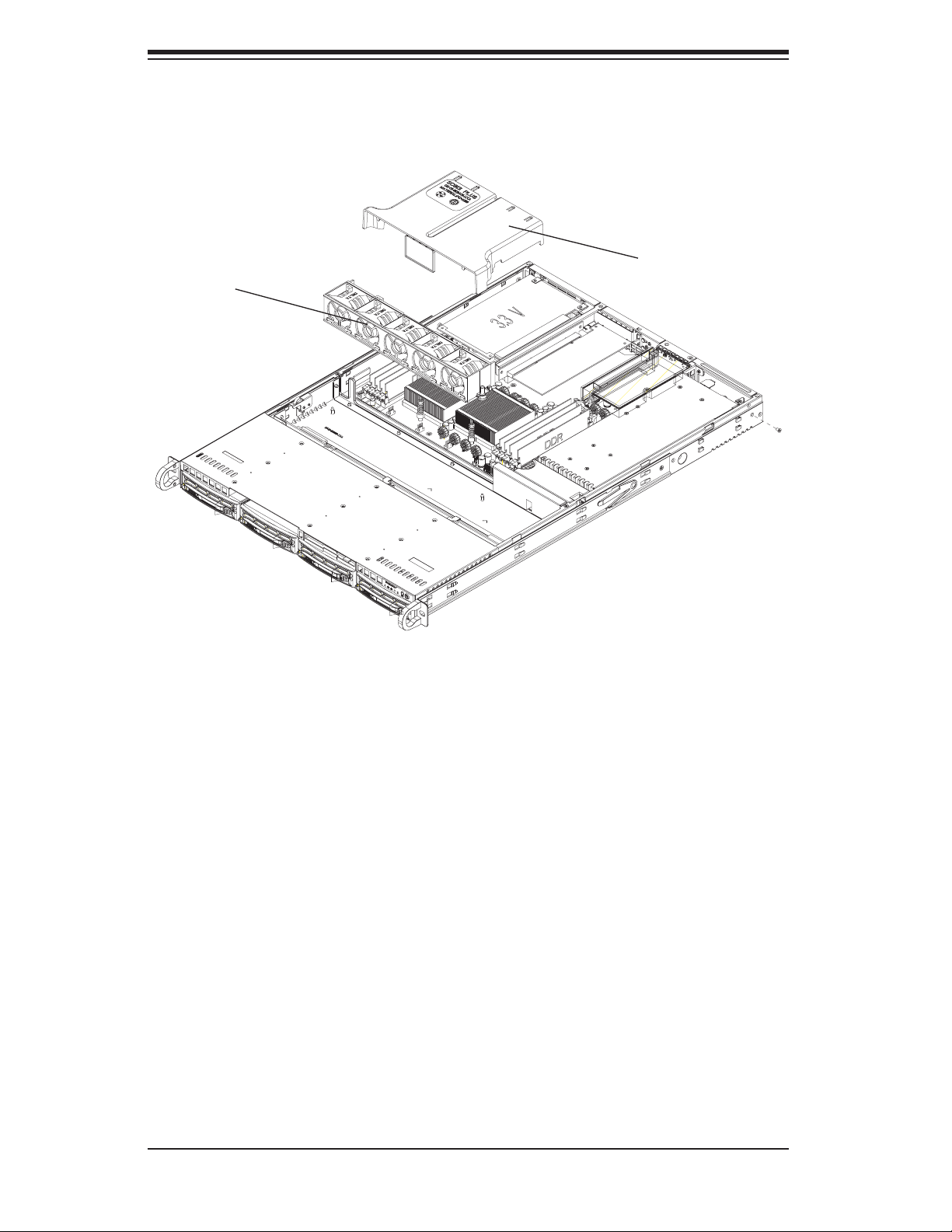

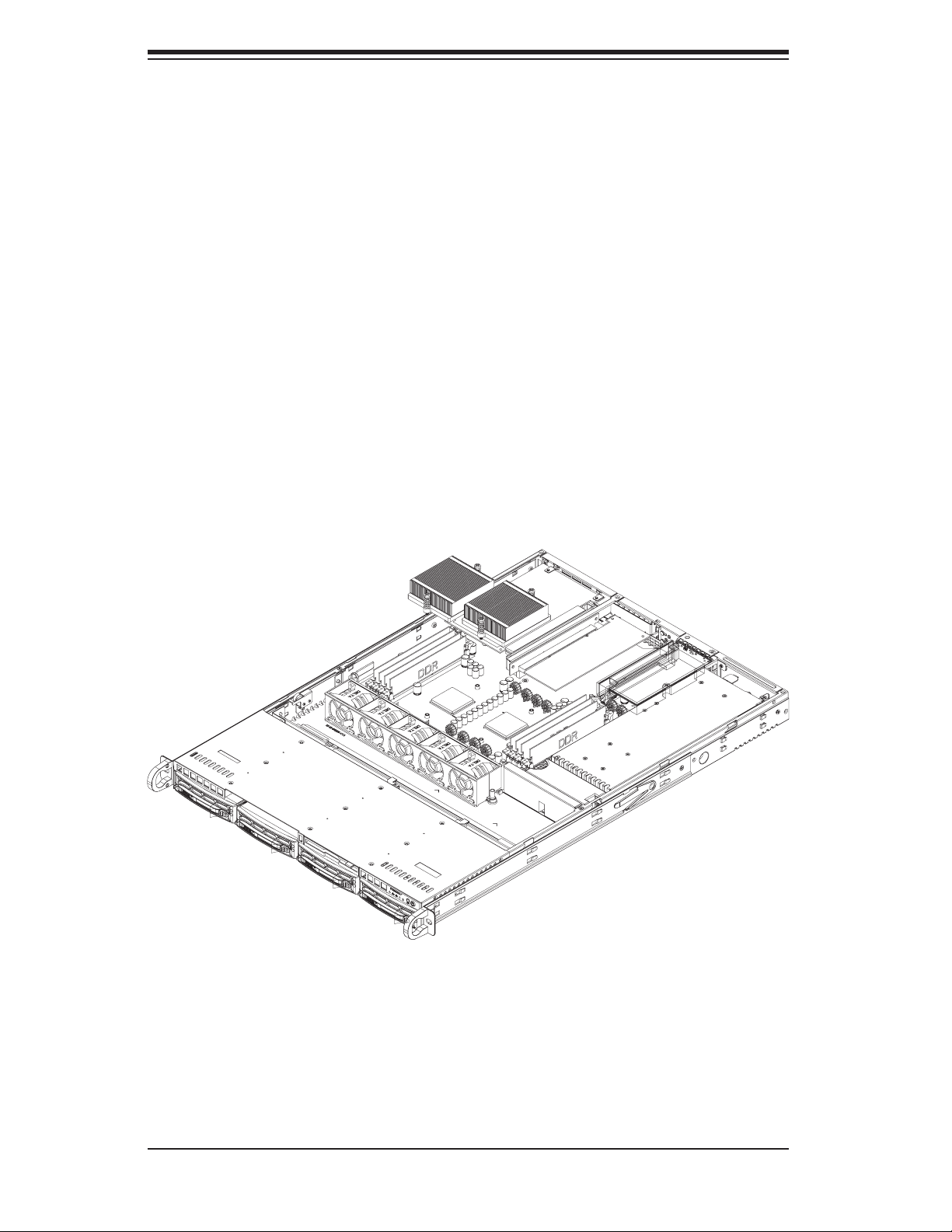

Figure 2-5. Accessing the Inside of the Server

2-6 Checking the Drive Bay Setup

Next, you should check to make sure the peripheral drives and the SAS drives have

been properly installed and all connections have been made.

1. Accessing the drive bays

All drives are accessable from the front of the server. For servicing the CD-ROM

and fl oppy drives, you will need to remove the top chassis cover. The SAS disk

drives can be installed and removed from the front of the chassis without remov-

ing the top chassis cover or powering down the system.

2. CD-ROM and fl oppy disk drives

A slim CD-ROM and a fl oppy drive should be preinstalled in your server. Refer

to Chapter 6 if you need to reinstall a CD-ROM and/or fl oppy disk drive to the

system.

3. Check the SAS disk drives

Depending upon your system's confi guration, your system may have one or

more drives already installed. If you need to install SAS drives, please refer

to Chapter 6.

2-9

AS1020C-3 User's Manual

4. Check the airfl ow

Airfl ow is provided by four sets of counter-rotating 4-cm fans. The system com-

ponent layout was carefully designed to direct the airfl ow to the components that

generate the most heat. Note that all power and data cables have been routed

in such a way that they do not block the airfl ow generated by the fans.

5. Supplying power to the system

The last thing you must do is to provide power to the system. Plug the power

cord from the power supply module into a high-quality power strip that offers

protection from electrical noise and power surges. It is recommended that you

use an uninterruptible power supply (UPS). Finish by depressing the power

button on the front of the chassis to start the system.

2-10

Chapter 3: System Interface

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the SAS drive

carriers to keep you constantly informed of the overall status of the system as well

as the activity and health of specifi c components. There are also two buttons on

the chassis control panel and an on/off switch on the power supply. This chapter

explains the meanings of all LED indicators and the appropriate response you

may need to take.

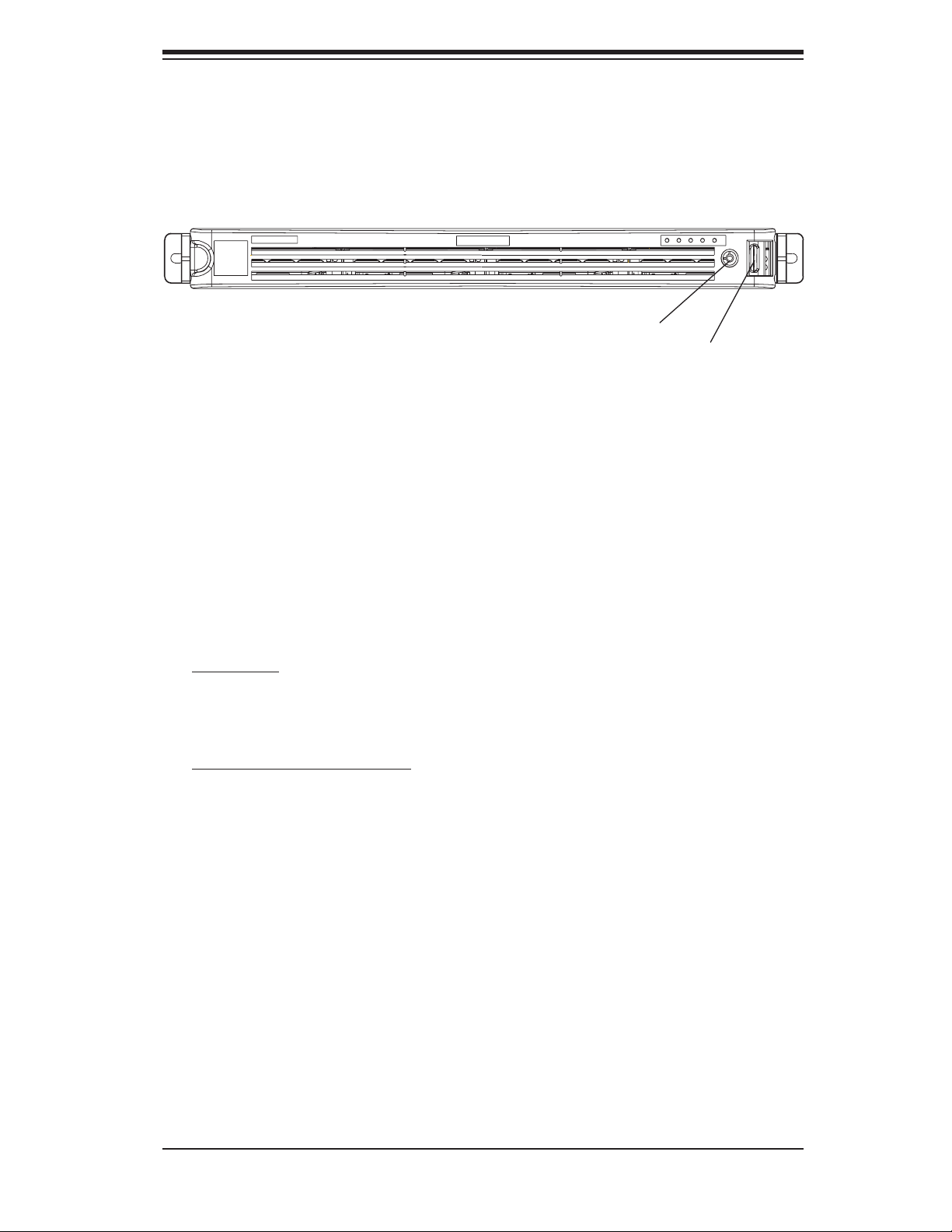

3-2 Control Panel Buttons

There are two push-buttons located on the front of the chassis. These are (in

order from left to right) a reset button and a power on/off button.

 Reset:

 Power: The main power switch is used to apply or remove power from the

power supply to the server system. Turning off system power with this button

removes the main power but keeps standby power supplied to the system.

Use the reset switch to reboot the system.

3-1

AS1020C-3 User's Manual

3-3 Control Panel LEDs

The control panel located on the front of th SC813TQ+-500 chassis has fi ve LEDs.

These LEDs provide you with critical information related to different parts of the

system. This section explains what each LED indicates when illuminated and any

corrective action you may need to take.



Overheat/Fan Fail: When this LED fl ashes it indicates a fan failure. When

on continuously (on and not fl ashing) it indicates an overheat condition, which

may be caused by cables obstructing the airfl ow in the system or the ambient

room temperature being too warm. Check the routing of the cables and make

sure all fans are present and operating normally. You should also check to make

sure that the chassis covers are installed. Finally, verify that the heatsinks are

installed properly (see Chapter 5). This LED will remain fl ashing or on as long as

the overheat condition exists.

2

 NIC2: Indicates network activity on GLAN2 when fl ashing .

1

 NIC1: Indicates network activity on GLAN1 when fl ashing.

3-2

Chapter 3: System Interface

 HDD: Indicates IDE channel activity. On the 1020C-3 this light indicates

SAS and/or CD-ROM drive activity when fl ashing.

 Power: Indicates power is being supplied to the system's power supply

units. This LED should normally be illuminated when the system is operating.

3-4 SAS Drive Carrier LEDs

Each SAS drive carrier has two LEDs.

 Green:

rier indicates drive activity. A connection to the SAS backplane enables this LED

to blink on and off when that particular drive is being accessed.

 Red: The 1020C-3 features a SES2 compliant backplane that activates the

red LEDs, which indicate a drive failure. Please refer to Chapter 6 for instructions

on replacing failed SAS drives.

When illuminated, the green LED on the front of the SAS drive car-

3-3

AS1020C-3 User's Manual

Notes

3-4

Chapter 4: System Safety

Chapter 4

System Safety

4-1 Electrical Safety Precautions

!

Basic electrical safety precautions should be followed to protect yourself from

harm and the 1020C-3 from damage:

 Be aware of the locations of the power on/off switch on the chassis as well as

the room's emergency power-off switch, disconnection switch or electrical

outlet. If an electrical accident occurs, you can then quickly remove power

from the system.

 Do not work alone when working with high voltage components.

 Power should always be disconnected from the system when removing or

installing main system components, such as the serverboard, memory

modules and the CD-ROM and fl oppy drives (not necessary for SAS drives).

When disconnecting power, you should fi rst power down the system with the

operating system and then unplug the power cords from all the power supply

modules in the system.

 When working around exposed electrical circuits, another person who is

familiar with the power-off controls should be nearby to switch off the power

if necessary.

 Use only one hand when working with powered-on electrical equipment. This

is to avoid making a complete circuit, which will cause electrical shock.

Use extreme caution when using metal tools, which can easily damage any

electrical components or circuit boards they come into contact with.

 Do not use mats designed to decrease electrostatic discharge as protection

from electrical shock. Instead, use rubber mats that have been specifi cally

designed as electrical insulators.

 The power supply power cord must include a grounding plug and must be

plugged into grounded electrical outlets.

4-1

AS1020C-3 User's Manual

 Serverboard Battery: CAUTION - There is a danger of explosion if the onboard

battery is installed upside down, which will reverse its polarities (see Figure

4-1). This battery must be replaced only with the same or an equivalent type

recommended by the manufacturer. Dispose of used batteries according to

the manufacturer's instructions.

 CD-ROM Laser: CAUTION - this server may have come equipped with a CD-

ROM drive. To prevent direct exposure to the laser beam and hazardous

radiation exposure, do not open the enclosure or use the unit in any

unconventional way.

4-2 General Safety Precautions

!

Follow these rules to ensure general safety:

 Keep the area around the 1020C-3 clean and free of clutter.

 The 1020C-3 weighs approximately 38 lbs (17.3 kg) when fully loaded. When

lifting the system, two people at either end should lift slowly with their feet

spread out to distribute the weight. Always keep your back straight and lift

with your legs.

 Place the chassis top cover and any system components that have been

removed away from the system or on a table so that they won't accidentally

be stepped on.

 While working on the system, do not wear loose clothing such as neckties and

unbuttoned shirt sleeves, which can come into contact with electrical circuits

or be pulled into a cooling fan.

 Remove any jewelry or metal objects from your body, which are excellent metal

conductors that can create short circuits and harm you if they come into

contact with printed circuit boards or areas where power is present.

 After accessing the inside of the system, close the system back up and secure

it to the rack unit with the retention screws after ensuring that all connections

have been made.

4-2

4-3 ESD Precautions

!

Electrostatic discharge (ESD) is generated by two objects with different electrical

charges coming into contact with each other. An electrical discharge is created to

neutralize this difference, which can damage electronic com ponents and printed

circuit boards. The following measures are generally suffi cient to neutralize this

difference before contact is made to protect your equipment from ESD:

 Use a grounded wrist strap designed to prevent static discharge.

 Keep all components and printed circuit boards (PCBs) in their antistatic

bags until ready for use.

Chapter 4: System Safety

 Touch a grounded metal object before removing any board from its antistatic

bag.

 Do not let components or PCBs come into contact with your clothing, which

may retain a charge even if you are wearing a wrist strap.

 Handle a board by its edges only; do not touch its components, peripheral

chips, memory modules or contacts.

 When handling chips or modules, avoid touching their pins.

 Put the serverboard and peripherals back into their antistatic bags when

not in use.

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

4-3

AS1020C-3 User's Manual

4-4 Operating Precautions

!

Care must be taken to assure that the chassis cover is in place when the

1020C-3 is operating to ensure proper cooling. Out of warranty damage to the

1020C-3 system can occur if this practice is not strictly followed.

Figure 4-1. Installing the Onboard Battery

LITHIUM BATTERY

LITHIUM BATTERY

OR

BATTERY HOLDER BATTERY HOLDER

4-4

Chapter 5: Advanced Serverboard Setup

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to install processors and heatsinks to the

H8DCR-3 serverboard, connect the data and power cables and install add-on

cards. All serverboard jumpers and connections are described and a layout and

quick reference chart are included in this chapter. Remember to close the chas-

sis completely when you have fi nished working on the serverboard to protect and

cool the system suffi ciently.

5-1 Handling the Serverboard

Static electrical discharge can damage electronic com ponents. To prevent dam-

age to printed circuit boards, it is important to handle them very carefully (see

Chapter 4). Also note that the size and weight of the serverboard can cause

it to bend if handled improperly, which may result in damage. To prevent the

serverboard from bending, keep one hand under the center of the board to sup-

port it when handling. The following measures are generally suffi cient to protect

your equipment from static discharge.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing any board from its antistatic

bag.

• Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the serverboard, add-on cards and peripherals back into their antistatic

bags when not in use.

Unpacking

The serverboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure the person handling it is static protected.

5-1

AS1020C-3 User's Manual

5-2 Mounting the Serverboard into a Chassis

All serverboards and motherboards have standard mounting holes to fi t different

types of chassis. Make sure that the locations of all the mounting holes for both

the serverboard and the chassis match. Although a chassis may have both plastic

and metal mounting fasteners, metal ones are highly recommended because they

ground the serverboard to the chassis. Make sure that the metal standoffs click in

or are screwed in tightly.

1. Check the compatibility of the serverboard ports and the I/O shield

The H8DCR-3 serverboard requires a chassis that can support extended ATX

boards of 12" x 13.05" in size, such as the SC813TQ+-500. Make sure that the

I/O ports on the serverboard align with their respective holes in the I/O shield at

the rear of the chassis.

2. Mounting the serverboard onto the serverboard tray in the chassis

Carefully mount the serverboard onto the serverboard tray by aligning the

serverboard mounting holes with the raised metal standoffs in the tray. Insert screws

into all the mounting holes in the serverboard that line up with the standoffs. Then

use a screwdriver to secure the serverboard to the serverboard tray - tighten until

just snug (if too tight you might strip the threads). Metal screws provide an electrical

contact to the serverboard ground to provide a continuous ground for the system.

5-3 Processor and Heatsink Installation

Exercise extreme caution when handling and installing the proces-

!

CPU Backplates

sor. Always connect the power cord last and always remove it be-

fore adding, removing or changing any hardware components.

Two CPU backplates (BKT-0004) have been preinstalled to the underside of the

serverboard. These backplates prevent the CPU area of the serverboard from

bending and provide a base for attaching the CPU heatsinks.

5-2

Installing the Processor

1. Lift the lever on CPU socket #1 until

it points straight up.

2. Use your thumb and your index fi n-

ger to hold the CPU. Locate pin 1 on

the CPU socket and pin 1 on the CPU.

Both are marked with a triangle.

Chapter 5: Advanced Serverboard Setup

Triangles

3. Align pin 1 of the CPU with pin 1

of the socket. Once aligned, carefully

place the CPU into the socket. Do not

drop the CPU on the socket, move the

CPU horizontally or vertically or rub the

CPU against the socket or against any

pins of the socket, which may damage

the CPU and/or the socket.

4. With the CPU inserted into the

socket, inspect the four corners of the

CPU to make sure that it is properly

installed and fl ush with the socket.

5. Gently press the CPU socket lever

down until it locks in the plastic tab.

For a dual-processor system, repeat

these steps to install another CPU into

the CPU#2 socket.

Note: using a single processor only

is not recommended.

5-3

AS1020C-3 User's Manual

Installing the Heatsinks

To install the heatsink (SNK-P0012, optional), do not apply any thermal compound

to the heatsink or CPU die - the proper amount has already been applied. Place the

heatsink directly on the CPU so that the two mounting holes are aligned with those

on the CPU backplate. Make sure the heatsink sits completely fl at on the CPU - if

not completely fl at, the space between the two will degrade the heat dissipation

function of the heatsink, which may cause the processor to overheat. Screw in the

two screws until just snug (do not fully tighten), then fi nish by fully tightening both

screws (see Figure 5-1).

Repeat these steps to install the second heatsink to CPU #2.

Figure 5-1. Installing Heatsinks

5-4

Chapter 5: Advanced Serverboard Setup

5-4 Connecting Cables

Now that the processors are installed, the next step is to connect the cables to

the serverboard. These include the data (ribbon) cables for the peripherals and

control panel and the power cables.

Connecting Data Cables

The ribbon cables used to transfer data from the peripheral devices have been

carefully routed in preconfi gured systems to prevent them from blocking the fl ow

of cooling air that moves through the system from front to back. If you need to

disconnect any of these cables, you should take care to reroute them as they

were originally after reconnecting them (make sure the red wires connect to the

pin 1 locations). If you are confi guring the system, keep the airfl ow in mind when

routing the cables. The following data cables (with their serverboard connector

locations noted) should be connected. See the serverboard layout diagram in this

chapter for connector locations.

 CD-ROM cable (JIDE#1)

 Floppy drive cable (JFDD1)

 SAS drive cables (JSM2)

 Control panel cable (JF1, see next page)

Connecting Power Cables

The H8DCR-3 has a 20-pin primary power supply connector at "J1B4" designated

"ATX Power" for connection to the ATX power supply. Connect the appropriate

connector from the power supply to the "ATX Power" connector to supply power to

the serverboard. See the Connector Defi nitions section in this chapter for power

connector pin defi nitions.

In addition, your power supply must be connected to the 8-pin processor connec-

tor at JPW2. For systems with high load confi gurations, a third (auxiliary) power

connector at J32 should also be connected to your power supply.

5-5

AS1020C-3 User's Manual

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure

5-2 for the pin locations of the various front control panel buttons and LED indica-

tors and refer to section 5-9 for details. Note that even and odd numbered pins

are on opposite sides of each header.

All JF1 wires have been bundled into single keyed ribbon cable to simplify their

connection. The red wire in the ribbon cable plugs into pin 1 of JF1. Connect

the other end of the cable to the Control Panel printed circuit board, located just

behind the system status LEDs in the chassis.

See the Connector Defi nitions section in this chapter for details and pin descrip-

tions of JF1.

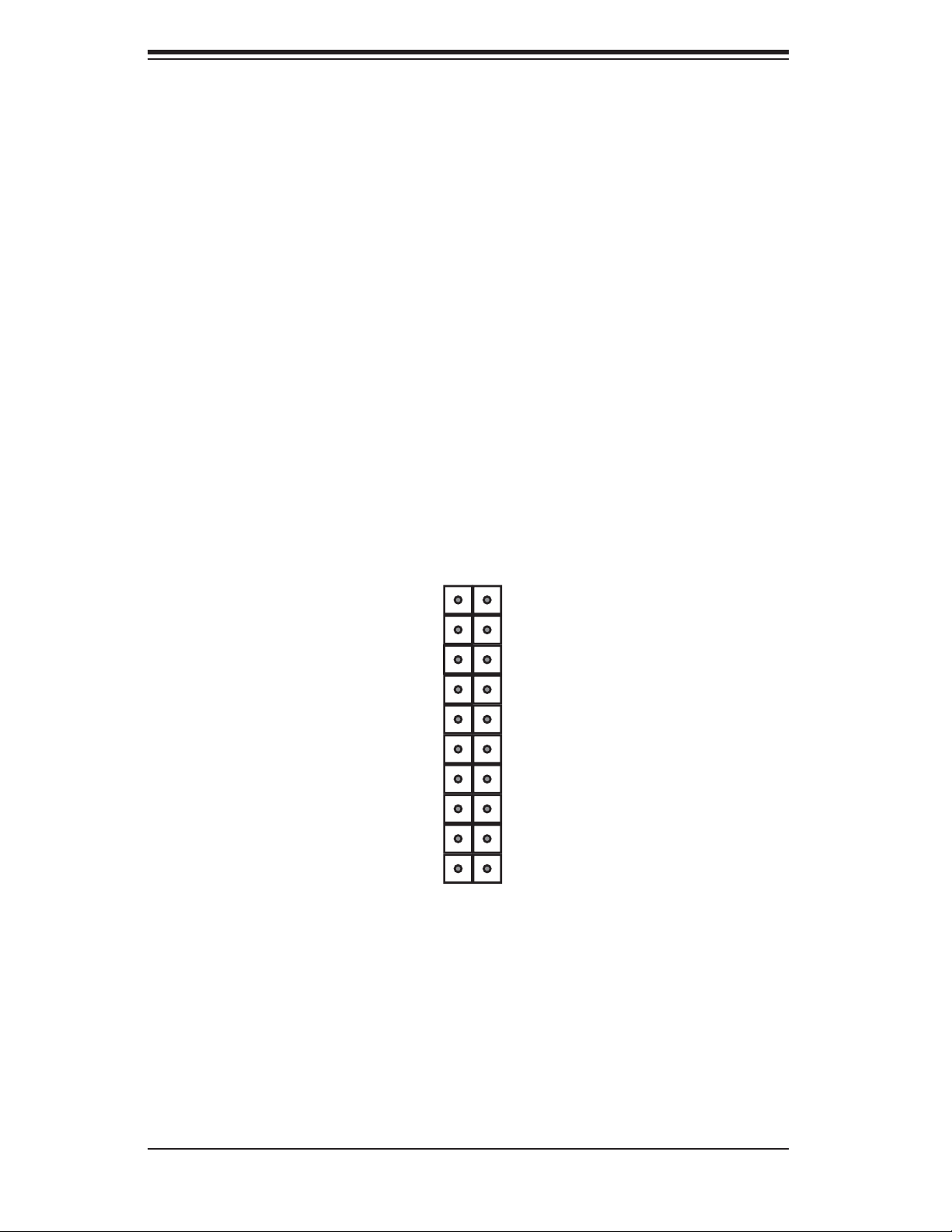

Figure 5-2. Front Control Panel Header Pins (JF1)

20 19

Ground

x (key)

Power LED

HDD LED

NIC1

NIC2

OH/Fan Fail LED

Power Fail LED

Ground

Ground

2 1

NMI

x (key)

Vcc

Vcc

Vcc

Vcc

Vcc

Vcc

Reset

Power

5-6

Chapter 5: Advanced Serverboard Setup

5-5 I/O Ports

The I/O ports are color coded in conformance with the PC 99 specifi cation. See
Figure 5-3 below for the colors and locations of the various I/O ports.

Figure 5-3. Rear Panel I/O Ports

5-6 Installing Memory

CAUTION

Exercise extreme care when installing or removing memory modules

to prevent any possible damage.

1. Insert each memory module vertically into its slot, paying attention to the notch

along the bottom of the module to prevent inserting the module incorrectly (see

Figure 2-2). See support information below.

2. Gently press down on the memory module until it snaps into place.

Note: each processor has its own built-in memory controller. 128 MB, 256 MB,

512 MB, 1 GB, 2 GB* and 4 GB* memory modules are supported. It is highly

recommended that you remove the power cord from the system before installing

or changing any memory modules.

*With Opteron 246 C-stepping CPUs and above.

Support

The H8DCR-3 supports single or dual-channel, registered ECC DDR400/333/266

SDRAM.

Both interleaved and non-interleaved memory are supported, so you may populate

any number of DIMM slots. However, populating two adjacent slots at a time with

memory modules of the same size and type will result in interleaved (128-bit)

memory, which is faster than non-interleaved (64-bit) memory. See charts on fol-

lowing pages.

5-7

AS1020C-3 User's Manual

Optimizing memory performance

With two processors installed, it is better to stagger pairs of DIMMs across both

sets of CPU DIMM slots, e.g. fi rst populate CPU1 slots 1A and 1B, then CPU2 slots

1A, and 1B, then the next two CPU1 slots, etc. This balances the load over both

CPUs to optimize performance.

Maximum memory (two CPUs)

32 GB for DDR333/266 and 16 GB for DDR400.

Figure 5-4. Side and Top Views of DDR Installation

To Install:

Insert module vertically
and press down until it
snaps into place. The
release tabs should
close - if they do not
you should close them
yourself.

Note the notch in the slot and on the bottom of the DIMM.
These prevent the DIMM from being installed incorrectly.

To Remove:

Use your thumbs to
gently push each re­lease tab outward to
release the DIMM from
the slot.

Populating Memory Banks for Non-Interleaved (64-bit) Operation

CPU1

DIMM1A

X

XX

XX

X X

CPU1

DIMM1B

CPU1

DIMM2A

XX

XX

CPU1

DIMM2B

CPU2

DIMM1A

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

5-8

Chapter 5: Advanced Serverboard Setup

Populating Memory Banks for Interleaved (128-bit) Operation

CPU1

DIMM1A

XX

XX XX

XXXX

XX XXXX

XXXXXXXX

CPU1

DIMM1B

CPU1

DIMM2A

XX XX

CPU1

DIMM2B

CPU2

DIMM1A

XX

XXXX

XXXX

XXXX

CPU2

DIMM1B

CPU2

DIMM2A

CPU2

DIMM2B

Notes: X indicates a populated DIMM slot. If adding four DIMMs (with two CPUs in­stalled), the confi guration in rows 2 and 6 (with DIMMs spread over both CPUs) will result
in optimized performance.

5-7 Adding PCI Cards

1. PCI slots

The H8DCR-3 has two PCI-Express x8 slots, one 133 MHz PCI-X slot and one

100 MHz PCI-X expansion slots. Two riser cards are included with the server to

make two of these slots available in a 1U chassis format: one full height, half length

Universal 133 MHz PCI-X or PCI-Express x8 add-on card and one low-profi le

Universal 100 MHz PCI-X slot or PCI-Express x8 add-on card.

2. PCI card installation

Before installing a PCI add-on card, make sure it conforms to the correct riser

card (see step 1, above).

Begin by swinging the release tab on the PCI shield that corresponds to the riser

card/PCI-X slot you wish to populate. Insert the PCI card into the correct riser

card (depending on whether it is a standard or low-profi le card), pushing down

with your thumbs evenly on both sides of the card. Finish by pushing the release

tab back to its original (locked) position. Follow this procedure when adding a

card to either slot.

5-9

AS1020C-3 User's Manual

5-8 Serverboard Details

Figure 5-5. H8DCR-3 Serverboard Layout

(not drawn to scale)

JPS1

AMD-8132

VGA

LAN2 LAN1

JPX1A

JPX2A

Slot #6: 133 MHz PCI-X

Slot #7: 100 MHz PCI-X (ZCR)

JD1

COM2

JIDE1

JS4

SAS 0-3

JSM2

DS5-8

JWF1
JCF1

JFDD1

JIDE2

SAS 4-7

JUSB2

DS1-4

JSLED1

JSM1

AIC-9410W

Rage

XL

Battery

JPG1

JBT1

nVidia

nForce Pro 2200

LAN

Control-

ler

JPL2

Control-

JI2C1
JI2C2

LAN

ler

COM1

JPL1

1UIPMI

USB0/1

Speaker

BIOS

Mouse

DP1

JOH1

JWOR

JWD

JAR

J3P

JPWF

KB

J22

JWOL

SATA0

SATA1SATA2SATA3

CPU1 DIMM 1A

CPU1 DIMM 1B

JL1

FAN5

CPU1 DIMM 2A

CPU1 DIMM 2B

FAN4

PCI-Express x8

CPU1

PCI-Express x8

FAN3

Note:

Jumpers not indicated are for test purposes only.

CPU2

FAN2 FAN1

CPU2 DIMM 2A

CPU2 DIMM 1A

CPU2 DIMM 2B

JF1

PS_SMBUS

CPU2 DIMM 1B

J32

J1B4

JPW2

5-10

Chapter 5: Advanced Serverboard Setup

H8DCR-3 Quick Reference

Jumpers Description Default Setting

J3P 3rd Power Fail Detect En/Dis Closed (Enabled)

JBT1 CMOS Clear See Section 2-7

JCF1 Compact Flash Select Closed (Master)

2

C1/2 I2C to PCI Enable/Disable Closed (Enabled)

JI

JPG1 VGA Enable/Disable Pins 1-2 (Enabled)

JPL1/JPL2 LAN1/2 Enable/Disable Pins 1-2 (Enabled)

JPS1 SAS Controller En/Disable Pins 1-2 (Enabled)

JPX1A/JPX2A PCI-X Slot #7/6 Freq. Select Open (Auto)

JD1 Internal Speaker En/Disable Pins 6-7 (Enabled)

JWD Watch Dog Pins 1-2 (Reset)

Connectors Description

COM1/COM2 Serial Ports

FAN 1-5 System Fan Headers

JIDE#1/JIDE#2 IDE Drive Connectors

J1B4 20-Pin ATX Power Connector

J22 System Management Bus Header

J32 4-pin Auxiliary Power Connector

JAR Power Supply Alarm Reset Header

JD1 Onboard Speaker/Keylock/Power LED

JF1 Front Panel Connector

JFDD1 Floppy Disk Drive Connector

JL1 Chassis Intrusion Header

LAN1/2 Gigabit Ethernet (RJ45) Ports

JOH1 Overheat Warning Header

JPW2 8-Pin Processor Power Connector

JPWF Power Fail Connector

JS4 I2C Connector for SAS Backplane

JSLED1 SAS Drive Activty LEDs

JSM1 /JSM2 SAS 4-7/SAS 0-3 Ports

JUSB2 Additional USB Headers (USB2/3)

JWF1 Compact Flash Power Connector

JWOL Wake-On-LAN Header

JWOR Wake-On-Ring Header

PS_SMBUS Power Supply I

SATA0-3 Serial ATA Ports

USB0/1 Universal Serial Bus (USB) Ports 0/1

Onboard Indicators Description

DP1 Power Standby LED

DS1-8 SAS Activity LEDs

2

C Header

5-11

AS1020C-3 User's Manual

5-9 Connector Defi nitions

ATX Power Connector

The primary ATX power supply con-

nector (J1B4) meets the SSI (Super-

set ATX) 24-pin specifi cation. Refer to

the table on the right for the pin defi ni-

tions of the ATX 24-pin power connec-

tor. This connection supplies power to

the chipset, fans and memory.

Note: You must also connect the 8-

pin (JPW1) and 4-pin (PW3) power

connectors to your power supply (see

below).

Processor Power Connector

In addition to the primary ATX power

connector (above), the 12v, 8-pin

processor power connector at JPW2

must also be connected to your power

supply. This connection supplies

power to the CPUs. See the table on

the right for pin defi nitions.

ATX Power 24-pin Connector

Pin Defi nitions (J1B1)

Pin# Defi nition Pin # Defi nition

13 +3.3V 1 +3.3V

14 -12V 2 +3.3V

15 COM 3 COM

16 PS_ON 4 +5V

17 COM 5 COM

18 COM 6 +5V

19 COM 7 COM

20 Res (NC) 8 PWR_OK

21 +5V 9 5VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

Processor Power

Connector

Pin Defi nitions (JPW2)

Pins Defi nition

1 through 4 Ground

5 through 8 +12V

Required Connection

Auxiliary Power Connector

The 4-pin auxiliary power connector at

J32 must also be connected to your

power supply. This connection sup-

plies extra power that may be needed

for high loads. See the table on the

right for pin defi nitions.

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin defi nitions.

5-12

Auxiliary Power

Connector

Pin Defi nitions (J32)

Pins Defi nition

1 & 2 Ground

3 & 4 +12V

Required Connection

NMI Button

Pin Defi nitions (JF1)

Pin# Defi nition

19 Control

20 Ground

Chapter 5: Advanced Serverboard Setup

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin defi nitions.

HDD LED

The HDD (IDE Hard Disk Drive) LED

connection is located on pins 13 and

14 of JF1. Attach the IDE hard drive

LED cable to display disk activity.

Refer to the table on the right for pin

defi nitions.

NIC1 LED

The NIC1 (Network Interface Control-

ler) LED connection is located on pins

11 and 12 of JF1. Attach the NIC1

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

Power LED

Pin Defi nitions (JF1)

Pin# Defi nition

15 Vcc

16 Control

HDD LED

Pin Defi nitions (JF1)

Pin# Defi nition

13 Vcc

14 HD Active

NIC1 LED

Pin Defi nitions (JF1)

Pin# Defi nition

11 Vcc

12 NIC1 Active

NIC2 LED

The NIC2 (Network Interface Control-

ler) LED connection is located on pins

9 and 10 of JF1. Attach the NIC2

LED cable to display network activity.

Refer to the table on the right for pin

defi nitions.

Overheat/Fan Fail LED

Connect an LED to the OH connection

on pins 7 and 8 of JF1 to provide ad-

vanced warning of chassis overheat-

ing. Refer to the table on the right for

pin defi nitions and status indicators.

5-13

Pin Defi nitions (JF1)

Pin# Defi nition

9 Vcc

10 NIC2 Active

OH/Fan Fail LED

Pin Defi nitions (JF1)

Pin# Defi nition

7 Vcc

8 Control

NIC2 LED

OH/Fan Fail

LED Status

State Indication

Solid Overheat

Blinking Fan fail

AS1020C-3 User's Manual

Reset Button

The Reset Button connection is lo-

cated on pins 3 and 4 of JF1. Attach

it to the hardware reset switch on the

computer case. Refer to the table on

the right for pin defi nitions.

Power Button

The Power Button connection is

located on pins 1 and 2 of JF1. Mo-

mentarily contacting both pins will

power on/off the system. This button

can also be confi gured to function

as a suspend button (see the Power

Button Mode setting in BIOS). To turn

off the power when set to suspend

mode, depress the button for at least

4 seconds. Refer to the table on the

right for pin defi nitions.

Reset Button

Pin Defi nitions (JF1)

Pin# Defi nition

3 Reset

4 Ground

Power Button

Pin Defi nitions (JF1)

Pin# Defi nition

1 PW_ON

2 Ground

LAN1/2 (Ethernet Ports)

Two Gigabit Ethernet ports (desig-

nated LAN1 and LAN2) are located

beside the COM1 port. These Ether-

net ports accept RJ45 type cables.

Universal Serial Bus Ports
(USB0/1)

Two Universal Serial Bus ports

(USB2.0) are located beside the key-

board/mouse ports. See the table on

the right for pin defi nitions.

5-14

Universal Serial Bus Ports

Pin Defi nitions (USB0/1)

USB0
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

USB1
Pin # Defi nition

Chapter 5: Advanced Serverboard Setup

Extra USB Headers

Two additional USB2.0 head-

ers (USB2/3) are included on the

serverboard. These may be con-

nected to provide front side access.

A USB cable (not included) is needed

for the connection. See the table on

the right for pin defi nitions.

Serial Ports

The COM1 serial port is located be-

side the USB ports and the COM2

header is located by the IDE#1 con-

nector. Refer to the table on the right

for pin defi nitions.

Extra Universal Serial Bus Headers

Pin Defi nitions (JUSB2)

USB2
Pin # Defi nition

1 +5V 1 +5V

2 PO- 2 PO-

3 PO+ 3 PO+

4 Ground 4 Ground

5 Key 5 No connection

Serial Port Pin Defi nitions

(COM1, COM2)

Pin # Defi nition Pin # Defi nition

1 DCD 6 DSR

2RXD 7RTS

3TXD 8CTS

4DTR 9 RI

5 Ground 10 NC

USB3/4
Pin # Defi nition

Fan Headers

The H8DCR-3/H8DR-i has fi ve fan

headers, which are designated FAN1

through FAN5. Fans are Pulse Width

Modulated (PWM) and their speed is

controlled via Thermal Management

with a BIOS setting. See the table on

the right for pin defi nitions.

Chassis Intrusion

A Chassis Intrusion header is located

at JL1. Attach the appropriate cable

to inform you of a chassis intrusion.

Note: Pin 10 is included on the header but not on

the port. NC indicates no connection.

Fan Header

Pin Defi nitions

(FAN1-8)

Pin# Defi nition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

Chassis Intrusion

Pin Defi nitions (JL1)

Pin# Defi nition

1 Battery voltage

2 Intrusion signal

5-15

AS1020C-3 User's Manual

Power LED/Speaker

On JD1, pins 1, 2, and 3 are for the

power LED and pins 4 through 7 are

for the speaker. See the tables on the

right for pin defi nitions.

Note: The speaker connector pins are

for use with an external speaker. If

you wish to use the onboard speaker,

you should close pins 6 and 7 with a

jumper.

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard and the

PS/2 mouse ports are located on the

backplane. The mouse is the green

port. See the table on the right for

pin defi nitions.

PWR LED Connector

Pin Defi nitions (JD1)

Pin# Defi nition

1 +Vcc

2 Control

3 Control

Speaker Connector

Pin Defi nitions (JD1)

Pin# Defi nition

4 Red wire, +5V

5 No connection

6 Buzzer signal

7 Speaker data

PS/2 Keyboard and

Mouse Port Pin

Defi nitions

Pin# Defi nition

1 Data

2NC

3 Ground

4 VCC

5 Clock

6NC

Overheat LED

Connect an LED to the JOH1 header

to provide warning of chassis over-

heating. See the table on the right for

pin defi nitions.

PS_SMBUS

The PS_SMBUS header is for I2C,

which may be used to monitor the

status of the power supply, fans and

system temperature. See the table on

the right for pin defi nitions.

5-16

Overheat LED

Pin Defi nitions (JOH1)

Pin# Defi nition

1 3.3V

2 OH Active

I2C Header

Pin Defi nitions

(PS_SMBUS)

Pin# Defi nition

1 Clock

2 Data

3 PWR Fail

4Gnd

5 +3.3V

Wake-On-LAN

The Wake-On-LAN header is desig-

nated JWOL. See the table on the

right for pin defi nitions. You must

have a LAN card with a Wake-On-LAN

connector and cable to use the Wake-

On-LAN feature.

(*Note: Wake-On-LAN from S3, S4,

S5 are supported by LAN1. LAN2 sup-

ports Wake-On-LAN from S1 only.)

Wake-On-Ring

Chapter 5: Advanced Serverboard Setup

Wake-On-LAN

Pin Defi nitions

(JWOL)

Pin# Defi nition

1 +5V Standby

2 Ground

3 Wake-up

The Wake-On-Ring header is desig-

nated JWOR. This function allows

your computer to receive and "wake-

up" by an incoming call to the modem

when in suspend state. See the table

on the right for pin defi nitions. You

must have a Wake-On-Ring card and

cable to use this feature.

SMBus Header

The header at J22 is for the System

Management Bus. Connect the ap-

propriate cable here to utilize SMB on

the system. See the table on the right

for pin defi nitions.

Wake-On-Ring

Pin Defi nitions

(JWOR)

Pin# Defi nition

1 Ground (Black)

2 Wake-up

SMBus Header

Pin Defi nitions (J22)

Pin# Defi nition

1 Data

2 Ground

3 Clock

4 No Connection

Alarm Reset Header

Connect JAR to the alarm reset but-

ton on your chassis (if available) or to

a microswitch to allow you to turn off

the alarm that sounds when a power

supply module fails. See the table on

the right for pin defi nitions.

5-17

Alarm Reset Header

Pin Defi nitions (JAR)

Pin# Defi nition

1 Ground

2 Reset Signal

AS1020C-3 User's Manual

Power Fail Connector

Connect a cable from your power

supply to JPWF to provide you with

warning of a power supply failure.

The warning signal is passed through

the PWR_LED pin to indicate a power

failure. See the table on the right for

pin defi nitions.

Compact Flash Power
Connector

JWF1 is a power connector for a

Compact Flash or DOC (Disk-On-Chip)

device. Connect the appropriate cable

here to provide power to such a device

on your system. See the table on the

right for pin defi nitions.

Power Fail Connector

Pin Defi nitions (JPWF)

Pin# Defi nition

1 P/S 1 Fail Signal

2 P/S 2 Fail Signal

3 P/S 3 Fail Signal

4 Reset (from MB)

Note: This feature is only available when using

redundant power supplies.

Compact Flash Power

Connector

Pin Defi nitions (JWF1)

Pin# Defi nition

1+5V

2 Ground

3 Signal

JSLED1 Header

JSLED1 is used to provide LED indica-

tion of SAS drive activity for internal

SAS ports 0-3. Refer to the table on

the right for pin defi nitions. SAS ports

4-7 are external ports and do not have

board level support for activity LEDs.

I2C for SAS Connector

The JS4 connection is used to provide

I2C monitoring for the SAS backplane.

See the table on the right for pin defi -

nitions.

JSLED1 Header Pin Defi nitions

Pin # Defi nition Pin # Defi nition

1 SAS Port0 Active 6 NC

2 SAS Port1 Active 7 NC

3 SAS Port2 Active 8 NC

4 SAS Port3 Active 9 NC

5 SAS Port0-3 Signal 10 No pin

Note: NC indicates no connection.

(JSLED1)

I2C for SAS Connector

Pin Defi nitions (JS4)

Pin# Defi nition

2

1I

2I

3 Ground

C Data

2

C Clock

5-18

5-10 Jumper Settings

Explanation of
Jumpers

Chapter 5: Advanced Serverboard Setup

To modify the operation of the

serverboard, jumpers can be used

to choose between optional settings.

Jumpers create shorts between two

pins to change the function of the

connector. Pin 1 is identifi ed with a

square solder pad on the printed circuit

board. See the diagram at right for

an example of jumping pins 1 and 2.

Refer to the serverboard layout page

for jumper locations.

Note 1: On two-pin jumpers, "Closed"

means the jumper is on and "Open"

means the jumper is off the pins.

CMOS Clear

Connector

321

Pins

Jumper

321

Setting

JBT1 is used to clear CMOS and will also clear any passwords. Instead of pins,

this jumper consists of contact pads to prevent accidentally clearing the contents

of CMOS.

To clear CMOS,

1) First power down the system and unplug the power cord(s).

2) With the power disconnected, short the CMOS pads with a metal object such as

a small screwdriver for at least four seconds.

3) Remove the screwdriver (or shorting device).

4) Reconnect the power cord(s) and power on the system.

Notes:

Do not use the PW_ON connector to clear CMOS.

The onboard battery does not need to be removed when clearing CMOS, however

you must short JBT1 for at least four seconds.

JBT1 contact pads

5-19

AS1020C-3 User's Manual

3rd Power Supply Fail Signal
Enable/Disable

The system can notify you in the event

of a power supply failure. This feature

assumes that three redundant power

supply units are installed in the chas-

sis. If you only have one or two power

supplies installed, you should disable

the function with the J3P header to pre-

vent false alarms. See the table on the

right for jumper settings.

I2C to PCI Enable/Disable

The JI2C1/2 pair of jumpers allows you

to connect the System Management

Bus to any one of the PCI expansion

slots. The default setting is closed (on)

for both jumpers to enable the connec-

tion. Both connectors must be set the

same (JI

the clock). See the table on right for

jumper settings

2

C1 is for data and JI2C2 is for

3rd Power Supply Fail Signal

Jumper Settings (J3P)

Jumper Setting Defi nition

Open Disabled

Closed Enabled

I2C to PCI Enable/Disable

Jumper Settings

2

C1/2)

(JI

Jumper Setting Defi nition

Closed Enabled

Open Disabled

Compact Flash Master/Slave

The JCF1 jumper allows you to assign

either master or slave status to an

installed compact fl ash card. See the

table on the right for jumper settings.

VGA Enable/Disable

JPG1 allows you to enable or disable

the VGA port. The default position is

on pins 1 and 2 to enable VGA. See

the table on the right for jumper set-

tings.

5-20

Compact Flash

Master/Slave

Jumper Settings (JCF1)

Jumper Setting Defi nition

Closed Master

Open Slave

VGA Enable/Disable

Jumper Settings (JPG1)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

Watch Dog Enable/Disable

Chapter 5: Advanced Serverboard Setup

JWD controls the Watch Dog function.

Watch Dog is a system monitor that

can reboot the system when a software

application hangs. Jumping pins 1-2

will cause WD to reset the system if

an application has frozen. Close pins

2-3 to have Watch Dog generate an

NMI (non-maskable interrupt). See the

table on the right for jumper settings.

Watch Dog must also be enabled in

BIOS.

Onboard Speaker Enable/
Disable

The JD1 header allows you to use

either an external speaker or the in-

ternal (onboard) speaker. To use the

internal onboard speaker, close pins

6 and 7 with a jumper. To use an

external speaker, remove the jumper

and connect the speaker wires to pins

4 (+5V) and 7 (control signal). See the

table on the right for settings and the

table associated with the Power LED/

Keylock/Speaker connection (previ-

ous section) for jumper settings.

Watch Dog

Jumper Settings (JWD)

Jumper Setting Defi nition

Pins 1-2 Reset

Pins 2-3 NMI

Note: When enabled, the user needs to

write their own application software in or-

der to disable the Watch Dog timer.

Onboard Speaker Enable/Disable

Pin Defi nitions (JD1)

Pins Defi nition

6 and 7 Jump for onboard speaker

4 and 7 Attach external speaker wires

Note: Pins 4-7 are used only for the on-

board speaker.

SAS Controller Enable/
Disable

JPS1 enables or disables the AIC-

9140W Adaptec SAS controller. See

the table on the right for jumper set-

tings. The default setting is enabled.

5-21

SAS Controller Enable/Disable

Jumper Settings (JPS1)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

AS1020C-3 User's Manual

PCI-X Slot Frequency Select

Jumpers JPX1A and JPX2A can be

used to change the speed of PCI-X

slots 6 and 7, respectively. See the

table on the right for jumper settings.

Note: JPX1A controls the speed for PCI-X slot #6

and JPX2A controls the speed for PCI-X slot #7.

The default setting for both is Auto.

PCI-X Slot Speed Jumper Settings

(JPX1A/JPX2A)

Jumper Setting Defi nition

Open Auto

Pins 1-2 PCI-X 66 MHz

Pins 2-3 PCI 66 MHz

LAN1/2 Enable/Disable

Change the setting of jumper JPL1

and JPL2 to enable or disable the

LAN1 and LAN2 ports, respectively.

See the table on the right for jumper

settings. The default setting is en-

abled

LAN Enable/Disable

Jumper Settings (JPL1, JPL2)

Jumper Setting Defi nition

Pins 1-2 Enabled

Pins 2-3 Disabled

5-22

5-11 Onboard Indicators

LAN1/LAN2 LEDs

The Ethernet ports (located beside the

VGA port) have two LEDs. On each

Gb LAN port, the right LED (when

facing the port) indicates activity while

the left LED may be green, orange or

off to indicate the speed of the con-

nection. See the table on the right for

the functions associated with the left

(connection speed) LED.

Chapter 5: Advanced Serverboard Setup

LAN1/2: Left LED

(Connection Speed Indicator)

LED Color Defi nition

Off 10 MHz

Green 100 MHz

Amber 1 GHz

+3.3V Standby LED

When illuminated, the DP1 LED indi-

cates that +3.3V standby power from

the power supply is being supplied to

the serverboard. DP1 should normally

be illuminated when the system is con-

nected to AC power, whether turned

on or not. DP1 will fl ash on and off

when the system is in an S1, S3

(Suspend to RAM) or S4 (Suspend to

Disk) state.See the table on the right

for DP1 LED states.

SAS Activity LEDs

The SAS Activity LED indicators

(DS1-DS8) indicate the activity status

of SAS ports (0-7). See the table on

the right for pin defi nitions.

+3.3V Standby LED

(DP1)

State System Status

On Standby power present on

serverboard

Off No power connected

Flashing System in standby state

SAS Activity LEDs

(DS1-DS8)

DS# Defi nition DS# Defi nition

DS1 SAS0:Act DS5 SAS4:Act

DS2 SAS1:Act DS6 SAS5:Act

DS3 SAS2:Act DS7 SAS6:Act

DS4 SAS3:Act DS8 SAS7:Act

5-23

AS1020C-3 User's Manual

5-12 Floppy, IDE and SAS Connections

Use the following information to connect the fl oppy and hard disk drive cables.

 The fl oppy disk drive cable has seven twisted wires.

 A red mark on a wire typically designates the location of pin 1.

 A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

 The 80-wire ATA133 IDE hard disk drive cable that came with your system has

two connectors to support two drives. This special cable should be used to take

advantage of the speed this new technology offers. The blue connector connects

to the onboard IDE connector interface and the other connector(s) to your hard

drive(s). Consult the documentation that came with your disk drive for details

on actual jumper locations and settings for the hard disk drive.

Floppy Connector

The fl oppy connector is desig-

nated JFDD1. See the table at

right for pin defi nitions.

Floppy Drive Connector
Pin Defi nitions (JFDD1)

Pin# Defi nition Pin # Defi nition

1 Ground 2 FDHDIN

3 Ground 4 Reserved

5 Key 6 FDEDIN

7 Ground 8 Index

9 Ground 10 Motor Enable

11 Ground 12 Drive Select B

13 Ground 14 Drive Select B

15 Ground 16 Motor Enable

17 Ground 18 DIR

19 Ground 20 STEP

21 Ground 22 Write Data

23 Ground 24 Write Gate

25 Ground 26 Track 00

27 Ground 28 Write Protect

29 Ground 30 Read Data

31 Ground 32 Side 1 Select

33 Ground 34 Diskette

5-24

Chapter 5: Advanced Serverboard Setup

IDE Connectors

There are no jumpers to confi g-

ure the onboard IDE#1 and #2

connectors. See the table on

the right for pin defi nitions.

IDE Drive Connectors

Pin Defi nitions (JIDE#1/JIDE#2)

Pin# Defi nition Pin # Defi nition

1 Reset IDE 2 Ground

3 Host Data 7 4 Host Data 8

5 Host Data 6 6 Host Data 9

7 Host Data 5 8 Host Data 10

9 Host Data 4 10 Host Data 11

11 Host Data 3 12 Host Data 12

13 Host Data 2 14 Host Data 13

15 Host Data 1 16 Host Data 14

17 Host Data 0 18 Host Data 15

19 Ground 20 Key

21 DRQ3 22 Ground

23 I/O Write 24 Ground

25 I/O Read 26 Ground

27 IOCHRDY 28 BALE

29 DACK3 30 Ground

31 IRQ14 32 IOCS16

33 Addr1 34 Ground

35 Addr0 36 Addr2

37 Chip Select 0 38 Chip Select 1

39 Activity 40 Ground

SAS Ports

There are two SAS ports, one

located on the backplane and

the other on the serverboard

near the fl oppy connector. See

the table on the right for pin

defi nitions.

Pin Defi nitions (JSM1/JSM2)

SAS Ports

Pin# Defi nition Pin # Defi nition

1 Rx0+ 2 Rx0-

3 Rx1+ 4 Rx1-

5 Rx2+ 6 Rx2-

7 Rx3+ 8 Rx3-

9 Tx3- 10 Tx3+

11 Tx2- 12 Tx2+

13 Tx1- 14 Tx1+

15 Tx0- 16 Tx0+

5-25

AS1020C-3 User's Manual

5-13 Enabling SAS RAID

After the hardware is set up, you should install the operating system and the SAS

RAID drivers, you may wish to confi gure a RAID array with your SAS drives. This

section gives an outline of the Adaptec SAS Utility program and instructions for

creating a RAID array on your system.

Serial Attached SCSI (SAS)

Serial Attached SCSI (SAS) is a physical storage technology that employs a serial

transmission of data with SCSI protocol. Serial transmission results in the use of

much thinner cables than those used for (parallel) SCSI data transmission. This

serial link supports a transfer rate from 3 Gb/sec.

Enabling SAS RAID

Before entering the SAS utility, you must enable SAS with the onboard jumper (see

Chapter 1). After setting the SAS jumper to "enabled", power up the system and

hit the <Cntrl> + <A> keys on boot up to enter the utility. You should then see the

main screen as shown in Figure 5-6.

Figure 5-6. SAS Confi guration Utility: Main Menu

5-26

Chapter 5: Advanced Serverboard Setup

SAS Controller Utility

You are now in the SAS Controller Utility program. In this utility, you can create,

confi gure, manage and delete RAID arrays. Navigating through the utility is done by

using the arrow keys on your keyboard to move between fi elds. The <Enter> key

is used to select a highlighted fi eld and the <Esc> key to move back to a previous

menu. Note the commands available to you at the bottom of each screen. Figure

5-7 is a tree diagram of the various screens included in the utility.

Figure 5-7. Tree Diagram of SAS Utility

Main Menu

Array Configuration Utility

Manage Arrays

Create Array

Add/Delete Hotspare

Manage Boot Unit

Configure Drives

Serial Select Utility

Controller Properties

Controller Configuration

PHY Configuration

Disk Utilities

Creating a RAID Array

To create a RAID array, perform the following steps:

1. From the main menu, use the up and down arrow keys to highlight Array Con-

fi guration Utility and press <Enter>. The screen sown in Figure C-3 appears.

2. Use the up and down arrow keys to select Create Array then hit the <Enter> key.

(Selections can also be made by hitting the key of the letter corresponding to the

red letter in the desired item, in the case the <C> key.)

3. The screen shown in Figure 5-8 appears. On the left are the SAS drives detected

in your system. Use the up and down arrow keys to highlight the drives you want

to become part of the RAID array and press the <Insert> key to add them to the

array. Repeat until all the drives you want in the array have been selected.

5-27

AS1020C-3 User's Manual

Figure 5-8. Array Confi guration Utility Screen

5-28

Chapter 5: Advanced Serverboard Setup

4. Once all drives have been selected for the RAID array, you will be prompted to

select the RAID properties, including the type of RAID to be used, label, array size

and stripe size (see Figure C-5). When the properties have been defi ned, highlight

Done and press the <Enter> key.

Additional Functions

The tree diagram in Figure 5-9 gives you an overview of the functions included in

the SAS Controller Utility. Refer to this tree to help you navigate through the menus

for the function you wish to perform.

Figure 5-9. Selecting Drives for the Array

5-29

AS1020C-3 User's Manual

5-14 Installing Drivers

The CD that came bundled with the system contains software drivers, some of which

must be installed, such as the chipset driver. After inserting this CD into your CD-

ROM drive, the display shown in Figure 5-10 should appear. (If this display does

not appear, click on the My Computer icon and then on the icon representing your

CD-ROM drive. Finally, double click on the S "Setup" icon.)

Figure 5-10. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on paper to view the readme fi les for each

item. Click the computer icons to the right of these items to install each item (from

top to the bottom) one at a time. After installing each item, you should reboot the

system before moving on to the next item on the list. The bottom icon with a CD

on it allows you to view the entire contents of the CD.

5-30

Chapter 6: Advanced Chassis Setup

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform mainte-

nance on the SC813TQ+-500 chassis. For component installation, follow the steps

in the order given to eliminate the most common problems encountered. If some

steps are unnecessary, skip ahead to the next step.

Tools Required

The only tool you will need to install components and perform maintenance is a

Philips screwdriver.

6-1 Static-Sensitive Devices

Electricstatic discharge (ESD) can damage electronic com ponents. To prevent

damage to any printed circuit boards (PCBs), it is important to handle them very

carefully. The following measures are generally suffi cient to protect your equipment

from ESD damage.

Precautions

 Use a grounded wrist strap designed to prevent static discharge.

 Touch a grounded metal object before removing any board from its antistatic

bag.

 Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or gold contacts.

 When handling chips or modules, avoid touching their pins.

 Put the serverboard, add-on cards and peripherals back into their antistatic bags

when not in use.

 For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

6-1

AS1020C-3 User's Manual

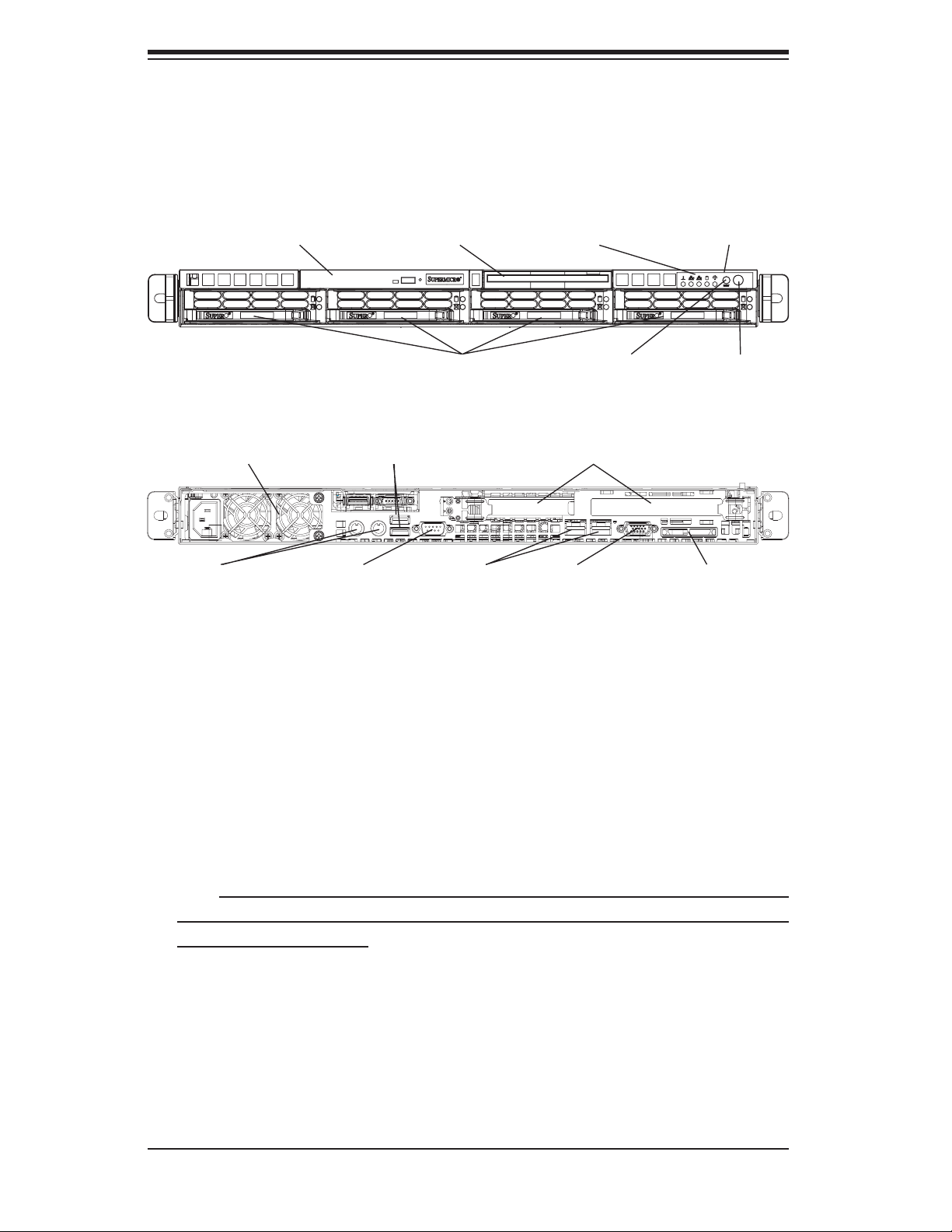

Figure 6-1. Chassis: Front and Rear Views

Slim CD-ROM Drive

Power Supply Module PCI Expansion Slots (w/ riser cards)

Mouse/Keyboard Ports

COM1 Port Ethernet Ports VGA Port

Slim Floppy Drive

SAS Drive Bays

USB Ports

System Reset

Control PanelSystem LEDs

Main Power

External SAS Port

6-2 Control Panel

The control panel (located on the front of the chassis) must be connected to the

JF1 connector on the serverboard to provide you with system status indications.

These wires have been bundled together as a ribbon cable to simplify the connec-

tion. Connect the cable from JF1 on the serverboard to the appropriate header on

the Control Panel PCB (printed circuit board). Make sure the red wire plugs into

pin 1 on both connectors. Pull all excess cabling out of the airfl ow path.

The control panel LEDs inform you of system status. See "Chapter 3: System

Interface" for details on the LEDs and the control panel buttons. Details on JF1

can be found in "Chapter 5: Advanced Serverboard Setup."

6-2

Chapter 6: Advanced Chassis Setup

6-3 System Fans

Four high-performance, counter-rotating 4-cm fans provide all the cooling needed

for the 1020C-3. Each fan is actually made up of two fans joined back-to-back that

rotate in opposite directions. This counter-rotating action generates exceptional

airfl ow airfl ow while dampening vibration levels.

These fans can adjust their speed according to the heat level sensed in the system,

which results in more effi cient and quieter fan operation. Fan speed is controlled

by a BIOS setting (see Chapter 7).

It is very important that the chassis top cover is properly installed and making a

good seal in order for the cooling air to circulate properly through the chassis and

cool the components. See Figure 6-2.

System Fan Failure

If a fan fails, the remaining fans will ramp up to full speed and the overheat/fan

fail LED on the control panel will turn on. Replace any failed fan at your earliest

convenience with the same type and model (the system can continue to run with

a failed fan). Remove the top chassis cover (see instructions on p. 2-8) while the

system is still running to determine which of the four fan units has failed. Then

power down the system before replacing a fan. Removing the power cord(s) is

also recommended as a safety precaution.

Replacing System Cooling Fans

1. Removing a fan

After turning off the power to the system, fi rst remove the chassis cover and unplug

all the fan cables from the serverboard. Grasp the rectangular housing that holds

the fan units and lift it out of the chassis (see Figure 6-2). Push the failed fan unit

out through the bottom of the fan housing.

2. Installing a new fan

Replace the failed fan with an identical 4-cm, 12 VDC fan (p/n FAN-0083). Push

the new fan into the vacant space in the housing while making sure the arrows on

the top of the fan (indicating direction of airfl ow) point in the same direction as the

arrows on the other fans. Reposition the fan housing on the mounting posts in the

chassis, then reconnnect the fan wires to the same fan headers you removed them

from. Power up the system and check that the fan is working properly and that the

LED on the control panel has turned off. Finish by replacing the chassis cover.

6-3

AS1020C-3 User's Manual

Figure 6-2. System Cooling Fans

4-cm fans

Air shroud

6-4 Drive Bay Installation/Removal

Removing the Front Bezel

If your system has a front bezel (optional) attached to the chassis, you must fi rst

remove it to gain access to the drive bays. To remove the bezel, fi rst unlock the

front of the chassis then press the release knob (see Figure 6-3). Carefully re-

move the bezel with both hands. A fi lter located within the bezel can be removed

for replacement/cleaning. It is recommended that you keep a maintenance log of

fi lter cleaning/replacement, since its condition will affect the airfl ow throughout the

whole system.

6-4

Chapter 6: Advanced Chassis Setup

Figure 6-3. Removing the Front Bezel

1. Unlock

2. Press release knob

3. Remove bezel assembly

Accessing the Drive Bays

SAS Drives: Because of their hotswap capability, you do not need to access the

inside of the chassis or power down the system to install or replace SAS drives.

Proceed to the next step for instructions.

CD-ROM/Floppy Disk Drives: For installing/removing a CD-ROM or fl oppy disk

drive, you will need to gain access to the inside of the 1020C-3 by removing the

top cover of the chassis. Proceed to the "CD-ROM and Floppy Drive Installation"

section later in this chapter for instructions.

Note: Only a "slim" CD-ROM drive will fi t into the 1020C-3.

6-5

AS1020C-3 User's Manual

Serial Attached SCSI (SAS) Drive Installation

1. Mounting a SAS drive in a drive carrier

The SAS drives are mounted in drive carriers to simplify their installation and re-

moval from the chassis. These carriers also help promote proper airfl ow for the

SAS drive bays. For this reason, even empty carriers without SAS drives installed

must remain in the chassis. To add a new SAS drive, install a drive into the car-

rier with the printed circuit board side facing down so that the mounting holes align

with those in the carrier. Secure the drive to the carrier with six screws, as shown

in Figure 6-4.

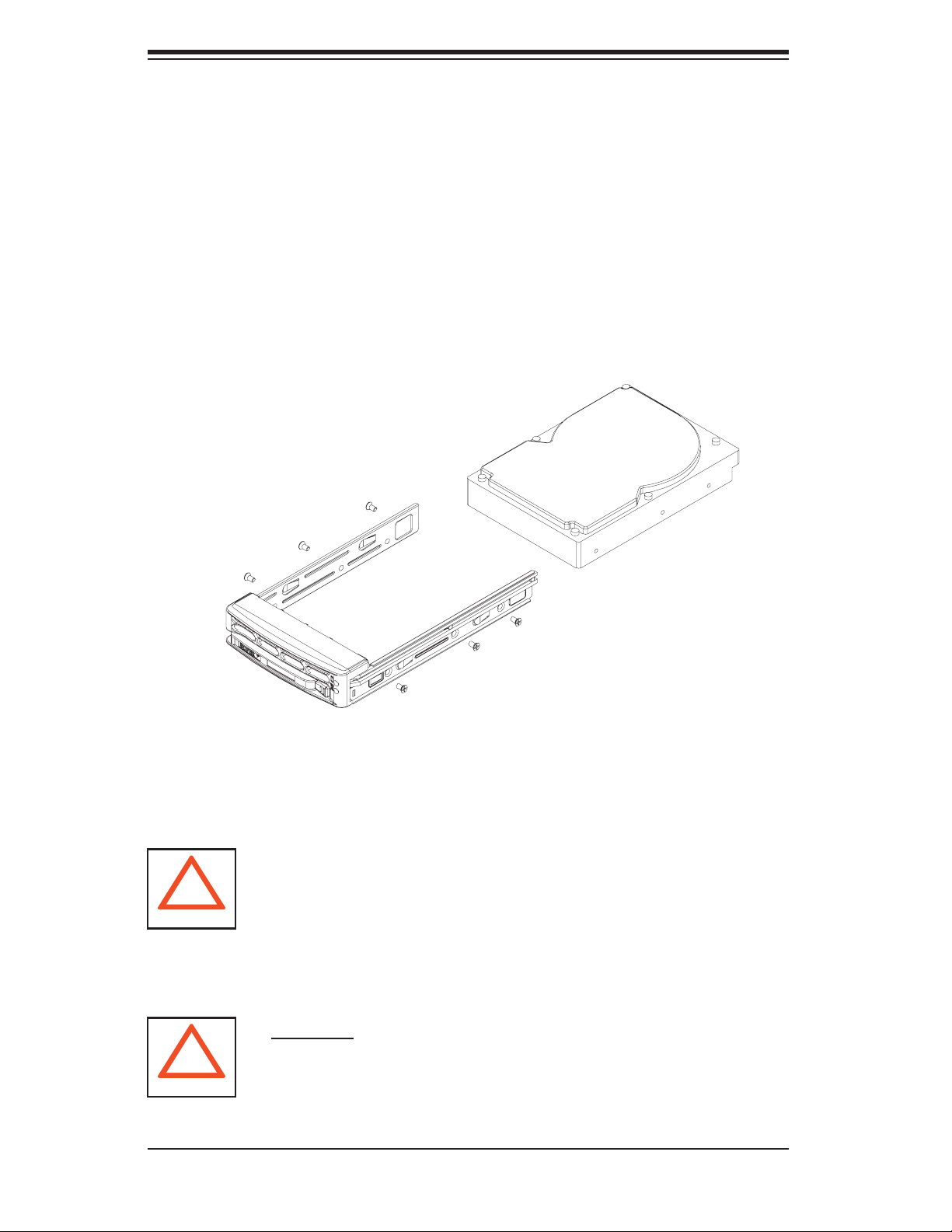

Figure 6-4. Mounting an SAS Drive in a Carrier

Use caution when working around the SAS backplane. Do not

touch the backplane with any metal objects and make sure no

!

!

ribbon cables touch the backplane or obstruct the holes, which

aid in proper airfl ow.

Important: Regardless of how many SAS hard drives are installed,

all drive carriers must remain in the drive bays to maintain proper

airfl ow.

6-6

Chapter 6: Advanced Chassis Setup

2. Installing/removing hot-swap SAS drives

The SAS drive carriers are all easily accessible at the front of the chassis. These

hard drives are hot-pluggable, meaning they can be removed and installed without

powering down the system. To remove a carrier, push the release button located

beside the drive LEDs. Then swing the colored handle fully out and use it to pull

the unit straight out (see Figure 6-5).

Note: Your operating system must have RAID support to enable the hot-plug ca-

pability of the SAS drives.

Figure 6-5. Removing an SAS Drive from the Server

SAS Power Cables

SAS power cables should be routed so that they do not block the airfl ow through

the chassis. See the motherboard layout diagram for the location of the cable

connections.

SAS Backplane

The SAS drives plug into a backplane that provides power, drive ID and bus termi-

nation. A RAID controller can be used with the backplane to provide data security.

The operating system you use must have RAID support to enable the hot-swap

capability of the SAS drives. The backplane is already preconfi gured, so there are

no jumpers or switches present on it.

6-7

AS1020C-3 User's Manual

CD-ROM and Floppy Drive Installation

The top cover of the chassis must be opened to gain full access to the CD-ROM

and fl oppy drive bays. The 1020C-3 accomodates only slim-line CD-ROM drives.

Side mounting brackets are needed to mount a slim-line CD-ROM drive in the

1020C-3 server.

You must power down the system before installing or removing a fl oppy or CD-ROM

drive. First, release the retention screws that secure the server unit to the rack.

Grasp the two handles on either side and pull the unit straight out until it locks

(you will hear a "click"). Next, depress the two buttons on the top of the chassis

to release the top cover and at the same time, push the cover away from you until

it stops. You can then lift the top cover from the chassis to gain full access to the

inside of the server.

With the chassis cover removed, unplug the power and data cables from the drive

you want to remove. Then locate the locking tab at the rear of the drive. It will be

on the left side of the drive when viewed from the front of the chassis. Pull the tab

away from the drive and push the drive unit out the front of the chassis. Add a new

drive by following this procedure in reverse order. You may hear a faint *click* of the

locking tab when the drive is fully inserted. Remember to reconnect the data and

power cables to the drive before replacing the chassis cover and restoring power

to the system. Please be aware of the following:

• The fl oppy disk drive cable has seven twisted wires.

• A color mark on a cable typically designates the location of pin 1.

• A single fl oppy disk drive ribbon cable has 34 wires and two connectors to provide

for two fl oppy disk drives. The connector with twisted wires always connects to

drive A, and the connector that does not have twisted wires always connects to

drive B.

6-8

Chapter 6: Advanced Chassis Setup

6-5 Power Supply

The 1020C-3 has a single 500 watt power supply, which is auto-switching capable.

This enables it to automatically sense and operate at a 100v to 240v input voltage.

An amber light will be illuminated on the power supply when the power is off. An

illuminated green light indicates that the power supply is operating.

Power Supply Failure

If the power supply unit fails, the system will shut down and you will need to re-

place the unit. Replacement units can be ordered directly from the manufacturer.

As there is only one power supply unit in the 1020C-3, power must be completely

removed from the server before removing and replacing the power supply unit for

whatever reason.

Removing/Replacing the Power Supply

1. Removing the power supply

First turn the power switch on the control panel off, then unplug the power cord

from the system. Remove the chassis cover by pressing the two release buttons

on the top of the chassis (near the front) and push the chassis top rearward about

one inch. To remove the failed power unit, push the beige colored release tab to

the right and then carefully lift the unit up about 1/2 inch only. If you lift too high,

you may damage the power distribution board that the other end of the unit is

connected to. Then, pull the power unit straight back to unplug it from the power

distribution board. See Figure 6-6.

2. Installing a new power supply

Replace the failed unit with another unit of the same input voltage, output voltage

and wattage. It is highly recommended to replace it with exactly the same model

power supply. Carefully insert the new unit into position to plug it into the power

distribution board, making sure you are not holding it at too great an angle, which

may damage the power distribution board. Push it completely into the power

distribution board and seat it in the chassis. When correctly installed it should be

laying fl at - make sure the end of the power supply is not sitting on the stop in the

chassis. Reconnect the power cord, replace the chassis top cover and reposition

the unit back into the rack. Finish by depressing the power button on the chassis

front control panel.

6-9

AS1020C-3 User's Manual

Figure 6-6. Removing/Replacing the Power Supply

6-10

Chapter 7: BIOS

Chapter 7

BIOS

7-1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the H8DCR-3. The AMI

ROM BIOS is stored in a fl ash chip and can be easily upgraded using a fl oppy

disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or

deleted and might not yet be recorded in this manual. Please refer to the Manual

Download area of our web site for any changes to BIOS that may not be refl ected

in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the <Delete> key while the system is booting-up.

(In most cases, the <Delete> key is used to invoke the BIOS setup screen. There are

a few cases when other keys are used, such as <F1>, <F2>, etc.) Each main BIOS

menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options

that can be confi gured. “Grayed-out” options cannot be confi gured. The right frame

displays the key legend. Above the key legend is an area reserved for a text mes-

sage. When an option is selected in the left frame, it is highlighted in white. Often a

text message will accompany it. (Note that BIOS has default text messages built in.

We retain the option to include, omit, or change any of these text messages.) Set-

tings printed in Bold are the default values.

A "

" indicates a submenu. Highlighting such an item and pressing the <Enter>

key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of

these hot keys (<F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, etc.) can be used at

any time during the setup navigation process.

7-1

AS1020C-3 User's Manual

7-2 Main Menu

When you fi rst enter AMI BIOS Setup Utility, you will see the Main Menu screen.

You can always return to the Main Menu by selecting the Main tab on the top of

the screen with the arrow keys.

The Main Menu screen provides you with a system overview, which includes the

version, built date and ID of the AMIBIOS, the type, speed and number of the

processors in the system and the amount of memory installed in the system.

System Time/System Date

You can edit this fi eld to change the system time and date. Highlight System Time

or System Date using the <Arrow> keys. Enter new values through the keyboard.

Press the <Tab> key or the <Arrow> keys to move between fi elds. The date must

be entered in DAY/MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Please note that time is in a 24-hour format. For example, 5:30 A.M. appears as

05:30:00 and 5:30 P.M. as 17:30:00.

7-3 Advanced Settings Menu

 CPU Confi guration

Opening this sebmenu displays various CPU information and the following two

settings.

GART Error Reporting

This setting is used for testing only.

MTRR Mapping

This determines the method used for programming CPU MTRRs when 4 GB or more

memory is present. The options are Continuous, which makes the PCI hole non-

cacheable, and Discrete, which places the PCI hole below the 4 GB boundary.

 IDE Confi guration

Onboard PCI IDE Controller

The following options are available to set the IDE controller status: Disabled will dis-

able the controller. Primary will enable the primary IDE controller only. Secondary

will enable the secondary IDE controller only. Both will enable both the primary

and the secondary IDE controllers.

7-2

Chapter 7: BIOS

Primary/Secondary IDE Master/Slave

Highlight one of the items above and press <Enter> to access the submenu for that

item. The same settings apply to the Secondary through Sixth IDE sevices.

Type

Select the type of device connected to the system. The options are Not Installed,

Auto, CDROM and ARMD.

LBA/Large Mode

LBA (Logical Block Addressing) is a method of addressing data on a disk drive.

In the LBA mode, the maximum drive capacity is 137 GB. For drive capacities of

over 137 GB, your system must be equipped with 48-bit LBA mode addressing.

If not, contact your manufacturer or install an ATA/133 IDE controller card that

supports 48-bit LBA mode. The options are Disabled and Auto.

Block (Multi-Sector Transfer)

Block mode boosts IDE drive performance by increasing the amount of data

transferred. Only 512 bytes of data can be transferred per interrupt if block mode

is not used. Block mode allows transfers of up to 64 KB per interrupt. Select

"Disabled" to allow the data to be transferred from and to the device one sec-

tor at a time. Select "Auto" to allows the data transfer from and to the device

occur multiple sectors at a time if the device supports it. The options are Auto

and Disabled.

PIO Mode

PIO (Programmable I/O) mode programs timing cycles between the IDE drive

and the programmable IDE controller. As the PIO mode increases, the cycle time

decreases. The options are Auto, 0, 1, 2, 3, and 4. Select Auto to allow AMI

BIOS to auto detect the PIO mode. Use this value if the IDE disk drive support

cannot be determined. Select 0 to allow AMI BIOS to use PIO mode 0. It has a

data transfer rate of 3.3 MBs. Select 1 to allow AMI BIOS to use PIO mode 1.

It has a data transfer rate of 5.2 MBs. Select 2 to allow AMI BIOS to use PIO

mode 2. It has a data transfer rate of 8.3 MBs. Select 3 to allow AMI BIOS to

use PIO mode 3. It has a data transfer rate of 11.1 MBs. Select 4 to allow AMI

BIOS to use PIO mode 4. It has a data transfer rate of 16.6 MBs. This setting

generally works with all hard disk drives manufactured after 1999. For other disk

drives, such as IDE CD-ROM drives, check the specifi cations of the drive.

7-3

AS1020C-3 User's Manual

DMA Mode

Selects the DMA Mode. Options are Auto, SWDMA0, SWDMA1, SWDMA2,

MWDMA0. MDWDMA1, MWDMA2, UDMA0. UDMA1, UDMA2, UDMA3,

UDMA4 and UDMA5. (SWDMA=Single Word DMA, MWDMA=Multi Word DMA,

UDMA=UltraDMA.)

S.M.A.R.T.

Self-Monitoring Analysis and Reporting Technology (SMART) can help predict

impending drive failures. Select "Auto" to allow BIOS to auto detect hard disk

drive support. Select "Disabled" to prevent AMI BIOS from using the S.M.A.R.T.

Select "Enabled" to allow AMI BIOS to use the S.M.A.R.T. to support hard drive

disk. The options are Disabled, Enabled, and Auto.

32-Bit Data Transfer

Select "Enabled" to activate the function of 32-Bit data transfer. Select "Disabled"

to deactivate the function. The options are Enabled and Disabled.

Hard Disk Write Protect

Select Enabled to enable the function of Hard Disk Write Protect to prevent data

from being written to HDD. The options are Enabled or Disabled.

IDE Detect Time Out (Sec)

This feature allows the user to set the time-out value for detecting ATA, ATA PI

devices installed in the system. The options are 0 (sec), 5, 10, 15, 20, 25, 30 and

35.

ATA(PI) 80Pin Cable Detection

This setting allows AMI BIOS to auto-detect the 80-Pin ATA(PI) cable. The options

are Host, Device and Host & Device.

SATA0 IDE Interface

This setting is used to Enable or Disable the serial controller for SATA0.

SATA1 IDE Interface

This setting is used to Enable or Disable the serial controller for SATA1.

First Boot Device From

Use this setting to select the fi rst boot device as being P-ATA or S-ATA.

7-4

Chapter 7: BIOS

 Confi guration nVidia RAID ROM

RAID Option ROM

This setting is used to Enable or Disable the nVidia ROM. If enabled, the set-

ting below will appear.

Master SATA as RAID

This setting is used to set the third master as a RAID drive. The options are

Enabled or Disabled.

 Floppy Confi guration

Floppy A

Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Floppy B

Move the cursor to these fi elds via up and down <arrow> keys to select the fl oppy

type. The options are Disabled, 360 KB 5 1/4", 1.2 MB 5 1/4", 720 KB 3½", 1.44

MB 3½”, and 2.88 MB 3½".

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard fl oppy controller.

 PCI/PnP Menu

Clear NVRAM

Select Yes to clear NVRAM during boot-up. The options are Yes and No.

Plug & Play OS

Select Yes to allow the OS to confi gure Plug & Play devices. (This is not required

for system boot if your system has an OS that supports Plug & Play.) Select No

to allow AMIBIOS to confi gure all devices in the system.

PCI Latency Timer

This option sets the latency of all PCI devices on the PCI bus. Select a value to

set the PCI latency in PCI clock cycles. Options are 32, 64, 96, 128, 160, 192,

224 and 248.

7-5

AS1020C-3 User's Manual

Allocate IRQ to PCI VGA

Set this value to allow or restrict the system from giving the VGA adapter card an

interrupt address. The options are Yes and No.

Palette Snooping

Select "Enabled" to inform the PCI devices that an ISA graphics device is installed

in the system in order for the graphics card to function properly. The options are

Enabled and Disabled.

PCI IDE BusMaster

Set this value to allow or prevent the use of PCI IDE busmastering. Select "Enabled"

to allow AMI BIOS to use PCI busmaster for reading and writing to IDE drives. The

options are Disabled and Enabled.

Offboard PCI/ISA IDE Card

This option allows the user to assign a PCI slot number to an Off-board PCI/ISA

IDE card in order for it to function properly. The options are Auto, PCI Slot1, PCI

Slot2, PCI Slot3, PCI Slot4, PCI Slot5, and PCI Slot6.

Load Onboard LAN Option ROM

This setting is used to load the onboard LAN option ROM. The options are LAN1,

LAN2 and Disabled.

 Advanced Chipset Control

 NorthBridge Confi guration

 Memory Confi guration

Memclock Mode

This setting determines how the memory clock is set. Auto has the memory

clock by code and Limit allows the user to set a standard value.

MCT Timing Mode

Sets the timing mode for memory. Options are Auto and Manual.

7-6

Chapter 7: BIOS

User Confi g Mode

Options are Auto and Manual.

Bank Interleaving

Determines if memory will be interleaved. Options are Auto and Disabled.

Burst Length

Use this setting to set the memory burst length. 64-bit Dq must use 4 beats.

Options are 8 beats, 4 beats and 2 beats.

SoftWare Memory Hole

When "Enabled", allows software memory remapping around the memory

hole. Options are Enabled and Disabled.

Node Interleaving

Use this setting to Enable or Disable Node Interleaving.

 ECC Confi guration

DRAM ECC Enable

DRAM ECC allows hardware to report and correct memory errors automati-

cally. Options are Enabled and Disabled.

MCA DRAM ECC Logging

When Enabled, MCA DRAM ECC logging and reporting is enabled.

Options are Enabled and Disabled.

ECC Chip Kill

Allows the user to enabled ECC Chip kill. Options are Enabled and

Disabled.

DRAM Scrub Redirect

Allows system to correct DRAM ECC errors immediately, even if back-

ground scrubbing is on. Options are Enabled and Disabled.

7-7

AS1020C-3 User's Manual

DRAM BG Scrub

Corrects memory errors so later reads are correct. Options are Dis-

abled and various times in nanoseconds and microseconds.

L2 Cache BG Scrub

Allows L2 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

Data Cache BG Scrub

Allows L1 cache RAM to be corrected when idle. Options are Disabled and

various times in nanoseconds and microseconds.

 IOMMU Option Menu

IOMMU Mode

IOMMU is supported on Linux-based systems to convert 32-bit I/O addresses

to 64-bit. Options are AGP Present, Disabled, 32MB, 64MB, 128MB, 256MB,

512MB and 1GB.

Memory Timing Parameters

Allows the user to select which CPU Node's timing parameters (memory clock,

etc.) to display. Options are CPU Node 0 and CPU Node1.

 SouthBridge Confi guration

Audio CODEC Interface

Use this setting to Enable or Disable the internal ACI.

MAC Interface

This setting is used to Enable or Disable the internal 802.3 MAC interface.

CPU Spread Spectrum

This setting is used to enable spread spectrum for the CPU. Options are Dis-

abled and Center Spread.

SATA Spread Spectrum

This setting is used to enable spread spectrum for the SATA. Options are Dis-

abled and Down Spread.

7-8

Chapter 7: BIOS

PCI Express Spread Spectrum

This setting is used to enable spread spectrum for the PCI Express. Options

are Disabled and Down Spread.

Primary Video

This setting is used to switch the PCI bus scanning order while searching for the

video card. It allows the user to select the type of primary VGA in case of multiple

video controllers. Options are Slave PCI-Express and Master PCI-Express.

 I/O Device Confi guration

Onboard Floppy Controller

Use this setting to Enable or Disable the onboard fl oppy controller.

Serial Port1 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 1. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to Disabled, the serial port physically becomes

unavailable. Select "3F8/IRQ4" to allow the serial port to use 3F8 as its I/O port

address and IRQ 4 for the interrupt address. The options are Disabled, 3F8/IRQ4,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port2 Address

This option specifi es the base I/O port address and Interrupt Request address of

serial port 2. Select "Disabled" to prevent the serial port from accessing any system

resources. When this option is set to "Disabled", the serial port physically becomes

unavailable. Select "2F8/IRQ3" to allow the serial port to use 2F8 as its I/O port

address and IRQ 3 for the interrupt address. The options are Disabled, 2F8/IRQ3,

3E8/IRQ4 and 2E8/IRQ3.

Serial Port 2 Mode

Tells BIOS which mode to select for serial port 2. The options are Normal,

IrDA and ASKIR.

7-9

AS1020C-3 User's Manual

Parallel Port Address

This option specifi es the I/O address used by the parallel port. Select Disabled to

prevent the parallel port from accessing any system resources. When the value of

this option is set to Disabled, the printer port becomes unavailable. Select 378 to

allow the parallel port to use 378 as its I/O port address. The majority of parallel

ports on computer systems use IRQ7 and I/O Port 378H as the standard setting.

Select 278 to allow the parallel port to use 278 as its I/O port address. Select 3BC

to allow the parallel port to use 3BC as its I/O port address.

Parallel Port Mode

This feature allows you to specify the parallel port mode. The options are

Normal, Bi-Directional, ECP, EPP and ECP & EPP.

Parallel Port IRQ

Select the IRQ (interrupt request) for the parallel port. The options are IRQ5

and IRQ7.

KBC Clock Rate

This settings for the KBC Clock rate are 6 MHz, 8 MHz, 12 MHz and 16 MHz.

 Hyper Transport Confi guration

CPU0: CPU1 HT Link1 Speed

The HT link will run at the speed specifi ed in this setting if it is slower than or

equal to the system clock and if the board is capable. Options are Auto, 200

MHz, 400 MHz, 600 MHz, 800 MHz and 1 GHz.

CPU0: CPU1 HT Link1 Width

The HT link will run at the width specifi ed in this setting. Options are Auto, 2

bit, 4 bit, 8 bit and 16 bit.

CPU0: PCI-X0 HT Link Speed

The HT link will run at the speed specifi ed in this setting if it is slower than or

equal to the system clock and if the board is capable. Options are Auto, 200

MHz, 400 MHz, 600 MHz, 800 MHz and 1 GHz.

CPU0: PCI-X0 HT Link Width

The HT link will run at the width specifi ed in this setting. Options are Auto, 2

bit, 4 bit, 8 bit and 16 bit.\

7-10

Chapter 7: BIOS

 AMD PowerNow Confi guration

This setting is used to Enable or Disable the AMD PowerNow feature.

 DMI Event Logging

View Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Mark All Events as Read

Highlight this item and press <Enter> then select Yes to mark all DMI events as

read (or cancel).

Clear Event Log

Highlight this item and press <Enter> then select Yes to clear the DMI event log

(or cancel).

 Console Redirection

Remote Access

Use this setting to Enable or Disable the remote access function. When enabled,

the options below will appear.

Serial Port Number

Selects the serial port to use for console redirection. The options are COM1 and

COM2.

Serial Port Mode

Selects the serial mode to use for console redirection. The options are "115200 8,

n, 1", "57600 8, n, 1", "38400 8, n, 1", "19200 8, n, 1" and "09600 8, n, 1".

Flow Control

This item allows you to choose from the available options to select the fl ow control

for console redirection. The options are None, Hardware and Software.

Redirection After BIOS POST

This setting determines the redirection after the BIOS POST routine takes placce.

Options are Disabled, Boot Loader and Always.

7-11

AS1020C-3 User's Manual

Terminal Type

This item allows you to select the terminal type for console redirection. The options

are ANSI, VT100, and VT-UTF8.

VT-UTF8 Combo Key Support

This item allows you to Enable or Disable VT-UTF8 combo key support.

Sredir Memory Display Delay

This item allows you to set the redirect delay to No Delay, Delay 1 sec., Delay 2

sec. or Delay 4 sec.

 System Health Monitor

This opens a submenu that lists the temperature(s) of the CPU(s), system tem-

perature, and the voltage levels for CPU1VCore, CPU2VCore, CPU1DIMMVolt,

CPU2DIMMVolt, 1.2V for Hyper-Transport, 1.5V, 2.5V, 3.3V Vcc, 3.3VSB, 5Vin,

12Vin, -12V Vcc and battery voltage. There is one BIOS setting in this submenu:

System Fan Monitor

This feature allows the user to determine how the system will control the speed of

the onboard fans. If the option is set to "3-pin server", the fan speed is controlled

based upon the CPU die temperature. When the CPU die temperature is higher,

the fan speed will be higher as well. Select Disable to disable the fan speed control

function, which allows the onboard fans to continuously run at full speed (12V). The

options are 1) Disable, Full Speed and 2) Server mode.

FAN1 Speed through FAN5 Speed

The speeds of the onboard fans (in rpm) are displayed here.

 IPMI 1.5 Confi guration

 View BMC Status Event Log

Highlight this and press the Enter key to view the BMC Status Event Log.

Clear BMC Status Event Log

Use this option to clear the BMC Status Event Log.

7-12

Chapter 7: BIOS

 Set LAN Confi guration

 IP Address

Shows the IP address confi guration.

 MAC Address

Shows the MAC address confi guration.

 Subnet Mask

Shows the subnet mask confi guration.

 Set PEF Confi guration

Enable or Disable PEF support. If Enabled, the following PEF settings will

appear.

PEF Action Global Control

Use this setting to determine the type of PEF action. Options are Alert,

Power Down, Reset Sysytem, Power Cycles, OEM Action and Diagnostics

Int.

Alert Startup Delay

This setting allows you to Enable or Disable a delay for the alert startup. If

Enabled, the following settings will appear.

Startup Delay

This setting allows you to Enable or Disable a delay for the alert startup. If

Enabled, the following settings will appear.

Event Message for PEF Action

This setting allows you to Enable or Disable events messages for a PEF

action.

CBMC Watch Dog Timer Action

Use this to determine how the Watch Dog funtion will act. Options are Disabled,

Reset System, Power Down and Power Cycle.

7-13

AS1020C-3 User's Manual

 USB Confi guration

This screen will display the module version and all USB enabled devices.

USB Controller Support

Enable the controller for your USB ports. Options are Disabled, USB 1.1 only

and USB 1.1 + USB 2.0.

Legacy USB Support

Select "Enabled" to enable the support for USB Legacy. Disable Legacy support

if there are no USB devices installed in the system. The options are Disabled,

Enabled and Auto.

USB 2.0 Controller Mode

Select the controller mode for your USB ports. Options are HiSpeed and

FullSpeed. (HiSpeed=480 Mbps, FullSpeed=12 Mbps).

BIOS EHCI Hand-Off

Enable or Disable a workaround for OS's without EHCI hand-off support.

7-14

Chapter 7: BIOS

7-4 Boot Menu

This feature allows the user to confi gure the following items:

 Boot Settings Confi guration

Quick Boot

If Enabled, this option will skip certain tests during POST to reduce the time needed

for the system to boot up. The options are Enabled and Disabled.

Quiet Boot

If Disabled, normal POST messages will be displayed on boot-up. If Enabled, this

display the OEM logo instead of POST messages.

AddOn ROM Display Mode

This setting controls the display of add-on ROM (read-only memory) messages.

Select "Force BIOS" to allow the computer system to force a third party BIOS to

display during system boot. Select "Keep Current" to allow the computer system

to display the BIOS information during system boot.

Boot up Num-Lock

Set this to "On" to allow the Number Lock setting to be modifi ed during boot up.

The options are On and Off.

PS/2 Mouse Support

This setting is to specify PS/2 mouse support. The options are Auto, Enabled

and Disabled.

Parity Check

This setting is used to Enable or Disable the memory or parity error check. Enable

this setting for NMI support.

Wait for ‘F1’ If Error

Enable to activate the Wait for F1 if Error function. The options are Enabled and

Disabled.

Hit ‘DEL’ Message Display

Enable to display the message telling the user to hit the DEL key to enter the setup

utility. The options are Enabled and Disabled.

7-15

AS1020C-3 User's Manual

Interrupt 19 Capture

Enable to allow ROMs to trap Interrupt 19. The options are Enabled and Dis-

abled.

 Boot Device Priority

This feature allows the user to prioritize the sequence for the boot device from all

available devices.

 Removeable Drives

This feature allows the user to specify the boot sequence from the available remove-

able drives.

OS Installation

Change this setting if using a Linux operating system. The available options are

Other and Linux.

7-5 Security Menu

AMI BIOS provides a Supervisor and a User password. If you use both passwords,

the Supervisor password must be set fi rst.

Change Supervisor Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Change User Password

Select this option and press <Enter> to access the sub menu, and then type in

the password.

Boot Sector Virus Protection

This option is near the bottom of the Security Setup screen. Select "Disabled" to

deactivate the Boot Sector Virus Protection. Select "Enabled" to enable boot sector

protection. When "Enabled", AMI BIOS displays a warning when any program (or

virus) issues a Disk Format command or attempts to write to the boot sector of the

hard disk drive. The options are Enabled and Disabled.

7-16

Chapter 7: BIOS

7-6 Exit Menu

Select the Exit tab from AMI BIOS Setup Utility screen to enter the Exit BIOS Setup

screen.

Save Changes and Exit

When you have completed the system confi guration changes, select this option

to leave BIOS Setup and reboot the computer, so the new system confi guration

parameters can take effect. Select Save Changes and Exit from the Exit menu

and press <Enter>.

Discard Changes and Exit

Select this option to quit BIOS Setup without making any permanent changes to

the system confi guration and reboot the computer. Select Discard Changes and

Exit from the Exit menu and press <Enter>.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to AMI

BIOS Utility Program.

Load Optimal Defaults

To set this feature, select Load Optimal Defaults from the Exit menu and press

<Enter>. Then Select "OK" to allow BIOS to automatically load the Optimal Defaults

as the BIOS Settings. The Optimal settings are designed for maximum system

performance, but may not work best for all computer applications.

Load Failsafe Defaults

To set this feature, select Load Fail-Safe Defaults from the Exit menu and press

<Enter>. The Fail-Safe settings are designed for maximum system stability, but

not maximum performance.

7-17

AS1020C-3 User's Manual

Notes

7-18

Appendix A: BIOS Error Beep Codes

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time

the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the

boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up pro-

cedure. If a fatal error occurs, you should consult with your system manufacturer

for possible repairs.

These fatal errors are usually communicated through a series of audible beeps.

The numbers on the fatal error list, on the following page, correspond to the number

of beeps for the corresponding error. All errors listed, with the exception of Beep

Code 8, are fatal errors.

POST codes may be read on the debug LEDs located beside the LAN port on the

serverboard backplane. See the description of the Debug LEDs (LED1 and LED2)

in Chapter 5.

A-1 AMIBIOS Error Beep Codes

Beep Code Error Message Description

1 beep Refresh Circuits have been reset.

(Ready to power up.)

5 short, 1 long Memory error No memory detected in

system

8 beeps Display memory read/write error Video adapter missing or

with faulty memory

A-1

AS1020C-3 User’s Manual

Notes

A-2

Appendix B: BIOS POST Checkpoint Codes

Appendix B

BIOS POST Checkpoint Codes

When AMIBIOS performs the Power On Self Test, it writes checkpoint codes to I/O

port 0080h. If the computer cannot complete the boot process, diagnostic equipment

can be attached to the computer to read I/O port 0080h.

B-1 Uncompressed Initialization Codes

The uncompressed initialization checkpoint codes are listed in order of execution:

Checkpoint Code Description

D0h The NMI is disabled. Power on delay is starting. Next, the initialization code check-

D1h Initializing the DMA controller, performing the keyboard controller BAT test, starting

D3h Starting memory sizing next.

D4h Returning to real mode. Executing any OEM patches and setting the Stack next.

D5h Passing control to the uncompressed code in shadow RAM at E000:0000h. The

sum will be verifi ed.

memory refresh and entering 4 GB fl at mode next.

initialization code is copied to segment 0 and control will be transferred to segment

0.

B-1

AS1020C-3 User’s Manual

B-2 Bootblock Recovery Codes

The bootblock recovery checkpoint codes are listed in order of execution:

Checkpoint Code Description

E0h The onboard fl oppy controller if available is initialized. Next, beginning the base

E1h Initializing the interrupt vector table next.

E2h Initializing the DMA and Interrupt controllers next.

E6h Enabling the fl oppy drive controller and Timer IRQs. Enabling internal cache mem-

Edh Initializing the fl oppy drive.

Eeh Looking for a fl oppy diskette in drive A:. Reading the fi rst sector of the diskette.

Efh A read error occurred while reading the fl oppy drive in drive A:.

F0h Next, searching for the AMIBOOT.ROM fi le in the root directory.

F1h The AMIBOOT.ROM fi le is not in the root directory.

F2h Next, reading and analyzing the fl oppy diskette FAT to fi nd the clusters occupied

F3h Next, reading the AMIBOOT.ROM fi le, cluster by cluster.

F4h The AMIBOOT.ROM fi le is not the correct size.

F5h Next, disabling internal cache memory.

FBh Next, detecting the type of fl ash ROM.

FCh Next, erasing the fl ash ROM.

512 KB memory test.

ory.

by the AMIBOOT.ROM fi le.

FDh Next, programming the fl ash ROM.

FFh Flash ROM programming was successful. Next, restarting the system BIOS.

B-2

Appendix B: BIOS POST Checkpoint Codes

B-3 Uncompressed Initialization Codes

The following runtime checkpoint codes are listed in order of execution.

These codes are uncompressed in F0000h shadow RAM.

Checkpoint Code Description

03h The NMI is disabled. Next, checking for a soft reset or a power on condition.

05h The BIOS stack has been built. Next, disabling cache memory.

06h Uncompressing the POST code next.

07h Next, initializing the CPU and the CPU data area.

08h The CMOS checksum calculation is done next.

0Ah The CMOS checksum calculation is done. Initializing the CMOS status register for

0Bh The CMOS status register is initialized. Next, performing any required initialization

0Ch The keyboard controller input buffer is free. Next, issuing the BAT command to the

0Eh The keyboard controller BAT command result has been verifi ed. Next, performing

0Fh The initialization after the keyboard controller BAT command test is done. The key-

10h The keyboard controller command byte is written. Next, issuing the Pin 23 and 24

11h Next, checking if <End or <Ins> keys were pressed during power on. Initializing

12h Next, disabling DMA controllers 1 and 2 and interrupt controllers 1 and 2.

13h The video display has been disabled. Port B has been initialized. Next, initializing

14h The 8254 timer test will begin next.

19h Next, programming the fl ash ROM.

1Ah The memory refresh line is toggling. Checking the 15 second on/off time next.

date and time next.

before the keyboard BAT command is issued.

keyboard controller.

any necessary initialization after the keyboard controller BAT command test.

board command byte is written next.

blocking and unblocking command.

CMOS RAM if the Initialize CMOS RAM in every boot AMIBIOS POST option was
set in AMIBCP or the <End> key was pressed.

the chipset.

2Bh Passing control to the video ROM to perform any required confi guration before the

2Ch All necessary processing before passing control to the video ROM is done. Look-

2Dh The video ROM has returned control to BIOS POST. Performing any required pro-

23h Reading the 8042 input port and disabling the MEGAKEY Green PC feature next.

24h The confi guration required before interrupt vector initialization has completed. In-

video ROM test.

ing for the video ROM next and passing control to it.

cessing after the video ROM had control

Making the BIOS code segment writable and performing any necessary confi gura­tion before initializing the interrupt vectors.

terrupt vector initialization is about to begin.

B-3

AS1020C-3 User’s Manual

Checkpoint Code Description

25h Interrupt vector initialization is done. Clearing the password if the POST DIAG

27h Any initialization before setting video mode will be done next.

28h Initialization before setting the video mode is complete. Confi guring the mono-

2Ah Bus initialization system, static, output devices will be done next, if present. See the

2Eh Completed post-video ROM test processing. If the EGA/VGA controller is not

2Fh The EGA/VGA controller was not found. The display memory read/write test is

30h The display memory read/write test passed. Look for retrace checking next.

31h The display memory read/write test or retrace checking failed. Performing the alter-

32h The alternate display memory read/write test passed. Looking for alternate display

34h Video display checking is over. Setting the display mode next.

37h The display mode is set. Displaying the power on message next.

38h Initializing the bus input, IPL, general devices next, if present. See the last page of

39h Displaying bus initialization error messages. See the last page of this chapter for

switch is on.

chrome mode and color mode settings next.

last page for additional information.

found, performing the display memory read/write test next.

about to begin.

nate display memory read/write test next.

retrace checking next.

this chapter for additional information.

additional information.

3Ah The new cursor position has been read and saved. Displaying the Hit <DEL> mes-

3Bh The Hit <DEL> message is displayed. The protected mode memory test is about

40h Preparing the descriptor tables next.

42h The descriptor tables are prepared. Entering protected mode for the memory test

43h Entered protected mode. Enabling interrupts for diagnostics mode next.

44h Interrupts enabled if the diagnostics switch is on. Initializing data to check memory

45h Data initialized. Checking for memory wraparound at 0:0 and fi nding the total sys-

46h The memory wraparound test is done. Memory size calculation has been done.

47h The memory pattern has been written to extended memory. Writing patterns to the

48h Patterns written in base memory. Determining the amount of memory below 1 MB

49h The amount of memory below 1 MB has been found and verifi ed.

4Bh The amount of memory above 1 MB has been found and verifi ed. Checking for a

sage next.

to start.

next.

wraparound at 0:0 next.

tem memory size next.

Writing patterns to test memory next.

base 640 KB memory next.

next.

soft reset and clearing the memory below 1 MB for the soft reset next. If this is a
power on situation, going to checkpoint 4Eh next.

B-4

Checkpoint Code Description

Appendix B: BIOS POST Checkpoint Codes

4Ch The memory below 1 MB has been cleared via a soft reset. Clearing the memory

4Dh The memory above 1 MB has been cleared via a soft reset. Saving the memory size

4Eh The memory test started, but not as the result of a soft reset. Displaying the fi rst

4Fh The memory size display has started. The display is updated during the memory

50h The memory below 1 MB has been tested and initialized. Adjusting the displayed

51h The memory size display was adjusted for relocation and shadowing.

52h The memory above 1 MB has been tested and initialized. Saving the memory size

53h The memory size information and the CPU registers are saved. Entering real mode

54h Shutdown was successful. The CPU is in real mode. Disabling the Gate A20 line,

57h The A20 address line, parity, and the NMI are disabled. Adjusting the memory size

58h The memory size was adjusted for relocation and shadowing. Clearing the Hit

59h The Hit <DEL> message is cleared. The <WAIT...> message is displayed. Starting

above 1 MB next.

next. Going to checkpoint 52h next.

64 KB memory size next.

test. Performing the sequential and random memory test next.

memory size for relocation and shadowing next.

information next.

next.

parity, and the NMI next.

depending on relocation and shadowing next.

<DEL> message next.

the DMA and interrupt controller test next.

60h The DMA page register test passed. Performing the DMA Controller 1 base register

62h The DMA controller 1 base register test passed. Performing the DMA controller 2

65h The DMA controller 2 base register test passed. Programming DMA controllers 1

66h Completed programming DMA controllers 1 and 2. Initializing the 8259 interrupt

67h Completed 8259 interrupt controller initialization.

7Fh Extended NMI source enabling is in progress.

80h The keyboard test has started. Clearing the output buffer and checking for stuck

81h A keyboard reset error or stuck key was found. Issuing the keyboard controller

82h The keyboard controller interface test completed. Writing the command byte and

83h The command byte was written and global data initialization has completed. Check-

84h Locked key checking is over. Checking for a memory size mismatch with CMOS

85h The memory size check is done. Displaying a soft error and checking for a password

test next.

base register test next.

and 2 next.

controller next.

keys. Issuing the keyboard reset command next.

interface test command next.

initializing the circular buffer next.

ing for a locked key next.

RAM data next.

or bypassing WINBIOS Setup next.

B-5

AS1020C-3 User’s Manual

Checkpoint Code Description

86h The password was checked. Performing any required programming before WIN-

87h The programming before WINBIOS Setup has completed. Uncompressing the

88h Returned from WINBIOS Setup and cleared the screen. Performing any necessary

89h The programming after WINBIOS Setup has completed. Displaying the power on

8Ch Programming the WINBIOS Setup options next.

8Dh The WINBIOS Setup options are programmed. Resetting the hard disk controller

8Fh The hard disk controller has been reset. Confi guring the fl oppy drive controller

91h The fl oppy drive controller has been confi gured. Confi guring the hard disk drive

95h Initializing the bus option ROMs from C800 next. See the last page of this chapter

96h Initializing before passing control to the adaptor ROM at C800.

97h Initialization before the C800 adaptor ROM gains control has completed. The adap-

98h The adaptor ROM had control and has now returned control to BIOS POST. Perform-

BIOS Setup next.

WINBIOS Setup code and executing the AMIBIOS Setup or WINBIOS Setup utility
next.

programming after WINBIOS Setup next.

screen message next.

next.

next.

controller next.

for additional information.

tor ROM check is next.

ing any required processing after the option ROM returned control.

99h Any initialization required after the option ROM test has completed. Confi guring the

9Ah Set the timer and printer base addresses. Setting the RS-232 base address next.

9Bh Returned after setting the RS-232 base address. Performing any required initializa-

9Ch Required initialization before the Coprocessor test is over. Initializing the Coproces-

9Dh Coprocessor initialized. Performing any required initialization after the Coproces-

9Eh Initialization after the Coprocessor test is complete. Checking the extended keyboard,

A2h Displaying any soft errors next.

A3h The soft error display has completed. Setting the keyboard typematic rate next.

A4h The keyboard typematic rate is set. Programming the memory wait states next.

A5h Memory wait state programming is over. Clearing the screen and enabling parity

A7h NMI and parity enabled. Performing any initialization required before passing control

A8h Initialization before passing control to the adaptor ROM at E000h completed. Passing

timer data area and printer base address next.

tion before the Coprocessor test next.

sor next.

sor test next.

keyboard ID, and Num Lock key next. Issuing the keyboard ID command next.

and the NMI next.

to the adaptor ROM at E000 next.

control to the adaptor ROM at E000h next.

B-6
