Supermicro SUPER X5DPR-TG2 Plus User Manual

®

SUPER X5DPR-TG2+

USER’S MANUAL

Revision 1.0

SUPER

The information in this User’s Manual has been carefully reviewed and is believed to be
accurate. The vendor assumes no responsibility for any inaccuracies that may be
contained in this document, makes no commitment to update or to keep current the
information in this manual, or to notify any person or organization of the updates.

Please Note: For the most up-to-date version of this manual, please
see our web site at www.supermicro.com.

SUPERMICRO COMPUTER reserves the right to make changes to the product described in
this manual at any time and without notice. This product, including software, if any, and
documentation may not, in whole or in part, be copied, photocopied, reproduced, translated
or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR
INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of
Santa Clara shall be the exclusive venue for the resolution of any such disputes.
Supermicro's total liability for all claims will not exceed the price paid for the hardware
product.

Unless you request and receive written permission from SUPER MICRO COMPUTER, you
may not copy any part of this document.

Information in this document is subject to change without notice. Other products and
companies referred to herein are trademarks or registered trademarks of their respective
companies or mark holders.

Copyright © 2003 by SUPER MICRO COMPUTER INC.
All rights reserved.

Printed in the United States of America

iii

Preface

Preface

About This Manual

This manual is written for system integrators, PC technicians and
knowledgeable PC users. It provides information for the installation and use
of the SUPER X5DPR-TG2+ mainboard. The SUPER X5DPR-TG2+ supports
single or dual Intel® 603/604-pin XeonTM processors at a 533/400 MHz front
side bus. Please refer to the support section of our web site (http://
www.supermicro.com/TechSupport.htm) for a complete listing of supported
processors. This product is intended to be professionally installed.

Manual Organization

Chapter 1 begins with a checklist of what should be included in your

mainboard box, describes the features, specifications and performance of
the motherboard and provides detailed information about the chipset.

Chapter 2 begins with instructions on handling static-sensitive devices.
Read this chapter when you want to install the processor and DIMM memory
modules and when mounting the mainboard in the chassis. Also refer to
this chapter to connect the floppy and hard disk drives, SCSI drives, the IDE
interfaces, the parallel and serial ports, the keyboard and mouse, the power
supply and various control panel buttons and indicators.

If you encounter any problems, see Chapter 3, which describes trouble­shooting procedures for the video, the memory and the setup configuration
stored in CMOS. For quick reference, a general FAQ [Frequently Asked
Questions] section is provided. Instructions are also included for contact­ing technical support. In addition, you can visit our web site (at
www.supermicro.com/techsupport.htm) for more detailed information.

Chapter 4 includes an introduction to BIOS and provides detailed informa­tion on running the CMOS Setup utility.

Appendix A gives information on BIOS POST messages.

Appendix B provides BIOS POST codes.

Appendix C gives information on the installation of software programs,

SATA RAID Utility, and Widows Operating System.

iv

Preface

About This Manual ...................................................................................................... ii i

Manual Organization ................................................................................................... iii

Chapter 1: Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .................................................................................................... 1-1

Contacting Supermicro ............................................................................ 1-2

Super X5DPR-TG2+ Image ..................................................................... 1-3

Super X5DPR-TG2+ Layout .................................................................. 1-4

Super X5DPR-TG2+ Quick Reference ................................................ 1-5

Motherboard Features ............................................................................. 1-6

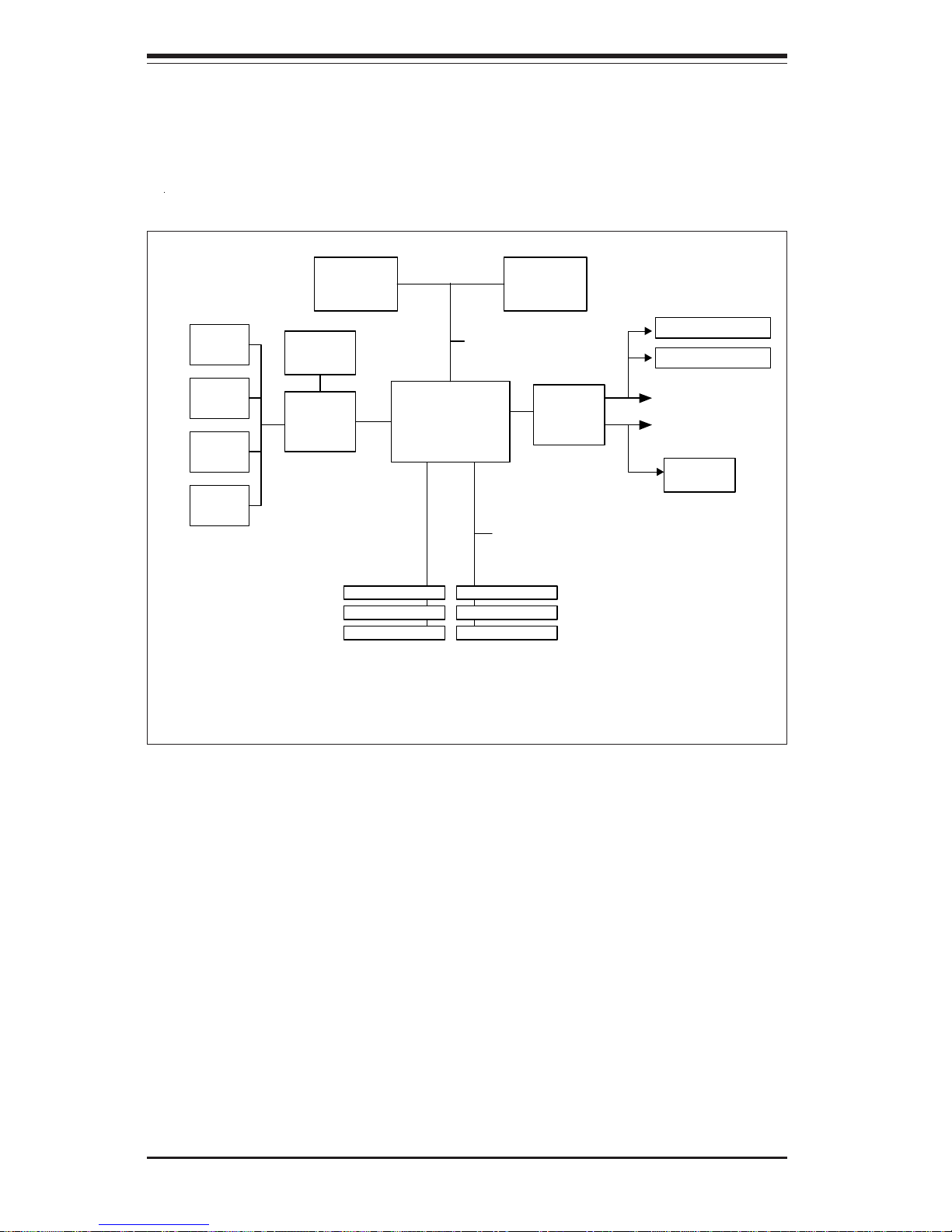

Intel E7501 Chipset: System Block Diagram ........................................ 1-8

1-2 Chipset Overview........................................................................................... 1-9

1-3 Special Features............................................................................................. 1-9

ATI Graphics Controller .......................................................................... 1-9

Recovery from AC Power Loss ........................................................... 1-9

1-4 PC Health Monitoring.................................................................................... 1-10

1- 5 ACPI Features ............................................................................................... 1-11

1-6 Power Supply ............................................................................................... 1-13

1- 7 Super I/O......................................................................................................... 1-13

Chapter 2: Installation

2-1 Static-Sensitive Devices ............................................................................... 2-1

Precautions............................................................................................... 2-1

Unpacking.................................................................................................. 2-1

2-2 PGA Processor and Heatsink Installation .................................................. 2-2

2-3 Installing DIMMs............................................................................................... 2-5

2- 4 I/O Ports/Control Panel Connectors ............................................................. 2-6

2-5 Connecting Cables .......................................................................................... 2-8

ATX Power Connection .......................................................................... 2-8

PWR_SEC Connection ............................................................................. 2-8

Power LED ................................................................................................. 2-9

NMI Button .................................................................................................. 2-9

HDD LED .................................................................................................... 2-9

NIC1 LED ................................................................................................. 2-10

NIC2 LED ................................................................................................. 2-10

Overheat LED ......................................................................................... 2-10

Table of Contents

SUPER X5DPR-TG2+ User's Manual

Table of Contents

v

Power Fail Button ................................................................................... 2-11

Reset Button ........................................................................................... 2-11

Power Button ......................................................................................... 2-11

Chassis Intrusion ................................................................................... 2-12

Universal Serial Bus (USB0/1) ............................................................ 2-12

Extra Universal Serial Bus Headers (USB2/3) ................................. 2-13

Serial Ports ............................................................................................. 2-13

GLAN1/2 (Ethernet Ports) ..................................................................... 2-14

Fan Headers ........................................................................................... 2-14

Power LED/Speaker/NMI Header (JD1).............................................. 2-15

Third Power Supply Fail Header ..........................................................2-15

ATX PS/2 Keyboard and Mouse Ports ................................................2-16

Wake-On-LAN ......................................................................................... 2-16

Wake-On-Ring ......................................................................................... 2-17

Keylock ..................................................................................................... 2-17

2- 6 Jumper Settings ............................................................................................ 2-18

Explanation of Jumpers ........................................................................ 2-18

CMOS Clear............................................................................................. 2-18

GLAN Enable/Disable............................................................................. 2-19

VGA Enable/Disable ............................................................................... 2-19

Front Side Bus Speed ........................................................................... 2-19

Watch Dog Enable/Disable .................................................................... 2-20

PCIX Bus Speed For Slot 2 ................................................................... 2-20

Serial ATA Enable/Disable .................................................................... 2-21

2-7 Onboard Indicators ...................................................................................... 2-21

GLAN1/GLAN2 LEDs ..............................................................................2-21

2- 8 Parallel Port, Floppy/Hard Disk Drive and SATA Connections ............. 2-22

Floppy Connector ................................................................................... 2-22

IDE Connectors ...................................................................................... 2-23

SATA Connectors.................................................................................. 2-23

Chapter 3: Troubleshooting

3-1 Troubleshooting Procedures ........................................................................ 3-1

Before Power On .................................................................................... 3-1

No Power .................................................................................................. 3-1

No Video ................................................................................................... 3-1

Memory Errors .......................................................................................... 3-2

Losing the System’s Setup Configuration ........................................... 3-2

3-2 Technical Support Procedures .................................................................... 3-2

vi

SUPER X5DPR-TG2+ User's Manual

3-3 Frequently Asked Questions........................................................................ 3-3

3-4 Returning Merchandise for Service............................................................ 3-5

Chapter 4: BIOS

4- 1 Introduction....................................................................................................... 4-1

4- 2 Running Setup .................................................................................................. 4-2

4- 3 Main Setup........................................................................................................ 4-2

4-4 Advanced BIOS Setup.................................................................................... 4-6

4-5 Security Setup...............................................................................................4-15

4-6 Power Setup ..................................................................................................4-17

4- 7 Boot Setup...................................................................................................... 4-19

4-8 PIR Setup ........................................................................................................4-20

4-9 Exit ................................................................................................................... 4-22

Appendices:

Appendix A: BIOS POST Messages ..................................................................... A-1

Appendix B: BIOS POST Codes ............................................................................. B-1

Appendix C: Installing Software Programs, Silicon Image's SATA RAID Driver

and Windows Operating System.................................................................. C-1

Chapter 1: Introduction

1-1

Introduction

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an ac­knowledged leader in the industry. Supermicro boards are designed with
the utmost attention to detail to provide you with the highest standards in
quality and performance.

Please check that the following items have been included with your mother­board. If anything listed here is damaged or missing, contact your retailer.

One (1) Supermicro Mainboard

One (1) ribbon cable for IDE devices

One (1) floppy ribbon cable

One (1) Supermicro CD or diskettes containing drivers and utilities

One (1) User's/BIOS Manual

Two (2) Xeon Mounting Plates (SKT-120) and
two (2) heatsink (SNK-0039*) (*Optional)

1-2

Introduction

SUPER X5DPR-TG2+ User's Manual

Contacting Supermicro

Headquarters

Address: SuperMicro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)

[email protected] (Technical Support)
Web Site: www.supermicro.com

Europe

Address: SuperMicro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacific

Address: SuperMicro, Taiwan

D5, 4F, No. 16 Chien-Ba Road

Chung-Ho 235, Taipei Hsien, Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

Chapter 1: Introduction

1-3

Introduction

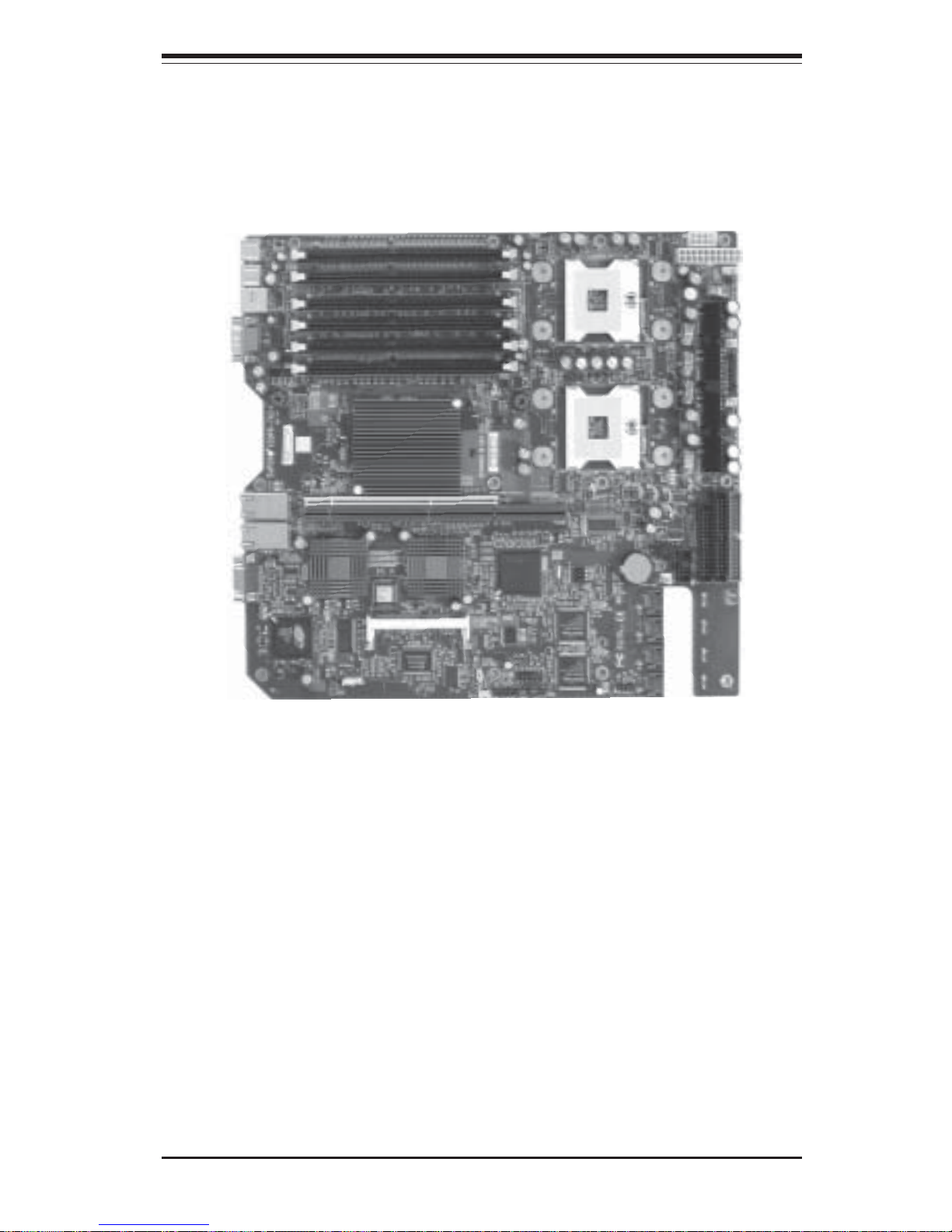

Figure 1-1. SUPER X5DPR-TG2+ Image

1-4

Introduction

SUPER X5DPR-TG2+ User's Manual

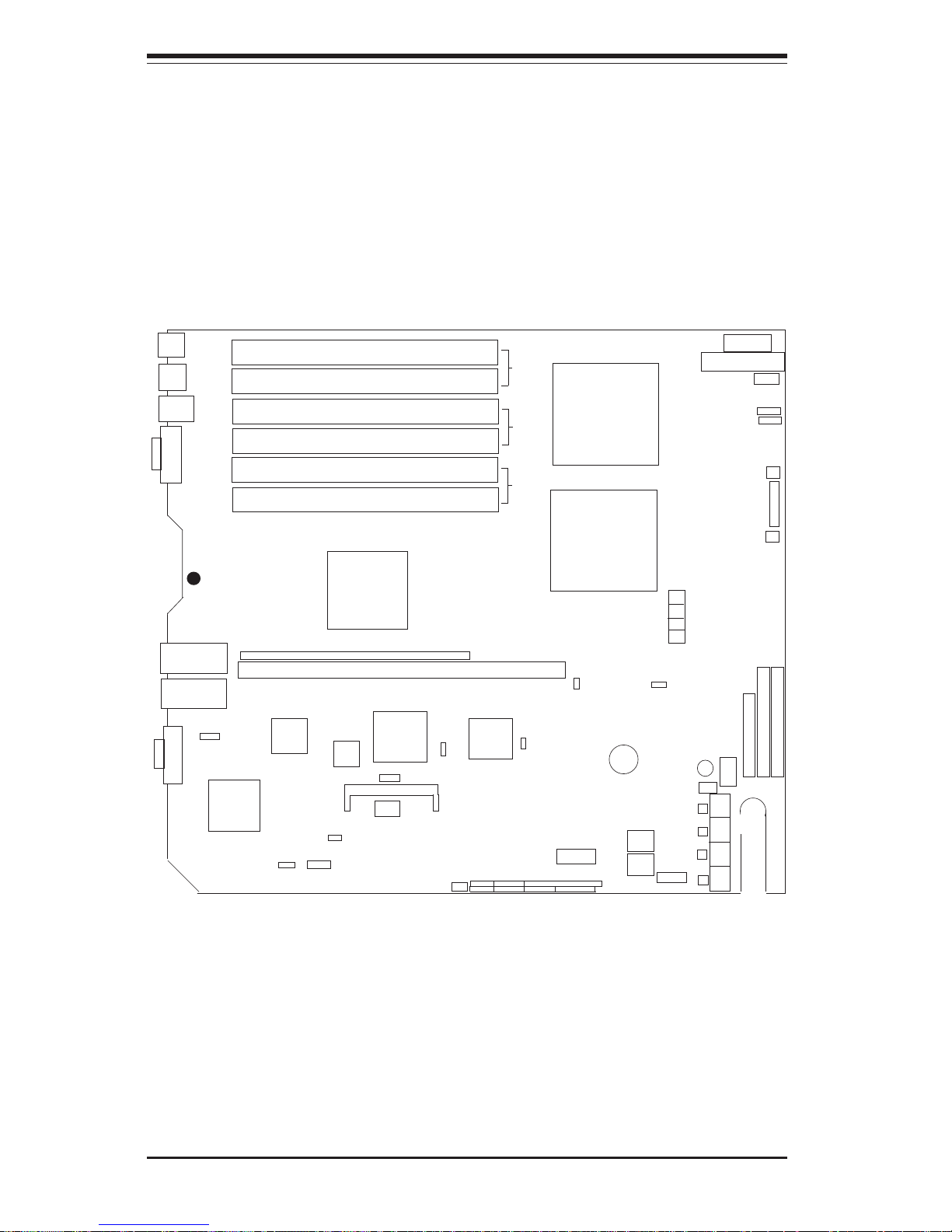

Figure 1-2. SUPER X5DPR-TG2+ Layout*

(not drawn to scale)

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

JP24

JD4

PCIX #1

SXB

PCI #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

*Notes:
The IPMI socket is an optional feature.
Jumpers not noted are for test purposes only.

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock

Pin1

BIOS

South
BridgeJP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37

WD

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

WOL

DS1

DS2

DS3

DS4

DS4

DS3

DS2

DS1

Chapter 1: Introduction

1-5

Introduction

X5DPR-TG2+ Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear See Jumper Section
JD1 Speaker Enable (Pins 6-7) Closed (Enabled)
JD4 GLAN Enable/Disable Pins 1-2 (Enabled)
JP4 VGA Enable/Disable Pins 1-2 (Enabled)
JP9 Power Fail Alarm En/Disable Open (Disabled)
JP11,JP12 PCI Bus Speed for Slot 2 Manufacture setting
JP37 Watchdog Enable/Disable Closed (Enabled)
JP38 Front Side Bus Speed Pins 1-2 (Auto)
JPS1,JPS2 SATA1/2 Enable/Disable Pins 1-2 (Enabled)

Connector Description

ATX POWER(J16) Primary ATX 20-pin Power Connector
COM1(J8)/COM2(J26)COM1/COM2 Serial Port Connectors
CPU1/CPU2 CPU 1 and CPU2 Sockets
D1-D4 CPU LEDs
DIMM#1A-DIMM#3B Memory (RAM) Slots
DS1- DS4 Serial ATA LEDs
GLAN1/2 LAN1, LAN2 Gigabit Ethernet Ports
IDE#1(J2)/IDE#2(J3) IDE #1/#2 Hard Disk Drive Connectors
J1 5 Secondary (12V) ATX Power Connector
J17, J18 PCIX-1, PCI-2 slots
J22 IPMI
J2 8 Keyboard Port
J29 Mouse Port
JD1 WD/PWR LED/SPKR/JPS1,JPS2,/JL1
JD 2 FPUSB 0/1
JF2 Front Control Panel Connector
JL1 chassis Intrusion
JP7 Floppy Disk Drive Connector
JP8 Third Power Supply Fail Header
JP24 SMB (System Management Bus) Controller
JP35 Keylock Header
JP36 Alarm Reset Switch
JS1-JS4 Serial ATA Connectors
USB0/1/2(J10,J11,J27)Universal Serial Bus Ports
VGA(J4) VGA Display (Monitor) Port
WOL Wake-on-LAN Header
WOR Wake-on-Ring Header

1-6

Introduction

SUPER X5DPR-TG2+ User's Manual

Motherboard Features

CPU

• Single or dual Intel® 604 and 603-pin XeonTM processors at a 533/400

MHz front side (system) bus speed. Note: Please refer

to the support section of our web site for a complete listing of supported processors (http://
www.supermicro.com/TechSupport.htm).

Memory

• X5DPR-TG2+: Six 184-pin DIMM sockets supporting up to 12 GB of

registered ECC DDR-266/200 SDRAM

Note: Interleaved memory; requires memory modules to be installed in pairs. DDR-266 memory
must be used with 533 MHz FSB speed processors. See Section 2-3 for details.

Chipset

• Intel E7501 chipset

Expansion Slots

• One 64-bit, 133 MHz PCI-X (SXB)

• One slim 64-bit, 66 MHz PCI

BIOS

• 4 Mb Phoenix® Flash ROM

• APM 1.2, DMI 2.1, PCI 2.2, ACPI 1.0, Plug and Play (PnP), SMBIOS 2.3

PC Health Monitoring

• Onboard voltage monitors for CPU cores, chipset voltage, 3.3V, +5V,

+12V and 3.3V standby

• Fan status monitor with firmware/software on/off control

• CPU/chassis temperature monitors

• Environmental temperature monitor and control

• CPU fan auto-off in sleep mode

• CPU slow-down on temperature overheat

• CPU overheat LED header

• Power-up mode control for recovery from AC power loss

• Auto-switching voltage regulator for CPU core

• System overheat LED and control

• Chassis intrusion detection

• System resource alert

Chapter 1: Introduction

1-7

Introduction

ACPI Features (optional)

• Microsoft OnNow

• Slow blinking LED for suspend state indicator

• Main switch override mechanism

Onboard I/O

• Integrated ATI Rage XL graphics controller

• Intel 82546EB dual port Gigabit LAN (Ethernet) controller

• 2 EIDE Ultra DMA/100 bus master interfaces

• 1 floppy port interface (up to 2.88 MB)

• 2 Fast UART 16550A compatible serial ports

• PS/2 mouse and PS/2 keyboard ports

• Up to 5 USB (Universal Serial Bus) ports

• Silicon Image SATA 4 Connectors

Other

• Internal/external modem ring-on

• Wake-on-LAN (WOL)

• Console redirection

• IPMI (optional)

CD/Diskette Utilities

• BIOS flash upgrade utility and device drivers

Dimensions

• Extended ATX: 12"x13" (304.8x330.2 mm)

1-8

Introduction

SUPER X5DPR-TG2+ User's Manual

MCH

533/400 MHz System Bus

266 MHz Memory Bus

ATA 100

Ports

Processor 2 Processor 1

2-Channel

DDR SDRAM

IC H3-S

USB 1.1

Ports

SMBus

Super IO

Gb LAN

Controller

ATI

Graphics

P64H2

PCI-X,SXB (Slot 1)

PCI (Slot 2)

(66 MHz)

(133 M Hz)

Silicon Image 3112

Silicon Image 3112

Figure 1-5. Intel E7501 Chipset:

System Block Diagram

Notes: This is a general block diagram. Please see the previous Motherboard

Features pages for details on the features of each motherboard.
One of the two buses on the P64H2 supports a PCI-X 133MHz slot (Slot 1),

and the other bus supports a 66MHz PCI slot (Slot 2). The PCI-X 133MHz slot
(Slot 1) supports the riser card CSE-RR1U-X. The 66MHz PCI slot (Slot 2)
supports the riser card CSE-RR1U-XLP.

Chapter 1: Introduction

1-9

Introduction

1-2 Chipset Overview

The Intel E7501 chipset is a high-performance chipset with a performance
and feature-set designed for mid-range, dual processor servers. The
E7501 chipset consists of four major components: the Memory Controller
Hub (MCH), the I/O Controller Hub 3 (ICH3), the PCI-X 64-bit Hub 2.0 (P64H2)
and the 82808AA Host Channel Adapter (VxB).

The MCH has four hub interfaces, one to communicate with the ICH3 and
three for high-speed I/O communications. The MCH employs a 144-bit wide
memory bus for a DDR-266 memory interface, which provides a total band­width of 3.2 GB/s. The ICH3 interface is a 266 MB/sec point-to-point con­nection using an 8-bit wide, 66 MHz base clock at a 4x data transfer rate.
The P64H2 interface is a 1 GB/s point-to-point connection using a 16-bit
wide, 66 MHz base clock at a 8x data transfer rate.

The ICH3 I/O Controller Hub provides various integrated functions, including
a two-channel UDMA100 bus master IDE controller, USB host controllers, a
System Management Bus controller and an AC'97 compliant interface.

The P64H2 PCI-X Hub provides a 16-bit connection to the MCH for high­performance IO capability and two 64-bit PCI-X interfaces.

1-3 Special Features

ATI Graphics Controller

The X5DPR-TG2+ has an integrated ATI video controller based on the Rage
XL graphics chip. The Rage XL fully supports sideband addressing and
AGP texturing. This onboard graphics package can provide a bandwidth of
up to 512 MB/sec over a 32-bit graphics memory bus.

Recovery from AC Power Loss

BIOS provides a setting for you to determine how the system will respond
when AC power is lost and then restored to the system. You can choose
for the system to remain powered off (in which case you must hit the
power switch to turn it back on) or for it to automatically return to a power­on state. See the Power Lost Control setting in the Advanced BIOS Setup
section (Peripheral Device Configuration) to change this setting. The de­fault setting is Always On.

1-10

Introduction

SUPER X5DPR-TG2+ User's Manual

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the SUPER
X5DPR-TG2+. All have an onboard System Hardware Monitor chip that sup­ports PC health monitoring.

Onboard Voltage Monitors for the CPU Cores, Chipset
Voltage, +3.3V, +5V, +12V and +3.3V Standby

An onboard voltage monitor will scan these voltages continuously. Once a
voltage becomes unstable, a warning is given or an error message is sent
to the screen. Users can adjust the voltage thresholds to define the
sensitivity of the voltage monitor.

Fan Status Monitor with Firmware/Software On/Off Control

The PC health monitor can check the RPM status of the cooling fans. The
onboard 3-pin CPU and chassis fans are controlled by the power manage­ment functions. The thermal fan is controlled by the overheat detection
logic.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and
will turn on the thermal control fan whenever the CPU temperature exceeds
a user-defined threshold. The overheat circuitry runs independently from
the CPU. It can continue to monitor for overheat conditions even when the
CPU is in sleep mode. Once it detects that the CPU temperature is too high,
it will automatically turn on the thermal control fan to prevent any overheat
damage to the CPU. The onboard chassis thermal circuitry can monitor the
overall system temperature and alert users when the chassis temperature
is too high.

CPU Fan Auto-Off in Sleep Mode

The CPU fan activates when the power is turned on. It continues to operate
when the system enters Standby mode. When in sleep mode, the CPU will
not run at full power, thereby generating less heat.

Chapter 1: Introduction

1-11

Introduction

CPU Overheat LED and Control

This feature is available when the user enables the CPU overheat warning
function in the BIOS. This allows the user to define an overheat tempera­ture. When this temperature is exceeded, both the overheat fan and the
warning LED are triggered.

System Resource Alert

This feature is available when used with Intel's LANDesk Client Manager
(optional). LDCM is used to notify the user of certain system events. For
example, if the system is running low on virtual memory and there is insuf­ficient hard drive space for saving the data, you can be alerted of the
potential problem.

Auto-Switching Voltage Regulator for the CPU Core

The auto-switching voltage regulator for the CPU core can support up to
20A current and auto-sense voltage IDs ranging from 1.4V to 3.5V. This
will allow the regulator to run cooler and thus make the system more stable.

1-5 ACPI Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI
specification defines a flexible and abstract hardware interface that pro­vides a standard way to integrate power management features throughout
a PC system, including its hardware, operating system and application soft­ware. This enables the system to automatically turn on and off peripherals
such as CD-ROMs, network cards, hard disk drives and printers. This also
includes consumer devices connected to the PC such as VCRs, TVs, tele­phones and stereos.

In addition to enabling operating system-directed power management, ACPI
provides a generic system event mechanism for Plug and Play and an oper­ating system-independent interface for configuration control. ACPI lever­ages the Plug and Play BIOS data structures while providing a processor
architecture-independent implementation that is compatible with both Win­dows 2000 and Windows NT 5.0.

1-12

Introduction

SUPER X5DPR-TG2+ User's Manual

Microsoft OnNow

The OnNow design initiative is a comprehensive, system-wide approach to
system and device power control. OnNow is a term for a PC that is always
on but appears to be off and responds immediately to user or other re­quests.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start
blinking to indicate that the CPU is in suspend mode. When the user presses
any key, the CPU will wake-up and the LED will automatically stop blinking
and remain on.

Main Switch Override Mechanism

When an ATX power supply is used, the power button can function as a
system suspend button to make the system enter a SoftOff state. The
monitor will be suspended and the hard drive will spin down. Depressing
the power button again will cause the whole system to wake-up. During
the SoftOff state, the ATX power supply provides power to keep the re­quired circuitry in the system alive. In case the system malfunctions and
you want to turn off the power, just depress and hold the power button for
4 seconds. This option can be set in the Power section of the BIOS Setup
routine.

External Modem Ring-On

Wake-up events can be triggered by a device such as the external modem
ringing when the system is in the SoftOff state. Note that external modem
ring-on can only be used with an ATX 2.01 (or above) compliant power
supply.

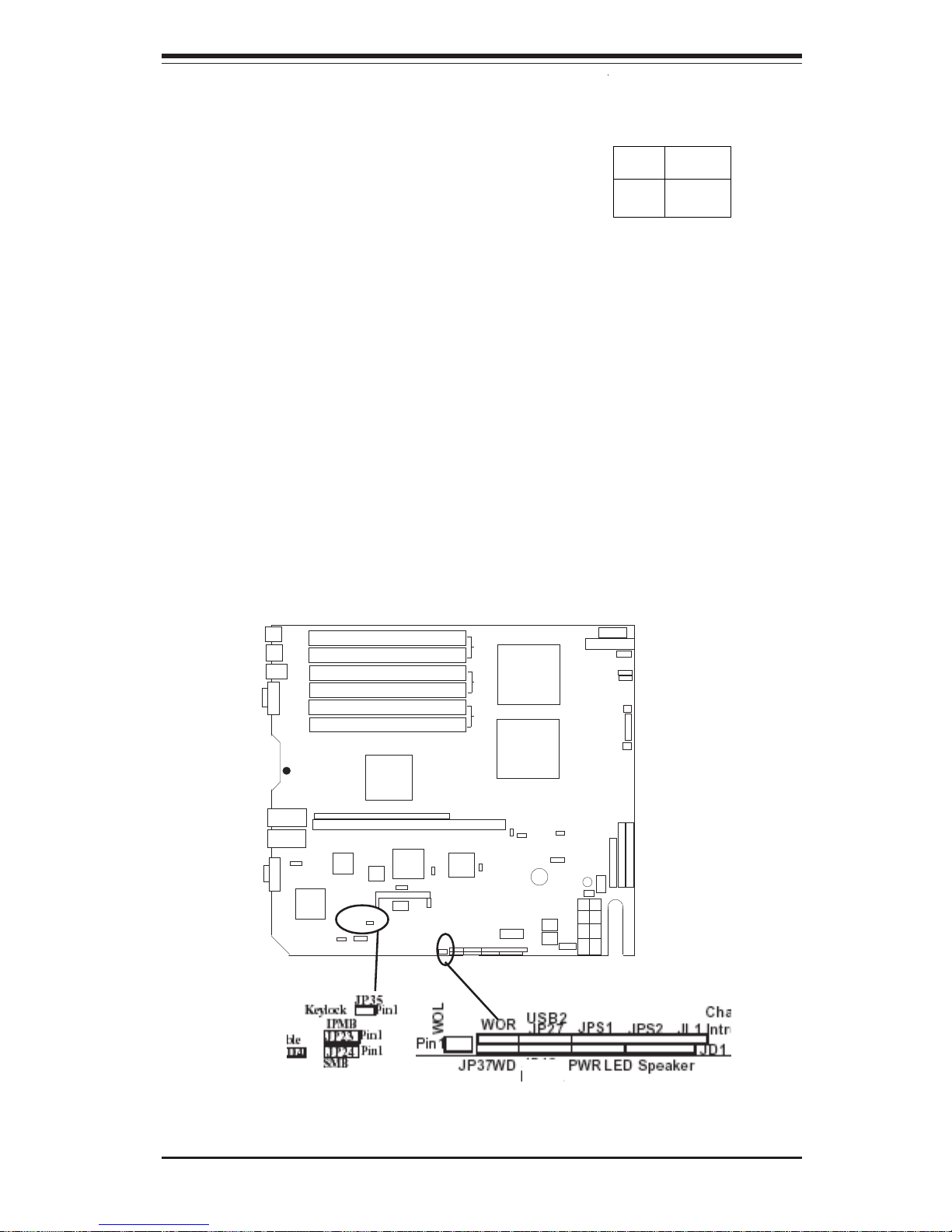

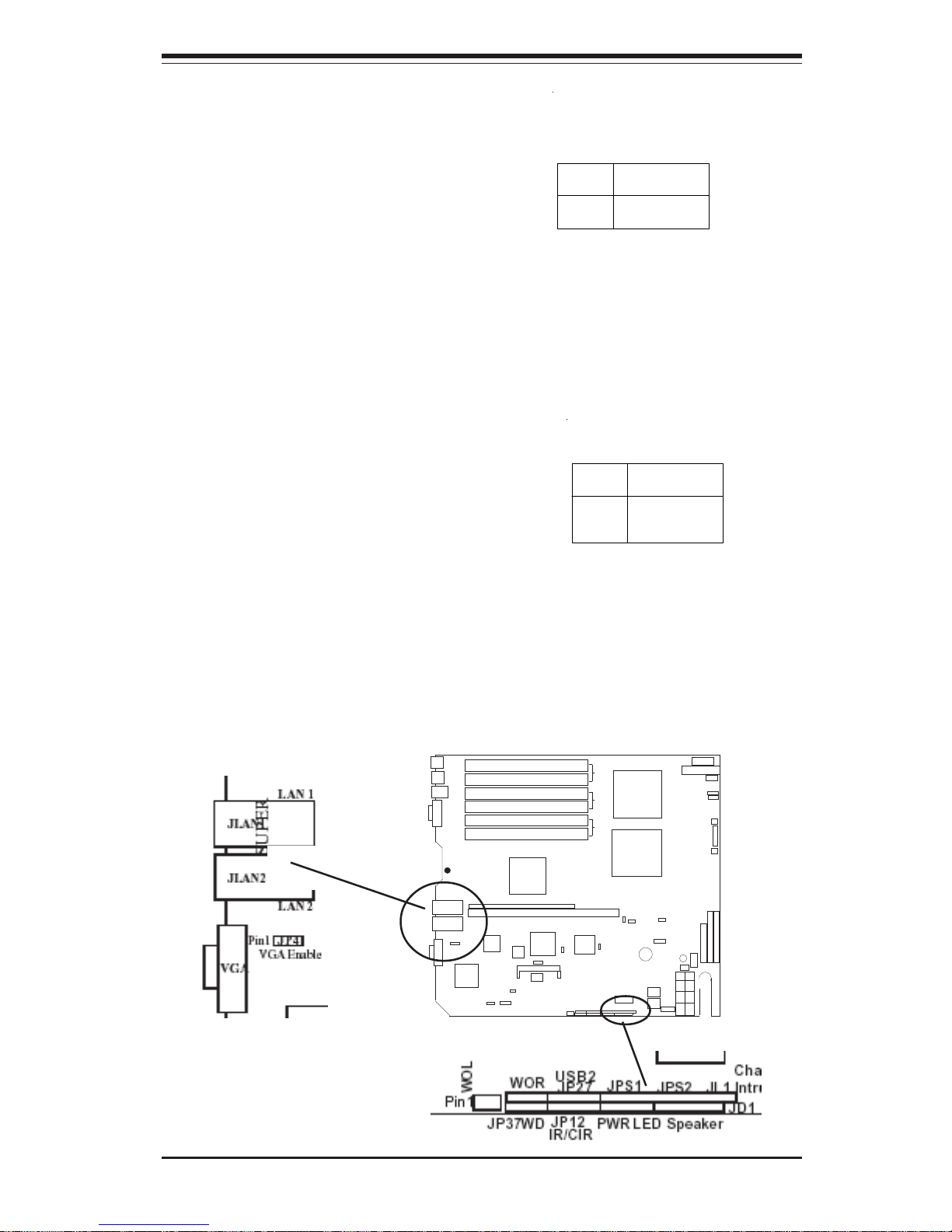

Wake-On-LAN (WOL)

Wake-On-LAN is defined as the ability of a management application to re­motely power up a computer that is powered off. Remote PC setup, up­dates and asset tracking can occur after hours and on weekends so that
daily LAN traffic is kept to a minimum and users are not interrupted. The
motherboards have a 3-pin header (WOL) to connect to the 3-pin header on

Chapter 1: Introduction

1-13

Introduction

a Network Interface Card (NIC) that has WOL capability. Wake-On-LAN
must be enabled in BIOS. Note that Wake-On-Lan can only be used with an
ATX 2.01 (or above) compliant power supply.

1-6 Power Supply

As with all computer products, a stable power source is necessary for
proper and reliable operation. It is even more important for processors that
have high CPU clock rates.

The SUPER X5DPR-TG2+ accommodates ATX power supplies. Although
most power supplies generally meet the specifications required by the CPU,
some are inadequate. You should use one that will supply at least 400W of
power and includes the additional +12V, 8-pin power connector - an even
higher wattage power supply is recommended for high-load configurations.
Also your power supply must supply 1.5A for LAN1 and LAN2.

NOTE: Auxiliary 12v power (J15) is necessary to support Intel Xeon
CPUs. Failure to provide this extra power will result in the CPUs
becoming unstable after only a few minutes of operation. See
Section 2-5 for details on connecting the power supply cables.

It is strongly recommended that you use a high quality power supply that
meets ATX power supply Specification 2.02 or above. Additionally, in ar­eas where noisy power transmission is present, you may choose to install
a line filter to shield the computer from noise. It is recommended that you
also install a power surge protector to help avoid problems caused by
power surges.

1-7 Super I/O

The disk drive adapter functions of the Super I/O chip include a floppy disk
drive controller that is compatible with industry standard 82077/765, a data
separator, write pre-compensation circuitry, decode logic, data rate selec­tion, a clock generator, drive interface control logic and interrupt and DMA
logic. The wide range of functions integrated onto the Super I/O greatly
reduces the number of components required for interfacing with floppy disk
drives. The Super I/O supports 360 K, 720 K, 1.2 M, 1.44 M or 2.88 M disk
drives and data transfer rates of 250 Kb/s, 500 Kb/s or 1 Mb/s. It also
provides two high-speed, 16550 compatible serial communication ports

1-14

Introduction

SUPER X5DPR-TG2+ User's Manual

(UARTs), one of which supports serial infrared communication. Each UART
includes a 16-byte send/receive FIFO, a programmable baud rate generator,
complete modem control capability and a processor interrupt system.
Each UART includes a 16-byte send/receive FIFO, a programmable baud
rate generator, complete modem control capability and a processor interrupt
system. Both UARTs provide legacy speed with baud rate of up to 115.2
Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1
Mb/s, which support higher speed modems.

The Super I/O supports one PC-compatible printer port (SPP), Bi-directional
Printer Port (BPP) , Enhanced Parallel Port (EPP) or Extended Capabilities
Port (ECP).

The Super I/O provides functions that comply with ACPI (Advanced Con­figuration and Power Interface), which includes support of legacy and ACPI
power management through an SMI or SCI function pin. It also features
auto power management to reduce power consumption.

The IRQs, DMAs and I/O space resources of the Super I/O can flexibly
adjust to meet ISA PnP requirements, which support ACPI and APM (Ad­vanced Power Management).

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Static-Sensitive Devices

Electric-Static-Discharge (ESD) can damage electronic components. To pre­vent damage to your system board, it is important to handle it very carefully.
The following measures are generally sufficient to protect your equipment
from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the anti­static bag.

• Handle the board by its edges only; do not touch its components, periph­eral chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when
not in use.

• For grounding purposes, make sure your computer chassis provides ex­cellent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage.
When unpacking the board, make sure the person handling it is static protected.

2-2

SUPER X5DPR-TG2+ User's Manual

IMPORTANT: Always connect the power cord last and always remove it
before adding, removing or changing any hardware components. Make
sure that you install the processor into the CPU socket before you install
the CPU heat sink.

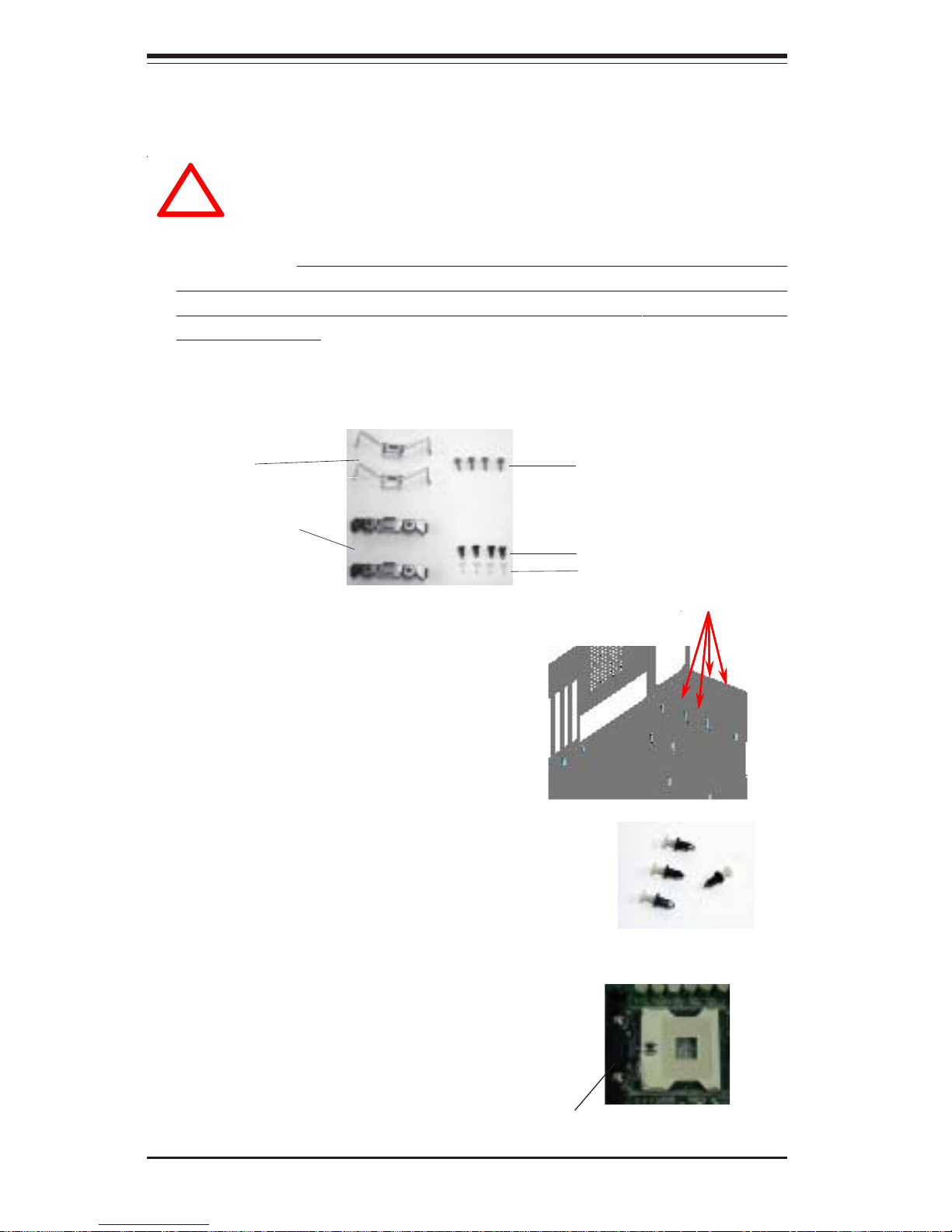

2-2 PGA Processor and Heatsink Installation

1. Locate the following components, which are included in the shipping
package.

Retention brackets

(2)

Clips (2)

Screws* (4)

*These screws are for mounting the
motherboard to the back panel of a
chassis that has four mounting holes
(as shown on right).

White pegs (4)

2. Insert the white pegs into the
black anchors. Do not force the
white pegs all the way in - only
about 1/3 of the way into the black
anchors.

3. Place a retention bracket in the
proper position and secure it by
pressing pegs into two of the retention
holes until you hear a *click*. The
clicking sound indicates that the peg is
locked and secured.

Two pegs in
position

One retention bracket in
position

Black anchors (4)

For chassis that do not have four
mounting holes, use the anchor/peg
assemblies:

Anchor/peg
assemblies

When handling the processor package, avoid placing direct
pressure on the label area of the fan. Also, do not place the
motherboard on a conductive surface, which can damage the
BIOS battery and prevent the system from booting up.

!

Chapter 2: Installation

2-3

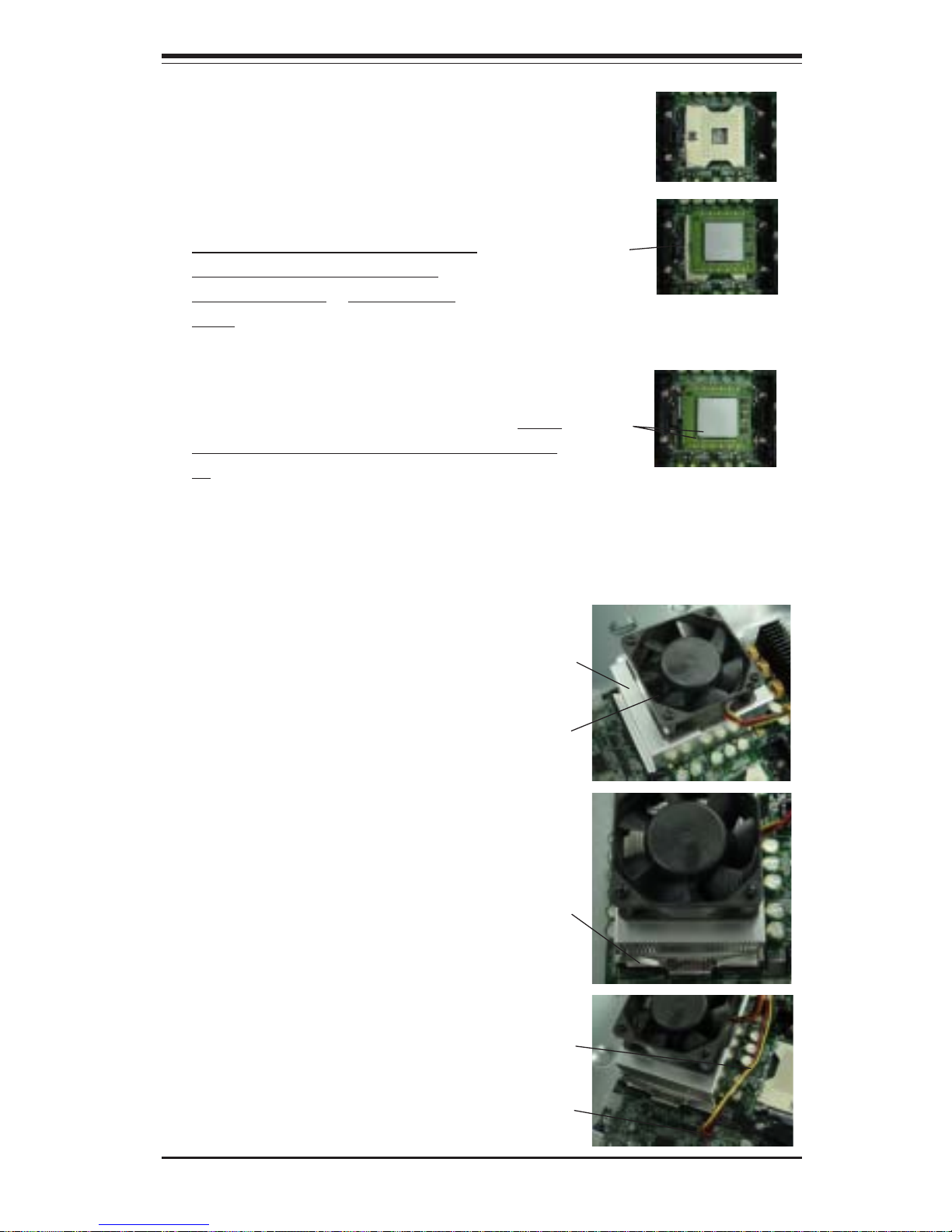

5. Lift the lever on the CPU socket:

lift the lever completely or you will
damage the CPU socket when
power is applied. (Install CPU1
first.)

Socket lever

6. Install the CPU in the socket. Make sure

that pin 1 of the CPU is seated on pin 1 of
the socket (both corners are marked). When
using only one CPU, install it into CPU socket
#1 (CPU socket #2 is automatically disabled if
only one CPU is used).

Pin 1

7. Press the lever down until

you hear it *click* into the
locked position.

4. Secure the other retention

bracket into position by
repeating Step 3.

8. Apply the proper amount of thermal

glue to the CPU die and place the
heatsink and fan on top of the CPU.

Heatsink

9. Secure the heatsink by locking the

retention clips into their proper
position.

10. Connect the three wires of

the CPU fan to the respective CPU
fan connector.

CPU fan
connector

CPU fan
wires

Retention clip

Fan

2-4

SUPER X5DPR-TG2+ User's Manual

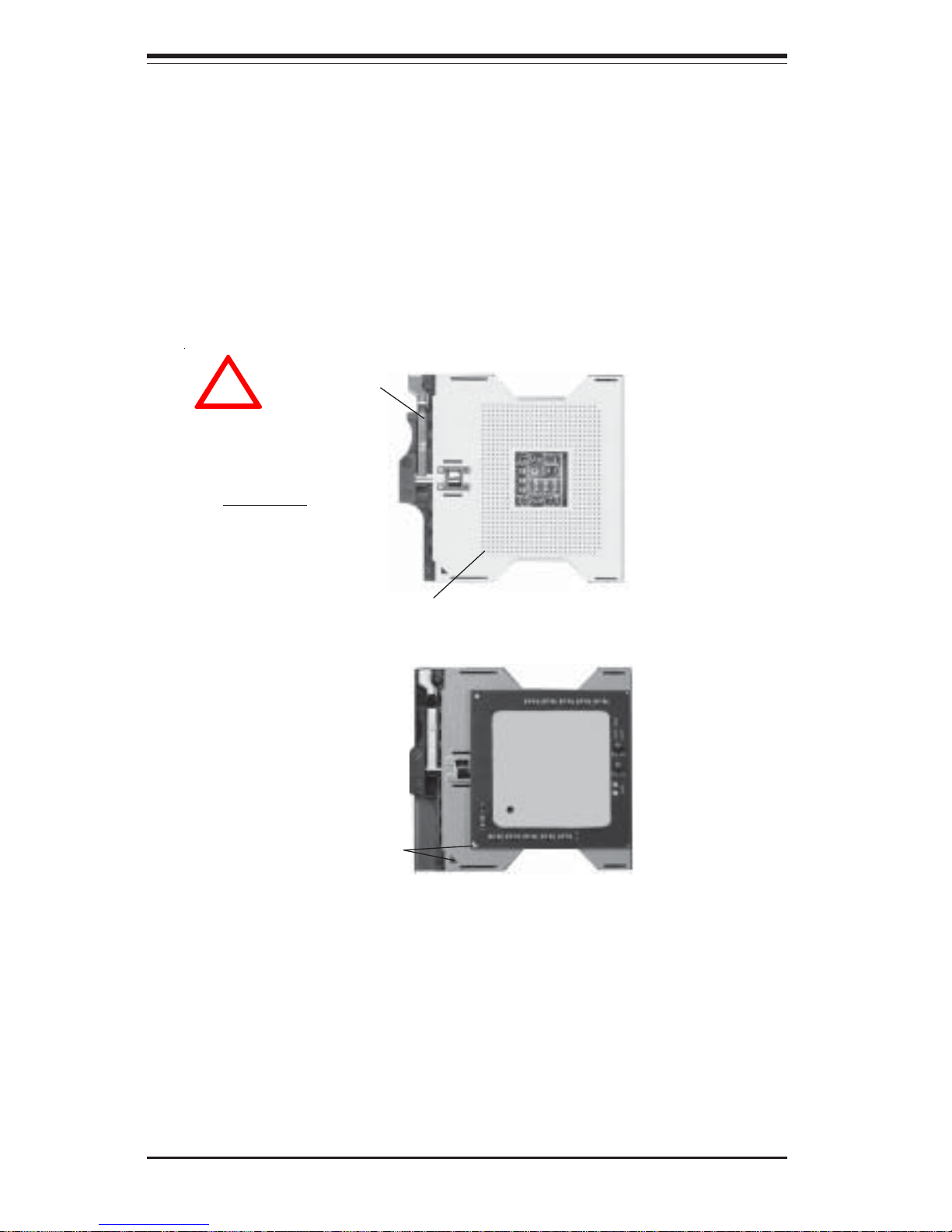

Figure 2-1. PGA604 Socket: Empty and with Processor Installed

Mounting the Motherboard in the Chassis

All motherboards have standard mounting holes to fit different types of
chassis. Make sure the location of all the mounting holes for both the
motherboard and the chassis match. Although a chassis may have both
plastic and metal mounting fasteners, metal ones are highly recommended
because they ground the motherboard to the chassis. Make sure the metal
standoffs click in or are screwed in tightly. Then use a screwdriver to
secure the motherboard onto the motherboard tray.

Warning! Make

sure you lift the
lever completely
when installing the
CPU. If the lever is
only partly raised,
damage to the
socket or CPU may
result.

Pin 1

Lever

Processor

(installed)

Notched
Corner

!

IMPORTANT! Please note that special, new silver heatsink retention clips must
be used with all Xeon 533 MHz FSB (front side bus) 604-pin processors.
These new retention clips have “604P” clearly marked on them. Using the old
clips will not keep the proper amount of pressure applied and may cause the
processor to overheat. You should not use these new retention clips with
Xeon 400 MHz FSB processors (even if the CPU socket is 604-pin) as they will
too tight and damage the CPU socket.

Chapter 2: Installation

2-5

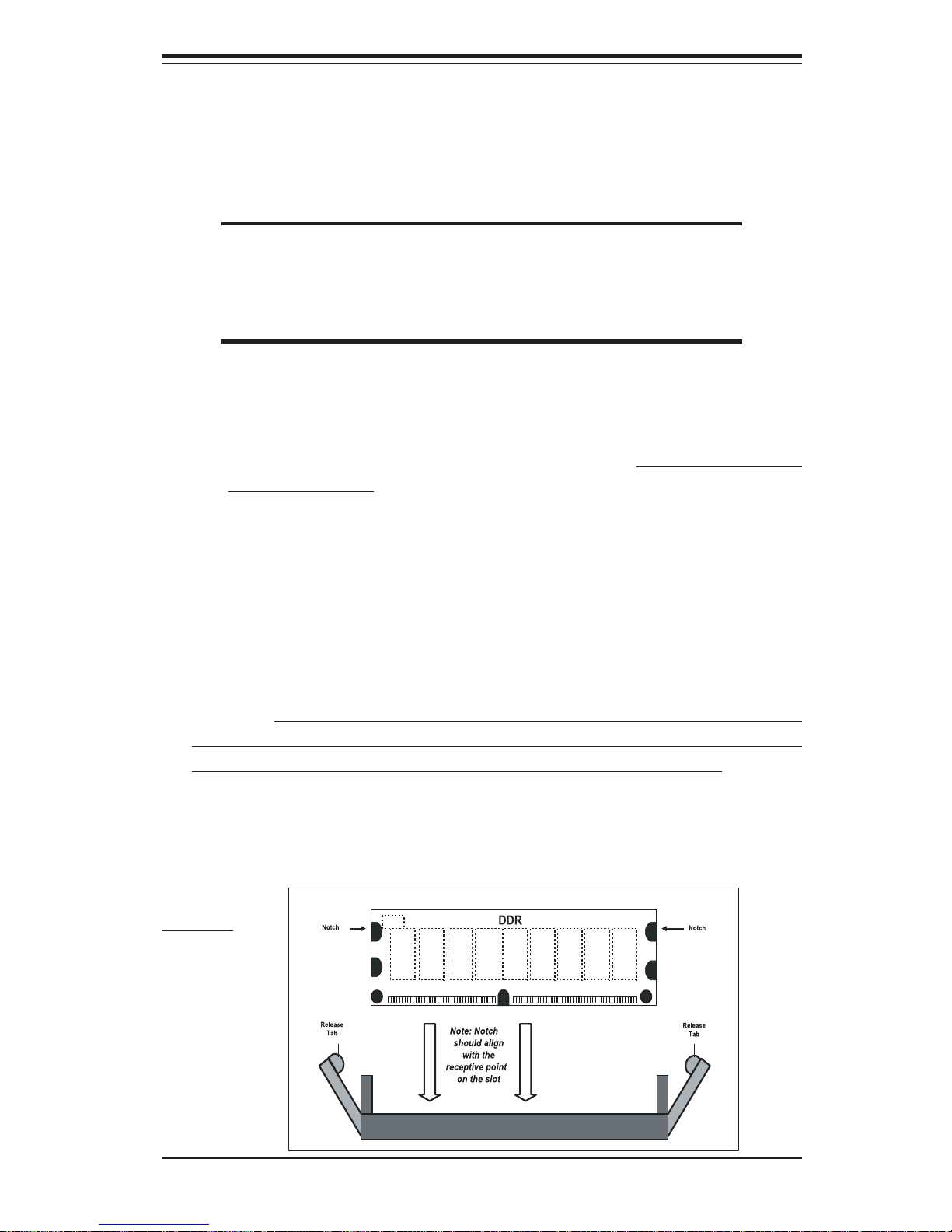

Figure 2-2. Installing and Removing DIMMs

To Install:

Insert module
vertically and
press down
until it snaps
into place.
Pay attention
to the
alignment
notch at the
bottom.

2-3 Installing DIMMs

Note: Check the Supermicro web site for recommended memory modules:

http://www.supermicro.com/TECHSUPPORT/FAQs/Memory_vendors.htm

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage. Also note that the

memory is interleaved to improve performance (see step 1).

DIMM Installation (See Figure 2-2)

1. Insert the desired number of DIMMs into the memory slots, starting with

Bank 1. The memory scheme is interleaved so you must install two
modules at a time, beginning with Bank 1, then Bank 2, and so on.

2. Insert each DIMM module vertically into its slot. Pay attention to the

notch along the bottom of the module to prevent inserting the DIMM
module incorrectly.

3. Gently press down on the DIMM module until it snaps into place in the

slot. Repeat for all modules (see step 1 above).

Memory Support

The X5DPR-TG2+ only supports ECC registered DDR-266/200 MHz SDRAM
memory. If you are using 533 MHz front side bus processors(s), you must
use DDR-266 SDRAM. If you are using 400 MHz front side bus
processors(s), you may use either DDR-266 or DDR-200 SDRAM.

2-6

SUPER X5DPR-TG2+ User's Manual

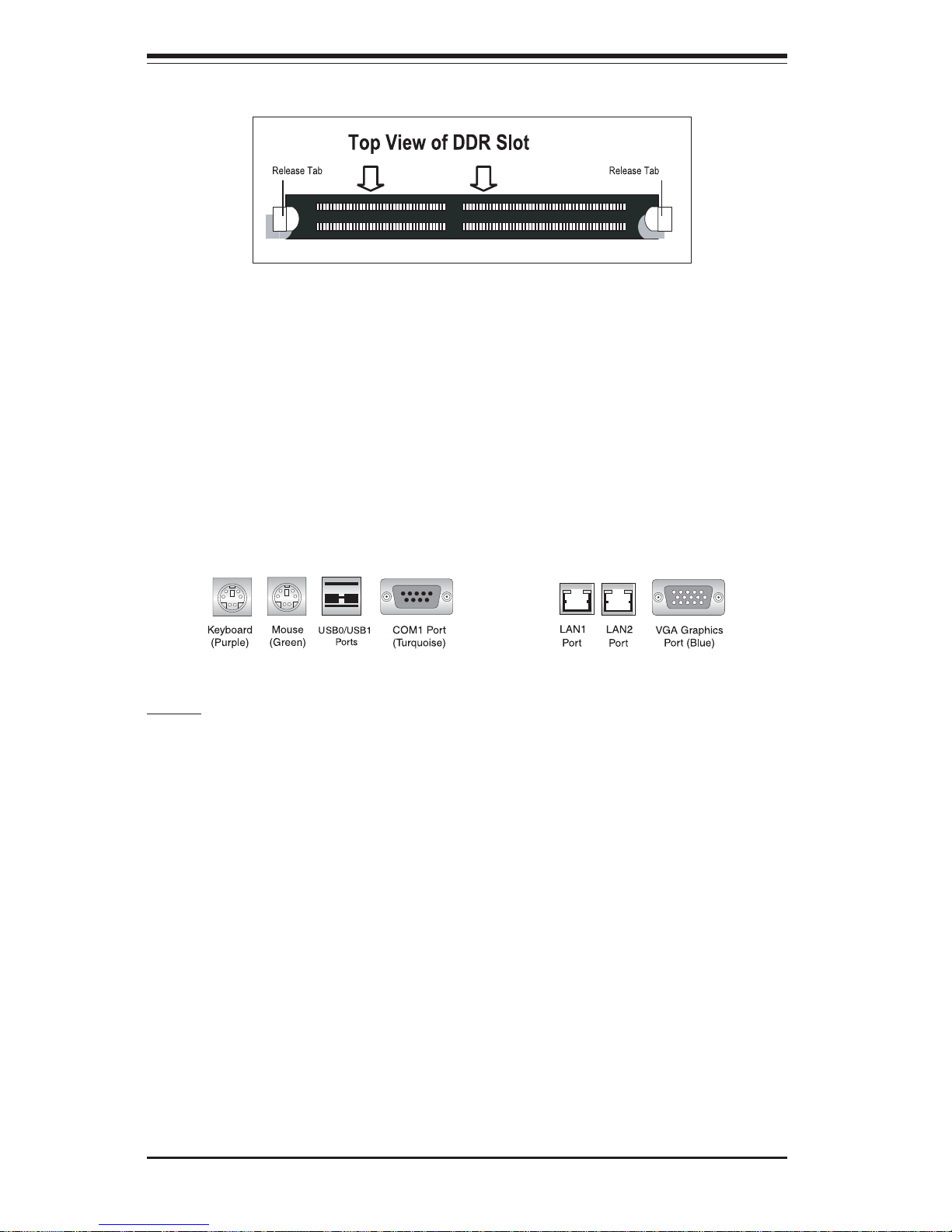

To Remove:

Use your thumbs to gently push near the edge of both ends of
the module. This should release it from the slot.

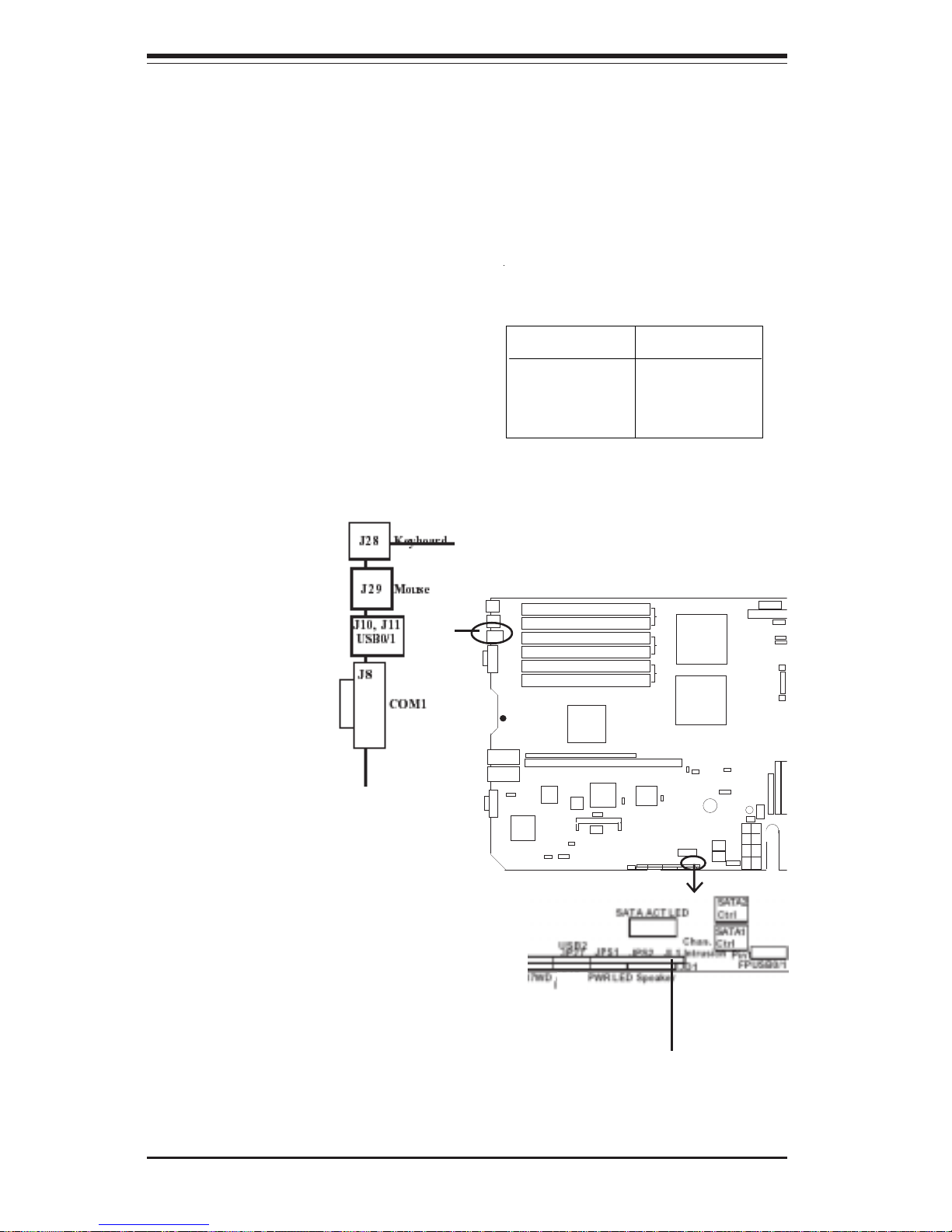

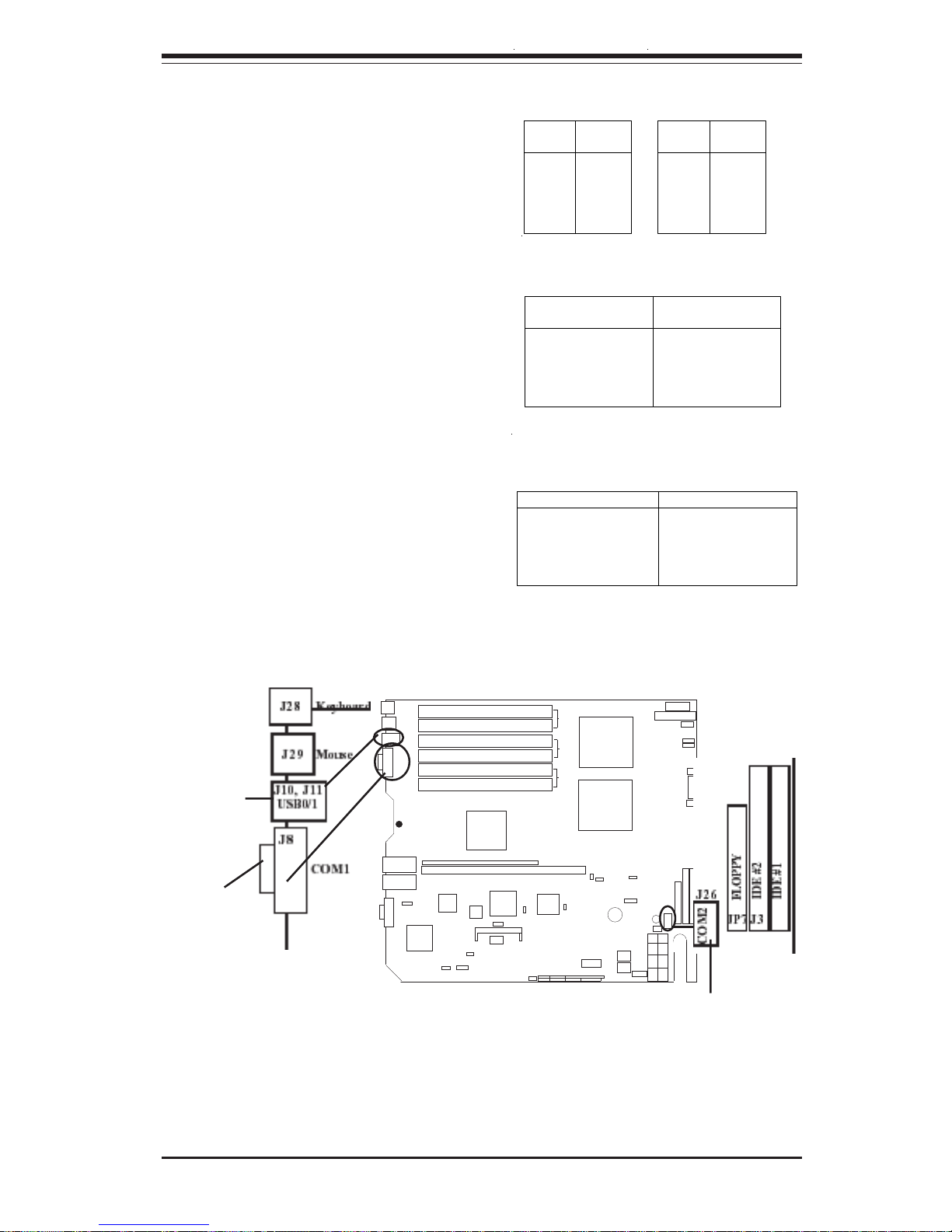

2-4 I/OPorts/Control Panel Connectors

The I/O ports are color coded in conformance with the PC 99 specification.
See Figure 2-3 below for the colors and locations of the various I/O ports.

Figure 2-3. I/O Port Locations and Definitions

Notes: COM2 is a header located on the motherboard - see the motherboard

layout pages in Chapter 1 for location.

Chapter 2: Installation

2-7

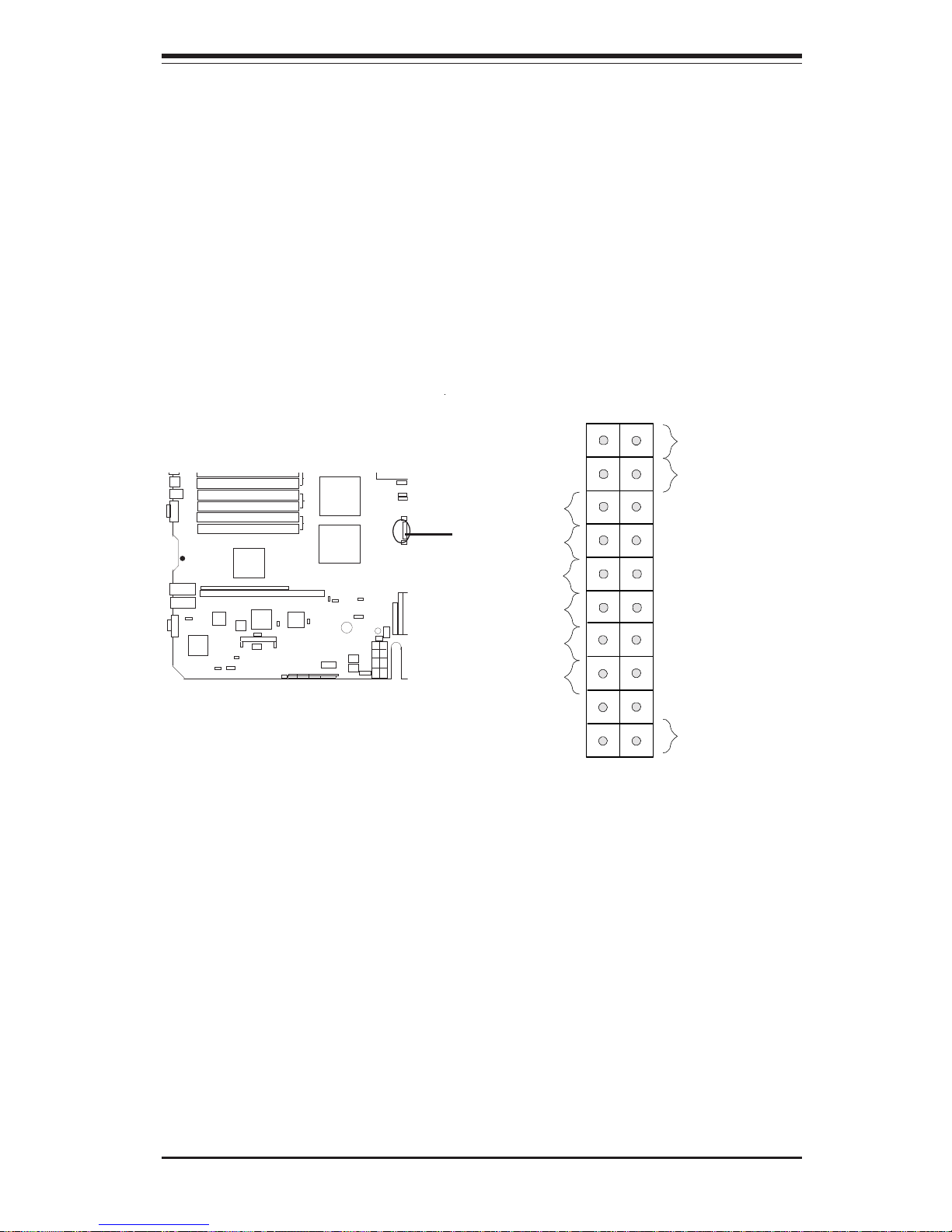

Front Control Panel

JF2 contains header pins for various buttons and indicators that are nor­mally located on a control panel at the front of the chassis. These connec­tors are designed specifically for use with Supermicro server chassis. See
Figure 2-4 for the descriptions of the various control panel buttons and LED
indicators. Refer to the following section for descriptions and pin defini­tions.

Figure 2-4. JF2 Header Pins

Pow er Button

Overheat LED

19

NIC1 LED

Reset Button

20

Power Fail LED

NIC2 LED

HDD LED

Pow er LED

Vcc

Vcc

Vcc

Vcc

Vcc

Ground

12

Vcc

X

NMI

Ground

Ground

X

ATX20 POWER

CPU1

CPU2

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

MouseJ29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J0H1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

2-8

SUPER X5DPR-TG2+ User's Manual

2-5 Connecting Cables

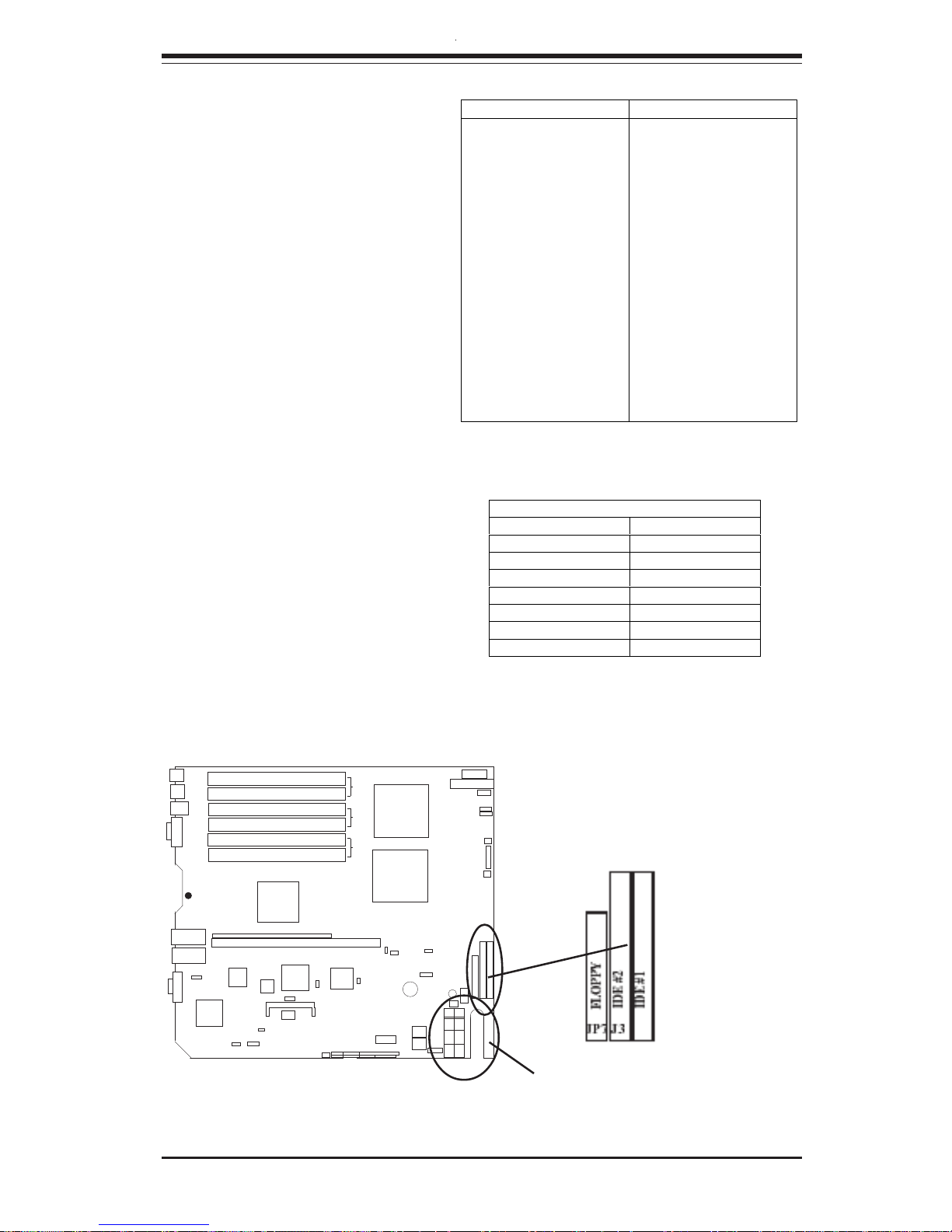

ATX Power Connection

The X5DPR-TG2 (J16) has A 20­pin connector. See the tables on
the right for pin definitions.

Pins

1 thru 4
5 thru 8

Defin i tio n

Ground

+12v

8-Pin +12v Power Supply

Connector (J15)

ATX Power Supply 20-pin Connector (J16)

Pin Number Definition
11 +3.3V
12 -12V
13 COM
14 PS_ON
15 COM
16 COM
17 COM
18 -5V
19 +5V
20 +5V

Pin Number Definition
1 +3.3V
2 +3.3V
3 COM
4 +5V
5 COM
6 +5V
7 COM
8 PW-OK
9 5VSB
10 +12V

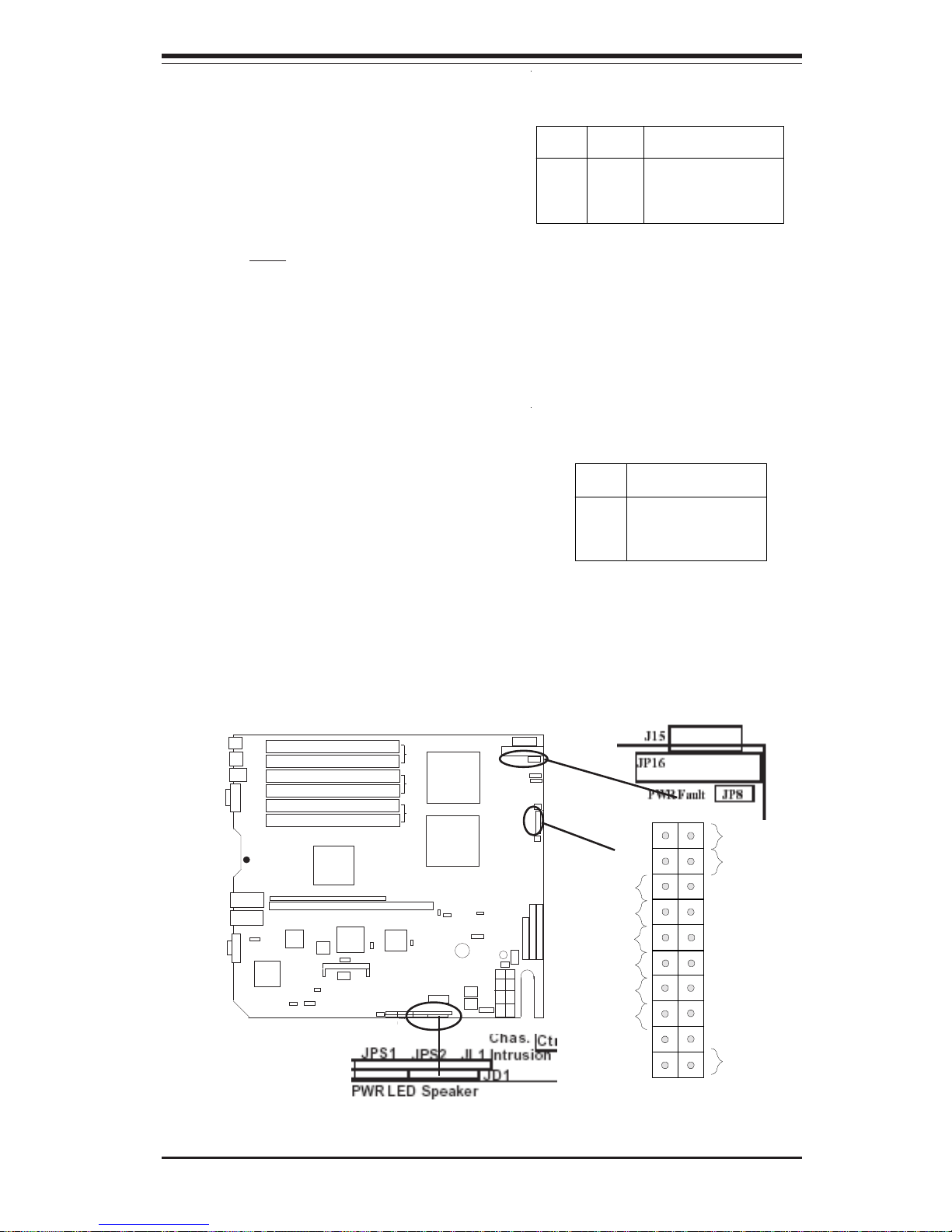

PWR_SEC Connection

In addition to the Primary ATX
power connector (above), the
Secondary 12v 8-pin J15 connec­tor must also be connected to
your power supply. See the table
on the right for pin definitions.

J15 1(2V PWR)

J16 (ATX PWR)

J15

JP8

JP36

JP9

PWR Fault

JP16

Pin1

Pin1

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Chapter 2: Installation

2-9

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

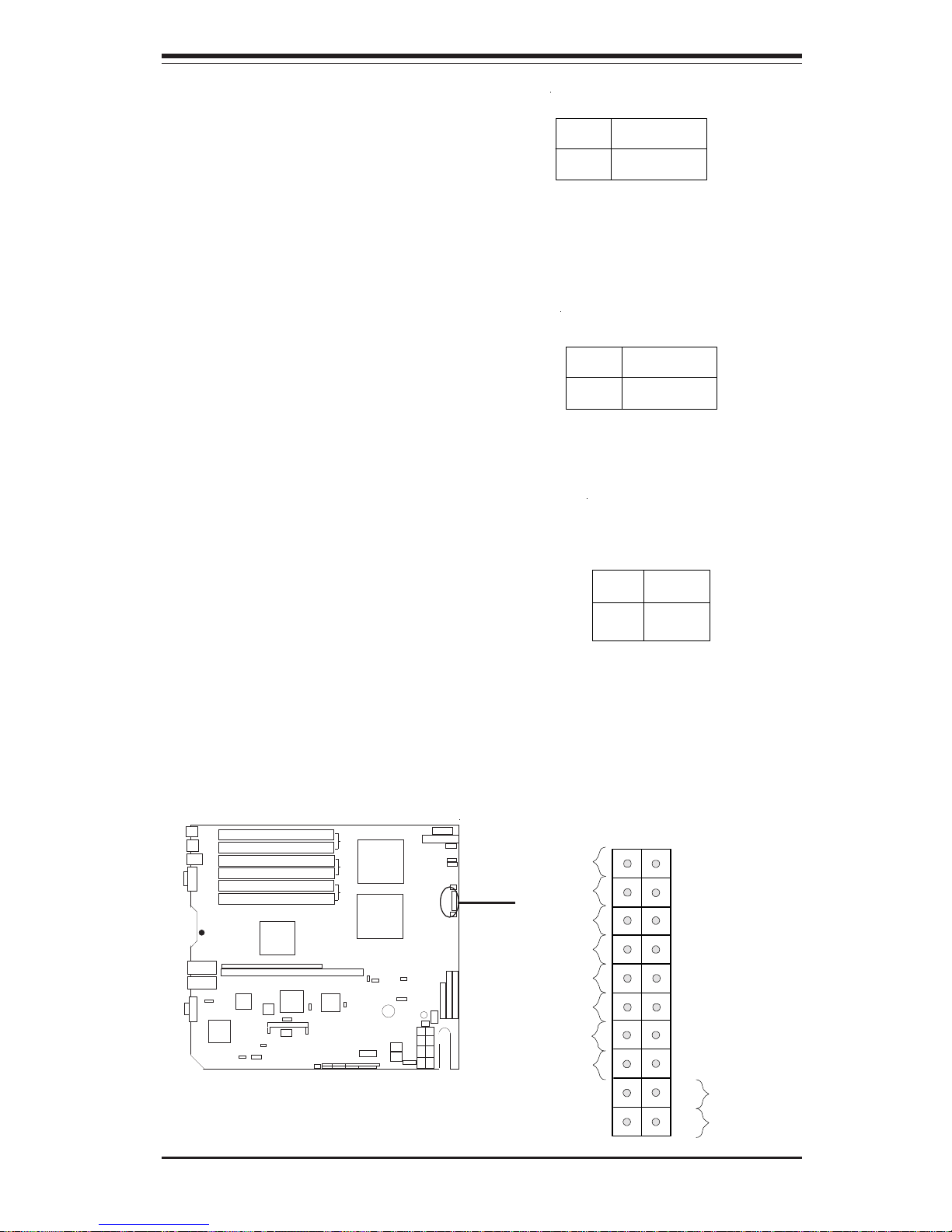

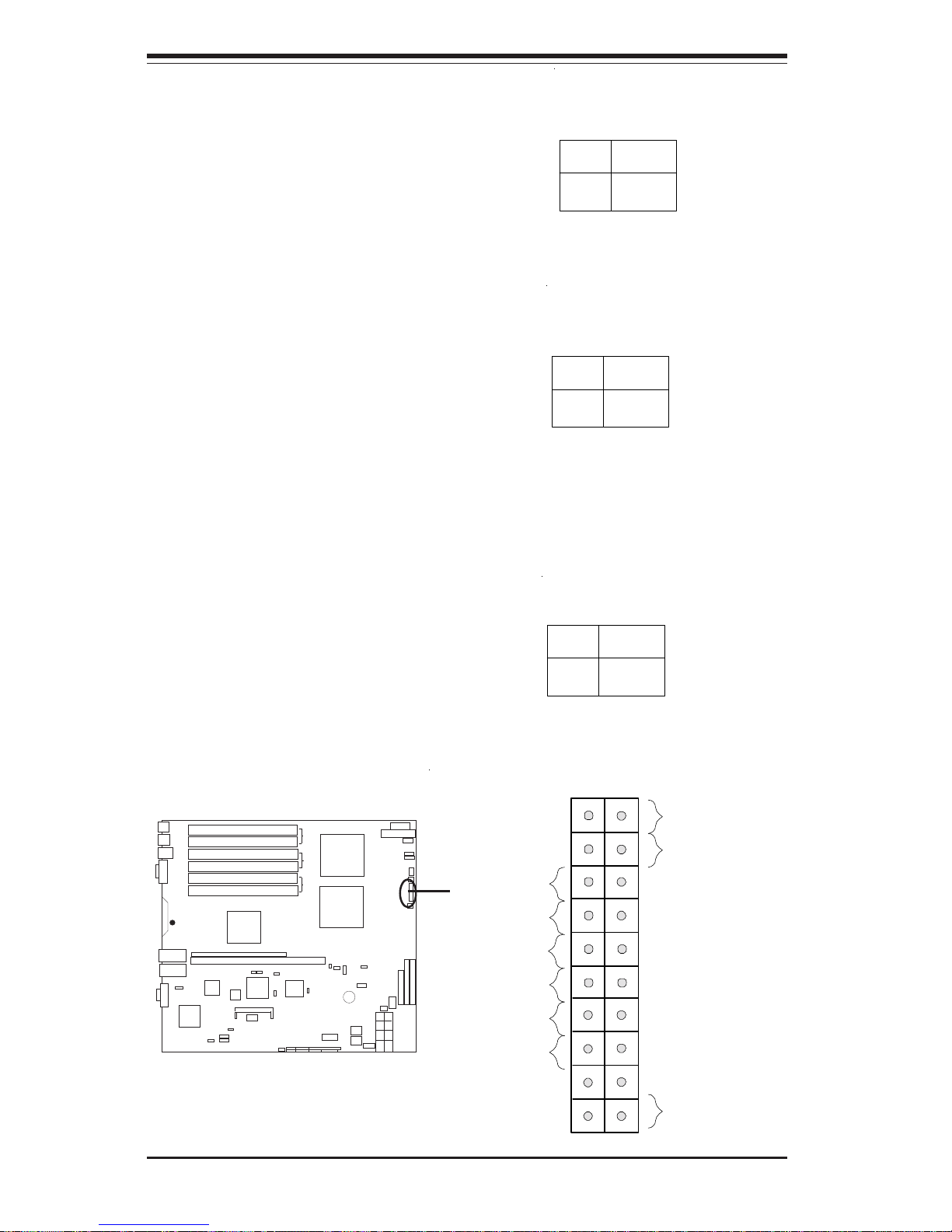

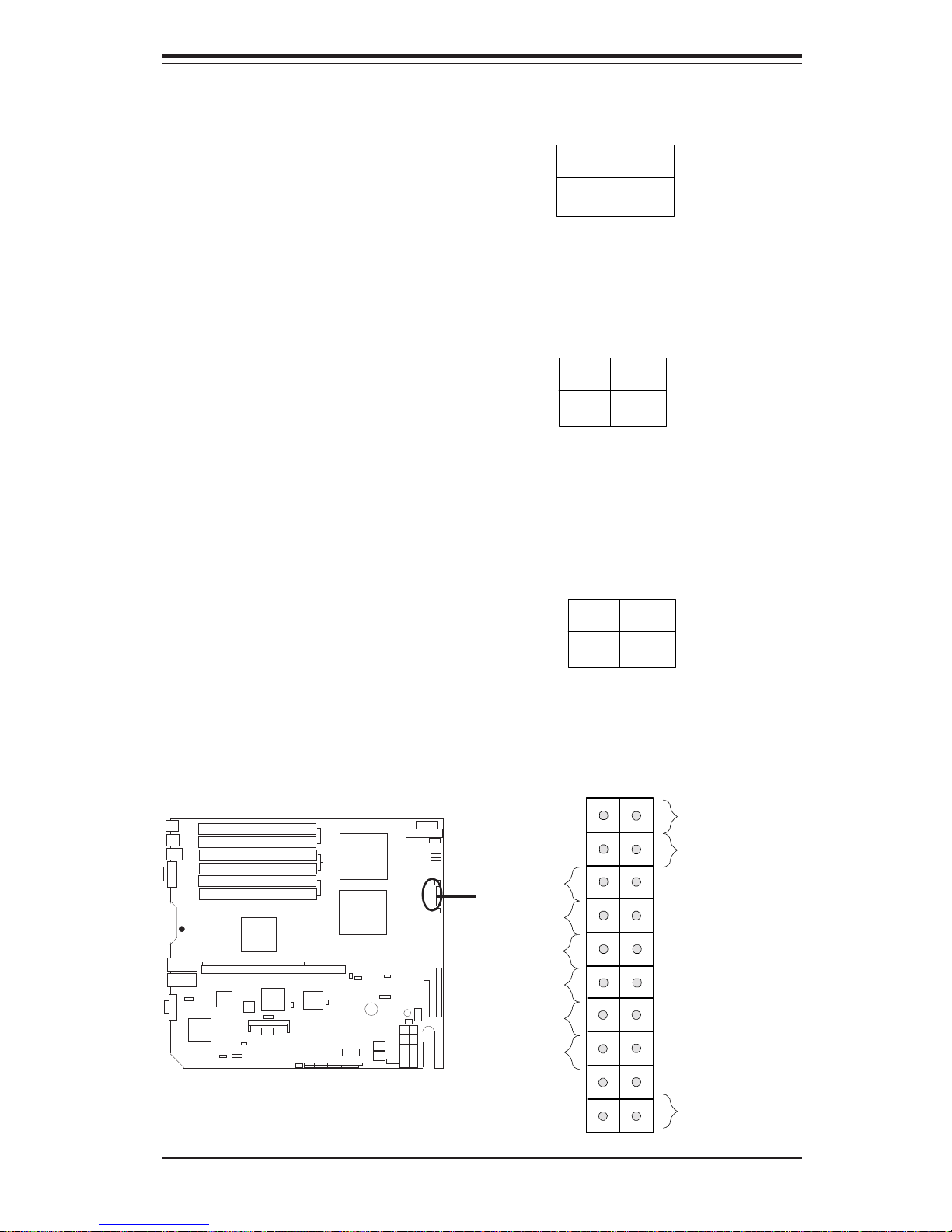

Power LED

The Power LED connection is lo­cated on pins 15 and 16 of JF2.
Refer to the table on the right for
pin definitions.

NMI Button

The non-maskable interrupt button
header is located on pins 19 and
20 of JF2. Refer to the table on
the right for pin definitions.

Pin

Number

19
20

Defin itio n

Control

Ground

NMI Button Pin

Definitions (J F 2)

Pin

Number

15
16

Defin iti o n

Vcc

Control

PWR_LED Pin Definiti

ons

(JF2)

JF2 (Front Con­trol Panel)

Power Button

Overheat LED

1

NIC1 LED

Reset Button

2

Power Fail LED

NIC2 LED

HDD LED

Power LED

Reset

Pwr

Vcc

Vcc

Vcc

Vcc

Vcc

Ground

Ground

1920

Vcc

X

Ground

NMI

X

HDD LED

The HDD LED connection is located
on pins 13 and 14 of JF2. Attach
the IDE hard drive LED cable to
these pins to display disk activity.
Refer to the table on the right for
pin definitions.

HDD LED Pin

Definition s

(JF2 )

Pin

Number

13
14

Defin i tio n

Vcc

HD Active

2-10

SUPER X5DPR-TG2+ User's Manual

Overheat LED (OH)

Connect an LED to the OH connec­tion on pins 7 and 8 of JF2 to pro­vide advanced warning of chassis
overheating. Refer to the table on
the right for pin definitions.

Overheat (OH) LED

Pin Definitions

(JF2)

Pin

Number

7
8

Defin i ti o n

Vcc

GND

NIC2 LED

The NIC2 (Network Interface Con­troller) LED connection is located
on pins 9 and 10 of JF2. Attach
the NIC2 LED cable to display net­work activity. Refer to the table
on the right for pin definitions.

NIC1 LED

The NIC1 (Network Interface Con­troller) LED connection is located
on pins 11 and 12 of JF2. Attach
the NIC1 LED cable to display net­work activity. Refer to the table
on the right for pin definitions.

NIC1 LED Pin

Definition s

(JF2 )

Pin

Number

11
12

Defin i tio n

Vcc

GND

NIC2 LED Pin

Definition s

(JF2 )

Pin

Number

9

10

Defin i tio n

Vcc

GND

JF2 (Front Control Panel)

CPU1

CPU2

J15

DIMM #3A

JP8

JF2

FAN1

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

JP23

IPMB

Pin1
Pin1

JP35

Keylock Pin1

BIOS

Pin1

Pin1

JP14

JP13

JP15

Pin1

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

USB1

JP37WD

JP12
IR/CIR

JP27

USB2

JPS2

JPS1

JL1

PWR LED

Speaker

Chas. Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J26

J

0

H

1

JP2

FAN2

CPU Chassis FAN

PWR Fault

JP16

Pin1

Pin1

Pow er Button

Overheat LED

19

NIC1 LED

Reset Button

20

Power Fail LED

NIC2 LED

HDD LED

Pow er LED

Vcc

Vcc

Vcc

Vcc

Vcc

Ground

12

Vcc

X

NMI

Ground

Ground

X

Chapter 2: Installation

2-11

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
BridgeJP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Reset Button

The Reset Button connection is lo­cated on pins 3 and 4 of JF2. At­tach it to the hardware reset
switch on the computer case.
Refer to the table on the right for
pin definitions.

Pin

Number

3
4

Defin i tio n

Reset

Ground

Reset Pin

Definitions

(JF2 )

Power Fail LED

The Power Fail LED connection is
located on pins 5 and 6 of JF2.
Refer to the table on the right for
pin definitions.

Po w e r Fail L E D
Pin Definitions

(JF2)

Pin

Number

5
6

Defin i ti o n

Vcc

GND

JF2 (Front Con­trol Panel)

Power Button

The Power Button connection is
located on pins 1 and 2 of JF2.
Momentarily contacting both pins
will power on/off the system. This
button can also be configured to
function as a suspend button (see
the Power Button Mode setting in
BIOS). To turn off the power
when set to suspend mode, de­press the button for at least 4
seconds. Refer to the table on the
right for pin definitions.

Pin

Number

1
2

Defin i ti o n

PW _ON

Ground

Pow e r B utton

Connector

Pin Definitions

(JF2)

Pow er Button

Overheat LED

19

NIC1 LED

Reset Button

20

Power Fail LED

NIC2 LED

HDD LED

Pow er LED

Vcc

Vcc

Vcc

Vcc

Vcc

Ground

12

Vcc

X

NMI

Ground

Ground

X

2-12

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

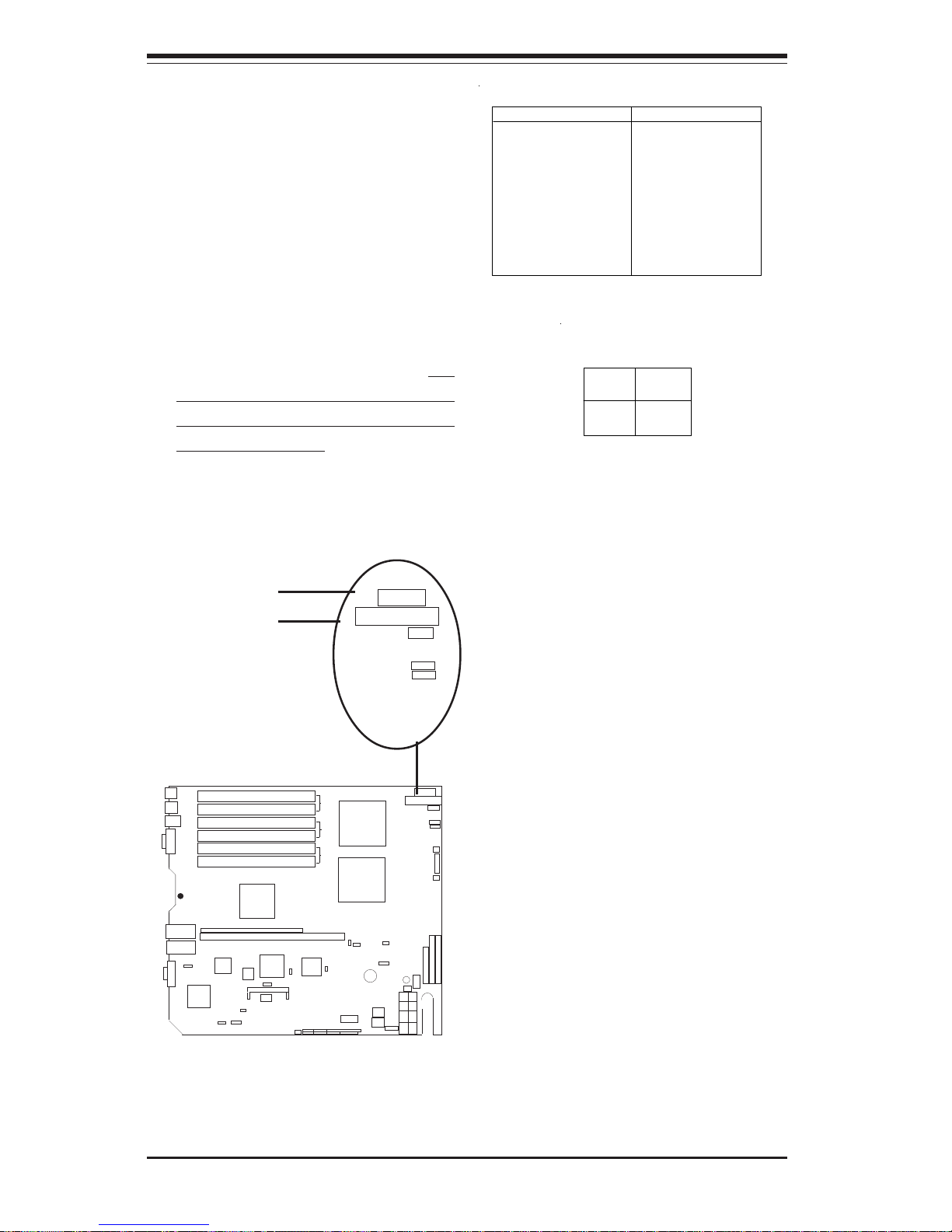

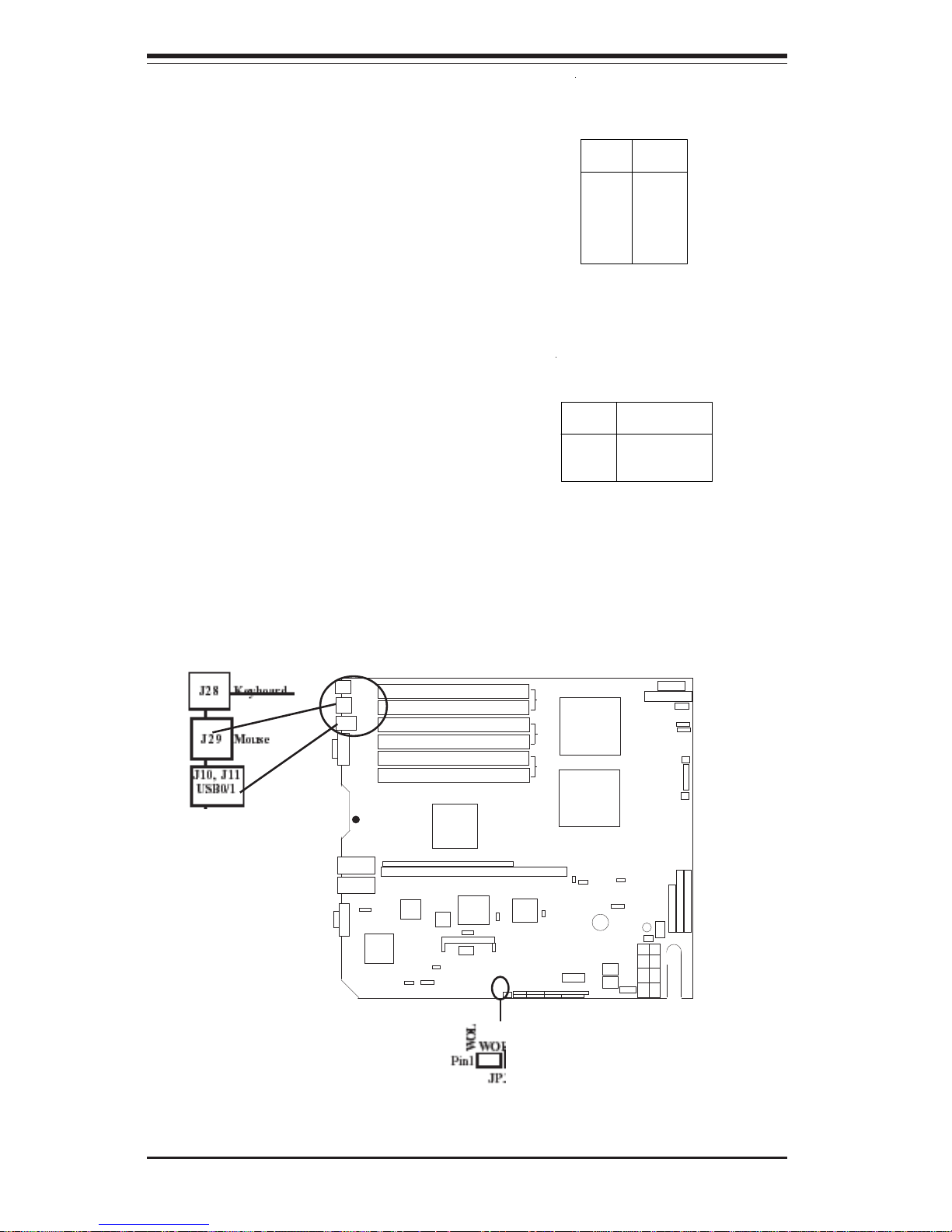

Universal Serial Bus
(USB0/1-Back Panel)

Two Universal Serial Bus ports
are located beside the PS/2 key­board/mouse ports. USB0(J10) is
the bottom connector and
USB(J11) is the top connector.
See the table on the right for pin
definitions.

Universal Serial Bus Pin Definitions

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5 N /A

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5Key

USB0

USB1

Chassis Intrusion

A Chassis Intrusion header is lo­cated at JL1. Attach the appropri­ate cable to inform you of a chas­sis intrusion.

J10,J11(USB0/1)

JL1 (Ch Intrusion)

Chapter 2: Installation

2-13

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Extra Universal Serial Bus
Headers

Extra USB headersFPUSB0/
FPUSB1 on the X5DPR-TG2+.
These headers can be used for
front side USB access. You will
need a USB cable (not included) to
use either connection. Refer to
the tables on the right for pin defi­nitions. An additional header
(USB2) designated J27 is also pro­vided on the X5DPR-TG2+.

Pin

Number

2
4
6
8

10

Defin i tio n

Power

­+

Ground

Key

USB2 Pin

Definitions (J13)

Pin

Number

1
3
5
7
9

Defin i tio n

Power

­+

Ground

Key

USB3 Pin

Definitions (J14)

Front Panel USB (0/1) and USB 2 Pi n

Definitions

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5 N/A

Pin
Number Definition
1+5V
2P0­ 3P0+
4 Ground
5Key

USB2/FPUSB0

FPUSB1

Serial Ports

The COM (J8) serial port is located
under the parallel port (see Figure
2-3). See the table on the right for
pin definitions. The COM2 (J26)
connector is a header on the moth­erboard

Serial Port Pin Definitions

(COM 1 , C O M 2 )

Pin Number Definition
1 C D
2 R D
3 TD
4 DT R
5 Ground

Pin Number Definition
6 DSR
7 R T S
8 C T S
9 R I
10 NC

J8(COM 1)

(J10, J11)
FPUSB0/1

J26(COM 2)

2-14

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Fan Header Pin Definitions

Pin

Number

1
2
3

Defin i tion

Ground (black)

+12V (red)

Tachometer

Caution: These fan headers
are DC power.

Fan Headers

The X5DPR-TG2+ has 3 CPU and
chassis fan headers. Designa­tions include CPU1 Chassis Fan,
CPU2 Chassis Fan, and Chassis
Fan 3. See the table on the right
for pin definitions.

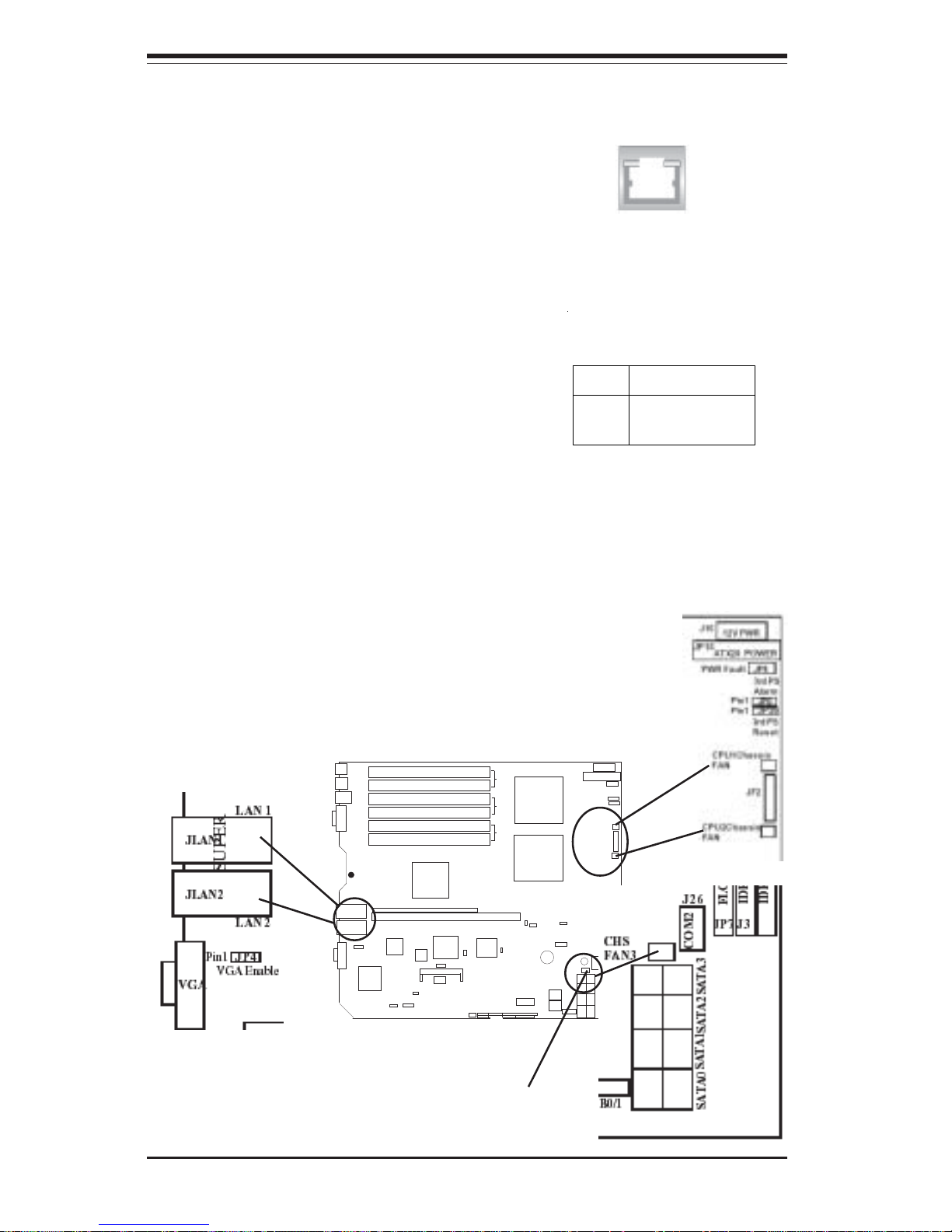

GLAN1/2 (Ethernet Ports)

Two Ethernet ports (designated
GLAN1 and GLAN2) are located
beside the VGA port on the IO
backplane. These ports accept
RJ45 type cables.

Note: Pin 10 is included on the header but not on
the port.

GLAN1/GLAN2

CPU1,2 Chassis Fans

Chassis FAN3

Chapter 2: Installation

2-15

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Third Power Supply Fail
Header

Connect a cable from your power
supply to the JP8 header to pro­vide warning of power supply fail­ure. This warning signal is
passed through the PWR_LED pin
on JF2 to indicate of a power fail­ure on the chassis. See the table
on the right for pin definitions.

Third Power Supply Fail Header

Pin Definitio ns (JP 8 )

Pin

Number

1
2
3
4

Defi n itio n
P/S 1 Fail Signal
P/S 2 Fail Signal
P/S 3 Fail Signal
Rese t (from M B)

Note: This feature is only available when using
redundant Supermicro power supplies.

Power LED/Speaker/NMI

On the JDI header, pins 1-3 are
for a power LED, pins 4-7 are for
the speaker and pins 8-9 are for
the NMI connection. See the table
on the right for speaker pin defini­tions. Note: The speaker connec­tor pins are for use with an exter­nal speaker. If you wish to use
the onboard speaker, you should
close pins 6-7 with a jumper.

Speaker Connector Pin

Definitions (J D 1)

Pin

Number

4
5
6
7

Function

+

Key

Defi n iti o n

Red wire, Speaker data

No connection

Key

Speaker data

PWR LED/SPKR

3rd PS Fail Header

Pow er Button

Overheat LED

19

NIC1 LED

Reset Button

20

Power Fail LED

NIC2 LED

HDD LED

Power LED

Vcc

Vcc

Vcc

Vcc

Vcc

Ground

12

Vcc

X

NMI

Ground

Ground

X

2-16

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Pin

Number

1
2
3

Defin itio n

+5V Standby

Ground

Wake-up

Wake-On-LAN Pin
Definitions (WOL )

Wake-On-LAN

The Wake-On-LAN header is des­ignated WOL. See the table on the
right for pin definitions. You must
enable the LAN Wake-Up setting in
BIOS to use this feature. You
must also have a LAN card with a
Wake-on-LAN connector and
cable.

ATX PS/2 Keyboard and
PS/2 Mouse Ports

The ATX PS/2 keyboard is located
on J28, and PS/2 is located on
J29. (See Figure 2-3 for the loca­tions of each.)

PS/2 Keyboard

and Mouse Port

Pin Definitions

(J28, J29)

Pin

Number

1
2
3
4
5
6

Definition

Data

NC

Ground

VCC

Clock

NC

Wake On LAN (WOL)

Keyboard (J28) & Mouse (J29)

Chapter 2: Installation

2-17

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J0H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Wake-On-Ring

The Wake-On-Ring header is des­ignated JWOR. This function al­lows your computer to receive
and "wake-up" by an incoming call
to the modem when in suspend
state. See the table on the right
for pin definitions. You must have
a Wake-On-Ring card and cable to
use this feature.

Wake-on-Ring

Pin Definitions

(JW O R)

Pin

Number

1
2

Defin i tio n

Ground

Wake-up

Keylock

The keyboard lock connection is lo­cated on JP35. Utilizing this header
allows you to inhibit any actions
made on the keyboard, effectively
"locking" it.

Wake On Ring (WOR)

Keylock (JP35)

2-18

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

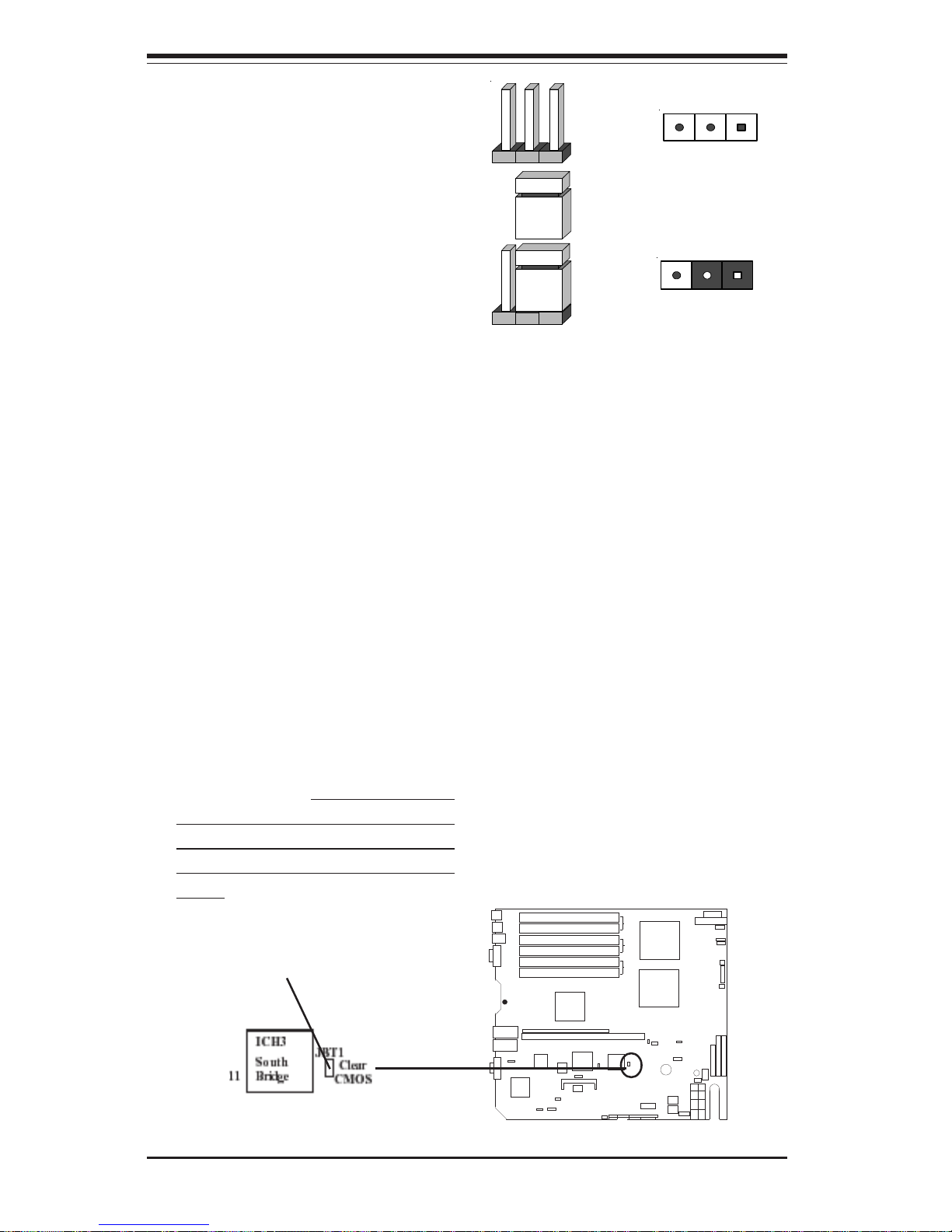

2-6 Jumper Settings

Explanation of
Jumpers

To modify the operation of the
motherboard, jumpers can be
used to choose between
optional settings. Jumpers
create shorts between two pins
to change the function of the
connector. Pin 1 is identified
with a square solder pad on
the printed circuit board. See
the motherboard layout pages
for jumper locations.
Note: On two pin jumpers,
"Closed" means the jumper is
on and "Open" means the
jumper is off the pins.

Connector

Pins

Jumper

Cap

Setting

Pin 1-2 short

3 2 1

3 2 1

CMOS Clear

JBT1 is not literally a jumper but
consists of two contact pads. To
clear the contents of CMOS, short
these pads together by touching
them both with a metal conductor
such as the head of a small
screwdriver. For ATX power
supplies, you must completely shut
down the system and remove the
AC power cord before clearing
CMOS.

Clear CMOS (JBT1)

Chapter 2: Installation

2-19

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J0H1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

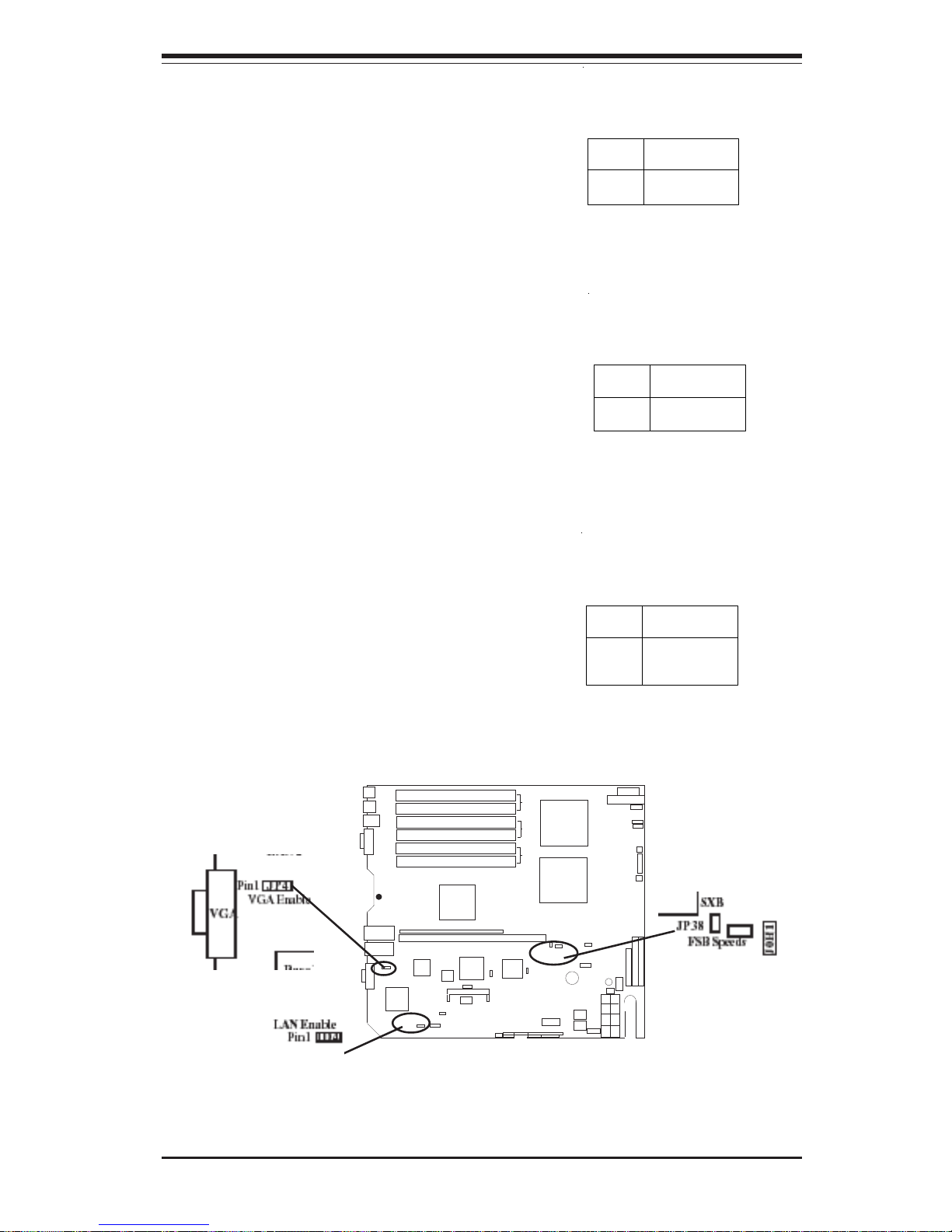

VGA Enable/Disable

JP4 allows you to enable or disable
the VGA port. The default position
is on pins 1 and 2 to enable VGA.
See the table on the right for
jumper settings.

Jumper

Position

1-2
2-3

Defin itio n

Enabled

Disabled

VGA E n a b le/Disable

Jump e r Setting s

(JP4)

GLAN Enable/Disable

Change the setting of jumper JD4
to enable or disable the onboard
GLAN ports (GLAN1 and GLAN2)
on the motherboard. See the table
on the right for jumper settings.
The default setting is enabled

Jumper

Position
Pins 1-2
Pins 2-3

Defin i tion

Enabled

Disabled

GLAN

Enab le /Disab le

Jumper Settings

(JD 4)

Front Side Bus Speed

JP38 is used to set the system
(front side) bus speed for the pro­cessors. It is best to keep this
jumper set to Auto. This jumper is
used together with the CPU Clock
setting in BIOS. See the table on
the right for jumper settings.

Jumper
Position
Pins 1-2
Pins 2-3

Open

Definition

Auto
400 MHz
533 Mhz

Front Side Bus Speed

Jumper Settings (JP38/39)

VGA Enable (JP4)

LAN Enable (JD4)

FSB Speeds (JP38)

2-20

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

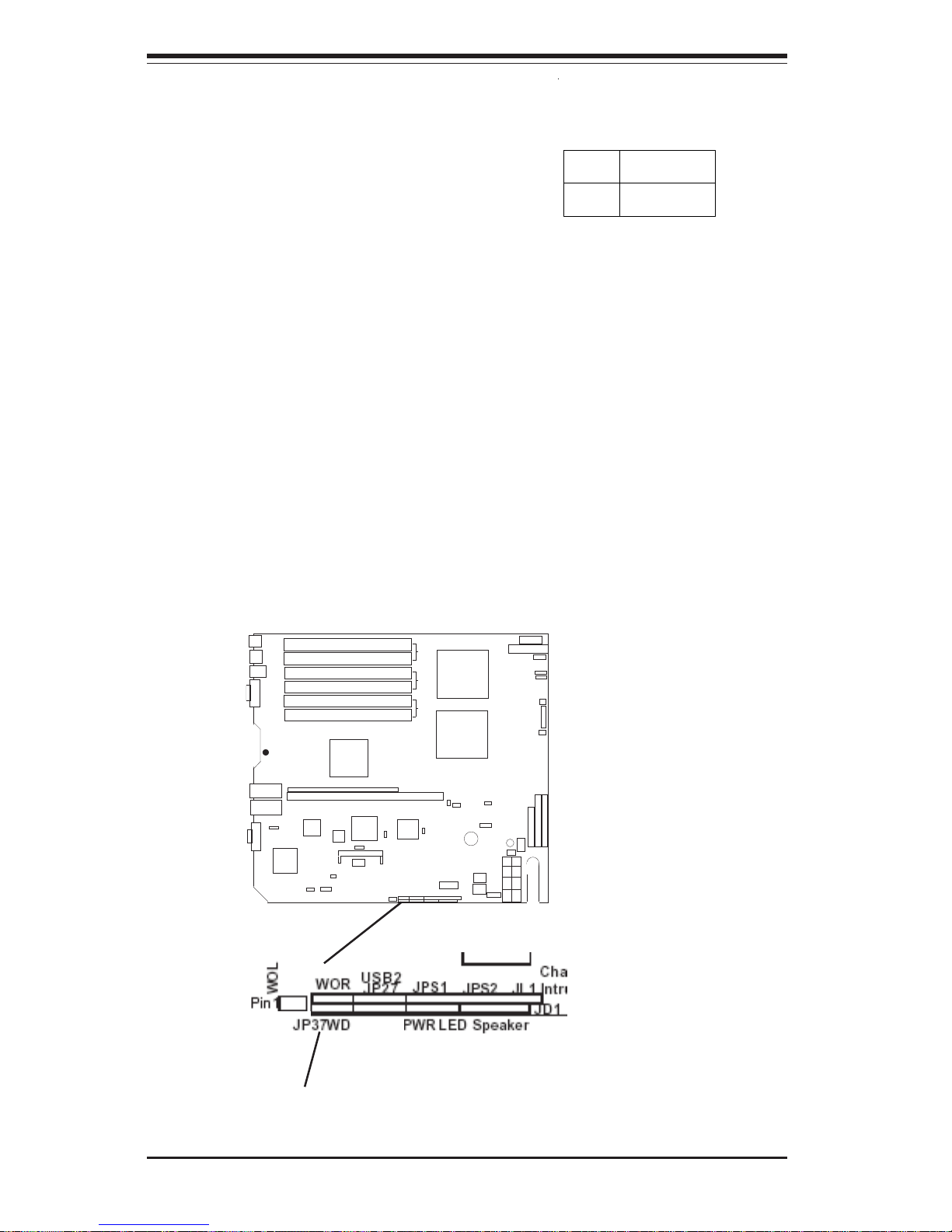

Watch Dog Enable/Disable

The Watch Dog jumper (located on
JP37) allows you to enable or disable
the Watch Dog feature. The default
position is open to disable the Watch
Dog timer. When enabled, Watch Dog
can reboot your PC if an application is
"hung up" or the system goes down.
See the table on the right for jumper
settings.

Jumper

Position

Open

Closed

Defin itio n

Disabled

Enabled

Watch Dog Timer Enable/

Disable Jumper Settings

(JP37)

Watch Dog (WD) Enable (JP37)

Chapter 2: Installation

2-21

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12
IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J

0

H

1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

2-7 Onboard Indicators

GLAN1/GLAN2 LEDs

The Ethernet ports (located beside
the VGA port) have two LEDs.
See the table on the right for the
functions associated with these
LEDs. On each GLAN port, the
yellow LED indicates activity while
the other LED may be green, or­ange or off to indicate the speed
of the connection.

LED

Color

Off

Green

Orange

Defin itio n

No Connection

100 MHz

1 GHz

GLAN R ight LED

Indica tor

GLAN1, GLAN2 (JLAN1, JLAN2)

Serial ATA Enable/Disable

Jumper JPS1/JPS2 allow you to en­able or disable the Serial ATA head­ers. Jumper JPS1 is for headers #0
and #1. Jumper JPS2 is for headers
#2 and #3. The default setting is
pins 1-2 to enable all four headers.
See the table on the right for jumper
settings.

Jumper

Position
Pins 1-2
Pins 2-3

Definition

Enabled

Disabled

Serial ATA Enable/Disable

Jumper Settings

(JPS1/JPS2)

SATA 0-3 Enable (JPS1, JPS2)

2-22

SUPER X5DPR-TG2+ User's Manual

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
BridgeJP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear

CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J0H1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

Pin Number Function
1 G N D
3 G N D
5 Key
7 G N D
9 G N D
11 GN D
13 GN D
15 GN D
17 GN D
19 GN D
21 GN D
23 GN D
25 GN D
27 GN D
29 GN D
31 GN D
33 GN D

Pin Number F unction
2 FDHDIN
4 Rese rv e d
6 FDE DIN
8 Index­ 10 Motor Enable
12 Driv e S e le c t B ­ 14 Driv e S e le c t A ­ 16 Motor Enable
18 DIR ­ 20 ST E P ­ 22 Wri te D a ta ­ 24 Write Gate­ 26 Track 00­ 28 W rite Protect­ 30 R ead Data­ 32 Side 1 Select­ 34 Dis k e tte

Floppy Connector Pin Definitions (JP7)

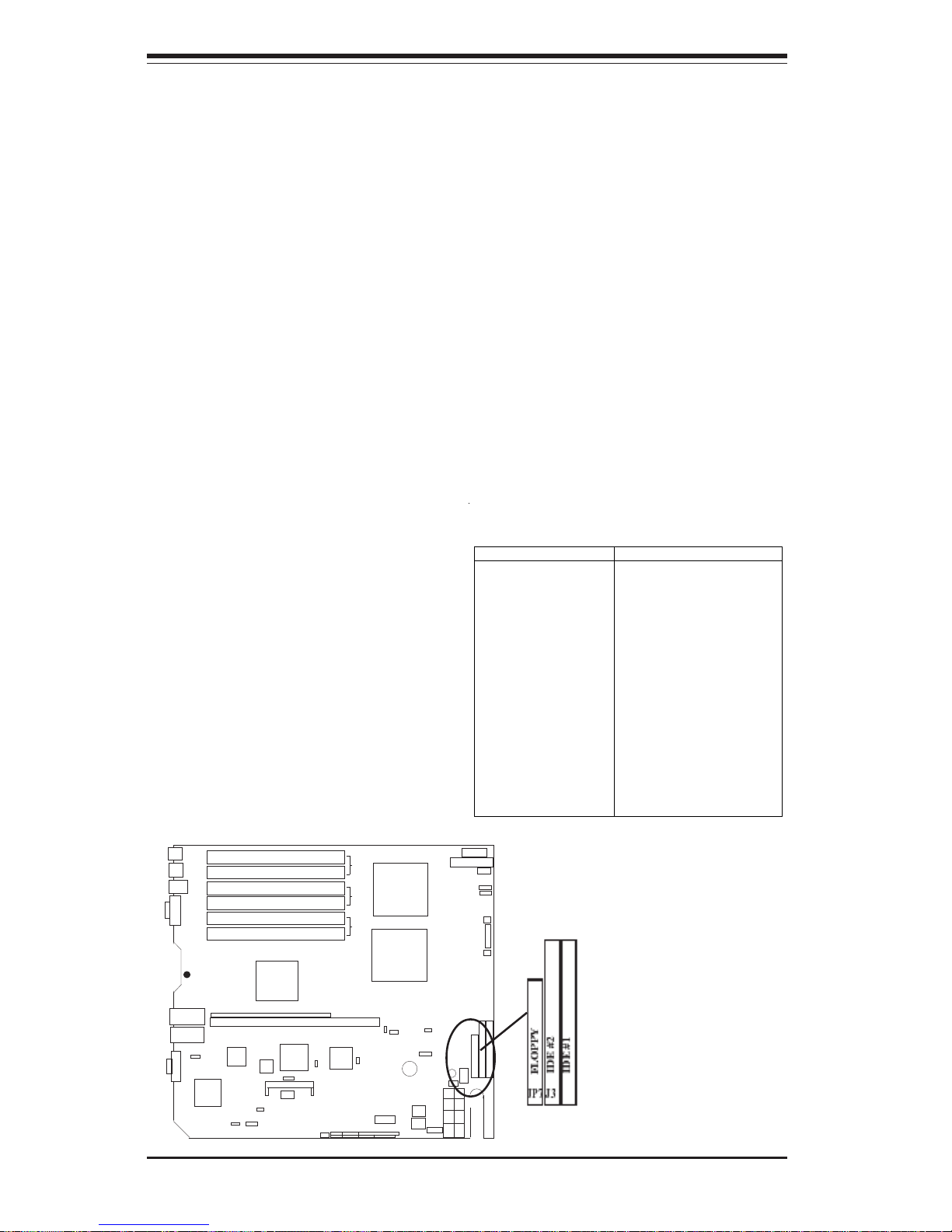

Floppy Connector

The floppy connector is located
on JP7. See the table below for
pin definitions.

2-8 Parallel Port, Floppy/Hard Disk Drive and SATA

Connections

Note the following when connecting the floppy and hard disk drive cables:

• The floppy disk drive cable has seven twisted wires.

• A red mark on a wire typically designates the location of pin 1.

• A single floppy disk drive ribbon cable has 34 wires and two connectors to
provide for two floppy disk drives. The connector with twisted wires always
connects to drive A, and the connector that does not have twisted wires
always connects to drive B.

Floppy Disk Drive (JP7)

Chapter 2: Installation

2-23

ATX20 POWER

CPU1

CPU2

J15

DIMM #3A

JP8

DIMM #3B

DIMM #2B

DIMM #2A

BANK 3

BANK 2

Mouse

J28

Keyboard

J29

USB0/1

COM1

JLAN2

VGA

JLAN1

MCH

Rage XL

ICH3

CHS
FAN3

P64H2

BATTERY

IDE #1

IDE #2

FLOPPY

WOL

JP24

JD4

PCIX #1

SXB

PCIX #2

JP4

JP7

SUPER X5DPR-TG2+

OHLED

JD1

WOR

DIMM #1B

DIMM #1A

BANK 1

JP36

JP9

JP38

J10, J11

J8

J17

J18

Pin1

VGA Enable

Pin1

LAN Enable

GLAN
Controller

82546EB

PCIX/PCI Bus
Controller

PCI Graphics
Controller

SMB

Pin1

JP35

Keylock Pin1

BIOS

South
Bridge

JP11

Pin1

IPMI

Super I/O

LAN 1

LAN 2

®

FSB Speeds

Pin1

SATA ACT LED

JP37WD

JP12

IR/CIR

JP27

USB2

JPS1

JPS2

JL1

PWR LED

Speaker

Chas.
Intrusion

JBT1

Clear
CMOS

FPUSB0/1

Pin1

SATA2
Ctrl

SATA1
Ctrl

SATA0

SATA1

SATA2

SATA3

COM2

J3

J2

J26

J0H1

JP2

3rd PS
Alarm

3rd PS
Reset

CPU1Chassis
FAN

PWR Fault

JP16

12V PWR

Pin1

Pin1

CPU2Chassis
FAN

JF2

SPEAKER

JP12

IDE Connectors

There are no jumpers to
configure the onboard IDE#1
and #2 connectors. See the
table on the right for pin
definitions.

Pin Number Function
1 Res e t ID E
3 H o s t D a ta 7
5 H o s t D a ta 6
7 H o s t D a ta 5
9 H o s t D a ta 4
11 Host Da ta 3
13 Host Da ta 2
15 Host Da ta 1
17 Host Da ta 0
19 GND
21 DR Q3
23 I/O Wr ite ­ 25 I/O Read­ 27 IOCHRDY
29 D A CK3­ 31 IR Q14
33 Ad d r 1
35 Ad d r 0
37 C h i p S e le c t 0
39 A cti vi ty

Pin Number F unction
2 GN D
4 Hos t Data 8
6 Hos t Data 9
8 Hos t D a ta 1 0
10 H o s t D a ta 1 1
12 H o s t D a ta 1 2
14 H o s t D a ta 1 3
16 H o s t D a ta 1 4
18 H o s t D a ta 1 5
20 Ke y
22 GND
24 GND
26 GND
28 BAL E
30 GND
32 IOCS16 ­ 34 GND
36 Add r 2
38 Chip Sele c t 1 ­ 40 GND

IDE Connector Pin Definitions

(IDE#1, IDE#2)

IDE#1, IDE#2 (J2, J3)

SATA Connectors

There are no jumpers to
configure the onboard
SATA0(JS1), SATA1(JS2),
SATA2(JS3), SATA3(JS4),
connectors. See the table
on the right for pin defini­tions.

SATA0-#3 Connectors (JS1-JS3)

Pin Number Pin Definitions
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND

SATA0-SATA3 (JS1-JS4)

2-24

SUPER X5DPR-TG2+ User's Manual

Notes

3-1

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have
followed all of the procedures below and still need assistance, refer to the
‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’
section(s) in this chapter.

Note: Always disconnect the power cord before adding, changing
or installing any hardware components.

Before Power On

1. Make sure no short circuits exist between the motherboard and chassis.

2. Disconnect all ribbon/wire cables from the motherboard, including those
for the keyboard and mouse.

3. Remove all add-on cards.

4. Install one CPU (making sure it is fully seated) and connect the chassis
speaker and the power LED to the motherboard. (Check all jumper
settings as well.)

No Power

1. Make sure no short circuits exist between the motherboard and the chas­sis.

2. Verify that all jumpers are set to their default positions.

3. Check that the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to verify that it still
supplies ~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards
and cables.

2. Use the speaker to determine if any beep codes exist. Refer to the
Appendix for details on beep codes.

3-2

SUPER X5DPR-TG2+ User's Manual

Losing the System’s Setup Configuration

1. Ensure that you are using a high quality power supply. A poor quality
power supply may cause the system to lose the CMOS setup informa­tion. Refer to Section 1-6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still
supplies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not fix the Setup Configuration problem, contact
your vendor for repairs.

3-2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also,
note that as a motherboard manufacturer, Super Micro does not sell directly
to end-users, so it is best to first check with your distributor or reseller for
troubleshooting services. They should know of any possible problem(s)
with the specific system configuration that was sold to you.

NOTE

If you are a system integrator, VAR or OEM, a POST diagnos-

tics card is recommended. For I/O port 80h codes, refer to

App. B.

Memory Errors

1. Make sure the DIMM modules are properly and fully installed.

2. Determine if different speeds of DIMMs have been installed and verify
that the BIOS setup is configured for the fastest speed of RAM used.
It is recommended to use the same RAM speed for all DIMMs in the
system.

3. Make sure you are using registered ECC, DDR-266 or DDR-200 SDRAM.
If using 533 MHz processors, you must use DDR-266 memory (DDR­200 is not supported at a 533 MHz front side bus speed).

4. Check for bad DIMM modules or slots by swapping a single module be­tween two slots and noting the results.

5. Make sure all memory modules are fully seated in their slots. As an
interleaved memory scheme is used, you must install two modules at a
time, beginning with Bank 1, then Bank 2, and so on (see Section 2-3).

6. Check the power supply voltage 115V/230V switch.

3-3

Chapter 3: Troubleshooting

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently
Asked Question' (FAQ) sections in this chapter or see the FAQs on our
web site (http://www.supermicro.com/techsupport.htm) before con­tacting Technical Support.

2. BIOS upgrades can be downloaded from our web site at
http://www.supermicro.com/techsupport/download.htm.

Note: Not all BIOS can be flashed depending on the modifications
to the boot block code.

3. If you still cannot resolve the problem, include the following information
when contacting Super Micro for technical support:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when
your system first boots up)

•System configuration
An example of a Technical Support form is on our web site at
http://www.supermicro.com/techsupport/contact_support.htm.

4. Distributors: For immediate assistance, please have your account number
ready when placing a call to our technical support department. We can
be reached by e-mail at [email protected] or by fax at:
[phone], option 2.

3-3 Frequently Asked Questions

Question: What are the various types of memory that my mother­board can support?

Answer: The X5DPR-TG2+ has six DIMM slots that support 184-pin, regis-

tered ECC DDR-266 or DDR-200 SDRAM DIMM modules. If using 533 MHz
processors, you must use DDR-266 memory (DDR-200 is not supported at a
533 MHz front side bus speed). It is strongly recommended that you do not
mix memory modules of different speeds and sizes. Unbuffered SDRAM,
non-ECC memory and PC100/133 SDRAM modules are not supported.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are

experiencing no problems with your system. Updated BIOS files are located
on our web site at http://www.supermicro.com. Please check our BIOS
warning message and the info on how to update your BIOS on our web

3-4

SUPER X5DPR-TG2+ User's Manual

site. Also, check the current BIOS revision and make sure it is newer than
your BIOS before downloading. Select your motherboard model and down­load the BIOS file to your computer. Unzip the BIOS update file and you will
find the readme.txt (flash instructions), the phlash.bat (BIOS flash utility),
the platform.bin (platform file) and the BIOS image (xxxxxx.rom) files. Copy
these files onto a bootable floppy and reboot your system. It is not neces­sary to set BIOS boot block protection jumpers on the motherboard. Flash
the boot block and enter the name of the update BIOS image file.

Question: What's on the CD that came with my motherboard?

Answer: The supplied compact disc has quite a few drivers and programs

that will greatly enhance your system. We recommend that you review the
CD and install the applications you need. Applications on the CD include
chipset drivers for Windows and security and audio drivers.

Question: Why can't I turn off the power using the momentary
power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power

Button Mode setting. When the On/Off feature is enabled, the motherboard
will have instant off capabilities as long as the BIOS has control of the
system. When the Standby or Suspend feature is enabled or when the
BIOS is not in control such as during memory count (the first screen that
appears when the system is turned on), the momentary on/off switch must
be held for more than four seconds to shut down the system. This feature
is required to implement the ACPI features on the motherboard.

3-5

Chapter 3: Troubleshooting

3-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is
required before any warranty service will be rendered. You can obtain
service by calling your vendor for a Returned Merchandise Authorization
(RMA) number. When returning to the manufacturer, the RMA number
should be prominently displayed on the outside of the shipping carton, and
mailed prepaid or hand-carried. Shipping and handling charges will be ap­plied for all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover dam­ages incurred in shipping or from failure due to the alternation, misuse,
abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product
problems.

3-6

SUPER X5DPR-TG2+ User's Manual

Notes

Chapter 4: BIOS

4-1

Chapter 4

BIOS

4-1 Introduction

This chapter describes the PhoenixBIOS™ Setup utility for the X5DPR-TG2+.
The Phoenix ROM BIOS is stored in a flash chip and can be easily upgraded
using a floppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been
added or deleted and might not yet be recorded in this manual. Please refer
to the Manual Download area of the Supermicro web site
<http://www.supermicro.com> for any changes to BIOS that may not be
reflected in this manual.

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®,
and PS/2® compatible computers. The PhoenixBIOS flash chip stores the
system parameters, such type of disk drives, video displays, etc. in the
CMOS. The CMOS memory requires very little electrical power. When the
computer is turned off, a back-up battery provides power to the BIOS flash
chip, enabling it to retain system parameters. Each time the computer is
powered-on the computer is configured with the values stored in the BIOS
ROM by the system BIOS, which gains control at boot-up.

How To Change the Configuration Data

The CMOS information that determines the system parameters may be
changed by entering the BIOS Setup utility. This Setup utility can be ac­cessed by pressing the <Delete> key at the appropriate time during system
boot, see below.

Starting the Setup Utility

Normally, the only visible POST (Power On Self Test) routine is the memory
test. As the memory is being tested, press the <Delete> key to enter the
main menu of the BIOS Setup utility. From the main menu, you can access
the other setup screens, such as the Security and Power menus. Begin­ning with Section 4-3, detailed descriptions are given for each parameter
setting in the Setup utility.

4-2

SUPER X5DPR-TG2+ User's Manual

4-2 Running Setup

*Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choos­ing the appropriate text from the main BIOS Setup screen. All displayed
text is described in this section, although the screen display is often all
you need to understand how to set the options (see on next page).

When you first power on the computer, the PhoenixBIOS™ is immediately
activated.

While the BIOS is in control, the Setup program can be activated in one of two
ways:

1. By pressing <Delete> immediately after turning the system on, or

2. When the message shown below appears briefly at the bottom of the
screen during the POST (Power On Self-Test), press the <Delete> key to
activate the main Setup menu:

Press the <Delete> key to enter Setup

4-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup screen
is displayed below.

Use the Up/Down arrow keys to move among the different settings in each menu.
Use the Left/Right arrow keys to change the options for each setting.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes
in detail how to navigate through the menus.

Items that use submenus are indicated with the ! icon. With the item highlighted,
press the <Enter> key to access the submenu.

Chapter 4: BIOS

4-3

Main BIOS Setup Menu

Main Setup Features

System Time

To set the system date and time, key in the correct information in the
appropriate fields. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year fields and enter
the correct data. Press the <Enter> key to save the data.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot Exit

System Time [16:19:20]
System Date [02/02/02]

Legacy Diskette A: [1.44/1.25 MB]
Legacy Diskette B: [Not Installed]

!

Primary Master

[120 GB]

!

Primary Slave

[None]

!

Secondary Master

[CD-ROM]

!

Secondary Slave

[None]

System Memory 256 MB
Extended Memory 3967 KB

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

RIP

4-4

SUPER X5DPR-TG2+ User's Manual

Legacy Diskette A

This setting allows the user to set the type of floppy disk drive installed as
diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb

3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.

Legacy Diskette B

This setting allows the user to set the type of floppy disk drive installed as
diskette B. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb

3.5 in, 1.44/1.25MB, 3.5 in and 2.88MB 3.5 in.

!!

!!

!Primary Master/Primary Slave/Secondary Master/Secondary

Slave

These settings allow the user to set the parameters of the IDE Primary
Master/Slave and IDE Secondary Master/Slave slots. Hit <Enter> to activate
the following sub-menu screen for detailed options of these items. Set the
correct configurations accordingly. The items included in the sub-menu are:

Phoeni

x BIOS Setup Utility

Main

Advanced Security Power Boot Exit

Type: [

Auto

]

Multi Sector Transfer; [16 Sectors]
LBA Mode Control: [Enabled]
32-bit I/O: [Enabled]
Transfer Mode: [Fast PIO 4]

Ultra DMA Mode [Disabled]

Item Specific Help

Select the drive
type of the fixed
disk installed in
your system. If type
User is selected,
Cylinders, Heads,
and Sectors can be
edited directly.

Auto attempts to
automatically detect
the drive type for
drives that comply
with ANSI
specifications.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

Type

Selects the type of IDE hard drive. The options are Auto (allows BIOS
to automatically determine the hard drive's capacity, number of heads,
etc.), a number from 1-39 to select a predetermined type of hard drive,
CD-ROM and ATAPI Removable.

S.M.A.R.T. Monitoring

Disabled

Chapter 4: BIOS

4-5

Multi-Sector Transfers

Select the number of transfer sectors. Options are 2, 4, 6, 8 and 16
Sectors.

LBA Mode Control

This item determines whether Phoenix BIOS will access the IDE Primary
Master Device via LBA mode. The options are Enabled and Disabled.

32-bit I/O

Selects 32-bit I/O operation. Options are Enabled and Disabled.

Transfer Mode

Selects the transfer mode. Options are Standard, Fast PIO1, Fast PIO2,
Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

Ultra DMA Mode

Selects Ultra DMA Mode. Options are Disabled, Mode 0, Mode 1, Mode
2, Mode 3, Mode 4 and Mode 5.

S.M.A.R.T. Monitoring

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a
technology developed to manage the reliability of the hard disk by
predicting future device failures. The hard disk needs to be S.M.A.R.T.

capable. The options are Enabled, and Disabled. (*Note: S.M.A.R.T.
cannot predict all future failures. S.M.A.R.T. should be used as a warning
tool, not as a tool to predict the device reliability.)

System Memory

This display informs you how much system memory is recognized as being
present in the system.

Extended Memory

This display informs you how much extended memory is recognized as
being present in the system.

4-6

SUPER X5DPR-TG2+ User's Manual

4-4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow
keys. You should see the following display. The items with a triangle beside
them have sub menus that can be accessed by highlighting the item and pressing
<Enter>. Options for PIR settings are displayed by highlighting the setting option
using the arrow keys and pressing <Enter>. All Advanced BIOS Setup options
are described in this section.

Quick Boot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine
after the computer is turned on. The settings are Enabled and Disabled. If
Disabled, the POST routine will run at normal speed.

Quiet Boot

This setting allows you to Enable or Disable the diagnostic screen during
boot-up.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot

Exit

Quick Boot Mode [Enabled]
Quiet Boot [Disabled]

!PCI/PnP Configuration
!Cache Memory
!I/O Device Configuration
!Advanced Chipset Control
!Advanced Processor Options
!DMI Event Logging
!Console Redirection

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

Chapter 4: BIOS

4-7

!!

!!

!PCI/PnP Configuration

Access the submenu to make changes to the following settings.

Onboard LAN1 OPROM Configure

Enabling this option provides the ability to boot from LAN1. The options
are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for Legacy USB devices. The
settings are Enabled and Disabled.

Installed OS

This setting allows you to choose which operating system you are using
to run the system. Options are Other, Win95, Win98, WinMe and
Win2000.

NT4 Installation Workaround

When enabled, this setting provides a workaround for the absent floppy
drive during NT4 installation. Options are Enabled and Disabled.

Reset Configuration Data

If set to Yes, this setting clears the Extended System Configuration Data
area. Options are Yes and No.

!!

!!

!PCI Slot Configuration

PCI/PCIX Frequency (Slot 1)

Use this setting to change the speed of PCI/PCIX slot 1. Options are
Auto, 33 MHz, 66 MHz, 100 MHz and 133 MHz.

4-8

SUPER X5DPR-TG2+ User's Manual

PCI/PCIX Frequency (Slot 2)

Use this setting to change the speed of PCI/PCIX slot 2. Options are
Auto, 33 MHz, 66 MHz, 100 MHz and 133 MHz.

!!

!!

!PCI Device, Slot #1 & Slot#2

Access the submenu for each of the six settings above to make
changes to the following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM.
Options are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI
bus master. Options are Enabled and Disabled.

Latency Timer

This setting allows you to enable the Latency Timer. Options are

Default, 0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h and 00E0h.

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The
options are DOS or Other (for Unix, Novellle NetWare and other operating
systems).

Local Bus IDE Adapter

Use this setting to enable the integrated local bus IDE adapter. Options
are Disable, Primary, Secondary and Both.

Local Bus IDE Adapter

Use this setting to enable the integrated local bus IDE adapter. Options
are Disable, Primary, Secondary and Both.

Chapter 4: BIOS

4-9

!!

!!

!I/O Device Configuration

Access the submenu to make changes to the following settings.

Power Loss Control

This setting allows you to choose how the system will react when power
returns after an unexpected loss of power. Options are Stay Off, Power
On and Last State.

Watch Dog

This setting is for enabling the Watch Dog feature. The options are
Enabled and Disabled.

KBC Clock Input

Use this setting to set the clock frequency for the keyboard. Options are
6 MHz, 8 MHz and 12 MHz.

Serial Port A

This setting allows you to assign control of serial port A. The options
are Enabled (user defined), Disabled and Auto (BIOS controlled).

Base I/O Address

Select the base I/O address for serial port A. The options are 3F8,
2F8, 3E8 and 2E8.

Interrupt

Select the IRQ (interrupt request) for serial port A. Options are IRQ3
and IRQ4.

Serial Port B

This setting allows you to assign control of serial port B. The options
are Enabled (user defined), Disabled and Auto (BIOS controlled).

4-10

SUPER X5DPR-TG2+ User's Manual

Mode

Specify the type of device that will be connected to serial port B.
Options are Normal and IR (for an infrared device).

Base I/O Address

Select the base I/O address for serial port B. The options are 3F8,

2F8, 3E8 and 2E8.

Interrupt

Select the IRQ (interrupt request) for serial port B. Options are IRQ3
and IRQ4.

Floppy Disk Controller

This setting allows you to assign control of the floppy disk controller.
The options are Enabled (user defined), Disabled and Auto (BIOS
controlled).

Base I/O Address

Select the base I/O address for the parallel port. The options are
Primary and Secondary.

!!

!!

!Advanced Chipset Control

Access the submenu to make changes to the following settings.

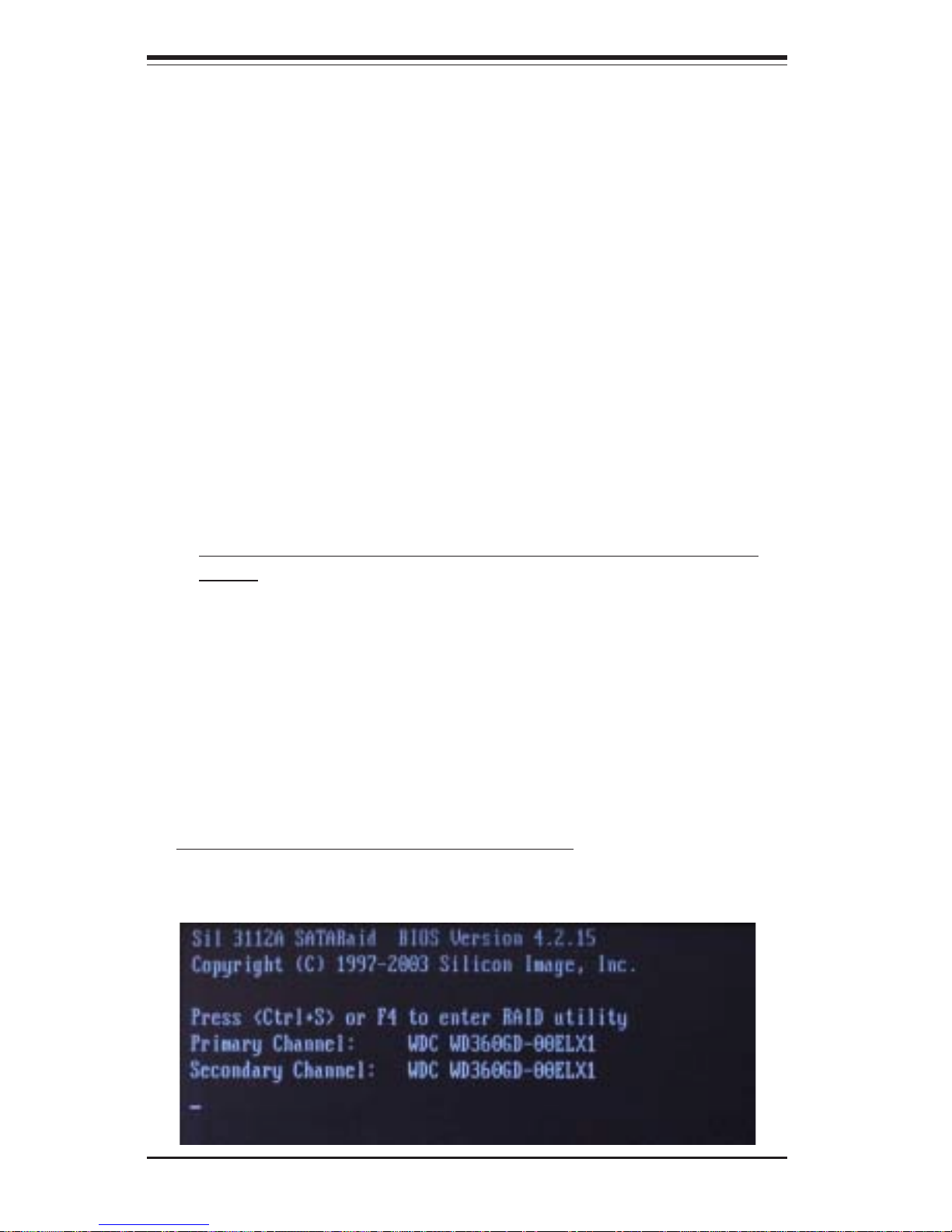

Serial ATA RAID Feature

Select Enable to enable the functin of Serial ATA RAID. The options for
this setting are Disabled and Enabled. (*For the Windows OS
environment, use the RAID driver if this feature is set to "Enabled". If

"disabled", use the "Non-RAID" driver.)

Chapter 4: BIOS

4-11

Clock Spectrum Feature

If "Enabled", the BIOS will sensor and attempt to reduce the
Electromagnetic Interference caused by the components. The options are
Enabled and Disabled.

SMART Device Monitoring

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a
technology developed to manage the reliability of the hard disk by
predicting future device failures. The hard disk needs to be S.M.A.R.T.

capable. The options are Enabled, and Disabled. (*Note: S.M.A.R.T.
cannot predict all future failures. S.M.A.R.T. should be used as a warning
tool, not as a tool to predict the device reliability.) The options for this
setting are Disabled and Enabled.

ECC Configuration

This setting lets you enable or disable ECC (Error Correction and
Checking). The options are ECC and Disabled.

ECC Error Type

This setting lets you select which type of interrupt will be activated as a
result of an ECC error. The options are None, NMI (Non-Maskable
Interrupt), SMI (System Management Interrupt) and SCI (System Control
Interrupt.

SERR Signal Condition

This setting specifies the conditions required to qualify as an ECC error.
Options are None, Single Bit, Multiple Bit and Both.

!!

!!

!Advanced Processor Options

Access the submenu to make changes to the following settings.

CPU Speed

This is a display that indicates the speed of the installed processor.

4-12

SUPER X5DPR-TG2+ User's Manual

Fast String Operations

This setting allows you to Enable or Disable fast string operations.

Compatible FPU Code

This setting allows you to Enable or Disable the compatible FPU code.

Split Lock Operations

This setting allows you to Enable or Disable split lock operations.

Hyper-threading

This setting allows you to Enable or Disable hyper-threading. Enabling
hyper-threading results in increased CPU performance.

!!

!!

!DMI Event Logging

Access the submenu to make changes to the following settings.

Event Log Validity

This is a display, not a setting, informing you of the event log validity.

Event Log Capacity

This is a display, not a setting, informing you of the event log capacity.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event
log.

Chapter 4: BIOS

4-13

Event Logging

This setting allows you to Enable or Disable event logging.

ECC Event Logging

This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs.

!!

!!

!Console Redirection

Access the submenu to make changes to the following settings.

COM Port Address

Specifies to redirect the console to On-board COMA or On-board COMB.
This setting can also be Disabled.

BAUD Rate

Select the BAUD rate for console redirection. Options are 300, 1200,
2400, 9600, 19.2K, 38.4K, 57.6K and 115.2K.

Console Type

Choose from the available options to select the console type for console
redirection. The options are VT100, VT100,8bit, PC-ANSI, PCANSI,7bit,
VT100+, VT-UTF8.

Flow Control

Choose from the available options to select the flow control for console
redirection. The options are: None, XON/OFF, and CTS/RTS.

4-14

SUPER X5DPR-TG2+ User's Manual

Console Connection

This feature allows the user to decide if the console is connected directly
to the system or a modem is used for connection. Select the console
connection: either Direct or Via Modem.

Continue CR after POST

Choose whether to continue with console redirection after the POST
routine. Options are On and Off.

# of Video Pages to Support

Choose the number of video pages to allocate for redirection when video
hardware is not available. Options are 1, 2, 3, 4, 5, 6, 7 and 8.

Chapter 4: BIOS

4-15

4-5 Security

Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow
keys. You should see the following display. Security setting options are
displayed by highlighting the setting using the arrow keys and pressing <Enter>.
All Security BIOS settings are described in this section.

Supervisor Password Is:

This displays whether a supervisor password has been entered for the
system. Clear means such a password has not been used and Set means
a supervisor password has been entered for the system.

User Password Is:

This displays whether a user password has been entered for the system.
Clear means such a password has not been used and Set means a user
password has been entered for the system.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot

Exit

Supervisor Password Is: [Clear]
User Password Is: [Clear]

Set Supervisor Password [Enter]
Set User Password [Enter]

Password on Boot [Disabled]
Fixed Disk Boot Sector [Normal]

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

4-16

SUPER X5DPR-TG2+ User's Manual

Set Supervisor Password

When the item "Set Supervisor Password" is highlighted, hit the <Enter> key.
When prompted, type the Supervisor's password in the dialogue box to set
or to change supervisor's password, which allows access to BIOS.

Set User Password

When the item "Set User Password" is highlighted, hit the <Enter> key.
When prompted, type the user's password in the dialogue box to set or to
change the user's password, which allows access to the system at boot­up.

Password on Boot

This setting allows you to require a password to be entered when the
system boots up. Options are Enabled (password required) and Disabled
(password not required).

Fixed Disk Boot Sector

This setting may offer some protection against viruses when set to Write
Protect, which protects the boot sector on the hard drive from having a
virus written to it. The other option is Normal.

Chapter 4: BIOS

4-17

4-6 Power

Choose Power from the Phoenix BIOS Setup Utility main menu with the arrow
keys. You should see the following display. Power setting options are displayed
by highlighting the setting using the arrow keys and pressing <Enter>. All Power
BIOS settings are described in this section.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced
Configuration and Power Interface) power management on your system.

Options are Yes and No.

Power Savings

This setting sets the degree of power saving for the system. The options
are Disabled, Customized, Maximum Power Savings and Maximum
Performance. Customized allows you to alter the other two modes.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot

Exit

ACPI Mode: [Yes]
Power Savings: [Customized]

Suspend Timeout: [Off]

Resume On Time: [Off]
Resume on Modem Ring” [Off]

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

4-18

SUPER X5DPR-TG2+ User's Manual

Resume on Time

Select either Off or On, which will wake the system up at the time specified
in the next setting.

Resume Time

Use this setting to specify the time you want the system to wake up (the
above setting must be set to On). Enter the time with the number keys.

Resume on Modem Ring

Use this setting to enable or disable the WOR (Wake-on Ring) feature.
Options are On and Off.

Suspend Timeout

Use this setting to specify the period of system inactivity to transpire before
entering the suspend state. Options are Off, 5 min, 10 min, 15 min, 20 min,
30 min, 40 min and 60 min.

Chapter 4: BIOS

4-19

4-7 Boot

Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys.
You should see the following display. Highlighting a setting with a + or - will
expand or collapse that entry. See details on how to change the order and specs
of boot devices in the Item Specific Help window. All Boot BIOS settings are
described in this section.

+Removable Devices

Highlight and press <Enter> to expand the field. See details on how to
change the order and specs of devices in the Item Specific Help window.

CD-ROM Drive

See details on how to change the order and specs of the CD-ROM drive in
the Item Specific Help window.

+Hard Drive

Highlight and press <Enter> to expand the field. See details on how to
change the order and specs of hard drives in the Item Specific Help
window.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot

Exit

+Removable Devices
CD-ROM Drive
+Hard Drive

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

4-20

SUPER X5DPR-TG2+ User's Manual

4-8 PI R

Choose PIR from the Phoenix BIOS Setup Utility main menu with the arrow keys.
You should see the following display. The items with a triangle beside them have
sub menus that can be accessed by highlighting the item and pressing <Enter>.
PIR stands for "Processor Info ROM", which allows BIOS to read certain
information from the processors. Options for PIR settings are displayed by
highlighting the setting option using the arrow keys and pressing <Enter>. All
PIR BIOS Setup options are described in this section.

Select the Processor's PIR

Selects the processor PIR. Options are A0h/A1h, A2h/A3h, A4h/A5h, A6h/
A7h, A8h/A9h, AAh/ABh, ACh/ADh and AEh/AFh. If you change the value,
you must also update the NVRAM by saving the changes. Then, the new
RIP information will be displayed.

Select the Thermal Unit

Selects the thermal unit. Options are 30h/31h, 32h/33h, 34h/35h, 52h/53h,
54h/55h, 56h/57h, 98h/99h, 9Ah/9Bh and 9Ch/9Dh. If you change the value,
you must also update the NVRAM by saving the changes. Then, the new
RIP information will be displayed.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot

PIR

Exit

Select the Processor’s PIR
Select the Thermal Unit

#

Processor Info ROM Data

#

Hardware Monitor Logic

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

Chapter 4: BIOS

4-21

Header Info

Processor Data

Processor Core Data

L3 Cache Data

Package Data

Part Number Data

Thermal Reference Data

Feature Data

Other Data

OEM Data

!!

!!

!Hardware Monitor Logic

Highlight this and hit <Enter> to see monitor data for the following items:

Overheat Temperature Trips

CPU1 Temperature

CPU2 Temperature

System Temperature

!!

!!

!Processor Info ROM Data

Highlight this and hit <Enter> to see PIR data on the following items: (*Note:
all items listed below are for display only. They cannot be modified by the
user. If any item requires changes, please consult the System Supervisor.)

4-22

SUPER X5DPR-TG2+ User's Manual

CPU Fan 1

CPU Fan 2

Chassis Fan 3

Processor Vcore

3.3V Standby

3.3V Vcc

12V Vcc

1.8V Vcc

-12V Vcc

Chapter 4: BIOS

4-23

4-9 Exit

Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys.
You should see the following display. All Exit BIOS settings are described in this
section.

Phoenix BIOS Setup Utility

Main Advanced Security Power Boot PIR

Exit

Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes

Item Specific Help

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ↔ Select Menu Enter Select!Sub-Menu F10 Save and Exit

Exit Saving Changes

Highlight this item and hit <Enter> to save any changes you made and to
exit the BIOS Setup utility.

Exit Discarding Changes

Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving
any changes you may have made.

4-24

SUPER X5DPR-TG2+ User's Manual

Load Setup Defaults

Highlight this item and hit <Enter> to load the default settings for all items in
the BIOS Setup. These are the safest settings to use.

Discard Changes

Highlight this item and hit <Enter> to discard (cancel) any changes you
made. You will remain in the Setup utility.

Save Changes

Highlight this item and hit <Enter> to save any changes you made. You will
remain in the Setup utility.

A-1

Appendix A: BIOS POST Messages

Appendix A

BIOS POST Messages

During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem
is found, the BIOS will activate an alarm or display a message. The following is a list
of such BIOS messages.

Failure Fixed Disk

Fixed disk is not working or not configured properly. Check to see if fixed disk is
attached properly. Run Setup. Find out if the fixed-disk type is correctly identified.

Stuck key

Stuck key on keyboard.

Keyboard error

Keyboard not working.

Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

Keyboard locked - Unlock key switch

Unlock the system to proceed.

Monitor type does not match CMOS - Run SETUP

Monitor type not correctly identified in Setup

Shadow Ram Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k block at which the error
was detected.

System RAM Failed at offset: nnnn

System RAM failed at offset nnnn of in the 64k block at which the error
was detected.

Extended RAM Failed at offset: nnnn Extended memory not
working or not configured properly at offset nnnn.

System battery is dead - Replace and run SETUP

The CMOS clock battery indicator shows the battery is dead. Replace the
battery and run Setup to reconfigure the system.

A-2

SUPER X5DPR-TG2+ User's Manual

System CMOS checksum bad - Default configuration used

System CMOS has been corrupted or modified incorrectly, perhaps by an
application program that changes data stored in CMOS. The BIOS installed Default
Setup Values. If you do not want these values, enter Setup and enter your own
values. If the error persists, check the system battery or contact your dealer.

System timer error

The timer test failed. Requires repair of system board.

Real time clock error

Real-Time Clock fails BIOS hardware test. May require board repair.

Check date and time settings

BIOS found date or time out of range and reset the Real-Time Clock. May require
setting legal date (1991-2099).

Previous boot incomplete - Default configuration used

Previous POST did not complete successfully. POST loads default values and
offers to run Setup. If the failure was caused by incorrect values and they are
not corrected, the next boot will likely fail. On systems with control of wait
states, improper Setup settings can also terminate POST and cause this error on
the next boot. Run Setup and verify that the waitstate configuration is correct.
This error is cleared the next time the system is booted.

Memory Size found by POST differed from CMOS

Memory size found by POST differed from CMOS.

Diskette drive A error
Diskette drive B error

Drive A: or B: is present but fails the BIOS POST diskette tests. Check to see that
the drive is defined with the proper diskette type in Setup and that the diskette
drive is attached correctly.

Incorrect Drive A type - run SETUP

Type of floppy drive A: not correctly identified in Setup.

Incorrect Drive B type - run SETUP

Type of floppy drive B: not correctly identified in Setup.

A-3

Appendix A: BIOS POST Messages

System cache error - Cache disabled

RAM cache failed and BIOS disabled the cache. On older boards, check the
cache jumpers. You may have to replace the cache. See your dealer. A disabled
cache slows system performance considerably.

CPU ID:

CPU socket number for Multi-Processor error.

EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

DMA Test Failed

ServerBIOS2 test error: Cannot write to extended DMA (Direct Memory
Access) registers.

Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable
Interrupt).

Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device Address Conflict
Address conflict for specified device.

Allocation Error for: device

Run ISA or EISA Configuration Utility to resolve resource conflict for the
specified device.

CD ROM Drive

CD ROM Drive identified.

Entering SETUP ...

Starting Setup program

Failing Bits: nnnn

The hex number nnnn is a map of the bits at the RAM address which failed
the memory test. Each 1 (one) in the map indicates a failed bit. See errors
230, 231, or 232 above for offset address of the failure in System,
Extended, or Shadow memory.

A-4

SUPER X5DPR-TG2+ User's Manual

Fixed Disk n
Fixed disk n (0-3) identified.

Invalid System Configuration Data

Problem with NVRAM (CMOS) data.

I/O device IRQ conflict

I/O device IRQ conflict error.

PS/2 Mouse Boot Summary Screen:

PS/2 Mouse installed.

nnnn kB Extended RAM Passed
Where nnnn is the amount of RAM in kilobytes successfully tested.

nnnn Cache SRAM Passed
Where nnnn is the amount of system cache in kilobytes successfully tested.

nnnn kB Shadow RAM Passed

Where nnnn is the amount of shadow RAM in kilobytes successfully
tested.

nnnn kB System RAM Passed
Where nnnn is the amount of system RAM in kilobytes successfully tested.

One or more I2O Block Storage Devices were excluded from the Setup
Boot Menu

There was not enough room in the IPL table to display all installed I2O block­storage devices.

Operating system not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup
and see if fixed disk and drive A: are properly identified.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and
display it on the screen. If it cannot locate the address, it displays ????. Parity is
a method for checking errors in binary data. A parity error indicates that some
data has been corrupted.

A-5

Appendix A: BIOS POST Messages

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display
it on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F1> to start the boot
process or <F2> to enter Setup and change the settings. Press <F3> to display
the previous screen (usually an initialization error of an Option ROM, i.e., an
add-on card). Write down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST. Can be turned off in Setup.

PS/2 Mouse:

PS/2 mouse identified.

Run the I2O Configuration Utility

One or more unclaimed block storage devices have the Configuration Request bit
set in the LCT. Run an I2O Configuration Utility (e.g. the SAC utility).

System BIOS shadowed

System BIOS copied to shadow RAM.

UMB upper limit segment address: nnnn

Displays the address nnnn of the upper limit of Upper Memory Blocks,
indicating released segments of the BIOS which can be reclaimed by a virtual
memory manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

A-6

SUPER X5DPR-TG2+ User's Manual

Notes

Appendix B: BIOS POST Codes

B-1

This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST
codes are divided into two categories: recoverable and terminal.

Recoverable POST Errors

When a recoverable type of error occurs during POST, the BIOS will display
an POST code that describes the problem. BIOS may also issue one of the
following beep codes:

1 long and two short beeps - video configuration error
1 continuous long beep - no memory detected

Terminal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before
doing so, BIOS will write the error to port 80h, attempt to initialize video and
write the error in the top left corner of the screen.
The following is a list of codes that may be written to port 80h.

Appendix B

BIOS POST Codes

POST Code Description

02h Verify Real Mode
03 h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
07 h Disable shadow and execute code from the ROM.
08 h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0C h Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10 h Initialize Power Management
11 h Load alternate registers with initial POST values
12 h Restore CPU control word during warm boot
13 h Initialize PCI Bus Mastering devices
14 h Initialize keyboard controller
16 h 1-2-2-3 BIOS ROM checksum
17 h Initialize cache before memory Auto size

B-2

SUPER X5DPR-TG2+ User's Manual

POST Code Description

18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20 h 1-3-1-1 Test DRAM refresh
22 h 1-3-1-3 Test 8742 Keyboard Controller
24 h Set ES segment register to 4 GB
28h Auto size DRAM
29h Initialize POST Memory Manager
2Ah Clear 512 kB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx*
2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of

memory bus
2Fh Enable cache before system BIOS shadow
32 h Test CPU bus-clock frequency
33 h Initialize Phoenix Dispatch Manager
36 h Warm start shut down
38 h Shadow system BIOS ROM
3Ah Auto size cache
3C h Advanced configuration of chipset registers
3D h Load alternate registers with CMOS values
41 h Initialize extended memory for RomPilot
42 h Initialize interrupt vectors
45 h POST device initialization
46 h 2-1-2-3 Check ROM copyright notice
47 h Initialize I20 support
48 h Check video configuration against CMOS
49 h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
4Fh Initialize MultiBoot
50 h Display CPU type and speed
51h Initialize EISA board
52 h Test keyboard
54h Set key click if enabled
55 h Enable USB devices
58 h 2-2-3-1 Test for unexpected interrupts
59 h Initialize POST display service
5Ah Display prompt “Press F2 to enter SETUP”
5Bh Disable CPU cache

Appendix B: BIOS POST Codes

B-3

POST Code Description

5Ch Test RAM between 512 and 640 kB
60 h Test extended memory
62h Test extended memory address lines
64h Jump to UserPatch1
66h Configure advanced cache registers
67 h Initialize Multi Processor APIC
68 h Enable external and CPU caches
69h Setup System Management Mode (SMM) area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB recovery
70h Display error messages
72 h Check for configuration errors
76 h Check for keyboard errors
7C h Set up hardware interrupt vectors
7D h Initialize Intelligent System Monitoring
7Eh Initialize coprocessor if present
80 h Disable onboard Super I/O ports and IRQs
81 h Late POST device initialization
82 h Detect and install external RS232 ports
83 h Configure non-MCD IDE controllers
84 h Detect and install external parallel ports
85 h Initialize PC-compatible PnP ISA devices
86 h Re-initialize onboard I/O ports.
87h Configure Motherboard Configurable Devices

(optional)
88h Initialize BIOS Data Area
89 h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8C h Initialize floppy controller
8Fh Determine number of ATA drives (optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93 h Build MPTABLE for multi-processor boards
95h Install CD ROM for boot
96 h Clear huge ES segment register
97 h Fix up Multi Processor table
98 h 1-2 Search for option ROMs. One long, two short

beeps on checksum failure

B-4

SUPER X5DPR-TG2+ User's Manual

POST Code Description

99h Check for SMART Drive (optional)
9Ah Shadow option ROMs
9C h Set up Power Management
9D h Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI drives
A0h Set time of day
A2h Check key lock
A4h Initialize typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B1h Inform RomPilot about the end of POST.
B2h POST done - prepare to boot operating system
B4h 1 One short beep before boot
B5h Terminate QuietBoot (optional)
B6h Check password (optional)
B7h Initialize ACPI BIOS
B9h Prepare Boot
BA h Initialize SMBIOS
BBh Initialize PnP Option ROMs
BCh Clear parity checkers
BDh Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2 h Initialize error logging
C3 h Initialize error display function
C4 h Initialize system error handler
C5 h PnPnd dual CMOS (optional)
C6 h Initialize note dock (optional)
C7 h Initialize note dock late
C8 h Force check (optional)
C9h Extended checksum (optional)
CAh Redirect Int 15h to enable remote keyboard
CBh Redirect Int 13h to Memory Technologies

Devices such as ROM, RAM, PCMCIA, and
serial disk

CC h Redirect Int 10h to enable remote serial video

Appendix B: BIOS POST Codes

B-5

POST Code Description

CDh Re-map I/O and memory for PCMCIA
CEh Initialize digitizer and display message
D2h Unknown interrupt

The following are for boot block in Flash ROM

POST Code Description

E0h Initialize the chipset
E1h Initialize the bridge
E2h Initialize the CPU
E3h Initialize system timer
E4h Initialize system I/O
E5h Check force recovery boot
E6h Checksum BIOS ROM
E7h Go to BIOS
E8h Set Huge Segment
E9h Initialize Multi Processor
EAh Initialize OEM special code
EBh Initialize PIC and DMA
ECh Initialize Memory type
EDh Initialize Memory size
EEh Shadow Boot Block
EFh System memory test
F0h Initialize interrupt vectors
F1h Initialize Run Time Clock
F2h Initialize video
F3h Initialize System Management Manager
F4h Output one beep
F5h Clear Huge Segment
F6h Boot to Mini DOS
F7h Boot to Full DOS

* If the BIOS detects error 2C, 2E, or 30 (base 512K RAM error), it displays an additional
word-bitmap (xxxx) indicating the address line or bits that failed. For example, “2C 0002”
means address line 1 (bit one set) has failed. “2E 1020" means data bits 12 and 5 (bits
12 and 5 set) have failed in the lower 16 bits. The BIOS also sends the bitmap to the port­80 LED display. It first displays the checkpoint code, followed by a delay, the high-order
byte, another delay, and then the loworder byte of the error. It repeats this sequence
continuously.

B-6

SUPER X5DPR-TG2+ User's Manual

Notes

Appendix C: Software Installation

C-1

Appendix C

Installing Software Drivers and Windows

Operating System

After all the hardware has been installed, you must first install the Silicon
Image SATA RAID Driver before you install the Windows operating system,
and other software drivers. The necessary drivers are all included on the
Supermicro CDs that came packaged with your motherboard.

C-1 Installing Silicon Image's SATALInk Sil 3112 Host
Controller Driver

Serial ATA (SATA)

Serial ATA(SATA) is a physical storage interface. It uses a single cable with
a minimum of four wires to create a point-to-point connection between
devices. It is a serial link which supports SATA Transfer rates up to
150MBps. Because the serial cables used in SATA are thinner than the
traditional cables used in Parallel ATA(PATA), SATA systems have better
airflow and can be installed in smaller chassis than Parallel ATA. In addition,
the cables used in PATA can only extend to 40cm long, while Serial ATA
cables can extend up to one meter. Overall, Serial ATA provides better
functionality than Parallel ATA.

Silicon Image's Serial RAID (Sil 3112) Host Controller

Silicon Image's SATALInk Sil 3112 host controller provides Serial ATA
Software RAID, including striping and mirroring, to enhance the industry's
first PCI-to-SATA host controller products. RAID striping can greatly
improve hard disk I/O performance because of its capability in striping
data across multiple drives. RAID mirroring allows the data to be simulta­neously written to two drives, so critical data is always available even if
a single hard disk fails. Due to these two functionality, the Sil 3112 is
specially designed to keep pace with the increasing performance
demands of computer systems by improving disk I/O throughput and
providing data accessibility regardless of a single disk failure. The
X5DPR-TG2+ offers the user with the benefits of SATARaid without the
high costs associated with hardware RAID applications.

C-2

SUPER X5DPR-TG2+ User's Manual

(*Notes: 1. Silicon Image Serial ATA RAID Function has been pre-installed
in the BIOS ROM, and the Sil 3112 host controller driver has been preset
to "Enabled" via a jumper (JPA1).

2. SerialRAID Configuration Utility will not be accessible if there is no
SATA Hard Drive installed in the system.

3. In order to enable the functions of RAID or to access the features of
RAID listed in the Serial ATA RAID Configuration Utility, you need to install
two SATA Hard Drives in the system.

4. For the Windows OS, there are two SATA RAID drivers installed in
the CD ROM that came with your motherboard. If the function of "SATA
RAID Feature" is enabled in the BIOS, use the RAID Driver. If "disabled",
use the "Non-RAID Driver.

5. To configure RAID 0/1, you need to enable "SATA RAID Features" in
the BIOS.

6. To configure SATA ZCR, you need to disable "SATA RAID Features" in
the BIOS.

1. Using Silicon Image Serial ATA RAIDConfiguration
Utility

(*Note: For easy access to Serial ATA Configuration Utility, it is
recommended that you temporarily disable the features of Quick Boot
and Quiet Boot in "Boot Features" in the BIOS Advanced Settings. To
Disable Quick Boot and Quiet Boot, please hit the <Delete> key at the
POST to go to BIOS, and then, use the right and left arrow keys to
select the Advanced Settings, and hit the <Enter> key. Once you are
in the Advanced Setting, use the Up and Down arrow keys to select
"Boot Features". Then, follow instructions to disable the functions of
"Quick Boot" and "Quiet Boot". (Please refer to Chapter 4 Page 4-6).

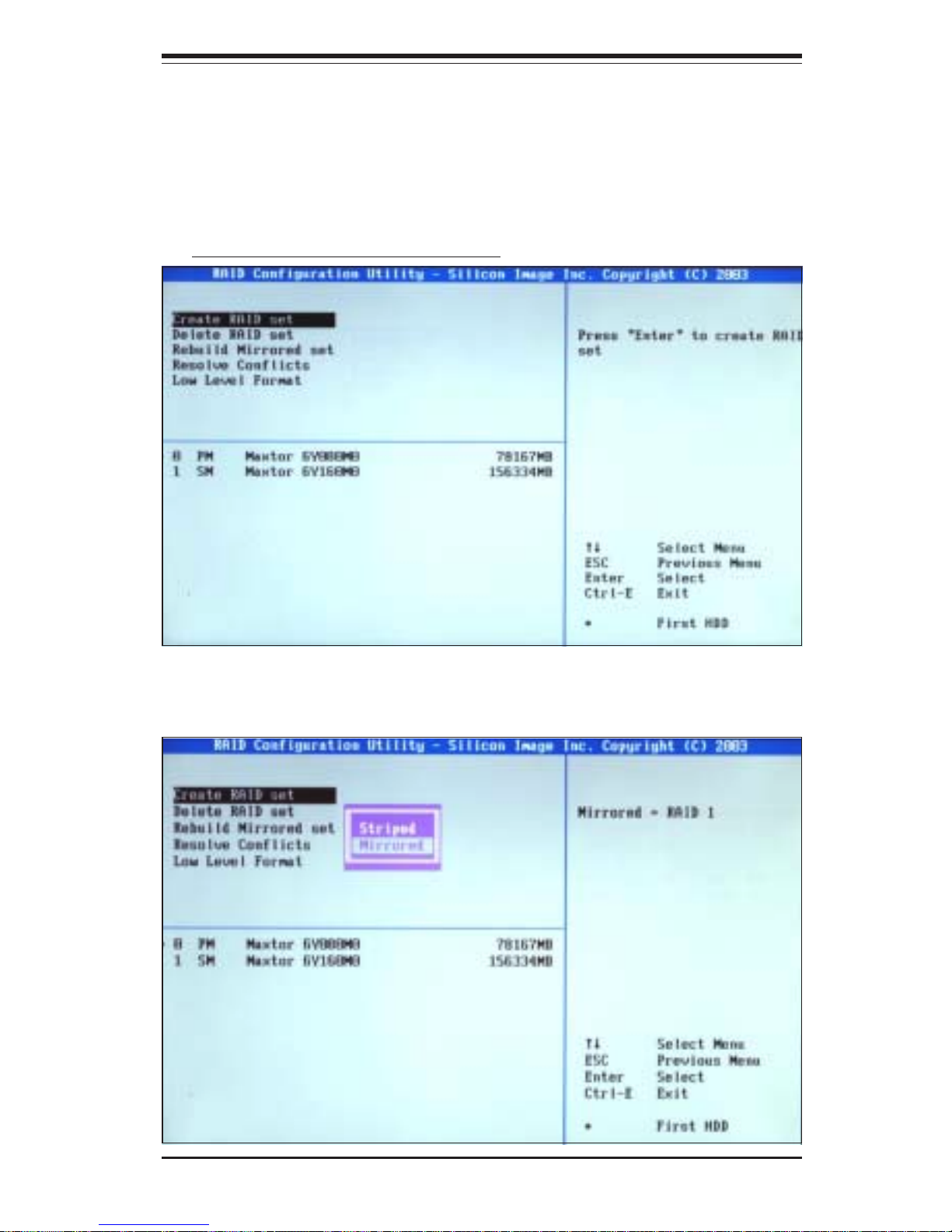

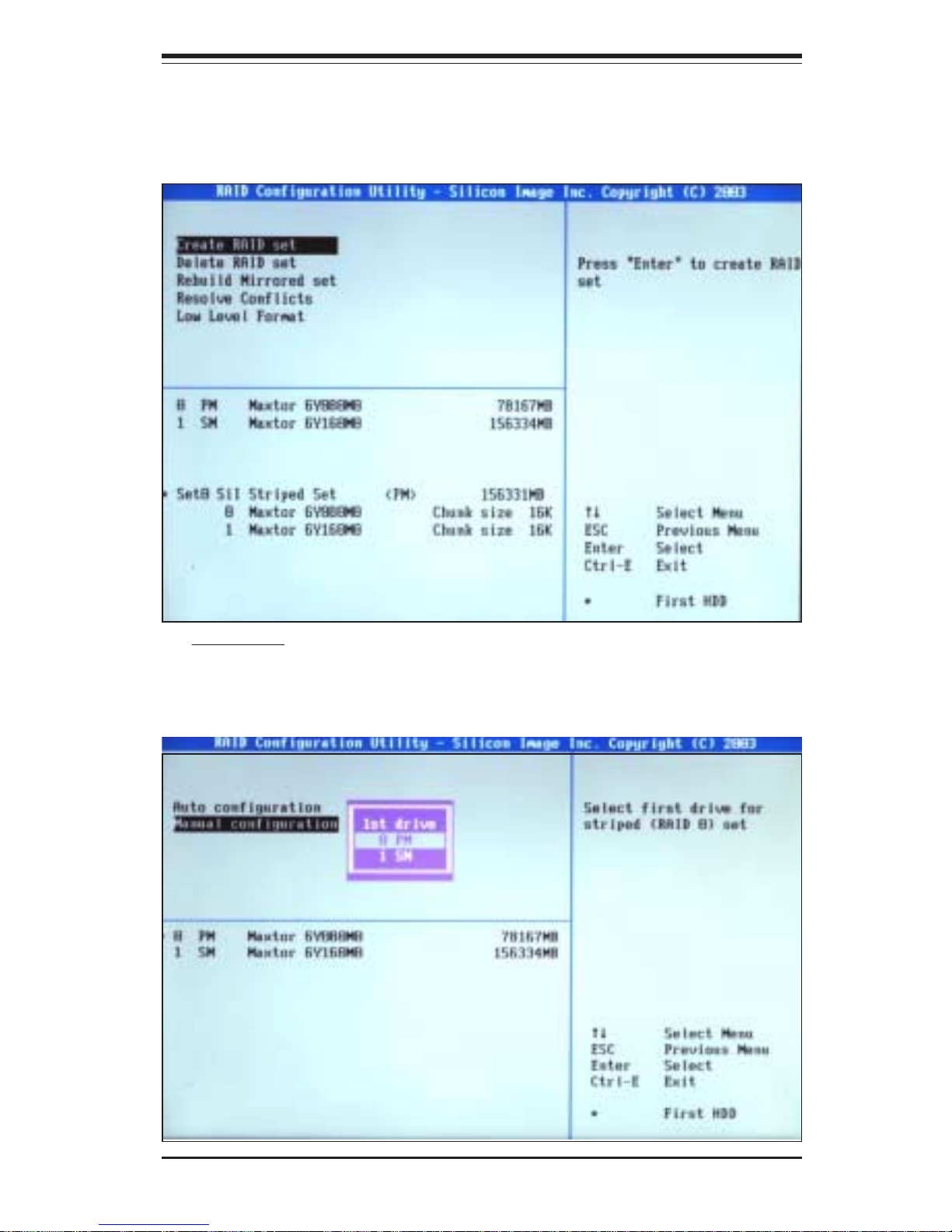

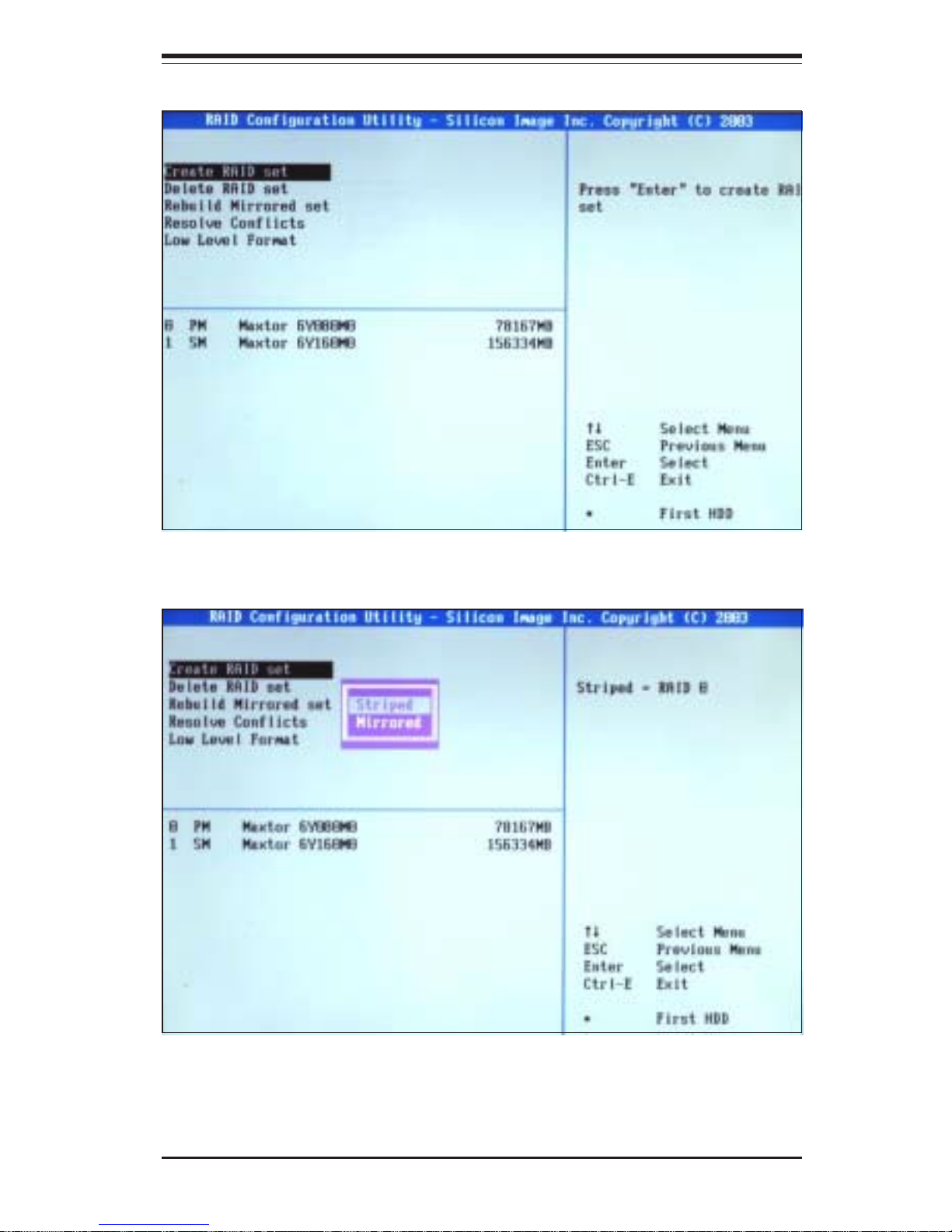

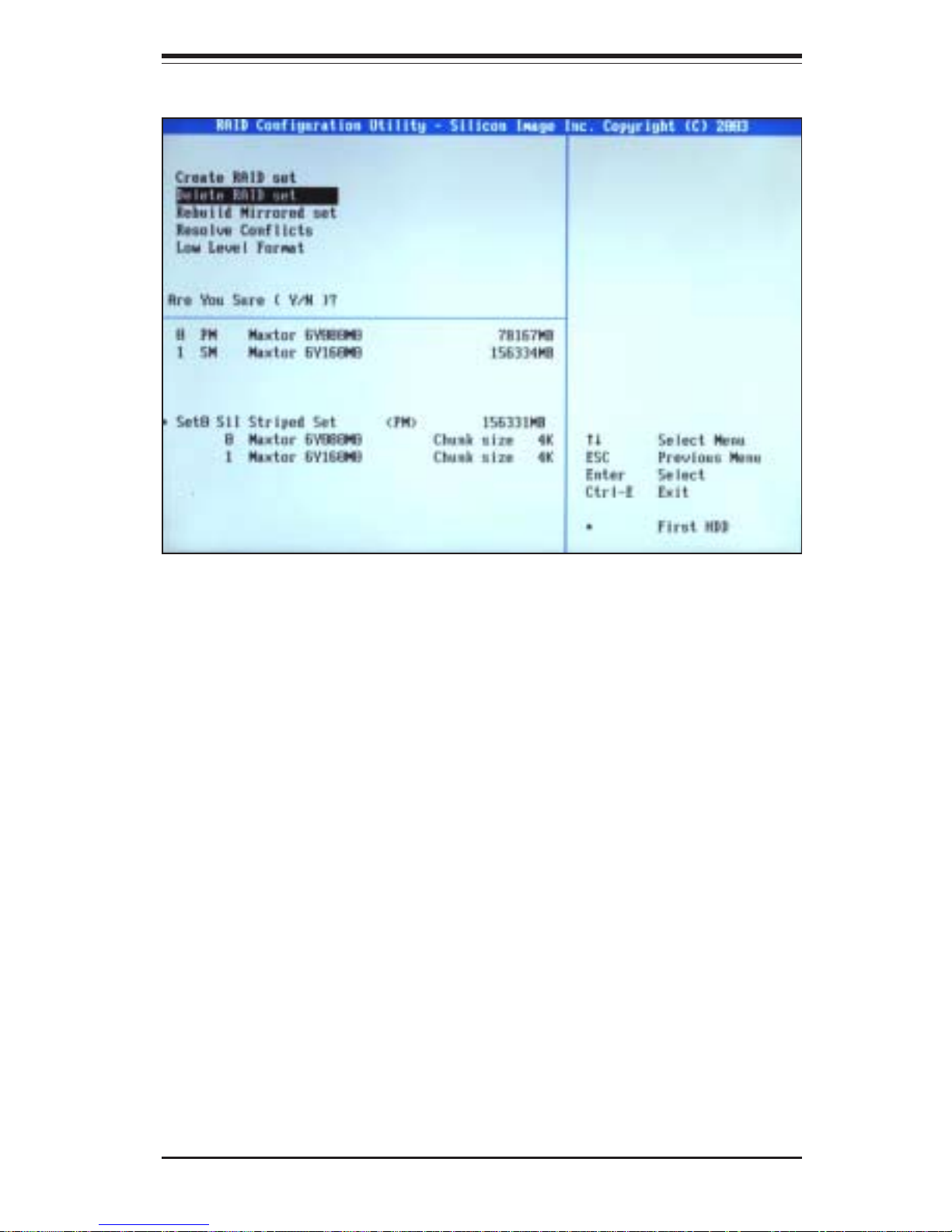

To Access Serial ATA RAID Configuration Utility:

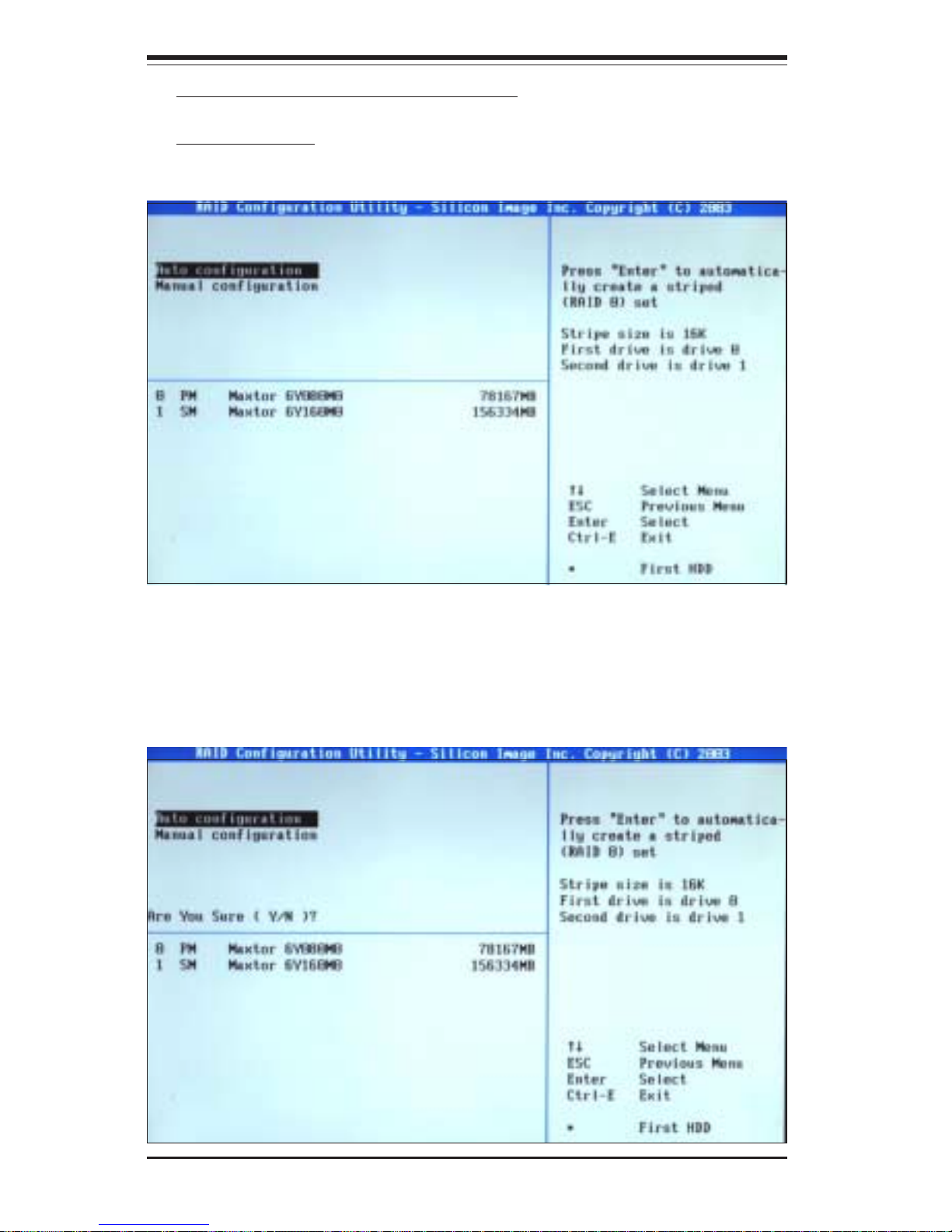

At the POST, Hit CTRL-S or F4 to go inside the Silicon Image configuration
utility. The following screen appears:

Appendix C: Software Installation

C-3

a. In the main menu (as the screen shown above), use the up and down
arrow keys to highlight the item Create a RAID Set and press the <Enter>
key to select this feature. The following screen will appear:

b. When the above screen appears, use the up and down arrow keys to
highlight the word "Striped" and press the <Enter> key if you wish to
configure it "Striped" (RAID 0). (If you wish to configure it "Mirrored",
select "Mirrored" and press the <Enter> key.) If "Striped" is selected, the
following screen will appear:

I. Creating a RAID Set

C-4

SUPER X5DPR-TG2+ User's Manual

b. When the above screen appears, you can choose to configure it
automatically or manually. (If you would like to create a mirror with an
existing SATA drive on the same channel, select manual; otherwise
select "automatically".). If you wish to configure it automatically, use
the up and down arrow keys to highlight the item "Automatically" and hit
the <Enter> key to select this item. The following screen will appear:

a. When the above screen on the previous page appears, select "Striped"
and hit the <Enter> key. Then the following screen will appear:

To Create a Striped RAID Set (RAID 0)

A. Automatically

Appendix C: Software Installation

C-5

c. When the above screen appears, you are prompted "Are you sure?
Y(es)/N(o)?" In the space provided, type Y to confirm the selection or
type N to cancel the selection. If "Y" is entered, the following screen will
appear to confirm that RAID 0 (Striped RAID Set) has been created.

B. Manually
a. When the first screen shown on the previous Page (Page C-4)

appears, use the down arrow key to select "Manual Configuration" and
hit the <Enter> key. The following screen will appear:

C-6

SUPER X5DPR-TG2+ User's Manual

h. When the above screen appears, you can decide if you wish to
configure the first HDD to be the Primary Master or the Secondary
Master. Once you've configured the 1st HDD to be the Primary Master,
then the following screen will appear:

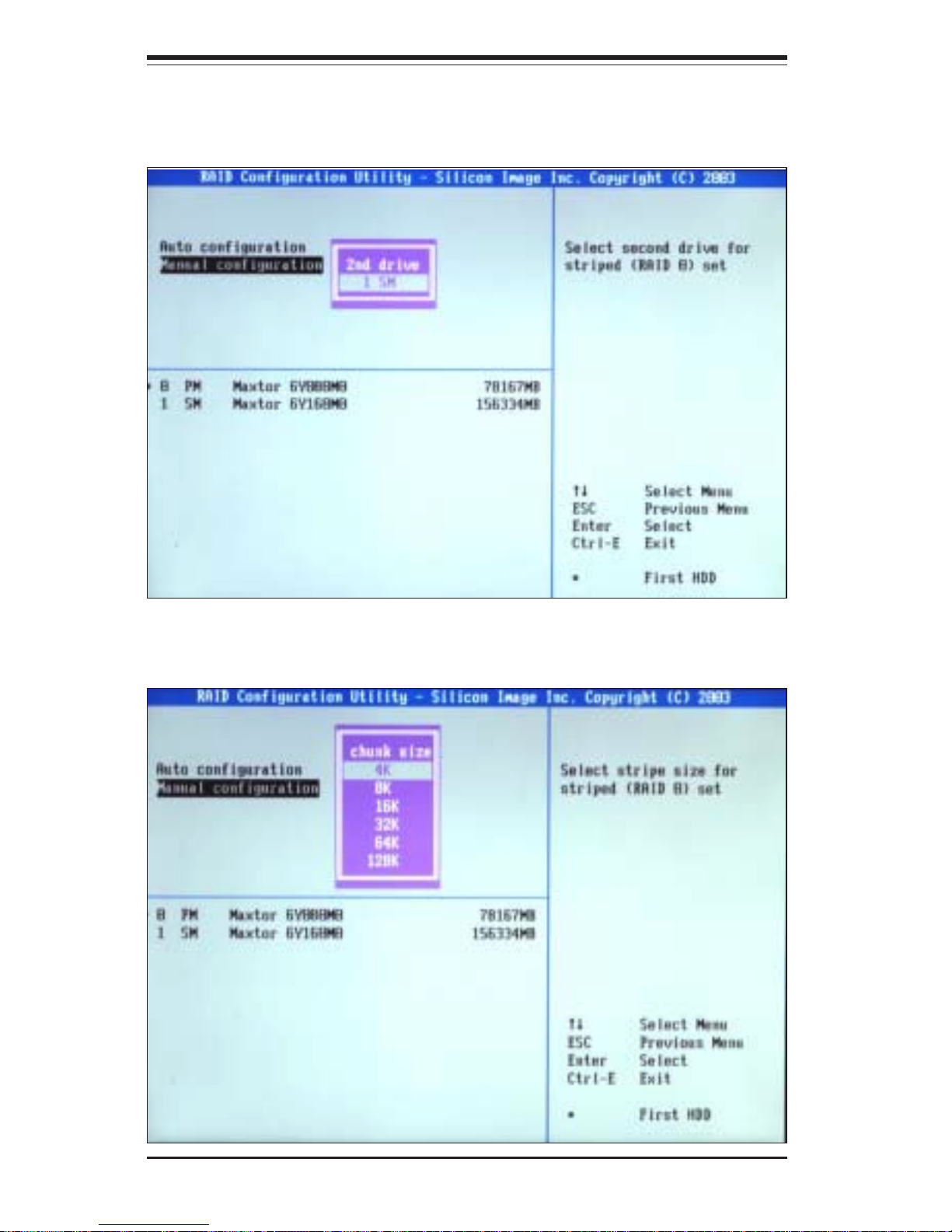

c. When the above screen appears, you can configure the 2nd HDD by
highlighting your selection and press the <Enter> key. The following
screen will appear:

Appendix C: Software Installation

C-7

d. When the above screen appears, you are asked to determine the size
for the Striped (RAID 0) set. Use the up and down arrow keys to make
the selection and press the <Enter> key. Once you have set the size for
RAID 0, the Striped RAID is created and you are ready to exit the Create
Striped RAID (RAID 0) Menu. To exit the Create Stiped RAID Menu, press
the <Esc> key to return to the main menu.

To Create a Mirrored Set (RAID 1)

a. In the main menu (as the screen shown above), use the up and down
arrow keys to highlight the item-"Create RAID Set" and press the <Enter>
key to select this feature. The following screen will appear:

C-8

SUPER X5DPR-TG2+ User's Manual

b. When the above screen appears, Use the up and down arrow keys to
highlight the word "Mirrored" and press the <Enter> key. The following
screen appears:

c. When the above screen appears, Use the up and down arrow keys to
highlight "Auto Configuration" and press the <Enter> key if you wish to
create Mirrored RAID Set automatically. If you wish to configure the
Mirrored RAID set manually, select "Manual Configuration" and press the
<Enter> key. The following screen appears:

Appendix C: Software Installation

C-9

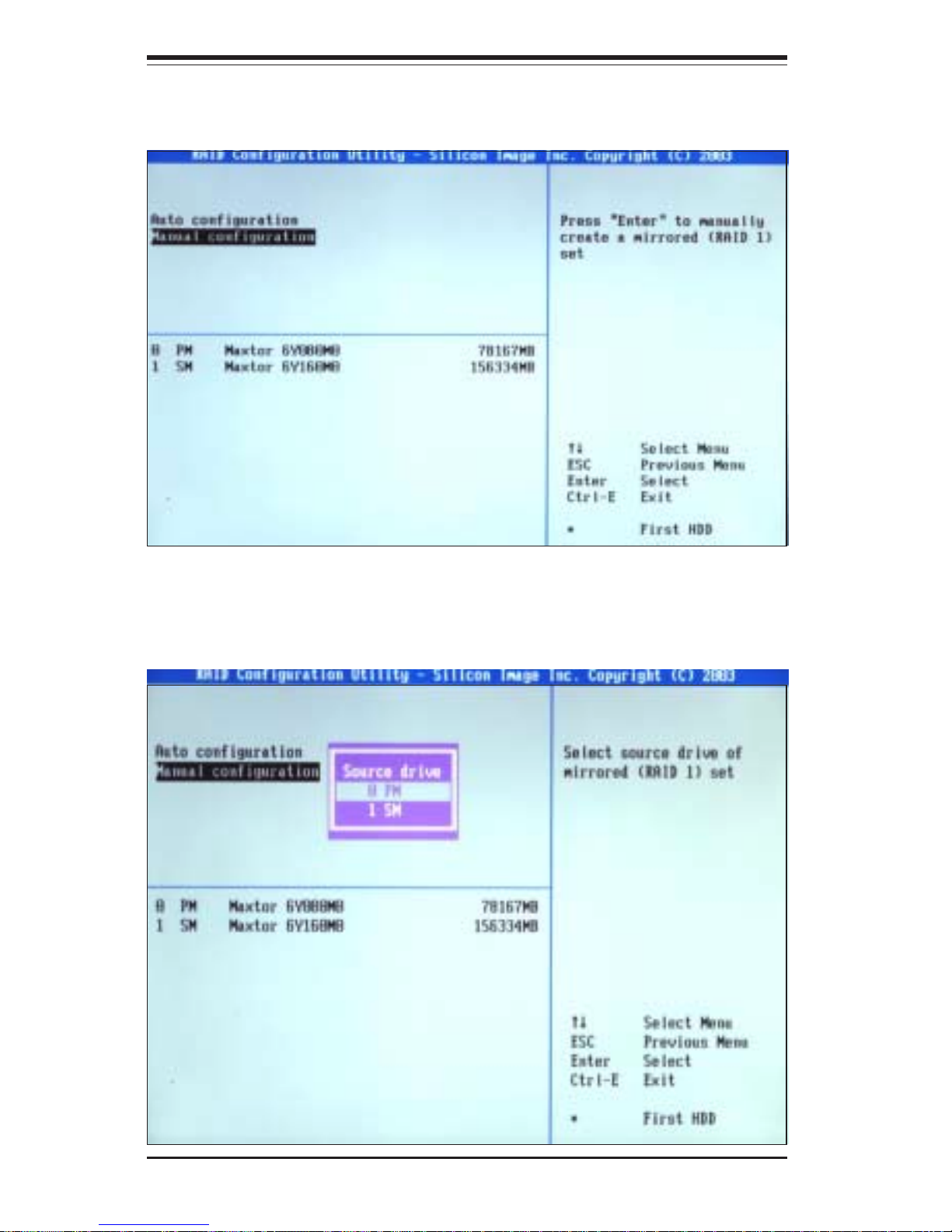

d. When the above screen appears, you can decide if you want the
Primary Master or the Secondary Master to be the source drive. Use the
up and down arrow keys to make your selection and press the <Enter>
key. Once you have made your selection of the source drive and press
the <Enter> key, then the following screen will appear:

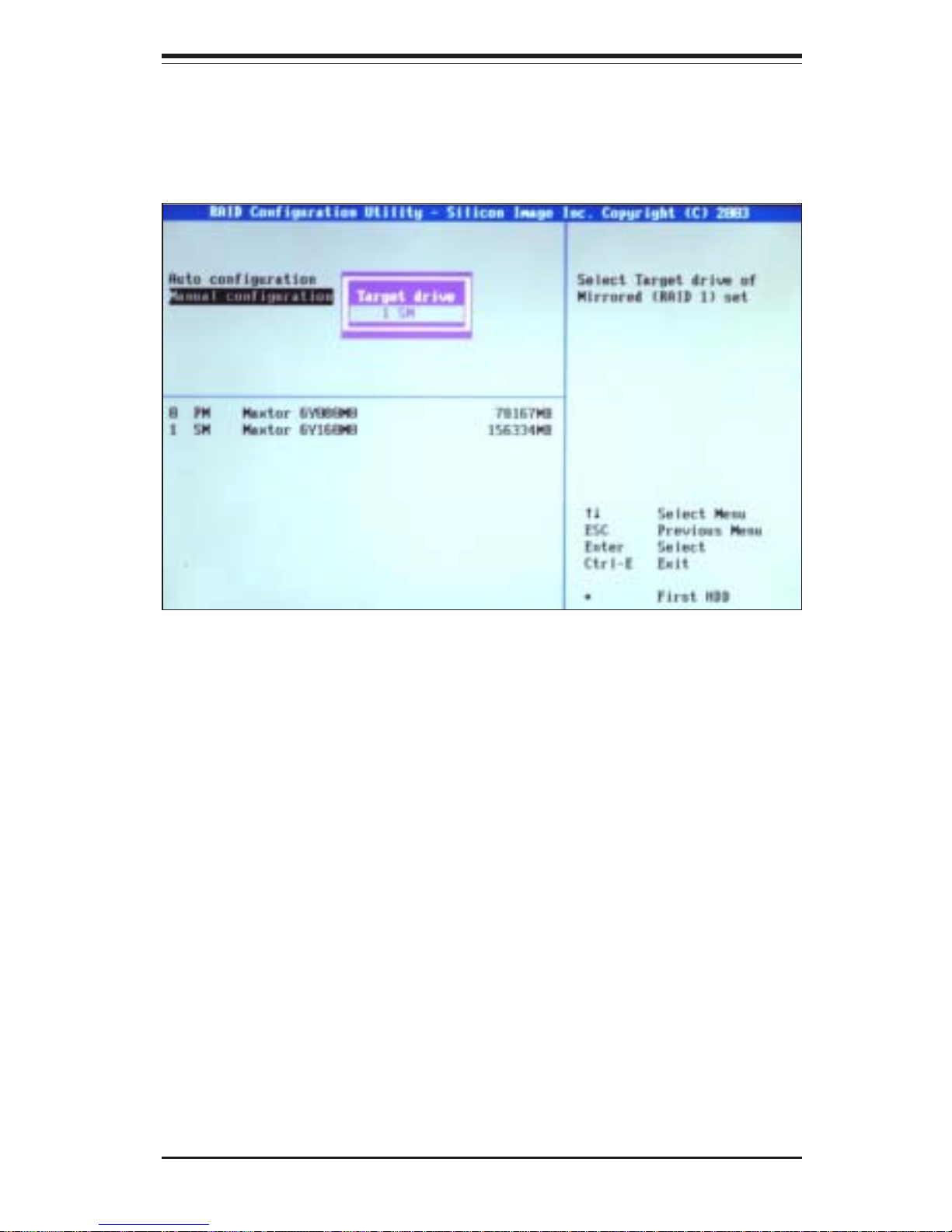

e. When the above screen appears, you are asked to select the Target
drive. Use the up and down arrow keys to make your selection and
press the <Enter> key to complete the selection. Once you've completed
the selection of the Target drive, a Mirrored RAID set is created as
specified and you are ready to exit the "Create Mirrored RAID Set"
menu. To exit this menu and to return to the main menu, press the <Esc>
key.

C-10

SUPER X5DPR-TG2+ User's Manual

II. To Delete a RAID Set

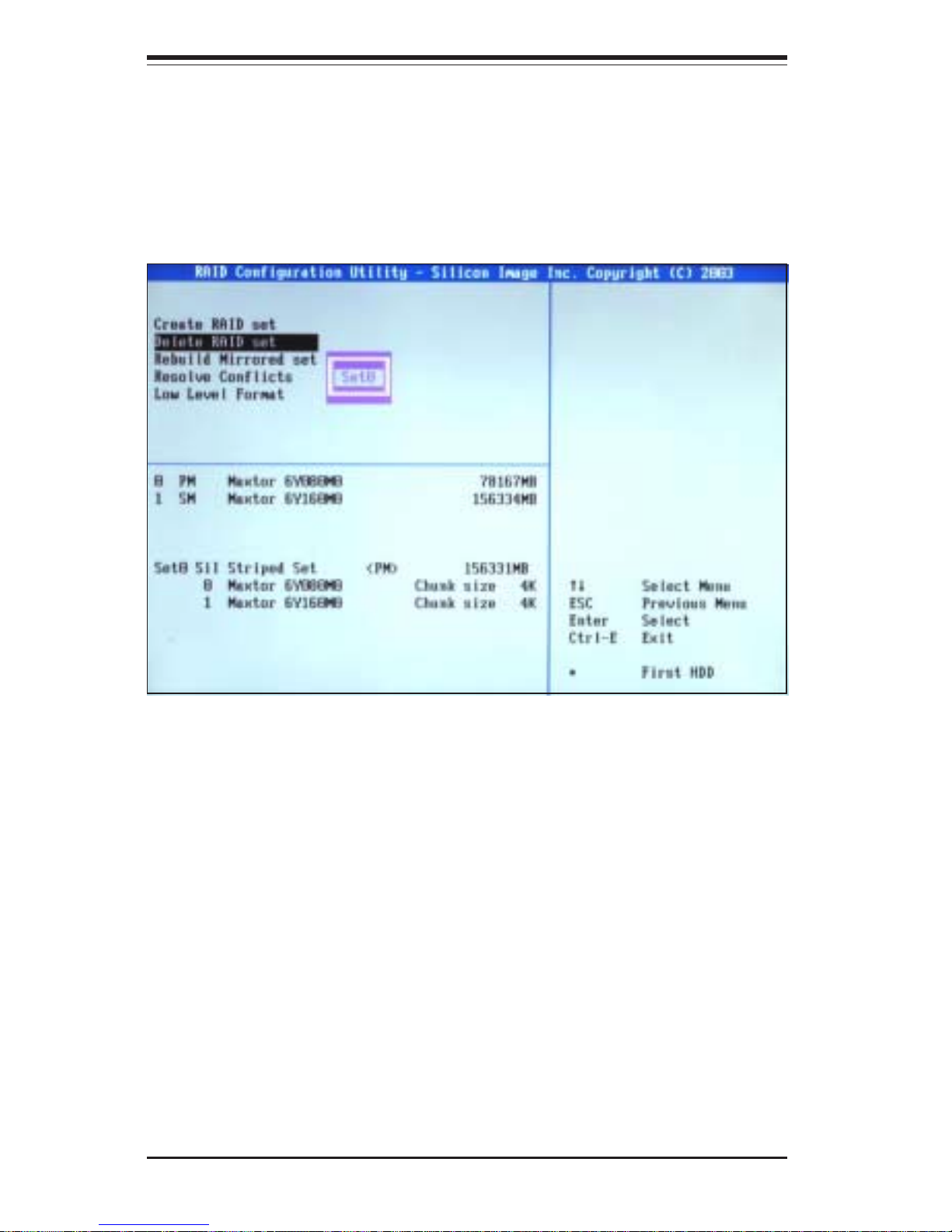

a. If you wish to delete the RAID set that was created earlier, use the Up
and Down Arrow keys to select "Delete RAID Set" in the main menu (as
shown on the first screen on Page C-7) and press the <Enter> key, and
the following screen will appear:

b. If you wish to delete a Striped RAID Set (Set0), use the Up and Down
Arrow keys to select "Set 0" and press the <Enter> key to complete the
selection. If you wish to delete a Mirrored RAID Set (Set1), use the Up
and Down Arrow keys to select "Set 1" and press the <Enter> key to
complete the selection. Then, the following screen will appear:

Appendix C: Software Installation

C-11

c. When the above screen appears, you are prompted "Are you sure?
Y(es)/N(o)?" In the space provided, type Y to confirm the selection or
type N to cancel the selection. Once you've typed "Y" and press the
<Enter> key a RAID set is deleted as you've specified and you can exit
the menu-"Delete RAID Set" by pressing the <Esc> key to return to the
main menu.

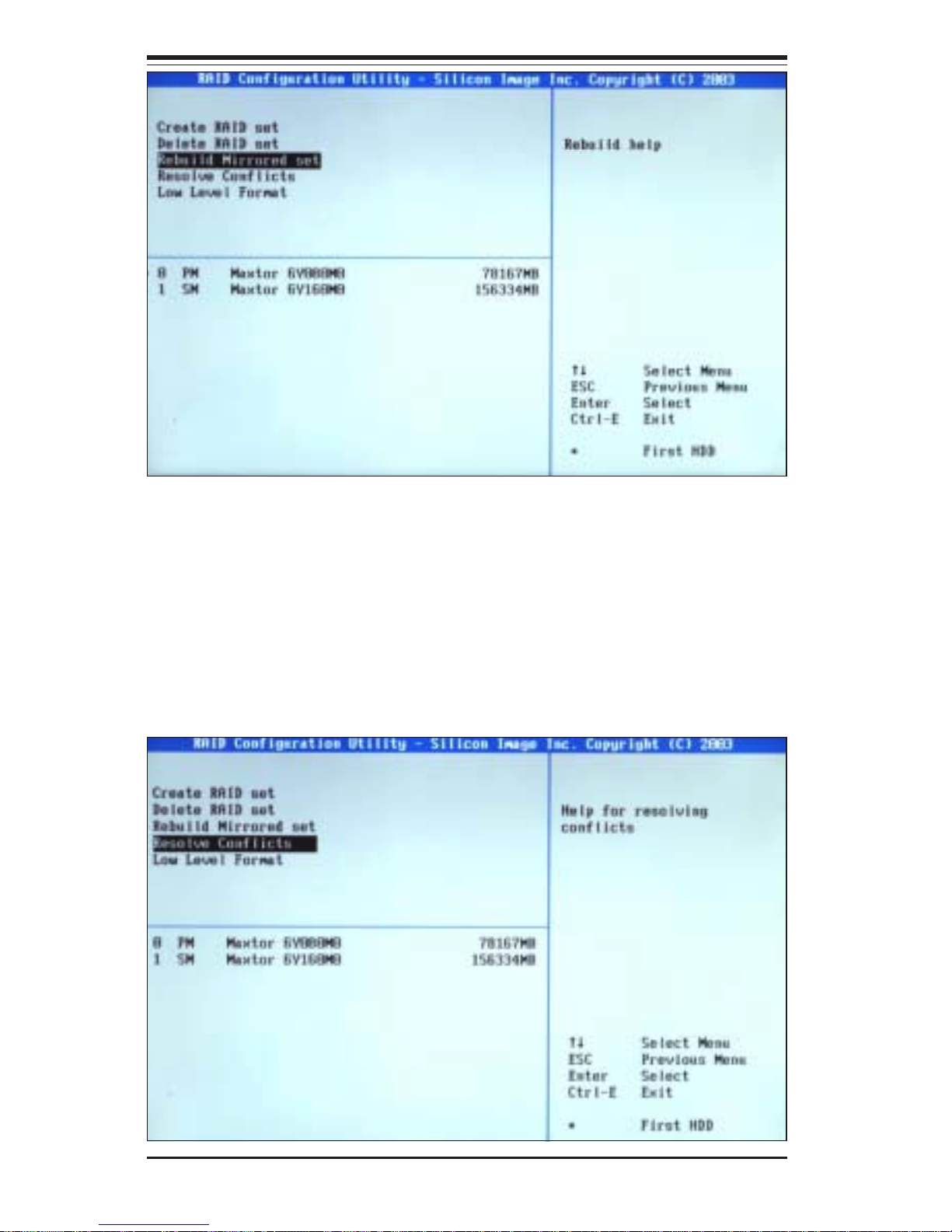

III. To Rebuild a Mirrored Set

a. If you wish to rebuild a damaged Mirrored set that was created earlier,
use the Up and Down Arrow keys to select "Rebuild Mirrored Set" in the
main menu (as shown on the first screen on Page C-7) and press the
<Enter> key. The following screen will appear:

C-12

SUPER X5DPR-TG2+ User's Manual

IV. Resolve Conflicts

b. Once the above menu appears, follow the instructions given to
complete the process of rebuilding a Mirrored set. Once the Mirrored Set
is rebuilt, press the <Esc> key to return the main menu (as shown in the
first screen on Page C-7).

a. If there is any conflicts in the RAID sets you've created earlier, use
the Up and Down Arrow keys to select "Resolve Conflicts" in the main
menu (as shown on the first screen on Page C-7) and press the <Enter>
key, and the following screen will appear:

Appendix C: Software Installation

C-13

V. Low Level Format (*Note)

(*Note: The function of Low Level Format is to cause the Hard Drive to
be completely reformatted.)

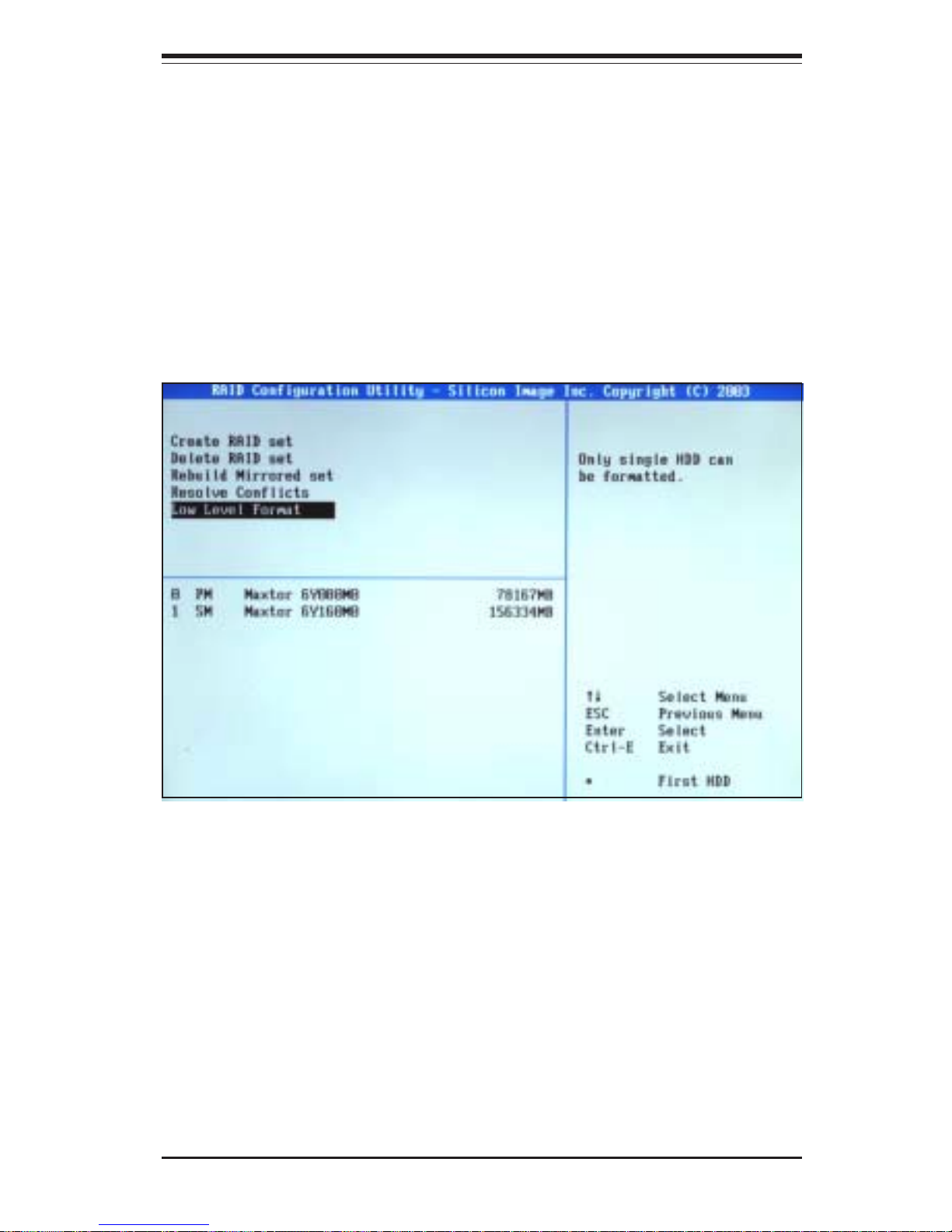

a. In the main menu (as shown in the first screen on Page C-7), use the
up and down arrow keys to highlight the item-Low Level Format as
shown in the following screen:

b. Once the above menu appears, follow the instructions given to
complete the process of Resolving Conflicts. Once this process is
completed, press the <Esc> key to return the main menu (as shown in the
first screen on Page C-3).

b. When the above screen appears, press the <Enter> key to select this
feature. The following screen will appear:

C-14

SUPER X5DPR-TG2+ User's Manual

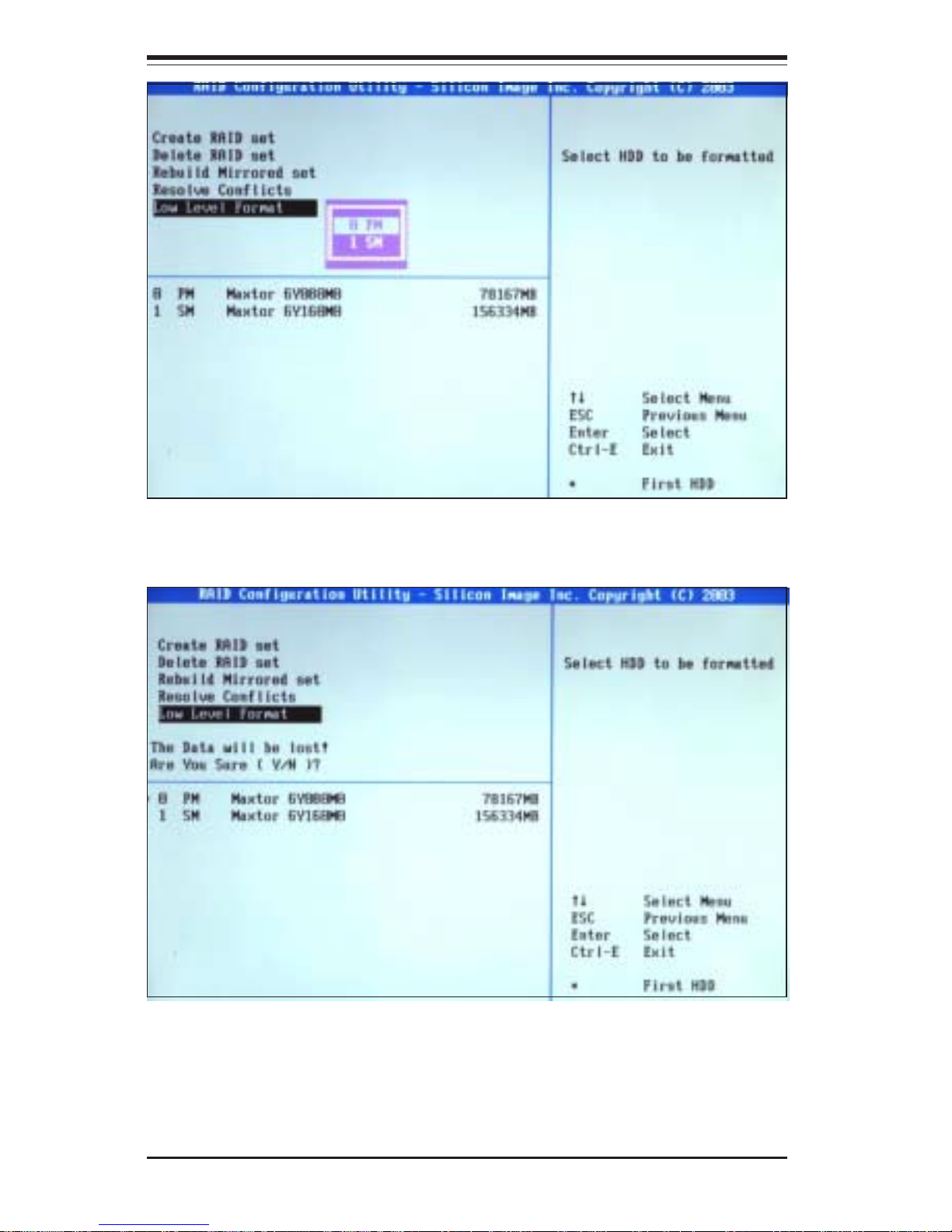

c. When the above screen appears, use the up and down arrow keys to
specify the drive you wish to reformat and press the <Enter> key. The
following screen will appear:

d. When the above screen appears, you are prompted "Are you sure?
Y(es)/N(o)?" In the space provided, type Y to confirm the selection or
type N to cancel the selection. Once you've typed "Y" and press the
<Enter> key, the HDD specified will be reformatted, and you can exit the
Low Level Reformat menu by pressing the <Esc> key to return to the
main menu.
