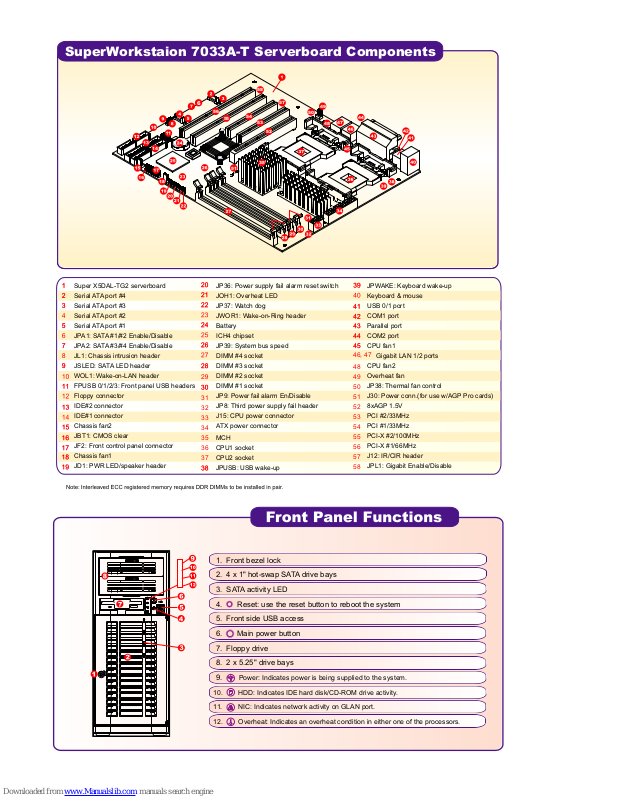

SuperWorkstaion 7033A-T Serverboard Components

58

6

56

14

54

55

51

57

53

52

49

50

47

48

Super X5DAL-TG2 serverboard

Serial ATA port #4

Serial ATA port #3

Serial ATA port #2

Serial ATA port #1

JPA1: SATA #1/#2 Enable/Disable

JPA2: SATA #3/#4 Enable/Disable

JL1: Chassis intrusion header

JSLED: SATA LED header

WOL1: Wake-on-LAN header

FPUSB 0/1/2/3: Front panel USB headers

Floppy connector

IDE#2 connector

IDE#1 connector

Chassis fan2

JBT1: CMOS clear

JF2: Front control panel connector

Chassis fan1

JD1: PWR LED/speaker header

JP36: Power supply fail alarm reset switch

JOH1: Overheat LED

JP37: Watch dog

JWOR1: Wake-on-Ring header

Battery

ICH4 chipset

JP39: System bus speed

DIMM #4 socket

DIMM #3 socket

DIMM #2 socket

DIMM #1 socket

JP9: Power fail alarm En/Disable

31

JP8: Third power supply fail header

32

J15: CPU power connector

33

ATX power connector

34
35

MCH

36

CPU1 socket

37

CPU2 socket

JPUSB: USB wake-up

46, 47

48

49

50

51

52

53

54

55

56

57

58

1. Front bezel lock

2. 4 x 1" hot-swap SATA drive bays

3. SATA activity LED

4. Reset: use the reset button to reboot the system

5. Front side USB access

6. Main power button

7. Floppy drive

8. 2 x 5.25" drive bays

9.

Power: Indicates power is being supplied to the system.

HDD: Indicates IDE hard disk/CD-ROM drive activity.

10.

NIC: Indicates network activity on GLAN port.

11.

Overheat: Indicates an overheat condition in either one of the processors.

12.

JPWAKE: Keyboard wake-up

Keyboard & mouse

USB 0/1 port

COM1 port

Parallel port

COM2 port

CPU fan1

Gigabit LAN 1/2 ports

CPU fan2

Overheat fan

JP38: Thermal fan control

J30: Power conn.(for use w/AGP Pro cards)

8xAGP 1.5V

PCI #2/33MHz

PCI #1/33MHz

PCI-X #2/100MHz

PCI-X #1/66MHz

J12: IR/CIR header

JPL1: Gigabit Enable/Disable

1. Power supply

2. Alarm reset button

3. 12cm exhaust fan

4. Mouse & keyboard ports

5. USB ports

6. COM1 port

7. COM2 port

8. Ethernet ports

9. Paralllel port

10. PCI expansion slots

Supermicro SuperWorkstation System)

X5DAL-TG2 Quick Reference

Jumpers Description  Default Setting

JBT1 CMOS Clear Pad

JP9 Power Fail Alarm En/Disable Open (Disabled)

JP37 Watch Dog Pins 2-3 (NMI)

JP38 Thermal Fan Control Closed (Full Speed)

JP39 System Bus Speed Pins 1-2 (Auto)

JPA1 SATA #1/#2 Enable/Disable Pins 1-2 (Enabled)

JPA2 SATA #3/#4 Enable/Disable Pins 1-2 (Enabled)

JPL1 GLAN Enable/Disable Pins 1-2 (Enabled)

JPUSB USB Wake-up Pins 1-2 (Disabled)

JPWAKE Keyboard Wake-up Pins 1-2 (Disabled)
