SUPER

SC837J CHASSIS SERIES

®

SC837E16-RJBOD1 SC837E26-RJBOD1

USER’S MANUAL

1.0b

SC837J Chassis Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.0b
Release Date: October 28, 2011

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2011 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

ii

SC837J Chassis Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Asia-Pacic

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: [phone]

Fax: [phone]

Web Site: www.supermicro.com.tw

Technical Support:

Email: [e-mail]

Tel: [phone]

iii

SC837J Chassis Manual

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the SC837J chassis. Installation

and maintenance should be performed by experienced technicians only.

This manual lists compatible parts available when this document was published. Al-

ways refer to the our Web site for updates on supported parts and congurations.

iv

SC837J Chassis Manual

Manual Organization

Chapter 1: Introduction

The rst chapter provides a checklist of the main components included with this

chassis and describes the main features of the SC837J chassis. This chapter also

includes contact information.

Chapter 2: System Safety

This chapter lists warnings, precautions, and system safety. It is recommended that

you thoroughly familiarize yourself with installing and servicing the chassis and all

safety precautions.

Chapter 3: System Interface

Refer to this chapter for details on the system interface, which includes the func-

tions and information provided by the chassis control panel, as well as other LEDs

located throughout the system.

Chapter 4: Chassis Setup and Maintenance

Follow the procedures given in this chapter when installing, removing, or

reconguring components in your chassis.

Chapter 5: Rack Installation

Refer to this chapter for detailed information on chassis rack installation. You should

follow the procedures given in this chapter when installing, removing or reconguring

your chassis into a rack environment.

The following appendices list compatible cables, power supply specications, and

backplanes. Not all compatible backplanes are listed. Refer to our Web site for the

latest compatible backplane information.

Appendix A: Cables and Hardware

This section provides information on cabling, and other hardware which is compat-

ible with your chassis. For complete information on supported cables and hardware,

refer to the Supermico Web site at www.supermicro.com.

v

SC837J Chassis Manual

AppendixB:PowerSupply Specications

This chapter lists specications for the power supply provided with your chassis. For

additional information, refer to the Supermicro website at www.supermicro.com.

AppendixC:SAS2-837ELBackplaneSpecications

This section contains detailed information on the SAS2-837EL1 and SAS2-837EL2

backplanes. Additional details can be found on the Supermicro Web site at www.

supermicro.com.

AppendixD:SAS-837ABackplaneSpecications

This section lists detailed specications on the SAS-837A backplane. Additional

information can be found on the Supermicro Web site at www.supermicro.com.

vi

SC837J Chassis Manual

Table of Contents

Contacting Supermicro .................................................................................................. iii

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Shipping List .................................................................................................... 1-1

1-3 Where to get Replacement Components ........................................................ 1-2

1-4 Returning Merchandise for Service................................................................. 1-3

Chapter 2 System Safety

2-1 Overview ......................................................................................................... 2-1

2-2 Warnings and Precautions .............................................................................. 2-1

2-3 Preparing for Setup ......................................................................................... 2-1

2-4 Electrical Safety Precautions .......................................................................... 2-2

2-5 General Safety Precautions ............................................................................ 2-3

2-6 System Safety ................................................................................................. 2-3

Chapter 3 System Interface

3-1 Overview ......................................................................................................... 3-1

3-2 Control Panel Buttons ..................................................................................... 3-2

3-3 Control Panel LEDs ........................................................................................ 3-2

3-4 Drive Carrier LEDs .......................................................................................... 3-4

SAS/SATA Drives ............................................................................................ 3-4

SCSI Drives ..................................................................................................... 3-4

Chapter 4 Chassis Setup and Maintenance

4-1 Overview ......................................................................................................... 4-1

4-2 Removing the Chassis Cover ......................................................................... 4-2

4-3 Installing Removable Hard Drives................................................................... 4-3

4-6 System Fans ................................................................................................... 4-6

4-7 Power Supply ................................................................................................. 4-8

Chapter 5 Rack Installation

5-1 Overview ......................................................................................................... 5-1

5-2 Unpacking the System .................................................................................... 5-1

5-3 Preparing for Setup ......................................................................................... 5-1

Choosing a Setup Location ............................................................................. 5-1

Rack Precautions ............................................................................................ 5-2

General Server Precautions ............................................................................ 5-2

Rack Mounting Considerations ....................................................................... 5-3

Ambient Operating Temperature ................................................................ 5-3

vii

SC837J Chassis Manual

Reduced Airow ......................................................................................... 5-3

Mechanical Loading ................................................................................... 5-3

Circuit Overloading ..................................................................................... 5-3

Reliable Ground ......................................................................................... 5-3

Installing the Inner Rails ................................................................................. 5-4

5-4 Rack Mounting Instructions ............................................................................. 5-4

Installing the Outer Rails on the Rack ............................................................ 5-5

Installing the Chassis into a Rack................................................................... 5-6

Appendix A SC837J Cables and Hardware

Appendix B SC837J Power Supply Specications

Appendix C SAS2-837EL Backplane Specications

Appendix D SAS-837A Backplane Specications

viii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Optimized for enterprise-level heavy-capacity storage applications, Supermicro's

SC837 JBOD chassis features up to twenty-eight (sixteen front plus twelve rear)

3.5" hot-swap HDD bays.

The SC837J design provides high-density storage in a 3U form factor, with high

power efciency, optimized HDD signal trace routing and improved HDD carrier

design to dampen vibration and maximize performance. Equipped with redundant

1620W (Platinum Level) high-efciency redundant power supplies with PMBus func-

tionality and I2C for enhanced power management and and ve hot-plug redundant

cooling fans, the SC837J is a reliable storage system.

1-2 Shipping List

Please visit the Supermicro Web site for the latest shiping lists and part numbers

for your particular chassis model http://www.supermicro.com/

SC837J Chassis

Model HDD

SC837E16-RJBOD1

SC837E26-RJBOD1

28x (JBOD) SAS/SATA

28x (JBOD) SAS/SATA

Power

Supply

1620W redundant

(Gold Level)

1620W redundant

(Gold Level)

1-1

SC837J Chassis Manual

1-3 Where to get Replacement Components

Though not frequently, you may need replacement parts for your system. To en-

sure the highest level of professional service and technical support, we strongly

recommend purchasing exclusively from our Supermicro Authorized Distributors/

System Integrators/Resellers. A list of Supermicro Authorized Distributors/System

Integrators/Resellers can be found at: http://www.supermicro.com. Click the Where

to Buy link.

1-2

SC837J Chassis Manual

1-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.

supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the

original packaging material. If these are no longer available, be sure to pack the

chassis securely, using packaging material to surround the chassis so that it does

not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

1-3

SC837J Chassis Manual

Notes

1-4

SC837J Chassis Manual

Chapter 2

System Safety

2-1 Overview

This chapter provides a quick setup to get your chassis up and running. Following

the steps in the order given should enable you to have your chassis set up and

operational within a minimal amount of time. This quick setup assumes that you are

an experienced technician, familiar with common concepts and terminology.

2-2 Warnings and Precautions

You should inspect the box the chassis was shipped in and note if it was damaged

in any way. If the chassis itself shows damage, le a damage claim with carrier

who delivered your system.

Decide on a suitable location for the rack unit that will hold that chassis. It should

be situated in a clean, dust-free area that is well venilated. Avoid areas where heat,

electrical noise and eletromagnetic elds are generated.

The system must be placed near at two grounded power outlets. When congured,

the SC837J chassis includes one primary and one redundant power supply.

2-3 Preparing for Setup

The SC837J chassis includes a set of rail assemblies which includes mounting

brackets and mounting screws you will need to install the systems into the rack.

Please read this manual in its entirety before you begin the installation proce-

dure.

2-1

SC837J Chassis Manual

2-4 Electrical Safety Precautions

Basic electrical safety precautions should be followed to protect yourself from harm

and the SC837J from damage:

•Be aware of the locations of the power on/off switch on the chassis as well

as the room’s emergency power-off switch, disconnection switch or electrical

outlet. If an electrical accident occurs, you can then quickly remove power from

the system.

•Do not work alone when working with high-voltage components.

•Power should always be disconnected from the system when removing or install-

ing main system components, such as the serverboard and memory modules

(not necessary for hot swappable drives). When disconnecting power, you

should rst power-down the system with the operating system and then unplug

the power cords from all the power supply modules in the system.

•When working around exposed electrical circuits, another person who is familiar

with the power-off controls should be nearby to switch off the power if neces-

sary.

•Use only one hand when working with powered-on electrical equipment. This

is to avoid making a complete circuit, which will cause electrical shock. Use

extreme caution when using metal tools, which can easily damage any electrical

components or circuit boards they come into contact with.

•Do not use mats designed to decrease electrostatic discharge as protection from

electrical shock. Instead, use rubber mats that have been specically designed

as electrical insulators.

•The power supply power cord must include a grounding plug and must be

plugged into a grounded electrical outlet.

•Serverboard battery: CAUTION - There is a danger of explosion if the onboard

battery is installed upside down, which will reverse its polarities This battery

must be replaced only with the same or an equivalent type recommended by

the manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

2-2

SC837J Chassis Manual

•Handle used batteries carefully. Do not damage the battery in any way; a dam-

aged battery may release hazardous materials into the environment. Do not

discard a used battery in the garbage or a public landll. Please comply with

the regulations set up by your local hazardous waste management agency to

dispose of your used battery properly.

2-5 General Safety Precautions

•Keep the area around the chassis clean and free of clutter.

•Place the chassis top cover and any system components that have been re-

moved away from the system or on a table so that they won’t accidentally be

stepped on.

•While working on the system, do not wear loose clothing such as neckties and

unbuttoned shirt sleeves, which can come into contact with electrical circuits or

be pulled into a cooling fan.

•Remove any jewelry or metal objects from your body, which are excellent metal

conductors that can create short circuits and harm you if they come into contact

with printed circuit boards or areas where power is present.

•After accessing the inside of the system, close the system back up and secure

it to the rack unit with the retention screws after ensuring that all connections

have been made.

2-6 System Safety

Electrostatic discharge (ESD) is generated by two objects with different electrical

charges coming into contact with each other. An electrical discharge is created to

neutralize this difference, which can damage electronic components and printed

circuit boards. The following measures are generally sufcient to neutralize this

difference before contact is made to protect your equipment from ESD:

•Do not use mats designed to decrease electrostatic discharge as protection from

electrical shock. Instead, use rubber mats that have been specically designed

as electrical insulators.

•Use a grounded wrist strap designed to prevent static discharge.

•Keep all components and printed circuit boards (PCBs) in their antistatic bags

until ready for use.

2-3

SC837J Chassis Manual

•Touch a grounded metal object before removing any board from its antistatic

bag.

•Do not let components or PCBs come into contact with your clothing, which may

retain a charge even if you are wearing a wrist strap.

•Handle a board by its edges only; do not touch its components, peripheral chips,

memory modules or contacts.

•When handling chips or modules, avoid touching their pins.

•Put the serverboard and peripherals back into their antistatic bags when not

in use.

•For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

2-4

SC837J Chassis Manual

Chapter 3

System Interface

3-1 Overview

There are several LEDs on the control panel as well as others on the drive carriers

to keep you constantly informed of the overall status of the system as well as the

activity and health of specic components. SC837J models have two buttons on

the chassis control panel: A reset button and a power on/off switch. This chapter

explains the meanings of all LED indicators and the appropriate responses you

may need to take.

Figure 3-1: Control Panel

3-1

SC837J Chassis Manual

3-2 Control Panel Buttons

There are two push-buttons located on the left handle of the chassis. These are

(in order from top to bottom) a power on/off button and a reset button.

Power: The main power button is used to apply or remove power from the power

supply to the server system. Turning off system power with this button removes

the main power but keeps standby power supplied to the system. Therefore, you

must unplug system before ser vicing.

Reset: The reset button is used to reboot the system.

3-3 Control Panel LEDs

The control panel located on the left handle of the SC837J chassis has ve LEDs.

These LEDs provide you with critical information related to different parts of the

system. This section explains what each LED indicates when illuminated and any

corrective action you may need to take.

!

Power Failure: When this LED ashes, it indicates a failure in the redundant power

supply.

3-2

SC837J Chassis Manual

Overheat/Fan Fail: When this LED ashes, it indicates a fan failure. When con-

tinuously on (not ashing) it indicates an overheat conditi on, which may be cause d

by cables obstructing the airow in the system or the ambient room temperature

being too warm. Check the routing of the cables and make sure all fans are pres-

ent and operating normally. You should also check to make sure that the chassis

covers are installed. Finally, verify that the heatsinks are installed properly. This

LED will remain ashing or on as long as the overheat condition exists.

1

NIC1: Indicates network activity on GLAN1 when ashing.

2

NIC2: Indicates network activity on GL AN2 when ashing.

HDD: Indicates IDE channel activity. SAS/SATA drive, and/or DVD-ROM drive

activity when ashing.

Power: Indicates power is being supplied to the system's power supply units. This

LED should normally be illuminated when the system is operating.

3-3

SC837J Chassis Manual

3-4 Drive Carrier LEDs

Your chassis uses SAS/SATA.

SAS/SATA Drives

Each SAS/SATA drive carrier has two LEDs.

•Blue:

Solid on = Drive is present and available.

Blinking = Drive is actively being accessed.

Each Serial ATA drive carrier has a blue LED. When illuminated in a solid

on state, this blue LED (on the front of the SAS/SATA drive carrier) indicates

drive activity. A connection to the SAS/SATA backplane enables this LED to

blink on and of f when that particular drive is being accessed.

•Red:

Solid on = Drive failure

Blinking = RAID activity

When the red LED is blinking, it indicates that the system is either building,

initializing or rebuilding RAID.

SCSI Drives

This chassis does not support SCSI drives at this time.

3-4

SC837J Chassis Manual

Chapter 4

Chassis Setup and Maintenance

4-1 Overview

This chapter covers the steps required to install components and perform mainte-

nance on the chassis. The only tool you will need to install components and perform

maintenance is a Phillips screwdriver. Print this chapter to use as a reference while

setting up your chassis.

Review the warnings and precautions listed in the manual before

setting up or servicing this chassis. These include information in

!

Chapter 2: System Safety and the warnings/precautions listed in the

setup instructions.

Safety Warning: Before performing any chassis setup or mainte-

nance, it is recommended that the chassis be removed from the rack

!

and placed on a stable bench or table. For instructions on how to

uninstall the chassis from the rack, refer to Chapter 5 Rack Instal-

lation in this manual.

4-1

SC837J Chassis Manual

4-2 Removing the Chassis Cover

2

3

2

1

4

1

3

1

Figure 4-1: Removing the Chassis Cover

Removing the Chassis Cover

1. Unplug the chassis from any power source.

2. Push down on both release buttons simultaneously.

3. Remove the screws securing the cover to the chassis.

4. Lift the cover up and off the chassis.

Warning: Except for short periods of time, do NOT operate the

!

server without the cover in place. The chassis cover must be in

place to allow proper airow and prevent overheating.

4-2

SC837J Chassis Manual

4-3 Installing Removable Hard Drives

2

1

Figure 4-2: Removing a Hard Drive Carrier

Removing Hard Drive Carriers from the Chassis

1. Press the release button on the drive carrier. This extends the drive carrier

handle.

2. Use the handle to pull the drive carrier out of the chassis.

4-3

SC837J Chassis Manual

Drive Carrier

Figure 4-3: Chassis Drive Carrier

The drives are mounted in drive carriers to simplify their installation and removal

from the chassis. These carriers also help to promote proper airow for the drive

bays.

Warning: Except for short periods of time (while swapping hard

drives) do not operate the server with the drives removed from

!

the chassis drive bays.

Dummy Drive

1

1

Figure 4-4: Removing the Dummy Drive from the Carrier

Warning! Enterprise level hard disk drives are recommended
for use in Supermicro chassis and servers. For information on

!

Installing a Hard Drive to the Hard Drive Carrier

1. Remove the two screws securing the dummy drive to the drive carrier and

remove the dummy drive. Place the hard drive carrier on a at surface such

as a desk, table or work bench.

recommended HDDs, visit the Supermicro Web site at http://
www.supermicro.com/products/nfo/storage.cfm

4-4

SC837J Chassis Manual

SAS/SATA

Hard Drive

4

4

Drive Carrier

Figure 4-5: Installing the Hard Drive into the Carrier

2. Slide the hard drive into the carrier with the printed circuit board side facing

down.

3. Carefully align the mounting holes in both the drive carrier and the hard drive.

4. Secure the hard drive to the carrier using six screws.

5. Return the drive carrier to the chassis bay. Make sure to close the drive car-

rier handle to lock the drive carrier into place.

5

Figure 4-6: Installing the Hard Drive

4-5

SC837J Chassis Manual

4-6 System Fans

Seven hot-swappable, heavy-duty fans provide cooling for the chassis. These fans

circulate air through the chassis, thereby lowering the chassis internal tempera-

ture.

Release Tab

Figure 4-7: System Fan

Replacing a System Fan

1. Open the chassis while the system is running to determine which fan has

failed. (Never run the server for an extended period of time with the chassis

cover open.)

2. Remove the failed fan's power cord from the serverboard.

3. Press the fan release tab to lift the failed fan from the chassis and pull it

completely out of the chassis.

4. Place the new fan into the vacant space in the housing while making sure the

arrows on the top of the fan (indicating air direction) point in the same direc-

tion as the arrows on the other fans.

Air Direction

Indicator

5. Check that the fan is working properly before replacing the chassis cover.

4-6

SC837J Chassis Manual

Figure 4-8: Placing the System Fan

4-7

SC837J Chassis Manual

4-7 Power Supply

The SC837J chassis has a 1620 Watt high-efciency redundant power supply. This

power supply is auto-switching capable. This enables it to automatically sense and

operate at a 100v to 240v input voltage. An amber light will be illuminated on the

power supply when the power is off. An illuminated green light indicates that the

power supply is operating.

Redundant power supplies are hot-swappable, and can be changed without pow-

ering down the system. New units can be ordered directly from Supermicro (see

contact information in the Preface).

Release Tab

Figure 4-9: Power Supply Release Tab

Changing the Power Supply:

1. If your chassis includes a redundant power supply (at least two power mod-

ules), you can leave the server running and remove only one power supply. If

your server has only one power supply, you must power down the server and

unplug the power cord.

2. Push the release tab (on the back of the power supply) as illustrated.

3. Pull the power supply out using the handle provided.

4-8

SC837J Chassis Manual

5

1

Figure 4-10: Power Supply Release Tab

4. Replace the failed power module with the same model.

5. Push the new power supply module into the power bay until you hear a click.

6. If using only one power supply, plug the AC power cord back into the module

and power up the server.

4-9

SC837J Chassis Manual

Notes

4-10

SC837J Chassis Manual

Chapter 5

Rack Installation

5-1 Overview

This chapter provides a quick setup for installing the chassis into a rack. Following

these steps in the order given should enable you to have the system installed within

a minimum amount of time.

5-2 Unpacking the System

You should inspect the box the chassis was shipped in and note if it was damaged

in any way. If the chassis itself shows damage you should le a damage claim with

the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold your chassis. It should

be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat,

electrical noise and electromagnetic elds are generated. You will also need to posi-

tion the rack near a grounded power outlet. Be sure to read the Rack Precautions

and General Server Precautions in the next section.

5-3 Preparing for Setup

The box your chassis was shipped in includes a set of rail assemblies (two inner

rails and two outer rails). and the mounting screws you will need to install the system

into the rack. Please read this section in its entirety before you begin the installation

procedure outlined in the sections that follow.

Choosing a Setup Location

•Leave enough clearance in front of the rack to enable you to open the front

door completely (~25 inches).

•Leave approximately 30 inches of clearance in the back of the rack to allow for

sufcient airow and ease in servicing.

5-1

SC837J Chassis Manual

!

Warnings and Precautions!

!

•This product is for installation only in a Restricted Access Location (dedicated

equipment rooms, service closets and the like).

Rack Precautions

•Ensure that the leveling jacks on the bottom of the rack are fully extended to

the oor with the full weight of the rack resting on them.

•In single rack installation, stabilizers should be attached to the rack.

•In multiple rack installations, the racks should be coupled together.

•Always make sure the rack is stable before extending a component from the

rack.

•You should extend only one component at a time - extending two or more si-

multaneously may cause the rack to become unstable.

General Server Precautions

•Review the electrical and general safety precautions that came with the com-

ponents you are adding to your chassis.

•Determine the placement of each component in the rack before you install the

rails.

•Install the heaviest server components on the bottom of the rack rst, and then

work up.

•Use a regulating uninterruptible power supply (UPS) to protect the server from

power surges, voltage spikes and to keep your system operating in case of a

power failure.

•Allow the hot-plug hard drives and power supply modules to cool before touch-

ing them.

5-2

SC837J Chassis Manual

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tem-

perature of the rack environment may be greater than the ambient temperature

of the room. Therefore, consideration should be given to installing the equipment

in an environment compatible with the manufacturer’s maximum rated ambient

temperature.

ReducedAirow

Equipment should be mounted into a rack so that the amount of airow required

for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not

arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply connec-

tions other than the direct connections to the branch circuit (for example, the use

of power strips, etc.).

5-3

SC837J Chassis Manual

5-4 Rack Mounting Instructions

This section provides information on installing the SC837J chassis into a rack

unit with the rails provided. There are a variety of rack units on the market, which

may mean the assembly procedure may differ slightly. You should also refer to the

installation instructions that came with the rack unit you are using.

3

1

Screws

1

1

2

1

Figure 7-2: Installing the Inner Rails

Installing the Inner Rails

Inner Rail Installation

1. Place the inner rail on the side of the chassis aligning the hooks of the chas-

sis with the holes in the inner rail.

2. Slide the inner rail toward the front of the chassis.

3. Secure the chassis with four screws as illustrated.

4. Repeat steps 1-3 for the other inner rail.

5-4

SC837J Chassis Manual

A

D

1

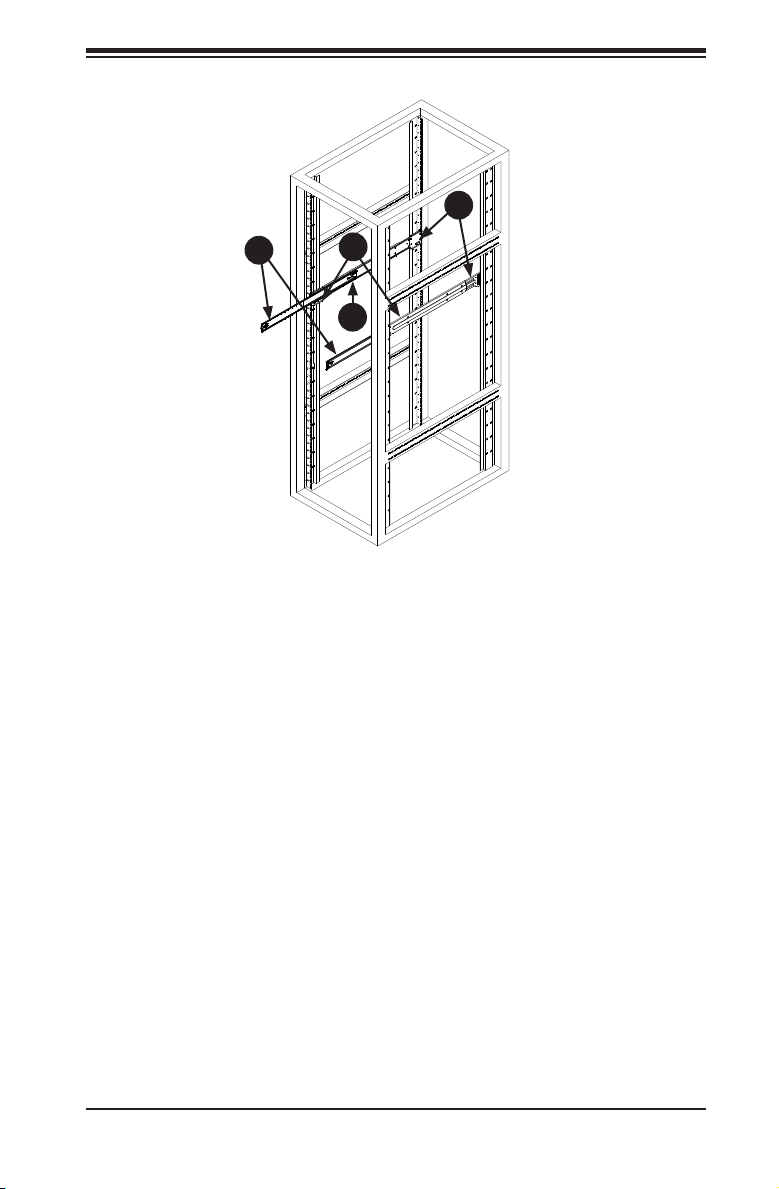

Figure 7-3: Installing the Outer Rails

1

C

1

Installing the Outer Rails on the Rack

B

1

Outer rails attach to the server rack and hold the chassis in place. The outer rails

for the SC837J chassis extend between thirty inches and thirty-three inches.

Installing the Outer Rails

1. Begin by measuring the distance from the front to the back of the rack.

2. Slide the shorter outer rail (A) into the longer outer rail (B).

3. Attach the front of the shorter outer rail (A) to the front of the rack and the

back of the longer outer rail (B) to the rear of the rack.

4. Adjust both the shorter and longer outer rails to the proper distance so that

they t snugly into the rack and secure with the screws provided.

5. Press the release tab (C) on the inside of the outer rail to release the outer

rail extension (D)

6. Repeat steps 1 through 5 for the remaining outer rail.

5-5

SC837J Chassis Manual

3

1

Figure 7-4: Installing the Chassis into the Server Rack

Installing the Chassis into a Rack

1. Conrm outer rails are installed on the rack.

2. Align the inner rails with the outer rail extension.

3. Slide the inner rails into the outer rails, keeping the pressure even on both

sides (it may be necessary to depress the locking tabs when inserting). When

the server has been pushed completely into the rack, the locking tabs will

"click into the secure, locked position.

4. (Optional) Insert and tighten the thumbscrews which secure the server to the

rack.

5-6

SC837J Chassis Manual

Appendix A

SC837J Cables and Hardware

A-1 Overview

This appendix lists supported cables for your chassis system. It only includes the

most commonly used components and congurations. For more compatible cables,

refer to the manufacturer of the motherboard you are using and our Web site at:

www.supermicro.com.

A-2 Cables Included with SC837J Chassis (SAS/SATA)

SC837J

Part # Type Length Description

CBL-0102L Cable 51 cm I2C cable for the SATA LED

CBL-0386L Cable ---

CBL-0108L-02 Cable 39 cm iPass to iPass PBF.

CBL-0421L Cable 55 cm iPass to iPass PBF.

4-port (two in and two out) external
to internal iPass connector.

A-1

SC837J Chassis Manual

A-3 Compatible Cables

These cables are compatible with the SC837J chassis.

Alternate SAS/SATA cables

Some compatible motherboards have different connectors. These cables must be

purchased separately.

Cable Name: SAS Cable Quantity: 4

Part #: CBL-0175L
Alt. Name: "Big Four"

Description: This cable has one SFF-8484 (32-pin) connector on one end and four

SAS connectors (seven pins each) at the other. This cable connects from the host

(motherboard or other controller) to the backplane SAS hard drive port.

Cable Name: SAS Cable Quantity: 4

Part #: CBL-0116
Alt. Name: iPass or "Small Four"

Description: This cable has one iPass (SFF-8087/Mini-SAS) connector (36-pin) at

one end and four SAS connectors on one end. This cable connects from the host

(motherboard or other controller) to the backplane SAS hard drive port.

A-2

SC837J Chassis Manual

Extending Power Cables

Although Supermicro chassis are designed with to be efcient and cost-effective,

some compatible motherboards have power connectors located in different areas.

To use these motherboards you may have to extend the power cables to the mother

boards. To do this, use the following chart as a guide.

Power Cable Extenders

Number of Pins Cable Part # Length

24-pin CBL-0042 7.9” (20 cm)

20-pin CBL-0059 7.9” (20 cm)

8-pin CBL-0062 7.9” (20 cm)

4-pin CBL-0060 7.9” (20 cm)

Front Panel to the Motherboard

The SC837J chassis includes a cable to connect the chassis front panel to the

motherboard. If your motherboard uses a different connector, use the following list

to nd a compatible cable.

Front Panel to Motherboard Cable (Ribbon Cable)

Number of Pins

(Front Panel)

16-pin 16-pin CBL-0049

16-pin 20-pin CBL-0048

20-pin 20-pin CBL-0047

16-pin various* CBL-0068

20-pin various* CBL-0067

* Split cables: Use these cable if your motherboard requires several different con-

nections from the front panel.

Number of Pins

(Motherboard)

Cable Part #

A-3

SC837J Chassis Manual

A-4 Chassis Screws

The accessory box includes all the screws needed to set up your chassis. This

section lists and describes the most common screws used. Your chassis may not

require all the parts listed.

M/B

Pan head

6-32 x 5 mm

[0.197]

HARD DRIVE

DVD-ROM, CD-ROM, and FLOPPY DRIVE

Pan head

6-32 x 5 mm

[0.197]

Flat head

6-32 x 5 mm

[0.197]

Round head

M3 x 5 mm

[0.197]

RAIL

Flat head

M4 x 4 mm

[0.157]

Round head

M4 x 4 mm

[0.157]

M5 x 12 mm[0.472]

M/B STANDOFFS

Flat head

6-32 x 5 mm

[0.197]

Round head

M2.6 x 5 mm

[0.197]

Flat head

Washer for M5

M/B standoff
6-32 to 6-32

M/B (CPU)

standoff

M5 to 6-32

Thumb screw

6-32 x 5 mm

[0.197]

A-4

1/U M/B standoff

6-32 x 5 mm

[0.197]

SC837J Chassis Manual

Appendix B

SC837JPowerSupplySpecications

This appendix lists power supply specications for your chassis system.

SC837J

1620W

MFR Part # PWS-1K62P-1R

AC Input

DC Output

+5V Standby

DC Output

1000W: 100-120 V, 50-60 Hz, 12-10 Amp
1200W: 120-140 V, 50-60 Hz, 12-10 Amp
1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp

4 Amp

1000W: 84 Amp
1200W: 100 Amp

+12V

1620W: 135 Amp

B-1

SC837J Chassis Manual

Notes

B-2

SC837J Chassis Manual

Appendix C

SAS2-837ELBackplaneSpecications

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

C-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufcient to protect your equipment from ESD.

•Use a grounded wrist strap designed to prevent static discharge.

•Touch a grounded metal object before removing a component from the antistatic

bag.

•Handle the backplane by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

•When handling chips or modules, avoid touching their pins.

•Put the backplane and peripherals back into their antistatic bags when not in

use.

C-2 General Safety Guidelines

•Always disconnect power cables before installing or removing any components

from the computer, including the backplane.

•Disconnect the power cable before installing or removing any cables from the

backplane.

•Make sure that the backplane is securely and properly installed on the mother-

board to prevent damage to the system due to power shortage.

C-1

SC837J Chassis Manual

C-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB

revision available at the time of publishing. The card you have received may or may

not look exactly the same as the graphics shown in this manual.

C-4 Introduction to the SAS2-837EL Backplane

The SAS2-837EL backplane has been designed to utilize the most up-to-date tech-

nology available, providing your system with reliable, high-quality performance.

This manual reects SAS2-837EL1 and SAS2-837EL2 Revision 1.00, the most

current release available at the time of publication. Always refer to the Supermicro

Web site at www.supermicro.com for the latest updates, compatible parts and sup-

ported congurations.

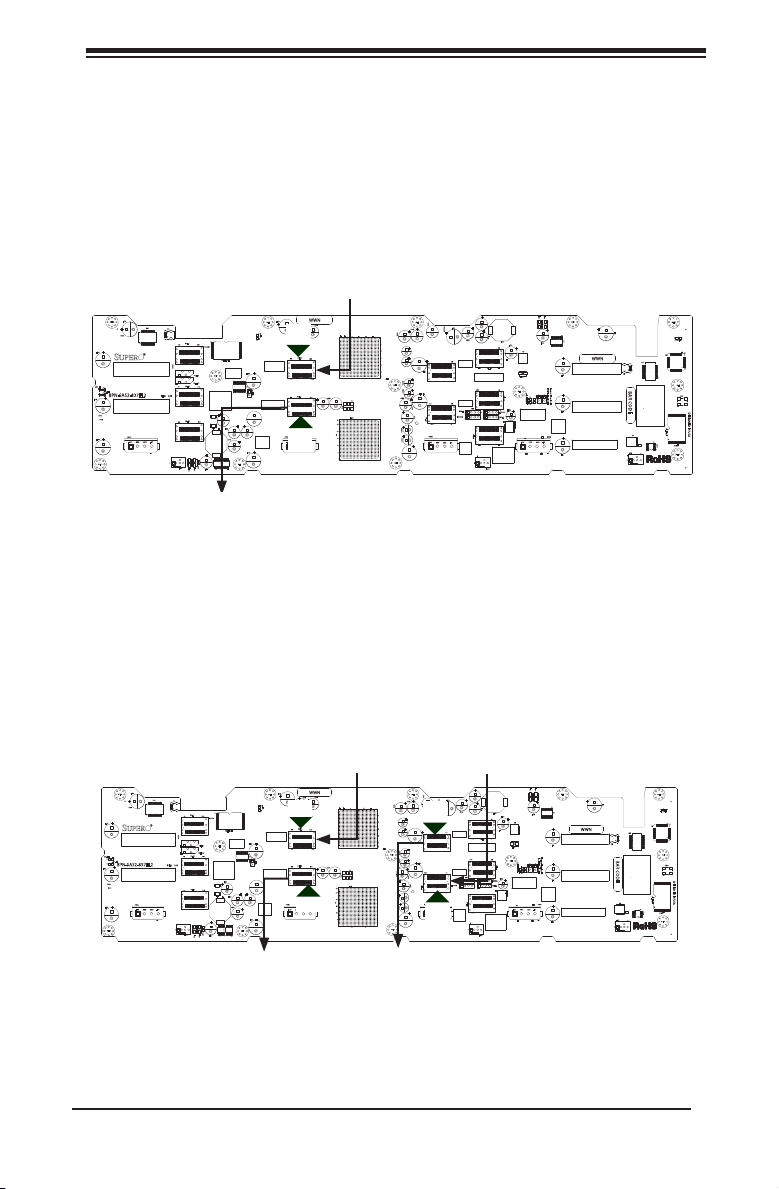

The SAS2-837EL1 backplane includes a primary expander chip and primary SAS

connectors. The SAS2-837EL2 includes of both primary and secondary expander

chips, as well as primary and secondary SAS connectors. The primary and second-

ary expanders are redundant, so that if one should fail, the other will take over.

C-2

SC837J Chassis Manual

C-5 Front Connectors

16

1

EC28

MH12

U16

J24

EC22

12V_LED

A

A

EC25

BC92

BC91

EC15

MH11

+

C

5V_LED

C

+

BPN-SAS2-837EL2

+

+

BC52

1

1

PWR4

2

1

10

1

PRI_J4

B1 B18

BCA534

C2988

PRI_I2C

1

PRI_I2C1

PRI_J3

B1 B18

REV: 1.00

1

1

PRI_J2

B18

B1

A18

+5V+12V GNDGND

+

C430

L147

L148

FAN1

EC17

5

1

Front Connectors

9

MH3

8

1

+

Q1 Q2

EC26

MH9

+

+

C866

+

ACT24

A

C

PRI_J0

PRI_FLASH

EC16

+

L1

EC18

C868

B1

+

EC27

A1

U6

1

ACTLED1

PRI_J1

B1 B18

+

+

PWR3

+

+12V

GND

GND

+

EC13

MH1

2

1

Figure C-1: Front Connectors

L152

L151

EC9

EC8

C862

+

SEC_J0

+12V

12

B18

PWR2

+

BCA420

+

EC10

+

+

EC35

13

C864

L153

A1

11

A1B1A18

+5V

EC20

A1

+

B1B18

SEC_J2

14

A18

A1

1

SEC_J3

B18

EC19

B1

1

UART_P

4

EXPDBG2

1

4

EXPDBG1

UART_S

4

1

4

1

15

SEC_J4

B1B18

1

FAN2

5

1

1

GND

GND

2

1

MH8

+

+

1

U1

EC36

+

Q3

+

WWN

EC3

L149

1

FAN_MONITOR_DISABLE

FANFAIL_LED_DISABLE

MH5

OVERHEATFAIL1

+

1

1

A C

A

FANFAIL1

C

+

EC2

+

1

+

PWR1

GND

+5V+12V

GND

EC1

2

1

EC4

17

MH13

AC

ACT25

1

J25

16

17

33

U17

1

8

MH7

BAR CODE

U332

DESIGNED IN USA

SEC_FLASH

U5

U312

RA611

FAN3

4

MH10

1

5

1

3

1

WWN

C861

AE

AH

Y

6

1

B18

A18

7

1

+

C870

Y10

L398

28

25

U4

15

+5V

10

5

MH6

+

C865

+

C863

E20R

K

5

+

10 15

+

25 28

+

C2972

MH2

+

C2973

+

4

+

C377

1

C867

+

C871

+

C2970

+

C2971

+

Y20K

MH4
