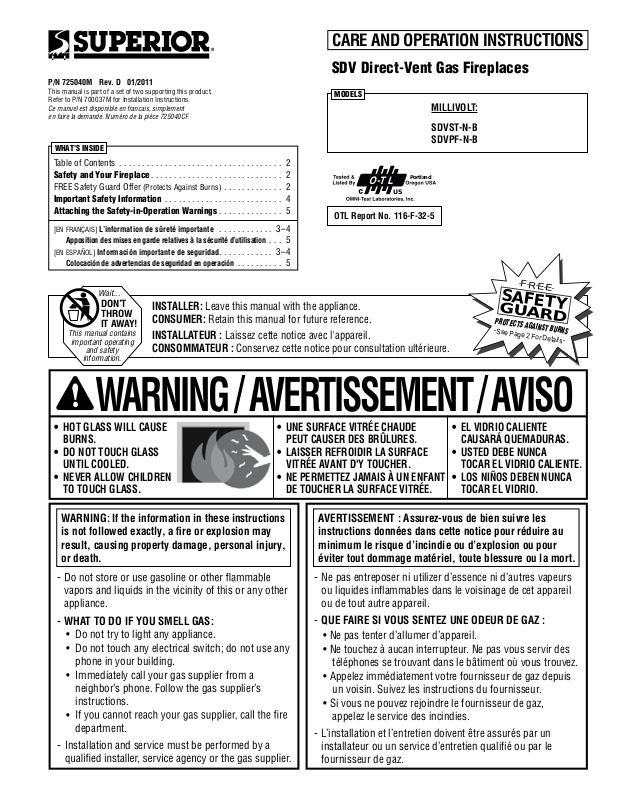

Superior SDVST-N-B User Manual

Download

SDV Direct-Vent Gas Fireplaces

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

DON’T THROW IT AWAY !

This manual contains

important operating

and safety

information.

Wait...

▪

See Page 2 For Details

▪

SAFETY

GUA RD

PROTECTS AGAINST BURNS

AVERTISSEMENT : Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incindie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs ou liquides inﬂammables dans le voisinage de cet appareil ou de tout autre appareil.

- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous servir des téléphones se trouvant dans le bâtiment où vous trouvez.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,

appelez le service des incindies.

- L’installation et l’entretien doivent être assurés par un installateur ou un service d’entretien qualiﬁé ou par le

fournisseur de gaz.

WARNING: If the information in these instructions is not followed exactly, a ﬁre or explosion may result, causing property damage, personal injury, or death.

vapors and liquids in the vicinity of this or any other

appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• department.

- Installation and service must be performed by a

WARNING /AVERTISSEMENT / AVISO

• HOT GLASS WILL CAUSE BURNS.

• DO NOT TOUCH GLASS UNTIL COOLED.

• NEVER ALLOW CHILDREN TO TOUCH GLASS.

• UNE SURFACE VITRÉE CHAUDE PEUT CAUSER DES BRÛLURES.

• LAISSER REFROIDIR LA SURFACE VITRÉE AVANT D'Y TOUCHER.

• NE PERMETTEZ JAMAIS À UN ENFANT DE TOUCHER LA SURFACE VITRÉE.

• EL VIDRIO CALIENTE CAUSARÁ QUEMADURAS.

• USTED DEBE NUNCA TOCAR EL VIDRIO CALIENTE.

• LOS NIÑOS DEBEN NUNCA TOCAR EL VIDRIO.

P/N 725040M Rev. D 01/2011

Portland

This manual is part of a set of two supporting this product. Refer to P/N 700037M for Installation Instructions.

Ce manuel est disponible en francais, simplement en faire la demande. Numéro de la pièce 725040CF.

WHAT'S INSIDE

Table of Contents .................................... 2

Safety and Your Fireplace............................. 2

FREE Safety Guard Offer

Important Safety Information .......................... 4

Attaching the Safety-in-Operation Warnings .............. 5

[EN FRANÇAIS] L’information de sûreté importante ............ 3–4

Apposition des mises en garde relatives à la sécurité d’utilisation ... 5

[EN ESPAÑOL] Información importante de seguridad............ 3–4

Colocación de advertencias de seguridad en operación .......... 5

(Protects Against Burns) ............. 2

STALLATEUR : Laissez cette notice avec l'appareil.

CONSOMMATEUR : Conservez cette notice pour consultation ultérieure.

CARE AND OPERATION INSTRUCTIONS

MODELS

MILLIVOLT:

SDVST-N-B SDVPF-N-B

OTL Report No. 116-F-32-5

Thank you for your purchase. We appreciate your business! Please carefully read and follow all instructions in this manual.

Pay special attention to all warnings and safety information.

Following these safety, care, and operation instructions will help ensure many years of dependable and enjoyable service from your ﬁreplace.

•

FREE

severe burns and injuries by preventing direct contact

To receive your FREE SAFETY GUARD, call 1-800-786-7976

or visit www.lennox.com

Table of Contents

Safety and Your Fireplace................................. 2

Important Safety Information .............................. 4

Attaching the Safety-in-Operation Warnings .................. 5

General Information ...................................... 6

Operation / Care of Your Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Gas Controls Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Variable Flame Adjustment ..................................9

Maintenance ............................................10

Front Glass Enclosure Panel, Removal and Installation . . . . . . . . . . . 11

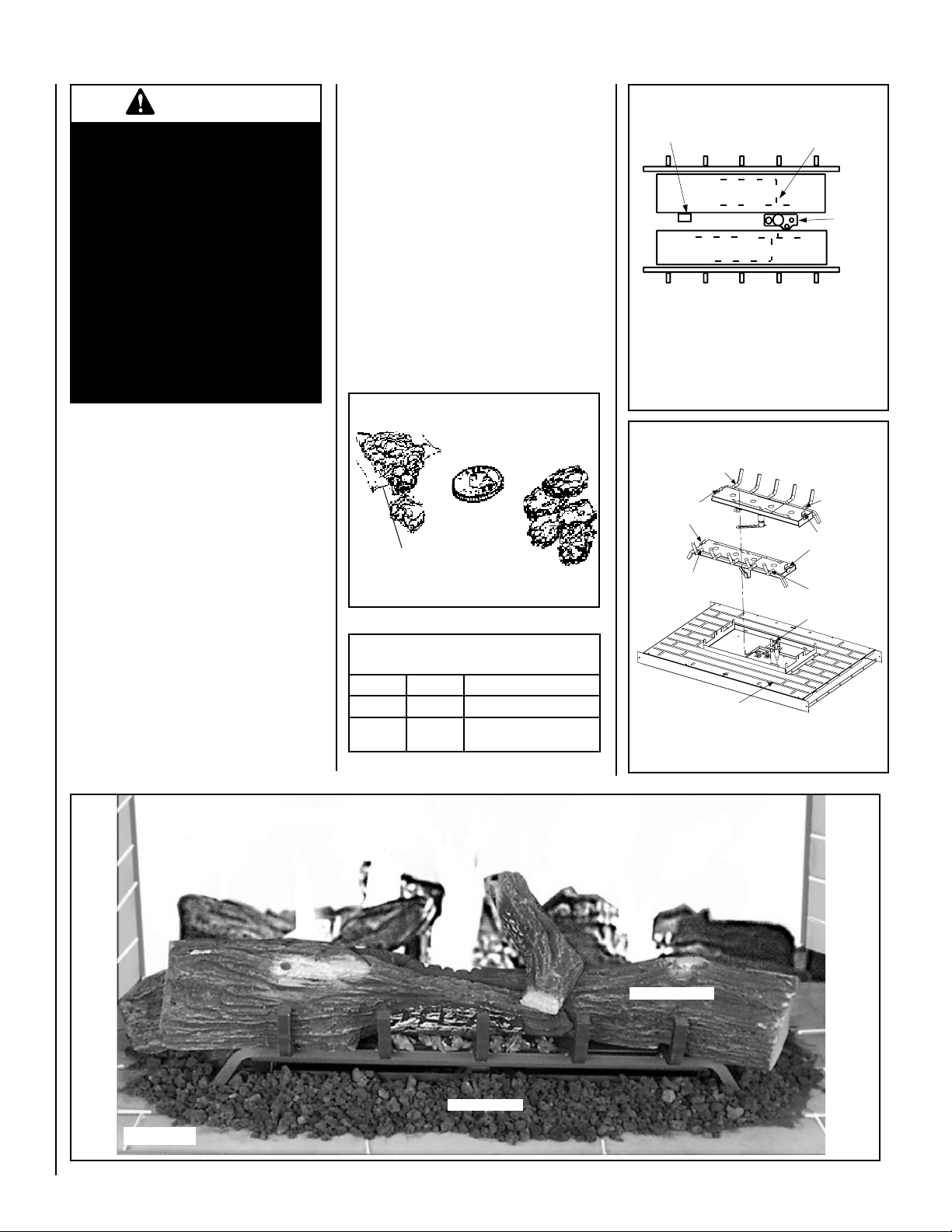

Install Volcanic Stone Embers and Logs . . . . . . . . . . . . . . . . . . . . . . 12

Burner Flame Appearance & Sooting .........................13

Burner Air Shutter Adjustments .............................14

Millivolt Appliance Checkout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

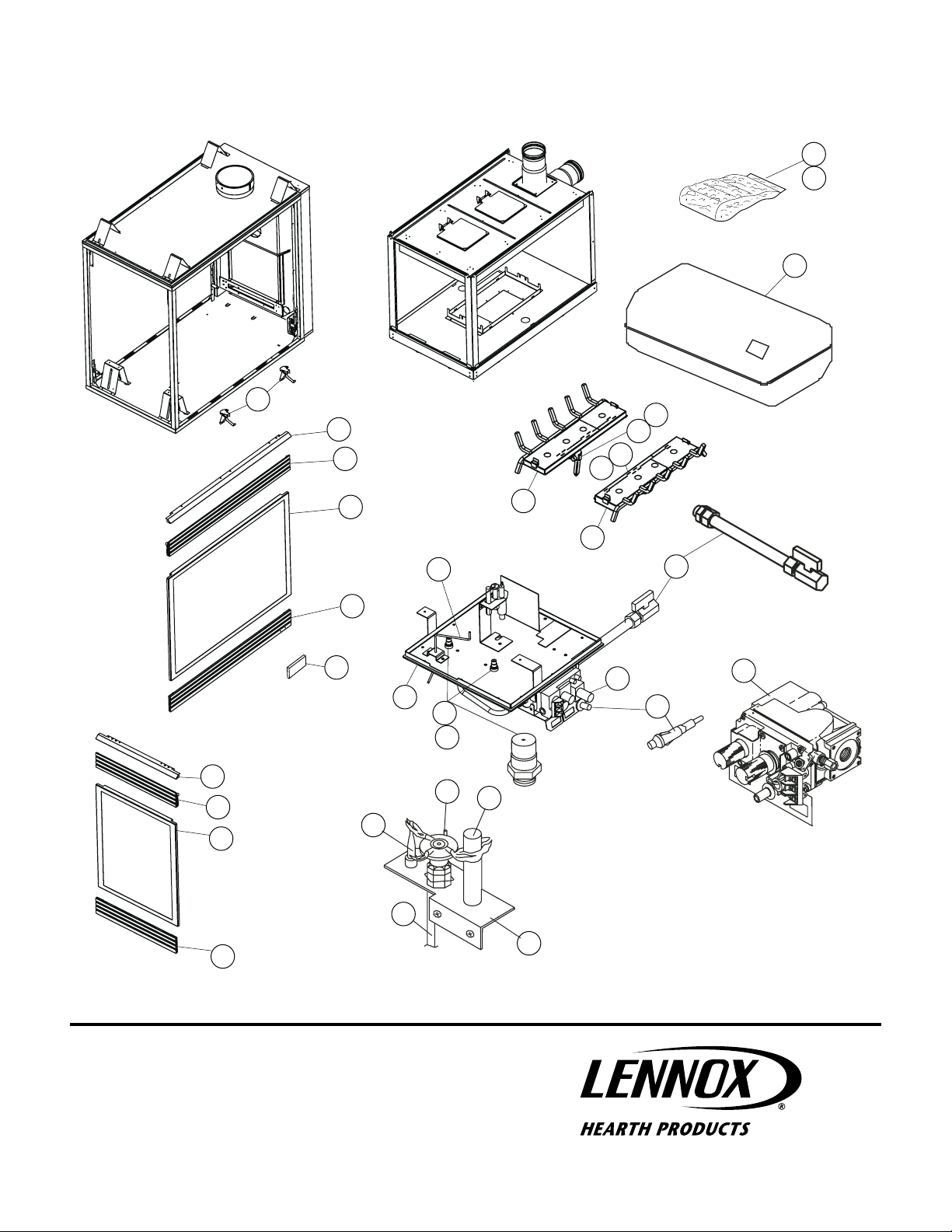

Replacement Parts .......................................15

Product Reference Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

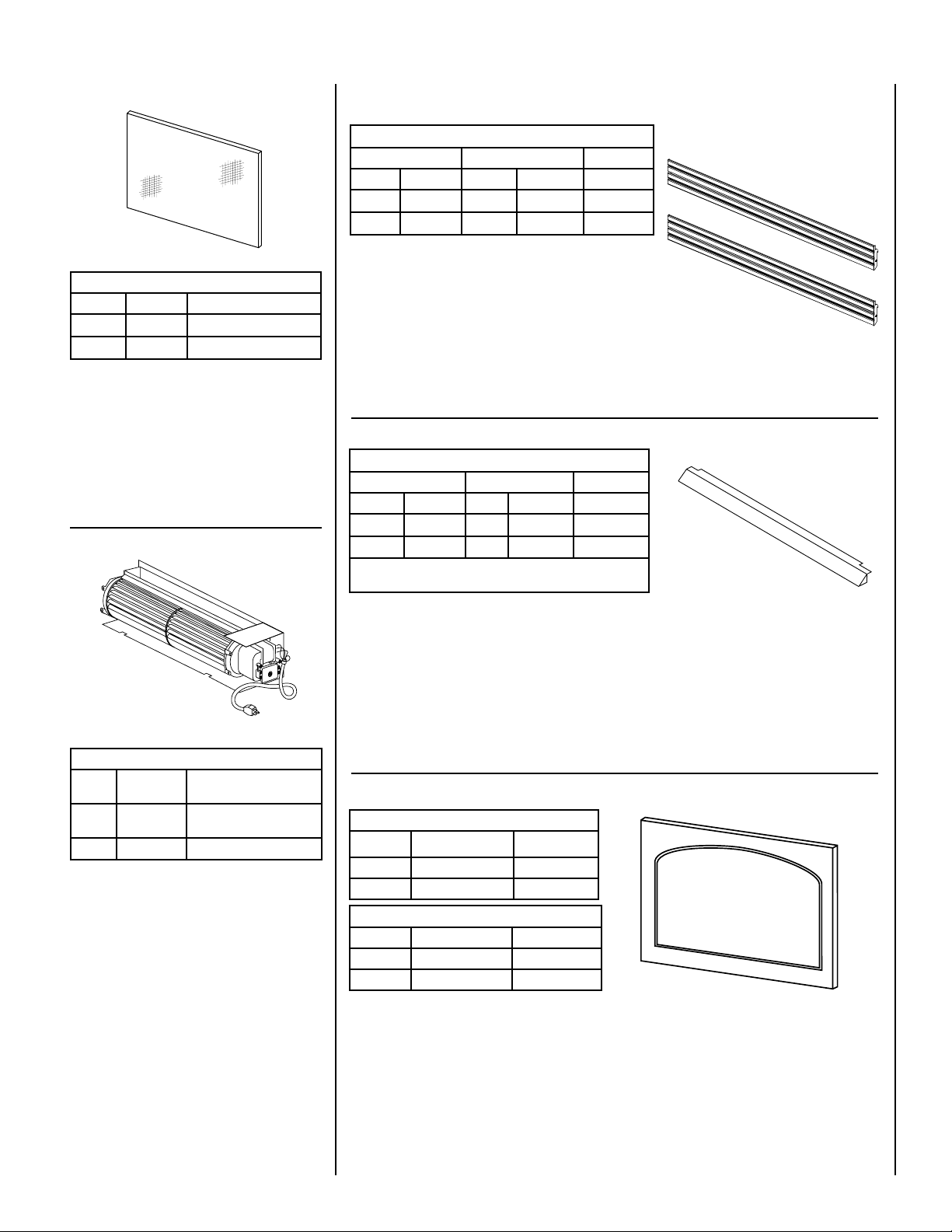

Accessory Components ...................................16

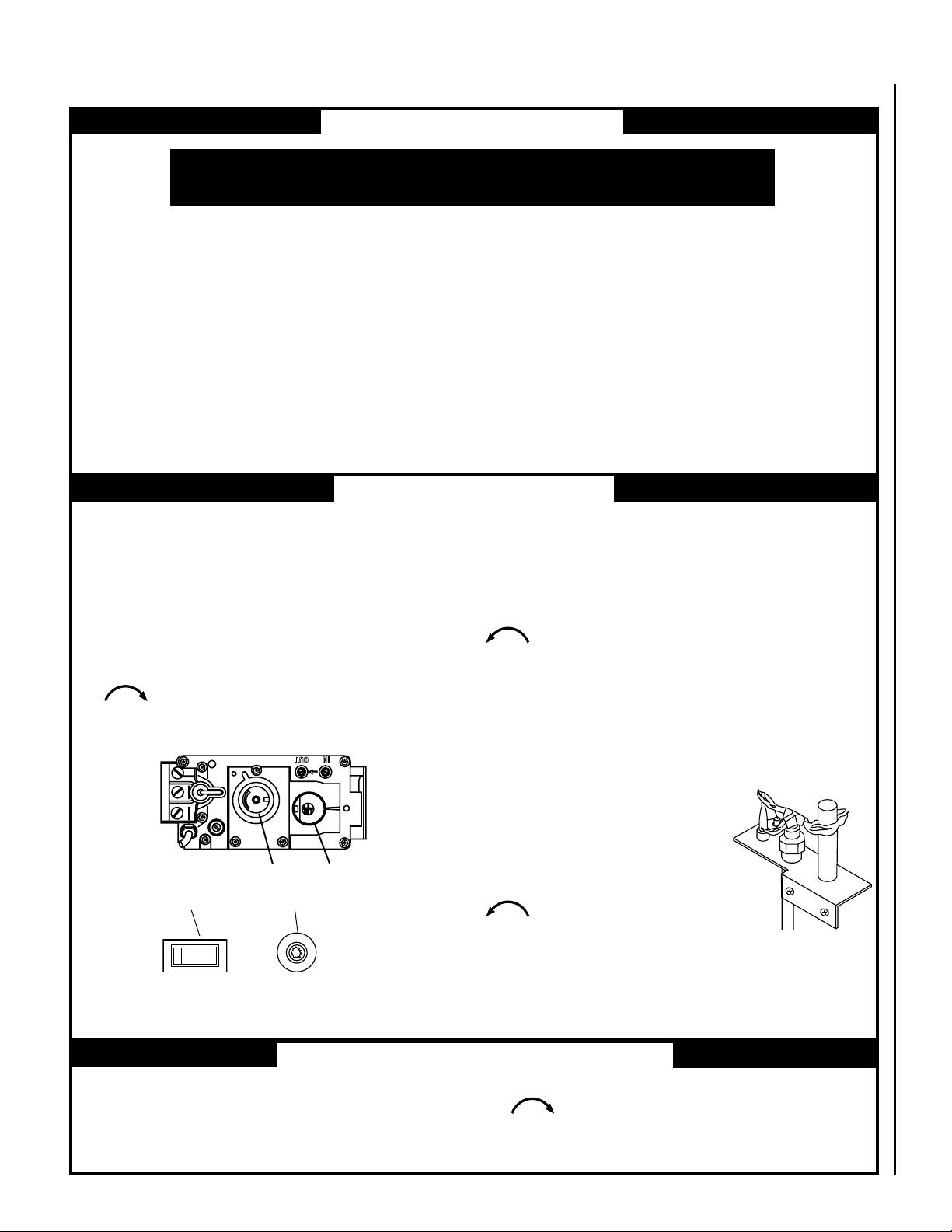

Lighting Instructions – Millivolt .............................19

Maintenance Schedule ....................................21

Troubleshooting Guide – Millivolt. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

SAFETY GUARD

The Lennox® SAFETY GUARD protects against

with the front glass surface of your ﬁreplace.

(Lennox Hearth Products / Owner Resources)

OFFER

•

Safety and

Your Fireplace

All parts of your Lennox

Hearth Products ﬁreplace

get EXTREMELY HOT!

 To prevent severe burns and injuries, install

a screen or physical barrier to prevent direct contact with the glass.

To order a FREE Lennox® SAFETY GUARD for your ﬁreplace, see details at left.

 Follow the safety instructions below

and be sure everyone in your household understands this burn hazard:

The surfaces on your ﬁreplace get • EXTREMELY HOT!

The glass on the front • of the ﬁreplace reaches EXTREMELY HIGH temperatures and can cause severe burns if touched.

Keep children away from an operating • ﬁreplace. Closely supervise children in any room where a ﬁreplace is operating to prevent contact with glass.

Keep clothing, furniture, • gasoline, and other ﬂammable liquids away from the ﬁreplace.

Even after the gas is turned off, ﬁreplace • surfaces remain extremely hot.

 Be sure to attach the enclosed Safety-in-

Operation Warnings where you turn on your

ﬁreplace, to help remind everyone of the dangers associated with high temperatures (see page 5).

 Read Important Safety Information on

page 4.

[FRENCH] [SPANISH]

La sécurité et

votre foyer

Toutes les parties de votre foyer

Lennox Hearth Products deviennent

EXTRÊMEMENT CHAUDES !

 Aﬁn d'éviter de vous brûler gravement ou de

vous blesser, installez une grille ou une barrière physique pour empêcher tout contact direct avec la vitre.

Pour commander un PANNEAU DE PROTECTION Lennox® GRATUIT pour votre foyer, consultez les détails dans la partie gauche.

 Suivez les instructions de sécurité ci-dessous

et veillez à ce que tous les membres de votre famille soient conscients du danger de brûlure encouru :

Les surfaces de votre foyer deviennent • EXTRÊMEMENT CHAUDES !

La vitre située à l'avant du foyer • atteint des températures EXTRÊMEMENT ÉLEVÉES et peut causer de graves blessures en cas de contact.

Tenez les enfants à l'écart du foyer lorsqu'il • fonctionne. Surveillez attentivement les enfants dans les pièces où un foyer est utilisé aﬁn d'éviter qu'ils ne soient en contact avec la vitre.

Tenez tous les vêtements, les • meubles, l'essence et tout autre liquide inﬂammable à l'écart du foyer.

Même après fermeture du gaz, les surfaces • du foyer restent extrêmement chaudes.

Seguridad y

su chimenea

¡Todas las partes de la chimenea

Lennox Hearth Products se ponen

MUY CALIENTES!

 Instale una malla o barrera física para evitar

el contacto directo con el vidrio y prevenir las quemaduras y lesiones graves.

Ver los detalles a la izquierda para ordenar un Lennox® SAFETY GUARD GRATIS para su chimenea.

 Siga las instrucciones de seguridad a

continuación y asegúrese de que todos en su hogar sepan acerca de este peligro de quemadura:

¡Las superﬁcies de la chimenea se ponen • MUY CALIENTES!

El vidrio delante de la chimenea alcanza • temperaturas EXTREMADAMENTE ALTAS y puede causar quemaduras graves si se toca.

Mantenga a los niños alejados de la • chimenea en funcionamiento. Supervise en forma cercana a los niños en cualquier cuarto donde haya una chimenea funcionando para impedir el contacto con el vidrio.

Mantenga la ropa, mobiliario, gasolina • y otros líquidos inﬂamables alejados de la chimenea.

Aún después de haber apagado el gas, • las superﬁcies de la chimenea permanecen extremadamente calientes.

 Veillez à coller les Étiquettes de mise en garde

relatives à la sécurité d'utilisation à l'endroit

où vous utilisez le foyer, pour rappeler à tous les utilisateurs les dangers liés aux températures élevées (voir page 5).

 Lisez la section Informations importantes

relatives à la sécurité, page 4.

 Asegúrese de colocar las Etiquetas de

advertencia de seguridad de operación en

el lugar donde enciende la chimenea, para que todos recuerden los peligros asociados con las altas temperaturas (ver la página 5).

 Lea la Información importante de seguridad

en la página 4.

Important Safety Information

L'information de sûreté importante

WARNING: Do not operate appliance with the glass front 1. removed, cracked or broken. Replacement of the glass should be done by a licensed or qualiﬁed service person .

Do not use this appliance if any part has been under water. 2. Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Due to 3. high temperatures, the appliance should be located out of trafﬁc and away from furniture and draperies.

Children and adults should be alerted to the hazards of 4. high surface temperature and should stay away to avoid burns or clothing ignition.

Clothing or other ﬂammable material should not be placed 5. on or near the appliance.

Young children should be carefully supervised when they 6. are in the same room as the appliance. Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children, and other at-risk individuals out of the room and away from hot surfaces.

Any safety screen or guard removed for servicing an 7. appliance must be replaced prior to operating the appliance.

Installation and repair should be done by a qualiﬁed 8. service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, et cetera. It is imperative that control compartments, burners, and circulating air passageways of the appliance be kept clean. See maintenance instructions on page 10.

AVERTISSEMENT. Ne pas utiliser l’appareil si le panneau frontal 1. en verre n’est pas en place, est craqué ou brisé. Conﬁez le remplacement du panneau à un technicien agréé

Ne pas utiliser cet appareil s’il a été plongé, même partiellement, 2. dans l’eau. Appeler un technicien qualiﬁé pour inspecter l’appareil et remplacer toute partie du système de commande et toute commande qui a été plongée dans l’eau.

En raison des températures élevées, l’appareil devrait être 3. installé dans un endroit où il y a peu de circulation et loin du mobilier et des tentures.

Les enfants et les adultes devraient être informés des dangers 4. que posent les températures de surface élevées et se tenir à distance aﬁn d’éviter des brûlures ou que leurs vêtements ne s’enﬂamment.

On ne devrait pas placer de vêtements ni d’autres matières 5. inﬂammables sur l’appareil ni à proximité.

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils 6. se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité ; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

Tout écran ou protecteur retiré pour permettre l’entretien de 7. l’appareil doit être remis en place avant de mettre l’appareil en marche.

L’installation et la réparation devrait être conﬁées à un technicien 8. qualiﬁé. L’appareil devrait faire l’objet d’une inspection par un technicien professionnel avant d’être utilisé et au moins une fois l’an par la suite. Des nettoyages plus fréquents peuvent être nécessaires si les tapis, la literie, et cetera produisent une quantité importante de poussière. Il est essentiel que les compartiments abritant les commandes, les brûleurs et les conduits de circulation d’air de l’appareil soient tenus propres. Voyez les instructions d’entretien à la page 10.

[SPANISH]

Información importante de seguridad

ADVERTENCIA: No opere el artefacto con el frente de vidrio quitado, 1. agrietado o roto. Un técnico de servicio licenciado o capacitado debe reemplazar el vidrio.

No use este artefacto si alguna de sus partes ha estado bajo agua. 2. Llame de inmediato a un técnico de servicio caliﬁcado para que inspeccione el artefacto y reemplace cualquier parte del sistema de control y cualquier control de gas que haya estado bajo agua.

Debido a las altas temperaturas, el artefacto debe situarse fuera 3. de las áreas de tráﬁco y lejos del mobiliario y cortinas.

Se debe alertar a los niños y adultos sobre los peligros de 4. las altas temperaturas en la superﬁcie y que se mantengan alejados para evitar quemaduras o ignición de la ropa.

No debe colocarse ropa u otros materiales inﬂamables 5.

sobre y cerca del artefacto.

Se debe supervisar de cerca a los niños cuando estén en el mismo 6. cuarto que el artefacto. Los niños pequeños, los jóvenes y otras personas pueden ser susceptibles a quemaduras por contacto accidental. Se recomienda instalar una barrera física si hay personas en riesgo en la casa. Para restringir el acceso a una chimenea o estufa, instale una puerta de seguridad ajustable para mantener a los niños pequeños, jóvenes y otras personas en riesgo fuera del cuarto y lejos de las superﬁcies calientes.

Cualquier malla o resguardo de seguridad quitado para dar servicio 7. a un artefacto, debe reinstalarse antes de operar el artefacto.

Una persona de servicio competente debe realizar la instalación y 8. reparación. Una persona de servicio profesional debe inspeccionar el artefacto antes de usar al menos una vez por año. Se puede requerir limpieza más frecuente debido a la pelusa excesiva del alfombrado, del material de cobijas, etc. Es imprescindible mantener limpios los compartimientos de control, los quemadores y los pasajes de circulación del aire del artefacto. Ver las instrucciones de mantenimiento en la página 10.

HOMEOWNER’S INSTRUCTIONS - ATTACHING SAFETY-IN-OPERATION WARNINGS

ATTACHING SAFETY-IN-OPERATION WARNINGS

Your ﬁreplace has been furnished with safety instruction labels that are to be afﬁxed to the operation and control point of the ﬁreplace. A safety instruction label should be afﬁxed to the wall switch plate where the ﬁreplace is turned on and off (See Figure A) or wall thermostat (See Figure B) and if used on the remote control handheld transmitter (Figure C). The warnings should already have been put in place when the ﬁreplace initial set-up was completed. If they are not afﬁxed at these spots, locate the multi-lingual adhesive labels provided with these instructions and proceed as follows:

1. Locate the wall switch or wall thermostat that controls the ﬁreplace (verify the switch operates the ﬁreplace by turning it on and off). Clean the wall switch plate or wall thermostat thoroughly to remove any dust and oils. Afﬁx the label to the surface of the plate of the wall switch that controls the ﬁreplace (Figure A) or the wall thermostat (Figure B). Choose the language primarily spoken in the home.

2. If a remote control is used to control the ﬁreplace, locate the transmitter and clean it thoroughly to remove any dust and oils. Afﬁx the label to the surface of handheld transmitter (Figure C). Choose the language primarily spoken in the home.

3. If you are unable to locate the labels, please call Lennox Hearth Products or your nearest Lennox Hearth Products dealer to receive additional safety instruction labels free of charge.

Cat. No. H8024 Replacement Label Kit

LENNOX HEARTH PRODUCTS 1-800-9-LENNOX

Note: English is red text on clear label. French and Spanish are white text on black label.

APPOSITION DES MISES EN GARDE RELATIVES À LA SÉCURITÉ D’UTILISATION

Votre foyer a été livré avec des étiquettes de sécurité qui doivent être collées à côté des dispositifs de contrôle du foyer. Une étiquette de sécurité doit être collée sur la plaque de l’interrupteur contrôlant l’allumage du foyer (voir Figure A) ou sur le thermostat mural (voir Figure B) et, le cas échéant, sur le boîtier de la télécommande (Figure C). Les mises en garde auraient dû être collées au moment de l’installation initiale du foyer. Si ce n’est pas le cas, prenez les étiquettes adhésives multilingues fournies avec ces instructions et procédez comme suit:

1. Repérez l’interrupteur ou le thermostat mural qui contrôle le foyer (vériﬁez que l’interrupteur contrôle le fonctionnement du foyer en le faisant basculer de Marche à Arrêt, et vice-versa). Nettoyez soigneusement la plaque murale de l’interrupteur ou le thermostat mural pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur la surface de la plaque de l’interrupteur mural qui contrôle le foyer (Figure A) ou du thermostat mural (Figure B). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire.

2. Si une télécommande est utilisée pour contrôler le foyer, nettoyez la soigneusement pour éliminer la poussière et les traces de graisse ou d’huile. Collez l’étiquette sur le boîtier de la télécommande (Figure C). Choisissez la langue qui est principalement parlée dans la résidence du propriétaire.

3. Si vous ne trouvez pas les étiquettes, veuillez appeler Lennox Hearth Products ou votre distributeur Lennox Hearth Products local pour recevoir gratuitement des étiquettes supplémentaires.

Étiquettes de remplacement, n° cat. H8024

LENNOX HEARTH PRODUCTS 1-800-9-LENNOX

Remarque : Le texte anglais est rouge sur un support transparent. Le texte français et espagnol est blanc sur un support noir.

COLOCACIÓN DE ADVERTENCIAS DE SEGURIDAD EN OPERACIÓN

Su chimenea incluye etiquetas de instrucciones de seguridad que deben colocarse en el punto de operación y control de la chimenea. Se debe colocar una etiqueta de instrucciones de seguridad en la placa del interruptor de pared desde el cual se enciende y se apaga la chimenea (ver la Figura A) o en el termostato de pared (ver la Figura B) y en el transmisor de control remoto (Figura C) si se usa. Las advertencias ya deben haberse colocado cuando se completó la instalación inicial de la chimenea. Si no están colocadas en estos lugares, encuentre las etiquetas adhesivas multilingües proporcionadas con estas instrucciones y prosiga de la siguiente manera:

1. Identiﬁque el interruptor o el termostato de pared que controla la chimenea (veriﬁque que el interruptor opera la chimenea encendiéndola y apagándola). Limpie bien la placa del interruptor o el termostato de pared para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie de la placa del interruptor que controla la chimenea (Figura A) o en el termostato de pared (Figura B). Seleccione el idioma que más se habla en la casa.

2. Si se usa un control remoto para controlar la chimenea, encuentre el transmisor y límpielo bien para quitar el polvo y aceite. Pegue la etiqueta en la superﬁcie del transmisor (Figura C). Seleccione el idioma que más se habla en la casa.

3. Si no puede encontrar las etiquetas, sírvase llamar a Lennox Hearth Products o al distribuidor de Lennox Hearth Products más cercano para recibir etiquetas de instrucciones de seguridad adicionales gratuitas.

Juego de etiquetas de repuesto - Nº de cat. H8024

LENNOX HEARTH PRODUCTS 1-800-9-LENNOX

Nota: La etiqueta en inglés es transparente con texto rojo. Las etiquetas en francés y español son negras con texto blanco.

Figure A

SAFETY LABEL

DIAGRAMS

DIAGRAMMES DES ÉTIQUETTES

DE SÉCURITÉ

Figure B

DIAGRAMAS DE ETIQUETAS

DE SEGURIDAD

Figure C

General Information

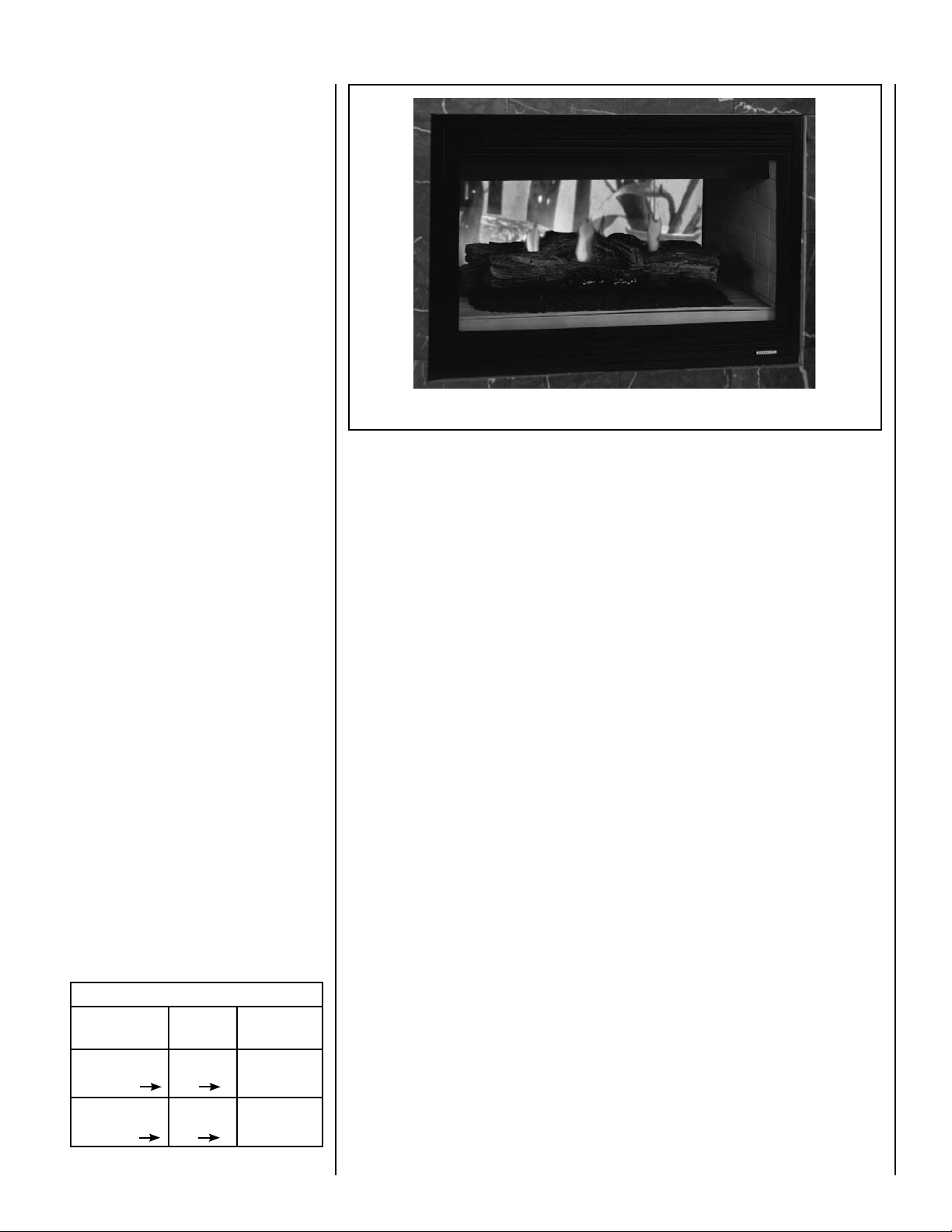

The ﬁreplace models covered in this manual are direct-vent sealed combustion gas ﬁreplace heaters designed for installation into manufactured homes and site built residential homes. These direct-vent appliances operate with the combustion chamber completely isolated from the indoor environment.

All air for combustion is brought in from the outside and exhaust gases are vented through the same direct-vent, co-axial (intake/exhaust) vent system.

These Millivolt appliances have a millivolt gas control valve with piezo ignition system. If an optional blower is installed on ﬁreplace, it will require electrical power to be installed at the time of appliance installation.

These appliances comply with National Safety Standards and are tested and listed by OMNI-Test Laboratories, Inc. (Report No.116F-32-5) to ANSI Z21.88 (in Canada, CSA-2.33), and CAN/CGA-2.17-M91 in both USA and Canada, as vented gas ﬁreplace heaters.

The Installation must conform to local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54-latest edition, or the Natural Gas and Propane Installation Code, CSA B149.1-latest edition. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1 - latest editions.

The vent termination is hot while in operation and for a period of time following the use of the ﬁreplace. Young children should be carefully supervised when they are in the same area as a hot termination. To prevent contact with hot surfaces, we recommend the use of a termination guard. See Page 18 for ordering information.

INSTALLATION, SERVICE, AND MAINTENANCE

IMPORTANT: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual.

For assistance or additional information, consult a qualiﬁed installer, service agency or the gas supplier.

Only trim kit(s) supplied by the manufacturer shall be used in the installation of this appliance.

Draft relief openings must not be covered or blocked.

These appliances must not be connected to a chimney or ﬂue serving a separate solid fuel burning appliance.

Any change to this appliance and/or its operating controls is dangerous.

Improper installation or use of this appliance can cause serious injury or death from ﬁre, burns, explosion or carbon monoxide poisoning.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning are similar to the ﬂu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance and have it serviced by a qualiﬁed professional, as it may not be operating correctly. Some people

are more affected by carbon monoxide than others, including pregnant women, people with heart or lung disease or anemia, those under the inﬂuence of alcohol, and those at high altitudes.

Turn off gas and electrical power to the ﬁreplace and allow it to cool before cleaning or servicing the appliance.

OPERATION

These appliances are designed to operate on natural gas or propane gas only. The use of other fuels or

combinations of fuels will degrade the performance of this system and may be dangerous.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front

openings of the appliance. Do not use this appliance if any part has

been under water. Immediately call a

qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water.

WARRANTY

Failure to comply with the installation and operating instructions provided will result in an improperly installed and operating appliance, voiding its warranty.

Do not attempt to alter or modify the construction of the appliance or its components. Any modiﬁcation or

alteration may void the warranty, certiﬁcation, and listings of this unit.

These ﬁreplaces are designed as supplemental heaters. Therefore, it is advisable to have an alternate primary heat source when installed in a dwelling.

These appliances must not be connected to a chimney or ﬂue serving a separate solid fuel burning appliance.

Do not operate appliance with the glass front removed, cracked, or broken.

These ﬁreplaces are vented gas appliances. Do not burn wood or other

material in these appliances. This appliance is only for use with the

type of gas indicated on rating plate.

This appliance is not convertible for use with other gases, unless a certiﬁed kit is used.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Millivolt Models - BTU Input

Millivolt models come standard with the manually-modulated gas valve; ﬂame appearance and heat output can be controlled at the gas valve. The BTU Input for millivolt models is shown in Table 1.

Input (BTU) Manually-Modulated Gas

Valves (millivolt)

Models Fuel Type Input Rate

(BTU / HR)

SDVST SDVPF

Natural or

Propane Gas

37,500 high

30,000 low

Table 1

Gas Pressure Tables 2 and 3 show the appli-

ances' gas pressure requirements.

Inlet Gas Supply Pressure

(all models - millivolt)

Fuel # Minimum Maximum

Natural Gas

Propane

5.0" WC

(1.24 kPa)

11.0" WC

(2.74 kPa)

10.5" WC

(2.61 kPa)

13.0" WC

(3.23 kPa)

Table 2

Manifold Gas Supply Pressure

(all models - millivolt)

Fuel # Low High

Natural

Gas

Propane

(Lo) 2.2" WC

(.55 kPa)

(Lo) 6.3" WC

(1.57 kPa)

(Hi) 3.5" WC

(.87 kPa)

(Hi) 10.0" WC

(2.49 kPa)

Table 3

Test gauge connections are provided on the front of the millivolt gas control valve, identiﬁed IN for the inlet and OUT for the manifold side (see Figure 3 on Page 9).

These appliances must be isolated from the gas supply piping system (by closing their individual manual shut-off valve) during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).

These appliances and their individual shut-off valves must be disconnected from the gas supply piping system during any pressure testing of that system at pressures greater than 1/2 psig (3.5 kPa).

Oriﬁce Sizes - Sea Level to High Altitude (All Models)

These appliances are tested and approved for installation at elevations of 0-4500 feet (0-1372 meters) above sea level using the standard burner oriﬁce sizes (marked with an "*" in Table

4). For elevations above 4500 feet, contact your gas supplier or qualiﬁed service technician.

Deration - At higher elevations, the amount of BTU fuel value delivered must be reduced by either:

• Using gas that has been derated by the gas

company.

• Changing the burner orice to a smaller size

as regulated by the local authorities having jurisdiction and by the (USA) National Fuel Gas Code NFPA 54/ANSI Z223.1 - latest edition or, in Canada, the CAN/CSA-B149.1 codes - latest edition.

Burner Oriﬁce Sizes

Elevation 0-4500 feet ( 0-1372 meters)

Elevation

Feet (meters)

0-4500

(0-1372)

Table 4

Natural Gas

drill size (inches)

#44 (.086") *

60J80•

* Standard size installed at factory ** Standard size in LP conversion kit

•Part/Cat.Number

Propane

Gas

drill size (inches)

#55 (.052")**

19L52•

Burn-in Period

During the ﬁrst few ﬁres of this appliance there will be some odor due to the curing of the paint and burning off of lubricants used in the manufacturing process. Depending on your use, the burn-in period may take a few hours or a few days.

KEEP YOUR HOUSE WELL VENTILATED DURING THE CURING PROCESS. THE ODOR AND HAZE EMITTED DURING THE CURING PROCESS CAN BE QUITE NOTICEABLE AND MAY SET OFF A SMOKE DETECTOR.

If an optional blower is installed, Do Not turn it on during the Burn-In period.

A white ﬁlm may develop on the glass front during the ﬁrst few ﬁres as part of the curing process. The glass should be kept clean during the ﬁrst two weeks of use to prevent the ﬁlm from baking on (making it very difﬁcult to remove). See Cleaning Glass on Page 10.

Install the appliance according to the regulations of the local authorities having jurisdiction and, in the USA, the National Fuel Gas Code NFPA 54 / ANSI Z223.1 - latest edition or, in Canada, the CAN/CSA-B149.1 - latest edition.

NOTE: Flame appearance will diminish 4% per thousand feet.

NOTE: Each model has two burners and 2 Oriﬁces.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

OPERATION AND CARE OF YOUR APPLIANCE

WARNING

Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a ﬁreplace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.

AVERTISSEMENT

Les jeunes enfants devraient être surveillés étroitement lorsqu’ils se trouvent dans la même pièce que l’appareil. Les tout petits, les jeunes enfants ou les adultes peuvent subir des brûlures s’ils viennent en contact avec la surface chaude. Il est recommandé d’installer une barrière physique si des personnes à risques habitent la maison. Pour empêcher l’accès à un foyer ou à un poêle, installez une barrière de sécurité; cette mesure empêchera les tout petits, les jeunes enfants et toute autre personne à risque d’avoir accès à la pièce et aux surfaces chaudes.

On millivolt systems, the piezo igniter, HI/LO ﬂame adjustment knob, and pilot and main gas OFF/PILOT/ON control knob are located below the glass panel enclosure. See Figures

1 through 3.

Reinstalling Control Compartment Door:

To reinstall, insert the hook catches on each side of the door into the corresponding slots in the control compartment opening, then gently push forward and slide down until it

locks in place.

The standard controls for appliance operation are located behind the lower louvered control compartment door located below the appliance front glass enclosure panel (see Figures 1 and

2). Optional control switches are also available (see Page 16 - Rocker Switch, Remote Wall

Switch, Remote Control, Unit Mounted Rocker Switch or Wall Thermostat).

Before lighting and operating your appliance familiarize yourself with the gas control valve that your appliance uses. Refer to Figures 1 through 3.

Glass Door is Above

Control Compartment

Latch for

Glass Door

Figure 1

OPENING CONTROL COMPARTMENT DOOR

Control Valve

Figure 2

Control Compartment Access

Optional ON/OFF Switch Can be Installed Here

Lift the Lower Control Compartment Door up and pull out to remove.

Hook Catch

Out

Lower Control Compartment Door

HI/LO (ﬂame height

control knob)

GAS CONTROLS/CONTROL COMPARTMENT ACCESS

The gas controls can be found behind the control compartment access door.

NOTE: The top louvered panel and the bottom louvered control compartment door will remove and install the same way as follows:

Removing Control Compartment Door:

Open the door by gently lifting it upward until the hook catches on both sides clear the locating slots. Then pull door out to remove.

OFF/PILOT/ON (gas control knob)

Gas Shut-Off

Gas Flex-line

Gas Valve

Piezo Igniter

To light millivolt appliances refer to the detailed lighting instructions found on Page 19 . Millivolt

appliance lighting instructions may also be found on the pull out lighting instruction labels attached to the gas control valve.

Once the pilot is lit, the main burner may be turned ON and OFF using a wall switch, remote control, optional on unit rocker switch (FRS), or wall thermostat. To operate: Toggle the switch between its ON and OFF positions.

If your millivolt appliance is equipped with an optional remote switch kit (wall switch, remote control, rocker switch, or wall thermostat) and the pilot is lit, the appliance main burner may be turned on and off using the optional switch.

Note: To prevent excessive resistance in burner circuit (which can cause burner operation problems), only one burner control switch should be wired to valve.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

HTPTHTPT

OUT

SIT Millivolt Gas Valve

HI/LO Variable Flame Height Adjustment

Manifold Pressure Tap

Inlet Pressure Tap

Variable Flame Height Adjustment (Millivolt Appliances)

All Millivolt appliances are equipped with a variable gas control valve. Flame height for these models may be adjusted through a range between ﬁxed low and high settings while the appliance is in operation. Adjust the ﬂame height as desired after lighting the appliance by rotating the variable adjustment control knob (HI/LO) located on the front of the valve (refer to Figure 3).

Pilot Adjustment Screw

Figure 3

Main Gas

Control Knob

OFF/PILOT/ON

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

MAINTENANCE

(See Maintenance Schedule, Page 21)

Refer to the maintenance schedule for maintenance tasks, procedures, frequency and by whom they should be performed. Always verify proper operation of the appliance after servicing.

WARNING

Turn off gas and electrical power to the ﬁreplace and allow it to cool before cleaning or servicing the appliance.

CAUTION: Wear gloves and safety glasses for protection while doing required maintenance.

Verify proper operation after servicing.

S'assurer que l'appareil fonctionne adéquatement une fois l'entretien terminé.

Always turn off gas to the pilot (millivolt appliances) before cleaning. Before relighting, refer to the lighting instructions in this manual. Instructions are also found on a pull-out panel located in the control compartment.

Inspect Venting System

The appliance and venting system should be thoroughly inspected before initial use and at least annually by a qualiﬁed service technician (inspection should include ensuring that exhaust or intake passages are unobstructed and vent components are properly assembled and not damaged). Homeowner must contact

a qualiﬁed service technician at once if any abnormal condition is observed.

If the venting system is disassembled for any reason, a qualiﬁed service technician should follow vent installation instructions for proper reassembly and proper sealing of the venting system components. However, more frequent periodic inspections and cleanings should be performed by the homeowner.

Cleaning Glass

(see Front Glass Enclosure Panel, Removal and Installation on Page 11).

Note: Clean glass after ﬁrst two weeks of operation (after Burn-In period is over) and then only when necessary and when the ﬁreplace is cool. Wipe surface with clean, dampened, soft cloth. Follow with a dry, soft towel as desired. Take care not to scratch the glass surface.

IMPORTANT: Do not use abrasive cleaners on glass. Never clean the glass when it is hot.

The viewing glass should be cleaned periodically to remove any build-up caused from the following:

• During start-up, it is normal for condensation to form on the inside of the glass (this condensation and fog will usually disappear in a few minutes). The moisture can cause lint, dust and other airborne particles to cling to the glass surface.

• Initial curing of the high temperature paint

and burning off of lubricants used in the manufacturing process may result in a ﬁlm on the glass.

• A white coating may form on the glass as

a result of impurities and minerals in the fuel.

It is recommended that the glass be cleaned two or three times during each heating season, depending on the circumstances present. The following cleaning solutions are approved for use to clean glass:

• Non-ammonia based household cleaner

• 50%-50% mix of white vinegar & water

• gas replace/stove glass cleaner

Inspect Glass Gasket - Visually inspect the gasket on the backside of the glass enclosure panels. The gasket surface must be clean, free of irregularities and seated ﬁrmly.

Clean Lower Control Compartment

Keep control compartment clean by vacuuming or brushing at least twice a year. More frequent cleaning may be required due to excessive lint from carpeting, bedding materials, etc. It is important that control compartments, burners and circulating air passageways of the appliance be kept clean.

Clean Logs And Burner

Carefully remove the logs (use care when handling the ﬁber logs, as they become quite fragile after curing). Vacuum out any foreign matter (lint, carbon, etc.) on the burner. Ensure the burner ports are “open.” Remove any carbon deposits from the under side of the logs using a vacuum cleaner, or a soft bristled brush (i.e. paint brush).

Replacing Logs

If the logs become damaged by accident or improper handling and need replacement, use only the proper replacement logs from manufacturer (see Page 23 for ordering information).

Re-Install Embers, Logs and Volcanic Stone

Carefully follow placement instructions on Page

12. All logs should ﬁt onto corresponding pins

and/or log stoppers. This will ensure a proper ﬂame and safe combustion.

Inspect Wiring

Refer to wiring diagrams on Page 15.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

ATTENTION: Au moment de l'entretien des commandes, étiquetez tous les fils avant de les débrancher. Des erreurs de cáblage peuvent entraîner un fonctionnement inadéquat et dangereux.

Inspect and clean all wire connections. Ensure that there is no melting or damage. Inspection should include:

• Terminals at the Valve

• OFF/ON Switch

• (Optional Control Switch) Wall Thermostat,

Remote Control or Remote Wall Switch Kit

Inspect Burner Flame Appearance

Ensure that the burner flame appearance resembles the ﬂame shown in Figures 5 and 9 on Pages 12 and 13 and as described in Flame Appearance and Sooting on Page 13. The Homeowner must contact a qualiﬁed service technician at once if any abnormal condition is observed.

Small Area Paint Touch-up

Only use a factory supplied paint kit for touch-ups. Paint is available at your local authorized LHP dealer. Never attempt to paint a hot ﬁreplace.

If the surface later becomes stained or marred, it may be lightly sanded and touched up with spray paint.

Note: Improper positioning of logs can create carbon build-up and will alter the performance of the appliance.

Front Glass Enclosure Panel, Removal and Installation

WARNING

• Do not attempt to substitute the

materials used on this door, or replace cracked or broken glass.

• Handle this glass with extreme

care! Glass is susceptible to damage – Do not scratch or handle roughly while reinstalling the glass door frame.

• The glass door of this appli-

ance must only be replaced as a complete unit as provided by the manufacturer. Do not attempt to replace broken, cracked or chipped glass separately.

• Do not attempt to touch the

front enclosure glass with your hands while the ﬁreplace is in use.

WARNING

Do not operate appliance with the glass front removed, cracked or broken.

AVERTISSEMENT

Ne pas utiliser l'appareil si le panneau frontal en verre n'est pas en place, est craqué ou brisé.

WARNING

Any safety screen or guard removed for servicing the appliance must be replaced prior to operating the appliance.

AVERTISSEMENT

Tout écran ou protecteur retiré pour permettre l’entretien de l’appareil doit être remis en place avant de mettre l’appareil en marche.

Only doors certiﬁed with the appliance shall be used.

Seules des portes certiﬁées pour cet appareil doivent être utilisées.

CAUTION: DO NOT abuse glass door by striking or slamming shut.

These are direct-vent appliances. They are designed to operate only when the front glass enclosure panels are installed. Generally the front glass enclosure panel should not be removed except to gain access to the components

within the ﬁrebox.

Removing Glass Enclosure Panels (see Figure 4)

1. Remove the top louver assembly the control compartment louver assembly by lifting them up, then pulling out (see removal instructions on Page 8).

2. Remove the control compartment access door (see removal instructions on Page

8).

3. Locate the two (2) latches at the top of the control compartment. To disengage the two latches from the bottom vee-ﬂange of the glass enclosure panel, reach for the handles located towards the back of the latches and pull the handles down toward the front of the appliance.

4. Swing the bottom of the door out and raise it slightly to lift the top ﬂange of the door frame away from the appliance.

Installing Glass Enclosure Panels (see Figure 4)

1. Visually inspect the gasket on the backside of

the panels. The gasket surface must be clean, free of irregularities and seated ﬁrmly.

2. Position the glass enclosure panel in front of the ﬁrebox opening at a 45 degree angle and engage the top ﬂange over the lip at the top of the ﬁrebox opening.

3. Swing the glass enclosure panel down and back. Ensure the gasket seats evenly as the panel draws shut. Engage the Vee-ﬂange at the bottom of the panel with the latches and close the latches to secure the panel.

4. Reinstall the control compartment door (see installation instructions on Page 8,

Reinstalling Control Compartment Door).

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Top Flange on

Glass Door

Bottom Vee-ﬂange

Glass Door

Glass Door Latch

Note: When installing the glass door, ensure the spacing on both sides are equal.

Figure 4

INSTALLING OR REMOVING GLASS DOOR

INSTALLING LOG SET, VOLCANIC STONE AND GLOWING EMBERS

Firebox Floor

WARNINGS

• DO NOT attempt to install the

logs until the appliance installation has been completed, the gas line connected and tested for leaks and the initial burner operation has been checked out. The size and position of the log

•

set was engineered to give the appliance a safe, reliable and attractive ﬂame pattern. Any attempt to use a different log set in the ﬁreplace will void the warranty and will result in incomplete combustion, sooting, and poor ﬂame quality. Logs get very hot and will

•

remain hot up to one hour after gas supply is turned off. Handle only when logs are cool. Turn off all electricity to the appliance before you install grate, volcanic stone, embers and logs.

FRONT OF FIREPLACE

REAR BURNER

FRONT BURNER

Outer Log

Notch Location

FIREBOX SUBFLOOR

Outer Log

Notch Location

Outer Log

Notch Location

Outer Log

Notch Location

Riser - Inner Log

Notch Location

LOG NOTCH LOCATION RELATIVE TO BURNER

Pilot Assembly

Riser - Inner Log

Notch Location

NOTE: INSTALL REAR BURNER FIRST,

THEN FRONT BURNER.

BURNER POSITIONING

REAR BURNER

FRONT BURNER

PILOT

BURNER

Note: The burners are not identical. Position them so that the circular burner ports run as shown. Note especially the vertical run of ports relative to the pilot burner. Bracket A on the rear burner will interfere with the pilot burner if an attempt is made to install the rear burner in the front burner’s position.

BRACKET A

BURNER

PORTS

NOTE: INSTALL REAR BURNER FIRST,

THEN FRONT BURNER.

WARNINGS

• This appliance is not designed

to burn wood. Any attempt to do so could cause irreparable damage to appliance and prove hazardous to your safety. If logs are not installed accord-

•

ing to the log installation instructions, ﬂame impingement and improper combustion could occur and result in soot and/or excessive production of carbon monoxide (CO), a colorless, odorless, toxic gas.

Burner / Grate Location Reference (see Figures 5 to 8)

Note: If the burners have been removed for any reason, rear burner must be installed before front burner. See Figures 7 and 8.

Install the decorative volcanic stone and glowing embers (rockwool):

Spread the decorative volcanic stone on the simulated brick ﬂoor of the ﬁrebox around the burners to simulate ashes. Maintain a 1/2 inch (13 mm) gap between the bottom of the horizontal grate section and the top of the pile of decorative volcanic stone. Place a few quarter-sized pieces of the glowing ember material on the pan burner in front of the burned out area on both sides of the log set. The glowing embers may touch one another, but should not overlap each other.

Install the unitized log set:

a. The bottom of the log set is notched to ac-

commodate the pilot.

b. Place the log set so that the four inner

notches on the underside of the log set ﬁt over the four risers located on the burner ends. See Figures 5, 7 and 8. This procedure is accomplished primarily by feel, as the log set masks the burner risers as it is being installed.

c. As a ﬁnal check for correct log set placement,

check that the four outer notches on the underside of the log set ﬁt over the burner tines as indicated in Figures 5, 7 and 8.

Glowing Embers

Separate into Quarter

Size (separate) Pieces

Bag of Glowing

Embers (rockwool)

Figure 6

REFERENCE

Firebox Accessories / Parts

Cat. No. Model No. Description

88L53 FGE Bag of Glowing Embers

80L42 FDVS

Bag of Decorative Volcanic Stone

Figure 7

Figure 8

Proper Burner Flame Appearance

Figure 5

Unitized Log Set

Volcanic Stone

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

BURNER ADJUSTMENTS

(QUALIFIED TECHNICIANS ONLY)

Flame Appearance and Sooting

Proper ﬂame appearance is a ﬂame which is blue at the base and becomes yellowish-orange in the body of the ﬂame. When the appliance is ﬁrst lit, the entire ﬂame may be blue and will gradually turn yellowish-orange during the ﬁrst 15 minutes of operation. After 15 minutes of operation, if the ﬂame is blue, or if the ﬂame is orange with evidence of sooting (black tip), the air shutter opening may need to be adjusted.

If the air shutter openings are closed too far, sooting may develop. Sooting is indicated by black puffs developing at the tips of very long orange ﬂames. Sooting results in black deposits forming on the logs, appliance inside surfaces and on exterior surfaces adjacent to the vent termination.

Sooting is caused by incomplete combustion in the ﬂames and lack of combustion air entering the air shutter opening. To achieve a warm yellowish-orange ﬂame with an orange body that does not soot, the shutter opening must be adjusted between these two extremes.

Figure 9 - Burner Flame Appearance

Air Shutter Adjustment Guidelines

• If there is smoke or soot present, rst

check the log set positioning to ensure that the ﬂames are not impinging on any of the logs. If the log set is properly positioned and a sooting condition still exists, then the air shutter opening should be increased.

• The more offsets in the vent system, the larger the air shutter opening will need to be.

• An appliance operated with the air shutter

opened too far, may have ﬂames that appear blue and transparent. These weak, blue and transparent ﬂames are termed anemic.

• Propane models may exhibit ﬂames which candle or appear stringy. If this is present and persists, adjust the air shutter to a more open position, then operate the appliance for a few more minutes to ensure that the ﬂame normalizes and the ﬂames do not appear sooty.

The following chart is provided to aid you in achieving the correct air shutter adjustment for your installation.

Air Shutter Adjustment Guidelines:

Amount of

Primary Air

If air shutter is closed too far

If air shutter is open too far

Flame

Color

Flame will be orange

Flame will be blue

Air Shutter

Adjustment

Air shutter gap should be increased

Air shutter gap should be decreased

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Air Shutter

Adjusting

Rod

Air Shutter

Adjusting

Arms

Orifice

Increase Shutter Opening In This

Direction

Decrease Shutter

Opening In This

Direction

Air Shutter

Opening

Burner

Venturi

Tube

Burner Air Shutter Adjustment Procedure

WARNINGS

• Air shutter adjustment should only be performed by a qualified professional service technician.

• Ensure front glass panel are in place and sealed during adjustment.

CAUTIONS

• Soot will be produced if the

air shutter is closed too much. Any damage due to carboning resulting from improperly setting the air shutter is not covered under the warranty.

• The air shutter door and nearby

appliance surfaces are hot. Exercise caution to avoid injury while adjusting ﬂame appearance.

1. Locate adjustment rod and adjust air shutter

to the standard setting as shown in Figure 10 (adjustment rod is located in the lower

control area).

Note: Rotating the adjustment rod coun-

terclockwise decreases air and clockwise increases air.

2. Light appliance (follow lighting procedure

on lighting label in control compartment or see care and operation manual).

3. Allow the burner to operate for at least 15 min-

utes while observing the ﬂame continuously to ensure that the proper ﬂame appearance has been achieved (see Figures 5 and 9 on Pages 12 and 13). If the following condi- tions are present, adjust accordingly.

• If ame appears weak or sooty, adjust

the air shutter, incrementally, to a more open position until the proper ﬂame appearance is achieved.

• If ame stays lowered blue, adjust the

air shutter, incrementally, to a more closed position until the proper ﬂame

appearance is achieved.

4. Leave the control knob (off/pilot/on) in the

ON position (and the optional switches, if installed - wall switch, remote control or wall thermostat).

5. When satisﬁed that the burner ﬂame appear-

ance is normal, re-install the lower control compartment door.

***Main Burner Factory Air Shutter

Opening Setting - All Models

Natural Gas

inches (mm)

* TWO 1/8 (3) Slots ** TWO 11/16 (17) Slots

Adjustment Rod Positions, viewed from above: * Natural Gas - fully clockwise ** Propane- fully counter clockwise ***Settings are shown for each burner.

Note - Both air shutters open and close simultaneously when the air shutter adjusting rod is moved.

Burners are omitted in this view for clarity.

Propane Gas

inches (mm)

Figure 10

Millivolt Appliance Checkout

The pilot ﬂame should be steady, not lifting or ﬂoating. Flame should be blue in color with traces of orange at the outer edge.

The top 3/8" (10 mm) at the pilot generator (thermopile) and the top 1/8" minimum (tip) of the quick drop out thermocouple should be engulfed in the pilot ﬂame. The ﬂame should project 1" (25 mm) beyond the hood at all three ports. See Figure 11.

To light the burner, refer to the lighting instructions on Pages 19 and 20.

MILLIVOLT PILOT ASSEMBLY

Proper Pilot Flame Appearance

Hood

Thermocouple

Pilot Nozzels

Thermopile

Figure 11

Ref. Air shutter Patent: U.S. Pat. 5,553,603

Igniter Rod

3/8" Min.

(9 mm)

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

WARRANTY

1. If any of the original wire as supplied must be replaced,

1. it must be replaced with Type AWM 105°C – 18 GA. wire.

2. 120V, 60Hz – Less than 3 amps.

Wiring Diagram

Showing the Blower Wiring for the Optional FBK-100 Kit

Factory Wired

Field Wired

Schematic Representation Only

Junction Box

Tab Intact

Tab Broken

Plug blower into this receptacle

neerG - dnuor

*Optional Accessory Switch

Optional Blower

Ground

etihW - lartueN

120 VAC - Black

Green Ground Screw

White

Green

Neutral Side of Receptacle

Hot Side of Receptacle

Red

Black

*J-BOX WIRING FOR OPTIONAL (BLOWER CONTROL) ACCESSORY SWITCH

�

Your gas appliance is covered by a limited twenty year warranty. You will ﬁnd a copy of the warranty accompanying this manual. Please read the warranty to be familiar with its coverage.

Retain this manual. File it with your other documents for future reference.

REPLACEMENT PARTS

A complete parts list is found at the end of this manual. Use only parts supplied from the manufacturer.

With proper care and maintenance, your appliance will provide many years of enjoyment. If you should experience any problem, ﬁrst refer to the troubleshooting guide in this manual. If problem persists, contact your LHP dealer or distributor.

Normally, all parts should be ordered through your LHP distributor or dealer. Parts will be shipped at prevailing prices at time of order.

When ordering repair parts, always give the following information:

1. The model number of the appliance.

2. The serial number of the appliance.

LHP 1508 Elm Hill Pike, Suite 108 Nashville, TN 37210 visit us at www.Lennox.com 1-800-9-LENNOX

PRODUCT REFERENCE INFORMATION

3. The part number.

4. The description of the part.

5. The quantity required.

6. The installation date of the appliance.

If you encounter any problems or have any questions concerning the installation or ap-

We recommend that you record the following important information about your ﬁreplace. Please call LHP for the phone number of your nearest LHP dealer who will answer your questions or address your concerns.

plication of this system, please contact your dealer or distributor.

Your Fireplace's Model Number ___________________________________________ Your Fireplace's Serial Number ___________________________________________ The Date On Which Your Fireplace Was Installed ______________________________ The Type of Gas Your Fireplace Uses _______________________________________ Your Dealer's Name ___________________________________________________

WIRING DIAGRAMS

Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance on a pullout panel located within the control compartment.

* Twist wires together to operate unit solely by manipulating the gas valve control knob; or connect wires to optional wall switch, remote control or wall thermostat to operate unit.

•If anyoftheoriginalwireassuppliedmustbereplaced,it mustbereplacedwithType

AWM 105 C - 18 gage wire.

* Optional Kits Installed - ON/OFF wall switch or remote control receiver or wall thermostat.

Figure 12- Millivolt Wiring Diagram

* Optional Control Switch

CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS APPLIANCE OPERATION.

Thermopile

Schematic Representation Only

Field Wired

Factory

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Wired

ATTENTION : AU MOMENT DE L'ENTRETIEN DES COMMANDES, ÉTIQUETEZ TOUS LES FILS AVANT DE LES DÉBRANCHER. DES ERREURS DE CÁBLAGE PEU-VENT ENTRAÎNER UN FONCTIONNEMENT INADÉQUAT ET DANGEREUX.

Figure 13 - Blower Wiring Diagram

ACCESSORY COMPONENTS

PRODUCT REFERENCE INFORMATION

Cat.

No.

H4633 SDVST-N 282 lbs 52W x 27D x 44 1/2H

H4634 SDVPF-N 270 lbs 52W x 27D x 44 1/2H

Model Ship

Wt.

Ship.

Volume

(36.2 cu.ft).

Standard Remote Control System

Digital Wall Thermostat

The wall thermostat kit provides temperature control for optimum comfort.

Wall Thermostat, Millivolt

Cat. No. Model No. Description

H4635 DWTK Wall Thermostat Kit,

White

The Model RCL (Standard) Remote Control System, features a simplistic OFF/ON control function for the ﬁreplace. This model includes a hand-held transmitter, a remote receiver with wall-mount cover plate and all hardware required to install the unit. The remote receiver can be wall or hearth mounted.

The transmitter has ON and OFF functions that are activated by pressing either button on the face of the transmitter. When a button on the transmitter is pressed, a signal light illuminates brieﬂy to verify that a signal has been sent.

The Model RCL is designed to operate with all millivolt ignition systems, as well as electronic ignition systems. It may be installed with use for either natural gas or propane gas appliances. The RCL offers ease of installation and allows you to execute on-off commands to the ﬁreplace effortlessly with one simple motion.

The Model RCL comes complete with detailed operating instructions.

Remote Control Kit, Standard

Cat. No. Model No. Description

H0249 RCL Remote Control System

(Standard)

(ref. Form # 750,127M)

Deluxe Remote Control System

The Model RCL-T (Deluxe) Remote Control System has all of the features of the standard system along with an added easy to read LCD screen which presents access to many enhancements, including; battery power level indicator, timer, mode of operation, thermostatic display including room temperature in either metric of English units, ﬂame indicator and clock. Fully programmable, the Model RCL-T allows for virtual command over nearly all operational and temperature variables, using the hand held remote control transmitter.

The Model RCL-T (Deluxe) remote control system is installed in the same manner as the standard system, may be operated with electronic and millivolt systems with either natural gas or propane gas. The RCL-T comes complete with detailed operating instructions.

Remote Control Kit, Deluxe

Cat. No. Model No. Description

H0251 RCL-STAT Remote Control System

(Deluxe)

(ref. Form # 750,129M)

Unit-Mountable Rocker Switch

This rocker switch kit can be installed directly in the gas valve mounting bracket (millivolt gas valve equipped ﬁreplaces) to provide On/Off operation in lieu of a wall switch.

Rocker Switch Kit

Cat. No. Model No. Description

80L41 FRS Rocker Switch Kit

(ref. Form # 750,037M)

OFF/ON Wall Switch Kit

The OFF/ON wall switch kit may be used to control the operation of the ﬁreplace burner or blower. Install the OFF/ON wall switch in a convenient location near the ﬁreplace.

White Wall Switch Kit

Cat. No. Model No. Description

85L87 FWSK OFF/ON Wall Switch Kit

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Variable Speed Wall Switch

Provides variable speed control if optional blower kit is purchased.

Variable Speed Wall Switch

Cat. No. Model No. Description

045571H VSWS Variable Speed Switch

Barrier Screen Panel Kits

Cat. No. Model No. Models Where Used

26M49 HG40M

98K74 HG24

(ref. Form # 750,101M)

40 inch Wide Glass Door

24 Inch Wide Glass Door

Barrier Screen Panel Kit

This easy to install optional screen panel installs over the standard glass enclosure panel and provides a barrier to prevent direct contact with the hot glass surface. These screen panels cannot be used in conjunction with the arch door kits or door frame kits.

* Assembled 8-Piece Louver Kits

Polished Brass Brushed Stainless Where Used

Cat. # Model Cat. # Model

H1530 LKE-600B H1531 LKE-600BS

*H1526 LK-600B *H1527 LK-600BS

(ref. Form # 750,166M)

* Superior Nameplate Logo, 56L93, is not included.

24"

40"

Polished Brass & Brushed Stainless Louvers Kits\

These kits include a top 4-louver assembly and a bottom 4-louver assembly. They provide a touch of elegance. These kits can be retroﬁtted to previously installed appliances.

Eyebrow Hood Kits

Polished Brass Brushed Stainless Where Used

Cat. # Model Cat. # Model

98K28 EB24PB 88L47 EB24BS 24"

96K68 EB40PB 88L50 EB40BS 40"

* These hood kits replace the standard hood that comes with these ﬁreplaces.

(ref. Form #504,142M)

Forced Air Blower Kits

Cat.

Model No. Description

No.

80L84 FBK-100 Blower, Standard

94L89 FBK-100-36 Blower, Standard, 36 Pack

(ref. Form # 750,028M

(single speed)

Forced Air Kit

The FBK-100 blower provides constant velocity forced air circulation.

Polished Brass & Brushed Stainless Hood Kits

Attractive hoods are available in two styles. These hoods are designed to be ﬁtted to the glass viewing sides of the appliance. In addition to providing an aesthetically pleasing appearance to your appliance installation, the hood reduces heat effects to decorative mantles and ﬁnish materials located above the ﬁreplace opening. The hood kit replaces the standard hood that comes with these appliances and snaps into place. These kits can be retroﬁtted to previously installed appliances.

Arch Door Kit - Polished Brass

Cat. No. Model Where Used

80L95 ADKE-60B 24"

80L93 ADK-6/60B 40"

Arch Door Kit - Brushed Stainless Steel

Cat. No. Model Where Used

81L05 ADKE-60P 24"

81L03 ADK-6/60P 40"

(ref. Form # 750,021M)

Arch Door Kits

The arch door kits are easy to install and do not require hardware to attach them to the standard door frame. The decorative arch kits can not be used in conjunction with the screen panel kit.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

ACCESSORY COMPONENTS (CONTINUED)

Termination Shroud

(ref. Form # 750,246M)

Deluxe Termination

(ref. Form # 750,055M)

Square Termination

(ref. Form # 750,109M)

Termination Guard Kits

The vent termination guards may be used to cover the vent termination on the exterior of the home to minimize exposure to the hot surface of the termination.

Termination Guard Kits

(all models)

Cat. No. Model No. Description

H5820 4.5HTSK Termination Shroud

87L02 SV4.5HGS Termination Guard, Deluxe

17M52 SV4.5HGS-1 Termination Guard, Square

Radiant Panel Kits

Clean faced radiant panel kits are available to convert the standard louvered ﬁreplaces to radiant models which are more suited for ﬁnishing around the ﬁrebox opening with non-combustible materials, such as tile.

Bag of Glowing Embers Bag of Volcanic Stone

Replacement ember materials or volcanic stone are available for use with these appliances. Order kits as part of the periodic maintenance of the appliance.

Decorative Firebox Accessories

Cat. No. Model No. Description

88L53 FGE Bag of Glowing Embers

80L42 FDVS Bag of Decorative Volcanic Stone

(FDVS ref. Form #750,010M)

Touch-Up Paint Kit

Repair of minor scratches and discoloration of the appliance painted surfaces may be accomplished with the touch-up paint kit.

Touch-Up Paint Kits

Clean Face Radiant Panel Kits

Cat. No. Model No. Description

80L79 CFPKE60 Radiant Panel Kit, End Panel

80L77 CFPK-6/60 Radiant Panel Kit, Front Panel

(ref. Form # 750,030M)

3 Piece Trim Kit

Cat. No. Model No. Description

96K22 TK40PB3 40" Polished Brass

H1816 TK40BS3 40" Brushed Stainless

H4823 TK40C3 40" Black

Polished Brass Trim Kit

This kit contains brass trim pieces used to ﬁnish the gaps between the wall board and the ﬁreplace, providing the appliance a brass perimeter highlight. This kit contains the trim pieces and these instructions.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Cat. No. Model No. Description

90L73 TPK-B Touch-Up Paint (Black)

(all models)

LIGHTING INSTRUCTIONS – MILLIVOLT GAS VALVE

TPTH TP TH

OUT

OFF

FOR YOUR SAFETY READ BEFORE LIGHTING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

A. This appliance has a pilot which must be lit with a piezo

igniter. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area for gas.

Ensure to smell next to the ﬂoor because some gas is heavier than air and will settle on the ﬂoor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your

building.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information above on this page.

2. Access the lower control compartment.

3. Turn ON/OFF switch to “OFF” (and remote wall switch, if

applicable).

4. Verify main line shut-off valve is open.

5. Push in gas control knob slightly and turn clockwise

to “OFF.”

SIT Millivolt Gas Valve

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, do not try to repair it, call a qualiﬁed service technician. Force or attempted repair may result in a ﬁre or an explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

6. Wait ﬁve (5) minutes to clear out any gas. Then smell for gas, includ-

ing near the ﬂoor. If you smell gas, STOP! Follow “B” in the safety information above (to the left) on this label. If you don’t smell gas, go to the next step.

7. Push in gas control knob slightly and turn counterclockwise

to “PILOT.”

8. Push in control knob all the way and hold in. Immediately light the

pilot by triggering the spark igniter (pushing the button) until pilot lights. Continue to hold the control knob in for about 1-1/2 minutes after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 5 through 8.

TP/TH

• If knob does not pop up when released, stop and immediately call your service technician or gas supplier.

Millivolt Pilot

• If pilot will not stay lit after several tries, turn the control knob to “OFF” and call your service technician or gas supplier.

9. Turn gas control knob counterclockwise to “ON.”

BURNER

ON/O FF SWITCH

- LO / HI +

PIEZO

IGNITER

GAS CON TROL KNOB

10. Close lower control compartment.

11. If the appliance will not operate, follow the instructions "To Turn Off

Note: Knob cannot be turned from “PILOT” to “OFF”

Gas To Appliance" and call your service technician or gas supplier.

unless the knob is pushed in slightly. Do not force.

TO TURN OFF GAS TO APPLIANCE

1. Turn remote wall switch “OFF.” The pilot will remain lit for

normal service.

2. For complete shutdown, turn remote wall switch to “OFF.”

3. Access the lower control compartment.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

4. Depress gas control knob slightly and turn clockwise

to “OFF.” Do not force.

5. Close lower control compartment.

INSTRUCTIONS D’ALLUMAGE – VANNE GAZ MILLIVOLT

TPTH TP TH

OUT

OFF

POUR PLUS DE SÉCURITÉ, LIRE AVANT D’ALLUMER

AVERTISSEMENT. QUICONQUE NE RESPECTE PAS À LA LETTRE LES INSTRUCTIONS DANS LA PRÉSENTE NOTICE RISQUE DE DÉCLENCHER UN INCENDIE OU UNE EXPLOSION ENTRAÎNANT DES DOMMAGES, DES BLESSURES OU LA MORT.

A. Cet appareil est muni d’une veilleuse qui doit être allumée avec un

allumeur piézo-électrique. Lorsque vous allumez la veilleuse, suivre exactement ces instructions.

B. AVANT L’ALLUMAGE: Avant d’allumer la veilleuse, reniﬂez tout autour

de l’appareil pour déceler une odeur de gaz. Reniﬂez près du plancher, car certains gaz sont plus lourds que l’air et peuvent s’accumuler au niveau du sol.

QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucun interrupteur ; ne pas vous servir des télépho-

nes se trouvant dans le bâtiment.

INSTRUCTIONS D'ALLUMAGE

1. ARRÊTEZ ! Lisez les instructions de sécurité sur la portion supéri-

eure de cette étiquette.

2. Ouvrez le compartiment de contrôle du bas.

3. Tournez l’interrupteur mural à la position d’arrêt “OFF”.

4. Ensurez-vous que la soupape d’arrêt de la canalisation principale est

ouverte.

5. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans

le sens des aiguilles d’une montre jusqu’à la position d’arrêt “OFF”.

TP/TH

SIT Vanne Gaz Millivolt

- LO / HI + (COMMANDE DE TA ILL E DE FL AMM E)

Interrupteur

(ON/OFF)

BOUTON DE RÉGLAGE DU GAZ

ALLUMEUR

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies.

C. Ne pousser ou tourner la manette d’admission du gaz qu’à la main. Ne

jamais employer d’outil à cette ﬁn. Si la manette reste coincée, ne tentez pas de la réparer; appelez un technicien qualiﬁé. Quiconque tente de forcer la manette ou de la réparer peut provoquer une explosion ou un incendie.

D. N’utilisez pas cet appareil s’il a été plongé dans l’eau, même partielle-

ment. Faites inspecter l’appareil par un technicien qualiﬁé et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

8. Enfoncez le bouton de réglage jusqu’au fond et gardez-le enfoncé.

Allumez immédiatement la veilleuse en déclenchant l’allume-gaz à étincelle (en poussant le bouton) jusqu’à ce que la veilleuse s’enﬂamme. Continuez de tenir le bouton de réglage enfoncé pendant environ 90 secondes après l’allumage de la veilleuse. Relâchez le bouton et il sortira subitement. La veilleuse devrait rester allumée. Si elle s’éteint, répétez les étapes 5 à 8 inclusivement.

• Si le bouton ne sort pas automatiquement après avoir été relâché,

arrêtez immédiatement et téléphonez à votre technicien de service ou à votre fournisseur de gaz.

• Si la veilleuse refuse de rester allumée après plusieurs tentatives,

tournez le bouton de réglage jusqu’à sa position d’arrêt “OFF” et téléphonez à votre technicien de service ou à votre fournisseur de gaz.

9. Tournez le bouton de réglage du gaz en sens inverse des aiguilles

d’une montre jusqu’à sa position de marche “ON”.

10. Fermez le compartiment de contrôle du bas.

Millivolt Pilot

Remarque: Il est impossible de tourner le bouton de “PILOT” à “OFF” à moins qu’il ne soit légèrement enfoncé. Ne le forcez pas.

6. Attendre cinq (5) minutes pour laisser échapper tout le gaz. Reniﬂez

tout autour de l’appareil, y compris près du plancher, pour déceler

11. Si l’appareil ne fonctionne pas, suivre les instructions intitulées “Pour fermer le gaz qui alimente l’appareil” et appeler un technicien ou le fournisseur de gaz.

une odeur de gaz. Si vous sentez une odeur de gaz, ARRÊTEZ ! Passez à l’étape B des instructions de sécurité sur la portion supérieure (à gauche) de cette étiquette. S’il n’y a pas d’odeur de gaz, passez à l’étape suivante.

7. Enfoncez légèrement le bouton de réglage du gaz et tournez-le en

sens inverse des aiguilles d’une montre jusqu’à la position de veilleuse “PILOT”.

POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL

1. Tournez l’interrupteur mural à la position d’arrêt “OFF”. La veilleuse

restera allumée jusqu’au retour du service normal.

2. Pour une fermeture complète, tournez l’interrupteur mural à la posi-

3. Ouvrez le compartiment de contrôle du bas.

tion d’arrêt “OFF”.

REMARQUE : LES SCHÉMAS ET LES ILLUSTRATIONS NE SONT PAS À L’ÉCHELLE

4. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans

le sens des aiguilles d’une montre jusqu’à la position d’arrêt “OFF”. Ne forcez pas le bouton.

5. Fermez le compartiment de contrôle du bas.

MAINTENANCE SCHEDULE

Annually (Before the onset of the Burning Season)

MAINTENANCE TASK ACCOMPLISHING PERSON PROCEDURE

Inspect/Clean Burner, Logs and Controls

Check Flame Patterns and Flame Height

Inspect/Clean Pilot and Burner Qualiﬁed Service Technician Refer to Figure 11 on Page 14. Remove any surface build-up

Check Vent System Qualiﬁed Service Technician Inspect the vent system at the top and at the base (within the

Appliance Checkout Qualiﬁed Service Technician Perform the appropriate appliance checkout procedure detailed

Qualiﬁed Service Technician Inspect valve and ensure it is properly operating. Check piping

for leaks. Vacuum the control compartment, ﬁreplace logs and burner area.

Qualiﬁed Service Technician Refer to Figures 5 and 9 on Pages 12 and 13 and verify the

ﬂame pattern and height displayed by the appliance conforms to the picture. Flames must not impinge on the logs. Ensure ﬂames are steady (not lifting or ﬂoating).

on pilot and burner assembly. Wipe the pilot nozzles, igniter/ ﬂame rod and hood. Ensure the pilot ﬂame engulfs the ﬂame sensor as shown.

ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation or deterioration of the vent components. Note: Excessive condensation can cause corrosion of caps, pipe & ﬁttings (excessive condensation can be caused by long lateral runs, too many elbows and/or exterior portions of the system being exposed to cold weather). Also inspect wall straps or plumbers's tape to ensure it is secure and in place.

in this manual.

Replacing Glowing Embers Homeowner/Qualiﬁed Service

Technician

Periodically (After the Burning Season)

Remove old ember materials (rockwool) and vacuum the ember placement area. Place new embers as described on Page 12.

MAINTENANCE TASK ACCOMPLISHING PERSON PROCEDURE

Clean Firebox Interior Homeowner Carefully remove logs, embers (rockwool) and volcanic stone.

Vacuum out interior of the ﬁrebox. Clean ﬁrebox walls and log grate. Replace logs, embers and volcanic stone as detailed in this manual.

Check Flame Patterns and Flame Height

Check Vent System Homeowner Inspect the vent system at the top and at the base (within the

Clean Front Glass Enclosure Panel Homeowner Clean as necessary following the directions provided in this

Homeowner Refer to Figures 5 and 9 on Pages 12 and 13 and verify the

ﬂame pattern and height displayed by the appliance conforms to the picture. Flames must not impinge on the logs.

ﬁrebox) for signs of blockage or obstruction. Look for any signs of dislocation of the vent components.

manual. DO NOT TOUCH OR ATTEMPT TO CLEAN GLASS

WHILE HOT.

TROUBLESHOOTING THE MILLIVOLT CONTROL SYSTEM

Note: Before troubleshooting the gas control system, Ensure external gas shut off valve, located at gas supply inlet, (and

wall switch, iff applicable), is in the “ON” position.

Important: Valve system troubleshooting should only be accomplished by a qualiﬁed service technician.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

1. Spark igniter will not light pilot after

repeated triggering of igniter button.

WARNING: if the pilot will not light

after 1 minute of attempting, wait

for at least 5 minutes for gas to

clear before attempting again.

2. Pilot will not stay lit after

carefully following the lighting instructions.

3. Pilot burning, no gas to burner, Valve

knob “ON,” (and *optional remote switch, if applicable) is “ON." Read important note below.

IMPORTANT NOTE: If an optional

*remote switch is used for burner operation, the unit-mounted burner OFF/ON switch (if installed) must be in the "OFF" position.

*Optional remote switch kits - wall

switch, wall thermostat or remote control.

4. Frequent pilot/burner outage prob-

lem.

A. Defective igniter (no spark at electrode).

B. Defective or misaligned electrode at pilot

(spark at electrode).

C. Gas supply pressure errant. Check inlet gas pressure. It should be within the limits

D. Pilot oriﬁce plugged. Clean or replace pilot oriﬁce. A. Defective pilot generator

(thermocouple).

A. *Optional remote switch or wires defective. Check *remote switch and wires for proper connec-

B. Thermopile may not be generating suf-

ﬁcient millivolts.

C. Plugged burner oriﬁce. Check burner oriﬁce for blockage and remove. A. Pilot ﬂame may be too low or blowing

(high) causing the pilot/valve safety to drop out.

Check for spark at electrode and pilot; if no spark and electrode wire is properly connected, replace igniter. Using a match, light pilot. If pilot lights, turn off pilot and trigger the igniter button again. If pilot lights, an improper gas mixture caused the bad lighting and a longer purge period is recommended. If pilot will not light – check gap at electrode and pilot – should be 1/8" to have a strong spark. If gap does not measure 1/8", replace pilot (see Figure 11 on Page 14).

as marked on the rating plate.

Check pilot ﬂame, it must impinge on thermocouple (see Figure 11 on Page 14). Clean and/or adjust pilot for maximum ﬂame impingement on thermocouple. Ensure that the connection between the valve and thermocouple are tight and secure.

tions. Jumper wire across terminals at switch, if burner comes on, replace defective switch. If okay, jumper wires across switch wires at valve, if burner comes on, wires are faulty or connections are bad. Check thermopile with millivolt meter. Take reading at thermopile terminals of gas valve. Should read 325 millivolts minimum with *optional remote switch “OFF.” Replace faulty thermopile if reading is below speciﬁed minimum.

Clean and/or adjust pilot ﬂame for maximum ﬂame impingement on thermocouple (see Figure 11 on Page 14).

REPLACEMENT PARTS LIST - MODELS SDV-ST/PF

(MV) MILLIVOLT - GAS COMPONENTS

MISC. COMPONENTS

Item Cat.No Description Qty. Where Used

1a 98K95 Hood, Black - 24 in. 1 SDVPF 1b H3896 Hood, Black - 40 in. 2 All Models 2a H3437 Upper Louver Panel,

Black - 24 in.

2b H3377 Upper Louver Panel,

Black - 40 in.

3a H3725 Glass Enclosure Assem-

bly - 24 in.

3b H3724 Glass Enclosure Assem-

bly - 40 in.

4a H3438 Lower Louver Panel,

Black - 24 in.

4b H3380 * Lower Louver Panel,

Black - 40 in. 5 56L93 Nameplate Logo (Brand) 2 All Models 6 69L62 Log Set 1 All Models 7 88L53 Bag of Glowing Gas

Embers 8 80L42 Bag of Decorative Volca-

nic Stone

10a H4865 Main Burner Set, Rear 1 All Models

10b H4866 Main Burner Set, Front 1 All Models

11 19L51 Gasket, Burner Tray

Mounting

12 43K85 Gasket, Venturi Tube

Mounting (per burner)

13a 74L92 Venturi Tube / Air Shut-

ter, Rear

13b 60L40 Venturi Tube / Air Shut-

ter, Front

14 69L21 Latch, Glass Enclosure

Panel

16 H4897 Burner Adjustment Rod 1 All Models 17 93L32 Flex Gas Line Connector,

FFGC

* Superior Nameplate Logo, 56L93, is sold separately.

1 SDVPF

2 All Models

1 SDVPF

2 All Models

1 SDVPF

2 All Models

1 All Models

2 All Models

1 All Models

4(ST) &

6 (PF)

1 All Models

All Models

Contact an Authorized LHP dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards.

Item Cat.No Description Qty. Where Used

30 H6209 Gas Valve - SIT, Natural Gas 1 SDVST-N 30 88J53 Gas Valve - SIT, Propane 1 SDVST-P 31 10K86

52L21 Igniter Wire, Piezo 1 All Models 32 69L17 Pilot Assembly, Natural Gas 1 SDVST-N 32 69L18 Pilot Assembly, Propane 1 SDVST-P 33 60J79 Pilot Generator 1 SDVST-N &

34 74L57 Thermocouple 1 SDVST-N &

35 74L56 Pilot Tube 1 SDVST-N &

36 74L58 Electrode And Cable 1 SDVST-N &

37 60J80 Oriﬁce, Burner, Natural Gas,

37 19L52 Oriﬁce, Propane, #55 (.052”) 2 All LP Models 38 85L65

38 85L72

Piezo Igniter

#44 (.086”)

Fuel Conversion Kit - Natural Gas to Propane Gas FGCK-DMOMNP

Fuel Conversion Kit - Propane Gas to Natural Gas FGCK-DMOMPN

1 SDVST-N &

SDVST-P

2 All NG Models

1 All NG Models

1 All LP Models

WARNING

Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁcally approved with this appliance may result in property damage or personal injury.

AVERTISSEMENT

Risque de dommages ou de blessures si les pièces ne sont pas installées conformément à ces schémas et ou si des pièces autres que celles spéciﬁquement approuvées avec cet appareil sont utilisées.

REPLACEMENT PARTS DIAGRAMS - MODELS SDV-ST/PF

Firebox

Cabinet

10a

10b

13a

13b

Note: Cabinet and Firebox shown for reference only.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Lennox Hearth Products reserves the right to make changes at any time, without notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and products. Consult your local distributor for ﬁreplace code information.

P/N 725040M REV. D 01/2011

1508ElmHillPike,Suite108•Nashville,TN37210

Superior SDVST-N-B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
