INSTALLATION INSTRUCTIONS

DIRECT VENT

DT-400 & DR-400

RETAIN THESE INSTRUCTIONS

FOR FUTURE REFERENCE

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

FOR YOUR SAFETY: What to do if you smell gas:

VENTED GAS FIREPLACE HEATERS - DIRECT VENT MODELS P/N 700,020M REV. M 11/2004

MODELS

tlovilliM

sledoM

NMC004-TDNEC004-TD PMC004-TDPEC004-TD

NMC004-RDNEC004-RD PMC004-RDPEC004-RD

AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE BLESSURE OU LA MORT.

POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser d'essence ni d'autre vapeurs ou liquides inflammables dans le voisinage de cet appareil ou de tout autre appareil.

cinortcelE

sledoM

• DO NOT light any appliance.

• DO NOT touch any electrical switches.

• DO NOT use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow your gas suppliers instructions.

• If your gas supplier cannot be reached, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

OTL Report No. 116-F-17-4

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

POUR VOTRE SÉCURITÉ: Que faire si vous sentez une odeur de gaz:

• Ne pas tenter d'allumer d'appareil.

• Ne touchez à aucun interrupteur. Ne pas vous servir

des téléphones se trouvant dans le batiment où vous vous trouvez.

• Evacuez la piéce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz

depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service dos incendies.

L'installation et service doit être exécuté par un qualifié installeur, agence de service ou le fournisseur de gaz.

TABLE OF CONTENTS

Packaging ........................................ page 2

Introduction ..................................... page 2

General Information......................... page 2

Location .......................................... page 4

Appliance and Vent Clearances ....... page 4

Vent Termination Clearances ........... page 5

Typical Installation Sequence .......... page 5

Detailed Installation Steps ............... page 5

Step 1. Framing ............................. page 5

Step 2. Routing Gas Line ............... page 5

Fireplace Specifications ................... page 8

Step 3. Install the Venting System. page 8

Vertical Termination Systems .......... page 9

Vent Section Length Chart ............... page 9

Vertical Vent Tables and Figures...... page 12

Horizontal Termination System ........ page 14

Horizontal Vent Tables and Figures . page 16

Venting Using Flexible Vent Pipe ..... page 19

Step 4. Field Wiring ....................... page 20

Step 5. Optional Blower Kit Wiring page 20

Step 6. Connecting Gas Line.......... page 21

Step 7. Installing Logs................... page 22

Step 8. Checking Unit Operation ..... page 22

Step 9. Installing Glass Door ......... page 22

Step 10. Burner Adjustments........... page 23

Step 11. Hood Installation ............... page 23

Finishing Requirements ................... page 23

Cold Climate Insulation.................... page 24

Installation Accessories ................... page 24

Gas Conversion Kits.................. page 26

This installation manual will help you obtain a safe, efficient, dependable installation for your appliance and vent system.

Please read and understand these instructions before beginning your

installation.

PACKAGING

The assembled vented gas fireplace heater is packaged with: 1 -one log set shrink-wrapped to the in-

side surface of the front glass enclosure panel.

2 - one plastic bag containing the literature

package which consists of the homeowner's care and operation instructions, installation instructions and warranty; plastic bag located in the control area.

3 - one vent restrictor for use in top vent appli-

cations; restrictor is taped to the inside of the cabinet bottom.

4 - one hood wrapped in plastic taped to the

front of the top unit standoffs.

5 -one bag of glowing embers located in the

control area.

INTRODUCTION

These vented gas fireplace heaters are sealed combustion, air circulating gas fireplaces designed for residential applications. These appliances must be installed with the Secure Vent™ and /or Secure Flex™ vent systems routed to the outside atmosphere.

Millivolt appliances are designed to operate on natural or propane gas. A millivolt gas control valve with piezo ignition system provides safe, efficient operation. External electrical power is required to operate the optional blower if installed in these units.

Electronic appliances are designed to operate on natural or propane gas. An electronic intermittent pilot ignition system provides safe, efficient operation. External electrical power is required to operate these units.

These millivolt and electronic versions of these appliances are listed by Omni Test Laboratories for installation in bedrooms and mobile homes.

Installation must conform to local codes. In the absence of local codes, installation must comply with the current National Fuel Gas Code, ANSI Z223.1. (In Canada, the current CAN-1 B149 installation code.) Electrical wiring must comply with the National Electrical Code ANSI/ NFPA 70 - (latest edition). (In Canada, the current CSA C22-1 Canadian Electrical Code.)

DO NOT ATTEMPT TO ALTER OR MODIFY THE CONSTRUCTION OF THE APPLIANCE OR ITS COMPONENTS. ANY MODIFICATION OR ALTERATION MAY VOID THE WARRANTY, CERTIFICATION AND LISTINGS OF THIS UNIT.

GENERAL INFORMATION

Note: Installation and repair should be per-

formed by a qualified service person. The appliance should be inspected annually by a qualified professional service technician. More frequent inspections and cleanings may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that the control compartment, burners and circulating air passage ways of the appliance be kept clean.

S'assurer que le brùleur et le compartiment des commandes sont propres. Voir les instructions d'installation et d'utilisation qui accompagnent l'appareil.

Provide adequate clearances around air openings and adequate accessibility clearance for service and proper operation. Never obstruct the front openings of the appliance.

These appliances are designed to operate on natural or propane gas only.

TYPICAL INSTALLATION

Figure 1

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Millivolt Models -

Millivolt models come standard with the manually-modulated gas valve; flame appearance and heat output can be controlled at the gas valve. Input of millivolt models is shown in the following table:

htiwsledoMtlovilliM

evlaVsaGdetaludoM-yllaunaM

saGenaporPdnalarutaN

srebmuNledoM)H/UTB(etartupnI

004-TD 004-RD

Electronic Models -

Electronic models have a fixed rate gas valve. Input of electronic models is shown in the following table:

evlaVsaG

srebmuNledoM)H/UTB(etartupnI

004-TD 004-RD

All Models -

Maximum manifold pressure is 3.5 in. w.c. (0.87 kPa) for natural gas and 10 in. w.c. (2.49 kPa) for LP/Propane gas.

Installations at Altitudes of 0 to 4500 ft.Units are tested and approved for elevations of 0 to 4500 feet (0 to 1372 meters).

Installations at Altitudes above 4500 ft.For elevations above 4500 feet (1372 meters), install the unit according to the regulations of the local authorities having jurisdiction and, in the USA, the latest edition of the National Fuel Gas Code (ANSI Z223.1) or, in Canada, the latest edition of the CAN1-B149.1 and .2 codes.

Table 1

shows the units' gas orifice size for

the elevations indicated.

.oNledoM

larutaNenaporP

005,71ot005,31

etaR-dexiFhtiwsledoMcinortcelE

saGenaporPdnalarutaN

005,71

ezisecifirO

The millivolt appliances are manually controlled and feature a spark ignitor (piezo) that allows the appliance's pilot gas to be lit without the use of matches or batteries. This system provides continued service in the event of a power outage.

Do not use these appliances if any part has been under water. Immediately call a qualified, professional service technician to inspect the appliance and to replace any parts of the control system and any gas control which have been under water.

Ne pas se servir de cet appareil s'il a été plongé dans l'eau, complètement ou en partie. Appeler un technicien qualifié pour inspecter l'appareil et remplacer toute partie du système de contrôle et toute commande qui ont été plongés dans l'eau.

Cet appareil peut être installé dans un maison préfabriquée (É.-U. seulement) ou mobile déjà installée à demeure si les réglements locaux le permettent. Cet appareil doit être utilisé uniquement avec les types de gaz indiqués sur la plaque signalétique. Ne pas l'utiliser avec d'autres gaz sauf si un kit de conversion certifié est installé.

Test gage connections are provided on the front of the millivolt gas control valve (identified IN for the inlet and OUT for the manifold side). A ¹⁄₈" NPT test gage connection is provided at the inlet and outlet side of the electronic gas control valve.

Minimum inlet gas pressure to these appliances is 5.0 inches water column (1.24 kPa) for natural gas and 11 inches water column (2.74 kPa) for propane for the purpose of input adjustment.

These appliances must be isolated from the gas supply piping system (by closing their individual manual shut-off valve) during any pressure testing of the gas supply piping system at test pressures equal to or less than ¹⁄₂ psig (3.5 kPa).

These appliances and their individual shut-off valves must be disconnected from the gas supply piping system during any pressure testing of that system at pressures in excess of ¹⁄₂ psig (3.5 kPa).

These appliances must not be connected to a chimney or flue serving a separate solid fuel burning appliance.

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning are similar to the flu with headaches, dizziness and/or nausea. If you have these signs, obtain fresh air immediately. Turn off the gas supply to the appliance and have it serviced by a qualified professional, as it may not be operating correctly.

WARNING: FAILURE TO COMPLY WITH THE INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED IN THIS DOCUMENT WILL RESULT IN AN IMPROPERLY INSTALLED AND OPERATING APPLIANCE, VOIDING ITS WARRANTY. ANY CHANGE TO THIS APPLIANCE AND/OR ITS OPERATING CONTROLS IS DANGEROUS. IMPROPER INSTALLATION OR USE OF THIS APPLIANCE CAN CAUSE SERIOUS INJURY OR DEATH FROM FIRE, BURNS, EXPLOSION OR CARBON MONOXIDE POISONING.

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES. USE CAUTION AROUND THE APPLIANCE TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

Table 1

004-TD

54#

004-RD

840.0

hcni

Maximum inlet gas supply pressure to these appliances is 10.5 inches water column (2.61 kPa) for natural gas and 13.0 inches water column (3.23 kPa) for propane.

WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIALS ON OR NEAR THIS APPLIANCE.

AVERTISSEMENT: SURVEILLER LES ENFANTS. GARDER LES VÊTEMENTS, LES MEUBLES, L'ESSENCE OU AUTRES LIQUIDES À VAPEUR INFLAMMABLES À COTE DE L'APPAREIL.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

REAR VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

INSTALLATION

RECESSED

REAR VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

APPLICATION

TOP VENT

APPLICATION

Figure 2

LOCATION

In selecting the location, the aesthetic and functional use of the appliance are primary concerns. However, vent system routing to the exterior and access to the fuel supply are also important. Consideration should be given to traffic ways, furniture, draperies, etc., due to elevated surface temperatures ( The location should also be free of electrical, plumbing or other heating/air conditioning ducting.

These direct vent appliances are uniquely suited for installations requiring a utility shelf positioned directly above the fireplace. Utility shelves like these are commonly used for locating television sets and decorative plants.

Figure 2

VERTICAL VENT (Rear Vent Application)

HORIZONTAL VENT (Rear Vent Application without a chase)

HORIZONTAL VENT (Rear Vent Application With a chase)

HORIZONTAL VENT (Top Vent Application)

VERTICAL VENT (Top Vent Application)

Typical Locations

.oNledoM

tneVeruceSxelFeruceStneVeruceSxelFeruceS 004-TD 8/144)1211(8/754)5611(A/NA/N 004-RD A/NA/N4/133)548(4/133)548(

woblEeergeD09enOhtiw-tneVpoTkcaBehttuOthgiartS-tneVraeR

Do not insulate the

Do not insulate the space between the

appliance and the

area above it.

Shelf Height

(

see table)

space between the

appliance and the

area above it.

Shelf Height

see table)

(

)mm(sehcnithgieHflehS

To provide for the lowest possible shelf surface use the alternate rear vent outlet with attached venting routed in a way to minimize obstructions to the use of the space above the appliance. Do not insulate the space between the

appliance and the area above it. See

The minimum height from the base of the appliance to the underside of combustible materials used to construct a utility shelf in this fashion is shown in the table in

Figure 3

The appliance should be mounted on a fully supported base extending the full width and depth of the unit. The appliance may be located on or near conventional construction materials. However, if installed on combustible materials, such as carpeting, vinyl tile, etc., a metal or wood barrier covering the entire bottom surface must be used.

Figure 3

Shelf Above Fireplace With Rear Venting

Figure 3

APPLIANCE AND VENT CLEARANCES

The appliance is approved with zero clearance to combustible materials on all sides (as detailed in tion: When the unit is installed with one side flush with a wall, the wall on the other side of the unit must not extend beyond the front edge of the unit. In addition, when the unit is recessed, the side walls surrounding the unit must not extend beyond the front edge of the unit. See

Table 2

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

), with the following excep-

Figure 2

Shelf Above Fireplace With Top Venting

KCAB

SEDIS

SRECAPSPOT)mm0(.ni0

ROOLF)mm0(.ni0

mottoBmorF

ottinUfo

gnilieC

TNEV*)mm4.52(.ni1

TNORF)sretem9.0(.teeF3

)mm31(.ni2/1

srecaps)mm0(.ni0

)mm31(.ni2/1

srecaps)mm0(.ni0

)mm6261(.ni46

SECNARAELCECIVRES

VENT TERMINATION CLEARANCES

These instructions should be used as a guideline and do not supersede local codes in any way. Install vent according to local codes, these instructions, the current National Fuel Gas Code (ANSI-Z223.1) in the USA or the current standards of CAN/CGA-B149.1 and B149.2 in Canada.

Vertical Vent Termination Clearances

Terminate single vent caps relative to building components according to

TERMINATION HEIGHTS FOR VENTS ABOVE

Horizontal Overhang

2 FT MIN.

Termination

Storm Collar

Flashing

Concentric

Vent Pipe

FLAT OR SLOPED ROOFS

Vent

*H = MINIMUM HEIGHT FROM ROOF TO LOWEST DISCHARGE OPENING OF VENT

Figure 4

2 FT MIN.

Lowest

Discharge

Opening

1 inch (25.4 mm) Minimum Clearance to Combustibles

Roof Pitch is X/12

hctiPfooR

Vertical

Wall

)teef(

21/6ottalF0.1

21/7ot21/6revO52.1 21/8ot21/7revO5.1 21/9ot21/8revO0.2

21/01ot21/9revO5.2

21/11ot21/01revO52.3

21/21ot21/11revO0.4

Figure 4

Terminate multiple vent terminations according to the installation codes listed at the top of this page.

Horizontal Vent Termination Clearances

The horizontal vent termination must have a minimum of 3" (76 mm) clearance to any overhead combustible projection of 2 ¹⁄₂" (64 mm) or less. See exceeding 2 ¹⁄₂" (64 mm), see

Figure 5.

For projections

Figure 5

. For

additional vent location restrictions refer to

Figure 7 on page 6

TYPICAL INSTALLATION SEQUENCE

The typical sequence of installation follows, however, each installation is unique resulting in variations to those described. See the page numbers references in the following steps for detailed procedures.

Step 1. (page 5) Construct the appliance

framing. Position the appliance within the framing and secure with nailing brackets.

Horizontal Vent Termination Clearances

Combustible Projection

2¹⁄₂ inches or less in length

Combustible Projection

greater than 2¹⁄₂ inches in length

Ventilated

Soffit

Unventilated

Soffit

18"

(457 mm)

See

Figure 31

into exterior walls, of the round and square horizontal terminations.

Figure 5 -

12"

(305 mm)

or 32 for the recess allowances,

Side Elevation View

(76 mm)

Termination Kit

Step 2. (page 5) Route gas supply line to

appliance location.

Step 3. (page 8) Install the vent system and

exterior termination.

Step 4. (page 20) Field Wiring

Millivolt Appliances – The operating control

switch is factory installed.

Step 5. (page 20) Install blower kit (optional

equipment).

Step 6. (page 21) Make connection to gas

supply.

Step 7. (page 22) Install the logs, vermicu-

lite and glowing embers.

Step 8. (page 22) Checkout appliance opera-

tion.

Step 9. (page 22) Install glass door frame

assembly.

Step 10. (page 23) Adjust burner to ensure

proper flame appearance.

Step 11. (page 23) Install the hoods.

DETAILED INSTALLATION STEPS

The appliance is shipped with all gas controls and components installed and pre-wired. Remove the shipping carton, exposing the front glass door. Remove the top panel. Remove

the cardboard from underneath the pressure relief plates. Gently depress the outer top

corners of the access panel until the catches "pop" the panel free, allowing it to swing out and down to open. Open the two latches (located under the firebox floor) securing the glass door. Remove the door by tilting it outward at the bottom and lifting it up. Set the door aside protecting it from inadvertent damage.

Figure 50 on page 21.

Remove the two cardboard pad strips from between the firebox subfloor and the firebox sides.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

See

Step 1. FRAMING

Frame these appliances as illustrated in

ures 8 on page 7,

installed in a corner. See

unless the appliance is to be

Figure 9 on page 7

for corner framing installations. All framing details must allow for a minimum clearance to combustible framing members as shown in

Table 2 on page 4

. If the appliance is to be elevated above floor level, a solid continuous platform must be constructed. Headers may be in direct contact with the appliance top spacers but must not be supported by them or notched to fit around them. All construction above the appliance must be self supporting, DO NOT use the appliance for structural support. The fireplace should be secured to the side framing members using the unit's nailing flanges - one top and bottom on each side of the fireplace front. See

Figure 6.

Use 8d nails or their equivalent.

Side

Framing

Left Side Front Corner of Fireplace Shown

(Right Side Requirements the Same)

Unit Being Secured By Its Nailing Flanges

Note: The nailing flanges, combustible members and screw heads located in areas directly adjacent to the nailing flanges, are EXEMPT from the 1/2 clearance to combustible requirements for the firebox outer wrapper. Combustible framing may be

direct contact with the nailing flanges and may

in be located closer than 1/2 the firebox wrapper in areas adjacent to the nailing flanges. Frame the opening to the exact dimensions specified in the framing details of this manual.

To The Framing

Unit Nailing Flange

(No clearance to

combustible

framing is required)

” from screw heads and

Fig-

”

Figure 6

Step 2. ROUTING GAS LINE

Route a ¹⁄₂" (13 mm) gas line along the inside of the right side framing as shown in

Figure 7

Gas lines must be routed, constructed and made of materials that are in strict accordance with local codes and regulations.

All appliances are factory-equipped with a flexible gas line connector and ¹⁄₂ inch shutoff valve. (See step 6 on page 20).

Right Side

Front Corner of

Fireplace Framing

(76 mm)

6 ¹⁄₂"

(152 mm)

Figure 7

See Item D in the Text Below.

Exterior Wall

Horizontal Termination

= Air Supply Inlet

.denepo

ynoclab

EXTERIOR HORIZONTAL VENT TERMINATION CLEARANCE REQUIREMENTS

*18”

18”

Inside Corner

.ynoclabro,kced

lanimretehtfoenil

ecnailpparehto

.sgnillewdhtob

Detail D

Center Line

of Termination

Ventilated Soffit

Fixed

Closed

Window

= Vent Terminal = Area where Terminal is not Permitted

,hcrop,adnarev,edargevobaecnaraelC=A

ebyamtahtroodrowodniwotecnaraelC=B

wodniwdesolcyltnenamrepotecnaraelC=C tneverpotdednemmocer)mm503("21

tiffosdetalitnevotecnaraelclacitreV=D

latnozirohanihtiwlanimretehtevobadetacol

retnecehtmorf)mm854(sehcni81foecnatsid

tiffosdetalitnevnuotecnaraelC=E)mm503("21)mm503("21

renrocedistuootecnaraelC=Fmuminim)mc7.21("5muminim)mc7.21("5

renrocedisniotecnaraelC=Gmuminim)mc2.51("6muminim)mc2.51("6

enilretnecfoedisnihcaeotecnaraelC=H

ylbmessarotaluger/retemevobadednetxe

teltuotnevrotalugerecivresotecnaraelC=I*)mc19(teef3**)mc19(teef3

telniylppusrialacinahcemnonotecnaraelC=J

ynaottelnirianoitsubmocehtrognidliubot

telniylppusrialacinahcemaotecnaraelC=K*)m38.1(teef6 )m3(teef01nihtiwfievoba)mc19(teef3

devaproklawedisdevapevobaecnaraelC=L

ytreporpcilbupnodetacolyawevid

rokced,hcrop,adnarevrednuecnaraelC=M

Corner Detail

Inside

= 9” in U.S.

= 12” in Canada

Operable

Window

*noitallatsnInaidanaC**noitallatsnISU

*)mc03(sehcni21**)mc03(sehcni21

secnailpparof)mc51(ni6

noitasnednocwodniw

)mm854("81)mm854("81

secnailpparof)mc51(ni6

‡)m31.2(teef7 ‡)m31.2(teef7

‡*)mc03(sehcni21 ‡)mc03(sehcni21

.sedoCsaGleuFlanoitaN45APFN/1.322ZSISNAtnerucehthtiwecnadroccanI**

3 ft.

)mc03(ni21,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc19(sehcni63,)Wk03(hutB000,001<

*)Wk03(hutB000,001>secnailpparof

noitasnednocwodniw

teef51fothgiehanihtiw)mc19(teef3

*ylbmessarotaluger/retemehtevoba

)mc03(ni21,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc19(sehcni63,)Wk03(hutB000,001<

*)Wk03(hutB000,001>secnailpparof

**yllatnoziroh

.edoCnoitallatsnIenaporPdnAsaGlanoitaN1.941B-ASCtnerrucehthtiwecnadroccanI*

:roolfehthtaenebsedis2muminimanonepoyllufsiynoclabrokced,hcrop,adnarevfidettimrepylnO‡*

secnailpparof)mc51(ni6

)mc32(ni9,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc03(sehcni21,)Wk51(hutB000,05<

**)Wk51(hutB000,05>secnailpparof

tneverpotdednemmocer)mm922("9

teef51fothgiehanihtiw)mc19(teef3

**ylbmessarotaluger/retemehtevoba

secnailpparof)mc51(ni6

)mc32(ni9,)Wk3(hutB000,01<

dna)Wk3(hutB000,01>secnailpparof

)mc03(sehcni21,)Wk51(hutB000,05<

**)Wk51(hutB000,05>secnailpparof

sevresdnasgnillewdylimafelgnisowtneewtebdetacolsihcihwyawevirddevaproklawedisaevobayltceridetanimrettonllahstnevA‡

Figure 8

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

FIREPLACE FRAMING SPECIFICATIONS

Figure 9

**FRAMING WITH SQUARE HORIZONTAL TERMINATIONS (SV4.5HTSSL, SV4.5HTSS or SV4.5HTS)

VENT FRAMING TOP VENT WITH ONE 90° ELBOW

VENT FRAMING REAR VENT WITH NO ELBOWS

33¹⁄₄ (845)

Inches (mm)

16⁵⁄₈

(422)

33¹⁄₄

(845)

37¹⁄₈

(943)

AND ROUND HORIZONTAL TERMINATION (SV4.5HTR)

10¹⁄₂

(267)

(178)

19⁵⁄₈

(498)

*12⁷⁄₈

(327)

5¹⁄₈

(130)

5¹⁄₈

(130)

(178)

12¹⁄₈

(308)

12¹⁄₈

(308)

Framing should be constructed of 2x4 or larger lumber.

*12⁷⁄₈ inches (327 mm) is the required

framing depth dimension when the finish

material (drywall) thickness is 1/2 in.

(13mm).

** See the horizontal venting Figures 35 and 36 on page 16 for restrictions on the

use of the round termination (SV4.5HTR)

NoteVenting requirements for rear vent applications in corner installations -

- the round termination (SV4.5HTR) may not be used

- the horizontal vent length “a” to “b,” must not exceed 28 inches (711 mm)

Framing should be constructed of

2x4 or larger lumber.

*These dimensions occur when one 45

degree elbow is connected directly to the

appliance collar and the unit moved ¹⁄₂ in.

(13 mm) into the room. This ¹⁄₂ in.

movement is required to achieve a min. of

5 in (127 mm) in the F dimension.

*34⁵⁄₁₆

(872)

SV4.5HTSS & SV4.5HTSSL

Termination

*F = 5 in. (127 mm)

33¹⁄₈

(841)

*48¹⁄₂

(1232)

Back wall of chase/enclosure (including any finishing materials)

CORNER FRAMING WITH SQUARE HORIZONTAL

TERMINATIONS (SV4.5HTSSL, SV4.5HTSS or SV4.5HTS)

SV4.5HTS Termination

7 (178)

8³⁄₁₆ (208)

*24¹⁄₄ (616)

*17³⁄₁₆

(437)

Inches

(millimeters)

Figure 10

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

FIREPLACE SPECIFICATIONS

FRAMING SPACERS (Top and Sides

and Rear)

Figure 11

33¹⁄₈

(841)

(25)

21¹⁄₂

(546)

10³⁄₄

(273)

Top View

(841)

27¹⁄₂ (699)

Front View

33¹⁄₈

(432)

6¹³⁄₁₆ (173)

3 (76)

30¹⁄₈

(765)

(Louvered Front Model Shown)

*CONCENTRIC FLUE

FLUE - 4¹⁄₂ (114)

COMBUSTION AIR - 7¹⁄₂ (190)

*DR models have only a rear vent *DT models have only a top vent

NOTE - Eyebrow hood shown as positioned in louvered front model.

ELECTRICAL INLET 2³⁄₄ x 2 (70 x 51) COVER PLATE with KNOCKOUT)

GAS INLET (Either Side and bottom)

3 (76)

Inches (millimeters)

(330)

8¹¹⁄₃₂

(212)

Right Side View

1⁵⁄₈ (42)

(13)

¹⁄₂

1 (25)

**19⁵⁄₈

**Rear vent models only

2³⁄₄

(70)

(498)

Step 3. INSTALL THE VENT SYSTEM

General Information

These fireplaces are designed, tested and listed for operation and installation with, and only with, Secure Vent™ (SV 4.5) Direct Vent System Components, Secure Flex™ Flexible Vent Components manufactured by Security Chimneys International. These approved vent system components are labeled for identification.

DO NOT use any other manufacturer's vent components with these appliances. These fireplaces must be vented

directly to the outside.

The vent system may not service multiple appliances, and must never be connected to a flue serving a solid fuel burning appliance. The vent pipe is tested to be run inside an enclosing wall (such as a chase). There is no requirement for inspection openings in the enclosing wall at any of the joints in the vent pipe.

Preparing the Appliance Top Vent Outlet in All Venting Applications Using the Appliance Top Vent Outlet

A vent restrictor may be needed with this appliance. Install the vent restrictor (provided) in the appliance top flue outlet as shown in

Figure 12

. It is held in place by friction, only.

VENT RESTRICTOR INSTALLATION

(TOP VENT)

In all venting applications using the top vent of

the appliance, a vent restrictor may be

needed. Install the vent restrictor in the top

vent of the appliance outlet.

If needed, install the restrictor orientated as

shown, either from inside or outside the unit,

in the inner fireplace collar.

RESTRICTOR

INNER

FIREPLACE

COLLAR

APPLIANCE TOP VENT OUTLET

Figure 12

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Select Venting System - Horizontal or Vertical

With the appliance secured in framing, determine vent routing and identify the exterior termination location. The following sections describe vertical (roof) and horizontal (exterior wall) vent applications. Refer to the section relating to your installation. A list of approved

venting components is shown in the tables on pages 24 and 25.

VERTICAL TERMINATION SYSTEMS (ROOF)

Figures 13, and Figures 23 through 27 on pages 12 to 13

and their associated Vertical Vent Tables illustrate the various vertical venting configurations that are possible for use with these appliances. Secure Vent pipe applications are shown in these figures; Secure Flex pipe may also be used. A Vertical Vent Table summarizes each system’s minimum and maximum vertical and horizontal length values that can be used to design and install the vent components in a variety of applications. Both these vertical vent systems terminate through the roof. The minimum vent height above the roof and/or adjacent walls is specified in ANSI Z223.1-(latest edition) (In Canada, the current CAN-1 B149 installation code) by major building codes. Always consult your local codes for specific requirements. A general guide to follow is the Gas Vent Rule (refer to

Figure 4

on page 5).

Vertical (Straight) Installation

Determine the number of straight vent sections required. 4 ¹⁄₂" (114 mm), 10 ¹⁄₂" (267 mm), 22 ¹⁄₂" (572 mm), 34 ¹⁄₂" (876 mm) and 46 ¹⁄₂" (1181 mm) net section lengths are available. Plan the vent lengths so that a joint does not occur at the intersection of ceiling or roof joists. Refer to the Vent Section Length Chart.

SV4.5CGV-1 Termination

SV4.5FA OR SV4.5FB Flashing AND SV4.5SC STORM COLLAR

1" (25.4 mm) Minimum Clearance to Combustibles

*SV4.5BF Firestop/Spacer

lanimoN

htgneLnoitceS

621426384

)sehcni(

noitceSteN

2/1-42/1-012/1-222/1-432/1-64

)sehcni(htgneL

tneVfothgieHsnoitceStneVforebmuN

sehcnitf

5.4573.0100001

957.0200002

5.01578.0010001

5152.1110002

5.91526.1210003

1257.1020002

5.22578.1001001

5.52521.2120003

5.13526.2030003

5.43578.2000101

5.73521.3111003

5.34526.3021003

5457.3002002

5.64578.3000011

5.94521.4102003

1552.4100012

5.55526.4012003

7557.4001102

6652.5022004

5.76526.5003003

9657.5000202 27 6103004

5.37521.6100203

5.97526.6010203

1857.6000112

095.7021014

5.19526.7002013

3957.7000022 69 8101204

5.79521.8100023

2015.8200024

5.301526.8000303

801 9100304

4115.9020024

71157.9105006

5.811578.9110305

6215.01001304

5.031578.01101305

53152.11006006

8315.11000404

5.931526.11000033

5.241578.11100405

T O T A L

Q T Y

TRAHCHTGNELNOITCESTNEV

noitceSlanimoN

621426384

)sehcni(htgneL

noitceSteN

2/1-42/1-012/1-222/1-432/1-64

)sehcni(htgneL

tneVfothgieHsnoitceStneVforebmuN

sehcnitf

44121100034

0515.21010034

5.451578.21110035

5.061573.31020035

5.271573.41000505

77157.41100506

38152.51010506

6815.51000044

5.091578.51100045

5.691573.61010045

5.502521.71011507

70252.71000606

5.112526.71100607

5.712521.81010607

5.922521.91001607

5.232573.91000055

73257.91100056

5.142521.02000707

6425.02100708 25212010708 46222001708 67232000808

97252.32000066

5.082573.32100809

5.382526.32100067

5.982521.42010067

5.103521.52001067

5.013578.52000909

5135.621009001

5.523521.72000077

0335.72100078 63382010078

54357.8200001001

5.943521.9210001011

27313000088

5.673573.13100089

5.973526.1300011011

5.814578.43000099

32452.531000901

56457.8300000101

T O T A L

Q T Y

40' Max (12.2 M)

Figure 13

SV4.5L6/12/24/36/48 Vent Sections

*When using Secure Flex,

use Firestop/Spacer

SF4.5BF

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Vertical (Offset) Installation

1 inch (25.4 mm) minimum clearance to combustibles

Support Straps (Plumber’s tape)

8 feet (2.4 m)

Maximum

Blocking

Analyze the vent routing and determine the quantities of vent sections and number of elbows required. Refer to Vertical Vent Figures and Tables on page 12 and 13 to select the type of vertical installation desired. Vent sections are available in net lengths of 4 ¹⁄₂" (114 mm), 10 ¹⁄₂" (267 mm), 22 ¹⁄₂" (572 mm), 34 ¹⁄₂" (876 mm) and 46 ¹⁄₂" (1181 mm). Refer to the Vent Section Length Chart on page 9 for an aid in selecting length combinations. Elbows are available in 90° and 45° configurations. Refer to

Figure 18

for the SV4.5E45 and SV4.5E90

elbow dimensional specifications.

Where required, a telescopic vent section (SV4.5LA) may be used to provide the installer with an option in installing in tight and confined spaces or where the vent run made up of fixed length pieces develops a joint in a undesirable location, or will not build up to the required length. The SV4.5LA Telescopic Vent Section has an effective length of from 1 ¹⁄₂" (38 mm) to 7 ¹⁄₂" (191 mm). The SV4.5LA is fitted with a locking inclined channel end (identical to a normal vent section component) and a plain end with 3 pilot holes. Slip the plain end over the locking channel end of a standard SV4.5 vent component the required distance and secure with three screws.

Maintain a minimum 1" (25 mm) clearance to combustible materials for all vertical elements. Clearances for all horizontal elements are 3" (76 mm) on top, 1" (25 mm) on sides and 1" (25 mm) on the bottom.

A. Frame ceiling opening - Use a plumb line

from the ceiling above the appliance to locate center of the vertical run. Cut and/or frame an opening, 10¹⁄₂" x 10¹⁄₂" (267mm x 267mm) inside dimensions, about this center mark

(Figure 14)

10¹⁄₂” Min. (267 mm)

All of the appliances covered in this document are fitted with collars having locking inclined channels. The dimpled end of the vent components fit over the appliance collar to create the positive twist lock connection.

First Vent Component

Align the dimple (four places) with the opening of the locking incline channel on appliance collar. Twist vent component

clockwise to engage and seal. Dimple Locking

Incline Channel

Appliance collar

Vent / Appliance Collar

Connection

Figure 15

Arrow

Align the dimple (four places) of the upper vent section with the opening of the locking incline channel on the lower vent section. Twist vent component clockwise to engage and seal until arrow and dimple align.

Dimple

Locking Incline Channel

Connected

Vent Sections

Vent / Vent Section

Connection

Arrow

Figure 16

To attach a vent component to the appliance collar, align the dimpled end over the collar, adjusting the radial alignment until the four locking dimples are aligned with the inlet of the four inclined channels on the collar (

Figure 15

). Push the vent component against the collar until it fully engages, then twist the component clockwise, running the dimples down and along the incline channels until they seat at the end of the channels. The unitized design of the Secure Vent components will engage and seal both the inner and outer pipe without the need for sealant or screws. If desired, a #6 x ¹⁄₂" screw may be used at the joint, but is not required as the pipe will securely lock when twisted.

refer to

To add another vent component to a length of vent run, align the dimpled end over the inclined channel end of the previously installed section, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels of the previous section.

Push the vent component against the previous section until it fully engages, then twist the component clockwise running the dimples down and along the incline channels until they seat at the end of the channels.This seating position

is indicated by the alignment of the arrow and dimple as shown in

Figure 16.

D. Install firestop/spacer at ceiling - Use a

SV4.5BF firestop/spacer at ceiling joists. If there is living space above the ceiling level, the firestop/spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the firestop/spacer must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the firestop/spacer with 8d nails or other appropriate fasteners at each corner.

Remember to maintain 1" (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections.

E. Support the vertical vent run sections -

Note - Proper venting support is very impor-

tant. The weight of the vent must not be supported by the firplace in any degree.

Support the vertical portion of the venting system every 8 feet (2.4m) above the fireplace vent outlet. One method of support is by utilizing field provided support straps (conventional plumber's tape). Secure the plumber's tape to the framing members with nails or screws.

Figure 14

B. Attach vent components to appliance Secure Vent SV4.5 direct vent system compo-

nents are unitized concentric pipe components featuring positive twist lock connections (

Figure 15

Note: An elbow may also be attached to the appliance collar. Attach in the same manner as you would a vent section.

C. Attach vent components to each other -

Other vent sections may be added to the previously installed section in accordance with the requirements of the vertical vent figures and tables.

see

Figure 17

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Loop the tape around the vent, securing the ends of the tape to the framing. If desired, sheet metal screws #6 x ¹⁄₂" length may be used to secure the support straps to the vent pipe. Refer to

Figure 17.

Storm Collar

F. Change vent direction to horizontal/inclined run - At transition from or to a horizontal/

inclined run, install the SV4.5E45 and SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element.

Twist elbow sections in a clockwise direction only so as to avoid the possibility of unlocking any of the previously connected vent sections. See

Swivel Joint

(360

Figure 18.

(122 mm)

swivel)

SV4.5E45

(45° Elbow)

4 ¹³⁄₁₆"

Swivel Joint

(360

swivel)

SV4.5E90

(90° Elbow)

8 ¹⁄₈"

(206 mm)

Figure 18

G. Continue installation of horizontal/inclined sections - Continue with the installation of the

straight vent sections in horizontal/inclined run as described in Step C. Install support straps every 5' (1.52 m) along horizontal/inclined vent runs using conventional plumber’s tape.

very important that the horizontal/inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of ¹⁄₄" rise per foot (20 mm per meter) which is

ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level. Use a carpenter’s level to measure from a constant surface and adjust the support straps as necessary.

It is

Framing Dimensions for Roof

Pitch C D 0/12 10¹⁄₂ in. 10¹⁄₂ in.

(267 mm) (267 mm)

6/12 10¹⁄₂ in. 12 in.

(267 mm) (305 mm)

12/12 10¹⁄₂ in. 17 ³⁄₄ in.

(267 mm) (451 mm)

Figure 19

I. Install the roof flashing - Extend the vent

sections through the roof structure. Install the roof flashing over the vent section and position such that the vent column rises vertically (use carpenters level) (

Figure 20

perimeter to secure flashing or adjust roofing to overlap the flashing edges at top and sides only and trim where necessary. Seal the top and both sides of the flashing with waterproof caulking.

). Nail along

Figure 21

K. Install the vertical termination - The final

step involves installation of the SV4.5CGV-1 Vertical Termination. Extend the vent sections to the height as shown in the "Vertical vent termination section" on page 5. The SV4.5CGV-1 Vertical Termination ( same fashion as any other Secure Vent section. Align the termination over the end of the previously installed section, adjusting the radial alignment until the four locking dimples of the termination are aligned with the inlets of the four incline channels of the last vent section. Push the termination down until it fully engages, then twist the termination clockwise running the dimples down and along the incline channels until they seat at the end of the channels.

Figure 22

) installs in the exact

It is important to maintain the required clearances to combustibles: 1" (25 mm) at all sides for all vertical runs; and 3" (76 mm) at the top, 1" (25 mm) at sides, and 1" (25 mm) at the bottom for all horizontal/inclined runs.

H. Frame roof opening - Identify location for

vent at the roof. Cut and/or frame opening per Roof Framing Chart and

Figure 19.

Figure 20

J. Install the storm collar - Install the storm

collar, supplied with the flashing, over the vent/ flashing joint. See collar screw. Slide collar down until it meets the top of the flashing. Tighten the adjusting screw. Apply non-combustible caulking or mastic around the circumference of the joint to provide a water tight seal.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 21.

Loosen the storm

Figure 22

If the vent system extends more than 5' (1.5 m) above the roof flashing, stabilizers may be necessary. Additional screws may be used at section joints for added stability. Guide wires may be attached to the joint for additional support on multiple joint configurations.

VERTICAL VENT FIGURES/TABLES

*Ceiling Firestop/Spacer (SV4.5BF)

**Wall Firestop/Spacer (SV4.5HF)

*When using Secure Flex,

use Firestop/Spacer

SF4.5BF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

BELBAT

MUMINI

HmumixaM

teef)sretem(teef)sretem(

1)503.0(5)25.1(

2)016.0(01)1.3(

3)419.0(51)56.4(

4)22.1(02)2.6( V+V

)m4.21(teef04=H+

.xaM

H.xaM)m2.6(teef02=

Note: Secure Vent (rigid vent pipe) is shown in the figures; Secure Flex (flexible vent pipe) may also be used.

WARNING: UNDER NO CIRCUMSTANCES MAY SEPARATE SECTIONS OF CONCENTRIC FLEXIBLE VENT PIPE BE JOINED TOGETHER.

Note: It is very important that the horizontal/ inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of

meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level.

Note: SV4.5BF (Secure Vent), SF4.5BF (Secure Flex) firestop/spacer must be used anytime vent pipe passes through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex)firestop/spacer must be used anytime vent pipe passes through a combustible wall.

¹⁄₄

" rise per foot (20 mm per

MUMINI

teef)m(teef)m(

1)503.0(2)16.0(

2)16.0(4 )222.1(

3)419.0(6)68.1(

4)22.1(8)4.2(

Figure 24

Rear Vent - ONE 90 DEGREE ELBOW

AELBAT

mumixaMH

.xaM)m4.21(teef04=H+V

.xaM)m4.2(teef8=H

Note: Two 45 degree elbows may be used in place of one 90 degree elbow. The same rise to run ratios, as shown in the venting figures for 90 elbows, must be followed if 45 degree elbows are used.

*Ceiling

Firestop/Spacer

(SV4.5BF)

Figure 23

40 feet (12.2 meters)

Maximum

*When using

Secure Flex, use

Firestop/Spacer

SF4.5BF

- Top Vent - STRAIGHT

*Ceiling

Firestop/Spacer

(SV4.5BF)

*When using Secure Flex,

Firestop/Spacer

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

Figure 25

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Top Vent - TWO 90 DEGREE ELBOWS

use Firestop/Spacer

**Wall

(SV4.5HF)

*Ceiling

Firestop/Spacer

(SV4.5BF)

SF4.5BF

VERTICAL VENT FIGURES/TABLES

(continued)

DELBAT

muminiMVmumixaMHH+H

teef)m(teef)m(teef)m(

1)503.0(2)016.0(5)25.1(

2)016.0(4)22.1(01)1.3(

3)419.0(6)68.1(51)56.4(

4)22.1(8)84.2(02)2.6( H+H+

V+V

H+H

Figure 26

- Rear Vent - THREE ELBOWS

.xaM)m84.2(teef8=H

mumixaM

*Ceiling

Firestop/Spacer

(SV4.5BF)

**Wall

Firestop/Spacer

.xaM)m4.21(teef04=

(SV4.5HF)

.xaM)m2.6(teef02=

*When using Secure Flex,

use Firestop/Spacer

SF4.5BF

**When using Secure

Flex, use Firestop/Spacer

SF4.5HF

A Vent Restrictor, as

shown in Figure 18,

page 10, must be used

in this application

*Ceiling

Firestop/Spacer

(SV4.5BF)

MUMINI

teef)m(teef)m(

1)503.0(5)25.1(

2)016.0(01)1.3(

3)419.0(51)56.4(

4)22.1(02)2.6( H+H

H+H+

V+V

Figure 27 -

Top Vent - THREE ELBOWS

HH+

EELBAT

mumixaM

.xaM)m2.6(teef02=

.xaM)m4.21(teef04=

*When using Secure Flex,

use Firestop/Spacer

**When using Secure

Flex, use Firestop/Spacer

SF4.5BF

SF4.5HF

*Ceiling Firestop/Spacer (SV4.5BF)

**Wall Firestop/Spacer (SV4.5HF)

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

HORIZONTAL (OUTSIDE WALL) TERMINATION SYSTEM

Figures 28, and Figures 34 to 41 on pages 16 to 18

and their associated Horizontal Vent Table illustrate the various horizontal venting configurations that are possible for use with these appliances. Secure Vent pipe applications are shown in these figures; Secure Flex pipe may also be used. A Horizontal Vent Table summarizes each system’s minimum and maximum vertical and horizontal length values that can be used to design and install the vent components in a variety of applications. Both of these horizontal vent systems terminate through an outside wall. Building Codes limit or prohibit terminating in specific areas. Refer to

Figure 8

on page 6 for location guidelines.

Secure Vent SV4.5 direct vent system compo-

nents are unitized concentric pipe components featuring positive twist lock connection, (

Figure 15

on page 10). All of the appliances

covered in this document are fitted with collars having locking inclined channels. The dimpled end of the vent components fit over the appliance collar to create the positive twist lock connection.

A. Plan the vent run - Analyze the vent routing and determine the types and quantities of sections required 4 ¹⁄₂" (114 mm), 10 ¹⁄₂" (267 mm), 22 ¹⁄₂" (572 mm), 34 ¹⁄₂" (876 mm) and 46 ¹⁄₂" (1181 mm) net section lengths are available. Make allowances for elbows as indicated in

page 10

. Maintain a minimum 1" (25 mm) clearance to combustibles on the vertical sections. Clearances for the horizontal runs are; 3" (76 mm) on top, 1" (25 mm) on sides, and 1" (25 mm) at the bottom.

B. Frame exterior wall opening -

Locate the center of the vent outlet on the exterior wall according to the dimensions shown in page 7. Cut and/or frame an opening, 10¹⁄₂" x 12¹⁄₈" (267 mm x 308mm) inside dimensions, about this center.

C. Frame ceiling opening - If the vertical route is to penetrate a ceiling, use plumb line to locate the center above the appliance. Cut and/or frame an opening, 10¹⁄₂" x 10¹⁄₂" (267 mm x 267 mm) inside dimensions, about this center (refer to

Figure 14

on page 10 ).

D. Attach vent components to appliance - To

attach a vent component to the appliance collar, align the dimpled end over the collar, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels on the collar (

refer to Figure 15

page 10). Push the vent component against the collar until it fully engages, then twist the component clockwise, running the dimples down and along the incline channels until they seat at the end of the channels. The unitized design of the Secure Vent components will engage and seal both the inner and outer pipe elements with the same procedure.

refer to

Figure 18 on

Figure 9

Building

Support

Framing

SV4.5E90

Elbow

Vertical

Rise

Support

Brackets

Ceiling

TYPICAL HORIZONTAL VENT INSTALLATION

Horizontal / Inclined Run

*Ceiling

Firestop/Spacer

(SV4.5BF)

*When using Secure Flex

use Firestop/Spacer

See Figure 17 on page 10

Fireplace

for vertical vent section

support.

Figure 28

Sealant and securing screws are not required.

Note: An elbow may also be attached to the appliance collar. Attach in the same manner as you would a vent section.

E. Attach vent components to each other -

Other vent sections may be added to the previously installed section in accordance with the requirements of the vent tables. To add another vent component to a length of vent run, align the dimpled end of the component over the inclined channel end of the previously installed section, adjusting the radial alignment until the four locking dimples are aligned with the inlets of the four incline channels of the previous section. Push the vent component against the previous section until it fully engages, then twist the component clockwise running the dimples down and along the incline channels until they seat at the end of the channels.This seating position is

indicated by the alignment of the arrow and dimple as shown in

F. Install firestop/spacer at ceiling -

When using Secure Vent, use SV4.5BF firestop/spacer at ceiling joists; when using Secure Flex, use SF4.5BF firestop/spacer. If there is living space above the ceiling level, the firestop/ spacer must be installed on the bottom side of the ceiling. If attic space is above the ceiling, the firestop/ spacer must be installed on the top side of the joist. Route the vent sections through the framed opening and secure the firestop/spacer with 8d nails or other appropriate fasteners at each corner.

Remember to maintain 1" (25 mm) clearance to combustibles, framing members, and attic or ceiling insulation when running vertical chimney sections.

G. Support the vertical run sections -

On the vertical run, support the venting system every 8 feet (2.4m) above the fireplace vent outlet with field provided support straps (Plumber's tape). pipe and secure to the framing members with nails or screws. See

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 16 on page 10.

Attach the straps to the vent

Figure 17 on page 10.

SV4.5HTSSL

Termination

Shown

SV4.5L6/12/24/36/48

Support Bracket Spacing Every 5 ft (1.52 m)

(SF4.5BF)

Firestop/Spacer

Vent Sections

Fireplace

Exterior Wall

SV4.5HTSSL

Termination

Shown

Exterior Wall

H. Change vent direction - At transition from

or to a horizontal/inclined run, install the SV4.5E45 and SV4.5E90 elbows in the same manner as the straight vent sections. The elbows feature a twist section to allow them to be routed about the center axis of their initial collar section to align with the required direction of the next vent run element. Twist

elbow sections in a clockwise direction only so as to avoid the possiblity of unlocking any of the previously connected vent sections. See

Figure 18 on page 11

I. Continue installation of horizontal/inclined sections - Continue with the installation of the

straight vent sections in horizontal/inclined run as described in Step E. Install support straps every 5 ft. (1.52 m) along horizontal/ inclined vent runs using conventional plumber’s tape. See

Figure 28.

It is very important that the horizontal/inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated plane, in a direction away from the fireplace of ¹⁄₄" rise per foot (20 mm

per meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level. Use a carpenter’s level to measure from a constant surface and adjust the support straps as necessary.

J. Assemble vent run to exterior wall - If not

previously measured, locate the center of the vent at the exterior wall. Prepare an opening as described in Step B

When using square (SV4.5 HTS), short square (SV4.5 HTSS) or round (SV4.5HTR) horizontal termination -

Assemble the vent system to point where the terminus of the last section is within 6 in. (152 mm) to 10¹⁄₄ in. (260 mm) inboard of the exterior surface to which the termination is to be attached, see

Figure 31 on page 15

Siding

Stucco

1¹⁄₄" Maximum Recess of Square Termination into Exterior Finishing Material

Exterior Surface of Framing

Exterior Surface of Siding

Minimum wall thickness

*10³⁄₄ in. (273 mm)

Interior Surface of

Finished Wall

Maximum wall thickness

20 in. (508 mm)

Maximum Extent of Vent Run Sections Relative to Exterior Surface of Framing

Last Vent Section

SV4.5HTSSL Long Square Termination

*When using Secure Flex, use

Firestop/Spacer SF4.5HF.

Termination Securing

Screw

SV4.5HTSSL Long Square Termination

*Cut termination collar

for wall thicknesses

less than 10³⁄₄ in. (273 mm).

10³⁄₄ to 20 in.

(273 to 508 mm)

*Note - Firestop/Spacer

(SV4.5HF) required, but not

shown for clarity.

If the terminus of the last section is not within this distance, use the telescopic vent section SV4.5LA, as the last vent section. For wall thicknesses greater than that shown in

, refer to

table 3 on page 16

. This table lists

Figure

the additional venting components needed (in addition to the termination and adapter) for a particular range of wall thicknesses.

When using long square (SV4.5HTSSL) horizontal termination -

Assemble the vent system to point where the terminus of the last section is within 0 in. (0 mm) to 9³⁄₄ in. (248 mm) inboard of the exterior surface to which the termination is to be attached, see

Figure 32

K. When using square (SV4.5HTS) or short square (SV4.5 HTSS) horizontal termination

- attach termination adapter -

Attach the adapter (adapter - SV4.5RCH - provided with the termination) to the vent section or telescoping vent section), elbow or appliance collar as shown in

Figure 29

in the same manner

as any SV4.5 vent component (refer to Step E).

L. Install Firestop/Spacer at exterior wall - When using either of the square terminations, install SV4.5HF (Secure Vent), or SF4.5HF (Secure Flex) firestop/spacer over the opening at the exterior side of the framing, long side up, with the 3 inch spacer clearance at the top as shown in

Figure 29 or 30

, and nail into place. (The Firestop/Spacer may be installed over the opening at the interior side of the framing.) When using the round termination, a separate firestop/spacer is not required since this termination has integral spacers which provide the same function as a separate firestop/spacer.

*Firestop/Spacer (SV4.5HF) shown

on the exterior side of the wall. It

may also be installed on the

*Note - Firestop/Spacer integral

*Note - When using Secure Flex

Round Termination (SV4.5HTR).

interior side.

with round termination

(SV4.5HTR)

use Firestop/Spacer SF4.5HF

See Venting Figures for Use

Restrictions on the Horizontal

6 to 48 inch Vent Section,

Telescopic vent section,

Elbow or Appliance Collar

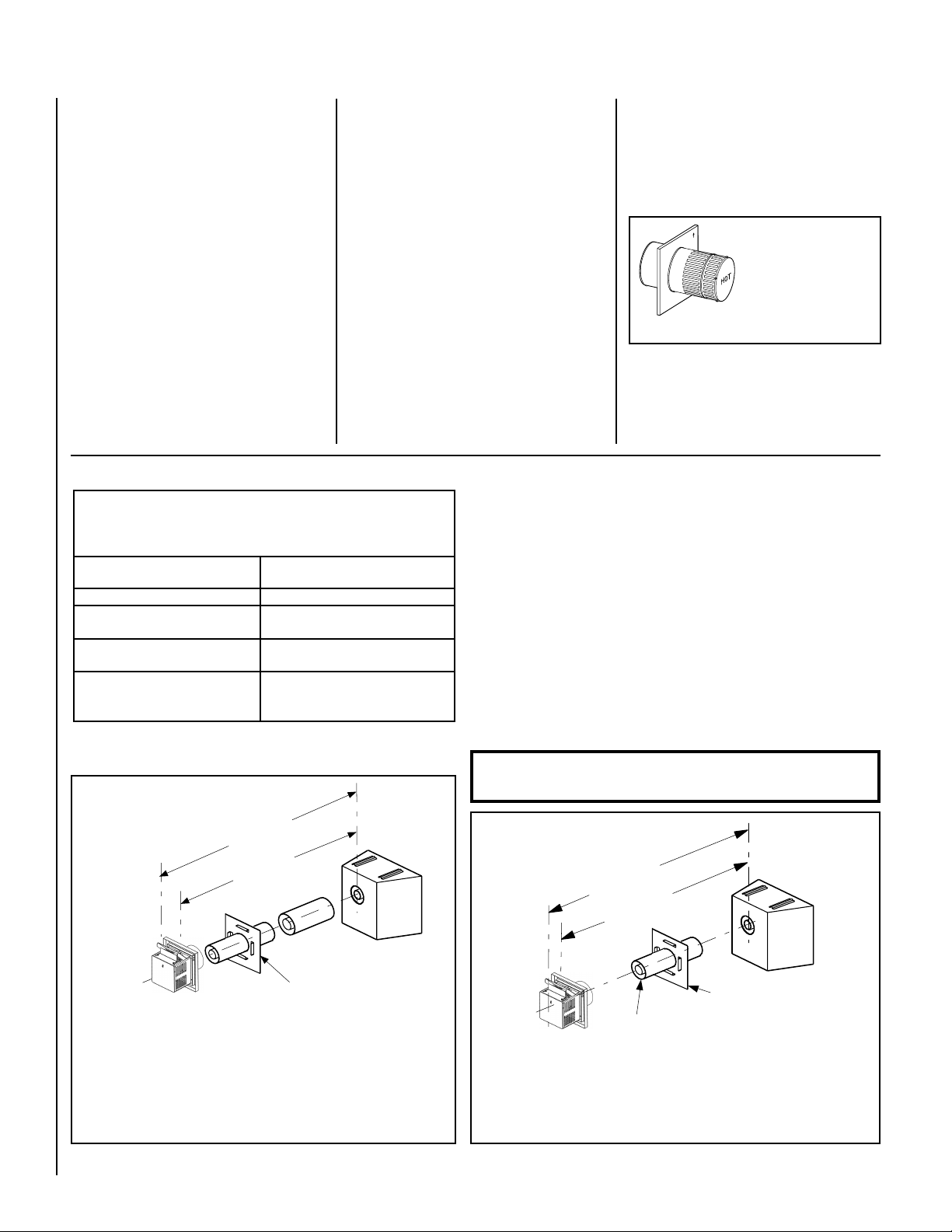

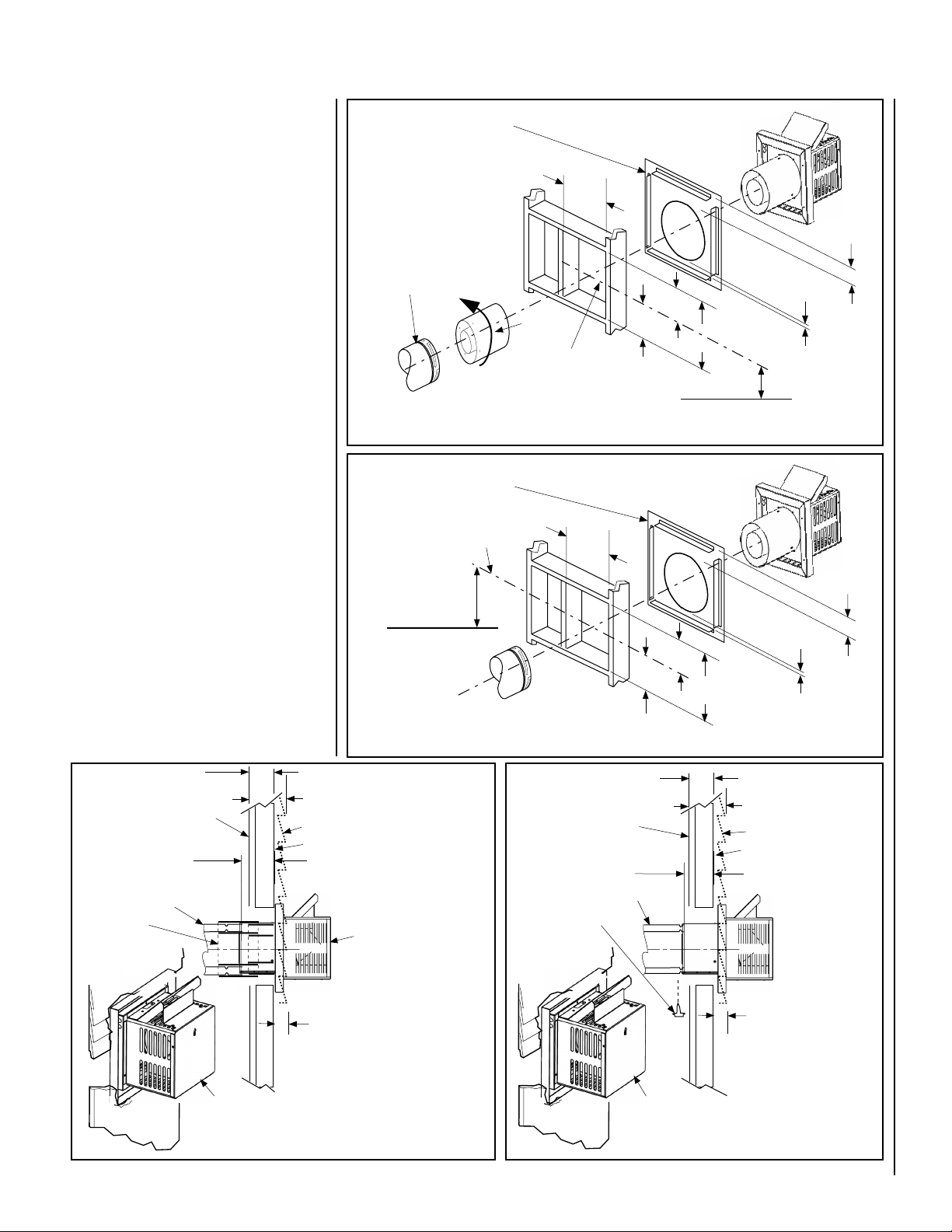

Installing Square HorizontalTermination (SV4.5HTS) Short Square Horizontal

Figure 29

*Firestop/Spacer (SV4.5HF) shown

on the exterior side of the wall. It

may also be installed on the

interior side.

Note: Centerline of Vent Piping is

NOT the Same as the Centerline of

the Framed Opening.

See Figure 9 on page 7

for Min. Distance to

Base of Appliance.

Base of Appliance

6 to 48 inch Vent Section, Elbow or Appliance Collar

*When using Secure Flex, use

Firestop/Spacer (SF4.5HF)

Termination (SV4.5HTSS) Round Horizontal Termination (SV4.5HTR)

Figure 30

SV4.5 HTSS Termination

Shown.

10¹⁄₂"

(267 mm)

(76 mm)

(25.4 mm)

See Figure 9 on page

7 for Min. Distance to

Base of Appliance.

(76 mm)

(25.4 mm)

Adapter

SV4.5RCH

Note: Centerline of Vent

Piping is NOT the Same as

the Centerline of the

Framed Opening.

10¹⁄₂"

(267 mm)

5¹⁄₈"

(130 mm)

5¹⁄₈"

(130 mm)

(178)

12¹⁄₈"

(308 mm)

Base of Appliance

SV4.5 HTSSL

Termination

(178)

12¹⁄₈"

(308 mm)

Installing Long Square HorizontalTermination (SV4.5HTSSL)

*Note - Firestop/Spacer

(SV4.5HF) required, but

not shown for clarity.

Interior Surface of Finished Wall Maximum Extent of

Vent Run Sections Relative to Exterior Surface of Framing

Last Vent Section. Use Telescopic Vent Section (SV4.5LA), If Necessary

Adapter

SV4.5RCH

Siding

Stucco

SV4.5HTSS Short Square

Termination Shown

Figure 31

Minimum wall thickness

*6 in. (152 mm)

Maximum wall thickness

10¹⁄₄ in. (260 mm)

Exterior Surface of Siding

Exterior Surface of Framing

6 in. to 10¹⁄₄ in.

(152 mm to 260 mm)

*Cut termination collar

for wall thicknesses

less than 6 in. (152 mm).

SV4.5HTSS Short

Square Termination

Shown

1¹⁄₄" Maximum Recess of Square Termination into Exterior Finishing Material. Round Termination may not be recessed at all.

*When using Secure Flex, use

Firestop/Spacer SF4.5HF

Connecting/Recessing

Square (SV4.5HTS)

Short Square (SV4.5HTSS)

or Round (SV4.5HTR)

Horizontal Termination

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Figure 32

Connecting/Recessing

Long Square Horizontal

Termination (SV4.5HTSSL)

M. Install the desired termination - See the horizontal venting figures for application restrictions on the round termination (SV4.5HTR).

1. Install the square (SV4.5HTS) or short square termination (SV4.5HTSS) - For the last step ,

from outside the exterior wall, slide the collars of the termination into the adapter (see

Figure 31

until the termination seats against the exterior wall surface to which it will be attached. Orient the housing of the termination with the arrow pointed upwards. Secure the termination to the exterior wall. The horizontal termination must not be recessed into the exterior wall or siding by more than the 1 ¹⁄₄" (32 mm) as shown in

Figure 31

2. Install the long square termination (SV4.5HTSSL) - For the last step , from outside

the exterior wall, slide the collars of the termination onto the last vent section (see

Figure 32

until the termination seats against the exterior wall surface to which it will be attached.

Orient the housing of the termination with the arrow pointed upwards. Secure the termination to the exterior wall. The horizontal termi-

nation must not be recessed into the exterior wall or siding by more than the 1 ¹⁄₄" (32 mm)

as shown in

)

3. Install the round termination (SV4.5HTR) – See

Figure 32

Figure 33

for an illustration of the round termination. For the last step, from outside the exterior wall, slide the collars of the termination onto the adapter (same as shown in

ure 31

for the SV4.5HTSS short square termination) until the termination seats against the exterior wall surface to which it will be attached. Orient the housing of the termination with the arrow pointed upwards. Secure the termination to the exterior wall.

)

Fig-

The SV4.5HTR Round Termination may not be used when the appliance is vented directly out the wall from the rear as shown in

Figures 34 and 35

Do Not recess the SV4.5HTR round termination at all.

See Horizontal Venting Figures and Tables for Use Restrictions

SV4.5HTR Horizontal

Figure 33

Round Termination

SFHRK Snorkel Cap –The snorkel cap is de-

signed to be fitted into a basement window box. The SFHRK cap is for use with flex vent The vertical distance between the inlet and outlet of the cap is 28 in. (711 mm). pipe.

HORIZONTAL VENT FIGURES/TABLES

roiretxEsuoiraVrofderiuqeRstnenopmoCgnitneV-3ELBAT

-stiKnoitanimreTesehTfoynAgnisUnehW,sessenkcihTllaW

noitanimreTerauqSllamS)STH5.4VS(noitanimreTerauqS

stnenopmoCgnitneV

deriuqeR

ylnOtiKnoitanimreT64/101ot)062ot251(

tnev.ni6dnatiKnoitanimreT

)6L5.4VS(noitces

tnev.ni21dnatiKnoitanimreT

)21L5.4VS(noitces

cipocseleTdnatiKnoitanimreT

.ni6dna)AL5.4VS(noitces

)6L5.4VS(noitcestnev

*Note: See Figure 35 for wall thickness range reductions when using SV4.5HTS and SV4.5HTSS terminations.

28 in. (711 mm)

Maximum

20 in. (508 mm)

Maximum

)RTH5.4VS(noitanimreTdnuoR)SSTH5.4VS(

sessenkcihTllaWroiretxE

mm(sehcni )

)573ot062(4/341ot4/101

)725*ot524(4/302*ot4/361

)255*ot892(4/312*ot4/311

Note: Secure Vent components (rigid vent pipe and terminal) are shown in the figures; Secure Flex components (flexible vent pipe and terminal) may also be used.

Note: SV4.5BF (Secure Vent), SF4.5BF (Secure Flex) firestop/spacer must be used anytime vent pipe passes through a combustible floor or ceiling. SV4.5HF (Secure Vent), SF4.5HF (Secure Flex) firestop/spacer must be used anytime vent pipe passes through a combustible wall.

Note: Two 45 degree elbows may be used in place of one 90 degree elbow. The same rise to run ratios, as shown in the venting figures for 90 elbows, must be followed if 45 degree elbows are used.

Note: It is very important that the horizontal/inclined run be maintained in a straight (no dips) and recommended to be in a slightly elevated

¹⁄₄

plane, in a direction away from the fireplace of

" rise per foot (20 mm per meter) which is ideal, though rise per foot run ratios that are smaller are acceptable all the way down to at or near level.

WARNING: UNDER NO CIRCUMSTANCES MAY SEPARATE SECTIONS OF CONCENTRIC FLEXIBLE VENT PIPE BE JOINED TOGETHER.

28 in. (711 mm)

Maximum.

10³⁄₄ to 20 in.

(273 to 508 mm)

*When using Secure Flex,

use Firestop/Spacer

(SF4.5HF)

*Wall Firestop/Spacer

SV4.5HTSS Termination Shown

Note - In applications where the wall thickness is less than 6 inches

(152 mm), field shortening of the termination collar may be required.

See

Table 3

as an aid in venting component selection for a particular

(SV4.5HF)

range of exterior wall thicknesses.

The round horizontal termination (SV4.5HTR) may not be used.

Figure 34

Rear Vent - NO ELBOWS - with SV4.5HTS SQUARE OR

SV4.5HTSS SHORT SQUARE TERMINATION

Note - It may be necessary to cut the termination collar

The round horizontal termination (SV4.5HTR) may not be used.

Figure 35

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

*Wall Firestop/Spacer

(SV4.5HF)

12 in. Vent Section

(SV4.5L12)

in some applications.

*When using Secure flex,

use Firestop/Spacer

SF4.5HF)

Rear Vent - NO ELBOWS - with SV4.5HTSSL LONG SQUARE TERMINATION

HORIZONTAL VENT FIGURES/TABLES (CONTINUED)

ELBATF

wobleeerged09en0=V

.xaM)m419.0(teef3=H

Refer to particular range of exterior wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR) termination .

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

Table 3 on page 16

for an aid in venting component selection for a

*Wall Firestop/Spacer

(SV4.5HF)

*When using Secure Flex, use Wall Firestop/Spacer SV4.5HF.

Figure 36

Top Vent - ONE 90 DEGREE ELBOW - ELBOW CONNECTION AT APPLIANCE

ELBATG

muminiMVmumixaMH

teef)m(teef)m(

1)503.0(5)25.1(

2)16.0(01)1.3(

3)419.0(51)56.4(

4)22.1(02)2.6( .xaM)m4.21(teef04=H+V

.xaM)m2.6(teef02=H

Table 3 on page 16

Refer to for a particular range of exterior wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR) termination .

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

*When using Secure Flex,

use Wall Firestop/Spacer

SF4.5HF.

for an aid in venting component selection

HELBAT

muminiMVmumixaMHH+H

teef)m(teef)m(teef)m(

1)503.0(2)016.0(5)25.1(

2)016.0(4)22.1(01)1.3(

3)419.0(6)68.1(51)56.4(

4)22.1(8)84.2(02)2.6( H+H+V

Refer to

Table 3 on page 16

H+H

for an aid in venting component selection for a

.xaM)m84.2(teef8=H

.xaM)m2.6(teef02=

particular range of exterior wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR) termination .

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

mumixaM

.xaM)m4.21(teef04=

*Wall Firestop/Spacer

(SV4.5HF)

**Ceiling Firestop/Spacer

(SV4.5BF)

**When using Secure Flex, use Ceiling

Firestop/Spacer SF4.5BF.

Figure 37

Top Vent - ONE 90 DEGREE ELBOW -

ELBOW CONNECTION NOT DIRECTLY AT APPLIANCE

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

*Wall

Firestop/Spacer

*When using Secure

Flex, use Wall

Firestop/Spacer

SF4.5HF.

**When using Secure

Flex, use Ceiling

Firestop/Spacer

SF4.5BF.

Figure 38

Rear Vent - TWO 90 DEGREE ELBOWS

(SV4.5HF)

**Ceiling

Firestop/Spacer

(SV4.5BF)

*Wall

Firestop/Spacer

(SV4.5HF)

HORIZONTAL VENT FIGURES/TABLE (CONTINUED)

JELBAT

MUMINI

H+H

Refer to wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR)

mumixaM

termination .

Table 3 on page 16

for an aid in venting component selection for a particular range of exterior

teef)m(teef)m(

1)503.0(5)25.1(

2)016.0(01)1.3(

3)419.0(51)56.4(

4)22.1(02)2.6( H+H+V

H+H

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

Figure 39

Top Vent - TWO 90 DEGREE ELBOWS

.xaM)m4.21(teef04=

.xaM)m2.6(teef02=

*When using Secure Flex,

use Wall Firestop/Spacer

SF4.5HF.

**When using Secure

Flex, use Ceiling

Firestop/Spacer

SF4.5BF.

KELBAT

H+H

muminiMVmumixaMH

teef)m(teef)m(teef)m(

1)503.0(2)016.0(5)25.1(

2)016.0(4)22.1(01)1.3(

3)419.0(6)68.1(51)56.4(

4)22.1(8)84.2(02)2.6( H+H+V

1H+2

H+H

1H+2

Refer to

Table 3 on page 16

for an aid in venting component selection for a particular range of exterior wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR) termination .

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

Figure 40

- Rear Vent - THREE 90 DEGREE ELBOWS

1H+2

mumixaM

*When using Secure Flex, use Wall Firestop/Spacer

SF4.5HF.

.xaM)m4.21(teef04=

.xaM)m84.2(teef8=H

.xaM)m2.6(teef02=

**When using Secure Flex, use Ceiling Firestop/Spacer

SF4.5BF.

*Wall Firestop/Spacer

(SV4.5HF)

*Wall Firestop/Spacer

(SV4.5HF)

**Ceiling

Firestop/Spacer

(SV4.5BF)

*Wall Firestop/Spacer

(SV4.5HF)

**Ceiling Firestop/Spacer

(SV4.5BF)

LELBAT

MUMINI

teef)m(teef)m(

1)503.0(5)25.1(

2)016.0(01)1.3(

3)419.0(51)56.4(

4)22.1(02)2.6( H+H

V+V

H+H+

Refer to

Table 3 on page 16

particular range of exterior wall thicknesses when using the square (SV4.5HTS), small square (SV4.5HTSS) or the round (SV4.5HTR) termination .

Short Square Termination (SV4.5HTSS) shown; Long Square Termination (SV4.5HTSSL) may also be used; Square Termination (SV4.5HTS) may also be used Round Termination (SV4.5HTR) may also be used.

Figure 41

Top Vent - THREE 90 DEGREE ELBOWS

HmumixaM

.xaM)m2.6(teef02=

.xaM)m4.21(teef04=

for an aid in venting component selection for a

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

*Wall Firestop/spacer

(SV4.5HF)

*When using Secure Flex,

use Wall Firestop/spacer

SF4.5HF.

*Wall Firestop/spacer

(SV4.5HF)

**When using Secure flex,

use Ceiling Firestop/spacer

SF4.5BF.

**Ceiling Firestop/spacer

(SV4.5BF)

5" (127 mm)

Radius Minimum

SF-12 or SF-18 Flexible Vent Section

VERTICAL OR HORIZONTAL VENTING USING

SECURE FLEX

Secure Flex venting kits and components may

be used in any venting application where rigid Secure Vent (SV4.5) direct vent components can be used. All restrictions, clearances and allowances that pertain to the rigid piping apply to the flexible venting.

not be modified; also, under no circumstances may separate sections of flex pipe be joined together. Secure Flex kits may be added to the

end of a vent run made up of rigid Secure Vent (SV4.5) vent sections provided that doing so does not violate any of the venting length, height, routing, horizontal to vertical ratio requirements or clearance considerations detailed in this manual.

Secure Flex kits come with an included adapter that can be fitted to the appliance collar or the inclined channel end of the last Secure Vent (SV4.5) vent section in a rigid system in the exact same fashion as any other Secure Vent section. Align the dimpled end of the adapter over the previously installed section or appliance collar, adjusting the radial alignment until the four locking dimples of the adapter are aligned with the inlets of the four incline channels of the last vent section or collar. Push on the adapter until it fully engages, then twist the adapter clockwise running the dimples down and along the incline channels until they seat at the end of the channels.

Attach the flexible vent to the adapter as follows (see also

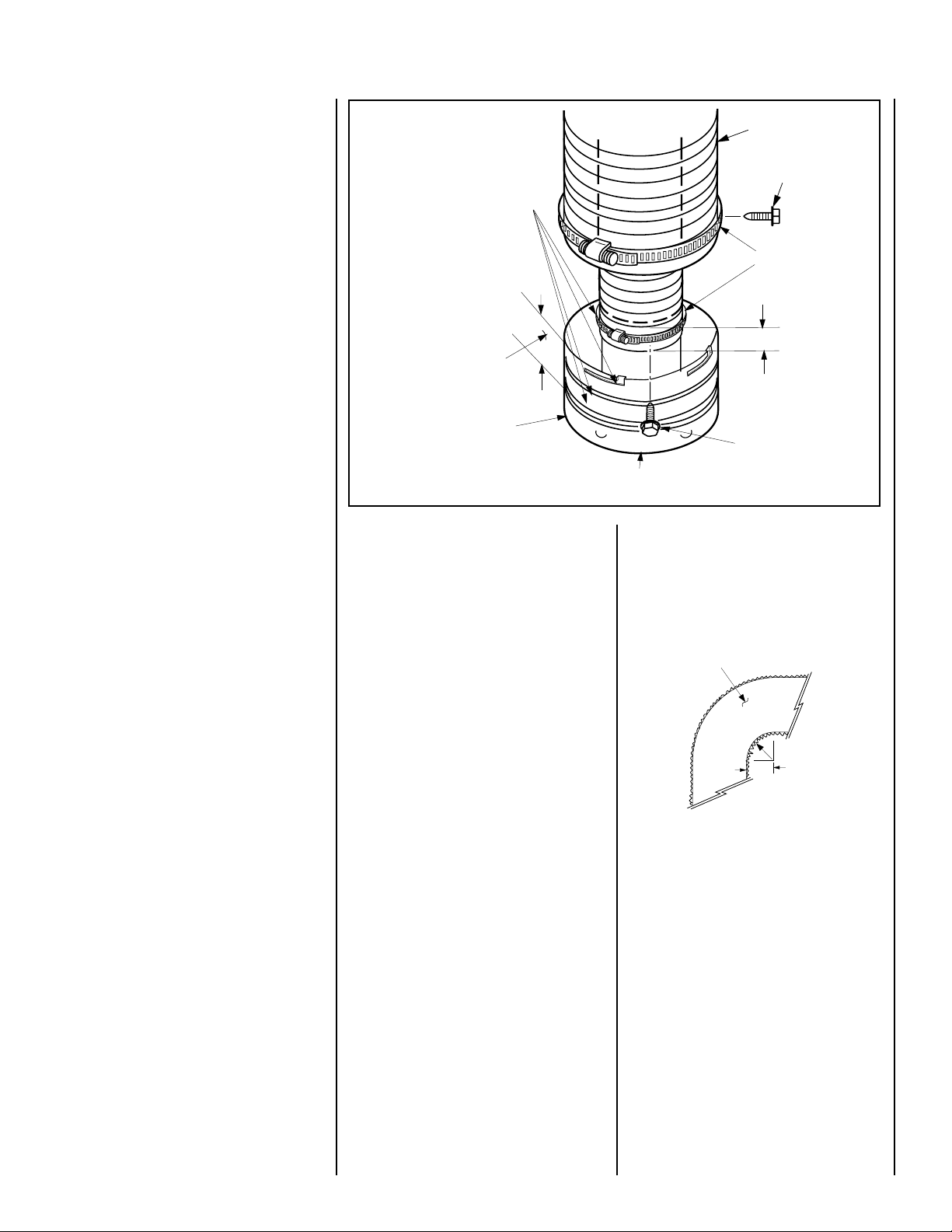

A. Install the Inner Flex Pipe -

1. Install the small gear clamp loosely around

the inner flexible vent pipe, push it back out of the way.

2. Apply a bead of Mill-Pac Black (700°F) high temperature sealant - Catalog No. 10K81) to the inner adapter collar, approxi-

mately ¹⁄₂ inch from the end.

3. Pull and extend the inner flexible vent pipe.

4. Slide the inner flex pipe over the adapter

collar. Ensure the flexible vent pipe completely engages the adapter collar to a distance of 1³⁄₄ inches from the end, and that it is free from damage or tears.

5. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adapter inner collar approximately ³⁄₄ inch from the end of the flex.

6. Install three screws 120 degrees apart through the flexible vent pipe and into the adapter collar just below the gear clamp to provide additional security to the connection.

KITS AND COMPONENTS

Secure Flex

kits may

Figure 42):

NOTE: OUTER PIPE IS PULLED AWAY TO SHOW THE DETAIL OF THE INNER PIPE

Apply ONLY MIL-PAC BLACK HIGH TEMPERATURE SEALANT (Catalog No. 10K81) to the outside surface of both collars of the adapter (be especially careful to fill the grooves of the outer collar to be covered by the flexible pipe) and slide flexible pipe over inner and outer adapter collars.

1³⁄₄ in. (44 mm)

Flexible Pipe and

Adapter Outer Collar Overlap

Adapter

(SV4.5RF)

Attach Adapter to Appliance

Figure 42

Collar, or Secure Vent Sections

B. Install the Outer Flex Pipe -

1. Install the large gear clamp loosely around

the outer flexible vent pipe, push it back out of the way.

2. Apply a bead of Mill-Pac Black (700

°F) high

temperature sealant - Catalog No. 10K81) to the outer adapter collar; to the grooves of the collar which extend approximately 1 inch from the end and to the flat surface, approximately 1³⁄₈ inches from the end.

3. Pull and extend the outer flexible vent pipe.

4. Slide the outer flex pipe over the adapter

collar. Ensure the flexible vent pipe completely engages the adapter collar to a distance of 1³⁄₄ inches from the end, and that it is free from damage or tears.

5. Slide the gear clamp down and tighten it fully to secure the flexible vent to the adapter outer collar approximately ³⁄₄ inch from the end of the flex.

6. Install three screws 120 degrees apart through the flexible vent pipe and into the adapter collar just below the gear clamp to provide additional security to the connection.

C. Route Flex Vent -

Ensure that the flex vent is properly routed to provide the required clearance. Do Not allow the flexible vent to bend in a radius tighter than 5" (127 mm). Refer to

Figure 43

. Support horizontal sections of flex with metal straps at 2 foot (0.61 m) intervals.

FLEX VENT

SECURING SCREW

(3 PLACES EQUIDISTANT

JUST BELOW GEAR CLAMP)

GEAR CLAMPS

1³⁄₄ in. (44 mm)

Flexible Pipe and

Adapter Inner Collar Overlap

SECURING SCREW

(3 PLACES EQUIDISTANT

JUST BELOW GEAR CLAMP)

D. Install Firestop/Spacers at ceilings and walls -

When Secure Flex penetrates a wall or ceiling, a firestop/spacer is required: use the SF4.5 BF firestop/spacer for ceilings and the SF4.5 HF firestop/spacer for walls. See the appropriate sections and figures shown throughout the venting section for their installation requirments.

Figure 43

E. Attach Flex Vent to Termination Secure Flex components can be purchased

separately and attached to bulk lengths of Secure Flex flexible tubing cut to size at the job site. Secure the flexible vent to the Secure

Flex terminations in the same manner (see

Figure 42)

Note:

Secure Flex

substitute

Secure Vent

nents. The collars of tions and adapters have a different circumference than that used with the pipe. Additionally, have an extended length center tube for use in attaching the flexible vent.

as it was attached to the adapter.

Secure Flex

vent must be attached to

terminations only. DO NOT

Secure Vent

adapter for

terminations or the

Secure Flex

compo-

termina-

Secure Vent

components

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

1. If any of the original wire as supplied must be replaced,

1. it must be replaced with Type AWM 105°C – 18 GA. wire.

2. 120V, 60Hz – Less than 3 amps.

Junction Box

Transf.

120 V.

24 V

Factory Wired Field Wired

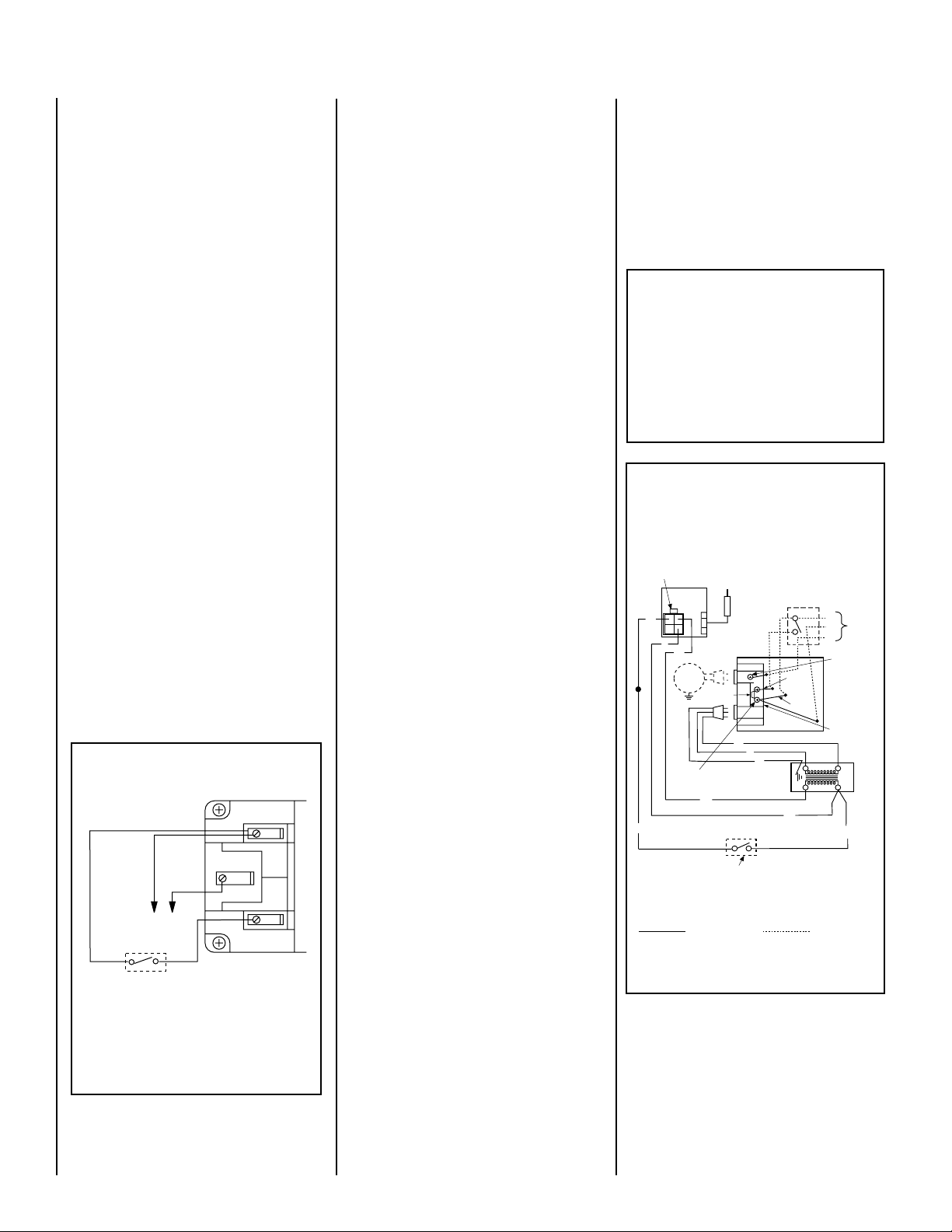

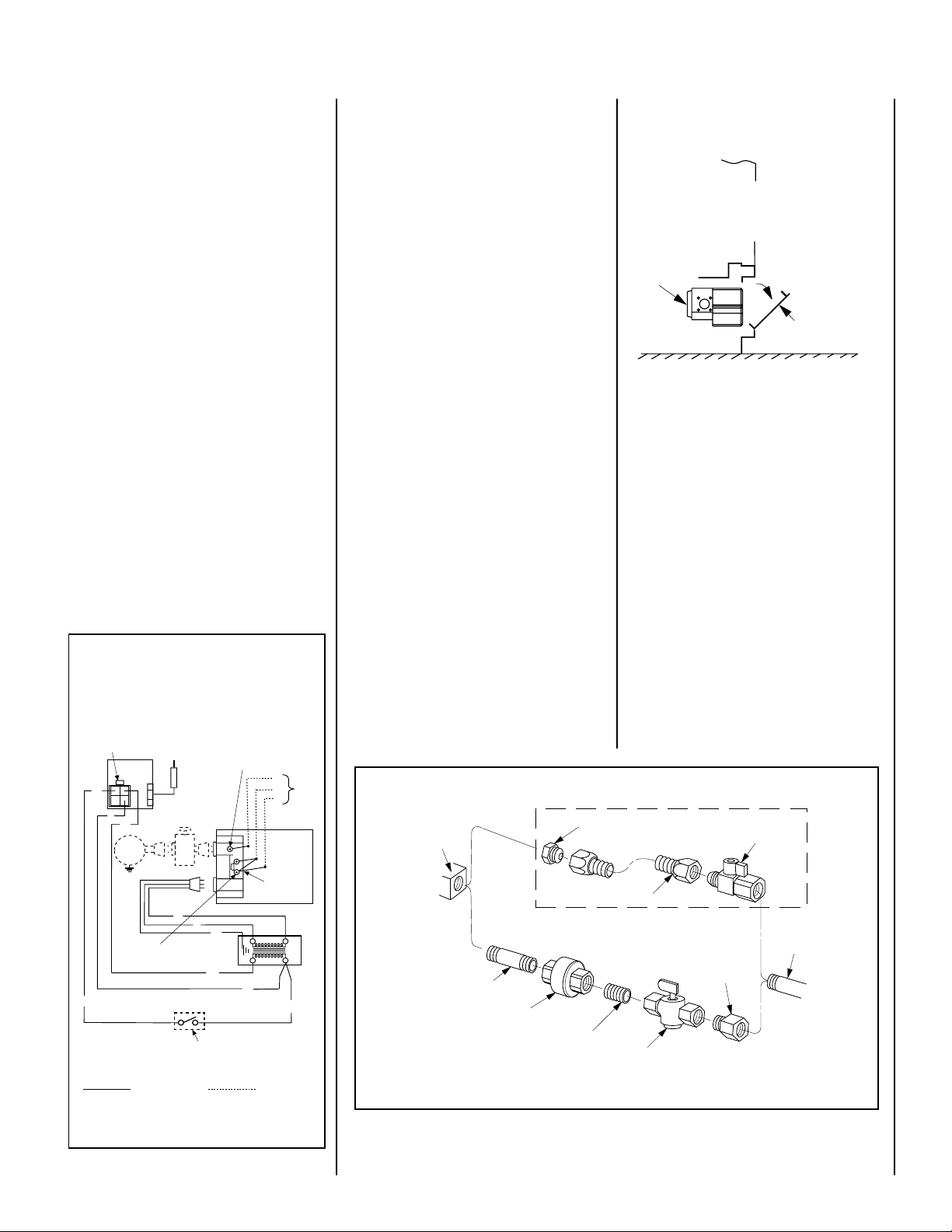

Electronic Wiring Diagram (Honeywell)

Showing the Blower Wiring for the Optional

FBK-100 and FBK-200 Kits

OPT

BLOWER

*OPTIONAL

ACCESSORY

SWITCH

120

VAC.

Gas Valve

IGNITER

PILOT

ASSEMBLY

Break Off

Tab

*Blower speed control switch is provided in FBK200 blower kit.

Outlet Box

Green Ground

Screw

Hot side of Outlet

Schematic Representation Only

**ON/OFF Switch (Integral

with Gas Valve)

**Leave the ON/OFF switch, which is integral

with the gas valve, in the ON position.

OPTIONAL APPLIANCE-MOUNTED ON/OFF SWITCH

OR OPTIONAL WALL SWITCH

OR OPTIONAL THERMOSTAT

OR OPTIONAL REMOTE RECEIVER

Red pigtail

Black pigtail

White Wire to Opposite

Side

Step 4. FIELD WIRING

The gas valve is set in place and pre-wired at the factory on both models.

A. SIT and Honeywell Millivolt Wiring

(See Figure 44 )

1. Select any of the following optional con-

trols: appliance-mounted (rocker switch) or wall-mounted switch, thermostat, or one of the optional remote control kits. If appliancemounted ON/OFF control is selected mount it in the gas valve mounting bracket.

2. If wall-mounted ON/OFF control or thermostat is selected mount it in a convenient location on a wall near the fireplace.

3. Wire the control switch within the millivolt control circuit using the 15 feet of 2 conductor wire supplied with the unit. Caution: do not

connect the optional wall switch to a 120V power supply.

4. Alternatively, the appliance may be operated

without the use of the controls indicated in step 1, solely by manipulating the gas valve control knob. In order to use this method, twist the free ends of the two conductor wire (located inside the bottom compartment of the unit) together as shown in

Figure 44

Note: The supplied 15 feet of 2 conductor wire

has one end of each conductor connected to the gas valve circuit and the other end of each conductor placed loose inside the bottom compartment of the unit.

If any of the original wire as supplied must be replaced, it must be replaced with Type AWM105°C – 18 GA. wire.

*OPTIONAL ON/OFF SWITCH,

WALL SWITCH, THERMOSTAT

OR REMOTE CONTROL RECEIVER

*TWIST WIRES “A” AND “B” TOGETHER TO OPERATE UNIT

SOLELY BY MANIPULATING THE GAS VALVE CONTROL KNOB;

OR CONNECT WIRES TO OPTIONAL ON/OFF SWITCH OR WALL

SWITCH OR THERMOSTAT TO OPERATE UNIT.

Figure 44

Millivolt Wiring Diagram

Thermopile

Note: The supplied 15 feet of 2 conductor wire

has one end of each conductor connected to

4. Connect the ground supply wire to the outlet's green ground screw.

the gas valve circuit and the other end of each conductor placed loose inside the bottom

5. Reinstall the outlet box.

compartment.

6. Insert the blower plug into the top outlet.

–

B. Electronic Wiring (See

Figure 45

) –

Note: The electronic appliance must be con-

nected to the main power supply.

1. Route a 3-wire 120Vac 60Hz 1ph power supply to the appliance junction box.

2. Remove the outlet box from the junction box by removing two screws .

(The bottom outlet is unused on millivolt units, while the burner control circuit plugs into the bottom outlet on electronic units.)

IMPORTANT: Ground lead must be connected to the green screw located on the outlet box. See

Figure 45

. Failure to do so will result in a potential safety hazard. The appliance must be electrically grounded in accordance with local codes

3. Connect the black power supply wire to the lower outlet's red pigtail lead and the white

power supply wire to the common terminal of the outlet as shown in

Figure 46.

or, in the absence of local codes, the National Electrical Code, ANSI/NFPA 70(latest edition). (In Canada, the current CSA C22-1 Canadian Electrical Code.)

4. Connect the ground supply wire to the outlet's green ground screw.

5. Locate and install a low voltage (24V) wall

switch or thermostat (not supplied) in the desired location.

6. Connect the low voltage wire to this switch or thermostat.

Insert the control circuit plug into the lower

outlet box.

8. After wiring is complete, replace the outlet box.

Note: The gas valve-mounted ON/OFF switch

is shown in Figure 45. It is integral with the gas valve.

Step 5. WIRING - OPTIONAL FORCED AIR BLOWER KIT (See

An electrical outlet box is provided for the installation of the FBK-100, FBK-200 forced air blower

kits (optional). Electrical power must be provided to this box to operate these blowers.

1. Route a 3-wire, 120Vac 60Hz 1ph power line with control switch to the lower right rear corner of the appliance.

2. Remove the outlet box by removing two screws.

3. Connect the supply wires to the blower control switch. Then connect the wires from the blower control switch to the outlet box' pigtail leads as shown in

Figure 45 )

Figure 45

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

FBK-250 Blower Kit (See

Figure 46

)

An electrical outlet box is provided for the installation of the FBK-250 forced air blower kit. Electrical power must be provided to this box to operate these blowers. Install the blower kit according to the installation instructions provided with the kit.

1. Route a 3-wire, 120Vac 60Hz 1ph power line to the lower right rear corner of the appliance.

2. Remove the outlet box by removing two screws.

3. Connect the black supply wire to both of the outlet box' pigtail leads and the white supply wire to the common terminal of the outlet box as shown in

Figure 46

4. Connect the ground supply wire to the outlet's green ground screw.

5. Reinstall the outlet box.

6. Insert the kit-provided module plug into the top outlet.

(The bottom outlet is unused on millivolt units, while the burner control circuit plugs into the bottom outlet on electronic units.)

7. Insert the blower plug into the module's receptacle.

Electronic Wiring Diagram (Honeywell)

Showing the Blower Wiring for the Optional

1. If any of the original wire as supplied must be replaced,

1. it must be replaced with Type AWM 105°C – 18 GA. wire.

2. 120V, 60Hz – Less than 3 amps.

*ON/OFF Switch (Integral

with Gas Valve)

OPTIONAL APPLIANCE-MOUNTED ON/OFF SWITCH

FBK-250 Kits

*Leave the ON/OFF switch, which is integral

with the gas valve, in the ON position.

Outlet Box Green

Gas Valve

IGNITER

Optional FBK-250

OPT

BLOWER

Module

Hot side of Outlet

OR OPTIONAL WALL SWITCH

OR OPTIONAL THERMOSTAT

OR OPTIONAL REMOTE RECEIVER

Factory Wired Field Wired

Schematic Representation Only

PILOT

ASSEMBLY

Ground Screw

G BK W

White Wire

To Opposite

Transf.

120 V.

24 V

Side

120

VAC.

Figure 46

Step 6. CONNECTING GAS LINE

Make gas line connections. All codes require a shut-off valve mounted in the supply line.

Figure 47

connecting the gas supply. The flex-line method is acceptable in the U.S., however, Canadian requirements vary depending on locality. Installation must be in compliance with local codes.

These appliances can be equipped with a gas flex line for use (where permitted) in connecting the unit to the gas line. The gas flex line (not provided) is to aid in attaching the direct vent appliance to the gas supply. The gas flex line can only be used where local codes permit. See The flex line is rated for both natural and propane gas. The optional gas flex line is equipped with a manual shut off valve.

Open the control compartment access panel

(Figure 48)

magnetic catches securing the panel, gently depressing the outer top corners of the panel until the catches "pop" the panel free, allowing it to swing out and down to open.

The millivolt control valve has a ³⁄₈" (10 mm) NPT thread inlet port.

Secure all joints tightly using appropriate tools and sealing compounds (ensure propane resistant compounds are used in propane applications).

Figure 47 -

illustrates two methods for

Figure 47

for flex line description.

by actuating the spring-loaded

Gas Valve

³₈" Nipple

³₈" Union

³₈" Close Nipple

GAS CONNECTION

Optional Gas Flex Line Connector

³₈" NPT x ³₈

Flare Fitting

³₈" Flex Tubing

Turn on gas supply and test for gas leaks using a soapy water solution. Never use an open

flame to check for leaks.

Open the lower panel or louver assembly by gently depressing the outer top corners of the panel until the catches “pop” the panel free,

allowing it to swing out and down to open.

Control Valve

Lower Control Compartment Door

Opening Control Compartment Door

Figure 48

A. Mix a 50% dish soap, 50% water solution.

B. Light the appliance (refer to the lighting

instructions provided in the Homeowner's Care and Operation Instructions).

C. Brush all joints and connections with the soapy water solution to check for leaks. If bubbles are formed, or gas odor is detected, turn the gas control knob to the “OFF” position. Either tighten or refasten the leaking connection and retest as described above.

D. When the gas lines are tested and leak free, observe the individual tongues of flame on the burner. Make sure all ports are open and producing flame evenly across the burner. If any ports are blocked, or partially blocked, clean out the ports.

¹₂" x ³₈" Flare

Shut-Off Valve

Gas

¹₂ x ³₈ " Reducer

³₈" Shut-Off Valve

Stub

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 7. INSTALLING LOGS AND GLOWING EMBERS

The logs are packaged in a carton which is shrink-wrapped to the front glass enclosure panel. The glowing embers are packaged separately in a plastic bag located in the control area of the fireplace.

Refer to the homeowner's care and operation instructions for detailed placement instructions for the logs and glowing embers.

Step 8. CHECKING APPLIANCE OPERATION

With gas line installed run initial system checkout before closing up the front of the unit. Follow the pilot lighting instructions provided in the Homeowner's Care and Operation Instructions. For piezo ignitor location see Honeywell millivolt appliances only).

Note: Instructions are also found on the literature tag attached to the gas valve train.

When first lighting the appliance, it will take a few minutes for the line to purge itself of air. Once purging is complete, the pilot and burner will light and operate as indicated in the instruction manual. Subsequent lightings of the appliance will not require such purging. Inspect the pilot flame (remove logs, if necessary, handling carefully).

Figure 49

(SIT and

Replace logs if removed for pilot inspection.

To light the burner; turn “ON” the remote wall switch and rotate the gas valve control knob counterclockwise to the “ON” position.

SIT MILLIVOLT

Thermocouple

Pilot Nozzels

Hood Ignitor Rod

³⁄₈" Min (9 mm)

Thermopile

Figure 50

HONEYWELL MILLIVOLT

¹⁄₈" Min (3 mm)

Pilot

Nozzels

Thermopile

Thermocouple

Ignitor Rod

Hood

³⁄₈" Min (9 mm)

Step 9. INSTALLING THE GLASS DOOR

Retrieve the glass door. Visually inspect the gasket on the backside of the frame. Gasket surface must be clean, free of irregularities and seated firmly.

Position the door in front of the firebox opening with the bottom of the door held away from the fireplace the door frame over the top of the firebox frame.

Let the bottom of the door frame swing gently in towards the fireplace ensuring that the gasket seats evenly as the door frame draws shut. Fasten the two latches located underneath the firebox floor to the door's vee-flange. Close both the latches securely.

Latch

(Figure 53

). Hook the top flange of

Top Flange Door Frame

Glass Door

SIT Gas Valve

Honeywell Gas Valve

Piezo

Ignitor

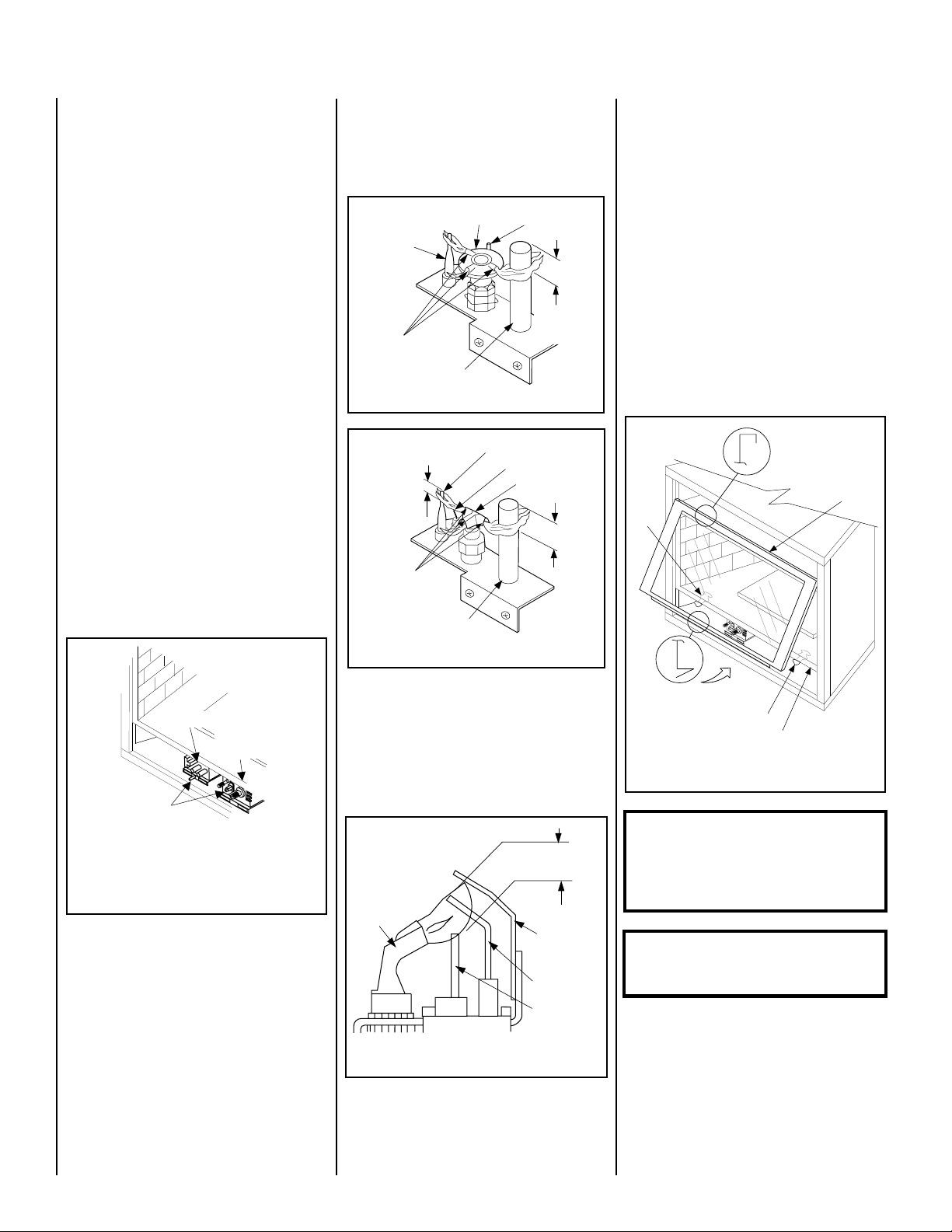

Sit and Honeywell Millivolt Gas Valve

Showing Piezo Ignitor Location (Each Unit is

Equipped with Only One of these Gas Valves)

Figure 49

SIT and Honeywell Millivolt Appliance Checkout

The pilot flame should be steady, not lifting or floating. Flame should be blue in color with traces of orange at the outer edge. The top ³⁄₈" (10 mm) at the pilot generator (thermopile) and the top ¹⁄₈" min (tip) of the quick drop out thermocouple should be engulfed in the pilot flame. The flame should project 1" (25 mm) beyond the hood at all three ports (

- SIT, Figure 51 - Honeywell

Figure 50

)

Figure 51

Electronic Appliance Checkout

To light the burner, turn ‘ON’ the optional remote wall switch and turn the gas control switch to the “ON” position. Ensure the ignitor lights the pilot. The pilot flame should engulf the flame rod as shown in

ELECTRONIC

Proper Flame

Adjustment

Pilot Nozzle

Figure 52

3/8 To 1/2 Inch

(9 mm to 13 mm)

Ground Electrode

Flame Rod

Hot Surface

Igniter

Figure 52

Bottom Vee-flange

Door Frame

Figure 53

- INSTALLING THE GLASS DOOR

Latch

Firebox Floor

WARNING: HANDLE THIS GLASS WITH EXTREME CARE! THE GLASS PANEL IS SUSCEPTIBLE TO DAMAGE — DO NOT SCRATCH WHILE HANDLING OR WHILE RE-INSTALLING THE GLASS DOOR FRAME.

WARNING: NEVER OPERATE THE APPLIANCE WITHOUT THE FRONT GLASS ENCLOSURE PANEL IN PLACE AND SECURE.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Step 10. BURNER ADJUSTMENTS

Flame Appearance and Sooting

Proper flame appearance is a matter of taste. Generally, most people prefer the warm glow of a yellow to orange flame. Appliances operated with air shutter openings that are too large will exhibit flames that are blue and transparent. These weak, blue and transparent flames are termed anemic. If the air shutter opening is too small sooting may develop.

Sooting is indicated by black puffs developing at the tips of very long orange flames. Sooting results in black deposits forming on the logs, appliance inside surfaces and on exterior surfaces adjacent to the vent termination. Sooting is caused by incomplete combustion in the flames and lack of combustion air entering the air shutter opening. To achieve a warm yellow to orange flame with an orange body that does not soot, the shutter opening must be adjusted between these two extremes.

No smoke or soot should be present. Reposition the logs if flames impinge on any of them. If the logs are properly positioned and sooting conditions exist, the air shutter opening on the main burner tube should be adjusted. Normally, the more offsets in the vent system, the greater the need for the air shutter to be opened further.

Burner Adjustment

Allow the burner to operate for at least 15 minutes. Observe the flame continuously. If it appears weak or sooty as previously described, adjust the air shutter by pushing or pulling on the adjustment rod until the flame appearance is as desired.

The adjustment rod and associated adjustable air shutter is patented technology. Flame adjustments can be made quickly and accurately to taste without the need of disassembling the appliance and waiting for 30 minutes after each adjustment.

Note: If the flame still appears anemic with the air shutter closed all the way against the stop (usually a result of lengthy vertical runs), turn the appliance off, turn the gas supply off, wait for the parts to cool, remove the glass door and logs to access the air shutter. The shutter is prevented from actually closing all the way by an adjustment set screw (see Figure 54). Remove this screw using a

¹⁄₄

inch nut driver. Reinstall the logs and glass door, turn the gas back on and then restart the appliance. After 30 minutes, reobserve the flame. Adjust the air shutter as previously described.

When satisfied that the appliance operates properly, proceed to finish the installation. Leave the control knob in the ON position and the remote switch OFF. Close the lower control compartment door.

Step 11. HOOD INSTALLATION

All of these appliances must have hoods installed prior to operating.

On all clean face units, slide the hood into the slots on the lower edge of the radiant panel (

Figure 55

On louvered face units, slide the hood into the slots on the lower edge of the cabinet top (

Figure 56

FINISHING REQUIREMENTS Wall Details

Complete finished interior wall. To install the appliance facing flush with the finished wall, position framework to accommodate the thickness of the finished wall (

Combustible Finished Wall Materials

Combustible

material may touch the appliance top.

Combustible

materials not

allowed below

this point on

the face of the

appliance.

Figures 55 and 56

This Area Must Remain Clear of Combustible Materials

1" Min

(25 mm)

Spacer

Top of Appliance

Radiant panel

Top of Door Frame

WARNING: AIR SHUTTER ADJUSTMENT SHOULD ONLY BE PERFORMED BY A QUALIFIED PROFESSIONAL SERVICE TECHNICIAN.

IMPORTANT: ENSURE THAT THE FRONT GLASS PANEL IS IN PLACE AND SEALED DURING ADJUSTMENT.

CAUTION: THE AIR SHUTTER DOOR AND NEARBY APPLIANCE SURFACES ARE HOT. EXERCISE CAUTION TO AVOID INJURY WHILE ADJUSTING FLAME APPEARANCE.

To adjust the flame, move the adjustment rod (located in the lower control area) up or down to increase or reduce the air shutter opening, respectively. Initially, always position the air

shutter to the factory setting (the minimum air opening position) as shown in can be done by pulling the adjustment rod all the way down.

Figure 54

. This

Burner Tube

Air Shutter

Adjustment Rod Down

(minimum air

opening position)

sledoM

004-TD

004-RD

Figure 54

Adjusting Set Screw

Adjustment Rod Up

(Fully Open Position)

RIAYROTCAF

GNITTESRETTUHS

saGlarutaN

sehcni

)mm(

23/1

)8.0(

Hood must be installed as shown.

Clean Face Models

Figure 55

Combustible Finished Wall Materials

Combustible

material

may touch the

appliance top.

saGenaporP

sehcni

)mm(

61/5

)0.8(

Combustible materials not

allowed below

this point on

the face of the

appliance.

Hood must be installed as shown.

Louver Face Models

This Area Must Remain Clear of Combustible Materials

1" Min

(25 mm)

Spacer

Top of Appliance

Louvers

Top of Door Frame

Figure 56

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

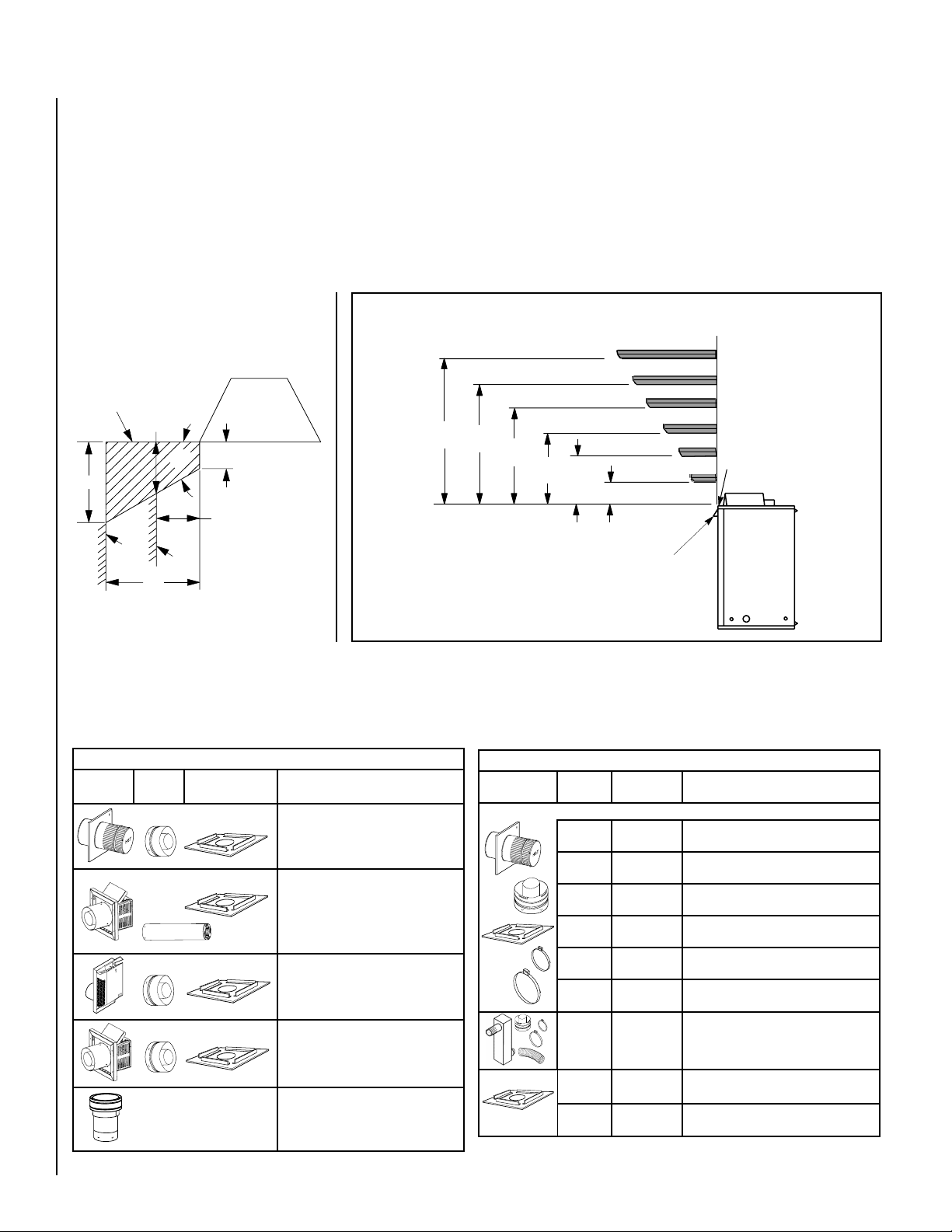

A hearth extension is not required with this appliance. If a hearth extension is used, do not block the lower control compartment door. Any hearth extension used is for appearance only and does not have to conform to standard hearth extension installation requirements.

Note: Combustible wall finish materials and/or surround materials must not be allowed to encroach the area defined by the appliance front face (black sheet metal). Never allow combustible materials to be positioned in front of or overlapping the appliance front face. See Figures 55 and 56 on page 23.

Non-combustible materials, such as surrounds and other appliance trim, may be installed on the appliance front face with these exceptions: they must not cover any portion of the glass or louvers; they may cover any portion of the top radiant panel or the air gaps surrounding the top radiant panel up to the installed hood.

Vertical installation clearances to combustible mantels vary according to the depth of the mantel. (See

Figure 58

). Mantels constructed of non-

combustible materials may be installed at any height above the appliance opening; however, do not allow anything to hang below the hood.

Combustible materials may project beyond the sides of the fireplace opening as long as they are kept within the shaded areas illustrated in

Figure 57

Combustible Materials Allowed In Shaded Area “Safe Zone”

17"

Side Wall

12"

14"

Top View Of

Fireplace

45°

Side Wall

8 ¹⁄₄"

Min. Distance To Unprotected Side Wall

Min. Distance To Protected Side Wall

Figure 57

Figure 58

(356)

(305)

(254)

MANTEL CLEARANCES

Inches (mm)

12 (305) MANTEL

10 (254) MANTEL

8 (203) MANTEL

6 (152) MANTEL

(203)

(152)

NOTE - Hood shown as positioned

in louvered front model. The hood position in the flush faced front model is lower than shown.

4 (102) MANTEL

(102)

2 (51) MANTEL

TOP OF APPLIANCE

COLD CLIMATE INSULATION

If you live in a cold climate, seal all cracks around your appliance with noncombustible material and wherever cold air could enter the room. It is especially important to insulate outside chase cavity between studs and under floor on which appliance rests, if floor is above ground level.

INSTALLATION ACCESSORIES

detsiL tneVeruceS stnenopmoC™

.taC

.oN

59L68RTH5.4VSnoitanimreTdnuoRlatnoziroH

72L89LSSTH5.4VSerauqSllamSgnoLlatnoziroH

79L68STH5.4VSnoitanimreTerauqSlatnoziroH

01L49SSTH5.4VSerauqStrohSlatnoziroH

2512H1-VGC5.4VSnoitanimreTlacitreV

.oNledoMnoitpircseD

detsiL xelFeruceS stnenopmoC™

.taC

.oN

)08K69(recapS/potseriFhtiw

49L68RTH-FSnoitanimreTdnuoRlatnoziroH

)16L47(retpadAdna

ledoM

.oN

noitpircseD

.retpadaxelfdnaspmalcraeg,recaps/potserifedulcnistiknoitanimretesehT

xelFtuohtiw

28L77R21TIKFS.ni21htiw.mreTdnuoRxelF

xelFdesserpmoc*fo)mm503(

htiwnoitanimreT

dna)08K69(recapS/potseriF

noitcestnev)mm503(.ni21

)17L77(

)08K69(recapS/potseriFhtiw

)16L47(retpadAdna

38L77R81TIKFS.ni81htiw.mreTdnuoRxelF

xelFdesserpmoc*fo)mm754(

48L77R42TIKFS.ni42htiw.mreTdnuoRxelF

xelFdesserpmoc*fo)mm016(

58L77R63TIKFS.ni63htiw.mreTdnuoRxelF

xelFdesserpmoc*)mm419(

68L77R84TIKFS.ni84htiw.mreTdnuoRxelF

xelFdesserpmoc*fo)mm9121(

10L78KRHFSxelFhtiwtiKresiRlekronS

htiwnoitanimreT

dna)08K69(recapS/potseriF

)16L47(retpadA

04M91FH5.4FS-recapS/potseriF

spmalCraeG

dna,xelFfonoitcesa,retpadA

)gnicaps1-1-3(latnoziroH

14M91FB5.4FS-recapS/potseriF

)gnicaps1-1-1(lacitreV

*All compressed flex vents can be expanded up to two times.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

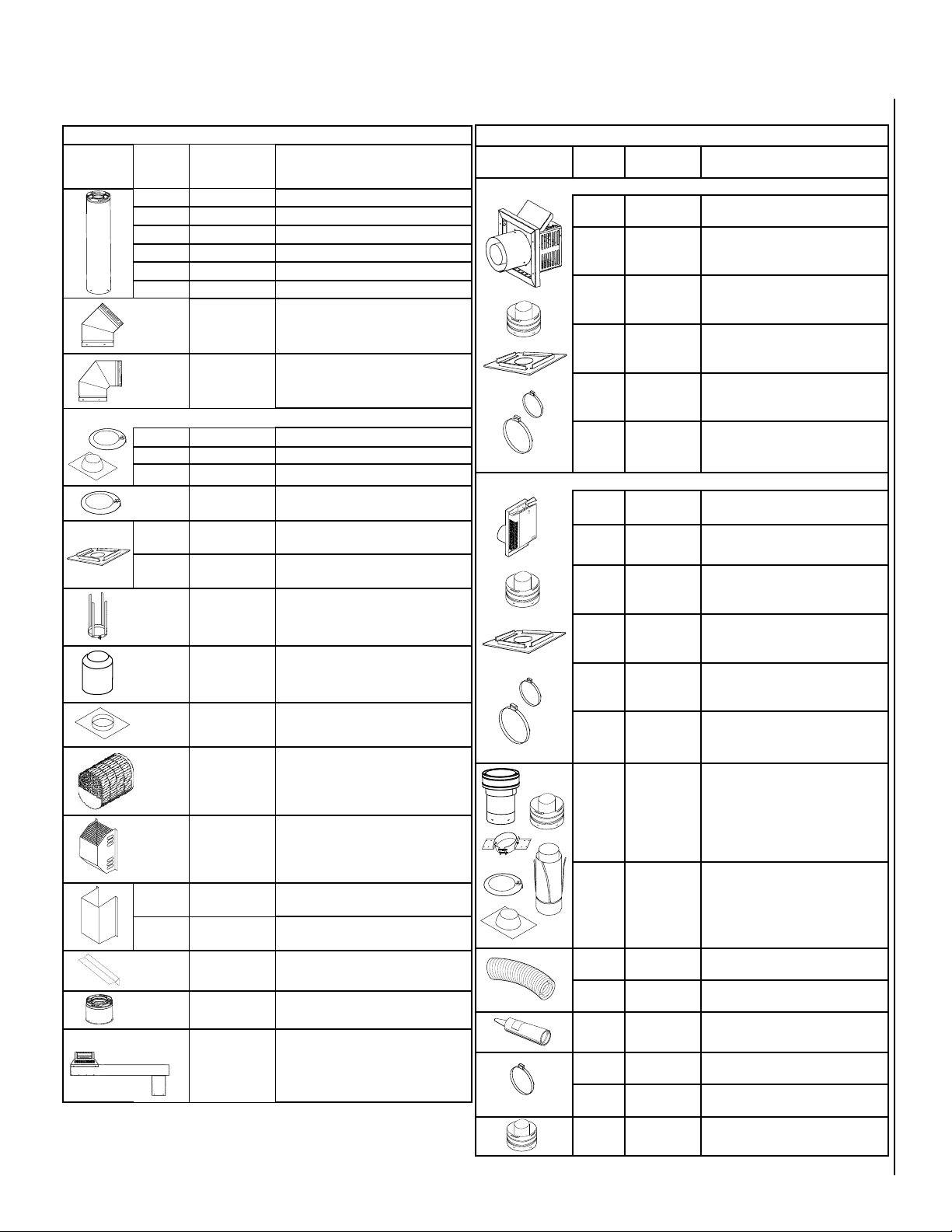

INSTALLATION ACCESSORIES (Continued)

detsiL tneVeruceS stnenopmoC™

.taC

.oN

07L77 17L77 27L77 37L77 47L77 57L77 67L7754E5.4VSwoblEeergeD54

77L7709E5.4VSwoblEeergeD09

10L19 20L19 30L19 18L776CS5.4VS)xob/sralloc6(sralloCmrotS

08K69FH5.4VS-recapS/potseriF

78K69FB5.4VS-recapS/potseriF

39K69US5.4VSpartStroppuS

49K69ASR5.4VSdleihSnoitalusnIcittA

29K69PS5.4VSetalPtroppuS

00K79RGH5.4VSdnuoRdrauGtaeH

20L78SGH5.4VSerauqSdrauGtaeH

.oNledoMnoitpircseD

6L5.4VS 21L5.4VS 42L5.4VS 63L5.4VS 84L5.4VS

AL5.4VS

B-F5.4VS B-AF5.4VS B-BF5.4VS

detsiL xelFeruceS stnenopmoC™

.taC

.oN

noitceStneV)mm251(hcni6

90L49SSTH-FSerauqSllamStrohSlatnoziroH

noitceStneV)mm503(hcni21 noitceStneV)mm016(hcni42 noitceStneV)mm419(hcni63

noitceStneV)mm9121(hcni84

noitceScipocseleT

40L49-S21TIKFS

50L49-S81TIKFS

.oNledoMnoitpircseD

.retpadaxelfdnaspmalcraeg,recaps/potserifedulcnistiknoitanimretesehT

xelFtuohtiwnoitanimreT

.mreTerauqSllamStrohSxelF

fomm503(.ni21htiw

xelFdesserpmoc*

.mreTerauqSllamStrohSxelF

fo)mm754(.ni81htiw

xelFdesserpmoc*

60L49-S42TIKFS

.mreTerauqSllamStrohSxelF

fo)mm016(.ni42htiw

xelFdesserpmoc*

70L49-S63TIKFS

.rallocmrotsahtiwdegakcapemocsgnihsalfgniwollofehT

gnihsalFfooRtalF

gnihsalF.tsujdA21/7ot21/1

80L49-S84TIKFS

gnihsalF.tsujdA21/21ot21/7

xelFdesserpmoc*

.mreTerauqSllamStrohSxelF

fo)mm419(.ni63htiw

.mreTerauqSllamStrohSxelF

fo)mm9121(.ni84htiw

.retpadaxelfdnaspmalcraeg,recaps/potserifedulcnistiknoitanimretesehT

69L68STH-FSnoitanimreTerauqSlatnoziroH

xelFtuohtiw

78L77S21TIKFS.ni21htiw.mreTerauqSxelF

)gnicaps1-1-3(latnoziroH

)gnicaps1-1-1(lacitreV

88L77S81TIKFS.ni81htiw.mreTerauqSxelF

xelFdesserpmoc*fomm503(

desserpmoc*fo)mm754(

xelF

98L77S42TIKFS.ni42htiw.mreTerauqSxelF

desserpmoc*fo)mm016(

xelF

09L77S63TIKFS.ni63htiw.mreTerauqSxelF

desserpmoc*fo)mm419(

xelF

19L77S84TIKFS.ni84htiw.mreTerauqSxelF

desserpmoc*fo)mm9121(

xelF

47L6503TVFStalf(xelFrof.nimreTlacitreV

,retpadAxelFhtiw)21/6ot

foor,tnevdigirfonoitces

foor,ylbmessaralloctroppus

.rallocmrotsdnagnihsalf

25M715.4VS

1-SGH

35M715.4VS

21-SGH

89K69RDH5.4VSdnuoRrofrotcelfeDtaeH

noitanimreT

89L68FFR5.4VSecalperiFdepmirC-retpadA

tneVeruceSotralloC

30L99 20L99

63KRH5.4VS 41KRH5.4VS

"63tiKresiRlatnoziroH "41tiKresiRlatnoziroH

*All compressed flex vents can be expanded up to two times.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

57L6554TVFS21/6(xelFrof.nimreTlacitreV

)kcaP-1(erauqSdrauGtaeH

)kcaP-21(erauqSdrauGtaeH

retpadAxelFhtiw)21/21ot

foor,tnevdigirfonoitces

foor,ylbmessaralloctroppus

.rallocmrotsdnagnihsalf

01L0681-FSdesserpmoc*)m94.5(.tf81

xelF

30K8921-FSdesserpmoc*)m66.3(.tf21

xelF

e S

18K01PMFSerutarepmeT-iHkcalBcaPliM

tnalaeS

10J884CG-FS)mm411(.ni5.4pmalCraeG

xelFrof

00J387CG-FS5.091(.ni5.7pmalCraeG

xelFrof)mm

00L78FR5.4FSretpadAxelF

GAS CONVERSION KITS

tiKnoisrevnoCsaGlarutaNotenaporP

)smetsySllewyenoH(

.oNledoMepyTtinU.oNgolataC 004-TDtlovillim55M62 004-RDtlovillim55M62 004-TDcinortcele19L99 004-RDcinortcele19L99

WARNING: THIS CONVERSION KIT SHALL BE INSTALLED BY A QUALIFIED SERVICE AGENCY IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS AND ALL APPLICABLE CODES AND REQUIREMENTS OF THE AUTHORIZED AGENCY HAVING JURISDICTION. IF THE INFORMATION IN THESE INSTRUCTIONS IS NOT FOLLOWED EXACTLY, A FIRE, EXPLOSION OR PRODUCTION OF CARBON MONOXIDE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. THE INSTALLATION IS NOT PROPER AND COMPLETE UNTIL THE OPERATION OF THE CONVERTED APPLIANCE IS CHECKED AS SPECIFIED IN THE OWNER INSTRUCTIONS SUPPLIED WITH THE KIT. THE QUALIFIED SERVICE AGENCY PERFORMING THIS INSTALLATION ASSUMES RESPONSIBILITY FOR THIS CONVERSION.

In Canada: THE CONVERSION SHALL BE CARRIED OUT IN ACCORDANCE WITH THE REQUIREMENTS OF THE PROVINCIAL AUTHORITIES HAVING JURISDICTION AND IN ACCORDANCE WITH THE REQUIREMENTS OF THE CAN1-B149.1 AND .2 INSTALLATION CODE.

LA CONVERSION DEVRA ÊTRE EFFECTUÉE CONFORMÉMENT AUX RECOMMANDATIONS DES AUTORITÉS PROVINCIALES AYANT JURIDICTION ET CONFORMÉMENT AUX EXIGENCES DU CODE D'INSTALLATION CAN1B149.1 ET.2.

Gas conversion kits are available to adapt your appliance from the use of one type of gas to the use of another. These kits contain all the necessary components needed to complete the task including labeling that must be affixed to ensure safe operation.

Kit part numbers are listed here and the following steps detail the conversion procedure.

Step 1. Turn off the gas supply to the appliance. Remove the front glass door/frame from the appliance. Access the control compartment.

Step 2. Carefully remove the logs.

care as not to break the logs.

Step 3. Locate the screws securing the burner

(tray) to the appliance. Remove the burner and retain the securing screws.

Exercise

Step 4. Millivolt Appliances - SIT Systems

a. See

with the kit. Using a Torx T20, remove and discard the three pressure regulator mounting screws. Remove the pressure regulator, spring, poppet, diaphragm and bushing. Discard all removed components. Ensure the rubber gasket installed on the back of the replacement pressure regulator is properly positioned and install the new pressure regulator using the new screws supplied with the kit. Tighten screws to 25 In. lb. torque.

AVERTISSEMENT: CET ÉQUIPEMENT DE CONVERSION SERA INSTALLÉ PAR UNE AGENCE QUALIFIÉE DE SERVICE CONFORMÉMENT AUX INSTRUCTIONS DU FABRICANT ET TOUTES EXIGENCES ET CODES APPLICABLES DE L'AUTORISÉS AVOIR LA JURIDICTION. SI L'INFORMATION DANS CETTE INSTRUCTION N'EST PAS SUIVIE EXACTEMENT, UN FEU, EXPLOSION OU PRODUCTION DE PROTOXYDE DE CARBONE PEUT RÉSULTER LE DOMMAGES CAUSER DE PROPRIÉTÉ, PERTE OU BLESSURE PERSONNELLE DE VIE. L'AGENCE QUALIFIÉE DE SERVICE EST ESPONSABLE DE L'INSTALLATION PROPRE DE CET ÉQUIPMENT. L'INSTALLATION N'EST PAS PROPRE ET COMPLÉTE JUSQU'À L'OPÉRATION DE L'APPAREIL CONVERTI EST CHÉQUE SUIVANT LES CRITÈRES ÉTABLIS DANS LES INSTRUCTIONS DE PROPRIÉTAIRE PROVISIONNÉES AVEC L'ÉQUIPEMENT.

)smetsySTIS(

.oNsledoMepyTtinU.oNgolataC

004-TDtlovillim4951H

004-RDtlovillim4951H

004-TDcinortcele09L99

004-RDcinortcele09L99

)smetsySTIS(

.oNledoMepyTtinU.oNgolataC 004-TDtlovillim5951H 004-RDtlovillim5951H 004-TDcinortcele19L99 004-RDcinortcele19L99

Figure 59

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

and the instructions provided

tiKnoisrevnoCsaGenaporPoTlarutaN

)smetsySllewyenoH(

.oNsledoMepyTtinU.oNgolataC 004-TDtlovillim15M62 004-RDtlovillim15M62 004-TDcinortcele09L99 004-RDcinortcele09L99

tiKnoisrevnoCsaGlarutaNotenaporP

SIT Millivolt Gas Valve

Pressure Regulator

Remove These Components

tiKnoisrevnoCsaGenaporPoTlarutaN

Figure 59

Pilot for SIT Millivolt Gas Valve

Pilot Orifice

Pilot for Honeywell Millivolt Gas Valve

(Loosening of Hex Fitting For Orifice Strip Tab Positioning)

Hood

7/16 in. Open End Wrench

Hood Alignment

Figure 60

b. Attach manometer to the manifold side

pressure test fitting and verify manifold pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

c. Refer to hood assembly to access the hexed pilot orifice. Remove and replace the orifice with the one provided with the kit.

Step 5. Millivolt Appliances -

Convert the gas valve as follows (

Remove the plastic protecting cap. Remove the gas type setting screw by turning it counterclockwise. Obtain the replacement gas type setting screw from the kit and screw it into place (red for propane and blue for natural gas). Tighten the gas type setting screw by turning it clockwise. Replace the plastic protecting cap.

Figure 60

and remove the pilot

Honeywell Systems

see

Figure 61):

Honeywell Millivolt Gas Valve

Figure 62

Figure 63

Orifice Strip Tab

Take Care Not to Contact the Orifice Strip Tab

with the Hex Fitting Wrench - Distortion of the Tab

May Render the Pilot Inoperative.

Pilot for Honeywell Millivolt Gas Valve

Orifice Strip Tab Position Identification

For LP/Propane and Natural Gas

LP/Propane Gas Position -

1/16 in. Hole, LP and

Red Color shown on tab

Top View of Hex Fitting and Orifice Strip Tab

Natural Gas Position -

NAT shown on tab

NAT

Pilot for Honeywell Millivolt Gas Valve Orifice Strip Tab Positioning

Pilot Hood Position After Loosening Hex Fitting 1/4 Turn

Adjusting Knob

Regulator Cap

Figure 61

Conversion screw (blue natural gas; red LP/propane gas)

Figure 64

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Orifice Strip Tab

Push Tab to Set

Gas Type Usage

Note - Orifice Strip Tab May Be Randomly Located On Any Side Of The Hex Fitting

b. Attach manometer to the manifold side

pressure test fitting and verify manifold pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

Convert the pilot orifice as follows (refer to

Figures 62, 63 and 64 ): Note - Use extra care not to engage the orifice strip with the 7/16" open end wrench (contacting the orifice strip could cause strip distortion rendering the pilot inoperative). Also avoid wrench contact to any of the other pilot parts.

Use a 7/16" open end wrench and turn the pilot hex fitting counter-clockwise 1/4 turn. (

refer

to Figure 62 ).

Note - The orifice strip tab may be randomly located on any side of the hex fitting.

d. Push the orifice strip tab all the way against the hex fitting to align the appropriate gas type orifice

(refer to Figures 63 and 64)

. The type of gas for which the pilot is set, is, the gas type shown on the tab.

e. Retighten, clockwise, the pilot hex fitting until the pilot hood aligns with the thermocouple and thermopile as indicated by the arrows shown in

Figure 62

Step 6. Electronic Appliances -

Honeywell Systems

See

Figure 65

and the instructions provided with the kit. Remove the slotted cap screw, oring, pressure-regulating adjusting screw and spring. Retain all parts for possible later use. Install new components from the kit. Black cap and red spring for propane gas units. Silver cap and stainless steel spring for natural gas units. Before installing the cap, attach manometer to the manifold side pressure test fitting and adjust screw until pressure reads 3.5 inches water column (0.87 kPa) for natural gas, and 10.0 inches water column (2.49 kPa) for propane gas.

See

Figure 66

and replace the pilot orifice as follows: Remove the ignitor assembly retainer clip, and carefully remove the ignitor assembly.

Exercise extreme care to prevent damage to or breakage of the ignitor assembly.

CONTROL

G N I

T E

Manifold Pressure Test Port

Slotted Cap

OFFION

Inlet Pressure Test Port

I S P

Adjusting Screw

Spring

Figure 65

Remove the screw securing the pilot assembly to its mounting bracket. Back off the flare nut at the end of the pilot gas line to free the pilot assembly from the gas line.

Remove the pilot orifice and replace it with the one provided with the conversion kit. Reinstall the pilot assembly by reversing the steps detailed here.

When reinstalling the ignitor assembly, use extreme care to prevent damage and breakage. Do not apply any leverage to the ignitor assembly while restoring the retainer clip to its original position.

Pilot Orifice

Retaining

Flare Nut

Pilot Assembly

Ignitor Assembly

Clip

Note: If the ignitor is damaged, a replacement kit is available - order Catalog Number 87L54.

Figure 66

All Models

Step 7. Remove the orifice from the mani-

fold and replace it with the one provided with the kit. See the following table for orifice sizes for natural and propane models

. Figure 67

illustrates the orifice.

ezisecifirO

.oNledoM

larutaNenaporP

004-TD

54#

004-RD

840.0

hcni

Figure 67

Step 8. Reassemble all removed components

by reversing the procedures outlined in the preceding steps. Use pipe joint compound or Teflon tape on all pipe fittings before installing (ensure propane resistant compounds are used in propane applications, do not use pipe joint compounds on flare fittings).

Step 9. Attach the conversion label provided in the conversion kit to the rating plate on the appliance.

Step 10. Turn on gas supply and test for gas leaks.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products. Consult your local distributor for fireplace code information.

P/N 700,020M REV. M 11/2004

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
