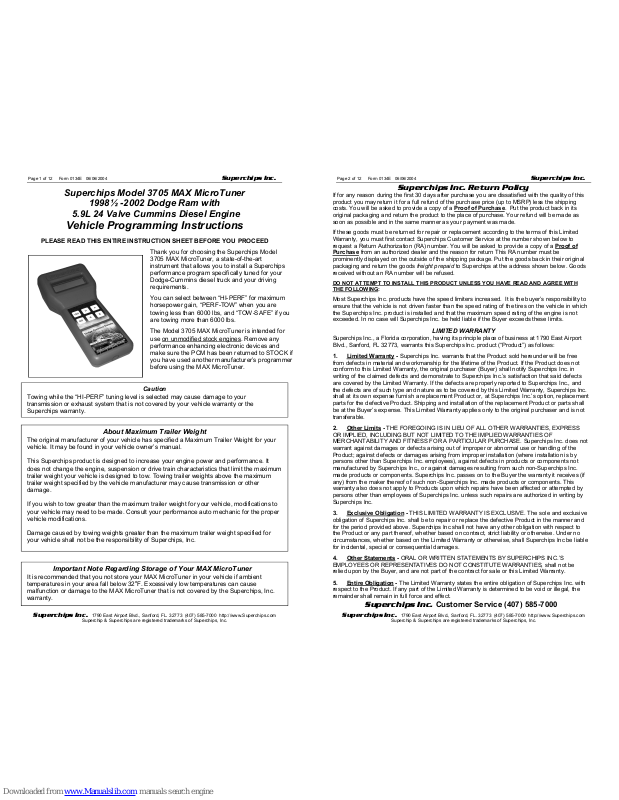

Superchips 3705 Programming Instructions Manual

Page 1 of 12 Form 0134E 06/06/2004

Superchips Inc.

Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 [phone] http://www.Superchips.com

Superchip & Superchips are registered trademarks of Superchips, Inc.

Superchips Model 3705 MAX MicroTuner

1998½ -2002 Dodge Ram with

5.9L 24 Valve Cummins Diesel Engine

Vehicle Programming Instructions

PLEASE READ THIS ENTIRE INSTRUCTION SHEET BEFORE YOU PROCEED

Thank you for choosing the Superchips Model
3705 MAX MicroTuner, a state-of-the-art
instrument that allows you to install a Superchips
performance program specifically tuned for your
Dodge-Cummins diesel truck and your driving
requirements.

You can select between “HI-PERF” for maximum
horsepower gain, “PERF-TOW” when you are
towing less than 6000 lbs, and “TOW-SAFE” if you
are towing more than 6000 lbs.

The Model 3705 MAX MicroTuner is intended for
use on unmodified stock engines. Remove any
performance enhancing electronic devices and
make sure the PCM has been returned to STOCK if
you have used another manufacturer’s programmer
before using the MAX MicroTuner.

Caution

Towing while the “HI-PERF” tuning level is selected may cause damage to your
transmission or exhaust system that is not covered by your vehicle warranty or the

Superchips warranty.

About Maximum Trailer Weight

The original manufacturer of your vehicle has specified a Maximum Trailer Weight for your
vehicle. It may be found in your vehicle owner’s manual.

This Superchips product is designed to increase your engine power and performance. It
does not change the engine, suspension or drive train characteristics that limit the maximum
trailer weight your vehicle is designed to tow. Towing trailer weights above the maximum
trailer weight specified by the vehicle manufacturer may cause transmission or other
damage.

If you wish to tow greater than the maximum trailer weight for your vehicle, modifications to
your vehicle may need to be made. Consult your performance auto mechanic for the proper
vehicle modifications.

Damage caused by towing weights greater than the maximum trailer weight specified for
your vehicle shall not be the responsibility of Superchips, Inc.

Important Note Regarding Storage of Your MAX MicroTuner

It is recommended that you not store your MAX MicroTuner in your vehicle if ambient
temperatures in your area fall below 32oF. Excessively low temperatures can cause
malfunction or damage to the MAX MicroTuner that is not covered by the Superchips, Inc.
warranty.

Page 2 of 12 Form 0134E 06/06/2004

Superchips Inc.

Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 [phone] http://www.Superchips.com

Superchip & Superchips are registered trademarks of Superchips, Inc.

Superchips Inc. Return Policy

If for any reason during the first 30 days after purchase you are dissatisfied with the quality of this
product you may return it for a full refund of the purchase price (up to MSRP) less the shipping
costs. You will be asked to provide a copy of a Proof of Purchase. Put the product back in its
original packaging and return the product to the place of purchase. Your refund will be made as
soon as possible and in the same manner as your payment was made.

If these goods must be returned for repair or replacement according to the terms of this Limited
Warranty, you must first contact Superchips Customer Service at the number shown below to
request a Return Authorization (RA) number. You will be asked to provide a copy of a Proof of
Purchase from an authorized dealer and the reason for return This RA number must be
prominently displayed on the outside of the shipping package. Put the goods back in their original
packaging and return the goods freight prepaid to Superchips at the address shown below. Goods
received without an RA number will be refused.

DO NOT ATTEMPT TO INSTALL THIS PRODUCT UNLESS YOU HAVE READ AND AGREE WITH
THE FOLLOWING:

Most Superchips Inc. products have the speed limiters increased. It is the buyer’s responsibility to
ensure that the vehicle is not driven faster than the speed rating of the tires on the vehicle in which
the Superchips Inc. product is installed and that the maximum speed rating of the engine is not
exceeded. In no case will Superchips Inc. be held liable if the Buyer exceeds these limits.

LIMITED WARRANTY

Superchips Inc., a Florida corporation, having its principle place of business at 1790 East Airport
Blvd., Sanford, FL 32773, warrants this Superchips Inc. product (“Product”) as follows:

1. Limited Warranty - Superchips Inc. warrants that the Product sold hereunder will be free
from defects in material and workmanship for the lifetime of the Product. If the Product does not
conform to this Limited Warranty, the original purchaser (Buyer) shall notify Superchips Inc. in
writing of the claimed defects and demonstrate to Superchips Inc.’s satisfaction that said defects
are covered by the Limited Warranty. If the defects are properly reported to Superchips Inc., and
the defects are of such type and nature as to be covered by this Limited Warranty, Superchips Inc.
shall at its own expense furnish a replacement Product or, at Superchips Inc.’s option, replacement
parts for the defective Product. Shipping and installation of the replacement Product or parts shall
be at the Buyer’s expense. This Limited Warranty applies only to the original purchaser and is not
transferable.

2. Other Limits - THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURCHASE. Superchips Inc. does not
warrant against damages or defects arising out of improper or abnormal use or handling of the
Product; against defects or damages arising from improper installation (where installation is by
persons other than Superchips Inc. employees), against defects in products or components not
manufactured by Superchips Inc., or against damages resulting from such non-Superchips Inc.
made products or components. Superchips Inc. passes on to the Buyer the warranty it receives (if
any) from the maker thereof of such non-Superchips Inc. made products or components. This
warranty also does not apply to Products upon which repairs have been affected or attempted by
persons other than employees of Superchips Inc. unless such repairs are authorized in writing by
Superchips Inc.

3. Exclusive Obligation - THIS LIMITED WARRANTY IS EXCLUSIVE. The sole and exclusive
obligation of Superchips Inc. shall be to repair or replace the defective Product in the manner and
for the period provided above. Superchips Inc shall not have any other obligation with respect to
the Product or any part thereof, whether based on contract, strict liability or otherwise. Under no
circumstances, whether based on the Limited Warranty or otherwise, shall Superchips Inc be liable
for incidental, special or consequential damages.

4. Other Statements - ORAL OR WRITTEN STATEMENTS BY SUPERCHIPS INC.’S
EMPLOYEES OR REPRESENTATIVES DO NOT CONSTITUTE WARRANTIES, shall not be
relied upon by the Buyer, and are not part of the contract for sale or this Limited Warranty.

5. Entire Obligation - The Limited Warranty states the entire obligation of Superchips Inc. with
respect to the Product. If any part of the Limited Warranty is determined to be void or illegal, the
remainder shall remain in full force and effect.

Superchips Inc. Customer Service [phone]

Page 3 of 12 Form 0134E 06/06/2004

Superchips Inc.

Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 [phone] http://www.Superchips.com

Superchip & Superchips are registered trademarks of Superchips, Inc.

Your Vehicle’s STOCK Program

Your vehicle computer must contain the manufacturer’s STOCK factory program. If you have
used a programmer from another aftermarket company you must use their product to return
your computer back to STOCK condition before proceeding. If you have a performance­enhancing chip installed, it must be removed.

Your Vehicle and Service Centers

If you need to return your vehicle to a service center, restore the vehicle program to its
STOCK program as described below. The service center might reprogram your vehicle with
an updated STOCK program without your knowledge. If your vehicle has not been returned
to its STOCK program prior to service, the Superchips MAX MicroTuner will no longer be
able to program your vehicle. Such a failure is not covered by the Superchips warranty.

Vehicle Preparation

Before connecting the MAX MicroTuner to your vehicle, make sure that all power-draining
accessories are turned off. Radio, lights, cell phones, etc., all need to be turned off as the
MAX MicroTuner needs full battery voltage to program. Ensure your vehicle battery is fully
charged and not connected to a battery charger. Do not leave the MAX MicroTuner
connected and unattended for any length of time to prevent unnecessary battery drain. Do
not remove the programming cable during any programming sequence.

The MAX MicroTuner is intended for use on STOCK vehicle. Remove any performance
enhancing electronic devices and make sure the PCM has been returned to STOCK if you
have used another manufacturer’s programmer before using the MAX MicroTuner.

1. Connecting the MAX MicroTuner to your vehicle

With the ignition switch in the OFF position, locate the diagnostic connector under the dash
near the steering wheel and connect the MAX MicroTuner cable to the diagnostic connector.

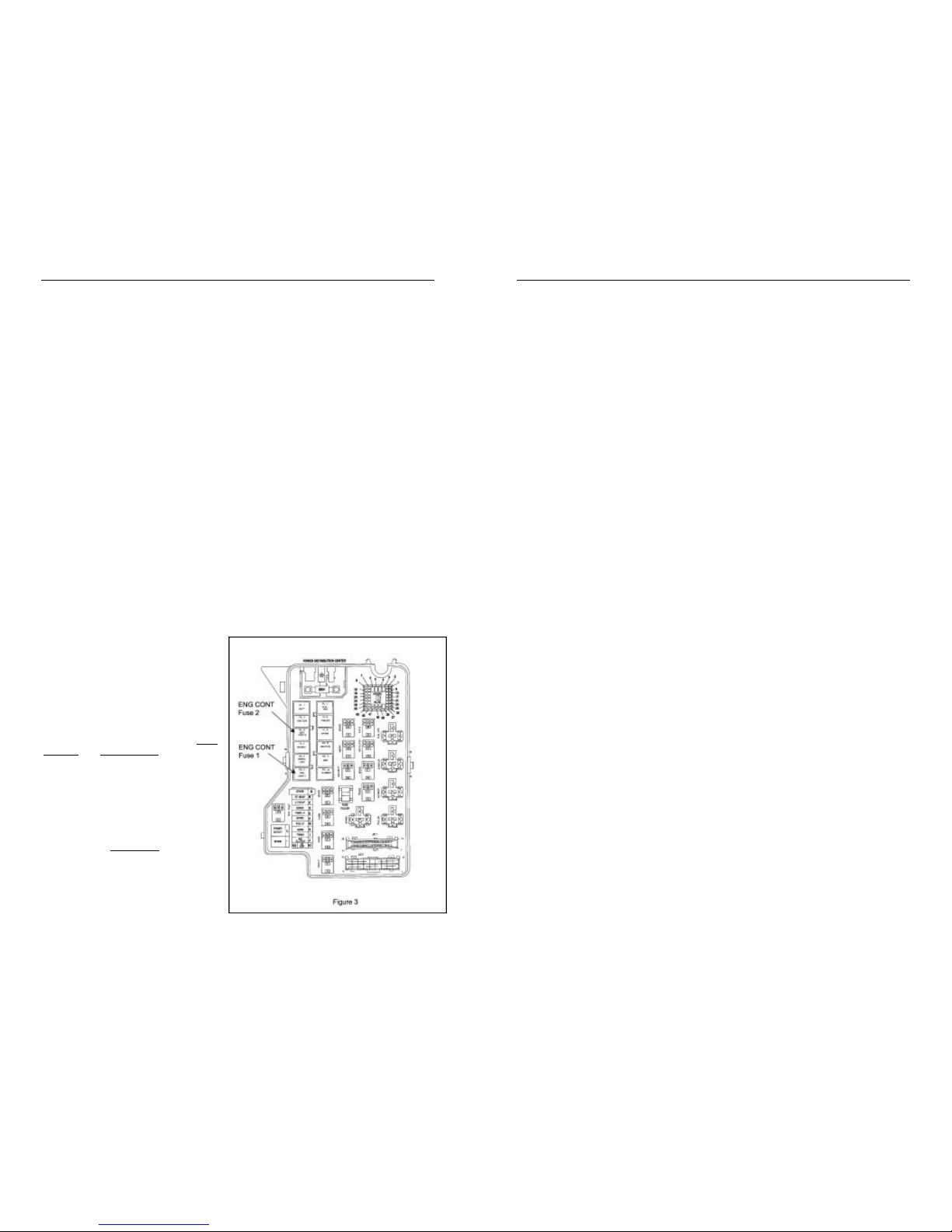

(See Figure 2)

When connected, the MAX MicroTuner will run a self-test,
displaying several start-up messages. Following the start up
messages, if the MAX MicroTuner has been previously
used to program a vehicle, the MicroTuner will beep and
display:

MicroTuner is
VIN Locked

This indicates the MAX MicroTuner has been previously
used to program a vehicle and can not program another.
The MAX MicroTuner will continue to operate normally on
the original vehicle and may be used as a DTC Reader Figure 2
on other Dodge or Chrysler vehicles.

In the event of an error during a programming sequence,
the MAX MicroTuner will attempt to Recover the vehicle to
the original stock program. The MAX MicroTuner will
display a message that says

Locked Recovery
Mode Press ‘>’

Press the ‘>’ key to continue. See Recovery Procedure at Section 11 for specific
instructions.

If recovery is not required, the MAX MicroTuner displays the following message:

Begin with Ign.
OFF Press ‘>’

Figure 2

Page 4 of 12 Form 0134E 06/06/2004

Superchips Inc.

Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 [phone] http://www.Superchips.com

Superchip & Superchips are registered trademarks of Superchips, Inc.

Insure the ignition switch is OFF, then press the ‘>’ key on the keypad.
The MAX MicroTuner displays the following messages:

Turn Ignition ON
Do NOT START Eng

Turn Ignition ON
Press ‘>’ …

Turn the ignition switch to the ON position and then press the ‘>’ key on the keypad.

2. Selecting Tune Vehicle / Diagnostics

The MAX MicroTuner will beep and display the message:

A= Tune Vehicle
B= Diagnostics

Press the ‘A’ key on the keypad to continue with the tuning process.
Press the ‘B’ key to read and/or clear any Diagnostic Trouble Codes from the vehicle. See
DTC Reader Instructions and DTC Code Interpretation in the separate manual provided for
that purpose with your MAX MicroTuner.

3. Vehicle Programming

Press the ‘A’ key on the keypad. The MAX MicroTuner will beep and display the message:

Establishing
Communications

The MAX MicroTuner is establishing communications with and identifying the vehicle
computer. If the MAX MicroTuner has not yet been used to program a vehicle, no vehicle
ID will be stored in the MAX MicroTuner. If the vehicle ID matches a stored vehicle ID, the
MAX MicroTuner will go directly to the Return to Stock at Step 10 that follows.

If the vehicle ID does not match a stored vehicle ID, the MAX MicroTuner will beep and
display the messages:

Not the Original
Vehicle/Program

Call Superchips!
Press ‘>’ to

Continue...

Pressing the ‘>’ key will cause the MAX MicroTuner to return to the
Selecting Tune Vehicle / Diagnostics at Step 2.

If the vehicle ID matches the stored vehicle ID, MAX MicroTuner will beep and display the
message:

Initializing
Please Wait...

Once the MAX MicroTuner has established communications, it will beep and display the
message:

Turn Ignition
OFF Press ‘>’

Turn the ignition to the OFF position, then press the ‘>’ key. The MAX MicroTuner will beep
and display the following message:

Please Wait…
