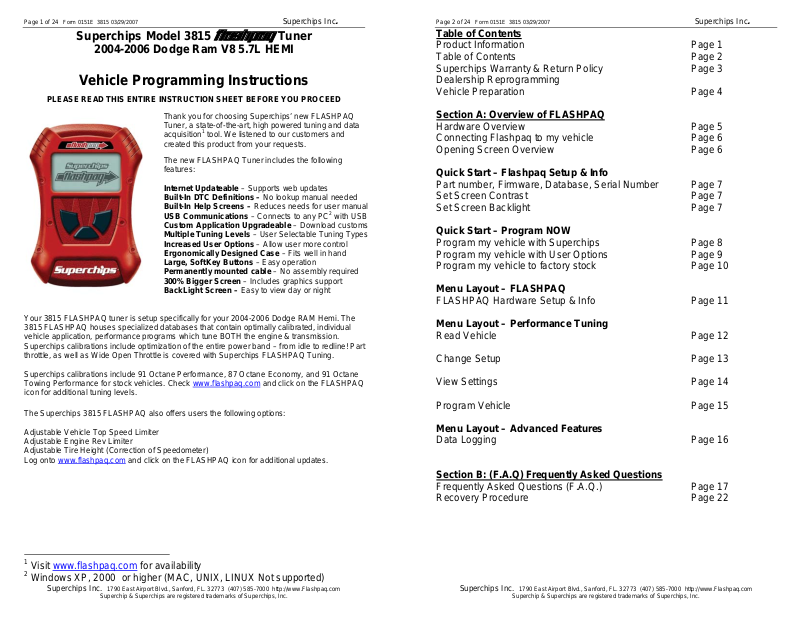

Superchips Model 3815 flashpaq Tuner
2004-2006 Dodge Ram V8 5.7L HEMI
Vehicle Programming Instructions
PLEASE READ THIS ENTIRE INSTRUCTION SHEET BEFORE YOU PROCEED
Thank you for choosing Superchips’ new FLASHPAQ Tuner, a state-of-the-art, high powered tuning and data acquisition1 tool. We listened to our customers and created this product from your requests.
The new FLASHPAQ Tuner includes the following features:
Internet Updateable – Supports web updates
Built-In DTC Definitions – No lookup manual needed
Built-In Help Screens – Reduces needs for user manual USB Communications – Connects to any PC2 with USB
Custom Application Upgradeable – Download customs
Multiple Tuning Levels – User Selectable Tuning Types Increased User Options – Allow user more control
Ergonomically Designed Case – Fits well in hand Large, SoftKey Buttons – Easy operation Permanently mounted cable – No assembly required
300% Bigger Screen – Includes graphics support BackLight Screen – Easy to view day or night
Your 3815 FLASHPAQ tuner is setup specifically for your 2004-2006 Dodge RAM Hemi. The 3815 FLASHPAQ houses specialized databases that contain optimally calibrated, individual vehicle application, performance programs which tune BOTH the engine & transmission.
Superchips calibrations include optimization of the entire power band – from idle to redline! Part throttle, as well as Wide Open Throttle is covered with Superchips FLASHPAQ Tuning.
Superchips calibrations include 91 Octane Performance, 87 Octane Economy, and 91 Octane Towing Performance for stock vehicles. Check www.flashpaq.com and click on the FLASHPAQ icon for additional tuning levels.
The Superchips 3815 FLASHPAQ also offers users the following options:
Adjustable Vehicle Top Speed Limiter Adjustable Engine Rev Limiter
Adjustable Tire Height (Correction of Speedometer)
Log onto www.flashpaq.com and click on the FLASHPAQ icon for additional updates.
1Visit www.flashpaq.com for availability
2Windows XP, 2000 or higher (MAC, UNIX, LINUX Not supported)
Superchips Inc. 1790 East Airport Blvd., Sanford, FL. 32773 (407) 585-7000 http://www.Flashpaq.com Superchip & Superchips are registered trademarks of Superchips, Inc.
Page 2 of 24 Form 0151E 3815 03/29/2007 |
Superchips Inc. |
Table of Contents |
|
Product Information |
Page 1 |
Table of Contents |
Page 2 |
Superchips Warranty & Return Policy |
Page 3 |
Dealership Reprogramming |
|

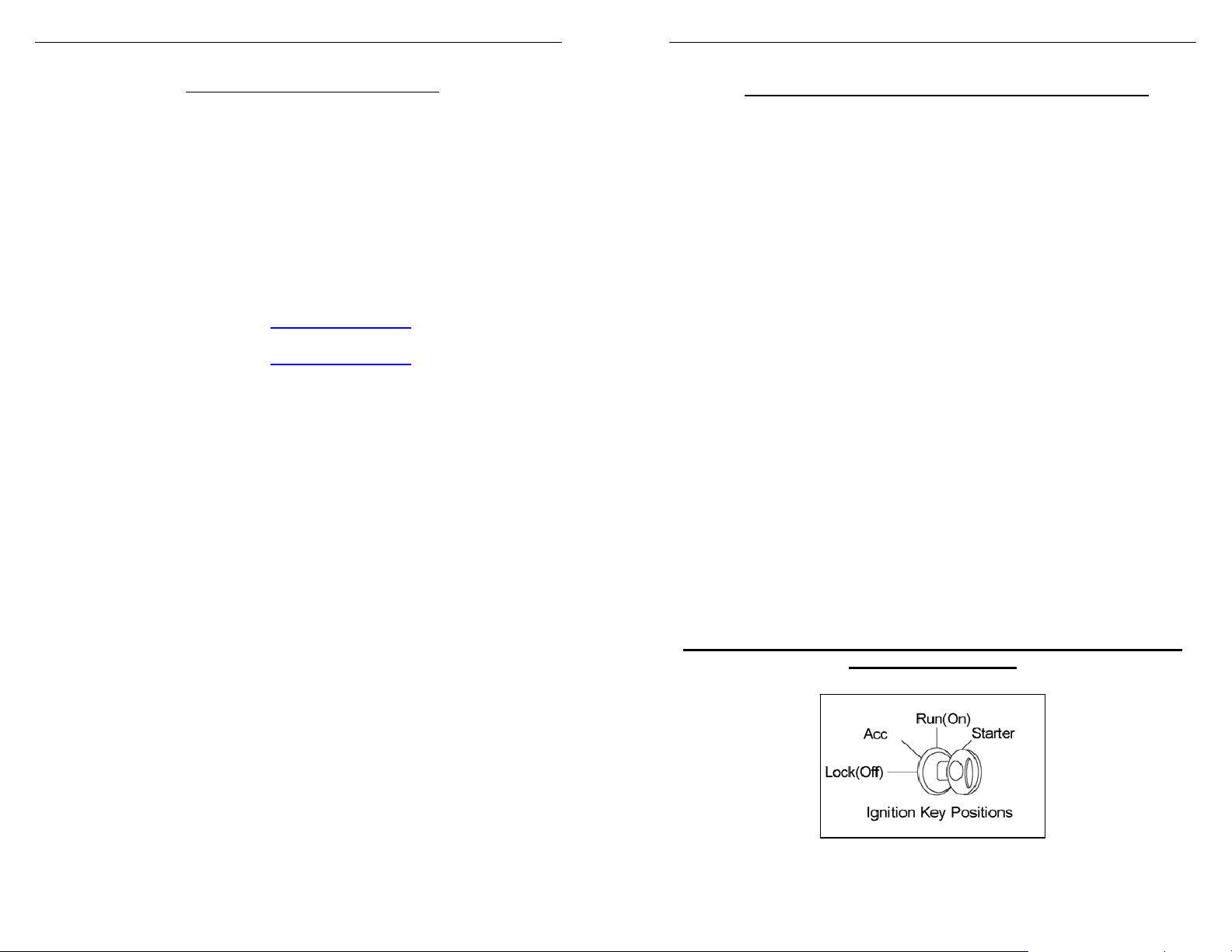

Vehicle Preparation |
Page 4 |
Section A: Overview of FLASHPAQ |
|

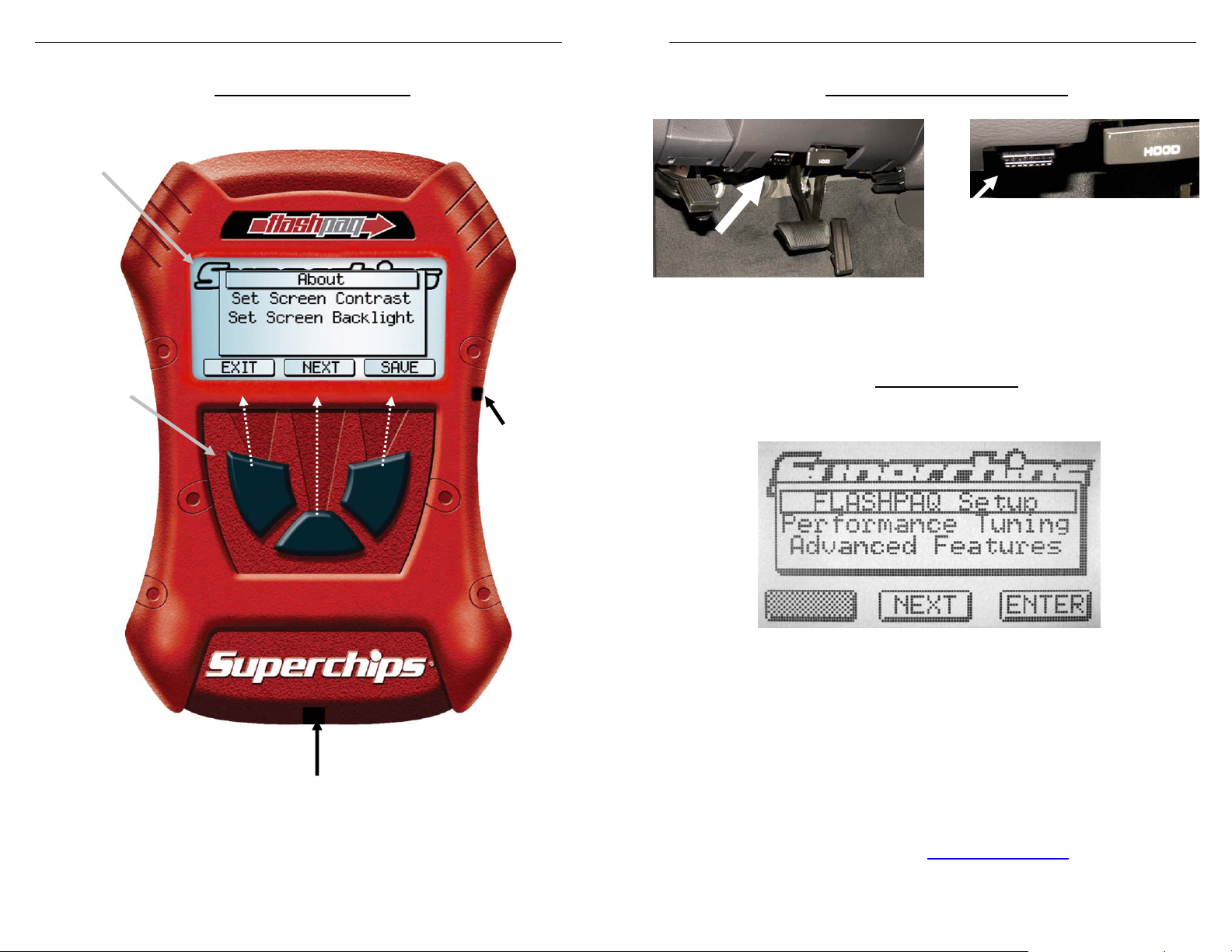

Hardware Overview |
Page 5 |
Connecting Flashpaq to my vehicle |
Page 6 |
Opening Screen Overview |
Page 6 |
Quick Start – Flashpaq Setup & Info |
|
Part number, Firmware, Database, Serial Number |
Page 7 |
Set Screen Contrast |
Page 7 |
Set Screen Backlight |
Page 7 |
Quick Start – Program NOW |
|
Program my vehicle with Superchips |
Page 8 |
Program my vehicle with User Options |
Page 9 |
Program my vehicle to factory stock |
Page 10 |
Menu Layout – FLASHPAQ |
|
FLASHPAQ Hardware Setup & Info |
Page 11 |
Menu Layout – Performance Tuning |
|
Read Vehicle |
Page 12 |
Change Setup |
Page 13 |
View Settings |
Page 14 |
Program Vehicle |
Page 15 |
Menu Layout – Advanced Features |
|
Data Logging |
Page 16 |
Section B: (F.A.Q) Frequently Asked Questions |
|
Frequently Asked Questions (F.A.Q.) |
Page 17 |
Recovery Procedure |
Page 22 |
