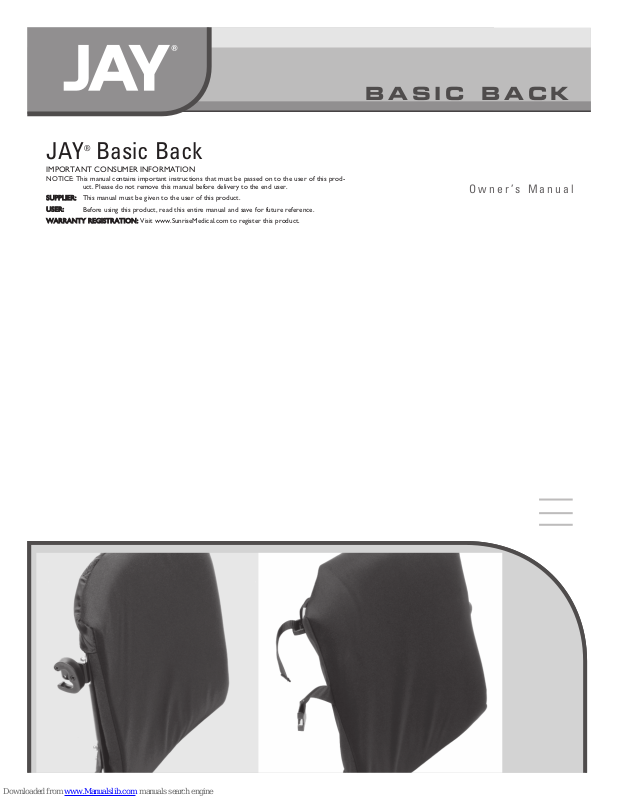

Page 1
S E C T I O N
JAY®Basic Back
IMPORTANT CONSUMER INFORMATION
NOTICE: This manual contains important instructions that must be passed on to the user of this prod-
SUPPLIER:
USER:
WARRANTY REGISTRATION:
uct. Please do not remove this manual before delivery to the end user.
This manual must be given to the user of this product.
Before using this product, read this entire manual and save for future reference.
Visit www.SunriseMedical.com to register this product.
E N G L I S H
B A S I C B A C K
O w n e r ’ s M a n u a l
Page 2
JAY BAS IC BACK
I. T A BLE O F C O NT E N TS
SUNRISE MEDICAL LISTENS
Thank you for choosing a JAY Basic Back Support System. We
want to hear your questions or comments about this manual, the
safety and reliability of your product, and the service you receive
from your Authorized Sunrise dealer. Please feel free to write or
call us at the address and telephone number below:
Sunrise Medical (US) LLC
Be sure to return your warranty card, and let us know if you
change your address. This will allow us to keep you up to date
with information about safety, new products and options to
increase your use and enjoyment of this wheelchair. If you lose
your warranty card, call or write and we will gladly send you a
new one.
FOR ANSWERS TO YOUR QUESTIONS
Your Authorized Dealer knows your product best, and can
answer most of your questions about safety, use and maintenance.
For future reference, fill in the following:
Supplier:________________________________________________
Address: _______________________________________________
ENGLISH
Introduction..................................................3
General Warnings.......................................4
Use and Maintenance .................................5
Installation & Adjustment..........................6
Warranty.......................................................7
NOTICE– READ BEFORE USE
A. CHOOSE THE RIGHT SUPPORT & SAFETY OPTIONS
This product is intended for single person use only. Selection of the type
of support systems, options, and final adjustment rests solely with the user
and their health care professional. Choosing the best product and set-up
for safety and health depends on such things as:
1. Type of disability, strength, balance and coordination.
2. The types of hazards that must be overcome in daily use.
3. The need for options that will improve your positioning, safety and
comfort (such as positioning belts, or special seating systems).
Telephone: _____________________________________________
Serial #: ___________________________ Date/Purchased:_______
ADDITIONAL INFORMATION YOU SHOULD KNOW
No component of this product was made with Natural
Rubber Latex.
DISPOSAL AND RECYCLING INFORMATION
When this product reaches the end of its life, please take it to an
approved collection or recycling point designated by your local or
state government. This product is manufactured using a variety of
materials, Your product should not be disposed of as ordinary
household waste. You should dispose of your wheelchair properly, according to local laws and regulations. Most materials that are
used in the construction of this product are fully recyclable. The
separate collection and recycling of your product at the time of
disposal will help conserve natural resources and ensure that it is
dosposed in a manner that protects the environment.
B. REVIEW THIS MANUAL OFTEN
Before using this system, you, and each person who may assist you, should
read this entire manual and make sure to follow all instructions. Review
the warnings often, until they are second nature to you.
C. WARNINGS
The word
cause
are in Three main sections, as follows:
NOTE -
“WARNING”
severe injury or death
1. V– GENERAL WARNINGS
A safety checklist and a summary of risks you need to be aware of
before you use this equipment.
2. VI– SAFETY WARNINGS: FALLS & TIP-OVERS
Learn about the safe use of your equipment, and how to avoid a
fall or tip-over while performing daily activities.
3. VII– WARNINGS– COMPONENTS & OPTIONS
Learn about the components and options that can be selected for
safety and Positioning needs. Consult your Authorized Supplier and
your Health care advisor to help you choose the best set-up and
options for safe use.
Where they apply, you will also find “Warnings” in other sections
of this manual. Heed all warnings in this section. If you fail to do
so a fall, tip-over or loss of control may occur and cause severe
injury to the rider or others.
refers to a hazard or unsafe practice that may
to you or to other persons. The “Warnings”
Ensure you are the legal owner of the product prior to arranging
for the product disposal in accordance with the above recommendations
932165 Rev. C
2
Page 3
JAY BAS IC BACK
INTRODUCTION
THE JAY BASIC BACK
The JAY Basic Back is designed to provide the important benefits
of a proper back support for a wide variety of users. It is designed
to provide simple, comfortable and effective support to help maximize function and increase sitting tolerance. In addition, it is lightweight, durable and easy to use.
aximum user weight: 250 lbs. (113 kg).
M
GENERAL WARNINGS
A. CENTER OF GRAVITY
WARNING
Installing a back support on a wheelchair may affect the center of
gravity of the wheelchair, and may cause the wheelchair to tip backwards potentially resulting in injury to the rider.
B. ANTI-TIPS
II . I NTR O DU C T IO N
WARNING
Anti-tip tubes can help keep your chair from tipping over
backward in normal conditions.
1. Sunrise recommends the use of anti-tip tubes
2. ALWAYS assess the need for anti-tips or an amputee axle
adapter brackets that could be added to the wheelchair to
help increase the stability of the wheelchair and seating system.
If you fail to heed these warnings damage to your chair, a fall, tipover or loss of control may occur and cause severe injury to the
rider or others.
C. PUSHING OR LIFTING
WARNING
Do not use the Back to move or push the wheelchair.
1. Do not use any part of the back to lift the wheelchair. It is
intended only for Back removal.
2. Improper use of the back by pushing or pulling may cause
the back to unexpectedly detach from the wheelchair.
If you fail to heed these warnings damage to your chair, a fall, tipover or loss of control may occur and cause severe injury to the
rider or others.
D. COMPATIBILITY
WARNING
The JAY Basic Back is designed to be compatible with most wheelchairs with the following exception:
1. Wheelchairs that are angle adjustable with recline or tilt, and
result in a back angle greater than 60° from the vertical
Basic back use with these types of wheelchairs may cause the back
to accidentally disconnect from the wheelchair. This could result
in a fall or potential injury of the rider and/or caregiver.
3
932165 Rev. C
Page 4
JAY BAS IC BACK
II I . USE A N D M AIN T EN A NCE
WARNING
The owner of this equipment is responsible for making sure that it
as been set up and adjusted by a Authorized Dealer under the
h
advice of a healthcare professional. It may require periodic safety
and function checks or certain in-use adjustments that can be performed by the owner, caregiver or Authorized Dealer if desired.
A. MAINTENANCE AND CLEANING
1. Proper maintenance and cleaning will improve performance
and extend the useful life of your equipment.
2. Clean your equipment regularly. This will help you find loose
or worn parts and make your equipment easier to use. You
will need a mild detergent solution and cleaning rags.
3. If discovered, have loose, worn, bent or damaged parts
replaced
B. CRITICAL SAFETY CHECKS
1. Fasteners:
Sunrise Medical recommends that all fasteners be checked for
wear, such as loose bolts or broken components
Loose fasteners should be retightened according to the installation
instructions.
2. Replacing components:
Contact your Authorized Dealer immediately to replace any components. Do not continue to use the system after identifying
loose or broken components.
before using the back support
.
Every 6 months.
21

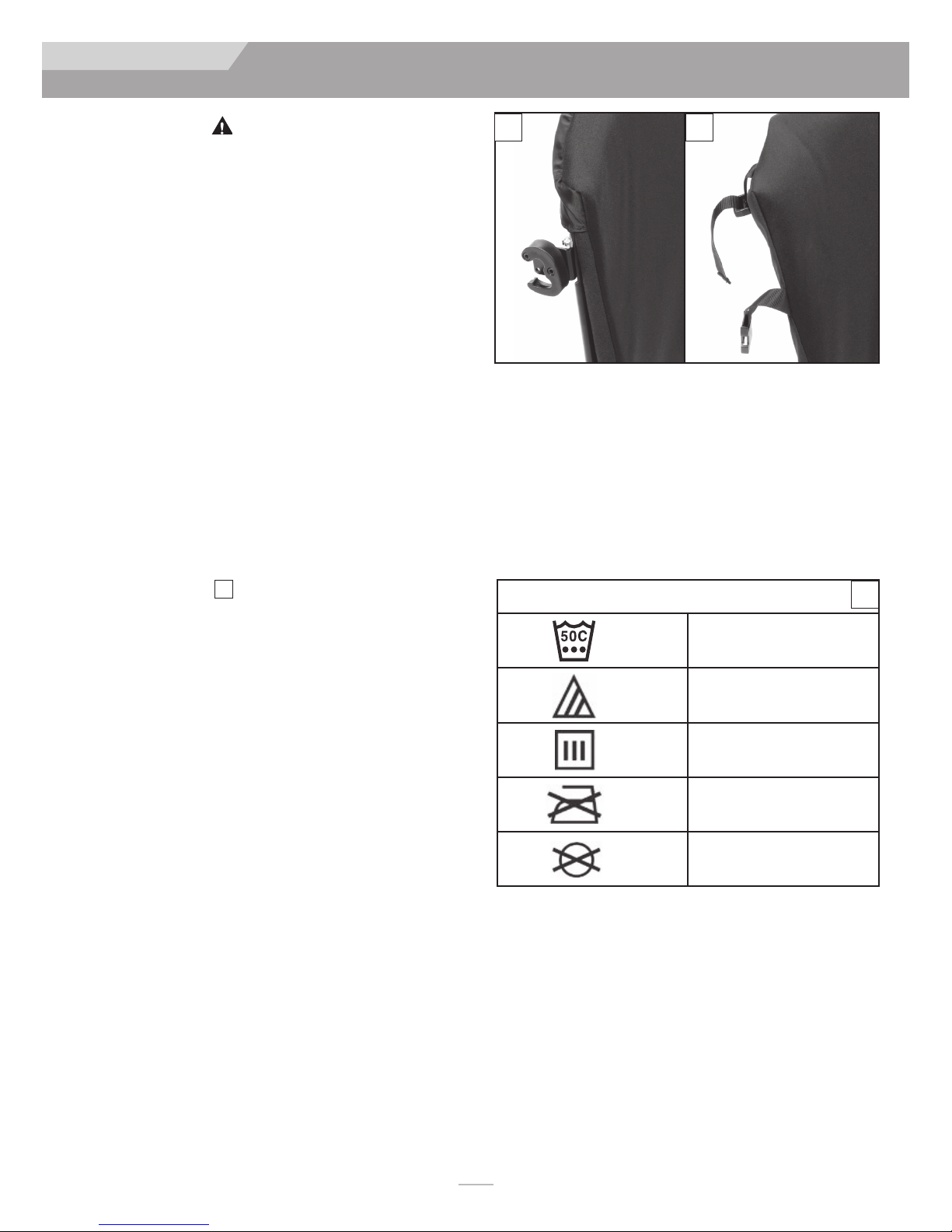

Clamp Hardware Strap Attachment
C. EASY CLEANING
1. Back Cover
a. Remove the cover from backshell by detaching the Velcro
Unzip the zipper on the bottom of the cover.
b. Remove the foam and turn the cover inside out.
c. Zip the cover closed to avoid snagging.
d. Machine wash in warm water (50°C).
e. Drip and tumble dry in on Low Heat.
NOTE –
clean covers. Do not steam autoclave. Do not bleach. Laundry care symbol
definitions are shown (Fig. 1).
2. Back shell
3. Strap and Support version
NOTE - Do not dry clean covers or use industrial washers and dryers to
NOTE - The ABS plastic support shell is designed to be placed inside the
Do not dry clean covers or use industrial washers or dryers to
a. The backshell should be wiped clean with soap and water on
a regular basis to prevent buildup of dirt and grime.
a. Loosen straps and remove back from the wheelchair.
b. Locate the zipper on the bottom of cover and unzip.
c. remove foam and plastic support shell and turn the cover
inside out.
d. Zip cover closed to avoid snagging.
e. Machine wash in warm water (50°C).
f. Drip and tumble dry in on Low Heat.
g. Reinsert the foam and support shell inside the cover and zip
the cover closed.
clean cover. Do not steam autoclave. Do not bleach.
cover to provide additional support to the back.
3
®
Laundry Care Symbols
.
Machine wash in warm water
(50° C)
Only non-chlorine
bleach, when needed
Drip dry
Do not iron
Do not dry clean
3
932165 Rev. C
4
Page 5
JAY BAS IC BACK
IV . I NST A LL A T IO N A N D ADJ U ST M ENT
A. INSTALLING THE BASIC BACK WITH STRAP ATTACHMENT
lease read the following instructions before beginning the installation. To install the Basic
P
Back, it is best to begin without a user in the wheelchair. Once the back has been
installed the user can be seated back in the wheelchair for minor adjustments. The strap
attachment version of the Basic Back is mounted over, or on top of the standard sling
pholstery that typically is shipped on most wheelchairs. For this version do not remove
u
the existing sling upholstery.
1. Installation:
a. Loosen both left and right straps (A) to the width of the back canes on your chair.
b. Slide the straps over both back canes.
c. Secure the back by tightening the straps. Do not overtighten the straps, check to
make sure the back canes are parallel after the adjustment is made.
2. Removal:
a. Remove the back by unsnapping the plastic buckles on each side (B)
b. Lift the back off the chair.
54

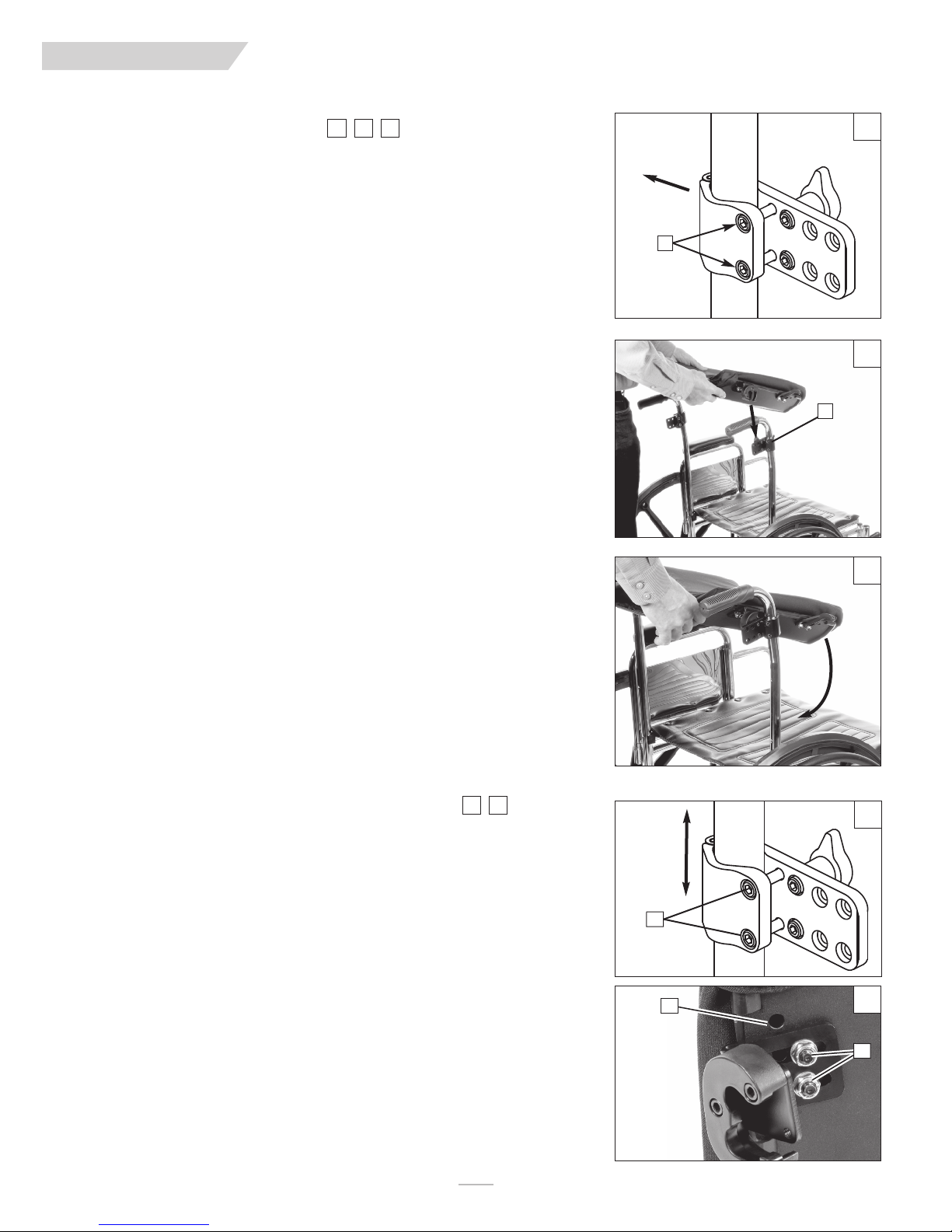

B. INSTALL BASIC BACK WITH CLAMP HARDWARE
Please read the following instructions before beginning the installation. To install the Basic
Back with clamp hardware, it is best to begin without a user in the wheelchair. Once the
back has been installed the user can be seated back in the wheelchair for minor adjustments.
1. Prepare the chair for the Basic Back
a. Measure the width of the Back (C) and the size of the tubing (D) before starting
this installation for your chair.
b. Remove the sling upholstery from the wheelchair according to the wheelchair
manufacturers instructions.
c. If an aftermarket cushion is going to be used on the chair, ensure that it is placed
on the wheelchair to ensure proper back height placement.
76
4
B
A
5
C
6
C

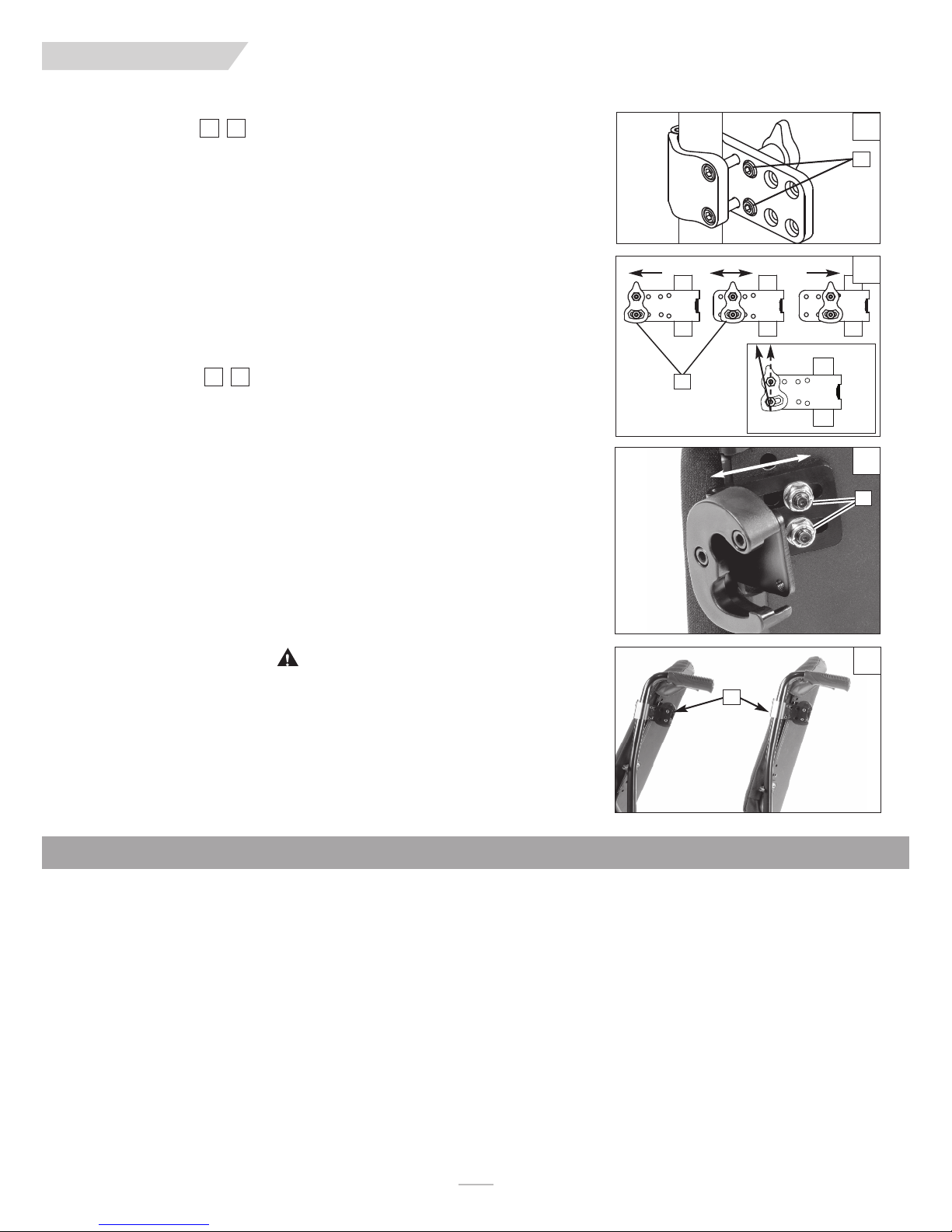

2. Locating and attaching the hardware receivers
a. Visually determine the approximate location for the receivers on the wheelchair’s
back canes.
b. The mounting hardware should be at about the same height on each backpost and
parallel to the seat frame.
c. Attach the hardware receivers by removing the screws and wrapping the hinge
around the wheelchair back canes.
d. Use the shorter screws provided to secure the clamps to 7/8” tubing, and use the
longer screws provided to secure the clamps to a 1” tube.
e. The hinge and tapered attachment must be aligned when assembling the screws.
The tapered attachment should be facing upwards and the hinge should be facing
forward.
f. Place the pin in slot (E) for 7/8” tubing, and slot (F) for 1” Tubing.
NOTE –
A higher location on the back canes are generally better.
111098
8
equal
parallel
D
9
rear
7
10
of chair
F
E
5
932165 Rev. C
Page 6
JAY BAS IC BACK
I
V
. I
N
S
TAL
L
ATI
ON
AN
D ADJUS
TMEN
T
3. Attaching the back shell to the receivers
a. After the receiving hardware has been attached, checked, and measured. The back
an be attached to the wheelchair’s back canes.
c
b. Using the 4mm hex key, Loosen the clamp screws(A)
c. Align the back shell to the mounting hardware, if the width of the shell-side hard-
ware needs adjustment, please reference the adjustment section.
d. Attach the back shell to the mounting hardware by raising the shell horizontally and
lowering it onto mounting hardware (B). Once the shell is seated properly on the
hardware, rotate the shell bottom so that the back shell is in a vertical position
(Fig. 13).
e. Test that the attachment is aligned properly by removing and re-attaching the back
shell. Proper alignment of the mounting hardware and back is achieved when the
back can be smoothly attached and released.
f. If proper alignment has not been achieved, adjust the components until properly
aligned.
g. Once properly aligned, tighten the hardware receiver clamp screws (A). The rec-
ommended torque specification is 15-20 in-lbs. (1.7- 2.3 Nm).
11 12 13
11
front of
chair
A
12
B
13
C. ADJUSTING BASIC BACK WITH CLAMP HARDWARE
Please read the following instructions before beginning the installation. To install the Basic
Back with clamp hardware, it is best to begin without a user in the wheelchair. Once the
back has been installed the user can be seated back in the wheelchair for minor adjustments.
1. Height adjustment
a. Loosen the clamp screws on the chair side mounting hardware (A) and slide along
the back canes until the desired height is reached. The mounting hardware should
be at approximately equal heights on each back post and parallel to the seat frame.
b. Securely tighten the clamp screws (A). The recommended torque specification is
15 - 20 in-lbs (1.7 - 2.3 Nm).
Additional height
c. If additional height is needed, change the position of the shell-side hardware by
loosening nuts (E) and placing upper or lower hardware in optional holes (D).
Securely tighten the chair-side mounting hardware. The recommended torque specification is 75 - 85 in-lbs (8.5 - 9.6 Nm). Reattach back shell to chair side mounting
hardware.
932165 Rev. C
14 15
6
14
C
D
15
E
Page 7
JAY BAS IC BACK
I
V
. I
N
S
TAL
L
ATI
ON
AN
D ADJUS
TMEN
T
2. Angle Adjustment
The Basic Back offers up to 10 degrees of angle with limited seat depth loss.
a. Detach the back shell from the mounting hardware.
b. Remove the left and right socket head screws (A) on the chair side mounting hard-
are.
w
c. Adjust the angle by moving the tapered pin (B) forward or backward in the bracket as
shown in Fig. 17. Securely tighten the socket head screws. The recommended torque
specification is 15 - 20 in-lbs (1.7 - 2.3 Nm).
d. As the back angle is adjusted, also adjust the angle of the tapered pin to match (Fig. 17,
inset). The recommended torque specification is 15 - 20 in-lbs (1.7 - 2.3 Nm).
3. Width Adjustment
a. Loosen nuts (C) using a 7/16” wrench.
b. Slide hardware horizontally until the appropriate width is achieved. The appropriate
width allows for attaching to the chair-side mounting hardware.
NOTE -
Width can be adjusted +1” to allow a smaller back to be mounted on wider back canes.
c. Secure the width nuts (C). The recommended torque specification is 75-85 in-lbs.
d. To minimize seat depth loss, place the lower mounting hardware (D) in a lower
mounting hole as seen in (Fig. 19). The recommended torque specification is 25-30
in-lbs (2.8 - 3.4 Nm).
16 17
18 19
16
A
17
B
18
C
D. INSPECT
WARNING
Ensure all hardware has been properly tightened according to suggested specifications.
a. Make sure the Back Support is locked, and the receivers are tight.
b. Check that the Back Support can be attached smoothly and securely, by attaching
and removing the assembly several times.
c. Double check fit and comfort for the user before putting the Back Support into use.
d. Failure to follow this check out procedure could result in injury and/or damage to
your Back Support and/or components.
24 MONTH LIMITED WARRANTY
1.
Each JAY Basic Back is carefully inspected and tested to provide peak performance.
Every JAY Basic Back is guaranteed to be free from defects in materials and workmanship
for a period of 24 months from the date of purchase, provided normal use. Should a
defect in materials or workmanship occur within 24 months from the original date of purchase, Sunrise Medical will, at its option, repair or replace it without charge. This warranty does not apply to punctures, tears or burns, nor to the back’s removable cover.
2.
Claims and repairs should be processed through the nearest authorized supplier.
Except for express warranties made herein, all other warranties, including implied warranties of merchantability and warranties of fitness for a particular purpose are excluded.
There are not warranties which extend beyond the description on the face hereof.
Remedies for breach of express warranties herein are limited to repair or replacement of
the goods. In no event shall damages for breach of any warranty include any consequential damages or exceed the cost of non-conforming goods sold.
19
D
VI I I. WA R RA N T Y
7
932165 Rev. C
Page 8
©2016 Sunrise Medical (US) LLC
10.16 932165 Rev. C
Loading...
