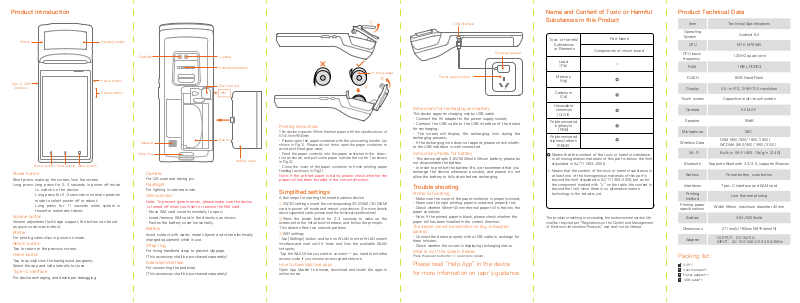

Product introduction
Printer
Type-C USB
interface
Return button
Home button
Menu button
Power button
Short press: wake up the screen, lock the screen.
Long press: long press for 2-3 seconds in power off mode
to switch on the device.
Long press for 2-3 seconds in normal operation
mode to select power off or reboot.
Long press for 11 seconds when system is
frozenfor automatic reboot.
Volume button
Volume adjustment (with app support, the button can be set
as quick code scan button).
Printer
For printing sales slips in power on mode.
Return button
Tap to return to the previous screen.
Home button
Tap to quickly view the background programs;
Select the app and slide laterally to close.
Type-C interface
For device recharging and developer debugging.
Opening handle
Power button
Volume button
Flashlight
Speaker
Strap ring
Camera
Extended interface
SIM card slot
SIM
Battery
Camera
For QR scan and taking pic.
Flashlight
For lighting in camera mode.
SIM card slot
Note: To prevent system errors, please make sure the device
is turned off when you insert or remove the SIM card.
· Move SIM card cover horizontally to open;
· Insert/remove SIM card in the direction as shown;
· Fasten the battery cover horizontally.
Battery
Avoid contact with water, metal objects and other electrically
charged equipment while in use.
Strap ring
For fixing handheld strap to prevent slippage.
(This accessory shall be purchased separately)
Extended interface
For connecting the pedestal.
(This accessory shall be purchased separately)
Battery cover
①
Printing paper
③
②
Printing instructions
This device supports 58mm thermal paper with the specifications of
57±0.5mm*Ø40mm
· Please open the paper container with the uncovering handle (as
shown in Fig.1). Please do not force open the paper container to
avoid print head gear wear;
· Feed the paper correctly into the paper container in the direction as shown, and pull some paper outside the cutter (as shown
in Fig.2);
· Close the cover of the paper container to finish printing paper
feeding (as shown in Fig.3).
Note: If the printed paper is blank, please check whether the
paper roll has been installed in the correct direction.
Simplified settings
A few steps for starting the smart business device
①
2G/3G settings: insert the corresponding 2G (GSM)/3G (GSM)
card in power off mode and reboot your device. (
about supported cards, please read the technical specifications
②
Press the power button for 2-3 seconds to wake up the
screen,enter the initial boot interface, and follow the prompts.
This device offers two network patterns.
③
WIFI settings
·
Tap [Settings] button and turn on WLAN to enter WLAN search
interface,and wait until it finds and lists the available WLAN
hotspots;
·
Tap the WLAN that you want to connect — you need to enterthe
access code if you choose an encrypted network.
How to download/use apps
Open App Market to browse, download and install the apps in
online mode.
For more details
)
USB interface
Power supply socket
Charging adapter
Instructions for recharging and battery
This device supports charging only by USB cable
· Connect the 5V adapter to the power supply socket;
· Connect the USB cable to the USB interface of the device
for recharging;
· The screen will display the recharging icon during the
recharging process;
· If the recharging icon does not appear, please check whether the USB interface is well connected.
Instructions/Notes for battery
· This device adopts 3.6V/5200mAh lithium battery; please do
not disassemble the battery.
· In order to protect the battery life, we recommend that you
recharge the device whenever possible, and please do not
allow the battery to fully drain before recharging.
Trouble shooting
Printer not working
· Make sure the cover of the paper container is properly closed;
· Make sure the right printing paper is used and properly fed;
· Check whether 58mm*40mm thermal paper roll is fed into the
paper container;
· Note: If the printed paper is blank, please check whether the
paper roll has been installed in the correct direction.
The device cannot be switched on (e.g. exhausted
battery)
· Connect the device properly with a USB cable to recharge for
three minutes;
· Check whether the screen is displaying recharging status.
What to do if the system freezes
Press the power button for 11 seconds to reboot.
Please read “Help App” in the device
for more information on user’s guidance
Name and Content of Toxic or Harmful
Substances in this Product
Toxic or Harmful
Substances
or Elements
Lead
（Pb）
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr(VII)
Polybrominated
biphenyls
(PBB)
Polybrominated
diphenyl ethers
(PBDE)
Means that the content of the toxic or harmful substance
in all homogeneous materials of this part is below the limit
stipulated in SJ/T11363-2006.
Means that the content of the toxic or harmful substance in
at least one of the homogeneous materials of this part is
beyond the limit stipulated in SJ/T11363-2006; but as for
the component marked with “×” on the table, the content is
beyond the l imit since there is no alternative mature
technology in the industry yet.
The products reaching or exceeding the environmental service life
shall be recycled per “Regulations on the Control and Management
of Electronic Information Products” and shall not be littered.
Part Name
Components of circuit board
Product Technical Data
Item Technical Specifications
Operating
System
CPU
CPU basic
frequency
RAM
FLASH
Display
Touch screen
Camera
Speaker
Microphone
Wireless Data
Wi-Fi
Bluetooth
Buttons
Interfaces
Printing
method
Printing paper
specifications
Battery 3.6V/5200mAh
Dimensions
Adapter
5.5-in IPS, 1280*720 resolution
GSM (850/900/1800/1900)
WCDMA (850/900/1900/2100）
Built-in Wi-Fi 802.11b/g/n (2.4G)
Supports Bluetooth 3.0/4.0, supports iBeacon
Tpre-C interface and SAM card
Width 58mm, maximum diameter 40mm
211mm(L)*83mm(W)*54mm(H)
OUTPUT：DC 5V/2A
INPUT：AC 100~240V/0.3A 50/60Hz
Android 6.0
MTK MT6580
1.3GHZ quad-core
1GB LPDDR3
8GB Nand Flash
Capacitive multi-touch screen
5.0M AF
Power button, scan button
Line thermal printing
Packing list:
V1S*1
User mannual*1
Power adaptor*1
USB cable*1
90dB
MIC
Precautions
Safety Warning
· Connect the AC plug to the AC socket corresponding to
the marked input of the power adapter;
· Do not use in the presence of any potentially explosive gas;
· To avoid injury, unauthorized persons shall not open the
power adapter;
· This is a Class A product. This product may cause radio
interference in living environments. In that case, the user may
be required to take adequate measures against interference.
· Battery replacement:
1.Explosion danger may arise if replacing with the wrong
battery!
2.The replaced battery shall be disposed of by mainte-
nance personnel, and please do not throw it into fire!
Significant Safety Instructions
·This terminal is a handheld device, and the user shall protect the password from being peered at by others while
entering the password;
· Do not install or use the device during lightning storms to
avoid the potential risks of lightning shock;
· Please turn off the power immediately if you notice
abnormal odor, heat or smoke;
· The paper cutter is sharp, please do not touch!
Suggestions
· Do not use the terminal near water or moisture to prevent
liquid from falling into the terminal;
· Do not use the terminal in extremely cold or hot environ-
ments, such as near flames or lit cigarettes;
· Do not drop, throw or bend the device;
· Use the terminal in a clean and dust-free environment if
possible to prevent small items from falling into the terminal;
· Please do not use the terminal near medical equipment
without permission.
Statements
The Company does not assume responsibilities for the
following actions:
· Damages caused by use and maintenance without comply-
ing with the conditions specified in this guide;
· The Company will not assume any responsibilities for the
damages or problemscaused by optional items or consumables (rather than the initial products or approvedproducts of
the Company). The customer is not entitled to change or
modify the product without our consent.
· The product’ s operating system supports official systemupdates, but if you change the operating system into a
third party ROM system or alter the system files by system
cracking, it may cause system instability and security risks
and threats.
Disclaimer
As a result of product upgrading, some details in this document may not match the product, and the actual product
shall govern. The Company reserves the right of interpretation of this document. The Company also reserves the right
toalter this specification without prior notice.
CE certification information (SAR)
This device was tested for typical body-worn operations with the back
of the handset kept 0cm away. To maintain compliance with RF
exposure requirements, use accessories that maintain a 0cm separation
distance between the user's body and the back of the handset. The use
of belt clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with RF exposure requirements, and
should be avoided.
If you are using pacemaker, hearing aid, cochlear implant or other
device, please use the phone according to the doctor’s advice.
PRODUCT SAFETY WARNINGS
Use responsibly. Read all instructions and safety information before use
to avoid injury.The operating ambient temperature of the
equipment declared by the manufacturer is 2/57fitgg0
Battery safety
Battery only at ambient temperatures ranging from 0°C to 57°C.
(1) CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type of battery recommended
by the manufacturer. Dispose of used batteries according to battery
manufacturer’s instructions.
(2) CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
(3) CAUTION:Battery charging temperature upper limit is 57°C.
Adapter safety
When charging, please place the device in an environment that has a
normal room temperature and good ventilation. It is recommended to
charge the device in an environment with a temperature that ranges
from 0°C~57°C.
For altitude 2km below use only
WARNING:For matched equipments and indoor use only.
Camflash safety
LED is only used as indicating light.
Wi-Fi Safety
Turn Wi-Fi off in areas where Wi-Fi use is prohibited or when it may
cause interference or danger, such as in airplanes while flying.
Declaration of Conformity
Hereby, Shanghai Sunmi Technology Co., Ltd. declares that the Yktgnguu
fcvc POS Uystem(Model No.:W7940) is in compliance with the essential
requirements and other relevant provisions of RED 2014/53/EU.
Technical features and characteristics
The product includes the following features and characteristics:
GSM:
-Operation Frequency: IUO:72<:46/:6;OJ¦1IUO;22<::2/;37OJ¦1
FEU1800: 1710-1785MHz1REU3;22<3:72/3;22OJ¦
-Transmitted Power: IUO:72<540;fDo1GISM900: 32.52dBm /
FEU1800: 28.;fDm1 REU3;22<4:08fDo
WCDMA:
-Operation Frequency:WCDMA2100:3;42-1;:0MHz1
YEFOC3;22<3:22/3;32OJ¦1YEFOC:72<:46/:6;OJ¦
1YEFOC;22<::2/;37OJ¦
-Transmitted Power:WCDMA2100:2408:dBm1YEFOC3;22<45065fDo
1YEFOC:72<4502;fDo1YEFOC;22<44089fDo
Wifi:
-Operation Frequency: 2412MHz-2472MHz
-Transmitted Power: CE:13.55dBm
BT/BLE:
-Operation Frequency: 2402-2480MHz
-Transmitted Power: CE BT:3.3dBm/CE BLE:-5.83dBm
GPS:
-Operation Frequency: 1575.42MHz
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user‘s authority to operate the
equipment.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
The country code selection is for non-US model only and is not available
to all US model. Per FCC regulation, all WiFi product marketed in US
must fixed to US operation channels only.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio
waves.
This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless device employs a unit of measure-
ment known as the Specific Absorption Rate, or SAR. The SAR limit set
by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard
operating positions accepted by the FCC with the device transmitting at
its highest certified power level in all tested frequency bands. Although
the SAR is determined at the highest certified power level, the actual
SAR level of the device while operating can be well below the maximum
value. This is because the device is designed to operate at multiple
power levels so as to use only the poser required to reach the network.
In general, the closer you are to a wireless base station antenna, the
lower the power output.
While there may be differences between the SAR levels of various
devices and at various positions, they all meet the government
requirement.
For body worn operation, this device has been tested and meets the FCC
RF exposure guidelines for use with an accessory that contains no metal
and be positioned a minimum of 0cm from the body. Use of other
accessories may not ensure compliance with FCC RF exposure
guidelines. If you do not use a body-worn accessory and are not holding
the device at the ear, position the handset a minimum of 0cm from
your body when the device is switched on.
PRODUCT SAFETY WARNINGS
Use responsibly. Read all instructions and safety information before use
to avoid injury.The operating ambient temperature of the equipment
declared by the manufacturer is 2vq 57°C.
Battery safety
Charge battery only at ambient temperatures ranging from 0°C to 57°C.
(1)CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type of battery recommended
by the manufacturer. Dispose of used batteries according to battery
manufacturer’s instructions.
(2)CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
(3) CAUTION:Charging temperature upper limit is 57°C.
Charger safety
When charging, please place the device in an environment that has a
normal room temperature and good ventilation. It is recommended to
charge the device in an environment with a temperature that ranges
from 0°C~57°C.
Camflash safety
LED is only used as indicating light.
Wi-Fi Safety
Turn Wi-Fi off in areas where Wi-Fi use is prohibited or when it may
cause interference or danger, such as in airplanes while
flying.
Notice for Canada
This device complies with Industry Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
(1)This device may not cause interference; and(2)This device must
accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée
aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et(2)l'utilisateur de
l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Manufacture
Shanghai Sunmi Technology Co., Ltd. Room 505, KIC Plaza, No.388
Song Hu Road, Yang Pu District, Shanghai, China (200433)
Wireless data POS System
User Guide
(W5920)
Loading...
