Technical specifications
Item Technical Specifications
Operating
system
CPU basic
frequency
RAM 1GB LPDDR3
FLASH 8GB Nand Flash
Display 5.45 inch IPS, resolution 1440×720
Touch screen Capacitive two-touch screen
Camera 5M AF / （0.3M FF optional）
Wireless data
Wi-Fi
Bluetooth Support of bluetooth 4.0
Keys Power key, volume key
Interfaces USB Type C， Nano SIM
Printer type Thermal Printer
Printing paper
specifications
Battery 7.6V/2580mAh
Outline
dimensions
Adapter
RF Exposure Information (SAR) :
This device meets the government's
requirements for exposure to radio waves. This
device is designed and manufactured not to
exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal
Communications Commission of the U.S.
Government.
The exposure standard for wireless devices
employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. *Tests for SAR are
conducted using standard operating positions
accepted by the FCC with the device
transmitting at its highest certified power level
in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of
the device while operating can be well below
the maximum value. This is because the
device is designed to operate at multiple
power levels so as to use only the poser
required to reach the network. In general, the
closer you are to a wireless base station
antenna, the lower the power output.
SUNMI OS 2.0 (based on Android 7.1)
1.3GHZ four cores
850/1900
2G：
3G：B2/B4/B5
4G：B2/B4
Build-in Wi-Fi 802.11a/b/g/n(2.4G/5GNODFS)
Width 58mm, maximum diameter 50mm
L 219.1mm ×W 80mm ×H 17.8mm
OUTPUT：DC5V/2A
INPUT：AC100~240V/0.3A 50/60Hz
5/B7/B12/B17/B25/B26/B38/B41
/B
CE certification information (SAR)
This device was tested for typical body-worn opera-
tions with the back of the handset kept 0mm away. To
maintain compliance with RF exposure requirements,
use accessories that maintain a 0mm separation
distance between the user's body and the back of the
handset. The use of belt clips, holsters and similar
accessories should not contain metallic components in
its assembly. The use of accessories that do not satisfy
these requirements may not comply with RF exposure
requirements, and should be avoided.
If you are using pacemaker, hearing aid, cochlear
implant or other device, please use the phone
according to the doctor’s advice.
PRODUCT SAFETY WARNINGS
Use responsibly. Read all instructions and safety
information before use to avoid injury.The limit
operating ambient temperature of the equipment
declared by the manufacturer is -10~45°C
Battery safety
Charge battery only at ambient temperatures ranging
from 40°C.
(1) CAUTION: Danger of explosion if battery is
incorrectly replaced. Replace only with the same or
equivalent type of battery recommended by the
manufacturer. Dispose of used batteries according to
battery manufacturer’s instructions.
(2) CAUTION: RISK OF EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED
BATTERIES ACCORDING TO THE INSTRUCTIONS.
(3) CAUTION:Battery charging temperature upper limit
is 40°C.
Adapter safety
When charging, please place the device in an
environment that has a normal room temperature and
good ventilation. It is recommended to charge the
device in an environment with a temperature that
ranges from 0°C~40°C.
For altitude 2km below use only
Wi-Fi Safety
Turn Wi-Fi off in areas where Wi-Fi use is prohibited or
when it may cause interference or danger, such as in
airplanes while flying.
Declaration of Conformity
Hereby, Shanghai Sunmi Technology Co., Ltd. declares
that the Wireless data POS System(Model No.:T5930) is
in compliance with the essential requirements and other
relevant provisions of RED 2014/53/EU.
CAUTION: The device is restricted to indoor use when
operated in the European Community using frequency in
5150MHz~5250MHz to reduce the potential for
interference.
5.8G SRD receiver category：1
Technical features and characteristic
Operation Frequency Transmitted
FCC Statement
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Name and content of toxic and harmful substances
contained in this product are shown in the following table
Name of parts
Circuit board
:It indicates that the content of toxic and harmful
substances in all homogeneous materials of this part is
below the limit specified in SJ/T11363-2006.
:It indicates that the content of toxic and harmful
substances is higher than the limit specified in
SJ/T11363-2006 in at least one homogeneous material of
this part; however, the the reason why the toxic substance
of that part exceeds the limit is that there is no applicable
material to replace it currently.
For products that have reached or passed the service
years for environmental protection, they should be
recycled according to Measures for Control and
Management of Electronic Information Products and
should not be thrown away at will.
This product can be used across EU member states.
The full text of the EU declaration DOC is available at the
following internet address：www.sunmi.com
Manufacture
Shanghai Sunmi Technology Co.,Ltd.
Room 505 No.388 Song Hu Road Shanghai, China
The highest SAR value for the device as reported to worn
on the body, as described in this user guide, is 1.2W/kg
(Body-worn measurements differ among devices,
depending upon available enhancements and FCC
requirements.) While there may be differences between
the SAR levels of various devices and at various positions,
they all meet the government requirement. The FCC has
granted an Equipment Authorization for this device with
all reported SAR levels evaluated as in compliance with
the FCC RF exposure guidelines. SAR information on this
device is on file with the FCC and can be found under
the Display Grant section of http://www.fcc.gov/oet/
fccid after searching on FCC ID: 2AH25T6920.
For body worn operation, this device has been tested and
meets the FCC RF exposure .
Toxic and harmful substances and elements
(Pb) (Hg) (Cd) (Cr(VII) (PBB) (PBDE)
Shell
List of packaged items
Terminal device × 1
User's Guide × 1
Charger & Adapter × 1
USB Cable × 1

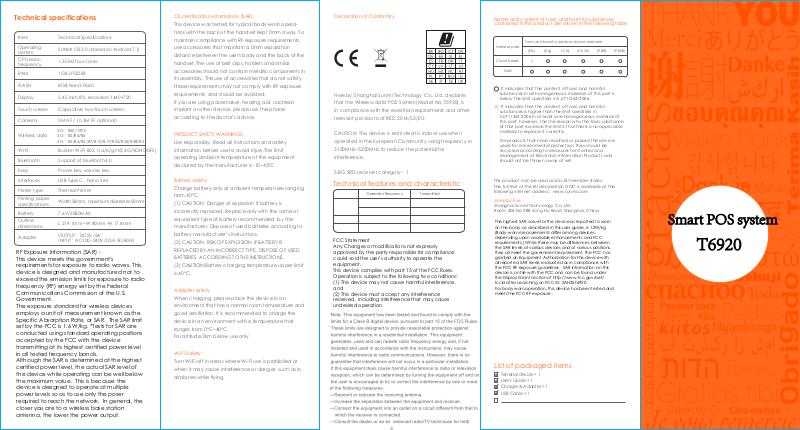

Smart POS system
T6920
Product Description
1
Extremely easy settings
Precautions
Printer
Power key
Volume key
Only a few steps to activate an intelligent business device
①Set 2G/3G/4G: when power off, insert the 2G/3G/4G
card and then power on.
(Refer to the Technical Specifications for the support of
Opening
handle
cards)
② Long press the Power Key for 2~3s to activate the
backlight of screen,and then operate following the
prompts after entering the startup/booting screen for the
first time. 2 modes for accessing the Internet are available.
Camera
2
Speaker
Extended
interface
+
-
Type-C USB
SIM Card Slot
Nano
SIM
Battery cover
Printing instructions
This device supports 58mm thermal paper with the specifications
of 57±0.5mm*Ø50mm
· Please open the paper container with the uncovering handle
(as shown in Fig.1). Please do not force open the paper
container to avoid print head gear wear;
· Feed the paper correctly into the paper container in the
direction as shown, and pull some paper outside the cutter
(as shown in Fig.2);
· Close the cover of the paper container to finish printing paper
feeding(as shown in Fig.3).
Note: If the printed paper is blank, please check whether the
paper roll has been installed in the correct direction.
Type-C USB
3
③ Set WiFi
· Click "Set" button, activate "WLAN" to enter the WLAN
searching screen, and wait it to list all useable WLAN
· Click the WLAN to be connected, and enter the access
password in case of an encrypted network.
Download/use Apps
After connected to the Internet, open the App Market,
find, download and install the Apps.
FAQ
Booting failure (e.g. low battery)
· Plug the USB cable and charge for 3min;
· Check if the screen displays the normal charging status.
System crash
· Long press the Power Key for 11s to reboot.
Read the installed Help App for more information
Safety Warning
· Connect the AC plug to the AC socket corresponding
to the marked input of the power adapter;
· Do not use in the presence of any potentially explosive
gas;
· To avoid injury, unauthorized persons shall not open the
power adapter; · This is a Class A product. This product
may cause radio interference in living environments.
In that case, the user may be required to take
adequate measures against interference.
· Battery replacement:
1. Explosion danger may arise if replacing with the
wrong battery!
2. The replaced battery shall be disposed of by
maintenance personnel,and please do not throw it
into fire!
Significant Safety Instructions
· This terminal is a handheld device, and the user shall
protect the password from being peered at by others
while entering the password;
· Do not install or use the device during lightning storms
to avoid the potential risks of lightning shock;
· Please turn off the power immediately if you notice
abnormal odor, heat or smoke;
· The paper cutter is sharp, please do not touch!
Suggestions
· Do not use the terminal near water or moisture to
prevent liquid from falling into the terminal;
· Do not use the terminal in extremely cold or hot
environments, such as near flames or lit cigarettes;
· Do not drop, throw or bend the device;
· Use the terminal in a clean and dust-free environment
if possible to prevent small items from falling into the
terminal;
· Please do not use the terminal near medical
equipment without permission.
Power key
Short press: wake up the screen, lock the screen.
Long press: long press for 2-3 seconds in power off
mode to switch on the device.
Long press for 2-3 seconds in normal
operation mode to select power off or
reboot.
Long press for 11 seconds when system is
frozenfor automatic reboot.
Volume key
Volume adjustment.
Printer
For printing sales slips in power on mode.
Type-C USB
For device recharging and developer debugging.
Camera
For payment scanning and 1D/2D code quick
scanning.
SIM Card Slot
Note: To prevent system errors, please make sure the
device is turned off when you insert or remove the SIM
card.
Charger & Adapter
Power Outlet
Instructions for recharging and battery
This device supports charging only by USB cable
· Connect the 5V adapter to the power supply socket;
· Connect the USB cable to the USB interface of the device for
recharging; · The screen will display the recharging icon during
the recharging process;
· If the recharging icon does not appear, please check whether
the USB interface is well connected.
Instructions/Notes for battery
· This device adopts 7.6V/2580mAh lithium battery;
please do not disassemble the battery.
· In order to protect the battery life, we recommend that
yourecharge the device whenever possible, and please do
not allow the battery to fully drain before recharging.
Statements
The Company does not assume responsibilities for the
following actions:
· Damages caused by use and maintenance without
complying with the conditions specified in this guide;
· The Company will not assume any responsibilities for
the damages or problemscaused by optional items or
consumables (rather than the initial products or
approvedproducts of the Company). The customer is
not entitled to change or modify the product without
our consent.
· The product’s operating system supports official
systemupdates, but if you change the operating
system into a third party ROM system or alter the system
files by system cracking, it may cause system instability
and security risks and threats.
Disclaimer
As a result of product upgrading, some details in this
document may not match the product, and the actual
product shall govern. The Company reserves the right of
interpretation of this document. The Company also
reserves the right toalter this specification without prior
notice.
Loading...
