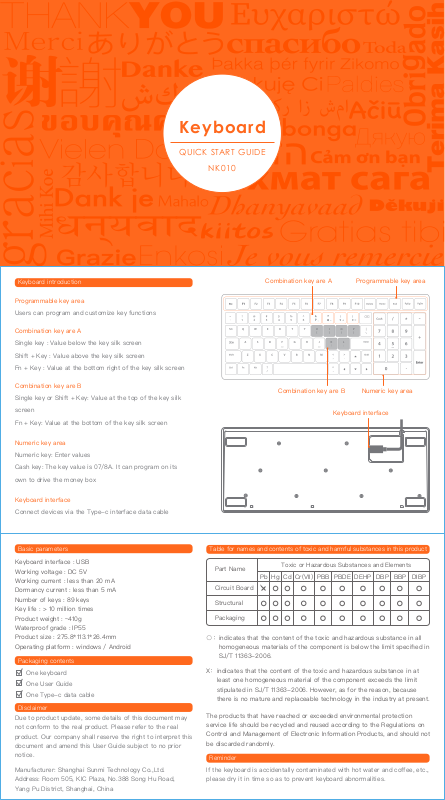

Sunmi Technology NK010 User Manual

Keyboard

QUICK START GUIDE

NK010

Keyboard introduction

Programmable key area

Users can program and customize key functions

Combination key are A

Single key : Value below the key silk screen

Shift + Key : Value above the key silk screen

Fn + Key : Value at the bottom right of the key silk screen

Combination key are B

Single key or Shift + Key: Value at the top of the key silk

screen

Fn + Key: Value at the bottom of the key silk screen

Numeric key area

Numeric key: Enter values

Cash key: The key value is 07/8A. It can program on its

own to drive the money box

Keyboard interface

Connect devices via the Type-c interface data cable

Basic parameters

Keyboard interface : USB
Working voltage : DC 5V
Working current : less than 20 mA
Dormancy current : less than 5 mA
Number of keys : 89 keys
Key life : > 10 million times
Product weight : ~410g
Waterproof grade : IP55
Product size : 275.8*113.1*26.4mm
Operating platform : windows / Android

Packaging contents

One keyboard

One User Guide

One Type-c data cable

Disclaimer

Due to product update, some details of this document may
not conform to the real product. Please refer to the real
product. Our company shall reserve the right to interpret this
document and amend this User Guide subject to no prior
notice.

Manufacturer: Shanghai Sunmi Technology Co.,Ltd.
Address: Room 505, KIC Plaza, No.388 Song Hu Road,
Yang Pu District, Shanghai, China

Combination key are A

Combination key are B

Table for names and contents of toxic and harmful substances in this product

Part Name

Circuit Board

Structural

Packaging

○：indicates that the content of the toxic and hazardous substance in all
homogeneous materials of the component is below the limit specified in
SJ/T 11363-2006.

X：indicates that the content of the toxic and hazardous substance in at
least one homogeneous material of the component exceeds the limit
stipulated in SJ/T 11363-2006. However, as for the reason, because
there is no mature and replaceable technology in the industry at present.

The products that have reached or exceeded environmental protection
service life should be recycled and reused according to the Regulations on
Control and Management of Electronic Information Products, and should not
be discarded randomly.

Reminder

If the keyboard is accidentally contaminated with hot water and coffee, etc.,
please dry it in time so as to prevent keyboard abnormalities.

Toxic or Hazardous Substances and Elements

Pb Cd

Cr(VII)

Hg

PBB

Programmable key area

Numeric key area

Keyboard interface

DEHP DBP BBP DIBP

PBDE

FCC Statement
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.

This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

Note : This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates,uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for
help.
