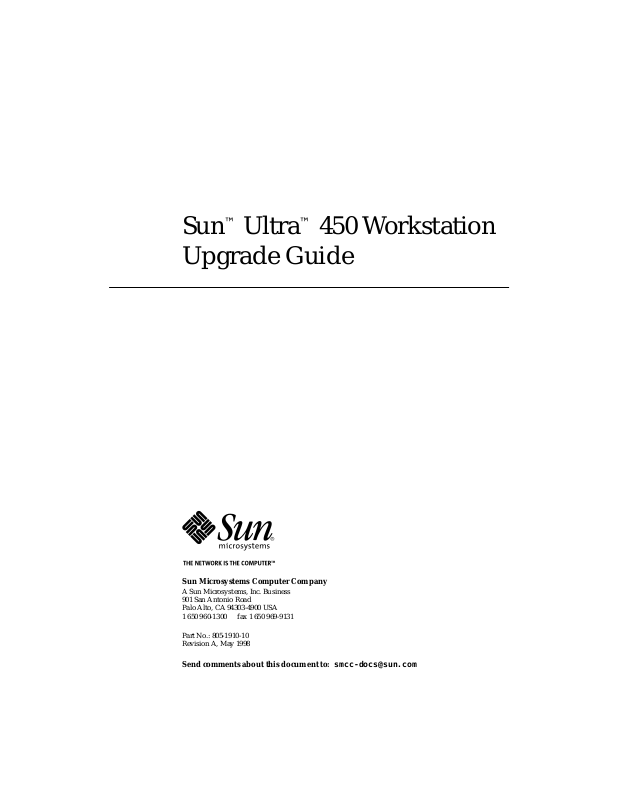

Sun™Ultra™450 Workstation Upgrade Guide

Sun Microsystems Computer Company

A Sun Microsystems, Inc. Business 901 San Antonio Road Palo Alto, CA 94303-4900 USA 1 650 960-1300 fax 1 650 969-9131

Part No.: 805-1910-10 Revision A, May 1998

Send comments about this document to: smcc-docs@sun.com

Copyright 1998 Sun Microsystems,Inc.,901SanAntonioRoad•PaloAlto,CA94303USA.Allrightsreserved. This productordocumentisprotectedbycopyrightanddistributedunderlicensesrestrictingitsuse,copying,distribution,anddecompilation.

No part of this productordocumentmaybereproducedinanyformbyanymeanswithoutpriorwrittenauthorizationofSunanditslicensors, if any. Third-partysoftware,includingfonttechnology,iscopyrightedandlicensedfromSunsuppliers.

Parts of the productmaybederivedfromBerkeleyBSDsystems,licensedfromtheUniversityofCalifornia.UNIXisaregisteredtrademarkin the U.S. and other countries, exclusively licensed throughX/OpenCompany,Ltd.

Sun,SunMicrosystems,theSunlogo,AnswerBook,SunDocs,Solaris,OpenBoot,OpenWindows,SolsticeAdminSuite,SolsticeBackup,Solstice DiskSuite, Solstice SyMON, SunSwift, SunVTS, and Sun Enterprise aretrademarksorregisteredtrademarksofSunMicrosystems,Inc.inthe United States and in other countries. All SPARCtrademarksare used under license and aretrademarksorregisteredtrademarksofSPARC International,Inc.intheUnitedStatesandinothercountries.Products bearing SPARC trademarks arebaseduponanarchitecturedevelopedby Sun Microsystems,Inc.

The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems,Inc. for its users and licensees. Sun acknowledges the pioneering effortsof Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry.Sun holds a non-exclusive license fromXerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN LOOK GUIs and otherwise comply with Sun’s written license agreements.

RESTRICTEDRIGHTS: Use, duplication, or disclosureby the U.S. Government is subject to restrictions of FAR52.227-14(g)(2)(6/87) and FAR52.227-19(6/87), or DFAR252.227-7015(b)(6/95) and DFAR227.7202-3(a).

DOCUMENTATIONIS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.

Copyright 1998 Sun Microsystems,Inc., 901 San Antonio Road • Palo Alto, CA 94303 Etats-Unis. Tousdroits réservés. Ce produitou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie, la distribution, et la

décompilation. Aucune partie de ce produitou document ne peut être reproduite sous aucune forme, par quelque moyen que ce soit, sans l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a. Le logiciel détenu par des tiers, et qui comprendla technologie relativeaux polices de caractères, est protégé par un copyright et licencié par des fournisseurs de Sun.

Des parties de ce produitpourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque déposée aux Etats-Unis et dans d’autrespays et licenciée exclusivement par X/Open Company,Ltd.

Sun, Sun Microsystems,le logo Sun, AnswerBook, SunDocs, Solaris, OpenBoot, OpenWindows, Solstice AdminSuite, Solstice Backup, Solstice DiskSuite, Solstice SyMON, SunSwift, SunVTS, et Sun Enterprise sont des marquesdéposées ou enregistrées de Sun Microsystems, Inc. aux Etats-Unis et dans d’autrespays. Toutesles marques SPARC,utilisées sous licence, sont des marques déposées ou enregistrées de SPARC International,Inc. aux Etats-Unis et dans d’autres pays. Les produitsportant les marques SPARCsont basés sur une architecture développée par Sun Microsystems,Inc.

L’interfaced’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems, Inc. pour ses utilisateurs et licenciés. Sun reconnaîtles efforts de pionniers de Xerox pour la recherche et le développement du concept des interfaces d’utilisation visuelle ou graphique pour l’industrie de l’informatique. Sun détient une licence non exclusive de Xeroxsur l’interface d’utilisation graphique Xerox, cette licence couvrant également les licenciés de Sun qui mettent en place l’interface d’utilisation graphique OPEN LOOK et qui en outrese conforment aux licences écrites de Sun.

CETTE PUBLICATIONEST FOURNIE "EN L’ETAT"ET AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, N’EST ACCORDEE, Y COMPRIS DES GARANTIES CONCERNANT LA VALEUR MARCHANDE, L’APTITUDE DE LA PUBLICATION A REPONDRE A UNE UTILISATION PARTICULIERE, OU LE FAIT QU’ELLE NE SOIT PAS CONTREFAISANTE DE PRODUIT DE TIERS. CE DENI DE GARANTIE NE S’APPLIQUERAIT PAS, DANS LA MESURE OU IL SERAIT TENU JURIDIQUEMENT NUL ET NON AVENU.

Please Recycle

Preface v

1. Sun Ultra 450 Workstation Upgrade Guide 1

Overview 1 Unpacking the Shipping Cartons 2 Backing Up Data Disk Drives 3 Halting Your System 3 Removing SBus Cards and Extra Memory 5 Installing Your Upgraded System 5 Installing New Disk Drive Brackets 6 Transferring Disk Drives Into the Sun Ultra 450 Workstation 7 Transferring UPA Graphics Cards 7

Attaching the Nameplate to Your System 8

Attaching Your Sun Monitor to Your Workstation 8 Powering On Your Upgraded System 9 Return Material Procedure 9

Contents iii

iv Sun Ultra 450 Workstation Upgrade Guide • May 1998

Preface

The Sun Ultra 450 Workstation Upgrade Guide, used with the Sun Ultra 450 Workstation Owner’s Guide, which also accompanies this upgrade, gives you the information you need to upgrade your Sun™ system to a Sun Ultra™ 450 workstation.

Features and options, installation, troubleshooting, parts replacement, network administration information, and other topics about the Sun Ultra 450 workstation are all covered in the Sun Ultra 450 Workstation Owner’s Guide. Refer to the accompanying documentation to install the parts you will be transferring from other systems into your new Sun Ultra 450 workstation. You should also use the documentation to install any options that you purchased with this upgrade.

In addition, you can also view many of the component installation and replacement procedures in the multimedia CD-ROM application ShowMe™ How™ which also accompanies this upgrade.

Using UNIX Commands

This document may not contain information on basic UNIX®commands and procedures such as shutting down the system, booting the system, and configuring devices.

See one or more of the following for such information:

■ Solaris 2.x Handbook for SMCC Peripherals

■ AnswerBook™ online documentation for the Solaris™ 2.x software environment

■ Other software documentation that you received with your system

Preface v

Shell Prompts

The following table shows the default system prompt and superuser prompt for the C shell, Bourne shell, and Korn shell.

Shell Prompt

C shell machine_name% C shell superuser machine_name# Bourne shell and Korn shell $ Bourne shell and Korn shell

superuser

Conventions

The following table describes the typographic conventions used in this book.

Typeface or Symbol Meaning Examples

AaBbCc123 The names of commands, files,

and directories; on-screen computer output.

AaBbCc123

AaBbCc123 Book titles, new words or

vi Sun Ultra 450 Workstation Upgrade Guide • May 1998

What you type, when contrasted with on-screen computer output.

terms, words to be emphasized. Command-line variable; replace with a real name or value.

Edit your .login file. Use ls -a to list all files.

% You have mail.

% su Password:

Read Chapter 6 in the User’s Guide. These are called class options. You must be root to do this. To delete a file, type rm filename.

Cautions

Caution – This equipment contains lethal voltage. Accidental contact can result in

serious injury or death.

Caution – Improper handling by unqualified personnel can cause serious damage

to this equipment. Unqualified personnel who tamper with this equipment may be held liable for any resultant damage to the equipment.

Caution – Use proper electrostatic discharge (ESD) grounding techniques when

handling components. Wear an antistatic wriststrap and use an ESD-protected mat. Store ESD-sensitive components in antistatic bags before placing them on any surface.

Preface vii

Individuals servicing this equipment must observe all safety precautions and ensure compliance with skill level requirements, certification, and all applicable local and national laws.

Some procedures in this document must be performed by trained maintenance providers. Only people who have been trained at the Sun Microsystems™ training facilities (or at Sun Microsystems affiliates) and have been certified as required by local and national laws are considered qualified.

Ordering Sun Documents

SunDocsSMis a distribution program for Sun Microsystems technical documentation. Contact SunExpress for easy ordering and quick delivery of your documentation. You can find a listing of available Sun documentation on the World Wide Web.

World Wide Web: http://www.sun.com/sunexpress/ Country Telephone Fax

Belgium 02-720-09-09 02-725-88-50 Canada 1-800-873-7869 1-800-944-0661 France 0800-90-61-57 0800-90-61-58 Germany 01-30-81-61-91 01-30-81-61-92 Holland 06-022-34-45 06-022-34-46 Japan 0120-33-9096 0120-33-9097 Luxembourg 32-2-720-09-09 32-2-725-88-50 Sweden 020-79-57-26 020-79-57-27 Switzerland 0800-55-19-26 0800-55-19-27 United Kingdom 0800-89-88-88 0800-89-88-87 United States 1-800-873-7869 1-800-944-0661

viii Sun Ultra 450 Workstation Upgrade Guide • May 1998

Sun Documentation on the Web

The docs.sun.com web site enables you to access Sun technical documentation on the Web. You can browse the docs.sun.com archive or search for a specific book title or subject at:

http://docs.sun.com.

Sun Welcomes Your Comments

We are interested in improving our documentation and welcome your comments and suggestions. You can email your comments to us at:

smcc-docs@sun.com.

Please include the part number of your document in the subject line of your email.

Preface ix

x Sun Ultra 450 Workstation Upgrade Guide • May 1998

Sun Ultra 450 Workstation Upgrade Guide

This document contains information for upgrading from any Sun Ultra 1 workstation, Sun Ultra 2 workstation, or SPARCstation™ workstation to a Sun Ultra 450 workstation. For important safety and electromagnetic compatibility information, and for installation instructions to be used with this guide, read the Sun Ultra 450 Workstation Owner’s Guide that comes with this upgrade.

Overview

The following sections of this document describe what is involved in the upgrade procedure:

■ Unpacking the shipping cartons

■ Backing up data disk drives

■ Halting your system

■ Removing SBus card(s) and extra memory

■ Installing your upgraded system

■ Installing new disk drive brackets

■ Transferring disk drives into the Sun Ultra 450 workstation

■ Transferring UPA graphics cards

■ Attaching your Sun monitor to your workstation

■ Powering up your upgraded system

■ Return material procedure

Be sure to read each section in its entirety, as well as any other material which is referenced, before attempting to perform the upgrade. You should also have on hand the documentation that came with your original system. You will need to refer to it, and to the documentation accompanying the upgrade to perform all of the procedures.

Your upgrade includes a Sun Ultra 450 workstation and may include one or more of the following hardware components:

■ Memory modules (32-megabyte or larger capacity SIMMs)

■ CPU module with a DC to DC converter

■ New disk drive bracket(s)

■ UPA graphics card(s)

■ Monitor

If any item above is not included in either the upgrade or in your new system, you are expected to transfer the item(s) from your old system to your new system.

For instructions about installing parts into your new system, see the Sun Ultra 450

Workstation Owner’s Guide, and the Sun Ultra 450 Workstation Hardware Setup Instructions, or view the ShowMe How multimedia CD-ROM supplied with your

new system.

Note – Since you are upgrading to a new CPU architecture, your system’s Ethernet

address and host identification (hostid) will change, and applications that are licensed to your system may change as well. Be sure to inform your system administrator of this fact before you begin the upgrade. He or she will need to update certain network configuration files before your system can rejoin the network.

When you upgrade to a Sun Ultra 450 workstation, you must return your old system unit and keyboard to Sun Microsystems. See “Return Material Procedure” on page 9 for additional details.

Unpacking the Shipping Cartons

Illustrations depicting how to unpack your new Sun Ultra 450 workstation system are printed on the shipping cartons—these pictures are self-explanatory. However, there are a few additional steps you should take:

1. Inspect the shipping cartons before opening them.

If there is evidence of damage to a carton, contact your sales representative and arrange for an agent of the carrier to be present when you remove the equipment.

2. Remove and save the Customer Information Sheet.

This sheet is in the plastic envelope on the side of the system unit carton. Retain this sheet for your records. If you are connecting your system to a network, your system administrator will need this sheet during the installation procedure.

2 Sun Ultra 450 Workstation Upgrade Guide • May 1998

3. Save the cartons and the packing material.

You will need them if you ever want to ship your system anywhere. In addition, you may need them to return your old system unit if its original shipping materials are missing.

Backing Up Data Disk Drives

Sun Ultra 450 workstations support 1-inch high and 3.5-inch wide Ultra SCSI disk drives. If you are transferring data disk drives to the new system, back up the data on the drives before halting the system.

Note – You cannot transfer a boot disk from your old system and use it as a boot disk

in your Sun Ultra 450 workstation. You must re-format the drive and install the new version of the operating system software.

1. Back up each data disk drive onto media that will be accessible to your new workstation.

Use a level 0 dump backup.

2. Record each disk’s device name.

Use the df command to read the disk device name before removing any disk drive from your old system.

Halting Your System

Caution – You must halt the system in an orderly manner. When the operating

system or any other standalone program is up and running, do not press Stop(L1)-a to halt the system. Abruptly aborting program execution may cause damage to data files.

Halt your system using the following procedure:

1. Save all your work.

Consult your software documentation for instructions on ending a work session and saving your files. If you do not save your work, you could lose it when you switch off the power.

Sun Ultra 450 Workstation Upgrade Guide 3

2. Perform a complete system dump before starting the upgrade process.

See your operating system documentation if you need instructions on how to do this.

3. Return to the operating system environment.

If you are in a windowing environment, exit from it and wait for the system prompt to appear. See the documentation supplied with your windowing system.

4. Halt the operating system.

See the documentation supplied with your operating system for instructions on how to halt it.

● For Solaris

% su Password: # /usr/sbin/shutdown -y -g60 -i0

● Or, for Solaris 1.x systems, type:

% su Password: superuser password # /usr/etc/shutdown -h +1

2.x systems, type:

superuser password

The operating system warns other users of your system of the impending shutdown, and then halts itself after a one-minute delay. If you wish to provide a longer delay, see the man page for shutdown(1).

The system responds with system halt messages, followed by either the > prompt or the ok prompt. When either prompt appears, you can safely turn off the power in the proper sequence.

5. Turn off the power in sequence to:

a. External drive units (if any) b. Sun system unit c. Monitor (if applicable)

4 Sun Ultra 450 Workstation Upgrade Guide • May 1998

Removing SBus Cards and Extra Memory

If your system unit contains SBus cards, extra memory, or other modules, you should remove them before returning the system unit to Sun Microsystems.

You may transfer memory modules that were factory-installed inside your old system unit, as well as any memory module that you purchased as a separate option.

Consult the documentation that came with your system for detailed instructions about removing SBus cards and extra memory.

Installing Your Upgraded System

Your upgrade includes a Sun Ultra 450 workstation, and also may include one or more of the following hardware components:

■ Memory modules (32-megabyte or larger capacity SIMMs)

■ CPU module with the DC to DC converter

■ New disk drive bracket(s)

■ UPA graphics card(s)

■ Monitor

To install your upgraded Sun Ultra 450 workstation system, see the installation instructions in the Sun Ultra 450 Workstation Owner ’s Guide.

If you are transferring disk drives with old brackets to your new system, install the brackets now using the following procedure.

Sun Ultra 450 Workstation Upgrade Guide 5

Installing New Disk Drive Brackets

The Sun Ultra 450 workstation supports 1-inch high disk drives with a new bracket. If your 1-inch high disk drives have the old brackets on them, you must install the new brackets that came with your upgrade.

1. Remove the disk drive from your old system.

See the documentation supplied with your system for disk drive removal.

2. Remove the four Phillips screws securing the old bracket to the disk drive.

Remove the old disk drive bracket.

3. Attach the new bracket to the disk drive using the four Phillips screws.

Install the new disk drive bracket.

4. Repeat steps 1 to 3 as many times as is necessary to install the new disk drive brackets onto your 1-inch high disk drives.

6 Sun Ultra 450 Workstation Upgrade Guide • May 1998

Transferring Disk Drives Into the Sun Ultra 450 Workstation

For information about mounting a data disk as an Ultra Enterprise 450 workstation data disk, consult the System Administration Guide accompanying your software documentation. Use the device name you recorded in the section “Backing Up Data Disk Drives” on page 3.

To configure and use any transferred data disk as part of a disk array, consult the Solstice™ Disk Suite™ documentation.

● Install each disk drive in the Sun Ultra 450 workstation.

See the Sun Ultra 450 Workstation Owner’s Guide for information about installing and configuring disk drives in your server.

Transferring UPA Graphics Cards

The Sun Ultra 450 workstation supports up to two Ultra Port Architecture (UPA) graphics cards. See the Sun Ultra 450 Workstation Owner’s Guide for UPA graphics card configuration information and installation procedures.

Note – The Sun Ultra 450 workstation does not support SBus-based frame buffers.

Only UPA- and PCI-based frame buffers are supported on the Sun Ultra 450 workstation.

The upgrade contains nameplates to install on your new workstation if you transfer any UPA graphics card(s) from your old system to the new one. The appropriate nameplate to use depends on the type of UPA graphics card(s) you install in your Sun Ultra 450 workstation.

Examine the nameplate on your old workstation to see if the nameplate was either Creator3D or Elite3D. Use the corresponding Sun Ultra 450 nameplate supplied with your upgrade. If you still do not know which card you have installed, the following table lists the UPA graphics card names, and the corresponding nameplate for your new workstation.

Sun Ultra 450 Workstation Upgrade Guide 7

UPA Graphics Card Single or Double Buffered Nameplate

Creator3D series 3 Double ULTRA 450 Creator3D Elite3D m6 Double ULTRA 450 Elite3D

Attaching the Nameplate to Your System

Note – The following procedure does not apply to any system that is shipped

without a Sun logo or nameplate.

1. Select the appropriate nameplate for the workstation.

See the previous section “Transferring UPA Graphics Cards” to select the appropriate nameplate.

2. Peel the adhesive backing off the rear of the nameplate.

3. Align the keys on the rear of the nameplate with the slots in the nameplate mount on the removable media assembly door.

4. Press the new nameplate firmly into position on the removable media assembly door.

Attaching Your Sun Monitor to Your Workstation

For information about installing your Sun monitor, consult the Sun Ultra 450

Workstation Owner’s Guide or the Sun Ultra 450 Workstation Hardware Setup Instructions.

8 Sun Ultra 450 Workstation Upgrade Guide • May 1998

Powering On Your Upgraded System

The procedure for powering on your system for the first time depends on the operating system you are using. Since your system is connected to a network, the network environment may require some advance preparation before you turn on your system.

Do not power on your system until you have notified your system administrator and have received permission to proceed. If you must act as your own system administrator, see the documentation that accompanies your operating system software.

Return Material Procedure

Once you have completed the upgrade procedure, you must return your old system unit to Sun Microsystems.

Be sure to remove and keep any SBus cards or extra memory modules before returning the system. You need only return the original memory modules that were factory-installed inside your system unit; do not return any memory module that you purchased as a separate option.

If your old system included a Sun Type-4 keyboard, you must return the keyboard with the system unit.

To return your old equipment to Sun Microsystems:

1. Disconnect any cables that may still be attached to the system unit.

2. Pack the system unit (and keyboard, if necessary) in appropriate packing materials.

Use the system’s original packing materials or the Sun Ultra 450 materials, if possible. Be sure that the unit is secure and well padded inside its shipping carton.

3. Follow the instructions in the Sun Upgrades RMA Letter to return the equipment to Sun Microsystems.

You have completed the upgrade procedure. If you encounter any difficulties with your new server, call the Sun Response Center or your authorized service provider.

Sun Ultra 450 Workstation Upgrade Guide 9

10 Sun Ultra 450 Workstation Upgrade Guide • May 1998
