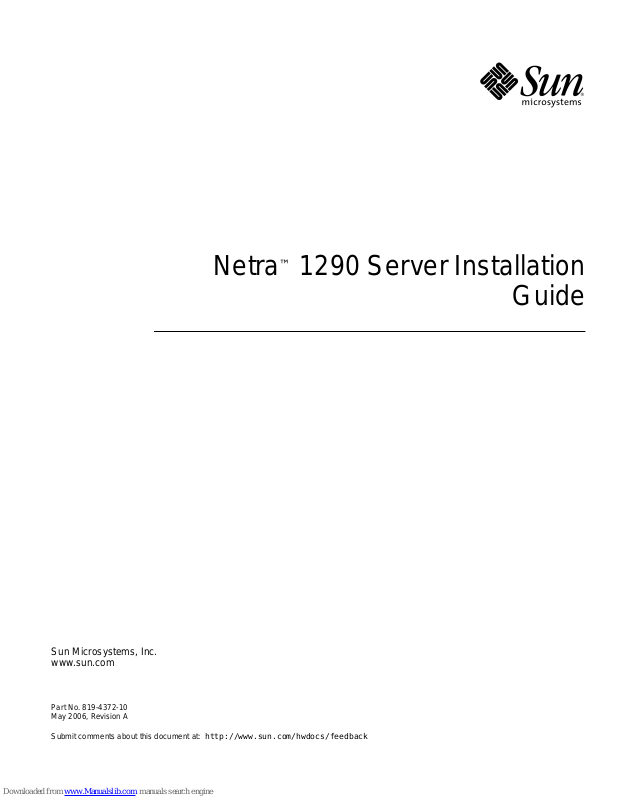

Netra™1290 Server Installation

Guide

Sun Microsystems, Inc. www.sun.com

Part No. 819-4372-10 May 2006, Revision A

Submit comments about this document at: http://www.sun.com/hwdocs/feedback

Copyright 2006Sun Microsystems,Inc., 4150 Network Circle, SantaClara, California95054, U.S.A. Allrights reserved. Sun Microsystems, Inc.has intellectual property rights relating to technologythat isdescribed in thisdocument. Inparticular, and without

limitation, theseintellectual propertyrights may include one ormore ofthe U.S. patentslisted athttp://www.sun.com/patentsand one or more additional patents orpending patent applications in theU.S. and in other countries.

This documentand the product to which it pertainsare distributedunder licenses restricting theiruse, copying,distribution, and decompilation. Nopart of the product or of thisdocument may be reproduced in any formby any means without priorwritten authorizationof Sun andits licensors, if any.

Third-party software, including fonttechnology, iscopyrighted andlicensed from Sun suppliers. Parts ofthe productmay be derived from BerkeleyBSD systems,licensed from the University ofCalifornia. UNIX is a registered trademark in

the U.S.and in other countries, exclusivelylicensed throughX/Open Company,Ltd. Sun, Sun Microsystems, theSun logo, Sun Fire, Su n StorEdge,OpenBoot, SunSolve, Netra, AnswerBook2, docs.sun.com,and Solaris are

trademarks orregistered trademarksof SunMicrosystems, Inc. in the U.S.and in other countries. All SPARCtrademarks areused under license and are trademarksor registeredtrademarks ofSPARCInternational, Inc. inthe U.S.and in other

countries. Products bearingSPARCtrademarks arebased upon an architecture developed by SunMicrosystems, Inc. The OPENLOOK and Sun™ Graphical UserInterface was developed by SunMicrosystems, Inc.for its users and licensees. Sun acknowledges

the pioneeringefforts ofXerox inresearching anddeveloping the concept of visualor graphical user interfaces forthe computer industry.Sun holds anon-exclusive license from Xeroxto the Xerox GraphicalUser Interface,which license also covers Sun’slicensees who implement OPEN LOOK GUIsand otherwise comply with Sun’swritten license agreements.

U.S. GovernmentRights—Commercial use.Government users are subject tothe SunMicrosystems, Inc. standard license agreement and applicable provisions ofthe FAR and its supplements.

DOCUMENTATION IS PROVIDED "AS IS" AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANYIMPLIED WARRANTY OFMERCHANTABILITY,FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.

Copyright 2006Sun Microsystems,Inc., 4150 Network Circle, SantaClara, Californie95054, États-Unis. Tous droits réservés. Sun Microsystems, Inc.possède les droits de propriété intellectuels relatifs à latechnologie décrite dans ce document.En particulier, et sans

limitation, cesdroits depropriété intellectuelspeuvent inclure un ou plusieursdes brevetsaméricains listés sur le site http://www.sun.com/patents, un oules plusieurs brevets supplémentaires ainsi que lesdemandes de brevet en attente aux lesÉtats-Unis et dans d’autres pays.

Ce documentet le produit auquel il se rapportesont protégéspar un copyrightet distribuéssous licences, celles-ci en restreignent l’utilisation, la copie,la distribution, et la décompilation.Aucune partie de ce produit oudocument nepeut être reproduite sous aucune forme, parquelque moyen quece soit, sans l’autorisation préalableet écrite de Sun etde sesbailleurs de licence,s’il yen a.

Tout logiciel tiers,sa technologie relative aux policesde caractères,comprise, est protégé par un copyright etlicencié par des fournisseurs de Sun.

Des partiesde ce produit peuvent dériver des systèmesBerkeley BSD licenciés par l’Universitéde Californie. UNIX est unemarque déposée aux États-Uniset dans d’autres pays, licenciée exclusivement parX/Open Company, Ltd.

Sun, SunMicrosystems, lelogo Sun, Sun Fire, Sun StorEdge,OpenBoot, SunSolve, Netra,AnswerBook2, docs.sun.com,et Solaris sont des marques de fabrique oudes marquesdéposées de SunMicrosystems, Inc.aux Etats-Unis et dans d’autres pays.

Toutes les marquesSPARCsont utilisées sous licence etsont desmarques de fabrique ou desmarques déposéesde SPARC International, Inc. aux États-Uniset dans d’autres pays. Les produits portantles marquesSPARCsont basés sur une architecture développée par Sun Microsystems, Inc.

L’interfaceutilisateur graphiqueOPEN LOOK etSun™ aété développée par Sun Microsystems,Inc. pourses utilisateurs etlicenciés. Sun reconnaît les efforts depionniers deXerox dans la recherche et le développementdu conceptdes interfaces utilisateurvisuelles ougraphiques pour l’industrieinformatique. Sun détient une licensenon exclusive de Xerox sur l’interface utilisateurgraphique Xerox,cette licence couvrant également leslicenciés de Sun implémentant lesinterfaces utilisateur graphiques OPEN LOOKet seconforment en outre aux licencesécrites de Sun.

LA DOCUMENTATION EST FOURNIE "EN L’ÉTAT" ET TOUTES AUTRES CONDITIONS, DÉCLARATIONS ET GARANTIES EXPRESSES OU TACITES SONT FORMELLEMENT EXCLUES DANS LA LIMITE DE LA LOI APPLICABLE, Y COMPRIS NOTAMMENT TOUTE GARANTIE IMPLICITE RELATIVE À LA QUALITÉ MARCHANDE, À L’APTITUDE À UNE UTILISATION PARTICULIÈRE OU À L’ABSENCE DE CONTREFAÇON.

Please

Recycle

Contents

Preface ix

1. Unpacking and Installing the Server 1

Unpacking the Server 1

Installing Slide Rails 4

Adjusting the Slide Rail Assembly 5

Installing the Slide Rail Assemblies in a Sun Fire or Sun StorEdge Cabinet 9

▼ To Install the Slide Rail Assemblies in the Bottom Position 9 ▼ To Install the Slide Rail Assemblies in the Top Position 10

Installing the Slide Rail Assemblies in a Sun Rack 900 Cabinet 11

▼ To Install the Slide Rail Assemblies in the Bottom Position 11 ▼ To Install the Slide Rail Assemblies in the Top Position 13

Installing the Slide Rail Assemblies in a 19-Inch 4-Post Cabinet 13

▼ To Install the Slide Rail Assemblies in a 19-Inch 4-Post Cabinet 13

Installing the Slide Rail Assemblies in a 19-Inch 2-Post Rack 14

▼ To Install the Slide Rail Assemblies in a 19-Inch 2-Post Rack 15

Installing the Server in a Cabinet 15

Installing Slide Rail Lock Nuts 22

Installing the Cable Management Arm 24

Connecting Power Cables 33

iii

Connecting Consoles to the System Controller 34

Connecting the I/O Assemblies 37

Installing Additional Hardware 37

Installing Additional Peripheral Devices 38

2. Setting Up 39

Setup Process 39

Setting Up the Hardware 40

On/Standby Switch 40

Disabling Operation of the On/Standby Switch 41

Powering On the Server 41

Bringing the Server to Standby Mode 42

Setting Up the Server 44

Installing and Booting the Solaris Operating System 46

Installing the Lights Out Management Packages 47

A. Netra 1290 Server Connections 53

External I/O Connection Locations 53

PCI+ IB_SSC Assemblies 54

SCSI Connector 55

SCSI Implementation 56

Alarms Port 56

NET0/NET1 Ethernet Ports 57

10/100BASE-T LOM Ethernet Port 58

Twisted-Pair Ethernet Cable-Type Connectivity 59

LOM Serial A and Serial B Ports 59

Using a DB-25 Adapter for Your Serial Link 61

Using a DB-9 Adapter for Your Serial Link 61

iv Netra 1290 Server Installation Guide • May 2006

Figures

FIGURE 1-1 Opening the Shipping Carton 2 FIGURE 1-2 Removing the Carton Pieces 3 FIGURE 1-3 Slide Rail Assembly (Standard Configuration) 5 FIGURE 1-4 Spring Clips and Cutouts 7 FIGURE 1-5 Slide Rail Assembly–Modified for 2-Post Installation 8 FIGURE 1-6 Installing the Slide Rails in a Sun Fire Cabinet 10 FIGURE 1-7 Installing the Rails in a Sun Rack 900 Cabinet or 19-Inch Four-Post Cabinet 12 FIGURE 1-8 Releasing the Door Hinge Mechanism 16 FIGURE 1-9 Removing the Shipping Cradle Bolts 17 FIGURE 1-10 Inserting the Lifting Device Into the Shipping Cradle 18 FIGURE 1-11 Aligning the Rails 19 FIGURE 1-12 Removing the Shipping Cradle 20 FIGURE 1-13 Pushing the Server Into the System Cabinet 21 FIGURE 1-14 Tightening the Securing Screws 21 FIGURE 1-15 Inserting and Tightening the Spacers 23 FIGURE 1-16 Inserting and Tightening the Lock Nut 23 FIGURE 1-17 CMA Bracket Mounting Holes 24 FIGURE 1-18 CMA–Lite Cable Management Arm 25 FIGURE 1-19 Upper and Lower CMA Arms, and Left-Hand and Right-Hand T-Brackets 26 FIGURE 1-20 Upper and Lower Pivot Bracket Mounting Holes 27

FIGURE 1-21 Attaching the Upper CMA Arm and Pivot Bracket 28 FIGURE 1-22 Attaching the Lower CMA Arm and Pivot Bracket 29 FIGURE 1-23 Attaching the Left-Hand T-Bracket 30 FIGURE 1-24 Attaching the Right-Hand T-Bracket 31 FIGURE 1-25 Attaching the Upper and Lower CMA Arms to the T-Bracket 32 FIGURE 1-26 System Controller and I/O Assembly Locations 36 FIGURE 2-1 Netra 1290 Server On/Standby Switch 40 FIGURE A-1 External I/O Connection Locations 54 FIGURE A-2 68-Pin SCSI Connector 55 FIGURE A-3 DB-15 (Male) Alarms Service Port Connector 56 FIGURE A-4 RJ-45 Gigabit Ethernet Connectors 58 FIGURE A-5 RJ-45 TPE Socket 58 FIGURE A-6 RJ-45 Serial Connectors 60

vi Netra 1290 Server Installation Guide • May 2006

Tables

TABLE A-1 68-Pin SCSI Connector Pinout 55 TABLE A-2 68-Pin SCSI Connector Pinout (continued) 56 TABLE A-3 Alarms Service Port Connector Pinout 57 TABLE A-4 RJ-45 Gigabit Ethernet Connector Pinout 58 TABLE A-5 Twisted-pair Ethernet Connector Pinout 59 TABLE A-6 TPE STP-5 Cable Lengths 59 TABLE A-7 RJ-45 Serial Connector Pinout 60 TABLE A-8 Default Settings for Connecting to LOM Serial A 60 TABLE A-9 Pin Interconnections Performed by the Sun DB-25 Adapter 61 TABLE A-10 Pin Interconnections Performed by a DB-9 Adapter 61

vii

viii Netra 1290 Server Installation Guide • May 2006

Preface

The Netra 1290 Server Installation Guide provides detailed procedures that describe the installation, power-on, and configuration of the Netra™ 1290 server into a rack. This document is written for technicians, system administrators, authorized service providers (ASPs), and users who have experience installing and configuring computer hardware.

How This Document Is Organized

Chapter 1 describes how to unpack your server and install it into a cabinet or rack.

Chapter 2 describes how to cable, power on, and perform setup tasks with your

server.

Appendix Aprovides connector locations, signals, and pinouts.

Using UNIX Commands

This document might not contain information about basic UNIX®commands and procedures such as shutting down the system, booting the system, and configuring devices. Refer to the following for this information:

■ Software documentation that you received with your system

■ Solaris™ Operating System documentation, which is at:

http://docs.sun.com

Shell Prompts

Shell Prompt

C shell machine-name% C shell superuser machine-name# Bourne shell and Korn shell $ Bourne shell and Korn shell superuser #

Typographic Conventions

Typeface

AaBbCc123 The names of commands, files,

AaBbCc123 What you type, when contrasted

AaBbCc123 Book titles, new words or terms,

* The settings on your browser might differ from these settings.

Meaning Examples

and directories; on-screen computer output

with on-screen computer output

words to be emphasized. Replace command-line variables with real names or values.

Edit your.login file. Use ls -a to list all files. % You have mail.

% Password:

Read Chapter 6 in the User’s Guide. These are called class options. You must be superuser to do this. To delete a file, type rm filename.

x Netra 1290 Server Installation Guide • May 2006

Related Documentation

The documents listed as online are available at:

http://www.sun.com/products-n-solutions/hardware/docs/

Application Title Part Number Format Location

Pointer doc Netra 1290 Server Getting Started Guide 819-4378-10 Printed

PDF

Service Netra 1290 Server Service Manual 819-4373-10 PDF Online

Administration Netra 1290 Server System Administration

Guide

Updates Netra 1290 Server Product Notes 819-4375-10 PDF Online

Compliance Netra 1290 Server Safety and Compliance

Guide

819-4374-10 PDF Online

819-4376-10 PDF Online

Shipping kit Online

Documentation, Support, and Training

Sun Function URL

Documentation http://www.sun.com/documentation/ Support http://www.sun.com/support/ Training http://www.sun.com/training/

Third-Party Web Sites

Sun is not responsible for the availability of third-party web sites mentioned in this document. Sun does not endorse and is not responsible or liable for any content, advertising, products, or other materials that are available on or through such sites or resources. Sun will not be responsible or liable for any actual or alleged damage or loss caused by or in connection with the use of or reliance on any such content, goods, or services that are available on or through such sites or resources.

Preface xi

Sun Welcomes Your Comments

Sun is interested in improving its documentation and welcomes your comments and suggestions. You can submit your comments by going to:

http://www.sun.com/hwdocs/feedback

Please include the title and part number of your document with your feedback:

Netra 1290 Server Installation Guide, part number 819-4372-10

xii Netra 1290 Server Installation Guide • May 2006

CHAPTER

Unpacking and Installing the Server

This chapter describes unpacking and installing the Netra 1290 server into a rack. Topics include:

■ “Unpacking the Server” on page 1

■ “Installing Slide Rails” on page 4

■ “Installing the Server in a Cabinet” on page 15

■ “Installing Slide Rail Lock Nuts” on page 22

■ “Installing the Cable Management Arm” on page 24

■ “Connecting Power Cables” on page 33

■ “Connecting Consoles to the System Controller” on page 34

■ “Connecting the I/O Assemblies” on page 37

■ “Installing Additional Hardware” on page 37

■ “Installing Additional Peripheral Devices” on page 38

Unpacking the Server

▼ To Unpack the Server

1. Ensure there is adequate space around the server to maneuver a computer lifting device.

2. Remove the yellow Customer Information Sheet from the plastic pocket on the side of the packaging, and keep it for future reference.

3. Remove the carton protection pads.

See

FIGURE 1-1.

Shipping kit

Carton protection pads

Bands

FIGURE 1-1 Opening the Shipping Carton

4. Cut the bands from the outer packaging and open the carton.

FIGURE 1-1.

See

5. Remove and unpack the shipping kit.

See

FIGURE 1-2.

2 Netra 1290 Server Installation Guide • May 2006

Shipping kit

Outer carton

Internal saddle

FIGURE 1-2 Removing the Carton Pieces

6. Remove the outer carton.

FIGURE 1-2.

See

Chapter 1 Unpacking and Installing the Server 3

7. Remove the internal saddle.

FIGURE 1-2.

See

8. Lift off the server bag.

9. Make a visual check to ensure that the chassis is undamaged.

10. Move the server to the operating location using a computer lifting device.

Note – Power cords for the Netra 1290 server are supplied in a separate country kit.

Note – The Solaris software and the LOM firmware are preinstalled or

preconfigured on the server.

Installing Slide Rails

Caution – The cabinet stabilizers (if applicable) must be extended whenever a Netra

1290 server is pulled out of the cabinet.

Caution – The Netra 1290 server, with mounting cradle, weighs approximately 286

lb (130 kg). Two people using a computer equipment lift are required to move the server safely into the cabinet.

Caution – Pull only one Netra 1290 server out of the cabinet at a time to prevent

unbalancing the cabinet.

Servers that are to be mounted in a cabinet use a slide rail mounting kit. This kit includes the following:

■ Two lock spacers

■ Two lock nuts

■ Four slide rails, two inner and two outer

■ 8 mm wrench

Note – If you received your server preinstalled in a cabinet you may proceed

directly to “Installing the Cable Management Arm” on page 24.

4 Netra 1290 Server Installation Guide • May 2006

This section is divided into the following:

■ “Adjusting the Slide Rail Assembly” on page 5

■ “To Install the Inner Rails on the Server” on page 6

■ “To Prepare the Rails for 2-Post Installations” on page 8

■ “Installing the Slide Rail Assemblies in a Sun Fire or Sun StorEdge Cabinet” on

page 9

■ “Installing the Slide Rail Assemblies in a Sun Rack 900 Cabinet” on page 11

■ “Installing the Slide Rail Assemblies in a 19-Inch 4-Post Cabinet” on page 13

■ “Installing the Slide Rail Assemblies in a 19-Inch 2-Post Rack” on page 14

Adjusting the Slide Rail Assembly

Each slide rail assembly consists of four components (FIGURE 1-3):

■ Rear bracket that attaches to the assembly

■ Adjustable bracket that attaches to the rear bracket (adjustable bracket is not used

in some configurations)

■ Slide rail assembly (with inner and outer rails)

■ Front bracket

2-Post 3" Position

2-Post 4" Position

Sunfire Cabinet

2-Post 6" Position

NGR Cabinet

Storedge Cabinet

Adjustable

bracket

Slide rail

assembly

Front bracket

FIGURE 1-3 Slide Rail Assembly (Standard Configuration)

Rear bracket

S U N F I R E

Chapter 1 Unpacking and Installing the Server 5

Adjust the rear bracket or the adjustable bracket position to modify the length of the assembly. The slide rail assembly and the rear bracket have bracket locations for specific cabinets stamped onto the metal.

FIGURE 1-3 shows the location of the

markings.

▼ To Install the Inner Rails on the Server

1. Remove the inner rail from the slide rail assembly:

a. Press the latch adjacent to the green latch.

b. Pull the inner rail free from the outer slide rail assembly.

2. Push up on the inner rail so that the locating tab, on the side of the server, clips

over the cutouts in the rail (

FIGURE 1-4).

6 Netra 1290 Server Installation Guide • May 2006

FIGURE 1-4 Spring Clips and Cutouts

The spring clip should engage.

Note – The spring clips must be above the system hooks. The lip on the main body

of the inner rail must engage under and behind the system hook.

3. Secure the inner rail to the server using two 5 x 10 mm screws for each rail.

Chapter 1 Unpacking and Installing the Server 7

4. Repeat Step 1 through Step 3 for the second inner rail.

▼ To Prepare the Rails for 2-Post Installations

For 2-post installations, you can dismantle and reassemble the slide rail assemblies (

FIGURE 1-5). The slide rail assemblies can be adjusted to suit a 19-inch 2-post rack

that has a post depth in the range of 3 to 6 inches (7.5 to 15.0 cm).

Rear bracket

(facing inwards)

Front bracket

(facing inwards)

2-Post 3" Position

Slide rail assembly

2-Post 4" Position

Sunfire Cabinet

2-Post 6" Position

NGR Cabinet

Storedge Cabinet

FIGURE 1-5 Slide Rail Assembly–Modified for 2-Post Installation

1. Remove the nuts that secure the adjustable bracket and discard the adjustable bracket (

FIGURE 1-3).

2. Remove the four nuts securing the front bracket.

3. Rotate the front bracket 180 degrees and secure it facing inward (

7.).

4. Remove the four nuts that secure the rear bracket.

5. Rotate the rear bracket 180 degrees so that it faces inward (

7.).

6. Align the rear bracket to the appropriate markings on the slide rail assembly and secure the rear bracket.

7. Repeat Step 1 through Step 6 for the second slide rail assembly.

8 Netra 1290 Server Installation Guide • May 2006

Installing the Slide Rail Assemblies in a Sun Fire or Sun StorEdge Cabinet

Sun Fire™ and Sun StorEdge™ cabinets have No. 10-32 UNF tapped screw holes in the front and rear, which are numbered from bottom to top.

Note – The slide rail assemblies are reversible. They can be used on either side of

the cabinet.

▼ To Install the Slide Rail Assemblies in the Bottom Position

1. Adjust the position of the adjustable bracket on each slide rail assembly.

a. Loosen the two nuts that secure the adjustable bracket.

b. Reposition the adjustable bracket to the location stamped “SUNFIRE” on the

rear bracket and secure the adjustable bracket.

2. Adjust the length of each slide rail assembly.

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the location marked “Sun Fire Cabinet” on the

slide rail assembly and secure the rear bracket.

Chapter 1 Unpacking and Installing the Server 9

3. Insert the pins in the front bracket into cabinet holes 22 and 33 (FIGURE 1-6).

Front bracket secured to outer cabinet holes

FIGURE 1-6 Installing the Slide Rails in a Sun Fire Cabinet

Adjustable bracket secured to inner cabinet holes

The pins hold the bracket in place until the bracket is secured.

4. Secure the adjustable bracket into cabinet holes 24 and 31 with two No. 10-32 UNF screws.

5. Secure the front bracket into cabinet holes 24 and 31 with two No. 10-32 UNF screws.

6. Repeat Step 1 through Step 5 for the second slide rail assembly.

Note – Mounting the server in cabinet holes 24 and 31 allows for 10-inches of space

beneath the server in order to service the backplane.

▼ To Install the Slide Rail Assemblies in the Top Position

1. Adjust the position of the adjustable bracket on each slide rail assembly.

a. Loosen the two nuts that secure the adjustable bracket.

b. Reposition the adjustable bracket to the location stamped “SUNFIRE” on the

rear bracket and secure the adjustable bracket.

2. Adjust the length of each slide rail assembly.

10 Netra 1290 Server Installation Guide • May 2006

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the location marked “Sun Fire Cabinet” on the

slide rail assembly and secure the rear bracket.

3. Insert the pins in the front bracket into cabinet holes 58 and 69 (

The pins hold the bracket in place until it is secured.

4. Secure the adjustable bracket into cabinet holes 60 and 67 with two No. 10-32 UNF screws.

5. Secure the front bracket into cabinet holes 60 and 67 with two No. 10-32 UNF screws.

6. Repeat Step 1 through Step 5 for the second slide rail assembly.

FIGURE 1-6).

Installing the Slide Rail Assemblies in a Sun Rack 900 Cabinet

Sun Rack 900 cabinets have M-6 UNF tapped screw holes in the front and rear that are numbered from bottom to top.

Note – The slide rail assemblies are reversible. They can be used on either side of

the cabinet.

1. Remove the adjustable bracket on each rail.

a. Loosen the two nuts that secure the adjustable bracket.

b. Discard the adjustable bracket.

2. Adjust the length of each slide rail assembly.

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the location marked “NGR Cabinet” on the slide

rail assembly and secure the rear bracket.

▼ To Install the Slide Rail Assemblies in the Bottom Position

1. Remove the adjustable bracket on each rail.

a. Loosen the two nuts that secure the adjustable bracket.

b. Discard the adjustable bracket.

2. Adjust the length of each slide rail assembly.

Chapter 1 Unpacking and Installing the Server 11

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the location marked “NGR Cabinet” on the slide

rail assembly and secure the rear bracket.

3. Insert the pins in the front bracket into cabinet holes 22 and 33 (

FIGURE 1-7).

Front bracket secured to outer cabinet holes

FIGURE 1-7 Installing the Rails in a Sun Rack 900 Cabinet or 19-Inch Four-Post Cabinet

The pins will hold the bracket in place until the bracket is secured.

4. Secure the rear bracket into cabinet holes 24 and 31 with two M-6 UNF screws.

5. Secure the front bracket into cabinet holes 24 and 31 with two M-6 UNF screws.

6. Repeat Step 1 through Step 5 for the second slide rail assembly.

Note – Mounting the server in cabinet holes 24 and 31 allows for 10-inches of space

beneath the server in order to service the backplane.

12 Netra 1290 Server Installation Guide • May 2006

Rear bracket secured to outer cabinet holes

▼ To Install the Slide Rail Assemblies in the Top Position

1. Remove the adjustable bracket on each rail.

a. Loosen the two nuts that secure the adjustable bracket.

b. Discard the adjustable bracket.

2. Adjust the length of each slide rail assembly.

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the location marked “NGR Cabinet” on the slide

rail assembly and secure the rear bracket.

3. Insert the pins in the front bracket into cabinet holes 58 and 69 (

The pins will hold the bracket in place until the bracket is secured.

4. Secure the rear bracket into cabinet holes 60 and 67 with two M-6 UNF screws.

5. Secure the front bracket into cabinet holes 60 and 67 with two M-6 UNF screws.

6. Repeat Step 1 through Step 5 for the second slide rail assembly.

FIGURE 1-7).

Installing the Slide Rail Assemblies in a 19-Inch 4Post Cabinet

The rails can be adjusted to suit a 19-inch cabinet that is compliant with either IEC 297-4 or EIA 310-D. Each slide rail assembly has a distance between front and rear mounting rails from 17.7 to 30.7 inches (45.0 to 78.0 cm).

Note – The slide rail assemblies are reversible. They can be used on either side of

the cabinet.

Caution – It is the installer’s responsibility to ensure that the cabinet has sufficient

structural strength and stability to handle any required installations.

▼ To Install the Slide Rail Assemblies in a 19-Inch 4-Post

Cabinet

1. Remove the adjustable bracket on each slide rail assembly.

a. Loosen the two nuts that secure the adjustable bracket.

Chapter 1 Unpacking and Installing the Server 13

b. Discard the adjustable bracket.

2. Adjust the length of each slide rail assembly.

a. Loosen the four nuts that secure the rear bracket.

b. Reposition the rear bracket to the appropriate markings shown on the slide rail

assembly and secure the rear bracket.

3. Secure the rear bracket with two No. 10-32 UNF screws (

■ To install the server in the lowest position, insert the rackmount securing screws

no lower than 18.5 inches and 22.5 inches (47.0 cm and 57.2 cm) respectively.

FIGURE 1-7).

Note – Mounting the bracket no lower than 18.5 inches and 22.5 inches allows for 10

inches of space beneath the server in order to service the backplane.

■ To install the server in the topmost position, insert the rackmount securing screws

no higher than 39.5 inches and 43.5 inches (100.0 cm and 110.0 cm) respectively.

4. Secure the front bracket with two No. 10-32 UNF screws (

5. Repeat Step 1 through Step 4 for the second slide rail assembly.

FIGURE 1-7).

Installing the Slide Rail Assemblies in a 19-Inch 2Post Rack

Note – The slide rail assemblies must be prepared. See “To Prepare the Rails for 2-

Post Installations” on page 8.

Note – The slide rail assemblies are reversible. They can be used on either side of

the cabinet.

Caution – Ensure that the rack is anchored to the floor, ceiling, or adjacent frames.

It is the installer’s responsibility to ensure that the rack has sufficient structural strength and stability to handle any required installations.

14 Netra 1290 Server Installation Guide • May 2006

▼ To Install the Slide Rail Assemblies in a 19-Inch 2-Post Rack

1. Secure the front bracket with two No. 10-32 UNF screws.

Insert the rackmount securing screws no lower than 18.5 inches and 22.5 inches (47.0 cm and 57.2 cm) respectively.

Note – Mounting the bracket no lower than 18.5 inches and 22.5 inches allows for 10

inches of space beneath the server in order to service the backplane.

2. Secure the rear bracket with two No. 10-32 UNF screws.

3. Repeat Step 1 and Step 2 for the second slide rail assembly.

Installing the Server in a Cabinet

This section contains the following topics:

■ “To Prepare to Install the Server in the Cabinet” on page 15

■ “To Mount the Server in the Cabinet” on page 17

▼ To Prepare to Install the Server in the Cabinet

1. Remove the front bezel doors (FIGURE 1-8).

a. Open the door and press down on the hinge pin levers to release the hinges.

b. Lift the door off the hinge pins and store the door in a safe place.

Chapter 1 Unpacking and Installing the Server 15

c. Repeat Step a and Step b for the second front bezel door.

FIGURE 1-8 Releasing the Door Hinge Mechanism

2. Remove the shipping cradle bolts (FIGURE 1-9).

The bolts secure the orange metal shipping cradle to the wooden pallet.

16 Netra 1290 Server Installation Guide • May 2006

FRONT

FIGURE 1-9 Removing the Shipping Cradle Bolts

▼ To Mount the Server in the Cabinet

Caution – The Netra 1290 server with shipping cradle weighs approximately 286.0

lb (130.0 kg). To prevent personal injury, two people are needed to move the server safely into the cabinet using a computer equipment lift.

1. Extend the cabinet stabilizer and lock it in position (as applicable).

Chapter 1 Unpacking and Installing the Server 17

Caution – The shipping cradle must be attached when the server is lifted. Failure to

do so will result in major damage to the server.

2. Insert the forks of the lifting device fully through the shipping cradle opening

FIGURE 1-10).

(

FRONT

FIGURE 1-10 Inserting the Lifting Device Into the Shipping Cradle

3. Lift the server off the wooden shipping pallet and remove the pallet.

4. Extend the outer rails from the cabinet and latch them in the extended position.

5. Lift the server until it is level with the outer rails on the cabinet.

6. Carefully move the lifting device forward until the rails on the server are fully engaged with the outer rails on the cabinet

(FIGURE 1-11).

The latches on each side must click out, locking the rails.

18 Netra 1290 Server Installation Guide • May 2006

FIGURE 1-11 Aligning the Rails

Outer rails

Inner rails

Chapter 1 Unpacking and Installing the Server 19

Caution – The cabinet stabilizers (if applicable) must be extended or the cabinet

might topple when the lifting device is withdrawn.

7. With the lifting device still supporting the server, loosen the four captive screws attaching the handles of the shipping cradle to the server.

8. Loosen the four captive screws that attach the handles to the shipping cradle.

9. Pull both shipping cradle handles away from the server.

This disconnects the shipping cradle from the server.

10. Lower the shipping cradle out of the way with the lifting device (

Store the shipping cradle for future use.

FIGURE 1-12).

FIGURE 1-12 Removing the Shipping Cradle

20 Netra 1290 Server Installation Guide • May 2006

11. Press the green latches on each rail and push the server into the cabinet (

FIGURE 1-13).

FIGURE 1-13 Pushing the Server Into the System Cabinet

12. Tighten the two securing screws on the front of the server to secure the server in the cabinet (

FIGURE 1-14).

Securing screw Securing screw

FIGURE 1-14 Tightening the Securing Screws

13. Retract the cabinet stabilization mechanism (as required).

Chapter 1 Unpacking and Installing the Server 21

14. Reattach the front doors of the server.

Installing Slide Rail Lock Nuts

Note – Slide rail lock nuts are preinstalled on all units shipped from the factory in a

cabinet.

For servers not shipped preinstalled in a cabinet, a slide rail mounting kit containing lock nuts, spacers, and rails is used to mount and secure a server in a cabinet. See

“Installing Slide Rails” on page 4. Once the locking nuts are installed on the server,

the following is applicable:

■ Lock nuts must be loosened in order to remove a server from a cabinet.

■ Lock nuts must be securely tightened on each server prior to moving a cabinet

with one or more servers.

Proceed as follows to install the slide rail lock nuts:

Note – The slide rail mounting kits contain a pair of spacers provided by the

manufacturer along with the rails. The manufacturer’s spacers must be discarded and replaced by the Sun spacers provided in the kit.

▼ To Install the Lock Nuts

1. Extend the cabinet stabilization mechanism (as required).

2. Slide the server out of the system cabinet.

3. Remove and discard the manufacturers spacers provided with the rails in the kit.

4. From the rear of the server, insert and tighten the Sun supplied spacers onto the studs on each rail (

The spacer shoulders must face outwards.

FIGURE 1-15).

22 Netra 1290 Server Installation Guide • May 2006

FIGURE 1-15 Inserting and Tightening the Spacers

5. Slide the server into the system cabinet.

6. From the rear of the server, insert and tighten the lock nuts, one for each rail (

FIGURE 1-16).

FIGURE 1-16 Inserting and Tightening the Lock Nut

7. Repeat Step 1 through Step 6 for each server in the system cabinet.

8. Retract the cabinet stabilization mechanism (as required).

Chapter 1 Unpacking and Installing the Server 23

Installing the Cable Management Arm

This section contains the following topics:

■ “To Install the CMA–Lite” on page 25

■ “To Install the CMA–800” on page 26

The cable management arm (CMA) supports and protects cables when a server slides into or out of a cabinet.

Two cable management arm solutions are offered – CMA-Lite and CMA-800. The choice of CMA depends on the available depth in the cabinet and the quantity or type of cable to be supported. Use the CMA-Lite if the larger CMA-800 management arm does not fit your cabinet.

Threaded holes for attaching the CMA are provided on the rear of the server (

FIGURE 1-17).

Upper bracket holes

SCSI3

PCI 3

PCI 1

PCI 2

PCI 0

33MHz

SSC1 SSC1

Serial A Serial B

PCI 4

33MHz

SOURCE A

SOURCE B

SOURCE A

Lower bracket holes

FIGURE 1-17 CMA Bracket Mounting Holes

PCI 5

66MHz

ALARMS

Link Active

NET

GBit

Link Active

NET

GBit

24 Netra 1290 Server Installation Guide • May 2006

▼ To Install the CMA–Lite

1. Secure the pivot at the end of the upper arm to the top rear of the server, using the two captive screws (

2. Secure the center pivot point of the CMA to the inside rear of the left hand slide rail assembly, using the two captive screws.

3. Secure the pivot at the end of the lower arm to the bottom rear of the server, using the two captive screws.

FIGURE 1-18).

Captive screws (2)

CMA-LIte

FIGURE 1-18 CMA–Lite Cable Management Arm

Captive screws (2)

Chapter 1 Unpacking and Installing the Server 25

▼ To Install the CMA–800

Refer to FIGURE 1-19, throughout the following procedure for identification of CMA parts.

Hinge pin

Upper pivot bracket

Upper CMA arm

Guide bar

Hinge pin

Lower pivot bracket

Left hand T-bracket

Lower CMA arm

FIGURE 1-19 Upper and Lower CMA Arms, and Left-Hand and Right-Hand T-Brackets

Right hand T-bracket

Guide bar

Note – In the following procedure all left-hand and right-hand orientation is as

viewed from the rear of the server chassis.

Guide slo

26 Netra 1290 Server Installation Guide • May 2006

1. Remove the hinge pin securing the pivot bracket to the upper CMA arm, which facilitates attaching the bracket to the server chassis.

2. Secure the pivot bracket to the upper left-hand side of the server chassis using the two captive screws. See

FIGURE 1-20 and FIGURE 1-21.

Upper pivot bracket mounting holes

Upper pivot bracket

Lower pivot bracket

Lower pivot bracket mounting holes (hidden)

FIGURE 1-20 Upper and Lower Pivot Bracket Mounting Holes

After attaching the pivot bracket to the chassis, use the hinge pin removed previously to secure it to the upper CMA arm.

Chapter 1 Unpacking and Installing the Server 27

Upper pivot bracket

Upper CMA arm

Hinge pin

FIGURE 1-21 Attaching the Upper CMA Arm and Pivot Bracket

3. Remove the hinge pin securing the pivot bracket to the lower CMA arm, which facilitates attaching the bracket to the server chassis.

4. Secure the pivot bracket to the lower left-hand of the server chassis using the two captive screws. See

FIGURE 1-20 and FIGURE 1-22.

28 Netra 1290 Server Installation Guide • May 2006

Hinge pin

Lower pivot bracket

Lower CMA arm

FIGURE 1-22 Attaching the Lower CMA Arm and Pivot Bracket

5. After attaching the bracket to the chassis, secure the lower CMA arm to the bracket using the hinge pin removed previously.

6. Secure the left hand T-bracket to the left hand slide rail using two captive screws,

FIGURE 1-23.

Chapter 1 Unpacking and Installing the Server 29

Slide rail

Left hand T-bracket

FIGURE 1-23 Attaching the Left-Hand T-Bracket

7. Secure the right-hand T-bracket to the right-hand slide rail using two captive screws (

FIGURE 1-24).

30 Netra 1290 Server Installation Guide • May 2006

Slide rail

Right hand T-bracket

FIGURE 1-24 Attaching the Right-Hand T-Bracket

8. Secure the upper CMA arm to the left-hand T-bracket using a single hinge pin (

FIGURE 1-25).

Chapter 1 Unpacking and Installing the Server 31

Hinge pin

Left hand T-bracket

Hinge pin

Guide bars

Right hand T-bracket

FIGURE 1-25 Attaching the Upper and Lower CMA Arms to the T-Bracket

9. Secure the lower CMA arm to the left-hand T-bracket using a single hinge pin (

FIGURE 1-25).

10. Route the cabling through the cable channels as desired.

11. Secure both the upper and lower CMA arms by inserting the guide bars of each arm into the slots provided on the right-hand T-bracket.

32 Netra 1290 Server Installation Guide • May 2006

Connecting Power Cables

Caution – The Netra 1290 server is designed to work with power systems having a

grounded neutral conductor. Do not connect the equipment into any other type of power system. Contact your facilities manager or a qualified electrician to determine what type of power is supplied to your building.

Caution – The Netra 1290 server is shipped with grounding-type (three-wire)

power cords. Always connect the cords into grounded power outlets.

Caution – The socket outlets must be installed near the equipment and easily

accessible.

▼ To Connect the Power Cables

1. Turn the system power switch to the Standby position.

Caution – The On/Standby power switch does not isolate the equipment. The

power cords are the primary means of disconnection for this product.

2. Turn the cabinet power off if you are using a powered cabinet.

Refer to the installation guide that came with the cabinet.

3. Label both ends of the 4 power cords.

Label two power cords Source A and label the other two power cords Source B.

4. Connect the power cables to the server.

a. Connect the Source A power cords to AC0/DC0 and AC1/DC1 on the server and

the Source B power cords to AC2/DC2 and AC3/DC3 on the server.

b. Run the power cords through the CMA and secure them with tie wraps.

Ensure that the CMA can extend and retract without dislodging the power cords.

5. Connect the server to the power source.

Chapter 1 Unpacking and Installing the Server 33

Note – It is the installer’s responsibility to ensure that the cabinet has sufficient

electrical power and redundancy to handle the required installation.

■ If the server is mounted in an unpowered cabinet:

a. Connect power cords from Source A on the server to the customer-supplied

power source A circuit breakers.

b. Connect power cords from Source B on the server to the customer-supplied

power source B circuit breakers.

■ If the server is mounted in a powered cabinet:

a. Connect power cords from Source A on the cabinet to the customer-supplied

power source A circuit breakers and from Source B on the cabinet to the customer-supplied power source B circuit breakers.

Refer to the installation guide that came with the cabinet for instructions on cabinet power cabling.

b. Connect power cords from Source A on the cabinet to Source A on the server

and from Source B on the cabinet to the Source B on the server.

Refer to the installation guide that came with the cabinet for instructions on cabinet power cabling.

Connecting Consoles to the System Controller

This section contains the following topics:

■ “To Connect the Initial Administrative Console” on page 35

■ “To Connect the Administrative Console” on page 36

The system controller (SC) provides the Lights-Out Management (LOM) functions, which include power-on sequencing, executing module power-on self-tests (POST), environmental monitoring, fault indication, and alarms.

The LOM command-line interface, the Solaris console, and the OpenBoot™ PROM console are accessed by connecting an administrative console to either serial port A or the 10/100BASE-T LOM Ethernet port. The administrative console can be any external input device (laptop computer or workstation) connected to either of these ports.

34 Netra 1290 Server Installation Guide • May 2006

LOM Serial A port connects directly to an ASCII terminal or a network terminal server (NTS) using a command-line interface. This port is used for the initial administrative console. Use this port to modify the default system controller settings so that the 10/100BASE-T LOM Ethernet port can be used as an administrative console. The configuration of Serial port A cannot be changed. See Appendix A for details on the serial ports.

The 10/100BASE-T LOM Ethernet port is used to connect the system controller to the network. This port is preconfigured as follows:

■ System controller configured to be on a network

■ System controller Ethernet configured for Dynamic Host Configuration Protocol

(DHCP)

■ No preconfigured system controller Ethernet IP address, gateway, domain name

service (DNS) domain, or DNS servers

▼ To Connect the Initial Administrative Console

For the initial configuration, connect LOM Serial A port to the serial port on any of the following devices:

■ ASCII terminal

■ Sun workstation

■ Terminal server (or patch panel connected to a terminal server)

Note – If the IP address assigned to the 10/100BASE-T LOM Ethernet port by

DHCP is known, the 10/100BASE-T LOM Ethernet port can be accessed without the LOM Serial A port.

1. Connect the administrative console to the LOM Serial A port (

FIGURE 1-26).

The LOM Serial A port is a DTE (data terminal equipment) port. An adapter, crossover cable, or null modem cable is required to connect the LOM Serial A port to another DTE port. For LOM Serial A port connector pinouts and adaptor information, see “LOM Serial A and Serial B Ports” on page 59.

2. Turn the customer-supplied circuit breakers power switch to the On position.

3. Turn the system power switch to the On position.

Refer to the Netra 1290 Server System Administration Guide, 819-4374.

4. Set up the system console.

Refer to the Netra 1290 Server System Administration Guide, 819-4374.

Chapter 1 Unpacking and Installing the Server 35

10/100BASE-T LOM/SC port

LOM Serial A port

Serial B port

FIGURE 1-26 System Controller and I/O Assembly Locations

▼ To Connect the Administrative Console

Once the initial configuration is complete, you can perform system administration tasks directly or over the network using the 10/100BASE-T LOM Ethernet port.

PCI+ 0-5 slots

SCSI port, 68 pins

Alarms port

NET0 and NET1 ports

Note – Communication on the LOM Serial A port is possible but is subject to

interruption by the LOM device. Refer to the Netra 1290 Server System Administration Guide, 819-4374.

1. Connect the 10/100BASE-T LOM Ethernet port to the chosen administrative console (local hub, router, or switch)(

For 10/100BASE-T LOM Ethernet

LOM Ethernet Port” on page 58.

2. Set up the chosen administrative console.

Refer to the Netra 1290 Server System Administration Guide, 819-4374.

36 Netra 1290 Server Installation Guide • May 2006

FIGURE 1-26).

port connector information,see“10/100BASE-T

Connecting the I/O Assemblies

The I/O assemblies provide network interface and peripheral access to the system domains.

▼ To Connect the I/O Assemblies

1. Connect one end of the I/O Ethernet cable to the NET0/NET1 Ethernet port

(

FIGURE 1-26).

2. Connect the other end of the I/O Ethernet cable to the hub, workstation, or peripheral.

Installing Additional Hardware

Do not install additional hardware until the initial factory configuration has been completely installed, the server has been powered on, and POST has been completed successfully. This makes it easier to diagnose conflicts that might be caused by additional installations.

Caution – To avoid damaging boards when installing CPU/memory boards, refer

to the Netra 1290 Server Service Manual, 819-4373 for instructions.

Caution – During initial installation, turn off the power at the circuit breakers

before removing or replacing server hardware. Refer to the installation guide of the additional hardware for any further instructions.

Caution – For optimum performance, use only I/O cards and associated drivers

that are qualified by Sun Microsystems for use on the Netra 1290 server. It is possible for interactions to occur between cards and drivers on a specific bus that might lead to potential system panics or other negative outcomes if the card/driver solution is not qualified by Sun Microsystems.

For an updated listing of qualified I/O cards and configurations for the server, contact your Sun authorized sales representative or your service provider. For

Chapter 1 Unpacking and Installing the Server 37

additional information refer to:

http://www.sun.com/io

Installing Additional Peripheral Devices

When you add additional storage devices, refer to the Rackmount Placement Matrix,at http://docs.sun.com, for the mounting hole numbers of the mounting screws for Sun Microsystems disk arrays, other storage trays, and devices.

Unless otherwise specified in the Rackmount Placement Matrix, mount the heaviest subassemblies at the lowest available opening. This placement minimizes the effects of a top-heavy system in the event of an earthquake.

Refer to the installation guide for the peripheral device for additional instructions.

38 Netra 1290 Server Installation Guide • May 2006

CHAPTER

Setting Up

This chapter describes how to power on your server using the system controller command-line interface (LOM prompt), how to set up the SC using the setupnetwork command, and how to boot the Solaris Operating System.

This chapter contains the following topics:

■ “Setup Process” on page 39

■ “Setting Up the Hardware” on page 40

■ “On/Standby Switch” on page 40

■ “Powering On the Server” on page 41

■ “Bringing the Server to Standby Mode” on page 42

■ “Setting Up the Server” on page 44

■ “Installing and Booting the Solaris Operating System” on page 46

■ “Installing the Lights Out Management Packages” on page 47

Setup Process

The major steps you must perform to power on and set up the server are as follows:

1. Installing and cabling the hardware.

2. Applying external power to the hardware.

3. Setting the date and time for the system.

4. Setting the password for the SC.

5. Setting up system-specific parameters with the setupnetwork command.

6. Powering on all hardware with the poweron command.

7. If the Solaris Operating System is not preinstalled, installing it.

8. Booting the Solaris Operating System.

9. Installing the Lights Out Management packages from the Sun Microsystems software download center.

Setting Up the Hardware

▼ To Install and Cable the Hardware

1. Connect a terminal to the system controller board serial port (FIGURE 1-26).

2. Set up the terminal to use the same baud rate as the SC serial port.

The serial port settings of the System Controller board are:

■ 9600 baud

■ 8 data bits

■ No parity

■ 1 stop bit

On/Standby Switch

The On/Standby switch is a rocker switch with two positions, On and Standby.

FIGURE 2-1 illustrates the switch and its location.

On/Standby

switch

FIGURE 2-1 Netra 1290 Server On/Standby Switch

40 Netra 1290 Server Installation Guide • May 2006

2.0.1 Disabling Operation of the On/Standby Switch

● To disable the On/Standby switch, use the setupsc command.

lom>setupsc

System Controller Configuration

------------------------------SC POST diag Level [off]: Host Watchdog [enabled]: Rocker Switch [enabled]:disabled Secure Mode [off]:

Powering On the Server

When all the power cables are connected and the external circuit breakers are switched on, the server enters Standby mode. The Source A and Source B indicators are the only indicator LEDs to be illuminated on the system indicator board. The IB_SSC assembly Active LED is lit, but not visible from the front of the server.

Powering the server on from Standby mode can be achieved in either of two ways:

■ Operating the On/Standby switch

■ Sending the poweron command via the LOM port

The On/Standby switch of the Netra 1290 server controls only low voltage signals and no high voltage circuits pass through it.

Note – The power switch is not an On/Off switch, it is an On/Standby switch. It

does not isolate the equipment.

Once the server is powered on, if the auto-boot? variable has been set true in the OpenBoot PROM, the server will automatically boot into the Solaris Operating System.

▼ To Power On Using the On/Standby Switch

1. Check that power is applied to the server and that it is correctly in Standby mode.

2. Momentarily press the On/Standby switch to the right.

Chapter 2 Setting Up 41

The server powers on completely. The System Active indicator illuminates and the server executes the power-on self-test (POST).

▼ To Power On Using the LOM poweron

Command

● At the lom> prompt, type:

lom>poweron

The SC first powers on all the power supplies, followed by the fan tray. Finally the SC powers on the system boards. If the value of the OpenBoot PROM variable auto-boot? is true then the server also boots the Solaris Operating System.

Note – Individual modules can also be powered on using the poweron command.

For further details, see the Sun Fire Entry-Level Midrange System Controller Command Reference Manual, 819-1268.

The System Active indicator is lit. The server will execute the power-on self-tests (POST).

Note – The poweron all command only powers on individual components; it

does not boot the Solaris software.

See the Sun Fire Entry-Level Midrange System Controller Command Reference Manual, 819-1268 for a full description of the poweron command.

Bringing the Server to Standby Mode

Powering off the system to Standby mode can be achieved by three methods:

■ From the Solaris command line

■ From the LOM port

■ By the On/Standby switch

When the system powers off to Standby mode, the Source A and Source B indicators are the only indicator LEDs to be illuminated on the system indicator board. The IB_SSC assembly Active LED is lit, but not visible from the front of the server.

42 Netra 1290 Server Installation Guide • May 2006

▼ To Bring the System to Standby Mode From the

Solaris Command Line

● At the system prompt, type:

# shutdown -i5

▼ To Bring the System to Standby Mode From the

LOM Port

● At the lom> prompt, type:

lom>shutdown

● For an abrupt power off, type:

lom>poweroff

This will abruptly terminate Solaris. Do you want to continue? [no]

Caution – This abruptly brings the system to Standby mode, regardless of the

system state and might corrupt data on the hard drives.

▼ To Bring the System to Standby Mode by the

On/Standby Switch

Caution – The On/Standby switch does not isolate the equipment. Turning off the

power switch on the customer-supplied circuit breakers is required to isolate the equipment.

● Press the left side of the system On/Standby switch.

Chapter 2 Setting Up 43

● For an abrupt power off, press the left side of the On/Standby switch and hold it

for at least four seconds.

Caution – This abruptly brings the system to Standby mode, regardless of the

system state and might corrupt data on the hard drives.

Setting Up the Server

After powering on, you must set up your server using the SC setdate and setupnetwork commands described in this section.

This section contains the following topics:

■ “To Set the Date and Time” on page 44

■ “To Configure Network Parameters” on page 45

■ “To Install and Boot the Solaris Operating System” on page 46

▼ To Set the Date and Time

If your time zone area is using daylight or summer time, this is set automatically.

● Set the date, time, and time zone for the server by using the setdate command at

the LOM prompt.

The following example shows setting the time zone to Pacific Standard Time (PST) using the offset from Greenwich mean time (GMT), date, and time to Tuesday, April 20, 2004 at 18 hours 15 minutes and 10 seconds.

lom>setdate -t GMT-8 042018152004.10

If Solaris software is running, use the Solaris date command instead. For more information on the setdate command, see the Sun Fire Entry-Level

Midrange System Controller Command Reference Manual, 819-1268.

▼ To Set Up the Password

1. At the LOM prompt, type the SC password command.

44 Netra 1290 Server Installation Guide • May 2006

2. At the Enter new password prompt, type your password.

3. At the Enter new password again prompt, re-type your password.

lom>password Enter new password: Enter new password again: lom>

If your password has been lost or forgotten, contact Sun Service for assistance.

▼ To Configure Network Parameters

The Netra 1290 server can be administered from the SC LOM prompt and from the Solaris software. There are two ways to access the LOM console connection:

■ Through the SC serial port connection

■ Through a remote (network) connection using the 10/100BASE-T Ethernet port

Note – The system can be administered solely through the serial port, but if you

want to use the 10/100BASE-T Ethernet port, use a separate secure subnet for this connection. Remote connection capability is not enabled by default. If you use SSH or Telnet to administer the system, you must set the connection type to SSH or Telnet, using the setupnetwork command.

1. At the LOM prompt, type setupnetwork.

lom>setupnetwork

2. Answer the questions in the script.

Note – If you press the Return key after each question, the current value will not be

changed.

See the Sun Fire Entry-Level Midrange System Controller Command Reference Manual, 819-1268 for full details of the setupnetwork command.

CODE EXAMPLE 2-1 shows

an example of the setupnetwork command.

Chapter 2 Setting Up 45

CODE EXAMPLE 2-1 Output From the setupnetwork Command

lom> setupnetwork

Network Configuration

--------------------Is the system controller on a network? [yes]: Use DHCP or static network settings? [static]: Hostname [hostname]: IP Address [xxx.xxx.xxx.xxx]: Netmask [xxx.xxx.xxx.x]: Gateway [xxx.xxx.xxx.xxx]: DNS Domain [xxxx.xxx.xxx]: Primary DNS Server [xxx.xxx.xxx.xx]: Secondary DNS Server [xxx.xxx.xx.x]: Connection type (ssh, telnet, none) [ssh]:

Rebooting the SC is required for changes in the above network settings to take effect. lom>

Use CODE EXAMPLE 2-1 as a guide for the information you need to enter for each parameter value entry.

Installing and Booting the Solaris Operating System

To use LOM commands you must install the Lights Out Management 2.0 packages (SUNWlomu, SUNWlomr and SUNWlomm).

▼ To Install and Boot the Solaris Operating System

1. Access the LOM prompt.

For detailed instructions on how you can access the LOM prompt, see the Netra 1290 Server System Administration Guide, 819-4374.

46 Netra 1290 Server Installation Guide • May 2006

2. To power on the server, type poweron.

Depending on the setting of the OpenBoot PROM auto-boot? parameter, the server attempts to boot the Solaris Operating System (OS) or remains at the OpenBoot PROM ok prompt. The default setting is true, which attempts to initiate a boot into the Solaris OS. If the setting of auto-boot? is false or there is no bootable Solaris image installed, then you the OpenBoot PROM ok prompt is returned.

lom>poweron

<POST messages displayed here . . . > . . . . . . ok

3. If necessary, install the Solaris Operating System.

See your Solaris installation documentation, which is available with your Solaris release.

At the ok prompt, boot the Solaris OS by typing the OpenBoot PROM boot command:

ok boot [device]

For the optional device parameter, see the OpenBoot PROM devalias command, which displays the predefined aliases.

After the Solaris Operating System is booted, the login: prompt is displayed.

Installing the Lights Out Management Packages

Three LOM packages needed for a Netra 1290 server:

■ SUNWlomu (LOMlite Utilities (usr))

■ SUNWlomm (LOMlite manual pages)

■ SUNWlomr (LOM drivers)

Chapter 2 Setting Up 47

These packages are available from the Solaris software download center at:

http://www.sun.com/download/

Under Systems Administration, click on the Systems Management link.

Note – The latest patches to these packages is available from SunSolve in patch

110208. It is strongly advised that the latest version of patch 110208 be obtained from

SunSolve and be installed on the Netra 1290 server to make use of the latest LOM utility updates.

▼ To Install the LOM Drivers

● As superuser, type:

CODE EXAMPLE 2-2 Installing the LOM Drivers

# pkgadd -d . SUNWlomr

Processing package instance <SUNWlomr> from </export/lom>

LOMlite driver (root) (sparc) 2.0,REV=2000.08.22.14.14 Copyright 2000 Sun Microsystems, Inc. All rights reserved. ## Executing checkinstall script. Using </> as the package base directory. ## Processing package information. ## Processing system information. 9 package pathnames are already properly installed. ## Verifying package dependencies. ## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user permission during the process of installing this package.

Do you want to continue with the installation of <SUNWlomr> [y,n,?] y

Installing LOMlite driver (root) as <SUNWlomr>

## Installing part 1 of 1. 20 blocks i.drivers (INFO): Starting i.drivers (INFO): Installing /var/tmp/SUNWlomr/reloc/platform/sun4u/kernel/drv/lom i.drivers (INFO): Installing /var/tmp/SUNWlomr/reloc/platform/sun4u/kernel/drv/lomp i.drivers (INFO): Installing /var/tmp/SUNWlomr/reloc/platform/sun4u/kernel/drv/sparcv9/lom i.drivers (INFO): Installing /var/tmp/SUNWlomr/reloc/platform/sun4u/kernel/drv/sparcv9/lomp

48 Netra 1290 Server Installation Guide • May 2006

CODE EXAMPLE 2-2 Installing the LOM Drivers (Continued)

i.drivers (INFO): Installing /var/tmp/SUNWlomr/reloc/platform/sun4u/kernel/drv/sparcv9/lomv

i.drivers (INFO): Identified drivers ’lom lomp lomv’ i.drivers (INFO): Cleaning up old driver ’lom’... Cleaning up old devlink entry ’type=ddi_pseudo;name=SUNW,lom lom’ i.drivers (INFO): Cleaning up old driver ’lomp’... Cleaning up old devlink entry ’type=ddi_pseudo;name=lomp lomp’ i.drivers (INFO): Cleaning up old driver ’lomv’... Cleaning up old devlink entry ’type=ddi_pseudo;name=SUNW,lomv \M0 type=ddi_pseudo;name=lomv \M0’ i.drivers (INFO): Cleaning up old driver ’lomh’... Cleaning up old devlink entry ’type=ddi_pseudo;name=SUNW,lomh lom’

i.drivers (INFO): Adding driver ’lomp’... driver = ’lomp’ aliases = ’’ link = ’lomp’ spec = ’lomp’

Adding devlink entry ’type=ddi_pseudo;name=lomp lomp’ adding driver with aliases ’’ perm ’* 0644 root sys’ devfsadm: driver failed to attach: lomp Warning: Driver (lomp) successfully added to system but failed to attach

i.drivers (INFO): Adding driver ’lomv’... driver = ’lomv’ aliases = ’SUNW,lomv’ link = ’SUNW,lomv lomv’ spec = ’\M0’

Adding devlink entry ’type=ddi_pseudo;name=SUNW,lomv \M0’ Adding devlink entry ’type=ddi_pseudo;name=lomv \M0’ adding driver with aliases ’SUNW,lomv’ perm ’* 0644 root sys’ devfsadm: driver failed to attach: lomv Warning: Driver (lomv) successfully added to system but failed to attach

i.drivers (INFO): Adding driver ’lom’... driver = ’lom’ aliases = ’SUNW,lomh SUNW,lom’ link = ’SUNW,lomh SUNW,lom’ spec = ’lom’

Adding devlink entry ’type=ddi_pseudo;name=SUNW,lomh lom’ Adding devlink entry ’type=ddi_pseudo;name=SUNW,lom lom’ adding driver with aliases ’SUNW,lomh SUNW,lom’ perm ’* 0644 root sys’ devfsadm: driver failed to attach: lom Warning: Driver (lom) successfully added to system but failed to attach i.drivers (SUCCESS): Finished

[ verifying class <drivers> ]

Installation of <SUNWlomr> was successful.

Chapter 2 Setting Up 49

Note – The warning messages concerning lomp, lomv, and lom driver attachment

seen during the installation of the SUWNlomr package can be safely ignored since the SUNWlomr package is not used on the Netra 1290 server. However, the presence of the package is required to enable successful upgrade through future patches.

▼ To Install the LOM Utility

● As superuser, type:

CODE EXAMPLE 2-3 Installing the LOM Utility

# pkgadd -d . SUNWlomu

Processing package instance <SUNWlomu> from </export/lom>

LOMlite Utilities (usr) (sparc) 2.0,REV=2000.08.22.14.14 Copyright 2000 Sun Microsystems, Inc. All rights reserved. Using </> as the package base directory. ## Processing package information. ## Processing system information. 4 package pathnames are already properly installed. ## Verifying package dependencies. ## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.

Installing LOMlite Utilities (usr) as <SUNWlomu>

## Installing part 1 of 1. 2333 blocks

Installation of <SUNWlomu> was successful.

▼ To Install the LOM Manual Pages

● As superuser, type:

50 Netra 1290 Server Installation Guide • May 2006

CODE EXAMPLE 2-4 Installing the LOM Manual Pages

# pkgadd -d . SUNWlomm

Processing package instance <SUNWlomm> from </export/lom>

LOMlite manual pages (sparc) 2.0,REV=2000.08.22.14.14 Copyright 2000 Sun Microsystems, Inc. All rights reserved. Using </> as the package base directory. ## Processing package information. ## Processing system information. 5 package pathnames are already properly installed. ## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.

Installing LOMlite manual pages as <SUNWlomm>

## Installing part 1 of 1. 71 blocks

Installation of <SUNWlomm> was successful.

Chapter 2 Setting Up 51

52 Netra 1290 Server Installation Guide • May 2006

APPENDIX

Netra 1290 Server Connections

This appendix describes the cables and connectors available to complete the installation. Topics include:

■ “External I/O Connection Locations” on page 53

■ “PCI+ IB_SSC Assemblies” on page 54

■ “SCSI Connector” on page 55

■ “Alarms Port” on page 56

■ “NET0/NET1 Ethernet Ports” on page 57

■ “10/100BASE-T LOM Ethernet Port” on page 58

■ “LOM Serial A and Serial B Ports” on page 59

External I/O Connection Locations

FIGURE A-1 shows the location of external I/O connections of the Netra 1290 server.

PCI+ 0-5 slots

10/100BASE-T LOM/SC port

LOM Serial A port

Serial B port

FIGURE A-1 External I/O Connection Locations

PCI+ IB_SSC Assemblies

SCSI port, 68 pins

Alarms port

NET0 and NET1 ports

Note – Do not mix different cards with different speeds within an IB6 leaf (two

paired slots), because leaf slots run at the lowest speed and the lowest mode for a given set of cards within a leaf. For example, if a 33 MHz PCI card is in slot 0 and a 66 MHz PCI card is in slot 1, then both slots on the leaf will run in the lower 33 MHz PCI mode. IB6 leafs are comprised of paired slots 0 and 1, 2 and 3, and 4 and 5. In addition, all slots will only run in PCI+ mode.

PCI+ IB_SSC assemblies provide six PCI+ slots labeled 0 through 5. When viewing the rear of the server, slot 0 is on the left and slot 5 is on the right. All six slots support up to 66 MHz. The PCI+ slots are not hot-swappable, all slots are half length and 5V signaling is not supported.

54 Netra 1290 Server Installation Guide • May 2006

SCSI Connector

The SCSI connector is a 68-pin SCSI connector (FIGURE A-2). TABLE A-1 lists the pinout information.

SCSI3

FIGURE A-2 68-Pin SCSI Connector

TABLE A-1 68-Pin SCSI Connector Pinout

Pin No. Signal Name Type Pin No. Signal Name Type Pin No. Signal Name Type

34 68

1 +DB(12) I/O 24 +ACK I/O 47 –DB(7) I/O

2 +DB(13) I/O 25 +RST I/O 48 -DB(P0) I/O

3 +DB(14) I/O 26 +MSG I/O 49 Ground GND

4 +DB(15) I/O 27 +SEL I/O 50 Ground GND

5 +DB(P1) I/O 28 +C/D I/O 51 Termpwr POWER

6 +DB(0) I/O 29 +REQ I/O 52 Termpwr POWER

7 +DB(1) I/O 30 +I/O I/O 53 Reserved NA

8 +DB(2) I/O 31 +DB(8) I/O 54 Ground GND

9 +DB(3) I/O 32 +DB(9) I/O 55 –ATN I/O

10 +DB(4) I/O 33 +DB(10) I/O 56 Ground GND

11 +DB(5) I/O 34 +DB(11) I/O 57 –BSY I/O

12 +DB(6) I/O 35 –DB(12) I/O 58 –ACK I/O

13 +DB(7) I/O 36 –DB(13) I/O 59 –RST I/O

14 +DB(P0) I/O 37 –DB(14) I/O 60 –MSG I/O

15 Ground GND 38 –DB(15) I/O 61 –SEL I/O

16 Diffusion ANAL 39 –DB(P1) I/O 62 –C/D I/O

17 Termpwr POWER 40 –DB(0) I/O 63 –REQ I/O

Appendix A Netra 1290 Server Connections 55

TABLE A-2 68-Pin SCSI Connector Pinout (continued)

Pin No. Signal Name Type Pin No. Signal Name Type Pin No. Signal Name Type

18 Termpwr POWER 41 –DB(1) I/O 64 –I/O I/O

19 Reserved NA 42 –DB(2) I/O 65 –DB(8) I/O

20 Ground GND 43 –DB(3) I/O 66 –DB(9) I/O

21 +ATN I/O 44 –DB(4) I/O 67 –DB(10) I/O

22 Ground GND 45 –DB(5) I/O 68 –DB(11) I/O

23 +BSY I/O 46 –DB(6) I/O

SCSI Implementation

For PCI+ IB_SSC assemblies the embedded SCSI subsystem is a SCSI Ultra-320 (UltraSCSI) low-voltage differential parallel interface

■ 16-bit SCSI bus

■ 320-MBps data transfer rate

Maximum cable length support is 33 ft. (10 meters).

Alarms Port

The alarms service port is a male DB-15 (FIGURE A-3). TABLE A-3 lists the pinout information.

FIGURE A-3 DB-15 (Male) Alarms Service Port Connector

56 Netra 1290 Server Installation Guide • May 2006

ALARMS

TABLE A-3 Alarms Service Port Connector Pinout

Pin Signal Name Description State

1 Not connected

2 Not connected

3 Not connected

4 Not connected

5 SYSTEM_NO UNIX® Running Normally open

6 SYSTEM_NC UNIX Running Normally closed

7 SYSTEM_COM UNIX Running Common

8 ALARM1_NO Alarm1 Normally open

9 ALARM1_NC Alarm1 Normally closed

10 ALARM1_COM Alarm1 Common

11 ALARM2_NO Alarm2 Normally open

12 ALARM2_NC Alarm2 Normally closed

13 ALARM2_COM Alarm2 Common

14 Not connected

15 Not connected

NET0/NET1 Ethernet Ports

The NET0/NET1 Ethernet ports are shielded RJ-45 connectors (FIGURE A-4). The NET0/NET1 Ethernet ports are also known as the Gigabit Ethernet RJ-45 ports.

TABLE A-4 lists the pinout information.

Appendix A Netra 1290 Server Connections 57

NET 0

NET 1

FIGURE A-4 RJ-45 Gigabit Ethernet Connectors

TABLE A-4 RJ-45 Gigabit Ethernet Connector Pinout

Pin Signal Name Pin Signal Name

1 TRD0_H 5 TRD2_L

2 TRD0_L 6 TRD1_L

3 TRD1_H 7 TRD3_H

4 TRD2_H 8 TRD3_L

10/100BASE-T LOM Ethernet Port

The 10/100BASE-T LOM Ethernet port is an RJ-45 twisted-pair Ethernet (TPE) connector ( port.

FIGURE A-5 RJ-45 TPE Socket

FIGURE A-5). This port is also known as the system controller Ethernet

TABLE A-5 lists the pinout information.

SSC1

58 Netra 1290 Server Installation Guide • May 2006

TABLE A-5 Twisted-pair Ethernet Connector Pinout

Pin Description Pin Description

1 TXD+ 5 Common mode termination

2 TXD– 6 RXD–

3 RXD+ 7 Common mode termination

4 Common mode termination 8 Common mode termination

Twisted-Pair Ethernet Cable-Type Connectivity

The following types of TPE cables can be connected to the 8-pin TPE connector:

■ For 10BASE-T applications, shielded twisted-pair (STP) cable:

■ Category 3 (STP-3, voice grade)

■ Category 4 (STP-4)

■ Category 5 (STP-5, data grade)

■ For 100BASE-T applications, shielded twisted-pair category 5 (STP-5, data grade)

cable.

TABLE A-6 TPE STP-5 Cable Lengths

Cable Type Application Maximum Length

Shielded twisted pair category 5 (STP-5, data grade) 10BASE-T 1000 m (3282 ft)

Shielded twisted pair category 5 (STP-5, data grade) 100BASE-T 100 m (327 ft)

LOM Serial A and Serial B Ports

The LOM Serial A and serial B ports use RJ-45 connectors (FIGURE A-6). The LOM Serial A port is also known as the system controller serial port. pinout information identical for both serial ports.

TABLE A-7 lists the

Appendix A Netra 1290 Server Connections 59

1818

LOM Serial A

FIGURE A-6 RJ-45 Serial Connectors

TABLE A-7 RJ-45 Serial Connector Pinout

Pin Signal

Serial B

1RTS

2 DTR

3 TXD

4 Signal Ground

5 Signal Ground

6 RXD

7 DSR

8 CTS

Note – Serial port B is reserved.

TABLE A-8 lists the settings needed to use the LOM Serial A connection. The

configuration of this port cannot be changed. Be sure to check the manufacturer’s documentation for your specific terminal server. Communication on LOM Serial A is subject to interruption by the LOM device. Refer to the Netra 1290 Server System Administration Guide, 819-4374.

TABLE A-8 Default Settings for Connecting to LOM Serial A

Parameter Setting

Connector LOM Serial A

Rate 9600 baud

Parity No

Stop bits 1

Data bits 8

60 Netra 1290 Server Installation Guide • May 2006

Using a DB-25 Adapter for Your Serial Link

To connect from a terminal, use either the DB-25 (25-Pin DSUB male to 8-POS RJ-45 female) adapter supplied with your server (part number 530-2889) or an alternative adapter that performs the same pin interconnections. The Sun supplied DB-25 adapter enables you to connect to most Sun system. interconnections the DB-25 adapter performs.

TABLE A-9 Pin Interconnections Performed by the Sun DB-25 Adapter

Serial Port (RJ-45 Connector) Pin 25-Pin Connector Pins

Pin 1 (RTS) Pin 5 (CTS)

Pin 2 (DTR) Pin 6 (DSR)

Pin 3 (TXD) Pin 3 (RXD)

Pin 4 (Signal Ground) Pin 7 (Signal Ground)

Pin 5 (Signal Ground) Pin 7 (Signal Ground)

Pin 6 (RXD) Pin 2 (TXD)

Pin 7 (DSR) Pin 20 (DTR)

Pin 8 (CTS) Pin 4 (RTS)

TABLE A-9 lists the pin

Using a DB-9 Adapter for Your Serial Link

To connect to a terminal that has a 9-pin serial connector, use a DB-9 (9-pin DSUB female to 8-POS RJ-45 female) adapter. DB-9 adapter performs.

TABLE A-10 Pin Interconnections Performed by a DB-9 Adapter

Serial Port (RJ-45 Connector) Pin 9-Pin Connector

Pin 1 (RTS) Pin 8 (CTS)

Pin 2 (DTR) Pin 6 (DSR)

Pin 3 (TXD) Pin 2 (RXD)

Pin 4 (Signal Ground) Pin5 (Signal Ground)

Pin 5 (Signal Ground) Pin 5 (Signal Ground)

Pin 6 (RXD) Pin 3 (TXD)

Pin 7 (DSR) Pin 4 (DTR)

Pin 8 (CTS) Pin 7 (RTS)

TABLE A-10 lists the pin interconnections the

Appendix A Netra 1290 Server Connections 61

62 Netra 1290 Server Installation Guide • May 2006

Index

adjusting slide rails, 5 administrative console, 35 alarm connector, 56

cable lengths, 59 cable management arm

CMA-800, installing, 26 CMA-Lite, installing, 25 installing, 24

command

password,44 pkgadd,48 poweroff,43 poweron,42 setdate,44 setupnetwork,45 shutdown,43

connecting

administrative console, 36

initially, 35 I/O assemblies, 37 power cables, 33 system controller, 34

connection

alarm, 56 Ethernet, 57 LOM

Ethernet, 58

serial, 59 SCSI, 55

connectivity, 59

date and time, setting, 44

Ethernet

cable lengths, 59 connection, 57 TPE connectivity, 59

I/O

connector locations, 53

installing

additional

hardware, 37

peripheral devices, 38 cable and hardware, 40 cable management arm, 24 CMA-800, 26 CMA-Lite, 25 lock nuts, 22 LOM, 47

drivers, 48

man pages, 50

utility, 50 server into cabinet, 15

mounting, 17

preparation, 15 slide rails, 4

19-inch 2-post rack, 14

19-inch 4-post cabinet, 13

bottom position, 9, 11 inner, 6 lock nuts, 22 Sun Fire or StorEdge cabinet, 9 Sun Rack 900 cabinet, 11, 13 top position, 10, 13

Solaris, 46

LOM

adapter

DB-25, 61 DB-9, 61

connection

Ethernet, 58 serial, 59

network parameters

conﬁguring, 45

On/Standby switch, 40, 41

disabling, 41 powering on, 41 standby mode, 43

setupnetwork command, 45 shutdown command, 43

slide rails

adjusting, 5 installing, 4

19-inch 2-post rack, 14 19-inch 4-post cabinet, 13 bottom position, 9, 11 inner, 6 Sun Fire or StorEdge cabinet, 9 Sun Rack 900 cabinet, 11, 13

top position, 10, 13 mounting kit, 4 preparing, 8

standby mode

from LOM, 43 from On/Standby switch, 43 from Solaris, 43

system console

password, 44

password command, 44 PCI+ IB_SSC conditions, 54 pkgadd command, 48 powering on, 41

LOM command, 42 On/Standby switch, 41

poweroff command, 43 poweron command, 42

preparing

installing server into cabinet, 15 slide rails, 8

SCSI

connector, 55 implementation, 56

setdate command, 44 setting up, 39

64 Netra 1290 Server Installation Guide • May 2006

Sun Microsystems Netra 1290 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
