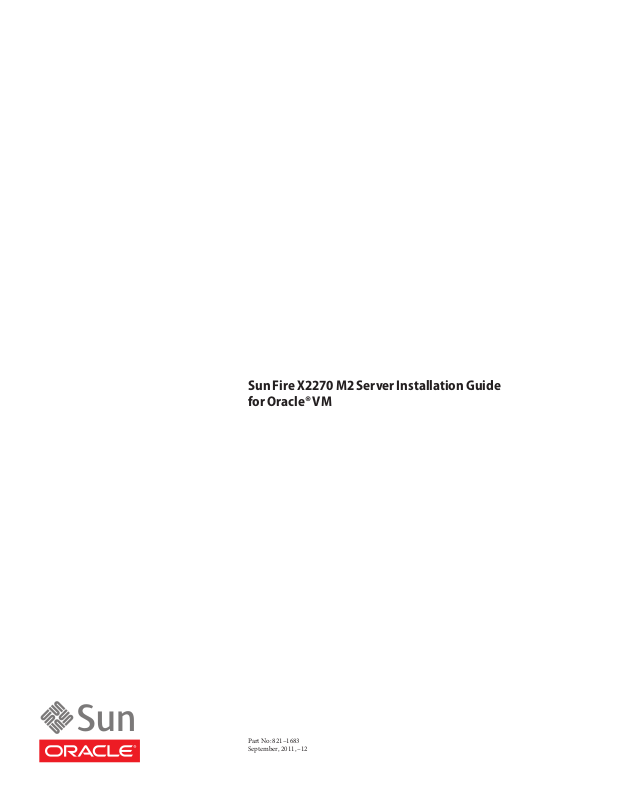

Sun Fire X2270 M2 Server Installation Guide for Oracle®VM
Part No: 821–1683
September, 2011, –12
Copyright © 2010, 2011, Oracle and/or its aliates. All rights reserved.
This software and related documentation are provided under a license agreement containing restrictions on use and disclosure and are protected by intellectual
property laws. Except as expressly permitted in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast, modify, license,
transmit, distribute, exhibit, perform, publish or display any part, in any form, or by any means. Reverse engineering, disassembly, or decompilation of this software,
unless required by law for interoperability, is prohibited.
The information contained herein is subject to change without notice and is not warranted to be error-free. If you nd any errors, please report them to us in writing.
If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it on behalf of the U.S. Government, the following notice is
applicable:
U.S. GOVERNMENT RIGHTS
Programs, software, databases, and related documentation and technical data delivered to U.S. Government customers are "commercial computer software" or
"commercial technical data" pursuant to the applicable Federal Acquisition Regulation and agency-specic supplemental regulations. As such, the use, duplication,
disclosure, modication, and adaptation shall be subject to the restrictions and license terms set forth in the applicable Government contract, and, to the extent
applicable by the terms of the Government contract, the additional rights set forth in FAR 52.227-19, Commercial Computer Software License(December 2007).
Oracle America, Inc., 500 Oracle Parkway, Redwood City, CA 94065.
This software or hardware is developed for general use in a variety of information management applications. It is not developed or intended for use in any inherently
dangerous applications, including applications that may create a risk of personal injury. If you use this software or hardware in dangerous applications, then you shall
be responsible to take all appropriate fail-safe, backup, redundancy, and other measures to ensure its safe use. Oracle Corporation and its aliates disclaim any
liability for any damages caused by use of this software or hardware in dangerous applications.
Oracle and Java are registered trademarks of Oracle and/or its aliates. Other names may be trademarks of their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks are used under license and are trademarks or registered
trademarks of SPARC International, Inc. AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced Micro
Devices. UNIX is a registered trademark of The Open Group.
This software or hardware and documentation may provide access to or information on content, products, and services from third parties. Oracle Corporation and
its aliates are not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle Corporation
and its aliates will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.
Ce logiciel et la documentation qui l’accompagnesont protégés par les lois sur la propriété intellectuelle. Ils sont concédés sous licence et soumis à des restrictions
d’utilisation et de divulgation. Sauf disposition de votre contrat de licence ou de la loi, vous ne pouvez pas copier, reproduire, traduire, diuser, modier, breveter,
transmettre, distribuer, exposer, exécuter, publier ou acher le logiciel, même partiellement, sous quelque forme et par quelque procédé que ce soit. Par ailleurs, il est
interdit de procéder à toute ingénierie inverse du logiciel, de le désassembler ou de le décompiler, excepté à des ns d’interopérabilité avec des logiciels tiers ou tel que
prescrit par la loi.
Les informations fournies dans ce document sont susceptibles de modication sans préavis. Par ailleurs, Oracle Corporation ne garantit pas qu’elles soient exemptes
d’erreurs et vous invite, le cas échéant, à lui en faire part par écrit.
Si ce logiciel, ou la documentation qui l’accompagne,est concédé sous licence au Gouvernement des Etats-Unis, ou à toute entité qui délivre la licence de ce logiciel
ou l’utilise pour le compte du Gouvernement des Etats-Unis, la notice suivante s’applique :
U.S. GOVERNMENT RIGHTS. Programs, software, databases, and related documentation and technical data delivered to U.S. Government customers are
"commercial computer software" or "commercial technical data" pursuant to the applicable FederalAcquisitionRegulation and agency-specic supplemental
regulations. As such, the use, duplication, disclosure, modication, and adaptation shall be subject to the restrictions and license terms set forth in the applicable
Government contract, and, to the extent applicable by the terms of the Government contract, the additional rights set forth in FAR 52.227-19, Commercial
Computer Software License (December 2007). Oracle America, Inc., 500 Oracle Parkway, Redwood City, CA 94065.
Ce logiciel ou matériel a été développé pour un usage général dans le cadre d’applications de gestion des informations. Ce logiciel ou matériel n’est pas conçu ni n’est
destiné à être utilisé dans des applications à risque, notamment dans des applications pouvant causer des dommages corporels. Si vous utilisez ce logiciel ou matériel
dans le cadre d’applications dangereuses, il est de votre responsabilité de prendre toutes les mesures de secours, de sauvegarde, de redondance et autres mesures
nécessaires à son utilisation dans des conditions optimales de sécurité. Oracle Corporation et ses aliés déclinent toute responsabilité quant aux dommages causés
par l’utilisation de ce logiciel ou matériel pour ce type d’applications.
Oracle et Java sont des marques déposées d’OracleCorporation et/ou de ses aliés.Tout autre nom mentionné peut correspondre à des marques appartenant à
d’autrespropriétaires qu’Oracle.
AMD, Opteron, le logo AMD et le logo AMD Opteron sont des marques ou des marques déposées d’Advanced Micro Devices. Intel et Intel Xeon sont des marques ou
des marques déposées d’Intel Corporation. Toutes les marques SPARC sont utilisées sous licence et sont des marques ou des marques déposées de SPARC
International, Inc. UNIX est une marque déposée concédé sous license par X/Open Company, Ltd.
121001@25097
Contents
Preface ......................................................................................................................................................5
Related Books ..................................................................................................................................5
About This Documentation (PDF and HTML) ..........................................................................7
Documentation Comments ...........................................................................................................7
Download Server System Tools and Drivers ...............................................................................7
Documents History ........................................................................................................................8
Installing Oracle VM ..............................................................................................................................9
Supported Operating Systems .................................................................................................... 10
System Requirements .................................................................................................................. 10
Installation Options ..................................................................................................................... 11
How to Obtain Oracle VM Software .......................................................................................... 11
How to Install Oracle VM Server and Oracle VM Agent ........................................................ 11
How to Install Oracle VM Manager ........................................................................................... 12
Creating and Managing VM Resources .................................................................................... 13
Index ......................................................................................................................................................15
3
4
Preface
This preface describes related documentation, available documentation formats, and the
process for submitting feedback to Oracle. It also includes a document change history.
■
“Related Books” on page 5
■
“About This Documentation (PDF and HTML)” on page 7
■
“Documentation Comments” on page 7
■
“Download Server System Tools and Drivers” on page 7
■
“Documents History” on page 8
Related Books
The following is a list of documents related to Oracle's Sun Fire X2270 M2 server. These and
additional support documents are available on the
http://www.oracle.com/pls/topic/lookup?ctx=sfx2270m2&id=homepage.
Document Group Document Description
library page at:
Sun Fire X2270 M2
Server-Specic
Documentation
Sun Fire X2270 M2 Server Product
Documentation
Sun Fire X2270 M2 Server Getting
Started Guide
Sun Fire X2270 M2 Server Installation
Guide*
Sun Fire X2270 M2 Server Product
Notes*
Sun Installation Assistant 2.3 through
2.4 User's Guide for x64 Servers*
Sun Fire X2270 M2 Server Installation
Guide for Oracle Solaris Operating
Systems*
Integrated HTML version of all starred
(*) documents, including Search and
Index.
Pictorial setup quick reference.
How to install, rack, and congure the
server up to initial power-on.
Important late-breaking information
about the server.
An Oracle tool used to perform an
assisted installation of a supported
Windows or Linux OS, upgrade rmware
(regardless of OS), and other tasks.
How to install the Oracle Solaris OS on
your server.
5
Related Books
Document Group Document Description
Oracle Integrated
Controller Disk
Management
x64 Servers Applications
and Utilities Reference
Documentation
Sun Fire X2270 M2 Server Installation
Guide for Oracle VM*
Sun Fire X2270 M2 Server Installation
Guide for Linux Operating Systems*
Sun Fire X2270 M2 Server Installation
Guide for Windows Operating Systems*
Sun Fire X2270 M2 Server Installation
Guide for ESX Software*
Integrated Lights Out Manager
Supplement for the Sun Fire X2270 M2
Server*
Sun Fire X2270 M2 Server Diagnostics
Guide*
Sun Fire X2270 M2 Server Service
Manual*
Sun Fire X2270 M2 Server Safety and
Compliance Guide
Sun x64 Server Disk Management
Overview
Sun x64 Server Utilities Reference
Manual
How to install Oracle VM on your server.
How to install a supported Linux OS on
your server.
How to install supported versions of
Microsoft Windows on your server.
How to install supported versions of the
ESX OS on your server.
Version-specic supplemental
information for your server's Integrated
Lights Out Manager.
How to diagnose problems with your
server.
How to service and maintain your server.
Safety and compliance information
about your server.
Information about managing your server
storage.
How to use the available utilities included
with your server.
Integrated Lights Out
Manager (ILOM) 3.0
Documentation
Sun Fire X2270 M2 Server Installation Guide for OracleVM • September,2011, –126
Oracle Integrated Lights Out Manager
(ILOM) 3.0 Feature Updates and Release
Notes
Oracle Integrated Lights Out Manager
(ILOM) 3.0 Getting Started Guide
Oracle Integrated Lights Out Manager
(ILOM) 3.0 Concepts Guide
Oracle Integrated Lights Out Manager
(ILOM) 3.0 Web Interface Procedures
Guide
Oracle Integrated Lights Out Manager
(ILOM) 3.0 CLI Procedures Guide
Information about new ILOM features.
Overview of ILOM 3.0.
Conceptual information about ILOM
3.0.
How to use ILOM through the web
interface.
How to use ILOM through commands.
Document Group Document Description
Documentation Comments
Oracle Integrated Lights Out Manager
(ILOM) 3.0 SNMP and IPMI Procedures
Guide
Oracle Integrated Lights Out Manager
(ILOM) 3.0 Management Protocols
Reference Guide
About This Documentation (PDF and HTML)
This documentation set is available in both portable document format (PDF) and HTML. The
information is presented in topic-based format (similar to online help) and therefore does not
include chapters, appendices, or section numbering.
Documentation Comments
Oracle is interested in improving product documentation and welcomes your comments and
suggestions. You can submit comments by going to this link:
http://www.oraclesurveys.com/se.ashx?s=25113745587BE578
▼
Download ServerSystem Tools and Drivers
How to use SNMP and IPMI commands.
Information about management
protocols.
Patches and the Tools and Drivers CD/DVD ISO image le for your server are now available by
from MyOracle Support (MOS). Use this procedure to access server-specic downloads on
MOS.
1
2
3
http://support.oracle.com.
Go to
Sign in to My Oracle Support.
At the top of the page, click the Patches and Updates tab.
The Patches and Updates screen appears.
In the Search screen, click Product or Family(AdvancedSearch).
4
The screen appears with search elds.
In the Product eld, select the product from the drop-down list.
5
Alternatively, type a full or partial product name (for example, Sun Fire X2270 M2) until a
match appears.
7
Documents History
In the Release eld, selectthe release from the drop-downlist.
6
Expand the folders to see the component oerings.
7
Click Search.
A list of updates (patches) appears.
8
To selecta patch, click the check boxesnext to the patch name (you can select more than one
patch).
A popup action panel appears. The panel contains several action options.
9
To download the update, click Download in the popup panel.
The download begins automatically.
Documents History
■
May 2010, initial publication
■
June 2010, collection refresh, revisions to –11
■
March 2011, Product Notes document updated for document errata and SW v1.1.0 and SW
v1.2.0 releases. Windows Operating System Installation Guide revised for document errata.
Oracle Solaris Operating System Installation Guide revised for document errata. Service
Manual revised for document errata.
■
September 2011, Product Notes and OS Installation Guides updated for SW v1.3.0 release.
Sun Fire X2270 M2 Server Installation Guide for OracleVM • September,2011, –128
Installing Oracle VM
Oracle VM is a virtualization environment platform that enables users to create and manage
virtual machines (VMs). These VMs exist on the same physical server but behave like
independent physical servers. Each virtual machine created with Oracle VM has its own virtual
CPUs, operating system, network interfaces, and storage.
Oracle VM is comprised of the following components:
■
Oracle VM Server: A lightweight, secure virtualization environment based on Xen
hypervisor, and used to run virtual machines and the Oracle VM agent.
■
Oracle VM Agent: Installed on Oracle VM Server, it communicates with Oracle VM
Manager and includes a Web Services API for managing the Oracle VM Server, server pools,
and resources. This is included in the Oracle VM Manager installation.
■
Oracle VM Manager: A web application which acts as the user interface for creating and
managing your virtual machines. This includes virtual machine creation (including
templates), life cycle management (deploying, migrating and deleting), and resource
management (ISO les, templates and shared storage resources).
The following table provides an outline of the Oracle VM installation:
Step Description Link
1 Review up-to-date information about the server
hardware and software, including supported
versions of operating systems.
2 Check system requirements. “System Requirements” on page 10
3 Review installation method options. “Installation Options” on page 11
4 Obtain the installation images and burn them to
a DVD or copy them onto the corresponding
servers.
5 Install Oracle VM Server and OVM Agent. “How to Install Oracle VM Server and Oracle VM
6 Install Oracle VM Manager. “How to Install Oracle VM Manager” on page 12
Sun Fire X2270 M2 Server Product Notes
“How to Obtain Oracle VM Software” on page 11
Agent” on page 11
9
Supported Operating Systems
Step Description Link
7 Create shared storage, a server pool, and virtual
machines.
Supported Operating Systems
For the most up-to-date information about the server, including a listing of supported versions
of operating systems, refer to
Sun Fire X2270 M2 Server Product Notes.
System Requirements
Before you install Oracle VM, you must meet the following requirements:
■
For the system that will be running Oracle VM Server, you must start out with a clean
installation (no preinstalled OS or rmware-level RAID volumes).
■
The system that will be running Oracle VM Manager must have one of the following
operating systems installed:
■
Oracle Enterprise Linux Release 4.5 or later
■
Red Hat Enterprise Linux Release 4 or later
■
You must have an Oracle VM media set or equivalent ISO images for VM Server and VM
Manager.
The ISO images can be used for remote installation or for creating installation CDs.
■
Review the release notes for the Oracle VM software. The documentation set can be found
at:
http://download.oracle.com/docs/cd/E15458_01/index.htm
■
DVD-ROM drive.
“Creating and Managing VM Resources” on
page 13
Note – If you are installing remotely, the DVD-ROM drive, keyboard, mouse, and monitor
are connected to the local system instead of the server. Also, you can use an ISO image
instead of an actual DVD/CD-ROM.
■
USB keyboard and mouse.
■
Monitor.
■
While conguring an OS for a networked server, it might be necessary to provide the logical
names (assigned by the OS) and the physical name (MAC address) of each network interface
being used on the Oracle VM server.
Sun Fire X2270 M2 Server Installation Guide for OracleVM • September,2011, –1210
Installation Options
You can install Oracle VM locally or remotely.
■
A local installation takes place on the target machine where the application is being
installed. It requires a media set on CDs or DVDs.
■
A remote installation uses the Oracle Integrated Lights Out Manager (ILOM) JavaRConsole
program. It uses the local machine to remotely install the application on the target machine.
It allows you to install from a media set on CDs or DVDs, or from equivalent ISO images.
To set up a remote installation, see
the ILOM Web Interface” in Sun Fire X2270 M2 Server Installation Guide
Installation Options
“How to Connect to the System Console Remotely Using
.
BeforeYou Begin
For information about connecting a system console, see
Sun Fire X2270 M2 Server Installation Guide
▼
How to Obtain OracleVM Software
Download the OracleVM software from the web at:
1
http://www.oracle.com/virtualization
If you plan on installing the software at the system, burn the ISO images to CDs.
2
You should have a Oracle VM Manager CD,and a bootable Oracle VM Server CD.
▼
How to Install OracleVM Serverand Oracle VM Agent
Refer to the “System Requirements” on page 10.
Connect to your server console.
1
See
“Connecting to the System Console” in Sun Fire X2270 M2 Server Installation Guidefor
details.
Insert your OracleVM Server distribution DVD or access the ISO image distribution media for the
2
method you chose in step 1.
.
“Connecting to the System Console” in
Poweron or reset the server.
3
BIOS messages appear on the console.
11
Installation Options
When you see a message oering a series of selections,press F8.
4
After a delay, a menu oers a selection of boot devices (see the following example).
Select a boot device from the list.
5
To boot from a physical CD/DVD or from an ISO image, select CD/DVD.
Control passes to the OS installation program on the media.
Enter the followingcommand at the boot prompt: Enter
6
Follow the prompts to install the software.
7
Oracle VM Server and OVM Agent are installed.
BeforeYou Begin
For additional information refer to the Oracle VM Server installation documentation at:
http://download.oracle.com/docs/cd/E15458_01/index.htm
▼
How to Install OracleVM Manager
You can use the Integrated Lights Out Manager (ILOM) to install software using either a CD/
DVD or an ISO image mounted on a remote system. The remote console feature allows you to
use the keyboard, mouse, video, and storage of the remote system as if it were connected to the
server where you are installing the operating system. Once the remote console session is
congured, the server can boot from the remotely mounted distribution media (either a
CD/DVD or equivalent ISO le).
If you arenot already the root user, use the su command and enter the root password.
1
Insert and mount the OracleVM Manager CD.
2
Navigate to the root of the CD:
3
# cd /mnt
Sun Fire X2270 M2 Server Installation Guide for OracleVM • September,2011, –1212
Run the installation script:
4
# sh ./runInstaller.sh
5
Follow the prompts to install the software.
For additional information refer to the Oracle VM Manager installation documentation at:
http://download.oracle.com/docs/cd/E15458_01/index.htm
Creating and ManagingVM Resources
After installing Oracle VM Server (with Oracle VM Agent) and Oracle VM Manager, you can
create and manage virtual resources. For example, you can:
■
Create a shared storage repository. For fault tolerance, multiple virtual machines using this
storage can be setup in a clustered conguration. Options for your shared storage:
■
OCFS2 (Oracle Cluster File System) using the iSCSI (Internet SCSI) network protocol
■
OCFS2 using SAN (Storage Area Network)
■
NFS (Network File System)
■
Partition with multipath failover
■
Create a server pool for your virtual machines.
■
Create your virtual machines in the server pool.
Creating and Managing VM Resources
13
14
Index
C
creating VM resources, 13
I
installation
options, 11
overview, 9–13
requirements, 10
task table, 9
installing
Oracle VM Manager, 12–13
Oracle VM Server and VM Agent, 11–12
L
local installation, 11
M
managing VM resources, 13
R
remote installation, 11
S
supported operating systems, 10
system requirements, installation, 10
T
task table, installation, 9
O
obtaining Oracle VM, 11
operating systems, supported versions, 10
Oracle VM
components, 9–13, 12–13
obtaining, 11
