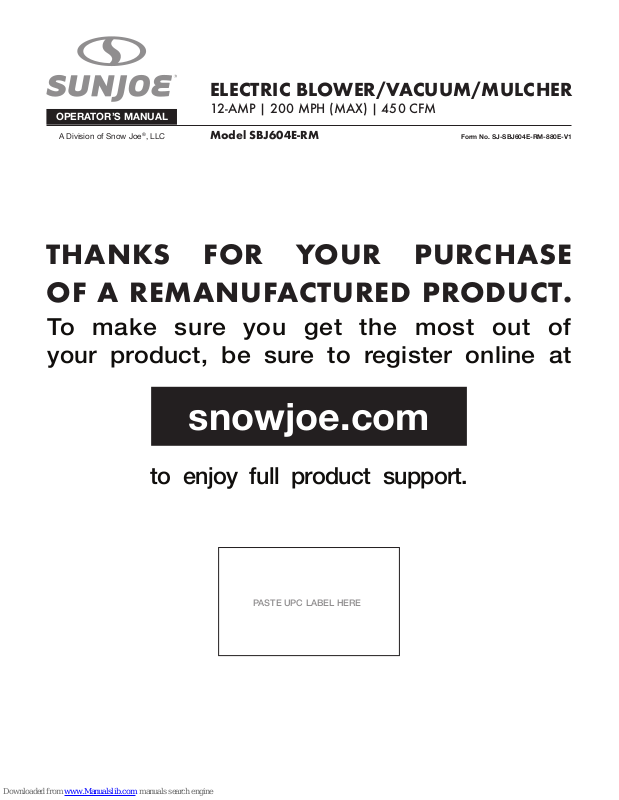

R
ELECTRIC BLOWER/VACUUM/MULCHER
OPERATOR’S MANUAL
A Division of Snow Joe®, LLC Model SBJ604E-RM Form No. SJ-SBJ604E-RM-880E-V1
12-AMP | 200 MPH (MAX) | 450 CFM
THANKS FOR YOUR PURCHASE
OF A REMANUFACTURED PRODUCT.
To make sure you get the most out of
your
product, be sure to register online at
snowjoe.com
to enjoy full product support.
PASTE UPC LABEL HERE
R
ELECTRIC BLOWER/VACUUM/MULCHER
OPERATOR’S MANUAL
A Division of Snow Joe®, LLC Model SBJ604E-RM Form No. SJ-SBJ604E-RM-880E-V1
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Any electrical appliance can be dangerous if used incorrectly.
Some of the safety precautions given in this manual apply
generally to many appliances. Other warnings are specic to
the use of this electric blower vac.
Failure to follow all warnings, and instructions may result in
electric shock, re or serious injury.
mWARNING! This indicates a hazardous situation,
which, if not avoided, could result in death or serious injury.
mCAUTION! This indicates a hazardous situation,
which, if not avoided, could result in minor or moderate injury.
mDANGER! This indicates a hazardous situation, which,
if not followed, will result in death or serious injury.
12-AMP | 200 MPH (MAX) | 450 CFM
3. Disconnect the tool – Disconnect the blower vac from
the power supply when it is not in use, before servicing
it, when changing accessories and when performing any
other maintenance task.
4 Avoid dangerous environments – Do not use the blower
vac in rain, damp or wet locations. Do not operate the
blower vac in gaseous or explosive atmospheres or use
the blower vac to pick up ammable or combustible
liquids. Motors in these tools normally spark, and the
sparks might ignite fumes.
5. Keep children, bystanders and pets away – All
spectators, including pets, should be kept a safe distance
away from the work area.
6. Use the right tool – Do not use the tool for any job except
that for which it is intended.
7. Extension cords – To prevent electric shock, use only
with an extension cord suitable for outdoor use.
8. Do not abuse the cord – Never carry the blower vac
by the cord or yank the cord to disconnect it from the
receptacle. Keep the cord away from heat, oil, and sharp
edges.
9. Avoid accidental starting – Do not carry the blower vac
with your nger on the switch. Make sure the switch is o
before plugging in the unit.
General Safety
FOR HOUSEHOLD USE ONLY
Before using, be sure that everyone using this tool reads
and understands all safety instructions and other information
contained in this manual. Save this manual and review it
frequently prior to using this tool and when instructing
others on the proper operating procedures.
mCAUTION! Wear appropriate hearing protection during
use. After long periods of extended use, the noise generated
from this appliance may cause hearing loss if your ears are
not properly protected.
mWARNING! When using electric yard tools, basic
safety precautions should always be followed to reduce the
risk of re, electric shock and personal injury, including the
following:
1. Keep work area clean and well-lit – Cluttered, dark
areas invite accidents.
2. Replacement parts – When servicing this unit, use only
identical replacement parts. Replace or repair damaged
cords immediately.
© 2017 by Snow Joe®, LLC
All rights reserved. Original instructions.
mDANGER! Do not manually place objects into the
vacuum tube while operating the unit as this can seriously
damage the unit and/or harm the operator. Keep both hands
on the handles while the power is on.
DO NOT ATTEMPT to remove material or hold material to be
vacuumed when the blower vac is on. Make sure the blower
vac is o when clearing jammed material from the vacuum
tube. Do not pick up the blower vac by the tube or attempt to
carry the unit by the tube.
mCAUTION! Moving parts will continue to run for several
seconds after turning o the machine.
10. Moving parts – Keep hands and feet away from moving
parts. Keep guards in place and in proper working order.
11. Do not force the tool – It will perform better with less
likelihood of personal or mechanical injury if it is used at
the rate for which it was designed.
12. Wear personal protective equipment – When using this
tool, wear safety glasses with side shields or goggles to
provide necessary eye protection. Wear ear defenders to
prevent hearing damage. Use a face or dust mask if the
work environment is dusty.
SAVE THESE INSTRUCTIONS
1
13. Dress properly – Do not wear loose clothing or jewelry as
such articles can become caught in moving parts. Wear
a protective covering to contain long hair. Wearing rubber
gloves and substantial non-slip footwear is recommended
when working outdoors.
14. Stay alert – Watch what you are doing. Use common
sense. Do not operate the blower vac when you are
tired or under the inuence of drugs, alcohol or other
medication.
15. Store idle tool indoors – When not in use, the blower vac
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
16. Maintain the blower vac with care – Keep the blower
tube and the fan area clear and clean for optimal
performance and to reduce the risk of injury. Inspect the
extension cord periodically and immediately replace it
if damaged. Keep the handles dry, clean and free from
oil and grease. Follow the additional recommendations
described in the maintenance section of this manual.
Personal Safety
• Use extra care when cleaning on stairs.
• Keep rm footing and maintain good balance at all times.
Do not overreach. Overreaching can result in loss of
balance.
• Turn o all controls before unplugging the tool.
• Do not use the tool if the power switch does not turn it ON
or OFF. Any tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Do not use the tool with a damaged plug. If the tool is not
working as it should or has been dropped, damaged, left
outdoors or dropped into water, return it to an authorized
Snow Joe® + Sun Joe® dealer or contact the Snow Joe® +
Sun Joe® customer service department at 1-866-SNOWJOE
(1-866-766-9563).
• Do not pick up anything that is burning or smoking, such as
cigarettes, matches or hot ashes.
• Carefully inspect your appliance prior to use and follow all
label and marking instructions.
• Keep the end of the blower tube away from your face and
body.
• Always unplug this appliance before connecting or
disconnecting the tubes.
• Do not use for wet material.
• Keep all parts of your body away from any moving parts
and all hot surfaces of the unit.
• Do not put any object into the tool's openings. Do not use
the tool with any opening blocked; keep openings free of
dust, lint, hair or any other object that may reduce air ow.
• Check the work area before each use. Remove all objects
such as rocks, broken glass, nails, wire or string which can
be thrown or become entangled in the machine.
• Service on the product must be performed by qualied
repair personnel only. Service or maintenance performed
by unqualied personnel could result in injury to the user or
damage to the product.
• This blower vac is intended for residential use only.
Commercial use of this product is prohibited and will void
the manufacturer's warranty.
• Never run the unit without the proper equipment attached.
Always ensure the blower tubes are properly installed.
• When operating the unit as a blower, never point the blower
tube in the direction of people or pets or in the direction of
windows. Use extra caution when blowing debris near solid
objects, such as trees, automobiles and walls.
• Be sure to secure the unit when transporting it.
• Never douse or squirt the unit with water or any other liquid.
Clean the unit after each use as described in the Care +
Maintenance section.
Electrical Safety
1. Ground fault circuit interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for
this electric blower vac. Receptacles are available having
built-in GFCI protection and may be used for this measure
of safety.
2. Make sure that the mains voltage matches that listed on
the unit's rating label. Using the improper voltage can
damage the motor and injure the user.
3. To prevent electric shock, use only with an extension cord
suitable for outdoor use, such as SW-A, SOW-A, STW-A,
STOW-A, SJW-A, SJOW-A, SJTW-A, or SJTOW-A.
Before use, check that the extension cord is in good
condition. When using an extension cord, make sure to
use one heavy enough to carry the current to the product.
For lengths up to 50 ft (15 m), a No. 14 AWG (or greater)
extension cord must be be used. For lengths more than
50 ft (15 m) and up to 100 ft (30 m), a No. 12 AWG
(or greater) extension cord must be used. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating.
2
Table 1. Method of Securing Extension Cord
m WARNING m
Electric shock may cause SEVERE INJURY or
DEATH. Heed these warnings:
• Do not allow any part of the electric blower/vacuum/
mulcher to make contact with water while it is in
operation. If the appliance becomes wet while turned
o, wipe dry before starting.
• Use only a UL-, CSA-, or ETL-rated extension cord
for outdoor, all-weather use.
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands
or while standing in water. Wearing rubber boots
oers some protection.
EXTENSION CORD CHART
Extension Cord
Length
Wire Gauge (A.W.G.):
4. To reduce the risk of electric shock, this appliance has a
polarized plug (i.e. one blade is wider than the other). Use
this appliance only with a polarized UL-, CSA- or ETLlisted extension cord recommended for outdoor,
all-weather use, such as the Snow Joe® + Sun Joe®
SJTW-A 14-gauge 50-foot extension cord with lighted
end (Model PJEXT50-B). Visit snowjoe.com to purchase
this extension cord online or, to order by phone, call
1-866-SNOWJOE (1-866-766-9563).
The appliance plug will t into a polarized extension
cord only one way. If the appliance plug does not t
fully into the extension cord, reverse the plug. If the plug
still does not t, obtain a correct polarized extension
cord. A polarized extension cord will require the use of a
polarized wall outlet. The extension cord plug will t into
the polarized wall outlet only one way. If the plug does
not t fully into the wall outlet, reverse the plug. If the plug
still does not t, contact a qualied electrician to install
the proper wall outlet. Do not modify the appliance plug,
extension cord receptacle or extension cord plug in any
way.
5. To prevent the appliance cord from disconnecting from
the extension cord during operation, make a knot with the
two cords as shown in Table 1.
Up to 50 ft
(15 m)
14 12
+50 ft - 100 ft
(+15 m - 30 m)
Cord set Appliance cord
(A) Tie cord as shown
(B) Connect plug and receptacle
6. Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is earthed
or grounded.
7. If the supply cord is damaged, it must be replaced by an
electrician or a power tool repairer.
8. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
9. Have your tool repaired by an electrician or a qualied
service center. This power tool complies with relevant
safety requirements. To avoid danger, electrical appliances
must only be repaired by qualied personnel using original
spare parts; otherwise this may result in considerable
injury to the user.
Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation
are provided instead of grounding. No grounding means is
provided on a double-insulated appliance, nor should a means
for grounding be added to the appliance. Servicing a doubleinsulated appliance requires extreme care and knowledge
of the system, and should be performed only by qualied
service personnel at an authorized Snow Joe® + Sun Joe®
dealer. Replacement parts for a double-insulated appliance
must be identical to the parts they replace. A double-insulated
appliance is marked with the words “Double Insulation” or
“Double Insulated.” The symbol (square within a square)
may also be marked on the appliance.
DOUBLE-INSULATED: GROUNDING NOT
REQUIRED. WHEN SERVICING, USE ONLY
IDENTICAL REPLACEMENT PARTS.
This electric blower vac is double-insulated, eliminating the
need for a separate grounding system. Use only identical
replacement parts. Read the instructions before servicing
double-insulated appliances. Use this electric blower vac only
as described in this manual.
3
Safety Symbols
The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
Symbols SymbolsDescriptions Descriptions
READ THE OPERATOR'S
MANUAL(S) – Read, understand
and follow all instructions in the
user manual(s) before attempting
to assemble and operate.
Keep bystanders and children
a safe distance away.
SAFETY ALERT – Indicates
a precaution, a warning or
a danger.
Beware of ying objects and
debris.
DANGER! Rotating blades
pose a serious risk of injury.
Keep hands and feet away from
openings while the machine is
running.
Immediately remove the plug from
the mains if the power cable is
damaged, frayed or entangled.
Always keep the power cable away
from heat, oil and sharp edges.
WARNING! Do not expose the unit
to rain or wet conditions.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
The rotating part will continuously run
for several seconds after you turn o
the machine.
WARNING! Turn the machine OFF
and disconnect it from the power
supply before inspecting, cleaning,
changing accessories or conducting
any other maintenance task.
DOUBLE INSULATION – When servicing, use only identical replacement parts.
4
Know Your Electric 3-in-1 Blower/Vacuum/Mulcher
Read the owner’s manual and safety instructions carefully before operating the electric blower vac. Compare the illustration
below to the electric blower vac in order to become familiar with the location of the various controls and adjustments. Save this
manual for future reference.
1. Main handle
2. Cord retainer
3. Appliance cord
4. Air outlet
5. Blower/vac mode selector switch
6. Collection bag
7. Strap hook
8. Supporting wheels
9. Lower tube
10. Upper tube
11. Air outlet
12. Front handle
13. ON/OFF switch
14. Shoulder support strap
15. Speed selector switch
10
14
15
13
12
11
1
2
3
4
5
R
9
7
8
Technical Data
Rated Voltage 120 V ~ 60 Hz
Power 12 Amp
Air Flow Speed (Maximum) 200 MPH
Air Volume (Maximum) 450 CFM
Mulch Reduction Ratio 10:1
6
Mode Conversion Blower/mulching vacuum
Variable Speed Settings 6
Bag Capacity 9.1 gal (40 l)
Impeller Polypropylene
Weight 12 lbs (5.5 kg)
5
Unpacking
Carton Contents
• Electric blower/vacuum/mulcher
• Lower tube
• Upper tube
• Bolts (2)
• Washers (2)
• Screws (2)
• Collection bag
• Supporting shoulder strap
• Manual with registration card
1. Carefully remove the electric blower/vacuum/mulcher and
check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or
damage occurred during shipping. If you nd damaged or
missing parts, DO NOT return the unit to the store. Please
call the Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563).
NOTE: Do not discard the shipping carton and packaging
material until you are ready to use the electric blower/
vacuum/mulcher. The packaging is made of recyclable
materials. Properly dispose of these materials in
accordance with local regulations.
IMPORTANT! The equipment and packaging material are not
toys. Do not let children play with plastic bags, foils or small
parts. These items can be swallowed and pose a suocation
risk!
Fig. 1
Lower tube
Upper tube
2. Secure both tubes with 2 washers and 2 bolts on top and
bottom (Fig. 2).
Bolts
Fig. 2
Washers
Assembly
mWARNING! To avoid serious personal injury, read and
understand all safety instructions provided.
mWARNING! Do not connect to power supply until
assembly is complete. Failure to comply could result in
accidental starting and possible serious personal injury.
mWARNING! To prevent serious personal injury, make
sure the switch is in the OFF (O) position, the unit is unplugged
and the impeller has come to a complete stop before attaching
or removing tubes.
1. Place the upper tube on the ground in an upright position.
Place the lower tube over the upper tube and press rmly
for a secure connection (Fig. 1).
Washers
Lower tube
3. Insert the tube assembly into the air outlet, and secure
with the 2 screws (Figs. 3 & 4).
Fig. 3
Tube assembly
Blower vac
air outlet
Bolts
Upper tube
6
Fig. 4
Screw
Screw
Fig. 7
Cord
retainer
Appliance
cord
4. To c onnect the collection bag to the machine, rst fasten
the collection bag strap to the strap hook on the tube
assembly, and then attach the bag adaptor to the air outlet
(Fig. 5).
Fig. 5
Strap hook
Collection
bag strap
5. Clip the shoulder support strap to the top of the blower, as
shown (Fig. 6).
Fig. 6
Clip
Hole
Collection
bag
Extension
cord
2. To start the unit, press the ON (I) side of the ON/OFF
switch (Fig. 8).
Fig. 8
ON/OFF switch
ON (I) OFF (O)
3. To stop the tool, press the OFF (O) side of the ON/OFF
switch (Fig. 8).
mWARNING! After switching o the tool the motor
continues to run for a few seconds.
Speed Control
This unit is equipped with six variable speed settings (1 to 6)
(Fig. 9).
• Turn the speed selector switch to position “1” or “2” for
LOW speeds.
• Turn the speed selector switch to position “3” or “4” for
MEDIUM speeds.
• Turn the speed selector switch to position “5” or “6” for
HIGH speeds.
Operation
Starting + Stopping
mWARNING! Before switching on the tool, ensure that it
is not in contact with any object.
1. Secure the extension cord to the motor housing using the
cord retainer located at the rear of the blower. Then plug
the appliance cord into the extension cord (Fig. 7).
Fig. 9
6 5 4 3 2 1
Speed selector
switch
7
Shoulder support strap
This unit is equipped with a adjustable shoulder support strap
that can help secure the unit in operation (Fig. 10).
Fig. 10
Shoulder support
strap
Blower Mode
• Ensure the tubes are assembled correctly before
operating. Turn the blower/vac mode selector switch to
BLOWING MODE. Turn unit on (Fig. 13).
Fig. 13
1. To adjust the length of the strap, push it from one end to
form a loop above, and let out as needed (Fig. 11).
Fig. 11
2. Then pull the strap from the other side to tighten (Fig. 12).
Fig. 12
BLOWING MODE
• Hold the blower rmly with one hand on the main handle
and the other hand on the front handle. Sweep from side
to side with the lower tube several inches above the
ground or oor.
• Slowly advance the unit, keeping the accumulated pile
of debris in front of you. Most dry blowing operations are
better suited to low speeds rather than high speeds. High
speed blowing is best for moving heavier items like large
debris or gravel.
Vacuum/Mulcher Mode
• Once you have blown the debris/leaves into a pile, you
can convert to vacuum mode to collect the debris.
• Ensure the tubes are assembled correctly before
operating. Turn the blower/vac mode selector switch to
VACUUM MODE. Turn unit on (Fig. 14).
8
R
Fig. 14
VACUUM MODE
• With a rm hold on the vac, tilt the mulcher tubes
2 – 4 in. (5 – 10 cm) from the ground and use a sweeping
action to collect light debris. The debris will ow into the
bag. Items such as small leaves and twigs will be mulched
as they pass through the fan housing. For longer bag life
and increased performance, empty the bag frequently.
mWARNING! Switch o the tool and disconnect the plug,
and wait until the impeller comes to a standstill before dumping
the collection bag.
• Open the zipper of the collection bag and empty it
completely (Fig. 15).
Fig. 15
mWARNING! Do not vacuum solid objects such as
stones, broken glass, pieces of metal.
mWARNING! Do not vacuum liquids.
mWARNING! Do not vacuum large volumes of leaf
material at one time thus avoiding clogging of the vacuuming
opening and blocking of the mulcher impeller.
Note: The mulching intensity depends on the size of the leaf
material and its residual moisture.
Operating Tips
mWARNING! Use the blower/vacuum/mulcher only in
daylight or good articial light.
• When using the blower vac, plant your feet rmly on the
ground and place one hand on the unit handle and the
other hand on the front handle.
• Wear personal protective equipment during your work
session. This includes boots, safety glasses/goggles, ear
defenders, long pants and a long-sleeve shirt.
• When using the unit as mulcher, make sure the bag is
properly installed and zipped closed.
• Make sure the blower tube is not directed at anybody or
any loose debris before starting the unit.
• Verify that the unit is in good working condition. Make sure
the tube (and/or bag) is in place and secure.
• Use the shoulder strap when using the unit as a mulcher.
• Use the supporting wheels to easily guide the tube along
the ground.
• Operate power equipment only at reasonable hours—not
early in the morning or late at night when people might be
disturbed. Comply with times listed in local ordinances.
Typical recommendations are 9:00 am to 5:00 pm,
Monday through Saturday.
• To reduce noise levels, limit the number of pieces of
power equipment used at any one time and operate power
blowers at the lowest possible speed setting necessary to
do the job.
• Use rakes and brooms to loosen debris before blowing.
• In dusty conditions, slightly dampen surfaces.
• Compost material does not belong with domestic waste.
• Regularly empty collection bag (the vacuum capacity
decreases considerably when the collection bag is full).
9
Care + Maintenance
mWARNING! Disconnect the extension cord before
performing any maintenance task.
If the extension cord is plugged into the appliance, someone
could accidentally turn on the unit while you are performing
maintenance on it, which could result in serious personal injury.
Cleaning the Unit
1. Use a small brush to clean the outside of the unit. Do not
use strong detergents, household cleaners that contain
aromatic oils (e.g. pine and lemon) or harsh solvents such
as kerosene as these substances can damage the plastic
housing or the handles. Wipe o any moisture with a soft,
dry cloth.
2. Empty the bag after each use to avoid deterioration and
obstructing air ow, which will reduce the performance of
the unit.
3. Wear eye protection and a dust mask. Clean the bag as
needed. Turn the bag inside out after initial emptying and
vigorously shake out dust and debris.
4. After removing the collection bag, ensure that any
possible dirt residues are removed from the air outlet area.
5. Wash the bag once a year, or more often if needed. Follow
the steps below:
i. Remove the bag.
ii. Turn the bag inside out.
iii. Hang it up.
iv. Hose it down thoroughly.
v. Leave it hanging to dry.
vi. Turn the bag right-side out and reinstall.
no damage has occurred. Rotate the impeller blades by
hand to ensure the blockage is completely cleared.
5. Reinstall the blower tube or vacuum/mulcher tubes and
the bag.
6. Wait 3 minutes for the motor to cool.
7. Plug the unit back into the power supply and turn the ON/
OFF switch to ON (I). The blower vac will resume normal
operation.
Storage
1. Examine the electric blower/vacuum/mulcher thoroughly
for worn, loose or damaged parts. Should you need to
repair or replace a part, contact an authorized
Snow Joe® + Sun Joe® dealer or call the Snow Joe® +
Sun Joe® customer service center at 1-866-SNOWJOE
(1-866-766-9563) for assistance.
2. Examine the extension cord thoroughly for signs of excess
wear or damage. If it is worn or damaged, replace it
immediately.
3. Disconnect the extension cord from the electric blower/
vacuum/mulcher before storing.
4. Store the cord with the electric blower/vacuum/mulcher
indoors in a clean, dry and locked location out of the
reach of children and animals.
NOTE: Devices for retaining extension cords are commercially
available should you wish to purchase one.
Service and Support
If your Sun Joe® SBJ604E-RM 3-in-1 electric blower/vacuum/
mulcher requires service or maintenance, please call the
Snow Joe® + Sun Joe® customer service center at
1-866-SNOWJOE (1-866-766-9563).
Clearing a Blocked Tube/Impeller
mWARNING! To avoid serious personal injury, be sure the
unit is OFF and unplugged before clearing the impeller.
mWARNING! To avoid serious personal injury, always
wear gloves to protect yourself from the impeller blades or
other sharp objects.
During the vacuuming process, certain objects such as
cloth, rope or large diameter sticks may obstruct the fan and
block the motor. You will notice a power drop or intermittent
operation when using the unit.
In the event an obstruction occurs and power is curtailed:
1. Slide the ON/OFF switch down to the OFF (O) position
until the unit comes to a complete stop.
2. Unplug the unit.
3. Remove the tubes and the bag.
4. Using protective gloves, carefully remove the material
blocking the tube or impeller. Inspect the blades to ensure
Model and Serial Numbers
When contacting the company, reordering parts or arranging
service from an authorized dealer, you will need to provide the
model and serial numbers, which can be found on the decal
located on the housing of the unit. Copy these numbers into
the space provided below.
Record the following numbers from the housing or handle of your
new product:
S B J 6 0 4 E - R M
10
Model #:
Serial #:
Troubleshooting
Problem
The blower/
vacuum/mulcher
fails to operate
The blower/
vacuum/
mulcher operates
intermittently
No/low blowing
power
No/low vacuuming
power
Possible Cause
• No power supply
• Plug not connected
• Extension cord damaged
• ON/OFF switch defective
• Worn carbon brushes
• Defective motor
• Blowing/vacuum tube not completely mounted
• ON/OFF switch defective
• Internal wiring defective
• Impeller blocked by foreign object
• Transfer lever in vacuuming mode
• Transfer lever switch in blowing mode
• Collection bag is full, dirty
• Vacuuming opening clogged or blocked by foreign
object
Remedy
• Check power supply (power cable, circuit breakers, fuses)
• Connect the plug
• Replace extension cord
• Contact the Snow Joe
at 1-866-SNOWJOE (1-866-766-9563)
• Mount two-part blowing/vacuum tube
• Contact the Snow Joe
at 1-866-SNOWJOE (1-866-766-9563)
• Remove blockage
• Set selector switch to blowing mode
• Set transfer lever switch in vacuuming mode
• Empty/clean collection bag
• Remove blockage
®
+ Sun Joe® customer service center
®
+ Sun Joe® customer service center
Only a company specialist may be able to correct faults that cannot be rectied with the aid of this table. Please call the
Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).
11
Optional Accessories
mWARNING! ALWAYS use only authorized Snow Joe
replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe® + Sun Joe® if you are unsure
whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory
can be dangerous and could cause injury or mechanical damage.
®
+ Sun Joe® replacement parts and accessories. NEVER use
ModelAccessories Item
1
R
2
Sun Joe® SBJ604E
replacement bag
Snow Joe® + Sun Joe® SJTW-A 14-gauge
50-foot extension cord with
lighted end
SBJ604E-BAG
PJEXT50-B
NOTE: Accessories are subject to change without any obligation on the part of Snow Joe® + Sun Joe® to provide notice of such
changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe® + Sun Joe® customer
service center at 1-866-SNOWJOE (1-866-766-9563).
12
SNOW JOE® + SUN JOE® REFURBISHED GOODS WARRANTY
GENERAL CONDITIONS:
Snow Joe® + Sun Joe® operating under Snow Joe®, LLC warrants
this refurbished product to the original purchaser for 90 days
against defects in material or workmanship when used for normal
residential purposes. If a replacement part or product is needed,
it will be sent free of charge to the original purchaser except as
noted below.
The duration of this warranty applies only if the product is put to
personal use around the household. It is the owner’s responsibility
to correctly perform all maintenance and minor adjustments
explained in the owner’s manual.
HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:
To obtain a replacement part or product, please visit
snowjoe.com/help or email us at help@snowjoe.com for
instructions. Please be sure to register your unit beforehand to
speed up this process. Certain products may require a serial
number, typically found on the decal axed to the housing
or guard of your product. All products require a valid proof
of purchase.
EXCLUSIONS:
• Wearing parts like belts, augers, chains and tines are
not covered under this warranty. Wearing parts can be
purchased at snowjoe.com or by calling 1-866-SNOWJOE
(1-866-766-9563).
• Batteries are covered in full for 90-days from the date of
purchase.
Snow Joe® + Sun Joe® may from time to time change the design
of its products. Nothing contained in this warranty shall be
construed as obligating Snow Joe® + Sun Joe® to incorporate
such design changes into previously manufactured products, nor
shall such changes be construed as an admission that previous
designs were defective.
This warranty is intended to cover product defects only.
Snow Joe®, LLC is not liable for indirect, incidental or
consequential damages in connection with the use or misuse of
the Snow Joe® + Sun Joe® products covered by this warranty.
This warranty does not cover any cost or expense incurred
by the purchaser in providing substitute equipment or service
during reasonable periods of malfunction or non-use of this
product while waiting for a replacement part or unit under this
warranty. Some states do not allow exclusions of incidental or
consequential damages so the above exclusions may not apply
in all states. This warranty may give you specic legal rights in
your state.
HOW TO REACH US:
We’re here to help Monday through Friday from 9AM to 6PM EST.
You can reach us at 1-866-SNOWJOE (1-866-766-9563), online
at snowjoe.com, via email at help@snowjoe.com or tweet us
@snowjoe.
EXPORTS:
Customers who have purchased Snow Joe® + Sun Joe®
products exported from the United States and Canada should
contact their Snow Joe® + Sun Joe® distributor (dealer) to obtain
information applicable to your country, province or state. If for
any reason, you are not satised with the distributor’s service,
or if you have diculty obtaining warranty information, contact
your Snow Joe® + Sun Joe® seller. If in the event your eorts are
unsatisfactory, please reach out to us directly.
13
snowjoe.com
mWARNING! This product or its power cord contains chemicals, including lead, known to the State
of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
For more information go to www.P65Warnings.ca.gov.
mWARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specically designed to lter out microscopic particles.
For more information go to www.P65Warnings.ca.gov.
Loading...
